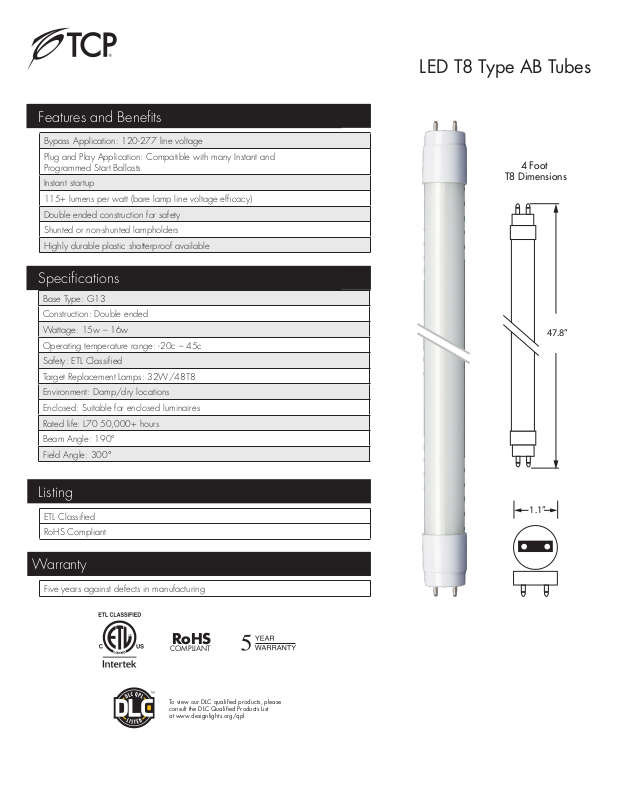

Features and Benefits
Bypass Application: 120-277 line voltage
Plug and Play Application: Compatible with many Instant and
Programmed Start Ballasts
Instant startup
115+ lumens per watt (bare lamp line voltage efficacy)
Double ended construction for safety
Shunted or non-shunted lampholders
Highly durable plastic shatterproof available
Specifications
Base Type: G13
Construction: Double ended
Wattage: 15w – 16w
Operating temperature range: -20c – 45c
Safety: ETL Classified
Target Replacement Lamps: 32W/48T8
Environment: Damp/dry locations
Enclosed: Suitable for enclosed luminaires
Rated life: L70 50,000+ hours
Beam Angle: 190°
Field Angle: 300°
LED T8 Type AB Tubes
4 Foot
T8 Dimensions
47.8”
Listing
ETL Classified
RoHS Compliant
Warranty
Five years against defects in manufacturing
RoHS
COMPLIANT
To view our DLC qualified products, please
consult the DLC Qualified Products List
at www.designlights.org/qpl.
1.1”
LED T8 Type AB Tubes
LED T8 Type AB Tubes— Ballast and Line Voltage Compatible
Item#
LED 15 WATT T8 TUBE – 4 FOOT GLASS
LT815AB30K T8040730E LED 15W 4' T8 AB 30K >80 >.9 <10% 16W 1750 109.4 13.6 15.3 1550 1760 115.0
LT815AB35K T8040735E LED 15W 4' T8 AB 35K >80 >.9 <10% 16W 1800 112.5 13.6 15.3 1550 1760 115.0
LT815AB41K T8040740E LED 15W 4' T8 AB 41K >80 >.9 <10% 16W 1800 112.5 13.6 15.3 1590 1800 117.6
LT815AB50K T8040750E LED 15W 4' T8 AB 50K >80 >.9 <10% 16W 1800 112.5 13.6 15.3 1590 1800 117.6
LED 15.5 WATT T8 TUBE – 4 FOOT PLASTIC
LPT815AB30K T8041430E LED 15.5W 4' T8 AB PL 30K >80 >.9 <10% 16W 1750 109.4 13.6 15.3 1550 1760 115.0
LPT815AB35K T8041435E LED 15.5W 4' T8 AB PL 35K >80 >.9 <10% 16W 1750 109.4 13.6 15.3 1550 1760 115.0
LPT815AB41K T8041440E LED 15.5W 4' T8 AB PL 41K >80 >.9 <10% 16W 1800 112.5 13.6 15.3 1590 1800
LPT815AB50K T8041450E LED 15.5W 4' T8 AB PL 50K >80 >.9 <10% 16W 1850 115.6 13.6 15.3 1620 1850 120.9
H
T8041435E T8041435E LED 15.5W 4' T8 AB PL 35K >80 >.9 <10% 16W 1800 112.5 13.6 15.3 1590 1800 117.6
H
T8041441E T8041440E LED 15.5W 4' T8 AB PL 41K >80 >.9 <10% 16W 1800 112.5 13.6 15.3 1590 1800 117.6
H
T8041450E T8041450E LED 15.5W 4' T8 AB PL 50K >80 >.9 <10% 16W 1850 115.6 13.6 15.3 1590 1800 117.6
Using OSRAM QTP 2x32T8/UNV ISN-SC electronic ballast.
*
Nominal Values. Actual values are dependent on type electronic ballast used.
**
H
Product in QLS packaging.
DLC
Model#
Description
CRI PF THD
Line
Voltage
Watts
Line
Voltage
Lumens
Line
Voltage
LPW
LBF
System
Watts
NBF
System
**
Watts
LBF
Lumens
NBF
*
System
117.6
Lumens
**
NBF
LPW
LINE
(120-277 VAC)
NEUTRAL
BALLAST
SHUNTED
SHUNTED
INSTANT START DIAGRAM AFTER RETROFIT:
LINE
(120-277 VAC)
SHUNTED
NEUTRAL
BALLAST
NON-
SHUNTED
PROGRAMMED START DIAGRAM AFTER RETROFIT:
NON-SHUNTED
