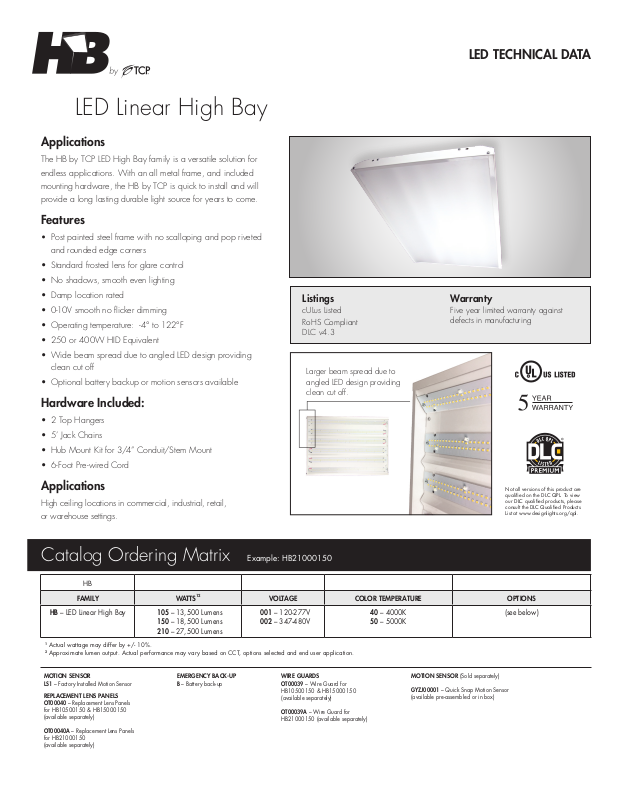

LED Linear High Bay
Applications
The HB by TCP LED High Bay family is a versatile solution for
endless applications. With an all metal frame, and included
mounting hardware, the HB by TCP is quick to install and will
provide a long lasting durable light source for years to come.
Features
• Post painted steel frame with no scalloping and pop riveted
and rounded edge corners
• Standard frosted lens for glare control
• No shadows, smooth even lighting
• Damp location rated
• 0-10V smooth no flicker dimming
• Operating temperature: -4° to 122°F
• 250 or 400W HID Equivalent
• Wide beam spread due to angled LED design providing
clean cut off
• Optional battery backup or motion sensors available
Hardware Included:
• 2 Top Hangers
• 5’ Jack Chains
• Hub Mount Kit for 3/4” Conduit/Stem Mount
• 6-Foot Pre-wired Cord
Listings
cULus Listed
RoHS Compliant
DLC v4.3
Larger beam spread due to
angled LED design providing
clean cut off.
LED TECHNICAL DATA
Warranty
Five year limited warranty against
defects in manufacturing
Applications
High ceiling locations in commercial, industrial, retail,
or warehouse settings.
Catalog Ordering Matrix Example: HB21000150
HB
FAMILY WATTS
HB – LED Linear High Bay 105 – 13,500 Lumens
1
Actual wattage may differ by +/- 10%.
2
Approximate lumen output. Actual performance may vary based on CCT, options selected and end user application.
MOTION SENSOR
LS1 – Factory Installed Motion Sensor
REPLACEMENT LENS PANELS
OT00040 – Replacement Lens Panels
for HB10500150 & HB15000150
(available separately)
– Replacement Lens Panels
OT00040A
for HB21000150
(available separately)
150 – 18,500 Lumens
210 – 27,500 Lumens
12
EMERGENCY BACK-UP
B – Battery back-up
VOLTAGE COLOR TEMPERATURE OPTIONS
001 – 120-277V
002 – 347-480V
WIRE GUARDS
OT00039 – Wire Guard for
HB10500150 & HB15000150
(available separately)
– W
OT00039A
HB21000150 (available separately)
ire Guard for
40 – 4000K
50 – 5000K
Not all versions of this product are
qualified on the DLC QPL. To view
our DLC qualified products, please
consult the DLC Qualified Products
List at www.designlights.org/qpl.
(see below)
MOTION SENSOR
GYZJ00001 – Quick Snap Motion Sensor
(available pre-assembled or in box)
(Sold separately)
Dimensions
Photometric Report
LED Linear High Bay
LED TECHNICAL DATA
Side ViewBack View
12.6 in
1.96 in
23.8 in
3.8 in
HB105 and HB150
(23.8 x 12.6 inches)
Photometric Report
HB10500150 HB21000150
23.8 in
HB210
(23.8 x 17.5 inches)
Side ViewBack View
17.5 in
1.96 in
3.8 in
Specifications and dimensions subject to change without notice.
©TCP AUG2018/WF122974
