Document Version: 0. 3

Date: 2007/12/17

Product Specifications

26.0” WXGA Color TFT-LCD Module Model Name: T260XW02 VL

() Preliminary Specifications

(*) Final Specifications

◎

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

Contents

No

1 2

3 3-1 3-2 3-3 3-4 3-5 3-6 3-7

4

ITEM

COVER CONTENTS RECORD OF REVISIONS GENERAL DESCRIPTION ABSOLUTION MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTERISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR INPUT DATA REFERENCE POWER SEQUENCE for LCD POWER SEQUENCE for INVERTER OPTICAL SPECIFICATIONS

5 5-1 5-2

6

7 7-1 7-2 7-3

8

9

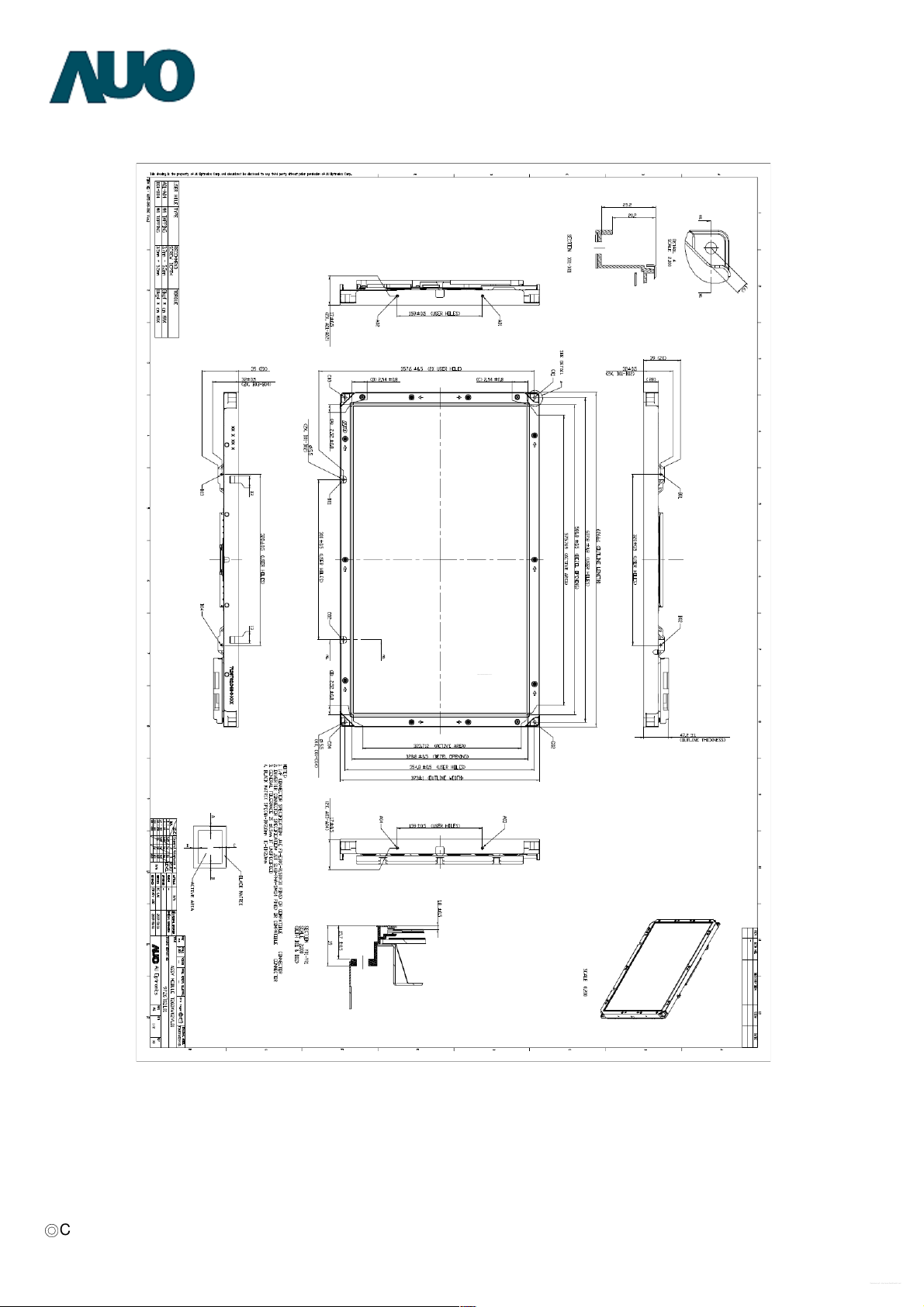

MECHANICAL CHARACTERISTICS Front view Rear view RELIABILITY INTERNATIONAL STANDARDS SAFETY EMC Green PACKING PRECAUTIONS

◎

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

Record of Revision

Version Date No Old Description New Description Remark

0.3

2007 / 12/17

Final Spec

◎

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

1. General Description

This specification applies to the 26.0 inch Color TFT-LCD Module T260XW02. This LCD module

has a TFT active matrix type liquid crystal panel 1366x768 pixels, and diagonal size of 26.0 inch.

This module supports 1366x768 XGA-WIDE mode(Non-interlace).

Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical

stripes. Gray scale or the brightness of the sub-pixel color is determined with a 8-bit gray scale

signal for each dot.

The T260XW02 has been designed to apply the 8-bit 1 channel LVDS interface method. It is

intended to support displays where high brightness, wide viewing angle, high color saturation, and

high color depth are very important.

* General Information

Items Specification Unit Note Active Screen Size Display Area Pixel Pitch Outline Dimension

Driver Element Display Colors Number of Pixels Pixel Arrangement Display Mode BL Structure Surface Treatment Green

26.0

575.769 (H) x 323.712(V)

0.4215 mm

626.0 (H) x 373.0 (V) x

47.2(D)

a-Si TFT active matrix

16.7M

1366 x 768

RGB vertical stripe

Normally Black

6 U-Lamps

AG-SR6

RoHS compliance

inches

mm

mm With inverter

Colors

Pixel

◎

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

2. Absolute Maximum Ratings

The following are maximum values which, if exceeded, may cause faulty operation or damage to the unit.

Item Symbol Min Max Unit Condition

s

Logic/LCD Drive Voltage LVDS Option Control Voltage BLU Input Voltage External Analog Dimming Control

Voltage On/Off Control Voltage Internal PWM Dimming Control

Voltage Operating Temperature Operating Humidity Storage Temperature Storage Humidity

VCC -0.3 13.2 [Volt] Note 1

V

LVDSOPT

-0.3 3.6 [Volt] Note 1

VDDB -0.3 27.0 [Volt] Note 1

VDIM -0.3 6.0 [Volt] Note 1

VBLON -0.3 6.0 [Volt] Note 1

VDIM -0.3 6.0 [Volt] Note 1

TOP 0 +50 [oC] Note 2 HOP 10 90 [%RH] Note 2

TST -20 +60 [oC] Note 2

HST 10 90 [%RH] Note 2

Note 1: Duration = 1 sec

Note 2: Maximum Wet-Bulb should be 39℃ and No condensation.

◎

Input High Threshold

Differential Input Low Threshold

s

µ

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

3. Electrical Specification

The T260XW02 requires two power inputs. One is employed to power the LCD electronics and to drive the TFT array and liquid crystal. The second input power for the BLU is to power inverter.

3-1 Electrical Characteristics

Parameter

Symbol

Min. Typ. Max.

Values

Unit Notes

LCD:

Power Supply Input Voltage Vcc 10.8 Power Supply Input Current Icc - 0.42

12 13.2

A 1

V

Power Consumption Pc - 4.8 Watt 1 Inrush Current I

- - 3.0 A 2

RUSH

LVDS Interface:

Differential Voltage

Voltage Common Input Voltage VCIM 1.10 1.25 1.40

VTH +100

VTL -100

mV

V

CMOS Interface:

Input High Threshold Voltage VIH(High) 2.4 3.3 Vdc

Input Low Threshold Voltage VIL(Low) Backlight Power Consumption - - 79.4 Life Time 50,000 60,000

0 0.7 Vdc

Watt 3

Hours

4

Note :

1. Vcc=12.0V, Fv=60Hz, Fclk= 85.0 MHz , 25℃. , Test Pattern : White Pattern

2. Vcc rising time = 470

3.

VDDB=24V, VDIM=3.3V, PDIM=100%, test in the whole period from VDDB power on to power off.

4. The performance of the Lamp in LCM, for example: lifetime or brightness, is extremely influenced by the

characteristics of the DC-AC Inverter. So all the parameters of an inverter should be carefully designed so as

not to produce too much leakage current from high-voltage output of the inverter. When you design or order

the inverter, please make sure unwanted lighting caused by the mismatch of the lamp and the inverter (no

lighting, flicker, etc) never occurs. When you confirm it, the LCD Assembly should be operated in the same

condition as installed in your instrument.

5. Do not attach a conducting tape to lamp connecting wire. If the lamp wire attach to conducting tape, TFT-LCD

Module have a low luminance and the inverter has abnormal action because leakage current occurs between

lamp wire and conducting tape.

6. The relative humidity must not exceed 80% non-condensing at temperatures of 40℃ or less. At temperatures

greater than 40

brightness of CCFL will drop and the lifetime of CCFL will be reduced.

℃

, Vcc=12.0V

, the wet bulb temperature must not exceed 39℃. When operate at low temperatures, the

◎

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

3-2 Interface Connections

- LCD connector (CN1): JAE FI-E30S-R1500

Note:

1. All GND (ground) pins should be connected together and should also be connected to the LCD’s metal frame. All

Vcc (power input) pins should be connected together.

Pin No

1 AGING No Connect (AUO Aging Only)

2 SCL EEPROM Serial Clock

3 SDA EEPROM Serial Data

4 GND Ground

5 R_0- LVDS Channel, Signal 0-

6 R_0+ LVDS Channel, Signal 0+

7 GND Ground

8 R_1- LVDS Channel, Signal 1-

9 R_1+ LVDS Channel, Signal 1+

10 GND Ground

11 R_2- LVDS Channel, Signal 2-

12 R_2+ LVDS Channel, Signal 2+

13 GND Ground

14 R_CLK- LVDS Channel, Clock -

15 R_CLK+ LVDS Channel, Clock +

16 GND Ground

17 R_3- LVDS Channel, Signal 3-

18 R_3+ LVDS Channel, Signal 3+

19 GND Ground

20 NC No Connect (AUO Internal Use Only)

21 LVDS_SEL Open/High(3.3V) for NS, Low(GND) for JEIDA

22 WP EEPROM Write Protection

23 GND Ground

24 GND Ground

25 GND Ground

26 VDD Operating Voltage Supply, +5/12V DC Regulated

27 VDD Operating Voltage Supply, +5/12V DC Regulated

28 VDD Operating Voltage Supply, +5/12V DC Regulated

29 VDD Operating Voltage Supply, +5/12V DC Regulated

30 VDD Operating Voltage Supply, +5/12V DC Regulated

Symbol Description Default

◎

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

LVDS Option = H (3.3V)  JETDA Format

Previous Cycle Current Cycle Next Cycle

Clock

RIN0+ RIN0-

RIN1+ RIN1-

RIN2+ RIN2-

RIN3+

RIN3-

G7

LVDS Option = L (GND) or N.C. NS Format

Previous Cycle Current Cycle Next Cycle

Clock

R2R7 G2G2R2R3 R4R5R6 R3

G3B2 B3B3G3G4 G5G6 G4

B4NA DEDEB4B5 B6B7NA B5

R0B1 NANAR0R1 G0G1B0 R1

RIN0+ RIN0-

RIN1+ RIN1-

RIN2+ RIN2-

RIN3+

RIN3-

R0R5 G0G0R0R1 R2R3R4 R1

G1B0 B1B1G1G2 G3G4G5 G2

B2NA DEDEB2B3 B4B5NA

B3

R6B7 NANAR6R7 G6G7B6 R7

◎

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

BACKLIGHT CONNECTOR PIN CONFIGURATION

1. Electrical specification

(Ta=25±5℃)

No

1 Input Voltage

Input Current

2

(Turn on Condition)

Input Power

3

(Turn on Condition)

Input Current

4

(Stable Condition)

5 Input Power (Stable Condition)

ITEM SYMBOL CONDITION MIN TYP MAX UNIT

V

--- 21.6 24.0 26.4

DDB

V

=24V

I

P

I

P

DDB

VDIM=3.3V

V

=24V

DDB

VDIM=3.3V

--- (88.8) W 1

V

=24V

DDB

VDIM=3.3V 3.01 3.16 3.31

V

=24V

DDB

VDIM=3.3V 72.2 75.8 79.4

VDD=24V

6 Input inrush current, 20ms

I

RUSH

VDIM=3.3V

--- --- 6 A

7 Output Frequency

8 ON/OFF Control Voltage

9 ON/OFF Control Current

10 Dimming Control Voltage

11 Dimming Control Current

FBL VDD=24V 56 58 60 kHz

V

BLON

DIM

I

DIM

ON

OFF

I

VDD=24V -1 --- 1.5 mA

BLON

MAX

MIN

VDD=24V 2.0 3.3 5.0 V VDD=24V 0.0

VDD=24V --- 3.3 --- V or Open VDD=24V --- 0.0 --- V

VDD=24V --- --- 1.5 mA

Note1: Condition: VDDB=24V (Ta=25±5℃, Turn on for 45minutes), PWM=100%

V

(3.7)

A 1

W 1

--- 0.8 V or Open

Note

◎

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

2. Input specification

Pin No Symbol Description Default

Pin No Symbol Description

1 VDDB(main power) DC input 24V VDC

2 VDDB(main power) DC input 24V VDC

3 VDDB(main power) DC input 24V VDC

4 VDDB(main power) DC input 24V VDC

5 VDDB(main power) DC input 24V VDC

6 GND Ground

7 GND Ground

8 GND Ground

9 GND Ground

10 GND Ground

Panel status detect

11 Panel DET

Inverter OK: Low/GND (0-0.8V) Inverter NG: open collector BL on-off :

12 VBLON

high/open(3.3 ~ 5V) for BL on, low(GND) for BL off VDIM: Internal PWM Dimming control signal input (DC

13 VDIM (LCD Bright)

0~3.3V) (3.3V : Maximum brightness, 0V min brightness) < NC ; when External PWM > PDIM: External PWM Dimming control signal input (AC

14 PDIM (LCD Bright)

0~3.3V, Duty: 20%~100%) < NC ; when internal PWM >

CN1: S14B-PHA-SM-TB (JST)

CN2: CP042EP1MFA-LF (Civilux)

24V

GND

-

◎

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

3-3 Signal Timing Specifications

This is the signal timing required at the input of the User connector. All of the interface signal timing should be satisfied with the following specifications for its proper operation.

* Timing Table

DE only Mode Vertical Frequency

Signal Item Symbol Min. Typ. Max. Unit

Vertical Section

Period Tv 784 806 1015 Th

Active Tdisp(v) 768 Th

Blanking Tblk (v) 16 38 247 Th

Horizontal

Section

Period Th 1414 1648 1900 Tclk

Active Tdisp(h) 1366 Tclk

Blanking Tblk (h) 48 282 534 Tclk LVDS Clock

Vertical

Frequency

Horizontal

Frequency

Frequency Fclk (1/Tclk)

Frequency

Fv 47 60 63 Hz

Fh 43 48 53 kHz

60 80 85 MHz

*1) Display position is specific by the rise of DE signal only. Horizontal display position is specified by the falling edge of 1st Clock right after the rise of DE, is displayed on the left edge of the screen. Vertical display position is specified by the rise of DE after a “Low” level period equivalent to eight times of horizontal period. The 1st data corresponding to one horizontal line after the rise of DE is displayed at the top line of screen. *2) If a period of DE “High” is less than 1366 Clock or less than 768 lines, the rest of the screen displays black. *3) The display position does not fit to the screen if a period of DE “High” and the effective data period do not synchronize with each other.

◎

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

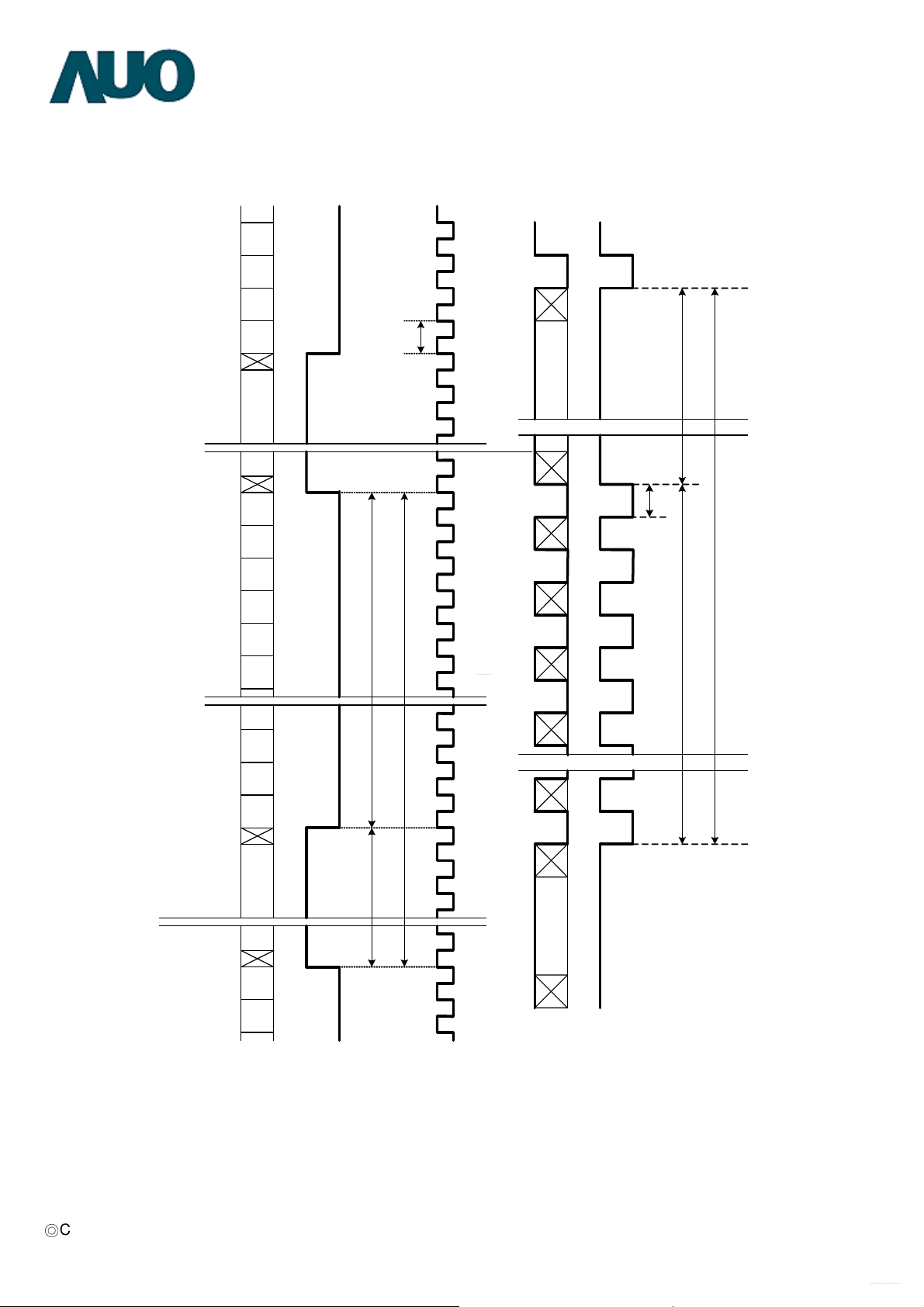

3-4 Signal Timing Waveforms

RGB Data

1366

Pixel

Invalid Data

DE

CLK

Tclk

RGB

Data

Line

768

Invalid Data Invalid Data

DE

Line

Pixel

1

Pixel

2

Pixel

3

Pixel

4

Pixel

5

Pixel

6

1366

Pixel

Invalid Data

Tdisp(h)

Th

1

Line

2

Line

3

Line

4

Line

768

Th

Tv

Tdisp(v)

Pixel

1

Pixel

2

◎

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

3-5 Color Input Data Reference

The brightness of each primary color (red, green and blue) is based on the 8 bit gray scale data

input for the color; the higher the binary input, the brighter the color. The table below provides a

reference for color versus data input.

COLOR DATA REFERENCE

Input Color Data

Basic Color

RED

Color

MSB LSB

RED

MSB LSB

R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0 Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 Red(255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Green(255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 Blue(255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 Cyan 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 Magenta 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 Yellow 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 White 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

RED(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 RED(001) 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

---RED(254) 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 RED(255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

GREEN

BLUE

MSB LSB

GREEN

BLUE

GREEN(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 GREEN(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0

---GREEN(254) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 GREEN(255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

BLUE(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 BLUE(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1

------BLUE(254) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0

BLUE(255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

◎

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

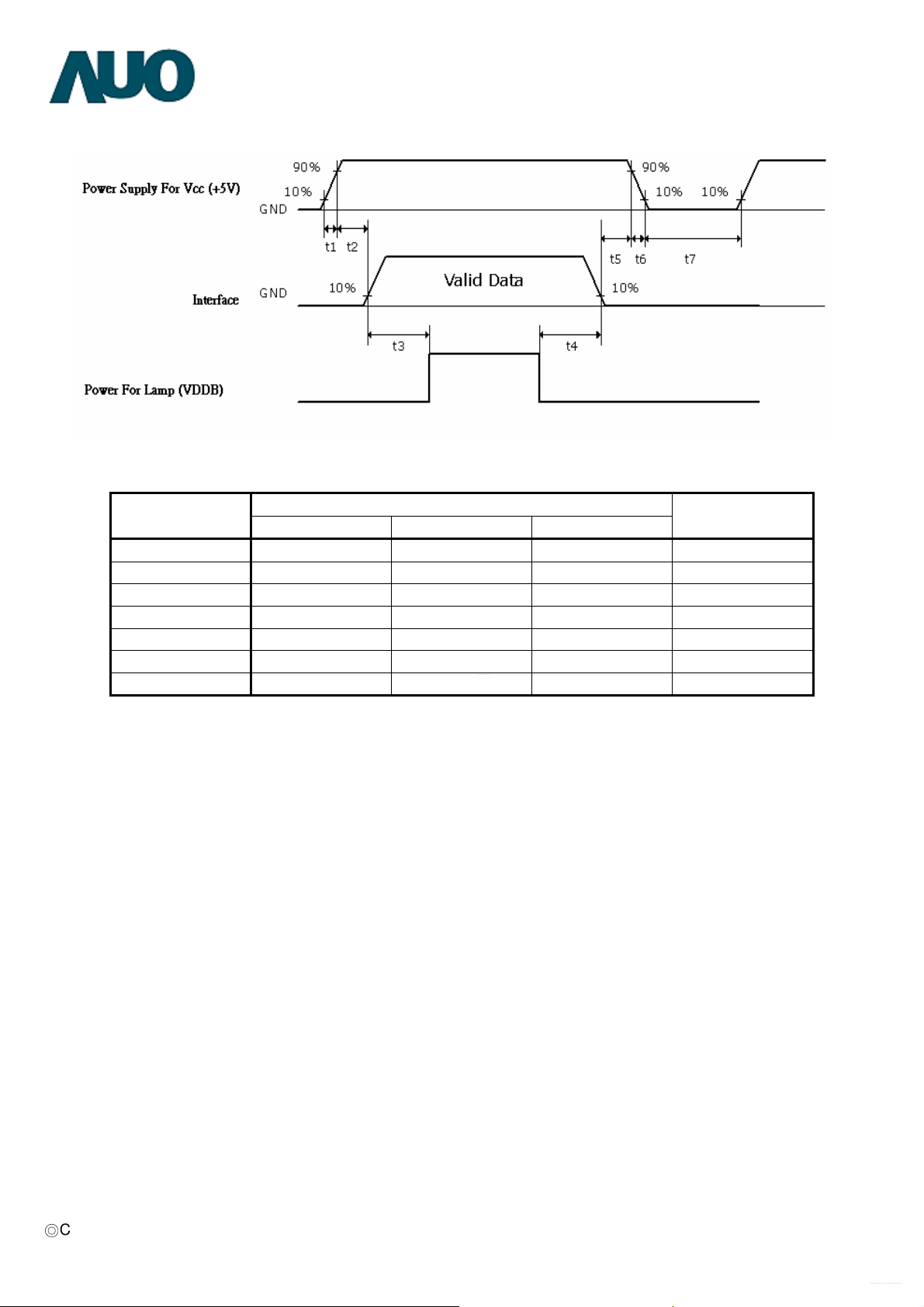

3-6 Power Sequence for LCD

Parameter

Min. Typ. Max.

Values

Units

t1 0.4 - 30 ms t2 0.1 - 50 ms t3 200 - - ms t4 10 - - ms t5 0.1 - 50 ms t6 - - 300 ms t7 300 - - ms

(1) Apply the lamp voltage within the LCD operation range. When the back-light turns on before the LCD operation or

the LCD turns off before the back-light turns off, the display may momentarily become abnormal screen.

◎

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

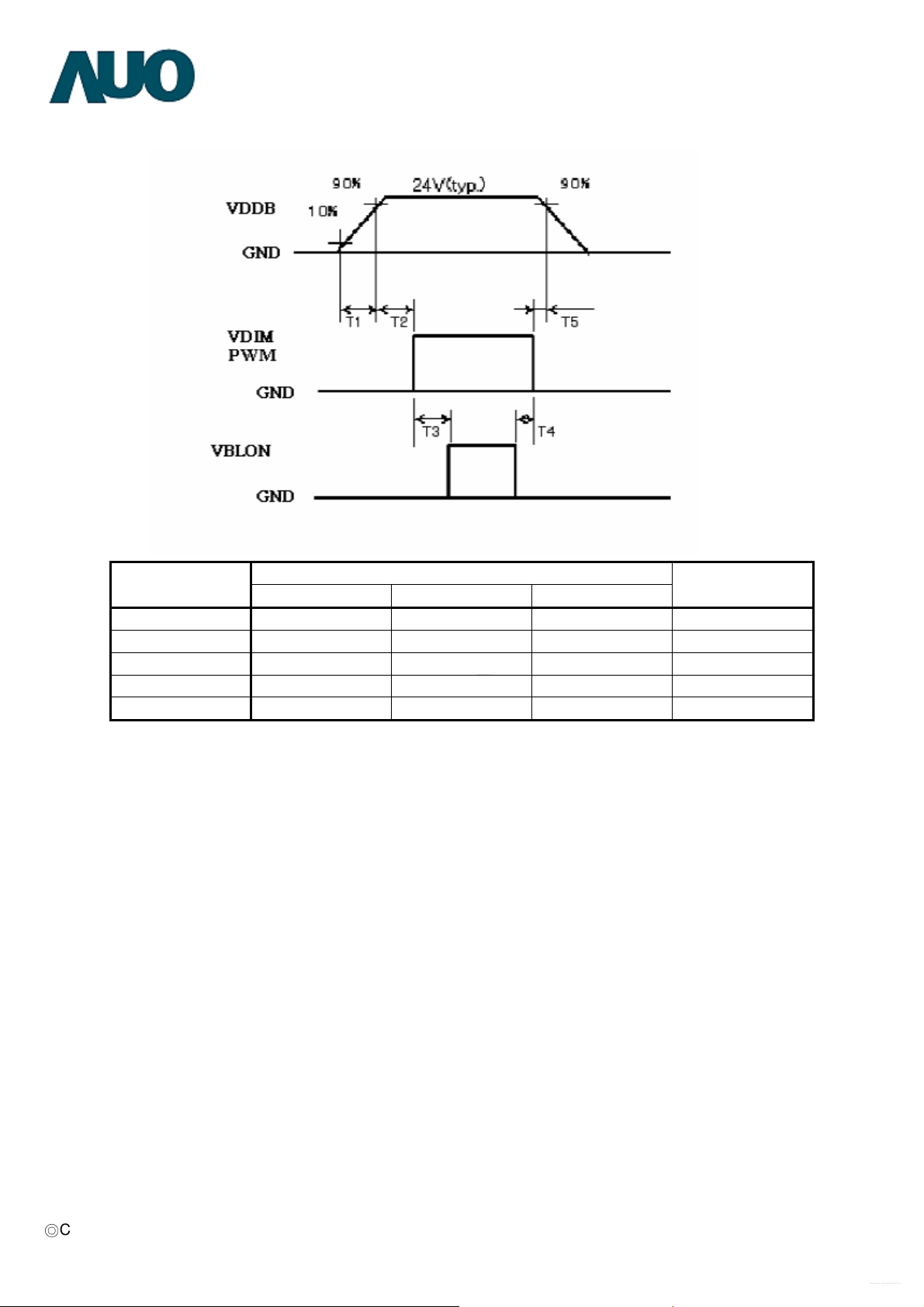

3-7 Power Sequence for Inverter

Parameter

Min. Typ. Max.

Values

T1 20 - - Ms T2 10 - - Ms T3 0 - - Ms T4 50 - - Ms T5 0 - - Ms

Units

◎

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

4. Optical Specification

Optical characteristics are determined after the unit has been ‘ON’ and stable for approximately 45 minutes in a dark environment at 25℃. The values specified are at an approximate distance 50cm from the LCD surface at a viewing angle of Φ and θequal to 0°. Signal generator used for measurement is “Chroma 2913” and signal setting follows the typical value shown in page 13 with vertical frequency range A (fv=60Hz). Meanwhile, dimmer is 3.3(V) for its maximum setting.

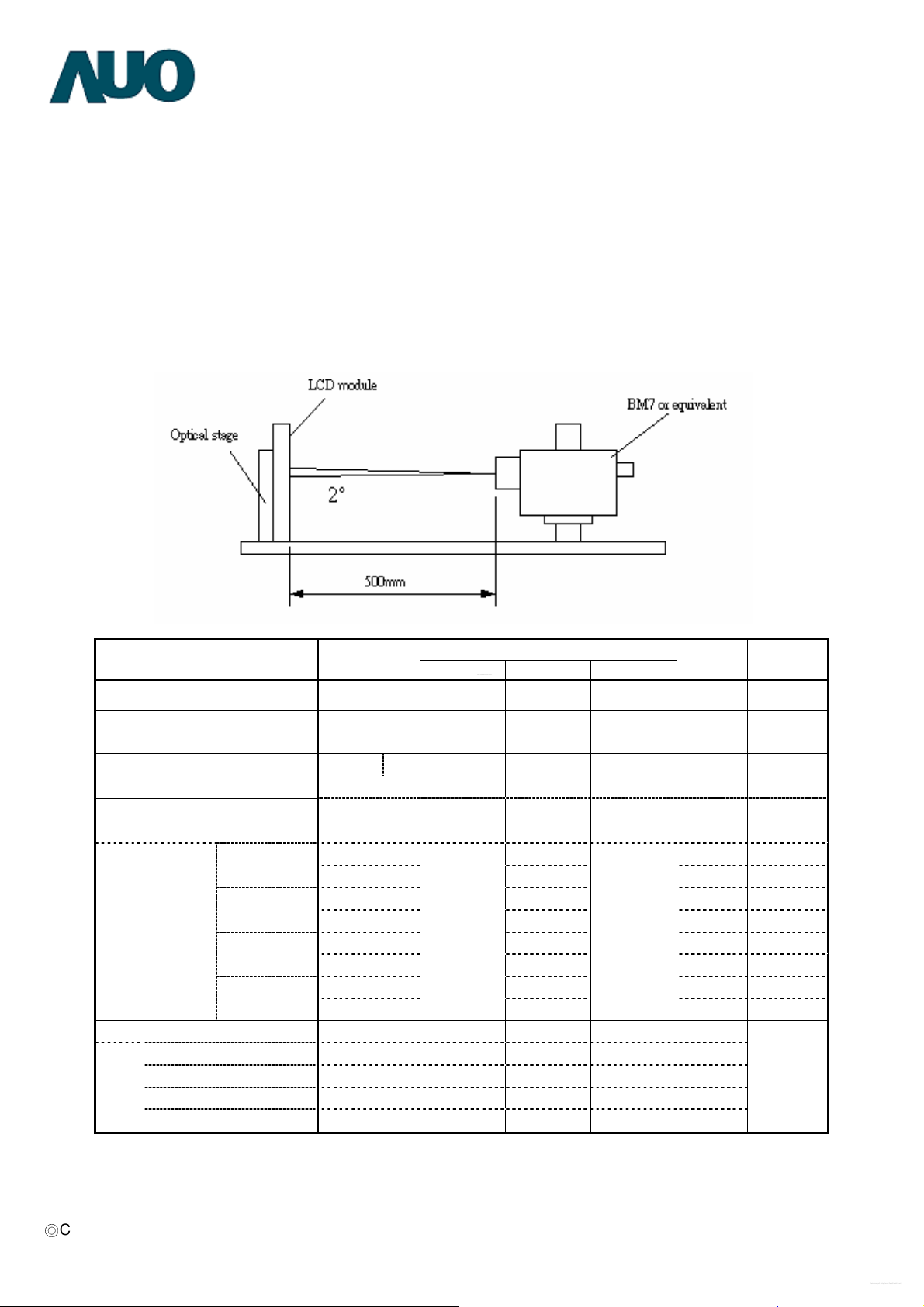

Fig.1 1 presents additional information concerning the measurement equipment and

method.

Parameter

Contrast Ratio

Surface Luminance, white Luminance Variation δ Response Time (G to G) Color Gamut

Symbol

Min. Typ. Max.

Values

CR 2000 2500

LWH 400 500

WHITE

9 p

1.3

Tγ 6.5 ms

NTSC 72 %

Units Notes

cd/㎡

Color Coordinates

RED

GREEN

BLUE

WHITE

RX 0.635 RY 0.334 GX 0.284 GY 0.592

BX 0.147

Typ.-0.03

Typ.+0.03

BY 0.052 WX 0.280 WY

0.290

Viewing Angle

x axis, right(φ=0°) x axis, left(φ=180°) y axis, up(φ=90°) y axis, down (φ=0°)

θr 88 Degree

θl 88 Degree θu 88 Degree θd 88 Degree

1

2

3 4

6

◎

3

4 5 6

8

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

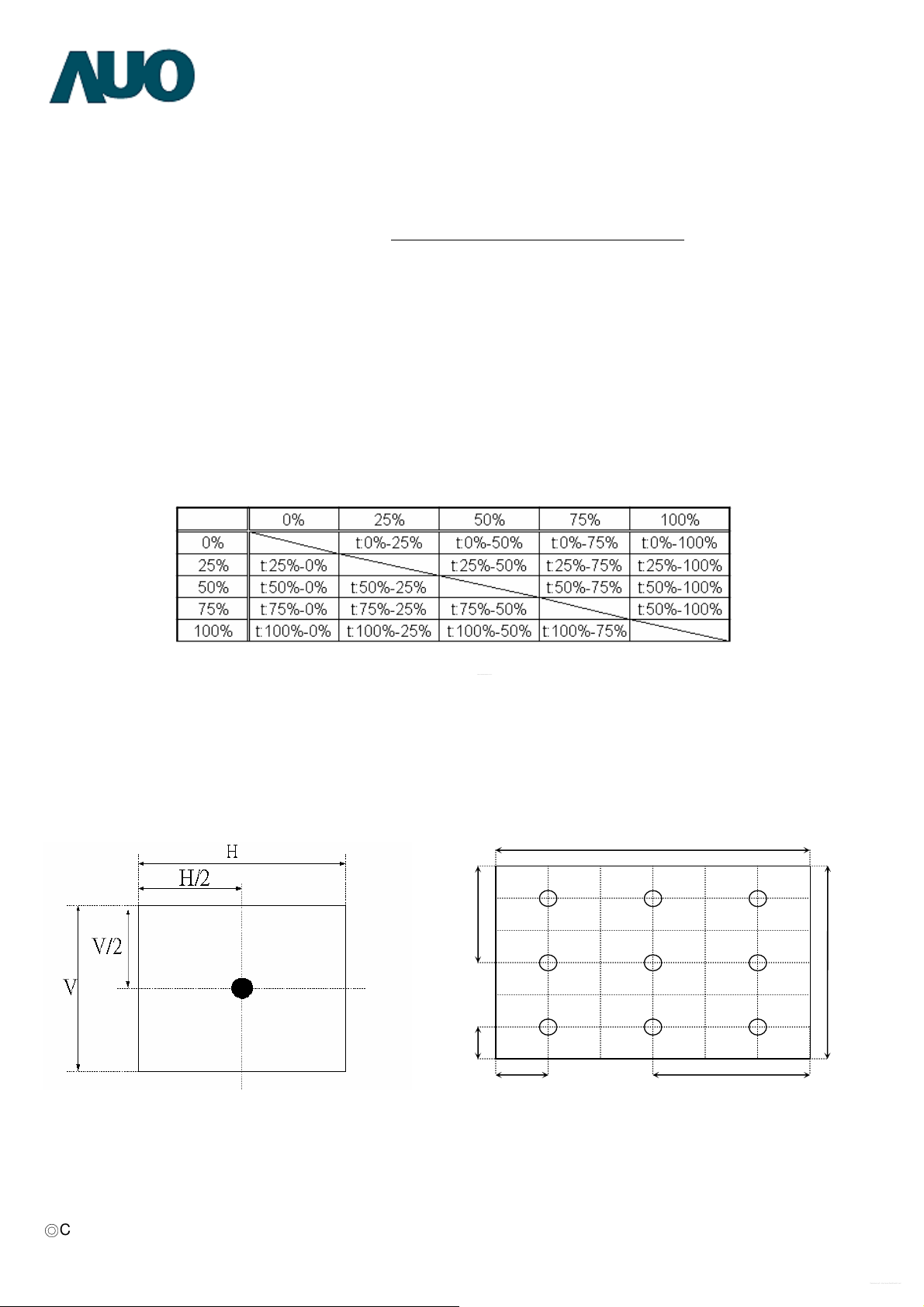

Note:

1. Contrast Ratio (CR) is defined mathematically as:

Surface Luminance of L

on1

Contrast Ratio=

Surface Luminance of L

2. Surface luminance is luminance value at point 1 across the LCD surface 50cm from the surface with all pixels

displaying white. From more information see FIG 2. When V

Where Lon1 is the luminance with all pixels displaying white at center 1 location.

3. The variation in surface luminance, δ

δ

WHITE(9P)

= Maximum(L

is defined (center of Screen) as:

WHITE

, L

on1

on2

,…L

) / Minimum(L

on9

4. Response time Tγ is the average time required for display transition by switching the input signal for five luminance ratio

(0%,25%,50%,75%,100% brightness matrix) and is based on fv=60Hz to optimize.

5. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are determined for the

DDB

= 24V, I

= 3.5A. LWH=Lon1

DDB

, L

on1

on2

off1

,…,L

on9

)

horizontal or x axis and the vertical or y axis with respect to the z axis which is normal to the LCD surface. For more

information see FIG4.

FIG. 2 Luminance

H/2

H/6

1

7

V

2

V/2 V/6

H

◎

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

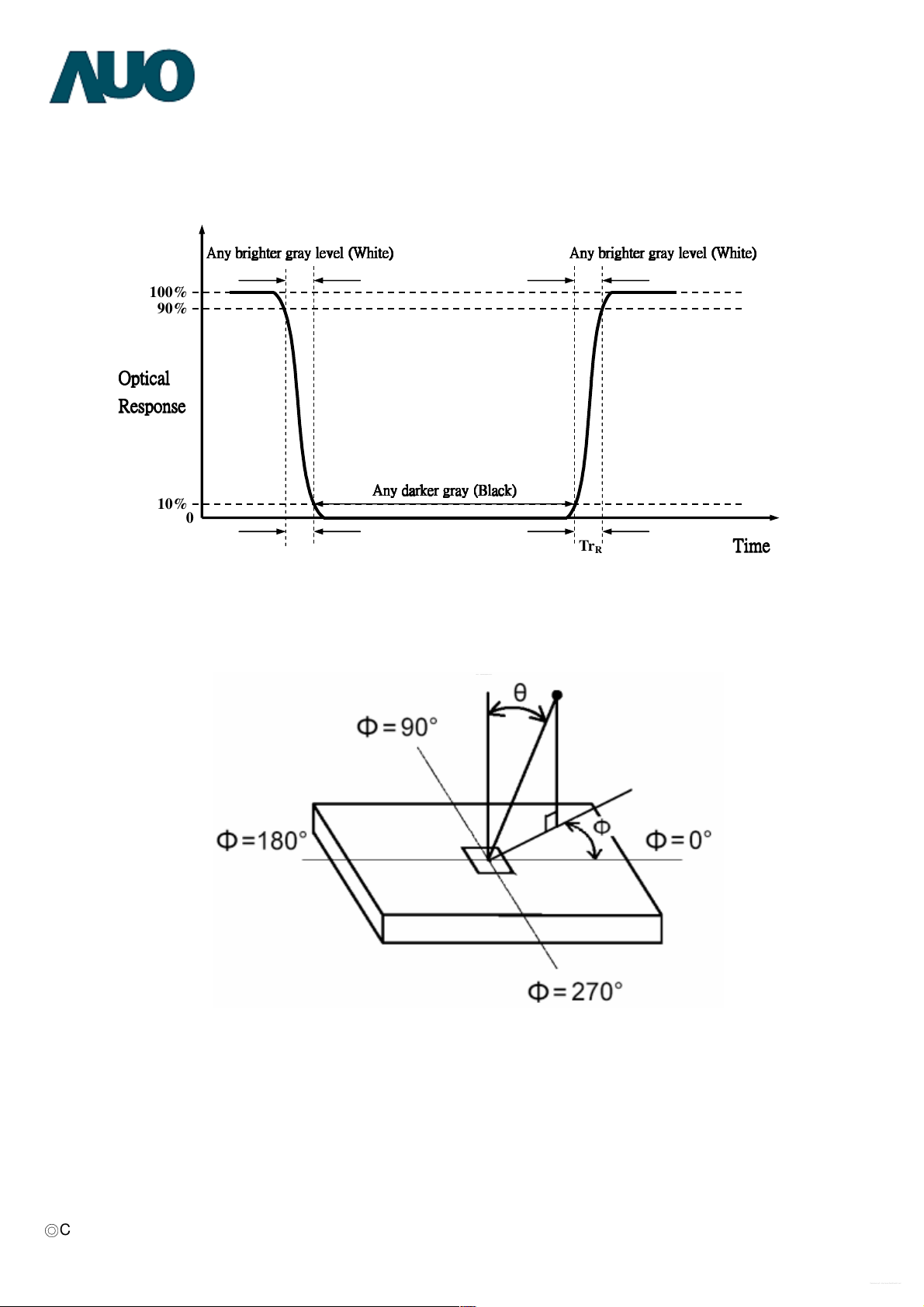

FIG.3 Response Time

The response time is defined as the following figure and shall be measured by switching the

input signal for “any level of gray(bright) “ and “any level of gray(dark)”.

Any brighter gray level

Any brighter gray level (White)

Any brighter gray levelAny brighter gray level

100%

90%

Optical

Optical Optical

Response

ResponseResponse

10%

0

FIG.4 Viewing angle

Tr

(White)

(White) (White)

Any darker gray

Any darker gray (Black)

Any darker grayAny darker gray

D

(Black)

(Black) (Black)

Any brighter gray level

Any brighter gray level (White)

Any brighter gray levelAny brighter gray level

Tr

R

(White)

(White) (White)

Time

TimeTime

◎

Active Display

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

5. Mechanical Characteristics

The contents provide general mechanical characteristics for the model T260XW02. In addition the

figures in the next page are detailed mechanical drawing of the LCD.

Horizontal 626.0mm

Outline Dimension

Bezel Area

Area Weight 4500g (Typ.) Surface Treatment

Vertical 373.0mm

Depth

47.2mm(w/i inverter& Shielding)

30.2mm(w/o inverter)

Horizontal 580.8mm±0.5mm

Vertical 328.8mm±0.5mm

Horizontal 575.769mm

Vertical 323.712mm

AG-SR6

◎

5.1 Front View

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

◎

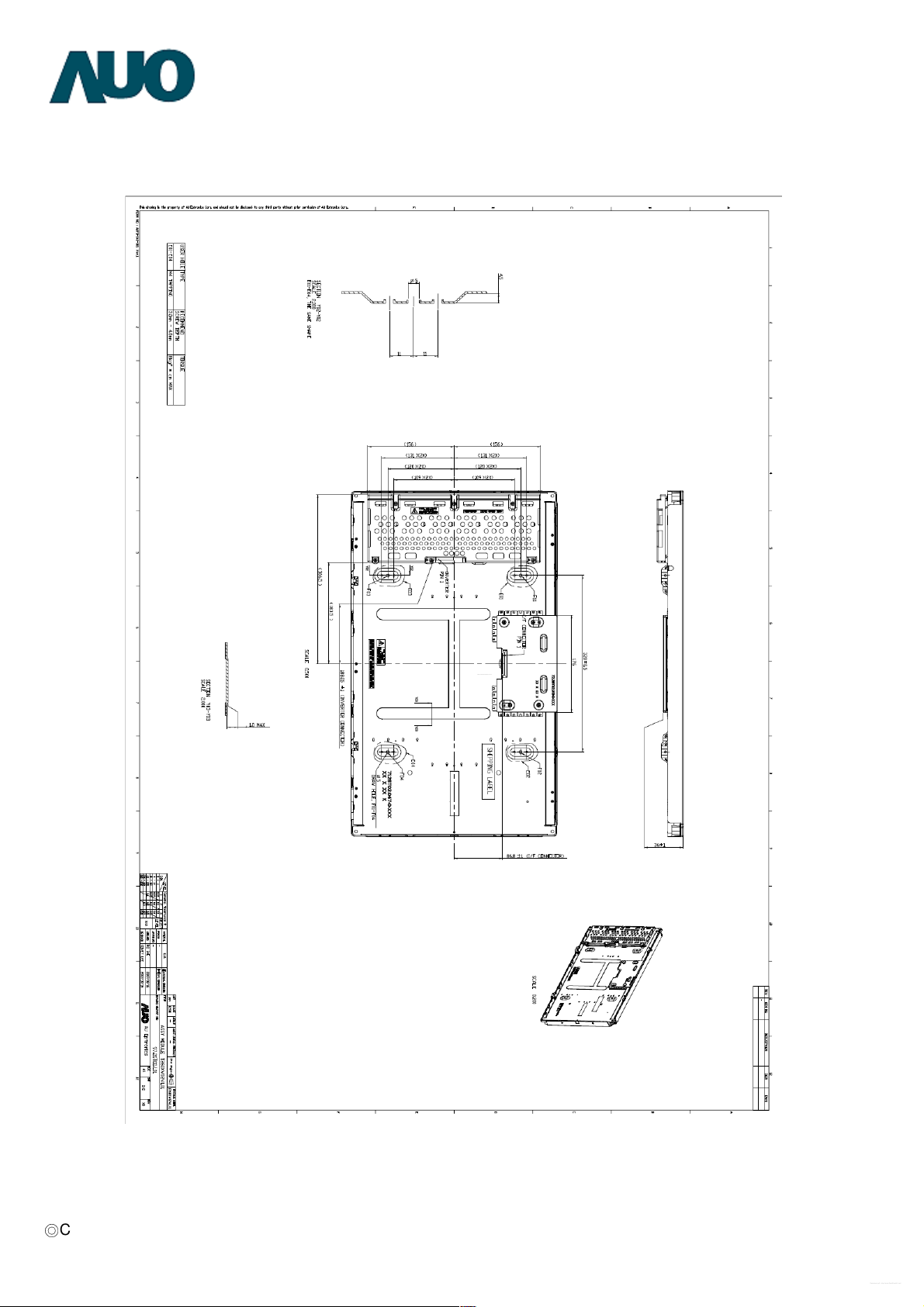

5.2 Rear View

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

◎

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

6. Reliability

Environment test condition

Test Items Q'ty Conditions

1 High Temperature Stroage 3 2 Low Temperature Stroage 3 3 High Temperature Operation 3 4 Low Temperature Operation 3

5 Vibration (non-operation) 3

6 Shock (non-operation) 3

60℃ 300 hrs

-20℃, 300 hrs 50℃, 300 hrs

-5℃, 300 hrs (10 ~ 300Hz/1.5G/11min SR, XYZ 30min/axis)

Vibration level : 1.5G RMS, Bandwidth : 10-300Hz Duration: X, Y, Z 30min,

Shock level: 50G Waveform: have sine wave, 11ms Direction: ±X,±Y, ±Z One time each direction

7 Vibration (With carton) 3

8 Drop (With carton) 3

Random wave (1.5 Grms 10~200Hz) 30mins / Per each X.Y.Z axes

Height: 46cm 1 corner, 3 edges, 6 surfaces (ASTMD4169-I)

◎

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

7. International Standard

7-1. Safety

(1) UL1950 Third Edition, Underwriters Laboratories, Inc. Jan. 28, 1995

Standard for Safety of Information Technology Equipment Including electrical Business

Equipment.

(2) CAN/CSA C22.2 No. 950-95 Third Edition, Canadian Standards Association, Jan. 28, 1995

Standard for Safety of Information Technology Equipment Including Electrical Business

Equipment.

(3) EN60950: 1992+A2: 1993+A2: 1993+C3: 1995+A4: 1997+A11: 1997

IEC 950: 1991+A1: 1992+A2: 1993+C3: 1995+A4:1996

European Committee for Electro technical Standardization (CENELEC)

EUROPEAN STANDARD for Safety of Information Technology Equipment Including Electrical

Business Equipment.

(4) EN60065

7-2. EMC

a) ANSI C63.4 “Methods of Measurement of Radio-Noise Emissions from Low-Voltage

Electrical and Electrical Equipment in the Range of 9kHz to 40GHz. “American National

standards Institute(ANSI), 1992.

b) C.I.S.P.R “Limits and Methods of Measurement of Radio Interface Characteristics of

Information Technology Equipment.” International Special committee on Radio Interference.

c) EN 55022 “Limits and Methods of Measurement of Radio Interface Characteristics of

Information Technology Equipment.” European Committee for Electro technical

Standardization. (CENELEC), 1998.

7-3. Green

Green Mark Description:

a) For Pb Free products, AUO will add for identification. b) For RoHS compatible products, AUO will add for identification.

Note. The Green Mark will be present only when the green documents have been ready by AUO

Internal Green Team. (The definition of green design follows the AUO green design checklist.)

◎

8.

5

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

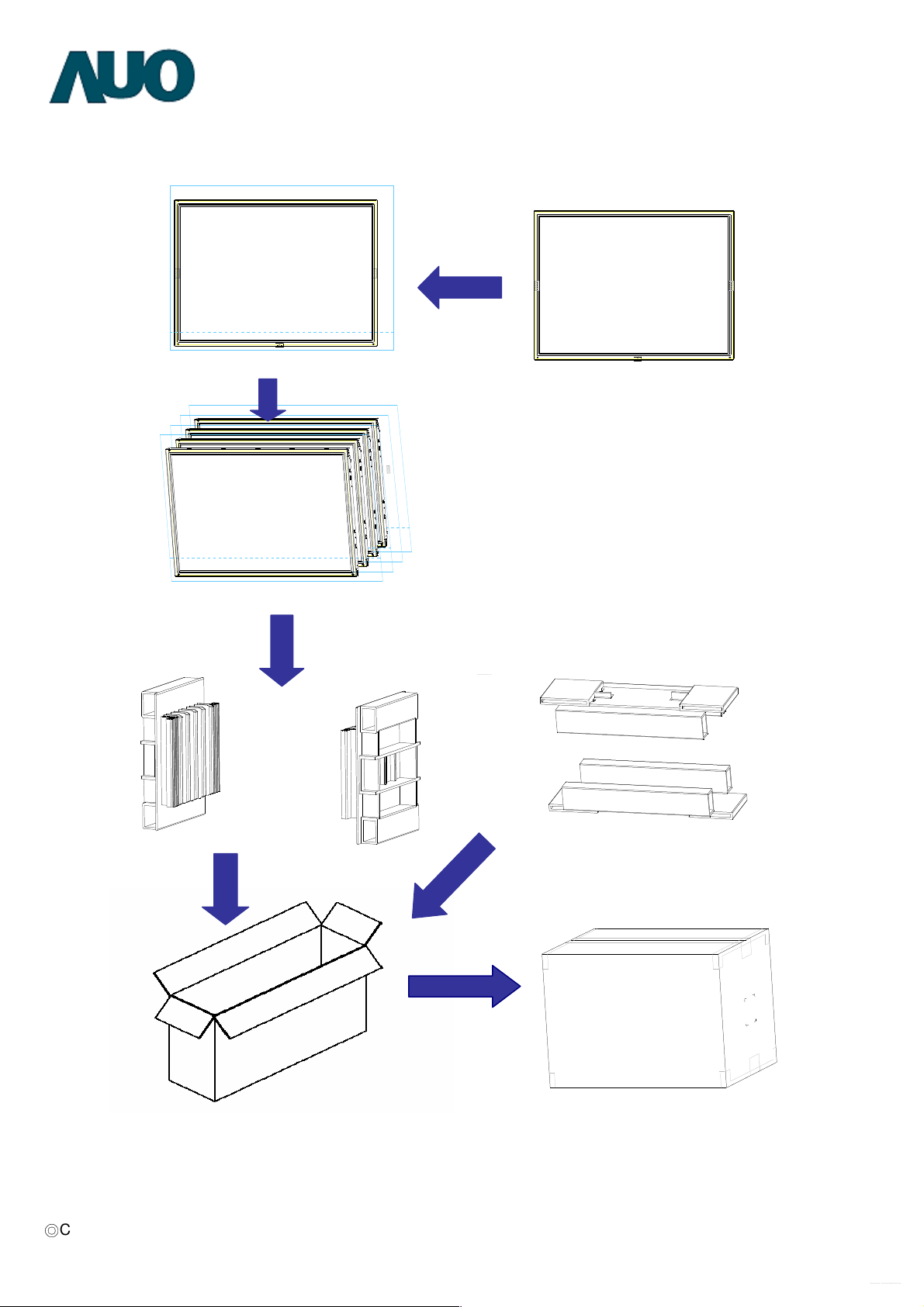

Packing

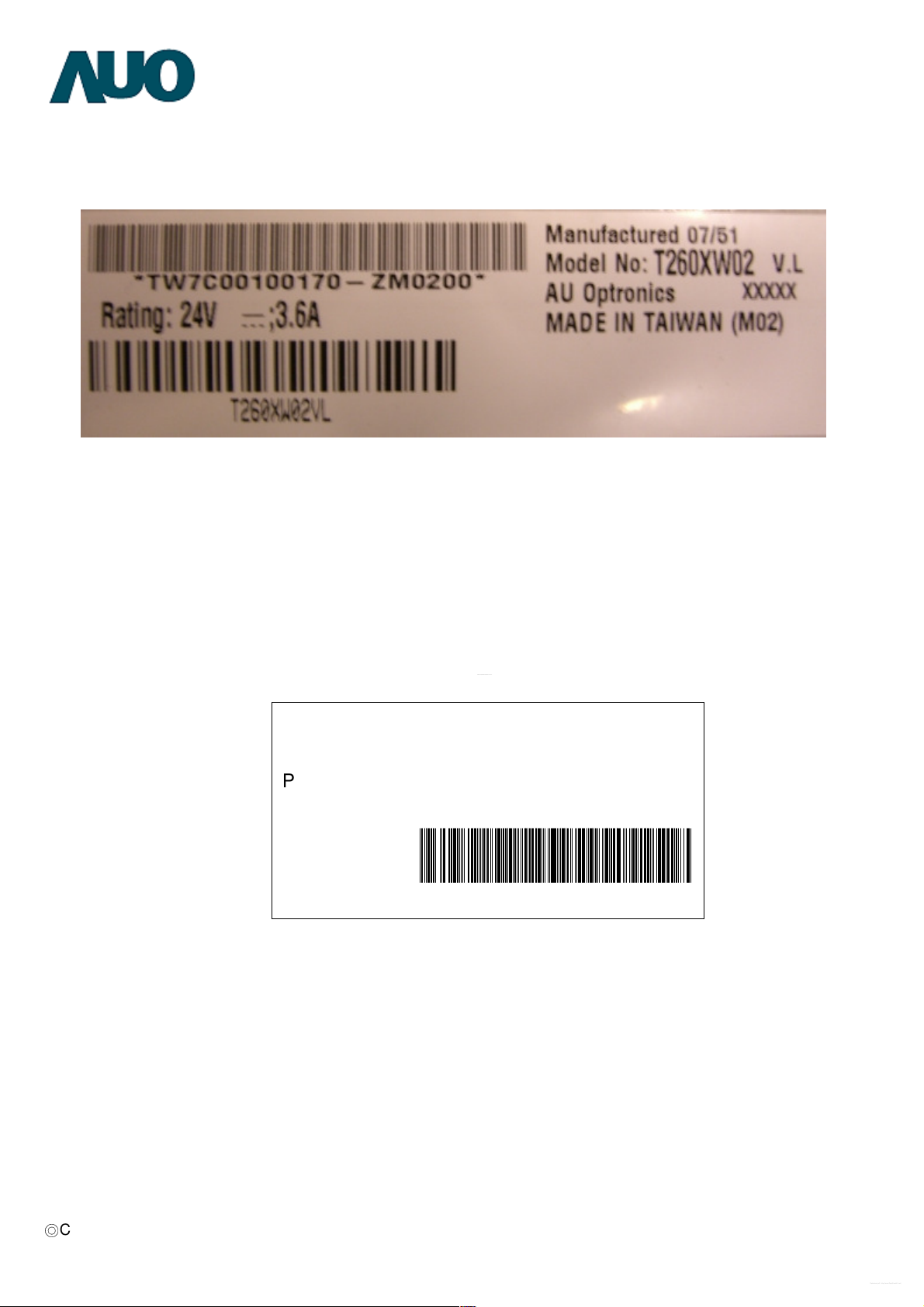

Label sample

TW5A01100005-ZMA00*

TW5A011: Production lot (T-Taiwan, 5-year, 1~C-month)

00005: Panel serial number

ZMA: AUO internal code

Manufactured 05/43: 2005 week 43

Carton Label

AU O

ptronics

MODEL NO: T260XW02 VX

PART NO: 97.26T02.XXX

CUSTOMER NO:

CARTON NO:

Made in Taiwan

*PM100-01A1600001*

QTY: 4

◎

Carton Size

5

pcs

Modules

Cushion set

1pcs Module/ESD Bag

Cushion top

Module

5

pcs / 1 carton

Cushion down

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

722(L) mm*325(W) mm*469(H) mm

◎

after

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

Item

1

Packing BOX

2

Pallet

3

Boxes per Pallet

4

Panels per Pallet Pallet

packing

Specification

Qty. Dimension Weight (kg)

5pcs/box 722(L)mm*325(W)mm*469(H)mm 1 6 boxes/Pallet 30pcs/pallet 30

980(L)mm*730(W)mm*120(H)mm

980(L)mm*730(W)mm*1058(H)mm

26.4

178.4

Packing Remark

◎

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

9.

PRECAUTIONS

Please pay attention to the followings when you use this TFT LCD module.

9-1 MOUNTING PRECAUTIONS

(1) You must mount a module using holes arranged in four corners or four sides. (2) You should consider the mounting structure so that uneven force (ex. Twisted stress) is not applied to module. And the case on which a module is mounted should have sufficient strength so that external force is not transmitted directly to the module. (3) Please attach the surface transparent protective plate to the surface in order to protect the polarizer. Transparent protective plate should have sufficient strength in order to the resist external force. (4) You should adopt radiation structure to satisfy the temperature specification. (5) Acetic acid type and chlorine type materials for the cover case are not desirable because the former generates corrosive gas of attacking the polarizer at high temperature and the latter causes circuit break by electro-chemical reaction. (6) Do not touch, push or rub the exposed polarizers with glass, tweezers or anything harder than HB pencil lead. And please do not rub with dust clothes with chemical treatment. Do not touch the surface of polarizer for bare hand or greasy cloth. (Some cosmetics are detrimental to the polarizer.) (7) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials like chamois soaks with petroleum benzene. Normal-hexane is recommended for cleaning the adhesives used to attach front/ rear polarizers. Do not use acetone, toluene and alcohol because they cause chemical damage to the polarizer. (8) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes deformations and color fading. (9) Do not open the case because inside circuits do not have sufficient strength.

9-2 OPERATING PRECAUTIONS

(1) The device listed in the product specification sheets was designed and manufactured for

TV application

(2) The spike noise causes the mis-operation of circuits. It should be lower than following

voltage: V=±200mV(Over and under shoot voltage)

(3) Response time depends on the temperature. (In lower temperature, it becomes longer..)

(4) Brightness depends on the temperature. (In lower temperature, it becomes lower.) And in

lower temperature, response time (required time that brightness is stable after turned on)

becomes longer.

(5) Be careful for condensation at sudden temperature change. Condensation makes damage

to polarizer or electrical contacted parts. And after fading condensation, smear or spot will

occur.

(6) When fixed patterns are displayed for a long time, remnant image is likely to occur.

(7) Module has high frequency circuits. Sufficient suppression to the electromagnetic

interference shall be done by system manufacturers. Grounding and shielding methods may

◎

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

be important to minimize the interface.

9-3 ELECTROSTATIC DISCHARGE CONTROL

Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make

certain that treatment persons are connected to ground through wrist band etc. And don’t touch

interface pin directly.

9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE

Strong light exposure causes degradation of polarizer and color filter.

9-5 STORAGE

When storing modules as spares for a long time, the following precautions are necessary.

(1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the temperature between 5℃ and 35℃ at normal humidity.

(2) The polarizer surface should not come in contact with any other object. It is recommended

that they be stored in the container in which they were shipped.

9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM

(1) The protection film is attached to the bezel with a small masking tape. When the protection

film is peeled off, static electricity is generated between the film and polarizer. This should be

peeled off slowly and carefully by people who are electrically grounded and with well

ion-blown equipment or in such a condition, etc.

(2) When the module with protection film attached is stored for a long time, sometimes there

remains a very small amount of flue still on the Bezel after the protection film is peeled off.

(3) You can remove the glue easily. When the glue remains on the Bezel or its vestige is

recognized, please wipe them off with absorbent cotton waste or other soft material like

chamois soaked with normal-hexane.

◎

T-CON T260XW02 VL Schematic

Specifications and Main Features

Frequently Asked Questions

User Manual
