Product Description: 26 inch TFT-LCD PANEL

AUO Model Name: T260XW02 VG

Customer Part No/Project Name:

Customer Signature Date AUO Date

PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com

Page 2

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

Document Version: 1.0

Date:2006/12/1

Product Functional Specification

26” Color TFT-LCD Module

Model Name: T260XW02 VG

(QDI Model: QD26HL0101)

() Preliminary Specification

(*) Final Specification

PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com

Page 3

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

This specification sheet is for model name change, since AUO merged QDI from 2006/10/1 This Specification Sheet keep the original QDI Model name and Spec. New Model name and old model name comparison table as following: AUO QDI Model Name T260XW02 VG QD26HL0101 Change Item 1. Carton Printing format

2. Product Serial label format

PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com

Page 4

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

Revision History

REV.

Date ECN NO. Change Content

1 12/1 Change AUO product name

PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com

Page 5

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

Content List

Page

1. Application 5

2. Overview 5

3. General Specifications 5

4. Input Terminals 6

5. Absolute Maximum Ratings 5

6. Electrical Characteristics 11

7. Timing Characteristics 15

8. Input Signals, Basic Display Colors and Gray Scale of Each Color 17

9. Optical Characterics 18

10. Display Quality 21

11. Handling Precautions 21

12. Reliability Test Items 21

13. Others 22

14. Drawing 23

PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com

Page 6

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

1. Application This specification applies to a color TFT-LCD module, QD26HL01

2. Overview This module is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). It is composed of a color TFT-LCD panel; driver ICs, control circuit and power supply circuit and a backlight unit. Graphics and texts can be displayed on a 1366×3×768 dots panel with 16.7 million colors by using the LVDS (Low Voltage Differential Signaling) interface, 8-bit driving method and supplying +12V DC supply voltage for TFT-LCD panel driving. The TFT-LCD panel used for this module has very high aperture ratio. A low-reflection and higher-color-saturation type color filter is also used for this panel. Therefore, high-brightness and high-contrast image, which is suitable for the LCD TV,HDTV and multimedia use, can be obtained by using this module.

[Features]

1) High aperture panel; high-brightness

2) Brilliant and high contrast image.

3) High speed response

4) WXGA resolution. 16:9

5) LVDS interface.

6) QSV technology

7) Wide viewing angle.

3. General Specifications Parameter Specifications Unit

Display size 66.05 (26") Diagonal cm Active area Pixel format

575.769 (H)×323.712 (V) 1366 (H)×768 (V)

Pixel (1 pixel = R+G+B dots) Pixel pitch

0.4215 (H) × 0.4215 (V)

mm Pixel configuration R,G,B vertical stripe Display mode Normally Black Unit outline dimensions 626 x 373 mm

Thickness Typ. 40.9 mm

PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com

Page 7

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

Weight TBD g Surface treatment Anti-glare(12%) and

hard-coating 3H

Lamp Quantity 8 U shape pcs

PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com

Page 8

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

4. Input Terminals 4-1. TFT-LCD panel driving CN1 (LVDS signals and +12V DC power supply) Connector on Panel : FI-X30SSL-HF(Manufactured by JAE) or Equivalent Mating connector : FI-30C2L (Manufactured by JAE) or Equivalent

Pin No

Symbol Description Default

1 VCC +12V, DC, Regulated

2 VCC +12V, DC, Regulated

3 VCC +12V, DC, Regulated

4 VCC +12V, DC, Regulated

5 GND Ground and Signal Return

6 GND Ground and Signal Return

7 GND Ground and Signal Return

8 GND Ground and Signal Return

9 LVDS Option High/Open for Normal (NS), Low for JEIDA Default NS type

10 Reserved N.C. Test Mode?

11 GND Ground and Signal Return for LVDS

12 RXIN0- LVDS Channel 0 negative

13 RXIN0+ LVDS Channel 0 positive

14 GND Ground and Signal Return for LVDS

15 RXIN1- LVDS Channel 1 negative

16 RXIN1+ LVDS Channel 1 positive

17 GND Ground and Signal Return for LVDS

18 RXIN2- LVDS Channel 2 negative

19 RXIN2+ LVDS Channel 2 positive

20 GND Ground and Signal Return for LVDS

21 RXCLKIN- LVDS Clock negative

PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com

Page 9

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

22 RXCLKIN+ LVDS Clock Positive

23 GND Ground and Signal Return for LVDS

24 RXIN3- LVDS Channel 3 negative

25 RXIN3+ LVDS Channel 3 positive

26 GND Ground and Signal Return for LVDS

27 Reserved N.C. Test Mode?

28 Reserved N.C. Test Mode?

29 GND Ground and Signal Return

30 GND Ground and Signal Return

【

Note 1】All GND(ground) pins should be connected together.

【Note 2】All VDD (power supply) pins should be connected together.

PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com

Page 10

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

4-2 Interface block diagram

PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com

Page 11

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

4-3. Backlight driving 4-3-1. Inverter Connector Connector on Inverter : S14B-PH-SM3(Manufactured by JST) or Equivalent Mating connector : PHR-14 (Manufactured by JST) or Equivalent ( ):need further discussion on both sides

Pin No

Symbol Description Default

1 VIN Operating Voltage Supply, +24V DC regulated 24V 2 VIN Operating Voltage Supply, +24V DC regulated 24V 3 VIN Operating Voltage Supply, +24V DC regulated 24V 4 VIN Operating Voltage Supply, +24V DC regulated 24V 5 VIN Operating Voltage Supply, +24V DC regulated 24V 6 BLGND Ground and Current Return GND 7 BLGND Ground and Current Return GND 8 BLGND Ground and Current Return GND 9 BLGND Ground and Current Return GND

10 BLGND Ground and Current Return GND

11 ADIM Analog Dimming : Open/High(3.3V) for Max. Lum. Max

12 ON/OFF BL On-Off : High(3.3V)or( Open) for BL On as default

PWM Dimming Control : Open/High(3.3V) for Max.

13 PDIM

Lum

Max

14 PESEL

Selection of lumimance control method, Vcx duty:high/,

PWM duty:low/open

4-3-2. Lamp connector

TBD

5. Absolute Maximum Ratings LCD module

Parameter Symbol Condition +12V supply voltage V Storage temperature Tstg －

Ta=25

℃

PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com

Ratings Unit Remark

-0.3 〜＋14.0

－

20 〜＋60

Ｖ

℃ 【

Note1

】

Page 12

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

Operating temperature (Ambient) Topa －

【

Note1】Humidity：90%RH Max. at Ta≦40℃.

0 〜＋50

℃

Maximum wet-bulb temperature at 39℃ or less at Ta>40

℃

No condensation.

PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com

Page 13

Rise time

T5 T6 T7 T3 T4

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

6. Electrical Characteristics 6-1.TFT-LCD panel driving Ta＝25℃

Parameter Symbol Min. Typ. Max. Unit Remark

Supply voltage V

Current dissipation IDD Permissive input ripple

11.4 +12.0 12.6

－

340 700

VRP

－

voltage Differential input High

threshold voltage Low Rush current I

【

Note1】 VCM : Common mode voltage of LVDS driver.

VTH

VTL

RUSH

－

-100

－

3.0 A

【

Note2】

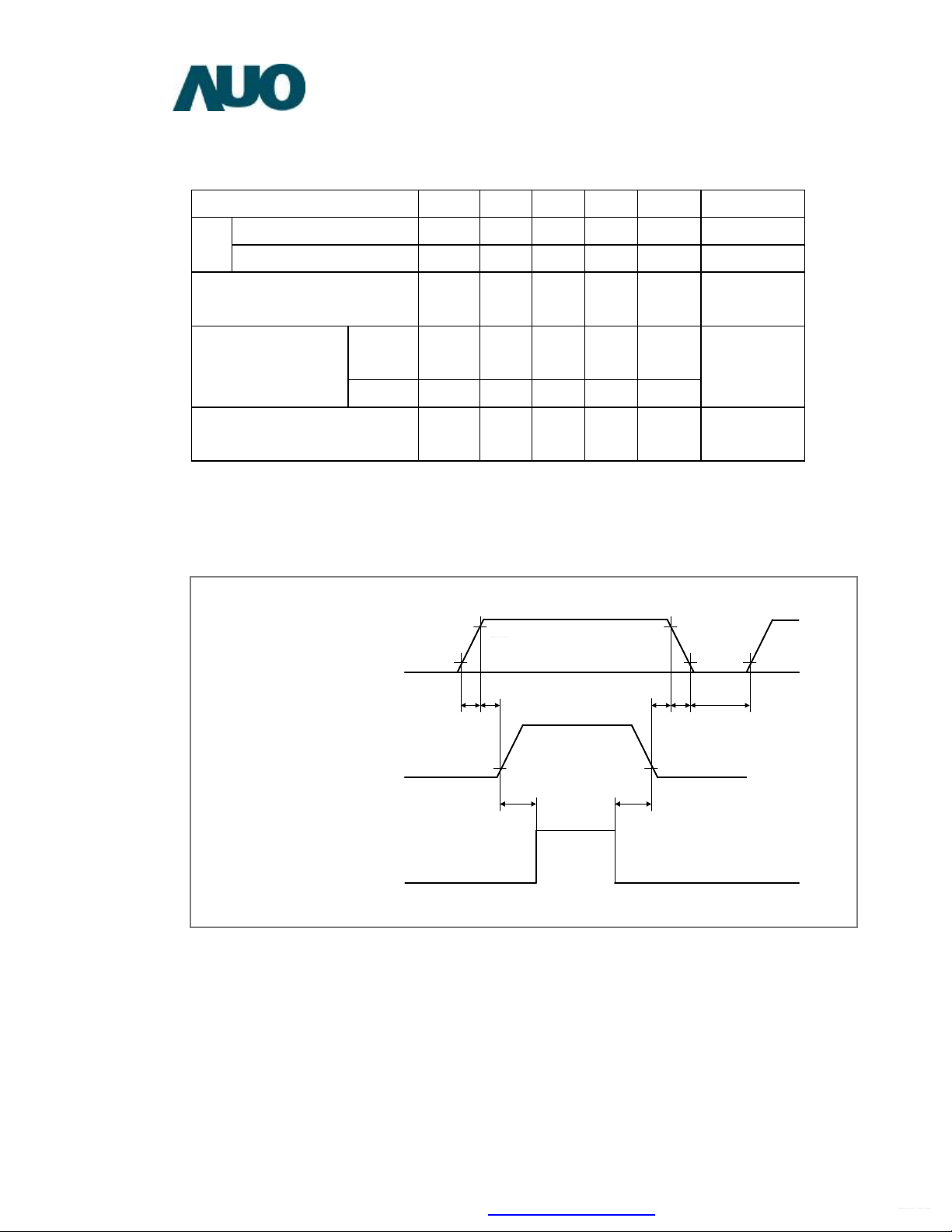

Power On-off sequence

Power Supply For LCD

90%

10%

T1 T2

Interface Signal

Ｖ

ｍＡ【

120 mV p-p VDD=+12V

100

VCM=+1.2V

－

470uS

90%

10%

Valid

【

Note2】 Note3】

【

Note1

】

Power for LAMP

Lamp

1ms＜T1,T6≦10 ms 0.5ms＜T2,T5≦50 ms 200ms＜T3,T4 T7＞1 s

【

Note3】 Maximum current condition; Change to 1x1 dot checker board

pattern. VDD=+12V

PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com

Page 14

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

R G B R G B

：0 GS

：255 GS

R G B R G B

PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com

Page 15

Vrms

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

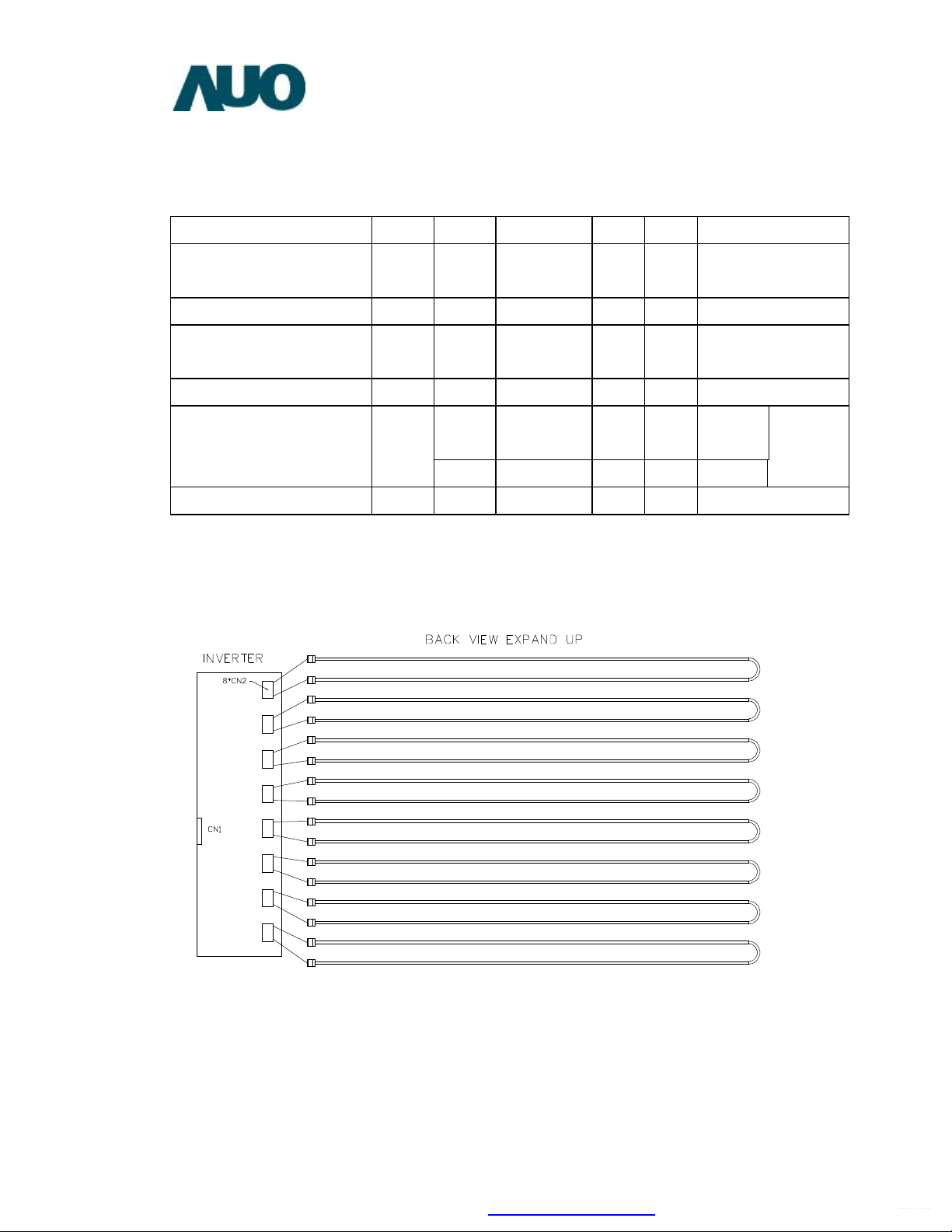

6-2. Backlight driving The backlight system is a direct-lighting type with 8 U shape CCFT (Cold Cathode Fluorescent Tube). The characteristics of the lamp are shown in the following table.

Parameter Symbol Min. Typ. Max. Unit

Lamp current range I

5.5 6 6.5 mAr

【

Note1】

ms Lamp voltage V Lamp power

1000 Vrms

Ｗ

【

consumption Lamp frequency F Established starting

42 45 48 kHz

Vs 1100 1500

voltage 1200 1500 Lamp life time L

50000

hour

【

Note3】

Ta=25

℃

Ta=0

【

Note5】

【

Note1】 Lamp current is measured with current meter for high frequency as

shown below.

Remark

Note2】IL=mA

℃ 【

Note4

】

【

Note2】 Calculated Value for reference ( I

【

Note3】 Lamp frequency may produce interference with horizontal

L × V L)

synchronous frequency, and this may cause beat on the display. Therefore lamp frequency shall be detached as much as possible from

PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com

Page 16

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

the horizontal synchronous frequency and from the harmonics of horizontal synchronous to avoid interference.

【

Note4】 The voltage above this value should be applied to the lamp for more

than 1 second to start-up. Otherwise the lamp may not be turned on.

【

Note5】 Lamp life time is defined as the time when either ① or ② occurs

in the continuous operation under the condition of Ta = 25℃ and IL =

6mArms. ① Brightness becomes 50 % of the original value under standard condition. ② Kick-off voltage at Ta = 0℃ exceeds maximum value.

PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com

Page 17

Supply Input

High/Open

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

【

Note6】 The performance of the backlight, for example life time or brightness,

is much influenced by the characteristics of the DC-AC inverter for

the lamp. When you design or order the inverter, please make sure

that a poor lighting caused by the mismatch of the backlight and the

inverter (miss-lighting, flicker, etc.) never occur. When you confirm it,

the module should be operated in the same condition as it is installed

in your instrument.

【

Note7】The lamp wire length is TBD mm(from AL back cover surface to

connector, not including connector length) 6-3 Backlight inverter

6-3-1. Inverter Electrical Characteristics

Parameter Symbol Min. Typ. Max. Unit Notes

Power

22.8 24 25.2 Vdc

DDB

Voltage

Power

3300 3600 3900 mA

DDB

Current

Power

PB 86.4 W

Consumption

6.4 Luminance Controls Method Adjustment and Luminance Ratio PESEL PDIM Remark Voltage control

Adjustment – Continuous adjustment of

N/A

for max. Luminance by adjusting the voltage of BRTI within the rated range.

BRTI voltage Luminance ratio 0V 20%(minimum)

3.3V 100%

PWM control

Adjustment- The luminance is controlled by duty ratio of BRTP

(maximum)

LOW PWM

PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com

singal

See PWM

Page 18

Detail of A part

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

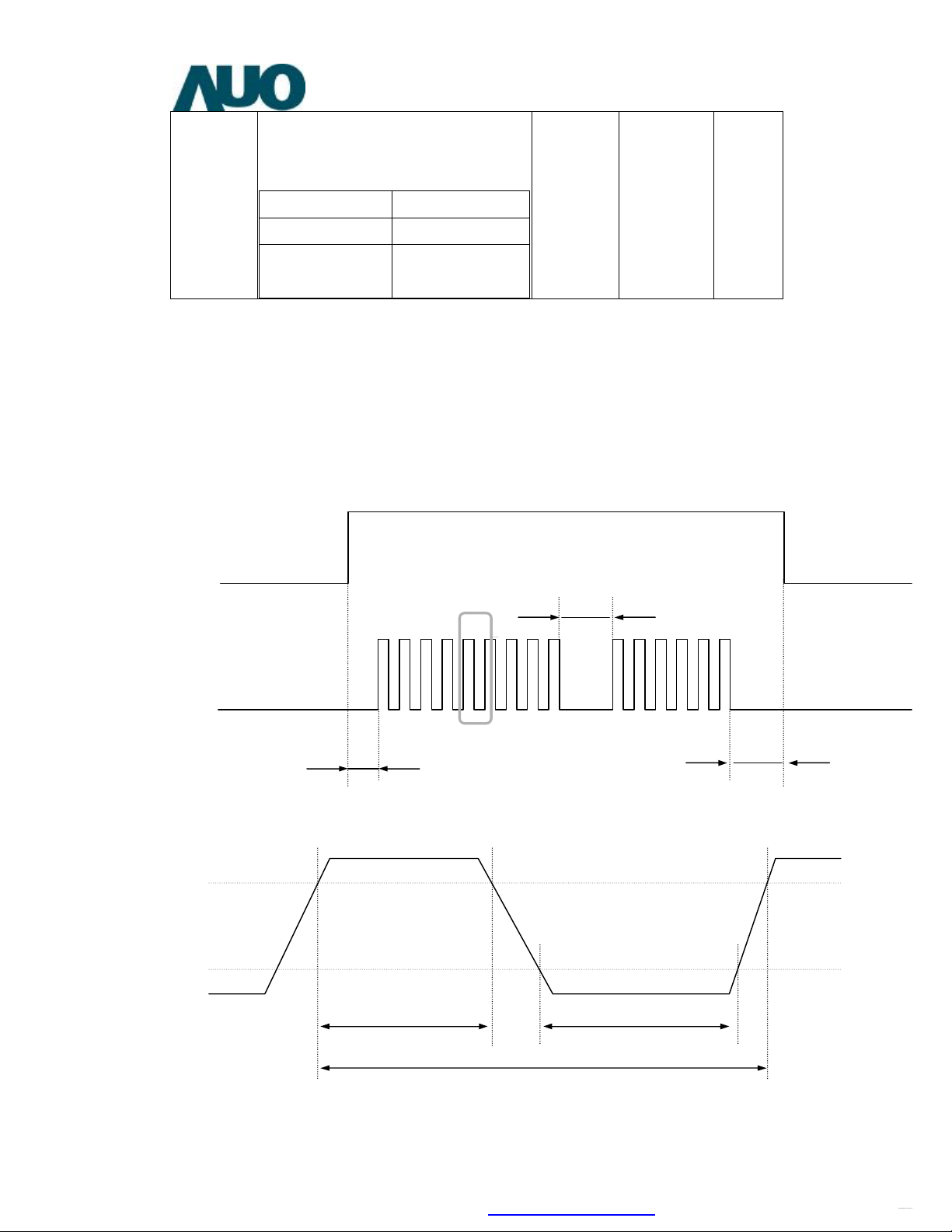

6-5. PWM timing

6-5-1. Timing diagram

- Outline BRT

signal when PWSEL is low and PWM signal is inputted into BRTP termial.

Duty Ratio Luminance Ratio

0.2 20%(minimum)

1.0 100% (maximum)

timing

0≤tPWL≤50ms

BRT

0≤tPWL≤50ms

VBP

tPWH

tPW

tPWL

PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com

Page 19

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

6-5-2. Each parameter

Parameter

Notes Unit Max. Typ. Min. Symbol

Luminance control

1, 2 Hz 280 255 230 FL 1, 3 - 1.0 - 0.2 DL Duty Ratio 4 Ms 50 - 0 tPWL Non signal Period

Notes : 1. Definition of parameters is as follows

2. See the following formula for luminance control frequency. Luminance control frequency = tvv X (n+0.25)[or(n+0.72)] n=1,2,3,………… tvv : See “7.1 Signal timing specification”

FL= , DL=

tPW

The interference noise of luminance control frequency and input signal frequency for

tPWH

tPW

LCD

PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com

Page 20

ENAB

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

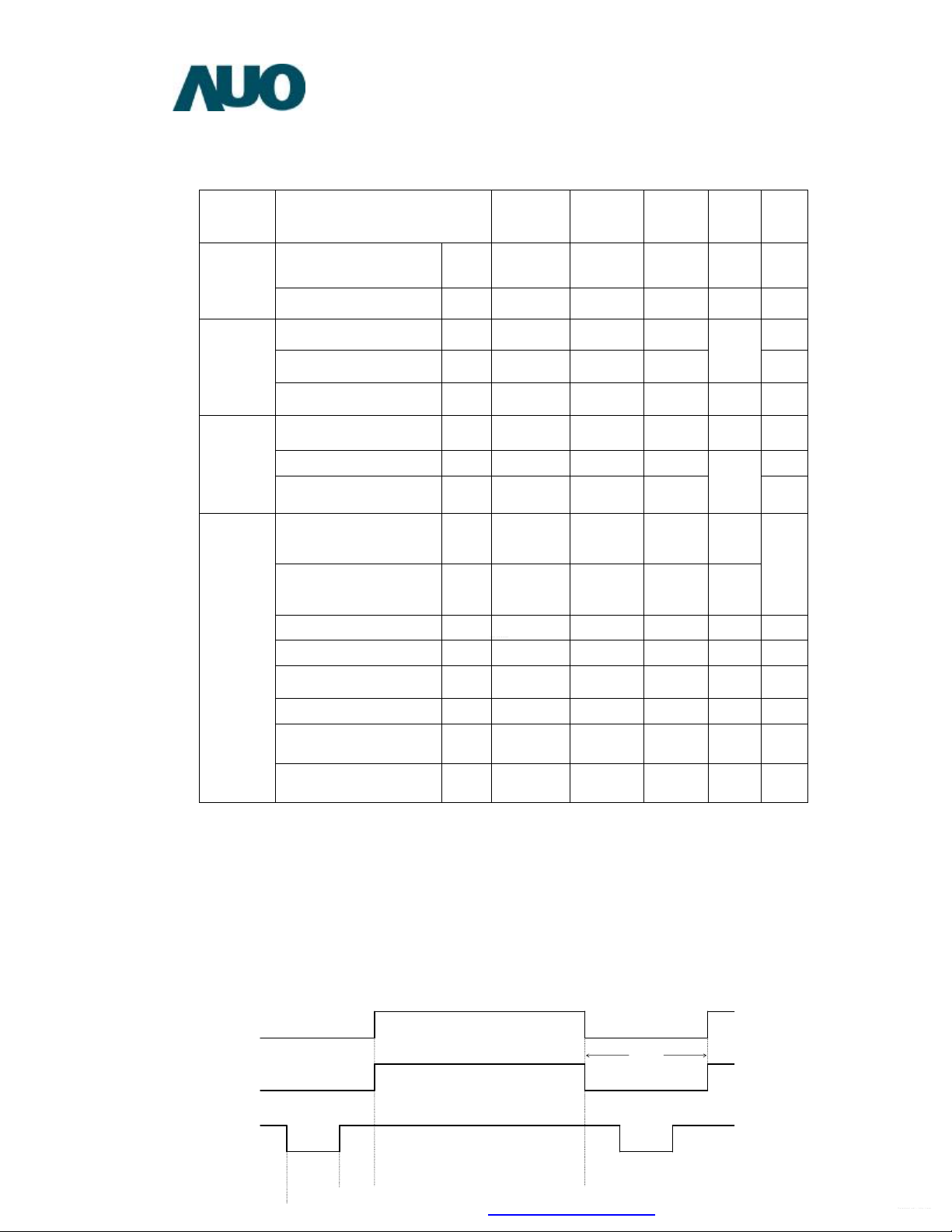

7. Timing characteristics of LCD module input signals 7-1. Timing characteristics (This is specified at digital outputs of LVDS driver.)

ITIME

Hsync

Vsync

Data Enable

Symbol Min Typ Max Unit Notes

Frequency F

Period t Period t Width-Active t

Frequency fH 44 48.54 52 kHz

CLK

12.2 12.5 - ns

1512 1648 1780

8 16 -

80 82 MHz DCLK

CLK

Frequency fv 47 60 63 Hz Period t

Width-Active t Horizontal back

774 810 -

2 6 8 80 - t

tHA

CLK

porch Horizontal front

tHF 16 186 - t

CLK

porch Horizontal active t Horizontal blanking t Vertical back porch t

HE HB VD

1366 1366 1366 t

146 282 t

CLK CLK

2 20 - tHA

Vertical front porch tVF 2 16 - tHA Vertical active t

768 768 768 tHA

Vertical blanking tVB 6 42 tHA

Notes : 1.The performance of electro-optical characteristics may be influenced by variance of the vertical refresh rate.

2. Hsync period will be a double number of character (8).

7-2 Signal Timing Waveform(The time “B” is t timing)

Data

on horizontal timing and tVB on vertical

Ｂ

PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com

Page 21

ＤＥＦ

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

Sync

Ｃ

Ａ

PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com

Page 22

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

0 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 1 0 1 1 1 1 1 1 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

8. Input Signals, Basic Display Colors and Gray Scale of Each Color

Colors &

Data Signal

Gray scale R0 R1 R2 R3 R4 R5 R6 R7 G0 G1 G2 G3 G4 G5 G6 G7 B0 B1 B2 B3 B4 B5 B6 B7

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Black

Basic Color Gray Scale of Red

Bright 1

Blue 0

Green 0

Cyan 0

Red 1

Magenta 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

Yellow 1

White 1

Black 0

1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Darker 0

ñ ò

0 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

á â

Gray Scale of Green Gray Scale of Blue

Red 1

Black 0

0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Darker 0

ñ ò

Bright 0

0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

Green 0

Black 0

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0

Darker 0

ñ ò

á â

PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com

Page 23

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

Bright 0

0 : Low level voltage, 1 : High level voltage

Blue 0

PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com

Page 24

Photo detector

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

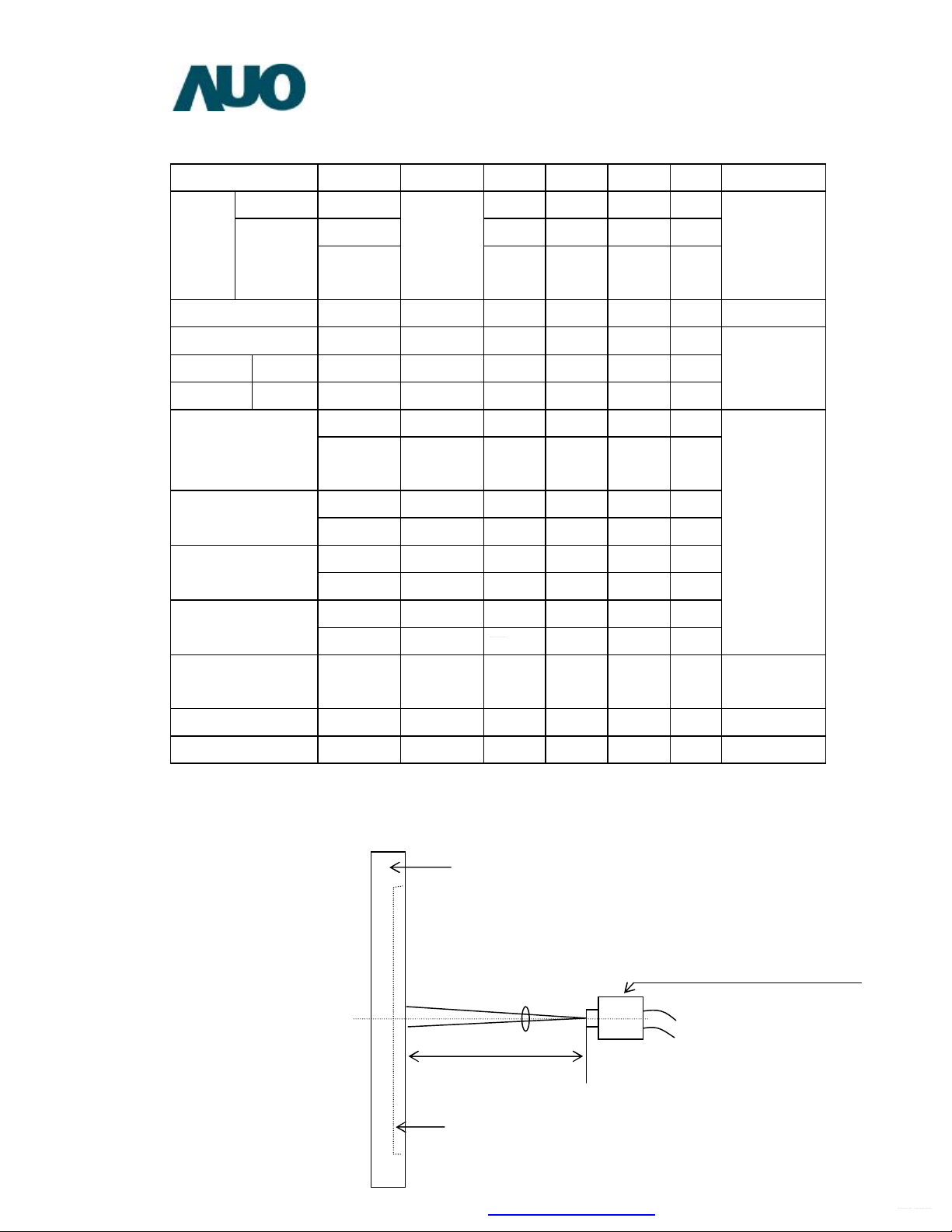

9. Optical Characteristics Ta=25℃, VDD=+12V

Parameter Symbol Condition Min. Typ. Max. Unit Remark

Viewing

angle

L/R

U D

θ21,θ22

θ11 θ12

CR>10 85 Deg.

85 Deg. 85 Deg.

range

Contrast ratio

Response time

Rise time

ＣＲn θ=0°

τr

TBD

600

－

－－－

【Note1,4】

【Note2,4】【Note3,4】

Fall time

τd Chromaticity of Wx 0.245 0.275 0.305 White (CIE 1931)

Chromaticity of Rx TBD Red (CIE 1931) Ry TBD Chromaticity of Gx TBD Green (CIE 1931) Chromaticity of Bx TBD Blue (CIE 1931) By TBD

Luminance of white

【Note4】

White Uniformity

Black Uniformity

The measurement shall be executed 30 minutes after

※

ition : I

= 6mArms)

TBD

－

Wy 0.268 0.298 0.328

Gy TBD

Ｙ

Ｌ

400 500 Cd/m

Ｗ

1.3

－

- 1.3

ghting at rating. (typical cond

The optical characteristics shall be measured in a dark room or equivalent state

【Note4】

Color temperature

10000K

NTSC 72%

【Note5】【Note5】

with the method shown in Fig.1 below.

PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com

(BM-5A: TOPCON)

Page 25

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com

Page 26

time

τrτ

Black

White

10%

100%

90%

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

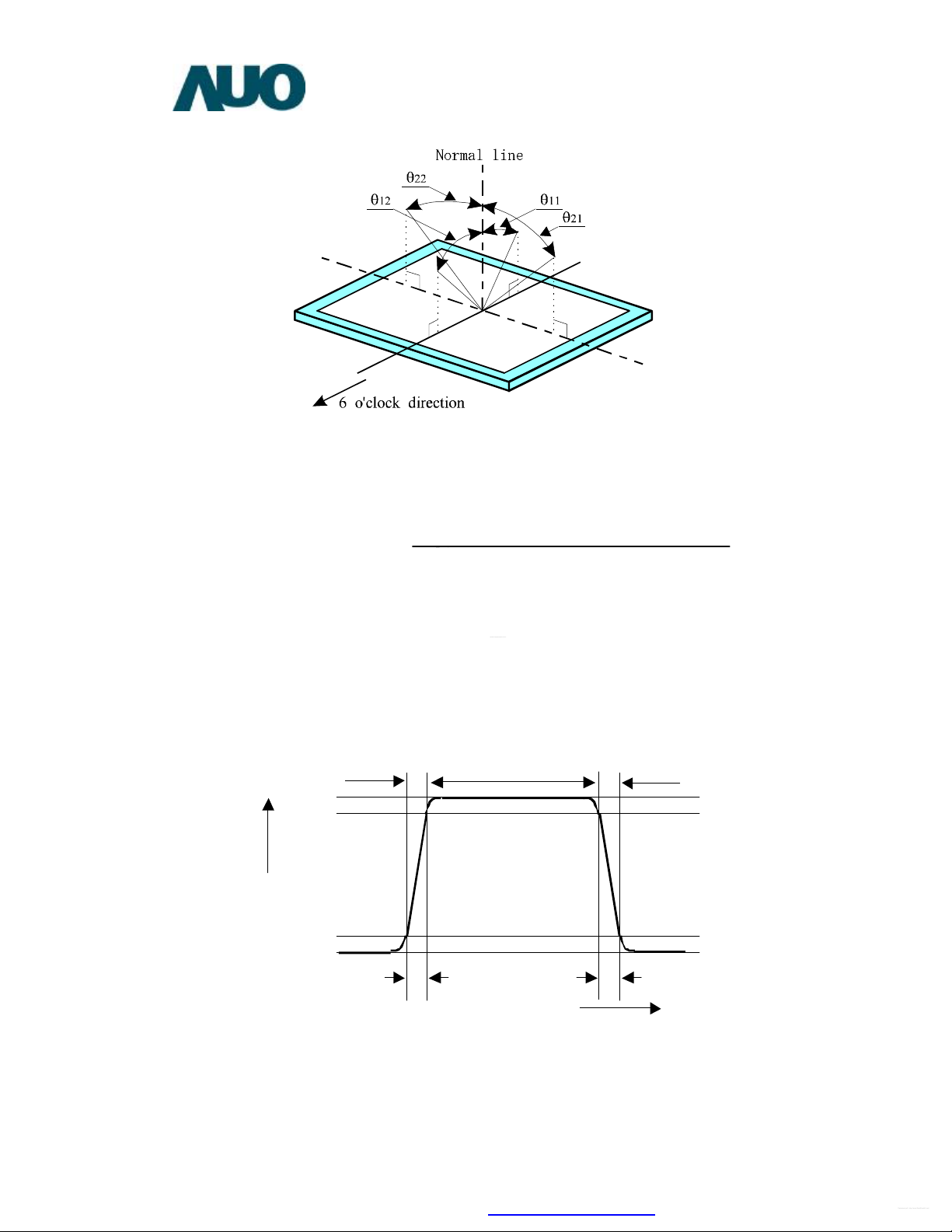

【Note1】Definitions of viewing angle range:

【Note2】Definition of contrast ratio:

The contrast ratio is defined as the following.

Contrast Ratio (CR) =

Luminance (brightness) with all pixels

【Note3】Definition of response time:

The response time is defined as the following figure and shall be measured by switching the input signal for "black" and "white" .

(Relative Value)

Photo detector Output

【Note4】This shall be measured at center of the screen.

PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com

Page 27

ＡＣ

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

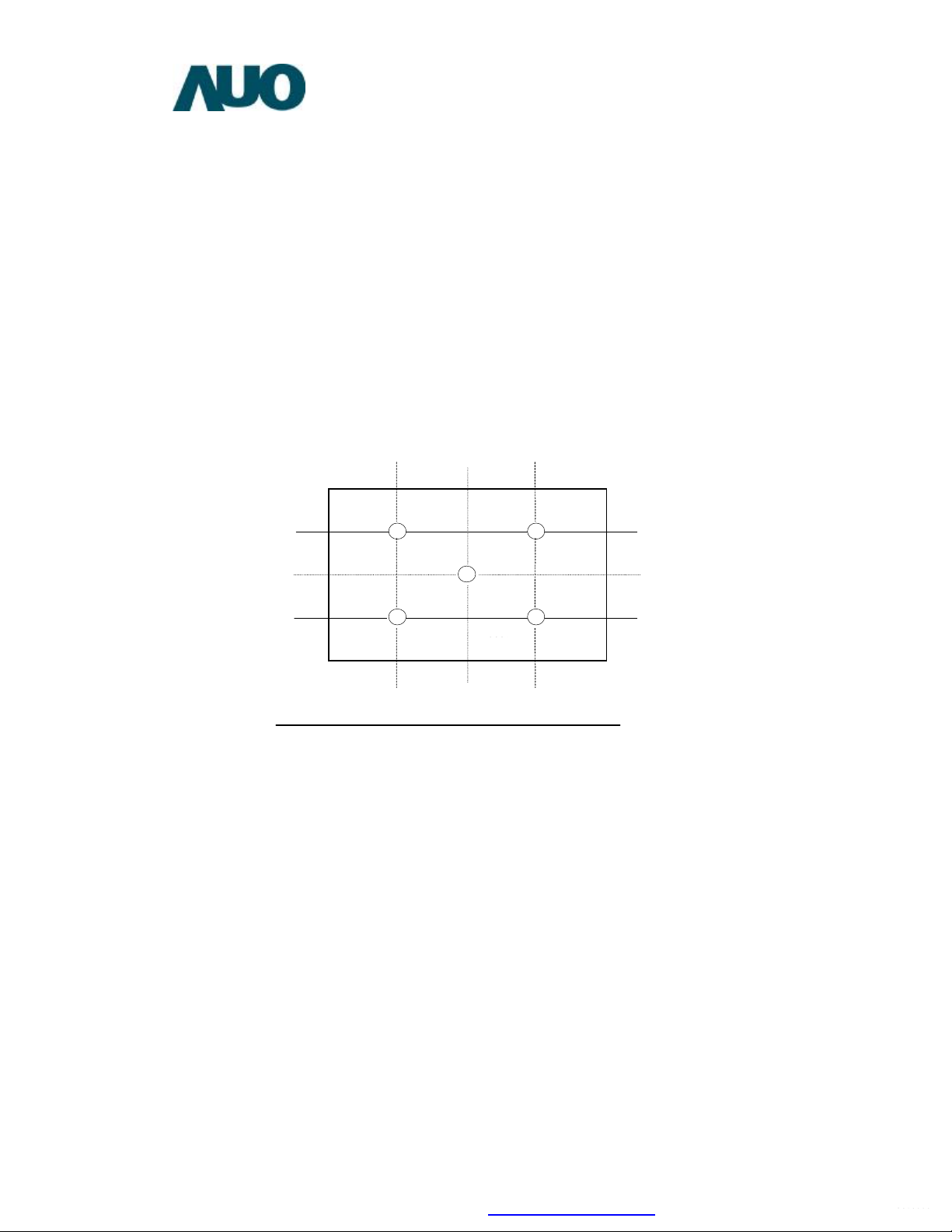

【Note5】Definition of white uniformity:

White and black uniformity is defined as the

following with nine measurements

H/4

H/2

3H/4

Ｄ

V/4

V/2

Ｂ

Ｅ

3V/4

Maximum Luminance (of 5 points measurement)

Minnum Luminance (of 5 points measurement)

PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com

Page 28

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

10. Display Quality

The display quality of the color TFT-LCD module shall be in compliance with the Incoming Inspection Standard.

11．Handling Precautions a) Be sure to turn off the power supply when inserting or disconnecting the cable.

b) Be sure to design the cabinet so that the module can be installed without any extra stress such as warp or twist.

c) Since the front polarizer is easily damaged, pay attention not to scratch it. d) Wipe off water drop immediately. Long contact with water may cause discoloration or spots. e) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth. f) Since the panel is made of glass, it may break or crack if dropped or

bumped on hard surface. Handle with care.

g) Since CMOS LSI is used in this module, take care of static electricity and

injure the human earth when handling. h) Observe all other precautionary requirements in handling components. i) This module has its circuitry PCBs on the rear side and should be handled

carefully in order not to be stressed.

j) Laminated film is attached to the module surface to prevent it from being scratched . Peel the

film off slowly just before the use with strict attention to electrostatic charges. Ionized air shall

be blown over during the action. Blow off the 'dust' on the polarizer by using an ionized

nitrogen gun, etc..

12.Reliability test items

Test item Conditions No. 1 High temperature storage test

Ta = 60℃ 240h 2 Low temperature storage test Ta =-20℃ 240h 3 High temperature

& high humidity operation test

4 High temperature operation

test

Ta = 50℃ ; 80 %RH 240h

Ta = 60℃ 240h

5 Low temperature operation test

Ta = 0℃ 240h

PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com

Page 29

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

6 Vibration test (non-

operating)

Frequency: 10〜500Hz, 1.0G , 20 min/each axis

7 Shock test

(non- operating)

Gravity : 100G

Pulse width : 2ms, half sine wave

Direction : ±X,±Y,±Z

Once for each direction.

PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com

Page 30

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

13．Others

1) LCD Module Label:

Serial number Product Name

LWC295100001 QD26HL01 Rev.01

LWC295100001 Digital code 4, 5 is Date code. Digital 4 (Year) 1: 2001, 2: 2002, 3:2003,…. Digital 5 (Month) 1: Jan, 2: Feb,… , A:Oct, B:Nov., C: Dec.

2) Adjusting volume has been set optimally before shipment, so do not change any adjusted value.

If adjusted value is changed, the specification may not be satisfied.

Serial Number Bar Code

3) Disassembling the module can cause permanent damage and should be strictly avoided.

4) Please be careful since image retention may occur when a fixed pattern is displayed for a long

time.

5) If any problem occurs in relation to the description of this specification, it

shall be resolved through discussion with spirit of cooperation.

PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com

Page 31

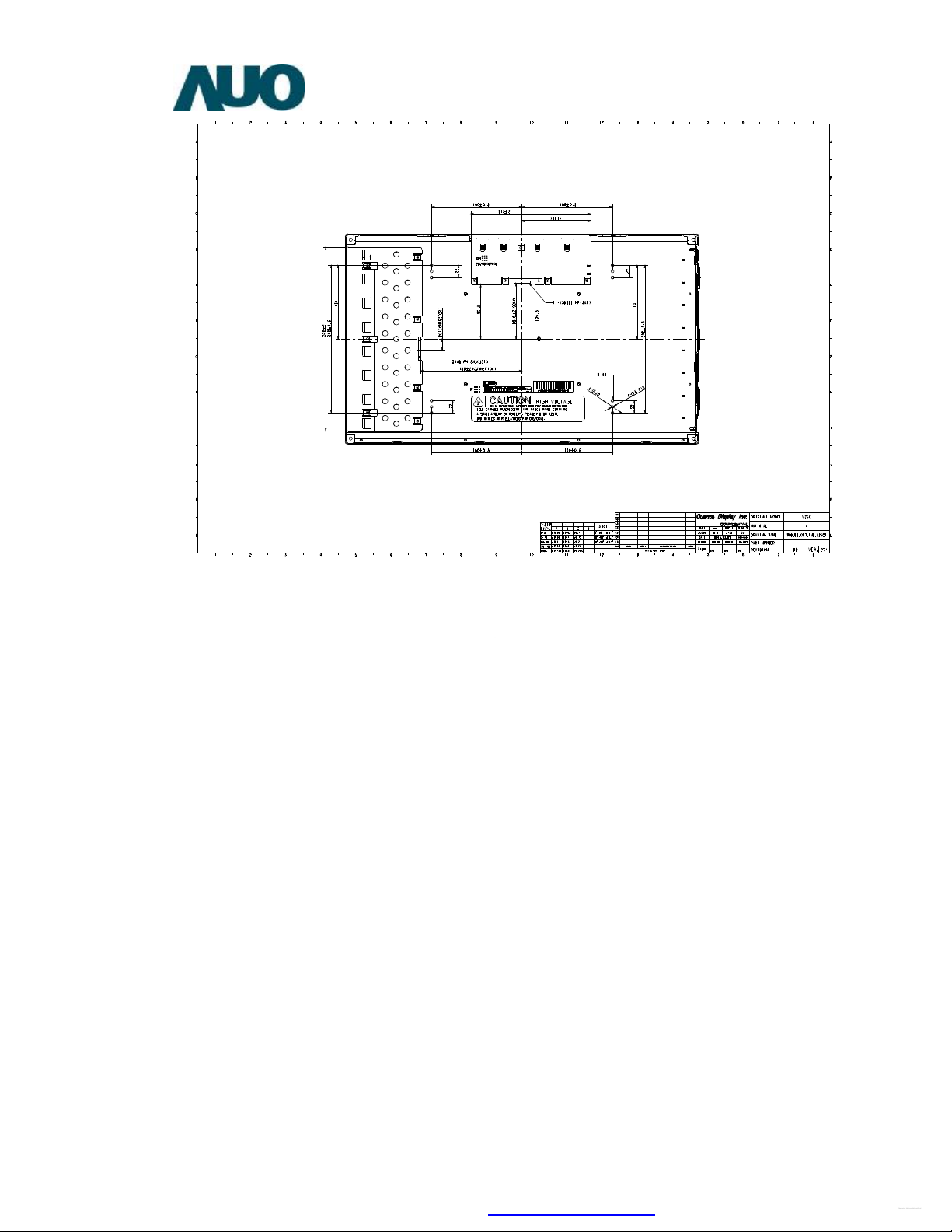

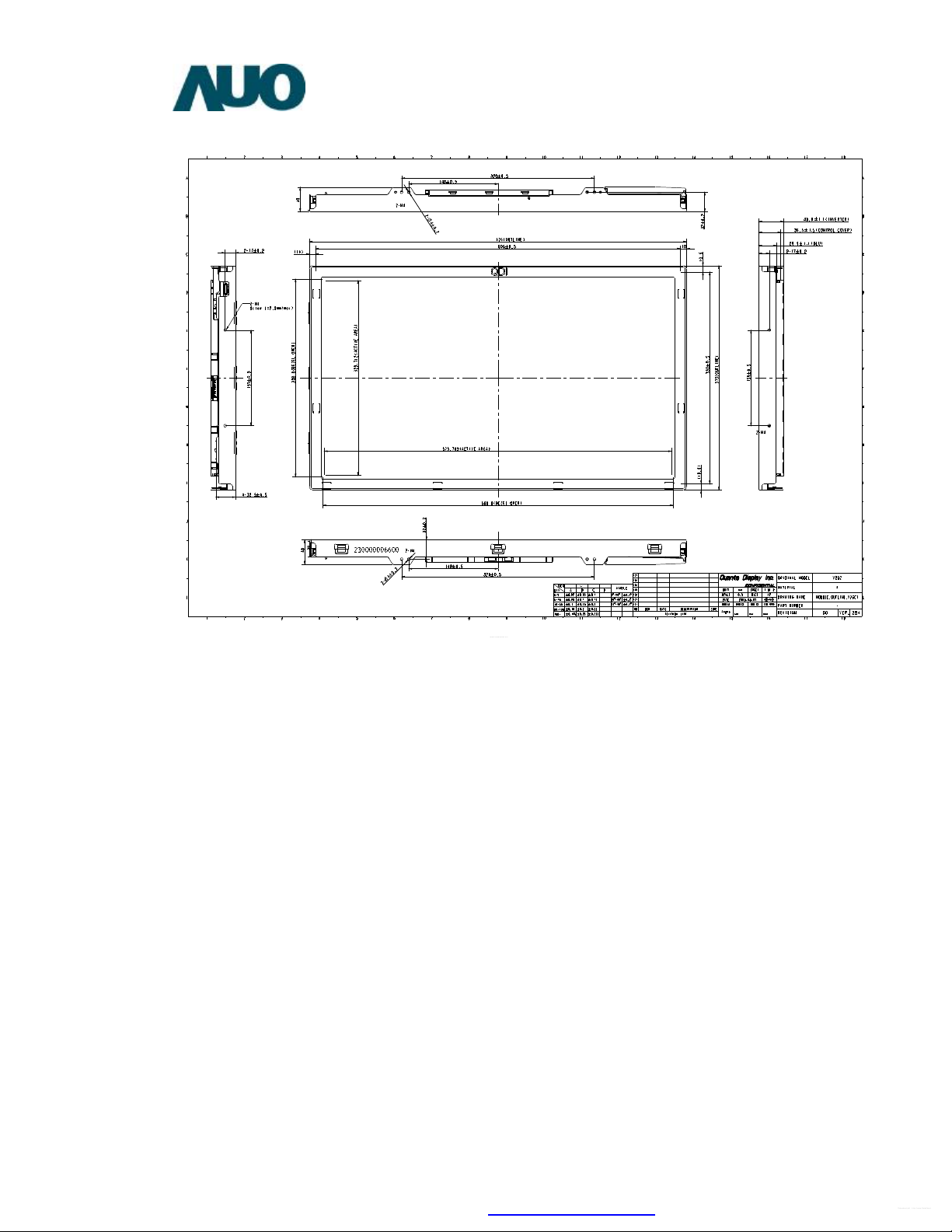

14. Drawing

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com

Page 32

www.DataSheet.co.kr

Datasheet pdf - http://www.DataSheet4U.net/

PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com

T-CON T260XW02 VG Schematic

Specifications and Main Features

Frequently Asked Questions

User Manual
