T-CON T260XW02 VA Schematic

Download

Page 1

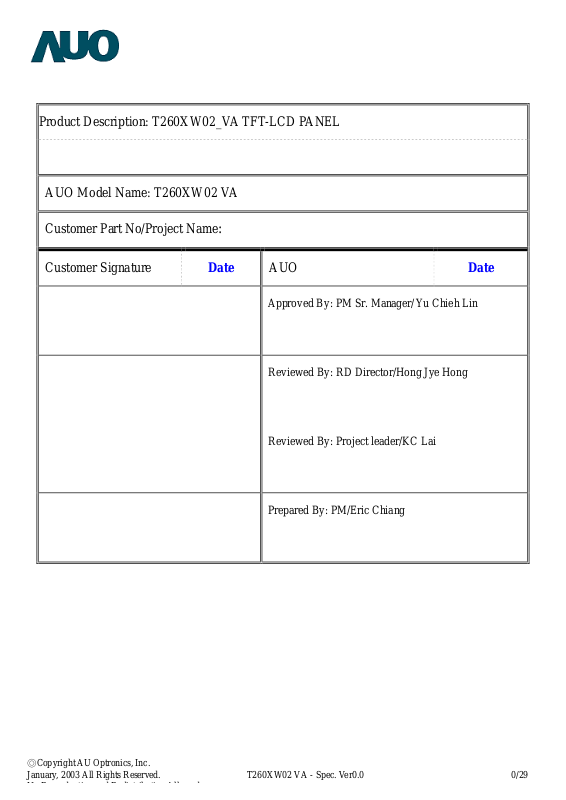

Product Description: T260XW02_VA TFT-LCD PANEL

AUO Model Name: T260XW02 VA

Customer Part No/Project Name:

Customer Signature Date AUO Date

Approved By: PM Sr. Manager/ Yu Chieh Lin

Reviewed By: RD Director/Hong Jye Hong

Reviewed By: Project leader/KC Lai

Prepared By: PM/Eric Chiang

Page 2

Document Version: 0.0

Date: 2007/1/26

Product Specifications

26.0” WXGA Color TFT-LCD Module Model Name: T260XW02 VA

(*) Preliminary Specifications

() Final Specifications

Page 3

Contents

No ITEM

1 2 3

4 5

3-1 3-2 3-3 3-4 3-5 3-6 3-7

5-1

COVER CONTENTS RECORD OF REVISIONS GENERAL DESCRIPTION ABSOLUTION MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTERISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR INPUT DATA REFERENCE POWER SEQUENCE for LCD POWER SEQUENCE for INVERTER OPTICAL SPECIFICATIONS MECHANICAL CHARACTERISTICS Front view

5-2 6 7

7-1

7-2

7-3 8 9

Rear view RELIABILITY INTERNATIONAL STANDARDS SAFETY EMC Green PACKING PRECAUTIONS

Page 4

Version Date No

0.0 2007/01/26

Record of Revision

Old Description New Description Remark

First Release

Page 5

1. General Description

This specification applies to the 26.0 inch Color TFT-LCD Module T260XW02. This LCD module has a TFT active matrix type liquid crystal panel 1366x768 pixels, and diagonal size of 26.0 inch. This module supports 1366x768 XGA-WIDE mode (Non-interlace). Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is determined with a 8-bit gray scale signal for each dot. The T260XW02 has been designed to apply the 8-bit 1 channel LVDS interface method. It is intended to support displays where high brightness, wide viewing angle, high color saturation, and high color depth are very important.

* General Information

Items Specification Unit Note Active Screen Size Display Area

26.0

575.769 (H) x 323.712(V)

inches

Pixel Pitch Outline Dimension Driver Element Display Colors Number of Pixels Pixel Arrangement Display Mode BL Structure Surface Treatment Green

0.4215 mm

626.0 (H) x 373.0 (V) x 47.5(D) a-Si TFT active matrix

16.7M

1366 x 768

RGB vertical stripe

Normally Black

6 U-Lamps

AG, 3H

RoHS compliance

mm With inverter

Colors

Pixel

Page 6

2. Absolute Maximum Ratings

The following are maximum values which, if exceeded, may cause faulty operation or damage to the unit.

Item Symbol Min Max Unit Conditions

Logic/LCD Drive Voltage LVDS Option Control Voltage BLU Input Voltage External Analog Dimming Control Voltage On/Off Control Voltage External PWM Dimming Control Voltage Operating Temperature Operating Humidity Storage Temperature Storage Humidity

Note 1: Duration = 1 sec

VCC -0.3 6.0 [Volt] Note 1

LVDSOPT

-0.3 3.6 [Volt] Note 1

VDDB -0.3 27.0 [Volt] Note 1

VDIM -0.3 6.0 [Volt] Note 1

VBLON

PWM

TOP 0 +50 [

-0.3 6.0 [Volt] Note 1

C] Note 2

HOP 10 90 [%RH] Note 2

TST -20 +60 [

C] Note 2

HST 10 90 [%RH] Note 2

Note 2: Maximum Wet-Bulb should be 39℃ and No condensation.

Page 7

Input High Threshold

Differential Input Low Threshold

3. Electrical Specification

The T260XW02 requires two power inputs. One is employed to power the LCD electronics and to drive the TFT array and liquid crystal. The second input power for the BLU is to power inverter.

3-1 Electrical Characteristics

Parameter

LCD:

Power Supply Input Voltage Power Supply Input Current Power Consumption Inrush Current

LVDS Interface:

Differential Voltage

Voltage Common Input Voltage

CMOS Interface:

Input High Threshold Voltage

Input Low Threshold Voltage Backlight Power Consumption Life Time

Symbol

Values

Unit Notes

Min. Typ. Max.

Vcc 4.5 5.0 5.5 V Icc - 1.40 1.78 A 1

Pc - 7.0 9.0 Watt 1

- - 3.0 A 2

RUSH

VTH +100

VTL -100 mV

VCIM 1.10 1.25 1.40 V

VIH(High) 2.4 3.3 Vdc

VIL(Low)

0 0.7 Vdc

- - 85.4 Watt 3 50,000 60,000

Hours

Note :

1. Vcc=5.0V, Fv=60Hz, Fclk= 85.0 MHz , 25℃. , Test Pattern : White Pattern

2. Vcc rising time = 470

3. VDDB=24V, VDIM=3.3V, EDPWM=100%, test in the whole period from VDDB power on to power off.

4. The performance of the Lamp in LCM, for example: lifetime or brightness, is extremely influenced by the characteristics

of the DC-AC Inverter. So all the parameters of an inverter should be carefully designed so as not to produce too much leakage current from high-voltage output of the inverter. When you design or order the inverter, please make sure unwanted lighting caused by the mismatch of the lamp and the inverter (no lighting, flicker, etc) never occurs. When you confirm it, the LCD Assembly should be operated in the same condition as installed in your instrument.

5. Do not attach a conducting tape to lamp connecting wire. If the lamp wire attach to conducting tape, TFT-LCD Module

have a low luminance and the inverter has abnormal action because leakage current occurs between lamp wire and conducting tape.

6. The relative humidity must not exceed 80% non-condensing at temperatures of 40℃ or less. At temperatures greater than

40℃, the wet bulb temperature must not exceed 39℃. When operate at low temperatures, the brightness of CCFL will drop and the lifetime of CCFL will be reduced.

, Vcc=5.0V

Page 8

3-2 Interface Connections

- LCD connector (CN1): JAE FI-E30S

- LVDS Transmitter: SN75LVDS83(Texas Instruments) or equivalent

Note:

1. All GND (ground) pins should be connected together and should also be connected to the LCD’s metal frame. All Vcc

(power input) pins should be connected together.

Pin No Symbol Description Default

** LVDS Option: H (3.3V) or N.C.è NS

1 N.C. No Connection ( Auo internal Test Pin) 2 N.C. No Connection ( Auo internal Test Pin) 3 N.C. No Connection ( Auo internal Test Pin) 4 GND Power Ground 5 Rx0- Negative LVDS differential data input 6 Rx0+ Positive LVDS differential data input 7 GND Power Ground 8 Rx1- Negative LVDS differential data input

9 Rx1+ Positive LVDS differential data input 10 GND Power Ground 11 Rx2- Negative LVDS differential data input 12 Rx2+ Positive LVDS differential data input 13 GND Power Ground 14 RxCLK- Negative LVDS differential clock input 15 RxCLK+ Positive LVDS differential clock input 16 GND Power Ground 17 Rx3- Negative LVDS differential data input 18 Rx3+ Positive LVDS differential data input 19 GND Power Ground 20 N.C. No Connection ( Auo internal Test Pin) 21 LVDS Option Pull Low : JETDA LVDS format; Pull High or N.C.: NS LVDS format 22 N.C. No Connection ( Auo internal Test Pin) 23 GND Power Ground 24 GND Power Ground 25 GND Power Ground 26 V 27 V 28 V 29 V 30 V

+5V Power Input

L (GND) è JETDA

Page 9

LVDS Option = L (GND)è JETDA Format

Previous Cycle Current Cycle Next Cycle

Clock

RIN0+

RIN0-

RIN1+

RIN1-

RIN2+

RIN2-

RIN3+

RIN3-

LVDS Option = H (3.3V) or N.C.è NS Format

Previous Cycle Current Cycle Next Cycle

Clock

R2R7 G2G2R2R3 R4R5R6 R3

G3B2 B3B3G3G4 G5G6 G4

B4NA DEDEB4B5 B6B7NA B5

R0B1 NANAR0R1 G0G1B0 R1

RIN0+

RIN0-

RIN1+

RIN1-

RIN2+

RIN2-

RIN3+

RIN3-

R0R5 G0G0R0R1 R2R3R4 R1

G1B0 B1B1G1G2 G3G4G5 G2

B2NA DEDEB2B3 B4B5NA

R6B7 NANAR6R7 G6G7B6 R7

Page 10

BACKLIGHT CONNECTOR PIN CONFIGURATION

1. Electrical specification

(Ta=25±5℃)

1 Input Voltage 2

Input Current (Turn on Condition)

3 Input Power (Turn on Condition)

4 Input Current (Stable Condition)

5 Input Power (Stable Condition)

6 Input inrush current, 20ms 7

Output Frequency

ON/OFF Control Voltage

9 ON/OFF Control Current

10 Dimming Control Voltage 11 Dimming Control Current

ITEM SYMBOL CONDITION MIN TYP MAX UNIT

--- 21.6 24.0 26.4

DDB

VDIM=3.3V 3.23 3.39 3.55

DDB

VDIM=3.3V

DDB

VDIM=3.3V 2.93 3.08 3.23

DDB

VDIM=3.3V 70.3 74 77.7

VDD=24V

RUSH

VDIM=3.3V

FBL V

BLON

OFF

BLON

MAX VDD=24V --- 3.3 --- V or Open

DIM

MIN

DIM

VDD=24V 2.0 3.3 5.0 V VDD=24V 0.0 --- 0.8 V or Open

VDD=24V --- 0.0 --- V VDD=24V --- --- 1.5 mA

=24V

DDB

=24V

DDB

--- 81.4 85.4

=24V

DDB

=24V

DDB

--- --- 6 A

=24V 56 58 60 kHz

=24V -1 --- 1.5 mA

A 1

W 1

A 1

W 1

Note

Page 11

2. Input specification

Pin No Symbol Description Default

1 2 3 4 5 6 7 8 9

VDDB Operating Voltage Supply, +24V DC regulated 24V VDDB Operating Voltage Supply, +24V DC regulated 24V VDDB Operating Voltage Supply, +24V DC regulated 24V VDDB Operating Voltage Supply, +24V DC regulated 24V VDDB Operating Voltage Supply, +24V DC regulated 24V

GND Ground GND GND Ground GND GND Ground GND GND Ground GND GND Ground GND

Inverter OK: High (min/typ/max: 3/3.3/3.6)

DET

Inverter NG: Low/GND ( min/typ/max:-0.3/0/0.8) Inverter side open collector 10 mA BL on/off: High (3.3V) for BL ON

VBLON

Open/Low (GND) for BL OFF Output impedance: 4.7KΩ

Analog brightness control Brightness max (min/typ/max: 3/3.3/3.6)

VDIM

Brightness min(min/typ/max: -0.3/0/0.36)

CN1: S14B-PHA-SM (JST) or equivalent CN2~7: BDAMR-02VAS-1 (JST) or equivalent

NC NC -

Output impedance: 1KΩ

Page 12

3. Backlight Diagram

Page 13

3-3 Signal Timing Specifications

This is the signal timing required at the input of the User connector. All of the interface signal timing should be satisfied with the following specifications for its proper operation.

* Timing Table

DE only Mode Vertical Frequency

Signal Item Symbol Min. Typ. Max. Unit

Vertical

Section

Period Active

Blanking

Horizontal

Section

Period Active

Blanking

LVDS Clock Frequency

Vertical Frequency Horizontal Frequency

Frequency

Tv 789 806 1000 Th

Tdisp(v) 768 Th

Tblk (v) 21 38 232 Th

Th 1414 1560 1722 Tclk

Tdisp(h) 1366 Tclk

Tblk (h) 48 194 356 Tclk

Fclk (1/Tclk)

65 76 88 MHz

Fv 47 60 63 Hz

Fh 43 48 53 kHz

*1) Display position is specific by the rise of DE signal only. Horizontal display position is specified by the falling edge of 1st Clock right after the rise of DE, is displayed on the left edge of the screen. Vertical display position is specified by the rise of DE after a “Low” level period equivalent to eight times of horizontal period. The 1st data corresponding to one horizontal line after the rise of DE is displayed at the top line of screen. *2) If a period of DE “High” is less than 1366 Clock or less than 768 lines, the rest of the screen displays black. *3) The display position does not fit to the screen if a period of DE “High” and the effective data period do not synchronize with each other.

Page 14

3-4 Signal Timing Waveforms

RGB Data

1366

Pixel

Invalid Data

CLK

Tclk

RGB

Data

Line

768

Invalid Data Invalid Data

Line

Pixel

1366

Pixel

Invalid Data

Tdisp(h)

Line

768

Tdisp(v)

Pixel

Page 15

3-5 Color Input Data Reference

The brightness of each primary color (red, green and blue) is based on the 8 bit gray scale data input for the color; the higher the binary input, the brighter the color. The table below provides a reference for color versus data input.

COLOR DATA REFERENCE

Input Color Data

Basic Color

RED

GREEN

BLUE

Color

Black Red(255)

Green(255) Blue(255) Cyan Magenta Yellow White

RED(000) RED(001)

---RED(254) RED(255)

GREEN(000) GREEN(001)

---GREEN(254) GREEN(255)

BLUE(000) BLUE(001)

------BLUE(254)

RED

MSB LSB

R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0

MSB LSB

GREEN

BLUE

MSB LSB

BLUE(255)

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

Page 16

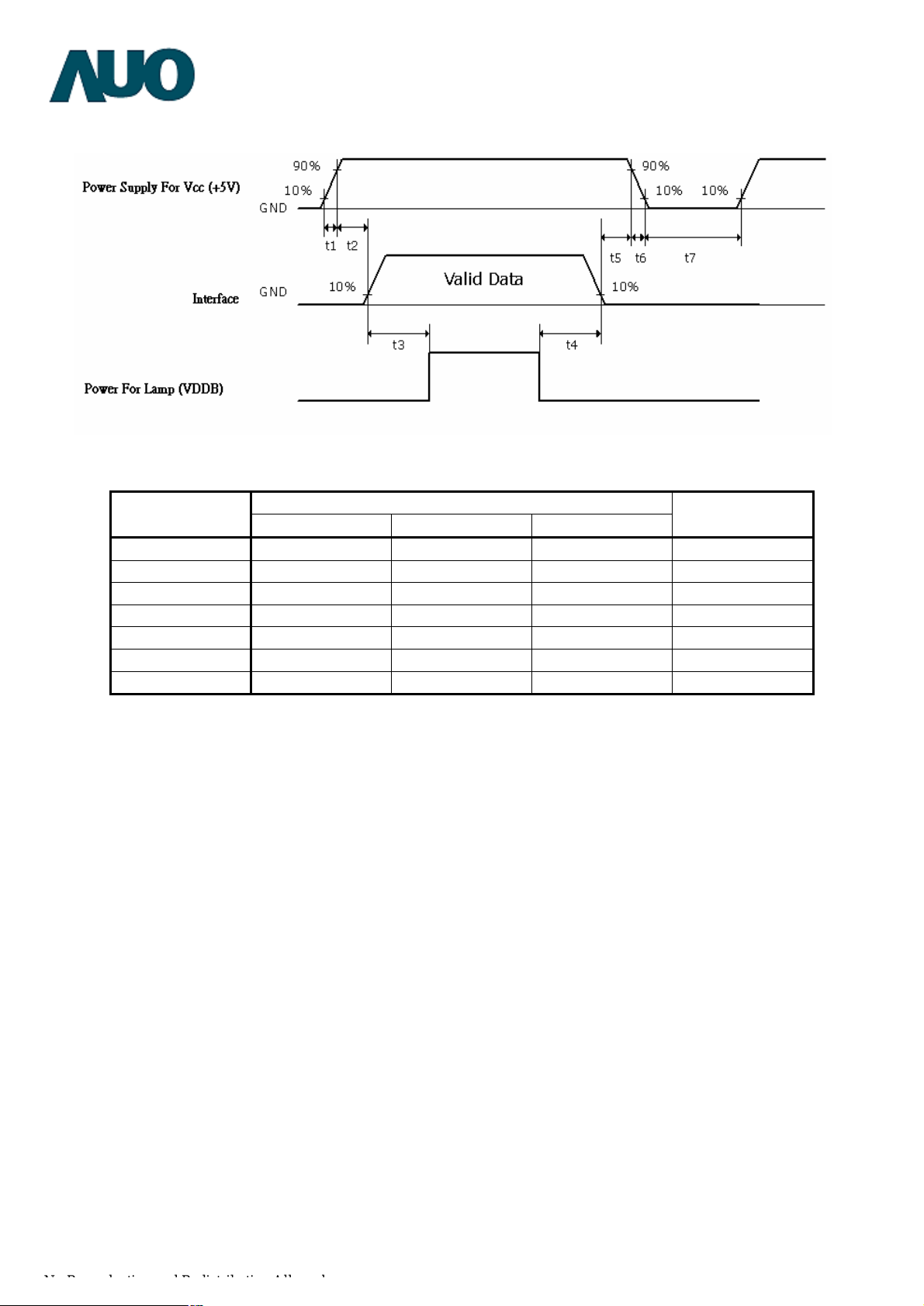

3-6 Power Sequence for LCD

Parameter

t1 t2 t3 t4 t5 t6 t7

Min. Typ. Max.

1 - 30 ms

10 - 100 ms

550*1 - - ms

100 - - ms

50 - - ms

-- - 300 ms

300 - - ms

Values

*1: If t3=200ms, input black signal till 550ms from system is necessary.

Units

In case of t3<200ms, the abnormal display will be happened. But it will not damage timing controller.

Note:

The timing controller will not be damaged in case of TV set AC input power suddenly shut down. Once power reset, it should follow power sequence as spec. definition.

(1) Apply the lamp voltage within the LCD operation range. When the back-light turns on before the LCD operation or the LCD

turns off before the back-light turns off, the display may momentarily become abnormal screen.

Page 17

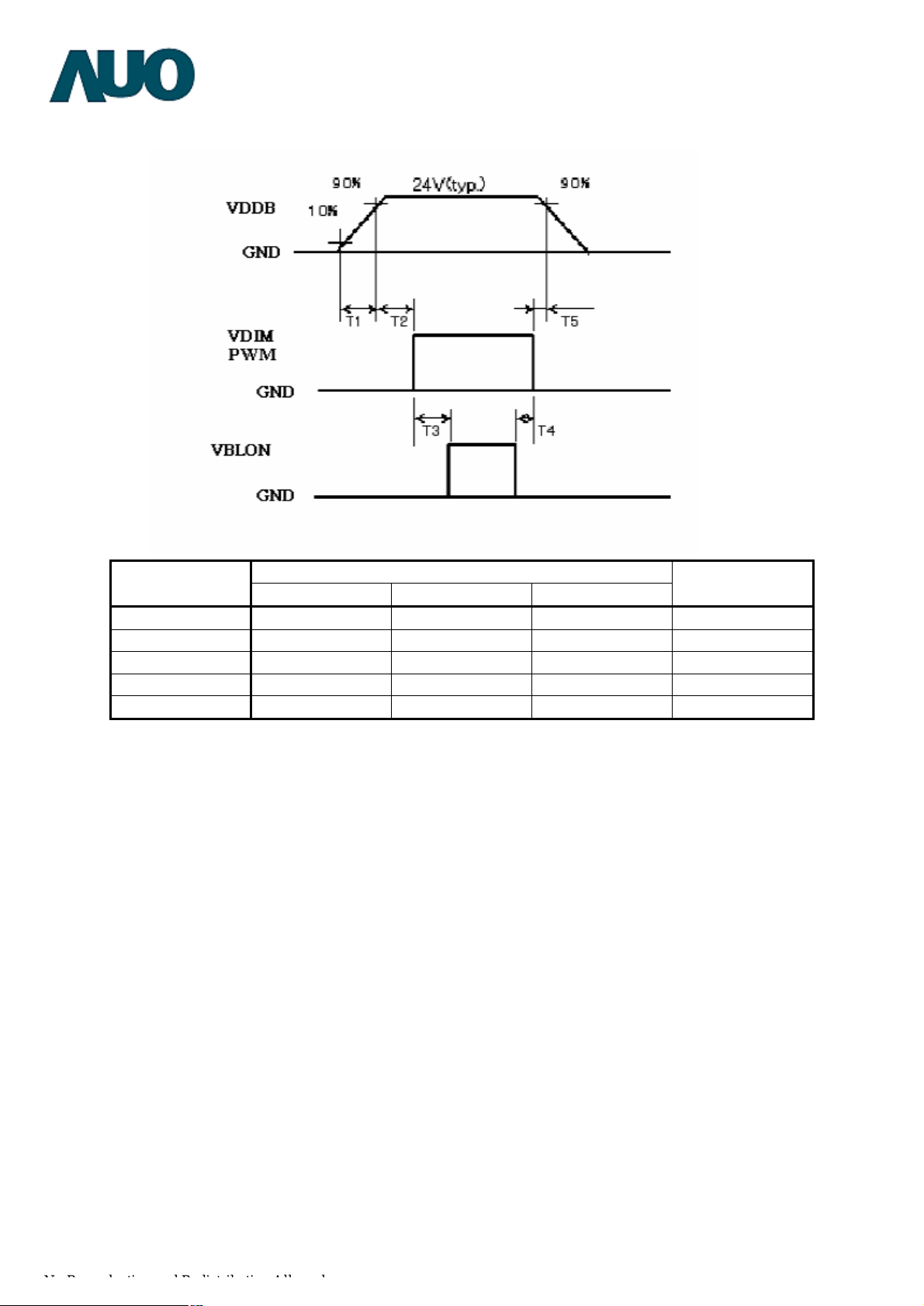

3-7 Power Sequence for Inverter

Parameter

T1 T2 T3 T4 T5

Values

Min. Typ. Max.

Units

20 - - ms 10 - - ms

0 - - ms

50 - - ms

0 - - ms

Page 18

4. Optical Specification

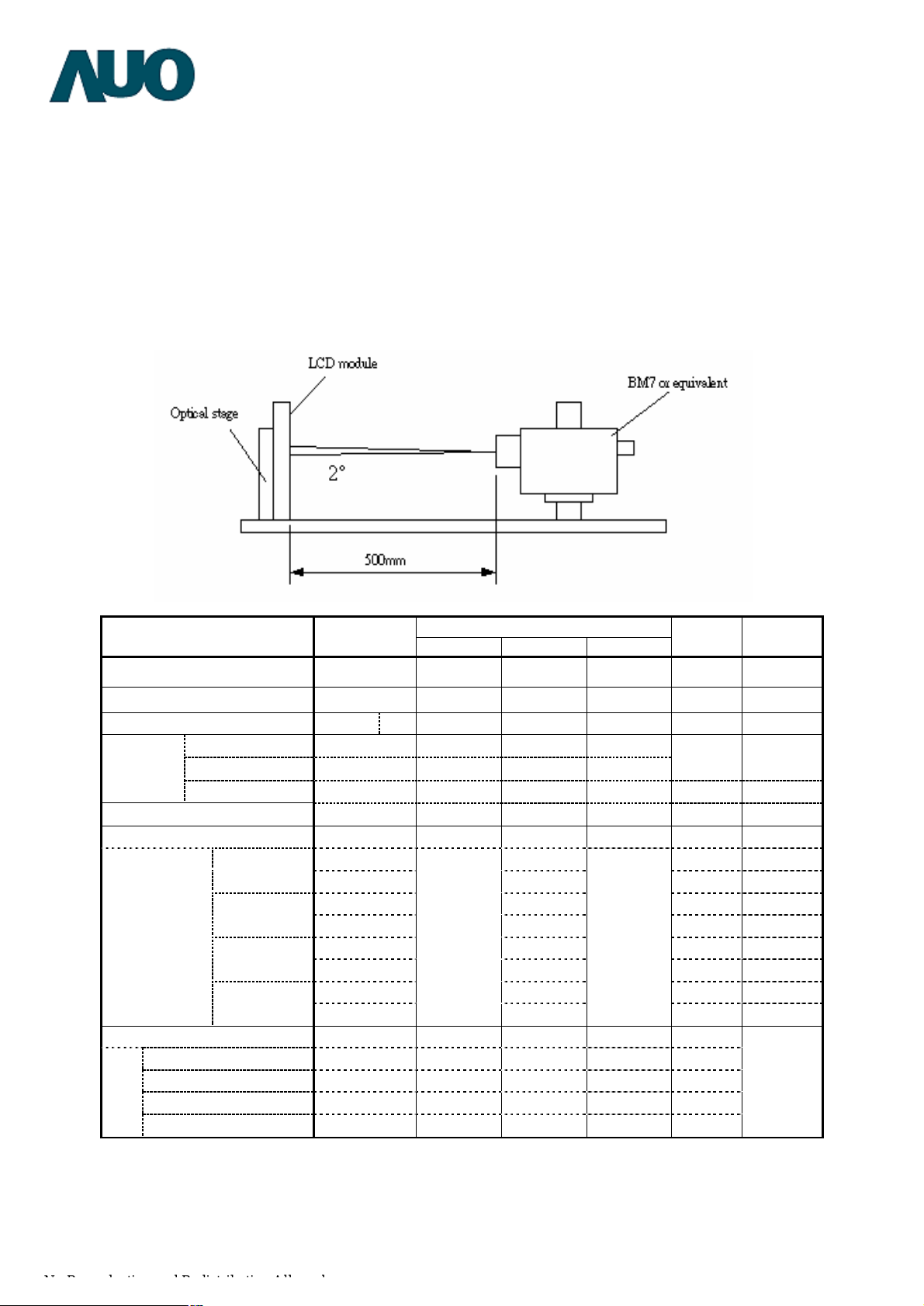

Optical characteristics are determined after the unit has been ‘ON’ and stable for approximately 45 minutes in a dark environment at 25. The values specified are at an approximate distance 50cm from the LCD surface ℃ at a viewing angle of Φ and θequal to 0°. Signal generator used for measurement is “Chroma 2913” and signal setting follows the typical value shown in page 13 with vertical frequency range A (fv=60Hz). Meanwhile, dimmer is 3.3(V) for its maximum setting.

Fig.1 1 presents additional information concerning the measurement equipment and method.

Parameter

Contrast Ratio Surface Luminance, white

Luminance Variation Response Time

Rise Time TrR 15 Decay Time TrD 5

Symbol

Min. Typ. Max.

Values

CR (1200) (1500)

LWH (400) (500)

WHITE

9 p

1.3

Units Notes

cd/㎡

Gray to Gray Tγ 8 ms Color Gamut NTSC 72 % Color Coordinates

RED

GREEN

BLUE

WHITE

Viewing Angle

x axis, right(φ=0°) x axis, left(φ=180°) y axis, up(φ=90°) y axis, down (φ=0°)

0.640

RY 0.330

GX 0.290 GY 0.600

BX 0.150

Typ.-0.03

Typ.+0.03

BY 0.060

WX 0.280 WY

0.290

88 Degree

1 2

3 4 5

Page 19

4 5 6

Note:

1. Contrast Ratio (CR) is defined mathematically as:

Surface Luminance of L

on1

Contrast Ratio=

Surface Luminance of L

2. Surface luminance is luminance value at point 1 across the LCD surface 50cm from the surface with all pixels displaying white.

From more information see FIG 2. When V

DDB

= 24V, I

= 3.5A. LWH=Lon1

DDB

Where Lon1 is the luminance with all pixels displaying white at center 1 location.

3. The variation in surface luminance, δ

WHITE(9P)

= Maximum(L

is defined (center of Screen) as:

WHITE

, L

on1

on2

,…L

) / Minimum(L

on9

on1

, L

on2

4. Response time is the time required for the display to transition from black to white(Rise Time, TrR) and from white to black

(Decay Time, TrD). For additional information see FIG3.

5. Tγ is the response time between any two gray scale (steps size=32 levels) and is based on fv=60Hz to optimize.

6. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are determined for the horizontal or x axis

and the vertical or y axis with respect to the z axis which is normal to the LCD surface. For more information see FIG4.

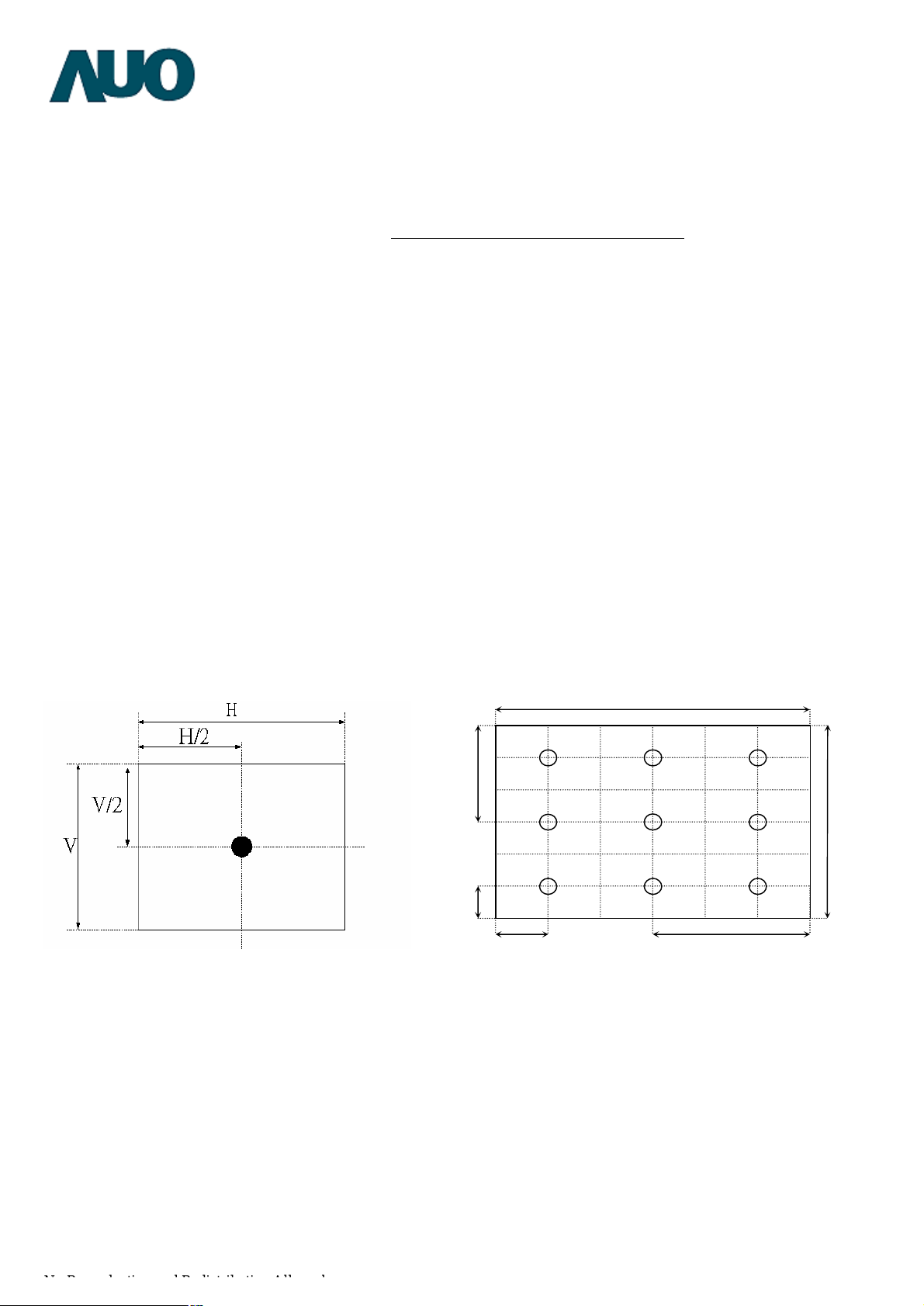

FIG. 2 Luminance

off1

,…,L

on9

)

H/2

H/6

V/2 V/6

Page 20

FIG.3 Response Time

The response time is defined as the following figure and shall be measured by switching the input signal for “black” and “white”.

Any brighter gray level (White)

100%

90%

Optical Response

10%

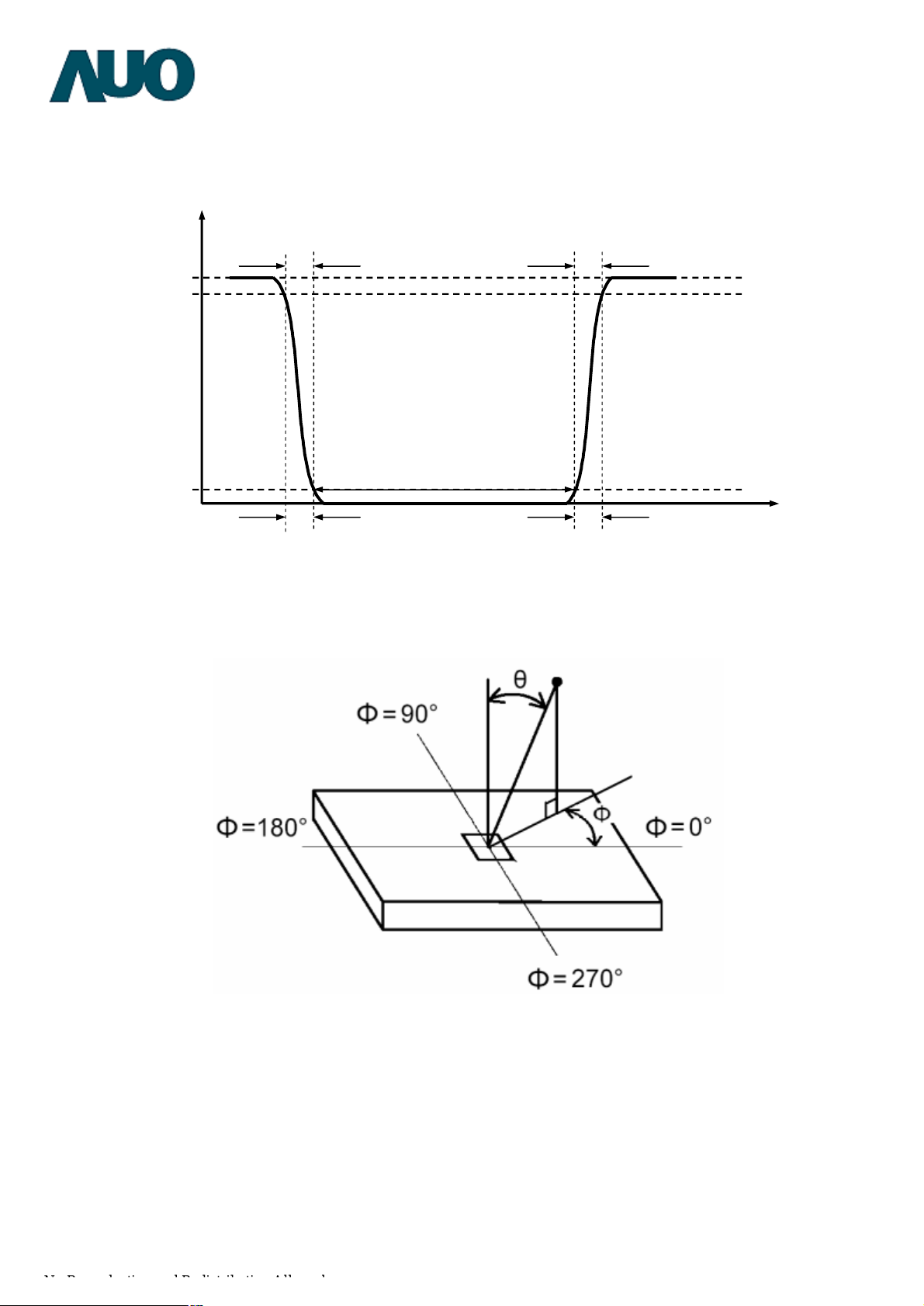

FIG.4 Viewing angle

Any darker gray (Black)

Any brighter gray level (White)

Time

Page 21

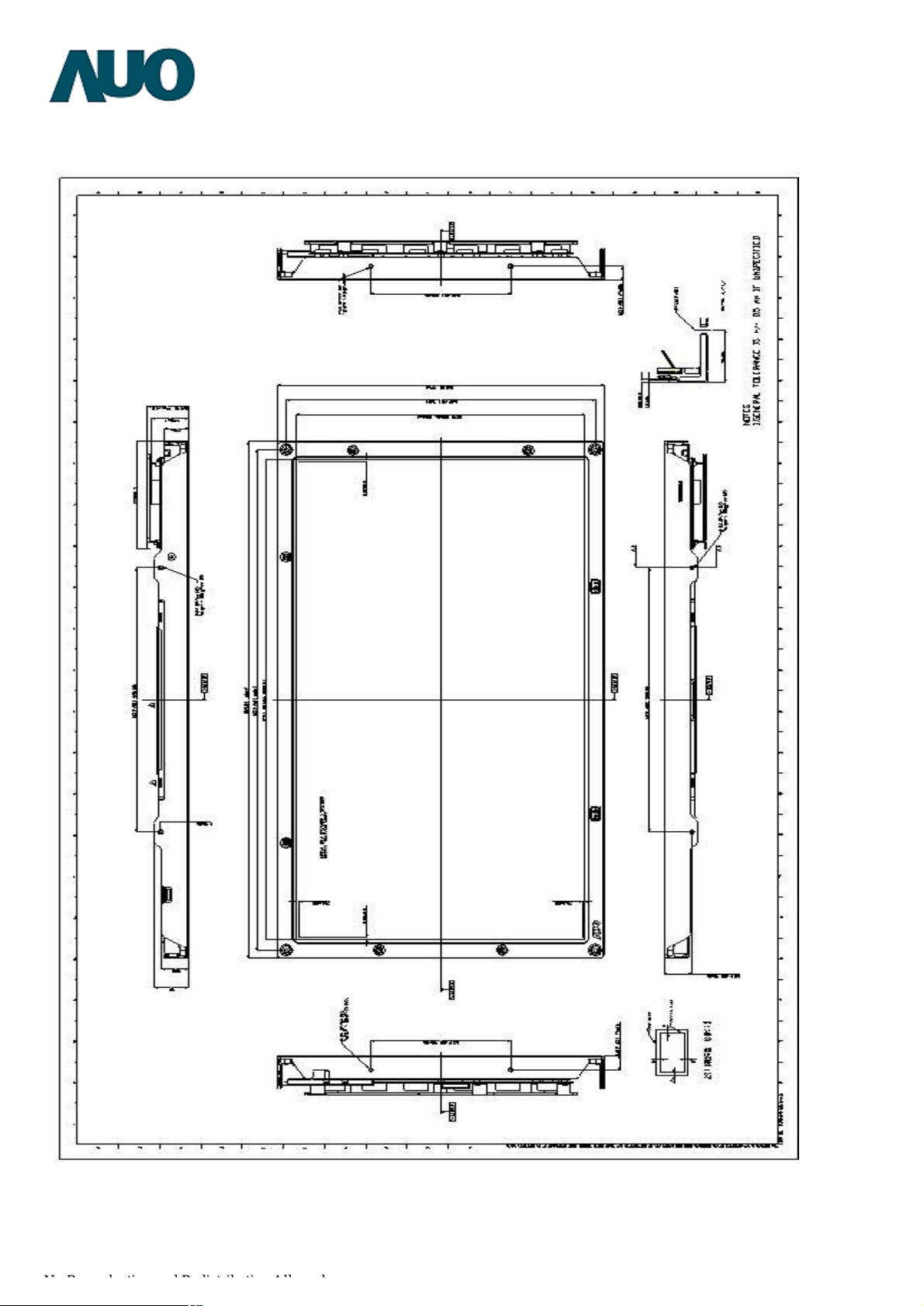

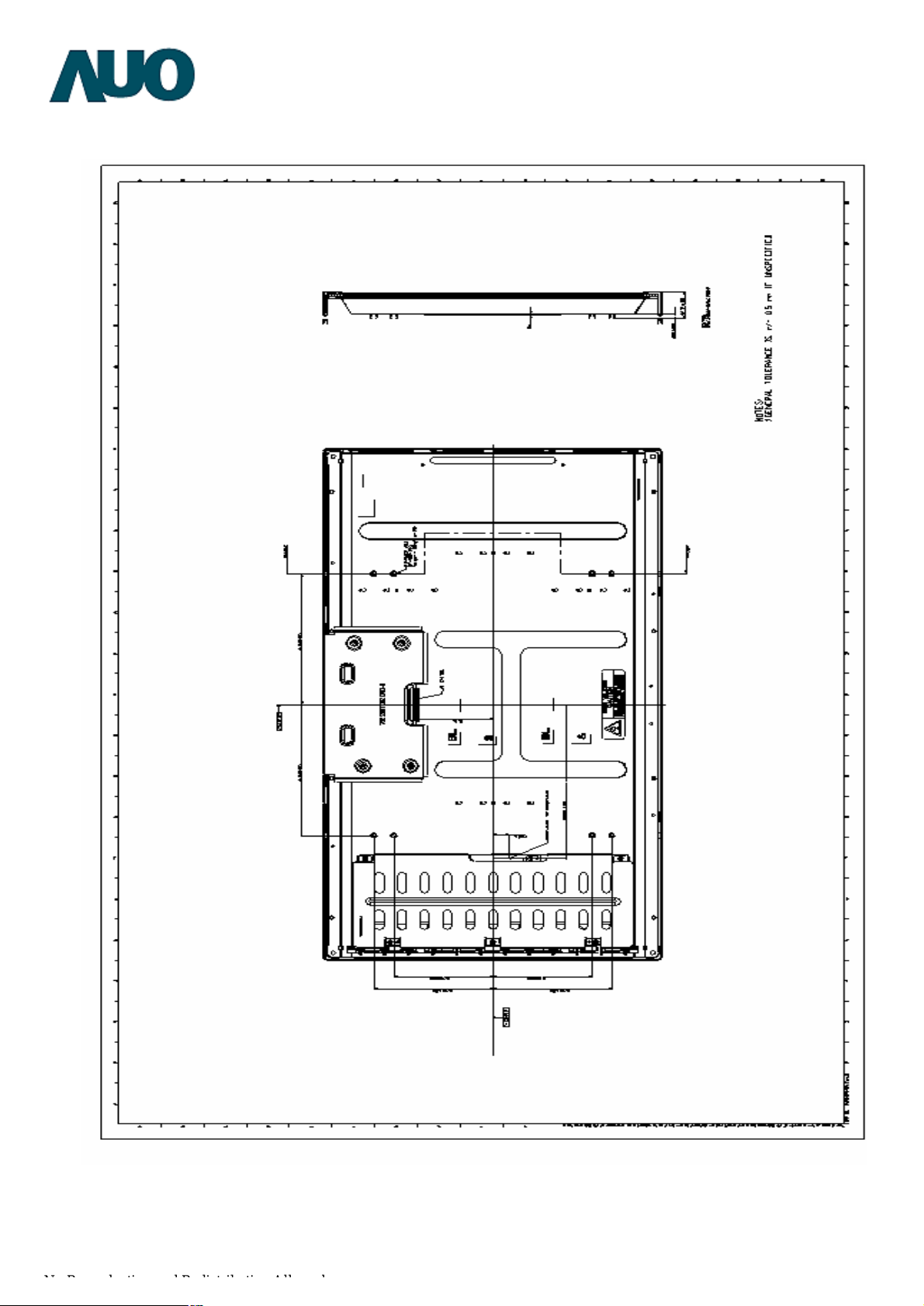

5. Mechanical Characteristics

The contents provide general mechanical characteristics for the model T260XW02. In addition the figures in the next page are detailed mechanical drawing of the LCD.

Horizontal 626.0mm

Outline Dimension

Bezel Area

Active Display Area Weight

Surface Treatment

Vertical 373.0mm

Depth

47.5mm(w/i inverter & Shielding)

30.3mm(w/o inverter)

Horizontal 580.8mm±0.5mm

Vertical 328.8mm±0.5mm

Horizontal 575.769mm

Vertical 323.712mm

4500g (Typ.)

Anti-Glare, 3H

Page 22

5.1 Front View

Page 23

5.2 Rear View

Page 24

Random Vibration: 10~200Hz, 1.5G, 30minutes

Reliability

Environment test condition

No Test Item Condition

1 High temperature storage test 2 Low temperature storage test 3 High temperature operation test 4 Low temperature operation test 5 Temperature Humidity Bias 6 Thermal Shock Test 7 Power On / Off Test

Vibration test

(non-operating)

Shock test

(non-operating)

Vibration test

(with carton)

Drop test

(with carton)

Ta=60℃ 300h Ta=-20℃ 300h Ta=50℃ 300h Ta=-5℃ 300h Ta=50℃/80% 300h

-20℃/0.5h~60℃/0.5h, 500cycles 30000cycles Wave form: random Vibration level: 1.5G RMS Bandwidth: 10-500Hz Duration: X, Y, Z 30min One time each direction Shock level: 50G Waveform: half since wave, 11ms Direction: ±X, ±Y, ±Z One time each direction

in each X, Y, Z direction Height: 53.3cm 1 corner, 3 edges, 6 surfaces (ASTMD4169-I)

｛Result Evaluation Criteria｝ There should be no change which might affect the practical display function when the display quality test is conducted under normal operating condition.

Page 25

7. International Standard

7-1. Safety

(1) UL1950 Third Edition, Underwriters Laboratories, Inc. Jan. 28, 1995 Standard for Safety of Information Technology Equipment Including electrical Business Equipment. (2) CAN/CSA C22.2 No. 950-95 Third Edition, Canadian Standards Association, Jan. 28, 1995 Standard for Safety of Information Technology Equipment Including Electrical Business Equipment. (3) EN60950: 1992+A2: 1993+A2: 1993+C3: 1995+A4: 1997+A11: 1997 IEC 950: 1991+A1: 1992+A2: 1993+C3: 1995+A4:1996 European Committee for Electro technical Standardization (CENELEC) EUROPEAN STANDARD for Safety of Information Technology Equipment Including Electrical Business Equipment. (4) EN60065

7-2. EMC

a) ANSI C63.4 “Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electrical Equipment in the Range of 9kHz to 40GHz. “American National standards Institute(ANSI), 1992. b) C.I.S.P.R “Limits and Methods of Measurement of Radio Interface Characteristics of Information Technology Equipment.” International Special committee on Radio Interference. c) EN 55022 “Limits and Methods of Measurement of Radio Interface Characteristics of Information Technology Equipment.” European Committee for Electro technical Standardization. (CENELEC),

1998.

7-3. Green

Green Mark Description:

a) For Pb Free products, AUO will add for identification. b) For RoHS compatible products, AUO will add for identification.

Note. The Green Mark will be present only when the green documents have been ready by AUO Internal Green Team. (The definition of green design follows the AUO green design checklist.)

Page 26

8. Packing

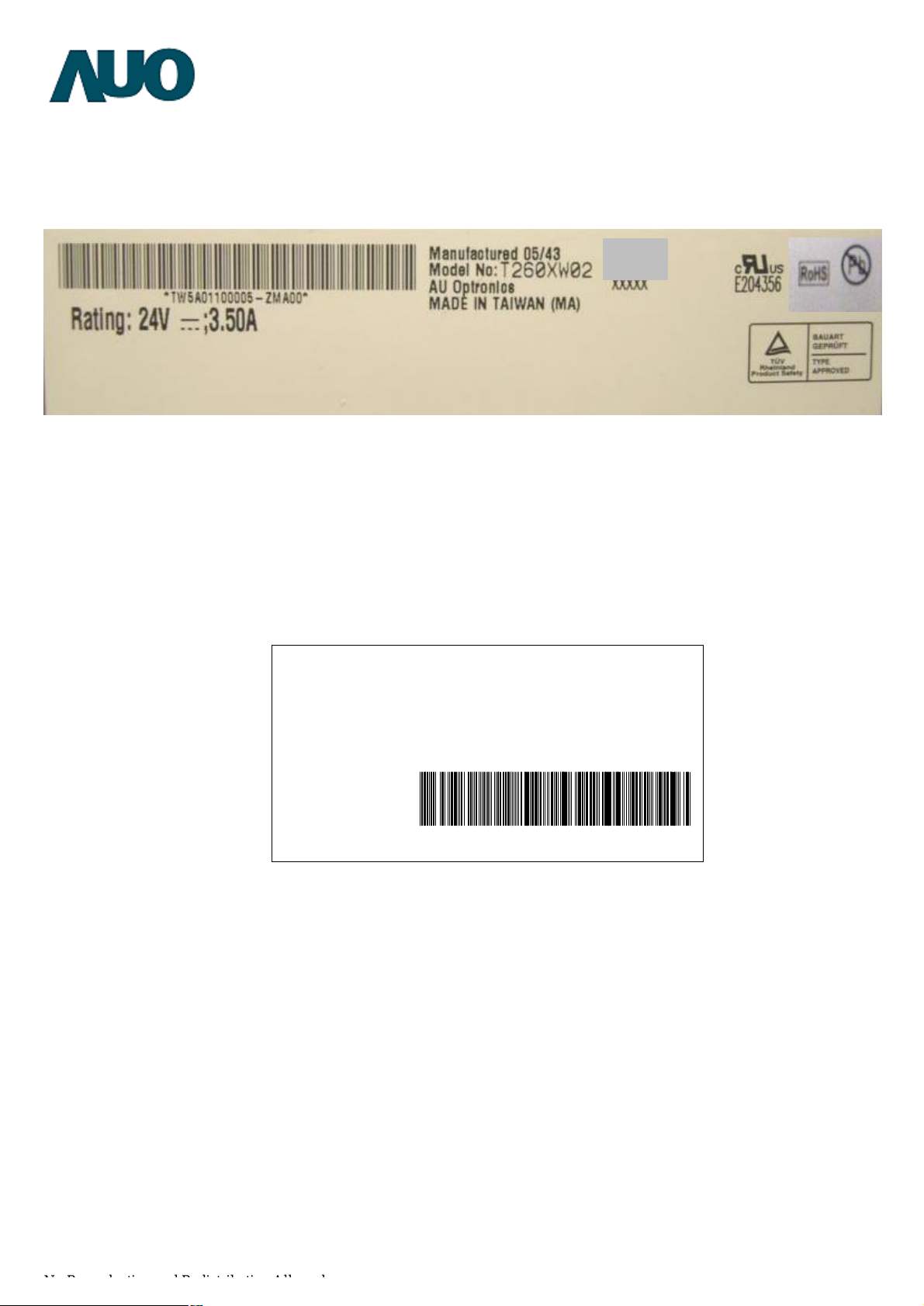

Label sample

TW5A01100005-ZMA00*

TW5A011: Production lot (T-Taiwan, 5-year, 1~C-month) 00005: Panel serial number ZMA: AUO internal code Manufactured 05/43: 2005 week 43

V.A

Carton Label

AU Optronics

MODEL NO: T260XW02 VX PART NO: 97.26T02.XXX CUSTOMER NO:

CARTON NO:

Made in Taiwan

*PM100-01A1600001*

QTY: 4

Page 27

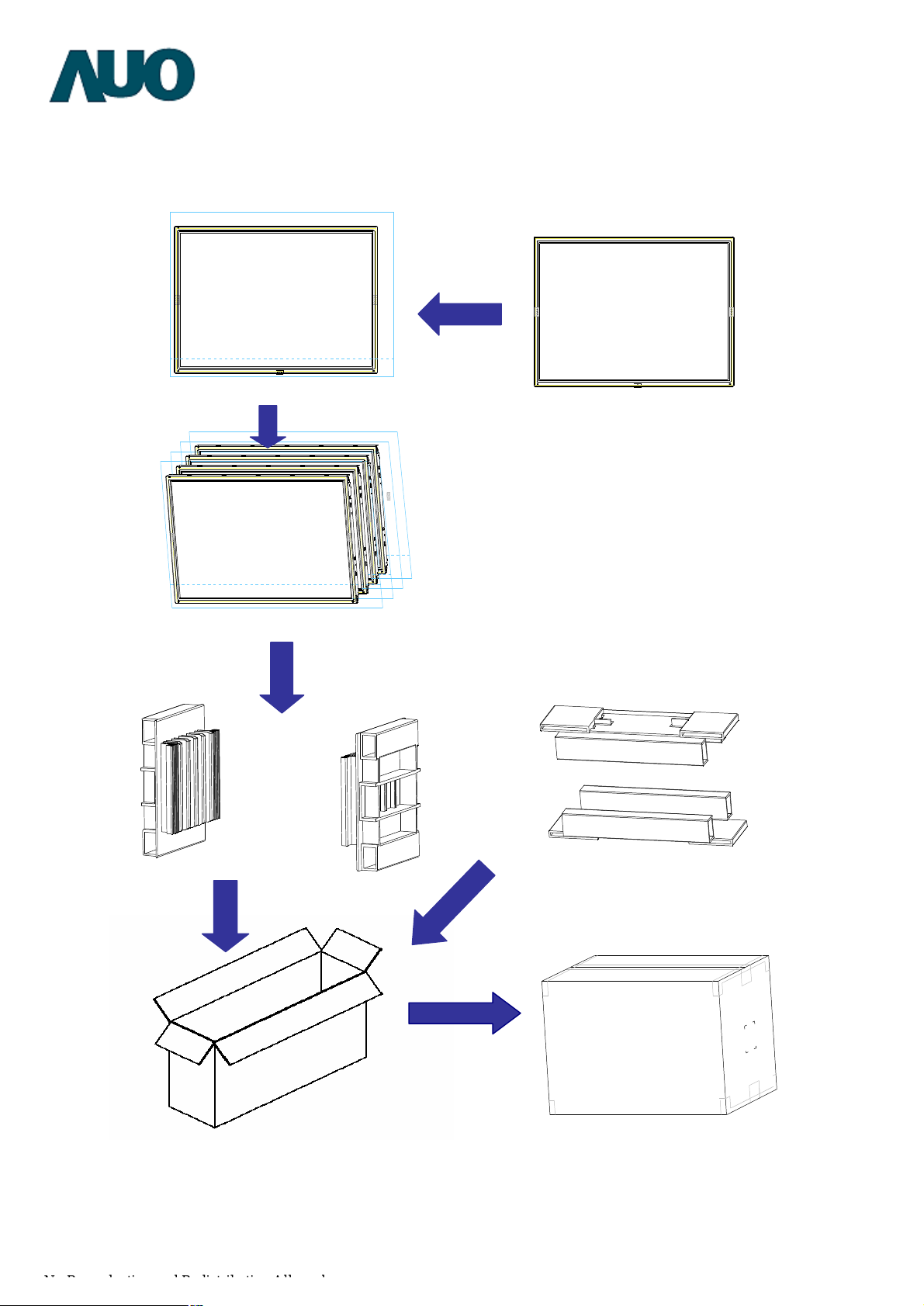

pcs Modules

Cushion set

1pcs Module/ESD Bag

Cushion top

Module

5pcs / 1 carton

Cushion down

Carton Size 722(L) mm*325(W) mm*469(H) mm

Page 28

after packing

Item

Packing BOX

Pallet

Boxes per Pallet

Panels per Pallet Pallet

Specification

Qty. Dimension Weight (kg)

5pcs/box 722(L)mm*325(W)mm*469(H)mm 1 980(L)mm*730(W)mm*120(H)mm 6 boxes/Pallet 30pcs/pallet 30 980(L)mm*730(W)mm*1058(H)mm

26.4

178.4

Packing Remark

Page 29

9. PRECAUTIONS

Please pay attention to the followings when you use this TFT LCD module.

9-1 MOUNTING PRECAUTIONS

(1) You must mount a module using holes arranged in four corners or four sides. (2) You should consider the mounting structure so that uneven force (ex. Twisted stress) is not applied to module. And the case on which a module is mounted should have sufficient strength so that external force is not transmitted directly to the module. (3) Please attach the surface transparent protective plate to the surface in order to protect the polarizer. Transparent protective plate should have sufficient strength in order to the resist external force. (4) You should adopt radiation structure to satisfy the temperature specification. (5) Acetic acid type and chlorine type materials for the cover case are not desirable because the former generates corrosive gas of attacking the polarizer at high temperature and the latter causes circuit break by electro-chemical reaction. (6) Do not touch, push or rub the exposed polarizers with glass, tweezers or anything harder than HB pencil lead. And please do not rub with dust clothes with chemical treatment. Do not touch the surface of polarizer for bare hand or greasy cloth. (Some cosmetics are detrimental to the polarizer.) (7) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials like chamois soaks with petroleum benzene. Normal-hexane is recommended for cleaning the adhesives used to attach front/ rear polarizers. Do not use acetone, toluene and alcohol because they cause chemical damage to the polarizer. (8) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes deformations and color fading. (9) Do not open the case because inside circuits do not have sufficient strength.

9-2 OPERATING PRECAUTIONS

(1) The spike noise causes the mis-operation of circuits. It should be lower than following voltage: V=±200mV(Over and under shoot voltage) (2) Response time depends on the temperature. (In lower temperature, it becomes longer..) (3) Brightness depends on the temperature. (In lower temperature, it becomes lower.) And in lower temperature, response time (required time that brightness is stable after turned on) becomes longer. (4) Be careful for condensation at sudden temperature change. Condensation makes damage to polarizer or electrical contacted parts. And after fading condensation, smear or spot will occur. (5) When fixed patterns are displayed for a long time, remnant image is likely to occur. (6) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall be done by system manufacturers. Grounding and shielding methods may be important to minimize the interface.

Page 30

9-3 ELECTROSTATIC DISCHARGE CONTROL

Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain that treatment persons are connected to ground through wrist band etc. And don’t touch interface pin directly.

9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE

Strong light exposure causes degradation of polarizer and color filter.

9-5 STORAGE

When storing modules as spares for a long time, the following precautions are necessary.

(1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the temperature between 5 and 35 at normal humidity.℃℃ (2) The polarizer surface should not come in contact with any other object. It is recommended that they be stored in the container in which they were shipped.

9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM

(1) The protection film is attached to the bezel with a small masking tape. When the protection film is peeled off, static electricity is generated between the film and polarizer. This should be peeled off slowly and carefully by people who are electrically grounded and with well ion-blown equipment or in such a condition, etc. (2) When the module with protection film attached is stored for a long time, sometimes there remains a very small amount of flue still on the Bezel after the protection film is peeled off. (3) You can remove the glue easily. When the glue remains on the Bezel or its vestige is recognized, please wipe them off with absorbent cotton waste or other soft material like chamois soaked with normal-hexane.
