Page 1

Free Datasheet http://www.datasheet4u.com/

Document Version: 5.4

Date: 2005/10/11

Product Specifications

26.0” WXGA Color TFT-LCD Module Model Name: T260XW02 V5

( ) Preliminary Specifications

(*) Final Specifications

Page 2

Free Datasheet http://www.datasheet4u.com/

Contents

No ITEM

1 2 3

4 5 6 7

3-1 3-2 3-3 3-4 3-5 3-6 3-7

COVER CONTENTS RECORD OF REVISIONS GENERAL DESCRIPTION ABSOLUTION MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTERISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR INPUT DATA REFERENCE POWER SEQUENCE for LCD POWER SEQUENCE for INVERTER OPTICAL SPECIFICATIONS MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS

7-1

7-2 8 9

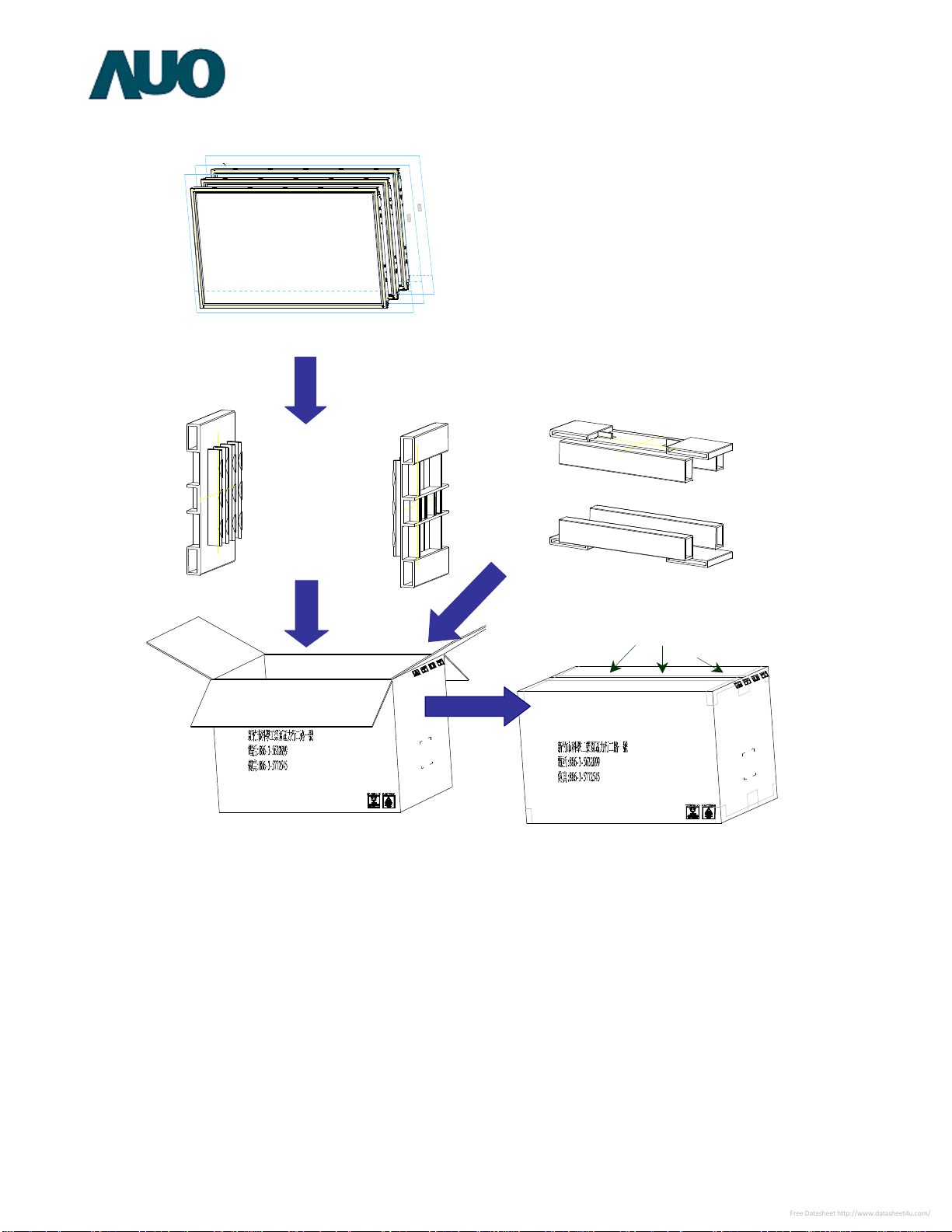

SAFETY EMC PACKING PRECAUTIONS

Page 3

NS (Normal)

μs

Free Datasheet http://www.datasheet4u.com/

Version Date No

5.0 2005/8/2

5.1 2005/9/19

5.2 2005/9/29

Record of Revision

Old Description New Description Remark

Original Version

2. Absolute Maximum Ratings Symbol: VDD

Note1: Duration = 50msec 3-2 Interface Connections

-LCD connector (CN1): JAE FI-E30

S or equivalent

** LVDS Option : H (3.3V) or N.C.è L (GND) è JETDA ** Rotate Option : H (3.3V) è U/D, R/L rotate L (GND) è Normal 3-6 Power Sequence for LCD 3-6 Power Sequence for LCD

Parameter

t1 470 - 1000 t2 25 - 60 ms t3 600 - - ms t4 200 - - ms t5 50 - - ms t6 0.47 - 30 ms t7 1 - - s

Values

Min. Typ. Max.

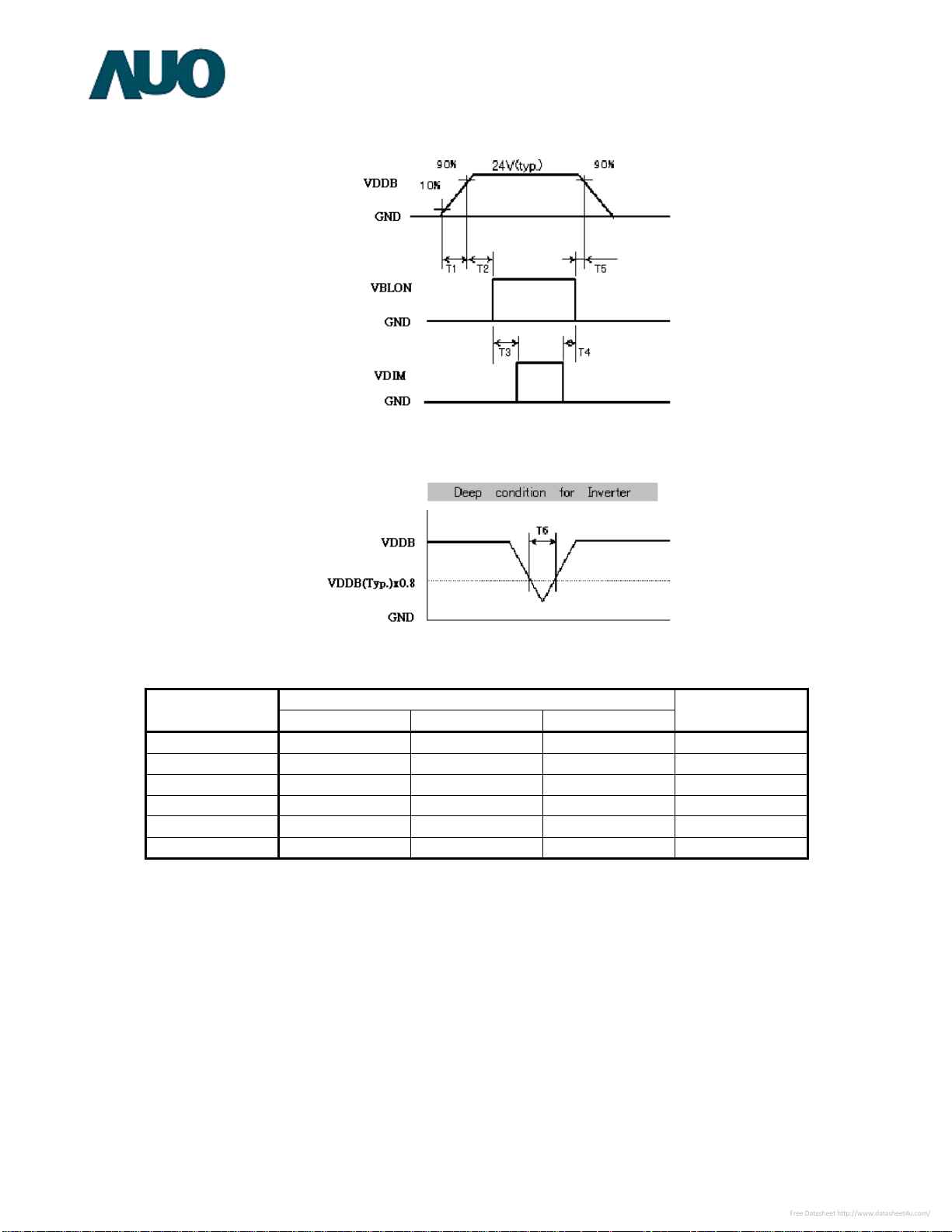

3-6 Power Sequence for Inverter 3-6 Power Sequence for Inverter

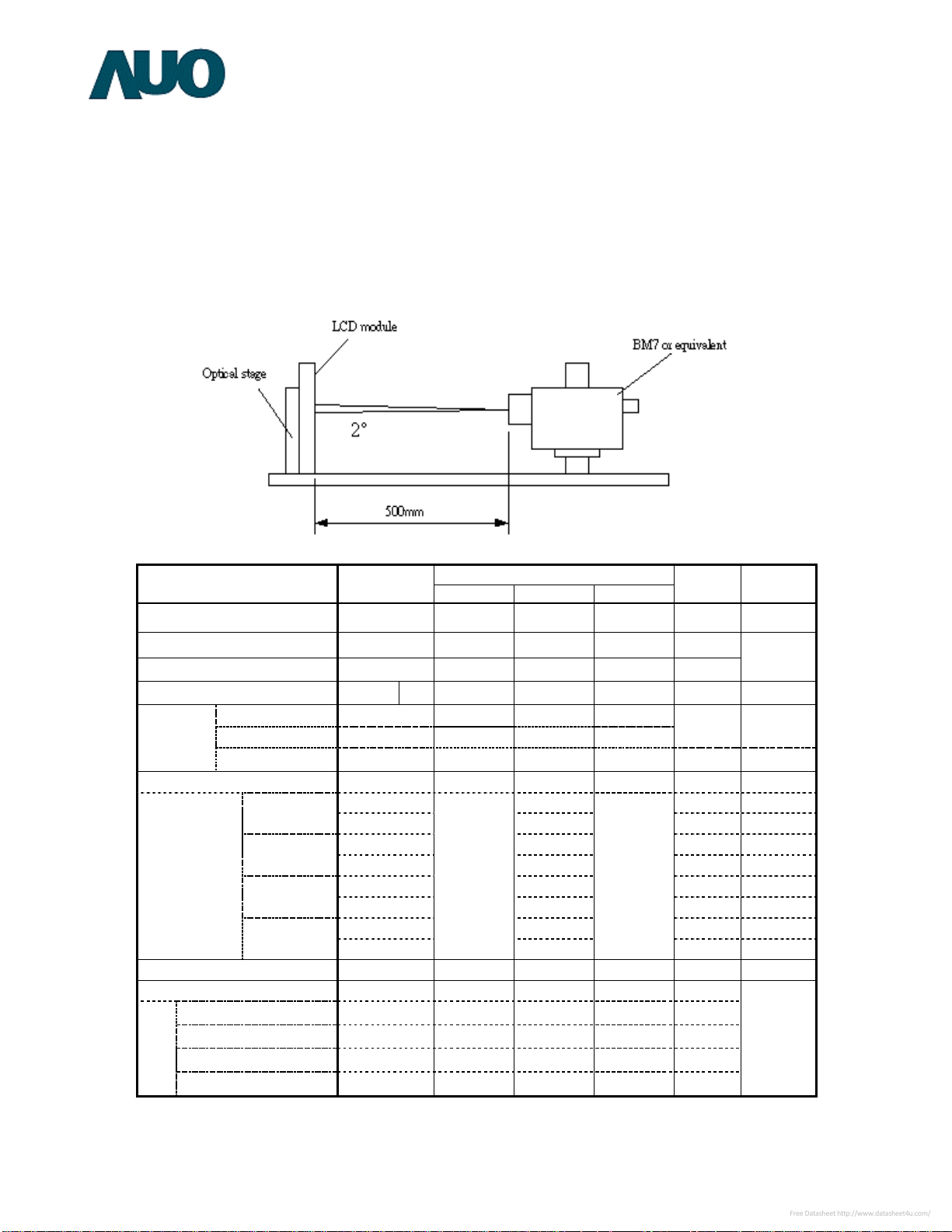

Optical Specificationè Contrast Ratioè 600 : 1(min) 1000 : 1 (typ.) Dark Luminanceè 0.8 (max) Luminance Variationè 1.4

Bezel Areaè Horizontal: 580.8mm Vertical: 328.8mm

Absolute Maximum Ratings Absolute Maximum Ratings

Symbol Min Max Unit

VCC -0.3 (7.0) [Volt]

Vin -0.3 (3.6) [Volt] VDDB -0.3 27.0 [Volt] BLON -0.3 7.0 [Volt]

TOP 0 +50 [oC]

HOP 10 90 [%RH] TST -20 +60 [oC] HST 10 90 [%RH]

2. Absolute Maximum Ratings Symbol: VDDB

Note 1 : Duration = 1 sec 3-2 Interface Connections

- LCD connector (CN1): JAE FI-E30S or

STM MSAKS2407P30

** LVDS Option : H (3.3V) or N.C.è NS (Normal)

L (GND) è JETDA

Units

Parameter

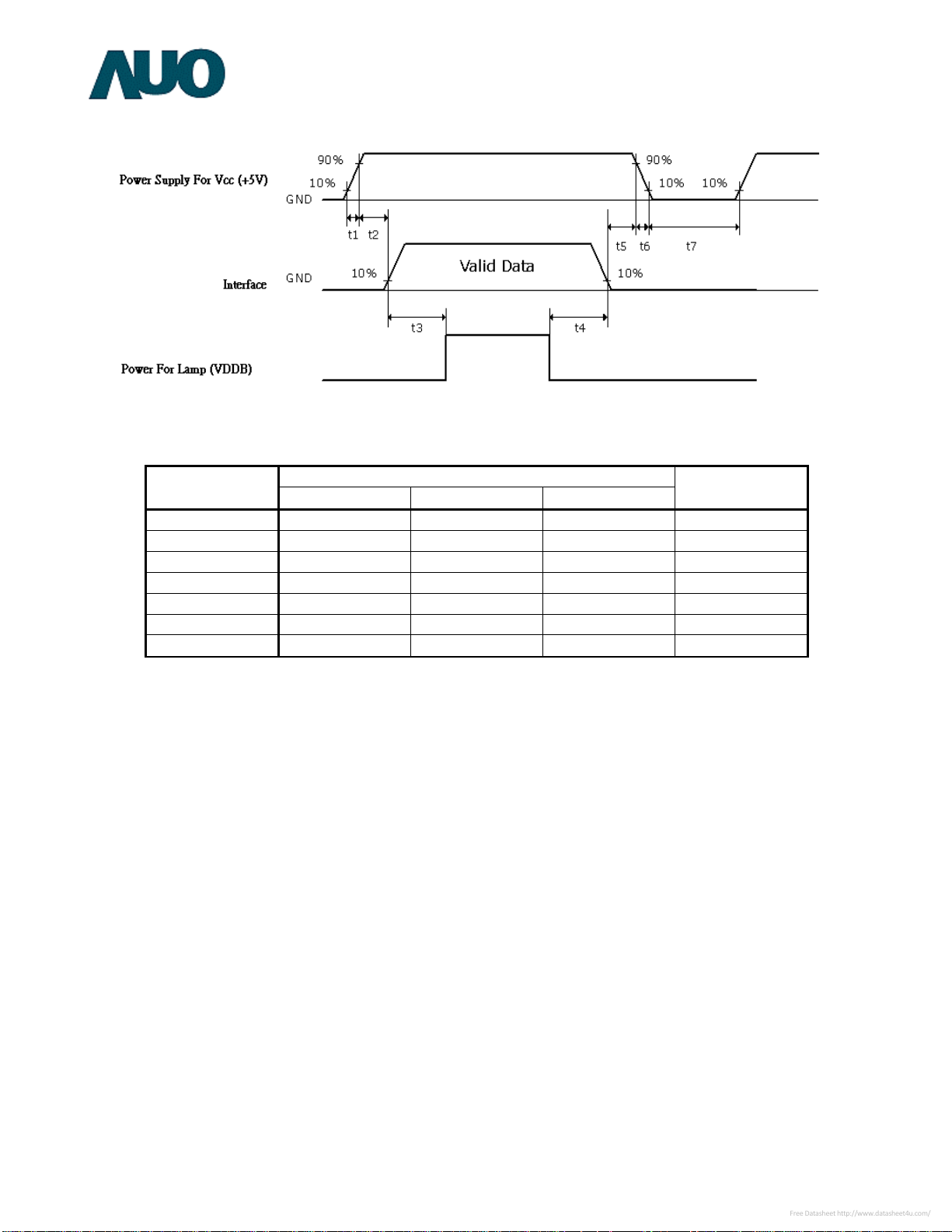

t1 0.5 - 20 ms t2 20 - 50 ms t3 700 - - ms t4 200 - - ms t5 t6 0.47 - 30 ms t7 1 - - s

Parameter

T1 20 - - ms T2 500 - - ms T3 250 - - ms T4 0 - - ms T5 1 - - ms T6 - - 10 s

Values

Min. Typ. Max.

50 - - ms

Values

Min. Typ. Max.

Optical Specificationè Contrast Ratioè 800 : 1(min) 1000 : 1 (typ.) Dark Luminanceè 0.625 (max) Luminance Variationè 1.3 Bezel Areaè Horizontal: 580.8mm±0.5mm

Vertical: 328.8mm±0.5mm

Symbol Min Max Unit

VCC -0.3 (6.0) [Volt]

-0.3 (3.6) [Volt]

LVDSOPT

VDDB -0.3 27.0 [Volt] BLON -0.3 7.0 [Volt] VDIM -0.3 6.0 [Volt] V

-0.3 6.0 [Volt]

BLON

-0.3 6.0 [Volt]

PWM

TOP 0 +50 [oC] HOP 10 90 [%RH] TST -20 +60 [oC] HST 10 90 [%RH]

Page 5

Page 7

Units

Page 14

Units

Page 15

Page 16

Page 19

Page 5

Page 4

Frequency

Free Datasheet http://www.datasheet4u.com/

Version Date No

5.2 2005/9/29

5.3 2005/10/04

5.4 2005/10/11

Old Description New Description Remark

3-2 Interface Connections updated Page 8, 9 Input current / power updated (turn on/

Signal Item Symbol Min. Typ. Max. Unit

Period Tv 789 806 822 Th

Vertical

Active Tdisp 768 Th

Section

Blanking Tblk (v) 21 38 54 Th

Period Th 1414 1560 1722 Tclk

Horizontal

Active Tdisp 1366 Tclk

Section

Blanking Tblk (h) 48 194 356 Tclk

Clock

Vertical Frequency Horizontal Frequency

Fclk 65 76 88 MHz

Fv 58 60 62 Hz

Freq 47.32 --- 49.32 kHz

Input Current (Turn on Condition) èI

=3.95A(max.)

DDB

Input Power (Turn on Condition)

=94.8W(max.)

DDB

Input Current (Stable Condition) èI

=3.6A(max.)

DDB

Input Power (Stable Condition) èP

=87W(max.)

DDB

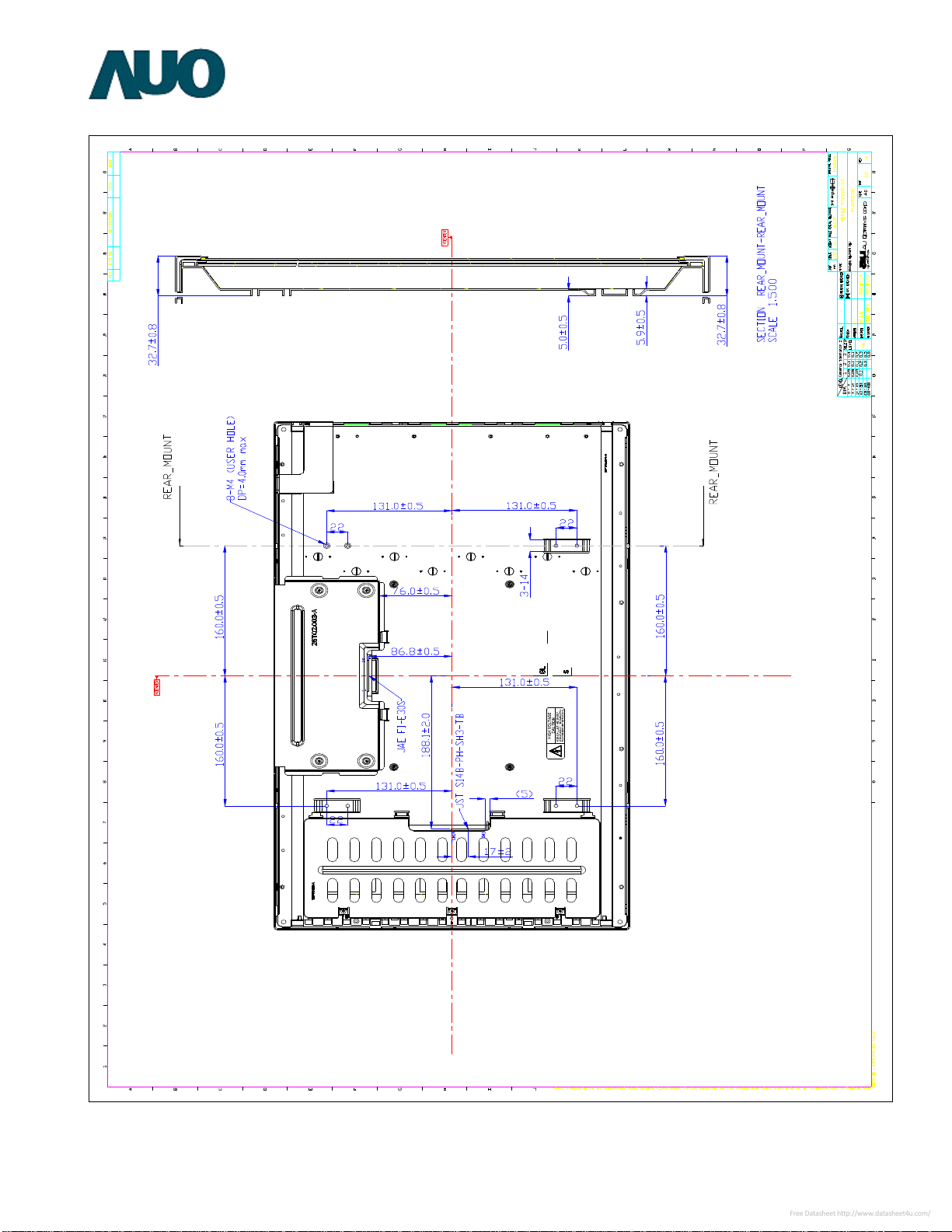

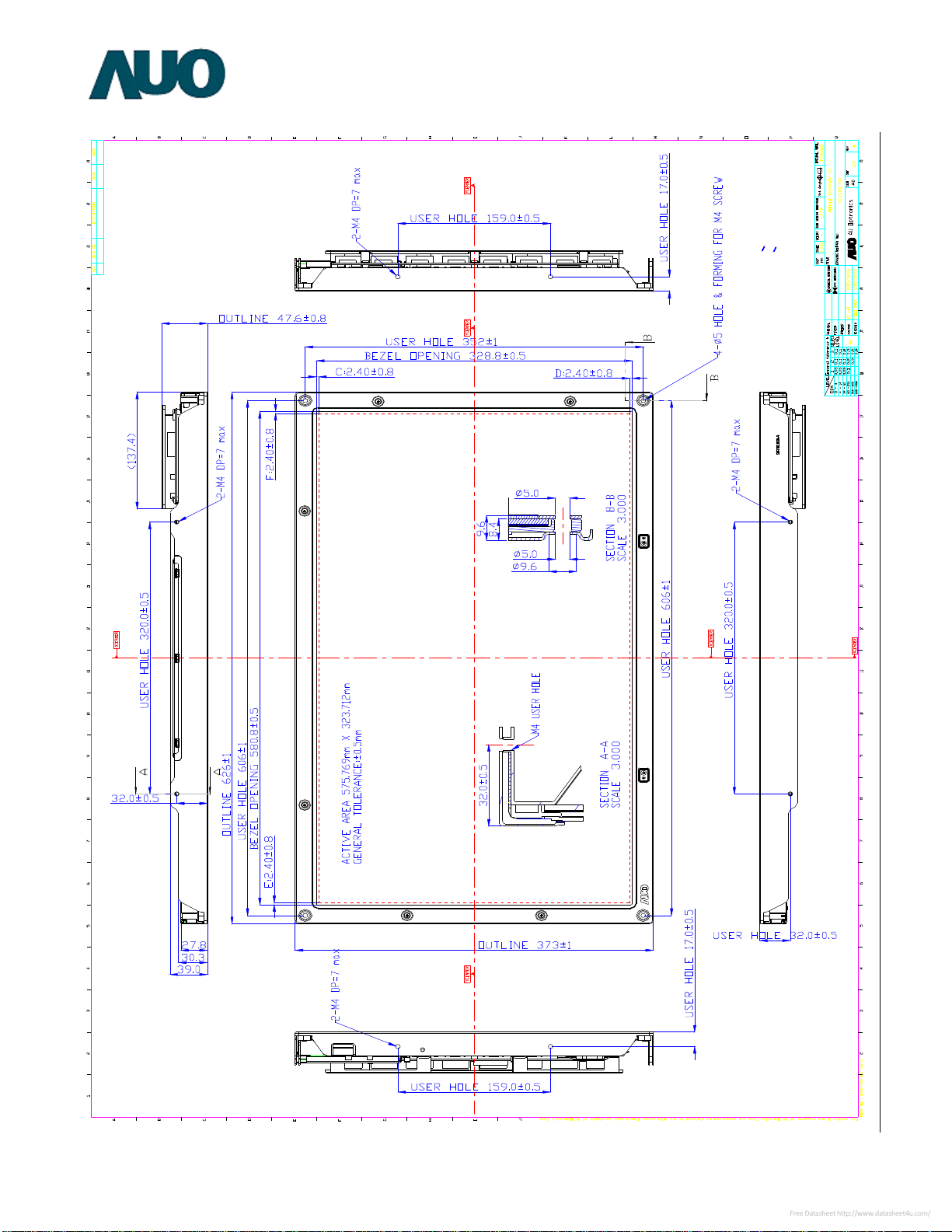

Front view 2D drawingè

︱A-B︱≦1.6mm ︱C-D︱≦1.6mm

Backlight Power Consumption: 94.8W (max.)

stable)

Signal Item Symbol Min. Typ. Max. Unit

Period Tv 950 975 1000 Th

Vertical

Active Tdisp 768

Section

Blanking Tblk (v) 182 207 232 Th

Period Th 1414 1435 1543 Tclk

Horizontal

Active Tdisp 1366

Section

Blanking Tblk (h) 48 69 177 Tclk

Clock Frequency

Vertical Frequency Horizontal Frequency

Fclk 80 84 88 MHz

Frequency Fv -- 60 -- Hz

Frequency Freq 57 --- 60 kHz

Input Current (Turn on Condition) èI

=3.65A(typ.)

DDB

èI

=3.95A(max.)

DDB

Input Power (Turn on Condition) èP

=87.6W(typ.)

DDB

èP

=94.8W(max.)

DDB

Input Current (Stable Condition) èI

=3.5A(typ.)

DDB

èI

=3.6A(max.)

DDB

Input Power (Stable Condition) èP

=84W(typ.)

DDB

èP

=87W(max.)

DDB

Front view 2D drawingè

︱C-D︱≦1.6mm ︱E-F︱≦1.6mm

Page 7

Page 10

Page 12

Page 10

Page 21

Page 5

Free Datasheet http://www.datasheet4u.com/

1. General Description

This specification applies to the 26.0 inch Color TFT-LCD Module T260XW02. This LCD module has a TFT active matrix type liquid crystal panel 1366x768 pixels, and diagonal size of 26.0 inch. This module supports 1366x768 XGA-WIDE mode (Non-interlace). Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is determined with a 8-bit gray scale signal for each dot. The T260XW02 has been designed to apply the 8-bit 1 channel LVDS interface method. It is intended to support displays where high brightness, wide viewing angle, high color saturation, and high color depth are very important.

* General Information

Items Specification Unit Note Active Screen Size Display Area Pixel Pitch Outline Dimension Driver Element Display Colors Number of Pixels Pixel Arrangement Display Mode BL Structure Surface Treatment

26.0

575.769 (H) x 323.712(V)

0.4215 mm

626.0 (H) x 373.0 (V) x 47.5(D) a-Si TFT active matrix

16.7M

1366 x 768

RGB vertical stripe

Normally Black

8 U-Lamps

AG, 3H

inches

mm With inverter

Colors

Pixel

Page 6

Free Datasheet http://www.datasheet4u.com/

2. Absolute Maximum Ratings

The following are maximum values which, if exceeded, may cause faulty operation or damage to the unit.

Item Symbol Min Max Unit Conditions

Logic/LCD Drive Voltage LVDS Option Control Voltage BLU Input Voltage BLU Brightness Control Voltage External Analog Dimming Control Voltage On/Off Control Voltage External PWM Dimming Control Voltage Operating Temperature Operating Humidity Storage Temperature Storage Humidity

Note 1 : Duration = 1 sec

VCC -0.3 6.0 [Volt] Note 1

LVDSOPT

-0.3 3.6 [Volt] Note 1 VDDB -0.3 27.0 [Volt] Note 1 BLON -0.3 7.0 [Volt] Note 1

VDIM -0.3 6.0 [Volt] Note 1

-0.3 6.0 [Volt] Note 1

BLON

-0.3 6.0 [Volt] Note 1

PWM

TOP 0 +50 [

C] Note 2

HOP 10 90 [%RH] Note 2

TST -20 +60 [

C] Note 2

HST 10 90 [%RH] Note 2

Note 2 : Maximum Wet-Bulb should be 39℃ and No condensation.

Page 7

Free Datasheet http://www.datasheet4u.com/

3. Electrical Specification

The T260XW02 requires two power inputs. One is employed to power the LCD electronics and to drive the TFT array and liquid crystal. The second input power for the BLU, is to power inverter..

3-1 Electrical Characteristics

Parameter

LCD:

Power Supply Input Voltage Power Supply Input Current Power Consumption

Inrush Current Backlight Power Consumption Life Time

Symbol

Min. Typ. Max.

Vcc 4.5 5.0 5.5 V

Icc - 1.40 1.78 A 1

Pc - 7.0 9.0 Watt 1

- - 3.0 A 2

RUSH

- - 94.8 Watt 3 50,000 60,000

Note :

1. Vcc=5.0V, Fv=60Hz, Fclk= 85.0 MHz , 25℃. , Test Pattern : White Pattern

2. Vcc rising time = 470

, Vcc=5.0V

Values

Unit Notes

Hours 4

3. VDDB=24V, VDIM=3.3V, EDPWM=100%, test in the whole period from VDDB power on to power off.

4. The performance of the Lamp in LCM, for example: lifetime or brightness, is extremely influenced by the characteristics

of the DC-AC Inverter. So all the parameters of an inverter should be carefully designed so as not to produce too much leakage current from high-voltage output of the inverter. When you design or order the inverter, please make sure unwanted lighting caused by the mismatch of the lamp and the inverter (no lighting, flicker, etc) never occurs. When you confirm it, the LCD Assembly should be operated in the same condition as installed in your instrument.

5. Do not attach a conducting tape to lamp connecting wire. If the lamp wire attach to conducting tape, TFT-LCD Module

have a low luminance and the inverter has abnormal action because leakage current occurs between lamp wire and conducting tape.

6. The relative humidity must not exceed 80% non-condensing at temperatures of 40℃ or less. At temperatures greater than

40℃, the wet bulb temperature must not exceed 39℃. When operate at low temperatures, the brightness of CCFL will drop and the lifetime of CCFL will be reduced.

Page 8

Free Datasheet http://www.datasheet4u.com/

3-2 Interface Connections

- LCD connector (CN1): JAE FI-E30S or STM MSAKS2407P30

- LVDS Transmitter: SN75LVDS83(Texas Instruments) or equivalent

Note:

1. All GND (ground) pins should be connected together and should also be connected to the LCD’s metal frame. All Vcc

(power input) pins should be connected together.

Pin No Symbol Description Default

1 N.C. No Connection ( Auo internal Test Pin) 2 N.C. No Connection ( Auo internal Test Pin) 3 N.C. No Connection ( Auo internal Test Pin) 4 GND Power Ground 5 Rx0- Negative LVDS differential data input 6 Rx0+ Positive LVDS differential data input 7 GND Power Ground 8 Rx1- Negative LVDS differential data input

9 Rx1+ Positive LVDS differential data input 10 GND Power Ground 11 Rx2- Negative LVDS differential data input 12 Rx2+ Positive LVDS differential data input 13 GND Power Ground 14 RxCLK- Negative LVDS differential clock input 15 RxCLK+ Positive LVDS differential clock input 16 GND Power Ground 17 Rx3- Negative LVDS differential data input 18 Rx3+ Positive LVDS differential data input 19 GND Power Ground 20 N.C. No Connection ( Auo internal Test Pin) 21 LVDS Option Pull Low : JETDA LVDS format; Pull High or N.C.: NS LVDS format 22 N.C. No Connection ( Auo internal Test Pin) 23 GND Power Ground 24 GND Power Ground 25 GND Power Ground 26 V 27 V 28 V 29 V 30 V

** LVDS Option : H (3.3V) or N.C.è NS L (GND) è JETDA

+5V Power Input

Page 9

Free Datasheet http://www.datasheet4u.com/

LVDS Option = L (GND)è JETDA Format

Previous Cycle Current Cycle Next Cycle

Clock

RIN0+ RIN0-

RIN1+ RIN1-

RIN2+ RIN2-

RIN3+

RIN3-

LVDS Option = H (3.3V) or N.C.è NS Format

Previous Cycle Current Cycle Next Cycle

Clock

RIN0+ RIN0-

R2R7 G2G2R2R3 R4R5R6 R3

G3B2 B3B3G3G4 G5G6G6 G4

B4NA DEDEB4B5 B6B7NA B5

R0B1 NANAR0R1 G0G1B0 R1

R0R5 G0G0R0R1 R2R3R4 R1

RIN1+ RIN1-

RIN2+ RIN2-

RIN3+

RIN3-

G1B0 B1B1G1G2 G3G4G5 G2

B2NA DEDEB2B3 B4B5NA B4

R6B7 NANAR6R7 G6G7B6 R7

Page 10

Free Datasheet http://www.datasheet4u.com/

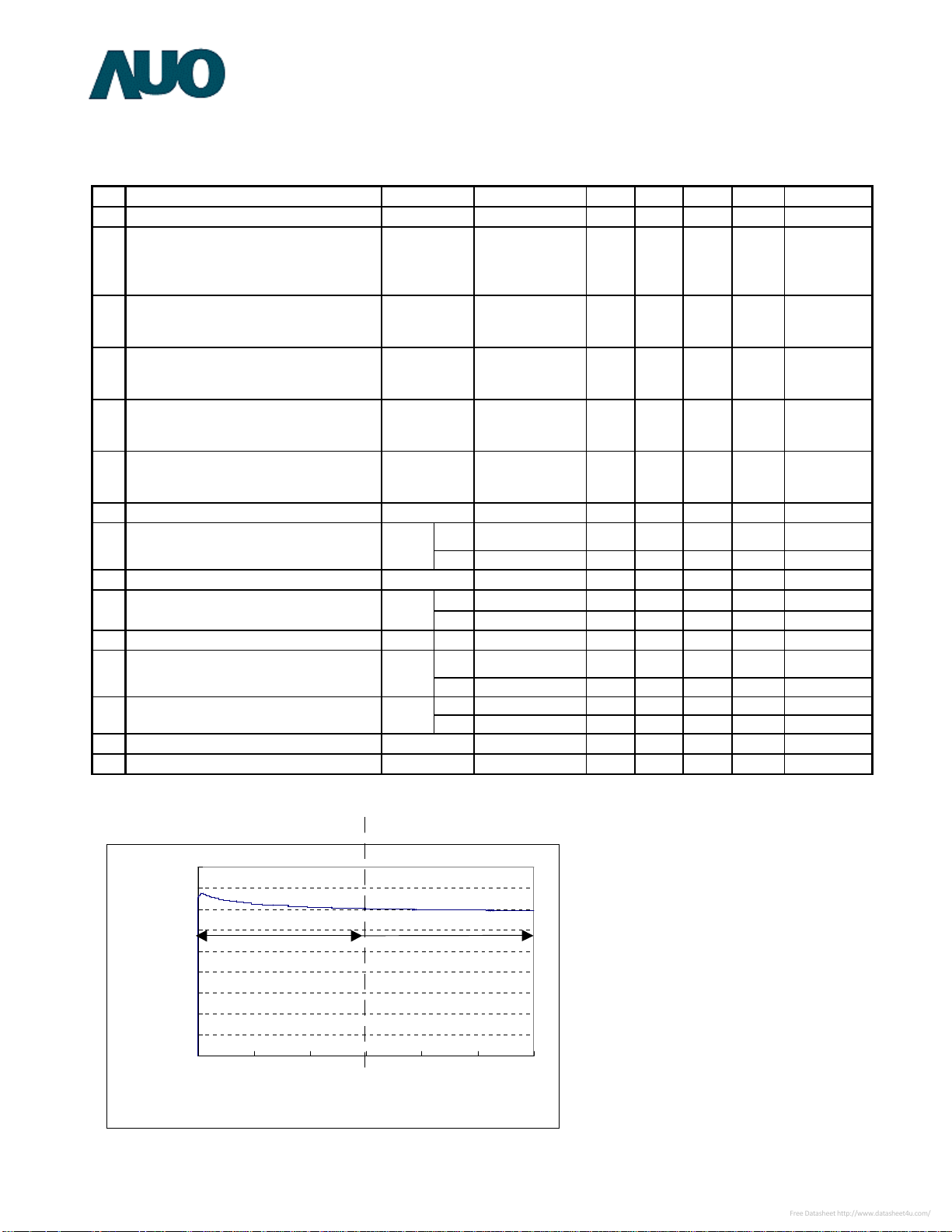

BACKLIGHT CONNECTOR PIN CONFIGURATION

1. Electrical specification

(Ta=25±5℃)

1 Input Voltage

Input Current (Turn on Condition)

3 Input Power (Turn on Condition)

4 Input Current (Stable Condition)

5 Input Power (Stable Condition)

6 Input inrush current, 0.3ms 7

Output Frequency

8 ON/OFF Control Voltage 9

ON/OFF Control Current 10 Dimming Control Voltage 11 Dimming Control Current

12 External PWM Control Voltage

13 External PWM Control Current 14 External PWM Duty Ratio

15 External PWM Frequency

Note1:

ITEM SYMBOL CONDITION MIN TYP MAX UNIT

--- 21.6 24.0 26.4 V

DDB

=24V

DDB

RUSH

FBL V

BLON

OFF

BLON

MAX VDD=24V --- 3.3 --- V or Open

DIM

MIN

DIM

PWM

MAX

MIN

MAX PWM=100% 0.5 --- --- mA

PWM

MIN PWM=100% 0.5 --- --- mA

PWM

VDIM=3.3V EDPWM=100

--- 3.65 3.95

A 1

=24V

DDB

VDIM=3.3V

--- 87.6 94.8 W 1

EDPWM=100%

=24V

DDB

VDIM=3.3V

--- 3.5 3.68

A 1

EDPWM=100%

=24V

DDB

VDIM=3.3V

--- 84 88.5 W 1

EDPWM=100%

VDD=24V

VDIM=3.3V

--- --- 5.0 A

EDPWM=100%.

=24V --- 48 --- kHz

VDD=24V 2.0 --- 5.0 V or Open VDD=24V 0.0 --- 0.8 V

=24V -1 --- 1.5 mA

VDD=24V --- 0.0 --- V VDD=24V 1.0 --- mA

--- 2.0 --- 5.0 V

--- -0.3 --- 0.8 V

--- 30 --- 100

--- 150 --- 300 Hz

Note

4500.0

4000.0

3500.0

3000.0

2500.0

2000.0

Iin[mA]

1500.0

1000.0

Turn ON Condition

500.0

0.0 060012001800240030003600

Stable Condition

Time[sec]

Page 11

Free Datasheet http://www.datasheet4u.com/

2. Input specification

Pin No Symbol Description Default

1 VDDB Operating Voltage Supply, +24V DC regulated 24V 2 VDDB Operating Voltage Supply, +24V DC regulated 24V 3 VDDB Operating Voltage Supply, +24V DC regulated 24V 4 VDDB Operating Voltage Supply, +24V DC regulated 24V 5 VDDB Operating Voltage Supply, +24V DC regulated 24V 6 GND Ground GND 7 GND Ground GND 8 GND Ground GND

9 GND Ground GND 10 GND Ground GND 11 VDIM External Analog Dimming Control - 12 VBLON On/Off Control - 13 EXPWM External PWM Dimming Control - 14 N.C. No Connection -

CN1: S14B-PH-SM3-TB(JST) CN2: S2B-ZR-SM3A-TF(JST) CN3~10: SM02(12)B-BHS-1-TB(JST)

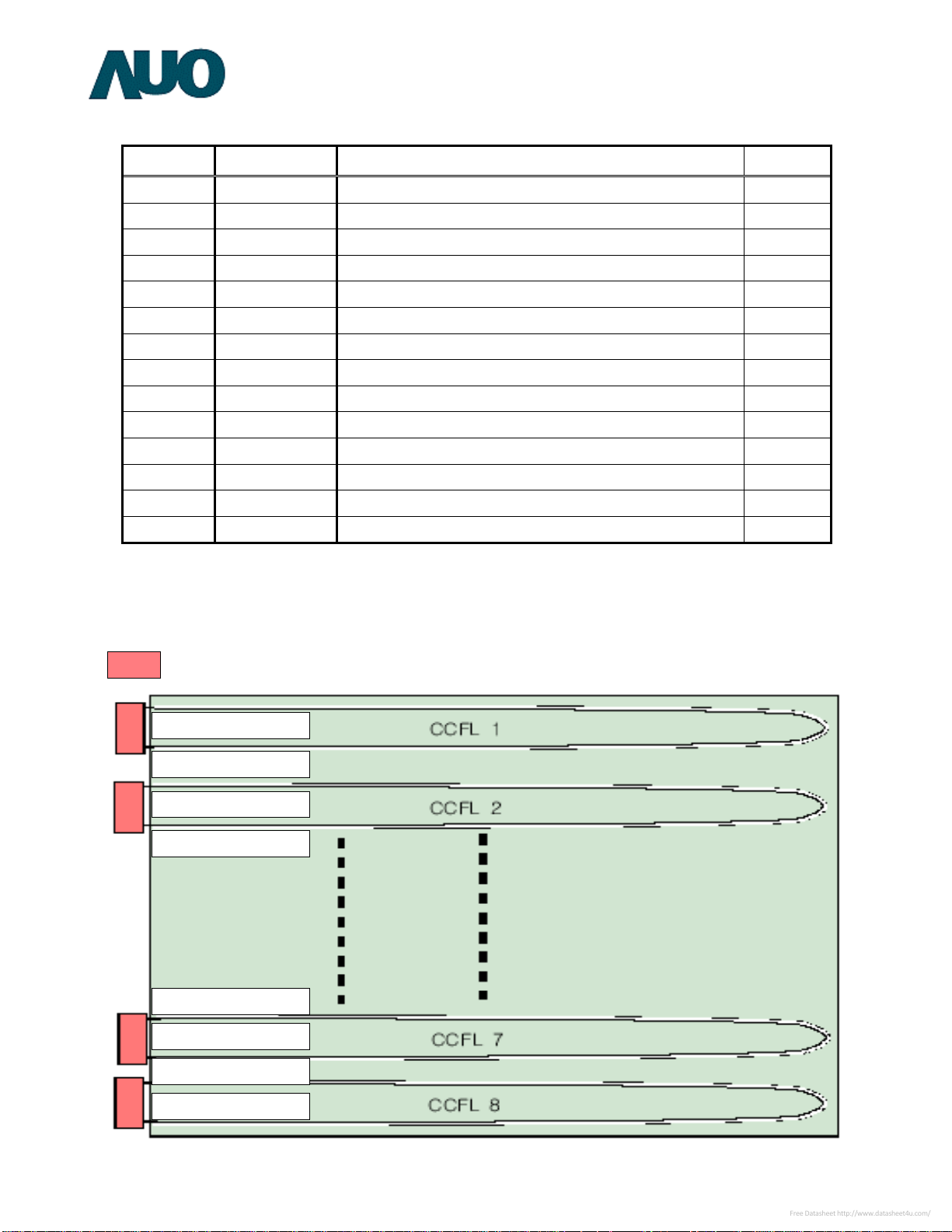

3. Backlight Diagram HOT: High Voltage

HOT 1(PINK)

HOT 2(WHITE)

HOT 3(PINK)

HOT 4(WHITE)

HOT 13(PINK)

HOT 14(WHITE)

HOT 15(PINK)

HOT 16(WHITE)

Page 12

Free Datasheet http://www.datasheet4u.com/

3-3 Signal Timing Specifications

This is the signal timing required at the input of the User connector. All of the interface signal timing should be satisfied with the following specifications for it’s proper operation.

* Timing Table

DE only Mode Vertical Frequency Range A

Signal Item Symbol Min. Typ. Max. Unit

Vertical

Section

Period

Active

Blanking

Horizontal

Section

Period

Active

Blanking

Clock Frequency

Vertical

Frequency

Horizontal

Frequency

Tv 789 806 822 Th

Tdisp 768 Th

Tblk (v) 21 38 54 Th

Th 1414 1560 1722 Tclk

Tdisp 1366 Tclk

Tblk (h) 48 194 356 Tclk

Fclk 54 63 74 MHz

Fv 48 50 52 Hz

Freq 39.45 --- 41.10 kHz

Vertical Frequency Range B

Signal Item Symbol Min. Typ. Max. Unit

Vertical

Section

Period

Active

Blanking

Horizontal

Section

Period

Active

Blanking

Clock Frequency

Vertical

Frequency

Horizontal

Frequency

Tv 950 975 1000 Th

Tdisp 768

Tblk (v) 182 207 232 Th

Th 1414 1435 1543 Tclk

Tdisp 1366

Tblk (h) 48 69 177 Tclk

Fclk 80 84 88 MHz

Fv -- 60 -- Hz

Freq 57 --- 60 kHz

*1) Clock signal input must be valid while power supply is applied. *2) Display position is specific by the rise of ENAB signal only. Horizontal display position is specified by the falling edge of 1st Clock right after the rise of ENAB, is displayed on the left edge of the screen. Vertical display position is specified by the rise of ENAB after a “Low” level period equivalent to eight times of horizontal period. The 1st data corresponding to one horizontal line after the rise of ENAB is displayed at the top line of screen. *3.) If a period of ENAB “High” is less than 1366 Clock or less than 768 lines, the rest of the screen displays black. *4.) The display position does not fit to the screen if a period of ENAB “High” and the effective data period do not synchronize with each other.

Page 13

Free Datasheet http://www.datasheet4u.com/

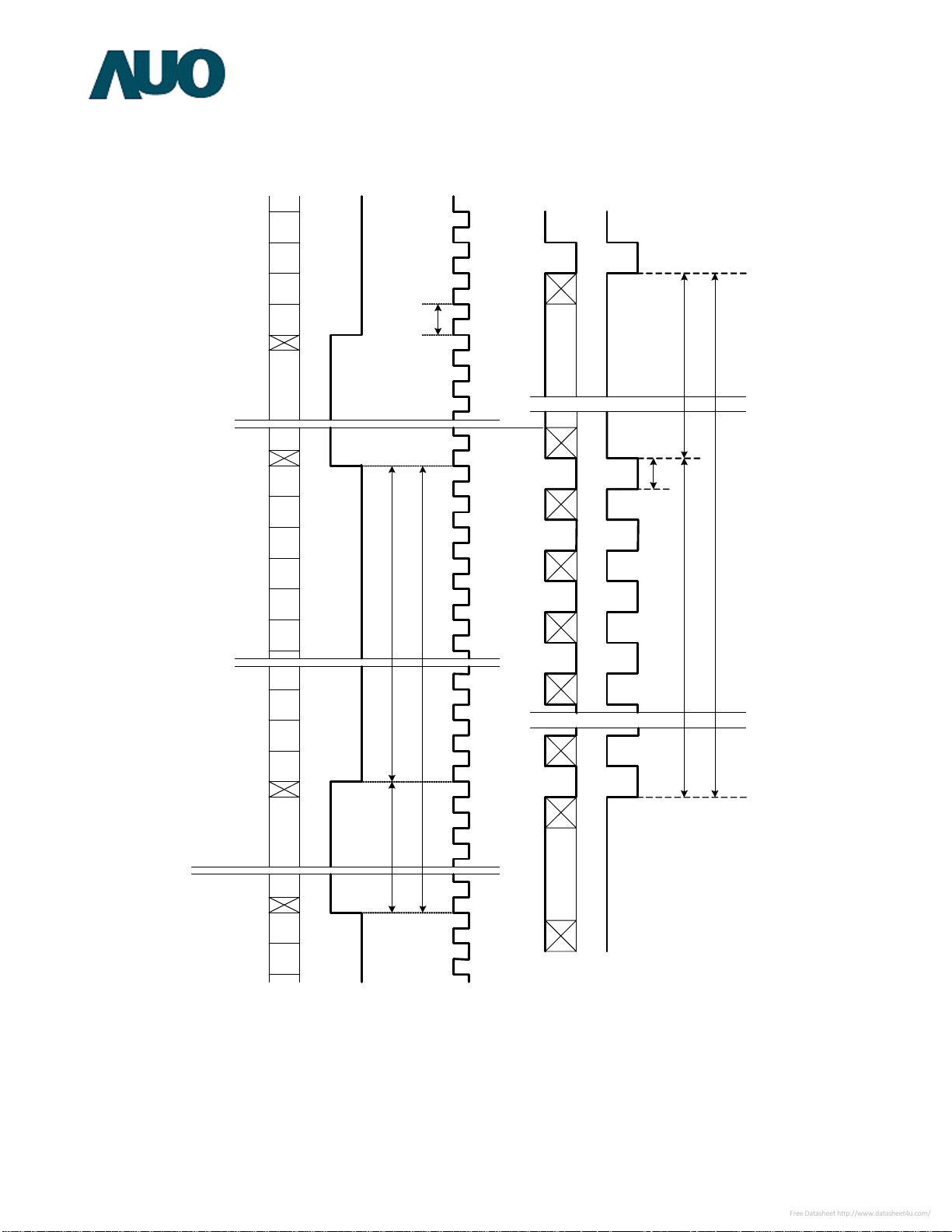

3-4 Signal Timing Waveforms

RGB D ata

Pixel

13 6 6

Invalid D ata

CL K

Tc lk

RGB

Data

Lin e

76 8

Inva lid Data Inv a lid Data

Line

Pix e l

Pixe l

Pix e l

13 6 6

Pix e l

Inv a lid Data

Td is p ( h)

Lin e

Line

76 8

Tdisp(v )

Pix e l

Pixel

Page 14

Free Datasheet http://www.datasheet4u.com/

3-5 Color Input Data Reference

The brightness of each primary color (red, green and blue) is based on the 8 bit gray scale data input for the color; the higher the binary input, the brighter the color. The table below provides a reference for color versus data input.

COLOR DATA REFERENCE

Input Color Data

Basic Color

RED

GREEN

BLUE

Color

Black Red(255)

Green(255) Blue(255) Cyan Magenta Yellow White

RED(000) RED(001)

---RED(254) RED(255)

GREEN(000) GREEN(001)

---GREEN(254) GREEN(255)

BLUE(000) BLUE(001)

------BLUE(254)

RED

MSB LSB

R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0

GREEN

BLUE

MSB LSB

BLUE(255)

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

Page 15

Free Datasheet http://www.datasheet4u.com/

3-6 Power Sequence for LCD

Parameter

t1 t2 t3 t4 t5 t6 t7

Min. Typ. Max.

0.5 - 20 ms 20 - 50 ms

700 - - ms 200 - - ms

50 - - ms

0.47 - 30 ms 1 - - s

Values

Units

(1) Apply the lamp voltage within the LCD operation range. When the back-light turns on before the LCD operation or the LCD

turns off before the back-light turns off, the display may momentarily become abnormal screen.

Page 16

Free Datasheet http://www.datasheet4u.com/

3-7 Power Sequence for Inverter

Parameter

T1 T2 T3 T4 T5 T6

Values

Min. Typ. Max.

20 - - ms 500 - - ms 250 - - ms

0 - - ms 1 - - ms

- - 10 s

Units

Page 17

Free Datasheet http://www.datasheet4u.com/

4. Optical Specification

Optical characteristics are determined after the unit has been ‘ON’ and stable for approximately 45 minutes in a dark environment at 25℃. The values specified are at an approximate distance 50cm from the LCD surface at a viewing angle of Φ and θequal to 0°.

Fig.1 1 presents additional information concerning the measurement equipment and method.

Parameter

Contrast Ratio Dark Luminance

Surface Luminance, white Luminance Variation Response

Time

Rise Time TrR 15 18 Decay Time TrD 5 7 Gray to Gray Tγ

Color Coordinates

RED

GREEN

BLUE

WHITE

NTSC Viewing Angle

x axis, right(φ=0°) x axis, left(φ=180°) y axis, up(φ=90°) y axis, down (φ=0°)

Symbol

Min. Typ. Max.

Values

CR 600 800

LBK (0.625)

LWH 400 500

WHITE

9 p

1.3

8 35 ms

0.640

RY 0.330

GX 0.290 GY 0.600

BX 0.150

Typ.-0.03

Typ.+0.03

BY 0.060

WX 0.280 WY

0.290

72 %

θ θ

r l u d

88 Degree 88 Degree 88 Degree 88 Degree

Units Notes

cd/㎡

Page 18

4 5 6

Free Datasheet http://www.datasheet4u.com/

Note:

1. Contrast Ratio (CR) is defined mathematically as:

Surface Luminance of L

on1

Contrast Ratio=

Surface Luminance of L

2. Surface luminance is luminance value at point 1 across the LCD surface 50cm from the surface with all pixels displaying white. From more information see FIG 2. When V

DDB

= 24V, I

= 3.5A. LWH=Lon1

DDB

Where Lon1 is the luminance with all pixels displaying white at center 1 location.

3. The variation in surface luminance, δ

WHITE(9P)

= Maximum(L

is defined (center of Screen) as:

WHITE

, L

on1

on2

,…L

) / Minimum(L

on9

on1

, L

on2

4. Response time is the time required for the display to transition from black to white(Rise Time, TrR) and from white to black (Decay Time, TrD). For additional information see FIG3.

5. Tγ is the response time between any two gray scale and is based on fv=60Hz to optimize.

6. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are determined for the horizontal or x axis and the vertical or y axis with respect to the z axis which is normal to the LCD surface. For more information see FIG4.

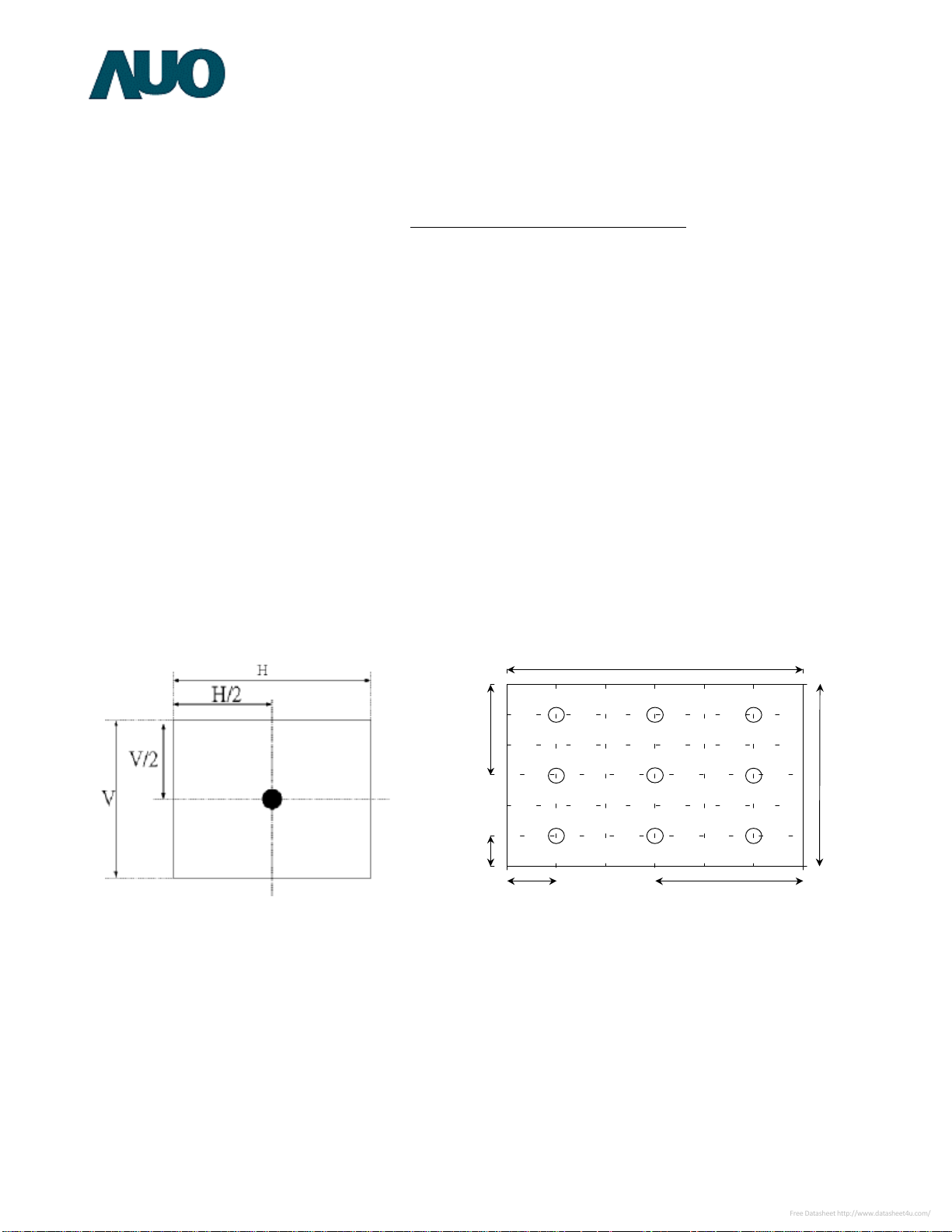

FIG. 2 Luminance

off1

,…,L

on9

)

H/2

H/6

V/2 V/6

Page 19

100%

Free Datasheet http://www.datasheet4u.com/

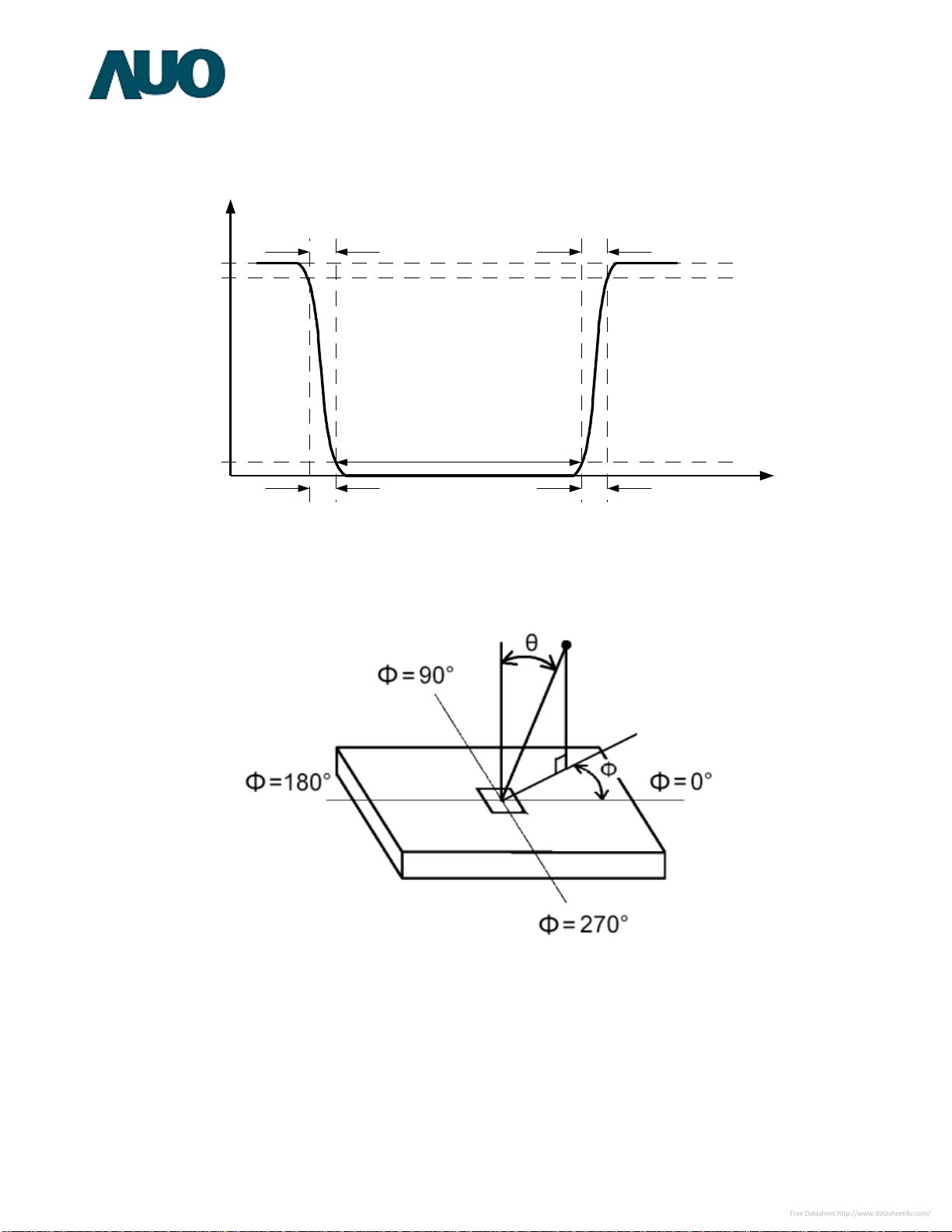

FIG.3 Response Time

The response time is defined as the following figure and shall be measured by switching the input signal for “black” and “white”.

Any brighter gray level (White)

Time

90%

Optical Response

10%

Any brighter gray level (White)

Any darker gray (Black)

FIG.4 Viewing angle

Page 20

Free Datasheet http://www.datasheet4u.com/

5. Mechanical Characteristics

The contents provide general mechanical characteristics for the model T260XW02. In addition the figures in the next page are detailed mechanical drawing of the LCD.

Horizontal 626.0mm

Outline Dimension

Bezel Area

Active Display Area Weight

Surface Treatment

Vertical 373.0mm

Depth

Horizontal

Vertical

47.5mm(w/i inverter & Shielding)

30.3mm(w/o inverter)

580.8mm±0.5mm

328.8mm±0.5mm

Horizontal 575.769mm

Vertical 323.712mm

4200g (Typ.)

Anti-Glare, 3H

Page 21

Front View

Free Datasheet http://www.datasheet4u.com/

2. l E-F l<1.6mm

notes:

1. l C-D l<1.6mm

Page 22

Rear View

Free Datasheet http://www.datasheet4u.com/

Page 23

inutes

Free Datasheet http://www.datasheet4u.com/

6. Reliability

Environment test condition

No Test Item Condition

1 High temperature storage test 2 Low temperature storage test 3 High temperature operation test 4 Low temperature operation test

Vibration test

(non-operating)

Shock test

(non-operating)

Vibration test

(with carton)

Drop test

(with carton)

Altitude

Storage/shipment

Ta=60℃ 240h Ta=-20℃ 240h Ta=50℃ 80%RH 240h Ta=0℃ 240h Wave form: random

Vibration level: 1.0G RMS Bandwidth: 10-500Hz Duration: X, Y, Z 20min One time each direction Shock level: 100G Waveform: half since wave, 2ms Direction: ±X, ±Y, ±Z

One time each direction Random Vibration: 10~200Hz, 1.5G, 30m in each X, Y, Z direction Height: 53.3cm 1 corner, 3 edges, 6 surfaces (ASTMD4169-I)

50,000 feet (12Kpa)

Result Evaluation Criteria｝

｛

There should be no change which might affect the practical display function when the display quality test is conducted under normal operating condition.

Page 24

Free Datasheet http://www.datasheet4u.com/

7. International Standard

7-1. Safety

UL1950 Third Edition, Underwriters Laboratories, Inc. Jan. 28, 1995

甲、

Standard for Safety of Information Technology Equipment Including electrical Business Equipment.

CAN/CSA C22.2 No. 950-95 Third Edition, Canadian Standards Association, Jan. 28, 1995

乙、

Standard for Safety of Information Technology Equipment Including Electrical Business Equipment. (3) EN60950 : 1992+A2: 1993+A2: 1993+C3: 1995+A4: 1997+A11: 1997 IEC 950: 1991+A1: 1992+A2: 1993+C3: 1995+A4:1996 European Committee for Electrotechnical Standardization (CENELEC) EUROPEAN STANDARD for Safety of Information Technology Equipment Including Electrical Business Equipment.

7-2. EMC

a) ANSI C63.4 “Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electrical Equipment in the Range of 9kHz to 40GHz. “American National standards Institute(ANSI), 1992. b) C.I.S.P.R “Limits and Methods of Measurement of Radio Interface Characteristics of Information Technology Equipment.” International Special committee on Radio Interference. c) EN 55022 “Limits and Methods of Measurement of Radio Interface Characteristics of Information Technology Equipment.” European Committee for Electrotechnical Standardization. (CENELEC),

1998.

Page 25

Free Datasheet http://www.datasheet4u.com/

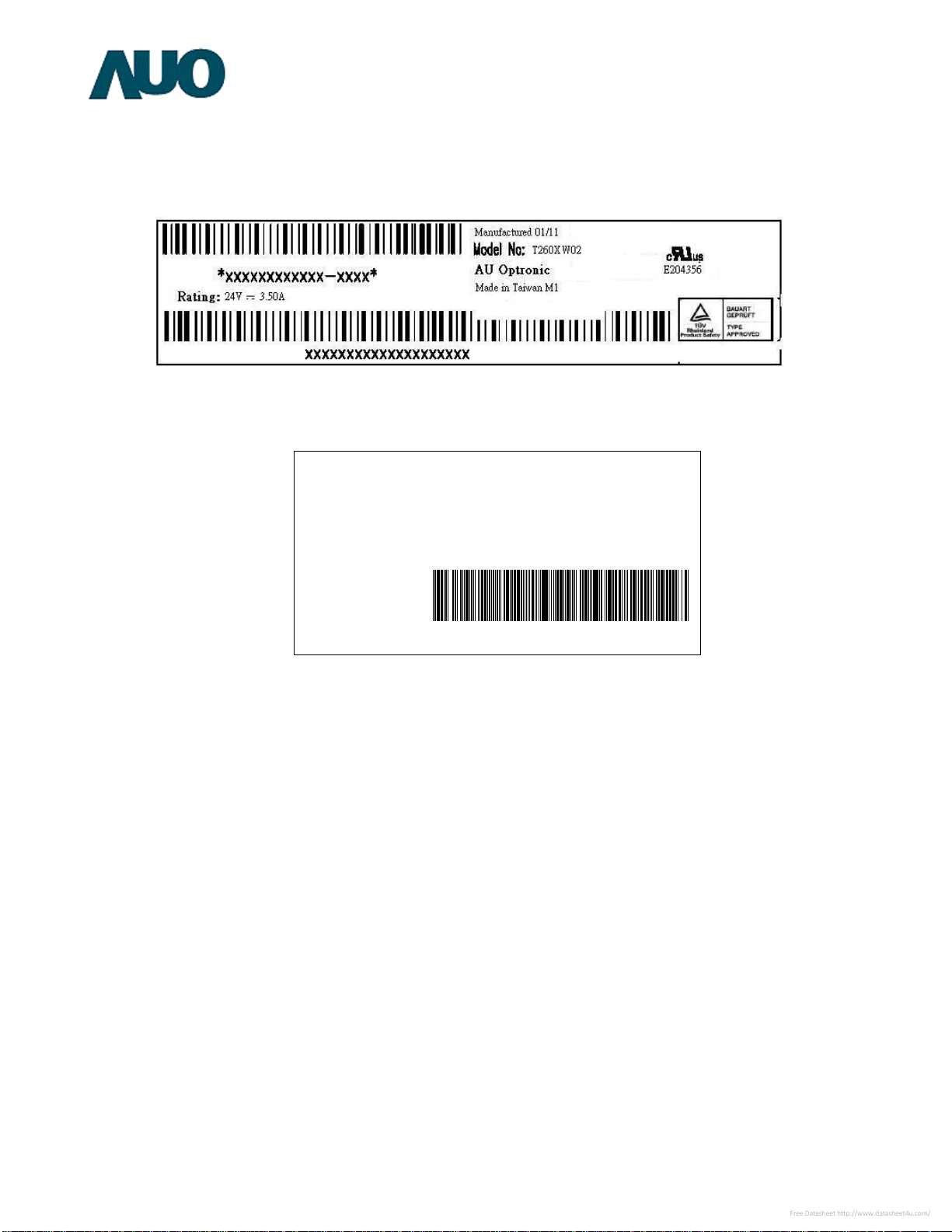

8. Packing

Label sample 83mm * 23mm

Carton Label

AU Optronics

QTY: 4

MODEL NO: T260XW02 VX

PART NO: 97.26T02.XXX

CUSTOMER NO: CARTON NO:

Made in Taiwan

*PM100-01A1600001*

Page 26

Carton Size

4pcs Mo

dules

Cushion set

Cushion top

Cushion down

4pcs / 1 carton

Free Datasheet http://www.datasheet4u.com/

767(L)mm*330(W)mm*480(H)mm

Page 27

Free Datasheet http://www.datasheet4u.com/

9. PRECAUTIONS

Please pay attention to the followings when you use this TFT LCD module.

9-1 MOUNTING PRECAUTIONS

(1) You must mount a module using holes arranged in four corners or four sides. (2) You should consider the mounting structure so that uneven force (ex. Twisted stress) is not applied to module. And the case on which a module is mounted should have sufficient strength so that external force is not transmitted directly to the module. (3) Please attach the surface transparent protective plate to the surface in order to protect the polarizer. Transparent protective plate should have sufficient strength in order to the resist external force. (4) You should adopt radiation structure to satisfy the temperature specification. (5) Acetic acid type and chlorine type materials for the cover case are not desirable because the former generates corrosive gas of attacking the polarizer at high temperature and the latter causes circuit break by electro-chemical reaction. (6) Do not touch, push or rub the exposed polarizers with glass, tweezers or anything harder than HB pencil lead. And please do not rub with dust clothes with chemical treatment. Do not touch the surface of polarizer for bare hand or greasy cloth. (Some cosmetics are detrimental to the polarizer.) (7) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials like chamois soaks with petroleum benzene. Normal-hexane is recommended for cleaning the adhesives used to attach front/ rear polarizers. Do not use acetone, toluene and alcohol because they cause chemical damage to the polarizer. (8) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes deformations and color fading. (9) Do not open the case because inside circuits do not have sufficient strength.

9-2 OPERATING PRECAUTIONS

(1) The spike noise causes the mis-operation of circuits. It should be lower than following voltage: V= ±200mV(Over and under shoot voltage)

(2) Response time depends on the temperature. (In lower temperature, it becomes longer..) (3) Brightness depends on the temperature. (In lower temperature, it becomes lower.) And in lower temperature, response time (required time that brightness is stable after turned on) becomes longer. (4) Be careful for condensation at sudden temperature change. Condensation makes damage to polarizer or electrical contacted parts. And after fading condensation, smear or spot will occur. (5) When fixed patterns are displayed for a long time, remnant image is likely to occur. (6) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall be done by system manufacturers. Grounding and shielding methods may be important to minimize the interface.

Page 28

Free Datasheet http://www.datasheet4u.com/

9-3 ELECTROSTATIC DISCHARGE CONTROL

Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain that treatment persons are connected to ground through wrist band etc. And don’t touch interface pin directly.

9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE

Strong light exposure causes degradation of polarizer and color filter.

9-5 STORAGE

When storing modules as spares for a long time, the following precautions are necessary.

(1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the temperature between 5℃ and 35℃ at normal humidity.

(2) The polarizer surface should not come in contact with any other object. It is recommended that they be stored in the container in which they were shipped.

9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM

(1) The protection film is attached to the bezel with a small masking tape. When the protection film is peeled off, static electricity is generated between the film and polarizer. This should be peeled off slowly and carefully by people who are electrically grounded and with well ion-blown equipment or in such a condition, etc. (2) When the module with protection film attached is stored for a long time, sometimes there remains a very small amount of flue still on the Bezel after the protection film is peeled off. (3) You can remove the glue easily. When the glue remains on the Bezel or its vestige is recognized, please wipe them off with absorbent cotton waste or other soft material like chamois soaked with normal-hexane.
