TCL Communication B030 User Manual

4024

E

Quick Start Guide

For more information about how to use your phone, please visit
www.alcatelonetouch.com to download the complete user manual.
From the website, you can consult the FAQ, perform software
upgrades, etc.

This product meets applicable
national SAR limits of 1.6 W/kg. The
specific maximum SAR values can be
found on page 32 of this user guide.

When carrying the product or using
it while worn on your body, either

www.sar-tick.com

PROTECT YOUR HEARING

To prevent possible hearing damage, do not listen at high
volume levels for long periods. Exercise caution when
holding your device near your ear while the loudspeaker
is in use.

use an approved accessory such as
a holster or otherwise maintain a
distance of 10 mm from the body to
ensure compliance with RF exposure
requirements. Note that the product
may be transmitting even if you are
not making a phone call.

Your mobile ������������������

1

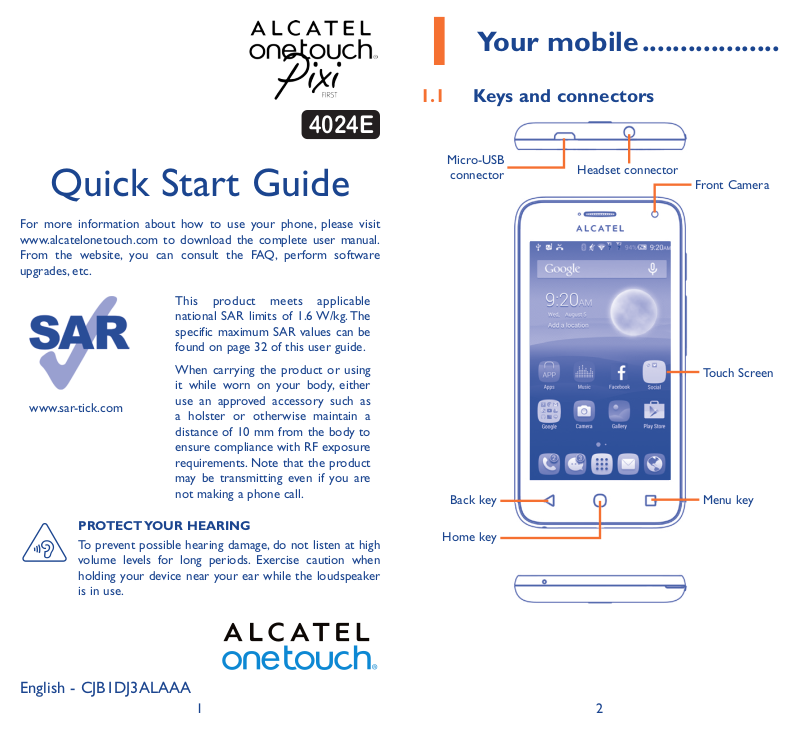

1�1 Keys and connectors

Micro-USB

connector

Home key

Headset connector

Front Camera

Touch Screen

Menu keyBack key

English - CJB1DJ3ALAAA

1 2

Flash/Flashlight

Menu key

• Option menu. Touch to access WALLPAPERS,

WIDGETS and SETTINGS.

• Recent apps. Touch to open a list of thumbnail images

of apps you've worked with recently. Touch it to open
an app. Swipe it left to remove a thumbnail from the list.
Swipe it to the right to lock it.

Home key

• From any application or screen, touch to return to the

Home screen.

• Long press to open Google search.

Back key

• Touch to go back to the previous screen, or to close a

dialog box, options menu, the notification panel, etc.

Camera

Power key

Volume up

Volume down

3 4

Power key

• Press: Lock the screen/Light up the screen.

• Press and hold: Show the popup menu to select

from Power off/Restart/Airplane mode or Ringer
mode icons.

• Press to mute the ringtone when there’s an incoming

call.

• Press and hold Powe r key and Volume down key to

capture a screenshot.

Volume keys

• In call mode, adjust the earpiece or headset volume.

• In Music/Video/Streaming mode, adjust the media

volume.

• In general mode, adjust the ringtone volume.

• Mute the ringtone of an incoming call.

1�2 Getting started

1�2�1 Set up

Removing or installing the back cover

Inserting or removing the SIM card

You must insert your SIM card to make phone calls. Power off your
phone before inserting or removing the SIM card.

4024X

4024D

Place the SIM card with the chip facing downwards and slide it into its
housing. Make sure that it is correctly inserted. To remove the card,
press and slide it out.

For dual SIM models, both SIM1 and SIM2 can support 2G

and 3G networks. If both of them are 3G SIM cards, only one
card can support 3G network

(1)

4024D only.

(1)

.

5 6

Installing or removing the battery

Power off your phone before removing the battery.

• Insert and click the battery into place, then close the cover.

• Unclip the cover, then remove the battery.

Installing or removing the microSD card

To install, place the external microSD card into the slot with the
gold contact facing down. To remove the external microSD card,
press and slide it out.

Charging the battery

Connect the battery charger to your phone and plug it into the
socket.

If the battery is very low, there will be no indication that

power is being received until the charge is sufficient to show
the charging status bar. To reduce power consumption and
energy waste , once the batter y is fully charged, disconnect
your charger from the plug; switch off Wi-Fi, GPS, Bluetooth
or background-running applications when not in use; reduce
the backlight time, etc.

1�2�2 Power on your phone

Press and hold the Powe r key until the phone powers on. It will take
a few seconds before the screen lights up.

Set up your phone for the first time

The first time you power on the phone, you should set the following
options: language, input method, Google Account, etc.

If you power on your phone with no SIM card inserted, you can
connect to a Wi-Fi network to sign into your Google Account to
use some features.

For dual SIM mode, you should select a SIM card or choose Always
Prompt for voice call, messaging, etc.

(1)

1�2�3 Power off your phone

Hold down the Powe r key from the Home screen until the phone
options appear, select Power off.

1�3 Home screen

You can bring all of the items (applications, shortcuts, folders and
widgets) you use most frequently to your Home screen for quick
access. Touch the Home key to switch to Home screen.

Status bar

• Status/Notification indicators

• Touch and drag down to open the

notification panel.

The Home screen is provided in an extended format to allow more
space for adding applications, shortcuts etc. Slide the Home screen
horizontally left and right to get a complete view.

1�3�1 Using the touchscreen

Touch

To access an application, touch it with your finger.

Long press

Long press the item to enter the available options for setting the
Home screens.

Drag

Place your finger on the screen to drag an object to another location.

Slide/Swipe

Slide the screen up and down to scroll through the applications,
images, web pages, etc .

Flick

Similar to swiping, but flicking makes it move quicker.

(1)

4024D only.

Search bar

• Touch  to enter text search screen.

• Touch  to enter voice search screen.

Favorite applications tray

• Touch to enter the application.

• Long press to move or change

applications.

Application tab

• Touch to open main menu.

Pinch/Spread

Place your fingers of one hand on the screen surface and draw them
apart or together to scale an element on the screen.

Rotate

Automatically change the screen orientation from portrait to
landscape by turning the phone sideways to have a better view.

1�3�2 Status bar

From the status bar, you can see both phone status (to the right side)
and notification information (to the left side).

7 8

Status icons

EDGE connected

EDGE in use Battery is very low

Connected to a Wi-Fi
network

Bluetooth is on

Airplane mode Battery is full

Alarm is set Battery is charging

GPS is on Headset connected

No SIM card inserted No signal

Vibrate mode Signal strength

Ringer is silenced

Phone microphone is
muted

Battery is low

Battery is partially
drained

Notification icons

New text or
multimedia message

Problem with SMS or
MMS delivery

New Google Hangouts
message

New voicemail Downloading data

Upcoming event Download finished

Data is synchronizing

USB tethering is on Radio is on

Portable Wi-Fi hotspot
is on

Screenshot captured Connected to VPN

Operator data use
threshold approaching
or exceeded

Call in progress

Missed call

Uploading data

Phone is connected via
USB cable

System update available

9 10

Notification panel

Touch and drag down the Status bar to open the Quick settings
panel or Notification panel. Touch and drag up to close it. From the
Notification panel, you can open items and other reminders indicated
by notification icons or view wireless service information.

Touch to access Quick settings bar.

Touch one notification and slide it sideways to delete it.

Touch the icon to clear all event–based notifications (other
ongoing notifications will remain).

Touch

and then the Settings icon to access Settings.

Quick settings bar

•Touch icons to enable/disable

functions or to change modes.

1�3�3 Search bar

The phone provides a Search function which can be used to locate
information within applications, the phone or the web.

1�3�4 Lock/Unlock your screen

To protect your phone and privacy, you can lock the phone screen by
creating a variety of patterns, a PIN, password, etc.

1�3�5 Personalize your Home screen

Add

Touch the application tab
activate Move mode and drag the item to any Home screen.

Reposition

Touch and hold the item to be repositioned to activate Move mode
and drag the item to the desired position and release. You can move
items both on the Home screen and the Favorite tray. Hold the icon
on the left or right edge of the screen to drag the item to another
Home screen.

Remove

Touch and hold the item to be removed to activate Move mode.
Drag the item up to the top of the Remove icon and release after
the item turns red.

Create folders

To improve the organization of items (shortcuts or applications) on
the Home screen, you can add them to a folder by stacking one item
on top of another. To rename a folder, open it and touch the folder’s
title bar to input the new name.

Wallpaper customization

Touch the Menu key and select WALLPAPERS. Slide left or
right to locate a desired image, touch Set wallpaper to confirm.
Alternatively follow these steps: Settings > Display > Wallpaper.

, then touch and hold an application to

1�3�6 Application tab

Touch

from the Home screen to enter the applications list.

To return to the Home screen, touch the Home ke y.

Consult recently-used applications

To consult recently-used applications, you can long press the Menu
key. Touch a thumbnail in the window to open the related application.
Touch one thumbnail and slide it left to delete it.

11 12

1�3�7 Volume adjustment

You can set ringer, media, and phone ringtone volume to your
preference by pressing Volume up/down key or touching Settings\

Audio Profiles/General/ Edit/ Volume.

1�4 Applications and widgets

The Applications (apps) list contains all pre-embedded and newly
installed apps.

To access the list, touch
Home screen, touch the Home key.

By touching and holding an empty area on the Home screen, you can
switch to widget interface mode.

Text input ���������������������

2

from the Home screen. To return to the

2�1 Using Onscreen Keyboard

Onscreen Keyboard settings

Touch the application tab from the Home screen, select Settings\
Language & input, touch the Settings icon
Android keyboard or TouchPal and then a series of settings are

available for your selection.

Adjust the Onscreen Keyboard orientation

Turn the phone sideways or upright to adjust the Onscreen Keyboard
orientation. You can also adjust it by marking the checkbox in
Settings\Display\ Auto-rotate screen.

13 14

on the right of

2�1�1 Android keyboard

Touch to enter text or numbers.

Touch to switch between "abc/Abc"
mode; Touch and hold to switch
between "abc/ABC" mode.

Touch to enter symbols/emoticons.

Long press to show input options; when Wi-Fi or data
connection is on, touch to enter voice input.

Touch to switch between symbol and numeric keyboard.

2�1�2 TouchPal

Slide through letters to input characters

Touch to delete incorrect characters
Touch to insert a space or complete the

current word or long press to switch
voice input

Touch to enter Numbers and symbols, etc.
