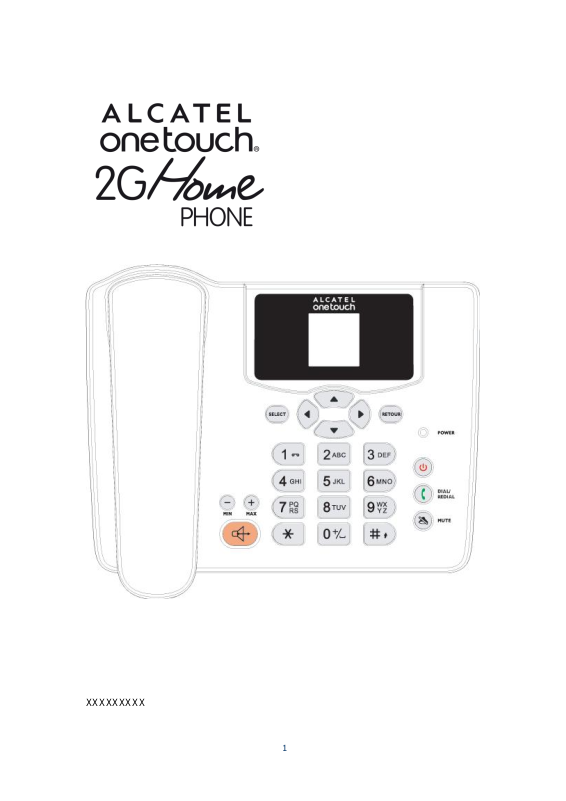

TCL Communication B020 User Manual

XXXXXXXXX

Contents

Contents .................................................................................................... 0

1. Your mobile .............................................................................................. 1

2. Getting started .......................................................................................... 4

3. Basic functions.......................................................................................... 5

4. Contacts ................................................................................................. 7

5. Recent Calls ............................................................................................ 9

6. Messages ............................................................................................. 10

7. Settings ................................................................................................ 13

8. Entertainment ......................................................................................... 14

9. Tools .................................................................................................... 15

10. FM Radio ........................................................................................... 16

FAQ ....................................................................................................... 16

Safety and use ........................................................................................... 18

Friendly reminder:

This user manual applies to the one touch F112 phone. If there are minor differences in the description or

illustrations between the manual and the actual product, the actual product shall take precedence.

Customers will not be notified separately of any upgraded model of this phone. Please contact our

Customer service. We reserve the right to revise anytime the contents of this manual without prior notice.

1. Your mobile

Item

Specifications

Phone Size: 200mm[L]×153.8mm[W]×48.7mm[Thickness]

Weight: 574g (Battery included)

Screen resolution

128*64 pixels

Contacts

500 entries

Recent calls

60 entries

Messages

350 entries

Operating temperature

-20°C ~ 55°C

Battery Ni-MH

Capacity: 1200mAh

Talk time: 6.5 hours (approx.)

Standby time: 180 hours (approx.)

Charging time: 10 hours (approx.)

1.1 Basic specifications

 Explanation:

Standby time refers to the time when the phone although in operating mode is not used for making calls

or remains idle. Standby time and call time are both related to the conditions of use, the network situation

and the environment.

1.2 Key pad indications

Number

Item

Function

SELECT Key Enter menu

Confirm an option

BACK Key Contacts List

In Menu: Back/Delete

Navigation Keys

 Left: Alarm  Right: Recent Calls  Up: Messages  Down: Create message

EXIT Key

Power on/Power off End a call Back to the idle screen

DIAL/REDIAL Key Recent Call

Answer/Send a call

MUTE Key Mute/Unmute during the call, the other can hear/

not hear you during the call

Volume Key

Change the volume during the call

Speaker Key You can select this key to activate or deactivate

handsfree

1 Key When standby, holding [1] Key 2 seconds to call the

voice mail number.

* Key

When input numbers in standby, holding [*] Key 2

seconds to input P after main number and then

extension number.

0 Key

When input numbers in standby, holding [0] Key 2

seconds to input + before the numbers.

When you edit a message, press this key to enter

space.

# Key

When input numbers in standby, holding [#] 2 seconds

to input T after main numbers and then extension

number.

When you edit one message, press this key to change

the input method.

Contacts

Delete All

Phone

Contacts List

Messages

Call

Create

Security

Add New

Inbox

Sound

Groups

Outbox

Entertainment

Speed Dial

Draft

Tools

Contacts Management

Templates

Stopwatch

Recent Calls

Delete Messages

Alarm

Missed Calls

Settings

Schedule

Received Calls

Memory Status

Calculator

Dialed Calls

Voice Mail

World Time

Call Time

Settings

FM Radio

Last Call

Display

1.3 Main Menu From the main menu, use the navigation key to select the item you want. After selection, press the left soft key to confirm.

1.4 Screen Icons

Battery power indicator. More bars indicate a higher power level

The more bars, the stronger signal

You have received one or more text messages

Indicate the message box is full

You have received one or more voicemail messages

Indicate the phone is making a call

You have missed one or more calls

Alarm or schedule has been set

Indicate the phone have set Voice privacy

Indicate the phone is roaming

2. Getting started

2.1 Removing and installing the back cover

Close the back cover Open the back cover

2.2 Installing and removing the battery

Installing the battery Fixing the battery Closing the back cover

2.3 How to use the Wall Hook

3. Basic functions

3.1 Power on/off When power is sufficient, press and holds the EXIT key to power on. If you have activated a password, you will be prompted to enter it. Normally the phone is ready for use as soon as you enter the password, please refer to Menu/Settings/Security settings. When the phone is power on, press and holds the key EXIT to turn it off.

3.2 Making a call

3.2.1 Enter the number directly In the standby mode, use the number key to enter a phone number, and then press the Dial/Redial key to make the call.

3.2.2 Dial a number in the Call Memory In the standby mode, press the Dial/Redial key to access recent calls list, and press send key again to dial the selected number.

3.2.3 Speed dial In the standby mode, make a long key press on keys 2 to 9 to speed dial a number. You also can press the number keys and then press the Dial/Redial key to make a speed dial. For details regarding speed dial setting. Please refer to “Contacts/Speed dial”. Key 1 is a default setting for voice mail number.

3.2.4 Emergency call Enter emergency number, and then press the Dial/Redial key. In any situation, with or without phone lock activated, your phone can still make an emergency call.

3.3 Functions available during a call During a call, access the Menu by pressing the Select key.

3.4 Input mode You may enter letters, numbers and symbols in the Contact, SMS, Note and other menu functions.

3.4.1 Entering letters There are eight text modes: Abc, En, 123. Please use the # key to change input modes. Please use * key to change the capital and small letter.

3.4.2 Entering numbers Press # Key to select the input method 123 to input one number.

3.4.3 Entering symbols Press and hold * key to enter symbol list.
