TCL
No.TE040918
WALL MOUNTED SPLIT-TYPE AIR CONDITIONERS
SERVICE MANUAL
Models
TAC-07CHSA/R TAC-09CHSA/R
TAC-12CHSA/R
TAC-18CHSA/R
TAC-24CHSA/R
CONTENTS
1. IMPORTANT NOTICE ···································2
2. TECHNICAL SPECIFICATION ·····················3
3. OPERATION DETAILS ·······························5
4. WIRING DIAGRAM ············· 13
5. EXPLOSION VIEW ····························17
6. PARTS LIST ·············22
IMPORTANT NOTICE
TCL Air Conditioner Service ManualTCL Air Conditioner Service ManualTCL Air Conditioner Service Manual
TCL Air Conditioner Service Manual
2
This service manual is intended for use by individuals possessing adequate
backgrounds of electrical, electronic and mechanical experience. Any
attempt to repair the appliance may result in personal injury and property
damage. The manufacturer or seller cannot be responsible for the
interpretation of this information, nor can it assume any liability in
connection with its use.
The information, specifications and parameter are subject to change due to
technical modification or improvement without any prior notice. The
accurate specifications are presented on the nameplate label.
How to order spare parts
To have your order filled promptly and correctly, please furnish the
following information:
1. Model No. with Indoor or Outdoor
2. No. in the Explosion View
3. Part Name
4. The quantity you ordered
TCL Air Conditioner Service Manual
Technical Specifications
Model No. TAC-07CHSA/R TAC-09CHSA/R TAC-12CHSA/R TAC-18CHSA/R
Type Heat Pump Heat Pump Heat Pump Heat Pump
Control type Remote Remote Remote Remote
Rated cooling capacity Btu/h 7000 9000 12000 18000
Rated heating capacity Btu/h 7700 9500 12500 19000
EER for cooling Btu/h.w 10.4 10.4 10.5 10.27
COP for heating W/W 3.49 3.49 3.21 3.37
Moisture removal Liters/h 0.8 0.8 1.0 1.0
Indoor noise level at
cooling
Outdoor noise level dB(A) 55 55 55 55
Electrical Data
Power supply 220V~/50Hz
Voltage Range V
Rated current
Rated input
Refrigerating System
Refrigerant/Charge Gram R410A/480g R410A/480g R410A/730g R410A/1400g
Compressor
Evaporator Louver fin and grooved tube type (ϕ7)
Condenser Corrugated fin and grooved tube type (ϕ9.52)
Expansion device Capillary tube
Defrosting system Microcomputer controlled reverse system
Fan System
Indoor air circulation/Hi Cooling m3/h 430 430 530 800
Indoor fan type Cross flow Cross flow Cross flow Cross flow
Indoor fan speed
H/M/L
Indoor fan motor output W 12 12 12 22
Outdoor air circulation m3/h
Outdoor fan type Propeller fan Propeller fan Propeller fan Propeller fan
Outdoor fan speed rpm 895 860 860 850
Outdoor fan motor output W 25 31 31 45
Connections
Refrigerant coupling Flare type
Connecting Pipe
Connecting Wiring Size x Core number
Drainage Pipe O.D 16mm
Others
Suitable area m2 9~15 12~19 16~28 30~40
(W x H x D)
Net weight
(W x H x D)
Gross weight
Loading Capacity 40’/40’HC 132/280/318 111/238/276 106/236/248 90/188/218
3
High dB(A) 36 36 38 36
Med. dB(A) 32 32 34 32
Low dB(A) 29 29 32 29
Cooling A 3.0 3.9 5.2 8.0
Heating A 2.9 3.6 5.2 7.5
Cooling W 670 850 1140 1750
Heating W 630 790 1140 1650
Type Rotary Rotary Rotary Rotary
Model ---- ---- ---- ----
LRA A ---- ---- ---- ----
----
MFG ----
Cooling rpm 1150/1050/950 1150/1050/950 1270/1170/1000 1060/970/880
Heating rpm 1150/1050/950 1150/1050/950 1250/1150/1000 1060/970/880
Dry rpm 950 950 950 880
Sleep rpm 950 950 950 880
Gas Inches 3/8 3/8 1/2 1/2
Liquid Inches 1/4 1/4 1/4 1/4
Indoor mm 710x240x179 710x240x179 770x240x179 1033x313x202 Net dimensions
Outdoor mm 600x232x500 700x255x540 760x252x552 760x252x552
Indoor kg 8 8 8 14
Outdoor kg 25 26 32 43
Indoor mm 805x325x270 790x310x252 863x325x270 1088x380x263 Packing dimensions
Outdoor mm 745x352x542 803x380x595 863x405x605 838x361x600
Indoor kg 10 10 10 19
Outdoor kg 28 34 34 45
---- ----
TCL Air Conditioner Service Manual
Technical Specifications
Model No. TAC-24CHSA/R
Type Heat Pump
Control type Remote
Rated cooling capacity Btu/h 24000
Rated heating capacity Btu/h 26000
EER for cooling Btu/h.w 10.8
COP for heating W/W 3.46
Moisture removal Liters/h 2.2
Indoor noise level at
cooling
Outdoor noise level dB(A) 58
Electrical Data
Power supply 220V~/50Hz
Voltage Range V
Rated current
Rated input
Refrigerating System
Refrigerant/Charge Gram R410A/1900g
Compressor
Evaporator Louver fin and grooved tube type (ϕ7)
Condenser Corrugated fin and grooved tube type (ϕ9.52)
Expansion device Capillary tube
Defrosting system Microcomputer controlled reverse system
Fan System
Indoor air circulation/Hi Cooling m3/h 1100
Indoor fan type Cross flow
Indoor fan speed
H/M/L
Indoor fan motor output W 35
Outdoor air circulation m3/h
Outdoor fan type Propeller fan
Outdoor fan speed rpm 850
Outdoor fan motor output W 76
Connections
Refrigerant coupling Flare type
Connecting Pipe
Connecting Wiring Size x Core number
Drainage Pipe O.D 16mm
Others
Suitable area m2 35~48
(W x H x D)
Net weight
(W x H x D)
Gross weight
Loading Capacity 40’/40’HC 63/135/157
4
High dB(A) 49
Med. dB(A) 46
Low dB(A) 43
Cooling A 10.1
Heating A 10
Cooling W 2220
Heating W 2200
Type Rotary
Model ----
LRA A ----
MFG ----
Cooling rpm 1330/1230/1150
Heating rpm 1330/1230/1150
Dry rpm 1150
Sleep rpm 1150
Gas Inches 5/8
Liquid Inches 3/8
Indoor mm 1033X313X202 Net dimensions
Outdoor mm 890 X 307 X 660
Indoor kg 16
Outdoor kg 57
Indoor mm 1103x395x280 Packing dimensions
Outdoor mm 990x415x715
Indoor kg 18
Outdoor kg 59
Operation Details
TCL Air Conditioner Service Manual
5
2
8
4
11
Remote controller
Remote controller
The remote controller transmits signals to the system.
1
SLEEP
TIMER ON
FEEL
COOL
DRY
FAN
HEAT
TMIER OFF
AUTO
HIGH
MID
LOW
SWING
2
3
3
SLEEP
FAN
7
4
TIMER
MODE
SWING
ON/OFF
6
1
5
6
ON/OFF button
Used to start and stop operation
when pressed.
TIMER button
Used to select TIMER operation.
UP button (TOO COOL button)
Used to increase the set room temperature
and time.
DOWN button (TOO WARM button)
Used to decrease the set room temperature
and time.
SLEEP button
Used to set or cancel sleep mode operation.
VANE control button
Used to adjust airflow direction.
FAN SPEED control button
7
Used to select the indoor fan motor speed:
Auto, High, Mid and Low.
8
MODE button
Used to select the type of operation mode: Feel,
Cooling, Dry, Fan and Heating(Only for Heat Pump).
Note: Each mode and relevant function will be further specified in following pages.
Remote Control
The remote controller is not presetted as Cooling Only Air Conditioner or Heat Pump by manufacturer.
Each time after the remote controller replace batteries or is energized, the arrowhead will flashes on the front of
Heat or Cool on LCD of the remote controller.
User can preset the remote controller type depending on the air conditioner type you have purchased as
follows:
Press any button when the arrowhead flashes on the front of Cool , Cooling Only is set.
Press any button when the arrowhead flashes on the front of Heat , Heat Pump is set.
If you don t press any button within 10 seconds, the remote controller is preset as Heat Pump automatically.
Note :
If the air conditioner you purchased is a Cooling Only one, but you preset the remote controller as Heat Pump, it
doesn t bring any matter. But if the air conditioner you purchased is a Heat Pump one, and you preset the
remote controller as Cooling Only, then you CAN NOT preset the Heating operation with the remote controller.
5
REMOTE CONTROLLER
The four types of remote controller is as follow:
GYKQ-05 GYKQ-10e (optional) GYKQ-11e (optional) GYKQ-12e (optional)
Note: The function of remote controller above is the same.
TCL Air Conditioner Service Manual
6
TCL Air Conditioner Service Manual
Electronic Controller
1. Safety Control
(1) Time Delay Safety Control
3 minutes delay for compressor---The compressor is ceased for 3minutes to balance the pressure in the
refrigeration cycle in order to protect the compressor.
2 minutes delay for 4-way valve---The 4-way valve is ceased for 2 minutes to prevent the
refrigerant-gas abnormal noise when the HEATING operation is OFF or switch to the other operation
mode.
(2) Indoor Pipe Temperature Sensor Frost Prevention Control
When the indoor pipe temperature sensor reads 0℃ or below for 5 minutes, the indoor pipe temperature
sensor frost prevention control starts. The compressor and outdoor fan stop and indoor fan operates at high
speed for 3 minutes. After that, if the indoor pipe temperature sensor reads less than 5℃ this control
prolonged until the indoor pipe temperature sensor reads 5℃ or more.
(3) High Temperature Protection Control
During HEATING operation, the outdoor fan motor and compressor are controlled by the indoor pipe
temperature to prevent the high temperature of compressor.
Outdoor fan OFF: when the indoor pipe temperature is ≥50℃
Outdoor fan ON: when the indoor pipe temperature is ≤48℃
Compressor OFF: when the indoor pipe temperature is ≥62℃
Compressor ON: when the indoor pipe temperature is ≤48℃
2. “I Feel” Mode Operation
(1) When the “I Feel” mode is selected, the operation mode and initial set temperature are determined by the
initial room temperature at start-up of the operation except to turn off the air conditioner and operates it
again.
(2) If the mode is change to “I Feel” mode from other mode, the “I Feel” mode doesn’t operate until compressor
stop for more than 3 minutes.
COOLING
DRY
HEATING for Heat Pump Type
FAN for Cooling Only Type
In the “I Feel” mode , when the controller receives the up or down single of temperature, the set
3. “COOLING” Mode Operation
(1) When the COOLING mode is selected without setting temperature, the system will set the set temperature at
℃ automatically with the AUTO FAN speed.
26
(2) When selecting the COOLING mode operation, the system will operate according to the setting by the
remote controller and the operation is as following:
Mode
temperature can adjust by 1
Initial room temperature
26℃ or more
20℃ to 25 ℃
Less than 20℃
Initial set temperature
24℃
18℃
23℃
℃ upper or lower. The biggest you can adjust by 2℃ upper or lower.
7
TCL Air Conditioner Service Manual

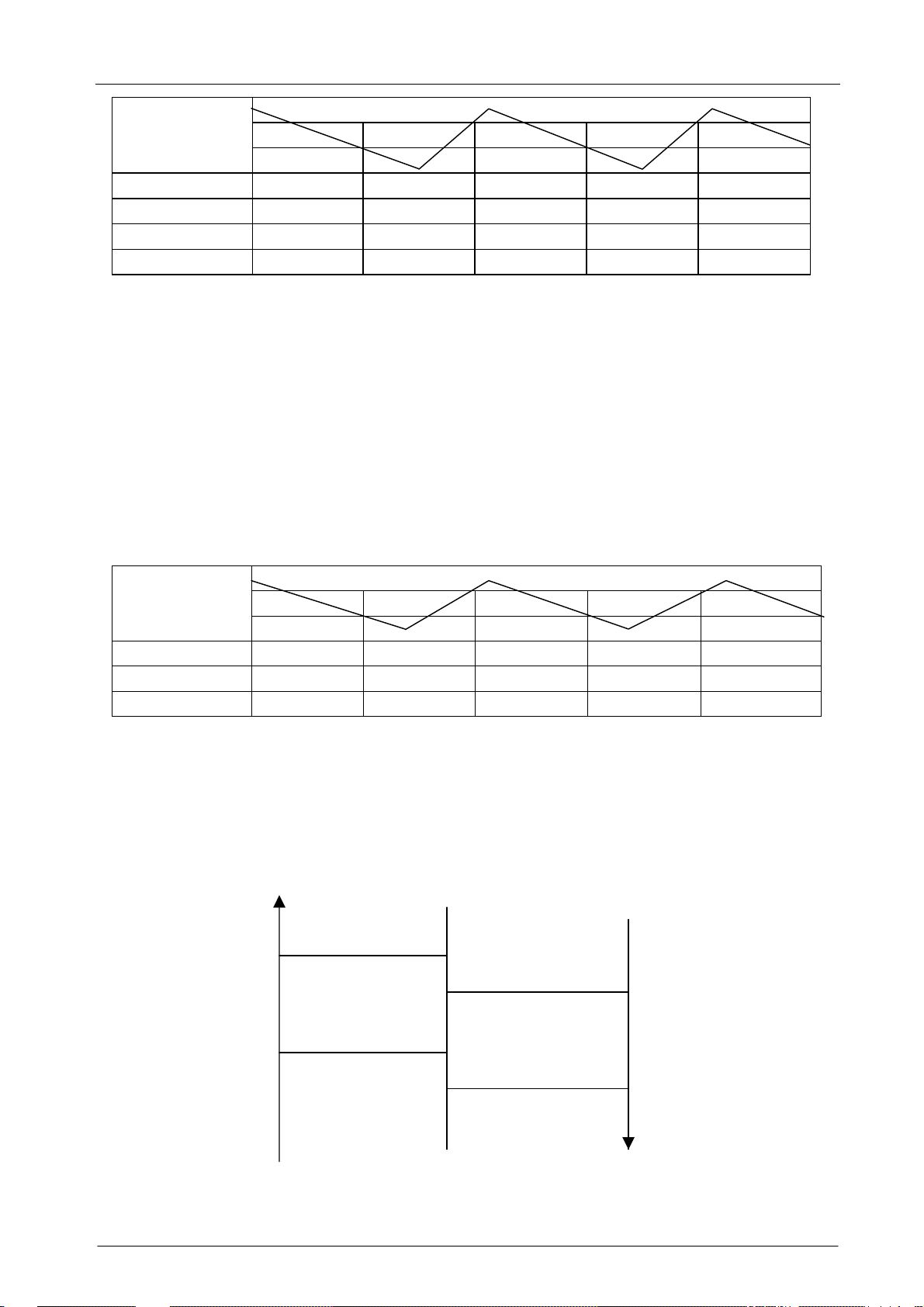

Temperature raise
Temperature drop
Room Temp.
Set TEMP. ＋1
Set TEMP. －1
Time
Indoor Fan Set Speed Set Speed Set Speed Set Speed Set Speed
Compressor ON OFF ON OFF ON
Outdoor Fan ON OFF ON OFF ON
4. “DRY” Mode Operation
(1) The system for DRY operation used the same refrigerant circle as the cooling circle.
(2) When the system operates in DRY mode ,at first it operates in cooling mode at 16
℃
℃
More than 2 min More than 2 min More than 2 min More than 2 min More than 2 min
℃ or 18℃ for 3 minutes.
And then, the system operates in cooling mode with low speed that regards the temperature of the room
temperature sensor reads decrease 2℃ as the set temperature. During the course of this, the fan speed
set operation is failing but the vane motor can be controlled.
5. “HEATING” Mode Operation (Only available for Heat Pump)
(1) When the HEATING mode is selected without setting temperature, the system will set the temperature at 23
℃ automatically with the AUTO FAN speed.
(2) When selecting the HEATING mode operation, the system will operate according to the setting by the
remote controller and the operation is as following:
Set Temp. ＋1℃
Set Temp. －1
Room Temp.
Time
Compressor ON OFF ON OFF ON
Outdoor fan ON OFF ON OFF ON
(3) In HEATING mode, the indoor fan motor speed is controlled by Cold Air Prevention Control.
(4) Cold Air Prevention Control
The function is intend to prevent cold air from being discharged when the heating operation starts or
when defrosting.
The indoor fan speed will be controlled as following.
The vane angle is at the angle C(100°).
Set Speed Set Speed
34
27
℃
More than 2 min More than 2 min More than 2 min More than 2 min More than 2 min
℃
Low Speed
℃
Low Speed
25℃
Stop the fan
23℃
Stop the fan
During the heating operation, if the compressor stops that it will adjust the indoor fan speed, after 30
seconds to stop the fan.
8
TCL Air Conditioner Service Manual
(5) Defrost
Defrosting of the outdoor heat exchange is controlled by the microprocessor with detection by the indoor
pipe temperature sensor.
Defrost control type is according to the JC on the PCB whether is connected.
When the JC is connect on the PCB
When one of the conditions of A, Band C is satisfy, the defrosting operation stars.
A. IPT--- indoor pipe temperature
In the condition A, it must satisfy the conditions a), b)and c) then into defrosting operation.
a) IPT1 satisfy IPT1=IPT
b) t5≥50minutes(the compressor cumulative operation time≥50 minutes, t5 is permitted move
and lower than t1 too).
IPT＜40℃，and keep 2 minutes.
c)
According to the condition A enter the defrosting operation, the first defrosting operation time is
8minutes; After defrosting operation one cycle, and then judge and regulate the defrosting operation
time.
B. After the compressor cumulative operation time exceeds 120 minutes and the temperature of the IPT
is less then 35
℃ for 2 minutes. When the defrosting operation time on this condition exceeds
－△IPT（8℃）
MAX
8minutes, it will terminate.
C. After the compressor operation continuously for 20 minutes and the IPT is less than 23℃ or from
the last time of defrosting operation is 50 minutes or more interval. When the defrosting operation
time on this condition exceeds 10 minutes, it will terminal.
When the JC isn’t connected on the PCB
When the conditions of a) or b) is satisfy, the defrosting operation starts.
a) Under the heating operation, the compressor cumulative operation time exceeds 50 minutes and the
temperature of the outdoor pipe temperature sensor reads lower than －8
b) Under the heating operation, the compressor cumulative operation time exceeds 50 minutes, if the
indoor pipe temperature sensor reads lower than 40
℃ continuously for 2minutes.
℃
Note: If haven’t the outdoor pipe temperature sensor that use the condition b) to defrost, against
use the condition a).
Defrost terminating conditions
When the condition c) or d) is satisfy, the defrosting operation will terminal.
c) The outdoor defrost sensor reads 20
℃ or more.
d) The defrosting time exceeds 10 minutes.
9
Loading...
