Air-cooled & Frost-free Household Refrigerator
Operating Instructions
P 4 9 1 TMS
Contents
Thank you for buying refrigerator. We hereby express our thanks. TCL
Welcome to use refrigerator. We will do our best to provide you with quality TCL
service.
Safety instructions ------------------------------------------------------------------------
Product introduction ----------------------------------------------------------------------
Handling and placement -----------------------------------------------------------------
Preparations prior to use ----------------------------------------------------------------
Operation keys ----------------------------------------------------------------------------
Food storage --------------------------------------------------------------------------
Ice-making -----------------------------------------------------------------------------
Disassembly and assembly method of accessory ---------------------------
Care and maintenance ------------------------------------------------------------------
Failure analysis ----------------------------------------------------------------------------
Non-failure ----------------------------------------------------------------------------------
Technical parameter

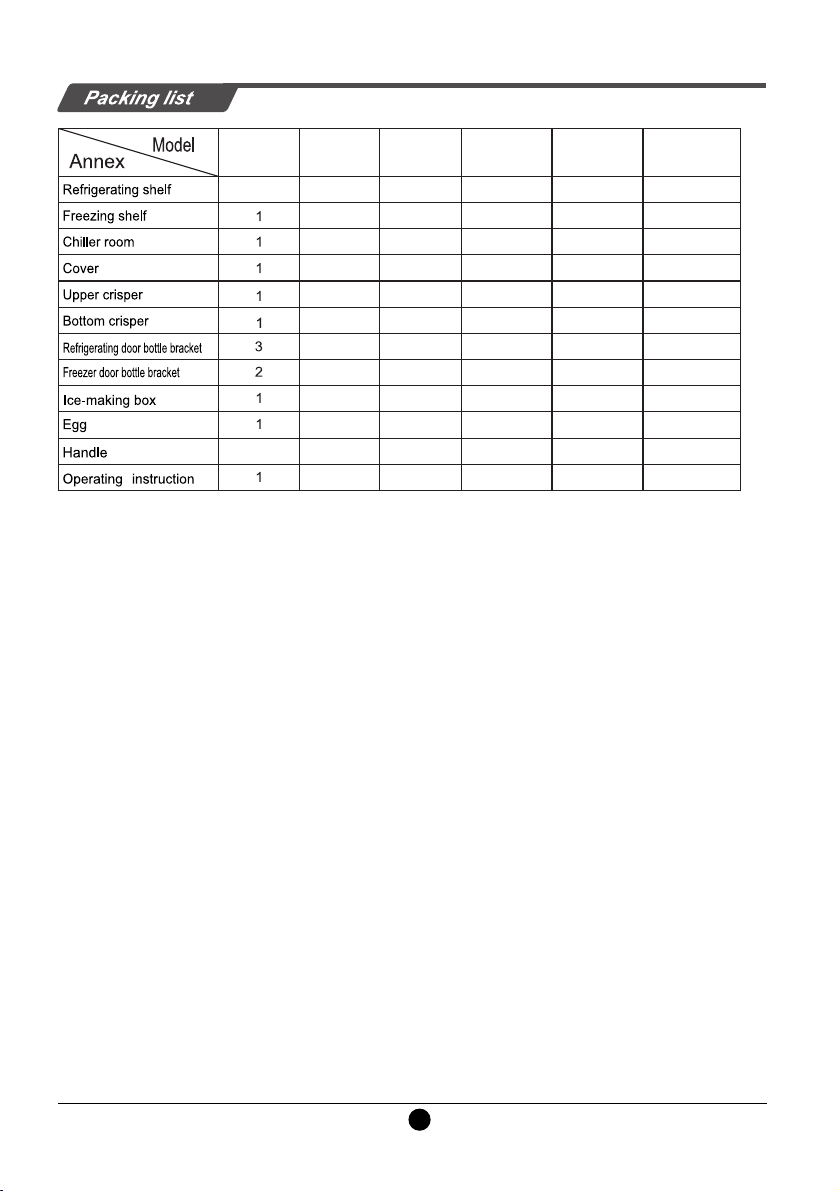

Packing list
-----------------------------------------------------------------------------------
----------------------------------------------------------------------
P2
P7
P8
P9
P10
P12
P12
P13
P13
P15
P14
P15
P16
1
Children should be supervised to ensure they do not play with the appliance.
2
Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the ty pe
recommended by the manufacturer.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualifi ed persons in
order to avoid a hazard.
WARNING!:Do not locate multiple portab le socket-o utlet or port able
power supplies at the rear of the appliance .

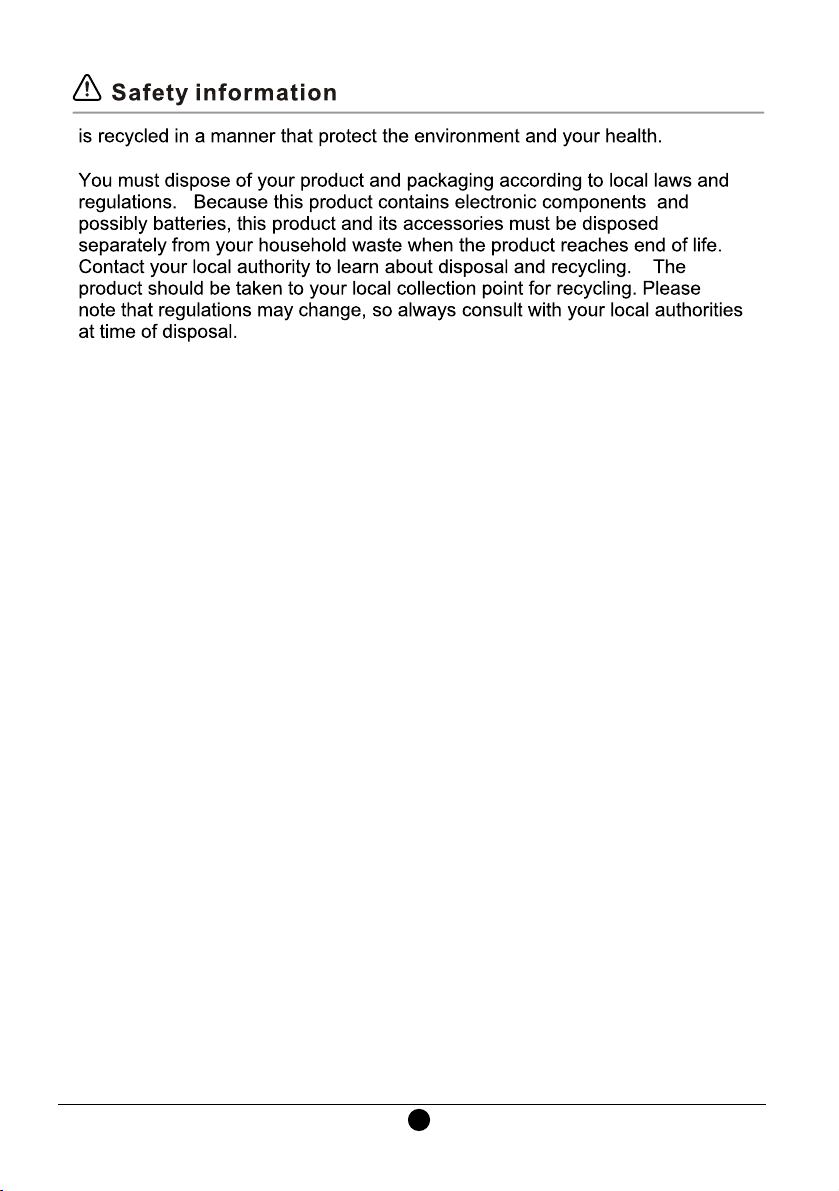

3
456
Product int roductionProduct int roduction

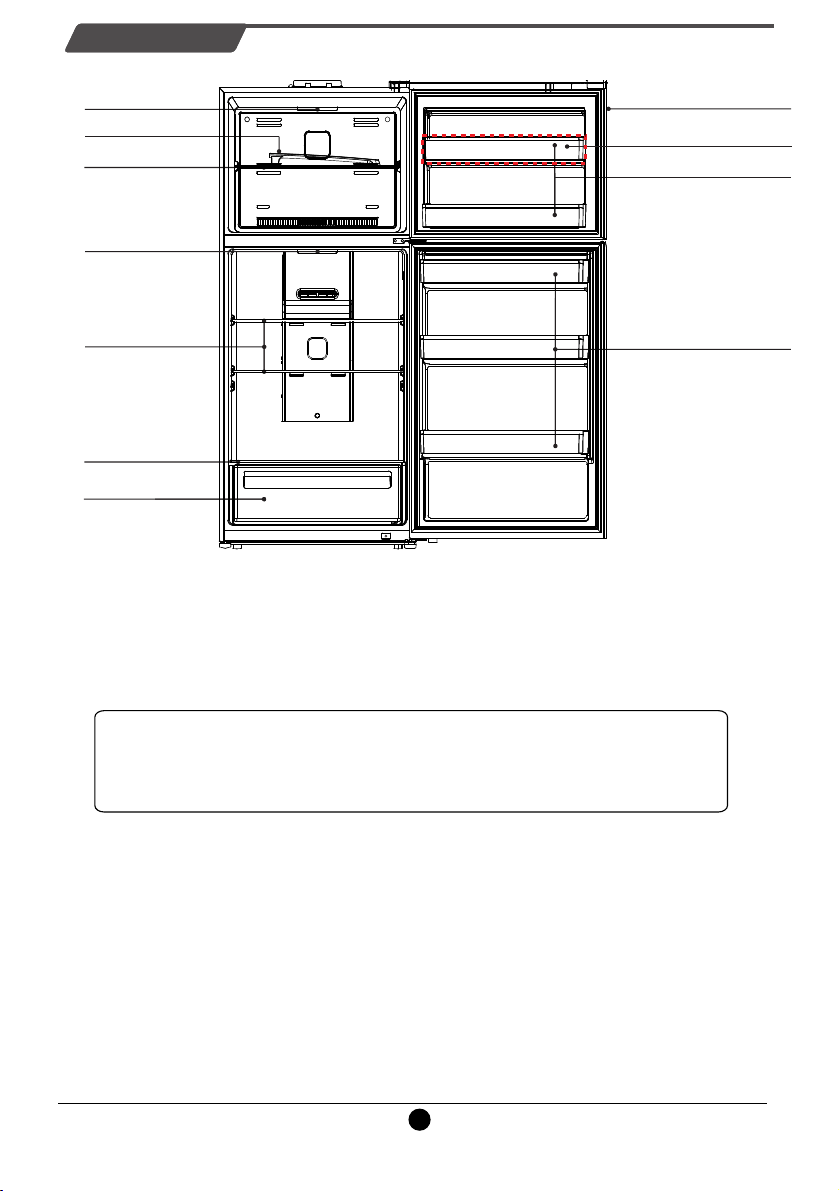

Freezer lamp
handle(optional)
Freezer shelf
Refrigerator lamp
Refrigerator shelves
Cover
Crisper
Freezer door
Two-star area
Freezer door shelves
Refrigerator door Shelves
P491TMS Pictured
Warm prompt:
The product specification is subject to change without notice
7
4

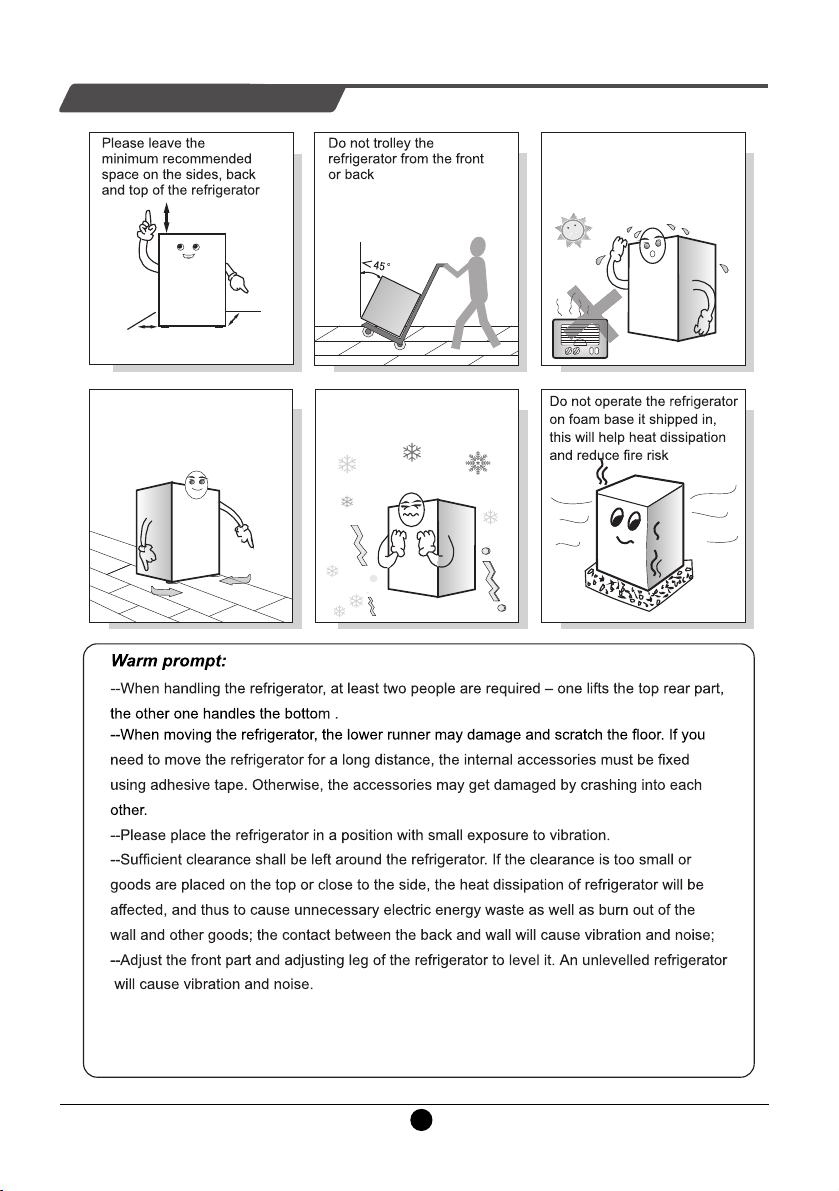

Handling and placement
>30cm
>10cm >10cm
The refrigerator shall be
placed in an environment
which is dry, has good
ventilation, far from direct
sunshine and heat source.
The refrigerator shall be
placed on the flat and firm
surface. If the ground is not
flat, adjust the adjusting leg
to keep it level.
Never place the refrigerator
into a too cold environment
that may get frozen.
8
L1
L2
L3
W1
W2
W3
TRF-491W
706686
720
Preparations prior to use
1.Remove all packing materials such as adhesive tape, plastic bags, etc., especially the foam
base.
2.Use a warm wet cloth to clean both interior and exterior of the refrigerator, (neutral detergent
can be added to warm water).
3. After leveling and cleaning the refrigerator, keep it upright for about 2 hours before plugging in
the power for the first time.Let the refrigerator run for 2 to 3 hours before storing foods.
1. Remove fixing tape 2. Connect to power 3.Leave the
Wipe with
a warm and
wet cloth
9
refrigerator on for
2-3 hours before
storing food
Do not frequently
open the doors
to maximise efficiency.
The plastic deodorant smell will disappear
automatically after a short time.
600
Operation keys

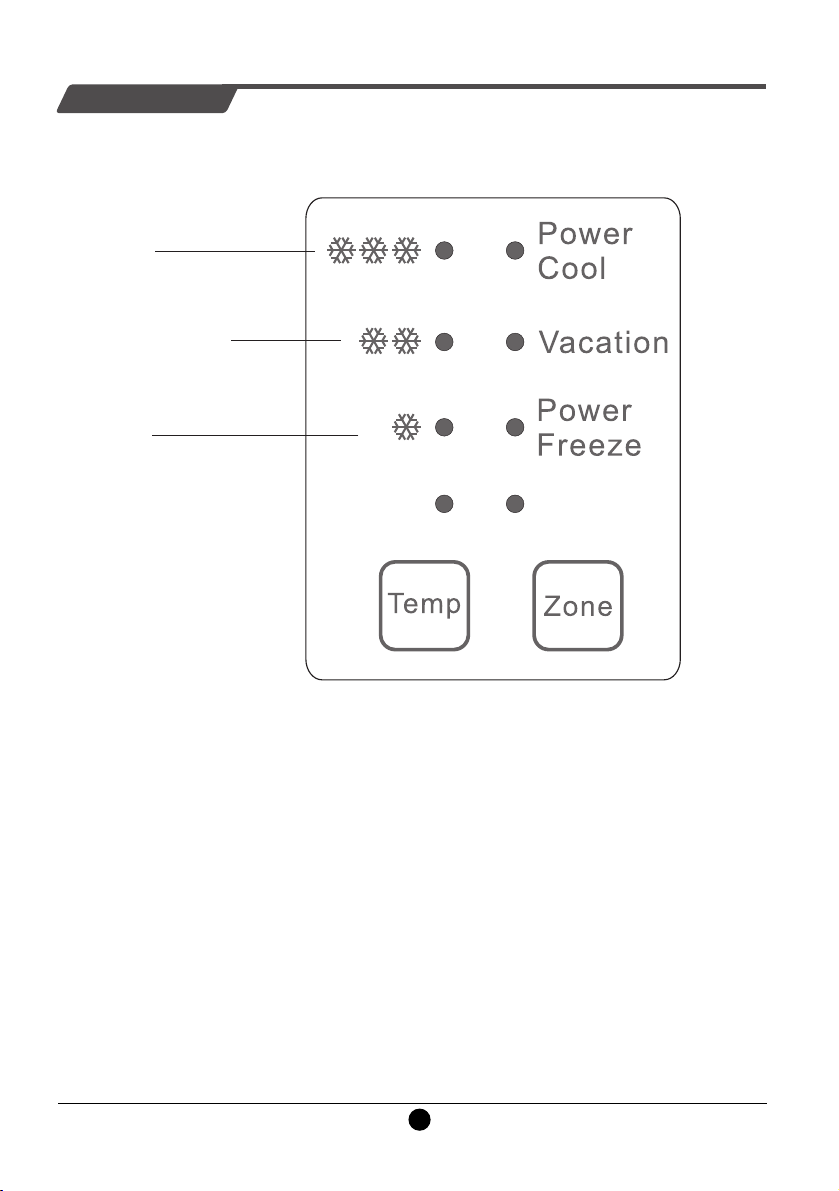

Operation and diagram of the electronic
control board
High
Medium1/Medium2
Low
FreezerFridge
P491TMS
The above is the computer control board for the product
10
Operation keys
11
Operation keys
12
To remove, gently squeeze from both sides at the same
time and make sure the clips are dislodged, and then slowly lift out.
shelf
13
Troubleshooting
Before service is requested, please go throu gh th e bel ow tr oub les hoo tin g ite ms:
Refrigerator does not work,The refrigeration effect is poor
1. Check the power is connected and switch is turn ed on . 2. Ch eck w het her t he re fri ger ato r is
exposed to direct sunlight or whether the re is h eat s our ce ne arb y. 3. make sure the minimum
recommended space is around the fridge an d wal l.
Foods in refrigerator are frozen
1. Check whether the setting temperature is too low, y ou ma y nee d to in cre ase . 2. Ch eck
whether foods with too much water are too close to the re ar wa ll an d mov e if re qui red .
There are abnormal sounds in the refrigerator
1. Check whether the bottom of refrigerator is stab le, r e-l eve l if re qui red . 2. Ch eck w het her
the refrigerator is too close to the wall and move i f nec ess ary. 3. Check whether the
refrigerator touches other objects and rem ove a ny ob sti cle s.
There is an abnormal odor in the refrigerator
1. Check whether the foods are sealed for storag e. 2. C hec k whe the r the r efr ige rat or is c lea n,
and clean as described in this manual 3. Make s ure f ood h as no t bee n sto red f or to o lon g, an d
discard if required.
Non-failures
Phenomenon:The two sides of the refrigerator, and space between the fridge and freezer
are warm
Cause:Refrigerator pipes (condenser, anti-fog pipes) are on two sides and front part of
refrigerator for heat dissipation and to prevent condensation, it is normal for these spaces to get
warm
Phenomenon:The door is too tight and not easy to open
Cause:Reopening of the door immediately after closing it is hard because hot air enters the
refrigerator and contracts to produce a pressure difference. It will be easy to open the door after a
short while.
Phenomenon:There is water ripple noise in refrigerator
Cause:When starting or stopping the compressor, the refrigerant will make such a
sound;and;Water produced after defrosting will also make such sound.
Phenomenon:There is “Click” sound or tick sound in refrigerator
Cause:Shrinkage and swelling of the case will make such sound;When the case is cold or the
door is opened, this sound will occur;
Phenomenon:There is hum sound in refrigerator
Cause:Running of compressor will make such a sound (if the refrigerator is not leveled, this sound
will be louder)
Phenomenon:There is condensation or frosting on the freezer door surface or food
surfaces
Cause:Temperature or humidity around the refrigerator is high;The door is opened for too
long ;The food+
Phenomenon:There is condensation on the light covers
Cause:Light will produce heat after being lit, if the door is opened for a long time. So there is
temperature difference, and thus the light cover will have condensation.
Phenomenon:There is condensation and water mist on the refrigerator body
Cause:Humidity around refrigerator is high, and the moisture in the air will gather on the cabinet
to form condensation.
14
Technical prameter
Technical parameter
Model
Climate type
Electric shock resistance
Total Storage Volume
Storage Volume of Fridge
Storage Volume of Freezer
Storage Volume of two stars Freezer
Power type
Rated current
Power consumption
Lamp power
Weight
Dimension
Refrigerant and charge amount
Noise Volume
P491TMS
T
I
420L
319L
90L
11L
220-240V〜/50Hz
0.85A
332
4W
66kg
706*686*1720mm
R600a,53g
42dB(A)
15
tray
P491TMS
2
0
16
