TCL LCD32M61S3-MS19 Service Manual

TCL

SERVICE MANUAL

LCD32M61S3-MS19

1. Chapter I specification………………………………………………………6

2. Chaper II Chassis Introduction…………………………………… ……10

Part I MCU working conditions……………………………………………12
Part II Reset section………………………………………………………… 12
Part III Tuner section…………………………………………………………13
Part IV Audio Amplifier and mute control………………………………… 14
Part V A v Out and Audio Amplifier…………………………………………14
Part VI HDMI and EDID introduction………………………………………15
Part VII HDCP Section………………………………………………………17
Part VIII EEPROM for Software……………………………………………18
Part IX Panel ON/OFF Control Section………………………………… …19

3. Chapter III IC Specifications …………………………………………………20

4. Chapter IV Alignment Procedure………………………………………………29

5. Chapter V Spare Parts List … ………………………………………………33

6. Chapter VIervice Guiding …………………………………………………50
Part I pictures of Chassis ………………………………………………………52
Part II Block of Diagram ………………………………………………………55
Part III Layout of Mainboard … ……………………………… … ………56
Part IV Scheme Diagram ………… ………………… …………… ………58
Part V Trouble shooting……………… ……… …………………… ………68

This manual is the latest at the time of printing, and does not
include the modification which may be made after the printing, by
the constant improvement of product

WARNING: TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT

EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION: TO REDUCE THE RISK OF
ELECTRICAL SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.

The lighting flash with arrowhead symbol, with an equilateral triangle is intended to
alert the user to the presence of uninsulated voltage within the products
enclosure that may be of sufficient magnitude to constitute a risk of electric shock to
the person.

The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.

CAUTION:

Use of controls, adjustments or procedures other than those specified herein may result in
hazardous radiation exposure.

CAUTION

RISK RISK OF OF ELECTRIELECTRICC

SHOCK SHOCK DO DO NOT NOT OPEN.OPEN.

2

dangerous

3

FOR YOUR PERSONAL SAFETY

1. When the power cord or plug is damaged or frayed, unplug this television set from the wall outlet and refer servicing to
qualified service personnel.

2. Do not overload wall outlets and extension cords as this can result in fire or electric shock.

3. Do not allow anything to rest on or roll over the power cord, and do not place the TV where power cord is subject to
traffic or abuse. This may result in a shock or fire hazard.

4. Do not attempt to service this television set yourself as opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified service personnel.

5. Never push objects of any kind into this television set through cabinet slots as they may touch dangerous voltage
points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the television set.

6. If the television set has been dropped or the cabinet has been damage d, unplug this television set from the wall outlet
and refer servicing to qualified service personnel.

7. If liquid has been spilled into the television set, unplug this television set from the wall outlet and refer servicing to
qualified service personnel.

8. Do not subject your television set to impact of any kind. Be particularly careful not to damage the picture tube surface.

9. Unplug this television set from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a
damp cloth for cleaning.

10.1. Do not place this television set on an unstable cart, stand, or table. The television set may fall, causing serious injury
to a child or an adult, and serious damage to the appliance. Use only with a cart or stand recommended by the
manufacturer, or sold with the television set. Wall or shelf mounting should follow the manufacturer s instructions, and
should use a mounting kit approved by the manufacturer.

10.2. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces
may cause the appliance and cart combination to overturn.

CAUTION:

Read all of these instructions. Save these instructions for later use . Follow all Warnings and
Instructions marked on the audio equipment.

1. Read Instructions- All the safety and operating instructions should be read before the product is operated.

2. Retain Instructions- The safety and operating instructions should be retained for future reference.

3. Heed Warnings- All warnings on the product and in the operating instructions should be adhered to.

4. Follow Instructions- All operating and use instructions should be followed.

IMPORTANT SAFETY INSTRUCTIONS

4

PROTECTION AND LOCATION OF YOUR SET

11. Do not use this television set near water ... for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a

wet basement, or near a swimming pool, etc.
Never expose the set to rain or water. If the set has been exposed to rain or water, unplug the set from the wall
outlet and refer servicing to qualified service personnel.

12. Choose a place where light (artificial or sunlight) does not shine directly on the screen.

13. Avoid dusty places, since piling up of dust inside TV chassis may cause failure of the set when high humidity persists.

14. The set has slots, or openings in the cabinet for ventilation purposes, to provide reliable operation of the receiver, to
protect it from overheating. These openings must not be blocked or covered.

Never cover the slots or openings with cloth or other material.
Never block the bottom ventilation slots of the set by placing it on a bed, sofa, rug, etc.
Never place the set near or over a radiator or heat register.
Never place the set in enclosure, unless proper ventilation is provided.

PROTECTION AND LOCATION OF YOUR SET

15.1. If an outside antenna is connected to the television set, be sure the antenna system is grounded so as to provide some

protection against voltage surges and built up static charges, Section 810 of the National Electrical Code, NFPA No.
70-1975, provides information with respect to proper grounding of the mast and supporting structure, grounding of the
lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection
to grounding electrode, and requirements for the grounding electrode.

15.2. Note to CATV system installer : (Only for the television set with CATV reception)

This reminder is provided to call the CATV system attention to Article 820-40 of the NEC that provides
guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding
system of the building, as close to the point of cable entry as practical.

16. An outside antenna system should not be located in the vicinity of overhead power lines or other electric lights or power

circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care
should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

17. For added protection for this television set during a lightning storm, or when it is left unattended and unused for long

periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage due to lightning
and power-line surges.

ANTENNA
LEAD- IN WIRE

ANTENNA DISCHARGE
UNIT (NEC SECTION
810-20)

GROUNDING
CONDUCTORS
(NEC SECTION810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250. PART H)

ELECTRIC SERVICE

EQUIPMENT

GROUND CLAMP

NEC-NATIONAL ELECTRICAL CODE

EXAMPLE OF ANTENNA GROUNDING AS PER

NATIONAL ELECTRICAL CODE

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE INSTRUCTIONS

a built-in

installer s

OPERATION OF YOUR SET

18.

This television set should be operated only from the type of power source indicated on the marking label. If you are not
sure of the type of power supply at your home, consult your television dealer or local power company. For television
sets designed to operate from battery power, refer to the operating instructions.

19. If the television set does not operate normally by following the operating instructions, unplug this television set from the

wall outlet and refer servicing to qualified service personnel. Adjust only those controls that are covered in the operating
instructions as improper adjustment of other controls may result in damage and will often require extensive work by a
qualified technician to restore the television set to normal operation.

20. When going on a holiday : If your television set is to remain unused for a period of time, for instance, when you go on

a holiday, turn the television set and unplug the television set from the wall outlet.

IF THE SET DOES NOT OPERATE PROPERLY

21. If you are unable to restore normal operation by following the detailed procedure in your operating instructions,

do not attempt any further adjustment. Unplug the set and call your dealer or service technician.

22. Whenever the television set is damaged or fails, or a distinct change in performance indicates a need for

service, unplug the set and have it checked by a professional service technician.

23. It is normal for some TV sets to make occasional snapping or popping sounds, particularly when being

turned on or off. If the snapping or popping is continuous or frequent, unplug the set and consult your
dealer or service technician.

FOR SERVICE AND MODIFICATION

24. Do not use attachments not recommended by the television set manufacturer as they may cause hazards.

25. When replacement parts are required, be sure the service technician has used replacement parts specified

by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions
may result in fire, electric shock, or other hazards.

26. Upon completion of any service or repairs to the television set, ask the ser vice technician to perform

routine safety checks to determine that the television is in safe operating condition.

5

off

Specification

Items description

Remarks

Model

ID

Model L32M61S3

Remote Control Picture

RC TYPE Philips RC1113339

General

Basic Info.

＋Panel Size（inch）

32"

＋Panel Supplier

CMO

＋Aspect Ratio

16:9

＋Chassis Name

MS19

＋solution

MST9E19A

＋Market

EM

＋Certification

CB

Panel Specification

＋Model

V320B1-L04

＋Pixel Pitch (vertical stripe RGB pixels)

0.173mm (H) × 0.519mm (V)

＋Resolution

1366X768

＋Brightness

500 cd/m2

＋Contrast Ratio

1200：1

＋View Angle (H/V)

176°/176°

＋Viewing Technology

TFT

＋Response Time (Tr+Tf)
＋Response Time (gray to gray)

6.5ms

＋Back Lights (CCFLx)

16

＋Panel Interface

LVDS

＋Color

16.7M

＋Life Time

MIN 50,000hrs

Environmental Conditions

＋Operation Temperature

0-50°C

＋Storage Temperature

-20-60°C

＋Operation Humidity

90% RH MAX

＋Storage Humidity

10-90% RH

＋Operation Air Pressure
＋Storage Air Pressure

Power

＋Power Supply

AC 100-240V,50/60Hz

＋Integrated Power Supply

YES

＋External Adapter

NO

＋Cord Type (Default)

VDE

＋Power Consumption - TV ON

130W

＋Power Consumption - Standby

Less than 3W

＋LED indication - Power ON

BLUE

＋LED indication - STANDBY

Red

＋AC Switch

Yes (Side BACK)

＋Standby to Power ON

By CH+/- button on panel or ON-OFF/ CH+/- KEY
ON RC

System

＋Tuning - Max Programs

200(0~199)

- Install Features Auto search and fine adjustment

- Technology PLL

- Indication Freq./CH

- Mode channel list
＋TV Systems

NTSC-M,PAL M,PAL N

＋IF Freq.

45.75MHz

＋Freq. Bands

VHF-L VHF-H,UHF,Hyperband

＋Twin Tuner

---

＋AV System

PAL,NTSC


Picture-Processing(TV/Video)

＋Scan

Standard Progresive 60Hz

＋Scaler Mode

16:9, 4:3, zoom, cinerama

＋Comb Filter

2D

＋Black Strech, Blue Strech

Yes

＋LTI, CTI

Yes

＋PIP/POP - Type

NO

＋PIP/POP - Features

NO

＋Deinterlace

Motion compensation

＋Picture Effects

4 picture effects (Natural,Bright,Personal,Soft)

＋Picture Enhancement

Cross-color supress(ccs) skin fresh
correction,Gama correction, Film mode

＋Picture Noise Reduction

WEAK;medium;STRONG

＋Color Temperature

normal;warm;cool

＋Others

Please add other items referring to factual situation

PC Compatibility

＋VGA Input

VGA,SVGA,XGA,SXGA,WXGA@75Hz

＋DVI Input
＋HDMI Input

XGA,up to SXGA@75Hz,720P,1080i

＋DDC

Yes

HDTV/SDTV Ready

＋SDTV Input - YCbCr

(480p/480i,576p/576i)@60Hz

＋HDTV Input - YPbPr

(720p,1080i,1080P)@50Hz/60Hz

＋HDTV Input - DVI
＋HDTV Input - VGA

(720p,1080i)@50Hz/60Hz

Build-in Data System

＋Teletext Standard

---

＋Teletext Language

---

＋Teletext Pages

---

＋Teletext Features

---

＋CCD(Closed Caption)

Yes

＋V-chip

Yes

＋Macrovision

Yes

＋CGMS
＋HDCP

Yes

Sound

Sound Electric Performance

＋RMS Power output(Internal)

2*12W

＋Speaker Max Power

2*6W

Sound Effect

＋Sound Processing

BTSC

＋DVSS(Dolby Virtual Surround Sound)
＋AVC(Auto Volume Control)

Yes

＋BBE

---

＋SRS

---

＋Sound Features

Stereo,News,MUSIC,Personal

＋Sound Control

AVC,MTS,SOUND MODE,BASS,TREBLE,
BALANCE

Please add other items referring to factual situation

Accessional Equipment

Other Functions

＋Card Reader

---

＋DVD Combo

---

＋Support USB Connection

---

＋Built-in DTV Reception and System

---

Please add other items referring to factual situation

Operation Control

＋Clock/Timer Function

24h Timer;TURN ON/OFFf;Sleep timer

＋Lock
＋OSD Features

OSD position adjustable,

＋OSD Language

English,French,Spanish,Portuguese

＋OSD Main Menu

Picture,Sound,PAR.CONTROL,Preferences,Setup
,TIMER

＋Keyboard Control (Buttons on the panel)

Source,Menu,CH+,CH-,Vol+,Vol-,

＋Remote Control

ON-OFF,MENU,INPUT,CH+/-,VOL+/­,SOUND,PRESET,INFO,FAVORITE,etc,.

Other Functions

＋Game
＋Screen Protect
＋Clear Screen
＋Demo Functions

Please add other items referring to factual situation

Terminals

Connectors Side

＋AV Input - CVBS

(

RCA

)

---

Audio Input - R/L

(

RCA

)

---

Audio Input - Mono

(

RCA

)

---

＋S-video

---

Audio Input - R/L

(

RCA

)

---

＋Headphone Out - R/L

(

Φ3.5mm

)

---

＋USB Connecto

r

---

Connectors Rea

r

＋AV Input - CVBS

(

RCA

)

2

Audio Input - R/L

(

RCA

)

2

＋S-video

1

Audio Input - R/L

(

RCA

)

Share with AV1

＋Y,Pb,Pr Input

(

RCA

)

1 (component

)

Audio Input - R/L

(

RCA

)

1

＋Y,Cb,Cr Input

(

RCA

)

Share with Y，Pb，Pr

Audio Input - R/L

(

RCA

)

Share with Y，Pb，Pr Audio input

＋VGA In

put(

RGB)

(

D-SUB15

)

1

Headphone In R/L

(

Φ3.5mm

)

Audio Input - R/L

(

RCA

)

1(Share with Y，Pb，Pr Audio input

)

＋DVI Input
Audio Input - R/L

(

RCA

)

＋HDMI Input

1

＋SCART RGB+Y/C+CVBS In

---

＋SCART RGB+Y/C+CVBS In/out

(

full

)

---

＋SCART Y/C+CVBS In/ou

t

---

＋SCART Y/C+CVBS In

---

＋AV out

p

ut-CVBS

(

RCA

)

1 (Only for TV/AV source

)

Audio output - R/L

(

RCA

)

＋Audio Output - R/L

(

RCA

)

1

＋Audio Output - R/L

(

Line

)

＋Headphone Out - R/L

(

Φ3.5mm

)

1

＋Audio Output - Woofe

r

(RCA

)

---

＋Control/Signal Socket (for MFB)

---

＋S/W Updating Socket

Share with VGA SOCKET

＋RF - Terr.Antenna in

(Type)

75ohm(F TYPE

)

＋ITV Smart Port

---

＋I-Link

(

1394) Capacit

y

---

＋IR Blaster Jack

---

＋Other Function Extended Interfaces

---

＋Power In Cinch

AC code in

Connectors Front

＋AV Input - CVBS (RCA)

---

Audio Input - R/L (RCA) ---
Audio Input - Mono (RCA) ---
＋Headphone Out - R/L (Φ3.5mm)

---

＋USB Connecto

r

---

Connectors Top

Please add other items referring to factual situation

X

X

Connectors Bottom

Please add other items referring to factual situation

X

X

Configuration

＋Cabinet Name

M61

Configuration&Artwork

＋Features

Flat (no arc)

＋Speaker Assemble Mode

Integrated

＋Speaker Grille

original holes in F.CAB

＋Front Cabinet - Material and Color

HIPS Black A6881

＋Rear Cabinet - Material and Color

HIPS Black A8252

＋Keyboard Position

Middle on top of the front panel

＋Tuner Detachable

No

Artwork

＋Operation Manual Language

En

g

lish

＋Lo

g

o Features (Front panel

)

stamp

＋Dimension - with Base Stand (L*H*D

)

813*613*219(mm

)

- without Base Stand (L*H*D)

813*562*100

(mm)

＋Dimension - packaged (L*H*D

)

986*731*358(mm

)

＋Net Weight

16.5kg

＋Gross Weight

20Kg

＋Container Loading - 20 fee

t

111sets

- 40 feet 234sets

- 40 feet high 234sets

Wall Mount

＋Type

WMB230 (optional)

＋Features

fixed

： ，

＋Packaging Method

Separated

＋Dimension - packaged (L*H*D)

265*168*44(mm)

＋Net Weight and Gross Weight

Net Weight: 0.2kg ; Gross Weight:0.5 Kg

Speaker Bo

x

＋Fixing Method

---

＋Features

---

＋Packaging Method

---

＋Dimension - packaged (L*H*D)

---

＋Dimension - unpackaged (L*H*D)

---

＋Net Weight and Gross Weight

---

Multi-function Box

---

＋Packaging Method

---

＋Dimension - unpackaged (L*H*D)

---

＋Dimension - packaged (L*H*D)

---

＋Net Weight and Gross Weight

---

Base Stand

＋Features
＋Packaging Method

Integrated

＋Dimension - packaged (L*H*D)

no

＋Dimension - unpackaged (L*H*D)

no

＋Net Weight and Gross Weight

Net Weight:2 Kg ; Gross Weight: 2Kg

＋Container Loading - 20 fee

t

no

- 40 feet no

- 40 feet high no

Accessories

＋Operation Manual

Yes

＋Service Manual

---

＋Warranty Card

---

＋Schematic Diagram

---

＋Remote Control

Yes

＋Battery (number and type) Yes (2×AA,1.5V）
＋Speakers Box(external)

---

＋Wall Mount

optional

＋Wireless Headphone (external)
＋RF Cable
＋Power Cord

YES

＋DVI Cable
＋VGA Cable
＋HDMI Cable
＋Control/Signal Cable (Panel to MFB)
＋AV Cable
＋Component Video Cable
＋Audio Cable

Please add other items referring to factual situation

Chapter II Chassis Introduction

LCD32E62S3/LCDM61S3/LCDM71S3 adopted Mstar integrated 1-chipset solution MS19
(MST9E19A).It has characteristics as following,

¾ MStarACE-3 (3rd Generation Advanced Color Engine) Automatic Picture/Color

Processor:
. Brilliant and fresh color
. Intensified contrast and details
. Vivid skin tone
. Sharp edge
. Enhanced depth of field perception
. Accurate and independent color control

¾ 2D Comb filter
¾ Progressive Scan
¾ Digital Noise Reduction
¾ Film Mode (3:2 pull down)
¾ Gamma Correction
¾ 4 Picture Effects (Natural,Standard,Bright,Soft)
¾ Variable Aspect Ratio (16:9,4:3,Cinerama,Zoom)
¾ HDTV-Ready (1080i;720p)@50Hz/60Hz
¾ HDMI/VGA Input up to SXGA@75Hz

¾ V-Chip
¾ CCD
¾ Sleep Timer,24h timer turn on/off

¾ MTS Stereo (BTSC-SAP)
¾ 4 Mode Sound Presets (Standard; News; Music; Personal)
¾ Sound Control: Treble, Bass, Balance, AVL etc.
¾ HDMI (HDCP) input ×1 , (V1.1)
¾ RF input (NTSC-M,PAL-M/N) ×1
¾ HDTV input (Component) ×1
¾ AV inp ut ×2
¾ S-Video input ×1
¾ VGA input ×1
¾ AV output ×1
¾ Headphone output×1

Chassis MS19 circuitries include: tuner, decoder and scanner, audio amplifier, remote control
receive, key input and power supply unit and so on. It adopted ICs as following, MST9E19A-LF
208PI, ISL8105IBZ, TDA7266 , TDA1308T/N2, TL431ACLP, M24C32, KD1084A-18.

I. Video signal input processing circuit.

Radio frequency signal from antenna or cable input tuner, after it processed, Pin17 of tuner output
video signal, then input Pin49/50 of U8(MST9E19A).

II. AV signal input processing circuit.

AV1/AV3 through socket P14 input Pin45/Pin47 of U8, S-video input through socket P15 input
Pin42/Pin43/Pin44 of U8. YCbCr Video Signal input through socket P16 input.

III.HDMI video signal input through socket P12 input Pin1-Pin15 of U8.
IV.VGA input through socket P13 input Pin16-Pin28 of U8.
V. Audio signal input, the audio signal through antenna process and output from Pin7 of Tuner

and input Pin54/Pin55 of U8.The AV1’s audio signal input Pin63/Pin64 of U8,AV2’s audio signal
input Pin66/Pin67 of U8; AV3’s audio signal input Pin69 and Pin69 of U8.
All channels audio signal through inside circuitry process, output from Pin74/Pin75 of U8, send to
audio amplifier U19( TDA7266SA) processing and driver speaker phonatin g.

Representative Circuitry Introduction

Part I Mcu Working Conditions

I. power supply showing as following figure,

II. reset circuitry working normal.
III. Crystal working normal
IV. SCL and SDA working normal and so on.

Part II. Reset Section

Each time turn on the TV, after power supply loading, the reset circuitry is working, Pin205 of
U8 is high level durative about 40ms, then finished the TV reset. It is low level under normal
situation. While the 3.3V voltage is loading, charge on C74 and C80, due to the resistance of D40
is smaller than R32, so the voltage on C74 will higher than C80, Q8 turnon, the current passes
Q8,Pin205 of U8 get high level. As the voltage charge on C80 fully, Q8 cut-off, finished the TV
reset.

Part III. Tuner Section

Tuner receives the RF signal, and after the circuitry inside it deal with, and get the CVBS signal
sends to Pin49/50 of MST IC. The another signal path is SIF signal out from Pin7 of Tuner and
sends to Pin 54/55 of MST IC. The detail signal following process please refer to circuitry
diagram as following,

Part IV Audio Amplifier and Mute Control

The audio signal after MST IC decoder and get out from Pin74/75 of MST IC, and through
integral circuitry (R33,R38,C76 and R45,R50,C82) send to Pin4/12 of audio power amplifier
U19 to drive speaker.

Part V A V Output Audio Amplifier Section

The phone audio signal output from Pin71/Pin 71,through the integral circuitry R34/R36/C37 and
R47/R51/C83 send to U16 and output from P17.

Part VI HDMI EDID Introduction

Extended display identification data (EDID) is a data structure provided by a
computer display to describe its capabilities to a graphics card. It is what enables
a modern personal computer to know what kind of monitor is connected. EDID is defined
by a standard published by the Video Electronics Standards Association (VESA). The
EDID includes manufacturer name, product type, phosphor or filter type, timings
supported by the display, display size, luminance data and (for digital displays
only) pixel mapping data.

The channel for transmitting the EDID from the display to the graphics card is usually
the I2C bus. The combination of EDID and I²C is called the Display Data Channel version
2, or DDC2. The 2 distinguishes it from VESA's original DDC, which used a different
serial format.

Before DDC and EDID were defined, there was no standard way for a graphics card to
know what kind of display device it was connected to. Some VGA connectors in personal
computers provided a basic form of identification by connecting one, two or three
pins to ground, but this coding was not standardized.

The EDID is often stored in the monitor in a memory device called a serial PROM
(programmable read-only memory) or EEPROM (electrically erasable PROM) that is
compatible with the I²C bus.

VGA EDID OR DDC

PART VII HDCP Section

High-bandwidth Digital Content Protection (HDCP) is a form of Digital Rights
Management (DRM) developed by Intel Corporation to control digital audio and video
content as it travels across Digital Visual Interface (DVI) or High-Definition
Multimedia Interface (HDMI) connections. The specification is proprietary, and
creating an implementation of HDCP requires a license .HDCP is licensed by Digital
Content Protection, a subsidiary of Intel. In addition to paying fees, licensees
agree to limit the capabilities of their products. For example, high-definition
digital video content must be restricted to DVD quality on non-HDCP compliant video
outputs when requested by the source. DVD-Audio content is restricted to DAT quality
on non-HDCP digital audio outputs (analog audio outputs have no quality limits).
Licensees cannot allow their devices to make copies of content, and must design their
products in ways that "effectively frustrate attempts to defeat the content
protection requirements."

Each HDCP capable device has a unique set of keys; there are 40 keys, each 56 bits
long. These keys are confidential and failure to keep them secret may be seen as
a violation of the license agreement. For each set of keys a special key called a
KSV (Key Selection Vector) is created. Each KSV has exactly 20 bits set to 0 and
20 bits set to 1.

During the authentication process, both parties exchange their KSVs. Then
each device adds (without overflow) its own secret keys together according
to a KSV received from another device. If a particular bit in the vector
is set to 1, then the corresponding secret key is used in the addition,
otherwise it is ignored. Keys and KSVs are generated in such a way that
during this process both devices get the same 56 bit number as a result.
That number is later used in the encryption process.As result that, this
chassis adopts 24C04 to storage KSV and license makes digital signal
resource output.

PART VIII EEPROM for Software

It adopts Winbond company’s W25X40 flash which has 4M-bit/526 bytes and 2048pages.It is
used for storage the main system software. The devices operate on a single 2.7V to 3.6V power
supply with current consumption as low as 5mA active and 1uA for power-down.。

EEPROM for User Information

It adopts I

2

C compatible electrically erasable programmable memory (EEPROM) devices are
organized as 4096x8 bits(32k).This is a two-wire series interface that uses a bi-directional data bus
and serial clock. It is used for storage user’s information, such as channel search and timer on and
off, and picture standard and other information what user’s easy to change by local key board and
remote control.

PART IX Panel ON/OFF Control Section

While the TV is turn on, the TV is standby situation. While command turn on is send out, 5v
voltage will through regulator and equal get 3.3V voltage or 1.8V voltage supply for U8. After
reset and crystal Y1 working, the main system software will be loaded, the panel –ON/OFF
command will be sent out, makes the dual-MOSFET U3 turn on and send 5V/12V/3.3V voltage to
the panel.

The following figure is showing the power sequence and control signal timing.

Chapter III IC Sepecifications

Part I Specification of MST9E19A

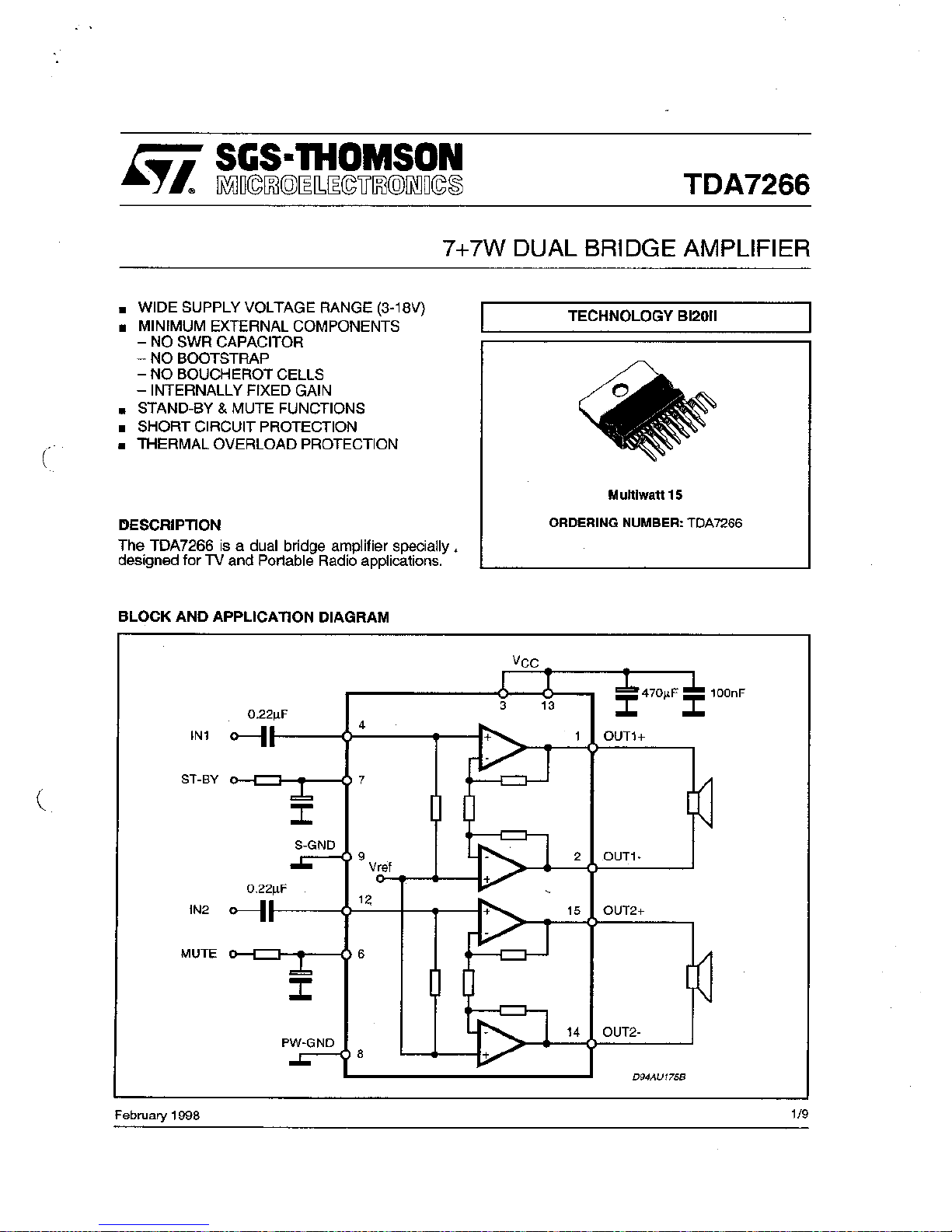

Part II Specification of TDA7266

MST9E19A

SXGA/WXGA+ LCD TV Controller with Video Decoder & 10-bit Dual LVDS Transmitter

Preliminary Data Sheet Version 0.1

Version 0.1 - 1 - 5/19/2006

Copyright © 2006 MStar Semiconductor, Inc. All rights reserved.

FEATURES

Ÿ Single display LCD TV controller with PC &

multimedia display functions

Ÿ Input supports up to SXGA & 1080P
Ÿ Panel supports up to

SXGA(1280x1024)/WXGA+(1440x900)

Ÿ Multi-Standard TV decoder with 2-D comb filter
Ÿ Multi-Standard TV sound demodulator and decoder
Ÿ Triple-ADC for TV and RGB/YpbPr
Ÿ Integrated DVI/HDCP/HDMI compliant receiver
Ÿ High-quality scaling engine
Ÿ 3-D video de-interlacer and video noise reduction

for SDTV input

Ÿ 2-D video de-interlacer and video noise reduction

for HDTV input

Ÿ MStarACE-3

picture/color processing engine

Ÿ Embedded On-screen display controller (OSD)

engine

Ÿ Built-in MCU supports PWM & GPIO
Ÿ Built-in 8/10-bit dual-link LVDS transmitter
Ÿ 5 Volt tolerant inputs
Ÿ Low EMI and power saving features
Ÿ 208-pin PQFP

n NTSC/PAL/SECAM Video Decoder

Ÿ Supports NTSC, NTSC-4.43, PAL

(B,D,G,H,M,N,I,Nc), and SECAM

Ÿ Automatic TV standard detection
Ÿ Adaptive 2-D comb filter for NTSC/PAL
Ÿ 8 configurable CVBS & Y/C S-video inputs
Ÿ Supports Teletext level-1.5, WSS, VPS,

Closed-caption, and V-chip

Ÿ Macrovision detection
Ÿ CVBS video output

n Multi-Standard TV Sound Decoder

Ÿ Supports BTSC/NICAM/A2/EIA-J demodulation

and decoding

Ÿ FM stereo & SAP demodulation
Ÿ L/Rx4 and SIF audio input
Ÿ L/R loudspeaker and line output
Ÿ Supports sub-woofer output
Ÿ Built-in audio output DAC’s
Ÿ Audio processing for loudspeaker channel,

including volume, balance, mute, tone, EQ, and
virtual stereo/surround

n Digital Audio Interface

Ÿ I

2

S digital audio output

Ÿ S/PDIF digital audio output
Ÿ Programmable delay for audio/video

synchronization

n Analog RGB Compliant Input Ports

Ÿ Two analog ports support up to 150MHz
Ÿ Supports PC RGB input up to SXGA@75Hz
Ÿ Fast blanking and function selection switch

support full SCART functions

Ÿ Supports HDTV RGB/YPbPr/YCbCr up to

1080P

Ÿ Supports Composite Sync and SOG

(Sync-on-Green) separator

Ÿ Automatic color calibration

n DVI/HDCP/HDMI Compliant Input Port

Ÿ Operates up to 150 MHz (up to SXGA @75Hz)
Ÿ Single link on-chip DVI 1.0 compliant receiver
Ÿ High-bandwidth Digital Content Protection

(HDCP) 1.1 compliant receiver

Ÿ High Definition Multimedia Interface (HDMI)

1.2 compliant receiver

Ÿ Long-cable tolerant robust receiving
Ÿ Support HDTV up to 1080P

n Auto-Configuration/Auto-Detection

Ÿ Auto input signal format and mode detection
Ÿ Auto-tuning function including phasing,

positioning, offset, gain, and jitter detection

Ÿ Sync Detection for H/V Sync

n High-Performance Scaling Engine

Ÿ Fully Programmable shrink/zoom capabilities
Ÿ Nonlinear video scaling supports various modes

including Panorama

Ÿ Supports keystone correction for projectors

n Video Processing & Conversion

Ÿ 3-D motion adaptive video de-interlacer for

SDTV

Ÿ 2-D video de-interlacer for HDTV
Ÿ Edge-oriented adaptive algorithm for smooth

low-angle edges

Ÿ Automatic 3:2 pull-down & 2:2 pull-down

detection and recovery

Ÿ MStar 3

rd

Generation Advanced Color Engine
(MStarACE-3) automatic picture enhancement
gives:

Ÿ Brilliant and fresh color
Ÿ Intensified contrast and details
Ÿ Vivid skin tone
Ÿ Sharp edge
Ÿ Enhanced depth of field perception
Ÿ Accurate and independent color control

Ÿ sRGB compliance allows end-user to experience

the same colors as viewed on CRTs and other
displays

Ÿ Programmable 12-bit RGB gamma CLUT
Ÿ 3-D video noise reduction for SDTV and 2-D

video noise reduction for HDTV

Ÿ Frame rate conversion

n On-Screen OSD Controller

Ÿ 16/256 color palette
Ÿ 256/512 1-bit/pixel font
Ÿ 128/256 4-bit/pixel font
Ÿ Supports texture function

MST9E19A

SXGA/WXGA+ LCD TV Controller with Video Decoder & 10-bit Dual LVDS Transmitter

Preliminary Data Sheet Version 0.1

Version 0.1 - 2 - 5/19/2006

Copyright © 2006 MStar Semiconductor, Inc. All rights reserved.

Ÿ Supports 4K attribute/code
Ÿ Horizontal and vertical stretch of OSD menus
Ÿ Pattern generator for production test
Ÿ Supports OSD MUX and alpha blending

capability

Ÿ Supports blinking and scrolling for closed

caption applications

n LVDS/TTL Panel Interface

Ÿ Supports 8/10-bit dual link LVDS up to

SXGA(1280x1024)/WXGA+(1440x900)

Ÿ Supports 8-bit single TTL panel
Ÿ Supports 2 data output formats: Thine & TI data

mappings

Ÿ Compatible with TIA/EIA
Ÿ With 6/8 bits options
Ÿ Reduced swing for LVDS for low EMI

Ÿ Supports flexible spread spectrum frequency

with 360Hz~11.8MHz and up to 25% modulation

n Integrated Micro Controller

Ÿ Embedded 8032 micro controller
Ÿ Configurable PWM’s and GPIO’s
Ÿ Low-speed ADC inputs for system control
Ÿ SPI bus for external flash
Ÿ Supports external MCU option controlled

through 4-wire double-data-rate direct MCU bus
or 8-bit direct MCU bus

n External Connection/Component

Ÿ Step-down PWM power control
Ÿ All system clocks synthesized from a single

external clock

GENERAL DESCRIPTION

The MST9E19A is a high performance and fully integrated IC for multi-function LCD monitor/TV with resolutions
up to SXGA(1280x1024)/WXGA+(1440x900). It is configured with an integrated triple-ADC/PLL, an integrated
DVI/HDCP/HDMI receiver, a multi-standard TV video and audio decoder, a video de-interlacer, a scaling engine, the
MStarACE-3 color engine, an on-screen display controller, an 8-bit MCU, and a built-in output panel interface. To
further reduce system costs, the MST9E19A also integrates intelligent power management control capability for
green-mode requirements and spread-spectrum support for EMI management.

MST9E19A

SXGA/WXGA+ LCD TV Controller with Video Decoder & 10-bit Dual LVDS Transmitter

Preliminary Data Sheet Version 0.1

Version 0.1 - 3 - 5/19/2006

Copyright © 2006 MStar Semiconductor, Inc. All rights reserved.

PIN DIAGRAM (MST9E19A)

Pin 1

1
2
3
4
5

7

9

11

13
14

17
18

21

23

25

27
28

30

32

34

36

39

41

43

6

8

10

12

15
16

19
20

22

24

26

29

31

33

35

37
38

40

42

44
45
46
47
48

50
51
52

49

156
155
154
153
152

150

148

146

144
143

140
139

136

134

132

130
129

127

125

123

121

118

116

114

151

149

147

145

142
141

138
137

135

133

131

128

126

124

122

120
119

117

115

113
112
111
110
109

107
106
105

108

DIGO[8]

GND
AVDD_MEMPLL

PWM3
PWM2
DIGO[9]

DIGO[7]
DIGO[5]
DIGO[3]
DIGO[1]
VDDC
VDDP

PWM_SENSE

DIGO[6]
DIGO[4]
DIGO[2]
DIGO[0]
GND

PWM_DRV
PWM_FB
IRIN
INT

PWM1
PWM0

GND
VDDP
ALE
RDZ
WRZ

VDDC

GND
VDDP

RXCKP

GND

RX0N

RX0P

AVDD_DVI

RX1N

RX1P

RX2P

REXT

DDCD_CK

VSYNC1
VCLAMP

REFM

BIN1M

GND

RX2N

AVDD_DVI

DDCD_DA

HSYNC1

RMID

REFP

BIN1P

SOGIN1

GIN1P

GIN1M

RIN1P
RIN1M
BIN0M

BIN0P
GIN0M

GIN0P

SOGIN0

RIN0M

RIN0P

HSYNC0
VSYNC0

RXCKN

AVDD_ADC

GND

C1
Y1
C0
Y0

CVBS2

CVBS1

VCOM1

CVBS0

VCOM0

CVBSOUT

GND

VCOM2

CVBS3

AD[7]
AD[6]
AD[5]
AD[4]
AD[3]
AD[2]
AD[1]
AD[0]

SDO
CSZ
SDI
SCK

SAR3
SAR1

SAR2
SAR0

DDCA_CK
DDCR_CK

DDCA_DA
DDCR_DA

TCL Multimedia R&D Center File number:

1

Chapter IV Alignment of MS19

Alignment

Model: L32M61S3/L32E62S3/L32M71S3 (MS19)

Edition:V1.1

Prepared by: Tang Zhongzi Date: May30,2007
Approved by: Date:

TCL Multimedia R&D Center File number:

2

I. Brief Introduction
This Chassis adopts Taiwan semiconductor plant MSTar’s integrative chip MST9E19A.It is a high
performance and fully integrated IC for multi-function LCD monitor/TV with resolutions up to
SXGA(1280x1024)/WXGA+(1440x900).It is config ured with an integrated triple ADC-PLL, an
integrated DVI/HDCP/HDMI receive a multi-standard TV video and audio decoder, a video
de-interlacer, a scaling engine, the MStarACE-3 color engine an on-screen display controller, an
8-bit MCU, and a built-in output panel interface. To further reduce system costs, the MST9E19A
also integrates intelligent power management control capability for green-mode requirement and
spread-spectrum support for EMI management. Therefore, MS19 is a high cost performance
Chassis.
Modes L32M61S3/L32E62SE/L32M71S3 just different in frame, their chassis includes hard ware
and software almost are same. To match the frame, just key board and remote control receive
board have a little difference. Beside, the three modes TV support NTSC-M, PAL M and PAL N.
So that, the following alignment procedure adapt to the three modes above said.
II. How to enter factory mode (service menu, service mdoe)
Method one, press MENU, input “1”,”9”,”5”,”0” in 3 seconds.
Method two, press “GO BACK” key directly. (Remark: it is must under conditions of, in factory
mode, enter PRODUCTING, FACTORY HOT KEY set as ON.)
III. Factory menu explain
Enter factory menu, press the remote control’s UP, DOWN, LEFT, RIGHT key set or adjustment,
press MENU key return parent menu, press MENU OR CLEAR KEY exit factory menu.
Options menu Function explain function
Source Choose this item, press LEFT and RIGHT key can switch

the signal source.

OK

ADC ADJ Only source as HDTV or PC, can enter and adjust. OK
WB Enter white balance adjustment. OK
source Sources switch OK
Color

TEMP

There are three color temperatures:
NORMAL,WARM,COOL

OK

White R Channel R gain. It can adjust by auto or manual. OK
White G Channel G gain. It can adjust by auto or manual. OK
White B Channel B gain. It can adjust by auto or manual. OK
Black R Channel R excursion. It can adjust by auto or manual. OK
Black G Channel G excursion. It can adjust by auto or manual. OK
Black B Channel B excursion. It can adjust by auto or manual. OK
VOL
CURVE

Sound curve adjustment, X0,X1,X2,X3,X4 separate stand

for volume in user menu 0,30,50,80,100.This item test OK

in factory, user do not adjust it.
curve

Picture analog curve adjustment.X0,X1,X2, X3, X4 are

separate stand for picture menu 0,30,50,80, 100. This item is

adjust OK in factory, user do not adjust it again.
CON Contrast curve OK
BRI Brightness curve OK

TCL Multimedia R&D Center File number:

3

SAT. Saturation curve OK
SHARP Sharpness curve OK
Light Back light curve OK
mode

This function set four picture modes in factory

menu(soft,natural,bright, personal) their simulate volume

can adjust, but it is adjust well while designing. It can be

fine adjust in special case.
Producting Items must be adjusted in factory producing OK
Factory

hot key

Shortcut key for enter factory mode. If it is set as ON, can

enter factory menu through press ‘GO BACK’ on remote

control. Must set as OFF before TV go out of plant.

OK

Warm

status

Aging mode. If this item set as ON, while there is no signal

input, TV should be snow dots, not blue screen. When TV

need aging, please set as ON, the default is OFF, please set

as OFF before go out of plant.

OK

EEPROM

init

Initial EEPROM. The first start up must initial EEPROM

after the TV is finish assembly. Press LEFT or RIGHT key

and wait for about 7 seconds, will display OK on screen, it

says that finished the initial. Please turn off the TV then

restart up and adjust the other items.
Structure Frame(mode) choose. This chassis compatible with several

modes. Switch this item can choose mode, nowadays there

are E62(L32E62S3) and M61-M71(L32M61S3/L32M71S3)

can be chose, while producing, must confirm the mode first,

then switch it right. It goes into effect after turn off the TV.

OK

Shop
content

Some out factory set, please obey the default value, without

customer special necessary.

OK

Volume Default value 30 OK

mode

Default natural OK

Sound

mode

Default STEREO OK

TV

channel

Default channel is 1 OK

Language Default English OK
Color

Tone

Option item, normal, warm, cool OK

SET UP The process of start up setting, default is LAST OK
Power

mode

Last, makes the TV memory last turn off TV’s situation. For

example, if plug off the AC power cord to turn off the TV, it

will be turn on while plug in the power cord; if standby the

TV last time, it should be turn on be manual.

OK

Power

mode STB

STB(standby), TV insist as standby situation while power

on, need manual turn it on.

OK

TCL Multimedia R&D Center File number:

4

Power on ON, it says that TV will turn on while power on. While

aging, please set as ON.

OK

Shop init
DO

Initial. Press left or right key to initial. While there is OK

display on the screen, finished initial. Please initial the TV

while it will out of plant.

OK

IV. Aging
While TV need aging, pleas enter factory mode, set the WARM UP STATUS in producting as ON,
then set power mode as ON in set up menu. If TV need standby aging, please set power mode as
STB.
V. Producing Items adjustment.

1. ADC correct
This chassis can ADC correct when input YPBPR or PC signal resource. Enter factory mode,
switch the source as YPBPR or PC, input 100% color bar signal, enter ADC ADJ item, choose
AUTOTUNE item, press right key on remote control to start auto correct, when screen display OK
7 seconds later, it shows that ADC correct success. Then exit menu.
Remark: Before white balance adjustment, must do ADC correct OK in YPBPR and PC signal
input.

2. White balance adjustment.
Normal, warm and cool three situations’s white balance color temperature value must obey the
enterprise standard. Before adjust the white bal ance, pl ease co nfirm if fi nished ADC corre ct unde r
YPBPR and PC sources, in addition, the picture mode must be normal.
This chassis white balance adjustment must be adjusted in three signal sources.
(1)AV/TV/S-Video’s white balance adjust under AV signal source input. Signal should be
NTSC-M eight-grey bar signal.
(2)YPBPR and HDMI white balance adjust under YPBPR signal source input. Signal must be
16-grey bar signal.
(3)PC white balance adjustment must be under PC signal input. The signal should be 16 grey bar
signal.
Factory producing white balance adjustment according to the software interface agreement and
working guide, setting relevant offsets to operate.
If it need human adjustment, please enter factory menu adjust WB items.

3. leave factory setting.
Leave factory setting items have been listed in factory menu. Please set each character according
to customers requirement. Or obey the default value. Before TV leave factory, please do “SHOP
INIT DO”. Operate method is press left or right key on remote control to initial it. While OK
display on screen, it finished the initial. Then turn TV off just OK..

H3-HM61AS3-SM00C B L32M61S3/MS19
parent child description BOM text
H3-HM61AS3-SM00C 08-LON37A-PW1W ASS'Y - POWER BD
08-LON37A-PW1W 09-55C15V-DTX SMD.DIODE BZV55-C15 D1003
08-LON37A-PW1W 09-55C15V-DTX SMD.DIODE BZV55-C15 D806
08-LON37A-PW1W 09-55C15V-DTX SMD.DIODE BZV55-C15 D825
08-LON37A-PW1W 09-55C18V-DTX SMD.DIODE BZV55-C18 D807
08-LON37A-PW1W 09-55C18V-DTX SMD.DIODE BZV55-C18 D823
08-LON37A-PW1W 09-55C18V-DTX SMD.DIODE BZV55-C18 D880
08-LON37A-PW1W 09-55C5V1-DTX SMD.DIODE BZV55-C5V1 D1000
08-LON37A-PW1W 09-LL4148-ATX SMD. SWITCHING DIODE LL4148 D1004
08-LON37A-PW1W 09-LL4148-ATX SMD. SWITCHING DIODE LL4148 D1005
08-LON37A-PW1W 09-LL4148-ATX SMD. SWITCHING DIODE LL4148 D808
08-LON37A-PW1W 09-LL4148-ATX SMD. SWITCHING DIODE LL4148 D809
08-LON37A-PW1W 09-LL4148-ATX SMD. SWITCHING DIODE LL4148 D814
08-LON37A-PW1W 09-LL4148-ATX SMD. SWITCHING DIODE LL4148 D819
08-LON37A-PW1W 09-LL4148-ATX SMD. SWITCHING DIODE LL4148 D820
08-LON37A-PW1W 09-LL4148-ATX SMD. SWITCHING DIODE LL4148 D826
08-LON37A-PW1W 09-RLZ9B1-DTX SMD. ZENER DIODE RLZ9.1B D1002
08-LON37A-PW1W 10-0SR360-F0X DIODE SR360 3A/60V D817
08-LON37A-PW1W 10-1N4007-EBX DIODE IN4007 D810
08-LON37A-PW1W 10-1N4007-EBX DIODE IN4007 D822
08-LON37A-PW1W 10-1N4007-EBX DIODE IN4007 D824
08-LON37A-PW1W 10-20100C-F7X DIODE MBR20100CT(TO-220) D805
08-LON37A-PW1W 10-20CT15-S7X DIODE 20CTQ150 TO-220AB D802
08-LON37A-PW1W 10-20CT15-S7X DIODE 20CTQ150 TO-220AB D803
08-LON37A-PW1W 10-HER108-FBX DIODE HER108 D818
08-LON37A-PW1W 10-A1106S-F7X DIODE FMXA-1106S D801
08-LON37A-PW1W 10-MUR460-F0X DIODE MUR460 (FAST RECOVERY) D811
08-LON37A-PW1W 10-MUR460-F0X DIODE MUR460 (FAST RECOVERY) D812
08-LON37A-PW1W 10-RS1505-H7X DIODE RS1505M BD801
08-LON37A-PW1W 11-20NM50-0AX TRANSISTOR STW20NM50 Q801
08-LON37A-PW1W 11-SK3568-0CX TRANSISTOR 2SK3568 Q803
08-LON37A-PW1W 11-SK3568-0CX TRANSISTOR 2SK3568 Q806
08-LON37A-PW1W 12-BT3904-0BX SMD. TRANSISTOR MMBT3904LT1(NPN) Q1001
08-LON37A-PW1W 12-BT3904-0BX SMD. TRANSISTOR MMBT3904LT1(NPN) Q802
08-LON37A-PW1W 12-BT3904-0BX SMD. TRANSISTOR MMBT3904LT1(NPN) Q808
08-LON37A-PW1W 12-BT3904-0BX SMD. TRANSISTOR MMBT3904LT1(NPN) Q812
08-LON37A-PW1W 12-S5160T-0BX SMD.TRANSISTOR PBSS5160T Q1000
08-LON37A-PW1W 12-BT3906-0BX SMD. TRANSISTOR MMBT3906LT1(PNP) Q1002
08-LON37A-PW1W 12-BT3906-0BX SMD. TRANSISTOR MMBT3906LT1(PNP) Q805
08-LON37A-PW1W 12-S5160T-0BX SMD.TRANSISTOR PBSS5160T Q807
08-LON37A-PW1W 12-BT3906-0BX SMD. TRANSISTOR MMBT3906LT1(PNP) Q810
08-LON37A-PW1W 13-000TL4-31T IC TL431ACLP Q804
08-LON37A-PW1W 13-000TL4-31T IC TL431ACLP Q809
08-LON37A-PW1W 13-000TL4-31T IC TL431ACLP Q811
08-LON37A-PW1W 13-0HPC92-2BP TCL13-0HPC92-2BP= IC HPC922B R=N U1
08-LON37A-PW1W 13-0HPC92-2BP TCL13-0HPC92-2BP= IC HPC922B R=N U2
08-LON37A-PW1W 13-0HPC92-2BP TCL13-0HPC92-2BP= IC HPC922B R=N U3
08-LON37A-PW1W 13-LM393D-STB IC SM LM393D(ST00) R U7
08-LON37A-PW1W 13-NCP137-7BB PWM IC NCP1377B U5
08-LON37A-PW1W 13-NCP165-3AB PFC IC NCP1653ADR2G U6

Chapter V Spare Parts List

08-LON37A-PW1W 13-VIPER2-2AP IC VIPER22ADIP-E U4
08-LON37A-PW1W 18-FF0563-JGX RES. M.O. 56K OHM 1W +/-5% R835
08-LON37A-PW1W 18-FG0470-JHX RES. M.O. 47 OHM 2W +/-5% R832
08-LON37A-PW1W 18-GJ0351-JVX RES.CEMENT 350 OHM 5W +/-5% R6
08-LON37A-PW1W 18-GJ0351-JVX RES.CEMENT 350 OHM 5W +/-5% R4
08-LON37A-PW1W 18-GJ0351-JVX RES.CEMENT 350 OHM 5W +/-5% R5
08-LON37A-PW1W 18-KE0684-JNX RES.GLASS GLAZE 680K 1/2W +/-5% R825
08-LON37A-PW1W 18-KF0825-JHX RES. GLASS GLAZE 8.2M OHM 1W R2
08-LON37A-PW1W 18-KF0825-JHX RES. GLASS GLAZE 8.2M OHM 1W R853
08-LON37A-PW1W 18-MJ0228-JDX RES.C.C. 5W 0.22OHM +/-5% R834
08-LON37A-PW1W 18-NH0108-JLX RES.C.C NKN3W +/-5% 0R1 M15 R801
08-LON37A-PW1W 18-P40805-00X RES. 5MΩ R910
08-LON37A-PW1W 19-BB0000-JTX SMD. RES 0 OHM 1/10W +/-5% R890
08-LON37A-PW1W 19-BB0000-JTX SMD. RES 0 OHM 1/10W +/-5% R1040
08-LON37A-PW1W 19-BB0000-JTX SMD. RES 0 OHM 1/10W +/-5% R600
08-LON37A-PW1W 19-BB0000-JTX SMD. RES 0 OHM 1/10W +/-5% R7
08-LON37A-PW1W 19-BB0000-JTX SMD. RES 0 OHM 1/10W +/-5% R8
08-LON37A-PW1W 19-BB0000-JTX SMD. RES 0 OHM 1/10W +/-5% R851
08-LON37A-PW1W 19-BB0000-JTX SMD. RES 0 OHM 1/10W +/-5% R13
08-LON37A-PW1W 19-BB0000-JTX SMD. RES 0 OHM 1/10W +/-5% R17
08-LON37A-PW1W 19-BB0000-JTX SMD. RES 0 OHM 1/10W +/-5% R18
08-LON37A-PW1W 19-BB0000-JTX SMD. RES 0 OHM 1/10W +/-5% R907
08-LON37A-PW1W 19-BB0000-JTX SMD. RES 0 OHM 1/10W +/-5% R909
08-LON37A-PW1W 19-CD0330-JTX SMD. RES 33 OHM 1/4W +/-5% R868
08-LON37A-PW1W 19-BB0100-JTX RES. SMD 10 OHM 1/10W +/-5% R847
08-LON37A-PW1W 19-CD0330-JTX SMD. RES 33 OHM 1/4W +/-5% R829
08-LON37A-PW1W 19-CD0330-JTX SMD. RES 33 OHM 1/4W +/-5% R815
08-LON37A-PW1W 19-BB0100-JTX RES. SMD 10 OHM 1/10W +/-5% R813
08-LON37A-PW1W 19-BB0101-JTX SMD. RES 100 OHM 1/10W +/-5% R902
08-LON37A-PW1W 19-BB0102-JTX SMD. RES 1K OHM 1/10W +/-5% R903
08-LON37A-PW1W 19-BB0102-JTX SMD. RES 1K OHM 1/10W +/-5% R905
08-LON37A-PW1W 19-BB0102-JTX SMD. RES 1K OHM 1/10W +/-5% R906
08-LON37A-PW1W 19-BB0102-JTX SMD. RES 1K OHM 1/10W +/-5% R1002
08-LON37A-PW1W 19-BB0102-JTX SMD. RES 1K OHM 1/10W +/-5% R1003
08-LON37A-PW1W 19-BB0102-JTX SMD. RES 1K OHM 1/10W +/-5% R1005
08-LON37A-PW1W 19-BB0102-JTX SMD. RES 1K OHM 1/10W +/-5% R838
08-LON37A-PW1W 19-BB0102-JTX SMD. RES 1K OHM 1/10W +/-5% R842
08-LON37A-PW1W 19-BB0103-JTX SMD. RES 10K OHM 1/10W +/-5% R802
08-LON37A-PW1W 19-BB0103-JTX SMD. RES 10K OHM 1/10W +/-5% R1009
08-LON37A-PW1W 19-BB0103-JTX SMD. RES 10K OHM 1/10W +/-5% R809
08-LON37A-PW1W 19-BB0103-JTX SMD. RES 10K OHM 1/10W +/-5% R804
08-LON37A-PW1W 19-BB0103-JTX SMD. RES 10K OHM 1/10W +/-5% R805
08-LON37A-PW1W 19-BB0103-JTX SMD. RES 10K OHM 1/10W +/-5% R816
08-LON37A-PW1W 19-BB0103-JTX SMD. RES 10K OHM 1/10W +/-5% R833
08-LON37A-PW1W 19-BB0103-JTX SMD. RES 10K OHM 1/10W +/-5% R836
08-LON37A-PW1W 19-BB0103-JTX SMD. RES 10K OHM 1/10W +/-5% R841
08-LON37A-PW1W 19-BB0103-JTX SMD. RES 10K OHM 1/10W +/-5% R843
08-LON37A-PW1W 19-BB0103-JTX SMD. RES 10K OHM 1/10W +/-5% R844
08-LON37A-PW1W 19-BB0103-JTX SMD. RES 10K OHM 1/10W +/-5% R900
08-LON37A-PW1W 19-BB0683-JTX SMD. RES 68K OHM 1/10W +/-5% R1000
08-LON37A-PW1W 19-BB0104-JTX SMD. RES 100K OHM 1/10W +/-5% 0805 R1007
08-LON37A-PW1W 19-BB0683-JTX SMD. RES 68K OHM 1/10W +/-5% R828
08-LON37A-PW1W 19-BB0105-JTX SMD. RES 1M OHM 1/10W +/-5% 0805 R860
08-LON37A-PW1W 19-BB0105-JTX SMD. RES 1M OHM 1/10W +/-5% 0805 R864
08-LON37A-PW1W 19-BB0105-JTX SMD. RES 1M OHM 1/10W +/-5% 0805 R865
08-LON37A-PW1W 19-BB0105-JTX SMD. RES 1M OHM 1/10W +/-5% 0805 R3

08-LON37A-PW1W 19-BB0105-JTX SMD. RES 1M OHM 1/10W +/-5% 0805 R1
08-LON37A-PW1W 19-BB0122-JTX SMD. RES 1.2K OHM 1/10W +/-5% R837
08-LON37A-PW1W 19-BB0123-JTX SMD. RES 12K OHM 1/10W +/-5% R856
08-LON37A-PW1W 19-BB0201-JTX SMD. RES 200 OHM 1/10W +/-5% R830
08-LON37A-PW1W 19-BB0202-JTX SMD. RES 2K OHM 1/10W +/-5% 0805 R1004
08-LON37A-PW1W 19-BB0153-FTX RES.SMD 15KOHM 1/10W +/-1% R808
08-LON37A-PW1W 19-CD0220-JTX SMD. RES 22 OHM 1/4W +/-5% 1206 R826
08-LON37A-PW1W 19-CD0000-JTX RES.SMD 0 OHM 1206 R831
08-LON37A-PW1W 19-BB0220-JTX SMD. RES 22 OHM 1/10W +/-5% R880
08-LON37A-PW1W 19-BB0223-JTX SMD. RES 22K OHM 1/10W +/-5% R820
08-LON37A-PW1W 19-BB0242-JTX RES. SMD 2.4K OHM 1/10W +/-5% R839
08-LON37A-PW1W 19-BB0392-FTX SMD.RES. 1/10W 3.9KOHM +/-1% R822
08-LON37A-PW1W 19-BB0272-JTX SMD. RES 2.7K OHM 1/10W +/-5% R869
08-LON37A-PW1W 19-BB0332-JTX SMD. RES 3.3K OHM 1/10W +/-5% R1006
08-LON37A-PW1W 19-BB0333-JTX SMD. RES 33K OHM 1/10W +/-5% R845
08-LON37A-PW1W 19-BB0333-JTX SMD. RES 33K OHM 1/10W +/-5% R1008
08-LON37A-PW1W 19-BB0364-JTX SMD.RES 360K OHM 1/10W +/-5% R867
08-LON37A-PW1W 19-BB0471-JTX SMD. RES 470 OHM 1/10W +/-5% R803
08-LON37A-PW1W 19-BB0472-JTX SMD. RES 4.7K OHM 1/10W +/-5% R857
08-LON37A-PW1W 19-BB0472-JTX SMD. RES 4.7K OHM 1/10W +/-5% R848
08-LON37A-PW1W 19-BB0473-FTX SMD. RES 47K OHM 1/10W 1% 0805 R904
08-LON37A-PW1W 19-BB0333-FTX SMD. RES 33K OHM 1/10W +/-1% 0805 R811
08-LON37A-PW1W 19-BB0473-JTX SMD. RES 47K OHM 1/10W +/-5% 0805 R812
08-LON37A-PW1W 19-BB0512-FTX SMD. RES 5.1K OHM 1/10W +/-1% 0805 R840
08-LON37A-PW1W 19-BB0512-FTX SMD. RES 5.1K OHM 1/10W +/-1% 0805 R855
08-LON37A-PW1W 19-BB0563-JTX SMD. RES 56K OHM 1/10W +/-5% R870
08-LON37A-PW1W 19-BB0621-JTX SMD. RES 620 OHM 1/10W +/-5% R908
08-LON37A-PW1W 19-BB0684-JTX SMD. RES 680K OHM 1/10W +/-5% R901
08-LON37A-PW1W 19-BB0689-JTX SMD. RES 6.8 OHM 1/10W +/-5% R859
08-LON37A-PW1W 19-BB0753-JTX RES. SMD 75K OHM 1/10W J 0805 R858
08-LON37A-PW1W 19-BB0912-JTX SMD. RES 9.1K OHM 1/10W +/-5% 0805 R1001
08-LON37A-PW1W 19-CD0000-JTX RES.SMD 0 OHM 1206 R9
08-LON37A-PW1W 19-CD0000-JTX RES.SMD 0 OHM 1206 R14
08-LON37A-PW1W 19-CD0000-JTX RES.SMD 0 OHM 1206 R15
08-LON37A-PW1W 19-CD0000-JTX RES.SMD 0 OHM 1206 R16
08-LON37A-PW1W 19-CD0000-JTX RES.SMD 0 OHM 1206 R827
08-LON37A-PW1W 19-CD0000-JTX RES.SMD 0 OHM 1206 R850
08-LON37A-PW1W 19-CD0224-FTX 1206 SMD.RES.220K OHM 1% 1/4W R866
08-LON37A-PW1W 19-CD0684-FTX SMD.RES 680K OHM 1/4W +/-1% R861
08-LON37A-PW1W 19-CD0474-FTX SMD. RES 470K OHM 1/4W +/-1% R862
08-LON37A-PW1W 19-CD0474-FTX SMD. RES 470K OHM 1/4W +/-1% R863
08-LON37A-PW1W 22-NTC259-XH0 NTC 2.5D-18LCS R824
08-LON37A-PW1W 22-VDR561-XG2 VARISTOR RESISTANCE 14D561K-M RV801
08-LON37A-PW1W 25-GCA102-M1P CAP.ELEC 1000UF 16V +/-20% C827
08-LON37A-PW1W 25-GCB470-M1X CAP. ELEC 47 UF 16V +/-20% 105 C1001
08-LON37A-PW1W 25-GDA222-M1X CAP ELEC 2200UF 25V +/-20% 105 C804
08-LON37A-PW1W 25-GDA222-M1X CAP ELEC 2200UF 25V +/-20% 105 C809
08-LON37A-PW1W 25-GEA471-M1P CAP.ELEC. 470UF 35V +/-20% C805
08-LON37A-PW1W 25-GFB100-M1X CAP. ELEC 10 UF 50V +/-20% C822
08-LON37A-PW1W 25-GFB229-M1X CAP ELEC 2.2UF 50V +/-20% 105 C842
08-LON37A-PW1W 25-GFB330-M1X CAP.ELEC 33UF/50V RGA330M1HTA-0611 C836
08-LON37A-PW1W 25-GFB229-M1X CAP ELEC 2.2UF 50V +/-20% 105 C1010

08-LON37A-PW1W 25-GFB479-M1XH

CAP.ELEC4.7UF/50V/+/-20%RXW4R7M1HBK­0611

C1011

08-LON37A-PW1W 25-GMA220-M1S CAP ELEC RGA/400V/22UF 12.5X25 C825
08-LON37A-PW1W 25-GNJ331-M1S CAP. ELEC 330UF/450V+/-20% C807

08-LON37A-PW1W 25-MDB100-K1X CAP.ELEC 10UF 25V +/-10% C843
08-LON37A-PW1W 25-NDA471-M1X CAP. ELEC 25V/470UF+/-20% C810
08-LON37A-PW1W 25-NEF222-M1X CAP.ELEC 2200UF 35V +/-20% C802
08-LON37A-PW1W 25-NEF222-M1X CAP.ELEC 2200UF 35V +/-20% C803
08-LON37A-PW1W 26-AKC221-KRX CAP.CER 220PF 1KV +/-10% C852
08-LON37A-PW1W 26-AKL103-MEX CAP.CER 10NF 1KV C824
08-LON37A-PW1W 26-AKM221-KRX CAP. CER 220 PF 1KV +/-10% C806
08-LON37A-PW1W 26-AKM471-KRX CAP. CER 470 PF 1KV +/-5% SL C850
08-LON37A-PW1W 26-AKM471-KRX CAP. CER 470 PF 1KV +/-5% SL C851
08-LON37A-PW1W 26-APK102-MEX CAP. CER 1000PF 400VAC +/-20%E C1
08-LON37A-PW1W 26-APK102-MEX CAP. CER 1000PF 400VAC +/-20%E C814
08-LON37A-PW1W 26-APK102-MEX CAP. CER 1000PF 400VAC +/-20%E C815
08-LON37A-PW1W 26-APK102-MEX CAP. CER 1000PF 400VAC +/-20%E C832
08-LON37A-PW1W 27-AQT105-MVG CAP. M.PP 1UF/275VDC/+/-20% C819
08-LON37A-PW1W 27-AWQ474-J0X CAP.PP MPP-474J2WC15C4 C801
08-LON37A-PW1W 28-BB0102-KBX SMD CAP. 0.001UF 50V B 0805 C846
08-LON37A-PW1W 28-BB0102-KBX SMD CAP. 0.001UF 50V B 0805 C849
08-LON37A-PW1W 28-BB0102-KBX SMD CAP. 0.001UF 50V B 0805 C839
08-LON37A-PW1W 28-BB0102-KBX SMD CAP. 0.001UF 50V B 0805 C817
08-LON37A-PW1W 28-BB0102-KBX SMD CAP. 0.001UF 50V B 0805 C838
08-LON37A-PW1W 28-BB0104-ZFX SMD CAP. 0.1 UF 50V +80/-20% 0805 C848
08-LON37A-PW1W 28-BB0104-ZFX SMD CAP. 0.1 UF 50V +80/-20% 0805 C900
08-LON37A-PW1W 28-BB0104-ZFX SMD CAP. 0.1 UF 50V +80/-20% 0805 C845
08-LON37A-PW1W 28-BB0105-ZFX SMD. CAP 1UF 50V +80%-20% C844
08-LON37A-PW1W 28-BB0104-ZFX SMD CAP. 0.1 UF 50V +80/-20% 0805 C902
08-LON37A-PW1W 28-BB0104-ZFX SMD CAP. 0.1 UF 50V +80/-20% 0805 C903
08-LON37A-PW1W 28-BB0104-ZFX SMD CAP. 0.1 UF 50V +80/-20% 0805 C841
08-LON37A-PW1W 28-BB0104-ZFX SMD CAP. 0.1 UF 50V +80/-20% 0805 C833
08-LON37A-PW1W 28-BB0104-ZFX SMD CAP. 0.1 UF 50V +80/-20% 0805 C831
08-LON37A-PW1W 28-BB0104-ZFX SMD CAP. 0.1 UF 50V +80/-20% 0805 C829
08-LON37A-PW1W 28-BB0104-ZFX SMD CAP. 0.1 UF 50V +80/-20% 0805 C828
08-LON37A-PW1W 28-BB0103-ZFX SMD CAP. 0.01 UF 50V F 0805 C818
08-LON37A-PW1W 28-BB0104-ZFX SMD CAP. 0.1 UF 50V +80/-20% 0805 C811
08-LON37A-PW1W 28-BB0104-ZFX SMD CAP. 0.1 UF 50V +80/-20% 0805 C1004
08-LON37A-PW1W 28-BB0104-ZFX SMD CAP. 0.1 UF 50V +80/-20% 0805 C1003
08-LON37A-PW1W 28-BB0105-ZFX SMD. CAP 1UF 50V +80%-20% C904
08-LON37A-PW1W 28-BB0105-ZFX SMD. CAP 1UF 50V +80%-20% C837
08-LON37A-PW1W 28-BB0105-ZFX SMD. CAP 1UF 50V +80%-20% C820
08-LON37A-PW1W 28-BB0220-JCX SMD.CAP 22 PF 50V C 0805 C840
08-LON37A-PW1W 28-BB0222-KBX SMD CAP 0.0022UF 50V +/-10% C847
08-LON37A-PW1W 28-BB0479-CCX SMD. CAP 4.7pF 50V +/-0.25PF C1002
08-LON37A-PW1W 28-BD0225-ZFX SMD.CAP 2.2UF/25V C901
08-LON37A-PW1W 28-BD0225-ZFX SMD.CAP 2.2UF/25V C1000
08-LON37A-PW1W 35-FB1690-30X MAGNETIC CORE FOR Q803 D脚
08-LON37A-PW1W 35-FB1690-30X MAGNETIC CORE FOR Q806 D脚
08-LON37A-PW1W 41-WJ0100-B00 WIREBAREJUMPER10MM LB801
08-LON37A-PW1W 41-WJ0100-B00 WIREBAREJUMPER10MM LB802
08-LON37A-PW1W 36-LIF126-AX0 PFC COIL TE3521A6200 L801
08-LON37A-PW1W 36-LIF129-XX0 LINE FILTER LCL-2425 LF801
08-LON37A-PW1W 36-LIF129-XX0 LINE FILTER LCL-2425 LF802
08-LON37A-PW1W 36-TRF263-AX1 TRANSFORMER CONV. BCK-4609A T801
08-LON37A-PW1W 36-TRF280-AX0 TRANSFORMER CONV.(2215) BCK-2215 T803
08-LON37A-PW1W 36-WID249-XX0 COIL WIDTH 2.4UH FLC0514 L802
08-LON37A-PW1W 36-WID629-XX1 COIL CHOKE 6.2UH L804
08-LON37A-PW1W 40-MON37A-PWD1XG P.C.B POWER BD
08-LON37A-PW1W 41-WJ0080-B00 WIREBAREJUMPER8MM J7

08-LON37A-PW1W 41-WJ0080-B00 WIREBAREJUMPER8MM J3
08-LON37A-PW1W 41-WJ0080-B00 WIREBAREJUMPER8MM J10
08-LON37A-PW1W 41-WJ0100-B00 WIREBAREJUMPER10MM J9
08-LON37A-PW1W 41-WJ0100-B00 WIREBAREJUMPER10MM J1
08-LON37A-PW1W 41-WJ0110-B00 WIREBAREJUMPER11MM J22
08-LON37A-PW1W 41-WJ0120-B00 WIREBAREJUMPER12MM J27
08-LON37A-PW1W 41-WJ0120-B00 WIREBAREJUMPER12MM J29
08-LON37A-PW1W 41-WJ0120-B00 WIREBAREJUMPER12MM J6
08-LON37A-PW1W 41-WJ0120-B00 WIREBAREJUMPER12MM J2
08-LON37A-PW1W 41-WJ0140-B00 WIREBAREJUMPER14MM J16
08-LON37A-PW1W 41-WJ0140-B00 WIREBAREJUMPER14MM J20
08-LON37A-PW1W 41-WJ0150-B00 WIREBAREJUMPER15MM J33
08-LON37A-PW1W 41-WJ0150-B00 WIREBAREJUMPER15MM J18
08-LON37A-PW1W 41-WJ0150-B00 WIREBAREJUMPER15MM J35
08-LON37A-PW1W 41-WJ0160-B00 WIREBAREJUMPER16MM J23
08-LON37A-PW1W 41-WJ0180-B00 WIRE BARE JUMPER 18MM J5
08-LON37A-PW1W 41-WJ0195-B00 WIREBAREJUMPER19.5MM J15
08-LON37A-PW1W 41-WJ0220-B00 WIRE BARE JUMPER 22MM J25
08-LON37A-PW1W 41-WJ0195-B00 WIREBAREJUMPER19.5MM J28
08-LON37A-PW1W 41-WJ0195-B00 WIREBAREJUMPER19.5MM J4
08-LON37A-PW1W 41-WJ0195-B00 WIREBAREJUMPER19.5MM J8
08-LON37A-PW1W 46-35063W-03XG PIN BASE *3 VH-3A P801
08-LON37A-PW1W 46-35199W-03XG PIN BASE *3 PITCH=2.0MM P802
08-LON37A-PW1W 46-35200W-04XG CONN. VH-4A 4PIN PITCH=3.96MM P803
08-LON37A-PW1W 46-35200W-05XG BASE 5PIN P804
08-LON37A-PW1W 50-05000D-RUT1G FUSE 5RT 250V 5A F801
08-LON37A-PW1W 54-315110-000 MICA SHEET (20MMX24MMX0.1MM) FOR Q801
08-LON37A-PW1W 54-315250-000 TRANSMIT HOT SILICA GEL FOR D802
08-LON37A-PW1W 54-315250-000 TRANSMIT HOT SILICA GEL FOR D803
08-LON37A-PW1W 54-315250-000 TRANSMIT HOT SILICA GEL FOR D805
08-LON37A-PW1W 54-315260-000 BUSHING TO-220B (3MMX 2.5MM) FOR D805
08-LON37A-PW1W 54-315260-000 BUSHING TO-220B (3MMX 2.5MM) FOR D803
08-LON37A-PW1W 54-315260-000 BUSHING TO-220B (3MMX 2.5MM) FOR D802
08-LON37A-PW1W 54-38271X-0U0 PYROCONDENSATION BUSHING 8MM FOR F801

08-LON37A-PW1W 58-829590-0UH PVC FIBER SINK

FOR 67-H82962­3A0&67-H82963-1A0

08-LON37A-PW1W 58-829590-0UH PVC FIBER SINK

FOR 67-H82962-

1A0&67-H82963-2A0
08-LON37A-PW1W 64-B30080-104G M/C SCREW B 3 X 8 FOR BD801
08-LON37A-PW1W 64-B30080-104G M/C SCREW B 3 X 8 FOR D801
08-LON37A-PW1W 64-B30080-104G M/C SCREW B 3 X 8 FOR D802
08-LON37A-PW1W 64-B30080-104G M/C SCREW B 3 X 8 FOR D803
08-LON37A-PW1W 64-B30080-104G M/C SCREW B 3 X 8 FOR D805
08-LON37A-PW1W 64-B30080-104G M/C SCREW B 3 X 8 FOR Q803
08-LON37A-PW1W 64-B30080-104G M/C SCREW B 3 X 8 FOR Q806
08-LON37A-PW1W 64-B30100-104G M/C SCREW B 3 X 10 FOR Q801
08-LON37A-PW1W 64-F30080-103G M/C SCERW F 3 X 8 FOR 58-829590-0UH
08-LON37A-PW1W 64-F30080-103G M/C SCERW F 3 X 8 FOR 67-H82960-0A0
08-LON37A-PW1W 64-F30080-103G M/C SCERW F 3 X 8 FOR 67-H82961-0A0
08-LON37A-PW1W 64-Z30080-112G MACHINE SCREW FOR 67-H82963-2A0
08-LON37A-PW1W 64-Z30080-112G MACHINE SCREW FOR 67-H82963-1A0
08-LON37A-PW1W 64-Z30080-112G MACHINE SCREW FOR 67-H82962-3A0
08-LON37A-PW1W 64-Z30080-112G MACHINE SCREW FOR 67-H82962-1A0
08-LON37A-PW1W 66-343730-0B0 HOLLOW RIVET 1.6MMX3.0MMX3.2MM FOR C802
08-LON37A-PW1W 66-343730-0B0 HOLLOW RIVET 1.6MMX3.0MMX3.2MM FOR C803
08-LON37A-PW1W 66-343730-0B0 HOLLOW RIVET 1.6MMX3.0MMX3.2MM FOR L801

08-LON37A-PW1W 66-343730-0B0 HOLLOW RIVET 1.6MMX3.0MMX3.2MM FOR T801
08-LON37A-PW1W 66-343740-0B0 HOLLOW RIVET (2.3MMX4.0MMX3.5MM) FOR C807

08-LON37A-PW1W 67-H82960-0A0 HEAT SINK

FOR 67-H82963-

1A0&67-H82963-2A0

08-LON37A-PW1W 67-H82961-0A0 HEAT SINK

FOR 67-H82962-

1A0&67-H82962-3A0

08-LON37A-PW1W 67-H82962-1A0 HEAT SINK FOR BD801&Q801&D801

08-LON37A-PW1W 67-H82962-3A0 HEAT SINK FOR Q803&Q806
08-LON37A-PW1W 67-H82963-1A0 HEAT SINK FOR D802&D803
08-LON37A-PW1W 67-H82963-2A0 HEAT SINK FOR D805
08-LON37A-PW1W 67-M60442-0E0 METAL PART H01
08-LON37A-PW1W 67-M60442-0E0 METAL PART H02
08-LON37A-PW1W 67-M60442-0E0 METAL PART H03
08-LON37A-PW1W 67-M60442-0E0 METAL PART H04
08-LON37A-PW1W 36-HDR050-XX0 TRANSFORMER HORIZ DRIVE BCT-1312 T802
08-LON37A-PW1W 66-343730-0B0 HOLLOW RIVET 1.6MMX3.0MMX3.2MM FOR　L806
08-LON37A-PW1W 19-BB0000-JTX SMD. RES 0 OHM 1/10W +/-5% R20
08-LON37A-PW1W 19-BB0392-FTX SMD.RES. 1/10W 3.9KOHM +/-1% R821
08-LON37A-PW1W 71-268390-0A0AF LABEL (QC) GREEN
08-LON37A-PW1W 71-3507MM-NUL9A LABEL
08-LON37A-PW1W 27-AQQ224-MV6 CAP. M.PP 0.22 UF 250VAC +/-20% C100
08-LON37A-PW1W 41-WJ0195-B00 WIREBAREJUMPER19.5MM J21
08-LON37A-PW1W 41-WJ0150-B00 WIREBAREJUMPER15MM J11
08-LON37A-PW1W 19-CD0472-JTX SMD. RES 4.7K OHM 1/4W 5% R21
08-LON37A-PW1W 19-BB0000-JTX SMD. RES 0 OHM 1/10W +/-5% R23
08-LON37A-PW1W 19-BB0000-JTX SMD. RES 0 OHM 1/10W +/-5% R24
08-LON37A-PW1W 35-FB1690-30X MAGNETIC CORE FOR D801 负极
08-LON37A-PW1W 35-FB1690-30X MAGNETIC CORE FOR Q801 D极
08-LON37A-PW1W 41-WJ0080-B00 WIREBAREJUMPER8MM J12
08-LON37A-PW1W 12-BT3904-0BX SMD. TRANSISTOR MMBT3904LT1(NPN) Q1
08-LON37A-PW1W 28-BB0104-ZFX SMD CAP. 0.1 UF 50V +80/-20% 0805 C2
08-LON37A-PW1W 19-BB0272-JTX SMD. RES 2.7K OHM 1/10W +/-5% R22
08-LON37A-PW1W 19-CD0471-JTX SMD. RES 470 1/4W 5% R25
08-LON37A-PW1W 19-CD0122-JTX SMD.RES 1.2K OHM 1/4W +/-5% R26
H3-HM61AS3-SM00C T8-HM61AS3-BSY ASS'Y - BASEASY

T8-HM61AS3-BSY 58-827840-00H BASE PAD

REPLACE BETWEEN

SUPPORT & GLASS

STAND

T8-HM61AS3-BSY 59-829370-000 RUBBER PAD

REPLACE BELOW THE

GLASS STAND

T8-HM61AS3-BSY 64-F60200-104G MACHINE SCREW

MTG SUPPORT & STAND

GLASS

T8-HM61AS3-BSY 64-H80200-102G MACHINE SCREW H 8 X 20

MTG SUPPORT & BACK

COVER
T8-HM61AS3-BSY T8-HM61AS3-BSYZ TV ASY ASS'Y - BASE(ART)
T8-HM61AS3-BSYZ 49-827360-0001B BASE GLASS
T8-HM61AS3-BSYZ 68-827350-0001B BASE SUPPORT

T8-HM61AS3-BSY 59-830250-000 RUBBER PAD

REPALCE BETWEEN

SCREW & GLASS STAND

H3-HM61AS3-SM00C T8-HM61AS3-FCN ASS'Y - FRONT CABINETASY
T8-HM61AS3-FCN 42-61308I-XX1G SPEAKER YDP613-13T

T8-HM61AS3-FCN 63-S40150-AB3G S/T SCREW S 4 X 15 AB

MTG SPERKER & FRONT

CABINET
T8-HM61AS3-FCN T8-HM61AS3-FCNZ TV ASY ASS'Y - FRONT CABINET(ART)

T8-HM61AS3-FCNZ 56-835380-1HC1A TV DEC IR LENS LENS DARK GREY R=Y

T8-HM61AS3-FCNZ 55-825060-0CL1C

PAI FRONTPANEL L32M61S3 BLACK A6881
R=N

T8-HM61AS3-FCNZ 67-L82512-1A01J

TV DEC INLET L32M61S3 GRAY BLACK 1J

R=N
H3-HM61AS3-SM00C T8-HM61AS3-IRY ASS'Y - INFRARED RECEIVE BDEQU
T8-HM61AS3-IRY 02-IRR001-XX5 IR RECEIVER MODULE AT156A G1001
T8-HM61AS3-IRY 12-BT3904-0BX SMD. TRANSISTOR MMBT3904LT1(NPN) Q1001
T8-HM61AS3-IRY 12-BT3906-0BX SMD. TRANSISTOR MMBT3906LT1(PNP) Q1002
T8-HM61AS3-IRY 14-LED03D-XX0 RED/BLUE LED BT-H603RBW-31 D1001
T8-HM61AS3-IRY 19-AA0102-JTX RES. SMD 1K OHM 1/16W +/-5% R1010
T8-HM61AS3-IRY 19-AA0102-JTX RES. SMD 1K OHM 1/16W +/-5% R1011
T8-HM61AS3-IRY 28-AB0220-JCX CAP. SMD 22PF 50V +/-5% C C1001
T8-HM61AS3-IRY 33-GLL339-KTX SMD. COIL 3.3 UH +/-10% L1001
T8-HM61AS3-IRY 46-35135W-04XG PIN BASE PH-04AW P1001
T8-HM61AS3-IRY 59-836860-000 TV RAW CUSHION RUBBER 00 00 R=N FOR G1001
T8-HM61AS3-IRY 59-830360-000 SLEEVE TUBE FOR D1001
T8-HM61AS3-IRY 40-LM61S3-IRA1XG P.C.B IR RECEIVE BD
T8-HM61AS3-IRY 28-AC0105-ZFX SMD. CAP 1 UF 16VDC +80%/-20% C1002
H3-HM61AS3-SM00C T8-HM61AS3-KEY ASS'Y - KEY BDEQU
T8-HM61AS3-KEY 10-HS5V6B-DBX DIODE 500MW 5.6HSB D1001
T8-HM61AS3-KEY 10-HS5V6B-DBX DIODE 500MW 5.6HSB D1002
T8-HM61AS3-KEY 18-DB0122-FNX RES. M.F. 1.2K OHM 1/6W +/-1% R1001
T8-HM61AS3-KEY 18-DB0122-FNX RES. M.F. 1.2K OHM 1/6W +/-1% R1005
T8-HM61AS3-KEY 18-DB0152-FNX RES M.F. 1.5K OHM 1/6W +/-1% R1002
T8-HM61AS3-KEY 18-DB0152-FNX RES M.F. 1.5K OHM 1/6W +/-1% R1006
T8-HM61AS3-KEY 18-DB0202-FNX RES.M.F 2K OHM 1/6W +/-1% R1007
T8-HM61AS3-KEY 18-DB0202-FNX RES.M.F 2K OHM 1/6W +/-1% R1003
T8-HM61AS3-KEY 46-35135W-03XG PIN BASE PH-03AW P1001
T8-HM61AS3-KEY 48-TAC001-XX0 TACT SWITCH K1006
T8-HM61AS3-KEY 48-TAC001-XX0 TACT SWITCH K1005
T8-HM61AS3-KEY 48-TAC001-XX0 TACT SWITCH K1004
T8-HM61AS3-KEY 48-TAC001-XX0 TACT SWITCH K1003
T8-HM61AS3-KEY 48-TAC001-XX0 TACT SWITCH K1001
T8-HM61AS3-KEY 48-TAC001-XX0 TACT SWITCH K1002
T8-HM61AS3-KEY 40-LM61S3-KEA1XG P.C.B KEY BD
H3-HM61AS3-SM00C T8-HM61AS3-MAN ASS'Y - MAIN BDEQU
T8-HM61AS3-MAN 07-457FF5-TB1G TUNER TMQH6-019A Z1
T8-HM61AS3-MAN 09-0BAV99-ATX HIGH SPEED DOUBLE DIODE BAV99 D12
T8-HM61AS3-MAN 09-0BAV99-ATX HIGH SPEED DOUBLE DIODE BAV99 D13
T8-HM61AS3-MAN 09-0BAV99-ATX HIGH SPEED DOUBLE DIODE BAV99 D14
T8-HM61AS3-MAN 09-0BAV99-ATX HIGH SPEED DOUBLE DIODE BAV99 D15
T8-HM61AS3-MAN 09-0BAV99-ATX HIGH SPEED DOUBLE DIODE BAV99 D16
T8-HM61AS3-MAN 09-0BAV99-ATX HIGH SPEED DOUBLE DIODE BAV99 D11
T8-HM61AS3-MAN 09-0BAV99-ATX HIGH SPEED DOUBLE DIODE BAV99 D40
T8-HM61AS3-MAN 09-0BAV99-ATX HIGH SPEED DOUBLE DIODE BAV99 D9
T8-HM61AS3-MAN 09-0BAV99-ATX HIGH SPEED DOUBLE DIODE BAV99 D10
T8-HM61AS3-MAN 09-0FM120-STX SMD.DIODE FM120 D6
T8-HM61AS3-MAN 09-0FM120-STX SMD.DIODE FM120 D7
T8-HM61AS3-MAN 09-0FM120-STX SMD.DIODE FM120 D8
T8-HM61AS3-MAN 09-55C33V-DTX SMD.DIODE BZV55-C33 D47
T8-HM61AS3-MAN 09-BAT54C-STX SMD.DIODE BAT54C+215 D17
T8-HM61AS3-MAN 09-BAT54C-STX SMD.DIODE BAT54C+215 D23
T8-HM61AS3-MAN 09-LL4148-ATX SMD. SWITCHING DIODE LL4148 D3
T8-HM61AS3-MAN 09-LL4148-ATX SMD. SWITCHING DIODE LL4148 D5
T8-HM61AS3-MAN 09-LL4148-ATX SMD. SWITCHING DIODE LL4148 D1

T8-HM61AS3-MAN 09-RLZ5B6-DTX SMD DIODE RLZ5.6BTE11 D19
T8-HM61AS3-MAN 09-RLZ5B6-DTX SMD DIODE RLZ5.6BTE11 D18
T8-HM61AS3-MAN 09-STZ6V2-NTX SMD.DIODE STZ6.2N D31
T8-HM61AS3-MAN 09-STZ6V2-NTX SMD.DIODE STZ6.2N D32
T8-HM61AS3-MAN 09-STZ6V2-NTX SMD.DIODE STZ6.2N D33
T8-HM61AS3-MAN 09-STZ6V2-NTX SMD.DIODE STZ6.2N D30
T8-HM61AS3-MAN 09-STZ6V2-NTX SMD.DIODE STZ6.2N D34
T8-HM61AS3-MAN 09-STZ6V2-NTX SMD.DIODE STZ6.2N D2
T8-HM61AS3-MAN 09-STZ6V2-NTX SMD.DIODE STZ6.2N D39
T8-HM61AS3-MAN 09-STZ6V2-NTX SMD.DIODE STZ6.2N D38
T8-HM61AS3-MAN 09-STZ6V2-NTX SMD.DIODE STZ6.2N D37
T8-HM61AS3-MAN 09-STZ6V2-NTX SMD.DIODE STZ6.2N D36
T8-HM61AS3-MAN 09-STZ6V2-NTX SMD.DIODE STZ6.2N D20
T8-HM61AS3-MAN 09-STZ6V2-NTX SMD.DIODE STZ6.2N D21
T8-HM61AS3-MAN 09-STZ6V2-NTX SMD.DIODE STZ6.2N D22
T8-HM61AS3-MAN 09-STZ6V2-NTX SMD.DIODE STZ6.2N D24
T8-HM61AS3-MAN 09-STZ6V2-NTX SMD.DIODE STZ6.2N D25
T8-HM61AS3-MAN 09-STZ6V2-NTX SMD.DIODE STZ6.2N D26
T8-HM61AS3-MAN 09-STZ6V2-NTX SMD.DIODE STZ6.2N D27
T8-HM61AS3-MAN 09-STZ6V2-NTX SMD.DIODE STZ6.2N D28
T8-HM61AS3-MAN 09-STZ6V2-NTX SMD.DIODE STZ6.2N D29
T8-HM61AS3-MAN 09-STZ6V2-NTX SMD.DIODE STZ6.2N D35
T8-HM61AS3-MAN 11-SC1815-YBX TRANSISTOR 2SC1815-Y (NPN) Q5
T8-HM61AS3-MAN 12-2N7002-0BX SMD TRANSISTOR Q18
T8-HM61AS3-MAN 12-2N7002-0BX SMD TRANSISTOR Q19
T8-HM61AS3-MAN 12-BT3904-0BX SMD. TRANSISTOR MMBT3904LT1(NPN) Q12
T8-HM61AS3-MAN 12-BT3904-0BX SMD. TRANSISTOR MMBT3904LT1(NPN) Q2
T8-HM61AS3-MAN 12-BT3904-0BX SMD. TRANSISTOR MMBT3904LT1(NPN) Q22
T8-HM61AS3-MAN 12-BT3904-0BX SMD. TRANSISTOR MMBT3904LT1(NPN) Q23
T8-HM61AS3-MAN 12-BT3904-0BX SMD. TRANSISTOR MMBT3904LT1(NPN) Q10
T8-HM61AS3-MAN 12-BT3904-0BX SMD. TRANSISTOR MMBT3904LT1(NPN) Q1
T8-HM61AS3-MAN 12-BT3904-0BX SMD. TRANSISTOR MMBT3904LT1(NPN) Q16
T8-HM61AS3-MAN 12-BT3904-0BX SMD. TRANSISTOR MMBT3904LT1(NPN) Q14
T8-HM61AS3-MAN 12-BT3904-0BX SMD. TRANSISTOR MMBT3904LT1(NPN) Q9
T8-HM61AS3-MAN 12-BT3904-0BX SMD. TRANSISTOR MMBT3904LT1(NPN) Q6
T8-HM61AS3-MAN 12-BT3904-0BX SMD. TRANSISTOR MMBT3904LT1(NPN) Q25
T8-HM61AS3-MAN 12-BT3904-0BX SMD. TRANSISTOR MMBT3904LT1(NPN) Q4
T8-HM61AS3-MAN 12-BT3906-0BX SMD. TRANSISTOR MMBT3906LT1(PNP) Q11
T8-HM61AS3-MAN 12-BT3906-0BX SMD. TRANSISTOR MMBT3906LT1(PNP) Q8
T8-HM61AS3-MAN 12-BT3906-0BX SMD. TRANSISTOR MMBT3906LT1(PNP) Q13
T8-HM61AS3-MAN 12-BT3906-0BX SMD. TRANSISTOR MMBT3906LT1(PNP) Q15
T8-HM61AS3-MAN 13-0TDA72-66S IC TDA7266 U19
T8-HM61AS3-MAN 13-10842T-18B IC KD1084A-18 U7
T8-HM61AS3-MAN 13-AS1117-33B IC 3.3V SOT-223 AS1117-33 CX U5
T8-HM61AS3-MAN 12-13N03L-0BX SMD.TRANSISTOR PHKD13N03LT U2
T8-HM61AS3-MAN 13-IC1084-CMB IC AIC1084-33CM 3.3V (TO-263) U6
T8-HM61AS3-MAN 13-ISL810-5IB DC-DC CONVERTER ISL8105IBZ U1
T8-HM61AS3-MAN 13-W25X40-VSB WINBOND4M FLASH W25X40VSN1G U9(CP)
T8-HM61AS3-MAN 13-M24C02-MNB EEPROM M24C02WMN6TG U13(CP)
T8-HM61AS3-MAN 13-M24C02-MNB EEPROM M24C02WMN6TG U12(CP)
T8-HM61AS3-MAN 13-M24C04-MNB 4K E2PROM M24C04-WMN6TG U11(CP)
T8-HM61AS3-MAN 13-M24C32-MNB IC SM M24C32-WMN6P(ST00) R U10

T8-HM61AS3-MAN 13-MST9E1-9AB

LCD TV DECODER &SCALER MST9E19A-LF

208PI

U8

T8-HM61AS3-MAN 13-SP8J30-00B SWITHING IC/SP8J3 U3
T8-HM61AS3-MAN 13-TDA130-8TB IC TDA1308T/N2 U16

T8-HM61AS3-MAN 19-AB0000-JTX RES SMD 0 OHM 1/10W +/-5% 0603 R4
T8-HM61AS3-MAN 19-AB0000-JTX RES SMD 0 OHM 1/10W +/-5% 0603 R67
T8-HM61AS3-MAN 19-AB0000-JTX RES SMD 0 OHM 1/10W +/-5% 0603 R29
T8-HM61AS3-MAN 19-AB0000-JTX RES SMD 0 OHM 1/10W +/-5% 0603 R14
T8-HM61AS3-MAN 19-AB0000-JTX RES SMD 0 OHM 1/10W +/-5% 0603 R100
T8-HM61AS3-MAN 19-AB0000-JTX RES SMD 0 OHM 1/10W +/-5% 0603 R12
T8-HM61AS3-MAN 19-AB0000-JTX RES SMD 0 OHM 1/10W +/-5% 0603 R31
T8-HM61AS3-MAN 19-AB0000-JTX RES SMD 0 OHM 1/10W +/-5% 0603 R162
T8-HM61AS3-MAN 19-AB0100-JTX RES SMD 10 OHM 1/10W +/-5% R105
T8-HM61AS3-MAN 19-AB0100-JTX RES SMD 10 OHM 1/10W +/-5% R93
T8-HM61AS3-MAN 19-AB0100-JTX RES SMD 10 OHM 1/10W +/-5% R92
T8-HM61AS3-MAN 19-AB0100-JTX RES SMD 10 OHM 1/10W +/-5% R91
T8-HM61AS3-MAN 19-AB0100-JTX RES SMD 10 OHM 1/10W +/-5% R90
T8-HM61AS3-MAN 19-AB0100-JTX RES SMD 10 OHM 1/10W +/-5% R89
T8-HM61AS3-MAN 19-AB0100-JTX RES SMD 10 OHM 1/10W +/-5% R88
T8-HM61AS3-MAN 19-AB0100-JTX RES SMD 10 OHM 1/10W +/-5% R87
T8-HM61AS3-MAN 19-AB0100-JTX RES SMD 10 OHM 1/10W +/-5% R148
T8-HM61AS3-MAN 19-AB0100-JTX RES SMD 10 OHM 1/10W +/-5% R137
T8-HM61AS3-MAN 19-AB0100-JTX RES SMD 10 OHM 1/10W +/-5% R127
T8-HM61AS3-MAN 19-AB0100-JTX RES SMD 10 OHM 1/10W +/-5% R103
T8-HM61AS3-MAN 19-AB0100-JTX RES SMD 10 OHM 1/10W +/-5% R104
T8-HM61AS3-MAN 19-AB0100-JTX RES SMD 10 OHM 1/10W +/-5% R126
T8-HM61AS3-MAN 19-AB0100-JTX RES SMD 10 OHM 1/10W +/-5% R121
T8-HM61AS3-MAN 19-AB0100-JTX RES SMD 10 OHM 1/10W +/-5% R120
T8-HM61AS3-MAN 19-AB0100-JTX RES SMD 10 OHM 1/10W +/-5% R86
T8-HM61AS3-MAN 19-AB0100-JTX RES SMD 10 OHM 1/10W +/-5% R74
T8-HM61AS3-MAN 19-AB0100-JTX RES SMD 10 OHM 1/10W +/-5% R73
T8-HM61AS3-MAN 19-AB0100-JTX RES SMD 10 OHM 1/10W +/-5% R72
T8-HM61AS3-MAN 19-AB0100-JTX RES SMD 10 OHM 1/10W +/-5% R71
T8-HM61AS3-MAN 19-AB0100-JTX RES SMD 10 OHM 1/10W +/-5% R175
T8-HM61AS3-MAN 19-AB0100-JTX RES SMD 10 OHM 1/10W +/-5% R61
T8-HM61AS3-MAN 19-AB0100-JTX RES SMD 10 OHM 1/10W +/-5% R220
T8-HM61AS3-MAN 19-AB0100-JTX RES SMD 10 OHM 1/10W +/-5% R206
T8-HM61AS3-MAN 19-AB0100-JTX RES SMD 10 OHM 1/10W +/-5% R173
T8-HM61AS3-MAN 19-AB0100-JTX RES SMD 10 OHM 1/10W +/-5% R186
T8-HM61AS3-MAN 19-AB0100-JTX RES SMD 10 OHM 1/10W +/-5% R184
T8-HM61AS3-MAN 19-AB0100-JTX RES SMD 10 OHM 1/10W +/-5% R183
T8-HM61AS3-MAN 19-AB0101-JTX RES SMD 100 OHM 1/10W 0603 R99
T8-HM61AS3-MAN 19-AB0101-JTX RES SMD 100 OHM 1/10W 0603 R255
T8-HM61AS3-MAN 19-AB0101-JTX RES SMD 100 OHM 1/10W 0603 R33
T8-HM61AS3-MAN 19-AB0101-JTX RES SMD 100 OHM 1/10W 0603 R52
T8-HM61AS3-MAN 19-AB0101-JTX RES SMD 100 OHM 1/10W 0603 R49
T8-HM61AS3-MAN 19-AB0101-JTX RES SMD 100 OHM 1/10W 0603 R47
T8-HM61AS3-MAN 19-AB0101-JTX RES SMD 100 OHM 1/10W 0603 R45
T8-HM61AS3-MAN 19-AB0101-JTX RES SMD 100 OHM 1/10W 0603 R40
T8-HM61AS3-MAN 19-AB0101-JTX RES SMD 100 OHM 1/10W 0603 R34
T8-HM61AS3-MAN 19-AB0101-JTX RES SMD 100 OHM 1/10W 0603 R69
T8-HM61AS3-MAN 19-AB0101-JTX RES SMD 100 OHM 1/10W 0603 R70
T8-HM61AS3-MAN 19-AB0101-JTX RES SMD 100 OHM 1/10W 0603 R76
T8-HM61AS3-MAN 19-AB0101-JTX RES SMD 100 OHM 1/10W 0603 R77
T8-HM61AS3-MAN 19-AB0101-JTX RES SMD 100 OHM 1/10W 0603 R98
T8-HM61AS3-MAN 19-AB0102-JTX RES SMD 1K OHM 1/10W 0603 R101
T8-HM61AS3-MAN 19-AB0102-JTX RES SMD 1K OHM 1/10W 0603 R114
T8-HM61AS3-MAN 19-AB0102-JTX RES SMD 1K OHM 1/10W 0603 R115
T8-HM61AS3-MAN 19-AB0102-JTX RES SMD 1K OHM 1/10W 0603 R18
T8-HM61AS3-MAN 19-AB0102-JTX RES SMD 1K OHM 1/10W 0603 R204

T8-HM61AS3-MAN 19-AB0102-JTX RES SMD 1K OHM 1/10W 0603 R78
T8-HM61AS3-MAN 19-AB0102-JTX RES SMD 1K OHM 1/10W 0603 R81
T8-HM61AS3-MAN 19-AB0102-JTX RES SMD 1K OHM 1/10W 0603 R83
T8-HM61AS3-MAN 19-AB0102-JTX RES SMD 1K OHM 1/10W 0603 R84
T8-HM61AS3-MAN 19-AB0102-JTX RES SMD 1K OHM 1/10W 0603 R9
T8-HM61AS3-MAN 19-AB0102-JTX RES SMD 1K OHM 1/10W 0603 R94
T8-HM61AS3-MAN 19-AB0102-JTX RES SMD 1K OHM 1/10W 0603 R39
T8-HM61AS3-MAN 19-AB0102-JTX RES SMD 1K OHM 1/10W 0603 R59
T8-HM61AS3-MAN 19-AB0102-JTX RES SMD 1K OHM 1/10W 0603 R60
T8-HM61AS3-MAN 19-AB0103-JTX RES SMD 10K OHM 1/10W 0603 R200
T8-HM61AS3-MAN 19-AB0103-JTX RES SMD 10K OHM 1/10W 0603 R196
T8-HM61AS3-MAN 19-AB0103-JTX RES SMD 10K OHM 1/10W 0603 R160
T8-HM61AS3-MAN 19-AB0103-JTX RES SMD 10K OHM 1/10W 0603 R158
T8-HM61AS3-MAN 19-AB0103-JTX RES SMD 10K OHM 1/10W 0603 R147
T8-HM61AS3-MAN 19-AB0103-JTX RES SMD 10K OHM 1/10W 0603 R150
T8-HM61AS3-MAN 19-AB0103-JTX RES SMD 10K OHM 1/10W 0603 R174
T8-HM61AS3-MAN 19-AB0103-JTX RES SMD 10K OHM 1/10W 0603 R172
T8-HM61AS3-MAN 19-AB0103-JTX RES SMD 10K OHM 1/10W 0603 R165
T8-HM61AS3-MAN 19-AB0103-JTX RES SMD 10K OHM 1/10W 0603 R164
T8-HM61AS3-MAN 19-AB0103-JTX RES SMD 10K OHM 1/10W 0603 R143
T8-HM61AS3-MAN 19-AB0103-JTX RES SMD 10K OHM 1/10W 0603 R142
T8-HM61AS3-MAN 19-AB0103-JTX RES SMD 10K OHM 1/10W 0603 R75
T8-HM61AS3-MAN 19-AB0103-JTX RES SMD 10K OHM 1/10W 0603 R68
T8-HM61AS3-MAN 19-AB0103-JTX RES SMD 10K OHM 1/10W 0603 R44
T8-HM61AS3-MAN 19-AB0103-JTX RES SMD 10K OHM 1/10W 0603 R156
T8-HM61AS3-MAN 19-AB0103-JTX RES SMD 10K OHM 1/10W 0603 R154
T8-HM61AS3-MAN 19-AB0103-JTX RES SMD 10K OHM 1/10W 0603 R243
T8-HM61AS3-MAN 19-AB0103-JTX RES SMD 10K OHM 1/10W 0603 R244
T8-HM61AS3-MAN 19-AB0103-JTX RES SMD 10K OHM 1/10W 0603 R10
T8-HM61AS3-MAN 19-AB0103-JTX RES SMD 10K OHM 1/10W 0603 R116
T8-HM61AS3-MAN 19-AB0103-JTX RES SMD 10K OHM 1/10W 0603 R124
T8-HM61AS3-MAN 19-AB0103-JTX RES SMD 10K OHM 1/10W 0603 R125
T8-HM61AS3-MAN 19-AB0103-JTX RES SMD 10K OHM 1/10W 0603 R134
T8-HM61AS3-MAN 19-AB0103-JTX RES SMD 10K OHM 1/10W 0603 R138
T8-HM61AS3-MAN 19-AB0103-JTX RES SMD 10K OHM 1/10W 0603 R252
T8-HM61AS3-MAN 19-AB0103-JTX RES SMD 10K OHM 1/10W 0603 R254
T8-HM61AS3-MAN 19-AB0103-JTX RES SMD 10K OHM 1/10W 0603 R32
T8-HM61AS3-MAN 19-AB0103-JTX RES SMD 10K OHM 1/10W 0603 R42
T8-HM61AS3-MAN 19-AB0103-JTX RES SMD 10K OHM 1/10W 0603 R43
T8-HM61AS3-MAN 19-AB0103-JTX RES SMD 10K OHM 1/10W 0603 R230
T8-HM61AS3-MAN 19-AB0103-JTX RES SMD 10K OHM 1/10W 0603 R226
T8-HM61AS3-MAN 19-AB0103-JTX RES SMD 10K OHM 1/10W 0603 R22
T8-HM61AS3-MAN 19-AB0104-JTX SMD. RES 100K OHM 1/10W 0603 R205
T8-HM61AS3-MAN 19-AB0104-JTX SMD. RES 100K OHM 1/10W 0603 R203
T8-HM61AS3-MAN 19-AB0105-JTX RES SMD 1M OHM 1/10W 0603 R48
T8-HM61AS3-MAN 19-AB0113-FTX SMD.RES 1/10W 11KOHM +/-1% R5
T8-HM61AS3-MAN 19-AB0123-JTX SMD. RES 12K OHM 1/10 J 0603 R135
T8-HM61AS3-MAN 19-AB0123-JTX SMD. RES 12K OHM 1/10 J 0603 R145
T8-HM61AS3-MAN 19-AB0123-JTX SMD. RES 12K OHM 1/10 J 0603 R152
T8-HM61AS3-MAN 19-AB0123-JTX SMD. RES 12K OHM 1/10 J 0603 R157
T8-HM61AS3-MAN 19-AB0123-JTX SMD. RES 12K OHM 1/10 J 0603 R159
T8-HM61AS3-MAN 19-AB0123-JTX SMD. RES 12K OHM 1/10 J 0603 R161
T8-HM61AS3-MAN 19-AB0123-JTX SMD. RES 12K OHM 1/10 J 0603 R197
T8-HM61AS3-MAN 19-AB0123-JTX SMD. RES 12K OHM 1/10 J 0603 R201
T8-HM61AS3-MAN 19-AB0151-JTX RES SMD 150 OHM 1/10W 0603 R212
T8-HM61AS3-MAN 19-AB0151-JTX RES SMD 150 OHM 1/10W 0603 R209

T8-HM61AS3-MAN 19-AB0152-FTX RES.SMD 1.5K OHM 1/10W +/-1% R7
T8-HM61AS3-MAN 19-AB0182-JTX SMD. RES 1.8K OHM 1/10W +/-5% 0603 R66
T8-HM61AS3-MAN 19-AB0221-JTX RES SMD 220 OHM 1/10W 0603 R153
T8-HM61AS3-MAN 19-AB0221-JTX RES SMD 220 OHM 1/10W 0603 R155
T8-HM61AS3-MAN 19-AB0223-JTX SMD. RES 22K OHM 1/10W +/-5% 0603 R221
T8-HM61AS3-MAN 19-AB0223-JTX SMD. RES 22K OHM 1/10W +/-5% 0603 R222
T8-HM61AS3-MAN 19-AB0223-JTX SMD. RES 22K OHM 1/10W +/-5% 0603 R36
T8-HM61AS3-MAN 19-AB0223-JTX SMD. RES 22K OHM 1/10W +/-5% 0603 R38
T8-HM61AS3-MAN 19-AB0223-JTX SMD. RES 22K OHM 1/10W +/-5% 0603 R50
T8-HM61AS3-MAN 19-AB0223-JTX SMD. RES 22K OHM 1/10W +/-5% 0603 R51
T8-HM61AS3-MAN 19-AB0331-JTX RES. SMD 330 OHM 1/10W 0603 R106
T8-HM61AS3-MAN 19-AB0331-JTX RES. SMD 330 OHM 1/10W 0603 R146
T8-HM61AS3-MAN 19-AB0332-JTX SMD RES 3.3K OHM 1/10W 0603 R167
T8-HM61AS3-MAN 19-AB0332-JTX SMD RES 3.3K OHM 1/10W 0603 R166
T8-HM61AS3-MAN 19-AB0101-JTX RES SMD 100 OHM 1/10W 0603 R144
T8-HM61AS3-MAN 19-AB0333-JTX RES. SMD 33K OHM 1/10W 0603 R232
T8-HM61AS3-MAN 19-AB0333-JTX RES. SMD 33K OHM 1/10W 0603 R229
T8-HM61AS3-MAN 19-AB0390-JTX RES SMD 39 OHM 1/10W +/-5%0603 R11
T8-HM61AS3-MAN 19-AB0331-FTX SMD.RES 330 OHM 1/10W +/-1% R249
T8-HM61AS3-MAN 19-AB0331-FTX SMD.RES 330 OHM 1/10W +/-1% R251
T8-HM61AS3-MAN 19-AB0391-FTX SMD. RES 390 OHM 1/10W +/-1% 0603 R53
T8-HM61AS3-MAN 19-AB0470-JTX RES SMD 47 OHM 1/10W +/-5%0603 R111
T8-HM61AS3-MAN 19-AB0470-JTX RES SMD 47 OHM 1/10W +/-5%0603 R110
T8-HM61AS3-MAN 19-AB0470-JTX RES SMD 47 OHM 1/10W +/-5%0603 R113
T8-HM61AS3-MAN 19-AB0470-JTX RES SMD 47 OHM 1/10W +/-5%0603 R133
T8-HM61AS3-MAN 19-AB0470-JTX RES SMD 47 OHM 1/10W +/-5%0603 R189
T8-HM61AS3-MAN 19-AB0470-JTX RES SMD 47 OHM 1/10W +/-5%0603 R191
T8-HM61AS3-MAN 19-AB0470-JTX RES SMD 47 OHM 1/10W +/-5%0603 R195
T8-HM61AS3-MAN 19-AB0470-JTX RES SMD 47 OHM 1/10W +/-5%0603 R210
T8-HM61AS3-MAN 19-AB0470-JTX RES SMD 47 OHM 1/10W +/-5%0603 R64
T8-HM61AS3-MAN 19-AB0100-JTX RES SMD 10 OHM 1/10W +/-5% R185
T8-HM61AS3-MAN 19-AB0471-JTX SMD. RES 470 OHM 1/10W +/-5% R176
T8-HM61AS3-MAN 19-AB0472-JTX RES SMD 4.7K OHM 1/10W 0603 R15
T8-HM61AS3-MAN 19-AB0472-JTX RES SMD 4.7K OHM 1/10W 0603 R170
T8-HM61AS3-MAN 19-AB0472-JTX RES SMD 4.7K OHM 1/10W 0603 R96
T8-HM61AS3-MAN 19-AB0472-JTX RES SMD 4.7K OHM 1/10W 0603 R95
T8-HM61AS3-MAN 19-AB0472-JTX RES SMD 4.7K OHM 1/10W 0603 R58
T8-HM61AS3-MAN 19-AB0472-JTX RES SMD 4.7K OHM 1/10W 0603 R55
T8-HM61AS3-MAN 19-AB0472-JTX RES SMD 4.7K OHM 1/10W 0603 R54
T8-HM61AS3-MAN 19-AB0472-JTX RES SMD 4.7K OHM 1/10W 0603 R3
T8-HM61AS3-MAN 19-AB0472-JTX RES SMD 4.7K OHM 1/10W 0603 R23
T8-HM61AS3-MAN 19-AB0103-JTX RES SMD 10K OHM 1/10W 0603 R21
T8-HM61AS3-MAN 19-AB0472-JTX RES SMD 4.7K OHM 1/10W 0603 R19
T8-HM61AS3-MAN 19-AB0472-JTX RES SMD 4.7K OHM 1/10W 0603 R16
T8-HM61AS3-MAN 19-AB0472-JTX RES SMD 4.7K OHM 1/10W 0603 R1
T8-HM61AS3-MAN 19-AB0472-JTX RES SMD 4.7K OHM 1/10W 0603 R117
T8-HM61AS3-MAN 19-AB0472-JTX RES SMD 4.7K OHM 1/10W 0603 R118
T8-HM61AS3-MAN 19-AB0472-JTX RES SMD 4.7K OHM 1/10W 0603 R119
T8-HM61AS3-MAN 19-AB0473-JTX SMD. RES 47K OHM 1/10W 0603 R225
T8-HM61AS3-MAN 19-AB0473-JTX SMD. RES 47K OHM 1/10W 0603 R224
T8-HM61AS3-MAN 19-AB0513-JTX SMD. RES 51K OHM 1/10W +/-5% R202
T8-HM61AS3-MAN 19-AB0750-JTX SMD. RES 75 OHM 1/10W 0603 R108
T8-HM61AS3-MAN 19-AB0750-JTX SMD. RES 75 OHM 1/10W 0603 R109
T8-HM61AS3-MAN 19-AB0750-JTX SMD. RES 75 OHM 1/10W 0603 R128
T8-HM61AS3-MAN 19-AB0750-JTX SMD. RES 75 OHM 1/10W 0603 R129
T8-HM61AS3-MAN 19-AB0750-JTX SMD. RES 75 OHM 1/10W 0603 R136

T8-HM61AS3-MAN 19-AB0750-JTX SMD. RES 75 OHM 1/10W 0603 R139
T8-HM61AS3-MAN 19-AB0750-JTX SMD. RES 75 OHM 1/10W 0603 R140
T8-HM61AS3-MAN 19-AB0750-JTX SMD. RES 75 OHM 1/10W 0603 R141
T8-HM61AS3-MAN 19-AB0750-JTX SMD. RES 75 OHM 1/10W 0603 R149
T8-HM61AS3-MAN 19-AB0750-JTX SMD. RES 75 OHM 1/10W 0603 R151
T8-HM61AS3-MAN 19-AB0750-JTX SMD. RES 75 OHM 1/10W 0603 R107
T8-HM61AS3-MAN 19-AB0822-JTX SMD. RES 8.2K OHM 1/10W +/-5% 0603 R56
T8-HM61AS3-MAN 19-AB0822-JTX SMD. RES 8.2K OHM 1/10W +/-5% 0603 R57
T8-HM61AS3-MAN 23-A08000-JBX NETWORK RES. SMD 0 OHM RP2
T8-HM61AS3-MAN 23-A08000-JBX NETWORK RES. SMD 0 OHM RP7
T8-HM61AS3-MAN 23-A08000-JBX NETWORK RES. SMD 0 OHM RP3
T8-HM61AS3-MAN 23-A08000-JBX NETWORK RES. SMD 0 OHM RP5
T8-HM61AS3-MAN 23-A08000-JBX NETWORK RES. SMD 0 OHM RP4
T8-HM61AS3-MAN 23-A08000-JBX NETWORK RES. SMD 0 OHM RP6
T8-HM61AS3-MAN 23-A08330-JBX NETWORK RES. 33 OHM +/-5% RP9
T8-HM61AS3-MAN 23-A08330-JBX NETWORK RES. 33 OHM +/-5% RP1
T8-HM61AS3-MAN 23-A08472-JBX NETWORK RES. 4.7K OHM +/-5% RP8
T8-HM61AS3-MAN 23-A08472-JBX NETWORK RES. 4.7K OHM +/-5% RP13
T8-HM61AS3-MAN 23-A08472-JBX NETWORK RES. 4.7K OHM +/-5% RP12
T8-HM61AS3-MAN 23-A08472-JBX NETWORK RES. 4.7K OHM +/-5% RP10
T8-HM61AS3-MAN 25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% C113
T8-HM61AS3-MAN 25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% C118
T8-HM61AS3-MAN 25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% C218
T8-HM61AS3-MAN 25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% C80
T8-HM61AS3-MAN 25-BCB101-M1X CAP. ELEC 100 UF 16V +/-20% C53
T8-HM61AS3-MAN 25-BCB101-M1X CAP. ELEC 100 UF 16V +/-20% C48
T8-HM61AS3-MAN 25-BCB101-M1X CAP. ELEC 100 UF 16V +/-20% C57
T8-HM61AS3-MAN 25-BCB101-M1X CAP. ELEC 100 UF 16V +/-20% C35
T8-HM61AS3-MAN 25-BCB101-M1X CAP. ELEC 100 UF 16V +/-20% C33
T8-HM61AS3-MAN 25-BCB101-M1X CAP. ELEC 100 UF 16V +/-20% C31
T8-HM61AS3-MAN 25-BCB221-M1X CAP. ELEC 220 UF 16V +/-20% C37
T8-HM61AS3-MAN 25-BCB221-M1X CAP. ELEC 220 UF 16V +/-20% C217
T8-HM61AS3-MAN 25-BCB221-M1X CAP. ELEC 220 UF 16V +/-20% C28
T8-HM61AS3-MAN 25-BCB221-M1X CAP. ELEC 220 UF 16V +/-20% C171
T8-HM61AS3-MAN 25-BCB221-M1X CAP. ELEC 220 UF 16V +/-20% C168
T8-HM61AS3-MAN 25-BCB470-M1X CAP. ELEC 47 UF 16V +/-20% C74
T8-HM61AS3-MAN 25-BCB470-M1X CAP. ELEC 47 UF 16V +/-20% CA1
T8-HM61AS3-MAN 25-BCB470-M1X CAP. ELEC 47 UF 16V +/-20% C183
T8-HM61AS3-MAN 25-BCB470-M1X CAP. ELEC 47 UF 16V +/-20% C185
T8-HM61AS3-MAN 25-BCB471-M1X CAP. ELEC 470 UF 16V +/-20% C1
T8-HM61AS3-MAN 25-BCB471-M1X CAP. ELEC 470 UF 16V +/-20% C2
T8-HM61AS3-MAN 25-BCB471-M1X CAP. ELEC 470 UF 16V +/-20% C22
T8-HM61AS3-MAN 25-BCB471-M1X CAP. ELEC 470 UF 16V +/-20% C216
T8-HM61AS3-MAN 25-BCB471-M1X CAP. ELEC 470 UF 16V +/-20% C9
T8-HM61AS3-MAN 25-BCB471-M1X CAP. ELEC 470 UF 16V +/-20% C10
T8-HM61AS3-MAN 25-BFB100-M1X CAP. ELEC 10 UF 50V +/-20% C18
T8-HM61AS3-MAN 25-BFB338-M1X CAP. ELEC 0.33 UF 50V +/-20% C196
T8-HM61AS3-MAN 25-BFB338-M1X CAP. ELEC 0.33 UF 50V +/-20% C197
T8-HM61AS3-MAN 25-BFB479-M1X CAP. ELEC 4.7 UF 50V +/-20% C164
T8-HM61AS3-MAN 28-AA0225-ZFX SMD CAP 2.2UF/10V/+80/-20% C38
T8-HM61AS3-MAN 28-AA0225-ZFX SMD CAP 2.2UF/10V/+80/-20% C41
T8-HM61AS3-MAN 28-AA0225-ZFX SMD CAP 2.2UF/10V/+80/-20% C44
T8-HM61AS3-MAN 28-AA0225-ZFX SMD CAP 2.2UF/10V/+80/-20% C205
T8-HM61AS3-MAN 28-AA0225-ZFX SMD CAP 2.2UF/10V/+80/-20% C203
T8-HM61AS3-MAN 28-AA0225-ZFX SMD CAP 2.2UF/10V/+80/-20% C191
T8-HM61AS3-MAN 28-AA0225-ZFX SMD CAP 2.2UF/10V/+80/-20% C188

T8-HM61AS3-MAN 28-AA0225-ZFX SMD CAP 2.2UF/10V/+80/-20% C16
T8-HM61AS3-MAN 28-AA0225-ZFX SMD CAP 2.2UF/10V/+80/-20% C145
T8-HM61AS3-MAN 28-AA0225-ZFX SMD CAP 2.2UF/10V/+80/-20% C144
T8-HM61AS3-MAN 28-AA0225-ZFX SMD CAP 2.2UF/10V/+80/-20% C115
T8-HM61AS3-MAN 28-AA0225-ZFX SMD CAP 2.2UF/10V/+80/-20% C46
T8-HM61AS3-MAN 28-AA0225-ZFX SMD CAP 2.2UF/10V/+80/-20% C104
T8-HM61AS3-MAN 28-AA0225-ZFX SMD CAP 2.2UF/10V/+80/-20% C105
T8-HM61AS3-MAN 28-AA0225-ZFX SMD CAP 2.2UF/10V/+80/-20% C106
T8-HM61AS3-MAN 28-AA0225-ZFX SMD CAP 2.2UF/10V/+80/-20% C107
T8-HM61AS3-MAN 28-AA0225-ZFX SMD CAP 2.2UF/10V/+80/-20% C108
T8-HM61AS3-MAN 28-AA0225-ZFX SMD CAP 2.2UF/10V/+80/-20% C109
T8-HM61AS3-MAN 28-AA0225-ZFX SMD CAP 2.2UF/10V/+80/-20% C110
T8-HM61AS3-MAN 28-AA0225-ZFX SMD CAP 2.2UF/10V/+80/-20% C111
T8-HM61AS3-MAN 28-AA0225-ZFX SMD CAP 2.2UF/10V/+80/-20% C54
T8-HM61AS3-MAN 28-AA0225-ZFX SMD CAP 2.2UF/10V/+80/-20% C50
T8-HM61AS3-MAN 28-AB0101-JCX SMD. CAP 100 PF 50VDC +/-5% C175
T8-HM61AS3-MAN 28-AB0101-JCX SMD. CAP 100 PF 50VDC +/-5% C189
T8-HM61AS3-MAN 28-AB0101-JCX SMD. CAP 100 PF 50VDC +/-5% C193
T8-HM61AS3-MAN 28-AB0101-JCX SMD. CAP 100 PF 50VDC +/-5% C79
T8-HM61AS3-MAN 28-AB0101-JCX SMD. CAP 100 PF 50VDC +/-5% C95
T8-HM61AS3-MAN 28-AB0101-JCX SMD. CAP 100 PF 50VDC +/-5% C91
T8-HM61AS3-MAN 28-AB0101-JCX SMD. CAP 100 PF 50VDC +/-5% C90
T8-HM61AS3-MAN 28-AB0101-JCX SMD. CAP 100 PF 50VDC +/-5% C140
T8-HM61AS3-MAN 28-AB0101-JCX SMD. CAP 100 PF 50VDC +/-5% C132
T8-HM61AS3-MAN 28-AB0102-KBX SMD. CAP 1000 PF 50V +/-10% B C124
T8-HM61AS3-MAN 28-AB0102-KBX SMD. CAP 1000 PF 50V +/-10% B C151
T8-HM61AS3-MAN 28-AB0102-KBX SMD. CAP 1000 PF 50V +/-10% B C204
T8-HM61AS3-MAN 28-AB0102-KBX SMD. CAP 1000 PF 50V +/-10% B C206
T8-HM61AS3-MAN 28-AB0102-KBX SMD. CAP 1000 PF 50V +/-10% B C77
T8-HM61AS3-MAN 28-AB0102-KBX SMD. CAP 1000 PF 50V +/-10% B C83
T8-HM61AS3-MAN 28-AB0102-KBX SMD. CAP 1000 PF 50V +/-10% B C198
T8-HM61AS3-MAN 28-AB0102-KBX SMD. CAP 1000 PF 50V +/-10% B C199
T8-HM61AS3-MAN 28-AB0473-ZFX SMD CAP 0.047 UF 50V +80-20% C99
T8-HM61AS3-MAN 28-AB0473-ZFX SMD CAP 0.047 UF 50V +80-20% C98
T8-HM61AS3-MAN 28-AB0473-ZFX SMD CAP 0.047 UF 50V +80-20% C97
T8-HM61AS3-MAN 28-AB0473-ZFX SMD CAP 0.047 UF 50V +80-20% C96
T8-HM61AS3-MAN 28-AB0473-ZFX SMD CAP 0.047 UF 50V +80-20% C94
T8-HM61AS3-MAN 28-AB0473-ZFX SMD CAP 0.047 UF 50V +80-20% C93
T8-HM61AS3-MAN 28-AB0473-ZFX SMD CAP 0.047 UF 50V +80-20% C92
T8-HM61AS3-MAN 28-AB0103-ZFX CAP.SMD 10NF 50V +80-20% 0603 C82
T8-HM61AS3-MAN 28-AB0103-ZFX CAP.SMD 10NF 50V +80-20% 0603 C76
T8-HM61AS3-MAN 28-AB0103-ZFX CAP.SMD 10NF 50V +80-20% 0603 C166
T8-HM61AS3-MAN 28-AB0103-ZFX CAP.SMD 10NF 50V +80-20% 0603 C165
T8-HM61AS3-MAN 28-AB0473-ZFX SMD CAP 0.047 UF 50V +80-20% C101
T8-HM61AS3-MAN 28-AB0473-ZFX SMD CAP 0.047 UF 50V +80-20% C100
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C184
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C182
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C181
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C172
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C167
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C15
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C14
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C139
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C130
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C120
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C12

T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C119
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C117
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C116
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C114
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C68
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C69
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C70
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C71
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C72
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C73
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C8
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C85
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C86
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C87
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C88
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C89
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C103
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C102
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C112
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C30
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C3
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C27
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C215
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C21
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C209
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C20
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C47
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C67
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C66
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C49
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C51
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C52
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C55
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C56
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C58
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C59
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C60
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C61
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C62
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C63
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C64
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C65
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C45
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C42
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C40
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C4
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C39
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C36
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C34
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C32
T8-HM61AS3-MAN 28-AB0101-JCX SMD. CAP 100 PF 50VDC +/-5% C177
T8-HM61AS3-MAN 28-AB0151-JCX SMD. CAP 150 PF 50V +/-5% C C176
T8-HM61AS3-MAN 28-AB0220-JCX CAP. SMD 22PF 50V +/-5% C C78
T8-HM61AS3-MAN 28-AB0220-JCX CAP. SMD 22PF 50V +/-5% C C84
T8-HM61AS3-MAN 28-AB0222-KBX CAP.SMD 2200PF 50V +/-10% 0603 C13
T8-HM61AS3-MAN 28-AB0222-KBX CAP.SMD 2200PF 50V +/-10% 0603 C200

T8-HM61AS3-MAN 28-AB0222-KBX CAP.SMD 2200PF 50V +/-10% 0603 C6
T8-HM61AS3-MAN 28-AB0223-KBX SMD.CAP.22NF 50V +/-10% C7
T8-HM61AS3-MAN 28-AB0332-KBX CAP.SMD 3300PF 50V +/-10% 0603 C5
T8-HM61AS3-MAN 28-AB0473-ZFX SMD CAP 0.047 UF 50V +80-20% C153
T8-HM61AS3-MAN 28-AB0473-ZFX SMD CAP 0.047 UF 50V +80-20% C152
T8-HM61AS3-MAN 28-AB0473-ZFX SMD CAP 0.047 UF 50V +80-20% C158
T8-HM61AS3-MAN 28-AB0473-ZFX SMD CAP 0.047 UF 50V +80-20% C159
T8-HM61AS3-MAN 28-AB0473-ZFX SMD CAP 0.047 UF 50V +80-20% C154
T8-HM61AS3-MAN 28-AB0473-ZFX SMD CAP 0.047 UF 50V +80-20% C127
T8-HM61AS3-MAN 28-AB0473-ZFX SMD CAP 0.047 UF 50V +80-20% C126
T8-HM61AS3-MAN 28-AB0473-ZFX SMD CAP 0.047 UF 50V +80-20% C125
T8-HM61AS3-MAN 28-AB0473-ZFX SMD CAP 0.047 UF 50V +80-20% C123
T8-HM61AS3-MAN 28-AB0473-ZFX SMD CAP 0.047 UF 50V +80-20% C122
T8-HM61AS3-MAN 28-AB0473-ZFX SMD CAP 0.047 UF 50V +80-20% C121
T8-HM61AS3-MAN 28-AB0473-ZFX SMD CAP 0.047 UF 50V +80-20% C156
T8-HM61AS3-MAN 28-AB0561-JCX SMD. CAP 560 PF 50VDC +/-5% 0603 C163
T8-HM61AS3-MAN 28-AB0561-JCX SMD. CAP 560 PF 50VDC +/-5% 0603 C162
T8-HM61AS3-MAN 28-AB0561-JCX SMD. CAP 560 PF 50VDC +/-5% 0603 C146
T8-HM61AS3-MAN 28-AB0561-JCX SMD. CAP 560 PF 50VDC +/-5% 0603 C143
T8-HM61AS3-MAN 28-AB0561-JCX SMD. CAP 560 PF 50VDC +/-5% 0603 C142
T8-HM61AS3-MAN 28-AB0561-JCX SMD. CAP 560 PF 50VDC +/-5% 0603 C141
T8-HM61AS3-MAN 28-AB0561-JCX SMD. CAP 560 PF 50VDC +/-5% 0603 C138
T8-HM61AS3-MAN 28-AB0561-JCX SMD. CAP 560 PF 50VDC +/-5% 0603 C134
T8-HM61AS3-MAN 28-AB0681-JCX SMD. CAP 680 PF 50V +/-5% 0603 C155
T8-HM61AS3-MAN 28-AB0681-JCX SMD. CAP 680 PF 50V +/-5% 0603 C136
T8-HM61AS3-MAN 28-AB0681-JCX SMD. CAP 680 PF 50V +/-5% 0603 C131
T8-HM61AS3-MAN 28-AC0105-ZFX SMD. CAP 1 UF 16VDC +80%/-20% C11
T8-HM61AS3-MAN 28-AC0105-ZFX SMD. CAP 1 UF 16VDC +80%/-20% C211
T8-HM61AS3-MAN 28-AC0105-ZFX SMD. CAP 1 UF 16VDC +80%/-20% C17
T8-HM61AS3-MAN 33-ELN102-NTX SMD.COLL CBG201209U 102B L42
T8-HM61AS3-MAN 33-GLL339-KTX SMD. COIL 3.3 UH +/-10% L4
T8-HM61AS3-MAN 33-GLL339-KTX SMD. COIL 3.3 UH +/-10% L2
T8-HM61AS3-MAN 33-GLN121-NTX CHIP BEAD 120 OHM +/-25% L18
T8-HM61AS3-MAN 33-GLN121-NTX CHIP BEAD 120 OHM +/-25% L17
T8-HM61AS3-MAN 33-GLN121-NTX CHIP BEAD 120 OHM +/-25% L24
T8-HM61AS3-MAN 33-GLN121-NTX CHIP BEAD 120 OHM +/-25% L16
T8-HM61AS3-MAN 33-GLN121-NTX CHIP BEAD 120 OHM +/-25% L31
T8-HM61AS3-MAN 33-GLN121-NTX CHIP BEAD 120 OHM +/-25% L33
T8-HM61AS3-MAN 33-KLN121-NTX CHIP BEAD 120 OHM +/-25% L12
T8-HM61AS3-MAN 33-KLN121-NTX CHIP BEAD 120 OHM +/-25% L5
T8-HM61AS3-MAN 33-KLN121-NTX CHIP BEAD 120 OHM +/-25% L3
T8-HM61AS3-MAN 33-KLN121-NTX CHIP BEAD 120 OHM +/-25% L30
T8-HM61AS3-MAN 33-KLN121-NTX CHIP BEAD 120 OHM +/-25% L28
T8-HM61AS3-MAN 33-KLN121-NTX CHIP BEAD 120 OHM +/-25% L29
T8-HM61AS3-MAN 33-KLN121-NTX CHIP BEAD 120 OHM +/-25% L23
T8-HM61AS3-MAN 33-KLN121-NTX CHIP BEAD 120 OHM +/-25% L22
T8-HM61AS3-MAN 33-KLN121-NTX CHIP BEAD 120 OHM +/-25% L19
T8-HM61AS3-MAN 33-KLN121-NTX CHIP BEAD 120 OHM +/-25% L41
T8-HM61AS3-MAN 33-KLN121-NTX CHIP BEAD 120 OHM +/-25% L21
T8-HM61AS3-MAN 33-KLN121-NTX CHIP BEAD 120 OHM +/-25% L20
T8-HM61AS3-MAN 33-KLN121-NTX CHIP BEAD 120 OHM +/-25% L25
T8-HM61AS3-MAN 33-PLL150-MBX SMD.COLL L1207-150 L1
T8-HM61AS3-MAN 34-R101J2-0EX COIL PL - 100 UH +/-5% L6
T8-HM61AS3-MAN 34-R220J2-0EX COIL PL - 22 UH +/-5% L27

T8-HM61AS3-MAN 41-WJ0050-B00

TCL41-WJ0050-B00= WIRE BARE JUMPER

5MM R

JUM1

T8-HM61AS3-MAN 45-OSC14M-3Y2 CRYSTAL 14.31818MHZ Y1
T8-HM61AS3-MAN 46-27626W-04XG PIN BASE *4 TJC3-4AW P2
T8-HM61AS3-MAN 46-33079W-05XG PIN BASE *5 TJC3-5A P9
T8-HM61AS3-MAN 46-35199W-03XG PIN BASE *3 PITCH=2.0MM P1
T8-HM61AS3-MAN 46-35199W-04XG CONN.PH-4A 4PIN PITCH=2.0MM P6
T8-HM61AS3-MAN 46-35199W-06XG .PH-6A 6PIN PITCH-2.0MM P4
T8-HM61AS3-MAN 46-35199W-07XG CONN.PH-7A PITCH=2.0MM 7PIN P5

T8-HM61AS3-MAN 46-38605W-30XG PIN BASE TU2005WNR-2X15 P10(ALIGN TO PIN1）

T8-HM61AS3-MAN 47-EAR002-XX0 EARPHONE SOCKET CK3-3.5-9WK-B P18
T8-HM61AS3-MAN 47-HDI001-XX0 HDMI SOCKET 1747981-1 P12
T8-HM61AS3-MAN 47-RCA030-XX1G RCA SOCKET P7
T8-HM61AS3-MAN 47-RCA117-XX0G AV SOCKET AV-3.2-6W-I8 P16
T8-HM61AS3-MAN 47-RCA156-XX0G RCA SOCKET AV-3.2-6W-I11 P14
T8-HM61AS3-MAN 47-SVI008-XX0 S

_

VIDEO TERMINATOR P15
T8-HM61AS3-MAN 47-VGA002-XX1 VGA SOCKET VGA-15W08 P13
T8-HM61AS3-MAN 64-B30080-104G M/C SCREW B 3 X 8 FOR U19
T8-HM61AS3-MAN 65-A30070-05EG METAL WASHER FOR U19
T8-HM61AS3-MAN 65-E33050-07EG SPRING WASHER (3.3X5.0X0.7)MM FOR U19
T8-HM61AS3-MAN 67-387190-0A0 HEAT SINK FOR U8
T8-HM61AS3-MAN 19-AB0913-JTX SMD.RES 91 KOHM 1/10W +/-5% 0603 R13
T8-HM61AS3-MAN 25-BCB471-M1X CAP. ELEC 470 UF 16V +/-20% C17A
T8-HM61AS3-MAN 40-00MS19-MAD2XG P.C.B MAIN BD
T8-HM61AS3-MAN 67-H83044-1A0 RAW HEATSINK -- 00 00 R=N FOR U19
T8-HM61AS3-MAN 19-AB0472-JTX RES SMD 4.7K OHM 1/10W 0603 R122
T8-HM61AS3-MAN 28-AB0104-ZFX CAP. SMD 0.1UF 50V +80%~-20% F C43
H3-HM61AS3-SM00C T8-HM61AS3-PAN ASS'Y - PACKINGASY
T8-HM61AS3-PAN 51-PC0220-0WU08G POWER CORD
T8-HM61AS3-PAN 54-LCPVC6-000 INLAY
T8-HM61AS3-PAN 75-831690-CC0 POLYFOAM(EPS)
T8-HM61AS3-PAN 75-831700-CC0 POLYFOAM(EPS)
T8-HM61AS3-PAN 75-831710-CC0 POLYFOAM(EPS)
T8-HM61AS3-PAN 75-831720-CC0 POLYFOAM(EPS)
T8-HM61AS3-PAN T8-HM61AS3-PANZ TV ASY ASS'Y - PACKING(ART)
T8-HM61AS3-PANZ 70-271510-00A SERVICE CARD
T8-HM61AS3-PANZ 71-270870-0A9 LABEL
T8-HM61AS3-PANZ 74-022032-6WEAD PLASTIC BAG
T8-HM61AS3-PANZ 74-106072-3WD1B PLASTIC BAG
T8-HM61AS3-PANZ 76-831730-0AT CARTON BOX
T8-HM61AS3-PANZ 72-HM61AS-E001A TV IB L32M61S3 R=Y
T8-HM61AS3-PAN 49-382550-BAT BATTERY R06P AA 1.5V 5#
H3-HM61AS3-SM00C T8-HM61AS3-RCN ASS'Y - REAR CABINETASY

T8-HM61AS3-RCN 46-AJ300B-CM1H1G LVDS WIRE JTCL0346

FOR PANEL CNF1 TO
MAIN BOARD P10

T8-HM61AS3-RCN 46-CK060T-04A01G HS 4PIN TCL1558

FOR MAIN BOARD P2
TO POWER BOARD P803

T8-HM61AS3-RCN 46-CV025T-05A01G HS 5PIN TCL1561

FROM MAIN BOARD P3
TO SPEAKERS

T8-HM61AS3-RCN 46-FF060T-03AG HS 3PIN TCL1556

FOR MAIN BORAD P1
TO POWER BOARD P802

T8-HM61AS3-RCN 46-KF075T-14X10G HS 14PIN TCL1560

FOR PANEL CN1 TO
POWER BOARD P804&P4

T8-HM61AS3-RCN 46-KT065T-02E01G HS 2PIN Y0507107

FROM POWER SWITCH
TO POWER BOARD P801

T8-HM61AS3-RCN 46-SU015T-02H01G HS 2PIN Y0612113.2 FOR RIGHT SPEAKER
T8-HM61AS3-RCN 46-SU015T-02H01G HS 2PIN Y0612113.2 FOR LEFT SPEAKER
T8-HM61AS3-RCN 47-PWS024-TX2 SOCKET 03GEEW3ES(04NW4)
T8-HM61AS3-RCN 48-POW016-XX0G POWER SWITCH PS8-12-C-045

T8-HM61AS3-RCN 4A-LCD32T-CM1

32" CMO TFT DISPLAY SCREEN V320B1­L04

T8-HM61AS3-RCN 54-807670-0U0 SPONGE

FOR MAIN BOARD
SHIELD

T8-HM61AS3-RCN 57-80794X-0UG UNI-TIE

T8-HM61AS3-RCN 63-B30080-AB4G S/T SCREW B 3 X 8 AB

MTG REAR AV &
SHIELDING BOX

T8-HM61AS3-RCN 63-B30100-AB4G S/T SCREW B 3 X 10 AB

MTG SIDE AV SUPPORT
& BACK COVER

T8-HM61AS3-RCN 63-B40150-AB3G S/T SCREW B 4 X 15 AB (BLACK)

MTG KEY & BACK
COVER

T8-HM61AS3-RCN 63-B40150-AB3G S/T SCREW B 4 X 15 AB (BLACK)

MTG SHIELDING BOX
& BACK COVER

T8-HM61AS3-RCN 63-B40150-AB3G S/T SCREW B 4 X 15 AB (BLACK)

MTG STAND SUPPORT &
BACK COVER

T8-HM61AS3-RCN 63-B40150-AB3G S/T SCREW B 4 X 15 AB (BLACK)

MTG POWER SUPPORT &
BACK COVER

T8-HM61AS3-RCN 63-B40150-AB4G S/T SCREW B 4 X 15 AB

MTG FRONT COVER &
BACK COVER

T8-HM61AS3-RCN 63-B40150-AB4G S/T SCREW B 4 X 15 AB

MTG IR PCB & BACK
COVER

T8-HM61AS3-RCN 64-B30060-304G TRIANGLE M/C SCREW B 3 X 6

MTG MAINBOARD &
SHIELDING BOX

T8-HM61AS3-RCN 64-B30060-304G TRIANGLE M/C SCREW B 3 X 6

MTG SHIELDING BOX &
SHEILDING PLATE

T8-HM61AS3-RCN 64-B30080-304G TRIANGLE M/C SCREW B 3 X 8

MTG POWER & POWER
SUPPORT

T8-HM61AS3-RCN 64-F30080-303G M/C SCREW F 3 X 8

MTG AC JACK & STAND
SUPPORT(LEFT)

T8-HM61AS3-RCN 66-702620-0E2G SCREW POST MTG VGA
T8-HM61AS3-RCN 67-824900-0G0 BRACKET
T8-HM61AS3-RCN 67-M82733-0G0 BRACKET

_

L

T8-HM61AS3-RCN 67-M82734-0G0 BRACKET

_

R
T8-HM61AS3-RCN 67-S81587-0E0 SCREEN COVER(TOP)
T8-HM61AS3-RCN 67-S81588-9E0 TV RAW SHIELDING SSB -- 10 00 R=N
T8-HM61AS3-RCN 67-S82483-KE0 TV RAW SHIELDING BOX -- 00 00 R=N
T8-HM61AS3-RCN T8-HM61AS3-RCNZ TV ASY ASS'Y - REAR CABINET(ART)

T8-HM61AS3-RCNZ 55-825070-0CL1A

TV PAI BACKCOVER L32M61S3 A8252 1A

R=N
T8-HM61AS3-RCNZ 56-822770-0HN4Y PUSH BUTTON
T8-HM61AS3-RCNZ 56-822860-0HN1A BRACKET SIDE AV

T8-HM61AS3-RCNZ 67-827430-1A31C

TV DEC DECOR L32M61S3 SILVER 00 1C

00 R=

T8-HM61AS3-RCNZ 58-809790-0UI1T

TV DEC OVERLAY L32M61S3 PRINT IN

SILVER

T8-HM61AS3-RCNZ 58-820790-0UI1H

TV DEC OVERLAY L32M61S3 PRINT IN

SILVER

T8-HM61AS3-RCNZ 58-827250-3UI1A TV DEC OVERLAY L32M61S3 BLACK R=N

T8-HM61AS3-RCNZ 58-HM61MP-JKT1B

TV DEC OVERLAY L32M61S3 PRINT IN

SILVER
T8-HM61AS3-RCN 62-823250-0HJ BRACKET
T8-HM61AS3-RCN 62-823270-0HJ BRACKET
T8-HM61AS3-RCN 62-825520-0HJ BRACKET
T8-HM61AS3-RCN 62-827310-0HJ SUPPORT

_

TOP

T8-HM61AS3-RCN 63-B40150-AB3G S/T SCREW B 4 X 15 AB (BLACK)

MTG PANEL SUPPORT &
BACK COVER

T8-HM61AS3-RCN 64-B40080-304G TRIANGLE M/C SCREW B 4 X 8

MTG PANEL SUPPORT &
PANEL

T8-HM61AS3-RCN 64-B40080-304G TRIANGLE M/C SCREW B 4 X 8

MTG PANEL
SUPPORT(BOTTOM) &
STAND SUPPOR

T8-HM61AS3-RCN 46-FF060T-07M01G HS 7PIN TCL1554

M.BD P5 TO
P1001(IR.BD)&P1001(

KEY.BD)
T8-HM61AS3-RCN 57-KYCL01-0HF UNI-TIE FOR BACK CABINET
H3-HM61AS3-SM00C 06-011W33-A213X REMOTE CONTROLLER RC1113339

Chapter VI Service Guiding

• Pictures of Chassis

• Block Diagram of Chassis

• Layout of Main Board

• Scheme diagram of Chassis

• Trouble Shooting

• Explode View Diagram

(1) Chassis

I. picture for Chassis

(2) Output and input connectors

HDMI

Input

VGA

input

AV OUT

Y1,Pb1,Pr1

AV1 input
AV3 input

S video

input

Audio

input of

HDTV

and PC

Earphone

output

LVDS

For

software

upgrade

To

inventor

board

Power

supply

Audio

output

On/off

control

To key

board

(3) Function introduction of ICs

Tuner

Audio

power

amplifier

Earphone

amplifier

For save HDMI’s

EDID

For save

VGA’s

EDID

DC-DC

converter

EEPROM

SAVE

CHANNEL

INFORMATI

ON

EEPROM

Save main

software

HPDC
DATA

Dual-

MOSFET

Power

IC

AV1/2
INPUT

P14

Y/Pb/Pr

AV OUT

P16

SCL/SDA

U12

Z1

TUNER

TV CVBS Pin 49/50

LVDS

INTERFERE

NCE P10

Panel

SIFP/SIFM Pin54/55

Pin74/75 Pin144 Pin148

Pin1/2

Pin14/15

Audio

Amplifier

U19

TDA7266SA

Flash

U9

W25X40

KEY

BOARD

speakerX2

POWER SUPPLY

08-LON37A-PW1W

Block Diagram of MS19 By Holt July5,2007

U11 HDCP

IIC

HDMI P12VGA U13

Main IC U8 MST9E19A

Pin16/17 22-28

Pin1/2/4/5/7/8

/11/12/14/15

Pin42-51 Pin61-69

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

ADJ-PWM2

ON-PBACK

BL-ADJUST

BL-ON/OFF

On/off

On/off

POWER-ON/OFFPOWER-ON/OFF

PANEL-ON/OFF

POWER-ON/OFF

+5Vstb

+12V

+5Vstb

+5Vstb

+12V_Inverter

+12V

+5V

+5V

VCC-Panel

+12V

+3.3V

+12V_AMP+12V

+12V_AMP

+12V_Inverter

+12V +12V_AMP

+12V

40V

+12V

+5V

+12V

ADJ-PWM2

ON-PBACK

POWER-ON/OFF

POWER-ON/OFF

PANEL-ON/OFF

PWM3

Title

Size Document Number Rev

Date: Sheet of

SYSTEM POWER

2.0

<Title>

A3

110Monday, June 04, 2007

Title

Size Document Number Rev

Date: Sheet of

SYSTEM POWER

2.0

<Title>

A3

110Monday, June 04, 2007

Title

Size Document Number Rev

Date: Sheet of

SYSTEM POWER

2.0

<Title>

A3

110Monday, June 04, 2007

TO Inverter Board

Panel Power Source

DC 12V-5V

For tuner 33V

In standby,+5Vstb can provide 200mA current

LG-PHILIPS LC320W 12V

CMO 5V

Some small panel 3.3V

tcl-modified

In standby,save power,only for small panel use.

for big panel use.

R91KR9
1K

R15

4.7K

R15

4.7K

C5

3.3nFC53.3nF

C27

0.1uF

C27

0.1uF

C26

0.1uF

C26

0.1uF

L6 100uHL6 100uH

L14 600(4.5X3.2)L14 600(4.5X3.2)

C171uC17

1u

R8NCR8
NC

C13

0.01u

C13

0.01u

C3

0.1uC30.1u

C15

0.1uF

C15

0.1uF

R181KR18
1K

R16

4.7K

R16

4.7K

S1

1

G1

2

S2

3

G2

4

D1

8

D1

7

D2

6

D2

5

U4
IRF7314U4IRF7314

R1139R11

39

1

2 3

Q2
3904Q23904

L11
NC/600(4.5X3.2)

L11
NC/600(4.5X3.2)

R25
10K

R25
10K

R3

4.7KR34.7K

R22
10K

R22
10K

R120R12
0

+

C17A

470uF/16V

+

C17A

470uF/16V

R260R26
0

1

2 3

Q1
NC/3904Q1NC/3904

+

C28
220uF/16V

+

C28
220uF/16V

Q5

2SC1815Q52SC1815

L8 NCL8 NC

1

2 3

Q3
NC(3904)Q3NC(3904)

3

1

2

Q14
3904

Q14
3904

C24

0.1uF

C24

0.1uF

C16

2.2uF

C16

2.2uF

1

2 3

Q6
3904Q63904

+

C2

470uF/25V

+

C2

470uF/25V

+

C10 470uF/16V+C10 470uF/16V

1

2 3

Q4
3904Q43904

C6

2.2nFC62.2nF

R5 11k 1%R5 11k 1%

R19

4.7K

R19

4.7K

L13
600(4.5X3.2)

L13
600(4.5X3.2)

s1

1

g1

2

s2

3

d2

5

d2

6

d1

7

g2

4

d1

8

U2

D13N03U2D13N03

GND

6

Select

5

Adjust

4

On/off

3

+12V

2

+12V

1

P4

CON6_2.0P4CON6_2.0

C14

0.1uF

C14

0.1uF

GND

3

+12V-AMP

1

+12V

2

GND

4

P2

CON6_4.0P2CON6_4.0

C21

0.1uF

C21

0.1uF

L15 600(4.5X3.2)L15 600(4.5X3.2)

L9 NCL9 NC

C20

0.1uF

C20

0.1uF

R13
91K

R13
91K

L4L4

D5 1N4148D5 1N4148

R140R14
0

M1-G

2

M1-S1M1-D

8

M1-D

7

U3A
SP8J3

U3A
SP8J3

C4

0.1uFC40.1uF
R10
10K

R10
10K

1

2 3

Q7
3904Q73904

R27NCR27
NC

R7

1.5K 1%R71.5K 1%

1

32

Q13
3906

Q13
3906

M2-S

3

M2-G4M2-D

5

M2-D

6

U3B
SP8J3

U3B
SP8J3

R23

4.7K

R23

4.7K

R142

10K

R142

10K

C8

0.1uFC80.1uF

+

C25
47uF/16V

+

C25
47uF/16V

R17NCR17
NC

D1

1N4148D11N4148

R143

10K

R143

10K

+

C9 470uF/16V+C9 470uF/16V

L1

15uHL115uH

+

C1

470uF/25V

+

C1

470uF/25V

R6

0/NCR60/NC

R2NCR2
NC

+

C29
47uF/16V

+

C29
47uF/16V

R1

4.7KR14.7K

R4

0/NCR40/NC

L12
600(4.5X3.2)

L12
600(4.5X3.2)

VCC5LGATE/OCSET

4

GND

3

PHASE

8

COMP/SD

7

FB

6

UGATE

2

BOOT

1

U1

ISL8105U1ISL8105

C7

22nFC722nF

GND

6

GND

5

GND

4

GND

3

+5V

2

+5V

1

+12V

7

+12V

8

+12V

9

+12V

10

P3

CON6_2.0P3CON6_2.0

R24NCR24
NC

C12

0.1u

C12

0.1u

L7
600(4.5X3.2)L7600(4.5X3.2)

C111uC11
1u

+

C18

10uF/50V

+

C18

10uF/50V

On/off

3

+5V

1

GND

2

P1

CON6_2.0P1CON6_2.0

L10
NC/600(4.5X3.2)

L10
NC/600(4.5X3.2)

+

C19

470uF/16V

+

C19

470uF/16V

R21 4.7KR21 4.7K

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

+5Vst

+3.3VA

+3.3VA

+3.3VA AVDD_MemPLL

+3.3VA

AVDD_AU

+3.3VA AVDD_SIF

+3.3VA AVDD_HDMI

+3.3V VDDP VDDC

+3.3VA AVDDA

+5V

+5Vstb

VDD_MPLL

+3.3V

VDDC

+3.3V

+5Vst

Title

Size Document Number Rev

Date: Sheet

of

LDO DC-DC ?

<Title>

A4

210Monday, June 04, 2007

Title

Size Document Number Rev

Date: Sheet

of

LDO DC-DC ?

<Title>

A4

210Monday, June 04, 2007

Title

Size Document Number Rev

Date: Sheet

of

LDO DC-DC ?

<Title>

A4

210Monday, June 04, 2007

Vcc3.3for MST9E19A analog

Vcc3.3for MST9E19A
Digital

3.3V for
AVDDPLL2

+3.3V for
VDD_MPLL

+3.3AVDD for
AVDD_AU

+3.3AVDD
for AVDD_SIF

pin6,pin12

+3.3AVDD for
AVDD_HDMI

Vcc1.8 for MST9E19A

pin36

+3.3AVDD for
AVDDA

VDDC for MST9E19A Core

1.25*(1+Rdown/Rup)=3.3V---Rup=510, Rdown=820

Vcc1.8 for
MST9E19A

1.25*(1+Rdown/Rup)=1.8V---Rup=1.2K, Rdown=510

1.8V

L16FBL16
FB

D7
FM120/1A

D7
FM120/1A

C59

0.1uF

C59

0.1uF

C73

0.1uF

C73

0.1uF

R30NCR30
NC

C58

0.1uF

C58

0.1uF

C60

0.1uF

C60

0.1uF

C30

0.1uF

C30

0.1uF

C46

2.2uF

C46

2.2uF

D6
FM120D6FM120

L20FBL20
FB

C64

0.1uF

C64

0.1uF

C47

0.1uF

C47

0.1uF

1 2

C54

2.2uF

C54

2.2uF

L24FBL24
FB

C36

0.1uF

C36

0.1uF

R310R31
0

C52

0.1uF

C52

0.1uF

C38

2.2uF

C38

2.2uF

C50

2.2uF

C50

2.2uF

C41

2.2uF

C41

2.2uF

C42

0.1uF

C42

0.1uF

C65

0.1uF

C65

0.1uF

C66

0.1uF

C66

0.1uF

R28NCR28
NC

C55

0.1uF

C55

0.1uF

C63

0.1uF

C63

0.1uF

3
2
1

4

OUT
ADJ

IN

U7

AP1084-adj

+1.8V Regulator

TO-263

OUT
ADJ

IN

U7

AP1084-adj

+1.8V Regulator

TO-263

C32

0.1uF

C32

0.1uF

C44

2.2uF

C44

2.2uF

C62

0.1uF

C62

0.1uF

C49

0.1uF

C49

0.1uF

+

C48
47uF/16V

+

C48
47uF/16V

3
2
1

4

OUT
ADJ

IN

U6

AP1084-adj

+3.3V Regulator

TO-263

OUT
ADJ

IN

U6

AP1084-adj

+3.3V Regulator

TO-263

L41FBL41

FB

+

C37
47uF/16V

+

C37
47uF/16V

R290R29
0

L21FBL21
FB

+

C57
47uF/16V

+

C57
47uF/16V

C56

0.1uF

C56

0.1uF

C72

0.1uF

C72

0.1uF

C51

0.1uF

C51

0.1uF

C34

0.1uF

C34

0.1uF

+

C31
47uF/16V

+

C31
47uF/16V

C45

0.1uF

C45

0.1uF

L17 FBL17 FB

L19FBL19
FB

L23FBL23
FB

3

2

1

4

ADJ

OUT

IN

U5
AMS1117-3.3

ADJ

OUT

IN

U5
AMS1117-3.3

C67

0.1uF

C67

0.1uF

C39

0.1uF

C39

0.1uF

+

C53 47uF/16V

+

C53 47uF/16V

C40

0.1uF

C40

0.1uF

L18 FBL18 FB

C61

0.1uF

C61

0.1uF

C68

0.1uF

C68

0.1uF

C69

0.1uF

C69

0.1uF

C70

0.1uF

C70

0.1uF

+

C35
47uF/16V

+

C35
47uF/16V

D8
FM120D8FM120

L22FBL22
FB

+

C33
47uF/16V

+

C33
47uF/16V

C71

0.1uF

C71

0.1uF

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

WP

ADJ-PWM2

I2C-SDA

SPI_CZ

PH-Lout

LED1

SDA

ADJ-PWM2

PWM3

SPI_DI

SPI_CK

WP_FSH

SCL
TXD
RXD

PWM0TXD

RXD

DDC-RDX

LED1

ON-PBACK

PANEL-ON/OFF
AMP-MUTE
WP

HDMI_SCL

HDMI_SDA

HDMI_SCL

G_TX1+

HDMI_SDA

BIN-

GIN-

GIN+

SOG

RIN+

BIN+

RIN-

VS_RGB

BIN-

GIN-

RIN-

R_TX2-

RIN+

HS_RGB

GIN+

SOG

BIN+

SCB+

SCR­SCG+

SCR+

SCB-

SCG-

R_TX2+

G_TX1­B_TX0-

B_TX0+
TXCLK+

PWM0

TXCLK-

SPI_DO

WP_FSH

KEY1

KEY0

SCG-

SCR­SCR+

SCB­SCB+

SCG+

IR_SYNC

AMP-Rout

AMP-Lout

WP_FSH

SC_SOG

I2C-SCL
DDC-TXD

PWM3

IR_SYNC

SC_SOG

TV-SIFP SIFP
TV-SIFM SIFM

KEY1-in

KEY0-in

KEY1

AMP-R

AMP-L

SDA

SCL

SDA_EXT

TXCLK+

TXCLK­B_TX0-

B_TX0+

R_TX2+

G_TX1+

G_TX1­R_TX2-

HS_RGB
VS_RGB

VCOM1
TUNER_CVBS

SV_C0

VCOM0

SV_Y0
VCOM2

SV_C0
SV_Y0
VCOM2
CVBS3
CVBS2
CVBS1
VCOM1

TUNER_CVBS

VCOM0
CVBSOut

AV1-Cin
AV1-Yin-

AV3-Vin+

AV1-Yin

TV1-Vin+

CVBS3

CVBSOut

AV1-Vin+

TV1-Vin-

CVBS2
CVBS1

AV2-Vin+

SIFM

SIFP

PH-Lout
PH-Rout

PC-Rin

PC-Lin

AUCOM

AV1-Rin

AV1-Lin

AV2-Rin

AV2-Lin

AV3-Rin

AV3-Lin

AMP-Rout

AMP-Lout

AUVRADN
AUVRADP
AUVREF

AUVRADN

AUVRADP

SCL_EXT

SPI_DI

SPI_DO

SPI_CK

SPI_CZ

PH-R1outPH-Rout

KEY0

SYS_RST

AUVREF

AUCOM

HPDCTRL

POWER-ON/OFF

PH-L1out

SDA

SCL

WP

TTL-LVSYNC
TTL-LDE

TTL-LHSYNC
TTL-LCK

TTL-BLUE1
TTL-BLUE0

TTL-RED7

TTL-RED0

TTL-RED4
TTL-RED3

TTL-GREEN7
TTL-GREEN6

TTL-RED2
TTL-RED1

TTL-RED6
TTL-RED5

TTL-GREEN5
TTL-GREEN4

TTL-GREEN1
TTL-GREEN0
TTL-BLUE7

TTL-GREEN3
TTL-GREEN2

TTL-BLUE6
TTL-BLUE5
TTL-BLUE4
TTL-BLUE3
TTL-BLUE2

RXE4-/B1
RXE4+/B0

RXO0-/R7

RXOC+/R0

RXO1+/R4
RXO2-/R3

RXO3-/G7
RXO3+/G6

RXO2+/R2
RXOC-/R1

RXO0+/R6
RXO1-/R5

RXO4-/G5
RXO4+/G4

RXE1-/G1
RXE1+/G0
RXE2-/B7

RXE0-/G3
RXE0+/G2

RXE2+/B6
RXEC-/B5
RXEC+/B4
RXE3-/B3
RXE3+/B2

LVSYNC
LHSYNC
LDE
LCK

AFT

IR-IN
LED

+3.3V

+5Vstb

+3.3V

AVDD_HDMI

+3.3V

+3.3V

+5Vstb

+5Vstb

+3.3V

+3.3V

+3.3V

AVDD_MemPLL

VDDC

VDD_MPLL

AVDD_AU

AVDD_SIF

AVDDA

AVDD_HDMI

VDDP

+5Vstb

+5Vstb

B_TX0+
B_TX0-

R_TX2+

AMP-MUTE

TXCLK+

R_TX2-

TXCLK-

HDMI_SCL

G_TX1+

HDMI_SDA

G_TX1-

POWER-ON/OFF
ON-PBACK
HPDCTRL

TV-SIFP
TV-SIFM

AMP-L

AMP-R PH-R1out

PH-L1out

ADJ-PWM2

SDA_EXT

SCL_EXT

CVBSOut

PC-Rin

PC-Lin
AV1-Lin

AV1-Rin
AV2-Lin

AV2-Rin
AV3-Lin
AV3-Rin

TXD
RXD

HS_RGB

VS_RGB

BIN+

BIN­SOG
GIN+

GIN­RIN+

RIN-

SC_SOG

SCR+

SCR-

SCG+

SCG­SCB+
SCB-

AV1-Cin
AV1-Yin

AV1-Yin­AV1-Vin+
AV2-Vin+
AV3-Vin+

TV1-Vin+

TV1-Vin-

LVSYNC
LHSYNC
LDE
LCK

RXO0-/R7
RXO0+/R6
RXO1-/R5
RXO1+/R4
RXO2-/R3
RXO2+/R2
RXOC-/R1
RXOC+/R0
RXO3-/G7
RXO3+/G6
RXO4-/G5
RXO4+/G4
RXE0-/G3
RXE0+/G2
RXE1-/G1
RXE1+/G0
RXE2-/B7
RXE2+/B6
RXEC-/B5
RXEC+/B4
RXE3-/B3
RXE3+/B2
RXE4-/B1
RXE4+/B0

PANEL-ON/OFF

AFT

PWM3

GPIO-0

Title

Size Document Number Rev

Date: Sheet

of

MST9E19A ?

<Title>

A2

310Monday, June 04, 2007

Title

Size Document Number Rev

Date: Sheet

of

MST9E19A ?

<Title>

A2

310Monday, June 04, 2007

Title

Size Document Number Rev

Date: Sheet

of

MST9E19A ?

<Title>

A2

310Monday, June 04, 2007

I2C address
at A0.

Location Near IC Pin.

Mode Selection

Debug port

Location Near IC Pin.

Mstar PULL UP
SST PULL DOWN

DVI

INPUT

VGA

INPUT

SCART

INPUT

for TTL output

VIDEO

INPUT

HDCP I2C address
at A4.

AV Output(Audio)

Audio Output(to Amp)

R42
10K

R42
10K

R74 10R74 10

R52
100

R52
100

7531

8642

RP4 0/33

7531

8642

RP4 0/33

1 2

Y1

14.318MHZY114.318MHZ

C104 2.2uFC104 2.2uF

R811KR81
1K

1

3 2

Q8
3906Q83906

C118
10uF/16V

C118
10uF/16V

C116

0.1uF

C116

0.1uF

1
2
3
4
5
6
7

P5

CON6_2.0P5CON6_2.0

C93 10nFC93 10nF

R68
10K

R68
10K

C83
1nF

C83
1nF

L250L25
0

R72 10R72 10

R34
100

R34
100

C86

0.1uF

C86

0.1uF

C76
10nF

C76
10nF

7531

8642

RP12
RP4.7KX4

7531

8642

RP12
RP4.7KX4

R50
22K

R50
22K

R49
100

R49
100

C90
100pF

C90
100pF

C91
100pF

C91
100pF

7531

8642

RP10
RP4.7KX4

7531

8642

RP10
RP4.7KX4

C107 2.2uFC107 2.2uF

7531

8642

RP3 0/33

7531

8642

RP3 0/33

C84
22pF

C84
22pF

R82NCR82
NC

R40
100

R40
100

R66

1.8K

R66

1.8K

R831KR831KR841KR84

1K

R391KR39
1K

A0

1

A1

2

A2

3

GND4SDA

5

SCL

6

WP

7

VCC

8

U11
24C04

U11
24C04

C96 10nFC96 10nF

C94 10nFC94 10nF

7531

8642

RP7 0/33

7531

8642

RP7 0/33

R6110R61
10

7531

8642

RP13
RP4.7KX4

7531

8642

RP13
RP4.7KX4

C106 2.2uFC106 2.2uF

R44
10K

R44
10K

C89

0.1uF

C89

0.1uF

C88

0.1uF

C88

0.1uF

R85NCR85
NC

R56

8.2K

R56

8.2K

R65NCR65
NC

R58

4.7K

R58

4.7K

C79
100pF

C79
100pF

7531

8642

RP6 0/33

7531

8642

RP6 0/33

R481MR48
1M

R64 47R64 47

7531

8642

RP1
33

7531

8642

RP1
33

C115

2.2uF

C115

2.2uF

R51
22K

R51
22K

R670R67
0

R76
100

R76
100

7531

8642

RP8
RP4.7KX4

7531

8642

RP8
RP4.7KX4

C78
22pF

C78
22pF

C77
1nF

C77
1nF

C82
10nF

C82
10nF

R69
100

R69
100

C112

0.1uF

C112

0.1uF

R53

390R1%

R53

390R1%

C74
47uF/16V

C74
47uF/16V

C87

0.1uF

C87

0.1uF

R601KR60
1K

R73 10R73 10

R55

4.7K

R55

4.7K

C108 2.2uFC108 2.2uF

C111 2.2uFC111 2.2uF

R38
22K

R38
22K

C85

0.1uF

C85

0.1uF

R43
10K

R43
10K

R47
100

R47
100

R54

4.7K

R54

4.7K

R79NCR79
NC

R57

8.2K

R57

8.2K

R70
100

R70
100

C100 10nFC100 10nF

R591KR59
1K

C80
10uF/16V

C80
10uF/16V

R75
10K

R75
10K

3

2

1

D40
BAV99

D40
BAV99

CE#

1

SO

2

WP#

3

VSS4SI

5

SCK

6

HOLD#

7

VDD

8

U9
W25X40U9 W25X40

1

2 3

Q9
3904Q93904

C110 2.2uFC110 2.2uF

1
2
3
4

P6

CN-SCN-5YP6CN-SCN-5Y

C113
10uF/16V

C113
10uF/16V

C99 10nFC99 10nF

C98 10nFC98 10nF

R62NCR62
NC

R71 10R71 10

R63NCR63
NC

R32
10K

R32
10K

7531

8642

RP5 0/33

7531

8642

RP5 0/33

A0

1

A1

2

A2

3

GND4SDA

5

SCL

6

WP

7

VCC

8

U10
24C32

U10
24C32

C117

0.1uF

C117

0.1uF

C102 0.1uFC102 0.1uF

RXCKN

1

RXCKP

2

RX0N

4

RX0P

5

RX1N

7

RX1P

8

RX2N

10

RX2P

11

REXT

13

DDCD_DA

14

DDCD_CK

15

HSYNC1

16

VSYNC1

17

RMID

18

VCLAMP

19

REFP

20

REFM

21

BIN1P

22

BIN1M

23

SOGIN1

24

GIN1P

25

GIN1M

26

RIN1P

27

RIN1M

28

BIN0M

29

BIN0P

30

GIN0M

31

GIN0P

32

SOGIN0

33

RIN0M

34

RIN0P

35

HSYNC0

38

VSYNC0

39

C1

40

Y1

41

C0

42

Y0

43

VCOM2

44

CVBS3

45

CVBS2

46

CVBS1

47

VCOM1

48

CVBS0

49

VCOM0

50

CVBSOUT

51

SIF1P

54

SIF1M

55

AUVRADN

57

AUVRADP

58

AUVREF

59

AUL0

61

AUR0

62

AUL1

63

AUR1

64

AUCOM

65

AUL2

66

AUR2

67

AUL3

68

AUR3

69

AUOUTL3

70

AUOUTR3

71

AUOUTL2

72

AUOUTR2

73

AUOUTL

74

AUOUTR

75

AUOUTS

76

GPIOF2

78

GPIOF3

79

GPIOF4

80

GPIOF5

81

GPIOF6

82

GPIOF7

83

GPIOF8

84

GPIOF9

85

GPIOF10

86

GPIOF11

87

DDCR_DA

131

DDCR_CK

132

DDCA_DA

133

DDCA_CK

134

SAR0

125

SAR1

126

SAR2

127

SAR3

128

PWM0

129

PWM1

130

PWM2

155

PWM3

156

IRIN

136

GND3GND9GND37GND52GND56GND89GND99GND

101

GND

104

GND

106

GND

120

GND

141

GND

152

GND

173

GND

187

GND

204

DIGO0

143

DIGO1

144

DIGO2

145

DIGO3

146

DIGO4

147

DIGO5

148

DIGO6

149

DIGO7

150

DIGO8

153

DIGO9

154

WRZ

116

RDZ

117

ALE

118

INT

135

SDO

124

CSZ

123

SDI

122

SCK

121

GPIOF19

97

GPIOF18

96

GPIOF17

95

GPIOF16

94

GPIOF15

93

GPIOF14

92

GPIOF13

91

GPIOF12

90

PWM_SENSE

139

PWM_DRV

138

PWM_FB

137

GPIOE0/LVSYNC

191

GPIOE1/LHSYNC

190

GPIOE2/LDE

189

GPIOE3/LCK

188

LB0M/R7

185

LB0P/R6

184

LB1M/R5

183

LB1P/R4

182

LB2M/R3

181

LB2P/R2

180

LBCKM/R1

179

LBCKP/R0

178

LB3M/G7

177

LB3P/G6

176

LB4M/G5

175

LB4P/G4

174

LA0M/G3

171

LA0P/G2

170

LA1M/G1

169

LA1P/G0

168

LA2M/B7

167

LA2P/B6

166

LACKM/B5

165

LACKP/B4

164

LA3M/B3

163

LA3P/B2

162

LA4M/B1

161

LA4P/B0

160

DI7

202

DI6

201

DI5

200

DI4

199

DI3

198

DI2

197

DI1

196

DI0

195

ICLK

192

IVSYNC

194

IHSYNC

193

XIN

207

XOUT

206

HWRESET

205

AVDD_ADC

36

AVDD_SIF

53

AVDD_AU

60

AVDD_MEMPLL

105

AVDD_DVI6AVDD_DVI

12

AVDD_MPLL

157

AVDD_MPLL

208

VDDC77VDDC98VDDC

107

VDDC

142

VDDC

158

VDDC

203

VDDP88VDDP

100

VDDP

102

VDDP

103

VDDP

119

VDDP

140

VDDP

151

VDDP

159

VDDP

172

VDDP

186

AD7

115

AD6

114

AD5

113

AD4

112

AD3

111

AD2

110

AD1

109

AD0

108

GND

209

U8

MST9E19A

U8

MST9E19A

R36
22K

R36
22K

R781KR78
1K

C97 10nFC97 10nF

R77
100

R77
100

C109 2.2uFC109 2.2uF

C105 2.2uFC105 2.2uF

C101 10nFC101 10nF

R45
100

R45
100

7531

8642

RP9
RP33X4

7531

8642

RP9
RP33X4

C114

0.1uF

C114

0.1uF

C95
100pF

C95
100pF

C103 0.1uFC103 0.1uF

R33
100

R33
100

C119

0.1uF

C119

0.1uF

C92 10nFC92 10nF

R80NCR80
NC

7531

8642

RP2 0/33

7531

8642

RP2 0/33

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

HPDCTRL

G_TX1+

HDMI_SCL

HDMI-HPD

R_TX2-

R_TX2+

G_TX1­B_TX0-

B_TX0+
TXCLK+

TXCLK-

HDMI-RX2­HDMI-RX1­HDMI-RX0­HDMI-RXC-

HDMI-RX1+

HDMI-RXC+

HDMI-RX2+

HDMI-RX0+

HDMI_SDA

HDMI-DDC-SDA

HDMI-DDC-SCL

HDMI/5V

+5V

+5V

+5V

R_TX2+
R_TX2­G_TX1+
G_TX1-

HDMI_SCL

B_TX0+

HDMI_SDA
HPDCTRL

B_TX0­TXCLK+
TXCLK-

Title

Size Document Number Rev

Date: Sheet

of

HDMI ?

<Title>

A

410Monday, June 04, 2007

Title

Size Document Number Rev

Date: Sheet of

HDMI ?

<Title>

A

410Monday, June 04, 2007

Title

Size Document Number Rev

Date: Sheet of

HDMI ?

<Title>

A

410Monday, June 04, 2007

3

1

2

D11
BAV99

D11
BAV99

R96

4.7K

R96

4.7K

3

1

2

D13
BAV99

D13
BAV99

R93 10R93 10

R95

4.7K

R95

4.7K

R1011KR101
1K

1 2

D19

5.6V

D19

5.6V

3

1

2

D10
BAV99

D10
BAV99

R90 10R90 10

1 2

D18

5.6V

D18

5.6V

R99
100

R99
100

3

1

2

D15
BAV99

D15
BAV99

3

1

2

D17
BAT54C

D17
BAT54C

R86 10R86 10
R88 10R88 10

C120

0.1uF

C120

0.1uF

R1000R100
0

R87 10R87 10

3

1

2

D16
BAV99

D16
BAV99

R91 10R91 10

3

1

2

D12
BAV99

D12
BAV99

3

1

2

D9
BAV99D9BAV99

R98
100

R98
100

1

2 3

Q10

3904

Q10

3904

NC

1

NC

2

NC

3

GND

4

SDA

5

SCL

6

WP

7

VCC

8

U12
24C02

U12
24C02

DATA2+

1

DATA2 SHIELD

2

DATA2-

3

DATA1+

4

DATA1 SHIELD

5

DAT1A-

6

DATA0+

7
8

DATA0 SHIELD

DATA0-

9

CLK+

10

CLK SHIELD

11

CLK-

12

CEC

13

NC

14

SCL

15

SDA

16

DDC/CEC GND

17

+5V POWER

18

HOT PLUG

19

20

GND1

21

GND2

22

GND3

23

GND4

P12
HDMI_J

P12
HDMI_J

R89 10R89 10

3

1

2

D14
BAV99

D14
BAV99

R97NCR97
NC

R941KR94
1K

R92 10R92 10

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

BIN+

GIN-

SOG

GIN+
RIN+

VGA-HS
VGA-VS

VGA-R+

VGA-SDA

BIN-

RIN-

VGA-B+

VS_RGB

HS_RGB

VGA-G+

PROTECT

VGA-SCL

TXD

RXD

VGA-SDA

VGA-SCL

GPIO-0

PROTECT

TXD

RXD

VGA/5V

+5v

+5VSTB

+5VSTB

+3.3V

BIN+
GIN+
RIN+
SOG

BIN­GIN­RIN-

HS_RGB
VS_RGB

Title

Size Document Number Rev

Date: Sheet

of

VGA ?

<Title>

Custom

510Monday, June 04, 2007

Title

Size Document Number Rev

Date: Sheet

of

VGA ?

<Title>

Custom

510Monday, June 04, 2007

Title

Size Document Number Rev

Date: Sheet

of

VGA ?

<Title>

Custom

510Monday, June 04, 2007

S

D

S

D

Program Control

R12010R120
10

NC

1

NC

2

NC

3

GND4SDA

5

SCL

6

VCLK

7

VCC

8

U13
24C02

U13
24C02

C122
47nF

C122
47nF

R10310R103
10

1

2 3

Q25
3904

Q25
3904

R174

10k

R174

10k

C125
47nF

C125
47nF

3

2 1

D2 STZ6.2ND2 STZ6.2N

Q18Q18

R117

4.7K

R117

4.7K

3

1

2

D23
BAT54C

D23
BAT54C

R10410R104
10

R10775R107
75

R172 10KR172 10K

R12110R121
10

C128NCC128
NC

R11047R110
47

3

2 1

D21
STZ6.2N

D21
STZ6.2N

C121
47nF

C121
47nF

C129NCC129
NC

R10975R109
75

R123NCR123

NC

R144
100

R144
100

C130

0.1uF

C130

0.1uF
Q19Q19

R122

4.7K

R122

4.7K

R116
10K

R116
10K

175 10175 10

3

2 1

D24
STZ6.2N

D24
STZ6.2N

R170

4.7K

R170

4.7K

R10510R105
10

R173 10R173 10

C126
47nF

C126
47nF

5
10
4
9
3
8
2
7
1

15
14
13
12
11

6

16

17

P13
VGA

P13
VGA

C19

0.1uF

C19

0.1uF

C127
47nF

C127
47nF

R171 1KR171 1K

3

2 1

D25
STZ6.2N

D25
STZ6.2N

C123
47nF

C123
47nF

R118

4.7K

R118

4.7K

R10875R108
75

3

2 1

D22
STZ6.2N

D22
STZ6.2N

3

2 1

D20
STZ6.2N

D20
STZ6.2N

R119

4.7K

R119

4.7K

R11347R113
47

R106
330

R106
330

R1151KR115
1K

R11147R111
47

R1141KR114
1K

C124
1nF

C124
1nF

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

AV2-L

AV2-R

AV2-Lin

AV2-Rin

AV2-V

AV1-V

AV1-L

AV1-R

AV3-R

AV3-L

AV3-V

Pb1

AV1-Vin+

Pr1

AV1-Y

Y1

AV1-Lin

AV1-Rin

Y1

SCB-

SCR­SCG-

SCR+

SCG+

SC_SOG

SCB+

AV1-Cin

AV1-Yin-

AV1-C

AV1-Yin

Y1

Pr1

Pb1

CVBSOut

Scart2_R

Scart2_L

Scart2_Lout
Scart2_Rout

Video_out2SCART2_VOUT Video_out2

AV-SOG

AV3-Vin+

AV3-Lin

AV3-Rin

PC-L

PC-R

PC-Lin

PC-Rin

AMP-Rout+

AMP-Lout+

AV2-R

AV2-L

AV2-V

AMP-Rin

AMP-Lin

OP_VCC2

Scart2_Lout

OP_VCC2

Scart2_Rout

PH-L1out

PH-R1out

+5V

5VPI

6VBuf2

+5V

AV2-Vin+

AV2-Lin

AV2-Rin

AV1-Vin+

AV1-Lin

AV1-Rin

SCR­SCG­SCB-

SCB+

SCR+

SCG+

SC_SOG

AV1-Cin

AV1-Yin

AV1-Yin-

CVBSOut

Scart2_Lout
Scart2_Rout

AV3-Vin+

AV3-Lin

AV3-Rin

PC-Lin

PC-Rin

AMP-PRout+

AMP-PLout+

AMP-Rin

AMP-Lin

Scart2_Lout

Scart2_Rout

PH-R1out

PH-L1out

Title

Size Document Number Rev

Date: Sheet

of

INPUT ?

<Title>

A2

610Monday, June 04, 2007

Title

Size Document Number Rev

Date: Sheet

of

INPUT ?

<Title>

A2

610Monday, June 04, 2007

Title

Size Document Number Rev

Date: Sheet

of

INPUT ?

<Title>

A2

610Monday, June 04, 2007

For SUB AV

AV INPUT

AV Output

S-Video Input (Y/C)

HDTV In

Option

AV Output Audio Amp

R225
47K

R225
47K

R188
NC/75

R188
NC/75

3

21

D39
STZ6.2N

D39
STZ6.2N

3

21

D32
STZ6.2N

D32
STZ6.2N

C145 2.2uFC145 2.2uF

C156 47nFC156 47nF

R14075R140
75

2

5

8

3

6

9

1

1

4

4

7

7

10

10

11

11

L1

R1

V1

V2

L2

R2

P16

AV1

L1

R1

V1

V2

L2

R2

P16

AV1

R224
47K

R224
47K

R152
12K

R152
12K

R189 47R189 47

R195 47R195 47

R197
12K

R197
12K

1

2

3

L

R

GND

P7

AV1X2

L

R

GND

P7

AV1X2

R154 10KR154 10K

C189
100pF

C189
100pF

2

5

8

3

6

9

1

1

4

4

7

7

10

10

11

11

L1

R1

V1

V2

L2

R2

P14

AV1

L1

R1

V1

V2

L2

R2

P14

AV1

C131
680pF

C131
680pF

C183
47uF/16V

C183
47uF/16V

R161
12K

R161
12K

R155
220

R155
220

R184 10R184 10

3

21

D38
STZ6.2N

D38
STZ6.2N

R14175R141
75

3

21

D27
STZ6.2N

D27
STZ6.2N

C146
560pF

C146
560pF

3

21

D29
STZ6.2N

D29
STZ6.2N

C184

0.1uF

C184

0.1uF

1

3 2

Q11
3906

Q11
3906

3

21

D35
STZ6.2N

D35
STZ6.2N

C141
560pF

C141
560pF

C158 47nFC158 47nF

R229
33K

R229
33K

3

21

D36
STZ6.2N

D36
STZ6.2N

R13710R137
10

R145
12K

R145
12K

C140

680pF

C140

680pF

C151 1nFC151 1nF

R158
10K

R158
10K

R156
10K

R156
10K

R14975R149

75

R185 10R185 10

R15175R151
75

R201
12K

R201
12K

6

6

5

5

4

4

3

3

2

2

1

1

7

7

8

8

9

9

10

10

11

11

12

12

P11

CON6_2.0

P11

CON6_2.0

R147
10K

R147
10K

R160 10KR160 10K

R226
10K

R226
10K

3

21

D34
STZ6.2N

D34
STZ6.2N

C136
680pF

C136
680pF

R18610R186
10

R148 10R148 10

C159 47nFC159 47nF

R230
10K

R230
10K

C188

2.2uF

C188

2.2uF

3

21

D30
STZ6.2N

D30
STZ6.2N

3
2

1

84

-

+

U16A
TDA1308

-

+

U16A
TDA1308

R12610R126
10

R157
12K

R157
12K

R124

10K

R124

10K

R12875R128
75

R153
220

R153
220

R13347R133
47

C134
560pF

C134
560pF

R138 10KR138 10K

C193
100pF

C193
100pF

C152 47nFC152 47nF

3

21

D28
STZ6.2N

D28
STZ6.2N

3

21

D26
STZ6.2N

D26
STZ6.2N

R183 10R183 10

C142
560pF

C142
560pF

R150
10K

R150
10K

C163
560pF

C163
560pF

3 4

21

5 7

6

P15

S-VIDEO-Jack

2PJ-4018-001

P15

S-VIDEO-Jack

2PJ-4018-001

R13675R136
75

C162
560pF

C162
560pF

R232
33K

R232
33K

C218
10uF/16V

C218
10uF/16V

R146
330

R146
330

R176 470R176 470

C144 2.2uFC144 2.2uF

C139

0.1uF

C139

0.1uF

5
6

7

84

-

+

U16B
TDA1308

-

+

U16B
TDA1308

R127 10R127 10

R134 10KR134 10K

C143
560pF

C143
560pF

R196
10K

R196
10K

R13975R139
75

R200
10K

R200
10K

CA1 47uF/16VCA1 47uF/16V

3

21

D31
STZ6.2N

D31
STZ6.2N

3

21

D37
STZ6.2N

D37
STZ6.2N

R191 47R191 47

R125

10K

R125

10K

C153 47nFC153 47nF

3

21

D33
STZ6.2N

D33
STZ6.2N

C132

680pF

C132

680pF

R159
12K

R159
12K

C154 47nFC154 47nF

C138
560pF

C138
560pF

C191

2.2uF

C191

2.2uF

C155
680pF

C155
680pF

1

2 3

Q12
3904

Q12
3904

L42 FBL42 FB

R12975R129

75

C185
47uF/16V

C185
47uF/16V

R135
12K

R135
12K

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

TV1-Vin-

TV1-Vin+

POWER-ON/OFF

SIF

AGND

5VA

+5V

33V

+5V

AGND

40V

AGND

TV1-Vin+

TV1-Vin-

SDA_EXT

SCL_EXT

TV-SIFP

TV-SIFM

POWER-ON/OFF

AFT

Title

Size Document Number Rev

Date: Sheet

of

TUNER ?

<Title>

B

710Monday, June 04, 2007

Title

Size Document Number Rev

Date: Sheet

of

TUNER ?

<Title>

B

710Monday, June 04, 2007

Title

Size Document Number Rev

Date: Sheet

of

TUNER ?

<Title>

B

710Monday, June 04, 2007

Close to MST IC

Tuner Power

CVBS Output: Vp-p=1V

NC

R209
120

R209
120

C166
10nF

C166
10nF

R207NCR207
NC

C23NCC23

NC

C173

0.1uF

C173

0.1uF

R21047R210
47

R208

10K

R208

10K

L280 L280

L32FBL32
FB

C177
100pF

C177
100pF

R212
120

R212
120

C174NCC174

NC

C169

0.1uF

C169

0.1uF

+

C171

220uF/16V

+

C171

220uF/16V

+

C164

4.7uF/50V

+

C164

4.7uF/50V

C200
2200PF

C200
2200PF

C167

100nF

C167

100nF

C182

0.1uF

C182

0.1uF

R22010R220
10

L34
22uH

L34
22uH

R203
100K

R203
100K

L290L29
0

C172

0.1uF

C172

0.1uF

L300L30
0

C176
150pF

C176
150pF

S1

1

G1

2

S2

3

G2

4

D1

8

D1

7

D2

6

D2

5

U15
IRF7314

U15
IRF7314

+

C168
47uF/16V

+

C168
47uF/16V

C175
100PF

C175
100PF

R202
51K

R202
51K

C165
10nF

C165
10nF

C181

0.1uF

C181

0.1uF

R205

100K

R205

100K

1

2 3

Q17
3904

Q17
3904

L27
22uH

L27
22uH

R221
22K

R221
22K

R2041KR204
1K

R211

4.7K

R211

4.7K

R20610R206
10

R222
22K

R222
22K

NC1

1

2

NC2

NC33NC44NC55AUDIO6SIF7GND8SCL9SDA10AGC11MB12NC13TU14GND15AFT16VIDEO

17

GND

18

GND

19

GND

20

GND

21

Z1
TUNER_IFZ1TUNER_IF

D47

C33V1

D47

C33V1

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

AMP-R

AMP-L

AMP-MUTE

AMP-PLout+

AMP-PLout­AMP-PRout+

AMP-PRout-

POWER-ON/OFF

AMP-PLout­AMP-PRout-

AMP-PROUT+ AMP-PLOUT+

AMP-Lin
AMP-Rin

EARPHONE-RA

EARPHONE-LA

AMP-LINAMP-RIN

5Vstb

12V-2

+12V_AMP

5Vstb+12V

AMP-L

AMP-R

AMP-MUTE2

POWER-ON/OFF1,2

Title

Size Document Number Rev

Date: Sheet

of

AMPLIFIER TDA7266 ?

<Title>

A3

810Monday, June 04, 2007

Title

Size Document Number Rev

Date: Sheet of

AMPLIFIER TDA7266 ?

<Title>

A3

810Monday, June 04, 2007

Title

Size Document Number Rev

Date: Sheet of

AMPLIFIER TDA7266 ?

<Title>

A3

810Monday, June 04, 2007

AMP-MUTE=1,MUTE;AMP-MUTE=0,ON;

1IN+

4

1OUT-

2

1OUT+

1

2OUT+

15

2OUT-

14

2IN+

12

AMUTE

6

VCC1

3

PWGND

8

SGND

9

VCC2

13

Standby

7

NC1

5

NC2

10

NC3

11

16

16

17

17

18

18

19

19

20

20

21

21

22

22

23

23

U19

TDA7266SA

TDA7266SA+TDA7266NEW

U19

TDA7266SA

TDA7266SA+TDA7266NEW

R244

10K

R244

10K R166

3.3K

R166

3.3K

R163NCR163
NC

1

2

3

4

5

6

7

8

9

10101111121213

13

H2
NC/HOLE-V8H2NC/HOLE-V8

R1620R162
0

R167

3.3K

R167

3.3K

R251
330

R251
330

3

1

2

Q23

3904

Q23

3904

3

1

2

Q24NCQ24
NC

3

1

2

Q22

3904

Q22

3904

R2570R257

0

C199
1000PF

C199
1000PF

1

2

3

4

5

6

7

8

9

10101111121213

13

H1
NC/HOLE-V8H1NC/HOLE-V8

L33FBL33

FB

C195
1nF

C195
1nF

C206
1nF

C206
1nF

1
2

3

4

5

6

7

8

9

P17

PHONE_JACK_STEREO_SW

P17

PHONE_JACK_STEREO_SW

R243

10K

R243

10K

R164

10K

R164

10K

+

C197

100uF/16V

+

C197

100uF/16V

+

C213

470uF/16V

+

C213

470uF/16V

C194
1nF

C194
1nF

C198
1000PF

C198
1000PF

+

C217

220uF/16V

+

C217

220uF/16V

C205

2.2uF

C205

2.2uF

R168NCR168
NC

R252

10K

R252

10K

R2560R256

0

R169NCR169

NC

1

2

3

4

5

6

7

8

9

10101111121213

13

H3
NC/HOLE-V8H3NC/HOLE-V8

+

C212

NC

+

C212

NC

C209

0.1uF

C209

0.1uF

C203

2.2uF

C203

2.2uF

R255

100

R255

100

R253NCR253

NC

R254

10K

R254

10K

C204

1nF

C204

1nF

3

1

2

Q16
3904

Q16
3904

D3

1N4148D31N4148

+

C196
100uF/16V

+

C196
100uF/16V

R165

10K

R165

10K

1

32

Q15
3906

Q15
3906

1

2

3

4

5

6

7

8

9

10101111121213

13

H4
NC/HOLE-V8H4NC/HOLE-V8

R249
330

R249
330

GND

3

GND

1

GND

2

H8

POWERH8POWER

1

1

2

2

3

3

4

4

5

5

P9

CON4_2.54P9CON4_2.54

L31FBL31

FB

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

RXEC-/B5

RXE4-/B1

RXE4+/B0

LHSYNC
LVSYNC
LDE
LCK

RXE1-/G1

RXE1+/G0

RXOC-/R1

RXOC+/R0

RXE3+/B2

RXE2+/B6

RXEC+/B4

RXE3-/B3

RXE2-/B7

RXE0-/G3

RXE0+/G2

RXO4-/G5

RXO4+/G4
RXO3+/G6

RXO3-/G7

RXO2+/R2

RXO1+/R4

RXO2-/R3

RXO0-/R7

RXO1-/R5
RXO0+/R6

RXO3-/G7
RXO3+/G6
RXO4-/G5
RXO4+/G4

RXE0-/G3
RXE0+/G2
RXE1-/G1
RXE1+/G0
RXE2-/B7
RXE2+/B6
RXEC-/B5
RXEC+/B4

RXO0-/R7
RXO0+/R6

RXE3-/B3
RXE3+/B2
RXE4-/B1
RXE4+/B0

RXO1-/R5
RXO1+/R4
RXO2-/R3
RXO2+/R2
RXOC-/R1
RXOC+/R0

LDE

LCK

RXO1+/R4
RXO0+/R6

RXO1-/R5

RXO2+/R2
RXO2-/R3

RXO0-/R7

RXO4-/G5

RXOC-/R1

RXO3+/G6

RXO4+/G4

RXO3-/G7

RXE0+/G2
RXE0-/G3

RXE1-/G1

RXE1+/G0

RXOC+/R0

RXE3-/B3

RXEC-/B5

RXO2-/R3

RXO0-/R7

RXE4-/B1

RXO1-/R5

RXO4-/G5

RXE2-/B7
RXE3-/B3

RXO3-/G7

RXO4+/G4

RXO3+/G6

RXOC+/R0

RXO2+/R2

RXO1+/R4

RXE4+/B0

RXO0+/R6

RXE3+/B2

RXEC+/B4

RXE2+/B6

RXOC-/R1

RXE4+/B0
RXE4-/B1
RXE3+/B2

RXEC-/B5
RXE2+/B6
RXE2-/B7

LVSYNC
LHSYNC

RXEC+/B4

RXE0-/G3
RXE1-/G1

RXE0+/G2
RXE1+/G0

LVSYNC

LDE

VCC-Panel

VCC-Panel

VCC-Panel

VCC-Panel

RXEC-/B5

RXO2-/R3

RXO0-/R7

RXE4-/B1

RXO1-/R5

RXO4-/G5

RXE2-/B7
RXE3-/B3

RXO3-/G7

RXO4+/G4

RXO3+/G6

RXOC+/R0

RXO2+/R2

RXO1+/R4

RXE4+/B0

RXO0+/R6

RXE3+/B2

RXEC+/B4

RXE2+/B6

RXOC-/R1

RXE0-/G3
RXE1-/G1 RXE1+/G0

RXE0+/G2

LHSYNC

LCK

LVSYNC

LDE

Title

Size Document Number Rev

Date: Sheet

of

OUTPUT PANEL

2.0

<Title>

A3

910Monday, June 04, 2007

Title

Size Document Number Rev

Date: Sheet of

OUTPUT PANEL

2.0

<Title>

A3

910Monday, June 04, 2007

Title

Size Document Number Rev

Date: Sheet of

OUTPUT PANEL

2.0

<Title>

A3

910Monday, June 04, 2007

LVDS Interface

C215

0.1uF

C215

0.1uF

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

32

31

J2

DF14-30P-1.25H/LVDS

J2

DF14-30P-1.25H/LVDS

VCC1VCC

2

VCC3VCC

4

VCC5VCC

6

GND7GND

8

GND9GND

10

GND11GND

12

B0+13B0-

14

B1+15B1-

16

B2+17B2-

18

BC+19BC-

20

B3+21B3-

22

GND23GND

24

A0+25A0-

26

A1+27A1-

28

A2+29A2-

30

AC-31AC-

32

A3+33A3-

34

GND35GND

36

TTL

38

TTL

40

TTL

37

TTL

39

P10

CON36

P10

CON36

GND

1

CLK

2

GND

3

REGEN

39

GND

38

INV

40

VS

4

GND

37

HS

5

B7

36

NC

6

B6

35

GND

7

B5

34

R0

8

B4

33

R1

9

GND

32

R2

10

B3

31

R3

11

B2

30

GND

12

B1

29

R4

13

B0

28

R5

14

GND

27

R6

15

G7

26

R7

16

G6

25

GND

17

G5

24

G0

18

G4

23

G1

19

GND

22

G2

20

G3

21

GND

41

SCL

42

SDA

43

VDD

44

VDD

45

VDD

46

VDD

47

NC

48

NC

49

GND

50

51

51

52

52

J1

FH12-50S-0.5SH(NC)

J1

FH12-50S-0.5SH(NC)

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45

4647

J3

CON45/FH-12-45S-0.5SH(NC)

J3

CON45/FH-12-45S-0.5SH(NC)

+

C216
470uF/16V

+

C216
470uF/16V

5

4

3

2

1

D D

C C

B B

A

A

LEDLED

KEY1

LED

KEY0

5VSTB

LEDLED

LED

KEY0

KEY1

IR IR
5VSTB

5VSTB 5VSTB

Title

Size Document Number Rev

Date: Sheet

of

IR&KEY ?

<Title>

Custom

10 10Monday, June 04, 2007

Title

Size Document Number Rev

Date: Sheet of

IR&KEY ?

<Title>

Custom

10 10Monday, June 04, 2007

Title

Size Document Number Rev

Date: Sheet of

IR&KEY ?

<Title>

Custom

10 10Monday, June 04, 2007

K1001:CH+
K1002:CH­K1003:VOL+

K1004:VOL­K1005:MENU
K1006:SOURCE

0.4V 0.8V 1.2V

0.4V 0.8V 1.2V

M61 IR BOARD结构

M61 KEY BOARD结构

E62 IR BOARD结构

E62 KEY BOARD结构

K1001:CH+

K1002:CH-

K1003:VOL+

K1004:VOL­K1005:MENU
K1006:SOURCE

0.4V 0.8V 1.2V

0.4V 0.8V 1.2V

R1002

1.5K

R1002

1.5K

L1001

3.3uH

L1001

3.3uH

124

3

K1005SWK1005
SW

124

3

K1003SWK1003

SW

R1006

1.5K

R1006

1.5K

R1008NCR1008

NC

124

3

K1006SWK1006

SW

R10032KR1003
2K

C1003
10uf

C1003
10uf

R1001

1.2K

R1001

1.2K

1

2

3

P1001

CON6_2.0

P1001

CON6_2.0

321

G1001

AT156BS

G1001

AT156BS

D1002

5.6HSB

D1002

5.6HSB

1

2 3

Q1001
3904

Q1001
3904

124

3

K1006SWK1006

SW

1

3 2

Q1002

1015

Q1002

1015

D1001

5.6HSB

D1001

5.6HSB

124

3

K1002SWK1002
SW

1

3 2

Q1002

3906

Q1002

3906

124

3

K1005SWK1005
SW

1

2 3

Q1001
1815

Q1001
1815

124

3

K1001SWK1001
SW

R10111KR1011
1K

R10111KR1011
1K

R1002

1.5K

R1002

1.5K

R1005

1.2K

R1005

1.2K

R1008NCR1008

NC

R10101KR1010
1K

L1001

3.3uH

L1001

3.3uH

R10072KR1007
2K

+

C1002

47uF/16V

+

C1002

47uF/16V

C1001
22pF

C1001
22pF

124

3

K1004SWK1004
SW

R1001

1.2K

R1001

1.2K

1

2

3

4

P1001

CON6_2.0

P1001

CON6_2.0

1

2

3

P1001

CON6_2.0

P1001

CON6_2.0

2

13

D1001D1001

D1002

5.6HSB

D1002

5.6HSB

R1004NCR1004
NC

1

2

3

4

P1001

CON6_2.0

P1001

CON6_2.0

R1006

1.5K

R1006

1.5K

D1001

5.6HSB

D1001

5.6HSB

124

3

K1002SWK1002
SW

R10101KR1010
1K

R1005

1.2K

R1005

1.2K

C1001
22pF

C1001
22pF

321

G1001

AT156BS

G1001

AT156BS

124

3

K1001SWK1001
SW

124

3

K1003SWK1003

SW

R1004NCR1004
NC

C1004
10uf

C1004
10uf

2

13

D1001D1001

R10072KR1007
2K

C1002

0.1uf

C1002

0.1uf

R10032KR1003
2K

124

3

K1004SWK1004
SW

Power Logic Sequence

Power Supply Unit

inverter 24v

Panel

P2

GND 4

U1/U2

GND 3

12V 2

12V-AMP

1

5Vstb

5V

U6 regulator

U7

3.3V 1.8V

U10 U11

U8

CPU/DECODER/

SCANNER

EEPROM

on-pback

5v

on/off panel on/off

Description:While the power cord plug in, the TV is in
standby situation,power supply unit provide 5Vstb 200mA for
load.There is no 12v amplifier power supply and 24V
inverter voltage supply. The 5Vstb through D7 and regulator
U5 get 3.3VA supply for IC (MST19E),the another path of
circuit is 5Vstb through regulator U6 get 3.3V then
regulated by U7(regulator) get 1.8V supply for
U8(MST19E),drive the LED lighting,and standby circuitry
working,and CPU controlling,reset circuitry,crystal.So that
it makes the CPU can receive and send kinds of command.
while there is turn on command(low level) send out from
Pin150 of U8(MST19E),power supply unit provide 12V and 24V
voltage.12V voltage supply for U1/U2,change to 5V voltage,
regulate by U6, change to 3.3V supply for U8 others
parties. 24V voltage supply for inverter board of Panel.

No Working

YN

NY N

I2C BUS

wokring if

OK

Power supply if

OK

LED if Lighting

check 3 control
voltages(power-

on/off,panel-on/off,on-

pback,) if OK,

check 5vstb voltage

if OK

Check the relevant

circuitry,e.g.U6

check

relevant

circuitry

check working conditions of U8 if OK

crystal/Reset

circuitry working if

OK

U10/U11 power supply and

SCL/SDA

Fig1. No Working

Defect Picture

Check LVDS

interface

assembly if OK

check if all

signal resources

have defect


Check

relevant

signal

channel

YN

replace the panel

remove off the LVDS line, if the

defect picture still have

check RP1 to RP7 and

LVDS line or connector

all signal channel defect

Fig2. Defect Picture

No Picture

NY

YYN

Replace

U8

YYN

check

waveform

of L28 if

regular

Check the

work

conditions

of Tuner

if OK

YY

Fig3. No Picutre

replace U8

Test waveform of Pin49

of U8 if regular

check waveform of L28

if regular

replace Tuner

AV input if have picture

check P4 if assemble

regular

check Q2,Q3,Q4 and

relevant if regular

Check Pin 155 and

Pin156 of U8 if output

regular and test the

working conditions of

U8

YN

YN YN

Replace
U8

Check
Tuner and
R220 and
L29,C181

if Pin3,Pin13,Pin17and

Pin22 no voltage or low

voltage,check relevant

circuitry

Check voltage

of Pin6 of U19

and Q22 and

relevant

Fig4.Picture OK, but No Sound

Check the

speakers

Check the power supply

voltage and mute control

circuitry if regular

Picture Good,but No Sound

increase the volume and press the

mute key on remote control

test waveform of Pin4 and Pin12 of

U19 if OK

Test waveform of

Pin1,Pin2,Pin15 and

Pin16 if OK

test waveform of

Pin54/Pin55 of U8 if

regular
