TCL LCD32B67 SERIES Service Manual

TCL LCD32B67

S

S

E

E

R

R

V

VII

C

C

E

E

M

M

A

A

N

N

U

U

A

A

L

L

LCD TV MONITOR

LCD32B67 SERIES

THESE DOCUMENTS ARE FOR REPAIR SERVICE INFORMATION ONLY. EVERY REASONABLE EFFORT HAS
BEEN MADE TO ENSURE THE ACCURACY OF THIS MANUAL; WE CANNOT GUARANTEE THE ACCURACY OF
THIS INFORMATION AFTER THE DATE OF PUBLICATION AND DISCLAIMS RELIABILITY FOR CHANGES,
ERRORS OR OMISSIONS.

MANUFACTURE DATA ：NOV.- 04-2005

TCL LCD32B67

1

Revision List

Revision Date Modification TPV Model

A00 NOV.- 04-2005 First version release; EJF5MSNDC2TLTM

TCL LCD32B67

2

TABLE OF CONTENTS

1. SPECIFICATIONS FOR LCD TV...........................................................…………...………….. 2-9

1-1 GENERAL SPECIFICATIONS …................................................…………....……………….. 2-9

1-2 LCD TV DESCRIPTION ..................................................…………...……………………….. 9

2. PRECAUTION AND NOTICES .................................................……………..………………… 10

2-1 ASSEMBLY PRECAUTION ..........................................................…………..………………. 10

2-2 OPERATIONG PRECAUTION .....................................................…………..………………. 10

2-3 STORAGE PRECAUTION …........................................................…………..………………. 10

2-4 HIGH VOLTAGE WARNING .......................................................…………...……………….. 10

3. INPUT/OUTPUT SPECIFICATION..............................………………......................………….. 11-12

3-1 CONNECTOR DESCRIPTION……………………………………………………………………. 11

3-2 FACTORY PRESET DISPLAY MODES………………..…..……………………………………. 12

4. ADJUSTMENT.........................................................................……………...……….…………. 13

4-1 ADJUSTMENT CONTROL FUNCTION..............................................………...……………. 13

4-2 ADJUSTMENTS METHOD .............................................................…………...……………. 13

4-3 FRONT PANEL CONTROL KNOBS ................................................…………..……………. 13

5. REPAIR FLOW CHART................................................................………….....……………….. 14-17

6. WHITE-BALANCE, LUMINANCE ADJUSTMENT……………………………………..………… 18-19

7. MECHANICAL INSTRUCTIONS…………………………………………………………………… 20-24

8. SOFTWARE FLOW CHART………………………………………………………..….………… 24-26

9. PARTS LISTING OF CABINET(BOM)…………………………………………..…….………….. 27-54

10. PCB LAYOUT..………………………………………..........................……………...…………… 55-60

10-1 MAIN BOARD PCB LAYOUT.………………………………………………………………….. 55

10-2 IO/TUNER BOARD……………………………………………………………………………… 57

10-3 ADAPTER BOARD PCB LAYOUT……………………………………………………………… 58

10-4 KEY BOARD PCB LAYOUT……………………………………………………………………. 60

10-5 IR BOARD……………………………………………………………………………………….. 60

10-6 PHONE JACK BOARD…………………………………………………………………………. 60

11. BLOCK DIAGRAM ........................................................………………………….……………… 61

11-1 MAIN BOARD BLOCK DIAGRAM……………………………………………………………… 61

11-2 MECHANICAL OF CABINET FRONT DIS-ASSEMBLY…………………………………… 62

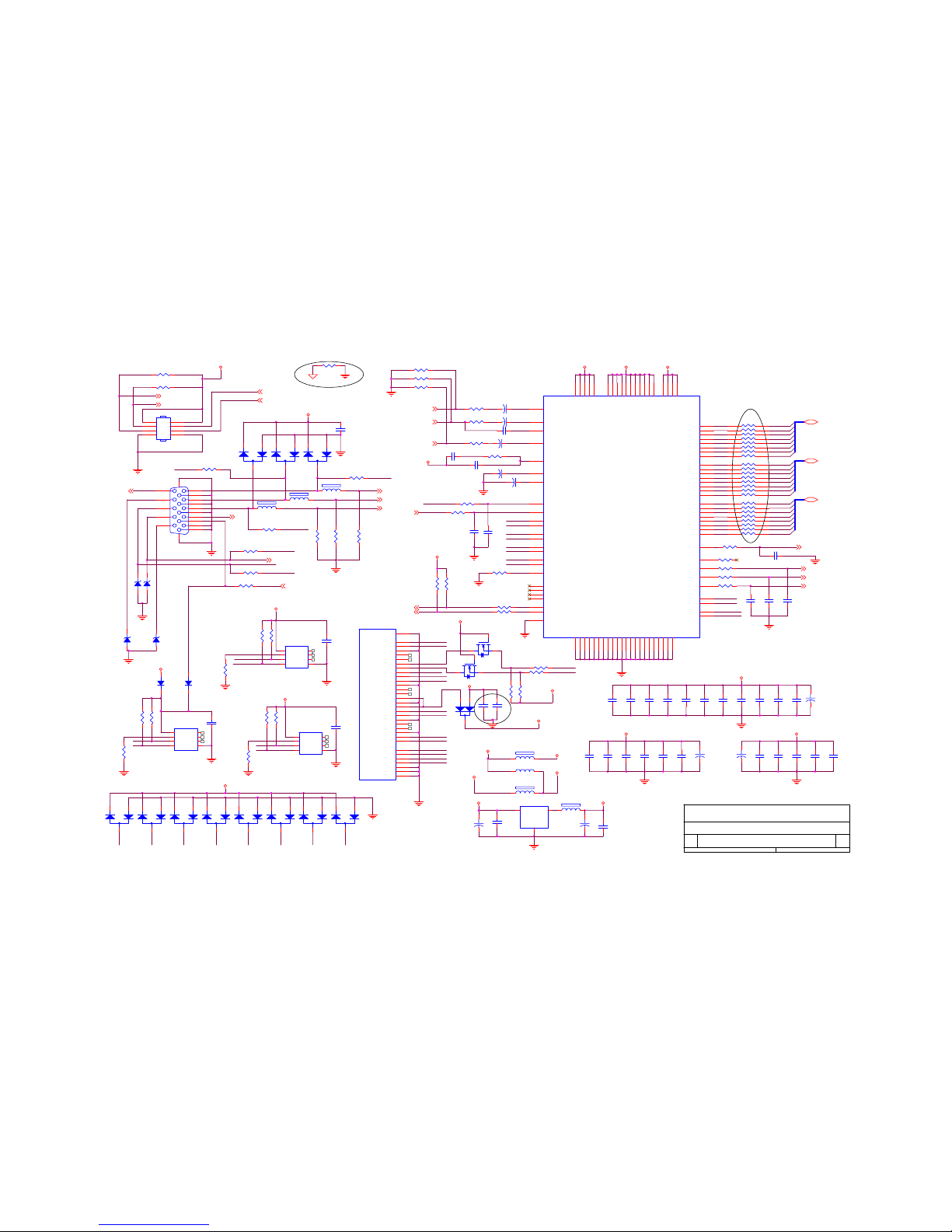

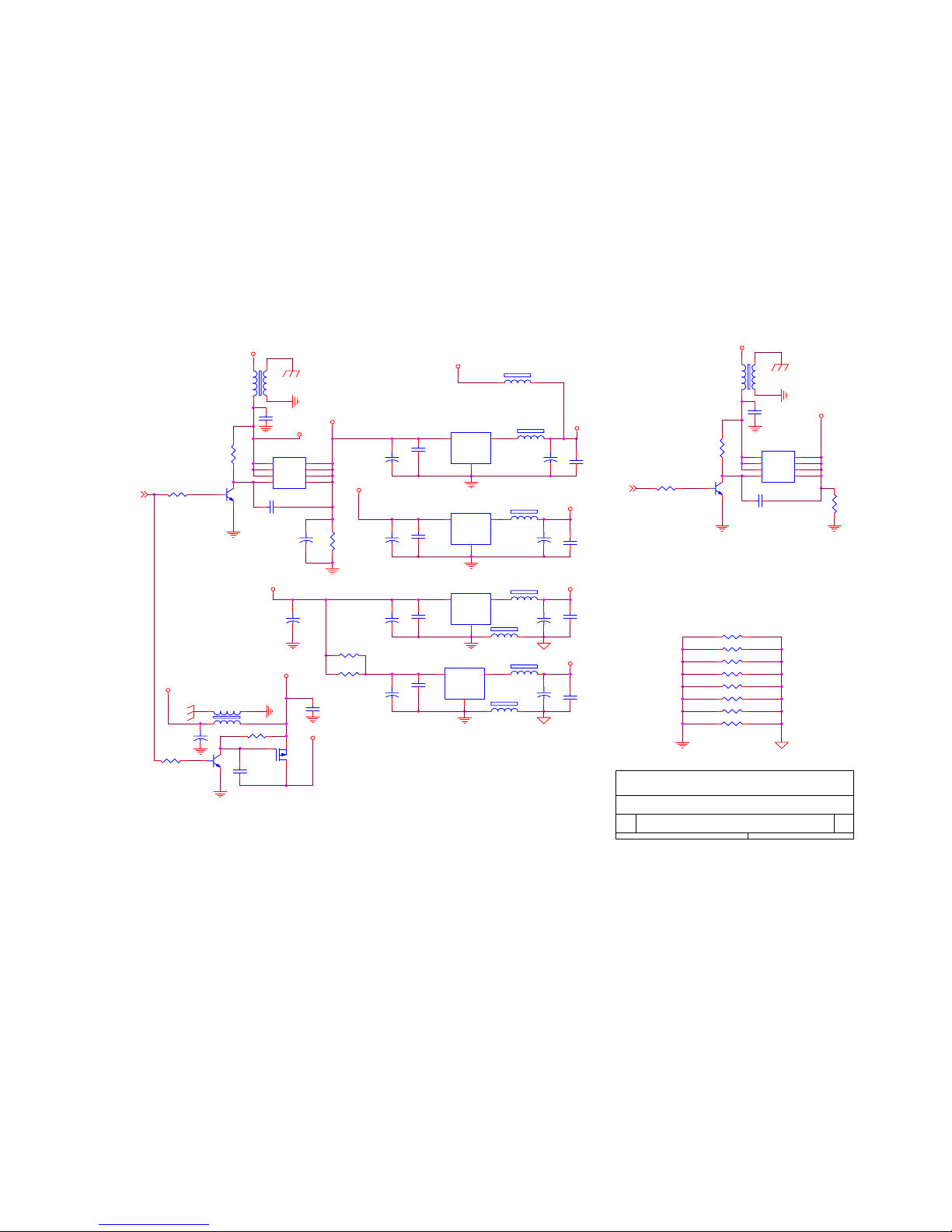

12. SCHEMATIC DIAGRAM……………………………………………………………………………. 63

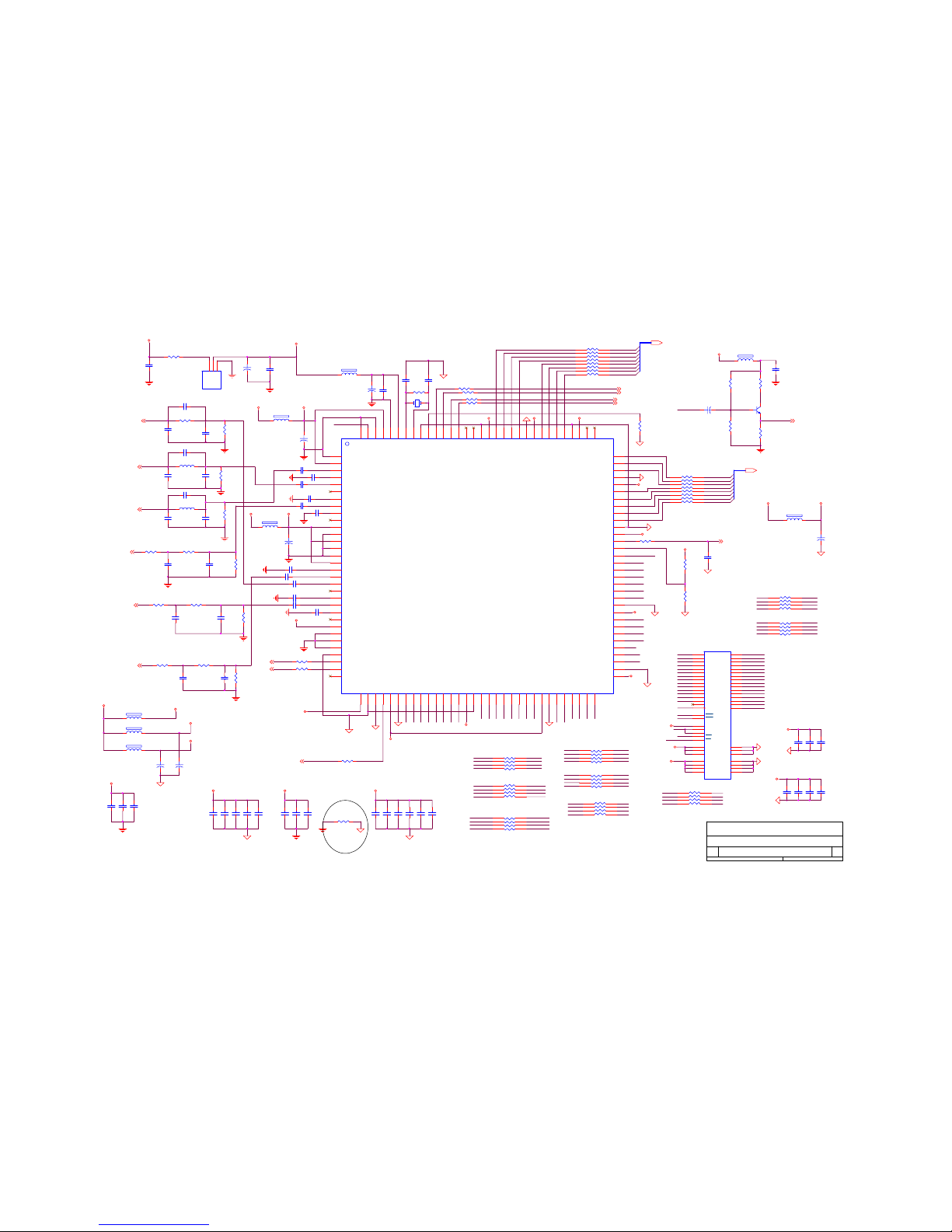

12-1 MAIN BOARD…………………………………………………………………………………….. 63

12-2 ADAPTER BOARD………………………………………………………………………………. 73

12-3 IO/TUNER BOARD………………………………………………………………………………. 75

TCL LCD32B67

3

1. SPECIFICATIONS FOR LCD TV

1-1 GENERAL SPECIFICATIONS

Items

Specification

Screen Size 32” TFT-LCD Panel (CMO)

LCD Panel

Resolution 1366×768 (60Hz)
TV Tuning System PAL B/G、D/K、I、NTSC M,SECOM

TV Function

Sound System NICAM 、A2、BTSC

AV1 RCA ×1 Audio L/R×1

RCA ×1

AV2

S-Video×1

Audio L/R×1 (Share)

Component Y,Pb/Cb,Pr/Cr x 1

Audio L/R ×1

RF

RF×1

Video Inputs

HDMI

HDMI×1

Signal Input Digital:DVI

Signal Input Analog: D-Sub 15 pin (detachable cable)

PnP compatibility DDC 2B

Input frequency Analog: FH: 31.5KHz to 48KHz FV: 60Hz to 75Hz

Recommended 1366 x 768 (60Hz)

PC Input

Input Audio Headphone Mini-jack for stereo (3.5ø)

Video Output Output TV/AV1/AV2 Video output (RCA)

Speaker (built-in): Two 10 watt speakers

Headphone Mini-jack for stereo (3.5ø)

Audio Output Audio Output: L / R

Line Output (RCA L/R)

Other Function PIP
OSD language Simplified Chinese / English

Table Stand Included

Power Supply AC100V~240V, 50/60Hz

Power

Power Consumption <140 W

Temperature

0 °C ~ + 40 °C

Storing temperature

- 25 °C ~ + 60 °C

Environment

Operating Humidity

10% to 85% non-condensing

720 x 400 (70Hz)

640 x 480 (60/75Hz)

800 x 600 (60/75Hz)

1024 x 768 (60Hz)

VGA/DVI support
form

1280 x 720(60Hz)

Dimension W x H x D (with chassis and cabinet) 696 x 443 x 250 (mm)
Weight (net) Kg (w/o Accessories) 17Kg

Accessories

Remote Controller, Batteries (AAA×2), AC Power Cord, D-sub Signal Cable,
Audio Cable, User’s Manual

TCL LCD32B67

4

TO USE THE MENUS

1. Press the MENU button repeatedly to display each menu

2. Use the cursor up/down to select a menu item or adjust the setting of Menu item.

3. Use the cursor left/right to enter a submenu or enable the function.

4. Press the MENU button to exit the menu.

MAIN MENU

Press the MENU button into the main OSD (On Screen Display). Adjust item include VIDEO ADJUST, AUDIO
ADJUST, CH SETTING, COLOR, LANGUAGE, SCREEN MODE, SLEEP TIMER, RESET.

Video Adjust

1: Contrast, Brightness and Saturation are adjusted from 0 to 100.

2: TINT User can adjust the favorable tint while the TV system is NTSC,PAL system can’t support.The adjustment

range is 0 to 100.
3: Black Level is adjusted from 0 to 100.
4: Sharpness is adjusted from -5 to+5.

You can adjust picture contrast, brightness, saturation, tint, black level and sharpness to the levels you prefer.

5: Blue Screen for when no video input screen will be blue or blank. If it’s ON, the screen will be in blue. If it’s OFF,

the screen will be blank. Preset is ON.

6: 3D Mute When the signal is not well,user can start up the function.

7. Reset is set up to default value.

TCL LCD32B67

5

When adjust any item sub-OSD will show up like this.

Audio Adjust

1. Volume is adjusted from 0 to 100.

2. Bourdon is is adjusted from 0 to 100.

3. Alt is adjusted from 0 to 100.

4. BBE Vi VA ON or OFF is for your alternative (when BBE is started , BOURDON and ALT can’t be adjusted).

5. RESET is set up to default value.

You can adjust picture Volume, Bass and Treble to the levels you prefer.

When adjust any item sub-OSD will show up like this.

PIP

1. PIP function is turn on /off small picture

2. Position is move for small picture

3. SIZE big picture or small picture,which is for your choice

4. Source is choose from TV /AV1/AV2/S VIDEO

5. Audio select is choose from MAIN/SUB

TCL LCD32B67

6

Sleep Timer is for set a time period after which the TV should switch itself to standby. The counter runs from 30 > 60
> 90 > 120 minutes.
The timer begins to count down from the number of minutes selected after the display has disappeared.

Note: To view the remaining time, press the SLEEP button once. To cancel the sleep time, repeatedly press the

SLEEP button until--- APPEARS. If you turn the TV off after setting the sleep time, the setting will be erased. Set it

again.

Set up

1. Video System is used for TV broadcasting system,AUTO/NTSC/PAL.

2. Audio System is used for the TV broadcasting audio system, DK system is widely used in China mainland.

3. CH SEARCH Is used for search all the TV programs and memorized them into the interior stock.

There are 120 channels in total for TV.If the remote control is pressed beyond 120 channels,the channel

will be returned back to the previous one automatically.

4.

Manu Scan for search TV Program channel by channel.

After scan a new program, press MENU key, it will be automatically saved in the last channel.

5.

Frequency tuning Tuning of the frequency for the channel so as to get the better effect.

6. CH SWAP save the location of current channel and destination channel for each other .

TCL LCD32B67

7

7. CH SKIP if the setting is ON,the channel is shielded. Pressing the figure key will be entered

into;otherwise,pressing the program key(up and down) is useless.If the channel is to be resumed, it must be

set OFF.

PC Adjust

1. Auto tune is the function auto-sizing for VGA input.

2. Contrast, Brightness, Focus, Clock, H Position, V Position and Color are the functions for PC adjustment.

Color

for you can adjust the color temperature you prefer.

TCL LCD32B67

8

USE THE REMOTE CONTROL

POWER

Press to turn on/off the TV.
The TV is never completely
powered off unless it is
physically unplugged or or
turn off the power switch on
the side.

Video/S-Video

Select your input source to
VIDEO or S-VIDEO

Component/T-LINE

Select your input source to
Component or T-LINE

VGA/DVI

Select your input source to
VGA or DVI
.

TV

Select your input source to
TV

0~9/100 Digit buttons

To select a TV channel

SLEEP

With this key you can set a
time period after which the
TV should switch itself to
standby. Press the key
repeatedly to select the
number of minutes. The
counter runs from
0,15,30,45,60,90,120
minutes. The timer begins
to count down from the
number of minutes
selected after the display
has disappeared.

PIP

Select PIP on/off to display
PC and other sources at
the same time((This
function will be in effect
only during the VGA and
DVI input stage).

VOL
Press ▲or▼ to adjust the
volume.

CH

Press ▲ or ▼ to browse
through the TV channels
which are not erased.

DISPLAY

(1) Display Channel number

when use RF input.

(2) Display input source

when use other input
except TV RF input.

MUTE

Temporarily interrupt the
sound or restore it.

RECALL

To display the previously
selected TV channel.

EFFECT

You can choose your prefer
mode of User 、 STEREO 、
CINEMA、NEWS、DDAS、BBE
ViVA

NICAM

To select Mono /Stereo/Sound
A /Sound B/Sound AB from
TV RF input.

WIDE
Includes 3 modes: Press
repeatedly to select
4:3 /16:9 /

16:9 non-Linear

SWAP

Not support.

MENU

Press repeatedly to display OSD menu.

SOURCE

Press this button to display selected source, press ▲

button to select.

OK

Press the button to confirm selection.

MENU Left/Right button

use this button to confirm selection or adjust the desired
parameter; otherwise, to increase/decrease the volume.

Menu Up/Down button

When in menu mode, use this button to select to the
up/down; otherwise, to change TV channels

TCL LCD32B67

9

1. Input Source Select:

Press repeatedly Source button to select TV, AV1, AV2, S-VIDEO, COMPONENT or PC mode.

2. Input Video Signal:

S-Video level 0.7Vpp: NTSC / PAL / SECAM
Composite Video level 0.7Vpp: NTSC / PAL / SECAM

Video signal termination impedance 75 Ohm

3. Scanning Frequencies:

Horizontal: 31.5 KHz ~ 48.36 KHz
Vertical: 60 Hz ~75 Hz

4. PC factory Preset Timing: 7

Follow VESA standard timing.
Input signal tolerance : H tolerance ± 1 K, V tolerance ±1 Hz

5. Power Source:

Switching Mode Power Supply

AC 100 ~ 240 V ± 5%, 50/60 ± 3Hz Universal Type

6. Operating Temperature: + 0°C ~ + 40°C
Storage Temperature: - 25°C ~ + 60°C

7.

Humidity:

Operating: 10% ± 85% RH
Storage : 5% ~ 85% RH

8. Weight for packed: 20.5 Kg

9. External Connection:

RF Input Connector, 15Pin D-type Connector, 24Pin DVI Connector , AC power-Cord

10. View Angle: 176°(Horizontal) / 176°(Vertical)

12. Plug and Play: VESA DDC2B

13. Power saving: VESA DPMS

1-2 LCD TV DESCRIPTION

The LCD TV will contain a main board (include audio), a switching power board, an IR board, a function
keyboard, a DPF Board and an Ear phone board. The main board and power board will house the flat panel to
control logic I2C bus, DDC, brightness control logic for LCD panel, DC-DC conversion to supply the
appropriate power to the whole board and transmitting TTL level signals into LCD Module to drive the LCD
display circuit.

The inverter board will drive the sixteen CCFLs (Cold Cathode Fluorescent Tube).The switching power
board will provides the power ON/OFF to control the TV and control LED indicator for DPMS.
The function keyboard and Remote Control will provide the OSD control signal to the Main Board.

TCL LCD32B67

10

2. PRECAUTIONS AND NOTICES

2-1 ASSEMBLY PRECAUTION

Please do not press or scratch LCD panel surface with anything hard. And do not soil LCD panel surface by touching
with bare hands (Polarize film, surface of LCD panel is easy to be flawed)
In the LCD panel, the gap between two glass plates is kept perfectly even to maintain display characteristic and
reliability. If this panel is subject to hard pressing, the following occurs :
(a) Uniform color
(b) Orientation of liquid crystal becomes disorder

Please wipe out LCD panel surface with absorbent cotton or soft cloth in case of it being soiled.
Please wipe out drops of adhesive like saliva and water in LCD panel surface immediately.
They might damage to cause panel surface variation and color change.
Do not apply any strong mechanical shock to the LCD panel.

2-2 OPERATING PRECAUTION

Please be sure to unplug the power cord before remove the back-cover. (be sure the power is turn-off)
Please do not change variable resistance settings in MAIN-BOARD; they are adjusted to the most suitable value. If
they are changed, it might happen LUMINANCE does not satisfy the white balance spec.
Please consider that LCD backlight takes longer time to become stable of radiation characteristic in low temperature
than in room temperature.
Please pay attention to displaying the same pattern for very long-time. Image might stick on LCD.

2-3 STORAGE PRECAUTION

When you store LCD for a long time, it is recommended to keep the temperature between 0°C -40°C without the
exposure of sunlight and to keep the humidity less than 85% RH.
Please do not leave the LCD in the environment of high humidity and high temperature such as 60°C, 85%RH.
Please do not leave the LCD in the environment of low temperature; below -25°C.

2-4 HIGH VOLTAGE WARNING

The high voltage was only generated by INVERTER module on Power Board, if carelessly contacted the transformer
on this module, can cause a serious shock. (the lamp voltage after stable around 600V, with lamp current around 8mA,
and the lamp starting voltage was around 1500V, at Ta=25°C)

TCL LCD32B67

11

3. INPUT/OUTPUT SPECIFICATION

3-1 CONNECTOR DESCRIPTION

1. This procedure gives you instructions for installing and using the LCD TV display.

the display on the desired operation and plug the power cord into a convenient AC outlet. Three-wire power cord

must be shielded and is provided as a safety precaution as it connects the chassis and cabinet to the electrical
conduct ground. If the AC outlet in your location does not have provisions for the grounded type plug, the installer
should attach the proper adapter to ensure a safe ground potential.

2. Connect the 15-pin color display shielded signal cable to your signal system device and lock both screws on the
connector to ensure firm grounding. The connector information is as follow:

D-SUB CONNECTOR

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 Red Video 9 5V

2 Green Video 10 Sync Ground

3 Blue Video 11 Not Used

4 Not Used 12 Serial Data for DDC

5 Ground 13 H-Sync.

6 Red Ground 14 V-Sync.

7 Green Ground 15 Serial Clock for DDC

8 Blue Ground

15 - Pin Color Display Signal Cable

1

6

11 15

5

10

DVI CONNECTOR

Pin Meaning Pin Meaning Pin Meaning

1. TMDS Data 2- 9. TMDS Data1- 17. TMDS Data 0-

2. TMDS Data 2+ 10. TMDS Data1+ 18. TMDS Data 0+

3. TMDS Data 2 Shield 11. TMDS Data 1 Shield 19. TMDS Data 0 Shield

4. No Connect 12. No connect 20. No connect

5. No Connect 13. No connect 21. No connect

6. DDC clock 14. No connect 22. TMDS Colck Shield

7. DDC Data 15. Ground 23. TMDS Clock +

8. No Connect 16. Hot Plug Detect 24. TMDS Clock -

24 - Pin DVI Layout

3. S-Video ( Y /C ): TV rear side : 4 pin Mini-DIN female

TCL LCD32B67

12

Component Video: TV rear side : RCA female ( Red / Blue / Green )
TV: TV rear side : IEC type female
AV1,AV2 : TV rear side : RCA female (Yellow )
Audio: TV rear side : RCA female (Red / White )
PC Input audio: 3.5mm Stereo female
Headphone 3.5mm female
HDMI TV rear side

RF TV rear side
Audio Input for AV1,AV2,S-Video, Component Video : RCA female ( Red / White )
Audio line Out ( to another speaker ) : RCA female ( Red / White )

4. Apply power to the display by turning the power switch to the "ON" position and allow about ten seconds for Panel
warm-up. The Power-On indicator lights "GREEN" when the display is on.

5. With proper signals feed to the display, a pattern or data should appear on the screen, adjust the brightness and
contrast to the most pleasing display, or press auto-adju to get the best picture-quality.

6. This TV (with PC function) has power saving function following the VESA DPMS. Be sure to connect the signal
cable to the PC.

7. If your TV requires service, it must be returned with the power cord.

3-2 FACTORY PRESET DISPLAY MODES

Analog RGB Signal Timing

Vertical Horizontal Sync Polarity Presence Screen Mode

Frequency Frequency Horizontal Vertical Horizontal Vertical Normal FULL

Dots × Lines

(Hz) (kHz) (4:3) (16:9)

720 × 400

70.1 31.5 NEG POS YES YES YES NO

59.9 31.5 NEG NEG YES YES YES NO

640 × 480

75.0 37.5 NEG NEG YES YES YES NO

60.0 37.9 POS POS YES YES YES NO

800 x 600

75.0 46.87 POS POS YES YES YES NO

1024 x 768 60.0 48.36 NEG NEG YES YES YES NO

1280 x 720 60.0 44.77 NEG NEG YES YES NO YES

TCL LCD32B67

13

4. ADJUSTMENT

4-1 ADJUSTMENT CONTROL FUNCTION

Adjustments items as below:
4-1.1 Power On / Off.
4-1.2 PC
Auto adjustment for Brightness, Contrast , Pixel Clock Frequency, Focus,
Picture H / V Position and Color Temperature.
Recall Cool, Warn and User color adjust for Color Temperature.

4-1.3 PIP
Position Select, Video source select, Audio main/sub Select.

4-1.4 TV
Channel Up / Down, Channel Search, Volume Bass / Treble adjusts.
Blue screen / Language / System / CH swap /Manual scan / CH Del Add
Reset.

4-1.5 Video
Brightness and Contrast adjust, Saturation adjust,
Sharpness and Black level adjust, Reset

4-2 ADJUSTMENT METHOD

Press MENU key to show OSD window or exit, Up / Down key to done the function selection,
And + / - key to done the adjustment.

FRONT PANEL CONTROL KNOBS

Power Key：This switch shall be visible and accessible on the down right side of front PC frame. Soft Power Switch

(TURN ON SYSTEM) and one push of Soft-Power Switch shall turn on the system.

Power Indicator LED: This LED will illuminate “Green” light when the product is ON and “Orange” light when the

product in stand-by mode.

MENU Key：This switch shall be visible and accessible on the left side of VOL - switches. Once pressed, this key

shall bring up the corresponding OSD menu(s) based on the selected input source.

CH +/-：These two switches shall be visible and accessible on the bottom of front panel control keys. While TV is

selected as input source, activation of these keys will cycle through all available TV channels. While OSD
menu is up, activation of these keys will highlight each available adjustment. The activation time for this
switch includes Press and Hold should be less than half second.

VOL +/-：These two switches shall be visible and accessible on the bottom of front panel control keys. Activation will

increase /decrease loudness of the audio output. In addition, while OSD menu is up, activation of these
keys will regulate a pre-selected adjustment. The activation time for this switch includes Press and Hold
should be less than half second.Source Key：Press to select your input source.

Headphone: This connector is designed purpose to use headphone. Once the headphone connected, then the

speakers will auto mute on audio output.

SOURCE: This switch shall be visible and accessible on the right side of VOL + switches. Once pressed, this key

show the source can select.

TCL LCD32B67

14

5. REPAIR FLOW CHART

Defect Mode Failure Analysis Repair Testing

Completed

NG

Next Step

Missing Line

Bright Dot

Dark Dot

Light Leakage

Mura

Image Sticking

Dot Defect

Brightness Spot

Dot Defect

Particle

Check Panel

Panel Change

No display Check Power Board

Check Main board

Check Panel

Change Panel

Change Main board

Change Power Board

Check Keyboard

Change Keyboard

Check Line Connected
Power board and Minored

Change Wires

Noise

Check Main board

Check Panel

Change Main board

Change Panel

Test

A

Abnormal

Display

TCL LCD32B67

15

Complete

Test

A

NEXT STEP

A

Noise Check Single Cable Change Single Cable

Flicker Check Main board Change Main board

Check Panel

Change Panel

Abnormal
Gray

Check Main board

Change Main board

Check Panel

Change Panel

Check LVD Cable

Change LVDS Cable

R\G\B
Display
Abnormal

Check Single Cable Change Single Cable

Check Main board Change Main board

Check Panel

Change Panel

Monitor

Shut Down

Check Power board Change Power board

Check Keyboard Change Keyboard

Check Main board

Change Main board

No signal Check Single Cable Change Single Cable

Check Main board

Change Main board

Power on
Display

A

bnormal

Check Main board

Change Main board

TCL LCD32B67

16

Change Keyboard or
Main board

Change Keyboard or
Main board or wire

Change Keyboard

Change Main board

Change Main board

Change LVDS Wire

LED Off

Change Keyboard or
Main board or wire

Change Keyboard or
Main board or wire

A

Change Wires

LED Abnormal

LED Dark

LED Display
Abnormal

LED Flicker

Abnormal
Keyboard

Check Wires

Check Keyboard

Check Main board

Abnormal
OSD

Check Main board

Check LVDS Wire

Test

Next step

COMPLETE

TCL LCD32B67

17

Key Board

OSD is unstable or not working

Is Key Pad Board connecting normally?

Connect Key Pad Board

Is Button Switch normally?

Replace Button Switch

Y

N

N

Is Key Pad Board Normally?

Replace Key Pad Board

Y

N

Y

Check Main Board

TCL LCD32B67

18

6. WHITE-BALANCE, LUMINANCE ADJUSTMENT

Approximately 30 minutes should be allowed for warm up before proceeding white balance
adjustment.

Before started adjust white balance ,please setting the Chroma-7120 MEM. Channel 1 to 9300 color, MEM.
channel 2 to 6500 color, MEM. channel 3 to 11000 color,and MEM. channel 4 to 9300 color, ( our 9300 parameter

is x = 283 ± 20, y = 297 ± 20, Y = 350 ± 7 cd/m

2

; 6500 parameter is x = 313 ± 20, y = 329 ± 20, Y = 350± 7 cd/m

2 ;

11000 parameter is x = 274 ± 20, y = 286 ± 20, Y = 460 ± 7 cd/m2 ;9300 parameter is x = 283 ± 20, y = 297 ± 20, Y =
460 ± 7 cd/m

2

;7000 parameter is x = 305 ± 20, y = 320 ± 20, Y = 460 ± 7 cd/m2 )

PC Mode AV Mode

Color Temp.

9300 6500 11000 9300 7000
X 0.283 0.313 0.274 0.283 0.305
Y 0.297 0.329 0.286 0.297 0.320
Y 350 350 460 460 460

How to setting MEM.channel you can reference to Chroma-7120 user guide or simple use “ SC” key and “ NEXT” key
to modify x,y,Y value and use “ID” key to modify the TEXT description
Following is the procedure to do white-balance adjust

․Press Number key 100 Æ 9 Æ 9 Æ 9 will into the factory mode, and press Menu key the OSD will show menu and a

word F at Right top of Menu.

․In the factory mode select MORE function will into Bias and Gain adjustment.

1. ADC Adjustment:
AL Æ Auto level adjust.
RG, GG, BG Æ R, G, B Gain adjust.

RB, GB, BB Æ R, G, B Bias adjust.

2. SCALER Adjustment:
CO, BR Æ Contrast and Brightness adjust.
RG, GG, BG Æ R, G, B Gain adjust.
RB, GB, BB Æ R, G, B Bias adjust.
S9, S6, ST , SH Æ Save 9300, 6500, 9300 color temperature.
R9, R6, RT , RHÆ Recall 9300, 6500, 9300 color temperature.
BI Æ Setup Burn-in mode ON / OFF .
ISP ÆSet ISP ON/OFF .
PP Æ Set PIP ON/OFF .
WH Æ Set Wireless Headphone ON/OFF .
SR Æ Set SRS ON/OFF.
CC Æ Set Close Caption ON/OFF.
VC Æ Set V Chip ON/OFF.
EX Æ Exit MORE function to factory mode menu.

II. Bias (Low luminance) adjustment :

1. Press “ AUTO” button ,

2. Set the contrast on OSD window to the value=51 , color (user )R,G,B set to “50”

3. adjust the brightness on OSD until chroma 7120 measurement reach the value Y>390 cd/m

2

III. Gain adjustment :

A. Adjust 9300 color-temperature :

1. Set the Contrast of OSD function to 45 and Adjust Brightness to chroma-7120 Y>390 cd/m

2

2. Switch the chroma-7120 to RGB-mode (with press “MODE” button )

3. Switch the MEM.channel to Channel 01 ( with up or down arrow on chroma-7120 )

4. The lcd-indicator on chroma-7120 will show x = 283 ± 20, y = 297 ±20, Y = 350 ± 7 cd/m

2

5. Adjust the Color(user)Mode: RED on OSD window, until chroma 7120 indicator reached the value R=100

6. Adjust the Color (user) Mode: GREEN on OSD window, until chroma-7120 indicator reached the value
G=100

7. Adjust the Color (user) Mode: BLUE on OSD window, until chroma-7120 indicator reached the value B=100

8. Repeat above procedure (Item 5,6,7) until chroma-7120 RGB value meet the tolerance =100±2

9. switch the chroma-7120 to xyY mode With press “MODE” button

10. Press Color (9300) on OSD window to save the adjustment result

TCL LCD32B67

19

B. Adjust 6500 color-temperature :

1. Set the Contrast of OSD function to 45 and Adjust Brightness to chroma-7120 Y>390 cd/m

2

2. Switch the chroma-7120 to RGB-mode (with press “MODE” button )

3. switch the MEM.channel to Channel 02 ( with up or down arrow on chroma-7120 )

4. The lcd-indicator on chroma-7120 will show x = 313 ± 20 y = 329 ± 20, Y = 350 ± 7 cd/m

2

5. Adjust the Color(user)Mode: RED on OSD window, until chroma 7120 indicator reached the value R=100

6. Adjust the Color(user)Mode: GREEN on OSD window, until chroma-7120 indicator reached the value G=100

7. Adjust the Color(user)Mode: BLUE on OSD window, until chroma-7120 indicator reached the value B=100

8. Repeat above procedure ( item 5,6,7) until chroma-7120 RGB value meet the tolerance =100 ± 2

9. switch the chroma-7120 to xyY mode With press “MODE” button

10. Press Color(6500) on OSD window to save the adjustment result

C. Adjust 11000 color-temperature:

1. Set the Contrast of OSD function to 45 and Adjust Brightness to chroma-7120 Y>390 cd/m

2

2. Switch the chroma-7120 to AV-mode (with press “MODE” button )

3. Switch the MEM.channel to Channel 03 ( with up or down arrow on chroma-7120 )

4. The lcd-indicator on chroma-7120 will show x = 274± 20, y = 286 ± 20, Y = 460 ± 7 cd/m

2

5. Adjust the Color(user)Mode: RED on OSD window, until chroma 7120 indicator reached the value R=100

6. Adjust the Color(user)Mode: GREEN on OSD window, until chroma-7120 indicator reached the value G=100

7. Adjust the Color(user)Mode: BLUE on OSD window, until chroma-7120 indicator reached the value B=100

8. Repeat above procedure ( item 5,6,7) until chroma-7120 RGB value meet the tolerance =100 ± 2

9. Switch the chroma-7120 to xyY mode With press “MODE” button

10. Press Color (11000) on OSD window to save the adjustment result

D. Adjust 9300 color-temperature:

1. Set the Contrast of OSD function to 45 and Adjust Brightness to chroma-7120 Y>390 cd/m

2

2. Switch the chroma-7120 to AV-mode (with press “MODE” button )

3. Switch the MEM.channel to Channel 04 ( with up or down arrow on chroma-7120 )

4. The lcd-indicator on chroma-7120 will show x = 283 ± 20, y = 297 ± 20, Y = 460 ± 7 cd/m

2

5. Adjust the Color(user)Mode: RED on OSD window, until chroma 7120 indicator reached the value R=100

6. Adjust the Color(user)Mode: GREEN on OSD window, until chroma-7120 indicator reached the value G=100

7. Adjust the Color(user)Mode: BLUE on OSD window, until chroma-7120 indicator reached the value B=100

8. Repeat above procedure ( item 5,6,7) until chroma-7120 RGB value meet the tolerance =100 ± 2

9. Switch the chroma-7120 to xyY mode With press “MODE” button

10. Press Color (9300) on OSD window to save the adjustment result

E. Adjust 7000 color-temperature:

1. Set the Contrast of OSD function to 45 and Adjust Brightness to chroma-7120 Y>470 cd/m

2

2. Switch the chroma-7120 to AV-mode (with press “MODE” button )

3. Switch the MEM.channel to Channel 05 ( with up or down arrow on chroma-7120 )

4. The lcd-indicator on chroma-7120 will show x = 305 ± 20, y = 320 ± 20, Y = 460 ± 7 cd/m

2

5. Adjust the Color(user)Mode: RED on OSD window, until chroma 7120 indicator reached the value R=100

6. Adjust the Color(user)Mode: GREEN on OSD window, until chroma-7120 indicator reached the value G=100

7. Adjust the Color(user)Mode: BLUE on OSD window, until chroma-7120 indicator reached the value B=100

8. Repeat above procedure ( item 5,6,7) until chroma-7120 RGB value meet the tolerance =100 ± 2

9. Switch the chroma-7120 to xyY mode With press “MODE” button

10. Press Color (7000) on OSD window to save the adjustment result

Turn the POWER-button off to on to quit from factory mode ( in USER-mode, the OSD window location was
placed at middle of screen)

TCL LCD32B67

20

7. MECHANICAL INSTRUCTIONS

Step Figure Description

Preparation

Lay the LCD-TV on a
flat, soft and clean
surface.

Remove

the base

Push the clip for base
as the arrowheads.

Remove
the hinge
cover

Remove the hinge
cover as the
arrowheads and the
position by hand.

TCL LCD32B67

21

Remove
the stand

Remove the four
screws to remove
stand.

Remove
the back
cover

1. Remove the five
screws.

2. Remove the back

cover as the
arrowheads.

Remarks:
The arrowheads is the
position of the clips.

Remove
the shield

1. Remove the
thirteen screws

2. Push the shield as
the arrowhead
direction.

TCL LCD32B67

22

Remove
the tuner
cover

Remove the eight
screws

Remove
main and
tuner board

1. Remove the seven
screws

2. Disconnect the
connector

Remove
the power
board

1.Remove the seven

screws

2.Disconnect the

connector

TCL LCD32B67

23

Remove
the
speakers

1. Remove the total
eight screws and
the two connectors
to remove speakers

2. Remove the three
screws to remove
key board

Remove the total
twenty-three screws to
remove the iron piece
and AC switch

Remove
the iron
piece and
the AC
switch

Remove
the bezel

Remove the eight
screws
