LCD19R09 中文维修手册仅用于维修参考
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
目录
1. 安全与注意事项 ----------------------------------------------------------------------------------------------------- 03
2. 技术规格 -------------------------------------------------------------------------------------------------------------- 05
3. 操作说明及工厂模式调整 ----------------------------------------------------------------------------------------- 06
4. 故障处理流程 -------------------------------------------------------------------------------------------------------- 13
5. 拆卸流程图 ----------------------------------------------------------------------------------------------------------- 18
6. PCB 分布图 ----------------------------------------------------------------------------------------------------------- 21
7. 线路图 ----------------------------------------------------------------------------------------------------------------- 27
8. 电气方框图 ----------------------------------------------------------------------------------------------------------- 41
9. 爆炸图 ----------------------------------------------------------------------------------------------------------------- 43
10. BOM ------------------------------------------------------------------------------------------------------------------ 45
2
1. 安全与注意事项
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
为了您的安全
在操作本电视之前，请先仔细阅读本手册，并将本手册保存起来以备将来参考。
重要安全说明
操作设备之前应阅读
1. 阅读这些说明。
2. 遵守这些说明。
3. 注意所有警告信息。
4. 按照所有说明进行操作。
5. 不要在靠近水的地方使用本设备。
6. 只使用干布进行清洁。
7. 不要堵塞任何通风孔，按照制造商说明进行安装。
8. 不要安装在电暖器、散热器、炉子或其它散热设备（包括扩音器）等热源附近。
9. 请务必使用正负极或接地类型的插头，正负极插头带有宽窄两个插脚，接地类型插头带有两个插脚和第
三个接地针脚，宽插脚和第三个针脚均用于安全用途。当提供的插头不能插入您的电源插座时，请找电
工换一个新的插座。
10. 电源线不可被踩到或挤压，特别是在插头、连接插座及设备的出口位置。
11. 只使用制造商指定的附件。
12. 仅与制造商指定或随设备一起销售的推车、底座、三脚架、支架或桌子一同使用。当使用推车时，应小
心移动推车/设备的组合，以避免因翻倒而造成伤害。
13. 应使用标签上标示的电源类型供电给电视。如果您不确定自己家里所使用的电源类型，请向经销商或当
地电力公司咨询。
14. 在雷雨期间或长时间不使用时，请拔下电视的电源插头。
15. 所有维修工作必须由专业维修人员执行。当电视已经损坏时，如电源线或插头损坏，电视内溅入了液体
或异物，电视遭到了雨淋或受潮，不能正常作业，或已经摔坏，则需要进行维修。
16. 本产品可能包含有铅或汞元素，处理这些材料要考虑环境因素。要了解处理或回收的信息，请与当地有
关部门或电子工业联盟（Electronic Industries Alliance）联系：www.eiae.org
17. 需要维修的损坏情况 – 当出现以下情况时应请专业的维修人员进行维修：
A. 电源线或插头损坏。
B. 电视内溅入了异物或液体。
C. 电视遭到雨淋。
。
D. 电视疑似不正常或性能发生明显变化。
E. 电视摔坏或外壳损坏。
3
倾斜度/稳定性 – 所有电视在机壳设计倾斜度和稳定性方面都必须符合建议的全球国际标准。
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
y 请不要在机壳的前面或顶部用强力来检查这些设计标准，这样做可能会使电视翻倒。
y 另外，不要将电子设备/玩具放在机壳上，以免对自己或孩子造成伤害。这些对象可能会意外从电
视机上掉下来，从而造成产品损坏或人身伤害。
18. 墙壁或天花板安装 – 将此设备安装到墙壁或天花板上时，必须遵循制造商的建议。
19. 电力线路 – 室外天线应远离电力线路。
20. 室外天线接地 – 如果外部天线连接到接收器，确定该天线系统已接地，可以提供保护，能防止电涌和
静电聚集。
National Electric Code 的 810 节，ANSI/NFPA No. 70-1984 提供了以下方面的信息：线网正确接地，
天线引入线到天线放电装置的支撑结构接地，接地接头的大小，天线充电装置的位置，接地电极的连接，
以及接地电极的要求。请参阅下图。
按照国家电力法规天线接地的实例
CATV 系统安装者注意：CATV 系统安装者应注意 NEC 的第 820-40 条款，它规定了正确接地的原则，
特别是规定了电缆接地应连接到建筑物的接地系统，并且尽可能靠近天线接入点。
将电源插头连接到墙上插座，请确保电视有电源输入！
21. 异物和液体进入 – 应特别注意不要使异物或液体通过槽孔进入到机壳内。
4
2. 技术规格
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
注：随着系统的不断完善与升级，实际显示和操作有可能会与说明书有细微差别，此现象属正常现象。
5
3. 操作说明及工厂模式调整
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
遥控器按键功能
6
电视菜单操作说明
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
7
8
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
9
控制面板按键功能
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
10
背面连接端子
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
11
工厂模式调整
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
此机种无需做白平衡调整。
进入工厂模式
1. TV 插电开机，开机完毕后，连续按遥控器上的按键：MENU 1 Æ 9 Æ 9 Æ 9，就会显示出工厂菜单。
2. 在 PC 和 COMPONENT mode 下，点击“Auto Color”。
PC mode: TIM = 107; PAT = 42
Component mode: TIM = 311; PAT = 185
以 AOC 工厂菜单为例：
12
4. 故障处理流程
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
4.1 死机(LED 灯不亮)
无LED指示
检测电源线及电源板接口
OK
检测F901,BD901,C905
OK
检测IC901,Q901 更换IC901或Q901
OK
检测T901
OK
检测D904,C915
检测按键板 更换相关元件
NG
NG
NG
更换T901
NG
更换D904,C915
NG
更换F901或BD901或C905
OK
检测C914,C930及其他相关点位
13
4.2 无画(LED 橙色)
换按键板
/遥控板
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
无画
OK
检查按键板/遥控板
NG
检测U701,U703, U707, U708
OK
NG
更换U701,U703, U707, U708
OK
检查U405
NG
更换U405
OK
检查I2C总线
NG
换I2C通信元件
4.3 无显示(LED 绿灯)
检测有无背光
OK
检测LVDS接口和线材
OK
检测U405
OK
检测Q408
NG NG
检测12V供电
OK
检测BL-ON/OFF信号
NG
NG
NG
OK
更换U405
更换Q408
检测PS信号
NG
检测Q708,Q709
NG
OK
检测电源板
更换Q708,Q709
检测Panel
NG
更换Panel
14
4.4 画异
重接信号源
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
画异
OK
更换U405
检查信号源
OK
检查 信号滤波电路
OK
检查输入
AV,S-video Comp,PC,HDMI信号
NG
检查U405
OK
检查LVDS线
NG
NG
NG
TV信号
换 LVDS 线
换 滤波电容，电阻
检查TV制式
OK
检查TU201
OK
NG
重调制式
NG
更换TU201
OK
检查panel
NG
换panel
15
4.5 无声
检测输入信号
更换
检
更换
关闭静音功能
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
检测信号源
OK
检测是否被静音
OK
测405
OK
检测U603
OK
检测喇叭
NG
NG
OK
NG
NG
NG
重接信号源
TV SIF
检测TU201
U405
更换U603
更换喇叭
检测TV制式
NG
NG
重调TV制式
TU201
16
4.6 按键板
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
OSD 不稳定或无法正常工作
按键板连接正常吗？
OK
按键正常吗？
OK
按键板有无故障？
OK
检查主板
NG
NG
NG
接好按键板
更换按键
更换按键板
17
5. 拆卸流程图
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
1. 旋开红圈标示的螺丝，卸掉后盖和支架。
2. 释放线材。
18
3. 旋开红圈标示的螺丝，卸掉主板和电源板。
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
4. 旋开红圈标示的螺丝，卸掉支架铁片，分离前框和 panel。
19
5. The panel。
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
5. 旋开红圈标示的螺丝，卸掉按键板，遥控板，喇叭。
20
6. PCB 分布图
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
6.1 主板
715G3365M01000004K
21
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
22
6.2 电源板
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
715G3465P020HV003M
23
24
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
25
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
6.3 遥控板
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
715G3504 1
6.4 按键板
715G3303 1
26
7. 线路图
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料

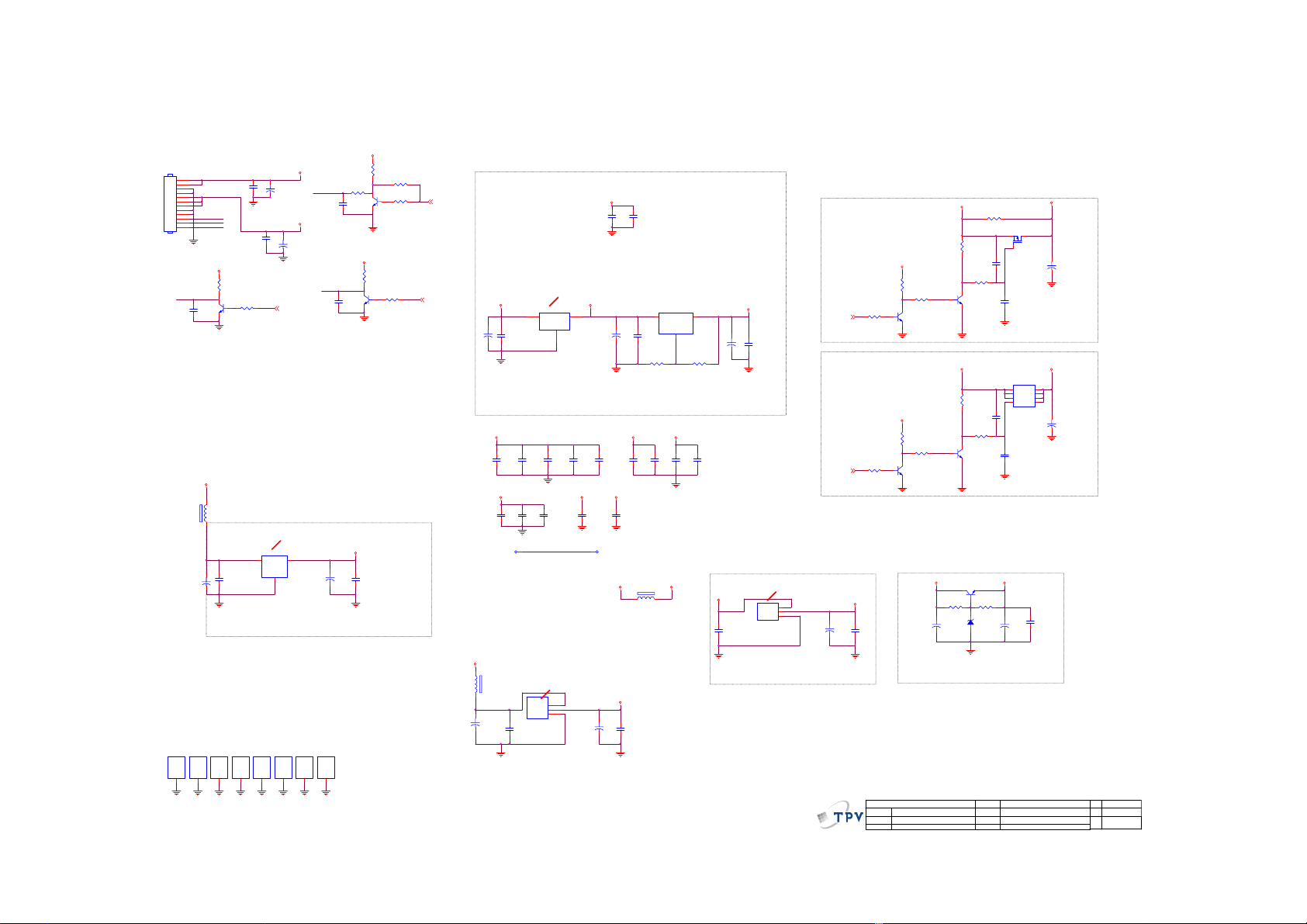

7.1 主板
715G3365M01000004K
33A3802-12B
CONN
CN701
+12V
1
2
3
4
5
6
7
8
9
10
11
12
PWR_ON
FB706
300 OHM
GND
10uF/16V
C701
C730
0.1uF 50V
VCC5
BL_ON1
PWR_ON
V_IPWM
1 2
+
+5V
5VSB
GND
GND
C714
0.1uF 50V
R733
10K OHM 1/10W
Q711
PMBS3904
C738
0.1uF 50V
5VSB
H1
NC
1
1
GND
H4
H2
H3
NC
NC
NC
1
1
1
1
1
GND
GND
GND
V12_ADP
+
C715
470uF/16V
GND
C726
+
0.1uF 50V
C727
470uF/16V
GND
R734
PW_ON 12
1K OHM 1/16W
Add Thermal Pad
U707
3
VOUT2VIN
GND
1
H6
H5
NC
NC
1
1
1
1
1
GND GND
5VSB
V1
NC
1
1
GNDGND
10K OHM 1/10W
V_IPWM
C723
NC
BL_ON1
C728
0.1uF 50V
V33_ADC
V33_ADC
+
C740
220uF/16V
GND
ADC 3.3V
H7
NC
1
1
R719
5VSB
GND
C739
0.1uF 50V
5VSB
R717
10K OHM 1/10W
Q707
PMBS3904
GND
R728
10K OHM 1/10W
Q710
PMBS3904
R718
NC
R720
1K OHM 1/16W
R731
1K OHM 1/16W
BL_ADJ 11
BL_ON 12
10uF/16V
V33_AUD
C702
12
+
2008-11-11
FB709
300 OHM
+
C716
220uF/16V
5VSB
GND
5VSB
5VSB
VCC3
TP402
C712
NC
C720
0.1uF 50V
C737
NC
GND
AZ1117D-1.8-E1
C717
0.1uF 50V
VCC3
Add Thermal Pad
U701
AIC1084-33PM
3
2
VIN
VOUT
ADJ
1
C706
C709
NC
NC
GND
V33_AUD
C744NCC745
NC
GND
E_PAD
Add Thermal Pad
3
INPUT
2
OUTPUT
1
ADJ/GND
U703
VCC3
GND
VCC3
GND
3.3V StandBy
C710
C711
NC
NC
VCC8
C746
NC
GND
TP403
V33_ADC
VCC18
2008-10-6
VCC18
+
C718
220uF/16V
+
GNDGND
C748
0.001uF
C741
220uF/16V
C747
NC
V12_ADP
FB701
1 2
300 OHM
C721
0.1uF 50V
C749
0.001uF
3
C724
0.1uF 50V
R702
0 OHM 1/10W
C729
NC
U708
AIC1084-18PM
C731NCC732
V33_AUD
OUT2IN
GND
1
R703
NC
5V TO 3.3V TO 1.8V
VCC5
C736
NC
NC
GND
VCC5
C733
NC
VCC5
VCC18_CORE
+
C742
C743
0.1uF 50V
220uF/16V
GND
Add Thermal Pad
U705
VIN
VOUT
ADJ(GND)
NC
2009-1-22
3
2
1
SYS_PW
Normal: Low
Stand_By: High
12V SW
POWER_ON12
SYS_PW
Normal: Low
Stand_By: High
5V SW
POWER_ON12
V33_AUD
+
C734
NC
AUDIO 3.3V
5VSB
R713
1K OHM 1/16W
GND
5VSB
R729
1K OHM 1/16W
GND
V33_AUD
C735
NC
GNDGND
VCC12
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
03.Power
Date
R709
10K OHM 1/10W
R712
1K OHM 1/16W
Q705
PMBS3904
R725
10K OHM 1/10W
1K OHM 1/16W
Q709
PMBS3904
R727
VCC12
330R 1/10W 5%
+
R701
C703
100uF/16V
V12_ADP
R704
22K OHM 1/16W
Q704
PMBS3904
GND
5VSB
R716
22K OHM 1/16W
Q708
PMBS3904
GND
Q703
PMBS3904
1 2
GND
FB702
R710
10K OHM 1/16W
R726
10K OHM 1/16W
R705
NC
ZD701
RLZ9.1B
OEM MOD EL
TPV MODE L
PCB NAME
Sheet
2008-12-17
NC
Q702 AO3407
C707
0.1uF 50V
C713
4.7uF/16V
GND
Q706
1
S
2
S
3
S
4
G
AO4449 -7A/-30V
C719
0.1uF 50V
C725
4.7uF/16V
GND
VCC8
VCC8
+
C704
100uF/16V
AUDIO M UX /
Amplifi er 8 V
715T3365
412Tuesday, J uly 21, 2009
of
VCC12
+
C708
100uF/16V
GND
VCC12
VCC5
8
D
7
D
6
D
5
D
+
C722
100uF/16V
GND
VCC5
C705
0.1uF/16V
A2
Size
Rev
F
<
称爹
>
称爹
27

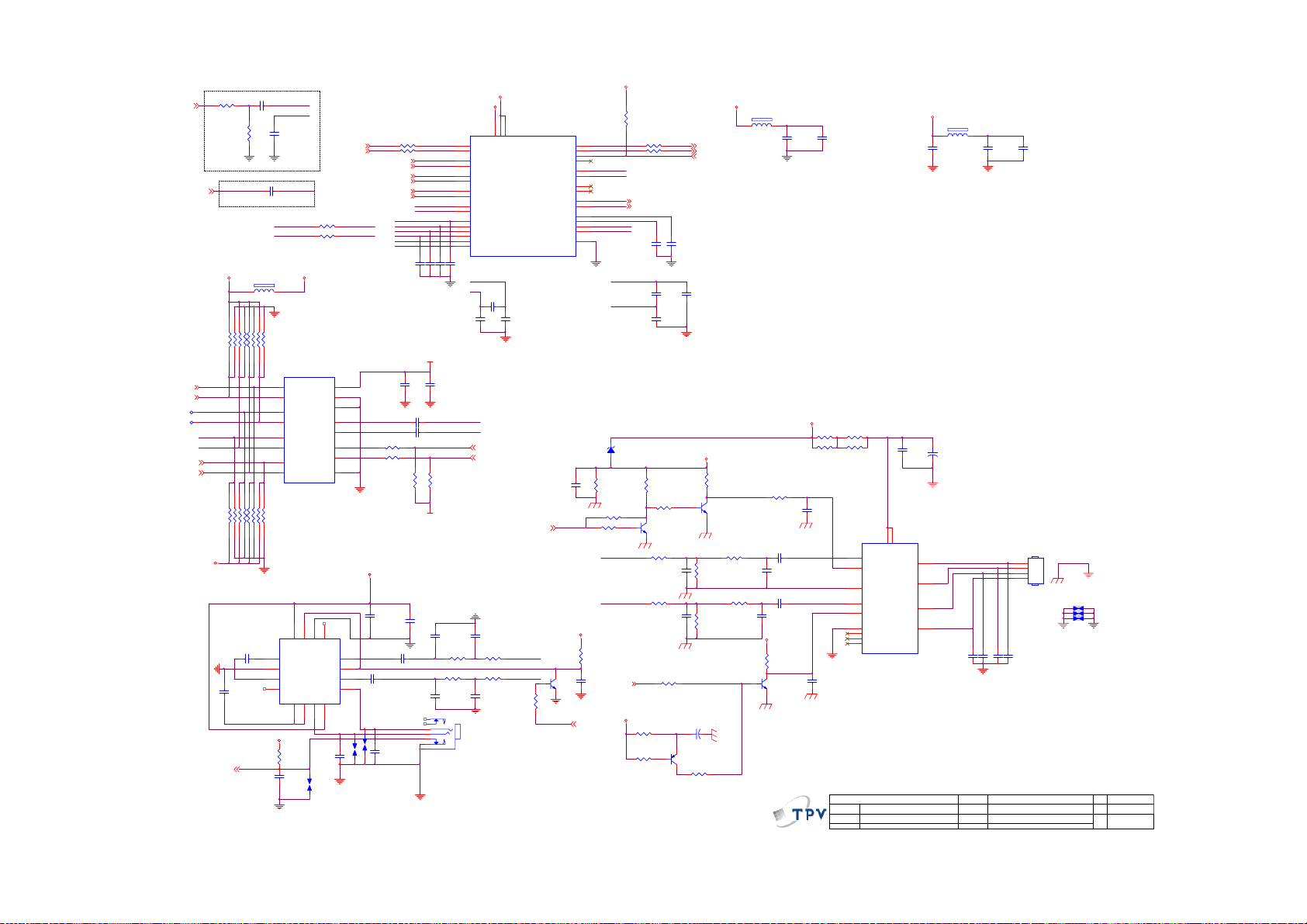

TMDS C-
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
TMDS C+
TMDSD0-
TMDSD0+
TMDSD1-
TMDSD1+
TMDSD2-
TMDSD2+
DSHLD0
DSHLD1
DSHLD2
CSHLD0
DDC_GND
SHLD_GN D1
SHLD_GN D2
HDMI
SCL
SDA
CEC
HPD
VCC5
SHLD1
SHLD2
SHLD3
SHLD4
SHLD5
NC
CN301
12
10
9
7
6
4
3
1
15
16
13
19
18
14
2
5
8
11
17
20
21
22
23
24
25
26
RXACLKN_M2
RXACLKP_M2
RXA0N_M2
RXA0P_M2
RXA1N_M2
RXA1P_M2
RXA2N_M2
RXA2P_M2
DDCA_SCL
DDCA_SDA
HDMIA_CEC
12
SP302
SP303
SP304
SP305
12
SP309
SP310
SP311
HDMIA_HPD
HDMIA_5VIN
12
12
12
SP306
SP307
SP301
SP308
12
12
R303
1K OHM 1/16W
12
12
12
12
HDMIA_5VIN
HDMIA_CEC
DDCA_SCL
DDCA_SDA
R316 47K 1/16W 5%
Q302
PMBS3904
R304
10K OHM 1/10 W
U304
1
2
4
5
IN1
IN2
IN3
IN4
OUT1
OUT2
OUT3
OUT4
GND
GND
3
8
HPDA 9
NC
10
9
7
6
HDMIA_CEC
DDCA_SCL
DDCA_SDA
HDMIA_5VI NHDMIA_5VI N
U302
1
IN1
2
IN2
4
IN3
IN45OUT4
U303
1
IN1
2
IN2
4
IN3
IN45OUT4
NC
10
OUT1
9
OUT2
7
OUT3
6
GND
GND
3
8
NC
10
OUT1
9
OUT2
7
OUT3
6
GND
GND
3
8
RXACLKN_M2 9
RXACLKP_M2 9
RXA0N_M2 9
RXA0P_M2 9
RXA1N_M2 9
RXA1P_M2 9
RXA2N_M2 9
RXA2P_M2 9
5VSB
R302
10K OHM 1/10W
5VSB
D301
BAT54C
HDMIA_5VIN
HDMIA_5V_EEPR OM
C304
NC
U301
1
A0
VCC
2
A1
WP
3
A2
SCL
VSS4SDA
NC
8
7
6
5
47K 1/16W 5%
R309
R317
DDC A_SCL
DDC A_SDA
D302
NC
1 2
5VSB
R310
47K 1/16W 5%
R311
NC
R312 0R05 1/10W 5%
R313 0R05 1/10W 5%
NC
NC
D303
1 2
EDID _WP 12
DDCHA_SCL 9
DDCHA_SDA 9
28
HDMIA_CEC
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
Date
04.HD MI
HDMIA_5VIN
5VSB
OEM MODEL
TPV MOD EL
PCB NAME
Sheet
R305
10K OHM 1/ 10W
VCC3
R306
1K OHM 1/ 16W
R308
1M 1/10W 5%
2N7002
Q301
715T3365
512Tuesday , July 21, 2009
of
HA5V_DET
Q303
PMBS3904
R307
27K OHM 1/ 16W
HA_CEC 9
HA5V_DET 11
Size
Rev
称爹
A3
F
<
称爹
>
TGN D
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
RF_AGC
+5VT
TSCL
TSDA
ADS
IF+OUT
IF-OUT
IF_AGC
AS_IF
SIF
TV_C VBS
+5VT
TUN_AUD
+5VT
R202
NC
ADS
R204
0 OHM 1/10W
SH201
SH202
SH203
SH204
SH205
SH206
SH207
GND
TU201
1
NC
2
NC
3
Vb
4
SCL
5
SDA
6
AS
7
NC
8
NC
9
NC
10
NC
11
IF_SOUND
12
CVBS
13
VS
14
AF_SOUN D
M15WPP-2PN-E
TGND
5V for Tuner
C206
0.1uF 50V
GND
VCC12
R203
R205
T_CVBS
Put Near
to IC
SCL_A_Tuner 12
SCL_A 11
SDA_A 11
SDA_A_Tuner 12
47 OHM 1/2W
47 OHM 1/2W
C203
100uF/16V
T_CVBS 9
+
GNDGND
TUN_AUD10
TUN_AUD
SIF
SIF10
R208
100 OHM 1/10W
R210
56 OHM 1/16W
R237
0R05 1/16W
R221
NC
R238
0R05 1/16W
R223
NC
+5VT
C208
220PF50V
R207
18R OHM 1/16W 5%
R206
TGND
R220 NC
C215
NC
C220
TGN D
NC
TV_C VBS
R218
NC
TGN D
TGND
2.2uH
C207
220PF50V
R212
NC
15
TH1
16
TH2
17
TH3
18
TH4
TGND
AS_IF
TSCL
TSDA
Add T herm al Pad
U202
AZ1117D-5.0-E1
3
OUTPUT
INPUT
ADJ/ GND
1
C202
0.1uF 50V
TGN D
IF_AGC
RF_AGC
FB202
R219
NC
R216
NC
TGND
300 OHM
C205
0.1uF 50V
2
+
C204
100uF/16V
C213
NC
TGN D
C212
NC
TGN D
+5VT
+5VT VCC3
R224
NC
NC
Q202
1
R222
NC
+5VT
R213
NC
NC
Q201
1
R217
NC
VCC3
1
R215
NC
IFAGC 10
1
R214
NC
RFAGC 10
IF+OUT
IF-OUT
C229
C230
NC
NC
L208
NC
C227
C239
L206
NC
NC
L207
NC
NC
C234 NC
C228
NC
C240
NC
Put Near to tuner Put Near to IC
ADCINP 10
GND
ADCINN 10
29
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
05.TUNER
Date
OEM MO DEL
TPV MODEL
PCB NAME
Sheet
715T3365
612Tuesday, July 21, 2009
of
Size
Rev
称爹
A3
F
<
称爹
>
VGASDA_IN
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
VGA_VIN
VGASCL_IN
CN102
DSUB15-F EM
VGA PIN DEF IINITION
1 R_OUT
2 G_OUT
3 B_OUT
4 NC
5 GND
CN103
PHONEJ ACK
SP105
NC
3
2
1
11
12
13
14
15
1716
18 19
6 R_GND
7 G_GND
8 B_GND
9 +5V(DDC)
10 GND
VGA_AUR_O
VGA_AUL_O
12
SP106
NC
12
6
1
7
2
8
3
9
4
10
5
D108
NC
RED_GND
RED
GRN_GND
GRN
BLU_GND
BLUVGA_HIN
VGA_5V
11 NC
12 DDC SDA
13 TTL H-S
14 TTL V-S
15 DDC SCL
12
D109
R117
27K OHM 1/16 W
R118
27K OHM 1/16 W
12
1 2
1 2
FB101
80 OHM
1 2
1 2FB102
R106
2.2K OHM 1/ 10W
80 OHM
R112
2.2K OHM 1/ 10W
R103
33R 1/10W 5%
R111
33R 1/10W 5%
C103
NC
C109
NC
VSYN C
HSYNC
VSYN C 9
HSYNC 9
FB604
100R 1/10W 5%
ZD602
NC
1 2
FB605
100R 1/10W 5%
ZD603
NC
1 2
SP102
NC
UART_TX 11
SP103
NC
SP104
NC
UART_RX 11
R/G/B : 75 Ohm Trace
GRN
12
12
D103
GRN_GND
RED
12
12
D104
RED_GND
BLU
12
12
D106
NC
BLU_GND
R107
75R
R110
75R
R114
75R
1 2
C104
NC
1 2
C107
NC
1 2
C111
NC
R104
60 OHM
R108
60 OHM
R101
60 OHM
RGB_G1
C105
NC
RGB_R1
C108
NC
RGB_B1
C112
NC
R102
390 OHM 1/10W
R105
390 OHM 1/10W
R109
390 OHM 1/10W
R113
390 OHM 1/10W
C102
100pF
C101
0.047uF
C106
0.047uF
C110
0.047uF
SOGAIN 9
GAIN 9
GND
RAIN 9
GND
BAIN 9
GND
VGA_VIN
D102
RLZ5.6B
VGA_HIN
D105
RLZ5.6B
Near to IC
5VSB
R123
NC
R124
NC
VGA_AUR 10
C115
10uF/16V
C116
10uF/16V
VGA_AUL 10
VGA_5V
D133
NC
D101
BAT54C
VGA_5V_EEPROM
C117
0.22uF
U101
1
A0
2
A1
3
A2
VSS4SDA
NC
VCC
SCL
5VSB
R121
R120
R119
4.7K
8
7
R144
VGASCL_IN
VGASDA_IN
SP108
NC
NC
12
12
WP
6
5
SP109
NC
4.7K
NC
R125
100 OHM 1/10W
R127
100 OHM 1/10W
EDID _WP 12
VGA_DDCSCL 9
VGA_DDCSDA 9
YPbPr1 INPUT
CN104
JACK
Y1_I N
2
1
PB1_IN
4
3
PR1_IN
6
5
COM1_AUL_O
8
7
COM1_AUR_O
10
9
Y_GND
PB_GND
PR_GND
SP110
NC
SP111
NC
SP114
NC
12
12
12
D111
NC
Y_GND
D112
NC
PB_GND
PR1_IN
D115
NC
PR_GND
Y1_I N
12
12
12
R128
0R05 1/10W 5%
C121
75R
R132
0R05 1/10W 5%
C127
75R
R135
0R05 1/10W 5%
C130
75R
C128
NC
C131
NC
C122
100PF
Y2_I N
PB2_IN
PR2_IN
30
COM1_AUL_O
COM1_AUR_O
12
SP112
SP113
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
06.VGA/Y PbPr Connector
Date
R198
NC
C124
4.7uF/16V
C125
4.7uF/16V
Size
Rev
称爹
COM1_AUL 10
COM1_AUR 10
A3
F
<
称爹
>
R195
20K OHM 1/ 10W
R196
20K OHM 1/ 10W
12
OEM MO DEL
TPV MOD EL
PCB NAME
Sheet
12
D114
NC
715T3365
712Tues day, Jul y 21, 2009
R197
NC
of
12
D113
CN101
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
2
1
4
3
6
5
5105-870-083-98
CN107A
NC
12
SC_IN SY_I N
SC_GND
7 8
CY
9 10
GG
13
S-video
CN107B
CN108
5105-875-092-A4
NC
2
1
4
3
6
5
2
1
4
3
6
5
CVBS & R/L
SVAV_AUL
SVAV_AUR
SP125
NC
12
SP126
NC
12
12
D126
NC
NC
AVI/Y1
SCA1I _L
SCA1I _R
D127
SY_GND
11
R162
27K 1/16W 5%
R165
27K 1/16W 5%
12
CVBS_IN
CVBS_GND
SVAV_AUL
SVAV_AUR
R193 NC
R192 NC
SP127
NC
SP131
NC
SP132
NC
SP115
NC
SCA1I_L
SCA1I_R
SP117
NC
12
CVBS_IN
12
CVBS_GND
SY_I N
12
SY_GND
SC_IN
12
SC_GND
AVI/Y1
D116
NC
AV_G1
12
SP118
NC
C149
4.7uF/ 16V
C151
4.7uF/ 16V
D130
NC
D131
NC
D132
NC
R138
12
2.2uH
C134
NC
12
12
D117
D118
NC
NC
12
C159
NC
R182
12
C164
NC
R186
12
C167
NC
SV/AV_AUL 10
SV/AV_AUR 10
C135
220pF
R141
27K 1/16W 5%
R143
27K 1/16W 5%
12
R175
2.2uH
NC
NC
R139
18R OHM 1/16W 5%
C160
220pF
C165
NC
C168
NC
R142
56 OHM 1/16W
R190
NC
R174
18R OHM 1/16W 5%
R183
NC
R187
NC
Near to IC
R140
100R 1/10W 5%
R191
NC
R176
R179
56 OHM 1/16W
NC
R185
NC
R188
NC
R189
NC
C132
0.1uF 50V
C133
4.7uF/ 16V
C136
4.7uF/ 16V
100R 1/10W 5%
R184
SCR_Y 9
GND
SCR_AU_L 10
SCR_AU_R 10
Audio Input
C158
0.1uF 50V
GND
C163
NC
GND
C166
NC
GND
Csync/CVBS/
S-Video(Y)
Inp ut
CVBS 9
SV_Y 9
SV_C 9
CVBS signal output
CN106
NC
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
Date
SCA1O_L
SCA1O_R
2
1
SCA1O_L
4
1 2
SP129
3
SCA1O_R
6
1 2
SP130
5
07.SCART SV/AV
D120
NC
D123
NC
12
SP128
NC
12
12
C156
NC
FB104
NC
1 2
C161
NC
R152
NC
GND
OEM MODEL
TPV MODEL
PCB NAME
R177
NC
C162
NC
Sheet
R158
NC
VCC5
23
715T3365
812Tuesday, July 21, 2009
NC
Q107
NC
Q104
Q105
NC
1
R178
NC
of
C140
NC
C145
NC
SCR_AUOUT_L 10
Audio Output
OFF_MUTE
R153
NC
SCR_AUOUT_R 10
OFF_MUTE
R159
NC
R172
R173
NC
NC
Q108
NC
R181
R180
NC
NC
GNDGN D
C157
NC
OFF_MUTE 12
OFF_MUTE 12
CVBS_O 9
C169
NC
Size
Rev
称爹
A3
F
称爹
>
<
31
V33_ADC
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
1 2
C305
10uF/16V
VCC18
1 2
FB306 300 O HM
VCC18
VCC3
FB303
1 2
300 OHM
C316
10uF/16V
FB307
1 2
300 OHM
FB302
300 OHM
0.1uF 50V
HDMI 3.3V POWER
V33HDMI
C306
C307
0.1uF 50V
GNDGND
V18_33HD MI
C312
C313
0.1uF 5 0V
0.1uF 5 0V
GND
AVDD18
C317
0.1uF 5 0V
GNDGND
C330
100pF
C318
0.1uF 50V
V33ADC _PLL
C328
0.1uF 50V
GND
C314
0.1uF 50V
C329
0.1uF 5 0V
HPDA5
HA_CEC5
DDC HA_SDA5
DDC HA_SCL5
VGA_DDCSD A7
VGA_DDCSCL7
Slave IIC
RXACLKN_M25
RXACLKP_M25
RXA0N_M25
RXA0P_M25
RXA1N_M25
RXA1P_M25
RXA2N_M25
RXA2P_M25
V33HDMI
VGA_DDCSCL
VGA_DDCSDA
R315
0 OHM
R318 390 OHM 1/10W
R301
R319
CN302
1
2
3
4
JST-4-2.0
33A3802-4B
0 OHM
0 OHM
GND
REXT
AVDD18
V18_33HDMI
V33HDMI
U405A
3
HDMI_RXACKN
4
HDMI_RXACKP
6
HDMI_RXA0N
7
HDMI_RXA0P
8
HDMI_RXA1N
9
HDMI_RXA1P
10
HDMI_RXA2N
11
HDMI_RXA2P
170
GPIO_52/H PD
171
GPIO_53/C EC
172
GPIO_54/HDMIDDC_SDA
173
GPIO_55/HDMIDDC_SCL
13
EXT_R
168
GPIO_47/DSUBDDC_SDA/UART_TX1
169
GPIO_48/D SUBDDC _SCL/UAR T_RX1
2
VSSD(0V)
17
VSSDP_AD (0V)
42
VSSA_AD(0V)
174
VSSD_AL(0V)
HX6201-A
176
1
175
12
5
DVCC(1.8V)
AVDD33_RX
VDD18(1.8V)
VDDA_AL(1 .8V)
VDDD _AL(1.8V)
HDMI /ADC
V33ADC1
45
36
VDDD_AD (3.3V)
BVDDA_ AD(3.3V)
0.1uF 5 0V
V33ADC_PLL
C315 0.1U F16V
C319 0.1U F16V
14
22
19
C333 0.1U F16V
HSYNC
VSYN C
AINA1
AINB1
SOG1
VDDA_AD(3. 3V)41VDDA_AD(3. 3V)
VDDP_AD(3. 3V)
VDDD P_AD(3.3V)
AINC1
C334 0.1U F16V
SOG2
AINA2
AINB2
AINC2
SOG3
AINA3
AINB3
C320 0.1U F16V
AINC3
AIND1
AINA5
AINB4
AINC4
C321
AIND4
AOUT1
AOUT2
AIN0_F AD
AIN1_F AD
GND GND
AIN2_F AD
VMIDS
VREF
FILT
ADC_VR EF
C301
0.01UF 25V
18
15
16
23
24
25
26
27
28
29
30
31
32
33
34
35
37
38
39
40
C322
10uF/16V
43
44
48
47
46
20
21
R314
1K621/10W
C323
0.1uF 50V
VMID
V33ADC_PLL
C311
0.1UF 16V
HSYNC 7
VSYN C 7
BAIN 7
GAIN 7
SOGAIN 7
RAIN 7
GND
SCR_Y 8
SOY1 7
Y1 7
PB1 7
PR1 7
SV_Y 8
SV_C 8
CVBS 8
T_C VBS 6
CVBS_O 8
C324
10uF/16V
GND
GND
ADC 3.3V POWER
C325
10uF/16V
1 2
1 2
300 OHM
FB301 300 OHM
V33ADCV33AD C
FB305
C327
0.1uF 50V
C326
0.1uF 50V
V33ADC1
C331
0.1uF 50V
GNDGND
C332
0.1uF 5 0V
GND
V33_ADC
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
08.M2D HDMI/Analog I/O
Date
32
OEM MODEL
TPV MODEL
PCB NAME
Sheet
715T3365
912Friday , July 31, 2009
of
Size
Rev
称爹
B
F
称爹
>
<
R602
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
SIF6
TUN_AUD6
RP602
100 KOHM + -5% 1/16W
COM1_AUL7
COM1_AUR7
TP601
TP603
MONO_AUD
MONO_AUD
USB_AUL
USB_AUR
RP604
100 KOHM + -5% 1/16W
VCC_CLAMP
C647
1UF25V
0 OHM 1/16W
GND GND
TUN_AUD
Tuner input
VCC_CLAMP
123
4
876
5
123
4
876
5
GND
EAR_DET
C602
0.1uF 50V
R604
NC
C609
330NF50V
COM1_AUR
COM1_AUL
FB601
1 2
300 OHM
GND
876
5
RP603
100 KOHM +- 5% 1/16W
123
4
Audio Input M UX
12
1
14
5
15
2
11
4
876
5
RP601
100 KOHM +- 5% 1/16W
123
4
GND
C645
1
1UF25V
2
3
4
C660
NC
GND
SIF1+
SIF1-
C603
0.1uF 50V
MONO_AUD
1Y0
2Y0
1Y1
2Y1
1Y2
2Y2
1Y3
2Y3
U604
16
CP+
PGND
CP-
NC
VCC5
R634
5.1K
R640
R641
VCC8
74HC4052D
15
GND14/LSD
PVDD
APA2176A
CVSS5VSS6LOUT7VDD
12
SP604
VCC
VEE
GND
1Z
2Z
S0
S1
/E
13
NC
RIN
/RSD
ROUT
8
C658
0.1uF 50V
ADCINN6
ADCINP6
MUX_AU R
NC
MUX_AU L
NC
U601
16
7
8
13
3
10
9
6
GND
12
11
10
LIN
9
12
SP601
GND
R605
NC
R607
NC
VGA_AUR7
VGA_AUL7
SCR_AU_R8
SCR_AU_L8
SV/AV_AUR8
SV/AV_AUL8
MUX_AU R
MUX_AU L
VREF_ADC
VCM_ADC
AGSCRT
VBG
VRN
VRP
C625
0.1uF
C637
10uF/16V
GND GND
R615 100 OHM 1/10W
R616 100 OHM 1/ 10W
R635
10K OHM 1/10W
VCC_CLAMP
VCC5
C648
0.1uF 50V
C649
10uF/16V
GND
C650 1UF25V
C655
1UF25V
5
4
C659
0.1uF 50V
SPGND
3
2
6
7
1
12
SP603
V33AUD
VCC3AD
79
U405B
SIF1-
77
ADCINN
SIF1+
78
ADCINP
49
RAIN0
50
LAIN0
52
RAIN1
53
LAIN1
54
RAIN2
55
LAIN2
56
RAIN3
57
LAIN3
59
VREF_ADC
60
VCM
61
AGSCRT
62
VBG
63
VRN
64
VRP
HX6201-A
C631
C629
C627
0.1uF
0.1uF
0.1uF
VRN
VRP
GND
VCC_CLAMP
C638
0.1uF 50V
C635
4.7uF/16V
C636
4.7uF/16V
R636
10K OHM 1/10W
HEADPHONE R/L OUTPUT
C662
NC
0R05 1/16W
R643
0R05 1/16W
C664
NC
CN601
PHONEJA CK
MUX_AU L
MUX_AU R
2008-11-07
R642
2008-11-12
C621
0.1uF
AU_S0 12
AU_S1 12
GND
C615
1500pF
R612
1K 1/16W 5%
R611
1K 1/16W 5%
C616
1500pF
GND
C622
10uF/16V
10K OHM 1/10W
65
58
VDDA(3.3V)
AVDD_DAC(3.3V)
AVDD(3.3V)(For PIFADC)
AUDIO
C623
0.1uF
GND
SW_AMP_RIN
SW_AMP_LIN
STYAMP_MUT12
R633
GPIO_03/PIF_AGC
GPIO_04/PIF_AMP
GPIO_02/SPDIF I
GPIO_40/SPDIF O
DAC_LSR
DAC_LSL
SCART1R
SCART1L
SCART2R
SCART2L
VREF(For PIFADC )
SIF_VCMG
SIF_VRE FN
SIF_VREFP
VSSA(0V)
C641
0.1uF 50V
GND
Q604
PMBS3904
84
85
86
167
SW_AMP_RIN
70
SW_AMP_LIN
71
68
69
66
67
VREFI_PI F
73
SIF_VCMG
74
SIF_VREF N
75
SIF_VREF P
76
51
GND
R621
4.7K OHM 1/16W
R626
NC
100K OHM 1/10W
SW_AMP_RIN
VCC5
R630
47K OHM 1/16W
C656
0.1uF 50V
GND
MUTE _HP HO NE 1 2
5VSB
SIF_VREF P
SIF_VREF N
ZD601
RLZ6.8C
1 2
R627
SW_AMP_LIN
AMP_MUT12
5VSB
R603
10K OHM 1/10W
R606
R608
SCR_AUOUT_R 8
SCR_AUOUT_L 8
C611
0.1uF 50V
R622
47K OHM 1/16W
Q603
PMBS3904
R609
4K7 1/10W 5%
1000pF
R610
4K7 1/10W 5%
1000pF
R637
10K OHM 1/10W
R638
10K OHM 1/10W
0 OHM
0 OHM
C613
0.1uF 50V
GND
C617
0.1uF 50V
C634
0.1uF 50V
GND
R625
10K OHM 1/10W
C601
C646
R632
10K OHM 1/10W
23
Q413
PMBS3906
1
RFAGC 6
IFAGC 6
EAR_DET
C620
0.1uF 50V
5VM
R628
75K 1/10W 5%
R629
75K 1/10W 5%
C610
+
100uF/16V
R639
10K OHM 1/10W
VCC3
R623
47K OHM 1/16W
Q602
PMBS3904
R613
0R05 1/10W 5%
NC
R614
0R05 1/10W 5%
NC
FB606
1 2
R624
C665
C666
300 OHM
GND
10K OHM 1/10W
5VM
R631
47K OHM 1/16W
Q605
PMBS3904
C643
1UF25V
C644
1UF25V
VCC3AD
C661
C663
0.1uF 50V
0.1uF 50V
V12_ADP
R617
R618
R620
R619
C642
1UF25V
PW_GND
C657
1UF25V
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
Date
4
7
9
12
6
8
5
10
11
3.9 OHM 3W
3.9 OHM 3W
3.9 OHM 3W
3.9 OHM 3W
U603
IN1
ST_BY
S_GND
IN2
MUTE
PW_GND
NC
NC
NC
09.M2D Audio
V33_AUD
AUDIO 1.8V POWER
FB602
1 2
C604
10uF/16V
GND
C639
+
C640
1000uF/25V
0.1uF25V
PW_GND
TDA7297SA
13
VCC3VCC
1
OUT1+
2
OUT1-
15
OUT2+
14
OUT2-
680P 50V X7R +/-10%
680P 50V X7R +/-10%
680P 50V X7R +/-10%
680P 50V X7R +/-10%
300 OHM
C651
OEM MOD EL
TPV MOD EL
PCB NAME
Sheet
V33AUD
C606
C605
0.1uF 50V
0.1uF 50V
GND
CN603
4
3
2
1
CONN
C654
C653
C652
GND
715T3365
10 12Tuesday, July 21, 2009
of
SH601
SH602
SH603
GND
PW_GND
GND
C
Size
F
Rev
<
称爹
>
称爹
33
VCC3
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
CSN
SDO
U402
1
CS#
VCC
2
SO
HOLD#
WP
3
W#
4
GND
MX25L4005AM2C-12G
GND
MCU SDO to EEPROM SDI
MCU SDI to EEPROM SDO
TP401
SCK
LU_SEN
8
7
6
5
SI
SDO
CSN
SCK
SDI
WP
PD0
PD1
System PLL 1.8V POWER
VCC18_COR E
1 2
C418
10uF/16V
FB415
300 OHM
0.1uF 50V
GNDGND
C403
0.22uF
GND
SCK
VCC3
100R
R432
R429
R430
R401
RST_N
TSTMD
IRDAT GPIO39
V18AUD
C419
R402
4.7K OHM 1/16W
GND
R417
R416
R419
R418
GPIO33
GPIO34
GPIO36
GPIO30
SARIN0
0 OHM 1/16W
SARIN1
0 OHM 1/16W
SARIN2
0 OHM 1/16W
C420
100pF
C423
10uF/16V
10K OHM 1/10W
10K OHM 1/10W
10K OHM 1/10W
R420
10K OHM 1/10W
10K OHM 1/10W
GPIO35
GND
155
156
157
158
152
160
161
162
163
90
89
159
VCC3
U404
1
E0
2
E1
3
E2
4
VSS
M24C32-WMN6TP
USER DATA
U405D
GPIO_33/SPI_SD I
GPIO_34/SPI_C SN
GPIO_35/SPI_SC K
GPIO_36/SPI_SD O
GPIO_30/SPI_W P
SARIN0
SARIN1
SARIN2
SARIN3
RST_N
TSTMD
GPIO_39/IR _RX
HX6201-A
C421
33pF
GND GND
R455
NC
TSTMD
R436
1K OHM 1/10 W
C402
0.22uF
8
VCC
7
WC
6
SCL
5
SDA
V18AUD
82
83
AVSS_PL(0V)
AVDD_PL(1. 8V)
GPIO_27/PWM_B/D BLC
PAD_OSCI81PAD_OSCO
80
R441
XTAL_O
1M OHM 1/10W
X401
12
24.576MHz
5VSB
R403
4.7K OHM 1/16W
MCU_WP
GND
GPIO_00/UAR T_TX0
GPIO_01/UART_RX0
GPIO_31/MSDA
GPIO_32/MSCL
GPIO_29/PWM_D
XTAL_IN
C422
33pF
SCL_A
SDA_A
87
88
153
154
150
151
10K OHM 1/10W
5VSB
R465
IRDAT8
LEDY
LEDY12
LEDG12MCU_WP 12
PD0
PD1
10K OHM 1/10W
10K OHM 1/10W
4.7K OHM 1/10W
4.7K OHM 1/10W
R425
R422
R423
R426
R421
R424
10K OHM 1/10W
10K OHM 1/10W
UART_TX
UART_R X
R427 100 OHM 1/10W
R428 100 OHM 1/10W
BL_ADJ 4
HA5V_DET 5
5VSB
3
1 2
D403
BAV99
R460
1KΩ 1/10W
C425
10uF/16V
10K OHM 1/10W
IRDAT
R404 10K OHM 1/10W
R406 10K OHM 1/10W
POWER KEY
ADC KEY
UART_TX 7
UART_RX 7
123Q414
R466
10K OHM 1/10W
Q402
PMBS3906
1 2 FB407
1 2 FB408
PMBS3906
R438
100Ω 1/10W
R454
1
+
VCC3
C410
47uF/16V
VCC3
23
1
SDA_A 6
SCL_A 6
C415
100pF
23
Q403
PMBS3906
R405
1K 1/10W 5%
R407
1K 1/10W 5%
150OHM
150OHM
VCC3
R456
5.1K OHM 1/10W
PMBS3904
Q404
C427
NC
5VSB
LED_GLEDG
R409
10.2K1/10W
1 2 FB402
1 2 FB403
LED_Y
1 2 FB405
1 2 FB406
RST_N
C424
10uF/16V
150OHM
150OHM
150OHM
150OHM
C405
GND
R408
10.2K1/10W
VCC3
C404
100pF
D401
RLZ5.6B
100pF
D402
RLZ5.6B
1 2
D404
RLZ5.6B
1 2
AOC HOTEL
UART_R X
2008-12-15
R435
IRDAT
NC
UART_R X
UART_TX
Check pin order
C407
100pF
1 2
12
12
SP410
SP411
NC
NC
GND
R434 NC
R433 NC
5VSB
Q409
NC
NC
R431
R414
R415
RS-232
SCL_A
SDA_A
Master IIC
SP407
C408
100pF
SP400
NC
NC
SP409
NC
R412
R413
C406
100pF
GND
GND
GND
IRVCC
IR_D
L_Y
L_G
PW
ADC
C409
100pF
GND
GND
12
246
135
12
12
5VSB
NC
NC
NC
NC
8
CN403
7
NC
5VSB
1
2
3
4
JST-4-2.54
CN25-4VS
IRVCC
IR_D
ADC
PWSDI
CN405
CN401
1
2
3
4
JST-4-2.0
33A3802-4B
L_G
L_Y
GND
GND
SCL_A
SCL_A
12
SDA_AUART_TX
12
GND
SP406
NC
SP408
NC
CONN
CN402
8
7
6
5
4
3
2
1
GND
34
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
10.M2D MCU
Date
OEM MOD EL
TPV MO DEL
PCB NAME
Sheet
715T3365
11 12Tuesday, July 21, 2009
of
Size
Rev
称爹
A3
F
<
称爹
>
VCC3
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
10uF/16V
VCC18_COR E
C460
10uF/16V
C451
V33LV
VCC3IO
VCCLV
GND
1 2
GND
1 2
FB419
300 OHM
102
125
164
143
114
72
100
127
166
FB417
300 OHM
GNDLV
U405C
AVDD3V_LV(3.3V)
AVDD3V_LV(3.3V)
VCC3IO(3.3V)
VCCLV(3.3V)
PVDD_LV(1.8V)
VCCK(1.8V)
VCCK(1.8V)
VCCK(1.8V)
VCCK(1.8V)
HX6201-A
V33LV
C452
1UF25V
C461
1uF/25V
TX3BP
TX3BN
104
105
FRSR0P/ LVB3P/EB7
BRSR0P/GPO_06
129
128
1 2
C453
1UF25V
0.1uF 50V
C462
0.1uF 50V
PN swap for layout
TX0BP
TX1BN
TX2BP
TXCKBP
TX3AN
TX0BN
TX1BP
TX2BN
TXCKBN
111
107
108
113
109
110
106
112
115
FRSCLKP/ LVB1P
FRSCLKN /LVB1N
FRSR2P/ LVB2P/EB3
FRSG0P/LVB0P/ EG7
FRSR0N /LVB3N/EB6
FRSR2N /LVB2N/EB2
FRSG0N/LVB0N /EG6
FRSR1P/ LVBCKP/EB5
FRSR1N /LVBCKN/EB4
TTL/RSDS/LVDS
BRSCLKN
BRSCLKP
BRSG0N/GPO_13
BRSG0P/GPO_12
BRSR0N/ GPO_07
BRSR1N/ GPO_09
BRSR1P/GPO_08
BRSR2N/ GPO_11
BRSR2P/GPO_10
136
135
138
137
139
131
130
134
133
FB416
300 OHM
C454
C455
0.1uF 50V
0.1uF 50V
C464
C465
C463
1uF/25V
1uF/25V
0.1uF 50V
VCC3
C477
10uF/16V
GND
TX3AP
TXCKAN
116
117
FRSG1P/LVA3P/ EG5
FRSG1N/LVA3N /EG4
BRSG1N/GPO_15
BRSG1P/GPO_14
140
141
C456
C466
0.1uF 50V
TXCKAP
118
FRSG2P/LVACKP/ EG3
BRSG2P/GPO_16
142
GND
FRSG2N/ LVACKN/EG2
BRSG2N/GPO_17
TX2AN
TX2AP
119
120
FRSB0P/LVA2P/ ER7
BRSB0P/GPO_37
145
144
C457
1UF25V
C467
0.1uF 50V
FRSB0N/ LVA2N/ER6
BRSB0N/GPO_38
TX1AN
TX1AP
121
122
FRSB1P/LVA1P/ ER5
BRSB1P/GPO_43
147
146
VCC3IO
C458
0.1uF 50V
VCCLV
C468
1uF/25V
C478
0.1uF 50V
TX0AN
TX0AP
123
124
FRSB2P/LVA0P/ ER3
FRSB1N/ LVA1N/ER4
FRSB2N/ LVA0N/ER2
BRSB1N/GPO_44
BRSB2N/GPO_46
BRSB2P/GPO_45
149
148
GPIO_18/GVON
GPIO_19/GVOFF
GPIO_20/OEV/TTL_DE
GPIO_21/CPV/ TTL_HS
GPIO_22/STV1/TTL_VS
GPIO_23/POL
GPIO_24/FTP
GPIO_25/FSTH1/ TTL_CLK
GPIO_26/BSTH1
AVSS3V_LV(0V)
AVSS3V_LV(0V)
GNDK(0V)
GNDK(0V)
EDID_W P#
C459
1UF25V
C469
0.1uF 50V
PI
MCU_WP#
AU_S0#
AU_S1#
91
92
93
94
95
96
97
98
99
PI
132
103
126
101
165
GND
R439
NC
R410
4.7K OHM 1/16W
R411
4.7K OHM 1/16W
R437
4.7K OHM 1/16W
R489 13K OHM 1/10W
C431
NC
EDID_W P#
AU_S1#
AU_S0#
MCU_ WP#
Q415
NC
GND
Q410
PMBS3904
GND
Q411
PMBS3904
GND
Q412
PMBS3904
GND
POWER_ON
LEDY 11
LEDG 11
PW_ON
IR_EN
Video_SEL
5VSB
GND
4
EDID_W P 11
MCU_ WP 11
AU_S0 10
AU_S1 10
PANEL_ON
4
<IREF >
4
R510 10K OHM 1/10W
R523 10K OHM 1/10W
R522 10K OHM 1/10W
R518 10K OHM 1/10W
R519 10K OHM 1/10W
R526 10K OHM 1/10W
R512 10K OHM 1/10W
R509 10K OHM 1/10W
SCL_A_Tuner 6
SDA_A_Tuner 6
AMP_MUT 10
STYAMP_MUT 10
OFF_MUTE 8
MUTE_ HP HO NE 1 0
BL_ON 4
C432
NC
C433
0.1uF 50V
PANEL POWER
1>OFF ;
0>ON
PANEL_ON
4.7K OHM 1/16W
+
R569
TX0AP1
TX1AP1
TX2AP1
TXCKAP1
TX3AP1
TX0BP1
TX1BP1
TX2BP1
TXCKBP1
TX3BP1
GND
V12_ADP
5VSB
R570
NC
VCC5
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
VCC5_IN
CN404
5VSB
R566
4.7K OHM 1/16W
Q408
PMBS3904
GND
TX0AN1
1
TX1AN1
3
TX2AN1
5
TXCKAN1
7
TX3AN1
9
TX0BN1
11
TX1BN1
13
TX2BN1
15
TXCKBN1
17
TX3BN1
19
21
23
25
27
29
FB420 NC
1 2
1 2
FB421
300 OHM
R568
4.7K OHM 1/16W
R556
TXCKBN1TXCKBN
TXCKBP1TXCKBP
TXCKAN1TXCKAN
TXCKAP1TXCKAP
TX3BN1TX3BN
TX3BP1TX3BP
TX2BN1TX2BN
TX2BP1TX2BP
TX1BN1TX1BN
TX1BP1TX1BP
TX0BN1TX0BN
TX0BP1TX0BP
TX3AN1TX3AN
TX3AP1TX3AP
TX2AN1TX2AN
TX2AP1TX2AP
TX1AN1TX1AN
TX1AP1TX1AP
TX0AN1TX0AN
TX0AP1TX0AP
SELLVDS
GND
CN407
NC
NC
R559
NC
VCC5_PANEL_I N
R565
10K 1/16W 5%
Q407
PMBS3904
TXCKAN1
TX3AP1
TX3AN1
TXCKAP1
AO4449 -7A/-30V
1
S
2
S
3
C470
S
0.1uF 50V
4
R567
120K OHM 1/16W 5%
G
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
Date
TX1AP1
TX2AP1
TX2AN1
Q406
D
D
D
D
11.M2D LVDS
TX0AN1
TX1AN1
TX0AP1
Panel Power
VCC5_IN
8
7
6
5
101112131415161718192021222324252627282930
123456789
VCC5_IN
GND
SELLVDS
CN408
NC
101112131415161718192021222324252627282930
GND
VCC5_IN
C471
NC
OEM MODEL
TPV MODEL
PCB NAME
Sheet
715T3365
12 12Tuesday, July 21, 2009
SELLVDS
TX3AP1
TX3AN1
TXCKAP1
TXCKAN1
TX2AN1
TX2AP1
of
123456789
TX0AP1
TX0AN1
TX1AP1
TX1AN1
C
Size
Rev
F
称爹
>
<
称爹
35
Pr_SCALER
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
Pb_SCALER
PR2_IN
Y_IN0
PB_IN0
PB2_IN
C260
NC
C261
NC
R273
0R05 1/10W 5%
PR_IN0
R263
NC
C263
NC
R274
0R05 1/10W 5%
Y2_IN
R276
C258
NC
0R05 1/10W 5%
C259
NC
R271
NC
R266
NC
NC
R270
NC
R272
NC
NC
Q211
NC
R258
R268
NC
Q212
NC
R259
R264
NC
Q215
NC
R261
R277
NC
NC
NC
R279
NC
Q213
NC
R283
R278
NC
NC
R262
NC
Q214
NC
R260
R282
NC
NC
NC
C257
NC
C256
NC
R280
R275
NC
R281
C253
NC
C249
NC
C254
NC
C255
NC
V_SEL
Video_SEL
FB222
1 2
NC
2
3
5
6
11
10
14
13
1
15
VCC5
VCC5
FB221
NC
1 2
C251
PR_IN 0
Y_IN0
PB_IN0
NC
USB_AUR
<IREF >
USB_AUL
IRDAT
IR_EN
VCC5
Pr_SCALER
Y_SCALER
Pb_SCALER
U107
16
S1A
S2A
VCC
4
DA
S1B
S2B
7
DB
S1C
S2C
12
DD
S1D
S2D
9
DC
IN
/EN
GND
NC
8
VCC5
NC
R288
V_SEL
Q216
R289
NC
NC
GND
Y_IN0
PB_IN0
PR_IN0
USB_DM
USB_DP
R130
NC
R134
NC
R137
NC
Near to IC
R209
NC
4 1
3 2
R211
L209
NC
FOR EMI
NC
ZD201
NC
NC
R129
100 OHM 1/10W
R131
C123 1000pF
100 OHM 1/10W
R133
100 OHM 1/10W
R136
100 OHM 1/10W
NC
10
9
8
7
6
5
4
3
2
1
CN208
C265 NCVBUS
1234
1
2
3
CN703
NC
4
12
12
6 5
R294
NC
C264
Y1 9
SOY1 9
GND
PB1 9
GND
PR1 9
GND
USB_DP
USB_DM
USB_GND
GND
VBUS
NC
NC
1
2
3
4
CN206
USB_GND
ZD202
USB_GND
C120
0.047uF
C126
0.047uF
C129
0.047uF
R265
NC
C262
Y_SCALER
NC
R267
NC
Q210
NC
R257
NC
NC
R269
C252
NC
C250
NC
FB220
1 2
NC
VCC5
36
VBUS,5V
USB HOST,500mA,2.5W
R291
Active low
POWER_ON
NC
R292
NC
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
Date
5VSB
GND
Q217
NC
12.M2D LVDS
R290
NC
5VSB
VBUS
FB223
1 2
R293
NC
FAULT
OUT
GND
5VSB
R287
1
2
3
OEM MODEL
TPV MOD EL
PCB NAME
Sheet
NC
U711
5
IN
4
EN
NC
715T3365
12 12Tuesday, J uly 21, 2009
USB_GND
of
NC
R286
C266
C267
NC
NC
NC
C
Size
Rev
F
<
称爹
>
称爹
7.2 电源板
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
715G3465P020HV003M
BD901
1
GBU408
+
2
FB904
BEAD
1 2
C901
0.001uF/ 250V
!
30mH
L902
R900
680K OHM 1/4W
12
FB902
BEAD
NR901
NTCR
4.0A/250V
CN901
SOCKET
CN901A
NC
4
3
680K OHM 1/4W
VAR901
-
4
FB903
BEAD
1 2
0.001uF/ 250V
!
1
2
C903
0.47uF/ 275V
R902
!
680KOHM +- 5% 1/4W
NC
!
12
12
3
3
!
C902
!
R901
C925
0.1UF /25V
12
F901
!!
FUSE
FB901
BEAD
+
R941
NC
C923
470pF/25V
C905
120uF 450V
1
2
3
IC901
RT
COMP
CS
VCC
GND4OUT
LD7576A
C924
220pF
8
HV
7
NC
6
5
HS1
HEAT SINK(Q901)
1
2
R904
8.2K OHM 1/4W
R905
8.2K OHM 1/4W
10 OHM 1/8W
ZD901
NC
1 2
FB905
BEAD
1 2
C919
100N 50V
D909
LL4148
R907
1
2
1
2
C908
+
22uF/50V
R912
22 OHM 1/8W
R922
200 OHM 1/4W
HS2
HEAT SINK (D 904)
HS3
HEAT SINK(D 906)
C906
2200pF
D902
FR103
R938
10K 1/8W
R908
100K OHM 2W
D901
FR107
!
Q901
STP10NK70ZFP
R914
0.39 OHM +-5% 2WS
C931
0.001uF/ 250V
!
4
5
6
2
3
POWER X'FMR
R909
3.3 OHM 1/4W
IC903
PC123X2YFZ OF
0R05 1/4W 5%
0R05 1/4W 5%
0R05 1/4W 5%
T901
80TL19T 33 S
0R05 1/4W 5%
0R05 1/4W 5%
0R05 1/4W 5%
R918
R919
R920
8
9
10
7
11
12
R935
R903
R934
12
43
1
3
1
3
0.001uF
D906
SP20150R
2
D904
SP10100
2
C929
C921
0.001uF
+
C917
1000uF 25V
C914
1000uF 16V
+
+
C930
1000uF 16V
IC902
KIA431
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
01.POWER
Date
+
C918
1000uF 25V
L903
3.5uH
R925
150R 1/8W
R924
1K 1/4W
C912
0.022uF/ 25V
L904
3.5uH
3.6K OHM 1% 1/ 8W
C920
0.1uF
R927
R928
0OHM 1/8W
C922
+
470uF 25V
Q903
KTD1028
+
C915
470uF 16V
R929
33K OHM 1% 1/8W
R930
2.43KOHM + -1% 1/8W
OEM MOD EL
TPV MODEL
PCB NAME
Sheet
R940
150 OHM 2W
C916
0.1uF
715G3465-1
of
12Thursday , April 02, 2009
+12V
FB906
BEAD
1 2
ZD920
RLZ13B
R943
470 OHM +-5% 1/4W
R936
C932
0.001uF
1K 1/4W
FB907
BEAD
1 2
DIM
ON/OFF
+5V
JUMP
C927
0.1uF
F903
10
11
Size
Rev
称爹
+12V
+5V
CN902
1
2
3
4
5
6
7
8
9
CONN
A3
1
称爹
>
<
37
+12V
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
+5V
ON/OF F
DIM
R813
470K 1/8W 5%
C803
NC
R815
NC
C804
1UF 16V
R814
NC
1UF16V
R816
10K 1/10W 1%
C805
0.01uF
R802
22R 1/8W
C806
R817
1M 1/10W 5%
ZD802
RLZ5.6B
1 2
R818
75K 1/10W 5%
R819
100K 1/10W 5 %
33NF 50V
5K1 1/10W
1
2
3
4
5
6
7
C813
C801
0.047uF
IC801
DRV1
PGND
VDDA
DRV2
TIME R
GNDA
DIM
CT
ISEN
SSTCMP
VSEN
LCT
OVPT
ENA
NC18NC2
OZ9938GN
R823
390R 1/10 W 1%
SST
16
15
14
13
12
11
10
9
R824
6.2K 1/1 0W
Q802
RK7002
ZD803
RLZ5.6B
1 2
C802
0.047uF
R820
10K 1/8W 5%
C807
0.01uF
R825
510R 1/1 0W
CT
C814
390P 50V
R805
100R 1/ 10W 5%
D801
R806 100R 1/10W 5%
R804 5K1 1/10WR803
R807 100R 1/ 10W 5%
D803
R808 100R 1/ 10W 5%
D804
R822
R821
20K OHM 1% 1/8W
1M 1/8W 5%
C808
180K 1/10W
C809
560pF50V
D805
Q803
RK7002
C815
0.047uF
R826
1M 1/10W 5%
D802
CT
SST
C810
0.047uF
C811
0.1uF
+
C812
1000uF 25V
3
3
3
D806
D807
D808
10K 1/10W 5%
Q805
4
G
3
S
2
G
1
S
AM4502C-T1-PF
Q806
4
G
3
S
2
G
1
S
AM4502C-T1-PF
BAV70
1
2
BAV70
1
2
BAV70
1
2
R842
5
D
6
D
7
D
8
D
5
D
6
D
7
D
8
D
R843
10K 1/10W 5%
絬 隔 瓜 絪 腹
Key Component
PT802
POWER X'FMR
6
2
5
1
R844
10K 1/10W 5%
T P V ( Top Victory Electronics Co . , Ltd. )
Date
7
8
R838 1M 1/10W 5%
R839 1M 1/10W 5%
R840 1M 1/10W 5%
R841 1M 1/10W 5%
R845
10K 1/10W 5%
02.INVERTER
C823
0.01uF
C825
0.01uF
LV2
LV1
LV3
LV4
R832
20K
R835
20K
C816
27PF 6KV
R827
20K
R831
24KOHM +-5% 1/10W
R834
15KOHM +-5% 1/10W
R833
20K
C824
27PF 6KV
C819
56pF3KV
C820
56pF3KV
C821
56pF3KV
C822
56pF3KV
OEM MO DE L
TPV MODEL
PCB NAME
Sheet
L801
124
L802
L
124
L
715G3465-1
of
22Wednesda y , April 01, 2009
1
CN801
2
CONN
LV1
1
CN802
2
CONN
LV2
3
3
1
CN803
2
CONN
LV3
1
CN804
2
CONN
LV4
3
D809
1
2
BAV99
Size
Rev
称爹
B
1
称爹
>
<
38
7.3 按键板
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
715G3303 1
SW01
3V3_STB
CN01
1
2
3
4
CONN
33G8032 4F HR
C08
NC
PWR-SW
FUNC_KEY
FUNC_KEY
PWR-SW
R07
100 OHM 1% 1/10W
R08
100R 1/10W 1%
R01
20K OHM 1% 1/10W
R02
8.2K1/10W 1%
R03
4.32K 1% 1/10W
R04
2.74K 1% 1/10W
R05
1.8K OHM 1% 1/ 10W
TACT SW FWRD H1.5MM
C01
NC
C02
TACT SW FWRD H1.5MM
NC
C03
TACT SW FWRD H1.5MM
NC
TACT SW FWRD H1.5MM
C04
NC
C05
TACT SW FWRD H1.5MM
NC
C06
TACT SW FWRD H1.5MM
NC
C07
TACT SW FWRD H1.5MM
NC
77G 607 2 FD
VOL+
SW02
VOL-
SW03
CH+
SW04
CH-
SW05
MENU
SW06
Source Select
SW07
Power ON/OFF
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
Date
Key pad
39
OEM MO D EL
TPV MOD EL
PCB NAME
Sheet
715G3303 C
of
1Thursday, January 15, 2009
1
Size
Rev
称爹
A
称爹
<
Custom
>
7.4 遥控板
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
715G3504 1
CONN
1
2
3
4
5
CN01
33T8032 5F HR
GND PINGND PIN
LED_R
LED_B
IRRV
1
VCC
R11 15K OHM 1/10W
C01
0.1uF /16V
C02
NC/4.7uF/16V
BLUE
RED
LED01
LED
BLUE
23
4
1
RED
81T 14 24 EL
U01
1
VOUT
2
GND
3
VCC
KSM-2003TN 2E
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
Date
02-IR&LED
40
OE M MOD E L
TPV MODEL
PCB NAME
Sheet
715G3504-C
of
22Friday , March 13, 2009
Size
Rev
称爹
<
1.0
称爹
Custom
>
8. 电气方框图
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
CN301
HDMI
CN104
YPbPr
BACK BACKSIDE
CN107
AV&S-VIDEO
CN102
BACK
VGA
CN101
AV1
CN105
SCART
EU/CH Option
TU201
Tuner
OR
BACK BACK
TU202
Tuner
RF/IF Tuner Option
Hotel Pin
IR
ADC KEY
RX0,RX1,RX2,RXCLK
RS232
IF
HDMI EDID(U301)
Y,Pb,Pr
CVBS
Y/C
R,B,G,H,V
SC_R,SC_G,SC_B
FB_BLANK,STATUS
U201
SAWFILTER
SCL,SDA
RS232
IR_DAT
CVBS
CVBS
U404
EEPROM
24C32
SDA,SCL
RS232
Himax M2D U405
HDMI_RXA0,A1,A2,CLK
AINA2,AINB2,AINC2,SOG2
AINA5
AINB4,AINC4
AINA1,AINB1,AINC1
HSYNC,VSYNC
Himax M2D
AINA3
AINC3,AINB3,AIND1
AIN0_FAD,AIN1_FAD
AIND4
ADCINN,ADCINP
P0,P1
HDMI/ADC
Himax M2D
MCU
Himax M2D U405
CVBS_O
Himax M2D
TTL/LVDS/RSDS
Himax M2D U405
U402
SPI EEROM
AV Line Out
SCART CVBS Out
(Option)
(CN106&CN105)
LVDS BUS
Backlight
On/Off,Brightness
CN404
CN406
LVDS I/O
BACK
LVDS BUS
PANEL
CN103
PC Audio
AV&S-Video
Audio(CN107)
SIDE
AV1&SCART Option
Audio
(CN104&CN105)
BACK BACK
Tuner
YPbPr
Audio
AV Audio Line Out
SCART Audio
(Option)
BACK
(CN106&CN105)
MONO_AUD
COM1_AUL/R
U601
Switch 4052
SIF
MUX_AUL/R
SCR_AUOUT_L/R
RAIN0,LAIN0
RAIN2,LAIN2
RAIN1,LAIN1
Himax M2D U405
Himax M2D
Audio
41
U603
AMP TDA7297
U604
APA2176A
CN603
Connector
CN601
Earphone
BACK
5VSB
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
POWER_ON
5VSB
5VSB
5VSB
1084-33
U701
AO4449
Q706
VCC5
VCC3
1077mA
VCC5
VCC5
VCC5
VCC5
400mA
1084_33
U707
AP1117D33
U705
AP1117D18
U703
AP1117D18
U709
VCC5
VCC5
VCC3
MX25L4005AM2C
U402
1084_1.8
U708
281mA
V33_ADC
39mA
V33_AUD
117mA
VCC18
16mA
VCC18_PLL
AP2176
U604
EARPHONE AMP
USB boad power
5V,5V TO 3.3v
5v to 1.8V
822mA
VCC18_CORE
V33ADC / VCCADC / VDDA33
HX6201
U405
V33AUD
HX6201
U405
V18_33HDMI
HX6201
U405
V18AUD / PVDD_LV
HX6201
U405
AVDD18 / VCCLV
HX6202A
U405
VCC5
PI5V33
U107
VIDEO SWITCH
VCC3AD
VCC3IO / V33LV
HX6201
U405
VCC3AD
VCC3IO / V33LV
AVDD18 / VCCLV
V33HDMI / VCCADC / VDDA 33
V33AUD
V18_33HDMI
V18AUD / PVDD_LV
M24C02
U301
Q406
AO3407
Q701
AO4449
Q406
MPS2171
U711
PANEL_VCCAO4449
VCC12 BA17808
PANEL_VCC
USB 2.0 HOST
U706
A1117D5.0
U202
PANEL_ON
POWER_ON
+12V_SB
POWER_ON
5VSB
5VSB
500mA--1.0A
V12_ADP
V12_ADP
PANEL_ON
V12_ADP
TDA7297
U603
PANEL
PANEL
M24C02U101
5mA
VCC8
160mA
+5VT
74HC4052
U601
AUDIO SWITCH
TUNER
TU100
42
M24C32
U404
9. 爆炸图
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
43
序号 料号 描述 数量
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
1 A34E1053 GMC5L0130 BEZEL 1
2 A33E0660 1 1C0100 POWER LENS 1
3 A33E0661 ED 1C0100 IR LENS 1
4 IRPF9QA6 IR BOARD 1
5 A33E0551 GMC1L0100 KEY COVER 1
6 A33E0550 GM 1L0100 KEY BUTTON 1
7 KEPF9YA3 KEY BOARD 1
8 0Q1G3130 6120 SCREW(KEY ASS'Y) 2
9 0Q1G1830 6120 SCREW(POWER BD/PANEL) 1
10 078G 520 1A Y SPEAKER 2
11 001G6021 1 SCREW(SPEAKER/BEZEL) 4
12 750TVV185B1111N000 PANEL 1
13 A15T0513101 HINGE BKT 1
14 001G6021 1 SCREW(HINGE BKT/PANEL) 2
17 Q34E0601 GM 1L0100 IO SIDE COVER 1
18 0Q1G 940 10 47 CR3 SCREW(IO SIDE COVER/MAIN BD) 1
19 0M1G1730 8120 SCREW(POWER BD/PANEL) 4
20 PWTV9C41XQD1 POWER BOARD 1
21 0M1G1730 10120 SCREW(AC SOCKET/PANEL) 1
22 A15T0678101 VESA BKT 4
23 0M1G1730 8120 SCREW(MAIN BD/PANEL) 4
24 756TQ9CB AD007 02 MAIN BOARD 1
25 0M1G 930 8 47 CR3 SCREW(REAR COVER/BEZEL) 2
26 A34E1006 GM 2L0130 REAR COVER 1
27 0M1G 930 8 47 CR3 SCREW(REAR COVER/BEZEL) 2
28 A34E1007 GM 1L0100 STAND 1
29 0Q1G 340 8106 CR3 SCREW(HDMI/REAR COVER) 2
30 AM1G1740 10225 CR3 SCREW(HINGE/REAR COVER) 3
31 AM1G1740 10225 CR3 SCREW(STAND ASS'Y) 3
32 A37T0104011 HINGE 1
33 A34E1008 GM 1L0133 BASE 1
34 Q12G6082 1 FOOT PAD 5
44
10. BOM
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
注意: 以下料件信息仅供参考，如有变更，恕不另行通知，请到 http://cs.tpv.com.cn 获取最新信息。
E1B92ANDW2RWNN
点位 料号 描述 备注
001G6021 1 SCREW
050G 600 2 HANDLE1
050G 600 3 HANDLE2
052G 1185 1 BIG TAPE(Y1200141)
052G 1186 SMALL TAPE
052G 2191 A PAPER TAPE
089G214A18NLS9 POWER CORD 2PIN 1800MM
E09501 095G8018 3DH67 LVDS CABLE 30P-30P 120MM 2nd source
E09501 095G8018 3XH67 LVDS CABLE 30P-30P 120MM
098GRABD2NCRAC REMOTE CONTROL FOR ROWA
0M1G 930 8 47 CR3 SCREW
0M1G 930 8 47 CR3 SCREW
0M1G1730 8120 SCREW
0M1G1730 8120 SCREW
0M1G1730 10120 SCREW 42A9930016
0M1G6090 1 SCREW
0Q1G 930 8 47 CR3 SCREW
0Q1G 940 10 47 CR3 SCREW
705TQ933903 PLASTIC ASS'Y
0Q1G3130 6120 SCREW
A33E0550 GM 1L0100 KEY BUTTON
A33E0551 GMC1L0100 KEY COVER
KEPF9YA3 KEY BOARD
CN01 033G8032 4F HR CONNECTOR
R08 061G0603100 0F RST CHIPR 100 OHM +-1% 1/10W
R07 061G0603100 0F RST CHIPR 100 OHM +-1% 1/10W
R05 061G0603180 1F RST CHIPR 1.8 KOHM +-1% 1/10W
R01 061G0603200 2F RST CHIPR 20 KOHM +-1% 1/10W
R03 061G0603432 1F RST CHIP 4.32K 1/10W 1%
R02 061G0603820 1F RST CHIPR 8.2 KOHM +-1% 1/10W
R04 061T0603274 1F RST CHIPR 2.74 KOHM +-1% 1/10W
SW05 077G 607 2 FD
SW03 077G 607 2 FD
SW04 077G 607 2 FD
SW01 077G 607 2 FD
SW02 077G 607 2 FD
CHIP TACT SW BY FORWARD
SFKQGMA2125T-PL
CHIP TACT SW BY FORWARD
SFKQGMA2125T-PL
CHIP TACT SW BY FORWARD
SFKQGMA2125T-PL
CHIP TACT SW BY FORWARD
SFKQGMA2125T-PL
CHIP TACT SW BY FORWARD
SFKQGMA2125T-PL
45
SW06 077G 607 2 FD
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
SW07 077G 607 2 FD
715G3303 1 KEY BOARD PCB
Q44T3121510562 PU FOAM
705TQ934923 REAR COVER TV19 ASS'Y
A15T0678101 VESA BKT
A34E1006 GM 2L0130 REAR COVER 19
Q36T 600 35 2 GP NONWOVEN FABRIC
Q36T 600 37 6 GP NONWOVEN FABRIC
Q36T 600 40 1 NONWOVEN FABRIC
705TQ934987 BEZEL ASS'Y
001G6021 1 SCREW
036T 600 18111 NONWOVEN FABRTC
078G 520 1A Y SPEAKER 8 OHM 5.5W 125X32MM
0Q1G1830 6120 SCREW
A33E0660 1 1C0100 POWER LENS
A33E0661 ED 1C0100 IR LENS
A34E1053 GMC5L0130 BEZEL ASS"Y 19
IRPF9QA6 IR BOARD
U01 056G 627 14 1 IC KSM-2003TN2ES1 37.9KHZ
CN01 033G8032 5F HR CONNECTOR
R11 061G0603153 RST CHIPR 15KOHM +-5% 1/10W
C01 065G0603104 12 CER2 0603 X7R 16V 100N P
LED01 081G 14 24 EL CHIP LED BLUE/DARK RED
715G3504 1 IR BOARD PCB
Q36T 600 35 3 GP NONWOVEN FABRIC
705TQ934988 STAND ASS`Y
A34E1007 GM 1L0100 STAND
A34E1008 GM 1L0133 BASE-3
A37T0104011 HINGE
AM1G1740 10225 CR3 SCREW
Q12G6082 1 FOOT PAD
705TQ949001 COMSUPTIVE ASS'Y-A4
750TVV185B1111N000 PANEL TPM185B1-L01 C1A FQ TPV
756TQ9CB AD007 02 MAIN BOARD-CBPF9A3DY3
U402 056G1133923 IC MX25L4005AM2C-12G SOP-8
SMTF-U402 100TWHV8001D21 MCU ASS'Y-056G1133923
AM1G1740 10225 CR3 SCREW
040G 45762412B CBPC LABEL
CN603 033G3802 4B Y W WAFER
CN402 033G3802 8B Y W CONNECTOR
CN701 033G380212B Y WAFER
CN404 033G8027 30 WAFER 30P 2.0MM DIP DUAL ROW
R203 061G 208470 64 RST MOFR 47OHM +-5% 1W
R205 061G 208470 64 RST MOFR 47OHM +-5% 1W
CHIP TACT SW BY FORWARD
SFKQGMA2125T-PL
CHIP TACT SW BY FORWARD
SFKQGMA2125T-PL
46
R617 061G153M399 59 3.9 OHM+-5% 3W
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
R618 061G153M399 59 3.9 OHM+-5% 3W
R619 061G153M399 59 3.9 OHM+-5% 3W
R620 061G153M399 59 3.9 OHM+-5% 3W
C640 067G 305102 4 105C 1000UF +-20% 25V
CN108 088G 78 13934 C RCA JACK 1*3 Y/W/R AV3-8.4-13-1
CN104 088G 78 13942 YG RCA JACK 1*5 G/B/R/W/R RCA-512DF
CN101 088G 7813A38C RCA JACK 1*3 Y/W/R V/A
CN601 088G 30211K PHONE JACK 5PIN
CN103 088T 302A17 YG PHONE JACK 3.5MM 3P V/T GREEN
CN102 088T 35315F VC D-SUB 15PIN VERTICAL CONNECTOR
090T 372 2 HEAT SINK
X401 093G 2270B H XAT024576FK1H-3OHX AT-49 24.576MHZ
TU201 094T PALALL 3L TCL TUNER M15WPP-2PN-E
705TQ956001 U603 ASS'Y
U603 056T 616511 ST IC TDA7297SA ST
0M1G1730 10120 SCREW 42A9930016
Q90T0155 3 HEAT SINK FOR U602
C702 067G 305100 3T 10UF 16V
C701 067G 305100 3T 10UF 16V
C742 067G 305221 3T 220UF/16V
C740 067G 305221 3T 220UF/16V
C741 067G 305221 3T 220UF/16V
C718 067G 305221 3T 220UF/16V
C716 067G 305221 3T 220UF/16V
C410 067G 305470 3T 47UF +-20% 16V
C727 067G 305471 3T
C715 067G 305471 3T
U701 056G 563 7 IC AIC1084-33PMTR-R AIC
U703 056G 563 31 IC AZ1117D-1.8-E1
U708 056G 563 34 IC AIC1084-18PMTR-R AIC
U707 056G 563 75 G1084-33T43UF TO-252
U202 056G 585 11 IC AZ1117D-5.0-E1 AAC
U601 056G 614 1 74HC4052D S016 PHLIPS
U404 056G113353A IC M24C32-WMN6T SO-8 ST
U405 056T 562581 IC HX6201-A06MLAG QFP-176
U604 056T 616516 IC APA2176AQBITRL TQFN3X3-16
Q603 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q602 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q412 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q411 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q410 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q408 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q407 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q404 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q303 057G 417 4 PMBS3904/PHILIPS-SMT(04)
105℃ 470UF +-20% 16V
105℃ 470UF +-20% 16V
47
Q302 057G 417 4 PMBS3904/PHILIPS-SMT(04)
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
Q711 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q710 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q709 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q708 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q707 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q705 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q704 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q703 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q605 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q604 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q414 057G 417 6 PMBS3906/PHILIPS-SMT(06)
Q413 057G 417 6 PMBS3906/PHILIPS-SMT(06)
Q402 057G 417 6 PMBS3906/PHILIPS-SMT(06)
Q403 057G 417 6 PMBS3906/PHILIPS-SMT(06)
Q702 057G 763 5 FET AO3407 -4.1A/-30V SOT-23
Q706 057G 763 79 FET AO4449 -7A/-30V SOIC-8
Q406 057G 763 79 FET AO4449 -7A/-30V SOIC-8
Q301 057G 763904 TRA FET 2N7002 SOT-23 PHILIPS
RP601 061G 125104 8 RST CHIP AR 8P4R 100 KOHM +-5% 1/16W
RP602 061G 125104 8 RST CHIP AR 8P4R 100 KOHM +-5% 1/16W
RP603 061G 125104 8 RST CHIP AR 8P4R 100 KOHM +-5% 1/16W
RP604 061G 125104 8 RST CHIP AR 8P4R 100 KOHM +-5% 1/16W
R734 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R731 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R729 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R727 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R720 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R713 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R712 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R612 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R611 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R306 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R303 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R710 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R726 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R565 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R567 061G0402124 RST CHIP 120K 1/16W 5%
R207 061G0402180 RST CHIP 18R 1/16W 5%
R174 061G0402180 RST CHIP 18R 1/16W 5%
R139 061G0402180 RST CHIP 18R 1/16W 5%
R704 061G0402223 RST CHIPR 22 KOHM +-5% 1/16W
R716 061G0402223 RST CHIPR 22 KOHM +-5% 1/16W
R307 061G0402273 RST CHIP 27K 1/16W 5%
R165 061G0402273 RST CHIP 27K 1/16W 5%
R162 061G0402273 RST CHIP 27K 1/16W 5%
48
R143 061G0402273 RST CHIP 27K 1/16W 5%
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
R141 061G0402273 RST CHIP 27K 1/16W 5%
R118 061G0402273 RST CHIP 27K 1/16W 5%
R117 061G0402273 RST CHIP 27K 1/16W 5%
R569 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R568 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R566 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R437 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R411 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R410 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R403 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R402 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R120 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R119 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R621 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R622 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W
R623 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W
R630 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W
R631 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W
R316 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W
R210 061G0402560 RST CHIP 56R 1/16W 5%
R179 061G0402560 RST CHIP 56R 1/16W 5%
R142 061G0402560 RST CHIP 56R 1/16W 5%
R702 061G0603000 RST CHIP MAX 0R05 1/10W
R614 061G0603000 RST CHIP MAX 0R05 1/10W
R613 061G0603000 RST CHIP MAX 0R05 1/10W
R608 061G0603000 RST CHIP MAX 0R05 1/10W
R606 061G0603000 RST CHIP MAX 0R05 1/10W
R313 061G0603000 RST CHIP MAX 0R05 1/10W
R312 061G0603000 RST CHIP MAX 0R05 1/10W
R276 061G0603000 RST CHIP MAX 0R05 1/10W
R274 061G0603000 RST CHIP MAX 0R05 1/10W
R273 061G0603000 RST CHIP MAX 0R05 1/10W
R204 061G0603000 RST CHIP MAX 0R05 1/10W
R135 061G0603000 RST CHIP MAX 0R05 1/10W
R132 061G0603000 RST CHIP MAX 0R05 1/10W
R128 061G0603000 RST CHIP MAX 0R05 1/10W
R427 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R428 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R432 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R438 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R615 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R616 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
FB604 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
FB605 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R208 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
49
R176 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
R140 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R136 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R133 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R131 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R129 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R127 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R125 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R436 061G0603102 RST CHIPR 1K OHM +-5% 1/10W
R460 061G0603102 RST CHIPR 1K OHM +-5% 1/10W
R405 061G0603102 RST CHIPR 1K OHM +-5% 1/10W
R407 061G0603102 RST CHIPR 1K OHM +-5% 1/10W
R422 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R421 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R420 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R419 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R418 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R417 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R416 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R406 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R404 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R305 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R304 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R302 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R636 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R637 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R425 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R635 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R633 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R632 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R625 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R624 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R603 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R526 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R523 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R522 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R519 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R518 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R512 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R510 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R509 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R466 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R465 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R454 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R426 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R638 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
50
R639 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
R709 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R717 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R719 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R725 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R728 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R733 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R627 061G0603104 RST CHIPR 100 KOHM +-5% 1/10W
R441 061G0603105 RST CHIPR 1M OHM +-5% 1/10W
R308 061G0603105 RST CHIPR 1M OHM +-5% 1/10W
R489 061G0603133 RST CHIPR 13 KOHM +-5% 1/10W
R314 061G0603162 1F RST CHIPR 1.62 KOHM +-1% 1/10W
R195 061G0603203 RST CHIPR 20 KOHM +-5% 1/10W
R196 061G0603203 RST CHIPR 20 KOHM +-5% 1/10W
R106 061G0603222 RST CHIPR 2.2 KOHM +-5% 1/10W
R112 061G0603222 RST CHIPR 2.2 KOHM +-5% 1/10W
R103 061G0603330 RST CHIPR 33 OHM +-5% 1/10W
R111 061G0603330 RST CHIPR 33 OHM +-5% 1/10W
R701 061G0603331 RST CHIP 330R 1/10W 5%
R318 061G0603391 RST CHIPR 390 OHM +-5% 1/10W
R102 061G0603391 RST CHIPR 390 OHM +-5% 1/10W
R105 061G0603391 RST CHIPR 390 OHM +-5% 1/10W
R109 061G0603391 RST CHIPR 390 OHM +-5% 1/10W
R113 061G0603391 RST CHIPR 390 OHM +-5% 1/10W
R610 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R609 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R424 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R423 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R456 061G0603512 RST CHIPR 5.1 KOHM +-5% 1/10W
R634 061G0603512 RST CHIPR 5.1 KOHM +-5% 1/10W
R107 061G0603750 RST CHIPR 75 OHM +-5% 1/10W
R110 061G0603750 RST CHIPR 75 OHM +-5% 1/10W
R114 061G0603750 RST CHIPR 75 OHM +-5% 1/10W
R628 061G0603753 RST CHIPR 75 KOHM +-5% 1/10W
R629 061G0603753 RST CHIPR 75 KOHM +-5% 1/10W
R408 061T0603102 2F RST CHIPR 10.2 KOHM +-1% 1/10W
R409 061T0603102 2F RST CHIPR 10.2 KOHM +-1% 1/10W
C654 065G040268132K Y CAP CHIP 0402 680P 50V X7R +/-10%
C653 065G040268132K Y CAP CHIP 0402 680P 50V X7R +/-10%
C652 065G040268132K Y CAP CHIP 0402 680P 50V X7R +/-10%
C651 065G040268132K Y CAP CHIP 0402 680P 50V X7R +/-10%
C705 065G0603104 12 CER2 0603 X7R 16V 100N P
C452 065G060310525K T CAP MLCC 0603 1UF K 25V X5R
C453 065G060310525K T CAP MLCC 0603 1UF K 25V X5R
C457 065G060310525K T CAP MLCC 0603 1UF K 25V X5R
C459 065G060310525K T CAP MLCC 0603 1UF K 25V X5R
51
C642 065G060310525K T CAP MLCC 0603 1UF K 25V X5R
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
C643 065G060310525K T CAP MLCC 0603 1UF K 25V X5R
C644 065G060310525K T CAP MLCC 0603 1UF K 25V X5R
C645 065G060310525K T CAP MLCC 0603 1UF K 25V X5R
C647 065G060310525K T CAP MLCC 0603 1UF K 25V X5R
C650 065G060310525K T CAP MLCC 0603 1UF K 25V X5R
C655 065G060310525K T CAP MLCC 0603 1UF K 25V X5R
C657 065G060310525K T CAP MLCC 0603 1UF K 25V X5R
C135 065G0603221 32 CHIP 220PF 50V X7R
C160 065G0603221 32 CHIP 220PF 50V X7R
C402 065G0603224 32 CHIP 0.22UF 50V X7R
C117 065G0603224 32 CHIP 0.22UF 50V X7R
C403 065G0603224 32 CHIP 0.22UF 50V X7R
C609 065G060333412K A CAP CHIP 0603 0.33UF K 16V X7R
C461 065G0805105 22 CAP CHIP 0805 1UF K 25V X7R
C463 065G0805105 22 CAP CHIP 0805 1UF K 25V X7R
C465 065G0805105 22 CAP CHIP 0805 1UF K 25V X7R
C468 065G0805105 22 CAP CHIP 0805 1UF K 25V X7R
C115 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R
C116 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R
C305 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R
C316 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R
C322 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R
C324 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R
C325 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R
C418 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R
C423 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R
C424 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R
C425 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R
C451 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R
C460 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R
C477 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R
C604 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R
C622 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R
C637 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R
C649 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R
FB402 071G 56G151 B BEAD 0805 150 OHM
FB403 071G 56G151 B BEAD 0805 150 OHM
FB405 071G 56G151 B BEAD 0805 150 OHM
FB406 071G 56G151 B BEAD 0805 150 OHM
FB407 071G 56G151 B BEAD 0805 150 OHM
FB408 071G 56G151 B BEAD 0805 150 OHM
FB606 071G 56G301 EA BEAD 300 OHM
FB602 071G 56G301 EA BEAD 300 OHM
FB302 071G 56G301 EA BEAD 300 OHM
FB601 071G 56G301 EA BEAD 300 OHM
52
FB421 071G 56G301 EA BEAD 300 OHM
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
FB419 071G 56G301 EA BEAD 300 OHM
FB417 071G 56G301 EA BEAD 300 OHM
FB416 071G 56G301 EA BEAD 300 OHM
FB303 071G 56G301 EA BEAD 300 OHM
FB301 071G 56G301 EA BEAD 300 OHM
FB202 071G 56G301 EA BEAD 300 OHM
FB305 071G 56G301 EA BEAD 300 OHM
FB306 071G 56G301 EA BEAD 300 OHM
FB307 071G 56G301 EA BEAD 300 OHM
FB415 071G 56G301 EA BEAD 300 OHM
FB706 071G 57G301 EA CHIP BEAD
FB709 071G 57G301 EA CHIP BEAD
R101 071G 59C600 CHIP BEAD 60 OHM 0603 FCM1608CF-600T06
R104 071G 59C600 CHIP BEAD 60 OHM 0603 FCM1608CF-600T06
R108 071G 59C600 CHIP BEAD 60 OHM 0603 FCM1608CF-600T06
FB101 071G 59C800 1HIP BEAD
FB102 071G 59C800 1HIP BEAD
R138 073T 6322910M CHIP IND 0603 2.2UH+-10% MICROGATE
R175 073T 6322910M CHIP IND 0603 2.2UH+-10% MICROGATE
R206 073T 6322910M CHIP IND 0603 2.2UH+-10% MICROGATE
D101 093G 60230 BAT54C(L43)
D403 093G 64 33 DIO SIG SM BAV99 (PHSE)R
ZD701 093G 39S 9 T ZENER DIODE RLZ9.1B ROHM
D404 093G 39S 24 T RLZ 5.6B LLDS
D402 093G 39S 24 T RLZ 5.6B LLDS
D401 093G 39S 24 T RLZ 5.6B LLDS
ZD601 093G 39S106 T DIODE RLZ6.8C TE-11 500MW/6.8V LL-34
715G3365M01000004K MAIN BOARD PCB
D301 093G 60230 BAT54C(L43)
R309 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W
R310 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W
FB701 071G 57G301 EA CHIP BEAD
CN301 088G 340 21 VT HDMI HEADER 21P V/T
D102 093G 39S 24 T RLZ 5.6B LLDS
D105 093G 39S 24 T RLZ 5.6B LLDS
C121 061G0603750 RST CHIPR 75 OHM +-5% 1/10W
C127 061G0603750 RST CHIPR 75 OHM +-5% 1/10W
C130 061G0603750 RST CHIPR 75 OHM +-5% 1/10W
U402 056G1133923 IC MX25L4005AM2C-12G SOP-8
R643 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
R642 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
R602 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
R430 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
R429 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
R401 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
53
R319 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
R315 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
R301 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
R238 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
R237 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
C420 065G040210131J A CAP 0402 100PF J 50V NPO
C415 065G040210131J A CAP 0402 100PF J 50V NPO
C409 065G040210131J A CAP 0402 100PF J 50V NPO
C408 065G040210131J A CAP 0402 100PF J 50V NPO
C407 065G040210131J A CAP 0402 100PF J 50V NPO
C406 065G040210131J A CAP 0402 100PF J 50V NPO
C405 065G040210131J A CAP 0402 100PF J 50V NPO
C404 065G040210131J A CAP 0402 100PF J 50V NPO
C330 065G040210131J A CAP 0402 100PF J 50V NPO
C102 065G040210131J A CAP 0402 100PF J 50V NPO
C123 065G040210232K Y CAP CHIP 0402 1N 50V X7R +/-10%
C601 065G040210232K Y CAP CHIP 0402 1N 50V X7R +/-10%
C646 065G040210232K Y CAP CHIP 0402 1N 50V X7R +/-10%
C301 065G040210322K Y CAP CHIP 0402 10N 25V X7R +/-10%
C320 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C315 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C311 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C334 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C333 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C319 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C639 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C615 065G040215232K Y CAP CHIP 0402 1.5NF 50V X7R
C616 065G040215232K Y CAP CHIP 0402 1.5NF 50V X7R
C207 065G040222131J A CAP 0402 220PF J 50V NPO
C208 065G040222131J A CAP 0402 220PF J 50V NPO
C421 065G040233031J A CAP 0402 33PF J 50V NPO
C422 065G040233031J A CAP 0402 33PF J 50V NPO
C122 065G060310131J Y CAP CHIP 0603 100P 50V NPO +/-5%
C748 065G060310231J Y CAP CHIP 0603 1NF J 50V NPO
C749 065G060310231J Y CAP CHIP 0603 1NF J 50V NPO
C470 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C469 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C467 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C327 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C328 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C329 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C331 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C332 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C419 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C433 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C454 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
54
C455 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
C456 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C458 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C462 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C464 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C466 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C656 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C658 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C659 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C661 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C663 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C707 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C714 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C717 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C719 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C720 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C721 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C724 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C726 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C728 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C730 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C738 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C739 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C743 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C648 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C478 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C602 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C603 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C605 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C606 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C611 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C613 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C617 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C620 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C621 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C623 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C625 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C627 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C629 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C631 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C634 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C638 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C641 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C326 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C132 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C158 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
55
C202 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
C205 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C206 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C306 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C307 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C323 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C321 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C318 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C317 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C314 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C313 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C312 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C110 065G060347332K F CAP CHIP 0603 47NF K 50V X7R
C106 065G060347332K F CAP CHIP 0603 47NF K 50V X7R
C101 065G060347332K F CAP CHIP 0603 47NF K 50V X7R
C129 065G060347332K F CAP CHIP 0603 47NF K 50V X7R
C126 065G060347332K F CAP CHIP 0603 47NF K 50V X7R
C120 065G060347332K F CAP CHIP 0603 47NF K 50V X7R
C124 065G080547515K T CAP CHIP 0805 4.7UF K 16V X5R
C125 065G080547515K T CAP CHIP 0805 4.7UF K 16V X5R
C133 065G080547515K T CAP CHIP 0805 4.7UF K 16V X5R
C136 065G080547515K T CAP CHIP 0805 4.7UF K 16V X5R
C725 065G080547515K T CAP CHIP 0805 4.7UF K 16V X5R
C713 065G080547515K T CAP CHIP 0805 4.7UF K 16V X5R
C636 065G080547515K T CAP CHIP 0805 4.7UF K 16V X5R
C151 065G080547515K T CAP CHIP 0805 4.7UF K 16V X5R
C149 065G080547515K T CAP CHIP 0805 4.7UF K 16V X5R
C635 065G080547515K T CAP CHIP 0805 4.7UF K 16V X5R
U402 070GHDCP500HDC HDCP CODE
CN301 088T 340 21 VA HDMI HEADER 21P V/T 2nd source
C703 067G 3051014CT EC 100UF 25V KM 6.3X11MM
C610 067G 3051014CT EC 100UF 25V KM 6.3X11MM
C204 067G 3051014CT EC 100UF 25V KM 6.3X11MM
C203 067G 3051014CT EC 100UF 25V KM 6.3X11MM
C704 067G 3051014CT EC 100UF 25V KM 6.3X11MM
C708 067G 3051014CT EC 100UF 25V KM 6.3X11MM
C722 067G 3051014CT EC 100UF 25V KM 6.3X11MM
PWTV9C41XQD1 POWER BOARD
040G 45762412B CBPC LABEL
GND 009G6005 1 GP GROUND TERMINAL
CN804 033G8021 2E U INVERT CONNECTOR
CN801 033G8021 2E U INVERT CONNECTOR
CN802 033G8021 2E U INVERT CONNECTOR
CN803 033G8021 2E U INVERT CONNECTOR
CN804 033G8021 2E XY CONNECTOR
CN801 033G8021 2E XY CONNECTOR
56
CN802 033G8021 2E XY CONNECTOR
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
CN803 033G8021 2E XY CONNECTOR
051G 6 4503 GLUE_RTV
IC903 056G 139 3A IC PC123Y22FZ0F
NR901 061G 5810T RST NTCR 8 OHM +-20% 4A 13MM THINKING
C903 063G107K474 6S CAP X2 0.47UF K 275VAC
C819 065G 3J5606ET CAP CER 56PF J 3KV
C820 065G 3J5606ET CAP CER 56PF J 3KV
C821 065G 3J5606ET CAP CER 56PF J 3KV
C822 065G 3J5606ET CAP CER 56PF J 3KV
C824 065G 6J2706ET CAP CER27PF 5% SL 6KV TDK
C816 065G 6J2706ET CAP CER27PF 5% SL 6KV TDK
C931 065G306M1022BM Y1.CAP.001UF 250VAC MURATA
C902 065G306M1022BP 1000PF Y1.CAP
C901 065G306M1022BP 1000PF Y1.CAP
C905 067G 40Z12115K EC 120UF V 450V 20*40MM
C812 067G215C4714HV EC 470UF 25V 10*13
C918 067G215P1024KV LOW ESR EC 1000UF M 25V 12.5*20MM
C917 067G215P1024KV LOW ESR EC 1000UF M 25V 12.5*20MM
C915 067G215P4713KV LOW ESR EC 471UF M 16V 10*12MM
C922 067G215P4714KV LOW ESR EC 470UF M 25V 10*16MM
C914 067G215S1023KV
C930 067G215S1023KV
FB901 071G 55 21 FERRITE BEAD
FB902 071G 55 21 FERRITE BEAD
FB905 071G 55 21 FERRITE BEAD
L801 073G 174 35 HA IND FILTER 200MH+-25% DADON
L802 073G 174 35 HA IND FILTER 200MH+-25% DADON
L902 073G 174 65 S2 LINE FILTER 30MH MIN
L903 073G 253 91 H CHOKE COIL
L904 073G 253 91 H CHOKE COIL
T901 080GL19T 33 S1 X'FMR 530UH
PT802 080TL22T 4 H X'FMR INVERTER 775MH
PT802 080TL22T 4 DN X'FMR 775MH TK.2001Y.101
CN901 087G 501 47 S AC SOCKET 2PIN + 2 SCREW HOLE
CN901 087G 501 47 DL AC SOCKET 2PIN + 3 SCREW HOLE
BD901 093G 5046016A DIODE BRIDGE T4KB80 ZHONGHUAN
BD901 093G 50460900 BRIDGE 4A/800V GBU408 LITEON
CN902 095G 82011W513 HARNESS 11P(SAN)-12P(PLUG) 200MM 2nd source
CN902 095G 82011X513 HARNESS 11P(SAN)-12P(PLUG) 200MM
0Q1G 340 8106 CR3 SCREW
705TQ757019 Q901 ASS'Y
051T 200 1 OIL FOR DISAPPEAR
Q901 057G 667 21 STP10NK70ZFP
0M1G1730 8120 SCREW
HS1 Q90T6064 5 GP HEATSINK
EC CAP 105℃ 1000UF M 16V
EC CAP 105℃ 1000UF M 16V
57
705TQ793050 D904 ASS'Y
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
051T 200 1 OIL FOR DISAPPEAR
HS2 090T6064 1 GP HEAT SINK
D904 093G 60267 SP10100
0M1G1730 8120 SCREW
705TQ951005 OIL FOR DISAPPEAR
705TQ993018 D906 ASS'Y
051T 200 1 OIL FOR DISAPPEAR
D906 093G 60522 DIODE MBR10150FCT PANJIT
0M1G1730 8120 SCREW
HS3 Q90T0179 1 HEAT SINK
709T3465 QM001 CONSUMPTIVE ASS'Y
055G 2 ALCOHOL
Q55G 23525 WELDING FLUX WITHOUT PB
Q55G 100625 TIN STICK_LOW ARGENTUM
IC901 056G 379128 IC LD7576 GS SOP-8
IC801 056G 608900 IC OZ9938GN-B1 SOIC-16
Q802 057G 759 2 RK7002FD5T116 SOT-23 BY ROHM
Q803 057G 759 2 RK7002FD5T116 SOT-23 BY ROHM
Q806 057T 600517 AO4616 SOIC-8
Q805 057T 600517 AO4616 SOIC-8
R816 061G06031002FF RST CHIPR 10KOHM +-1% 1/10W FENGHUA
R807 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO
R806 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO
R805 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO
R808 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO
R845 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R844 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R843 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R842 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R819 061G0603104 JT RST CHIP 100K 1/10W 5% TZAI YUAN
R817 061G0603105 JT RST CHIP 1M 1/10W 5% TZAI YUAN
R826 061G0603105 JT RST CHIP 1M 1/10W 5% TZAI YUAN
R838 061G0603105 JT RST CHIP 1M 1/10W 5% TZAI YUAN
R839 061G0603105 JT RST CHIP 1M 1/10W 5% TZAI YUAN
R840 061G0603105 JT RST CHIP 1M 1/10W 5% TZAI YUAN
R841 061G0603105 JT RST CHIP 1M 1/10W 5% TZAI YUAN
C808 061G0603184 JY RST CHIPR 180KOHM 1/10W YAGEO
R823 061G06033900FF RST CHIPR 390 OHM +-1% 1/10W FENGHUA
R825 061G0603511 JY RST CHIPR 510OHM +-5% 1/10W YAGEO
R803 061G0603512 JT RST CHIPR 5.1KOHM +-5% 1/10W TZAI YUAN
R804 061G0603512 JT RST CHIPR 5.1KOHM +-5% 1/10W TZAI YUAN
R824 061G06036201FF RST CHIPR 6.2KOHM +-1% 1/10W FENGHUA
R818 061G0603753 JY RST CHIPR 75KOHM +-5% 1/10W YAGEO
R928 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
RJ802 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
58
RJ803 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
R907 061G0805100 JY RST CHIPR 10OHM +- 5% 1/8W YEGAO
R924 061G0805102 JT RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN
R938 061G0805103 JT RST CHIPR 10K OHM +- 5% 1/8W TZAI YUAN
R820 061G0805103 JT RST CHIPR 10K OHM +- 5% 1/8W TZAI YUAN
R821 061G0805105 JT RST CHIP 1M 1/8W 5% TZAI YUAN
R925 061G0805151 JF RST CHIPR 150 OHM +-5% 1/8W FENGHUA
R834 061G0805153 JT RST CHIP 15K 1/8W 5% TZAI YUAN
R822 061G08052002FT RST CHIP 20K 1/8W 1%
R835 061G0805203 JT RST CHIPR 20K +-5% 1/8W TZAI YUAN
R833 061G0805203 JT RST CHIPR 20K +-5% 1/8W TZAI YUAN
R832 061G0805203 JT RST CHIPR 20K +-5% 1/8W TZAI YUAN
R827 061G0805203 JT RST CHIPR 20K +-5% 1/8W TZAI YUAN
R802 061G0805220 JF RST CHIPR 22 OHM +-5% 1/8W FENGHUA
R912 061G0805220 JF RST CHIPR 22 OHM +-5% 1/8W FENGHUA
R831 061G0805243 JW RST CHIPR 24K +-5% 1/8W WALSIN
R930 061G08052431FY RST CHIPR 2.43KOHM +-1% 1/8W YAGEO
R929 061G08053302FF RST CHIPR 33KOHM +-1% 1/8W FENGHUA
R927 061G08053601FT RST CHIP 3K6 1/8W 1%
R943 061G0805471 JY RST CHIPR 470OHM +-5% 1/8W YAGEO
R813 061G0805474 JY RST CHIPR 470K +-5% 1/8W YAGEO
RJ801 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
RJ901 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
RJ902 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
R903 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
R918 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
R919 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
R920 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
R934 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
R935 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
R936 061G1206102 JT RST CHIPR 1KOHM +-5% 1/4W TZAI YUAN
R922 061G1206201 JW RST CHIPR 200 OHM +-5% 1/4W WALSIN
R909 061G1206339 JT RST CHIPR 3.3 OHM +-5% 1/4W TZAI YUAN
R900 061G1206684 JT RST CHIPR 680 KOHM 1/4W TZAI YUAN
R901 061G1206684 JT RST CHIPR 680 KOHM 1/4W TZAI YUAN
R902 061G1206684 JT RST CHIPR 680 KOHM 1/4W TZAI YUAN
R904 061G1206822 JF RST CHIPR 8.2KOHM +-5% 1/4W FENGHUA
R905 061G1206822 JF RST CHIPR 8.2KOHM +-5% 1/4W FENGHUA
C806 065G060310512K T CAP CHIP 0603 1UF K 16V X7R
C823 065G080510332K Y CAP CHIP 0805 10N 50V X7R +/-10%
C825 065G080510332K Y CAP CHIP 0805 10N 50V X7R +/-10%
C811 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R
C916 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R
C919 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R
C920 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R
C927 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R
59
C804 065G080510512K T CAP CHIP 0805 1UF K 16V X7R
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
D809 093G 64 33 DIO SIG SM BAV99 (PHSE)R
D806 093G 64 42 P BAV70 SOT23 BY PAN JIT
D807 093G 64 42 P BAV70 SOT23 BY PAN JIT
D808 093G 64 42 P BAV70 SOT23 BY PAN JIT
D909 093G 6432P LL4148
D805 093G 6432P LL4148
D804 093G 6432P LL4148
D803 093G 6432P LL4148
D802 093G 6432P LL4148
D801 093G 6432P LL4148
ZD920 093G 39S 40 T RLZ 13B LLDS
IC902 056G 158 12 KIA431A-AT/P TO-92
R908 061G152M10452T RST MOFR 100KOHM +-5% 2WS
R940 061G152M15152T RST MOFR 150 OHM +-5% 2WS
R914 061G152M39852T RST MOFR 0.39 OHM +-5% 2WS
C906 065G 2K222 2T6921 CAP CER 2200PF K 2KV Y5P
C908 067G215Y2207KT
F901 084G 56 4 B FUSE 4A 250V
D901 093G 6026T52T RECTIFIER DIODE FR107
D902 093G 6038T52T FR103
J810 095G 90 23 JUMPER WIRE
J903 095G 90 23 JUMPER WIRE
J811 095G 90 23 JUMPER WIRE
J809 095G 90 23 JUMPER WIRE
J902 095G 90 23 JUMPER WIRE
J812 095G 90 23 JUMPER WIRE
J908 095G 90 23 JUMPER WIRE
J906 095G 90 23 JUMPER WIRE
J905 095G 90 23 JUMPER WIRE
J904 095G 90 23 JUMPER WIRE
J808 095G 90 23 JUMPER WIRE
J807 095G 90 23 JUMPER WIRE
J806 095G 90 23 JUMPER WIRE
J805 095G 90 23 JUMPER WIRE
J804 095G 90 23 JUMPER WIRE
F903 095G 90 23 JUMPER WIRE
J801 095G 90 23 JUMPER WIRE
J802 095G 90 23 JUMPER WIRE
J803 095G 90 23 JUMPER WIRE
FB904 071G 55 9 T FERRITE BEAD
FB903 071G 55 9 T FERRITE BEAD
Q903 057G 761 16 TRA KTD1028 KEC
F901 084G 56 4W FUSE 4.0A 250V
D901 093G110050152T DIODE PR1007 1A/1000V 500NS DO-41
D902 093G 6038P52T PS102R
CAP 105℃ 22UF M 50V KINGNICHI
60
IC902 056G 158 10 T IC AS431AZTR-E1 TO-92
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
FB906 071T 55 26 H FERRITE BEAD 3.5*6.0*0.8
FB907 071T 55 26 H FERRITE BEAD 3.5*6.0*0.8
FB906 071G 55 26 S FERRITE CORE
FB907 071G 55 26 S FERRITE CORE
709T3465 QA001 CONSUMPTIVE ASS'Y
J909 095G 90 23 JUMPER WIRE
J910 095G 90 23 JUMPER WIRE
CN901 006G 31500 GP EYELET
715G3465P020HV003M POWER BOARD PCB
RJ903 061G1206000 RST CHIP MAX 0R05 1/4W
D801 093G 64S522SEM LL4148
D802 093G 64S522SEM LL4148
D803 093G 64S522SEM LL4148
D804 093G 64S522SEM LL4148
D805 093G 64S522SEM LL4148
D909 093G 64S522SEM LL4148
D809 093G 6433S DIODE BAV99 SEMTECH
D806 093G 64 42 PP BAV70 SOT-23
D807 093G 64 42 PP BAV70 SOT-23
D808 093G 64 42 PP BAV70 SOT-23
Q802 057G 763 62 FET 2N7002K 300MA/60V SOT-23
Q803 057G 763 62 FET 2N7002K 300MA/60V SOT-23
709T3465 QS001 CONSUMPTIVE ASS'Y
052G 2191 A PAPER TAPE
C805 065G060310332K Y CAP CHIP 0603 10N 50V X7R +/-10%
C807 065G060310332K Y CAP CHIP 0603 10N 50V X7R +/-10%
C813 065G060333332K F CAP CHIP 0603 33NF K 50V X7R
C810 065G060347332K F CAP CHIP 0603 47NF K 50V X7R
C815 065G060347332K F CAP CHIP 0603 47NF K 50V X7R
C932 065G080510231J F CAP CHIP 0805 1NF J 50V NPO
C925 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C924 065G080522131J F CAP CHIP 0805 220PF J 50V NPO
C912 065G080522332K F CAP CHIP 0805 22NF K 50V X7R
C814 065G080539131J Y CAP CHIP 0805 390P 50V NPO +/-5%
C923 065G080547131J Y CAP CHIP 0805 470P 50V NPO +/-5%
C801 065G080547332K Y CAP CHIP 0805 47N 50V X7R +/-10%
C802 065G080547332K Y CAP CHIP 0805 47N 50V X7R +/-10%
C809 065G080556131G F CAP CHIP 0805 560PF G 50V NPO
C929 065G120610272K Y CAP CHIP 1206 1NF K 500V X7R
C921 065G120610272K Y CAP CHIP 1206 1NF K 500V X7R
ZD803 093G 39GA01 T RLZ5.6B
ZD802 093G 39GA01 T RLZ5.6B
ZD803 093G 39S 24 T RLZ 5.6B LLDS
ZD802 093G 39S 24 T RLZ 5.6B LLDS
071FPC28201 11 MAGNETIC CORE PC40 EER28L A234
61
Q11G5052 1 STRING
http://www.jdwxwz.com/?fromuser=乖乖狗
家电维修资料网，免费下载各种维修资料
Q11G5070 1 PCB SUPPORT
Q12G7047 1 SILICA GEL
Q40G 192654 7A RATING LABEL
Q40G000265437A WARNING LABEL
Q41G19MV654 1C MANUAL
Q41G78DV654 1A WARRANTY CARD
Q41G78DV654 2B CERTIFICATE CARD
Q44G9156101 EPS CUSHION
Q44G9156201 EPS CUSHION
Q44G9156654 1A 18.5" LCD TV ROWA CARTON
Q45G 77 5 PE PACKING (Y1900241)
Q45G 88609204 N EPE BAG
Q45G 99626 35 PE BAG
Q50G 4 10 TIE (Y1900221)
Q50T 500523 CABLE TIE
Q52G 1150523 TAPE_INSULATING
092GB1JX1A3DGC
Q45G2010M0101A PE BAG FOR MANUAL
040G 58162435A P/N LABEL FOR MANUAL PE BAG
Q40G0001654 6A CARTON LABEL
0Q1G 930 8 47 CR3 SCREW
Q34E0601 GM 1L0100 IO SIDE COVER
Q40G0002001 7B SIDE LABEL
E09502 095G8014 8DH14 HARNESS 8P(PLUG)-5P(550MM)+4P(600MM)
E09502 095G8014 8XH14 HARNESS 8P(PLUG)-5P(550MM)+4P(600MM) 2nd source
A15T0513101 HINGE BKT
Q40G2010 19102 I/O LABLE
BATTERY FOR LR03（KH）2S/G
62
Loading...
