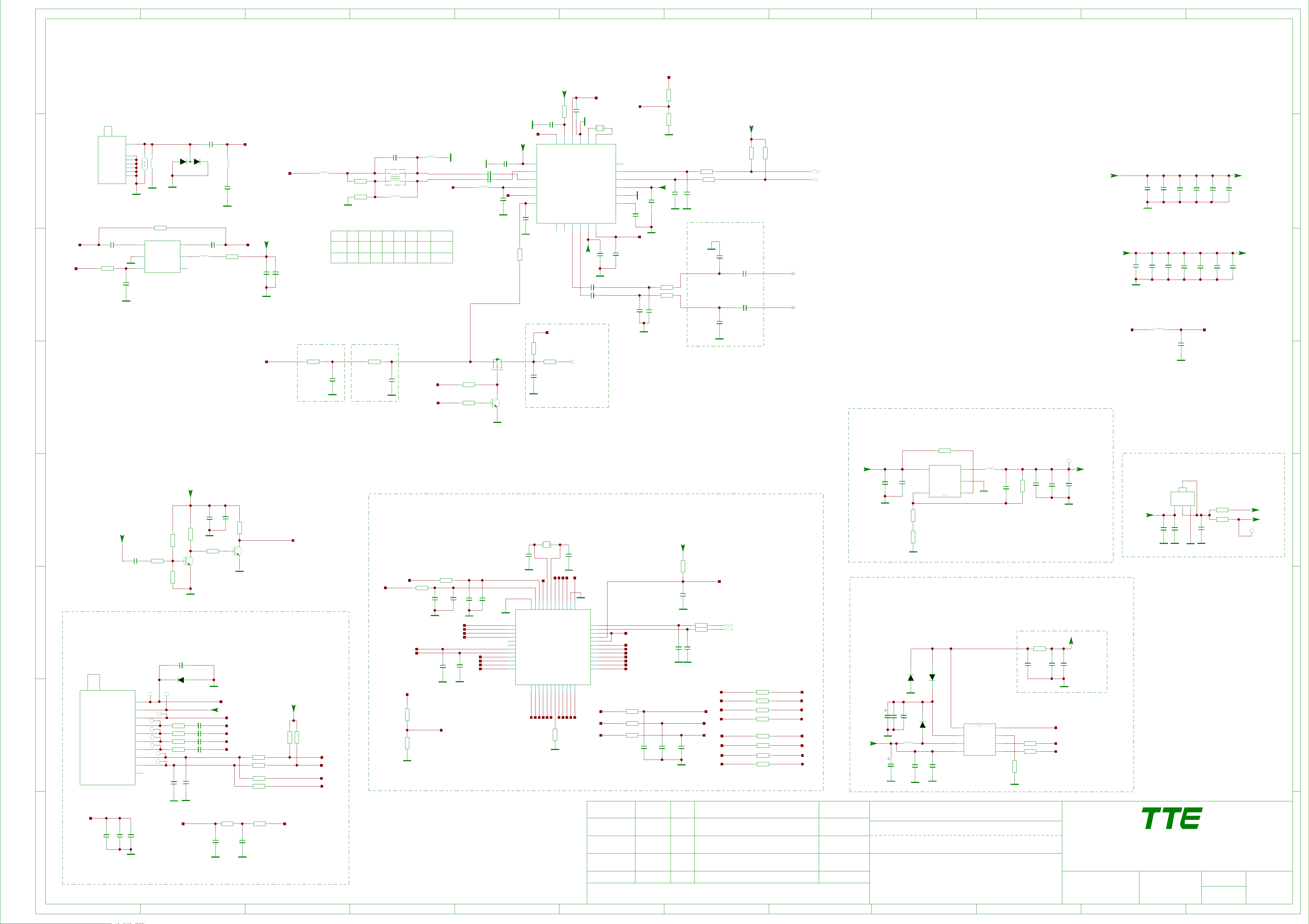

TCL L43P1US Schematic

TCL

SERVICE MANUAL

L43P1US/MS68A-AP

1. Caution…………………………………………………………………………

2. specification……………………………………………………………………

3. Alignment Procedure………………………………………………………… 4．Block diagram………………………………………………………………… 5．Scheme Diagram ……………………………………………………………

6. Troubleshooting………………………………………………………………

([SORGHGUDZLQJ

This m anual i s t he l atest at t he t ime of pr inting, and doe s not include the modification which may be made after the printing, by the constant improvement of product

RISK OF

ELECTRIC

SHOCK DO

NOT

OPEN.

SCHNEIDER ELECTRONICS GMBH-GERMANY

1. CAUTION

CAUTION:

Use of controls, adjustments or procedures other than those specified herein may result in hazardous radiation exposure.

CA UTION : TO RE DUCE THE RIS K OF

CA U T IO N

RISK

SHOCK

The lighting flash with arrowhead symbol, with an equilateral triangle is intended to alert the user to the presence of uninsulated voltage within the product s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to the person.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

ELECTRI

NOT

OPEN.

ELECTR ICAL SH OCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PAR TS INS IDE . RE FER SER VIC ING TO QUALIFIE D SERVIC E PERS ONNEL.

dangerous

WARNING: TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

SCHNEIDER ELECTRONICS GMBH-GERMANY

IMPORTANT SAFETY INSTRUCTIONS

CAUTION:

Read all of these instructions. Sa ve these instructions for later use . Follo w all Warnings and Instructions marked on the audio equipment.

1. Read Instructions-All the safety and operating instructionsshouldbe read before the productis operated.

2. Retain Instructions- The safety and operating instructions should be retained for future reference.

3. Heed Warnings- All warnings on the product and in the operating instructions should be adhered to.

4. Follow Instructions- All operating and use instructions should be followed.

FOR YOUR PERSONAL SAFETY

1. When the power cord or plugis damaged or frayed, unplug this television set from the wall outlet and refer servicing to qualified service personnel.

2. Do not overload wall outlets and extension cords as this can result in fire or electric shock.

3. Do not allow anything to rest on or roll over the power cord, and do not place the TV where power cord is subject to traffic or abuse. This may result in a shock or fire hazard.

4. Do not attempt to service this television set yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

5. Never push objects of any kind into this television set through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the television set.

6. If the television set has been dropped or the cabinet has been damaged, unplug this television set from the wall outlet and refer servicing to qualified service personnel.

7. If liquid has been spilled into the television set, unplug this television set from the wall outlet and refer ser vicing to qualified service personnel.

8. Do not subject your television set to impact of any kind. Be particularly careful not to damage the picture tube surface.

9. Unplug this television set from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

10.1. Do not place this television set on an unstable cart, stand, or table. The television set may fall, causing serious injury to a child or an adult, and serious damage to the appliance. Use only with a car t or stand recommended by the manufacturer, or sold with the television set. Wall or shelf mounting should follow the manufacturer s instructions, and should use a mounting kit approved by the manufacturer.

10.2. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

SCHNEIDER ELECTRONICS GMBH-GERMANY

PROTECTION AND LOCATION OF YOUR SET

11. Do not use this television set near water ... for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, etc. Never expose the set to rain or water. If the set has been exposed to rain or water, unplug the set from the wall outlet and refer servicing to qualified service personnel.

12. Choose a place where light (artificial or sunlight) does not shine directly on the screen.

13. Avoid dusty places, since piling up of dust inside TV chassis may cause failure of the set when high humidity persists.

14. The set has slots, or openings in the cabinet for ventilation purposes, to provide reliable operation of the receiver, to

protect it from overheating. These openings must not be blocked or covered.

Never cover the slots or openings with cloth or other material. Never block the bottom ventilation slots of the set by placing it on a bed, sofa, rug, etc. Never place the set near or over a radiator or heat register. Never place the set in enclosure, unless proper ventilation is provided.

a built-in

PROTECTION AND LOCATION OF YOUR SET

15.1. If an outside antenna is connected to the television set, be sure the antenna system is grounded so as to provide some

protection against voltage surges and built up static charges, Section 810 of the National Electrical Code, NFPA No. 70-1975, provides information with respect to proper grounding of the mast and supportingstructure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrode, and requirements for the grounding electrode.

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE INSTRUCTIONS

EXAMPLE OF ANTENNA GROUNDING AS PER

NATIONAL ELECTRICAL CODE

ANTENNA LEAD- IN WIRE

GROUND CLAMP

ELECTRIC SERVICE

EQUIPMENT

NEC-NATIONAL ELECTRICAL CODE

ANTENNA DISCHARGE UNIT (NEC SECTION 810-20)

GROUNDING CONDUCTORS (NECSECTION 810-21)

GROUND CLAMPS

POWER SER VICE GROUNDING ELECTRODE SYSTEM (NEC ART 250. PART H)

15.2. Note to CATV system installer : (Only for the television set with CATV reception)

This reminder is provided to call the CATV system attention to Ar ticle 820-40 of the NEC that provides

installer s guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entr y as practical.

16. An outside antenna system should not be located in the vicinity of overhead power lines or other electric lights or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

17. For added protection for this television set during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage due to lightning and power-line surges.

SCHNEIDER ELECTRONICS GMBH-GERMANY

OPERATION OF YOUR SET

18.

This television set should be operated only from the type of power source indicated on the marking label.If you are not sure of the type of power supply at your home, consult your television dealer or local power company. For television sets designed to operate from battery power, refer to the operating instructions.

19. If the television set does not operate normally by following the operating instructions, unplug this television set from the wall outlet and refer servicingto qualifiedservice personnel. Adjust only those controls that are covered in the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the television set to normal operation.

20. When going on a holiday : If your television set is to remain unused for a period of time, for instance, when you go on a holiday, turn the television set and unplug the television set from the wall outlet.

off

IF THE SET DOES NOT OPERATE PROPERLY

21. If you are unable to restorenormal operation by followingthe detailedprocedurein your operatinginstructions, do not attempt any further adjustment. Unplug the set and call your dealer or service technician.

22. Whenever the television set is damaged or fails, or a distinct change in performance indicates a need for service, unplug the set and have it checked by a professional service technician.

23. It is normal for some TV sets to make occasional snapping or popping sounds, particularly when being turned on or off. If the snapping or popping is continuous or frequent, unplug the set and consult your dealer or service technician.

FOR SERVICE AND MODIFICATION

24. Do not use attachments not recommendedby the television set manufacturer as they may cause hazards.

25. When replacement parts are required,be sure the service technicianhas used replacementparts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

26. Upon completion of any service or repairs to the television set, ask the service technician to perform routine safety checks to determine that the television is in safe operating condition.

PRODUCT SPECIFICATION RELEASE

Model: L43P1US/MS68A-AP

Version：1.0 Issued On: 2016-02-23

Basic Information

Product Type

Chassis

CPU 64bit Quad Core A53 1.5GHz Mutilmedia Video/Audio Decoder

GPU Six Core ARM MALI450 up 600MHz

OS Android 5.1.1

Memory/Flash 12Gb DDR3 / 8GB Flash

UI Style UI+ 2.0 ,operated launcher display

Launcher HomePages Show

OSD Language English/Vietnamese/Thai/Spain/French

TV System

AV System

Channels

HDMI Version HDMI1.4&HDMI2.0

Power Supply Power Consumption（TV On）

Power Consumption（Standby）

Certification

ECO Energy efficiency

Internet Link

LED Indicator Status In The Center of Front,White in Standby

LED 2D 4K Android Smart DTV

MS68A-AP

Home、Videos 、TV、Apps

Russian/Arabic/Hebrew/Uzbekistan/Fars DVI Video Format Up to XGA for HDMI-PC

ATV：PAL SECAM BG/DK/I；NTSC-M； PC Compatibility Up to SXGA

DTV：DVB-T/T2/C HDMI Video Format up to 4K@60Hz

PAL、NTSC

0000-9999

AC 100V-240V 50/60Hz

95W

﹤0.5W

Yes Aspect Ratio 16:9

wireless WiFi Default Panel Active Size (inch) 43

Ethernet Network

Basic Function

Initial Setup

STR

HDMI Auto Switch Auto、Close、Manual Color 1.07B(10bit)

Channels Edit For Channel renamed

Input Settings For Input source device choice

Sleep Timer Yes

System Update Yes

T-Link（CEC）

Input Method IQQI Keyboard for Multi-language

MHL Yes

Teletext Yes

Audio Language/Nicam Yes

PVR/Timeshift Yes （Only for DTV Programme）

Programme Schedule Record/Reminder（Only for DTV Programme）

EPG Yes（Only for DTV Programme）

Subtitle Yes

Yes，for user setting in TV first starting Viewing Angle (H/V) 178°/178°

a special standby mode for starting within 5s Life Time(Typ.) 30,000hrs

Yes

（Only for DTV Programme）

USB Device Media Format

Music MP3

Picture JPEG/BMP/PNG/GIF

MPEG-(1/2/4)/H.264/H.263/DivX Dolby/AC3

Signal Format Capability

Panel Specification

Backlight Unit

Panel supplier AUO

Display Resolution 3840*2160

Brightness (cd/m2) 280(type.)

Contrast Ratio 4000:1

Response Time (G to G) 8ms

Refresh Rate 60Hz

LED

Terminals


Picture Mode Standard\Dynamic\Natural\Movie\Personal

Screen Mode 16:9\4:3\14:9\Cinerama\Zoom etc.

Noise Reduction Low\Middle\High\Auto\Off

Backlight Adjustable Yes (0~100)

Color Temperature Normal/Warm/Cool/Customer

Gamma Adjustable -4 to 4

Dynamic Contrast Yes

Overscan Yes

Game Mode Yes

Film Mode Yes

Picture Reset Yes

Sound

Speakers Integrated speakers (Bottom side)

Audio Power Output（THD=7%） 2×8W

Auto Volume Control On / Off

Sound Preset Standard\Music\Movie\Clear Voice\Personal

Sound Control

TV Placement

Audio Delay

Sound Bluetooth

Five band equalizer adjust in Personal mode

Desk top / Wall mount

Yes

Yes,for External Bluetooth speaker/soundbar

Correct specifications/outward depend on the actual model,all specifications are subject to change without prior notice.

Pre-Installed Application List

YouTube Push Popular VOD posters to Homepage Operation Manual English(Default)

Golive 3.0 Lots of Global Live TV &Movies show Remote Control and batteries RC311 or RC602 (with 2 batteries)

Miracast

App Store 3.3 Special App Store available for download

Browser Webpage Browser

TV Tweets a Social App

Deezer Global Online Music Streaming service

Mediacenter Media/Music play for USB Device

Message Box Messages push

E-Sticker as some function demo in Shop mode

E-Manual Some general basic function introduction

History as some Apps viewing records

nScreen

Wireless Mirroring connecting,to deliver audio

and video content from smartphone to TV

Connect Mobile phone to TV sets and control

the TV like Remote using Phone;

Push media file in Phone to TV Display and

Enjoy big screen picture quality.

Essential Accessories（Default）

Base Stand

AC power cord 1 pcs

RC311

Integrated Packaging

RC602

Mechanical ID Picture

Mechanical Key Specification

L1（mm）

W1（mm）

H1（mm）

L2（mm）

W2（mm）

H2（mm）

Net Weight With Stand（Kg）

Net Weight Without Stand（Kg）

Gross Weight With Packaging（Kg）

973

69.6

570

740

188

606

8.1

7.9

11.5

Diagonal size（cm）

Slim Edge Design---Up（mm）

Slim Edge Design---Bottom（mm）

Slim Edge Design---L&R（mm）15

Carton Dimensions LxWxH（mm）

Container Loading---20 feet（pcs）

Container Loading---40 feet（pcs）

Container Loading--40 feet High（pcs）

VESA Mounting Dimensions LxH（mm）

Drafted by:liuyun Approved by:

108

21.5

1145*145*718

240

498

594

100x200

Factory Test & Alignment Specification For MS68A-AP Series (V1.0).Doc

TCL World-Wide R&D FPD CENTER

Factory Test & Alignment Specification

(FTAS)

for MS68A-AP Series

Version 1.0

PREPARED BY: Li changyong DATE: 2015-10-10

APPROVED BY: DATE:

Page 1 of 9

Factory Test & Alignment Specification For MS68A-AP Series (V1.0).Doc

Disclosure

The information contained in this document is proprietary to TCL SZ FPD lab and shall not be disclosed by the recipient to third persons without the written permission of the team leader or GM of R&D.

Revision History

Version Issue Date Description of changes

V1.0 2015-10-10 This is the first version.

Page 2 of 9

Factory Test & Alignment Specification For MS68A-AP Series (V1.0).Doc

These chassis are designed for LatinAmerica(LA) markets ready for IPTV. The main chip is from Mstar and supports below features matrix:

Class Item MS68A-LA

Inputs

Outputs

Functions

Others

IC Details

Position

ATV

( PAL M/PAN N/ NTSC)

DTV

(DVB-T/T2/C)

HDMI

(480i/p, 576i/p, 720p up to 1080i/p, compliant v1.4 with HDCP)

CMP

(YPbPr can support from 480i up to 1080p, audio) AV (CVBS, audio)Share with CMP

AV audio out

USB thumb drive

Headphone output SPDIF output OAD WIFI DIVX DLNA (DMP) Internet 3D (auto, top & bottom, side by side, frame sequencing, …)

1920x2205@24Hz (1920x1080p x2) 1280x1470@50Hz (1280x720p x2) 1280x1470@60Hz (1280x720p x2)

Audio Return Channel (ARC) I2C connector of MEMC module Main SW Serial NAND Flash

BIN image

Main IC

Cable & Antenna

Antenna

1 1

- Picture, Video, Audio Playback

- Hub, Mouse, Keyboard rd 0

Spdif

Yes

No Yes Yes

YES

U701

N/A

U501

INFO:

 All tests and measurements mentioned hereafter have to be carried out at a normal mains voltage (100 ~ 240 VAC)

 All voltages have to be measured with respect to ground, unless otherwise stated  All final tests have to be done on a complete set including LCD p anel in a room with te mperature of

25+/-7°C

 The Picture Performance assessment such as White Balance (luminance and colour temperature) has to be performed into subdued lighted room after at least 45min of warm-up in order to avoid any

Page 3 of 9

Factory Test & Alignment Specification For MS68A-AP Series (V1.0).Doc

temperature drift influence (colorimetry vs time)

1. PCB/SKD Assembly: Test & Alignment

1.1. Pre-Conditions and DC/DC Check

Before power-on, please check the board according to the relevant block diagram and circuit diagram, and make sure that no serious issue or mistake can destroy the board. For example, the output of DC/DC and LDO should not be shorted to ground.

Supply a suited voltage and power-on, then check the voltage according to the relevant block diagram, circuit diagram and voltage spec. The error should less than 5%. For example, the voltage for main chip (+3V3, AV3.3, +1V2, CORE1V, etc.), the voltage for DDR (DDRV), the voltage for amplifier (AMP_VCC), etc...

Position Value Remark

UDH1 U101 UD033/UT2 UD015 UDB0 UDN1

5V ±5%

0.95V ±5%

3.3V ±5%

1.5V ±5%

1.0V ±5% 3V3SB ±5%

1.2. SW Image download（Developing

Download the latest release SW from below PDM system:

- Link: http://sw.tcl-cctv.com

- Username: MS68A-LA_Customer

- Password: to be requested!

See Appendix

 “How to upgrade FLASH SW using USB”

）

1.3. Project ID Modification

There are different ID stored into the NVM depending on different Panels settings and Models features, but there’s only one key branching Project ID that includes all. So, it’s not recommended to modify Panel ID with Hyper terminal as other ID features may not change!

To modify Project ID, you need to go through “Design menuService menuProject ID”, then spin left or right with RCU “Zoom±” keys to suitable ID (Project name is dynamically refreshed).

See Appendix

Here below is none exhaustive Project ID table for reference:

 “How to change Project ID with RCU”

MODEL

ProjectID Panel Name

Page 4 of 9

Factory Test & Alignment Specification For MS68A-AP Series (V1.0).Doc

1.4. Functional Test

Once the boards (chassis, KB, IR, PSU…) and the panel are well interconnected, plug all external generator devices to relevant inputs/outputs below according to their respective test patterns format and check picture content and sound quality accordingly:

Source Test Signal Test Pattern

2D - Movie 1280x720

Analog/Digital Tuner

(VHF/UHF & CATV)

SPDIF (Coaxial)

AV IN

(CVBS & AUDIO)

CMP

(YPbPr & Audio)

HDMI

(Video & Audio)

RJ45

(LAN)

Headphone via mini jack adapter

Loud Speakers / Enclosures

AV OUT

(Audio)

RF cable generator

Audio Amplifier PCM or Dolby D+

Chroma/Fluke

generator

Chroma/Quantum Data

generator

with beyond HDMI 1.3

and HDCP compliant

DVD/BD player

Internet ICMP packets echo request

RF signal Suitable channel RF signal Suitable channel

RF signal Suitable channel

2D - Static Picture 1920x1080

1. Frequency Range: full band

2. Standard: NTSC /PAL M

3. DVB-T/T2/C

PAL Half Color & Gray bars

1920x1080i@60Hz

Half Color & Gray bars

2D - Movie 1280x720i@60Hz

3D - Movie 1920x1080@p24Hz

Audio tones can be defined by the factory (i.e. 1 KHz & 3 KHz sweep).

Picture video formats can be changed by the factory according to their own standard.

Remark：1. AV Video & Audio in shared with CMP.

1.5. AD Calibration Test

As SoC is built-in an A/D self-calibration mechanism, ADC need not to be performed any more.

1.6. DDC & EDID & T-Link Test

The E-EDID data structures are according to VESA Enhanced EDID 1.3 (and EIA/CEA-861B for

HDMI). CEA Timing Extension structure has been extended to support all 3D capable timings.

All VGA and HDMI structures have their own BIN profile which are part of main SW and uploaded

at power-on into HDMI switch chipset.

For EDID check, it’s needed to check whether the correct EDID is downloaded by checking corresponding EDID NVM Checksum or read them out to check bit by bit if it is in line with the released EDID bin file.

1.7. HDCP Test

Page 5 of 9

Factory Test & Alignment Specification For MS68A-AP Series (V1.0).Doc

For HDCP compliancy, it’s needed to check whether the HDCP key has been well set.

1.8. LAN/WLAN Test (MAC address)

 MAC Address Upgrade

See Appendix

“How to upgrade MAC Address

2. Product Assembly (PA): Test & Alignment

2.1. Factory Menu

Follow the below steps to pop-up the Factory menu in case of “Factory Key” is disabled:

- Press RCU “MENU” key to display main menu

- Select “Setting” and press “OK” key to enter into setting submenu

- Select “Picture” and press “OK” key to enter into picture submenu

- Scroll down to “Contrast” item

- Press the subsequence RCU keys “9”, “7”, “3” and “5”

In case of “Factory Key” is enabled, just press RCU “Return” key to pop-up again the Factory

menu.

The status of “Factory Key” can be changed in Factory Menu->Hotkey. Press RCU “OK” key or “RIGHT” key to enter the submenu. Press RCU “Menu” key to go back to the root menu. Press RCU “RIGHT” or “LEFT” key to change the values. Press RCU “OK” key run the function. Press RCU “Exit” key exit the Factory menu.

See Appendix  “Factory Menu Description”

2.2. Warm-up

Following TCL standard and practices, it’s required minimum 15min of Warm-Up that can be considered as Burn-In. Additional Aging for White Balance alignment is no more necessary due to consistent Picture Performance with Cloning usage. This function is accessible by selecting “Factory menu WARM-UP”, pressing RCU “Zoom+” key and then leaving Factory menu. Other faster methods are available on above enclosed SIACP requirements (rev. v3.9).

2.3. White Balance (WB) （Developing）

for Alignment: ± 0.003



for Measurement: ± 0.01



2.4. SHOP-END initial

At final process stage, it’s necessary to perform “Reset shop” before any packing to leave

Page 6 of 9

+ 29 hidden pages
