TCL L19A11E User Manual
www.tclelectronics.com.au
FCD LA
LED TV
USER MANUAL
L19A11E
Contents
Safety and warnings.............................................................2-3
Introduction........................................................................... 4
Installation........................................................................ ..5-8
Remote Control.................................................................9-10
Operation........................................................................ 11-14
Trouble Shooting...................................................................15
-1-
-3-
WARNINGS AND CAUTIONS
Warning
High voltages are used in the operation
of this television receiver. Do not remove
the cabinet back from your set. Refer
servicing to qualified service personnel.
Warning
To prevent fire or electrical shock
hazard, do not expose the television
receiver to rain or moisture.
Warning
Do not drop or push objects into the
television cabinet slots or openings.
Never spill any kind of liquid on the
television receiver.
Caution
Do not block the ventilation holes in the
back cover. Adequate ventilation is
essential to prevent failure of electrical
components.
Caution
Do not trap the power supply cord under
the television receiver.
Caution
Never stand on, lean on, or suddenly push
the television or its stand. You should pay
special attention to children. Serious injury
may result if it should fall.
Caution
Do not place your television on an unstable
cart, stand, shelf or table. Serious injury to
an individual , and damage to the television,
may result if it should fall.
Caution
When the television receiver is not
used for an extended period of time, it
is advisable to disconnect the AC power
cord from the AC outlet.
Dim:515*320mm(
Caution
If the television is to be built into a
compartment or similar enclosure, the
minimum distances must be maintained.
Heat build-up can reduce the service life of
your television, and can also be dangerous.
INTRODUCTION
-4-
Thank you very much for purchasing this
TV. To enjoy your product from the very
beginning, read this manual carefully and
keep it handy for easy reference.
INSTALLATION
CAUTION
*Locate the TV in the room where light
does not strike the screen .
*Total darkness or a reflection on the
picture screen can cause eyestrain. Soft
and indirect lighting is recommended for
comfortable viewing.
*Allow enough space between the TV and
the wall to permit ventilation.
*Avoid excessively warm locations to
prevent possible damage to the cabinet or
premature component failure.
*Do not cover the ventilation openings
when using theTV.
directly
Never tamper with any components inside
the TV, or any other adjustment controls
not mentioned in this manual. All LED-TVs
are high voltage instruments. When you
clean up dust or water drops on the LED
PANEL or CABINET, the power cord should
be pulled out from the receptacle, then
wipe the TV with a dry soft cloth. During
thunder and lighting, unplug the power cord
and antenna cord to prevent damage to
your TV. All repairs to this TV should only
be performed by qualified TV service
personnel.
Panel
TV System
PAL-B/G I D/K
Video Signal System PAL/NTSC/SECAM
Input Power Voltage
Power consumption
Audio Output Power THD 7%
2x3W
Signal Input
Analog RGB(PC)x1
High-Definition Multimedia Interface(HDMI) x2
Video Input x1
Audio Input x2
Horizontal definition TV line
Composite Video input >=350
Y Cb(Pb) Cr(Pr) >=400
18.5
35W
Main parameter
Y Cb (Pb) Cr ( PR)x1
Main features
Used as Television, display terminal,
PC display
High luminance, wide viewing
Angle
NICAM
DC 12V/3A
USB Input x1
AV Output x1
INSTALLATION
KEYBOARD
-5-
Front panel
1: Remote control sensor.
2: Indicator LED:
BLUE POWER ON.
RED STAND BY.
3: Key board

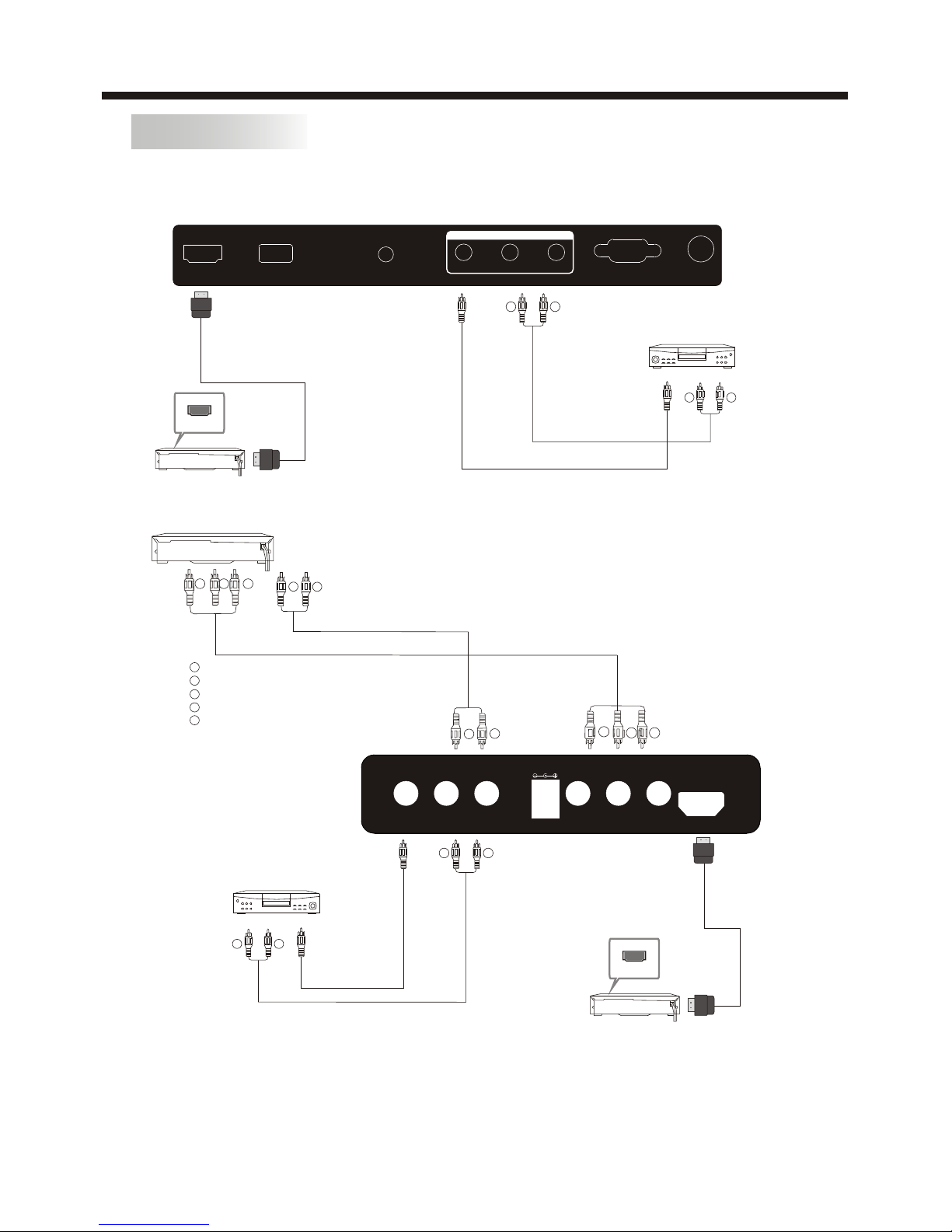

REAR AV Connections
All the terminals are(from left to right):
AV, AUDIO INPUT, POWER SOCKET, YPbPr INPUT, HDMI2.
Note: 1. AV and YPbPr share one audio channel.
2. When the HDMI2 port receives a DVI signal, the audio signal is received from the
YPbPr/AV Audio channel.
REAR AV Connections(SIDE)
All the terminals are(from left to right):
HDMI1, USB, PC AUDIO, AV OUTPUT, VGA, Reference
Note: When HDMI1 receives aDVI signal ,the audio signal is received from the PC
Audio channel.
30 30
1
3
2
1 SOURCE
Display the input source menu.In
MENU mode,press SOURCE to
confirm the selected item.
CH+ or
CH- to select items .
press VOL+ or
VOL- to
STANDBY
Press this button to turn the unit ON from
STANDBY mode.
Press it again to turn the set back to
STANDBY.
2 MENU
Display main MENU.
3 CH+/CH-
In TV mode press CH+ or CHÂ to change the channel up and down.
In MENU mode, press
4 VOL+/VOL-
Adjust sound level.
In MENU mode,
adjust the item that you selected.
5.
SOURCE
MENU
CH+
CH-
VOL+
VOL-
STANDBY
USB PC AUDIO
VGA RF
HDMI1
AV
L
R
AV OUTPUT
POWER
AV L R Y Pb Pr
HDMI2
