TCL Alcatel Pixi4-3.5 3G Service Manual

Rev.

4017A_D_E_F_X_S L1 service manual

Page

1.0

1/36

L1 Service Manual TCL Communication Ltd.

Pixi4-3.5 3G

4017A_D_E_F_X_S

Note: this manual is non-contractual and TCL Communication Ltd. can modify it without prior notice on the characteristics of described equipments.

Rev.

4017A_D_E_F_X_S L1 service manual

Page

1.0

2/36

1.0

2016-2-24

Official version

Peter Ye

Rev.

Date

Modification description

Prepared By

Checked By

Approved By

L1 Service Manual TCL Communication Ltd.

Rev.

4017A_D_E_F_X_S L1 service manual

Page

1.0

3/36

L1 Service Manual TCL Communication Ltd.

Rev.

4017A_D_E_F_X_S L1 service manual

Page

1.0

4/36

L1 Service Manual TCL Communication Ltd.

Content

1. General ............................................................................................................................................. 5

2. Portable Label .................................................................................................................................. 7

2.1 Label zones ...................................................................................................................................... 7

2.2 Commercial label samples: ........................................................................................................... 8

2.3 L1 Spare Part List ......................................................................................................................... 10

2.5 Accessory ....................................................................................................................................... 11

2.5.1 Battery ...................................................................................................................................... 11

2.5.2 Charger .................................................................................................................................... 13

2.5.3 End user USB cable .............................................................................................................. 13

2.6 Maintenance policy ....................................................................................................................... 14

2.6.1 For handset: ............................................................................................................................ 14

2.6.2 For standard accessories (charger, headset and USB cable) ........................................ 14

2.6.3 If input the following codes on handset, you can: ............................................................. 15

2.6.4 User Data Format reset introduction: .................................................................................. 15

2.7 Cell phone maintenance .............................................................................................................. 17

2.8 Invoice check ................................................................................................................................. 17

2.9 IMEI Check ..................................................................................................................................... 19

2.10 Humidity sensitive sticker Check ......................................................................................... 19

2.11 Visual Mechanical inspection ............................................................................................... 20

2.12 Accessories inspection .......................................................................................................... 21

2.13 Cell phone maintenance procedure .................................................................................... 21

3. Replace the handset parts ........................................................................................................... 27

3.1. Preliminary ..................................................................................................................................... 27

3.2. Precaution ...................................................................................................................................... 27

3.3. Battery test ..................................................................................................................................... 28

3.3.1. Charging Process ................................................................................................................... 28

3.3.2. Charger test ............................................................................................................................ 31

4. Software download ....................................................................................................................... 31

4.1 Equipments requested when download： ................................................................................. 31

4.2 Install driver .................................................................................................................................... 32

4.3 SW download process .................................................................................................................. 33

Rev.

4017A_D_E_F_X_S L1 service manual

Page

1.0

5/36

Project Name

Pixi4-3.5 3G

Commercial Name

4017A_D_E_F_X_S

Platform & OS

Platform

MT6572M

CPU frequence

Quad Core 1.0GHz

OS Version

Android 5.1

Design

Form Factor

Bar

Dimension (unit: mm)

116 x62x9.95 mm

Side Keys

Volume & Power Key

Estimated Weight with battery

120g

Bearer

Single SIM or Dual SIM

Single SIM: 4017A_X Dual SIM: 4017D_E_F

SIM Card Number

DSDS

SIM type

3FF (Micro-SIM)

2G Network

GSM 850/900/1800/1900

3G Network

EMEA: UMTS 900/2100 LATAM: UMTS 850/900/2100

3G Data speed

HSPA+ (21M bit/s DL, 5.76Mbit/s UL)

DISPLAY

Main display vision size (unit: inch)

3.5

Main display resolution

HVGA (480×320)

Main display PPI

164

Brightness (cd/m2, Max)

250min/280typ

Main display orientation

Portrait

Main LCD Type

TFT-TN

Main display touch technology

Capacitive

Touch Panel Type

G+F

Touch Points

2, Single touch+gesture

Memory

ROM

4GB

RAM

512MB

L1 Service Manual TCL Communication Ltd.

1. General

Pixi4-3 5 3G – ALCATEL ONETOUCH 4017F & ALCATEL 4017_D_E_X_S is a phone with MT6572M platform (Dual core 1.0 GHz), and BT/WLAN/MP3, social network service etc functions. 4017A_X are Single SIM and 4017D_E_F are Dual SIM. It can work with the GSM 850/900/1800/1900 and UMTS 900/2100 for EMEA, GSM 850/900/1800/1900 and UMTS 850/900/2100 for LATAM.

Detail features

Rev.

4017A_D_E_F_X_S L1 service manual

Page

1.0

6/36

Internal, End user memory size

TBD

External storage Capability

Yes(Micro SD, up to 32GB)

Main camera

Pixel

0.3M Pixel, SW to 2M Pixel

Focus

FF

Lens Apeture size

f/2.8

Continuous Auto Focus

No

Lens (Wide angle/ FOV)

60°

Flash type

Fake Flash

Video

Video Playback: 480@15fps Video Capture: 480@15fps

Video capture (resolution@fps)

720p 30fps

Close loop

No

HDR

Yes

Sub camera

Pixel

0.3M Pixel, SW to 2M Pixel

Focus

FF

Image Sensor

GalaxyCore GC0310(TBD)

Lens Apeture size

f/2.8

Lens (Wide angle/ FOV)

52°±3°

Number of Elements

2P Lens Optics(TBD)

Focus Speed

No

HDR

No

Sensors

GPS

4017X/D:NO 4017A_E_F_S:Yes

Proximity

SW solution

Accelerometer (G sensor)

Yes

E-Compass

No

Light Sensor

No

Pressure sensor

No

Sensor Hub

No

Connectivity

Wi-Fi / WLAN

802.11b/g/n

Wi-Fi Direct

Yes

DLNA

No

Bluetooth

Yes

Bluetooth supported version

Bluetooth Smart (BT v4.0)

Glonass

No

Beidou

No

FM

Yes

IrDA

No

NFC

No

NFC TAG

No

L1 Service Manual TCL Communication Ltd.

Rev.

4017A_D_E_F_X_S L1 service manual

Page

1.0

7/36

USB OTG

No

USB

Micro-USB

HDMI/MHL

No

Audio Jack

Yes

Pogo pins

No

Touch Icon position

out of LCD VA area

Wireless Display Capability (Miracast)

No Mini HDMI

No

USB Moderm Tethering

Yes

Battery

Battery capacity(mAh)

1300mAh

Battery type

hard pack; Li-on; 4.2V

Standby time (Hours)

370h/2G 360h/3G

Talking time (Hours)

7h/2G 6.5h/3G

Charging time (Hours)

3.2 h

L1 Service Manual TCL Communication Ltd.

2. Portable Label

2.1 Label zones

Rev.

4017A_D_E_F_X_S L1 service manual

Page

1.0

8/36

4017E-2AALMX1

L1 Service Manual TCL Communication Ltd.

2.2 Commercial label samples:

Rev.

4017A_D_E_F_X_S L1 service manual

Page

1.0

9/36

4017D-2AALEU1 4017F-2AALMX1 4017A-2AALMX1

L1 Service Manual TCL Communication Ltd.

Rev.

4017A_D_E_F_X_S L1 service manual

Page

1.0

10/36

4017X-2AALEU1

L1 Service Manual TCL Communication Ltd.

2.3 L1 Spare Part List

Please get the latest SPL in Forlog system. Below is 4017A L1 SPL. For other variants, please also them from sytsem.

Rev.

4017A_D_E_F_X_S L1 service manual

Page

1.0

11/36

Model

Element

Capacity

Battery Li

Lithium

1300mAh

L1 Service Manual TCL Communication Ltd.

2.5 Accessory

2.5.1 Battery

1) Battery picture

2) Battery feature

3) Battery life

The bellowing table shows the nominal battery life respectively in standby and talking mode. These

Rev.

4017A_D_E_F_X_S L1 service manual

Page

1.0

12/36

Pixi4-.5 3G Power

pack

4017A_D_E_F_X_S

Standby time (hours) - Paging 5

Voice talking time (Pmin with DTX ON)

Power pack Lithium

370h/2G 360h/3G

7h/2G 6.5h/3G

Mode

Typical Charge time

Power pack Lithium

3.2h

L1 Service Manual TCL Communication Ltd.

typical values are expressed in normal temperature with battery initially full charged and under good ratio coverage. Battery range depends on the network characteristics, the ambient temperature and particularly on movement.

* Pmin: minimum transmission power

** DTX: no transmission during period of silence

4) Battery charge time For a normally discharged battery which has not been stored for long time, the charge time listed as below table.

Note:

 If the battery is new, charge it before use. Battery icon will appear after charging a short time.

If the battery is deeply discharged, battery icon will appear after charging several minutes and accompany with a slight sound.

Rev.

4017A_D_E_F_X_S L1 service manual

Page

1.0

13/36

L1 Service Manual TCL Communication Ltd.

2.5.2 Charger

2.5.3 End user USB cable

Rev.

4017A_D_E_F_X_S L1 service manual

Page

1.0

14/36

L1 Service Manual TCL Communication Ltd.

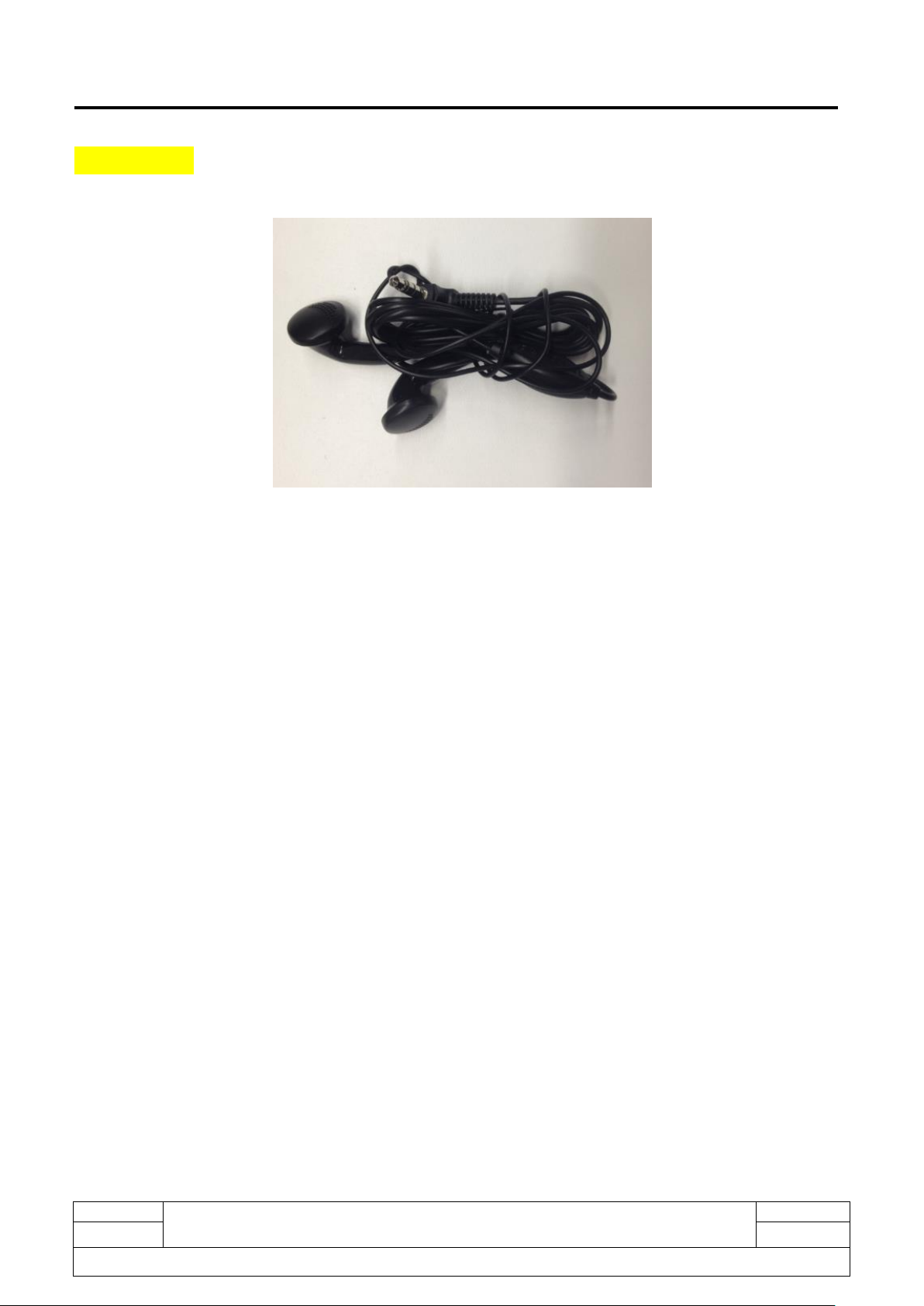

2.5.4 Headset

2.6 Maintenance policy

This chapter describes the maintenance of the Pixi4-3.5 3G 4017 A_D_E_F_X_S series phones authorized at L1 repair center. The maintenance operations can only be performed in approved repair centers.

General

Main L1 maintenance operations are as following:

2.6.1 For handset:

1) Warranty check

2) Function test

3) SW downloading

4) Replacement of the defective handset.

2.6.2 For standard accessories (charger, headset and USB cable)

1) Warranty check

2) Functional check

Rev.

4017A_D_E_F_X_S L1 service manual

Page

1.0

15/36

Code

Description

*#06#

Display IMEI number

*#2886#

Enter Auto Test mode

*#3228#

Check current software version

End user format

Long press volume up key +power key

L1 Service Manual TCL Communication Ltd.

3) Replacement of defective accessories

2.6.3 If input the following codes on handset, you can:

2.6.4 User Data Format reset introduction:

How to use: long press “Power” Key + “Volume up” key in power off mode to enter recovery mode.

When to use: If you can’t start your handset or when you start your handset, there will be something wrong

with it, like can’t charge or can’t charge normally.

What does it do when you use End user format function: it will format end user area, and your handset will come back to factory model, everything you save or set in the handset (except SIM card) will be lost.

Detail steps：

1. Long press “power” key + “volume up” key, and enter the Android system recovery mode.

Rev.

4017A_D_E_F_X_S L1 service manual

Page

1.0

16/36

L1 Service Manual TCL Communication Ltd.

2. Press “volume” key to select “wipe data / factory reset”, press “power” key to confirm;

3. Press “volume” key to select “Yes—delete all user data” and the press “power” key to double confirm the factory reset;

Rev.

4017A_D_E_F_X_S L1 service manual

Page

1.0

17/36

L1 Service Manual TCL Communication Ltd.

4. Factory reset complete, press “volume” key to select “reboot system now” and press “power” key to confirm.

2.7 Cell phone maintenance

1) Equipments for handset test.

 Handset with full power.  One SIM card.

2) It is recommended the following tools:

 One PC with Windows 2000/NT/XP/Windows 7.  One ampere meter for charger current test.

2.8 Invoice check

1. Check warranty status of Handset by POP (Proof of Purchase) ;

2. If the end user lost his POP, then consider the data code as the purchasing day; Date code: (SHV)

Rev.

4017A_D_E_F_X_S L1 service manual

Page

1.0

18/36

day

1 2 3 4 5 6 7 8 9

10 1 2 3 4 5 6 7 8 9 A

11

12

13

14

15

16

17

18

19

20 B C D E F G H I J K

21

22

23

24

25

26

27

28

29

30 L M N O P Q R S T U

31 V

mouth 1 2 3 4 5 6 7 8 9

10 E F G H I J K L M N

11

12 O P

year 3 4 5 6 7 8 9

10

11

12

M N O P Q R S T U V 13

14

15

16 W X Y Z

Coding day

Coding Month

Coding Year

L1 Service Manual TCL Communication Ltd.

Note:

3. If IMEI sicker (commercial label) is lost but the phone can be power on, input “*#2886#” at dial mode and then select “MANU” “Traceability” to check date code, IMEI info, CU-REF, PTH(PTM), etc. If the phone can’t power on, please read data code by using Sugar tool. Please refer to SW download process in term 4 for details.

Rev.

4017A_D_E_F_X_S L1 service manual

Page

1.0

19/36

L1 Service Manual TCL Communication Ltd.

2.9 IMEI Check

1) Power on the handset, enter *#06#

2) If the IMEI sticker in the back casing is not lost: We should make sure that the IMEI number must be the same with the one on the IMEI sticker, if not, it’s out of warranty policy.

2.10 Humidity sensitive sticker Check

If humidity sensitive label is not good, the cell phone will be considered as out of guarantee.

 Liquid was detected by humidity sensitive label

 Position of humidity sensitive sticker.

Humidity sensitive sticker is on the Furnished frame.

Rev.

4017A_D_E_F_X_S L1 service manual

Page

1.0

20/36

Here is the humidity sensitive sticker.

L1 Service Manual TCL Communication Ltd.

2.11 Visual Mechanical inspection

Mechanical warranties check items:

1) Corrosion  Corrosion on the USB connectors, SIM connectors, and other metal surfaces

2) Hole  Holes (Diameter > 1mm) on any surface, including front casing, decorate frame, battery cover, LCD

Lens, keypad.

3) Bump  Bumps (Diameter>1mm) on any surface, including the front casing, decorate frame, battery cover,

LCD Lens, keypad

4) Scratch (length > 3mm)  Scratches on any surface, including the front casing, furnished frame, battery cover, LCD Lens,

keypad

Rev.

4017A_D_E_F_X_S L1 service manual

Page

1.0

21/36

L1 Service Manual TCL Communication Ltd.

5) Distortion  Bend, twisted or crushed on the h/s, cover/casing or connectors

6) Broken  LCD broken, casing broken, cover broken

7) Dropped.  Keypad tear off, LCD lens, connectors fallen off

8) Gap:  External physical damage relating to abnormal use, like front case and frame opened

9) Others:

 Damage caused by disassembly like wrong part assembly, lost of components  Use in abnormal environment like too high temperature with plastic melts

2.12 Accessories inspection

Accessories warranties check items:

1) Any use in abnormal temperature, other than the one specified in the user manual. Any evidence of plastic/casing melted.

2) Any mark of food or liquid around the accessory or in the USB socket.

3) Any evidence of mechanical shocked which damage the enclosure of the battery, charger or headset.

4) Any mark of tentative of disassembly the accessory

5) Any abnormal use which induce wire damage, wire broken or USB socket deformed.

2.13 Cell phone maintenance procedure

1) Check that the SIM card is set correctly.

2) Power on the cell phone.

3) If the cell phone asks to input NCK code, which means it is SIM locked, and can only be worked with

Rev.

4017A_D_E_F_X_S L1 service manual

Page

1.0

22/36

L1 Service Manual TCL Communication Ltd.

dedicated SIM card. Use the correct SIM card.

4) Enter the phone code if necessary.

5) If power on, test step by step with the auto test code:

Press *#2886# in dial screen and then you will see the interface displaying the SW version. Select “Auto” to start the auto test, or select “MANU” to do the MMI test manually.

If one of the tests failed during “Auto” test mode, it will show “Text[X] xxx failed. Restart?”, press “YES” to retest, press “Next” to go on next test and press ”NO” to finish test.

 TRACABILITY

I. You can get some information such as IMEI, CU-REF, PTM, Date Code, etc.

II. Press “Pass” to continue.

 TP0

I. It will running the test automatically, don’t touch TP during test and it will show “Pass” if it

functions well;

II. Press “PASS” to continue.

 TP1

I. Please draw on the yellow area and it will show “TEST RESULT OK!”;

II. Press “Pass” to continue.

 TP2

I. Please draw on the yellow area and it will show “TEST RESULT OK!”;

II. Press “Pass” to continue;

 LCD MIRERGB

I. You will see the LCD display three colors: RED, GREEN and BLUE if it functions well;

Rev.

4017A_D_E_F_X_S L1 service manual

Page

1.0

23/36

L1 Service Manual TCL Communication Ltd.

II. Press “Pass” to continue;

 LCD BLACK

I. You will see the LCD displays black if it functions well;

II. Press “Pass” to continue;

 LCD GREYCHART

I. You will see the LCD displays grey if it functions well;

II. Press “Pass” to continue;

 LCD GRAYLEVEL

I. You will see the LCD displays grey level if it functions well;

II. Press “Pass” to continue;

 LCD WHITE

I. You will see the LCD displays white if it functions well;

II. Press “Pass” to continue.

 KEYPAD

I. Press the key displayed on the screen. The key on the screen will turn grey when you

press it if it functions well;

II. Press “Pass” to continue.

 BACKLIGHT

I. The screen backlight will be flashing if it functions well;

II. Press “Pass” to continue.

 CAMERA

Press “Pass” to continue if the main camera functions well.

Rev.

4017A_D_E_F_X_S L1 service manual

Page

1.0

24/36

L1 Service Manual TCL Communication Ltd.

 CAMERA LED

I. Camera LED will turn on if it functions well;

II. Press “Pass” to continue.

 CHARGER LED

I. The charge LED will turn on if it functions well;

II. Press “Pass” to continue.

 AUDIO

I. You will hear a voice prompt which introduces some emergency call numbers from the

receiver if it functions well;

II. Press “PASS” to continue;

III. You will hear a voice prompt which introduces some emergency call numbers from the

speaker if it functions well;

IV. Press “Pass” to continue;

V. Make a noise near the MIC, you will hear it from the receiver if it functions well;

VI. Press “Pass” to continue;

 VIBRATOR

I. You can feel the phone’s vibrating if it functions well;

II. Press “Pass” to continue.

 ACCESSORY

I. Insert headset according to the instruction and you will hear a voice prompt which

introduces some emergency call numbers through the headset left if it functions well;

II. Press “Pass” to continue;

Rev.

4017A_D_E_F_X_S L1 service manual

Page

1.0

25/36

L1 Service Manual TCL Communication Ltd.

III. You will hear a voice prompt which introduces some emergency call numbers through the

headset right if it functions well;

IV. Press “Pass” to continue;

V. Make a noise near the headset mic, you will hear it from headset if it functions well;

VI. Press “Pass” to continue;

VII. You will hear FM playing and FM frequency will be displayed on the screen if it functions

well;

VIII. Press “Pass” to continue;

IX. Remove headset according to the instruction;

X. Press “Pass” to continue.

 CHARGER

I. Insert charger cable according to instruction, it will detect it and say “Battery Voltage”,

“Charger Current”, “Charger: OK” if it functions well;

II. Please remove charger cable and press “Pass” to continue.

 USB

I. Insert USB cable according to instruction and it will say “USB: OK” if it functions well;

II. Remove USB cable according to instruction and press “Pass” to continue.

 GSENSOR

I. Put the handset towards up according to instruction;

II. Press “Pass” to continue;

III. Put the handset “face down”, “down”, “left”, “right” and “face up” according to instruction,

and then the instruction will disappear and it will say “All positions checked” if it functions well;

Rev.

4017A_D_E_F_X_S L1 service manual

Page

1.0

26/36

L1 Service Manual TCL Communication Ltd.

IV. Press “Pass” to continue.

 PROXIMITY

I. Please shawdow the senor and it will display “near->far: 1”, “far->near: 1” if it functions

well;

II. Press “Pass” to continue.

 SIM CARD

I. Insert SIM card and the phone will detect it if it functions well;

II. Press “Pass” to continue.

 SD CARD

I. Insert SD card and the phone will detect it if functions well;

II. Press “Pass” to continue.

 BATTERY TEMP

I. It will display the value of battery temperature, battery content, battery voltage and battery

ID if it functions well;

II. Press “Pass” to continue.

 BT

I. Bluetooth will search automatically and it will display device address if it functions well;

II. Press “Pass” to continue.

 WIFI

I. It will search for WIFI hotspot and it will display searched result on the screen if it functions

well;

II. Press “Pass” to continue.

 CALL

Rev.

4017A_D_E_F_X_S L1 service manual

Page

1.0

27/36

L1 Service Manual TCL Communication Ltd.

I. It will make a Emergency call if it functions well;

II. Hang up to continue.

3. Replace the handset parts

3.1. Preliminary

Before any disassembly (except the antenna), the back cover, battery and SIM card must be removed firstly.

3.2. Precaution

The heart of the handset contains all digital circuit (microprocessor, ASIC, memories, display, etc) and the high-frequency transceiver circuit which is protected by the upper and lower cover. However, some ESD sensitive area is completely or partially visible (keypad keys, micro-SIM drive, etc). In order to prevent any risk of ESD damage during disassembly or assembly of the handset, the operator's wrist should be grounded. This picture illustrates the connection. The operator wears an electrostatic conduct bracelet which connected to an anti-static pad. And the pad place on the work surface which connected to the metal structure workbench, the whole being earthed.

Rev.

4017A_D_E_F_X_S L1 service manual

Page

1.0

28/36

Pixi4-3.5 3G (4017A_D_E_F_X_S)

Cell phone status before charger connected

ON

OFF

During charging

Display lights up and following battery icon displayed:

Sequential icon flashing:

After charging

(charger connected)

Following fixed battery icon display :

L1 Service Manual TCL Communication Ltd.

3.3. Battery test

3.3.1. Charging Process

1) Table 2.1 describes the various events related to a standard charger connected to a cell phone.

Table 2.1 Battery charge status on handset

2) If the display does not light on or battery icon does not flash when the charger or the cell phone’s charge function is defective with mechanical or electronics.

Rev.

4017A_D_E_F_X_S L1 service manual

Page

1.0

29/36

Battery

Typical Charge Time

Lithium

3.2h

项目/item

性能/performance

备注/remarks

4.1 额定容量/rated capacity

1300mAh

测试温度： Test

temperature 23℃±2℃，

满电电池按 0.2C 电流从

4.2V 放电至

3.0V//temperature:

23℃±2℃ Fully charged

battery is discharged

with current 0.2C from

4.2V to 3.0V

4.2 额定电压/rated voltage

3.7V

4.3 放电截止电压 /cut-off

voltage of discharge

3.0V

L1 Service Manual TCL Communication Ltd.

In this case:

a) Replace the charger to charge.

 Confirm it works correctly or not.

 If it can not work correctly after change charger

b) Then change another battery to charge again.

 Confirm it works correctly or not.

c) Check the Charge connector on the cell phone.

 If it is damaged, replace the cell phone.

3) For a normally discharged battery (with not a long time of storage), charging time listed on below table

4) Battery specification

Rev.

4017A_D_E_F_X_S L1 service manual

Page

1.0

30/36

4.4 充电方式(标准)/charging

mode

恒流恒压 CC/CV

4.5 充电电流( 标准、最

大 )charge current(standard

max)

0.2C

1.0C

260mA（0℃~+45℃）

1300mA（25℃~+60℃）

4.6 充电限制电压 /Limited

charge voltage

4.20V

±0.05V

4.7 放电电流(标准、最大)

0.2C

260mA（-20℃~+60℃）

Discharge current(standard

max)

1.0C

1300mA（-20℃~+60℃）

4.8 内阻/initial impedance

≤150 mΩ

交流 1KHz AC1KHz

4.9 NTC

10K

(25℃)

4.10 R ID

/

4.11 尺寸/size

52.0(±0.1)*48.0(±0.1)*4.7(±0.1)mm

详见成品电池结构图

To the battery drawing

4.12 重量/weight

约 25.5±2g /about 25.5±2g

4.13 环境温度 /temp.: 充电

charge

0℃~＋45℃

放电/discharge

-20℃~+60℃

4.14 不同温度下储存:storage

at different temperature

-20℃~+60℃

1 月/month

出货状态下恢复容量≥80%

-20℃~+40℃

3 月/month

The capacity recovery

Rate should be more than

80% under the shipment

status

-20℃~+25℃

1 年/year

4.15 出货电压/shipment

voltage

3.85V～3.95V

4.16 储存湿度 /storage

relative humidity

45~75%

L1 Service Manual TCL Communication Ltd.

Rev.

4017A_D_E_F_X_S L1 service manual

Page

1.0

31/36

L1 Service Manual TCL Communication Ltd.

3.3.2. Charger test

When the standard charger is connected to the cell phone, check correct running of the charge indicator on the display (refer to item 3.3.1 ).

Use the ampere meter to test the current of the charger.

1) Connect the power supply to ampere meter with adapter.

 Power on adapter

2) Connect the cables from “OUT” on other side to handset.

 Power on charger

3) Connect charger to the meter “ IN “ on the side

4) You can read the current on ampere-meter

5) The reading of the charger output should be 350 mA~550 mA

4. Software download

It is authorized to download software for the handset which needs to be updated. This downloading tool is called “Sugar MTK_SP”. Thus internet access is necessary. TS Website: https://css.tclmobile.cn/.

4.1 Equipments requested when download：

⑴ A handset with full power;

Rev.

4017A_D_E_F_X_S L1 service manual

Page

1.0

32/36

L1 Service Manual TCL Communication Ltd.

⑵ PC with windows system; ⑶ A USB cable.

4.2 Install driver

Double click to install the Sugar MTK_SP, then select the “Install driver” check box for the driver installation.

Rev.

4017A_D_E_F_X_S L1 service manual

Page

1.0

33/36

L1 Service Manual TCL Communication Ltd.

4.3 SW download process

I. Login the Sugar MTK_SP, then select the 4017 model:

Rev.

4017A_D_E_F_X_S L1 service manual

Page

1.0

34/36

L1 Service Manual TCL Communication Ltd.

II. Click the button ”Get Version” to check the SW version of the headset

Rev.

4017A_D_E_F_X_S L1 service manual

Page

1.0

35/36

L1 Service Manual TCL Communication Ltd.

III. Click the “Upgrade” button, disconnect the USB cable, then insert USB cable again Online upgrade process starting:

IV. Upgrade finished:

Rev.

4017A_D_E_F_X_S L1 service manual

Page

1.0

36/36

L1 Service Manual TCL Communication Ltd.

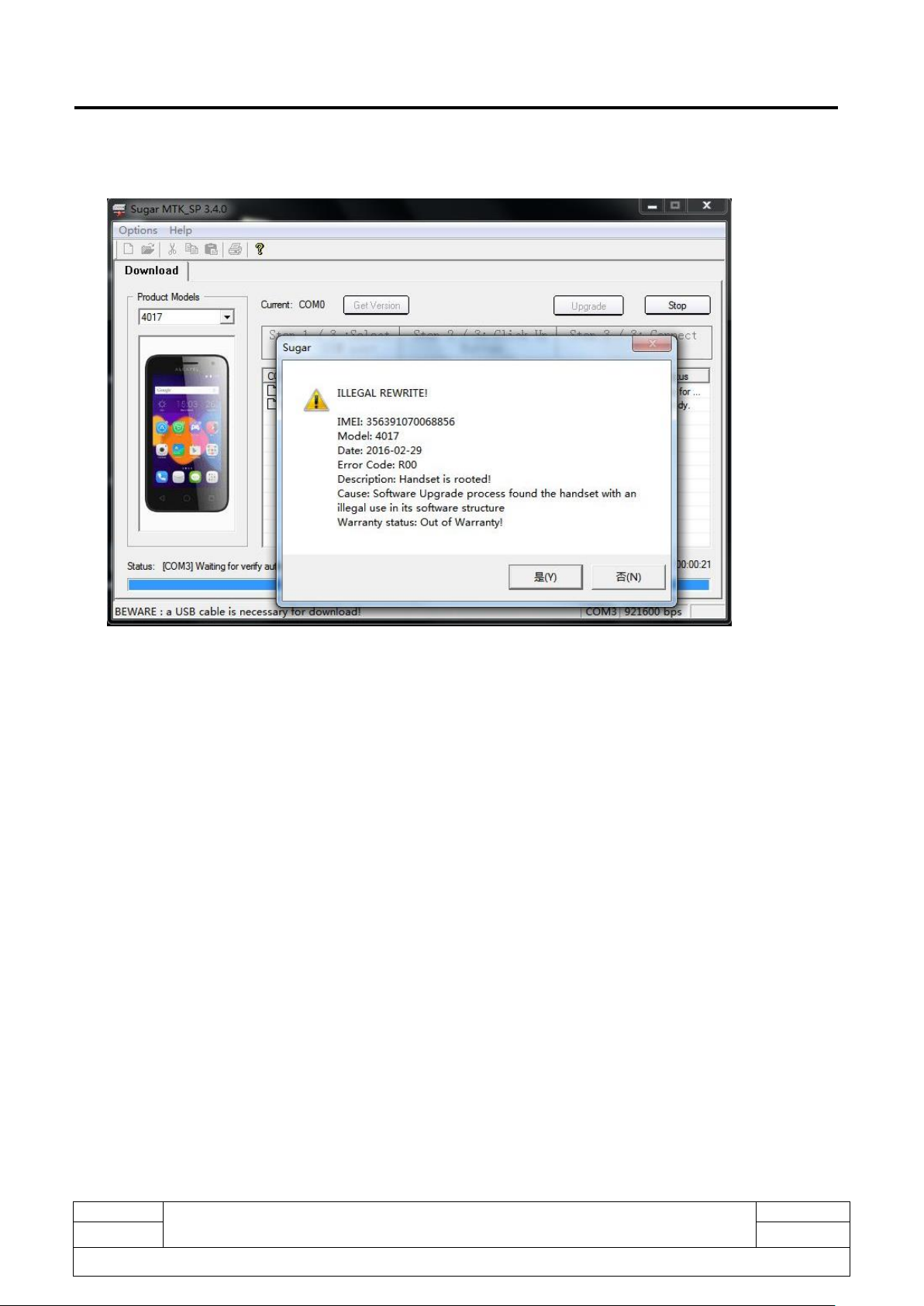

Note: During the download progress a warning window will prompt as below if the phone has been

rooted before.

If the phone has been rooted, it means that the phone is out of warranty. End users need to pay to upgrade, otherwise click "No" to exit the upgrade.

If you have any question or problem, please feel free to contact us

(tct_gcc_techSupport@tcl.com) .

Thanks for your cooperation.

TCL Communication Ltd.

Global Customer Service TS Dept.

Fre.27th, 2016

TCL Alcatel Pixi4-3.5 3G Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
