TCL 40FD2700 User guide

Refer to the identication/rating label located on the back panel of your product for its proper operating voltage. FCC regulations state that unauthorized changes or modications to this equipment may void the user’s authority to

operate it. Cable TV Installer: This reminder is provided to call your attention to Article 820-40 of the National Electrical Code

(Section 54 of the Canadian Electrical Code, Part 1) which provides guidelines for proper grounding and, in particular, species that the cable ground should be connected to the grounding system of the building as close to the point of cable entry as practical.

Important: This television is a table model and is designed to sit on a rm, at surface. Don’t place the TV on soft carpeting or similar surface because the ventilation slots on the bottom of the unit will be blocked, resulting in reduced lifetime from overheating. To assure adequate ventilation for this product, maintain a spacing of 4 inches from the top and side of the TV receiver and 2 inches from the rear of the TV receiver and other surfaces.

Also, make sure the stand or base you use is of adequate size and strength to prevent the TV from being accidentally tipped over, pushed off, or pulled off. This could cause personal injury and/or damage to the TV. Refer to the Important Safety Instructions on the next page.

The Power button (followed by the power symbol) on this TV and your remote control puts the TV into a very lowpower standby mode but will not completely turn the power off. In order to completely shut the power off, you will need to disconnect the power cord from the outlet. The mains plug/appliance coupler is used as disconnect device, the disconnect device shall remain readily operable. Therefore, you should ensure that the TV is installed in a manner that allows you to disconnect the power cord when desired.

Caution: To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualied service personnel.

This symbol indicates “dangerous voltage” inside the product that presents a risk of electric shock or personal injury.

This symbol indicates important instructions accompanying the product.

This symbol indicates that this product incorporates double insulation between hazardous main voltage and user accessible parts. When servicing, use only identical replacement parts.

Important Information

WARNING

The batteries shall not be exposed to excessive heat such as sunshine, re or the like.

WARNING

To reduce the risk of re or electric shock, do not expose this product to rain or moisture. This product should not be exposed to dripping or splashing. No objects lled with liquids, such as vases, should be placed on the component.

WARNING

The TV is unstable if it is not properly attached to the base or mounted to the wall. Please follow the base or wall mounting instructions provided in the User’s Guide to ensure your safety.

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not t into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specied by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specied by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code, ANSI/NFPA No. 70-2011 (Section 54 of Canadian Electrical Code, Part 1) provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna-discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See following example:

ANTENNA LEAD IN WIRE

GROUND CLAMP

GROUNDING CONDUCTORS (NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PA RTH)

ELECTRIC SERVICE EQUIPMENT

ANTENNA DISCHARGE UNIT(NEC SECTION 810-20)

ANTENNA LEAD IN WIRE

GROUND CLAMP

ANTENNA DISCHARGE UNIT (NEC SECTION 810-20)

GROUND CLAMPS

GROUNDING CONDUCTORS (NEC SECTION 810-21)

ELECTRIC SERVICE EQUIPMENT

POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PARTH)

12 12

12 12 12 12 12 12 12 12

13 13 13 13

13 13 13 13 13 14 14 14 14 15 16 17 17 17

ARC

Limi ted Warr anty

Lega l Statement o f TC L

1. / button MENU Turns the TV on or standby.

menu or press to return to the previous menu.Before enter menu, long press /MENU button for 2 seconds to display Source Select. Long press it for 5 seconds to go to Standby.

The TV is on,press it,brings up the main

Note: Under USB condition, CH.+ button acts like INPUT button in remote to select different sources and CH.+/- button can’t work act like up/down direction buttons . Press CH.- button to display or cancel the menu at bottom. /Menu button can act like the OK button on the remote.

3. CH. +/- button Scans up/down through the channel list. In the menu system, they act like the up/down

remote and adjust menu controls.

direction buttons on the

. VOL. +/- button

Increases/decreases the volume. In the menu system, they act like the right/left direction buttons on the remote and adjust menu controls. (Note: In some menus, VOL.+ also acts like the OK button on the remote.)

CH.

HDMI 1 /DVI IN

HDMI 2 (ARC)

HDMI 3 IN

USB

HDMI 2 (A RC ) IN :

ARC sta nd s fo r Audio Re ce iver ,it ca n tr ansmi t th e telev is io n audio t o th e power equ ip ment.

Connections and Setup

Same connection to HDMI 1/HDMI 3 IN

HDMI 2 IN

AUDIO/VIDEO IN (AV)

COMPONENT IN (CMPT)

HDMI /DVI I N1

PC VIDEO IN

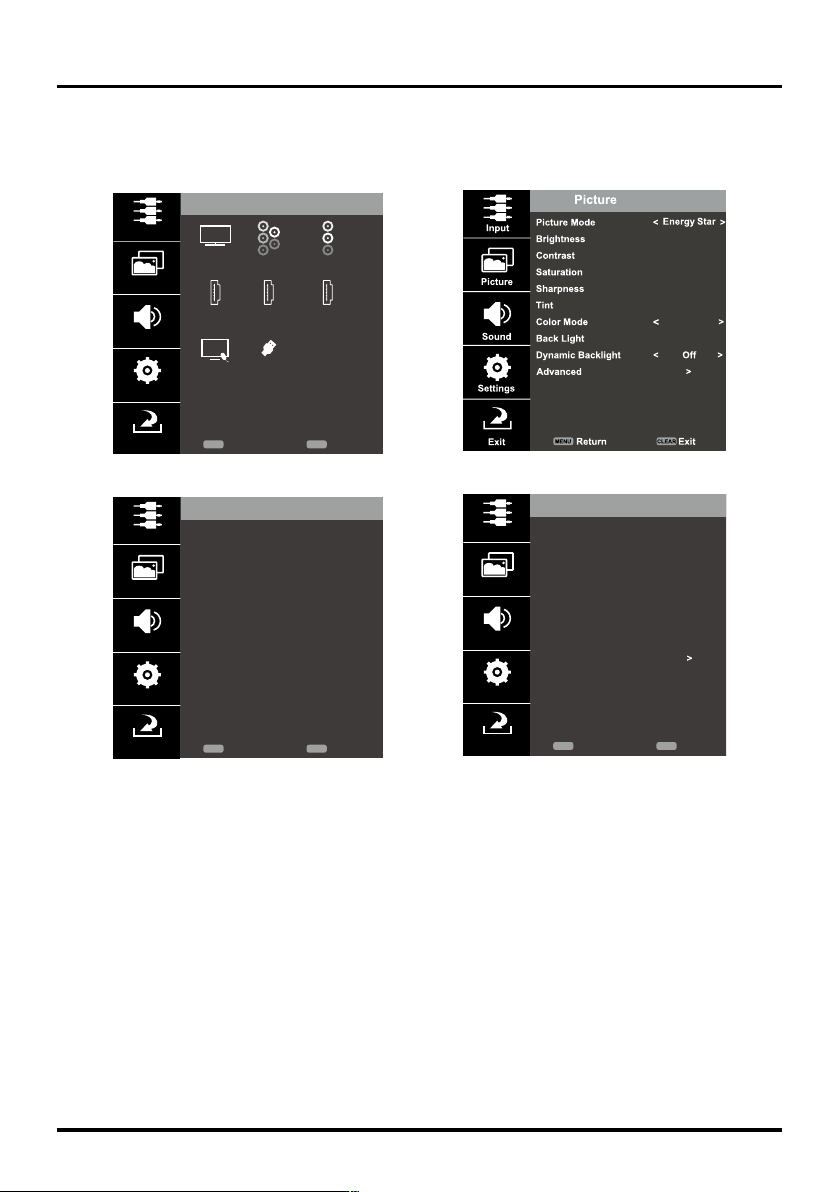

Menu operation for input source selection or select the input source directly by pressing INPUT button.

Same connection to HDMI 1/HDMI 3 IN

COMPONENT IN (CMPT)

AUDIO/VIDEO IN (AV)

HDMI 1/DVI IN

PC VIDEO IN

Component Video Connection (Better)

Composite Video Connection (Good)

HDMI Connection (Best)

Set-top box

HDMI cable

HDMI 2 IN

AUDIO

VIDEO

AUDIO

DVI Connection

Audio cable

PC Connection

Audio cable

VGA cable

VGA

HDMI-DVI conversion cable

DVI/PC

AUDIO IN

DVI/PC

AUDIO IN

Input
