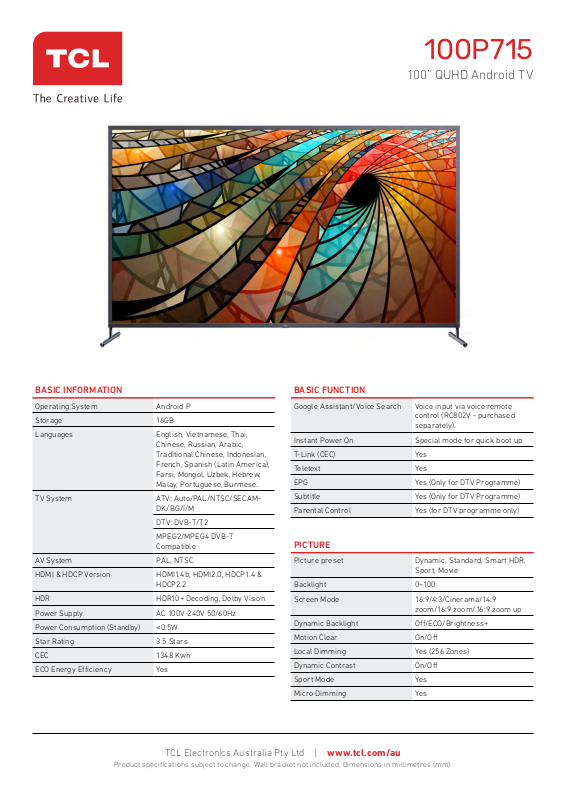

TCL 100P715 Specifications Sheet
100P715
100” QUHD Android TV
BASIC INFORMATION
Operating System Android P
Storage 16G B
Languages English, Vietnamese, Thai,
Chinese, Russian, Arabic,
Traditional Chinese, Indonesian,
French, Spanish (Latin America),
Farsi, Mongol, Uzbek, Hebrew,
Malay, Portuguese, Burmese.
TV System ATV: Auto/PAL/NTSC/SECAM-
DK/BG/I/M
DTV: DVB-T/T2
MPEG2/MPEG4 DVB-T
Compatible
AV System PAL , NTSC
HDMI & HDCP Version HDMI1.4b, HDMI2.0, HDCP1.4 &
HDCP2.2
HDR HDR10+ Decoding, Dolby Vision
Power Supply AC 100V-240V 50/60Hz
Power Consumption (Standby) ﹤0.5W
Star Rating 3.5 Stars
CEC 134 8 Kwh
ECO Energy Efficiency Yes
BASIC FUNCTION
Google Assistant/Voice Search Voice input via voice remote
control (RC802V - purchased
separately).
Instant Power On Special mode for quick boot up
T-Link (CEC) Yes
Teletext Yes
EPG Yes (Only for DTV Programme)
Subtitle Yes (Only for DTV Programme)
Parental Control Yes (for DTV programme only)
Picture preset Dynamic, Standard, Smart HDR,
Sport, Movie
Backlight 0~100
Screen Mode 16:9/4:3/Cinerama/14:9
zoom/16:9 zoom/16:9 zoom up
Dynamic Backlight Off/ECO/Brightness+
Motion Clear On/Off
Local Dimming Yes (256 Zones)
Dynamic Contrast On/Of f
Sport Mode Yes
Micro Dimming Yes
TCL Electronics Australia Pty Ltd | www.tcl.com/au
Product specifications subject to change. Wall bracket not included. Dimensions in millimetres (mm).
100P715
100” QUHD Android TV
CONNECTIVITY
Internet Connectivity 2.4GHz + 5G,
Wi-Fi 802.11 ac/b/g/n 2T2R
Ethernet Network
Bluetooth Yes
HDMI Inputs 3 x HDMI Inputs (1.4b & 2.0) &
HDCP2.2
USB Inputs 2 x USB 2.0
Headphone Output Yes
AV IN Yes
Optical SPDIF Output/HDMI ARC Yes
USB DEVICE MEDIA FORMAT
Music MP3/AC3/AAC/AC4
Picture JPEG/PNG/BMP/HEIF
Multimedia Video/Audio Decoder H.265, H.264, MPEG1/2/4, VP8,
VP9
Video Format up to Up to 4K@60Hz-12bit 4:2:2,
4K@60Hz-8bit 4:4:4
USB Mouse/Key Board Support Yes
SOUND
Audio Power Output 2×15 W + 20 W
Sound Mode Standard/Movie/Music/Voice/
Game/Stadium/Dynamic
Dolby Atmos Yes
DTS-HD Yes
PANEL SPECIFICATION
Backlight Unit DLED
Aspect Ratio 16:9
Display Resolution Ultra HD (3840×2160)
Brightness (cd/m2) 550 Nits
Contrast Ratio 3000:1
Response Time 6ms
Viewing Angle (H/V) 178°/17 8°
Clear Motion Rate (CMR) 400
SMART TV FEATURES
Google Assistant*
Google Play Store
YouTube
Google Play Games
Google Play Movies/TV
Chromecast Built-in
*TCL voice remote control required. Sold separately.
Works With Alexa
Media Center
Amazon Prime
Freeview Plus
Stan
Netflix
ACCESSORIES
Remote Control RC802N
Remote Control Battery 2 x AAA (included)
Quick Start Guide Yes
Warranty Card Yes
User Manual Yes
DIMENSIONS & WEIGHT
Dimensions with stand (mm): 2269.8 (W) x 1392.9 (H) x 511 (D)
Dimensions without Stand (mm): 2256.8 (W) x 1294.6 (H) x 68.4 (D)
Carton Dimensions (LxWxH mm) 2555 x 465 x 1775
Net Weight With Stand (Kg) 100
Net Weight Without Stand (Kg) 94
Gross Weight w/ Packaging (Kg) 19 0
WALL MOUNT VESA (PURCHASED SEPARATELY)
VESA Hole Pattern 800 x 200 x 200
Screw Size M8
Screw Quantity (pcs) 6
TCL Electronics Australia Pty Ltd | www.tcl.com/au
Product specifications subject to change. Wall bracket not included. Dimensions in millimetres (mm).
