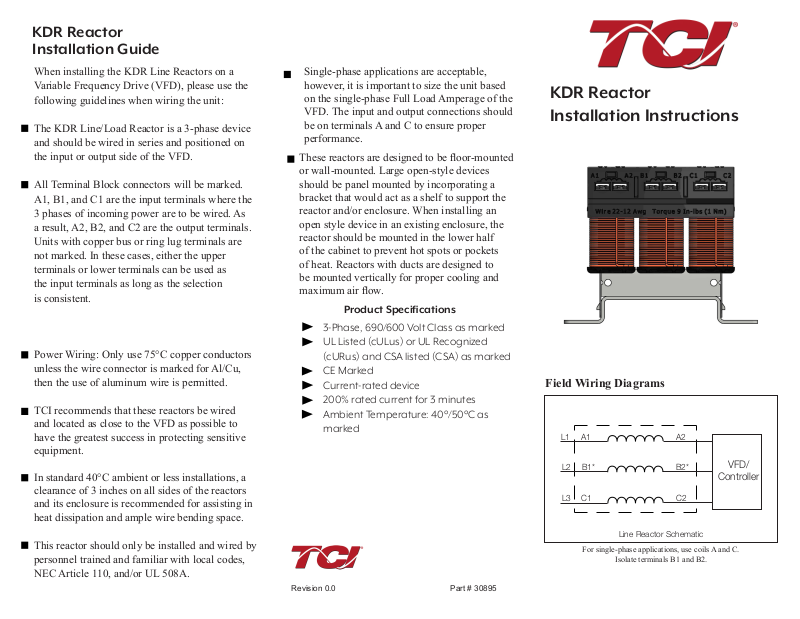

TCI KDR Reactor Installation Guide

KDR Reactor Installation Guide

When installing the KDR Line Reactors on a Variable Frequency Drive (VFD), please use the following guidelines when wiring the unit:

The KDR Line/Load Reactor is a 3-phase device and should be wired in series and positioned on the input or output side of the VFD.

All Terminal Block connectors will be marked. A1, B1, and C1 are the input terminals where the 3 phases of incoming power are to be wired. As a result, A2, B2, and C2 are the output terminals. Units with copper bus or ring lug terminals are not marked. In these cases, either the upper terminals or lower terminals can be used as the input terminals as long as the selection is consistent.

Power Wiring: Only use 75°C copper conductors unless the wire connector is marked for Al/Cu, then the use of aluminum wire is permitted.

TCI recommends that these reactors be wired and located as close to the VFD as possible to have the greatest success in protecting sensitive equipment.

In standard 40°C ambient or less installations, a clearance of 3 inches on all sides of the reactors and its enclosure is recommended for assisting in heat dissipation and ample wire bending space.

This reactor should only be installed and wired by personnel trained and familiar with local codes, NEC Article 110, and/or UL 508A.

Single-phase applications are acceptable, however, it is important to size the unit based on the single-phase Full Load Amperage of the VFD. The input and output connections should be on terminals A and C to ensure proper performance.

These reactors are designed to be oor-mounted

or wall-mounted. Large open-style devices should be panel mounted by incorporating a bracket that would act as a shelf to support the reactor and/or enclosure. When installing an open style device in an existing enclosure, the reactor should be mounted in the lower half of the cabinet to prevent hot spots or pockets of heat. Reactors with ducts are designed to be mounted vertically for proper cooling and

maximum air ow.

Product Speciﬁcations

3-Phase, 690/600 Volt Class as marked UL Listed (cULus) or UL Recognized (cURus) and CSA listed (CSA) as marked CE Marked Current-rated device 200% rated current for 3 minutes Ambient Temperature: 40°/50°C as marked

Revision 0.0 Part # 30895

KDR Reactor Installation Instructions

Field Wiring Diagrams

B1*

Line Reactor Schematic

For single-phase applications, use coils A and C.

Isolate terminals B1 and B2.

B2*

Controller

VFD/

KDR Reactor Lug Kits

DIN Rail Kits

Reactor Part Number DIN Rail Kit

KDRMAxxxxxxx DR01 KDRAAxxxxxxx DR02 KDRAxxxxxxx DR02 KDRBxxxxxxx DR02

Full listing available at transcoil.com

Warning

• Disconnect all power before working on the equipment. Do not attempt any work on a powered reactor.

• The reactor, VFD, motor, and other connected

equipment must be properly grounded.

• The VFD terminals and connected cables

are at a dangerously high voltage when power is applied to the VFD, regardless of motor operation.

• All electrical connections must be re-torqued

annually.

Figure 1

Figure 2

Figure 3

Figure 4

Figure 5
