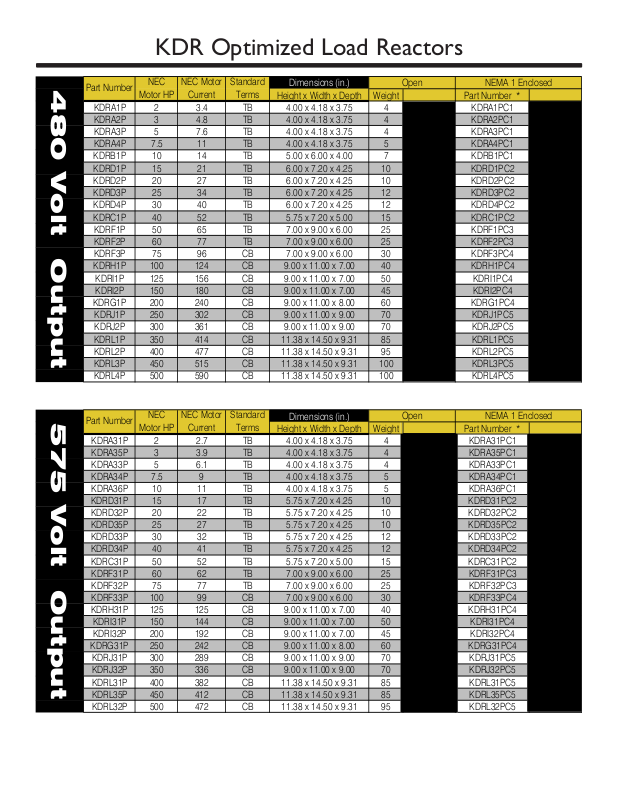

TCI KDR Optimized Load Reactors Catalog Page

KDR Optimized Load Reactors

(in.)

(in.)

480 Volt Output

Part Number

KDRA1P 2 3.4 TB 4.00 x 4.18 x 3.75 4 KDRA1PC1
KDRA2P 3 4.8 TB 4.00 x 4.18 x 3.75 4 KDRA2PC1
KDRA3P 5 7.6 TB 4.00 x 4.18 x 3.75 4 KDRA3PC1
KDRA4P 7.5 11 TB 4.00 x 4.18 x 3.75 5 KDRA4PC1
KDRB1P 10 14 TB 5.00 x 6.00 x 4.00 7 KDRB1PC1
KDRD1P 15 21 TB 6.00 x 7.20 x 4.25 10 KDRD1PC2
KDRD2P 20 27 TB 6.00 x 7.20 x 4.25 10 KDRD2PC2
KDRD3P 25 34 TB 6.00 x 7.20 x 4.25 12 KDRD3PC2
KDRD4P 30 40 TB 6.00 x 7.20 x 4.25 12 KDRD4PC2
KDRC1P 40 52 TB 5.75 x 7.20 x 5.00 15 KDRC1PC2
KDRF1P 50 65 TB 7.00 x 9.00 x 6.00 25 KDRF1PC3
KDRF2P 60 77 TB 7.00 x 9.00 x 6.00 25 KDRF2PC3
KDRF3P 75 96 CB 7.00 x 9.00 x 6.00 30 KDRF3PC4
KDRH1P 100 124 CB 9.00 x 11.00 x 7.00 40 KDRH1PC4

KDRI1P 125 156 CB 9.00 x 11.00 x 7.00 50 KDRI1PC4
KDRI2P 150 180 CB 9.00 x 11.00 x 7.00 45 KDRI2PC4

KDRG1P 200 240 CB 9.00 x 11.00 x 8.00 60 KDRG1PC4

KDRJ1P 250 302 CB 9.00 x 11.00 x 9.00 70 KDRJ1PC5
KDRJ2P 300 361 CB 9.00 x 11.00 x 9.00 70 KDRJ2PC5
KDRL1P 350 414 CB 11.38 x 14.50 x 9.31 85 KDRL1PC5
KDRL2P 400 477 CB 11.38 x 14.50 x 9.31 95 KDRL2PC5
KDRL3P 450 515 CB 11.38 x 14.50 x 9.31 100 KDRL3PC5
KDRL4P 500 590 CB 11.38 x 14.50 x 9.31 100 KDRL4PC5

NEC

Motor HP

NEC Motor

Current

Standard

Terms

Dimensions

Height x Width x Depth Weight Part Number *

Open NEMA 1 Enclosed

575 Volt Output

Part Number

KDRA31P 2 2.7 TB 4.00 x 4.18 x 3.75 4 KDRA31PC1
KDRA35P 3 3.9 TB 4.00 x 4.18 x 3.75 4 KDRA35PC1
KDRA33P 5 6.1 TB 4.00 x 4.18 x 3.75 4 KDRA33PC1
KDRA34P 7.5 9 TB 4.00 x 4.18 x 3.75 5 KDRA34PC1
KDRA36P 10 11 TB 4.00 x 4.18 x 3.75 5 KDRA36PC1
KDRD31P 15 17 TB 5.75 x 7.20 x 4.25 10 KDRD31PC2
KDRD32P 20 22 TB 5.75 x 7.20 x 4.25 10 KDRD32PC2
KDRD35P 25 27 TB 5.75 x 7.20 x 4.25 10 KDRD35PC2
KDRD33P 30 32 TB 5.75 x 7.20 x 4.25 12 KDRD33PC2
KDRD34P 40 41 TB 5.75 x 7.20 x 4.25 12 KDRD34PC2
KDRC31P 50 52 TB 5.75 x 7.20 x 5.00 15 KDRC31PC2
KDRF31P 60 62 TB 7.00 x 9.00 x 6.00 25 KDRF31PC3
KDRF32P 75 77 TB 7.00 x 9.00 x 6.00 25 KDRF32PC3
KDRF33P 100 99 CB 7.00 x 9.00 x 6.00 30 KDRF33PC4
KDRH31P 125 125 CB 9.00 x 11.00 x 7.00 40 KDRH31PC4

KDRI31P 150 144 CB 9.00 x 11.00 x 7.00 50 KDRI31PC4
KDRI32P 200 192 CB 9.00 x 11.00 x 7.00 45 KDRI32PC4

KDRG31P 250 242 CB 9.00 x 11.00 x 8.00 60 KDRG31PC4

KDRJ31P 300 289 CB 9.00 x 11.00 x 9.00 70 KDRJ31PC5
KDRJ32P 350 336 CB 9.00 x 11.00 x 9.00 70 KDRJ32PC5
KDRL31P 400 382 CB 11.38 x 14.50 x 9.31 85 KDRL31PC5
KDRL35P 450 412 CB 11.38 x 14.50 x 9.31 85 KDRL35PC5
KDRL32P 500 472 CB 11.38 x 14.50 x 9.31 95 KDRL32PC5

NEC

Motor HP

NEC Motor

Current

Standard

Terms

Dimensions

Height x Width x Depth Weight Part Number *

Open NEMA 1 Enclosed

KDR Optimized Load Reactors

ght

ght

480 Volt Output

Part Number

KDRULA1P 2 4 KDRULA1PE01 KDRULA1PE3R
KDRULA2P 3 4 KDRULA2PE01 KDRULA2PE3R
KDRULA3P 5 4 KDRULA3PE01 KDRULA3PE3R
KDRULA4P 7.5 5 KDRULA4PE01 KDRULA4PE3R
KDRULB1P 10 7 KDRULB1PE01 KDRULB1PE3R
KDRULD1P 15 10 KDRULD1PE01 KDRULD1PE3R
KDRULD2P 20 10 KDRULD2PE01 KDRULD2PE3R
KDRULD3P 25 12 KDRULD3PE01 KDRULD3PE3R
KDRULD4P 30 12 KDRULD4PE01 KDRULD4PE3R
KDRULC1P 40 15 KDRULC1PE01 KDRULC1PE3R
KDRULF1P 50 25 KDRULF1PE01 KDRULF1PE3R
KDRULF2P 60 25 KDRULF2PE01 KDRULF2PE3R
KDRULF3P 75 33 KDRULF3PE01 KDRULF3PE3R
KDRULH1P 100 43 KDRULH1PE01 KDRULH1PE3R

KDRULI1P 125 56 KDRULI1PE01 KDRULI1PE3R

KDRULI2P 150 56 KDRULI2PE01 KDRULI2PE3R
KDRULG1P 200 69 KDRULG1PE01 KDRULG1PE3R
KDRULJ1P 250 79 KDRULJ1PE01 KDRULJ1PE3R
KDRULJ2P 300 79 KDRULJ2PE01 KDRULJ2PE3R
KDRULL1P 350 95 KDRULL1PE01 KDRULL1PE3R
KDRULL2P 400 104 KDRULL2PE01 KDRULL2PE3R
KDRULL3P 450 109 KDRULL3PE01 KDRULL3PE3R
KDRULL4P 500 109 KDRULL4PE01 KDRULL4PE3R

NEC Motor

HP

Open UL Type 3R Enclosed

Wei

UL Type 1 Enclosed

Part Number * Part Number *

575 Volt Output

Part Number

KDRULA31P 2 4 KDRULA31PE01 KDRULA31PE3R
KDRULA35P 3 4 KDRULA35PE01 KDRULA35PE3R
KDRULA33P 5 4 KDRULA33PE01 KDRULA33PE3R
KDRULA34P 7.5 4 KDRULA34PE01 KDRULA34PE3R
KDRULA36P 10 5 KDRULA36PE01 KDRULA36PE3R
KDRULD31P 15 10 KDRULD31PE01 KDRULD31PE3R
KDRULD32P 20 10 KDRULD32PE01 KDRULD32PE3R
KDRULD35P 25 10 KDRULD35PE01 KDRULD35PE3R
KDRULD33P 30 12 KDRULD33PE01 KDRULD33PE3R
KDRULD34P 40 12 KDRULD34PE01 KDRULD34PE3R
KDRULC31P 50 15 KDRULC31PE01 KDRULC31PE3R
KDRULF31P 60 25 KDRULF31PE01 KDRULF31PE3R
KDRULF32P 75 25 KDRULF32PE01 KDRULF32PE3R
KDRULF33P 100 33 KDRULF33PE01 KDRULF33PE3R
KDRULH31P 125 43 KDRULH31PE01 KDRULH31PE3R

KDRULI31P 150 56 KDRULI31PE01 KDRULI31PE3R
KDRULI32P 200 51 KDRULI32PE01 KDRULI32PE3R

KDRULG31P 250 69 KDRULG31PE01 KDRULG31PE3R

KDRULJ31P 300 75 KDRULJ31PE01 KDRULJ31PE3R
KDRULJ32P 350 79 KDRULJ32PE01 KDRULJ32PE3R
KDRULL31P 400 104 KDRULL31PE01 KDRULL31PE3R
KDRULL35P 450 109 KDRULL35PE01 KDRULL35PE3R
KDRULL32P 500 109 KDRULL32PE01 KDRULL32PE3R

NEC Motor

HP

Wei

UL Type 1 Enclosed

Part Number * Part Number *

UL Type 3R EnclosedOpen
