TCAT TEANA User Manual

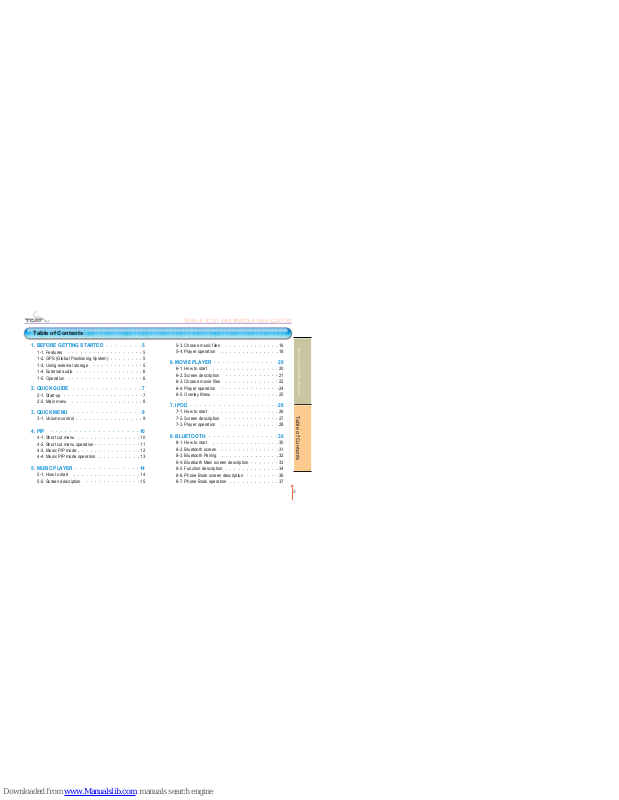

Table of Contents

3

TEANA TCAT MULTIMEDIA NAVIGATOR

Table of Contents

1. BEFORE GETTING STARTED 5

1-1. Features 5 1-2. GPS (Global Positioning System) 5 1-3. Using external storage 5 1-4. External audio 6 1-5. Operation 6

2. QUICK GUIDE 7

2-1. Start-up 7 2-2. Main menu 8

3. QUICK MENU 9

3-1. Volume control 9

4. PIP 10

4-1. Short cut menu 10 4-2. Short cut menu operation 11 4-3. Music PIP mode 12 4-4. Music PIP mode operation 13

5. MUSIC PLAYER 14

5-1. How to start 14 5-2. Screen description 15

5-3. Choose music files 16 5-4. Player operation 18

6. MOVIE PLAYER 20

6-1. How to start 20 6-2. Screen description 21 6-3. Choose movie files 22 6-4. Player operation 24 6-5. Overlay Menu 25

7. IPOD 26

7-1. How to start 26 7-2. Screen description 27 7-3. Player operation 28

8. BLUETOOTH 30

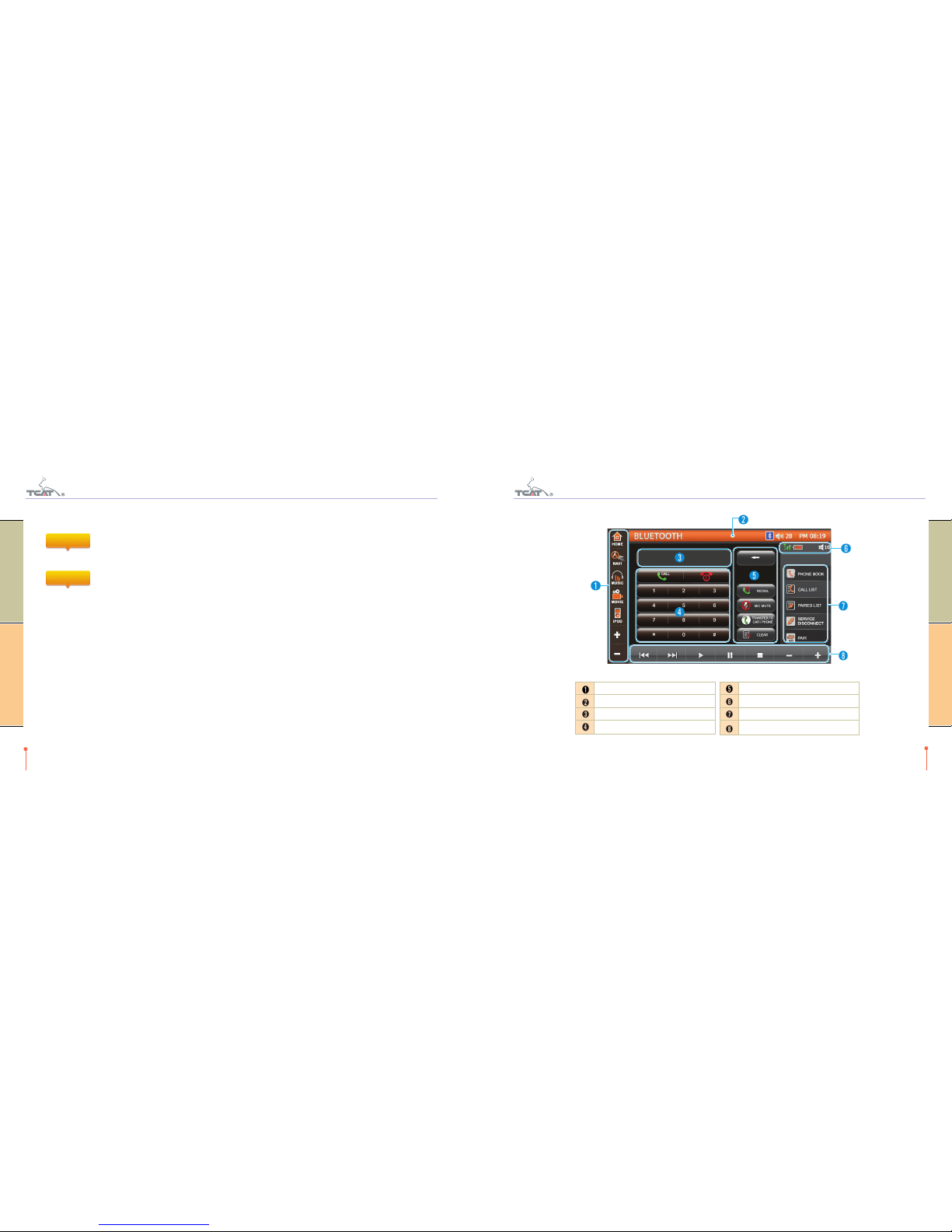

8-1. How to start 30 8-2. Bluetooth screen 31 8-3. Bluetooth Pairing 32 8-4. Bluetooth Main screen description 33 8-5. Function description 34 8-6. Phone Book screen description 36 8-7. Phone Book operation 37

1. BEFORE GETTING STARTED

1-1. Features

TCAT Multimedia Navigator is the GPS (Global Positioning System) equipment supporting multimedia features such as music player, movie player and external DVD connection. The 7 inch LCD WVGA (800x480) with true color (16.7M colors) display will give best quality to fulfill your entertainment needs inside the vehicle.

1-2. GPS (Global Positioning System)

Built-in high performance GPS device helps the Navigation software to work in a stable performance.

GPS performance for time retrieving and geometric position detection can be varied according to the atmosphere status & embedded battery charging level.

1-3. Using external storage

TCAT Multimedia Navigator supports two types of external storage device -SD Card & USB storage-

SD Card includes Navigation software and system operation software on it. You can add your media files -music or video- in free spaces on SD card.

5

TEANA TCAT MULTIMEDIA NAVIGATOR

Before getting started

4

TEANA TCAT MULTIMEDIA NAVIGATOR

Table of Contents

MAKE A BACK-UP OF THE SD CARD SYSTEM FILES IN CASE OF ACCIDENTAL DELETION OR CORRUPTION OF THE SYSTEM FILES.

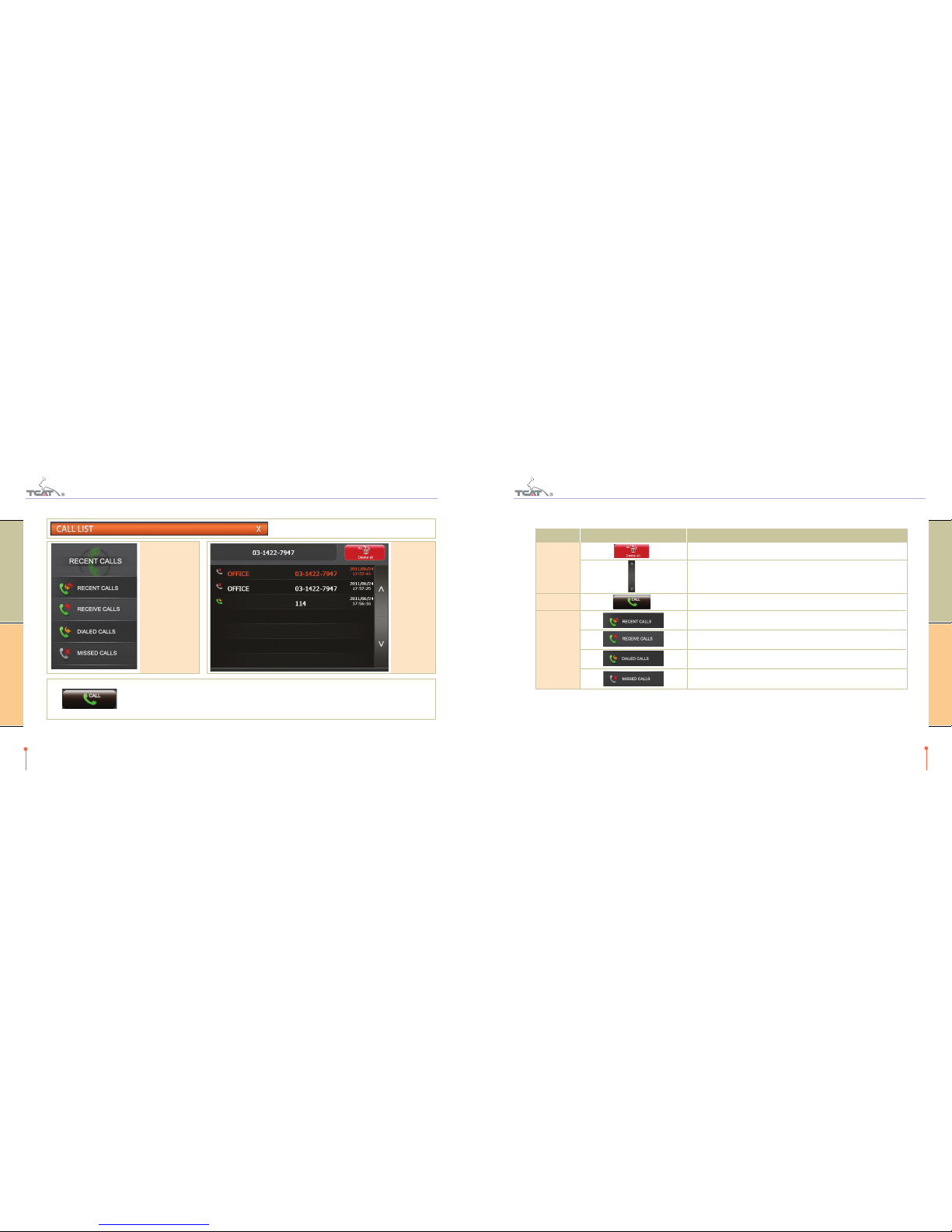

8-8. Call List screen description 38

8-9. Call List operation 39 8-10. Paired List operation 40 8-11 Player operation (A2DP Sink & AVRCP) 40

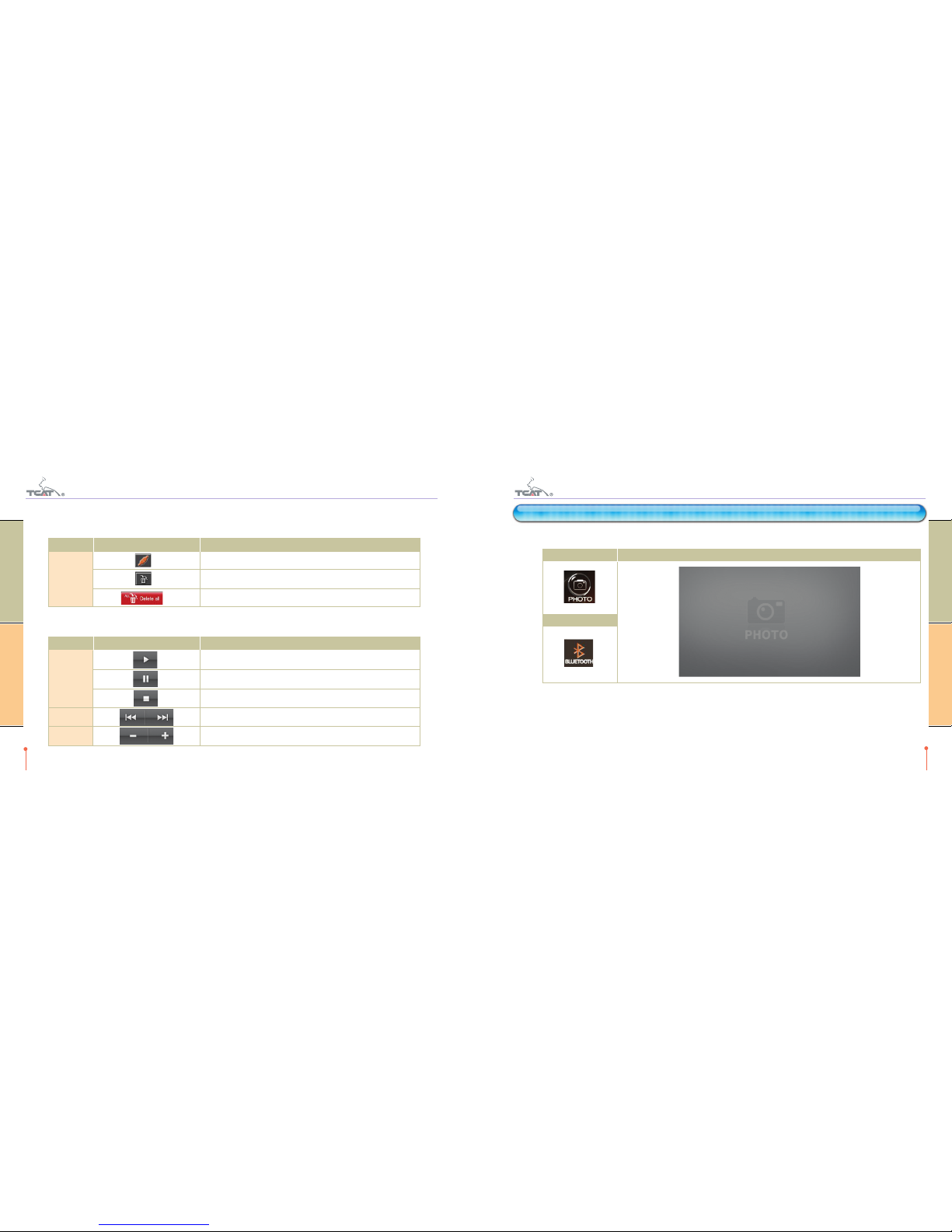

9. PHOTO Viewer 41

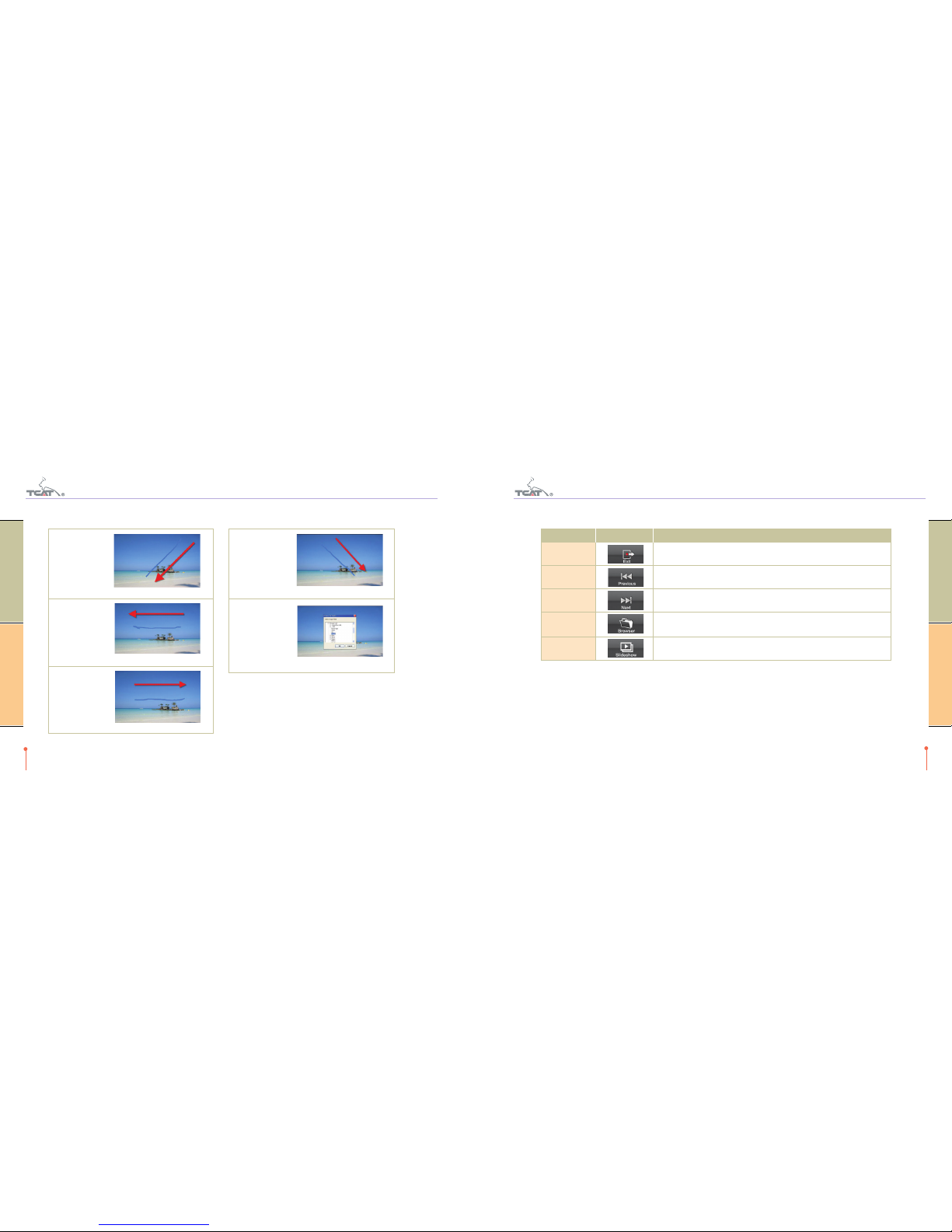

9-1. How to start 41 9-2. Viewer gesture operation 42 9-3. Viewer button operation 43

10. MEMO software 44

10-1. How to start 44 10-2. Software operation 44

11. SCREEN 45

11-1. How to start 45 11-2. How to switch LCD ON or OFF. 45

12. AV-IN (OPTIONAL CONNECTION) 45

12-1. How to start 45 12-2. Audio/Video connection 45 12-3. How to exit AV-IN screen. 45

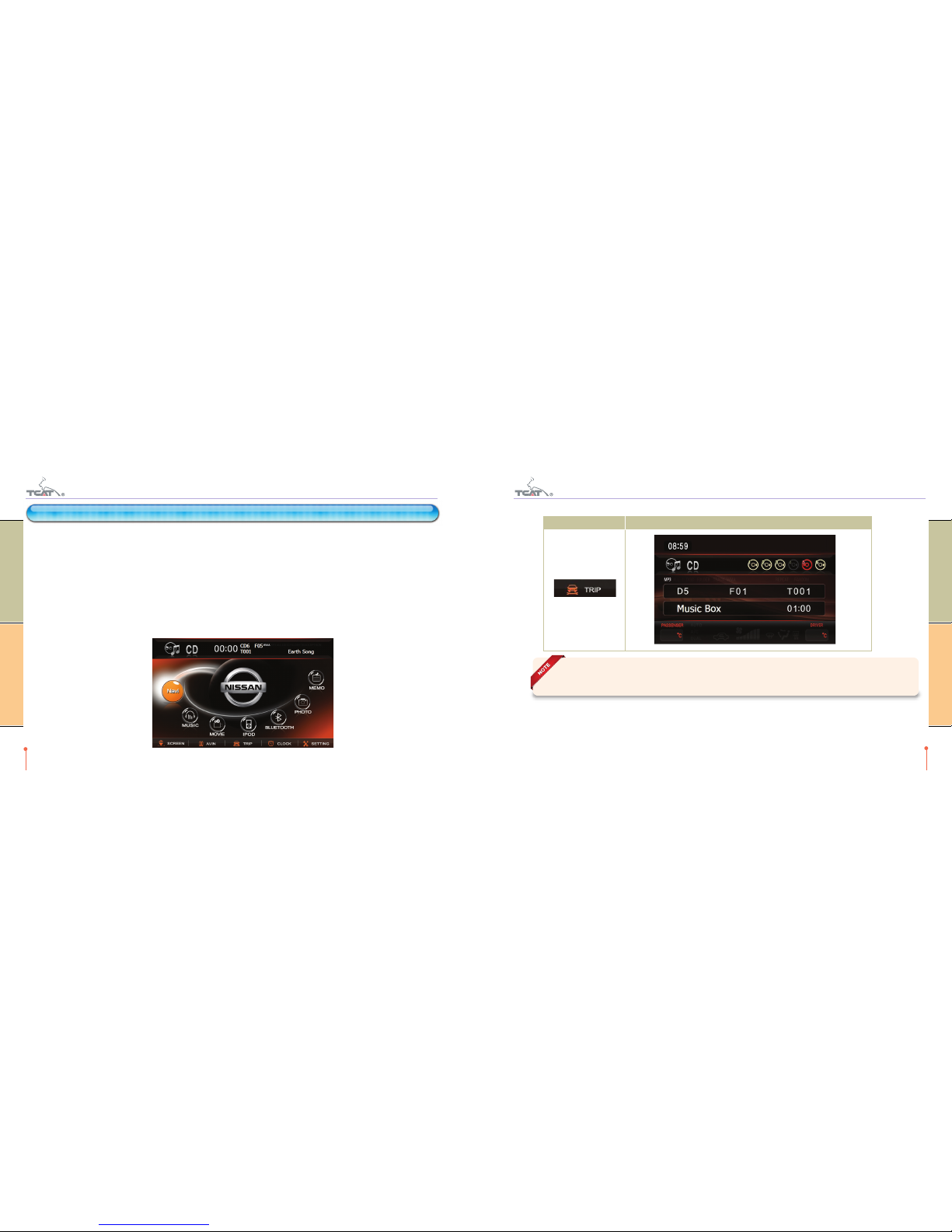

13. TRIP 46

13-1. How to start 46 13-2. TRIP Bar Screen 46 13-3. TRIP Full Screen 47

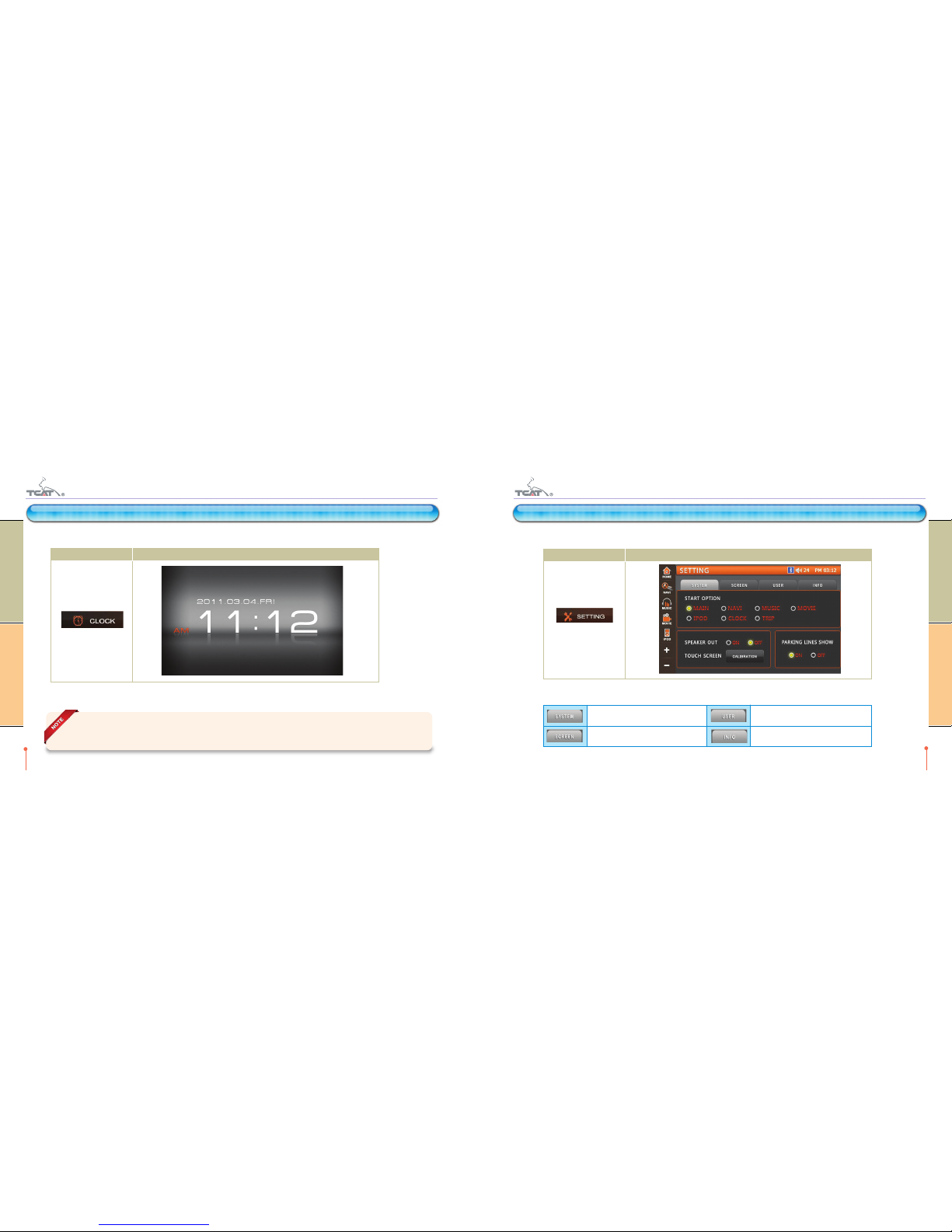

14. CLOCK MODE 48

14-1. How to start 48 14-2. How to finish 48

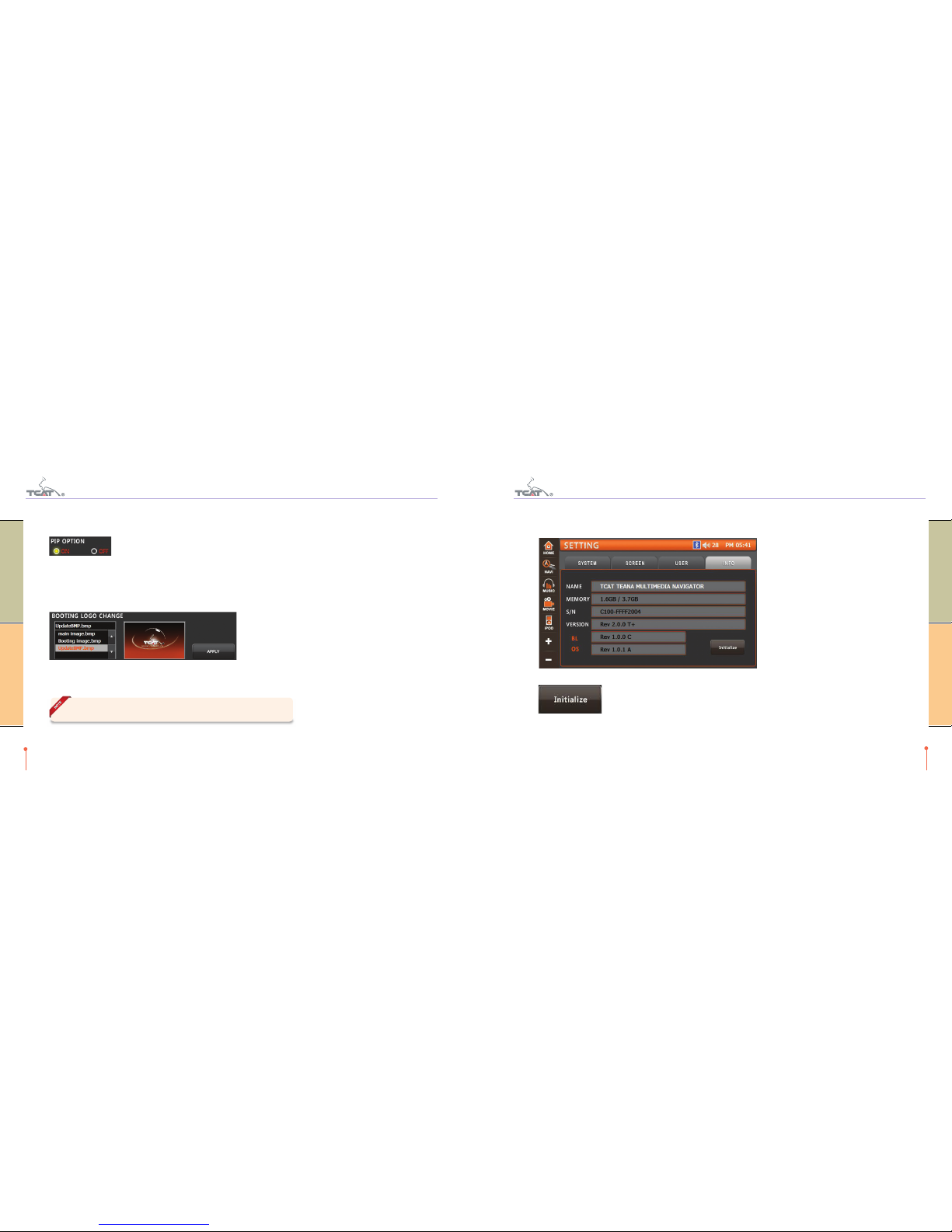

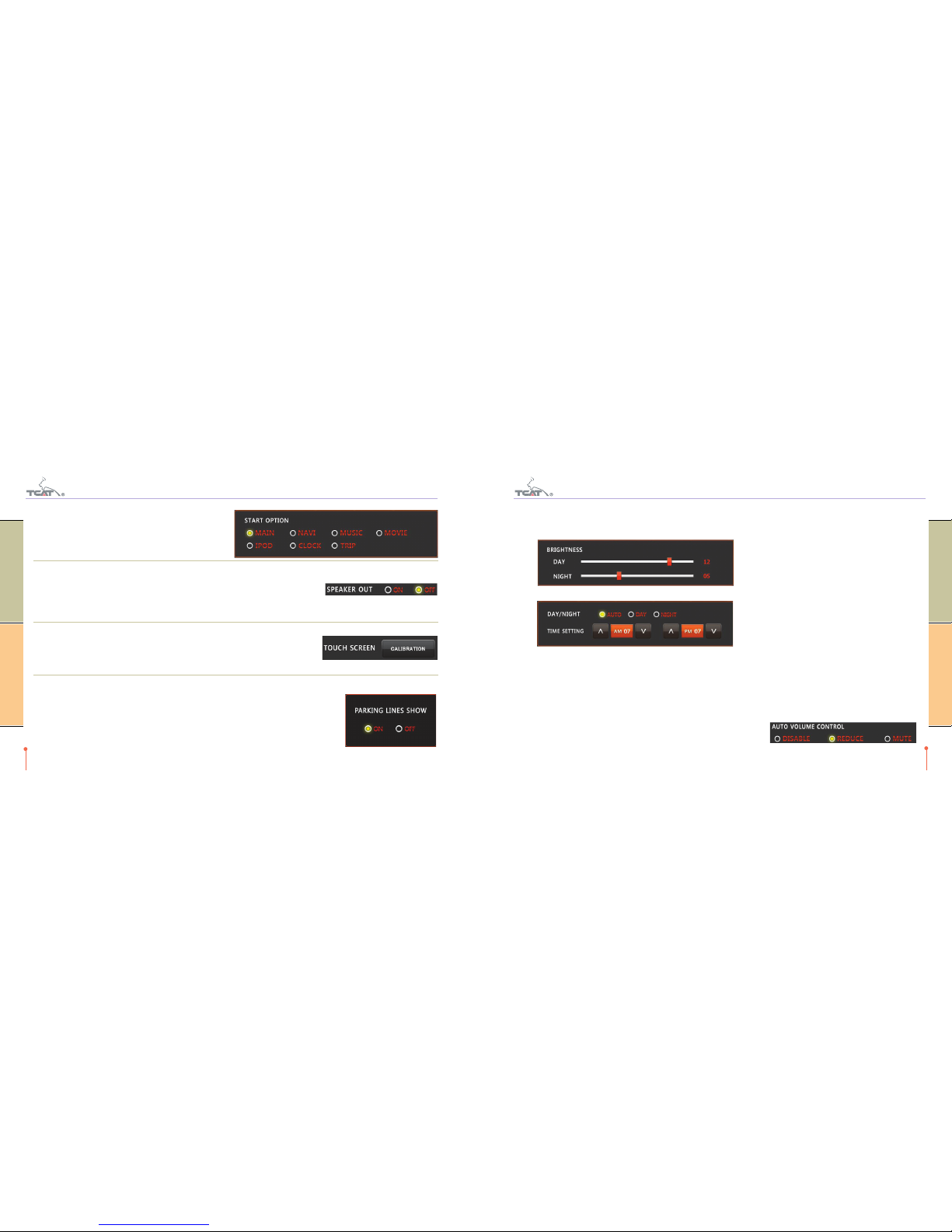

15. SETTING 49

15-1. How to go into the setting menu 49 15-2. Start option 50 15-3. Speaker operation 50 15-4. Touch screen calibration 50 15-5. Parking lines show 50 15-6. LCD brightness 51 15-7. Auto Volume Control 51 15-8. PIP Option 52 15-9. Booting Logo Change 52 15-10. System information 53

16. APPENDIX 54

16-1. Technical specification 54

2. QUICK GUIDE

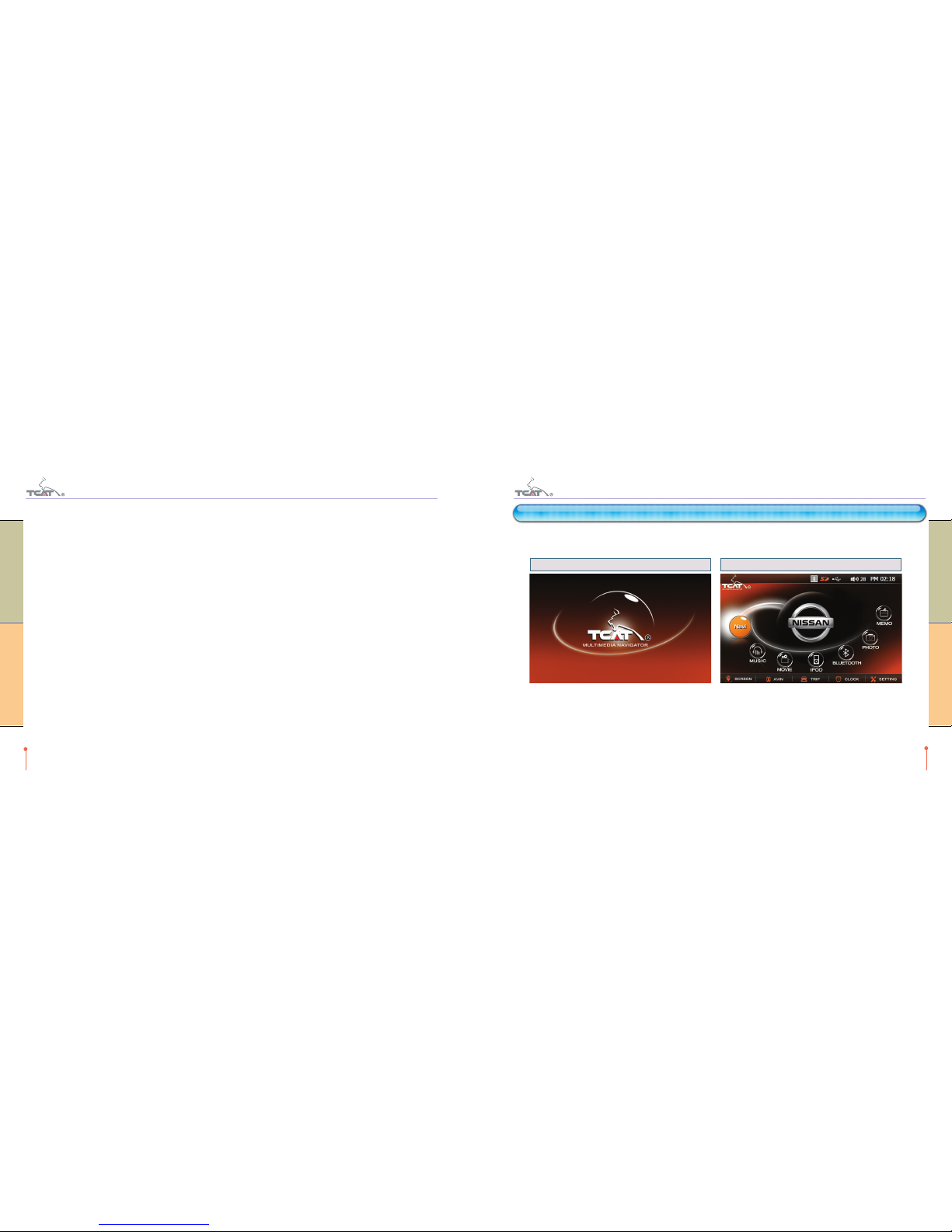

2-1. Start-up

On the car start-up, TCAT Multimedia Navigator will start up automatically.

Boot Screen Main Menu

Just the Rear View Camera mode can function All features are ready

7

TEANA TCAT MULTIMEDIA NAVIGATOR

Quick guide

Using the USB connection, you can use USB memory stick or USB type external HDD (up to 32GB). Take note: only FAT (or FAT32) file system can be supported on external storage. -If your external device is formatted with NTFS file system, it cannot be detected.

And power supplying for the USB connection is up to 500mA as the USB interface standard. High power consumption external HDD storage can not be detected.

1-4. External audio

You can use built-in stereo speaker & OEM audio aux input simultaneously or exclusively.

If you turn on Aux mode on radio, you can enjoy car audio through car audio system & navigation software voice through the car’s speakers.

1-5. Operation

All user operations are done through the Touch Screen Panel.

Just click the ICON button on the screen you want to use.

6

TEANA TCAT MULTIMEDIA NAVIGATOR

Before getting started

3. QUICK MENU

Quick menus are supported on music player, movie player and setting mode. Using the quick menu, you can simply move to the function and control the system volume.

Move to Main Menu

Start or move to navigation software (SpeedNavi)

Move to music (or movie) player

Move to Ipod player

Move to Bluetooth

Volume-up the system sound

Volume-down the system sound

9

TEANA TCAT MULTIMEDIA NAVIGATOR

Quick menu

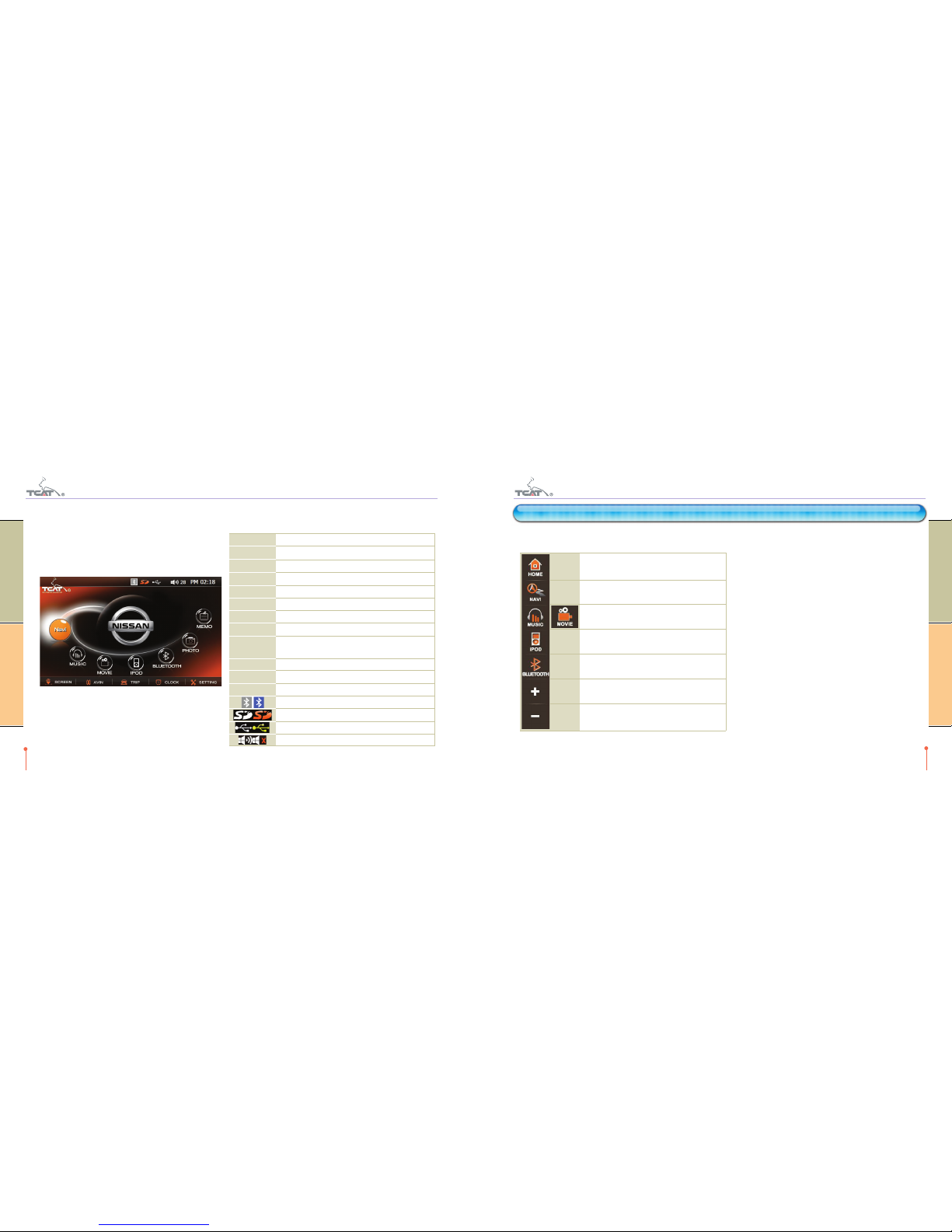

2-2. Main menu

On main menu, system audio volume & time information is displayed on right top corner and function start ICON buttons on center. Just touch the menu button to start any functions.

8

TEANA TCAT MULTIMEDIA NAVIGATOR

Quick guide

Start navigation software (SpeedNavi)

Move to music player

Move to movie player

Move to Ipod player

Move to Bluetooth

Move to PHOTO viewer

Move to MEMO software

LCD On/Off

Move to external AV monitor mode (If external equipment is connected)

Move to Trip viewer

Move to Clock display mode

Move to system setting mode

Bluetooth disconnect/connect state

SD Card remove/insert state

USB Host remove/insert state

Volume mute off/on state (volume control range 0-30)

NAVI

MUSIC

MOVIE

IPOD

BLUETOOTH


MEMO

SCREEN

AVIN

TRIP

CLOCK

SETTING

3-1. Volume control

There are two types of volume, system volume & player volume.

The system volume is the master volume of the system.

All sound for all software is controlled by this volume control. And the player volume is the relative volume to the system volume for each player. Music, Movie, Ipod and Bluetooth support player volume.

4-2. Short cut menu operation

Category ICON Descriptions

11

TEANA TCAT MULTIMEDIA NAVIGATOR

PIP

4-1. Short cut menu

Just click the NAVI icon on main menu or quick menu.

Short cut ICON is displayed on the map. Clicking the icon will expand the short cut menu.

When you drag ICON button, short cut menu expansion state can be moved.

10

TEANA TCAT MULTIMEDIA NAVIGATOR

PIP

4. PIP

Short cut ICON Short cut expand screen shot

Expand

Collapse

Main Menu

Music

Movie

Ipod

Bluetooth

Short cut Menu expand

Short cut Menu move

Short cut menu collapse

Move to Main Menu

Move to music player

Move to movie player

Move to Ipod player

Move to Bluetooth

Category ICON Descriptions

Mute

Volume

Mute control (On/Off toggle)

Mute the system volume

System volume control (control range 0-30)

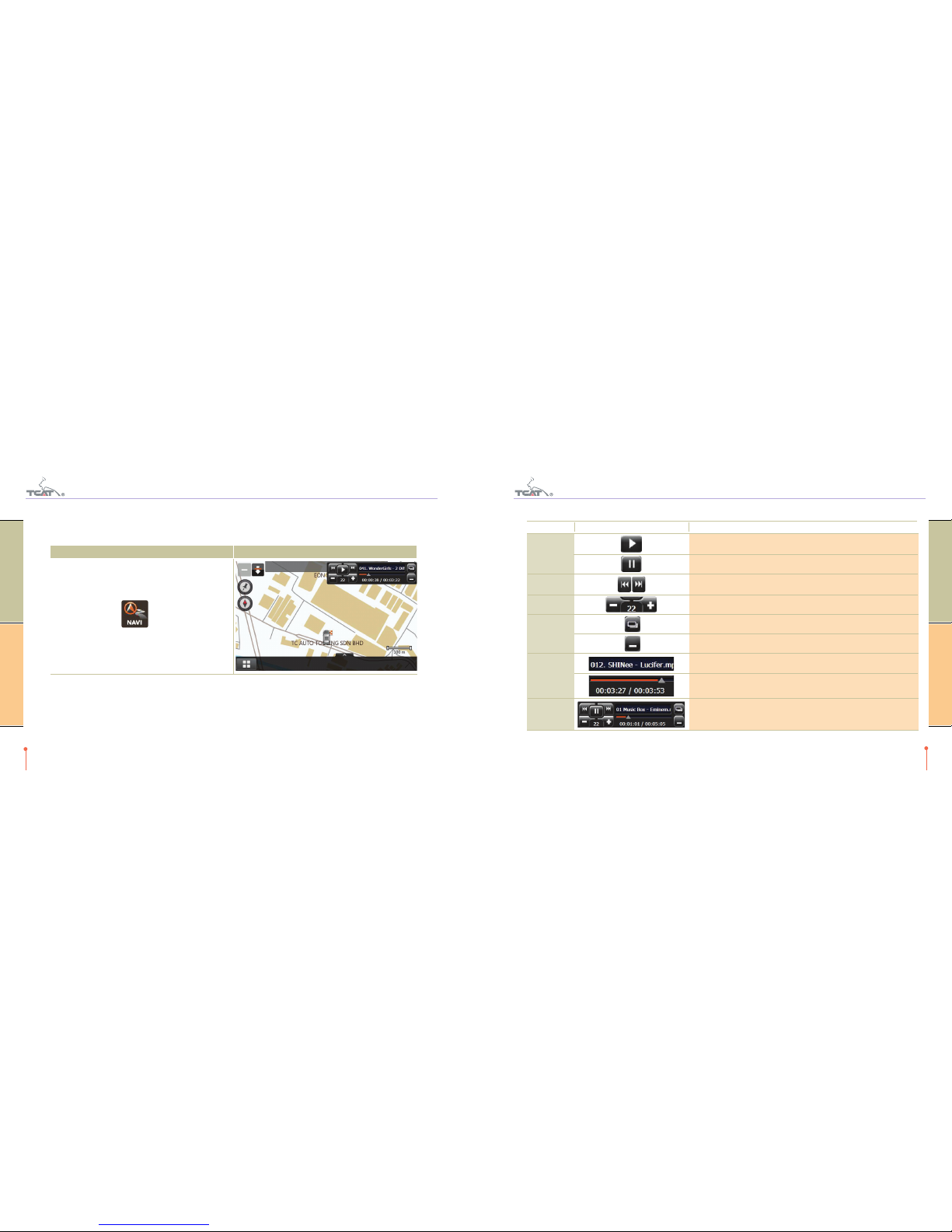

4-4. Music PIP mode operation

13

TEANA TCAT MULTIMEDIA NAVIGATOR

PIP

4-3. Music PIP mode

Just click the MUSIC icon on main menu or quick menu.

If you click on the Quick NAVI button, MUSIC PIP mode displayed.

Quick Menu ICON MUSIC PIP mode screen shot

12

TEANA TCAT MULTIMEDIA NAVIGATOR

PIP

Category ICON Descriptions

Basic

Move

Volume

Mode Change

File

Information

PIP Rotation

Play select music

Pause current music

Move to previous or next song. While loading the music, buttons are paused a few seconds.

Player volume control (control range 0-30)

Full Mode

Hide

Playing file name

Time bar & Time information

Player can change to four locations. To change, click on the file name area. (Right Top /Left Top/Left Bottom/Right Bottom)

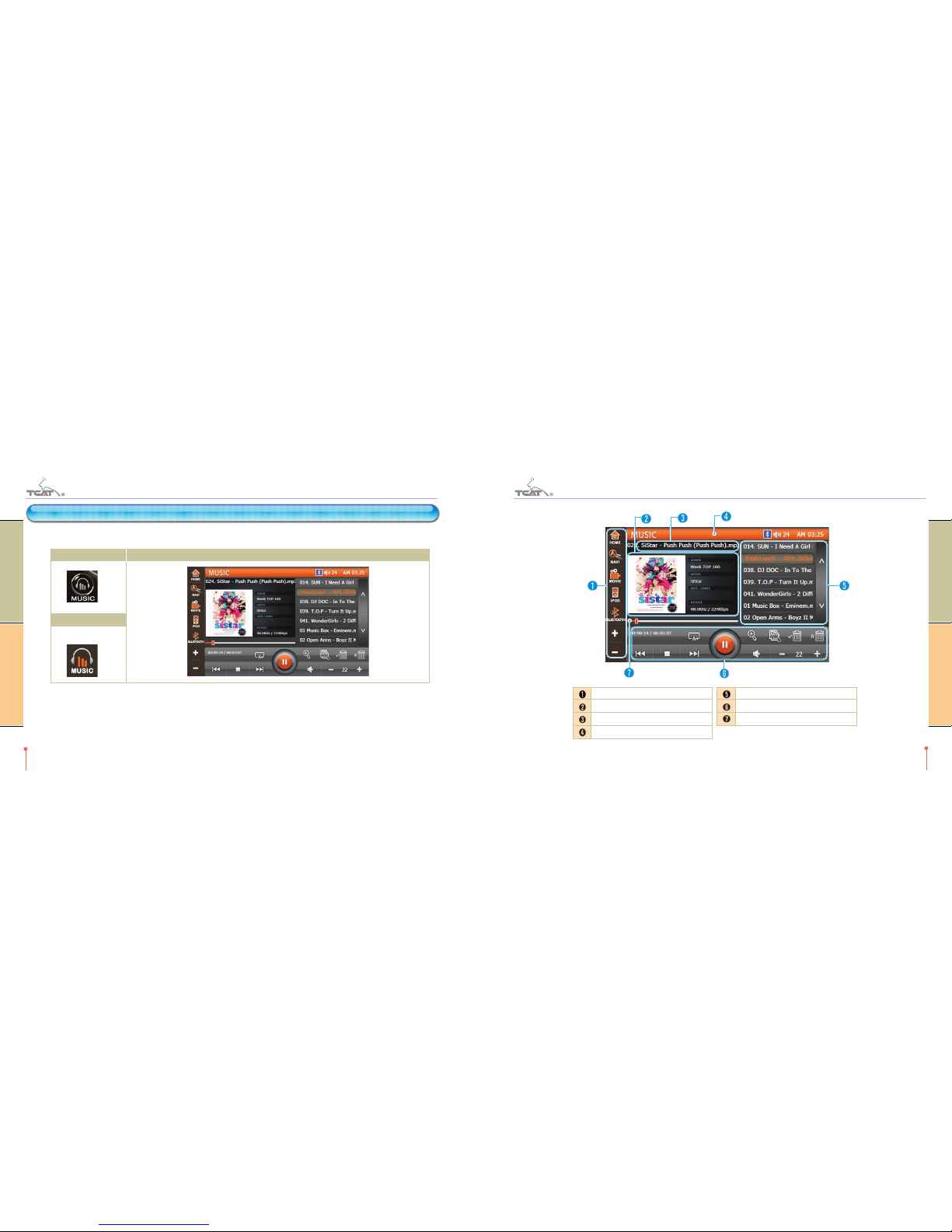

5-2. Screen description

15

TEANA TCAT MULTIMEDIA NAVIGATOR

Musick player

5-1. How to start

Just click the MUSIC icon on main menu or quick menu.

On Main Menu MUSIC Player Screen

On Quick Menu

14

TEANA TCAT MULTIMEDIA NAVIGATOR

Musick player

5. MUSIC PLAYER

Quick Menu

Album Art & information

Song title

Player Title

Play List

Player Control

Time bar & Time info

17

TEANA TCAT MULTIMEDIA NAVIGATOR

Musick player

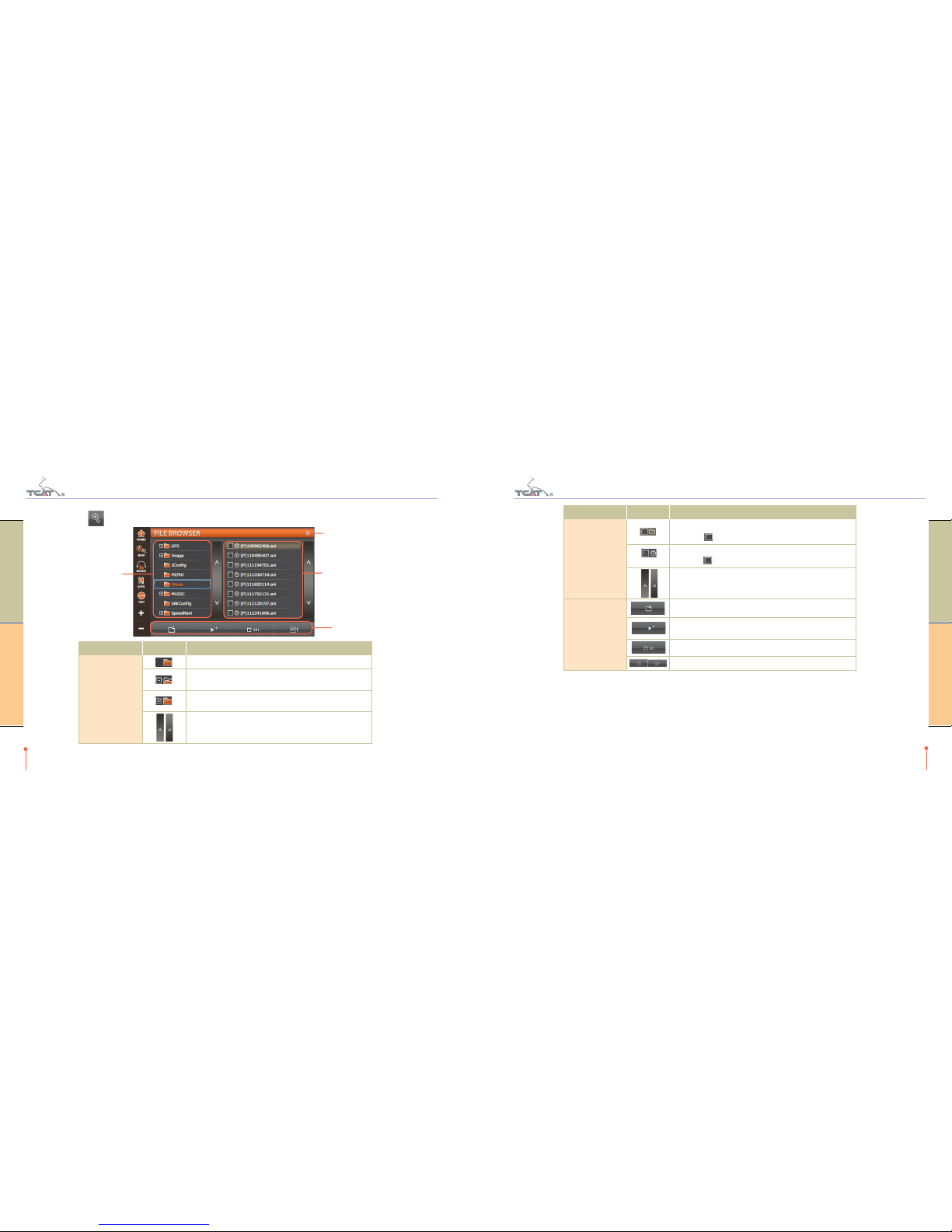

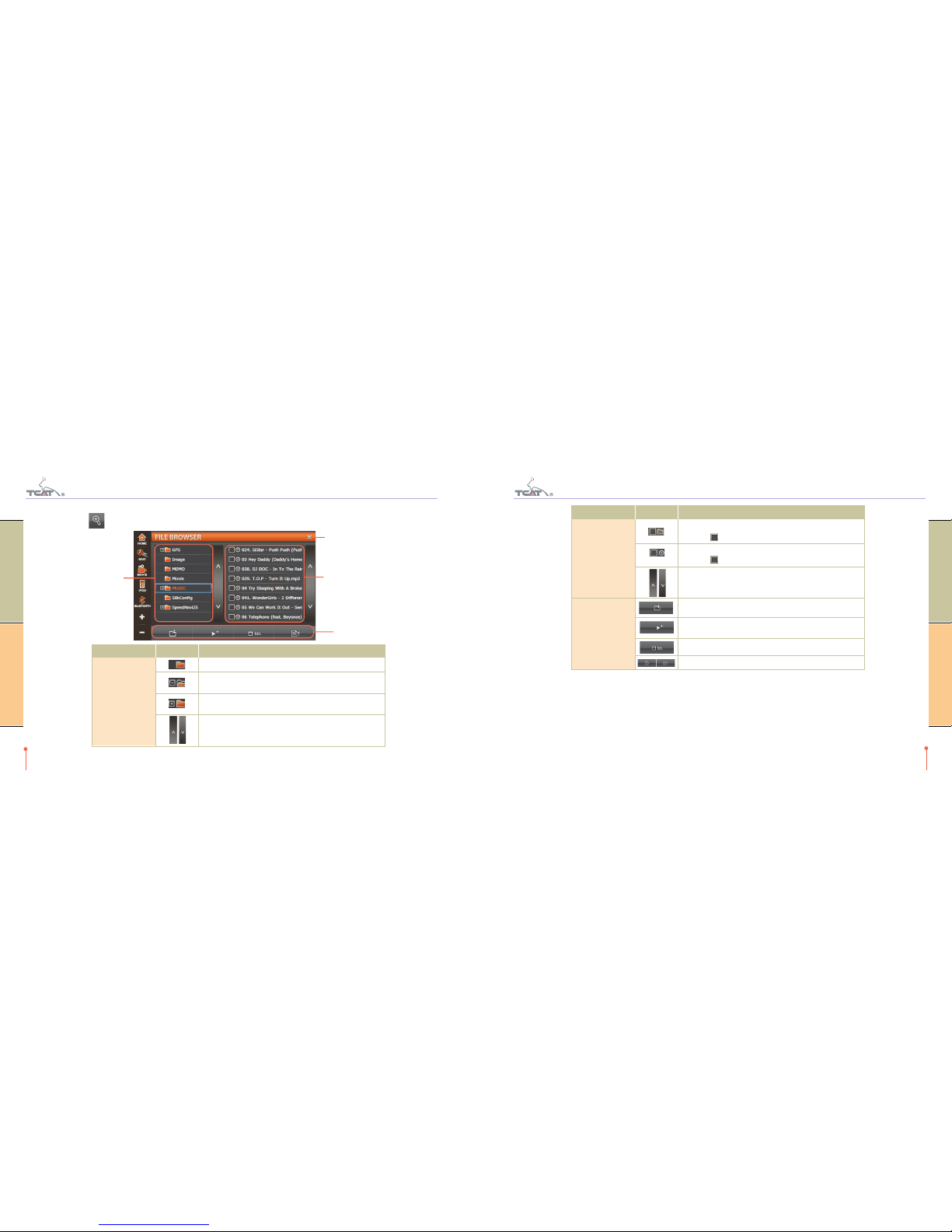

5-3. Choose music files

Just click the ICON to open the following file browser screen.

16

TEANA TCAT MULTIMEDIA NAVIGATOR

Musick player

Folder List ICON

Description

Folder List Area

Menu Zone

Exit Button

Category ICON Description

Child folder (no sub-folder)

Parent folder (sub folder is opened)

On click the (-), sub folder list is closed

Parent folder (sub folder is closed)

On click the (+), sub folder list is opened

Page up / down the folder list

File List ICON

Description

Menu Zone ICON

Description

Category ICON Description

Folder name

Click the [ ] box choose all songs in folder (on/off toggle)

Song name

Click the [ ] box choose the song (on/off toggle)

Page up / down the file list

Move to upper folder from selected folder

Add selected files to play list.

Return to the player screen

Select all items on file list

Select sort order in file list (ascending/descending toggle)

19

TEANA TCAT MULTIMEDIA NAVIGATOR

Musick player

18

TEANA TCAT MULTIMEDIA NAVIGATOR

Musick player

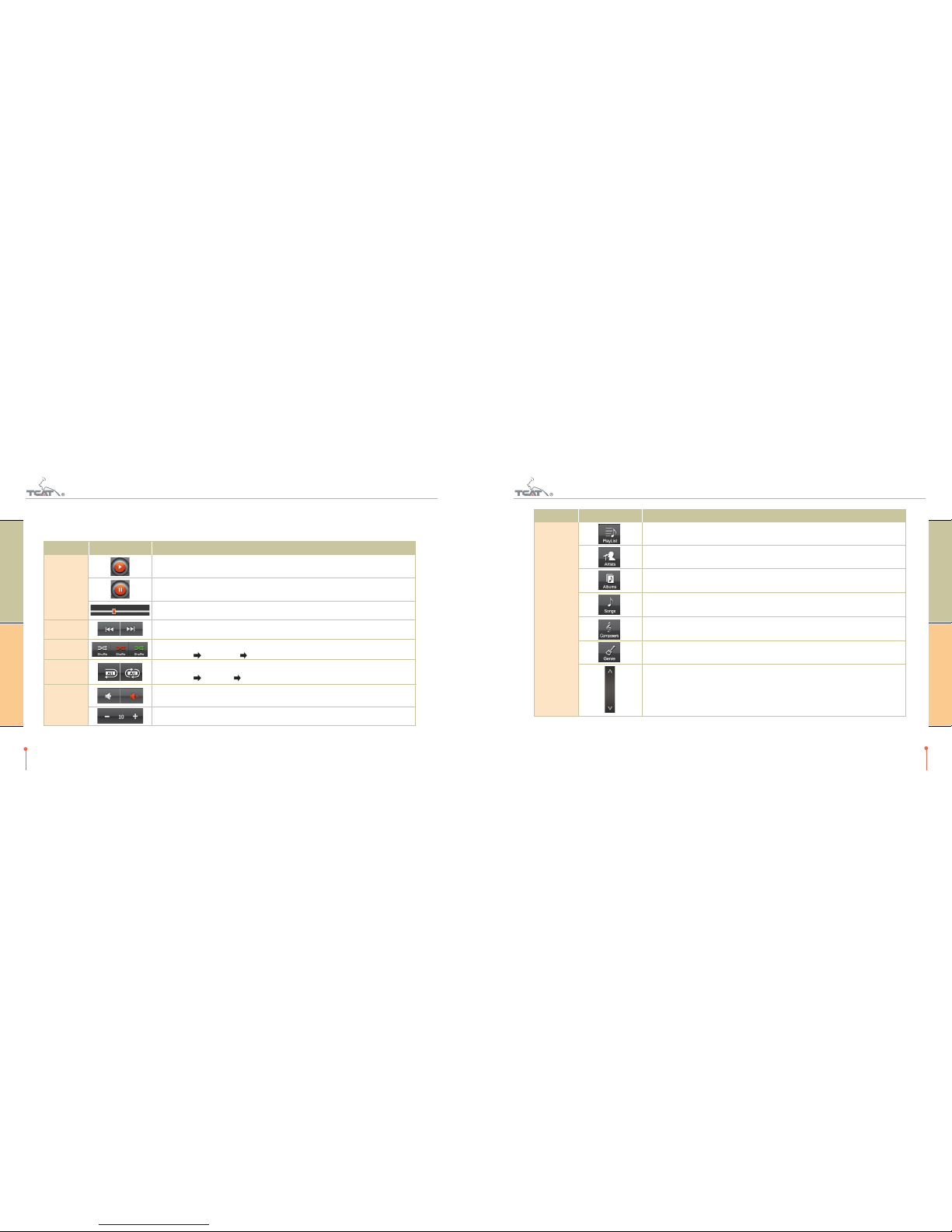

5-4. Player operation

To start the play of the specified song, just double click the file on play list area.

Basic

Move

Play Mode

Volume

Play List

Category ICON Description

Play selected music

Pause current music

Stop the play

Move playing position by moving the time bar.

Move to previous or next song. While loading the music, buttons are paused a few seconds.

Repetition mode control Play all once

Repeat all Random Repeat one

Mute control (On/Off toggle) Mute the system volume

Player volume control (control range 0-30)

Open file browser to add files to play list

Play List

Category ICON Description

Automatically loads songs from SD card or USB memory into the playlist.

Delete selected music file from play list

Delete all music from play list. Play mode is automatically stopped.

Page up / down the play list

Files downloaded partially or corrupted files may cause system hang or application errors. In such cases, delete the corrupted file.

On Main Menu MOVIE Player Screen

On Quick Menu

21

TEANA TCAT MULTIMEDIA NAVIGATOR

Movie player

20

TEANA TCAT MULTIMEDIA NAVIGATOR

Movie player

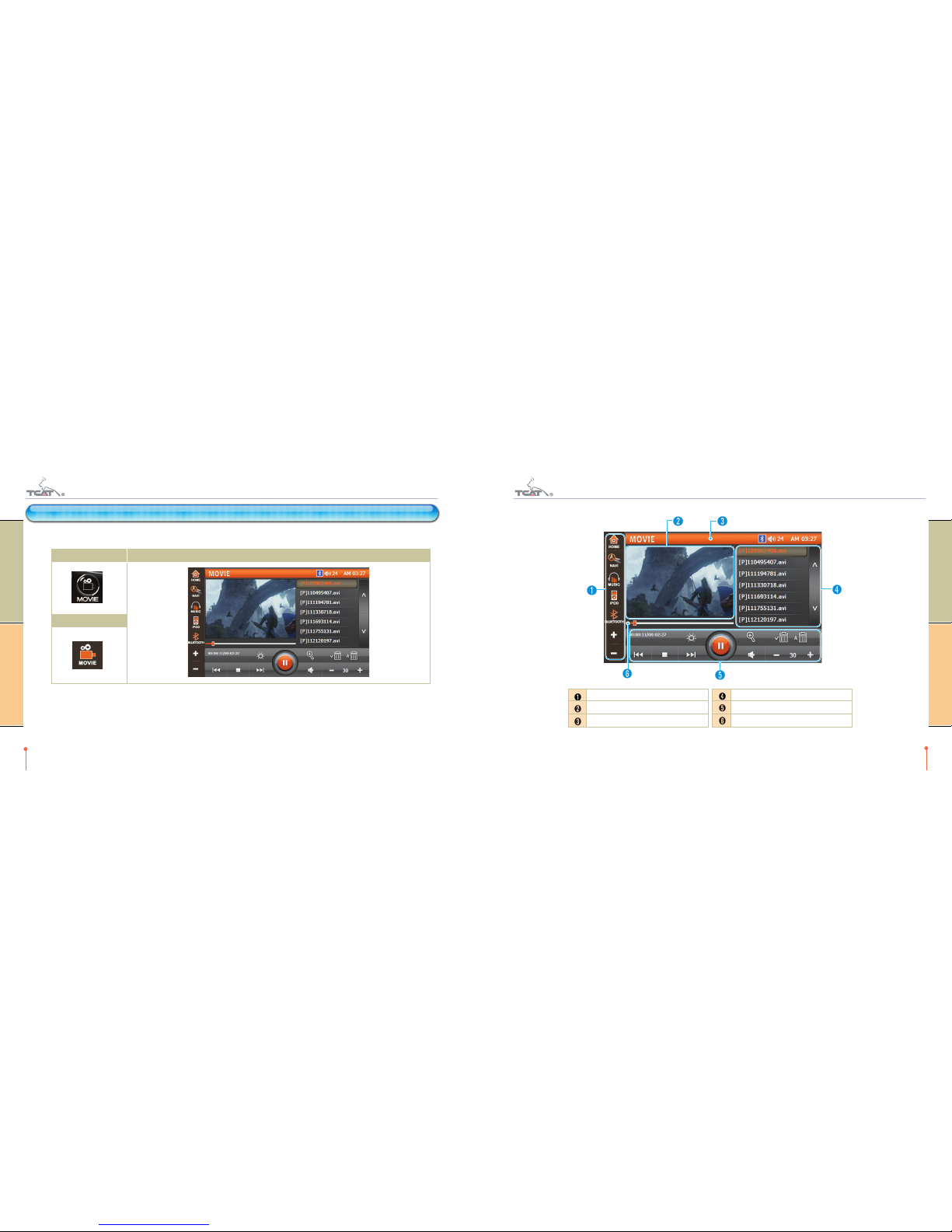

6-1. How to start

Just click the MOVIE icon on main menu or quick menu.

6. MOVIE PLAYER

6-2. Screen description

Quick Menu

Movie display zone

Player Title

Play List

Player Control

Time bar & information

23

TEANA TCAT MULTIMEDIA NAVIGATOR

Movie player

6-3. Choose movie files

Just click the ICON to open the following file browser screen.

22

TEANA TCAT MULTIMEDIA NAVIGATOR

Movie player

Folder List Area

Menu Zone

Exit Button

Folder List ICON

Description

Category ICON Description

Child folder (no sub-folder)

Parent folder (sub folder is opened) On click the (-), sub folder list is closed

Parent folder (sub folder is closed) On click the (+), sub folder list is opened

Page up / down the folder list

File List ICON

Description

Menu Zone ICON

Description

Category ICON Description

Folder name Click the [ ] box choose all songs in folder (on/off toggle)

Movie name

Click the [ ] box choose the movie (on/off toggle)

Page up / down the file list

Move to upper folder from selected folder

Add selected files to play list.

Return to the player screen

Select all items on file list

Select sort order in file list (ascending/descending toggle)

25

TEANA TCAT MULTIMEDIA NAVIGATOR

Movie player

6-5. Overlay Menu

Few seconds after playing the movie, menus are automatically disappeared to full screen movie display mode. To reopen the menu, just click the screen. And click the movie display area again to move to the full screen mode.

24

TEANA TCAT MULTIMEDIA NAVIGATOR

Movie player

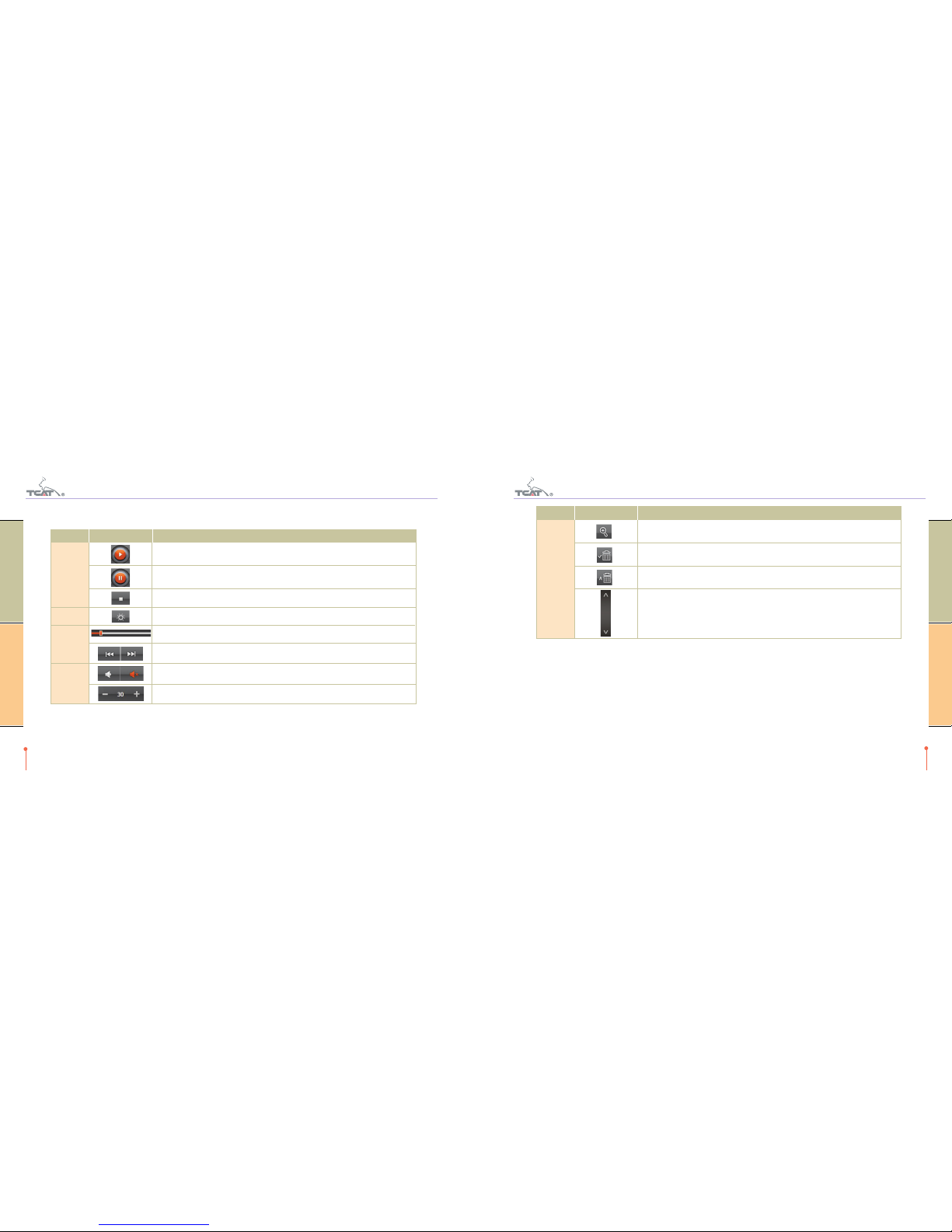

6-4. Player operation

To start the play of the specified movie clip, just double click the file on play list area.

Basic

Bright

Move

Volume

Category ICON Description

Play selected movie

Pause current movie

Stop the play

To adjust the brightness of the screen.

Move playing position by moving the time bar.

Move to previous or next movie. While loading the movie, buttons are paused a few seconds.

Mute control (On/Off toggle) Mute the system volume

Player volume control (control range 0-30)

Play List

Category ICON Description

Open file browser to add files to play list.

Delete selected movie file from play list.

Delete all movie from play list. Play mode is automatically stopped.

Page up / down the play list

27

TEANA TCAT MULTIMEDIA NAVIGATOR

IPOD

7-2. Screen description

26

TEANA TCAT MULTIMEDIA NAVIGATOR

IPOD

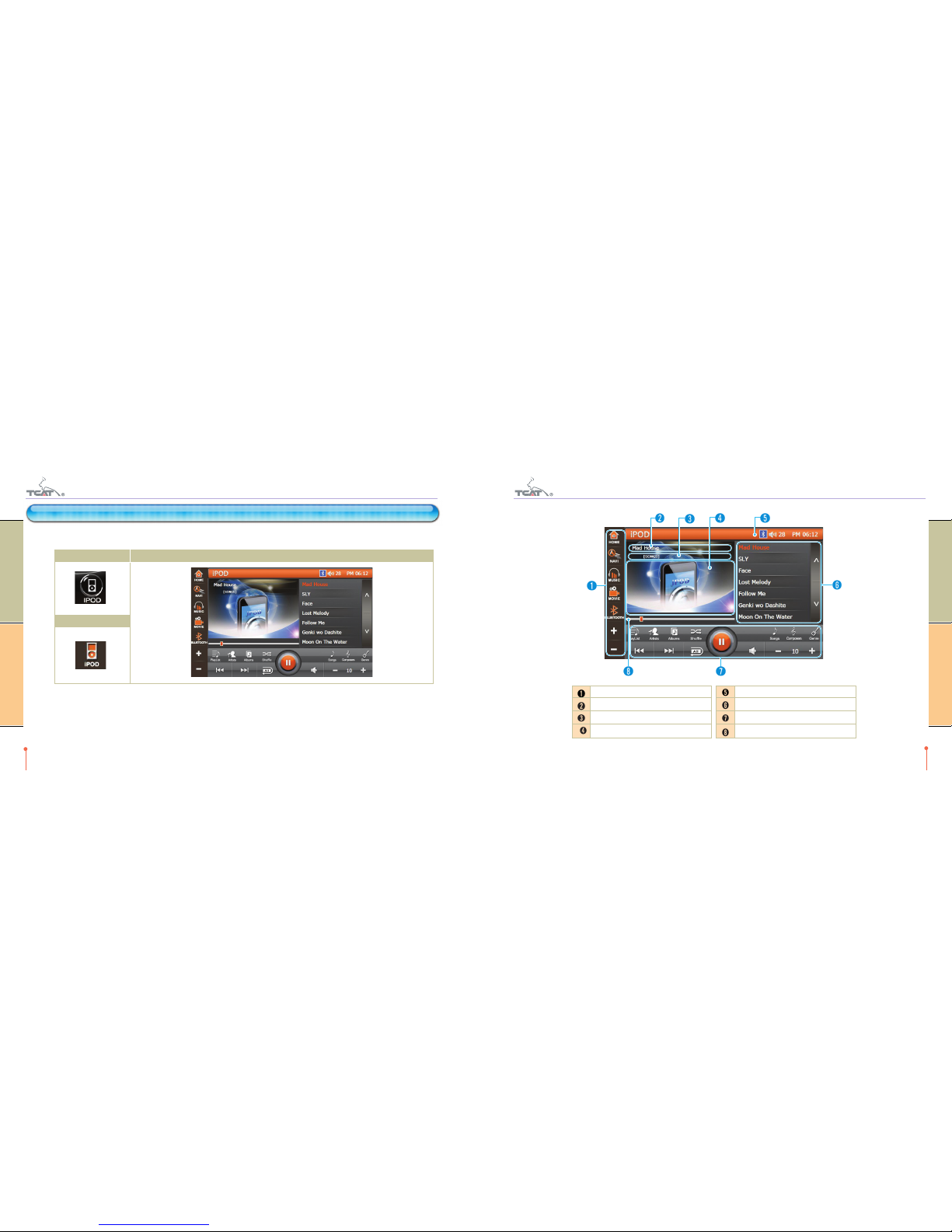

7. IPOD

7-1. How to start

Just click the IPOD icon on main menu or quick menu.

On Main Menu MUSIC Player Screen

On Quick Menu

Quick Menu

Song Title

List State

Ipod connect / disconnect state

Player Title

List Viewer

Player Control

Time bar & Time info

29

TEANA TCAT MULTIMEDIA NAVIGATOR

IPOD

28

TEANA TCAT MULTIMEDIA NAVIGATOR

IPOD

7-3. Player operation

Connect the iPod to the cable connector. When screen shows connected status, you can select the desired playlist.

To start the play of the specified song, just double click the file on play list area.

Basic

Time bar

Shuffle Mode

Play Mode

Volume

Category ICON Description

Play select music

Pause current music

Displays the current playback position. You cannot move the playback position.

Move to previous or next song. While loading the music, buttons are paused a few seconds.

Repetition mode control Shuffle none

Song shuffle Album shuffle

Repetition mode control Play all once

Repeat all Repeat one

Mute control (On/Off toggle) Mute the system volume

Player volume control (control range 0-15)

List

Category ICON Description

Playlists output to List Viewer

Artists output to List Viewer

Albums output to List Viewer

Songs output to List Viewer

Composers output to List Viewer

Genres output to List Viewer

Page up / down the List Viewer

On Main Menu Bluetooth Main Screen

On Quick Menu

31

TEANA TCAT MULTIMEDIA NAVIGATOR

Bluetooth

8-1. How to start

Just click the Bluetooth icon on main menu or quick menu.

30

TEANA TCAT MULTIMEDIA NAVIGATOR

Bluetooth

8. BLUETOOTH

8-2. Bluetooth screen

Main

Phone Book

Call List

Pair Mode

Phone Book Search

Paired List

Quick Menu

Player Title

Display

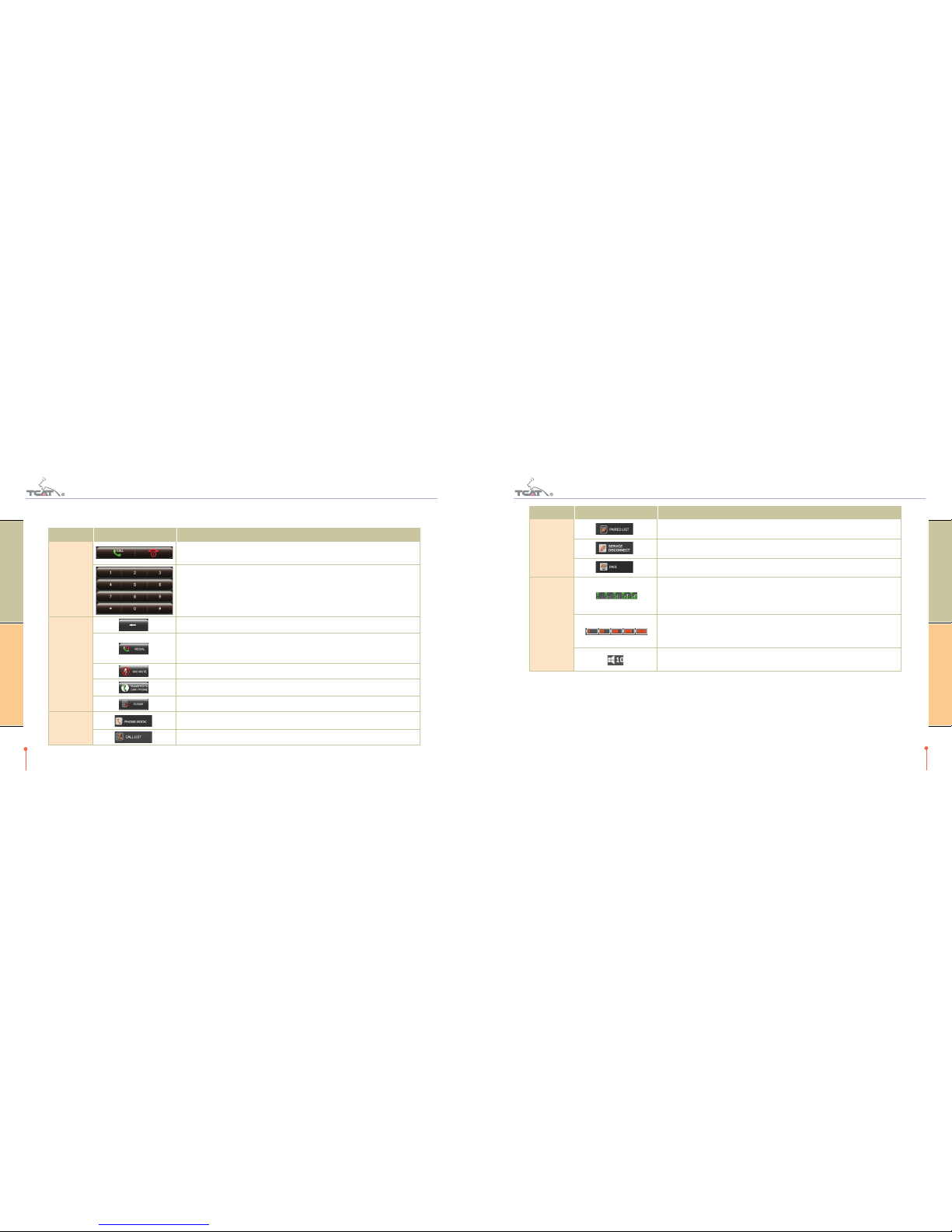

Dial keypad

Call Function

Signal/Battery/Volume

Bluetooth Function

Player Control

8-4. Bluetooth Main screen description

33

TEANA TCAT MULTIMEDIA NAVIGATOR

Bluetooth

8-3. Bluetooth Pairing

Before you can use a phone with Navigator, it must be authenticated. This is also referred to as Pairing a device.

Click PAIR button on Bluetooth Main screen. The PIN CODE message will appear.

From your phone, search for Bluetooth device “J100-TEANA”

When prompted by your phone. Input the PIN CODE.

Refer to the owner’s manual of your phone for more details on searching for Bluetooth devices.

If available on your phone, set J100-Teana as “Automatically Connect”.

32

TEANA TCAT MULTIMEDIA NAVIGATOR

Bluetooth

Step 1.

Step 2.

Bluetooth

Function

State

Category ICON Description

Paired list screen

Bluetooth connection is disconnected.

Pairing pin code input mode

Signal (Range Antenna1-Antenna5)

Phone signal may not supported according to the phone compatibility and Bluetooth version.

Battery gage (Range Bettery1-Bettery5)

Phone battery gage may not supported according to the phone compatibility and Bluetooth version.

Bluetooth volume (Range 0-15)

Dial keypad

Call Function

Bluetooth

Function

Category ICON Description

Call / Hang up

Dial Input key

Back space

Auto re-dial the last dialled number. May vary depending on the phone’s setting. Some phone require you to click twice.

Mic mute

Change the audio source CAR/PHONE

Clear display area.

Phone book screen

Call list screen

35

TEANA TCAT MULTIMEDIA NAVIGATOR

Bluetooth

8-5. Function description

Some Bluetooth functions may not be supported as it depends on the phone’s compatibility and Bluetooth version.

34

TEANA TCAT MULTIMEDIA NAVIGATOR

Bluetooth

List

Call

Search

Category ICON Description

Search by name. Name search window output.

Phone Book list download

Delete selected name from list

Delete all data from list. All existing data will be lost.

Page up / down the List

Outgoing call

Clear display area.

Search Keypad.

Clicking on the list will hide.

37

TEANA TCAT MULTIMEDIA NAVIGATOR

Bluetooth

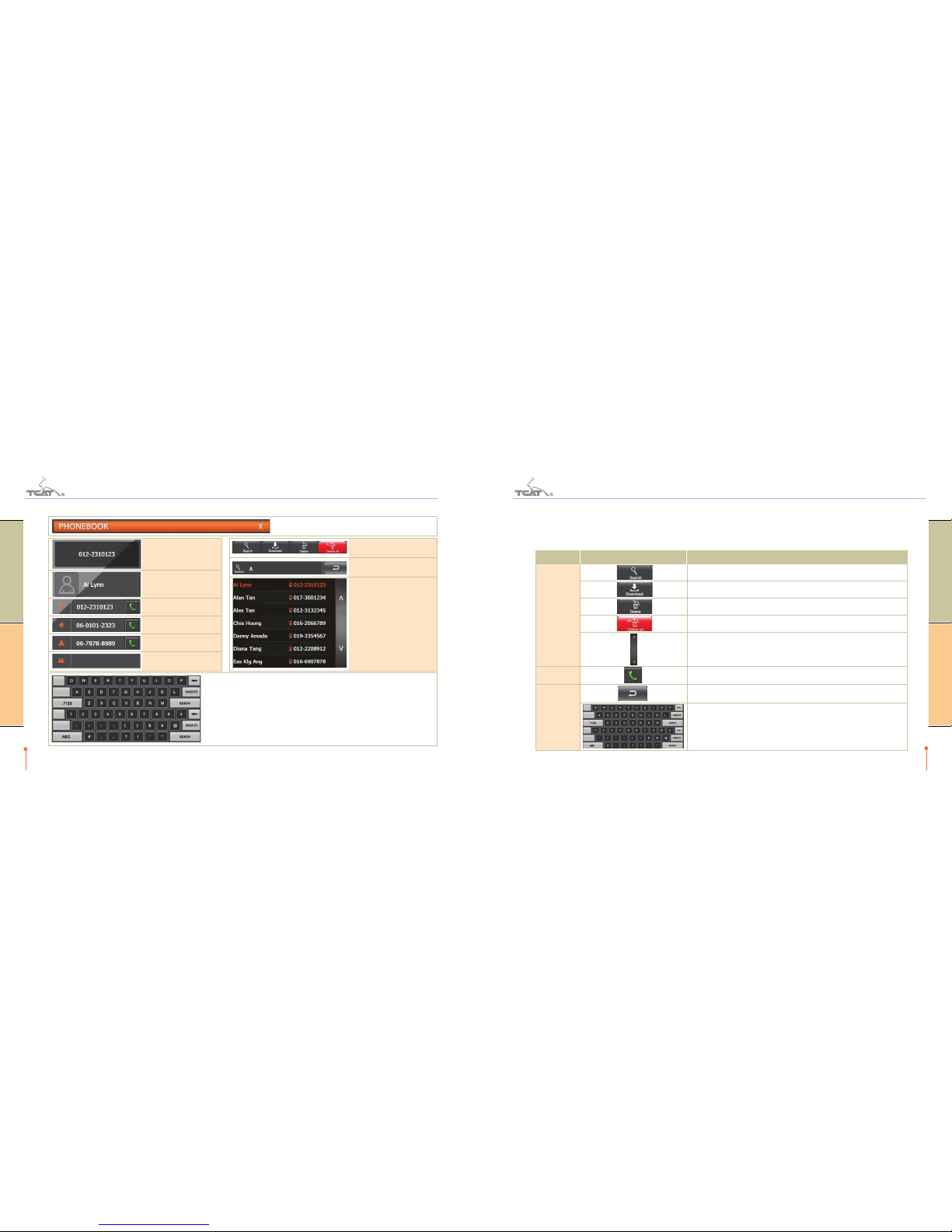

Phone Book List Function

Phone Book Search display

Phone Book List

36

TEANA TCAT MULTIMEDIA NAVIGATOR

Bluetooth

8-6. Phone Book screen description

Phone Book Search Keypad

Phone Book Title

Display

Name

Cell Number & Call

Home Number & Call

Work Number & Call

Fax Number

8-7. Phone Book operation

Phone Book may not supported according to the phone compatibility.

To use Phone Book function, user has to download Phone Book list from phone to the Navigator and re-download whenever Phone Book list is changed and updated.

List

Call

Call List Title

Call List Function

8-9. Call List operation

The maximum data is a list of the 100. (Receive Calls + Dialed Calls + Missed Calls <= 100)

39

TEANA TCAT MULTIMEDIA NAVIGATOR

Bluetooth

8-8. Call List screen description

38

TEANA TCAT MULTIMEDIA NAVIGATOR

Bluetooth

List

Call

Call List

Function

Category ICON Description

Delete all data from list. All existing data will be lost.

Page up / down the List

Outgoing call

Shows all recent call.

Shows only received call.

Shows only dialed call.

Shows only missed call.

9. PHOTO Viewer

41

TEANA TCAT MULTIMEDIA NAVIGATOR

Photo viewer

8-10. Paired List operation

Previously paired phone list.

Maximum saved list is 8.

8-11. Player operation (A2DP Sink & AVRCP)

AVRCP function may not supported according to the phone compatibility.

40

TEANA TCAT MULTIMEDIA NAVIGATOR

Bluetooth

List

Category ICON Description

Connect

Delete phone from list.

Delete all phones from list. All previously paired phones will be deleted.

Basic

Move

Volume

Category ICON Description

Play music saved in your phone memory.

Pause music

Stop the play

Move to previous or next song.

Bluetooth volume control (control range 0-15)

9-1. How to start

Just click the PHOTO icon on main menu.

On Main Menu PHOTO Viewer Screen

On Quick Menu

9-3. Viewer button operation

When you click the screen button panel will be displayed.

43

TEANA TCAT MULTIMEDIA NAVIGATOR

Photo viewer

9-2. Viewer gesture operation

To start the view of the specified image clip, just left or right drag on touch screen.

42

TEANA TCAT MULTIMEDIA NAVIGATOR

Photo viewer

Exit PHOTO viewer

Move to Previous Image file

Move to Next image file

Exit

Previous Image

Next Image

Open Browser

Select Folder

Open file browser to select folder

Select folder for PHOTO view

Exit

Previous Image

Next Image

Open Browser

Slide Show

Category ICON Description

Exit PHOTO viewer

Move to Previous Image file

Move to Next image file

Open file browser to select folder

Start the slideshow

Basic

Exit

Category ICON Description

Select memo board ( 1 ~ 5 )

Erase all written ( clear screen )

Save memo board

Exit MEMO software

10-2. Software operation

To start writing, just scribble on the screen.

45

TEANA TCAT MULTIMEDIA NAVIGATOR

Screen / AV-IN

10-1. How to start

Just click on the MEMO icon on main menu.

44

TEANA TCAT MULTIMEDIA NAVIGATOR

Memo

10. MEMO software

On Main Menu MEMO software Screen

On Main Menu Screen

11-1. How to start

Just click the SCREEN icon on main menu

11-2. How to switch LCD ON or OFF

Just click the LCD.

11. SCREEN

LCD off

On Main Menu AVIN Mode Screen

Black Screen with [X] button on upper right corner

12. AV-IN (OPTIONAL CONNECTION)

Connectors for the AV-IN are available BEHIND the LCD monitor. Please contact the nearest service center for assistance.

External AV-IN connection can work with Video+Audio (portable DVD player, Video Camera etc) or Audio-only mode (portable MP3 player).

12-3. How to exit AV-IN screen.

Just click the [X] button on upper right corner.

12-1. How to start

Just click the AVIN icon on main menu

12-2. Audio/Video connection

13-3. TRIP Full Screen

For Audio and A/C usage, please refer to the car’s user manual.

47

TEANA TCAT MULTIMEDIA NAVIGATOR

Trip

13-1. How to start

The TRIP display will show automatically whenever the car’s radio or A/C settings are changed.

If you operate the audio or A/C, TRIP Bar will be displayed at the top of the screen. And disappears automatically after 3-4second.

If you with to view the TRIP full screen, just click the TRIP icon on main menu.

TRIP full screen does not disappear automatically. Just click the screen on TRIP (full or bar) screen to return to previous menu.

Selecting either MUSIC, MOVIE, IPOD or BLUETOOTH will automatically switch the radio to Aux mode. In addition, the Navigator’s speakers are muted when switching aux mode.

13-2. TRIP Bar Screen

TRIP bar Screen sample

46

TEANA TCAT MULTIMEDIA NAVIGATOR

Trip

13. TRIP

On Main Menu TRIP Viewer full Screen sample

On Main Menu SETTING Mode Screen

15. SETTING

15-1. How to go into the setting menu

Just click SETTING icon on main menu

14-1. How to start

Just click the CLOCK icon on main menu.

48

49

TEANA TCAT MULTIMEDIA NAVIGATOR TEANA TCAT MULTIMEDIA NAVIGATOR

TEANA TCAT MULTIMEDIA NAVIGATOR

Clock mode

TEANA TCAT MULTIMEDIA NAVIGATOR

Setting

14. CLOCK MODE

On Main Menu CLOCK Mode Screen

14-2. How to finish

Just click the screen on CLOCK mode screen. It returns to main menu mode.

Time and Date is updated via GPS antenna. It will not be updated when vehicle does not have GPS reception. Eg: Underground parking.

SETTING menu is composed of four sub parts, SYSTEM, SCREEN, USER and INFO.

To move the SETTING sub mode, just click the tab title.

Move to SYSTEM sub-menu

Move to SCREEN sub-menu

Move to USER sub-menu

Move to INFO sub-menu

15-6. LCD brightness

Click SETTING on main menu and SCREEN tab.

LCD brightness can be configured into day & night mode by specifying the time range.

By dragging the bar, you can set the LCD brightness for day and night mode. The range is 0 to 15.

You should specify the time range for day and night mode in AUTO mode.

In this case, day bright will be used from 7 AM to 7 PM. And night bright will be used from 7 PM to 7 AM.

Brightness is automatically changed according to the time from GPS.

For manual selection of DAY/NIGHT modes, please use the DAY or NIGHT buttons.

15-7. Auto Volume Control

Click SETTING on main menu and USER tab.

MUSIC volume can be controlled when there is voice guidance form Navi.

To set DISABLE/REDUCE/MUTE.

51

TEANA TCAT MULTIMEDIA NAVIGATOR

Setting

15-2. Start option

Click SETTING on main menu and SYSTEM tab

You can choose start mode of the system. Default is the main menu display mode.

15-3. Speaker operation

Click SETTING on main menu and SYSTEM tab

SPEAKER OUT option controls the built-in speakers (Behind the LCD monitor).

When it sets to [ON], built-in speakers are turned-ON.

When it sets to [OFF], built-in speakers are turned-OFF.

15-4. Touch screen calibration

Click SETTING on main menu and SYSTEM tab

All operation is performed through the touch screen. If the touch position is incorrect, you can calibrate touch position using the [CALIBRATION] button.

15-5. Parking lines show

Click SETTING on main menu and SYSTEM tab

PARKING LINES SHOW option controls the parking lines (When reverse parking).

When it sets to[ON], parking lines will be displayed.

When it sets to[OFF], parking lines will not show up.

50

TEANA TCAT MULTIMEDIA NAVIGATOR

Setting

15-10. System information

Click SETTING on main menu and INFO tab.

You can check the system information as follows. Memory size is for the SD card capacity.

If you want to initialize all user setting values to factory default, just click the Initialize button.

53

TEANA TCAT MULTIMEDIA NAVIGATOR

Setting

15-8. PIP Option

Click SETTING on main menu and USER tab.

You can enable/disable shortcut menu / MUSIC PIP buttons on Navi mode.

To set PIP ON/OFF.

15-9. Booting Logo Change

Click SETTING on main menu and USER tab.

You can change the boot logo.

Copy images into the BootImage folder inside the SD card.

Double-click the file you want from the list and the right viewer window will display thumbnails of the selected picture.

When you click the [Apply] button, the selected image will replace the current boot screen.

52

TEANA TCAT MULTIMEDIA NAVIGATOR

Setting

800 x 480 size with 8-bit BMP files are supported.

16-1. Technical specification

Category Specification Remarks

54

TEANA TCAT MULTIMEDIA NAVIGATOR

Appendix

16. APPENDIX

RMI Au1250 @ 700MHz

Windows CE 5.0 Core License Model

128 MB NAND Flash Boot Loader & OS

256MB DDR2

4GB SDHC SANDISK Class II

7 inch WVGA (800x480) with TSP(Touch Screen Panel)

G-MOUSE Type

1 Port Up to 32GB, FAT or FAT32 only

N/A

1 Port SDHC up to 8GB

1 Port (1 CVBS, Audio L,R)

1 Port (Audio L,R)

1 Port with Rear mode detect

2 Speakers

N/A

12V / 1A

N/A

Memory

GPS

IO

AV

Audio

Power

CPU

OS

ROM

RAM

External Storage

Display

Module

Antenna

USB Host

USB Device

SD Slot

AV In

Audio Out

Rear Camera

Speaker

FMT

IR Remote Control

DC In

Battery

TCAT TEANA User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
