TBS technologies TBS8510 User Manual

1 / 53 TBS8510 User Guide

TBS8510 Transcoder Server User Guide

2 / 53 TBS8510 User Guide

2019-01-08

Catalog

1. Product Overview ................................................................................................................................................ 4

1.1 Product Presentation ................................................................................................................................. 4

1.2 Product Specifications ............................................................................................................................... 5

2. Quick Start ........................................................................................................................................................... 7

3. Home Page ........................................................................................................................................................... 9

4. Clients .................................................................................................................................................................. 9

4.1 General Setting .......................................................................................................................................... 9

4.2 Clients ...................................................................................................................................................... 10

5. Content Setting .................................................................................................................................................. 11

5.1 General Setting ................................................................................................................................................ 11

5.1.1 Summary ....................................................................................................................................... 11

5.1.2 Settings ......................................................................................................................................... 11

5.1.3 Advanced Settings ......................................................................................................................... 12

5.2 DVB Management .................................................................................................................................... 12

5.2.1 Transponders (DVBS/S2, DVBT/T2, DVB-C, ATSC…) ....................................................................... 12

5.2.2 All Channels .................................................................................................................................. 17

5.2.3 TV Channels .................................................................................................................................. 19

5.2.4 Radio Channels ............................................................................................................................. 19

5.2.5 Tuner Cards ................................................................................................................................... 20

5.2.6 Modulators ................................................................................................................................... 20

5.3 Import Stream Management ................................................................................................................... 21

5.3.1 Unicast Stream Import .................................................................................................................. 21

3 / 53 TBS8510 User Guide

5.3.2 Multicast Stream Import ............................................................................................................... 22

5.3.3 HTTP Stream Import ..................................................................................................................... 23

5.3.4 RTSP stream import ...................................................................................................................... 24

5.3.5 HDMI/SDI Capture Import ............................................................................................................ 25

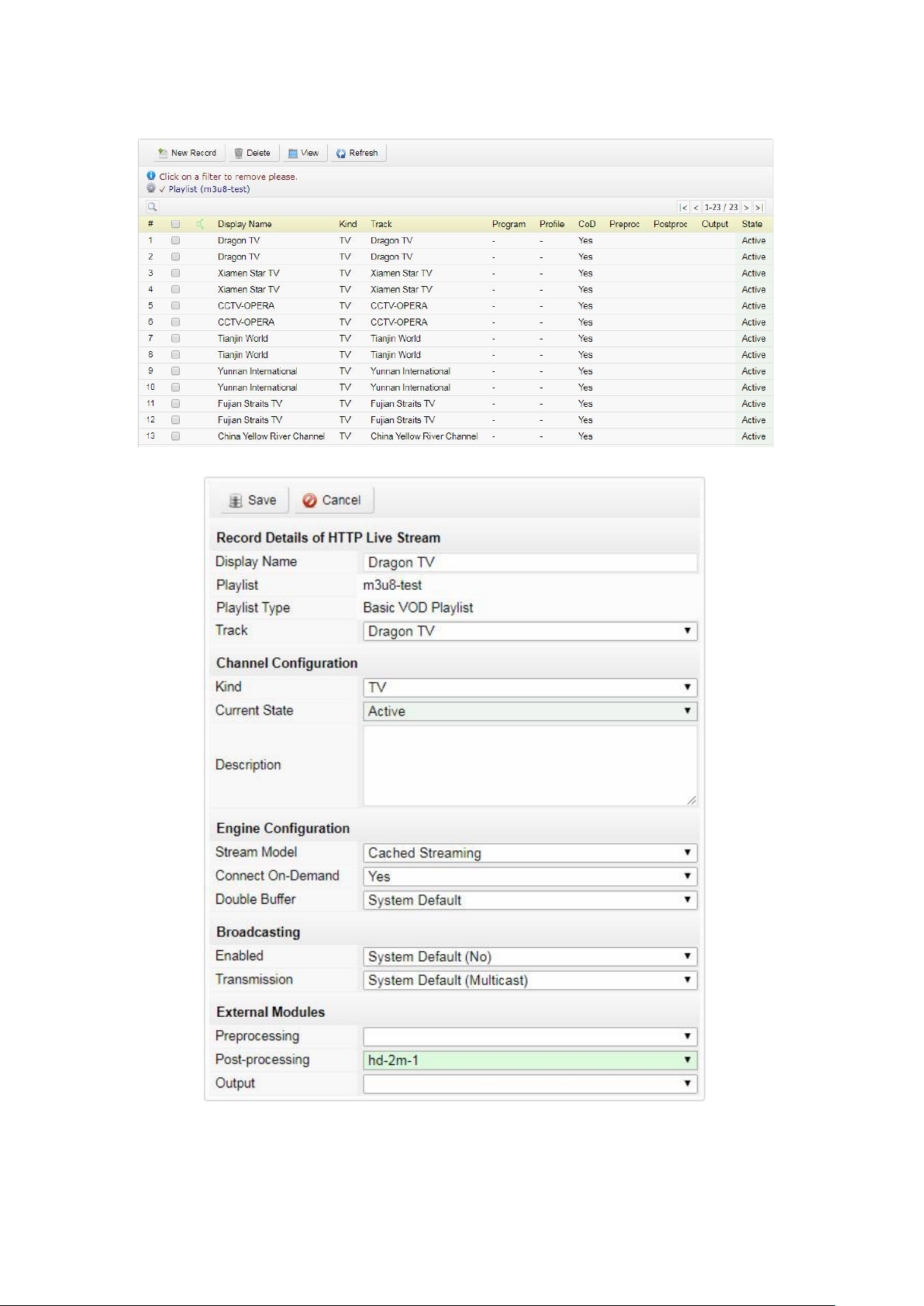

5.3.6 HTTP Live Playlists ......................................................................................................................... 26

5.3.7 MPTS stream Import ..................................................................................................................... 28

5.3.8 Local Files Import .......................................................................................................................... 30

5.4 Multiplexing Settings ............................................................................................................................... 32

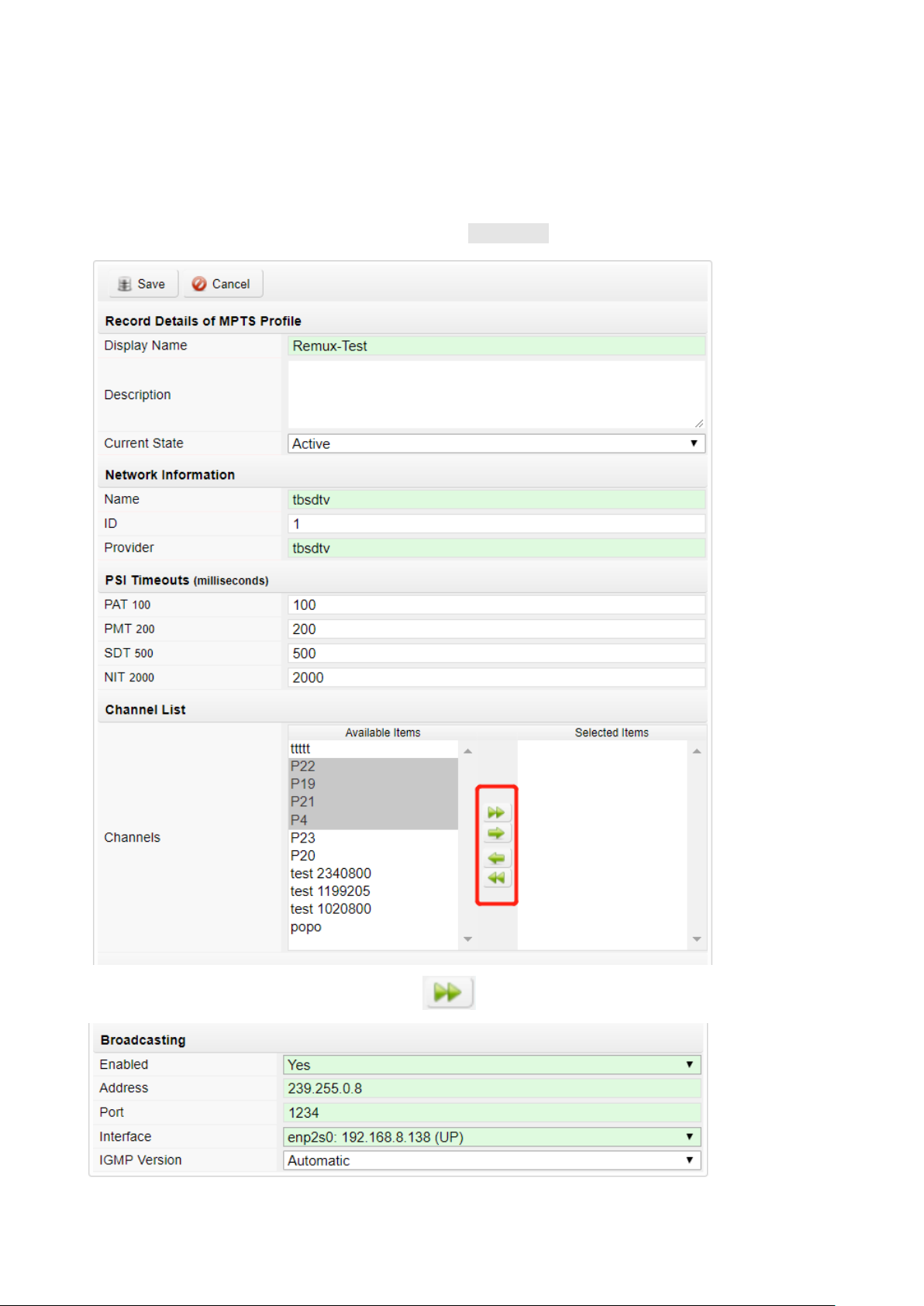

5.4.1 Multi Program TS Setting .............................................................................................................. 32

5.5 Broadcasting Status ................................................................................................................................. 33

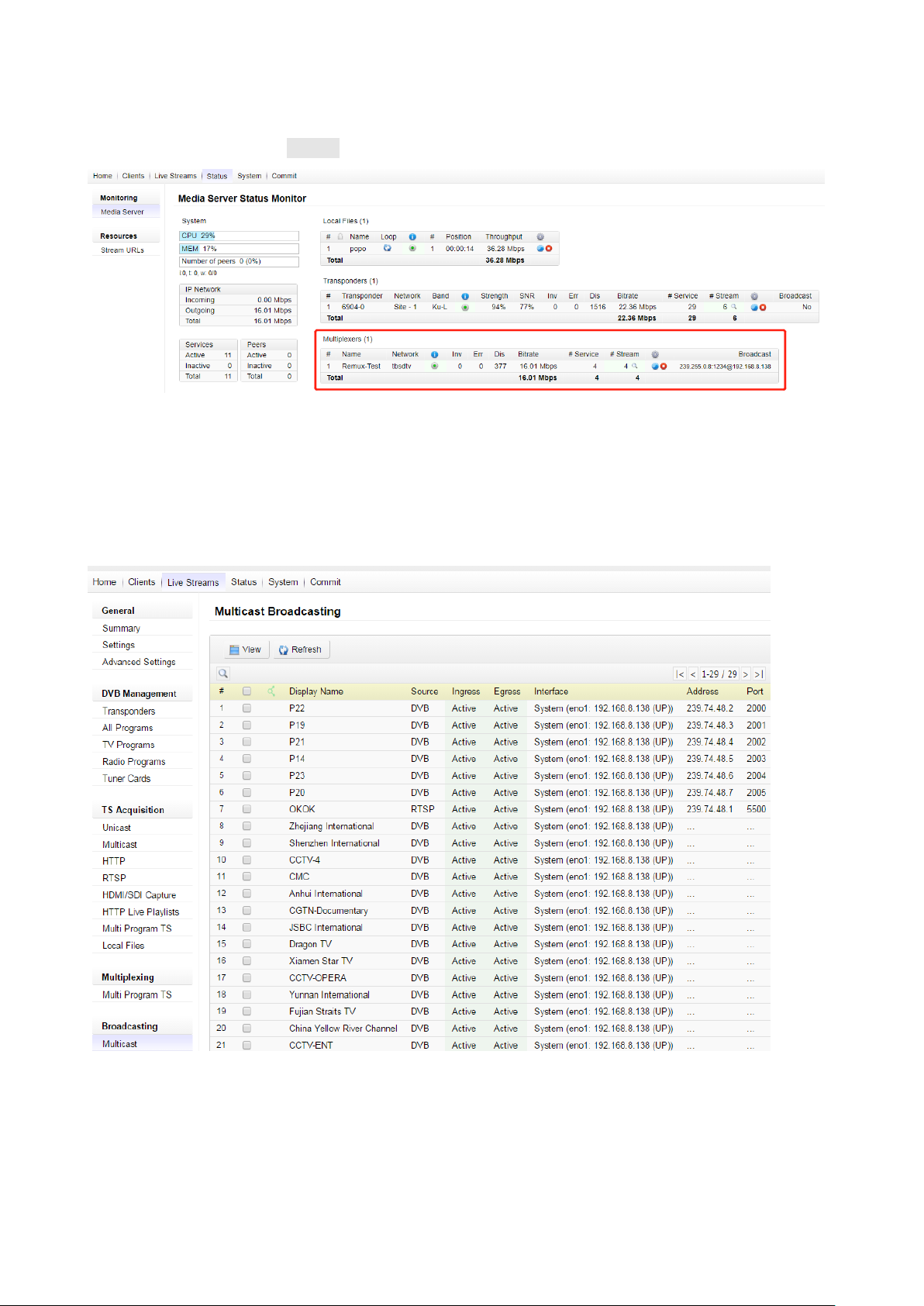

5.5.1 Multicast Status ............................................................................................................................ 33

5.5.2 Modulators Status ......................................................................................................................... 34

5.6 CDN Upload Settings ................................................................................................................................ 34

5.7 Profiles Setting ......................................................................................................................................... 38

5.7.1 Preprocessing Profile .................................................................................................................... 38

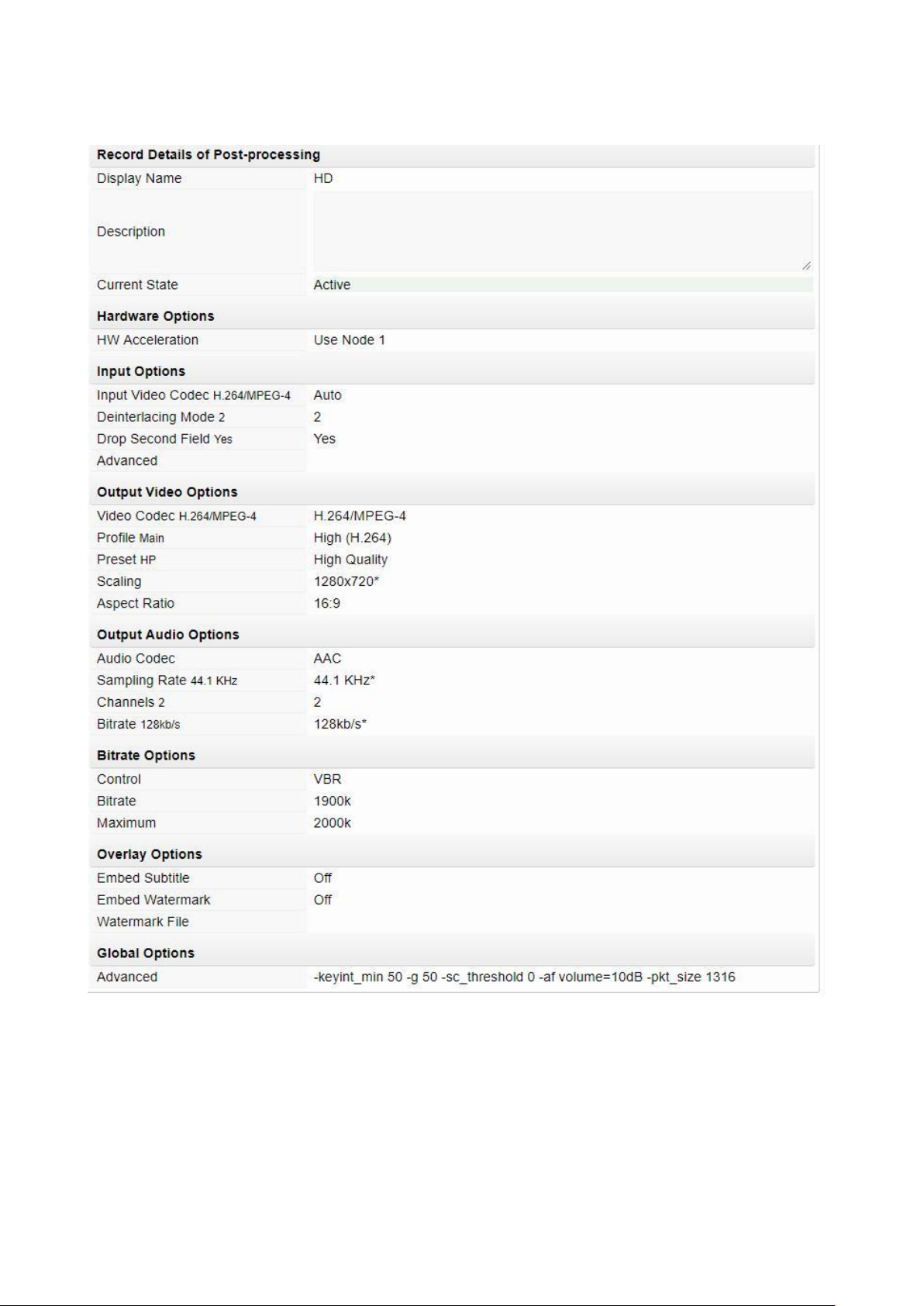

5.7.2 Post-processing Profile (Transcode Profile) .................................................................................. 39

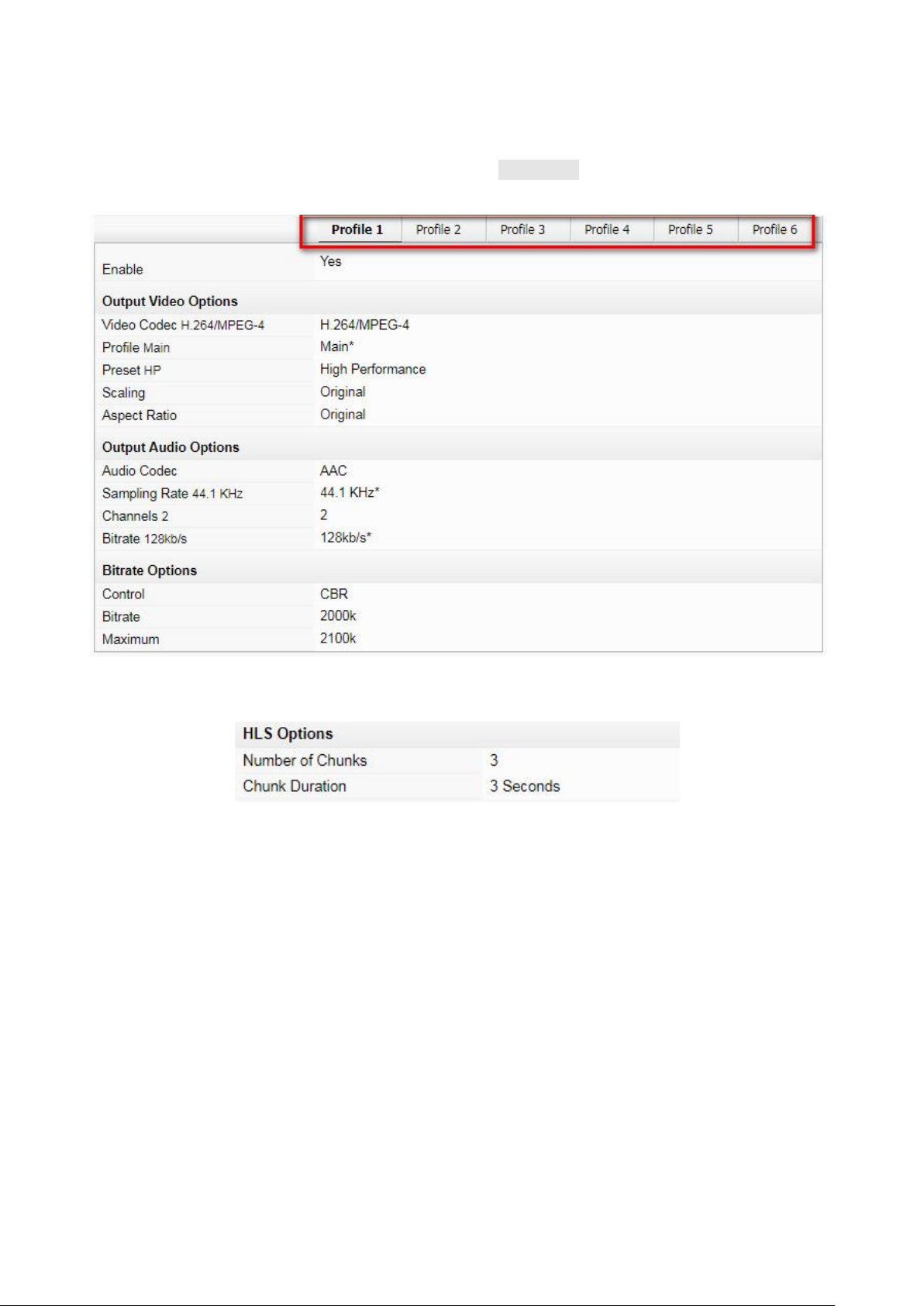

5.7.3 Output Profile (HLS/ABR Profile)................................................................................................... 41

6. Status Page ......................................................................................................................................................... 42

6.1 Monitoring ............................................................................................................................................... 42

6.2 Resources (Output Stream Address) ........................................................................................................ 45

7. System Page ....................................................................................................................................................... 46

7.1 General Setting ........................................................................................................................................ 46

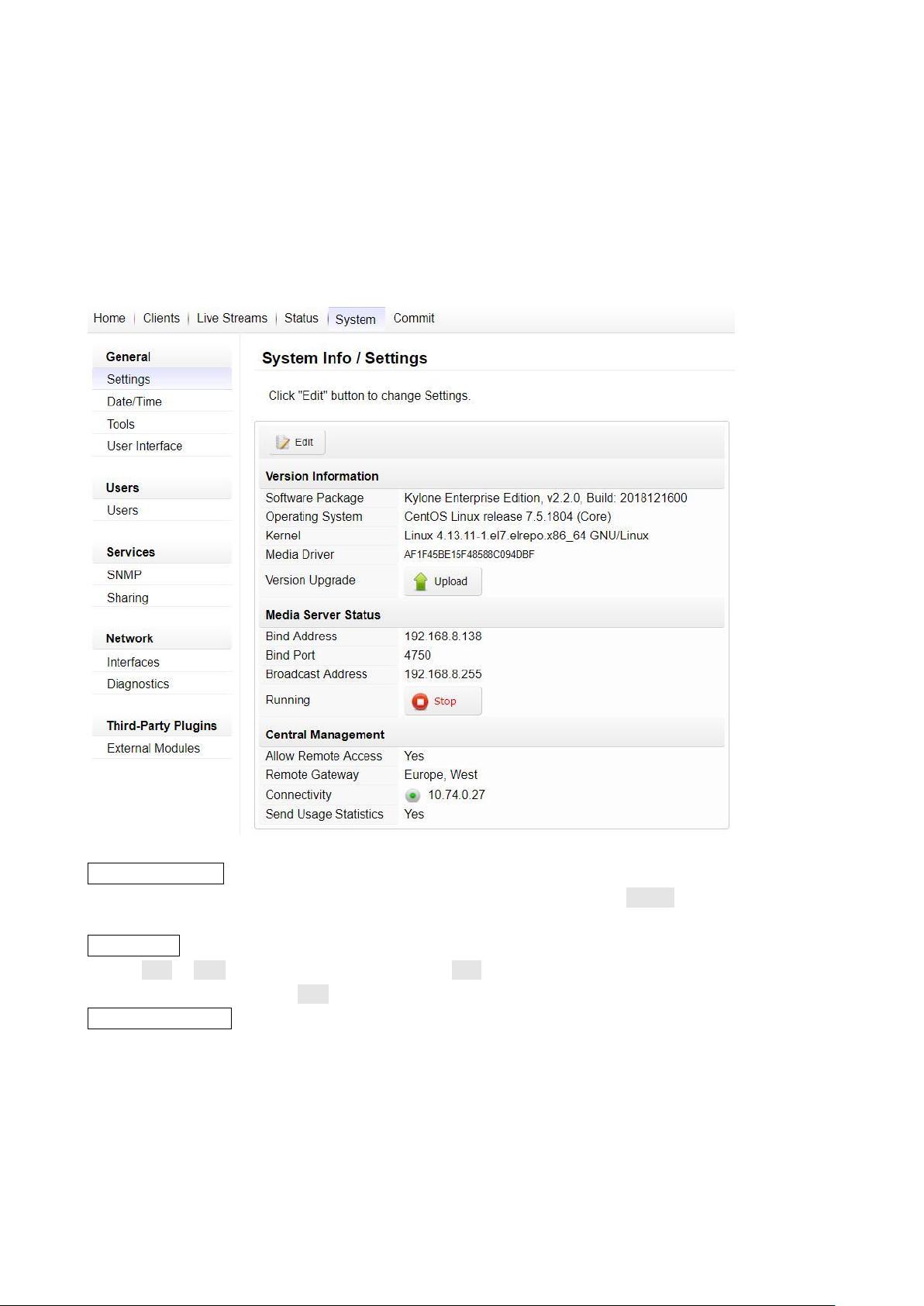

7.1.1 Settings ......................................................................................................................................... 46

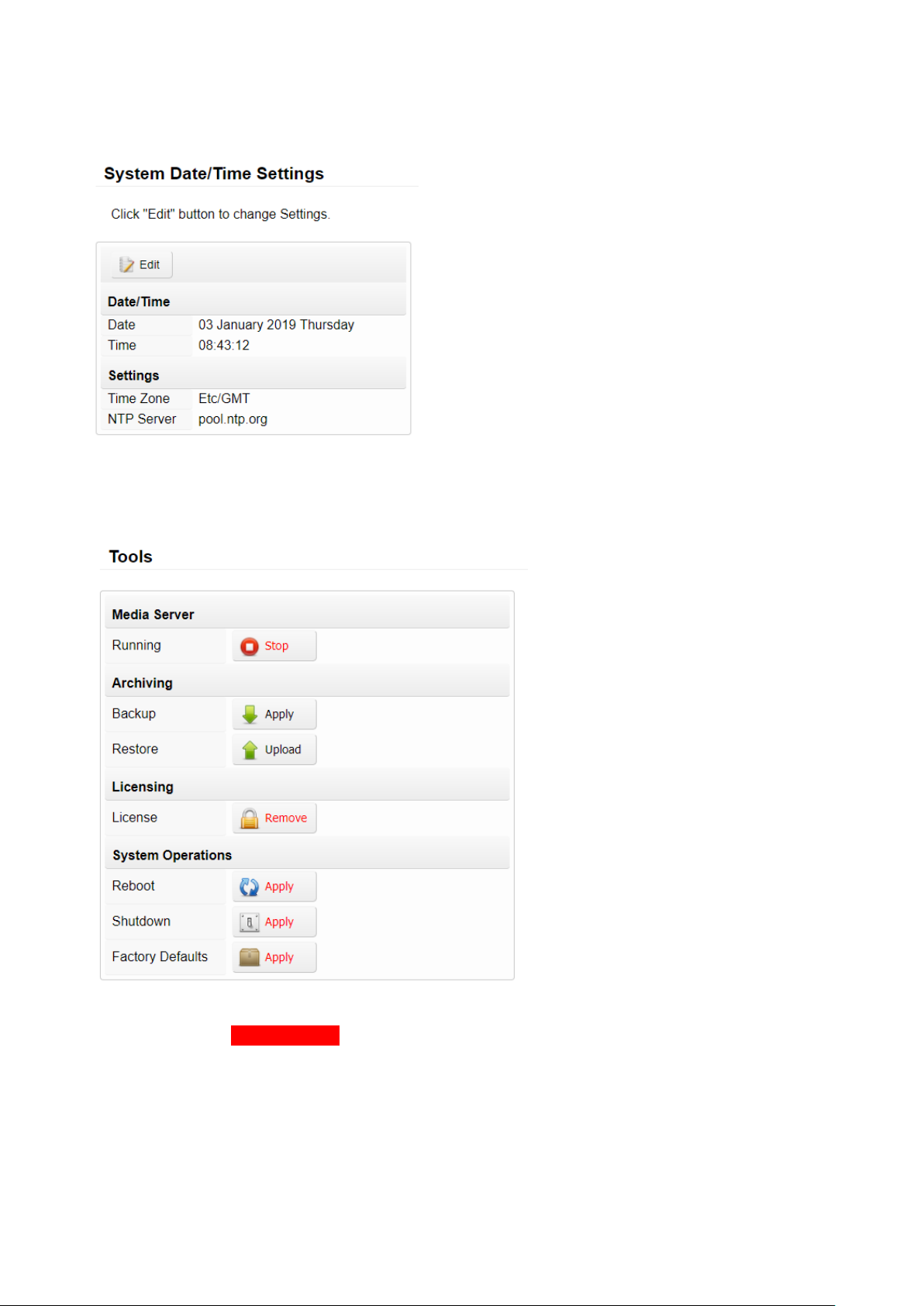

7.1.2 Data Time ...................................................................................................................................... 47

7.1.3 Tools .............................................................................................................................................. 47

7.1.4 User Interface ............................................................................................................................... 48

7.2 Users ........................................................................................................................................................ 48

7.3 Services .................................................................................................................................................... 49

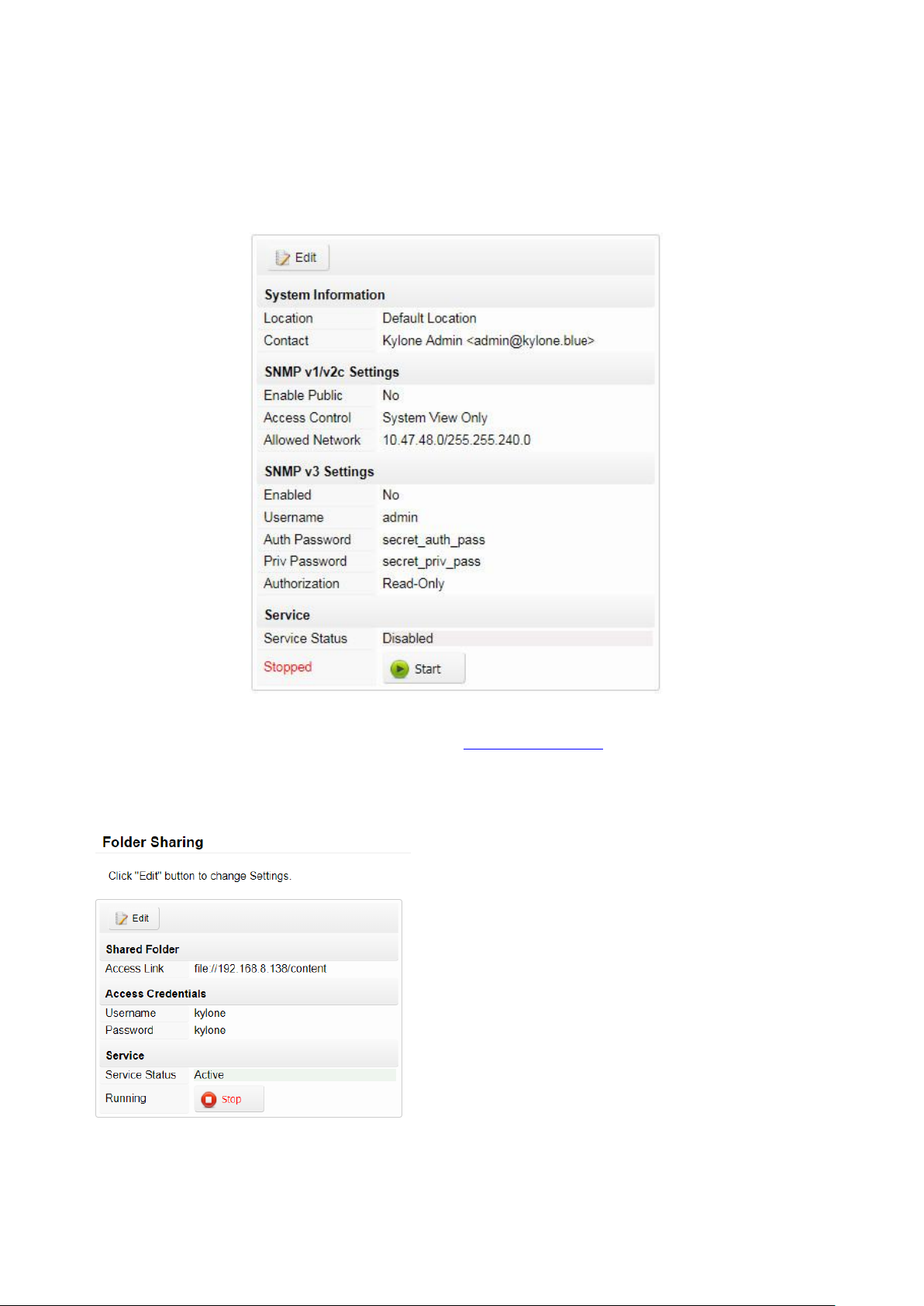

7.3.1 SNMP ............................................................................................................................................ 49

7.3.2 Sharing .......................................................................................................................................... 49

7.4 Network ................................................................................................................................................... 50

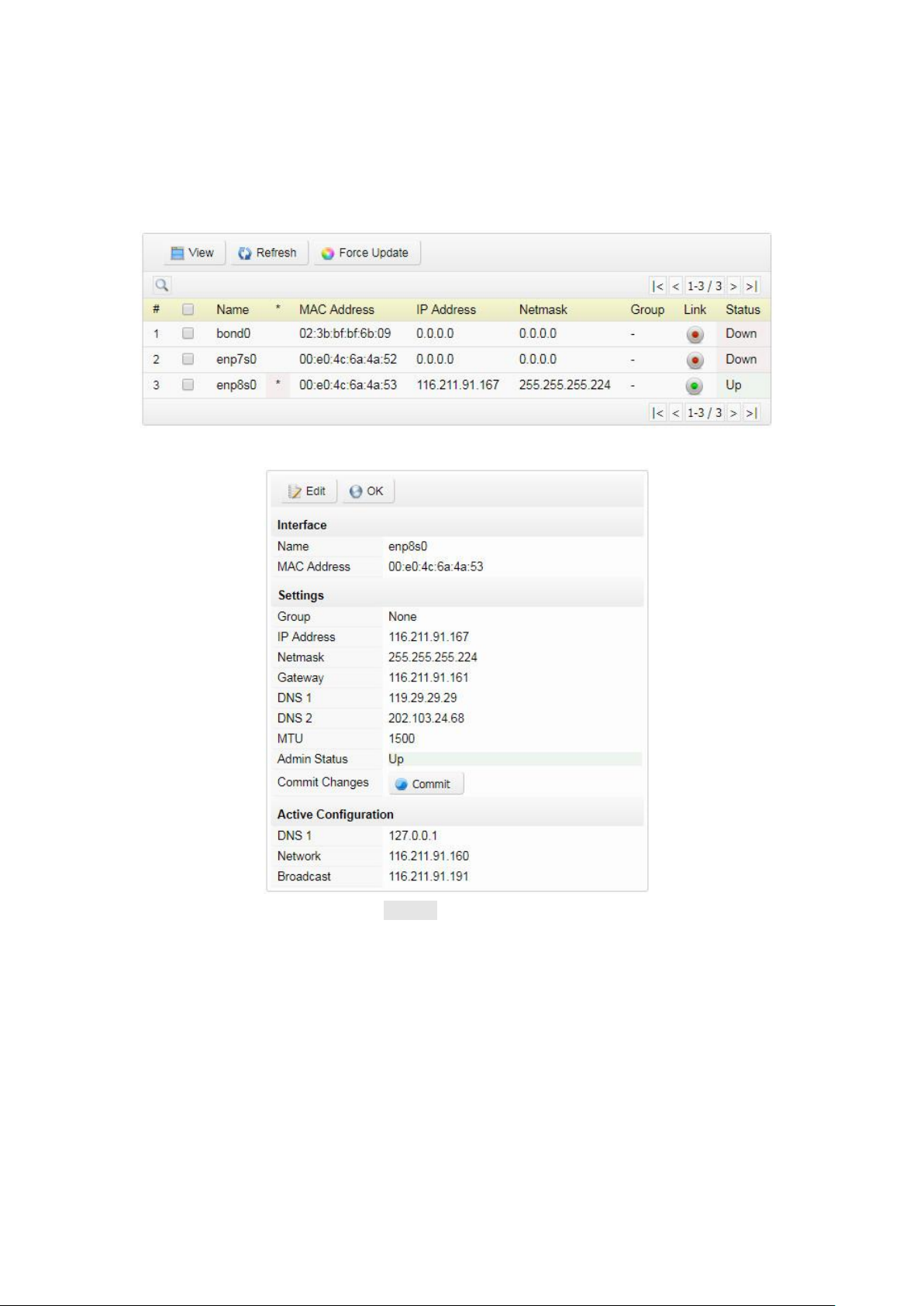

7.4.1 Interface ........................................................................................................................................ 50

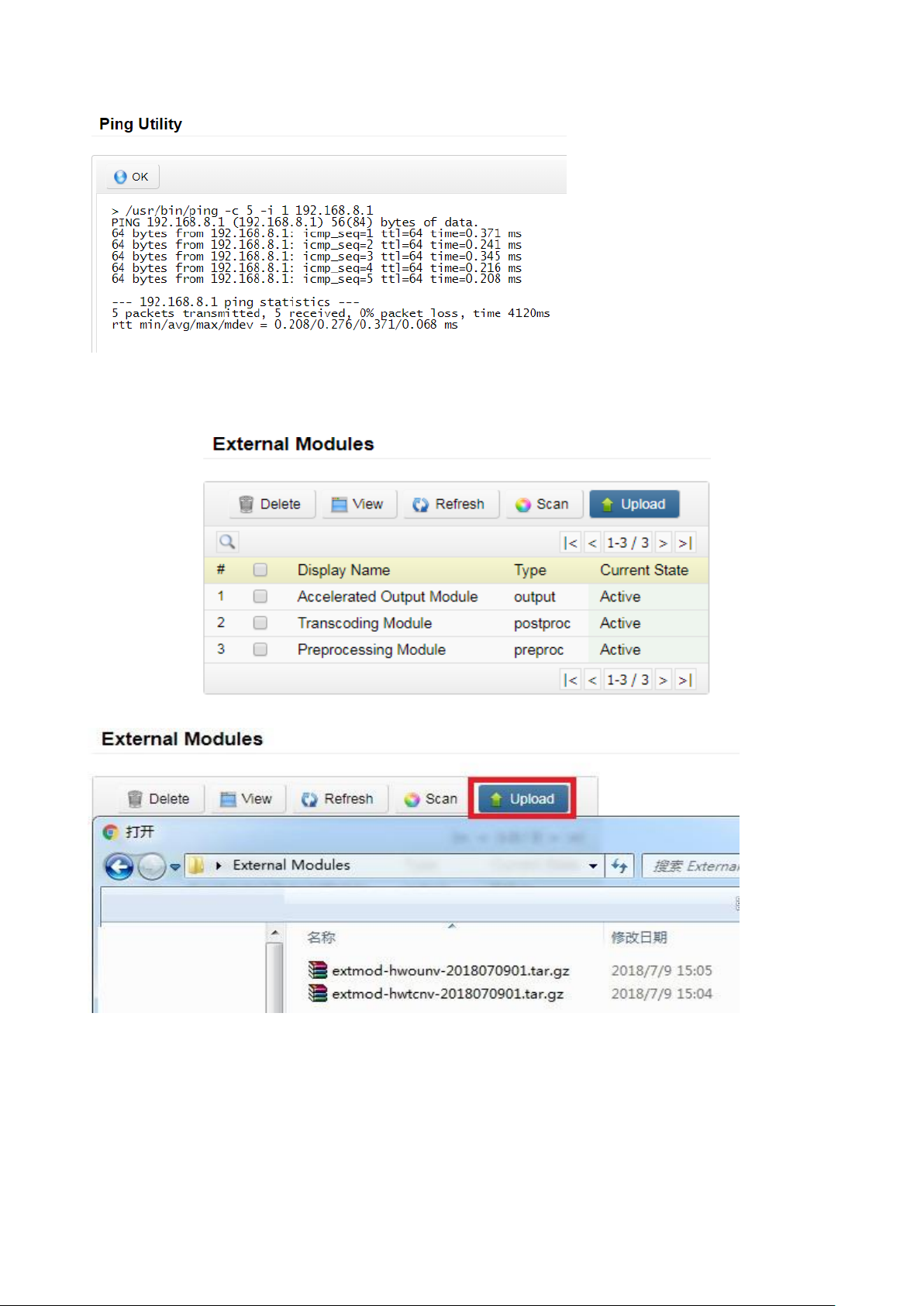

7.4.2 Diagnostics .................................................................................................................................... 51

7.5 Third-Party Plugins ................................................................................................................................... 52

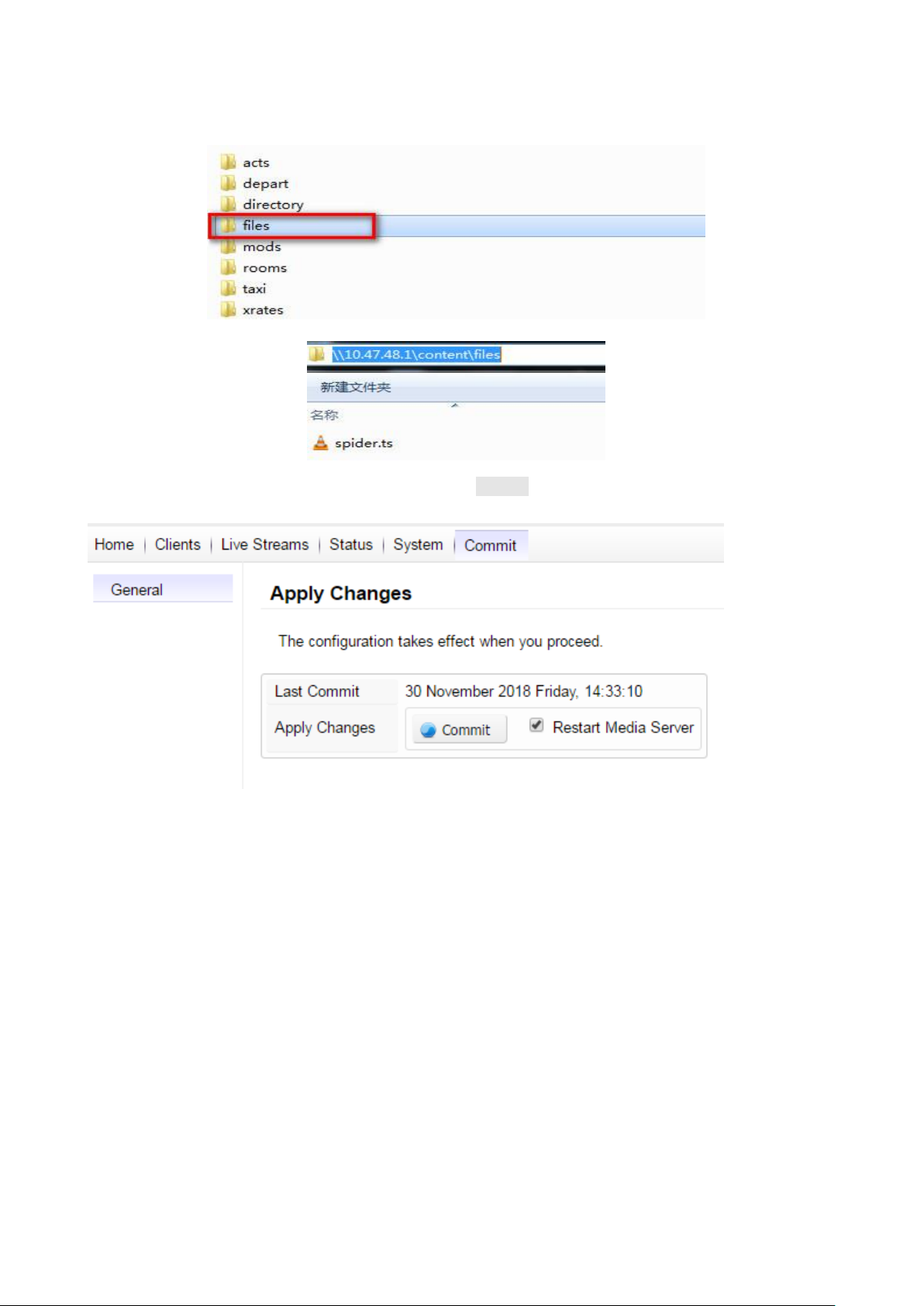

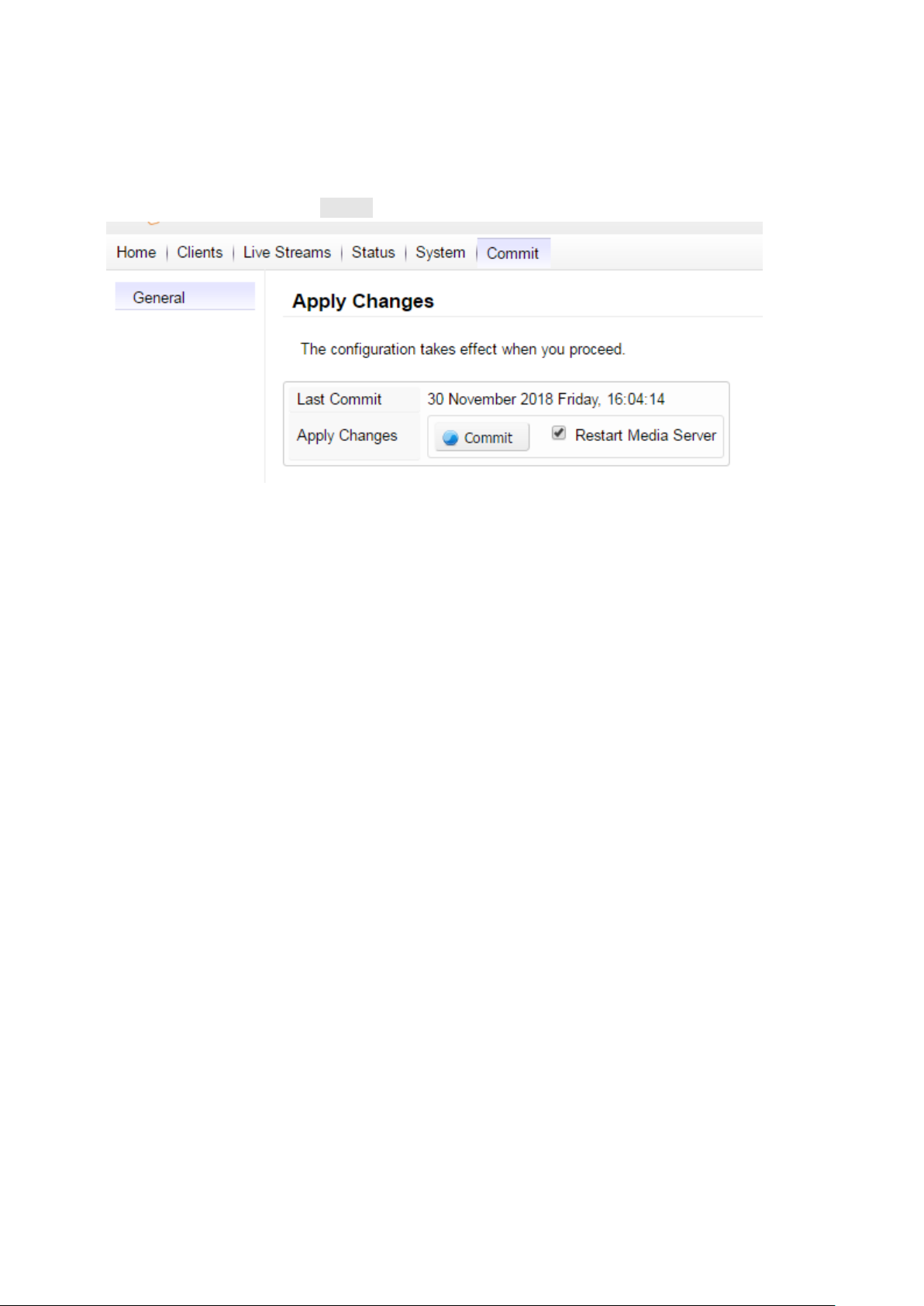

8. Let the System parameter changes take effect. ................................................................................................. 53

4 / 53 TBS8510 User Guide

1. Product Overview

1.1 Product Presentation

TBS8510 multiple inputs H.264/H.265 IPTV transcoder is specially designed for our TBS TV tuner card customers. It’s a high-performance video server that features in high integration and reliable hardware transcoding server. The original data rate from DVB-S/S2 channels is very high. It will cost a lot of bandwidth if we send it to internet directly. So, you will need both receiving server and transcode server to lowdown the bit rate. But absolutely, this is not a convenient solution, and it will greatly increase the system cost.

Now with TBS8510 real-time transcoding server you can receive and Transcode channels at the same time. This is a cost-effective solution for OTT IPTV providers. With Two Giga Ethernet Ports, it can be configured to transcode up to 80 SD or 30 Full HD streams, and equipped with 2 pieces of TBS Tuner/Capture PCI-e card (up to 16 tuners) to receive channels directly from satellite or ASI / IP inputs.

It can be easily managed through NMS system, and has become an ideal solution for operators to provide high quality video transcoding. TBS8510 is a real multi-channel/formal transcoding server which answers all market requirements and is thus the suitable solution to Terrestrial, Satellite, Cable, IPTV networks

5 / 53 TBS8510 User Guide

1.2 Product Specifications

A

D

C

B

A：Metal Handles B：USB2.0 C：LED Indicator D：Power

Input 0

Input 3

Input 7

Input 4

H

A

B

C

D

G

F

E

A：Power Supply B：IPMI C：USB2.0 D：USB3.0

E：LAN1 F：LAN2 G：VGA H: 8 TV Tuners

B:remote control E:LAN1 default network port access

6 / 53 TBS8510 User Guide

Size

1U

Input interface 2xRJ45, 1000M Base-T2

2xPCI-E slot

Input

Input Signal

DVBS/S2, DVBT/T2, DVBC, ATSC, ISDBT, DTMB, HDMI, ASI

Input Net Stream

UDP, RTP, HTTP, HLS, Media Files

Video codecs

MPEG-2, AVC / H.264, HEVC / H.265

Resolution

1920x1080P, 1920x1080i, 1280x720P, 720x576i, 720x480i, 480x576, 544x576, 640x576,704x576

Audio codecs

AAC, MP2, MP3, AC-3

Output

Output types

UDP, RTMP, HTTP, HLS, Media Files

Video codecs

MPEG-2, AVC / H.264, HEVC / H.265

Resolution

1920x1080P, 1920x1080i, 1280x720P, 720x576i, 720x480i, 480x576, 544x576, 640x576, 704x576

Audio codecs

AAC, MP3

Rate Control

CBR/VBR

Transcoder

up to 40 SD / 20 HD1080 AVC(H.264) streams up to 20 SD / 18 HD1080 HEVC(H.265) streams

Power Consumption

65W ~ 250W

7 / 53 TBS8510 User Guide

2. Quick Start

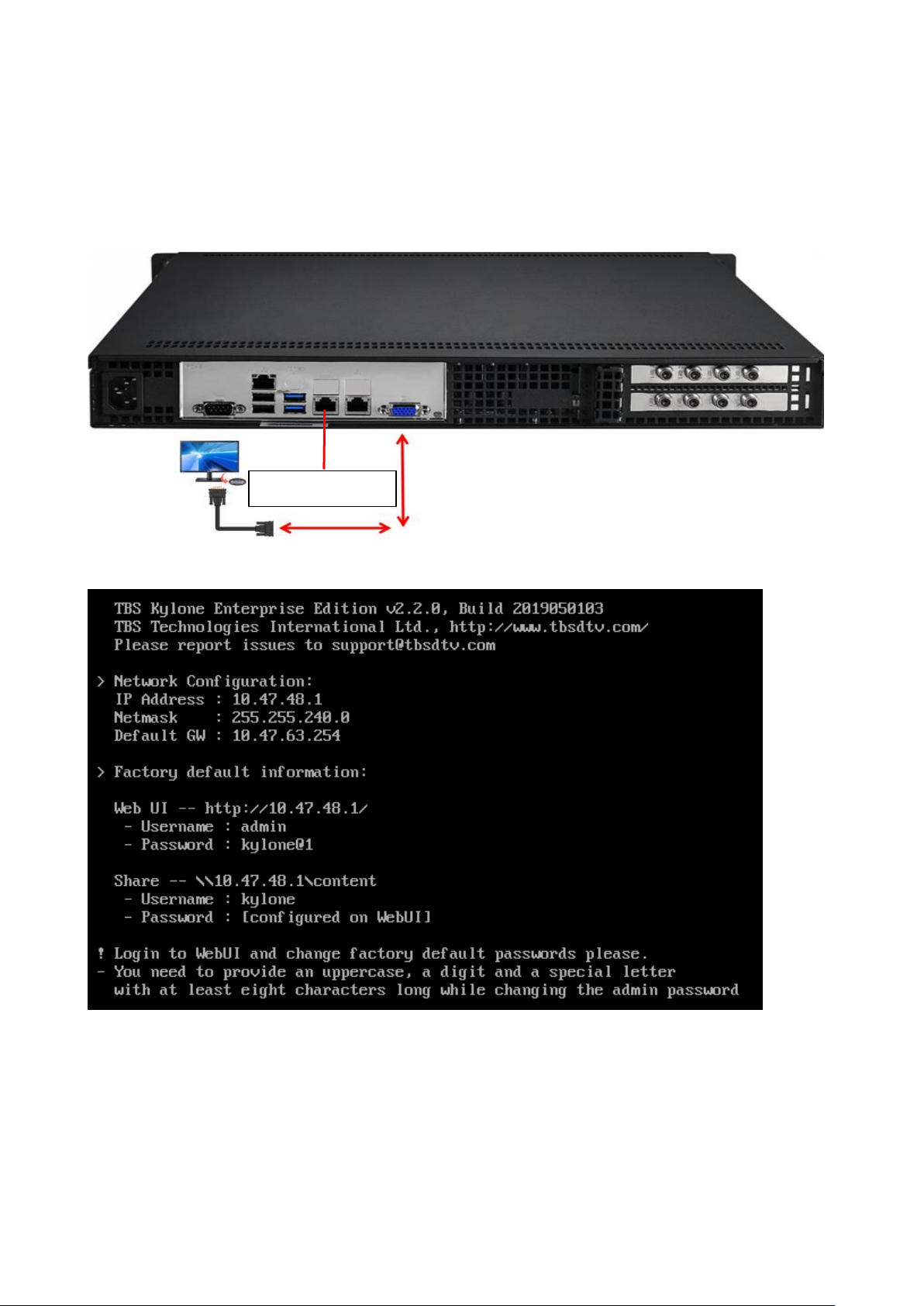

When you get the TBS8510, use the default Ethernet LAN1 and connect the server's VGA to your monitor.

Power on the server, after a while you can get follow information from your screen:

You can see that the server default IP: 10.47.48.1/255.255.240.0 User name: admin Password: kylone@1 Make sure that your PC is set to be the same range IP of TBS8510.

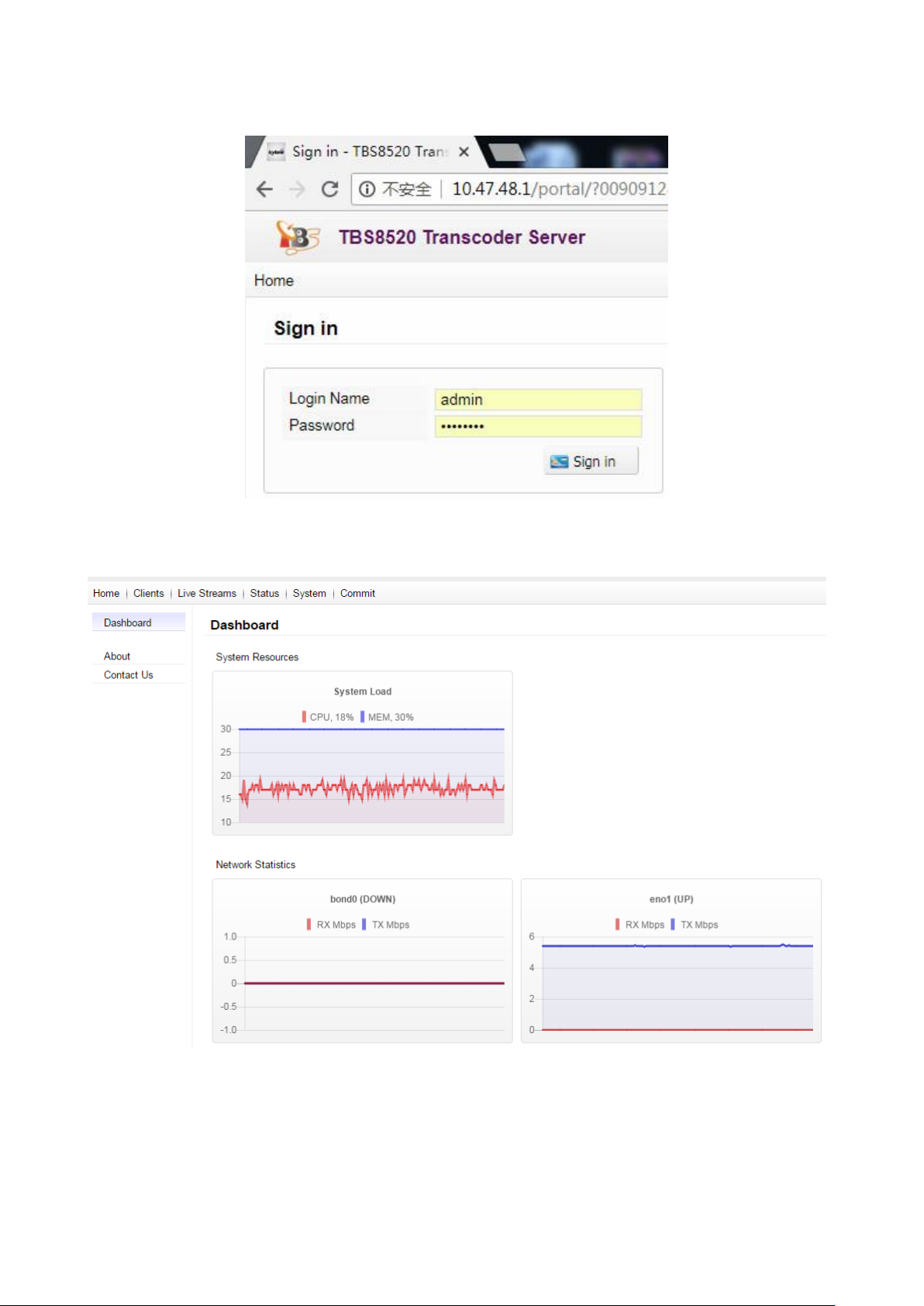

You can use Google Chrome Browse to open the main page of TBS8510 like this:

Default network port

8 / 53 TBS8510 User Guide

After login in, you can see the whole panel of TBS8510:

9 / 53 TBS8510 User Guide

3. Home Page

In Home page, you can get the server CPU and Memory Usage status, Ethernet Input and Output status

4. Clients

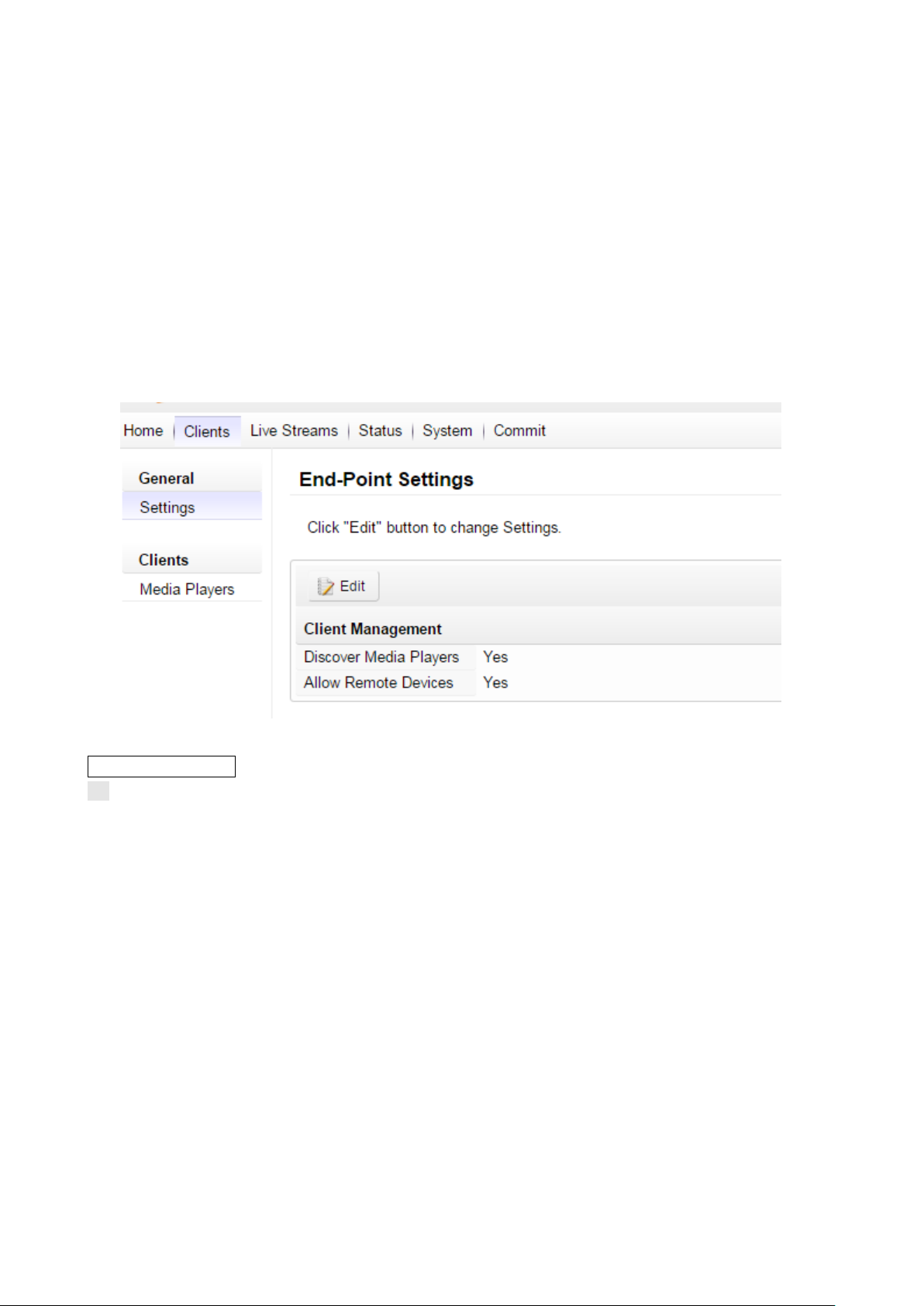

4.1 General Setting

Allow Remote Devices this option is used to enable or disable the stream played from TBS8510. If you set to Yes, then you can use VLC play the stream from TBS8510. If you are using RTMP to send the stream to your CDN, then you can disable this to protect your stream.

10 / 53 TBS8510 User Guide

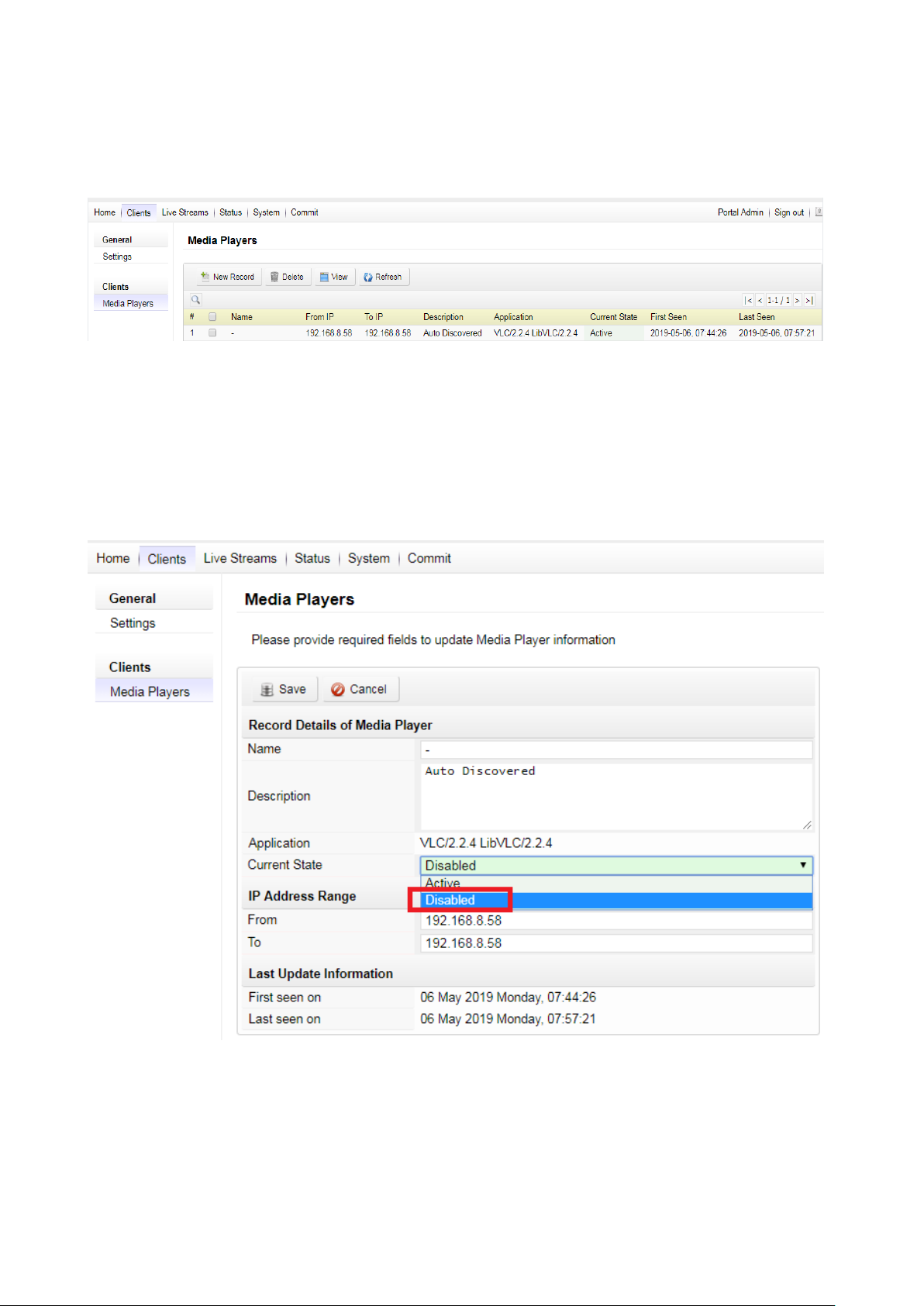

4.2 Clients

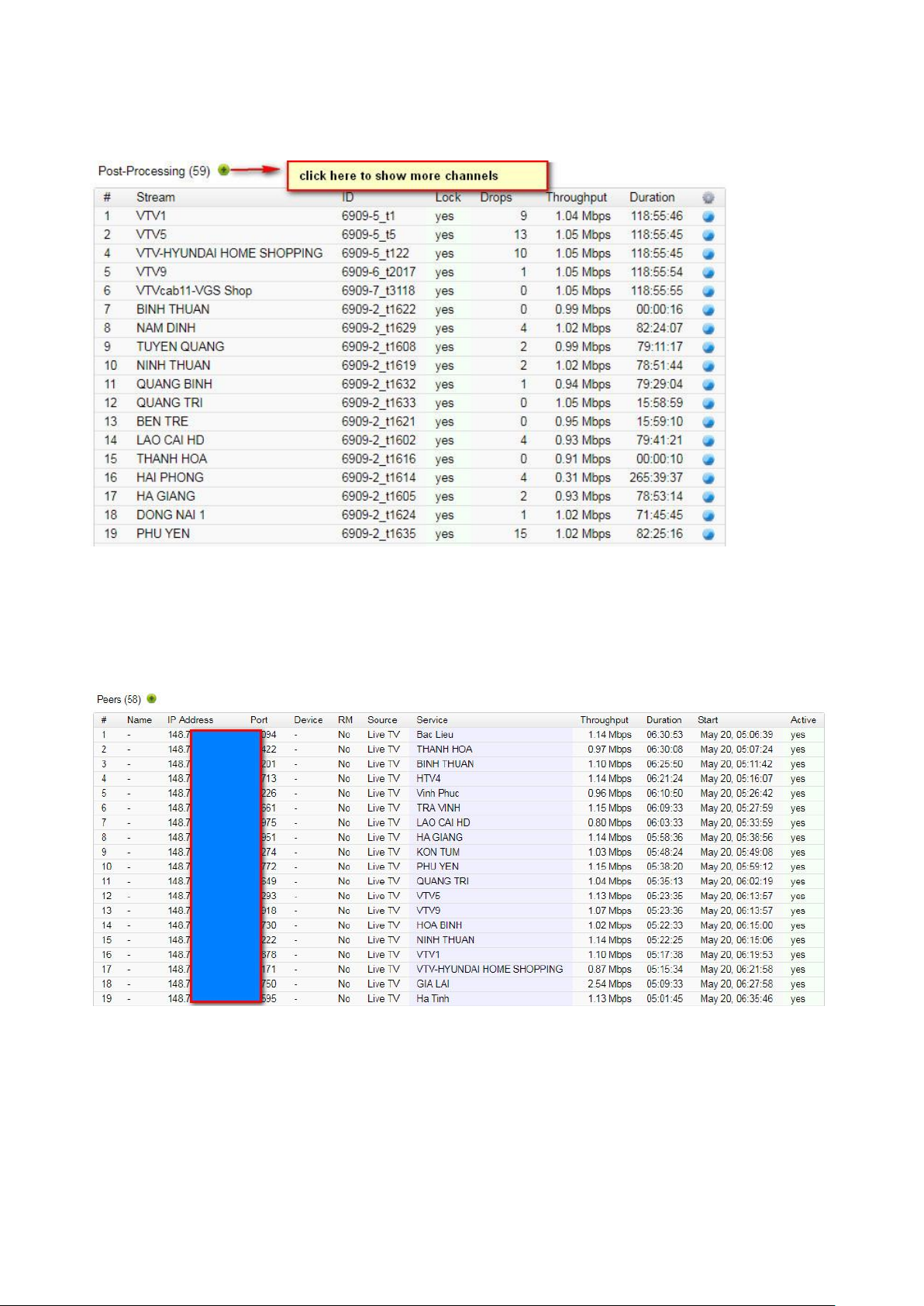

This page shows each client’s connecting information including which application and how long he has been connected.

You can click any of the IP to go into detailed page. If you want to protect your stream, stop this IP getting

the stream from your TBS8510, you can set as bellowed:

11 / 53 TBS8510 User Guide

5. Content Setting

5.1 General Setting

5.1.1 Summary

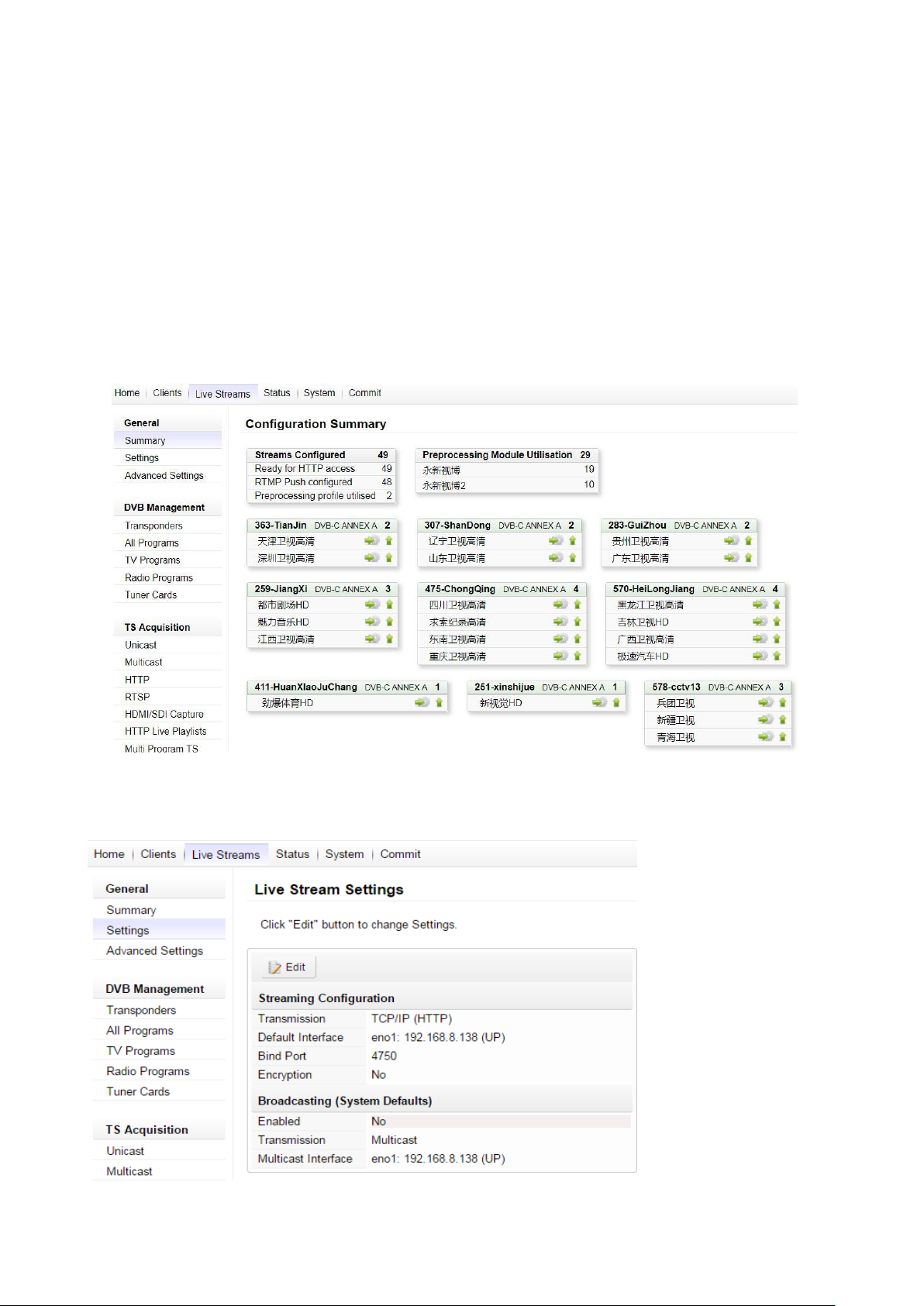

Here you can see all channels status, check process profile which is using. You can click any of them to into the detail setting page.

5.1.2 Settings

12 / 53 TBS8510 User Guide

Streaming Configuration: This is the HTTP output option, you can choose the Ethernet for streaming. The

default mode is HTTP output. Broadcasting (System Defaults): This is the global multicast output option. You can choose the Ethernet for streaming multicast.

5.1.3 Advanced Settings

Unicast/Multicast/HTTP Stream Acquisition: You can set the buffer time in this section. TBS8510 Transcoder

will cache the stream then start processing. HTTP Live Stream Acquisition: You can set the HTTP importing stream option in this section, including the Connection Timeout and Buffer Time.

5.2 DVB Management

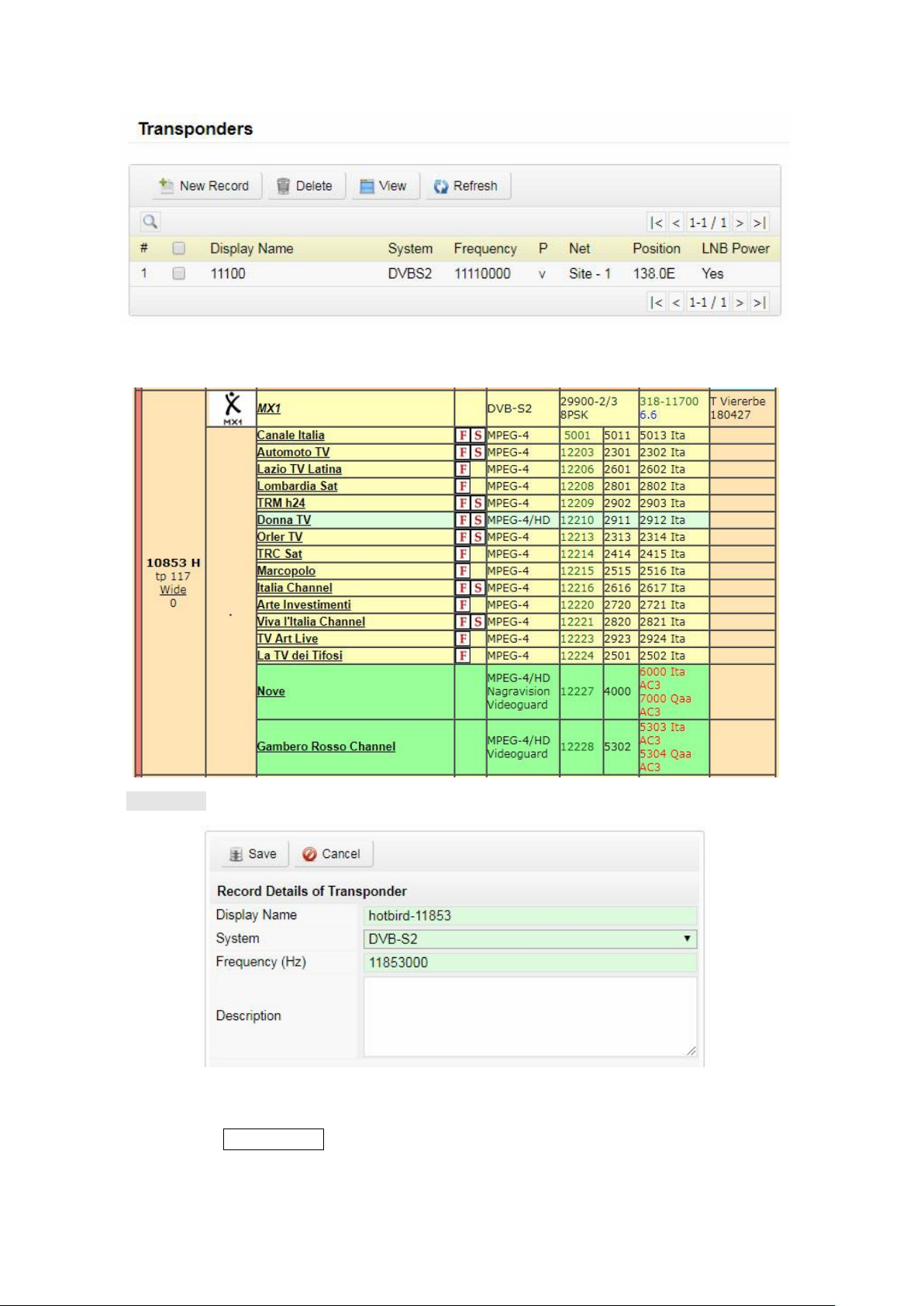

5.2.1 Transponders (DVBS/S2, DVBT/T2, DVB-C, ATSC…)

13 / 53 TBS8510 User Guide

Here you can create files to manage all the DVB-S/S2, DVB-T/T2, DVB-C, ISDB-T, ATSC transponders. Let’s create a DVB-S2 transponder as example:

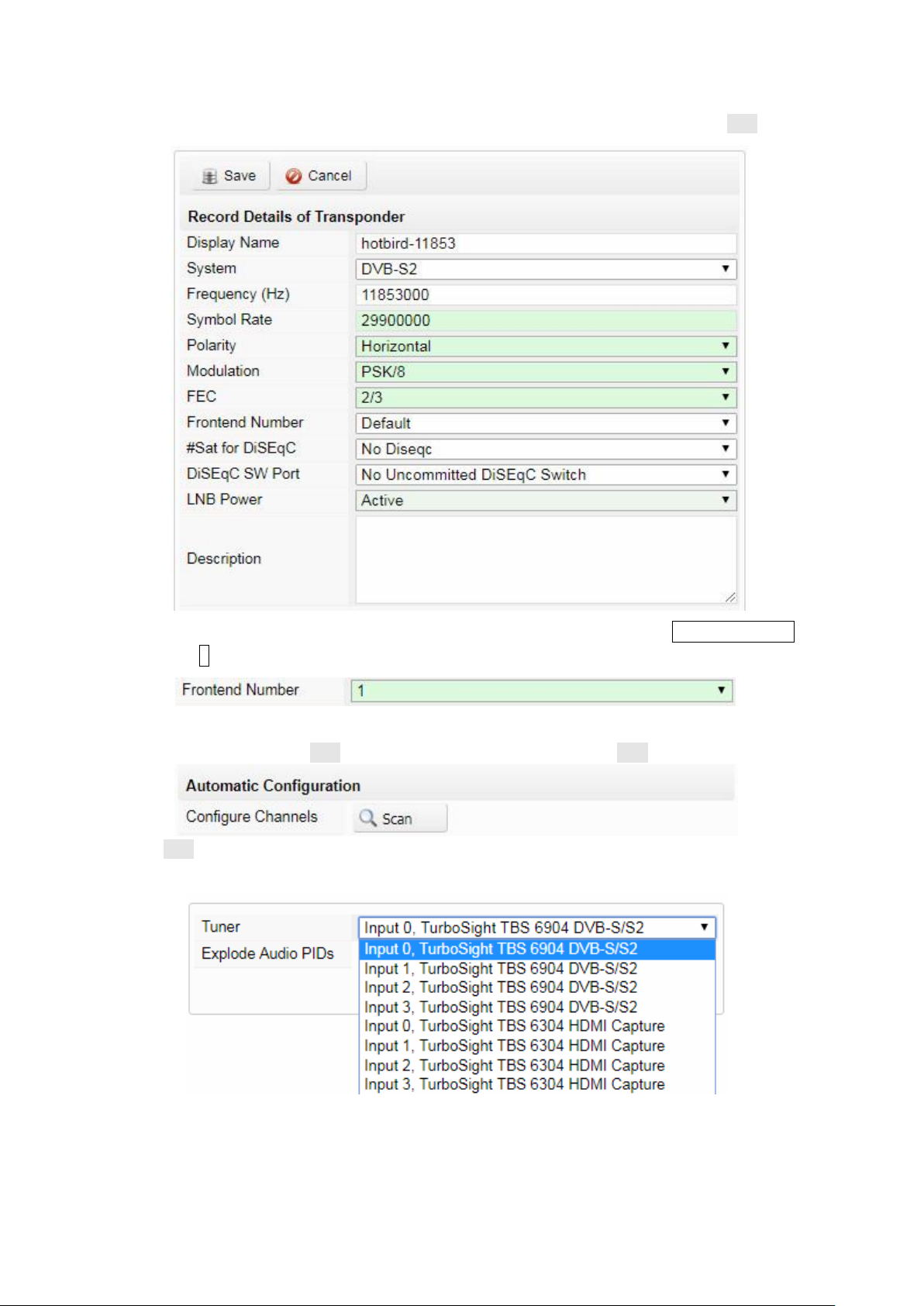

Press New Record, then you will have follow dialog:

If you install TBS HDMI capture card (such as TBS6304) in the transcoder for stream capturing, please set as bellowed picture. In Frequency (Hz), you can enter any data.

14 / 53 TBS8510 User Guide

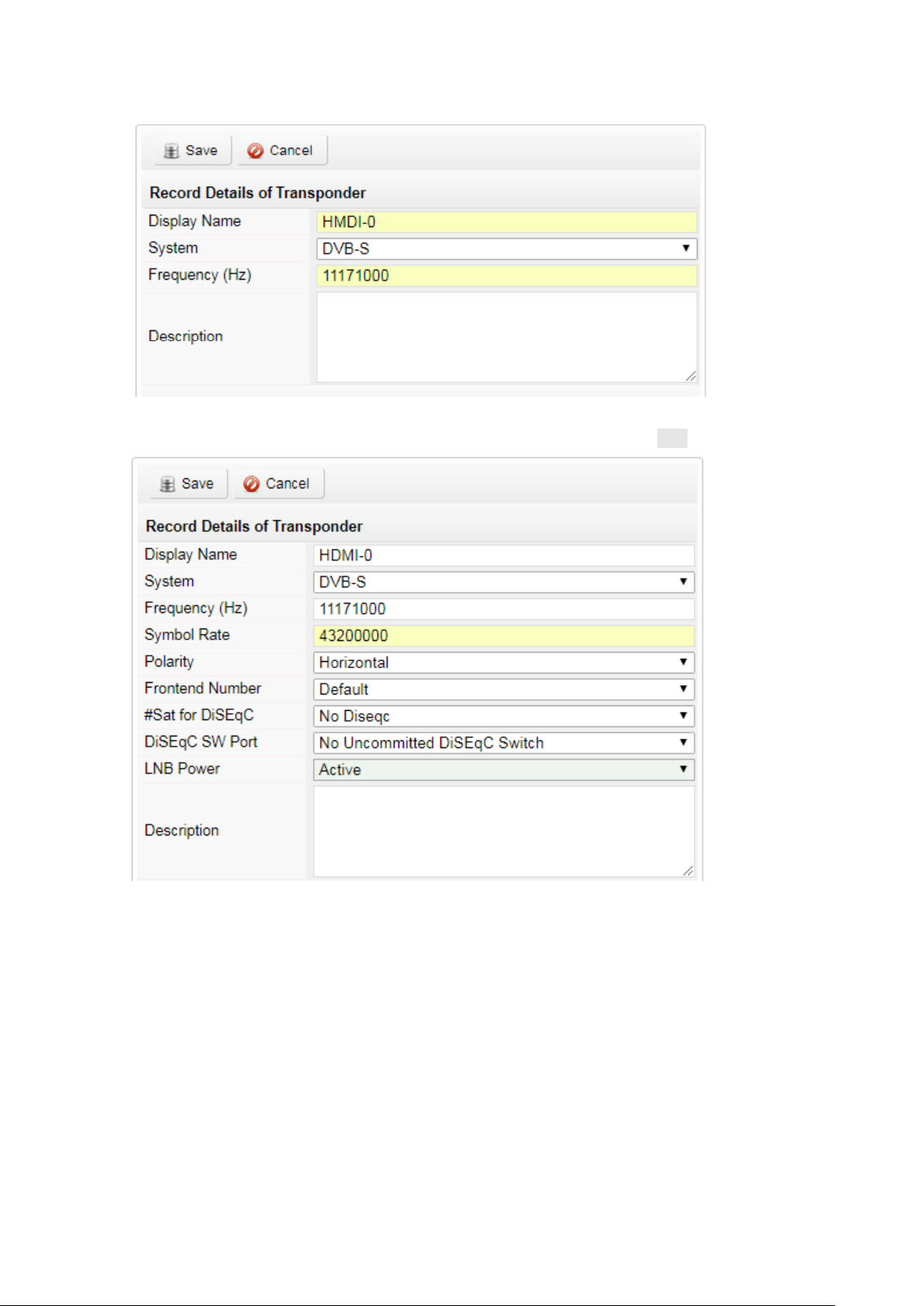

Select the system type with DVB-S or other and enter the frequency value. Then press Save and you will see:

15 / 53 TBS8510 User Guide

If your satellite card is of the DVB-S2 system type, please enter valid frequency value. Then press Save to see:

If you are using TBS Multi Standard Tuner card such as TBS6590, TB6528, TBS6522, the Frontend Number should be set to 1 when you lock DVB-S/S2 transponder

In other mode, you can keep the value as Default.

Fill all necessary value then press Save, and go to the transponder bottom press Scan:

After press Scan, you can choose the tuner you want to use to scan this transponder, please choose the one which is not in use:

16 / 53 TBS8510 User Guide

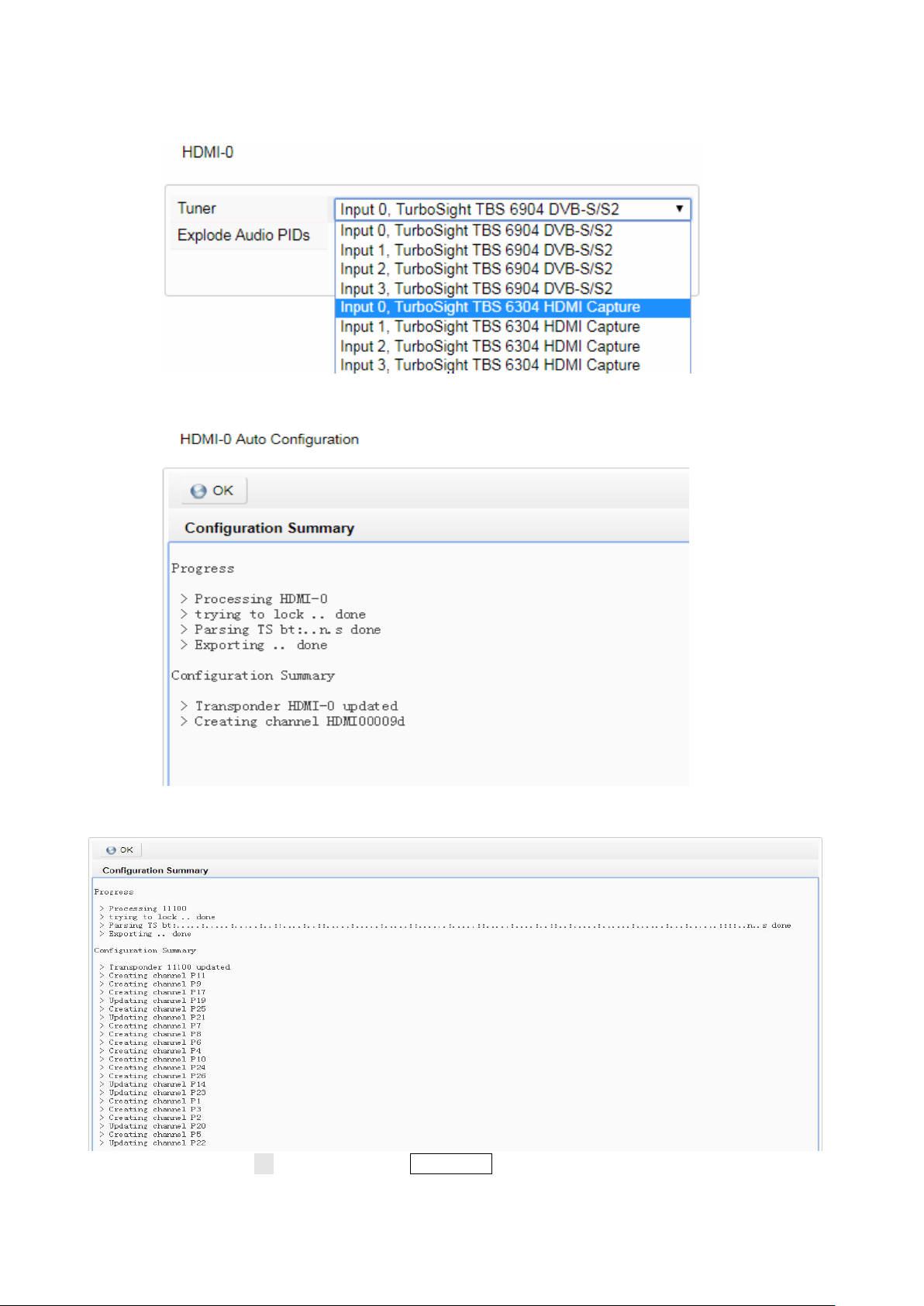

Select the HDMI capture card port with input source to lock the signals.

If the HDMI output source is correct, you will see the follow information:

The satellite tuner will take a few seconds to scanning and it will automatically display the scan resul ts if the signal is working.

After success scan, press OK. Then you can go to All Channels to configure the channels:

17 / 53 TBS8510 User Guide

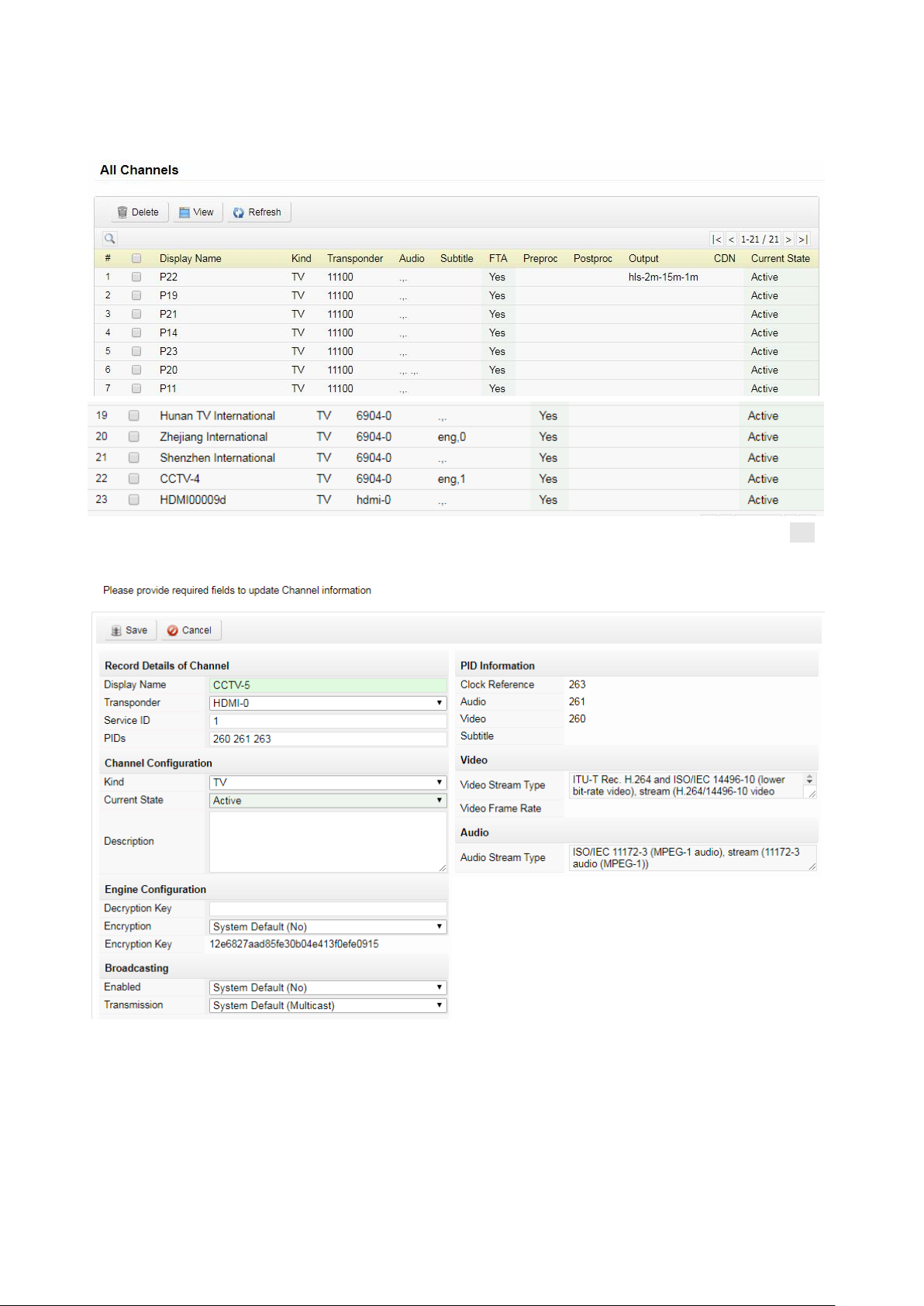

5.2.2 All Channels

Let’s take channel HDMI00009d as sample. Click HDMI00009d, it will display the channel properties. Press Edit to start configuration: such as changing channel’s name to CCTV-5.

18 / 53 TBS8510 User Guide

Let’s take satellite channel P22 as sample again. Click P22, it will display the channel properties. Press Edit to start configuration:

Record Details of Channel

PIDs: Here you can filter the PID which you do not want to use. Just remove it.

PID Information Here you can get the channel’s all PID information. Channel Configuration

Current State: You can disable or enable the channel status here.

Broadcasting

Here you can set the channels output as multicast.

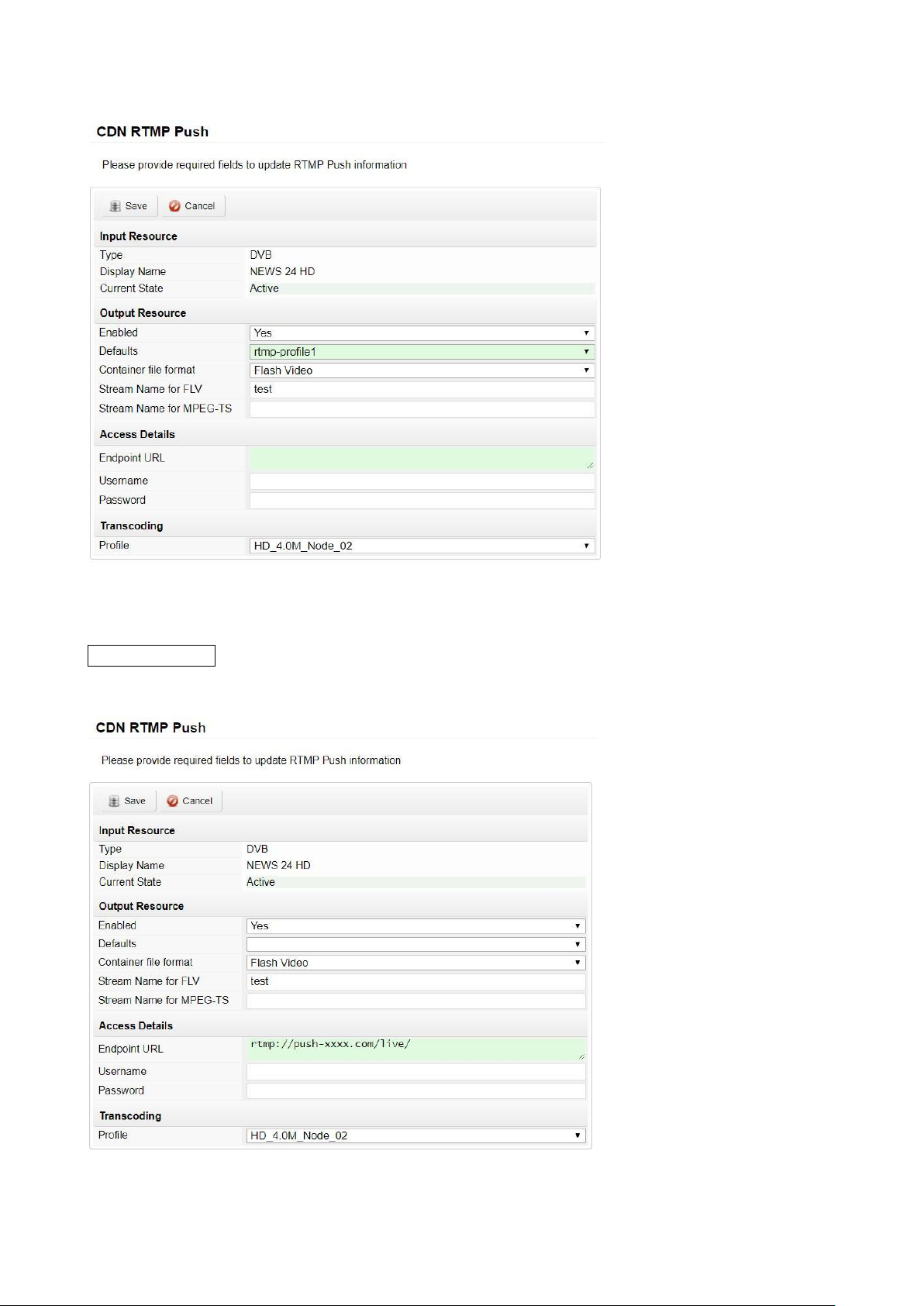

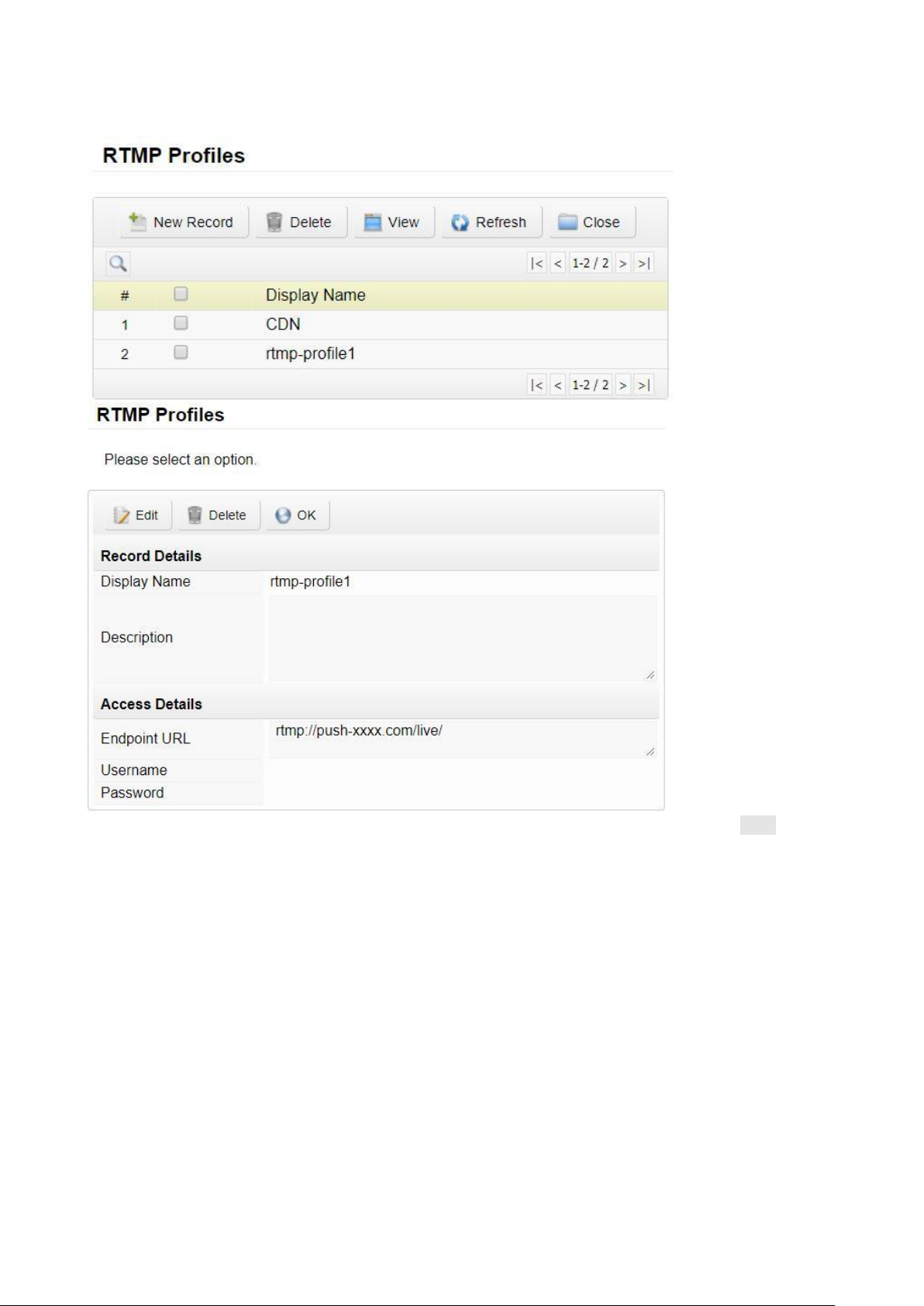

CDN Upload (RTMP upload configuration)

You can choose RTMP (push) to enable the RTMP streaming. After enable the RTMP, you still need to have more configuration in this page .

External Modules

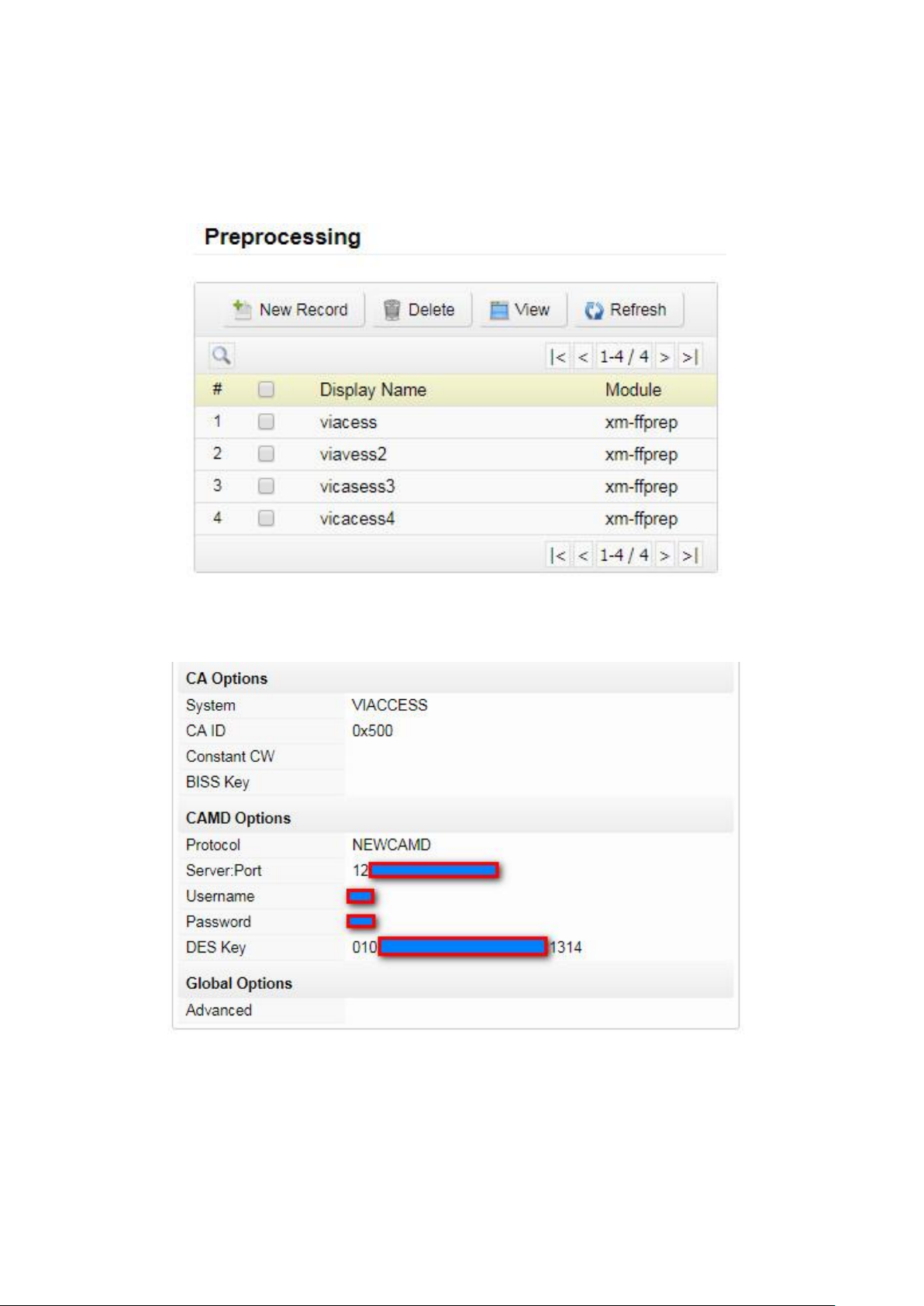

Preprocessing: Choose the soft decryption profile you want to use. Post-processing: Choose the transcoding profile you want to use Output: If you want output HLS/ABR stream, you can choose the profile you want to use.

19 / 53 TBS8510 User Guide

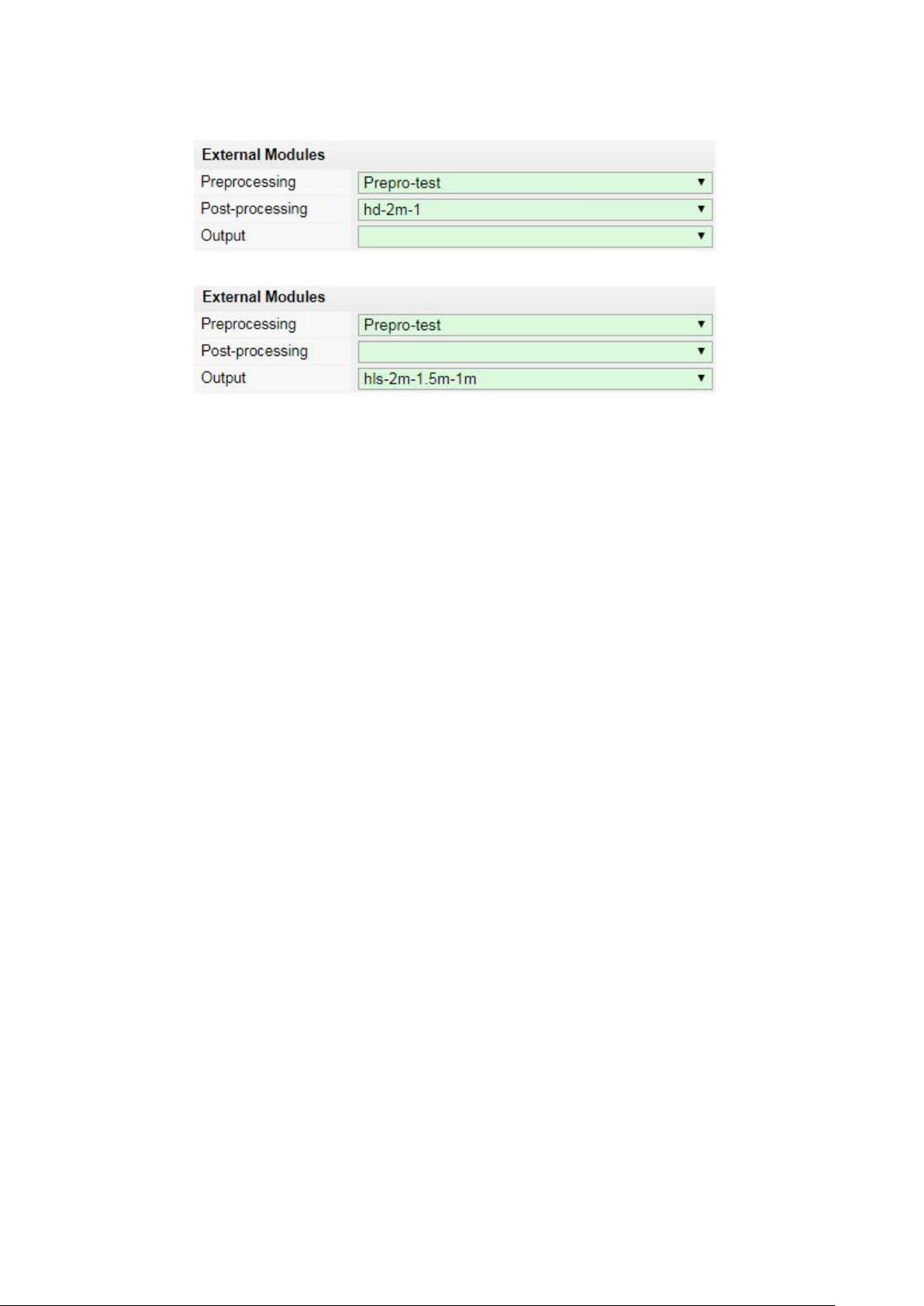

Example:

or

You can output default HTTP, UDP as Post-processing profile or HLS/ABR as Output profile

5.2.3 TV Channels

List all TV Channels

5.2.4 Radio Channels

List all Radio Channels

20 / 53 TBS8510 User Guide

5.2.5 Tuner Cards

Here you can see all tuner status. Follow picture, you can see there is no tuner in use.

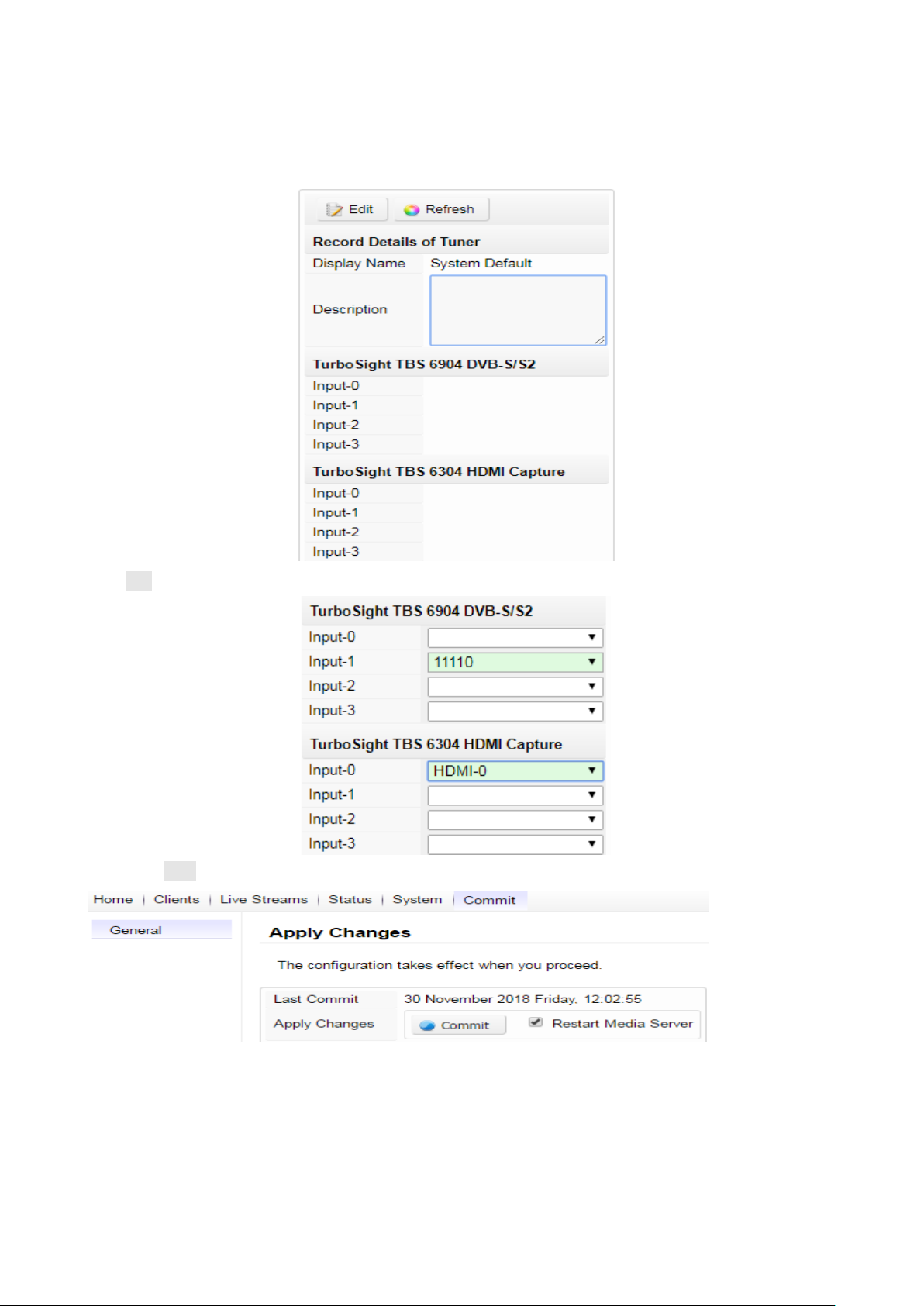

Press Edit to assign the transponder to the tuner. Let’s assign one transponder to Input-1 as below:

Then press Save, go back to setting to commit:

5.2.6 Modulators

Use with TBS DVB-C modulator

21 / 53 TBS8510 User Guide

5.3 Import Stream Management

5.3.1 Unicast Stream Import

You can input the unicast stream here, press New Recorder to create a new one. Record Details of Unicast Acquisition

Display Name: The name of the unicast stream Interface: Choose the interface we are receiving the unicast stream Port Address 4001-4250: The Port number of the unicast stream Channel Configuration You can disable or enable the stream with Current State option

Engine Configuration

Stream Model: We have two options Passthrough and Cached Streaming. Passthrough means the stream will be direct streaming out. If the input stream speed is fast, you can use this option. Cached Streaming means our server will cache about 5 to 10 seconds (You can set this value at Advanced Settings) then start streaming. When the speed is not very fast, you can use this option. Double Buffer: If the stream still not smoothly you can enable this option to set double buffer.

Broadcasting

You can multicast the stream here

CDN Upload

It is the same like channels CDN Upload setting.

External Modules

It is the same like channels External Modules setting: As our server IP is 10.47.48.1. Let’s take this UDP stream as sample udp://@10.47.48.1:4001

22 / 53 TBS8510 User Guide

5.3.2 Multicast Stream Import

You can input the multicast stream here, press New Recorder to create a new one.

Record Details of Multicast

Display Name: The name of the multicast stream Interface: Choose the interface we are receiving the multicast stream IGMP version: You can choose Automatic,1,2,3 Multicast Address: the UDP multicast address Port Address: The Port number of the multicast stream

Channel Configuration You can disable or enable the stream with Current State option

Engine Configuration

Stream Model: We have two options Passthrough and Cached Streaming. Passthrough means the stream will be direct streaming out. If the input stream speed is fast, you can use this option. Cached Streaming means our server will cache about 5 to 10 seconds (You can set this value at Advanced Settings) then start streaming. When the speed is not very fast, you can use this option. Double Buffer: If the stream still not smoothly you can enable this option to set double buffer.

Broadcasting

You can multicast this stream here

CDN Upload

It is the same like channels CDN Upload setting.

External Modules

It is the same like channels External Modules setting: Let’s take this udp stream as example udp://@239.255.0.1:1234

23 / 53 TBS8510 User Guide

5.3.3 HTTP Stream Import

Record Details of HTTP Stream Acquisition

Display Name: The name of the HTTP stream Stream URL: The URL of the HTTP stream

Channel Configuration You can disable or enable the stream with Current State option

Engine Configuration

Stream Model: We have two options Passthrough and Cached Streaming. Passthrough means the stream will be direct streaming out. If the input stream speed is fast, you can use this option. Cached Streaming means our server will cache about 5 to 10 seconds (You can set this value at Advanced Settings) then start streaming. When the speed is not very fast, you can use this option. Double Buffer: If the stream still not smoothly you can enable this option to set double buffer.

Broadcasting

You can multicast this stream here

CDN Upload

It is the same like channels CDN Upload setting.

External Modules

It is the same like channels External Modules setting: Let’s take this HTTP stream as example http://10.47.48.123:9981/stream/channelnumber/8

24 / 53 TBS8510 User Guide

5.3.4 RTSP stream import

Record Details of RTSP Stream Acquisition

Display Name: The name of the RTSP stream Stream URL: The URL of the RTSP stream

Channel Configuration

You can disable or enable the stream with Current State option

Engine Configuration

Stream Model: We have two options Passthrough and Cached Streaming. Passthrough means the stream will be direct streaming out. If the input stream speed is fast, you can use this option. Cached Streaming means our server will cache about 5 to 10 seconds (You can set this value at Advanced Settings) then start streaming. When the speed is not very fast, you can use this option. Double Buffer: If the stream still not smoothly you can enable this option to set double buffer.

Broadcasting

You can multicast this stream here

CDN Upload

It is the same like channels CDN Upload setting, you can check here

External Modules

It is the same like channels External Modules setting: Let’S take this HTTP stream as example rtsp://192.168.8.145:554/hdmi

25 / 53 TBS8510 User Guide

5.3.5 HDMI/SDI Capture Import

Record Details of SDI Stream Acquisition

Display Name: The name of the SDI-0 stream Video Input: The Video Device Audio Input: The Audio Device, if the device has no audio then you can select none.

Channel Configuration

You can disable or enable the stream with Current State option

Engine Configuration

Stream Model: We have two options Passthrough and Cached Streaming. Passthrough means the stream will be direct streaming out. If the input stream speed is fast, you can use this option. Cached Streaming means our server will cache about 5 to 10 seconds (You can set this value at Advanced Settings) then start streaming. When the speed is not very fast, you can use this option. Double Buffer: If the stream still not smoothly you can enable this option to set double buffer.

Broadcasting

You can multicast this stream here

CDN Upload

It is the same like channels CDN Upload setting, you can check here

External Modules

It is the same like channels External Modules setting you can check here

26 / 53 TBS8510 User Guide

5.3.6 HTTP Live Playlists

Record Details of HTTP Live Stream

Display Name: The name of the HTTP playlist Playlist Address: The playlist of the HTTP m3u8 file Current State: You can enable and disable the playlist here

Engine Configuration

Stream Model: We have two options Passthrough and Cached Streaming. Passthrough means the stream will be direct streaming out. If the input stream speed is fast, you can use this option. Cached Streaming means our server will cache about 5 to 10 seconds (You can set this value at Advanced Settings) then start streaming. When the speed is not very fast, you can use this option. Connect On-Demand: You can enable this just when the client watch then start receiving and streaming it will save the band width of the internet. Double Buffer: If the stream still not smoothly you can enable this option to set double buffer.

Actions

Fetch the Playlist: After you create the playlist record, press Refresh button to get the channel list. Let’S take this list as example: http://10.47.48.2:81/all.m3u8

27 / 53 TBS8510 User Guide

If the playlist is ok, you will see the channels like this:

You can click any channel to start configuration as below:

28 / 53 TBS8510 User Guide

5.3.7 MPTS stream Import

Record Details of MPTS

Display Name: The name of the MPTS Transmission: You can choose multicast, unicast, HTTP Transport Protocol: You can choose RTP, Raw

Let’s using one MPTS for testing. The address is multicast: udp://@239.255.0.1:5002, press New Recorder then input like this:

Press Save then input other value like this:

Save again then go to the bottom press Scan:

29 / 53 TBS8510 User Guide

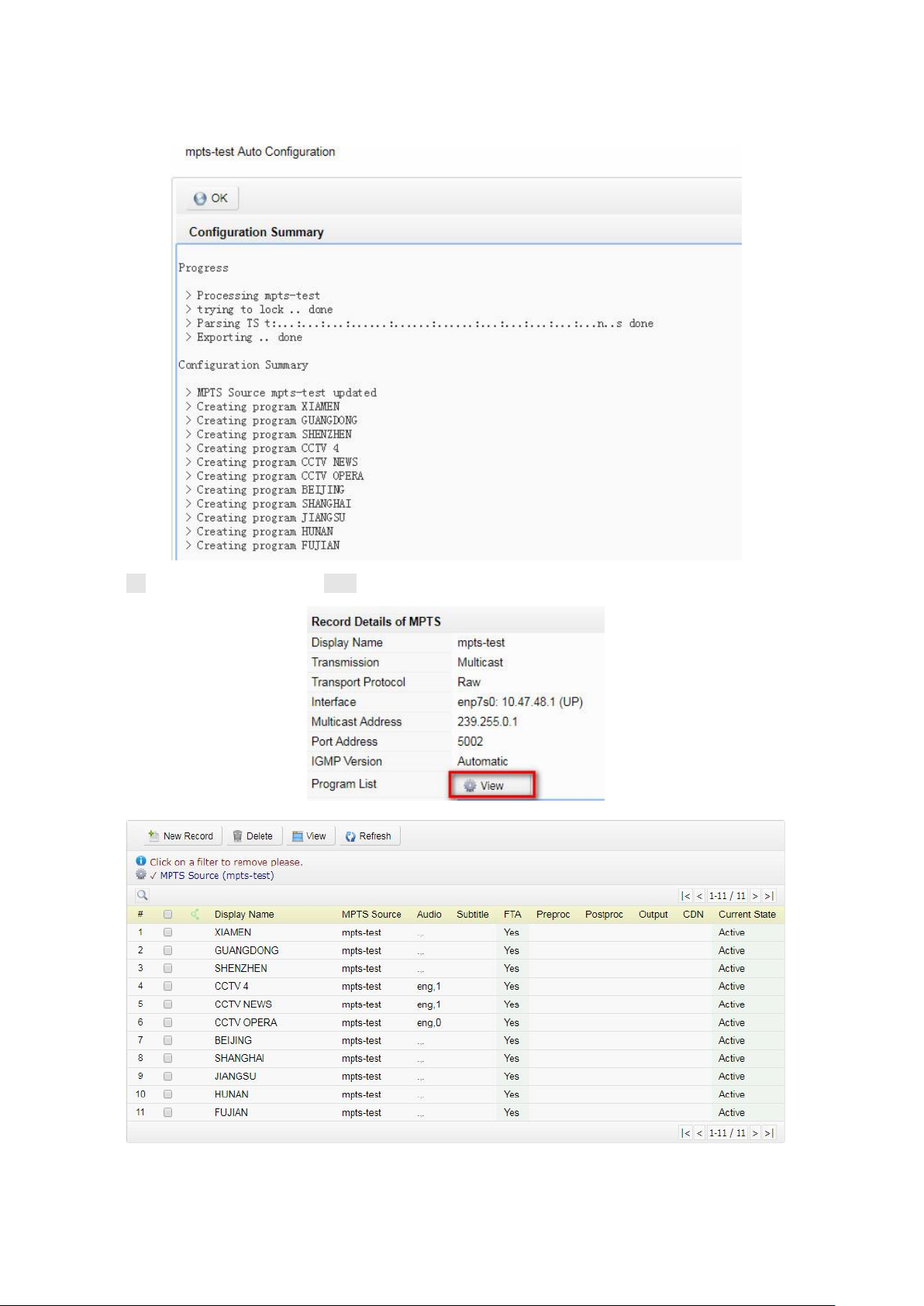

Wait a few seconds, it will automatically show the scan result like this:

Press OK, then go to Program List ->View to configure every channels:

Click any of channel to start your configuration.

30 / 53 TBS8510 User Guide

5.3.8 Local Files Import

Pres New Recorder to create a new one

Record Details of Local File

Display Name: The name of the local file channel name File Name: The name of the file you want to use Loop: When the file end, it will automatically restart again.

Channel Configuration You can disable or enable the channel with Current State option

Engine Configuration

Double Buffer: If the stream is still not smoothly, you can enable this option to set double buffer.

Broadcasting

You can multicast this stream here

CDN Upload

It is the same like channels CDN Upload setting.

External Modules

It is the same like channels External Modules setting.

Let’s use spider.ts file as sample:

Then open the server samba folder with \\10.47.48.1 Either User name and Password is kylone.

31 / 53 TBS8510 User Guide

Open then go to files folder and put the spider.ts file to it

Then close the window and go back to Content->Settings->Commit to let it work

32 / 53 TBS8510 User Guide

5.4 Multiplexing Settings

5.4.1 Multi Program TS Setting

Here you can remux the channels inside this server, Press New Record to start configuration:

Select the channels you want to remux, and press to add. Then set the output information:

33 / 53 TBS8510 User Guide

Go to Commit page and press Commit to take effect, wait a while you can check the status in status page:

5.5 Broadcasting Status

5.5.1 Multicast Status

Here list all multicast output channels

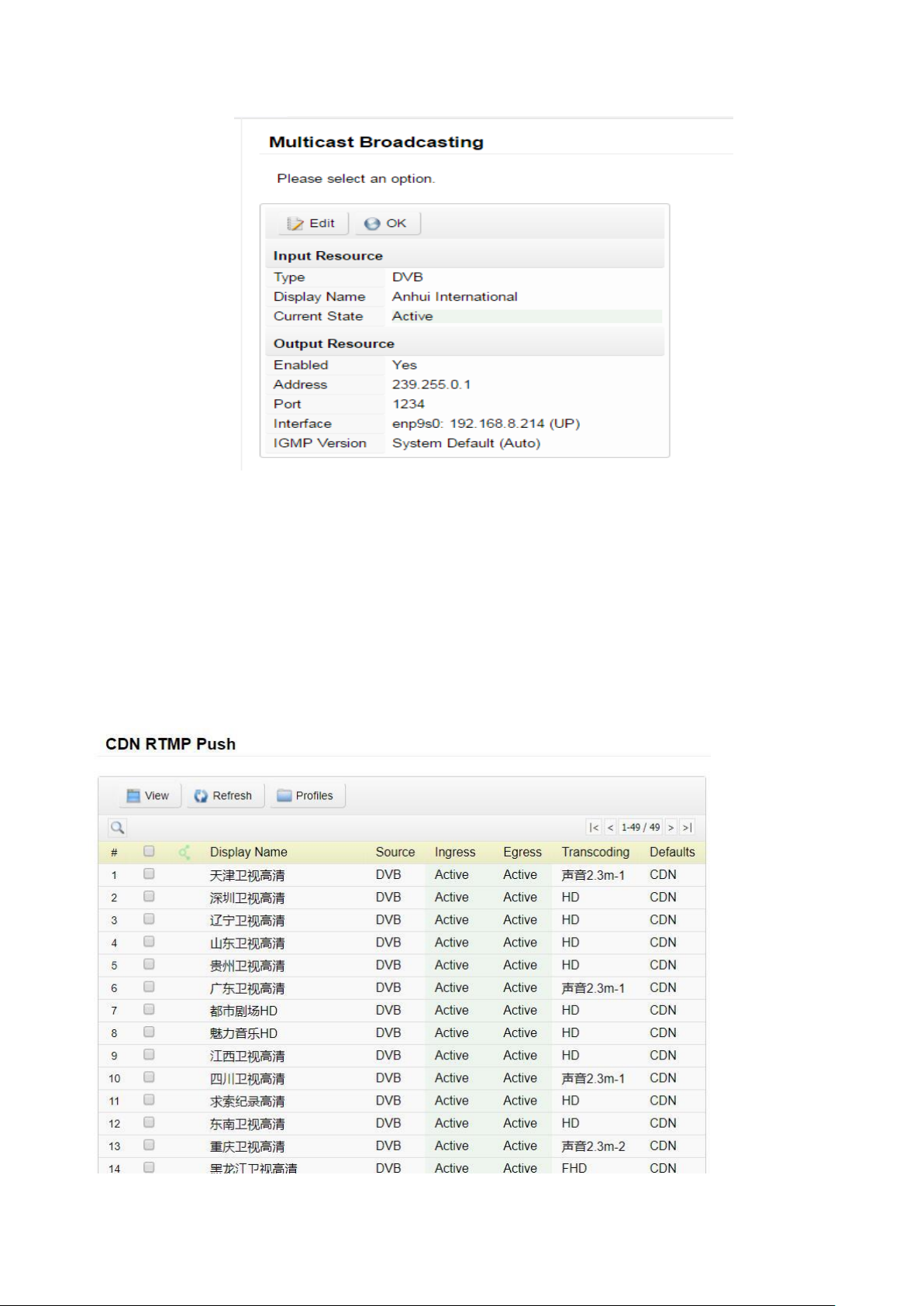

Click on any set of programs to set up multicast flow.

34 / 53 TBS8510 User Guide

Submit system changes to make it effective, multicast flow monitoring status

5.5.2 Modulators Status

Here is the Modulators output status

5.6 CDN Upload Settings

Here is the detail setting for RTMP

35 / 53 TBS8510 User Guide

Click Profiles you can create the RTMP upload profile:

Inside the profile you can input the RTMP server address, the user name and password. Then click Close and go back to the channels RTMP setting, choose one channel:

36 / 53 TBS8510 User Guide

Here you can choose the profile you just create, such as rtmp-profile1 and the stream Name then full RTMP address for this channel is:

rtmp://push-xxxx.com/live/test

Transcoding profile is the transcode profile used to transcode the channel then upload to CDN. If you want to upload to a new address which you have not created the profile, then you can manual input the RTMP address as below:

The full RTMP address is: rtmp://push-xxx.com/live/test

37 / 53 TBS8510 User Guide

In some case, if the RTMP server or client does not support FLV format, you can try with MPEG-TS format as below:

The full HTTP address is:

http://rtmp-push.xxx.com:1250/tvpad/test.httpts

In this way you can use H.265 to push the stream to the CDN server.

Every stream status you can find at status page as below:

38 / 53 TBS8510 User Guide

5.7 Profiles Setting

5.7.1 Preprocessing Profile

This is the soft decryption profile setting. You can create new profile like this:

39 / 53 TBS8510 User Guide

5.7.2 Post-processing Profile (Transcode Profile)

You can press New Record to create a new transcoding profile: HW Acceleration: As we have two GPU inside so you can choose Node 1 or Node 2 Input Video Codec H.264/MPEG-4: You can set to auto detect the video type Deinterlacing Mode: Recommend to set 2 Drop Second Fileld: Recommend to set Yes Advanced: If you have your own parameters for ffmpeg you can add her such as -x xx Video Codec: You can set with H.264 or H.265 Profile: It is the H.264 or H.264 encoder profile recommend set with Main Preset: If you want to process more video you can try with High Performance, if you want to have better picture then try with High Quality. Scaling: You can scale the video size here set the one you want or keep original one Aspect Ratio: You can set 4:3 16:9 or keep original Audio Code: AAC Samping Rate: Recommend to try with 44.1 KHz Channels: Recommend set to 2 Audio Bitrate: Recommend 128kb/s Video Bitrate control: CBR/VBR Video Bitrate: You can set 300k to 10000k Embed Subtitle: If the TS Stream have subtitle inside then you can use this to embed the subtitle to video and set the position where to show the subtitle. Embed Watermark: You can upload the logo you want to show and set the position. Advanced: If you have new parameters, you can manually add here.

40 / 53 TBS8510 User Guide

Here is the example HD source with output H.264 and bit rate 2Mbps:

41 / 53 TBS8510 User Guide

5.7.3 Output Profile (HLS/ABR Profile)

This is the HLS&ABR output profile setting, you can press New Record to create a new profile. Comparing with transcoding profile, it has option for ABR setting like this:

You can see that you have 6 profile, you can enable and set by yourself. Then you can set the HLS chunk value here:

42 / 53 TBS8510 User Guide

6. Status Page

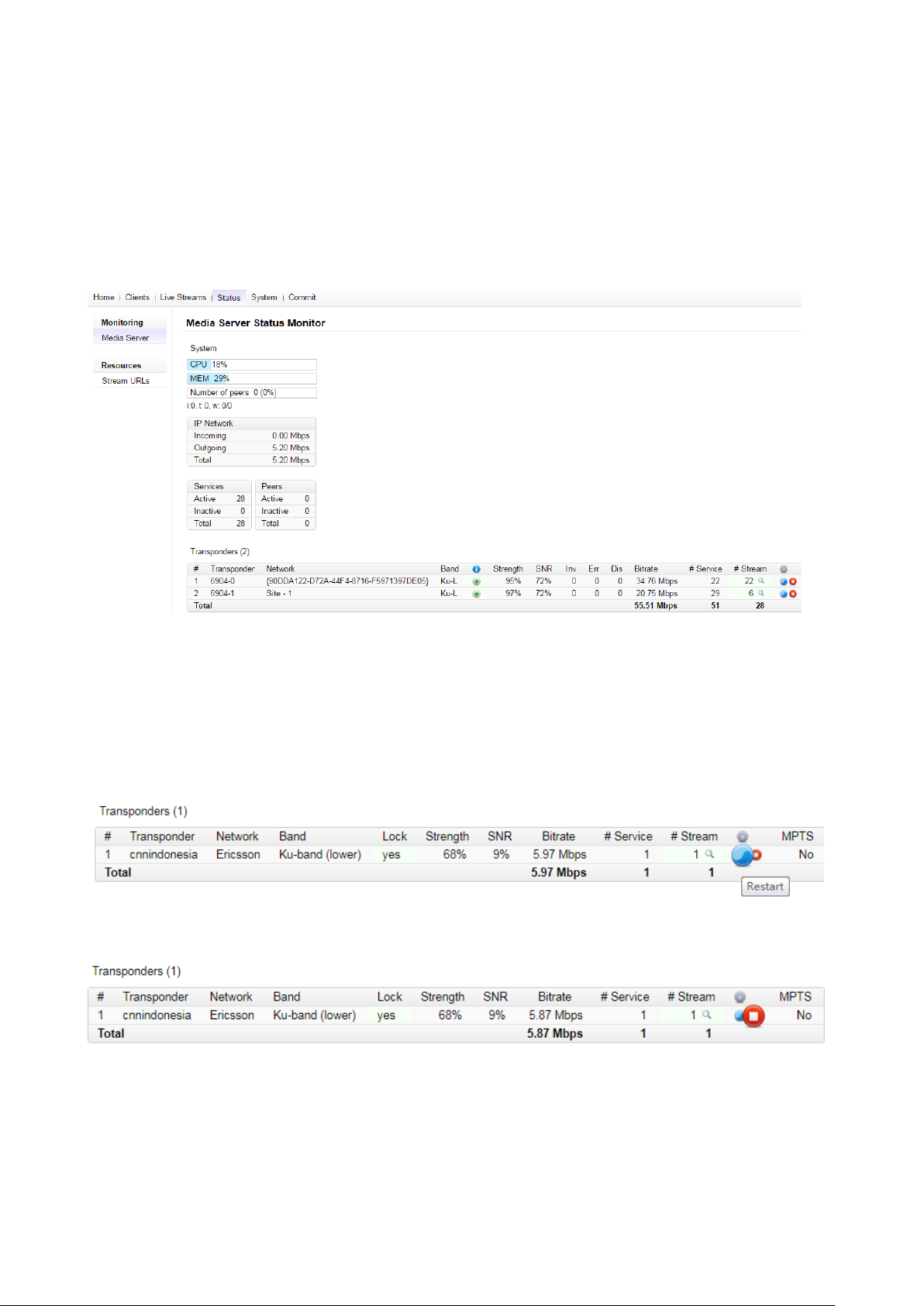

6.1 Monitoring

Here you can get all channels status and you can separately stop, restart every channel.

Transponder:

You will have the transponder lock status here: Strength, SNR, and Bitrate. You can restart or stop the transponder with the option button. Restart:

Stop:

43 / 53 TBS8510 User Guide

Preprocessing:

Soft decryption Status

You can monitor all channels’ status here. If any channel is not working well, you can separately restart it with restart button.

CDN Uploads:

Here you can check the RTMP uploading status. You can check its working time and the upload bit rate. You can also separately restart it.

44 / 53 TBS8510 User Guide

Post-Processing (Transcoding Status):

Here you can see output bit rate of the transcoded channels and how long the channels have been transcoded. You can separately restart any channel here.

Peers:

Here you can see the users’ IP and ports which are connected to the transcoder. You can also see the channel which is in using, its output data rate, its connected time, and status.

If you want to have more configuration on the status, please go to page Media Players.

45 / 53 TBS8510 User Guide

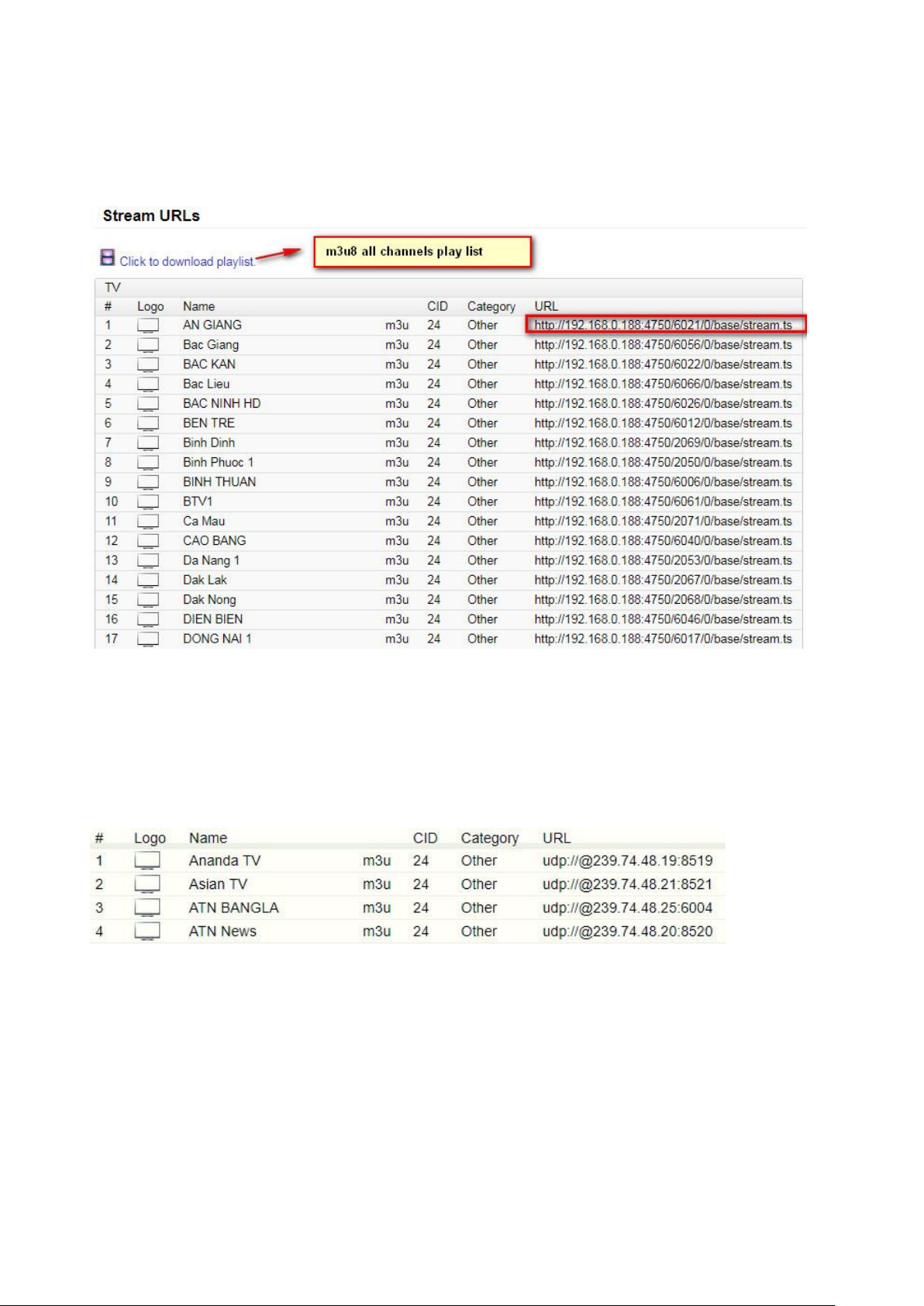

6.2 Resources (Output Stream Address)

Stream URLs

Click to download the playlist, you will have the whole channels list like this:

http://192.168.0.188:81/all.m3u8

Channel URL is the URL for every channel such as:

http://192.168.0.188:4750/6021/0/base/stream.ts

If you set the channel output as multicast, it will show the multicast URL like this:

46 / 53 TBS8510 User Guide

7. System Page

7.1 General Setting

7.1.1 Settings

Version Information

You can find the kylone edition number and other information here. You can click Upload to update the system to latest edition, such as using upg-entp-tbs-v2.2.0-2018110404.dat package.

Media Server

You can Stop or Start the Media server. When you click Stop, all channels will be stopped to stream. If you want to let it running again, just click Start.

Central Management

If you enable the remote service, it will show the remote status.

47 / 53 TBS8510 User Guide

7.1.2 Data Time

You can set the system time here.

7.1.3 Tools

You can Backup or Restore the system configuration, and you can change the License key here. Be careful about the Factory Defaults, applying it will delete all modules. Then you will need to contact us to recover the transcode modules.

48 / 53 TBS8510 User Guide

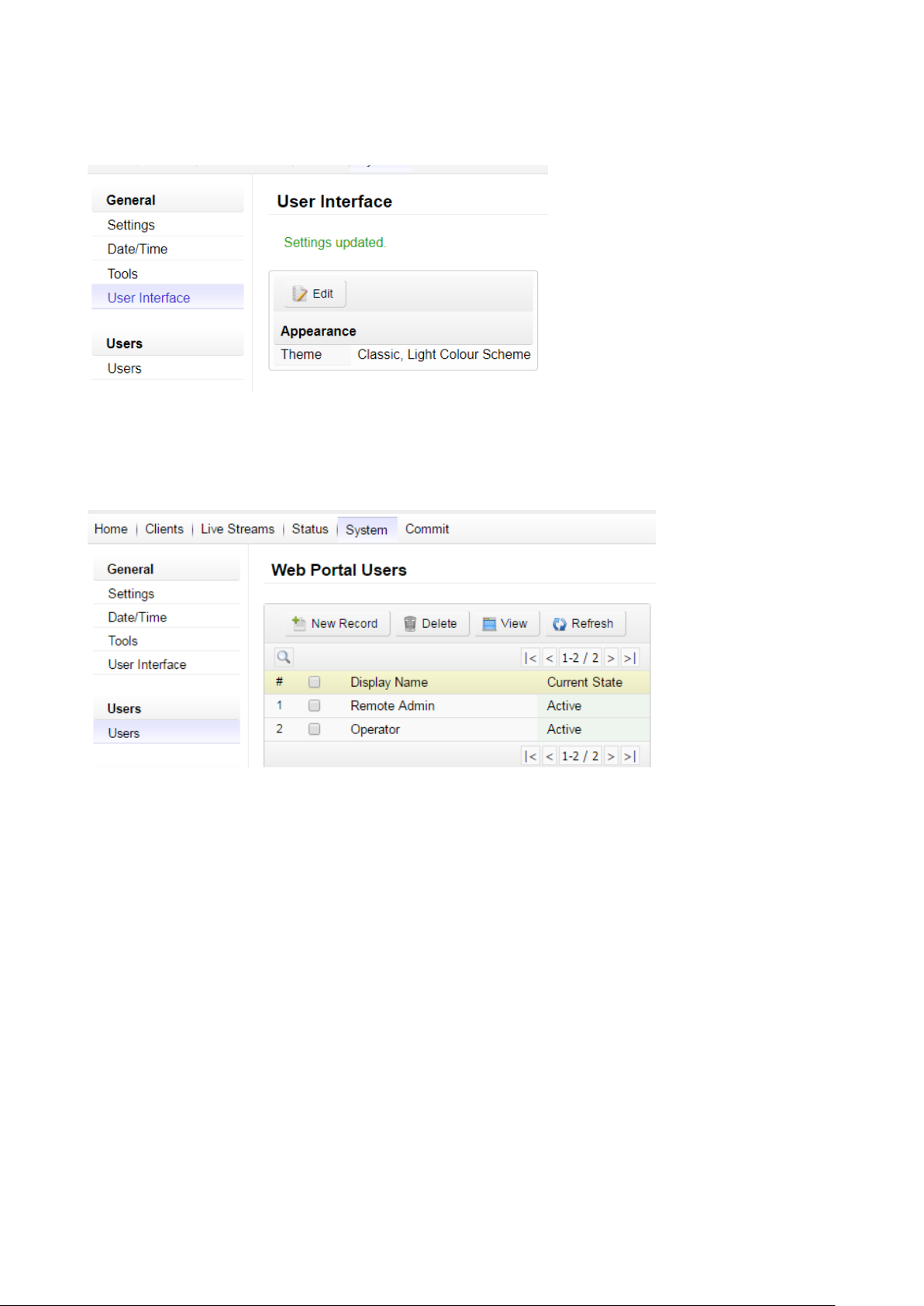

7.1.4 User Interface

You can change the web UI Theme here.

7.2 Users

49 / 53 TBS8510 User Guide

7.3 Services

7.3.1 SNMP

For detail information about SNMP, please send email to [email protected]. We can customize it for you.

7.3.2 Sharing

As to Kylone default folder, we enable the samba service. After you put the files to kylone, you can disable the service.

50 / 53 TBS8510 User Guide

7.4 Network

7.4.1 Interface

You can click the port you want to configuration such as enp8s0:

After you finish setting, don’t forget to press Commit to let it work.

51 / 53 TBS8510 User Guide

7.4.2 Diagnostics

In some case, you might want to check the server status with ping, DNS, HTTP. Here let us take a sample with Ping:

Press Ping and wait a few seconds, then you will have follow result:

52 / 53 TBS8510 User Guide

7.5 Third-Party Plugins

TBS8510 Transcoder supports local uploading of external modules.

After uploading the local module file, it will be scanned, and the module list will be automatically loaded.

53 / 53 TBS8510 User Guide

8. Let the System parameter changes take effect.

After any change, you have to click Commit here to let it work. It will take a few seconds to restart all streams.

If you have any question with TBS8510, please send email to [email protected], we will provide professional support as soon as possible.
