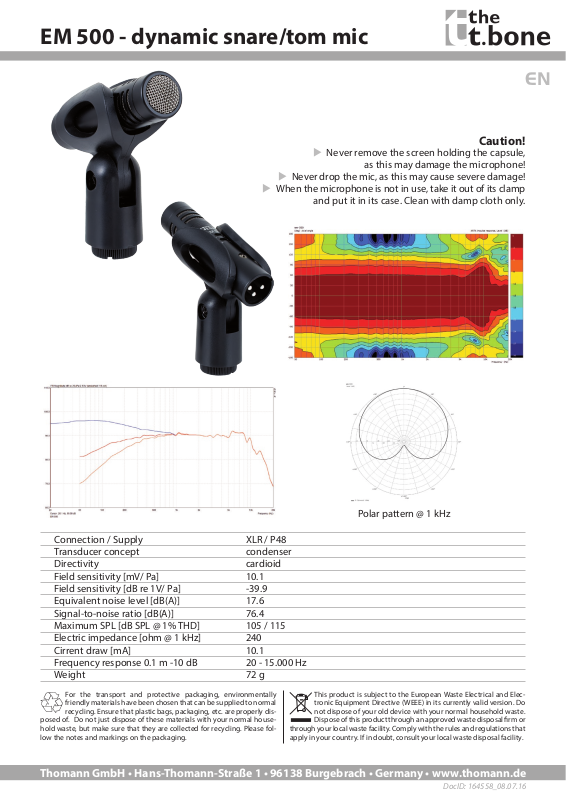

t.bone EM 500 Data sheet

EM 500 - dynamic snare/tom mic

X Never remove the screen holding the capsule,

X Never drop the mic, as this may cause severe damage!

X When the microphone is not in use, take it out of its clamp

and put it in its case. Clean with damp cloth only.

EN

Caution!

as this may damage the microphone!

Polar pattern @ 1 kHz

Connection / Supply XLR / P48
Transducer concept condenser
Directivity cardioid
Field sensitivity [mV/ Pa] 10.1
Field sensitivity [dB re 1V/ Pa] -39.9
Equivalent noise level [dB(A)] 17.6
Signal-to-noise ratio [dB(A)] 76.4
Maximum SPL [dB SPL @ 1% THD] 105 / 115
Electric impedance [ohm @ 1 kHz] 240
Cirrent draw [mA] 10.1
Frequency response 0.1 m -10 dB 20 - 15.000 Hz
Weight 72 g

For the transport and protective packaging, environmentally
friendly materials have been chosen that can be supplied to normal

recycling. Ensure that plastic bags, packaging, etc. are properly dis­posed of. Do not just dispose of these materials with your normal house­hold waste, but make sure that they are collected for recycling. Please fol­low the notes and markings on the packaging.

This product is subject to the European Waste Electrical and Elec­tronic Equipment Directive (WEEE) in its currently valid version. Do
not dispose of your old device with your normal household waste.

Dispose of this product through an approved waste disposal rm or
through your local waste facility. Comply with the rules and regulations that
apply in your country. If in doubt, consult your local waste disposal facility.

Thomann GmbH • Hans-Thomann-Straße 1 • 96138 Burgebrach • Germany • www.thomann.de

DocID: 164558_08.07.16
