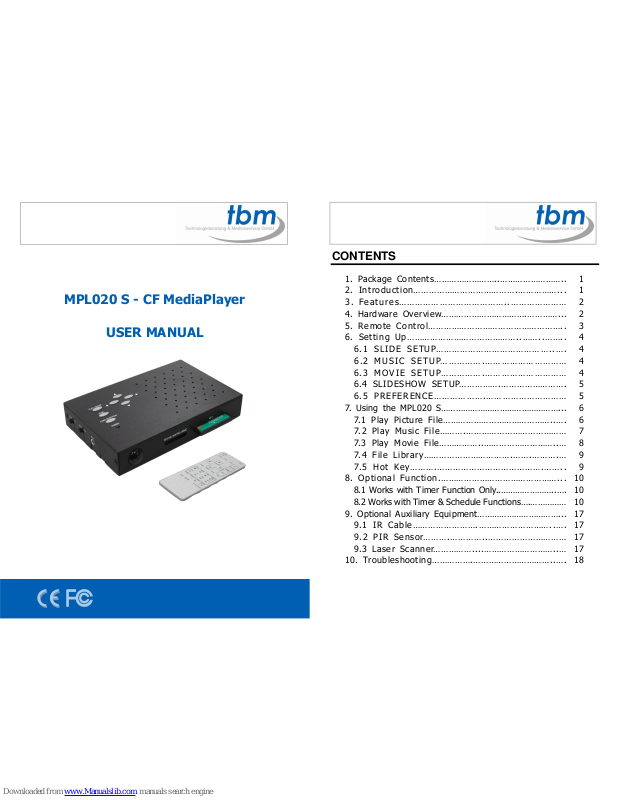

Page 1
MPL020 S - CF MediaPlayer
USER MANUAL
1. Package Contents……………………..…………………….. 1
2. In t roduct i on……… … …………… … ……….… … … ……... 1
3. Fe ature s … …………… … … …… ………. . … … …… …… … 2
4. Hardware Overview…………………………….…………... 2
5. Remo te Contr ol…… …………… ………… … ………… … .. 3
6. Set ting Up… … ……………… ……………… ..…….. … … .. 4
6.1 S L I DE SETU P……… … … ………… … … ……… . . … . 4
6 . 2 MU S IC S E TU P… … … … … .… … …… … …… … …… 4
6. 3 MOV I E S E TU P… … … …… . …… … …… … ……… … 4
6. 4 SL IDESH O W SETUP……… …….…… … ……………. 5
6.5 P R E FER E N CE… … … ……… . … ……… … … ……… … 5
7. Using the MPL020 S…………………………………………... 6
7.1 Play Picture File…………………………… ………..…. 6
7.2 Play Music File… …….… …………… ………… ……… 7
7.3 Play Movie File……………..………………………..… 8
7.4 File Libr a ry……………… … … … …….…….… … … . … 9
7.5 Hot Ke y… … … .… …… … … …… … …… … …… .… … . . 9
8. Optio nal Fu nctio n.…… ………… …………… ………… ... 10
8.1 Works with Timer Function Only..…………………..…. 10
8.2 Works with Timer & Schedule Functions….…………… 10

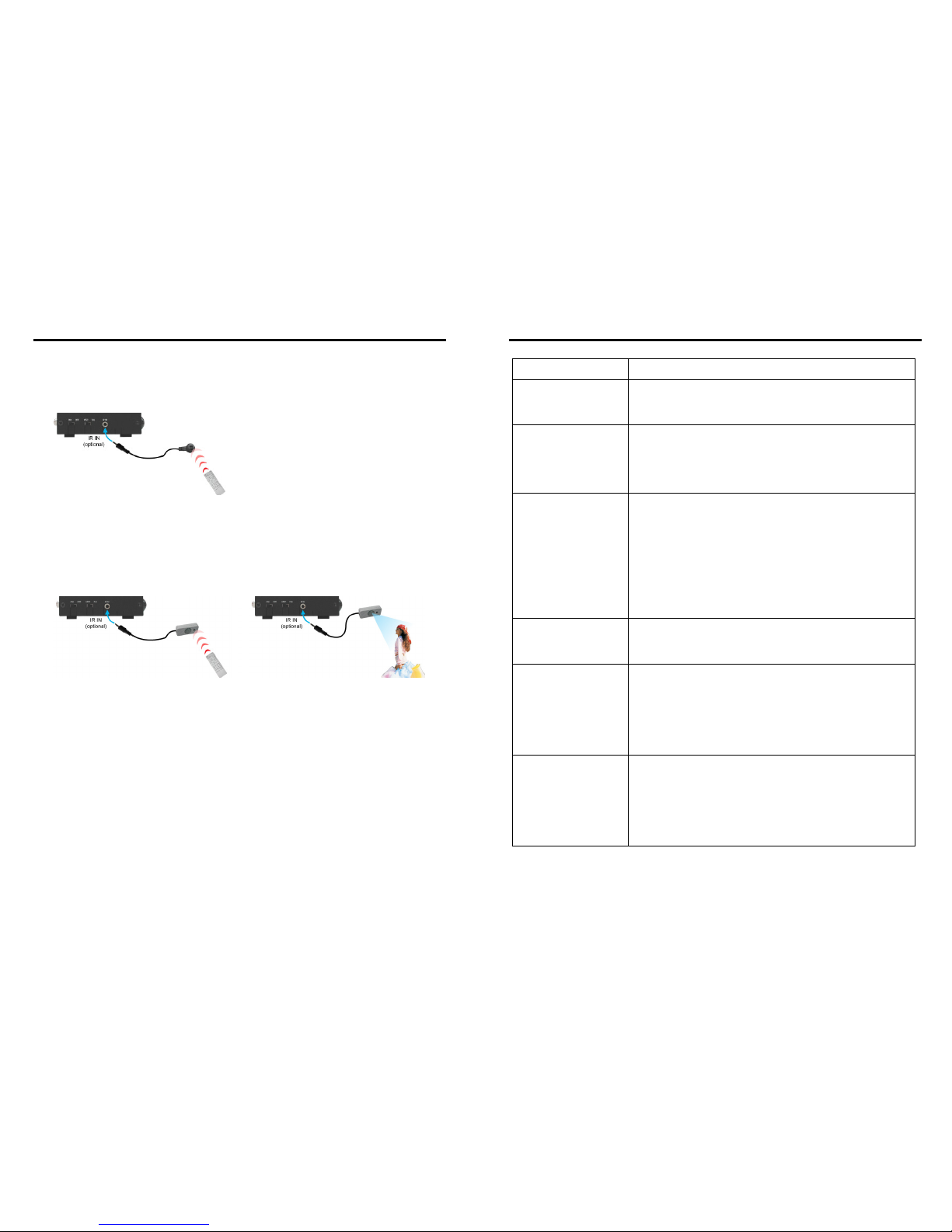

9. Optional Auxiliary Equipment……………………………... 17
9. 1 IR Cab l e …… ………………. … …………………… . .…. 17
9.2 PIR Sensor……… .…………..……………… … … … … 17
9.3 Laser Scanner……………....……………… ……… ..… 17
10. Troubleshootin g…………….… ……… ………………..…. 18
CONTENTS
Page 2

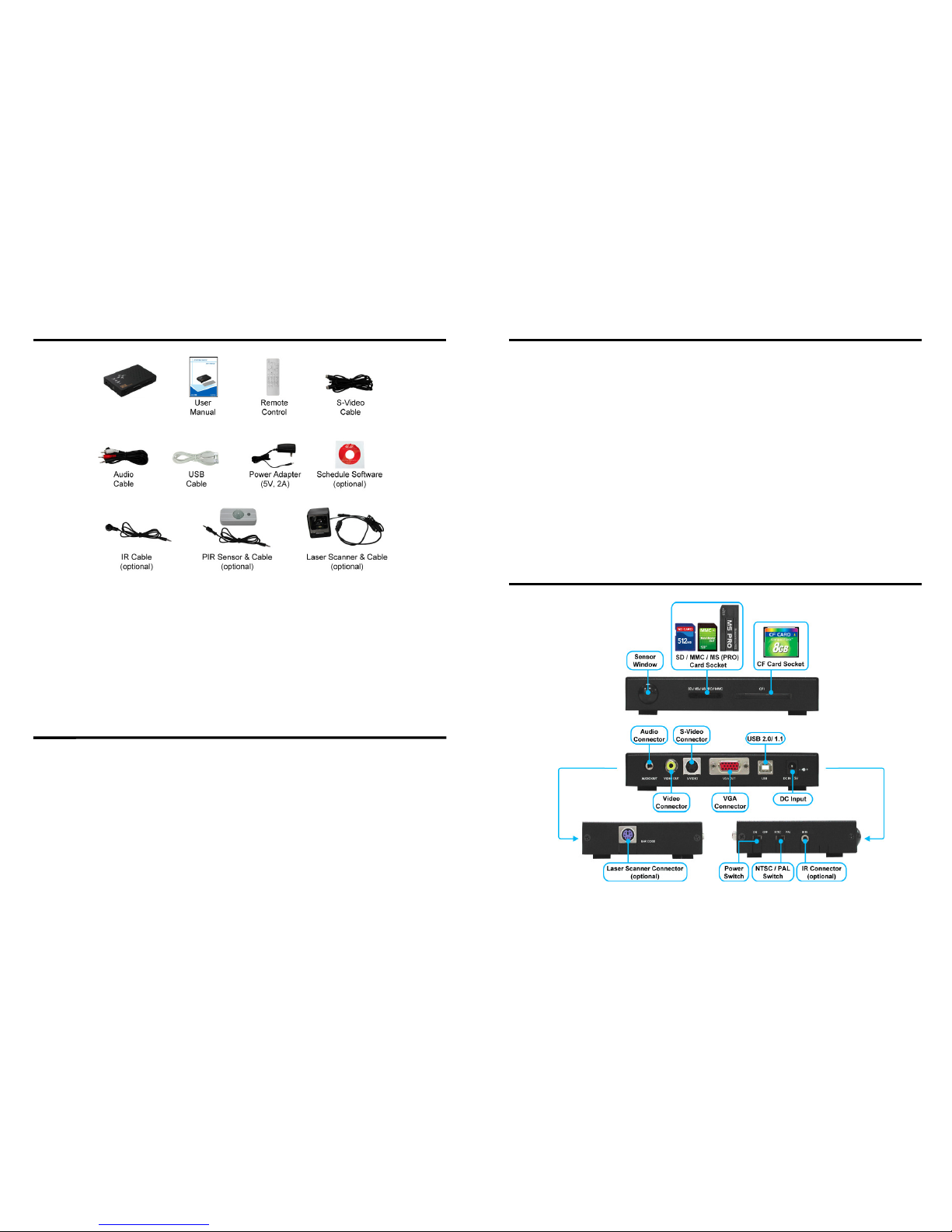

1
1. MPL020S 7. Power Adapter (DC 5V, 2A)
2. User Manual 8. Schedule Software (optional)
3. Remote Control 9. IR Cable (optional)
4. S-Video Cable 10. PIR Sensor & Cable (optional)
5. Audio Cable 11. Laser Scanner & Cable (optional)
6. USB Cable
The MPL020 S is a palm-size digital player that plays picture, music and video without a
computer. It uses media files from CF, SD, MMC, MS (Pro) memory card. By connecting
Video, S-Video, VGA and Audio, you can play media files on any display device. What’s
more, the MPL020 S supports PIR Sensor and Laser Scanner connectors (optional).
By connecting the USB 2.0/1.1 bus interface, you can download/ upload media f iles
between PC and the memory card. With the portable MPL020 S, you can play the shows
on TV or any big screen for advertising, presentations, training, and other media
applications.
2. INTRODUCTION
1. PACKAGE CONTENT
2
Supports multiple file formats：Music, Picture and Movie.
Supports CF, SD, MMC and MS (Pro) memory card.
Supports Video, S-Video, VGA (640x480) and Audio output.
Supports USB 2.0/ 1.1 interface.
Supports Laser Scanner and PIR Sensor connectors (optional).
Supports NTSC and PAL format.
Includes a full-function infrared remote control.
Multi-Language OSD：English, French, German, Italian, Portuguese, Spanish,
Netherlands, Japanese and Chinese.
Supports SLIDE SHOW Function: With 14 kinds of transition effects.
Supports SLIDE TIME (INTERVAL) Mode：Interval time with 1, 3, 5, 10, 30, 60
seconds.
Supports MUSIC SLIDE Show：Music and pictures play at the same time.
Supports ZOOM IN (ON) 4x & PAN, ROTATE, MIRROR, PREVIEW and REPEAT.
4. HARDWARE OVERVIEW
3. FEATURES
Page 3

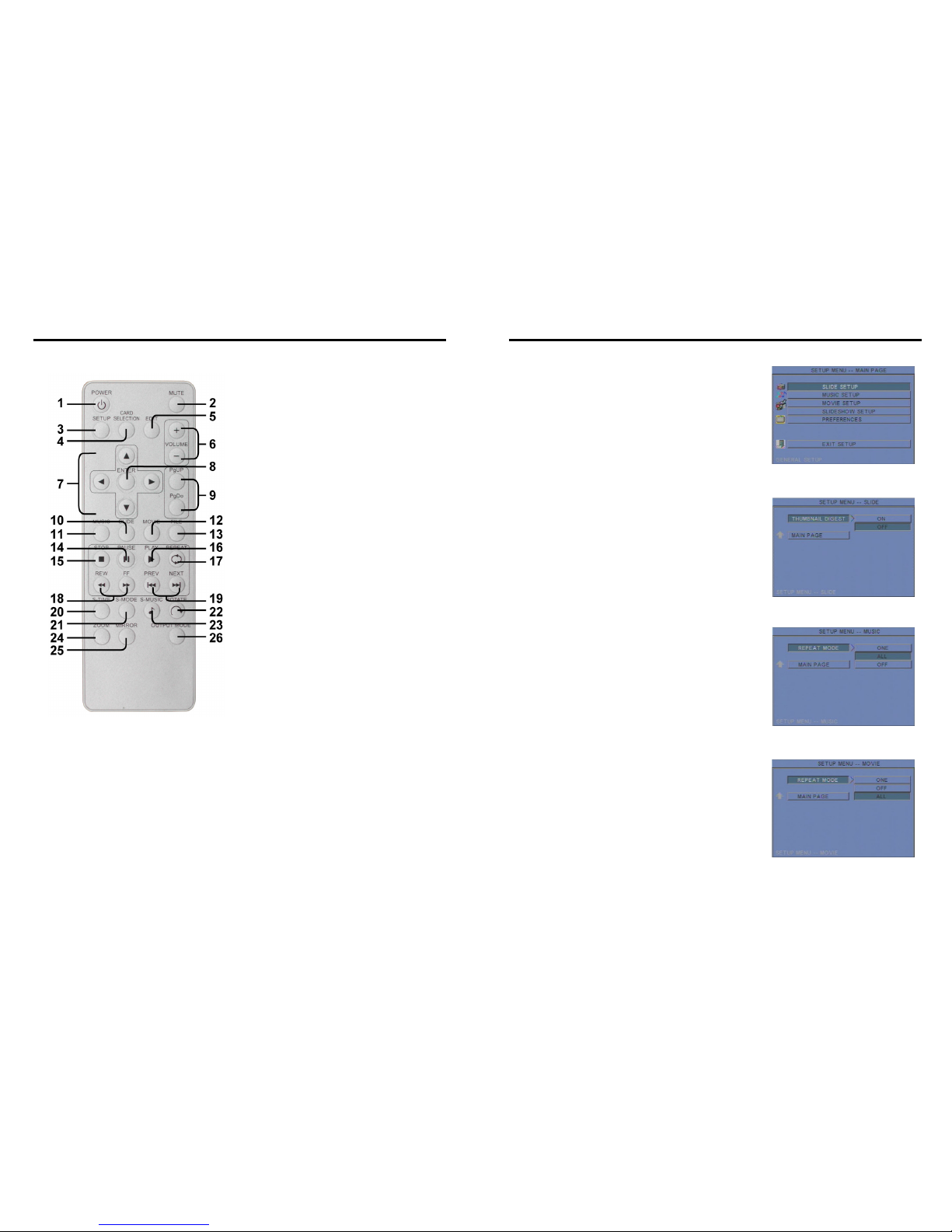

3
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
Power on/ off
Mute sound
Open the setup menu
Memory card selection
Show information of the file selected
Timer Setup (only for timer function)
Volume up/ down
Move the cursor
Confirm the selection/ entry
Go to the previous/ next page or image
Display all photo files
Display all music files
Display all movie files
Go to file library (all files)
Pause/ resume playback
Stop playback
Play the selected file
Select the repeat mode
Rewind/ forward movies
View the previous/ next file
Play the previous/ next file if in playback
Set the slideshow interval to 1, 3, 5, 10,
30, 60 seconds
Set the transition effect
Rotate photo 90 degrees clockwise on
the screen
Play music and pictures at the same time
Zoom in the image up to 4x
magnification
Mirror the image horizontally
Select the output mode
5. REMOTE CONTROL
4
Press the “SETUP” button on the remote control to
open the “SETUP MENU – MAIN PAGE” shown in the
following figure. There are five groups of sub-menu
in the setup menu.
Use the “▲、▼、▲、▼” buttons to select an item
or to adjust values, and use the “ENTER” button to
go into the function or to confirm the command.
6.1 SLIDE SETUP
THUMBNAIL DIGEST：：：：Thumbnails load faster and
allow you to browse photos easily.
6.2 MUSIC SETUP
REPEAT MODE
• ONE：：：：Repeat the selected song.
• ALL：：：：Repeat all the songs on the memory card.
• OFF：：：：Turn off the repeat function.
6.3 MOVIE SETUP
REPEAT MODE
• ONE：：：：Repeat the selected movie.
• OFF：：：：Turn off the repeat function.
• ALL：：：：Plays all the movies on the memory card.
6. SETTING UP
Page 4
5

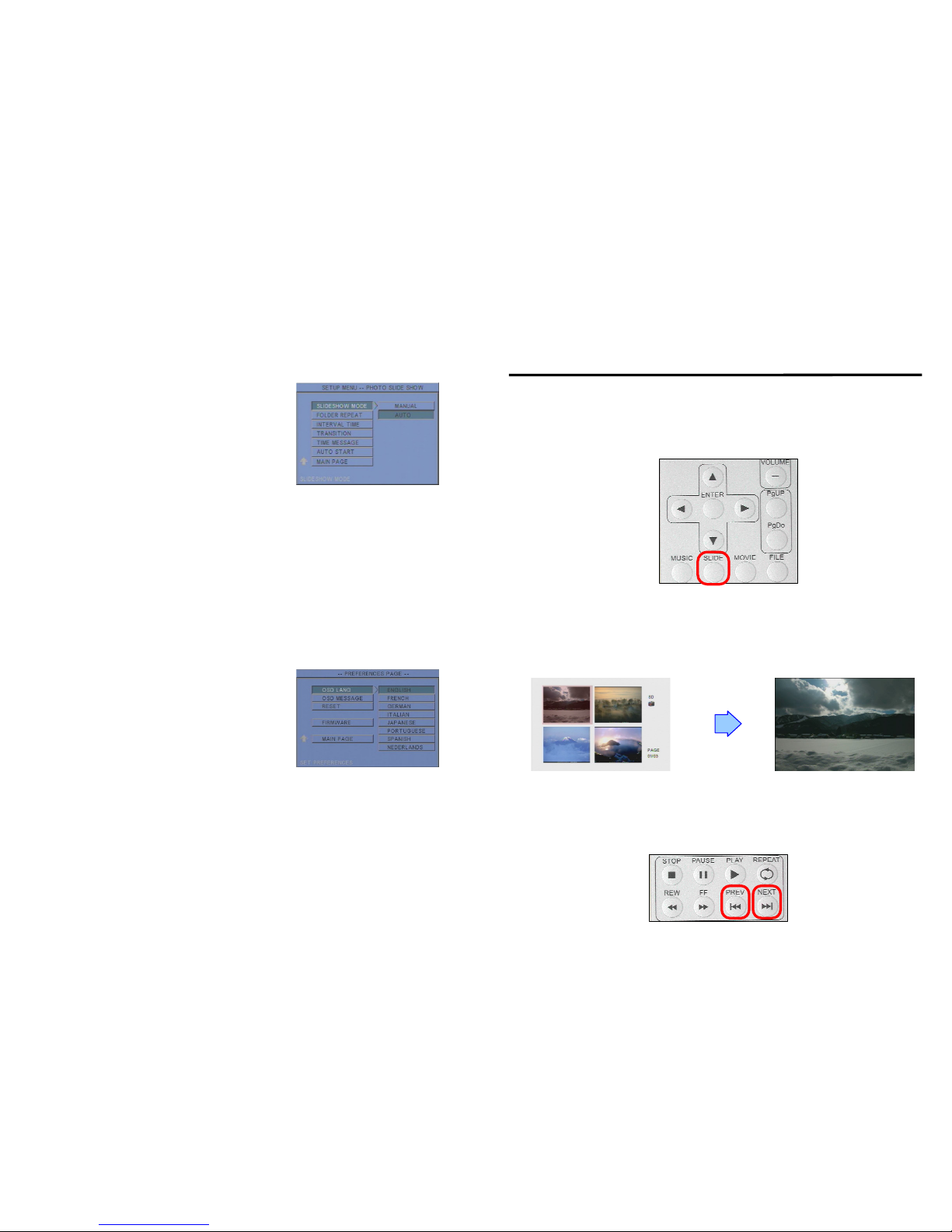

6.4 SLIDESHOW SETUP
SLIDESHOW MODE：：：：Set the slideshow to start automatically.
FOLDER REPEAT：：：：Set all files (picture, music or
movie) in the folder to show only once or
continuously (loop).
INTERVAL TIME：：：：Set the time each photo is
shown to 1, 3, 5, 10, 30 or 60 seconds.
TRANSITION (EFFECT)Set the transition effect
and auto slide with sequential or random playback.
TIME MESSAGE (only for timer function)Set the time message is shown on the
screen.
AUTO START：：：：Enable/ disable auto playing media files on the memory card when the
device is turned on.
6.5 PREFERENCE
OSD LANG: Select the OSD language (ENGLISH, FRENCH, GERMAN, ITALIAN,
JAPANESE, PORTUGUESE, SPANISH and NEDERLANDS).
OSD MESSAGE : Turn the OSD message function on/ off.
RESET : Reset all settings to the original (factory)
settings.
FIRMWARE : New F/W can upgraded from the
memory card.
• EDITION : Show the F/W versions.
• UPDATE : Used to update the F/W.
6
Copy files (music, picture and movie) to the memory card first.
7.1 PLAY PICTURE FILE
Step 1: Press the “SLIDE” button on the remote control from any menu.
Step 2: The preview mode will show all the picture files on the memory card.
Use the “▲、▼、▲、▼” buttons to select the picture file, and press the “ENTER”
button to play the picture file.
Step 3: If the “SLIDESHOW MODE” is disabled, press the “NEXT” button to play the next
picture file, the “PREV” button to play the previous file.
7. USING THE
MPL020S
Page 5
7

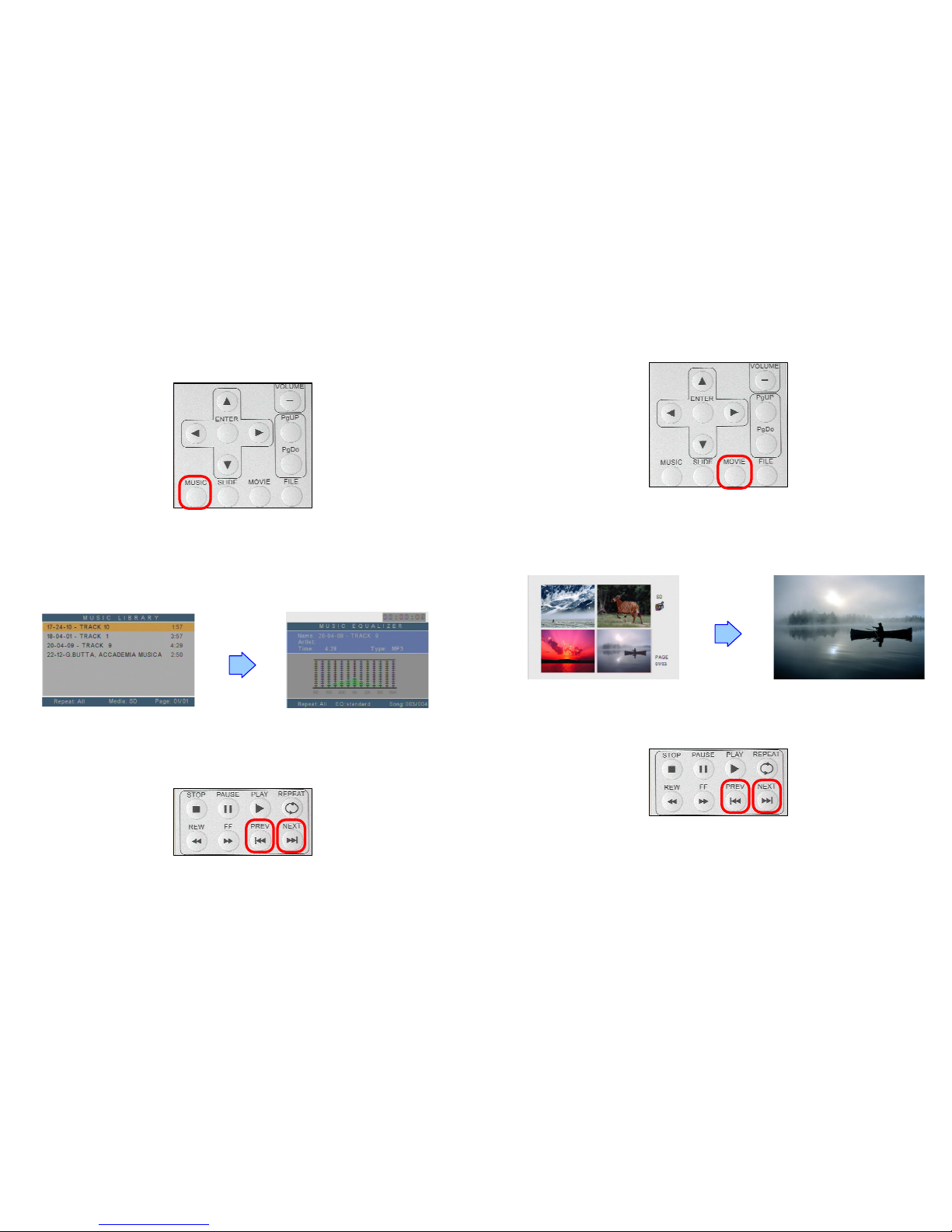

7.2 PLAY MUSIC FILE
Step 1: Press the “MUSIC” button on the remote control from any menu.
Step 2: The “MUSIC LIBRARY” will show all the music files on the memory card.
Use the “▲、▼” buttons to select the music file, and press the “ENTER”
button to play the music file.
Step 3: Press the “NEXT” button to play the next music file, the “PREV” button to play the
previous file.
8
7.3 PLAY MOVIE FILE
Step 1: Press the “MOVIE” button on the remote control from any menu.
Step 2: The preview mode will show all the video files on the memory card.
Use the “▲、▼、▲、▼” buttons to select the movie file, and press the “ENTER”
button to play the movie file.
Step 3：：：：Press the “NEXT” button to play the next movie file, the “PREV” button to play the
previous file.
Page 6
9

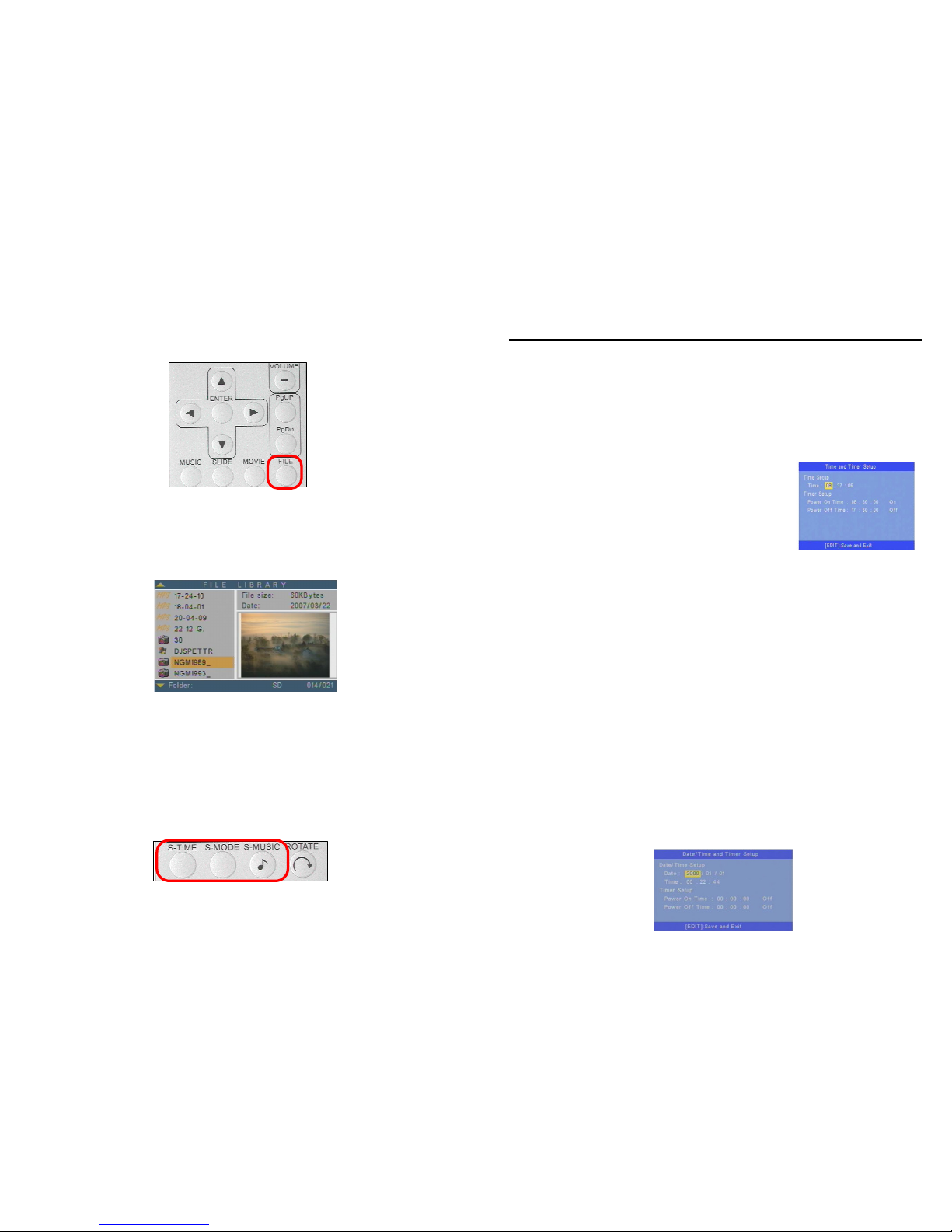

7.4 FILE LIBRARY
Step 1：：：：Press the “FILE” button on the remote control from any menu.
Step 2：：：：You can see all the files (including picture, music and movie) on the left panel of the
“FILE LIBRARY”. Press the “▲、▼” buttons to select a file, and the information of the file will
be shown on the right panel.
7.5 HOT KEY
You can use the “S-TIME”, “S-MODE” or “S-MUSIC” hot key on the remote control without
selecting from the “Setup Menu”. (These functions are only used for playing picture files.)
S-TIME：：：：Interval time with 1,3, 5,10, 30, 60 seconds.
S-MODE：：：：With sequential, random auto slide shows etc 14 kind of selections
S-MUSIC：：：：Play the picture and music files at the same time.
10
8.1 WORKS WITH TIMER FUNCTION ONLY
The MPL020 S will power on/ off automatically at the designated time.
Press the “EDIT” button on remote control to open the timer setup window.
Use the Left and Right buttons on the remote control to select each item.
Use the Up and Down buttons on the remote control to change the value.
Press EDIT button on remote control to save and quit the timer setup screen.
Timer Setup Window
Time : The current time(format: hour : minute : second)
- Power On Time: Set the time of auto power on.
- Power Off Time: Set the time of auto power off.
8.2 WORKS WITH TIMER & SCHEDULE FUNCTIONS
Timer Function: The MPL020 S will power on/ off automatically at the designated time.
Schedule Function: The MPL020 S will auto play the designated file at the designated
time.
8.2.1 TIMER SETUP
Press the “EDIT” button on remote control to open the timer setup window.
Use the Left and Right buttons on the remote control to select each item.
Use the Up and Down buttons on the remote control to change the value.
Press EDIT button on remote control to save and quit the timer setup screen.
“Date / Time and Timer Setup” Window
Date/ Time Setup: Set the current date (year/ month/ day) and time (hour/ minute/
second)
Timer Setup:
- Power On Time: Set the time of auto power on.
- Power Off Time: Set the time of auto power off.
8. OPTIONAL FUNCTION
Page 7
11
8.2.2 SCHEDULE SETUP

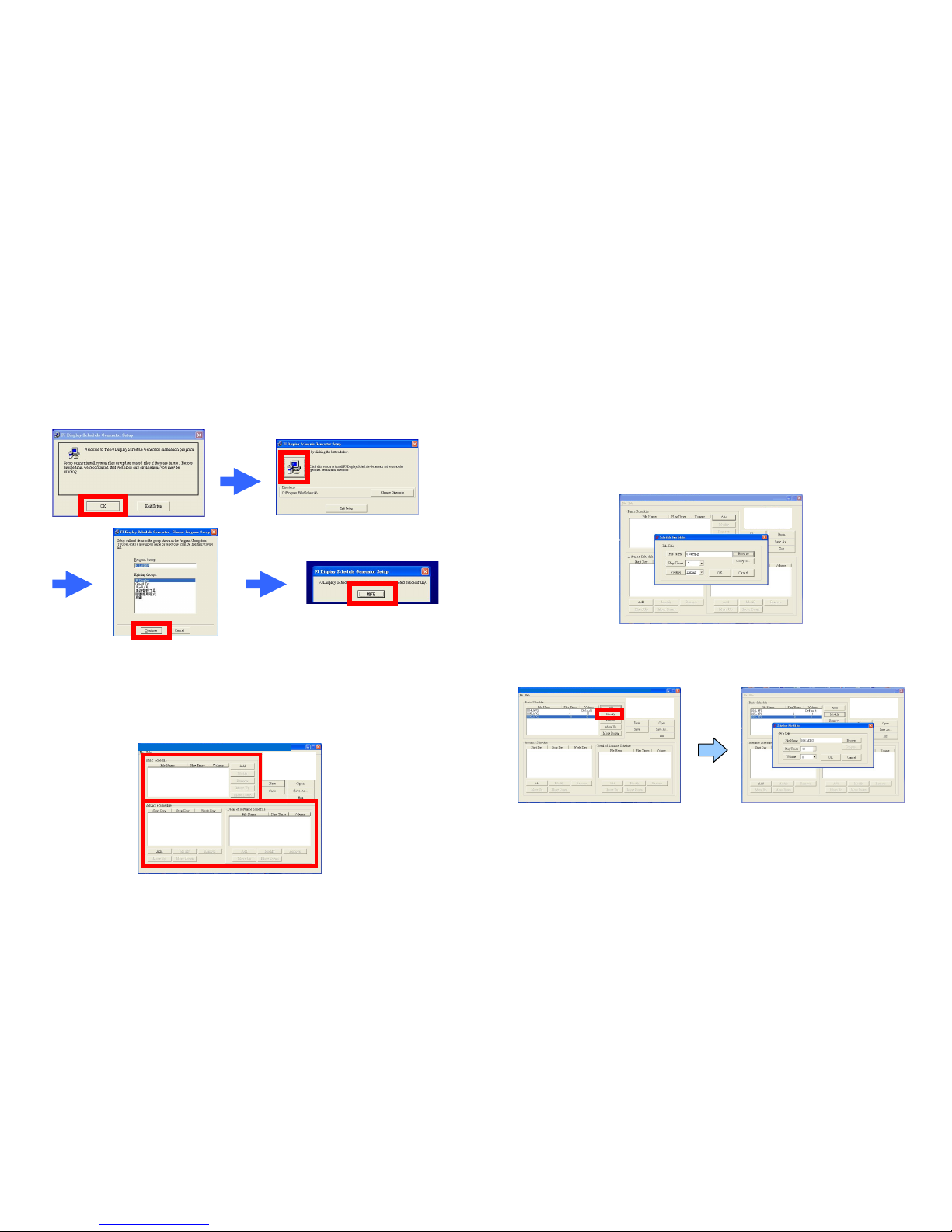

8.2.2.1 INSTALL THE SCHEDULE SOFTWARE
Execute “setup.exe” to install the Schedule software in the CD driver, and finish the
installation procedure in accordance with the illustration below.
8.2.2.2 SET UP THE SCHEDULE SOFTWARE
Execute the program “Display” to open the “Schedule Generator” window on your PC.
<Start> → <Programs> → <Display> → <Schedule Generator >
There are two parts: “Basic Schedule” and “Advance Schedule” in the window.
12

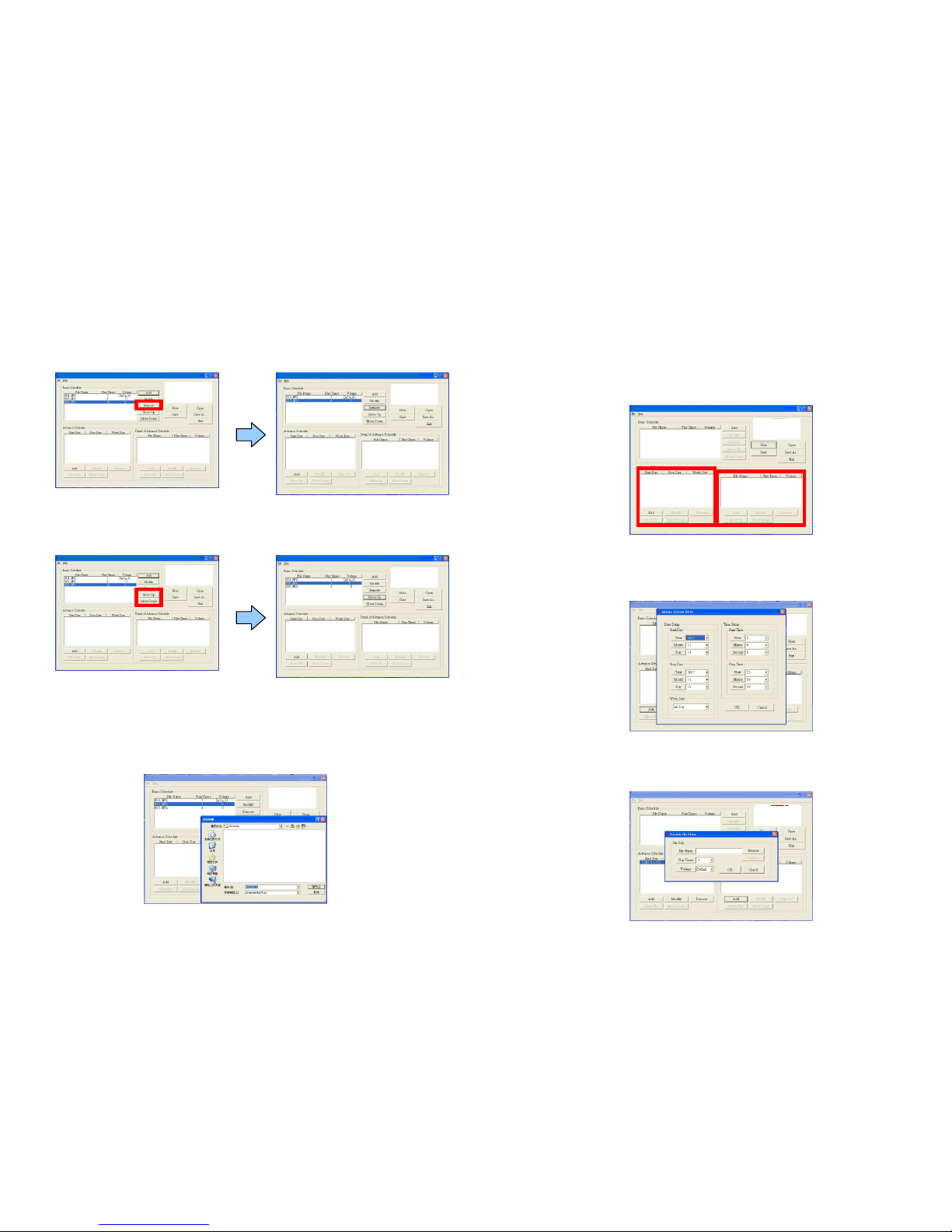

A. Basic Schedule
In the “Basic Schedule” mode, you can select files that you want to play and set up the
volume and the play times of each file.
Add：：：：Click this button to add a file. The following diagram appears：
Click the “Browser” button to search for files that you want to add. You can also set
up the “Play Times” and “Volume” of the file in the window. Click the “OK” button to
complete the setup.
Click the “Add” button again to add other file.
COPY Function：Click the “Copy to…” button to copy directly the added file to the
memory card.
Modify：：：：Click this button to modify the file in the list.
Select the file that you want to modify in the list, and press the “Modify” button.
Page 8
13
Remove：：：：Click this button to remove the file from the list.
Select the file that you want to remove from the list, and press the “Remove” button
to delete.
Move Up / Move Down：：：：Click these buttons to change the order that the files are
played.
After the setup, press the “SAVE” button, and a pop-up window will appear. Select the
path, then click the “SAVE” button to save your setup.
NOTE：：：：Do not rename the file (eyezone.ini), otherwise the MPL020 S will not be able to read
the file.
14

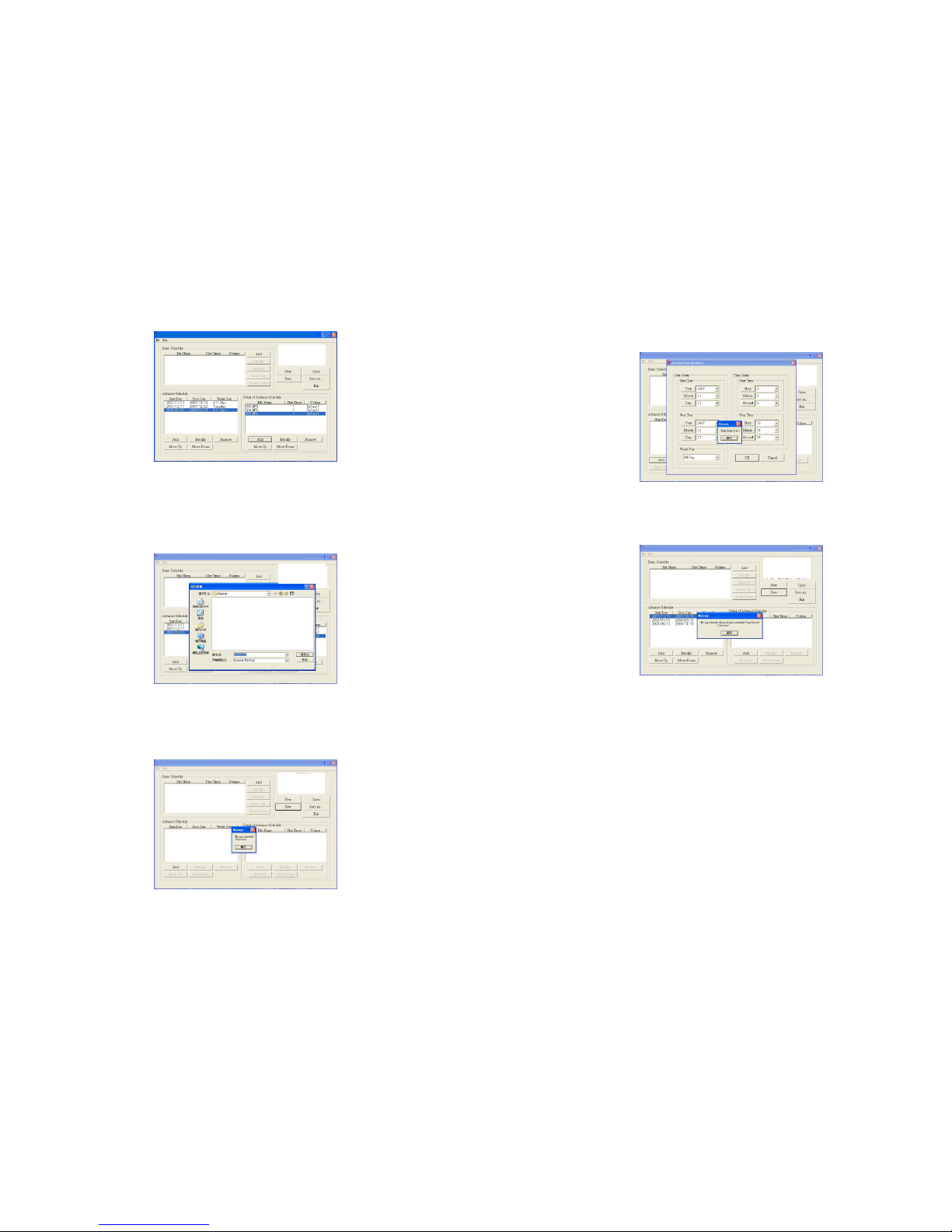

B. Advance Schedule
In the “Advance Schedule” mode, you can select files that you want to play, and can also set
up the volume, the play times, and the initial and end time of each file. There are “Time
Setup “ and “File Setup” in the “Advance Schedule”.
Step 1：：：：Click the “Add” button in the “Time Setup” section to open the “Advance Schedule
Editor” window. Set up the Start and Stop Date, Start and Stop Time and the Week Day, then
click “OK” to quit the window.
Step 2：：：：Click the “Add” button in the “File Setup” section to open the “Schedule File Editor”
window. Click the “Browser” button to select a file that you want to play. You can also set up
the “Play Times” and “Volume” of the file in the window. Click the “OK” button to complete
the setup.
Page 9
15
Step 3：：：：Repeat the steps 1〜2 to add other files.
Step 4：：：：After finishing all setup, press the “SAVE” button, and a pop-up window will appear.
Select the path, then click the “SAVE” button to save.
NOTE：：：：Do not rename the file (eyezone.ini), otherwise the MPL020 S will not be able to read
the file.
8.2.2.3 Explanation of the Warning Message
No any schedule！！！！Can’t Save！！！！
There is no schedule file in the “Basic Schedule” or “Advance Schedule” can be saved. Please
add and edit a new schedule file first.
16
Date Setup Error！！！！
There are some errors in the “Advance Schedule”. Check the date/ time of the schedule for
conflict or error.
No any schedule file in advance schedule！！！！Can’t Save！！！！
There is no schedule file in the advance schedule. Please add files that you want to play in
the advance schedule.
8.2.2.4 APPLY THE SCHEDULE ON THE MPL020 S
Put the “eyezone.ini” file and the associated media files on the memory card, and insert the
memory card to the MPL020 S. The MPL020 S will auto play the files at the designated time.
Page 10
17
9.1 IR CABLE
The IR cable is an external remote control receiver.
9.2 PIR SENSOR
Application 1: The PIR is an external remote control receiver.
Application 2: The PIR is a motion detector.
9. OPTIONAL AUXILIARY EQUIPMENT
18
Situation Check Point
No Picture
1. Check if the power supply is connected.
2. Make sure the MPL020 S is turned on.
No response from
the remote
control
1. Make sure there is a clear view between the remote
control and the device.
2. Change the remote control’s batteries.
Memory card
1. Push cards gently and securely.
2. If the card does not insert easily, check the direction.
3. Confirm format of the card.
MPL020 S supports CF, SD, MMC and MS (Pro) memory
card.
No sound
1. Check if the mute function is on.
2. Check if the volume is turned up.
Timer inaccuracy
(optional)
1. Press “ EDIT ” key to open the timer setup window, confirm
whether time is correct.
2. If using the “ Timer Function ”, it is suggested to check
whether the time is correct every three months.
The Laser Scanner
is on, but cannot
read bar-codes
(optional).
1. The scanner window is dirty and must be cleaned.
2. The presented barcode type is not enable. (refer to 8)
3. The barcode type presented is not supported .
10. TROUBLESHOOTING
Loading...
