Operator’s Manual
GAS/OIL
RATIO
50:1
Original Operating Instructions
Chipper Shredders
SN
Get parts online at
www.tazztools.com
Includes Model Numbers:
18493 (Viper 212cc)
22752 (Viper 301cc)
22753 (Briggs & Stratton 205cc)
22754 (Kohler 196cc)
P/N: 27313
ECN: 11452
REV1: 12/15/16
© 2016 Ardisam, Inc.
All Rights Reserved
Operator’s Manual
Chipper Shredders
INTRODUCTION
Congratulations on your investment in quality. Thank you for purchasing a Chipper Shredder from Tazz. We have worked to
ensure that your product meets the highest standards for usability and durability. With proper care, your Chipper Shredder will
provide many years of service.
Please read this entire manual before installation and use. Tazz reserves the right to change, alter or improve the product
and this document at any time without prior notice.
CONTENTS
Introduction/Registration and Service ................................................................................................................................................................................. 2
Features and Controls ................................................................................................................................................................................................................. 3
Specications .................................................................................................................................................................................................................................4
Warnings and Safety Precautions ...........................................................................................................................................................................................5
Safety Decals .................................................................................................................................................................................................................................. 6
General Operating Safety ...................................................................................................................................................................................................... 7-9
Assembly.................................................................................................................................................................................................. ............................. 10-11
General Operation .............................................................................................................................................................................................................. 12-13
Transporting and Storage .......................................................................................................................................................................................................13
Chipping and Shredding Recommendations ..................................................................................................................................................................14
Maintenance ......................................................................................................................................................................................................................... 15-17
Troubleshooting Chart .............................................................................................................................................................................................................18
Repair ....................................................................................................................................................................................................................................... 19-20
Notes Page ....................................................................................................................................................................................................................................21
Illustrated Parts Breakdown.............................................................................................................................................................................................22-29
Warranty ........................................................................................................................................................................................................................................30
When contacting your authorized dealer or Tazz for replacement parts, service, or information you MUST have these numbers. Do not take this product
back to the store from which it was purchased
Record your model name/number, manufacturer’s identication numbers, and
engine serial numbers in the space provided for easy access.
NOTE: For location of engine identication numbers, refer to the engine owner’s
Serial
Number
Decal
manual.
REGISTRATION AND SERVICE
Record the product number and serial number in the space provided for easy reference when ordering parts or requesting technical support. Excluding emissions-related warranty items, the warranty is valid only if the completed registration is received by
Tazz within 30 days of purchase. SEE WARRANTY SECTION FOR MORE INFORMATION. You can register your warranty online
by visiting www.Tazztools.com, or by mailing it to: Warranty Department, 1160 Eighth Avenue, Cumberland, WI 54829. If you do
not have access to Tazztools.com, call our customer service department at (800) 345-6007 Mondays through Fridays from 8 a.m. to
5 p.m. CST.
OWNERSHIP RECORDS
Owner’s Name:
Owner’s Address:
City: State/Province: Zip Code/Postal Code:
Model Number: Serial Number:
Engine Model: Engine Serial Number:
Date of Purchase:
Notes:
This manual may contain information for several models. Read and keep this manual for future reference. This manual contains important
information on SAFETY, ASSEMBLY, OPERATION, AND MAINTENANCE. The owner must be certain that all the product information is included with
the unit. This information includes the MANUAL, the REPLACEMENT PARTS and the WARRANTIES. This information must be included to make sure
state laws and other laws are followed. This manual should remain with the unit even if it is resold.
2 Check for parts online at www.tazztools.com or call 800-345-6007 M-F 8-5
Operator’s Manual
Chipper Shredders

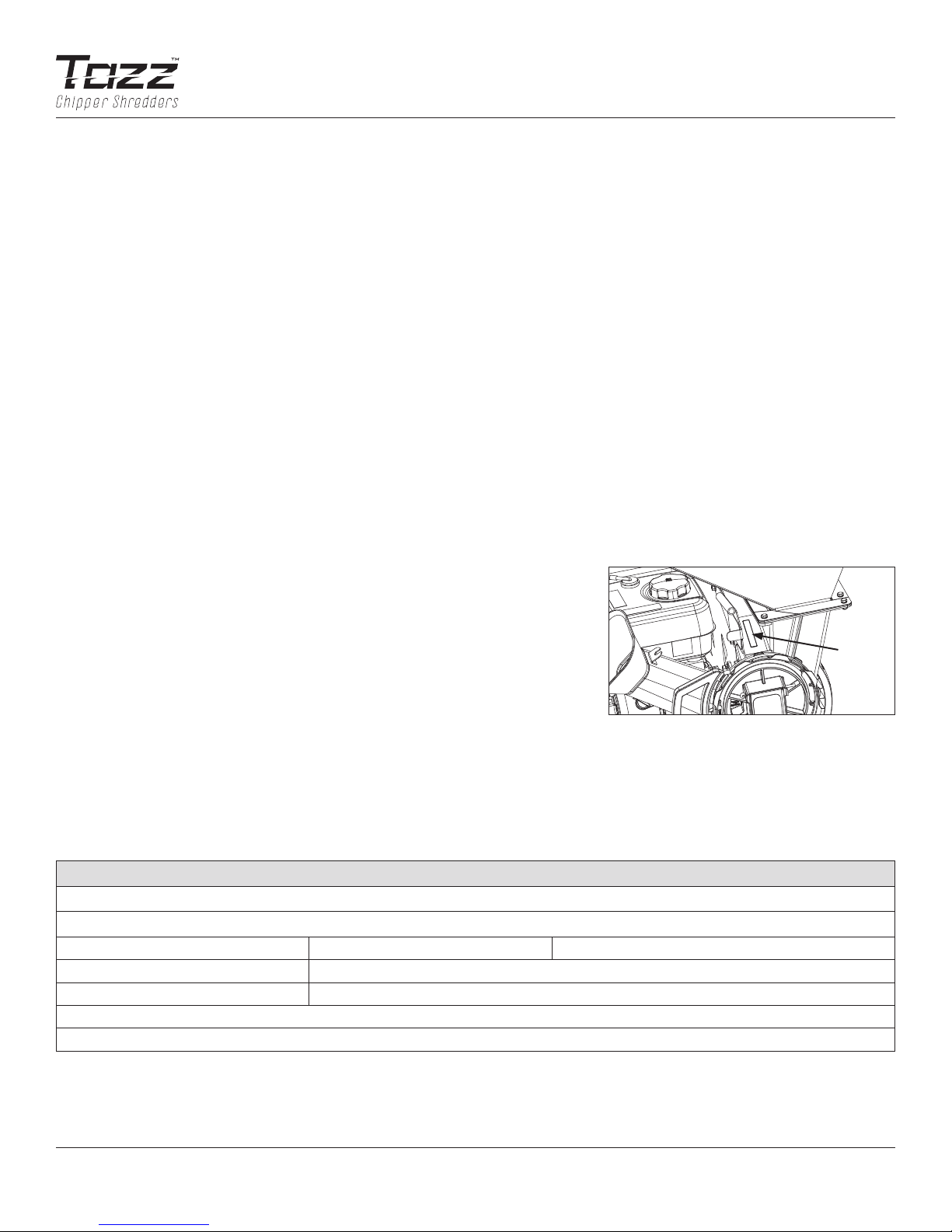

FEATURES & CONTROLS
Control Functions
The information below briey describes the function of individual controls. Operating requires the combined use of several controls
applied in specic sequences. To learn what combination and sequence of controls to use for various tasks see the OPERATION section.
*For engine features and controls see engine manual.
SHREDDER HOPPER
CHIPPER CONE
FUEL CAP
DEBRIS BAG CONNECTOR
KICKSTAND
Chipper Cone/Shredder Hopper
Chipper Cone: The chipper cone is located on the front of the unit next to the engine. Insert branches and tree limbs up to ap-
proximately 3” (7.6 cm) in diameter into the chipper cone. NEVER insert hands past the mouth of the cone.
Shredder Hopper: The shredder hopper is on top of the unit. Leaves and other light waste can be loaded into the shredder hopper. Nothing over 1/2 inch in diameter should go into shredder. NEVER insert hands into the hopper .
Debris Bag: Use the debris bag to collect the material discharged from the unit. Do not operate the unit without the debris bag
in place.
Check for parts online at www.tazztools.com or call 800-345-6007 M-F 8-5
3
Operator’s Manual
Chipper Shredders
SPECIFICATIONS
CHIPPING CAPACITY APPROXIMATELY 3” 7.6 CM
SHREDDING CAPACITY 1/2”X 18” LONG
CHIPPING KNIVES 2
SHREDDING HAMMERS 2 JHAMMERS; 2 TRIANGLE HAMMERS
WASTE REDUCTION RATIO 20:1
START TYPE RECOIL
ROTOR MATERIAL STEEL
HOPPER DIMENSIONS IN 16.75 x 13.25
BAG DIMENSIONS IN 24 x 36
LIMB CHUTE YES
TIRE DIAMETER 11
TIRE WIDTH IN 2
TIRE MATERIAL RUBBER
WHEEL TYPE NEVER FLAT
NET WEIGHT LB 121
GROSS WEIGHT LB 125
ASSEMBLED DIMENSIONS IN 25.4 x 29.9 x 51.9
BOXED DIMENSIONS IN 32.2 x 23.9 x 23.1
VACUUM KIT YES
VACUUM MEASUREMENT 20 INCHES OF WATER
VACUUM AIR GATE YES
ROTOR DIAMETER IN 14
QUICK ATTACH BAG SYSTEM YES
ANSI B71.62000 YES
NOTE: Specications are correct at time of printing and are
subject to change without notice.
PARTS & ACCESSORIES
Replacement Parts
Replacement parts are available from your authorized Tazz dealer or directly
from Tazz. Always use genuine Tazz Service Parts.
OPTIONAL ACCESSORIES
Vacuum Kit Model No.22518
Tow Bar Kit Model No. 1692327
Tow Kit Vacuum Kit
4 Check for parts online at www.tazztools.com or call 800-345-6007 M-F 8-5
Operator’s Manual
Chipper Shredders
WARNINGS AND SAFETY PRECAUTIONS
Owner’s Responsibility
Accurate assembly, and safe and eective use of the chipper
shredder is the owner’s responsibility.
• Read and follow all safety instructions.
• Carefully follow all assembly instructions.
• Maintain the chipper shredder according to directions
and schedule included in this Tazz operator’s manual.
• Ensure that anyone who uses the chipper shredder is
familiar with all controls and safety precautions.
Special Messages
Your manual contains special messages to bring attention to
potential safety concerns, machine damage as well as helpful
operating and servicing information. Please read all the information carefully to avoid injury and machine damage.
NOTE: General information is given throughout the
manual that may help the operator in the
operation or service of the machine.
Important Safety Precautions
Please read this section carefully. Operate the chipper shredder according to the safety instructions and recommendations
outlined here and inserted throughout the text. Anyone who
uses this chipper shredder must read the instructions and be
familiar with the controls. Learn how to control the chipper
shredder at all times.
This symbol points out important safety
instructions which if not followed could endanger your personal safety. Read and follow all
instructions in this manual before attempting
to operate this equipment.
• Do not allow children to operate this chipper shredder.
Keep small children away from the area while chipper
shredder is in use. Do not allow adults to operate the chipper shredder without proper instruction.
DANGER
DANGER INDICATES A SERIOUS INJURY OR FATALITY
WILL RESULT IF THE SAFETY INSTRUCTIONS THAT
FOLLOW THIS SIGNAL WORD ARE NOT OBEYED.
WARNING
WARNING INDICATES A HAZARD WHICH, IF NOT
AVOIDED, COULD RESULT IN DEATH OR SERIOUS
INJURY AND/OR PROPERTY DAMAGE.
CAUTION
CAUTION INDICATES YOU CAN OR YOUR EQUIPMENT
CAN BE HURT IF THE SAFETY INSTRUCTIONS THAT
FOLLOW THIS SIGNAL WORD ARE NOT OBEYED.
IMPORTANT
IMPORTANT INDICATES HELPFUL INFORMATION
FOR PROPER ASSEMBLY, OPERATION, OR
MAINTENANCE OF YOUR EQUIPMENT.
WARNING
YOU MUST READ, UNDERSTAND AND COMPLY WITH
ALL SAFETY AND OPERATING INSTRUCTIONS IN
THIS MANUAL BEFORE ATTEMPTING TO SETUP AND
OPERATE YOUR CHIPPER SHREDDER.
FAILURE TO COMPLY WITH ALL SAFETY AND
OPERATING INSTRUCTIONS CAN RESULT IN LOSS OF
MACHINE CONTROL, SERIOUS PERSONAL INJURY TO
YOU AND/OR BYSTANDERS, AND RISK OF EQUIPMENT
AND PROPERTY DAMAGE. THE TRIANGLE IN THE TEXT
SIGNIFIES IMPORTANT CAUTIONS OR WARNINGS
WHICH MUST BE FOLLOWED.
Intended Use /
Foreseeable Misuse
This is a petrol engine-powered chipper shredder that breaks
up leaves and wooded pieces such as tree branches, brush, and
limbs into smaller volume via a high-speed rotor containing
chipping blades and shredding hammers. It shall not be used
for any other purpose.
Check for parts online at www.tazztools.com or call 800-345-6007 M-F 8-5
WARNING
CALIFORNIA PROPOSITION 65 WARNING
ENGINE EXHAUST, WOOD DUST, AND GASOLINE
VAPORS FROM THIS PRODUCT CONTAINS
CHEMICALS KNOWN TO THE STATE OF CALIFORNIA
TO CAUSE CANCER, BIRTH DEFECTS, OR OTHER
REPRODUCTIVE HARM.
5
Operator’s Manual
Chipper Shredders
SAFETY DECALS
This unit has been designed and manufactured to provide you with the safety and reliability you would expect from an industry
leader in outdoor power equipment manufacturing.
Although reading this manual and the safety instructions it contains will provide you with the necessary basic knowledge to operate this equipment safely and eectively, we have placed several safety labels on the unit to remind you of this important information while you are operating your unit.
All DANGER, WARNING, CAUTION and instructional messages on your unit should be carefully read and obeyed. Personal bodily
injury can result when these instructions are not followed. The information is for your safety and it is important! The safety decals
below are on your unit.
If any of these decals are lost or damaged, replace them at once. See your local dealer or contact Tazz directly for replacements.
These labels are easily applied and will act as a constant visual reminder to you, and others who may use the equipment, to follow
the safety instructions necessary for safe, eective operation.
22417
DECAL - OPERATING INSTRUCTIONS
22416
DECAL - Danger,
Rotating Cutting
Blades, Warning,
Debris
6 Check for parts online at www.tazztools.com or call 800-345-6007 M-F 8-5
Operator’s Manual
Chipper Shredders
GENERAL OPERATING SAFETY
• Read, understand, and follow all instructions in the
manual and on the unit before starting
• Dress appropriately when operating the chipper
shredder. Always wear sturdy footwear and safety
goggles. Never wear sandals, sneakers or open shoes,
and never operate the chipper shredder with bare feet.
Do not wear loose clothing that might get caught in
moving parts.
• Only allow responsible adults, who are familiar with the
instructions, to operate the unit (local regulations can
restrict operator age).
• Be sure the area is clear of other people before
operating. Stop the unit if anyone enters the area.
• Always maintain secure footing and solid balance while
starting or operating the chipper shredder. Never lean
directly over the machine.
• Operate the machine only in daylight or good articial
light.
• Do not operate the unit while under the inuence of
alcohol or drugs.
• Always wear eye and hearing protection when operating
this unit.
• Keep in mind the operator is responsible for accidents
occurring to other people or property.
• It is a violation of California Public Resource Code
Section 4442 to use or operate the engine on or near
any forest-covered, brush-covered, or grass-covered
land unless the exhaust system is equipped with a spark
arrester meeting any applicable local or state laws.
Other states or federal areas may have similar laws.
• Never operate the machine without proper guards,
plates, or other safety protective devices in place.
• Thorougly inspect where equipment is to be used and
remove all forgein objects.
• Exercise extreme caution when operating on or crossing
gravel drives, walks or roads. Stay alert for hidden
hazards or trac.
PRODUCTSPECIFIC SAFETY
• Do not put hands or feet near rotating parts or under
the machine. Keep clear of the discharge opening at all
times.
• Always operate the chipper shredder outdoors, on a
rm, level, earthen or grassy surface where the unit will
be stable and stay in position. Never attempt to operate
the unit on a slope, or on a wet or slippery surface
where you could slip and fall toward the chipper cone or
hopper openings.
DANGER
THE CHIPPER SHREDDER HAS SPINNING BLADES
THAT CAN AMPUTATE HANDS AND FEET. DO NOT
PLACE HANDS OR FEET IN THE HOPPER OR CHIPPER
CONE, OR DISCHARGE CHUTE.
WARNING
THIS UNIT DISCHARGES DEBRIS AT HIGH SPEEDS.
ALWAYS WEAR PROTECTIVE GOGGLES AND DO NOT
OPERATE WITHOUT THE DEBRIS BAG IN PLACE.
DO NOT ALLOW ANYONE IN THE AREA WHILE THE
UNIT IS RUNNING. IF SOMEONE DOES ENTER THE
AREA, SHUT THE UNIT OFF IMMEDIATELY UNTIL
THEY LEAVE. ORGANIZE THE WORK AREA PRIOR TO
STARTING WORK.
• Do not operate without the debris bag in place because
this unit discharges debris at high speeds. If the unit is
operated on hard ground, asphalt, concrete, or other
hard surfaces without the collection bag in place.
material can ricochet o of the hard surface and cause
an unsafe condition for users and bystanders.
• Always obey the size limitations for tree limbs and
branches stated in the Waste Materials Guide portion of
this manual.
• Never leave the machine running unattended. Always
turn o the engine, wait for the rotor to come to a
complete stop, and disconnect the spark plug before
leaving the area. Always move the unit to a safe storage
area when not in use.
• Never direct discharge material toward anyone. Avoid
discharging material against a wall or obstruction.
Material may ricochet back toward the operator.
• Always stand to the side of the chipper cone when
feeding tree limbs and branches into the unit, as tree
limbs, branches, and harder woods may kick back while
being chipped.
• Always keep hands out of the chipper cone and
shredder hopper when feeding materials. Never wrap
ngers tightly around branches as you are feeding them
into the unit, as a sudden inward surge could pull your
hands and arms into the unit.
• Never allow material to build up in the discharge area
or shredding chamber, as this may cause new material
being fed into the machine to kickback with sucient
force to injure you or other bystanders.
• Never allow material to build up around the engine
during chipper shredder operation. This could result in a
re, or overheating of the engine.
Check for parts online at www.tazztools.com or call 800-345-6007 M-F 8-5
7
Operator’s Manual
Chipper Shredders
• Never attempt to reposition or move the chipper
shredder unit while it is running. Doing so could cause
the machine to tip over, and reaching to steady the unit
could result in accidental insertion of your hands into
the chipper cone or shredder hopper areas.
• Never continue to operate the machine if it starts
making unusual noise or vibration. Shut the engine o
immediately, allow the rotor to stop, disconnect the
spark plug wire and secure the wire away from the spark
plug. Inspect the unit for any signs of damage or foreign
material in the chipping or shredding areas. Remove
any solid material that may be preventing the unit from
operating properly.
• Never attempt to clear clogs from the chipper cone,
shredder hopper or discharge chute while the unit is
running. Always shut the engine o, allow the rotor
to come to a complete stop, and remove the spark
plug wire from the spark plug before removing excess
materials.
• Never attempt to perform any maintenance, repairs,
or attachment of accessories while the unit is running.
Always shut the unit o, allow the rotor to come to a
complete stop, and remove the spark plug wire from the
spark plug before beginning these activities.
• Always make sure that the shredding chamber, shredder
hopper, and chipper cone are empty before starting
the unit after it has been idle. Attempting to start the
unit with material in these areas could cause the engine
starting cord to stop suddenly, injuring your hand and
ngers, or toppling the unit over. Vibration is generally a
warning sign of trouble.
• Use only attachments and accessories approved of by
the manufacturer of the machine.
• Make sure chipper shredder is free of debris before
starting the engine.
• Never attempt to make any adjustments while the
engine is running.
• After striking a forgein object, stop the engine (motor),
remove spark plug wire, and wait for all moving parts
to come to a complete stop. Thorougly inspect the
machine for any damage, repair the damage before
restarting and operating the machine.
• Use only attachments and accessories approved by the
manufacturer of the machine.
WARNING
Engines give o carbon monoxide, an odorless, colorless,
poison gas. Carbon monoxide may be present even if you
do not smell or see any engine exhaust. Breathing carbon
monoxide can cause nausea, fainting or death, in addition
to drowsiness, dizziness and confusion. If you experience
any of these symptoms, seek fresh air and medical attention
immediately.
If your machine comes with a separate engine manual, be
sure to read and follow all safety and warning precautions
outlined there, in addition to any in this manual.
• Handle fuel with care; it is highly ammable.
a. Use an approved fuel container.
b. Never add fuel to a running engine or hot engine.
c. Fill fuel tank outdoors with extreme care. Never ll
fuel tank indoors.
d. Replace gasoline cap securely and clean up spilled
fuel before restarting.
Preventing Carbon Monoxide Poisoning
• Always start and run engine outdoors. Do not start or run
engine in an enclosed area, even if doors or windows are open.
• Never try to ventilate engine exhaust indoors. Carbon
monoxide can reach dangerous levels very quickly.
• Never run engine outdoors where exhaust fumes may be
pulled into a building.
• Never run engine outdoors in a poorly ventilated area where
the exhaust fumes may be trapped and not easily taken
away. (Examples include: in a large hole or areas where hills
surround your working area.)
• Never run engine in an enclosed or partially enclosed area.
(Examples include: buildings that are enclosed on one or
more sides, under tents, car ports or basements.)
• Always run the engine with the exhaust and muer pointed
in the direction away from the operator.
• Never point the exhaust muer towards anyone. People
should always be many feet away from the operation of the
engine and its attachments.
ENGINE SPECIFIC SAFETY
• Before cleaning, repairing, or inspecting, shut o the
engine and make certain that all moving parts have
come to a complete stop. Disconnect the spark plug
wire and secure the wire away from the spark plug to
prevent accidental starting.
8 Check for parts online at www.tazztools.com or call 800-345-6007 M-F 8-5
• Do not change the engine governor settings or over-speed
the engine.
• Do not operate the engine in a confined space where
dangerous carbon monoxide fumes can collect.
Operator’s Manual
Chipper Shredders
Gasoline Fires and Handling Fuel Safely
Use extra care in handling gasoline and other fuels. They are
ammable and vapors are explosive.
• When storing extra fuel be sure that it is in an appropriate
container and away from any re hazards.
• Prevent re and explosion caused by static electric discharge.
Use only nonmetal, portable fuel containers approved by
the Underwriter’s Laboratory (U.L.) or the American Society
for Testing &Materials.
• Always ll fuel tank outside in a well ventilated area. Never
fill your fuel tank with fuel indoors. (Examples include:
basement, garage, barn, shed, house, porch, etc.) Never
ll tank near appliances with pilot lights, heaters, or other
ignition sources. If the fuel has to be drained, this should
be done outdoors. The drained fuel should be stored in a
container specically designed for fuel storage or it should
be disposed of carefully.
• Never remove the fuel cap or add fuel with the engine
running. Stop engine and allow to cool before lling.
• Do not smoke while refueling or operating engine.
• Never drain fuel from the engine in an enclosed area.
• Always wipe up excess (spilled) fuel from engine before
starting. Clean up spilled fuel immediately. If fuel is spilled,
do not start the engine but move machine and fuel container
from area. Clean up spilled fuel and allow to evaporate and
dry after wiping and before starting.
• Allow fuel fumes/vapors to escape from the area before
starting engine.
• Test the fuel cap for proper installation before starting and
using engine.
• Always run the engine with fuel cap properly installed on
the engine.
• During storage, keep machine so gas cap is up.
• Never siphon fuel by mouth to drain fuel tank.
• Always have an adult fill the fuel tank and never allow
children to ll the engine.
• Never allow an adult or anyone under the inuence of drugs
or alcohol to ll engine.
• When storing gasoline or equipment with fuel in the tank,
store away from furnaces, stoves, water heaters or other
appliances that have a pilot light or other ignition source
because they can ignite gasoline vapors.
• Never ll containers inside a vehicle or on a truck bed with
a plastic bed liner. Always place containers on the ground
away from your vehicle before lling.
• Remove gas-powered equipment from the truck or trailer
and refuel it on the ground. If this is not possible, then refuel
such equipment on a trailer with a portable container, rather
than from a gasoline dispenser nozzle.
BURNS AND FIRES
The muer, muer guard and other parts of the engine become extremely hot during the operation of the engine. These
parts remain extremely hot after the engine has stopped.
Prevention of Burns and Fires
• Never remove the muer guard from the engine.
• Never touch the muer guard because it is extremely hot
and will cause severe burns.
• Never touch parts of the engine that become hot after
operation.
• Always keep materials and debris away from muer guard
and other hot parts of the engine to avoid res.
CHILDREN AND BYSTANDERS
Tragic accidents can occur if the operator is not alert to the
presence of children and/or bystanders. Never assume that
others will remain where you last saw them.
• Keep the area of operation clear of all persons, especially
small children and pets. Keep children under the watchful
care of a responsible adult.
• Be alert and turn the machine o if children enter the area.
• Before and while moving backwards, look behind and
down for small children.
• Never allow children to operate the machine
Check for parts online at www.tazztools.com or call 800-345-6007 M-F 8-5
9
Operator’s Manual
Chipper Shredders
ASSEMBLY
Install Kick Stand (SEE FIGURE 1)
1. Position the kick stand (A)
underneath the engine
with the loop of the kick
stand pointing away from
the wheel axle (B).
2. Using the four M8-1.25
X 40 bolts (C), eight M8
washers (D) and four
M8-1.25 nuts (E), secure
the kick stand to the base
plate of the engine.
Install the Wheels (SEE FIGURE 2)
1. Slide the wheel onto the axle (B).
2. Slide the 12mm washer (A) onto the axle so that it sits
against the wheel.
3. Insert the cotter pin (C) into the hole in the end of the
axle. Bend the cotter pin over to secure the wheel to the
axle.
FIGURE 2
B
A
FIGURE 1
C
Install the Hopper
1. Remove back four M6-1.0 nuts (A) and set nuts and rear
stud plate (B) aside. Loosen front four M6-1.0 nuts (C), do
E
B
D
not need to remove. Install damper (D). SEE FIGURE 4
2. Install hopper (E) by sliding slotted holes (F) on the
front side of hopper onto the four front studs (G) with
loosened nuts. SEE FIGURE 5
3. Reinstall rear stud plate (H) and four back M6-1.0 nuts (I)
that were previously removed in Step 1. SEE FIGURE 5
4. Tighten all eight M6 nuts.
A
D
B
C
FIGURE 4
A
C
Install Chipper Cone (SEE FIGURE 3)
1. Position the chipper cone (A) over the three M8-1.25
threaded studs protruding from the engine plate, and
attach using three M8-1.25 ange nuts (B).
2. Rotate cone and cone base away from engine so cone
does not contact engine.
3. Tighten the ange nuts securely.
A
B
FIGURE 3
FIGURE 5
I
E
F
H
G
10 Check for parts online at www.tazztools.com or call 800-345-6007 M-F 8-5
Operator’s Manual
Chipper Shredders
Install the Hopper Guard (SEE FIGURE 6)
1. Hold the hopper guard assembly (A) so that the rubber
guard is directed down towards the bottom of the hopper.
Align the assembly holes with the holes in the hopper.
2. Using the three M6-1.0 x 16 bolts (B), M6 springlock
washers (C) and M6-1.0 nuts (D), secure the guard
assembly (A) to the hopper. Insert the bolts with washers
from the outside of the shredder hopper.
FIGURE 6
D
C
B
Install Debris Bag
1. Slide the support rod (A) into the bracket (B). SEE
FIGURE 8. Rotate the rod so that it sits below the front
tab (C) of the bracket. FIGURE 9
2. Slide the tabs (D) on the debris bag onto the support rod.
FIGURE 10
3. Secure the bag connector (E) onto the chipper by
rotating the connector until locked in. SEE FIGURE 10
FIGURE 8
A
B
A
Install the Handle (SEE FIGURE 7)
1. Hold the hopper handle (A) up so that the outer holes in the
handle align with the holes in the hopper and secure with
four M8-1.25 x 20 bolts (B), M8 washers (C) and M8-1.25 nuts
(D). Insert the screws from the outside of the hopper.
FIGURE 7
D
C
A
B
FIGURE 9
C
FIGURE 10
D
E
Check for parts online at www.tazztools.com or call 800-345-6007 M-F 8-5
11
Operator’s Manual
Chipper Shredders
GENERAL OPERATION
Be sure to read all information in the Safety and Operation
sections before attempting to operate this unit. Become
familiar with all of the controls and how to stop the unit.
Check all hardware (bolts, screws, etc) before every use for
tightness to be sure machine is in safe working condition.
Upon start-up and shut-down, you may hear the metal-to-metal sound of the triangular hammers and J-hammers
positioning themselves on the rotor. This is normal. If this
sound continues after the machine has reached full speed,
contact your dealer or Tazz for an inspection of the unit.
Overloading the equipment will shorten its life, and can cause
mechanical failures.
Chipper Operation
The chipper is designed to handle tree limbs and branches up
to approximately 3” (7,6 cm) in diameter. The chipping knives
also permit the processing of course organic matter like corn
stalks. Tree branches must be inserted large-end rst into the
chipper cone. Since occasional kick-backs may occur, always
stand o to the side of the unit. Allow the self-feeding action
of the unit to draw the sticks in.
Shredder Operation
The shredder is designed to shred light brush, leaves, and
other soft but bulky organic waste. As material (no larger than
1/2 inch in diameter) is loaded into the shredder hopper it is
pulled into the path of the triangular and J-hammers by air
ow.
Vacuum Attachment (Optional)
In addition to the chipper cone and hopper, loose debris may
be processed by the Vacuum hose adapter kit. Leaves may be
raked directly into the leaf tray where vacuum action will draw
them into the shredder. For hard-to-reach areas, the nozzle
and hose assembly may be used. The strength of the Vacuum
may be changed using the rotating sleeve on the nozzle. (See
Vacuum Kit parts explosion on page 28.)
The optional Tazz vacuum kit part number is 22518 and can
be ordered by contacting Tazz customer service or ordering
online at Tazzchippers.com as listed below.
Operating Location
Select an area with rm, level ground, covered by dirt or grass.
Do not operate on wet or slick surfaces, or near bystanders.
Locate and organize the materials to be processed so that you
don’t have to walk in front of the inlet or discharge openings,
and so you have adequate room to work safely.
Adding Oil
Refer to engine manual for information on adding oil.
DANGER
THE EXHAUST FROM THIS PRODUCT CONTAINS
CARBON MONOXIDE GAS. CARBON MONOXIDE IS A
COLORLESS, ORDERLESS AND TASTELESS GAS THAT
CAN CAUSE DIZZINESS, NAUSEA, UNCONSCIOUSNESS
OR EVEN BRAIN DAMAGE AND DEATH IF INHALED
FOR PROLONGED PERIODS.
OPERATE THE UNIT OUTDOORS IN A WELL
VENTILATED LOCATION ONLY. KEEP CHILDREN, PETS
AND BYSTANDERS AWAY.
FAILURE TO FOLLOW THESE INSTRUCTIONS MAY
RESULT IN SERIOUS INJURY OR DEATH
WARNING
TO AVOID SERIOUS PERSONAL INJURY FROM
ROTATING CUTTING BLADES, KEEP HANDS OUT OF
INLET WHILE MACHINE IS RUNNING.
WARNING
GASOLINE IS HIGHLY FLAMMABLE AND MUST BE
HANDLED WITH CARE. NEVER FILL THE TANK WHEN
THE ENGINE IS STILL HOT FROM RECENT OPERATION.
DO NOT ALLOW OPEN FLAME, SMOKING OR MATCHES
IN THE AREA. AVOID OVERFILLING AND WIPE UP ANY
SPILLS.
WARNING
DO NOT USE GASOLINE CONTAINING METHANOL,
GASOHOL CONTAINING MORE THAN 10% ETHANOL,
GASOLINE ADDITIVES OR WHITE GAS BECAUSE
ENGINE/FUEL SYSTEM DAMAGE COULD RESULT.
IMPORTANT
ENGINE IS SHIPPED FROM FACTORY WITHOUT
OIL. YOU MUST ADD ENGINE OIL BEFORE
STARTING ENGINE.
Adding Fuel
To add fuel:
1. Remove the fuel cap. (SEE FEATURES AND CONTROLS)
2. Fill the tank. Do not overll. Leave room in the tank for
fuel expansion. Refer to your engine manual for specic
fuel recommendations.
3. Install and hand tighten the fuel cap.
12 Check for parts online at www.tazztools.com or call 800-345-6007 M-F 8-5
Operator’s Manual
Chipper Shredders
Starting the Engine
1. See engine manual for start up instructions.
2. Ensure engine is running full throttle before beginning
chipping operation. On some engines, the throttle may
not be adjustable.
Stopping the Engine
1. See engine manual for shut down procedure.
2. Stopping the engine is the only way to stop the rotor
from turning. With engines equipped with an adjustable
throttle, move the throttle to the SLOW position and
wait for engine to be running a slow RPM. Then switch to
STOP ENGINE as shown in the engine manual.
Processing Materials
Most materials to be processed can be handled more eciently by following these tips.
Chipping Tips:
• Prune branches down close to the main branch to
make feeding them into the chipper cone easier.
• Large, hard, dried tree branches that resist chipping
can be processed by rotating them as you alternately
insert and retract them.
• If the material to be chipped is extremely hard, kicks
back forcefully when being fed into the chipper cone,
or cannot be easily controlled, remove the material
immediately and set it aside.
• If additional force is required to insert materials
into the chipper, the blades probably need to be
sharpened. Consult the Troubleshooting and Repair
section of this manual, or see your authorized dealer.
• Maintain control of the materials you are feeding to
prevent them from whipping around.
• Do not insert short pieces of material into the chipper
cone by hand. Use a larger piece of material to feed
them into the chipper cone.
Shredding Tips
• Don’t overload the shredder by dumping large
volumes of material into the hopper opening.
• Alternate loads of wet and dry material to prevent the
discharge from becoming plugged.
• Never use any object to force material into the
shredding chamber. It could get caught in the
shredding hammers and damage the unit.
Storage
• Perform engine maintenance and storage measures
listed in the engine owner’s manual. This includes
draining the fuel system, or adding stabilizer to the
fuel
NOTE: Do not store a fueled unit in an enclosed
structure. (SEE GASOLINE FIRES AND HANDLING FUEL
SAFETY
Before starting the unit after it has been stored:
• Check all uid levels. Check all maintenance items.
• Perform all recommended checks and procedures
found in the engine owner’s manual.
• Allow the engine to warm up for several minutes
before use.
TRANSPORTING AND STORAGE
1. Always observe safe refueling and fuel handling practices
when refueling the unit after transportation or storage.
2. Never store the unit (with fuel) in an enclosed poorly
ventilated structure. Fuel vapors can travel to an ignition
source (such as a furnace, water heater, etc.) and cause
an explosion. Fuel vapor is also toxic to humans and
animals.
3. Always use the hopper handle and built-in wheels to
move the chipper shredder. Never lift the unit using the
fuel tank for support. If the unit must be lifted , always
use at least two people, and always grip the unit securely
using the front leg and hopper handle.
4. Always follow the engine manual instructions for storage
preparations before storing the unit for both short and
long term periods.
5. Always follow the engine manual instructions for proper
start-up procedures when returning the unit to service.
6. Never store the unit or fuel container inside where there
is an open ame or pilot light, such as in a water heater.
Allow unit to cool before storing.
Check for parts online at www.tazztools.com or call 800-345-6007 M-F 8-5
13
CHIPPING AND SHREDDING RECOMMENDATIONS
OPERATION TYPE OF WASTE PERMITTED SIZE LIMITATIONS NOTES
Shredding Dry or moist organic material
including leaves, plants, owers, fruits, or vegetables.
Chipping Long, thicker tree limbs or
small bunches of smaller
sticks grouped together for
ease of handling.
Vacuum Attachment Light, loose, dry waste such
as leaves, grass clippings, or
sawdust.
Branches and twigs up to 1/2”
diameter and 18” long.
Tree limbs and branches,
or bundles of small sticks
grouped for easier handling.
Maximum diameter of approximately 3” (7,6 cm).
Small materials that will not
obstruct the vacuum hose.
Alternately chip or shred
moist green waste with dry
waste to avoid plugging of
the discharge chute.
Process at a feeding rate that
allows the rotor to keep up
and maintain a high rate of
speed.
Bulky tree limbs should be
pruned close to the main
stem. Always use a shorter
piece of wood to push end
pieces into the chipper cone.
Never place hands in the
chipper cone.
Never chip very hard or dry
materials such as kiln dried dimensional lumber (2x4’s etc.)
or other building materials.
Never use the chipper to process pressure-treated wood
products.
The vacuum is engineered
for small, loose waste and for
cleaning around decorative
landscaping and ower beds.
Twigs, wet leaves, and other
bulky materials will clog the
hose or obstruct the shredding chamber.
Operator’s Manual
Chipper Shredders
14 Check for parts online at www.tazztools.com or call 800-345-6007 M-F 8-5
MAINTENANCE
Schedule & Procedures
The following schedule should be followed for normal care of your unit.
Operator’s Manual
Chipper Shredders
SAFETY ITEMS BEFORE
EACH USE
EVERY 5
HOURS
EVERY 25
HOURS
EVERY 100
HOURS
EVERY 250
HOURS
Check for loose hardware x x
Check all safety labels x
Inspect cone, hopper, and guards x x
CHIPPER MAINTENANCE ITEMS
BEFORE
EACH USE
EVERY 5
HOURS
EVERY 25
HOURS
EVERY 100
HOURS
EVERY 250
HOURS
Clean debris from engine and chipper. ** x
Inspect/Rotate Shredding Hammers x
Inspect/Rotate Chipping Knives x
** More often in hot (over 85° F: 30° C) weather or dusty operating conditions.
Engine Maintenance
Refer to the engine manual included in your parts packet for
information on engine maintenance. Your engine manual provides information and a maintenance schedule for performing
the following tasks:
Inspect Cone, Hopper, & Guards
Service Interval: Every spring and fall.
Check that the chipper cone, shredder hopper, and discharge
guards are in place, undamaged, and secure. Replace any
damaged or missing parts.
1. Always check oil level before starting engine. Refer to
engine manual for capacity and type of oil to use.
2. Change oil after rst 5-8 hours of operation. Change oil
while engine is warm. Rell with new oil of recommended
grade.
4. Check spark plug yearly or every 50 hours of operation.
5. Service air cleaner.
6. Keep engine and parts clean.
7. Check engine and equipment often for loose nuts and
bolts, keep these items tightened.
SPRING &
FALL
SPRING &
FALL
Check for Loose Hardware
Service Interval: Every 5 hours; every spring and fall.
Inspect the unit, checking for loose hardware or components.
Pay special attention to the hardware attaching the chipper
cone, hopper, axle, and front leg.
Check Safety Labels
Service Interval: Every spring and fall.
Check that the safety labels are in place and undamaged.
Sample illustrations and part numbers of the decals can be
found on page 6. Replace any damaged or missing decals.
Check for parts online at www.tazztools.com or call 800-345-6007 M-F 8-5
15
Operator’s Manual
Chipper Shredders
Air shroud
intake/air
lter
FIGURE 8 - Clean Debris from Engine Cooling Fins
NOTE: Engine air shroud removed from Figure 8
Muer
Cooling Fins
DEBRIS OFTEN GATHERS IN
THIS AREA
B
FIGURE 9- Inspect / Rotate Shredding Hammers
A. J-Hammer Wear Area
B. Access Panel
A
A
Clean Debris from Engine & Chipper
Service Interval: Before each use and every 100 hours.
The engine requires air ow to cool itself and for combustion.
Before each use, clean any debris from the unit especially from
around the air shroud intake, air lter, and muer. Every 100
hours, remove the engine air shroud and clean out any debris
from the engine cooling ns (SEE FIGURE 8). We recommend
having this service performed by an authorized dealer.
Inspect / Rotate Shredding Hammers
Service Interval: Every 25 Hours, or As Necessary
The shredding hammers of this unit can be rotated to provide
a new cutting surface as required. The triangular hammers
can be rotated twice, then ipped over for a total of 6 sharp
cutting surfaces. The J-hammers can be ipped over once. To
inspect the shredding hammers:
1. Disconnect the spark plug wire and secure it away from
the spark plug. SEE FIGURE 12 (on page 16)
2. Remove the small circular access panel (B) from the back
of the shredder housing. SEE FIGURE 9
3. Inspect the cutting edges of the triangular hammers (A)
and J-hammers (A). SEE FIGURES 9 AND 10
To rotate or replace the shredding hammers, see the Troubleshooting and Repair section.
FIGURE 10 - Inspect / Rotate Shredding Hammers
A. Triangular Hammer Wear Area
WARNING
AMPUTATION HAZARD. TO AVOID SERIOUS INJURY
FROM ACCIDENTAL STARTING, ALWAYS DISCONNECT
THE SPARK PLUG WIRE AND SECURE IT AWAY FROM
THE SPARK PLUG WHEN SERVICING THE UNIT.
16 Check for parts online at www.tazztools.com or call 800-345-6007 M-F 8-5
INSPECT CHIPPING KNIVES
Service Interval: Every 25 hours, or as necessary
The chipping knives of this unit can be rotated or sharpened
to provide a new cutting surface as required. When inspecting the knives be careful to avoid touching the sharpened
edges. To inspect the chipping knives:
1. Disconnect the spark plug wire and secure it away from
the spark plug. SEE FIGURE 12
2. Remove the nuts securing the chipper cone to the front
of the chipper. Remove the chipper cone (A) to access
the knives. SEE FIGURE 11
3. Using the recoil starter, slowly pull the starter rope to
rotate the rotor into position so the blades can be seen.
To sharpen or replace the chipper knives, see the Troubleshooting and Repair section.
Check / Change Engine Air Cleaner
Service Interval: Every 25 hours
The engine air cleaner assembly should be opened, inspected,
and the lter element replaced every 25 hours, or as required if
debris has built up in the assembly.
Operator’s Manual
Chipper Shredders
A
FIGURE 11- Inspect Chipper Knives
A. Chipper Cone
To replace the air lter, see engine manual.
Replace Spark Plug
Please contact your authorized dealer to perform this service.
Oil Maintenance
Refer to engine manual for oil maintenance.
IMPORTANT
ENGINE IS SHIPPED FROM FACTORY WITHOUT
OIL. YOU MUST ADD ENGINE OIL BEFORE
STARTING ENGINE.
CAUTION
FOR THE SAFETY OF THE USER, AND TO MAXIMIZE
THE LIFE OF THE ENGINE, IT IS CRUCIAL TO TAKE
TIME TO CHECK THE CONDITION OF THE ENGINE.
PROBLEMS MUST BE CORRECTED BEFORE
OPERATING.
AVOID INJURY! ENGINE OIL IS HAZARDOUS TO
YOUR HEALTH. DISPOSE OF OIL APPROPRIATELY.
USE A SAFE DISPOSAL/RECYCLING CENTER.
A
FIGURE 12
A. Spark Plug Cap/Wire
Check for parts online at www.tazztools.com or call 800-345-6007 M-F 8-5
17
TROUBLESHOOTING CHART
While normal care and regular maintenance will extend the
life of your equipment, prolonged or constant use may eventually require that service be performed to allow it to continue
operating properly.
The troubleshooting guide below lists the most common
problems, their causes, and remedies.
See the information on the following pages for instructions on
how to perform most of these minor adjustments and service
repairs yourself. If you prefer, all of these procedures can be
performed for you by your local authorized dealer.
PROBLEM CAUSE REMEDY
Engine will not start. 1. Out of Fuel.
2. Spark Plug Wire Disconnected.
3. Engine controls not set correctly.
4. Spark Plug Fouled.
5. No compression. Recoil starter pulls with
no resistance.
6. No spark. Ignition problems.
7. Old or stale fuel.
Engine exhaust is black. 1. Dirty air lter
2. Choke closed.
Engine runs but no material is
discharged.
Excessive branch vibration
when chipping materials.
Unusual noise or vibration
when chipping materials.
Vacuum not working. 1. Hopper gate not closed.
1. Discharge chute clogged.
2. Engine not running at full speed.
1. Chipper knives dull.
2. Tree limbs are extremely hard or dried
out.
1. Rotor overloaded with material.
2. Hammers are broken, bent, or loose.
3. Hammers frozen in place.
2. Cone cover not installed.
3. Hose not attached properly.
4. Hose obstructed or damaged.
5. Engine not running at full RPM.
WARNING
TO AVOID SERIOUS INJURY, PERFORM MAINTENANCE
ON THE UNIT ONLY WHEN THE ENGINE IS STOPPED.
ALWAYS DISCONNECT THE SPARK PLUG WIRE AND
FASTEN IT AWAY FROM THE PLUG BEFORE BEGINNING
THE MAINTENANCE, TO PREVENT ACCIDENTAL
STARTING OF THE ENGINE.
1. Add Fuel.
2. Reconnect spark plug wire as recommended in engine manual.
3. Refer to STARTING in the engine manual.
4. Remove spark plug. Clean/Replace as recommended in engine manual.
5. See your authorized dealer or service center.
6. See your authorized dealer or service center.
7. See your authorized dealer or service center.
1. Replace air lter. See engine manual.
2. Open choke.
1. Clean out debris.
2. Set throttle control to FAST if equipped. For
xed throttle engines see your authorized
dealer or service center.
1. Sharpen/Replace chipper knives.
2. Material is not suitable for chipping.
1. Allow unit to clear itself before adding
more material to the hopper.
2. Check assembly. Tighten or replace as
necessary.
3. Check for obstructions and debris. Repair
or replace as necessary.
1. Slide gate to closed position.
2. Allow material to dry.
3. Attach hose per instructions (See Hose Kit).
4. Clear blockage or replace.
5. Set throttle control to FAST if equipped. For
xed throttle engines see your authorized
dealer or service center.
Operator’s Manual
Chipper Shredders
18 Check for parts online at www.tazztools.com or call 800-345-6007 M-F 8-5
Operator’s Manual
Chipper Shredders
G
C
FIGURE 13 - Gaining access to the knives and hammers
REPAIR
Shredding Hammer Rotation and Replacement
The cutting edges of the shredding hammers may eventually
wear out requiring rotation of the hammer or replacement if
all cutting edges have been dulled.
Triangular hammers can be rotated twice after the rst edge
dulls, then ipped over once and rotated again for a total of 6
edges. J-hammers can be ipped over once for a total of two
cutting edges.
To rotate the shredding hammers:
1. Turn the engine o and wait for all moving parts to stop.
2. Disconnect the spark plug wire and secure it away from
the spark plug. SEE FIGURE 12
3. Detach the rotor housing and hopper from the rotor
plate. SEE FIGURE 13
4. Note the assembly sequence of the hardware used
to secure the hammers. Using an 8mm allen wrench
remove the socket head cap screw (A) and related
hardware. SEE FIGURE 14
5. Inspect the hammers (C, G), spacer tubes (D, E), and
hardware. If the spacer tube (D, E) shows signs of wear,
replace it. Inspect and ip, or replace the hammers (G,
C).
6. Reassemble the hammers, spacers, washers, and cap
screws. Torque the socket head cap screws (A) to 30-35
ft. lbs. (41-47 N.m.) The J-hammer (G) on the opposite
side of the rotor faces outward for balanced rotation.
7. Repeat for all the hammers.
C
A
D
G
F
B
FIGURE 14- Rotor Housing
A. Socket Hd. Cap Screw E. Spacer, Short
B. Lock Washer F. Washer
C. Triangular Hammer G. J-Hammer
D. Spacer, Long
Check for parts online at www.tazztools.com or call 800-345-6007 M-F 8-5
19
Operator’s Manual
CHIPPER KNIFE
SOCKET HEAD
CAP SCREW
LOCK WASHER
CHIPPER KNIFE CUTTING EDGE
30º
Chipper Shredders
Chipping Knives Sharpening and Replacement
The chipping knives should be sharpened or replaced when
tree limbs require extra force to feed into the chipper cone.
The chipping knives may be sharpened at a 30 degree angle
until the distance between the edge of the blade bevel and
the mounting hole is less than 1/16” (1.6mm). SEE FIGURE 15.
To inspect, sharpen, or replace the chipping knives:
1. Turn the engine o and wait for all moving parts to stop.
2. Disconnect the spark plug wire and secure it away from
the spark plug. SEE FIGURE 12 (page 16)
3. Detach the rotor housing and hopper from the rotor
plate. SEE FIGURE 13
4. Remove the rotor by removing the hardware that secures
it to the engine crank shaft. SEE FIGURE 15
NOTE: Do not lose spacer. During reassembly Be sure
to place spacer is installed inside rotor. Without spacer,
rotor will interfere with housing components.
5. Using a hex wrench, remove the two socket head cap
screws and the chipper knife. SEE FIGURE 16
6. Inspect, rotate, sharpen, or replace the chipper knife.
SEE FIGURE 17
7. Reinstall the chipper knife and tighten the socket head
cap screws to 18-20 ft-lb (24-27 N.m.). We recommend
the use of high strength threadlocker on screws.
WARNING
AMPUTATION HAZARD. TO AVOID SERIOUS INJURY
FROM ACCIDENTAL STARTING, ALWAYS DISCONNECT
THE SPARK PLUG WIRE AND SECURE IT AWAY FROM
THE PLUG WHEN SERVICING THE UNIT.
WARNING
CUTTING HAZARD. TO AVOID SERIOUS INJURY, AVOID
CONTACTING THE SHARP CUTTING EDGES OF THE
CHIPPING KNIVES.
Crank Shaft
Spacer
FIGURE 15- Removing the Rotor Housing
FIGURE 16 - Removing the Chipper Knives
TOP VIEW
1/16”
MIN.
FIGURE 17- Chipper Knife Minimum Cutting Edge
SIDE VIEW
20 Check for parts online at www.tazztools.com or call 800-345-6007 M-F 8-5
NOTES
Operator’s Manual
Chipper Shredders
Check for parts online at www.tazztools.com or call 800-345-6007 M-F 8-5
21
Operator’s Manual
Chipper Shredders
ILLUSTRATED PARTS BREAKDOWN
11
8
10
12
25
21
18
20
13
8
16
10
14
15
19
22
17
23
24
3
4
5
9
8
7
ITEM # PART # DESCRIPTION QTY.
1 50175 WASHER 12MM TILLER 2
2 22243 CHIPPER WHEEL 11X 2 2
3 22245 CONE COVER 1
4 21930 WELDMENT CHIPPER CONE 1
5 16400 NUT M8 X 1.25 HSF NYLOC GR8.8 ZN 8
6 22097 COTTER PIN HAIRPIN 2MM X 50MM 2
7 12770 M8 X 1.25 X 40 MM 88 ZN 4
8 20143 WASHER M8 X 16 X 1.6 FLAT ZN 12
9 22093 KICKSTAND CHIPPER 1
W1256V0900
10
11 14109 NUT M6 X 1.0 HHFNYLK GR8.8 ZN 3
12 20818 BOLT M8 X 1.25 X 16 HHSF GR8.8 ZN 4
13 21904 HANDLEBAR CHIPPER 1
NUT M8 X 1.25 HNYLK GR8.8 ZN 8
6
1
2
ITEM # PART # DESCRIPTION QTY.
14 670890 BOLT M6 X 1.0 X 16 HH GR8.8 ZN 3
15 18130 WASHER M6 X 1.5 SPRLK ZN 3
16 1095100 GUARD HOPPER 10.25 X 1.00 X 0.10
17 14109 NUT M6 X 1.0 HHFNYLK GR8.8 ZN 4
18 18130 WASHER M6 X 1.5 SPRLCK ZN 4
19 22091 FLANGE HOPPER GUARD 1
20 22110 RETAINER HOPPER GUARD 1
21 67089 BOLT M6 X 1.0 X 16 HH GR 8.8 ZN 4
22 21942 ROD BAG SUPPORT 1
23 21932 CONNECTOR BAG 1
24 22029 BAG CHIPPER 840MM X 560MM 2
25* --- CHIPPER ASSEMBLY ---
BLACK
*Item shown for illustrative purposes only.
1
22 Check for parts online at www.tazztools.com or call 800-345-6007 M-F 8-5

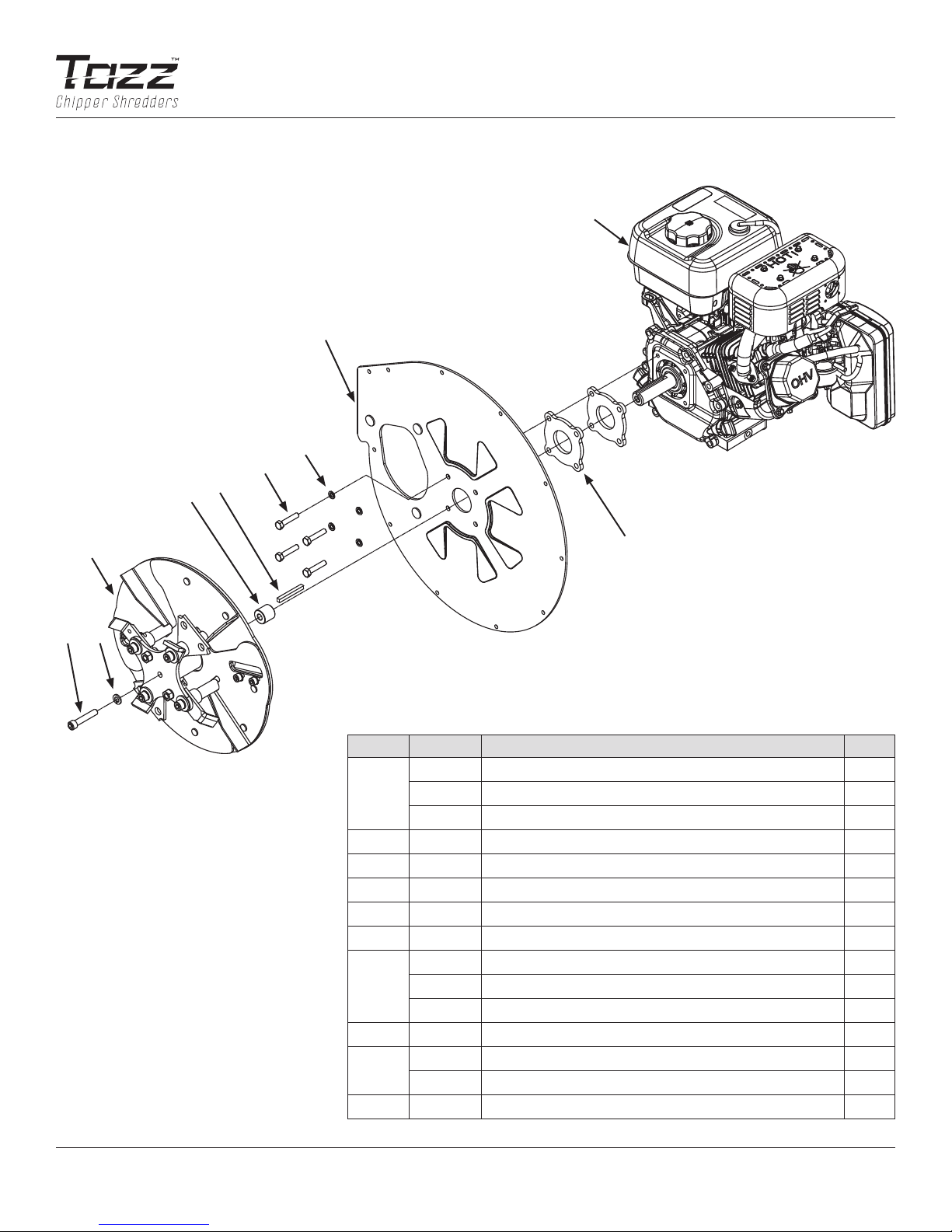

ILLUSTRATED PARTS BREAKDOWN ENGINE AND ROTOR GROUP MODEL 18493
1
2
8
7
4
9
Operator’s Manual
Chipper Shredders
3
6
5
ITEM # PART # DESCRIPTION QTY.
13434
1
2 20828
3 21959
4 905100
5 6516100
6 1916965
813
7
1921515
12770
8 21640
1713200
9
3299100
10 22848
ENGINE HRZ 1 IN SHAFT 212CC VPR R210 EPA3 (18493)
---
ENGINE 6 HP BRIGGS INTEK HORZ SHAFT (22753)
---
KOHLER 196CC RH265 (22754)
WELDMENT PLATE ENGINE
ASSEMBLY ROTOR HAMMERS AND KNIVES METRIC
KEY 1/4 SQ X 2-1/4 PARALLEL PLN
BOLT 3/8-24 X 2 SHCS GR8 BLK ZN
WASHER LOCK SPRING 3/8
BOLT 5/16-24 X 1-1/4 HH GR8.8 ZN (18493)
BOLT 5/16-24 X 3/4 HHCS GR5 (22753)
M8 X 1.25 X 40MM HH ZN (22754)
WASHER M8 SPRLK ZN
SPACER .41 X 1.00 X .95 THK STEEL (18493, 22754)
SPACER 406 ID X 1.000 OD X .822 LG (22753)
SPACER ENGINE R210 (18493, 22754)
10
1
1
1
1
1
1
1
1
4
4
4
4
1
1
2
Check for parts online at www.tazztools.com or call 800-345-6007 M-F 8-5
23
ILLUSTRATED PARTS BREAKDOWN ENGINE AND ROTOR GROUP MODEL 22752
4
1
6
2
7
3
8
5
Operator’s Manual
Chipper Shredders
10
9
ITEM # PART # DESCRIPTION QTY.
1 20838
2 21640
3 21959
4 22842
5 22860
6 23193
7 23196
8 905100
9 1916965
10 6516100
WELDMENT PLATE ENGINE
WASHER M8 SPRLK ZN
ASSEMBLY ROTOR HAMMERS AND KNIVES METRIC
ENGINE HRZ 1 IN SHAFT 10 HP VPR R300
SPACER 10.31MM IDX 25.4 MM ODX 35.9 MM LG
SPACER ENGINE R300 TAZZ 90MM C TO C
BOLT M8 X 1.25 X 55 HHCS GR8.8 ZN F-T
KEY 1/4 SQ X 2-1/4 PARALLEL PLN
WASHER LOCK SPRING 3/8
BOLT 3/8-24 X 2 SHCS GR8 BLK ZN
1
4
1
1
1
1
4
1
1
1
24 Check for parts online at www.tazztools.com or call 800-345-6007 M-F 8-5
ILLUSTRATED PARTS BREAKDOWN ROTOR GROUP
Operator’s Manual
Chipper Shredders
11
1
6
7
4
9
2
5
13
8
2
13
11
10
8
12
3
ITEM # PART # DESCRIPTION QTY.
1 22668 ASSEMBLY ROTOR KIT 1
2 21958 SPACER 10.1 MM ID X 13 MM ODX 31.242LG 4
3 22669 HAMMER TRIANGULAR 5MM THICK 1
4 22166 SPACER 13.00 ID X 19.050 OD X 18.745 LG 4
5 22670 ASSEMBLY J HAMMER KIT 1
6 21962 KNIFE CHIPPER 76.2 MM LG M8 TAP 2
7 21640 WASHER M8 SPRING LOCK ZINC 4
8 13559 WASHER M10 SPRING LOCK 6
9 21963 BOLT M8-1.25 X 16 SHCS GR8.8 ZN F-T 4
10 21964 BOLT M10-1.5 X 16 SHCS GR8.8 ZN F-T 2
11 21965 BOLT M10-1.5 X 50 SHCS GR8.8 ZN F-T 4
W1265V0903
12
13 19905 WASHER M10 X 20MM X 2MM X FLAT ZN 4
NUT M10 HNYLK GR8.8 ZN 2
Check for parts online at www.tazztools.com or call 800-345-6007 M-F 8-5
25
ILLUSTRATED PARTS BREAKDOWN CHIPPER HOUSING GROUP
2
7
14
11
Operator’s Manual
Chipper Shredders
9
10
10
1
4
8
4
7
13
ITEM # PART # DESCRIPTION QTY.
1 20812 WELDMENT HOUSING ROTOR 1
2 22666 ASSEMBLY BAG CONNECTOR KIT 1
12
5
6
6
5
3
3 22650 COVER ROTOR HOUSING GREEN PANTONE 361 1
4 13599 NUT M6 X 1.0 HHFNYLK GR8.8 ZN 16
5 21640 WASHER M8 SPRING LOCK ZINC 6
6 3241 BOLT M8 X 1.25 12 HHCS GR8.8 ZN 6
W1265V0900
7
8 23956 BOLT M8 X 1.25 X 12 SHCS GR8.8 ZN F-T 2
9 22027 BOLT M8-1.25 X 20 SFH GR8.8 ZN F-T 2
10 22025 BOLT M6-1.0 X 16 SFH GR8.8 ZN F-T 9
11 22539 WELDMENT BAG SUPPORT 1
12 21935 WELDMENT AXLE MOUNT CHIPPER 1
13 19221 WELDMENT CHIPPER BACK COVER 1
14* --- ENGINE AND ROTOR GROUP ---
NUT M8 X 1.25 HNYLK GR8.8 ZN 4
26 Check for parts online at www.tazztools.com or call 800-345-6007 M-F 8-5
*Item shown for illustrative purposes only.
ILLUSTRATED PARTS BREAKDOWN HOPPER GROUP
5
4
2
Operator’s Manual
Chipper Shredders
ITEM # PART # DESCRIPTION QTY.
1 22667 ASSEMBLY DAMPER KIT 1
2 22557 WELDMENT CHIPPER HOPPER 1
3 27077 STUD PLATE 2
4 22115 BADGE TAZZ BRANDING 1
5 27308 NUT M6 X 1.0 HFNYLK GR8.8 STNLYS 8
6* --- CHIPPER HOUSING GROUP ---
*Item shown for illustrative purposes only.
1
6
Check for parts online at www.tazztools.com or call 800-345-6007 M-F 8-5
3
27
Operator’s Manual
Chipper Shredders
ILLUSTRATED PARTS BREAKDOWN VACUUM KIT OPTIONAL ACCESSORY MODEL NO. 22518
1
2
3
13
9
4
8
10
5
7
11
12
6
ITEM # PART # DESCRIPTION QTY.
1 1021100 ADAPTER 4IN VAC COL HOSE 1
2 1023100 COUPLER VAC COL HOSE TO ADAPTER
2C 3
3 1025100 CAP PLUG 4IN VOL HOSE 2C HOSE 2C
3C 5C
4 1035100 HOSE VAC COL 4.00DIA X 10 FT LG 5C 1
5 1027100 LEAF TRAY 2C 3C 5C VACUUM COL 1
6 1030100 NOZZLE VAC COL FOR 5C CHIPPERS 1
7 1024100 RING PLASTIC 5IN DIA 3IN LG NOTCHED 1
8 1026100 HANDLE VAC COL 0.75IN DIA TUBE 1
9 1028100 GRIP HANDLE 10IP BLACK VINYL 3/4 1
10 6041612 BOLT 1/4-20 X 1-1/2 PTH ZN 1
11 1921319 WASHER 1/4 0.27 IDX0.620DX.05THK 2
12 1960294 NUT 1/4-20 HSFBW BLK ZN 1
13 1919326 WASHER-0.312 0.34ID X 0.75ODX
0.06THK
1
1
3
28 Check for parts online at www.tazztools.com or call 800-345-6007 M-F 8-5
Operator’s Manual
Chipper Shredders
ILLUSTRATED PARTS BREAKDOWN TOW BAR KIT OPTIONAL ACCESSORY MODEL NO. 1692327
3
4
2
5
7
8
9
1
ITEM # PART # DESCRIPTION QTY.
1 1713352 BENT ARM ASSEMBLY, TOW BAR 1
2 1713414 ROD ASSEMBLY-TOW VAR SWING ARM 1
3 1713357 ROD HOLDER ASSY-TOW BAR 1
4 1925205 BOLT 5/16-18 5/8 HHCS GR5 1
5 1423B BOLT 5/16-18 X 2 HHCS GR5 BLK ZN 1
6 1919438 NUT 5/16-18 NYLOCK BLK ZN 1
7 1710726 PIN-CLEVIS .308DIAX1.500LG .43DIA 4
8 118053 PIN-RND HD DRILLED .375 X 2.000 1
9 1918196 PIN-QUICK .091DIA WIRE 1.875LG 5
6
Check for parts online at www.tazztools.com or call 800-345-6007 M-F 8-5
29
Operator’s Manual
Chipper Shredders
WARRANTY TERMS AND CONDITIONS
Limited 5 Year Chipper Shredder Warranty
Ardisam, Inc. (Ardisam) warrants this chipper shredder under a ve-year limited warranty to be free from defects in the material or workmanship or both for a
period not exceeding sixty consecutive months from the date of original purchase by the rst retail consumer or rst commercial end user. This warranty does
not apply to the engine mounted on the product. “Consumer use,” means personal recreational use by a retail consumer. “Commercial use,“ or “commercial
application,“ means all other uses, including use for commercial, income producing or rental purposes. Once a product has experienced commercial use, it
shall thereafter be considered as a commercial use product for the purpose of this warranty. This warranty applies to the original owner that provides a proof
of purchase. This warranty is not transferable. The warranty period begins on the date of purchase by the rst retail consumer or commercial end user, and
continues for the sixty month consecutive period thereafter. Any unit used in a commercial application is covered for a period of 90 days after purchase by the
rst commercial end user. For the warranty to be valid, the product must be registered online within 30 days of purchase, or the warranty card must be lled out
and received by Ardisam within 30 days of purchase. Ardisam shall not be obligated for transportation charges that result from repair or replacement under the
terms of this warranty. Transportation charges are the sole responsibility of the purchaser.
This warranty excludes parts that are worn or damaged due to normal wear, such as bearings, wheels, tires, tri hammers, J hammers, chipper knives, routine
maintenance items such as O-rings, seals, and lubricants, accessory parts such as nylon collection bag and collection bag mounts. Negligent use such as using
the chipper shredder for a purpose other than for which it was designed and manufactured, continued use of chipper shredder after sudden change in vibration
do to foreign bodies adhering to chipper rotor, using the chipper shredder in violation of local codes, ordinances and good trade practices voids this warranty.
*These warranties apply only to products which have not been subjected to negligent use, abuse, misuse, overload, improper installation, alteration, accident,
acts of God (or other events beyond Ardisam’s control), vandalism, unauthorized parts, or if repairs have been performed at a non-authorized service facility.
These warranties shall not cover damage from normal wear and tear, normal maintenance parts and services, lightning; nor improper installation, operation,
storage, or maintenance; nor operating the equipment above recommended maximums as stated in this manual and the accompanying engine manual.
This limited warranty applies to defects in the material or workmanship of the product only. This warranty policy applies only to product which have not been
subjected to misuse including but not limited to operating the product with excessive vibration causing loose hardware, uses other than those indicated in
the product manual, alteration, accident, use of unauthorized parts, failure to perform periodic maintenance as specied in product manual, normal wear and
tear, use of unauthorized parts or repairs performed at unauthorized service centers. There is no other express warranty. Implied warranties, including those of
merchantability and tness for a particular purpose, are limited to one year from purchase, or to the extent permitted by law. All other implied warranties are
excluded. Liability for incidental or consequential damages are excluded to the extent exclusion is permitted by law. Ardisam does not assume, and does not
authorize any other person to assume for Ardisam, any liability in connection with the sale of Ardisam products. To be at “No Charge,” warranty work must be
sent directly to and performed by Ardisam or an Ardisam Authorized Warranty Service Facility. To obtain warranty service and/or replacement instructions,
contact the Ardisam Customer Service Department at 800-345-6007. If you choose to ship your product to Ardisam for warranty repair, you must rst have prior
approval from Ardisam by calling the Ardisam Customer Service Department for a return material authorization number (RMA#). Under these circumstances, all
items must be shipped prepaid. Ardisam will, in its discretion, at no charge, repair or replace any defective part to which this warranty applies. Ardisam retains
the right to change models, specications and price without notice. Ardisam shall not be obligated to ship any repair or replacement product to any location
outside of the United States of America or Canada. Some states and countries do not allow the limitations on how long an implied warranty lasts, or the exclusion
or limitation of incidental or consequential damages, so the above limitation may not apply to you. This warranty gives you specic legal rights, and you may also
have other rights which vary from state to state and country to country.
30 Check for parts online at www.tazztools.com or call 800-345-6007 M-F 8-5
NOTES
Operator’s Manual
Chipper Shredders
Check for parts online at www.tazztools.com or call 800-345-6007 M-F 8-5
31
All weights, specications and features are approximate and are subject to change without notice. Due to continuous product
improvements, product images may not be exact. Items used for props not included. Some assembly may be required.
Check for parts online at www.tazztools.com or call 800-345-6007 M-F 8-5
Tazz™, Division of Ardisam, Inc.
1160 8th Avenue, PO Box 666
Cumberland, WI 54829
800-345-6007 | Fax 715-822-2223
Email: info@tazztools.com
Loading...
