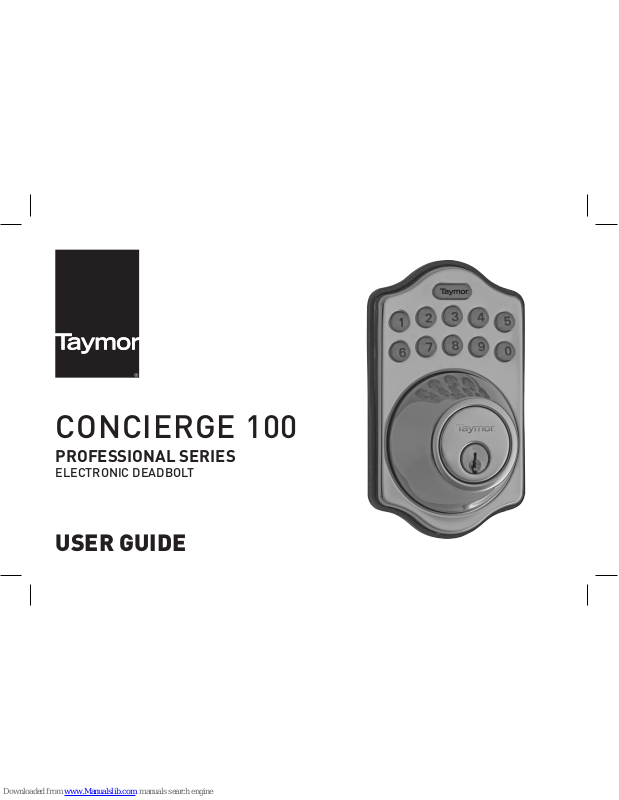

CONCIERGE 100
PROFESSIONAL SERIES
ELECTRONIC DEADBOLT
USER GUIDE
IMPORTANT SAFETY INFORMATION 1
TOOLS NEEDED FOR NEW INSTALLATION 2
COMPONENTS OF ELECTRONIC KEYPAD DEADBOLT 3
DOOR PREPARATION 4 - 7
INSTALLATION 8 - 13
OVERVIEW OF FUNCTIONS 14
KEYPAD LIGHTS & WARNINGS 15
CODES INFORMATION 16
PROGRAMMING
1. AUTOMATIC BOLT DIRECTION ADJUSTMENT 17
2. CHANGE PROGRAMMING CODE 18
3. ADD/DELETE USER ENTRY CODE 19
4. DELETE ALL USER ENTRY CODES AT ONCE 20
5. TEMPORARILY DISABLE ALL USER CODES 21
6. CREATE A DISPOSABLE USER ENTRY CODE 22
7. “AUTO LOCK” FUNCTION 23
8. MUTE ON/OFF 24
9. RESTORE FACTORY SETTING 25
OPERATION 26 - 27
TROUBLESHOOTING GUIDE 28 - 29
INFORMATION PAGE 30
WARRANTY 31
CONTENTS
IMPORTANT SAFETY INFORMATION
!
WARNING
1. Do not use any abrasives or any chemical products containing any substance of alcohol, benzene,
hydrochloric acid or nitric acid, and avoid sharp or scratching objects to clean this lockset.
2. Do not let any water or liquid into lockset during installation process.
!
IMPORTANT SAFETY INSTRUCTION
1. Do not attempt to disassemble any internal components of the lockset personally. You may run the
risk of voiding the limited warranty.
2. Do not drop or hit the lockset.
3. Do not use sharp objects to press key buttons.
4. Always create a backup of information you want to keep (such as programming code and use
codes). Please use the last page of this booklet as your reference.
5. Please change programming code before operating this lockset.
!
CARE AND MAINTENANCE
The following care instructions should be followed to ensure a long lasting finish:
1. Remove locks, or do not install locks, prior to painting your door.
2. Periodically clean with mild soap and a soft cloth only.
® REGISTERED TRADEMARK OF TAYMOR INDUSTRIES LTD.
1
• PENCIL
• CHISEL
• TAPE MEASURE
• HAMMER
• PHILLIPS SCREWDRIVER
• 1” (25 mm) & 1/8” (3 mm) DRILL BITS
• 2-1/8” (54 mm) HOLE BORING KIT
• POWER DRILL
• 2” (51 mm) 6D COMMON NAIL
• 4 - AA 1.5V ALKALINE BATTERIES
TOOLS NEEDED FOR NEW INSTALLATION
2
® REGISTERED TRADEMARK OF TAYMOR INDUSTRIES LTD.
® REGISTERED TRADEMARK OF TAYMOR INDUSTRIES LTD.
3
COMPONENTS OF ELECTRONIC KEYPAD DEADBOLT
INTERIOR BATTERY COVER
WOOD
SCREWS
METAL
SCREWS
MOUNTING
BOLTS
MOUNTING
PLATE
INTERIOR ASSEMBLY
WOOD
SCREWS
LATCH
RUBBER GASKET
CYLINDER
TORQUE
BLADE
CYLINDER
EXTERIOR ASSEMBLY
IC WIRE
4
® REGISTERED TRADEMARK OF TAYMOR INDUSTRIES LTD.
TEMPLATE
CENTERLINE
MARK DOOR EDGE APPROXIMATELY
3” TO 6” (75 mm TO 150 mm) ABOVE
THE ENTRY KNOB OR LEVER
DOOR PREPARATION
1
MARK DOOR WITH TEMPLATE (ATTACHED SEPARATELY)
Note: If replacing an existing lock or installing in a pre-drilled door, begin with page 8.
a. Use TEMPLATE to mark centerline on door for deadbolt about 3” to 6” (75 mm to 150 mm) above
the existing knob or lever.
b. Stand so door swings towards you. Align template on centerline and fold template as shown.
CENTERLINE
BACKSET
DRILL 1/8” (3 mm) PILOT HOLE
1”
(25 mm)
2-1/8”
(54 mm)
DRILL 1/8” (3 mm) PILOT HOLE
® REGISTERED TRADEMARK OF TAYMOR INDUSTRIES LTD.
5
DOOR PREPARATION
2
MARK AND DRILL PILOT HOLES
Select backset. Mark and drill pilot holes
as shown.
6
® REGISTERED TRADEMARK OF TAYMOR INDUSTRIES LTD.
DOOR PREPARATION
3
USING THE TEMPLATE MARKS AS A GUIDE
a. Drill a 2-1/8” (54 mm) hole on the door face from both sides to prevent wood from splitting.
b. Drill a 1” (25 mm) hole in the door edge for the latch.
c. Use the latch faceplate as a pattern for the mortise and pilot holes. Chisel 1/8” (3 mm) deep.
Faceplate should fit flush.
Note: for drive-in latch, simply insert latch.
a. b. c.
2-1/8”
(54 mm)
1”
(25 mm)
FACEPLATE
OUTLINE
CHISEL 1/8”
(3 mm) DEEP
® REGISTERED TRADEMARK OF TAYMOR INDUSTRIES LTD.
7
DOOR PREPARATION
4
PREPARE DOOR JAMB AND INSTALL STRIKE PLATE
a. To identify the center of the strike: insert the latch, close the door;
using the latch faceplate as a guide, mark horizontal centerline and
outline of the strike. Ensure the center of the faceplate and the
center of the strike are aligned.
b. Chisel 5/64” (2 mm) deep along the strike outline to allow the strike
to be aligned with the door frame.
c. Insert the strike and tighten it with wood screws.
Door jamb hole dimension
a. 1-3/16 (30 mm)
b. 1-3/8” (35 mm)
c. 1” (25 mm)
Strike dimension
d. 9/32” (7 mm)
e. 2-15/16” (75 mm)
f. 1-5/16” (33 mm)
a.
b.
c.
A
B
C
D
E
F
8
® REGISTERED TRADEMARK OF TAYMOR INDUSTRIES LTD.
INSTALLATION 6 WAY LATCH
1
6 WAY LATCH
To Change Latch Faces
1. Use a flat-head screwdriver to separate
the faceplate form the backplate.
2. Snap the selected faceplate onto the
backplate.
Latch Backset Adjustment
To rotate the latch case as following
illustration for backset 2-3/4” (70 mm)
or reverse direction for 2-3/8” (60 mm)
Drive-in Installation
Make sure the round faceplate is properly
aligned as illustrated and snap it to the
latch case.
DRIVE-IN LATCH
2-3/4” (70 mm)
1B
® REGISTERED TRADEMARK OF TAYMOR INDUSTRIES LTD.
9
INSTALLATION
2
INSTALL LATCH IN MORTISED AREA OR DRIVE-IN LATCH
If your door is set up to use a standard type latch, please install it with the 3/4” (20 mm) screws
that are provided. If you use the drive-in latch, please tap it into place.
BACKSET
FACEPLATE
3/4” (20 mm) WOOD SCREWS
OR
DRIVE-IN LATCH
TAP
LATCH
FLUSH
WOOD BLOCK
(NOT INCLUDED)
10
® REGISTERED TRADEMARK OF TAYMOR INDUSTRIES LTD.
INSTALLATION
3
a. Make sure latch is in retracted position.
b. Insert the cylinder into exterior assembly with cylinder torque blade inserted through hub of the
latch in a horizontal position.
c. Pass the IC wire under the latch to the interior side of the door.
a. b. c.
IC WIRE
® REGISTERED TRADEMARK OF TAYMOR INDUSTRIES LTD.
11
INSTALLATION
4
INSTALL INSIDE THE MOUNTING PLATE
a. Carefully pass the IC wire through the wire hole
on the mounting plate.
b. Making sure that the exterior assembly and
cylinder are pressed flush against the exterior
door, insert the mounting bolts and tighten.
c. Check the vertical alignment for the mounting
plate and exterior assembly.
d. Test. Using the key, retract and extend the bolt
a few times to test for smooth action.
e. If action feels rough, loosen screws and realign
the mounting plate and exterior assembly.
KEEP PARALLEL
MOUNTING PLATE
MOUNTING BOLTS
IC WIRE
12
® REGISTERED TRADEMARK OF TAYMOR INDUSTRIES LTD.
INSTALLATION - DOOR HANDING
5
IDENTIFY THE DOOR HANDING
a. Face the door from inside
b. The door is “left-handed” if the hinges are on the left hand side of the door.
c. The door is “right-handed” if the hinges are on the right hand side of the door.
6
ADJUST INTERIOR TURN PIECE
a. Turn the turn piece to the left when it is a “right-handed” door.
b. Turn the turn piece to the right when it is a “left-handed” door.
LEFT-HANDED RIGHT-HANDED
INTERIOR
EXTERIOR
HINGE
DOOR
® REGISTERED TRADEMARK OF TAYMOR INDUSTRIES LTD.
13
INSTALLATION - RECEIVER MODULE
7
INSTALL RECEIVER MODULE
a. Remove the battery cover (push it up and pull it out).
b. Connect the IC wires and ensure the cylinder torque blade is engaged with the turn piece then
attach the interior assembly to the door with the metal screws.
c. Insert 4 (AA) 1.5V alkaline batteries and place the cover back onto the interior assembly.
BATTERY
COVER
METAL
SCREWS
WOOD
SCREWS
a.
b.
c.
14
® REGISTERED TRADEMARK OF TAYMOR INDUSTRIES LTD.
OVERVIEW OF FUNCTIONS
1. PROGRAMMING BUTTON
Programming Button is for entering codes,
clearing errors, and setting functions.
It’s also a “Lock” Button.
2. KEYPAD WITH NUMBER BUTTONS
For inputting codes, 4-10 digits in length.
3. CYLINDER
Retract/Expand latch bolt by key from outside.
4. RUBBER GASKET
To prevent water leaking through
exterior assembly.
5. BATTERY COVER
6. BATTERY HUB
Four (AA) Alkaline Batteries
(sold separately)
7. “R” BUTTON (RESET)
Restore default setting
8. TURN PIECE
Retract/Expand the latch bolt
from inside.
1
2
3
4
6
7
8
5
® REGISTERED TRADEMARK OF TAYMOR INDUSTRIES LTD.
15
KEYPAD LIGHTS & WARNINGS
LED INDICATOR LIGHT
1. Flashes “Green” once when operating function is performed properly.
2. Flashes “Green” twice when programming function is performed properly.
3. Flashes “Red” three times when operating function was not performed properly.
4. Flashes “Red” five times following five unauthorized entry attempts - the keypad will be disabled for
45 seconds.
5. Flashes “Orange” three times when system was restored to default setting.
6. Flashes “Orange” slowly while in programming mode.
AUDIO WARNINGS
1. One “Beep” - operating function was performed properly.
2. Two “Beeps” - programming function was performed properly.
3. Three “Beeps” - operating function was not performed properly.
LOW BATTERY WARNING
LED indicator flashes “Red” and constant “Beep” sound is on for 10 seconds. Please replace batteries.
Note: • The lock can still be operated via regular key.
• All settings are stored in the memory and will not be affected even when the batteries are replaced.
16
® REGISTERED TRADEMARK OF TAYMOR INDUSTRIES LTD.
CODE INFORMATION
PROGRAMMING CODE
1. Programming code provides ability to program/reprogram the deadbolt, and change/delete/add
individual user codes.
2. Programming code cannot be used to unlock the deadbolt.
3. Only one programming code is allowed, 4-10 digits in length.
4. The factory preset programming code is 0-0-0-0, and can be changed anytime if needed.
USER ENTRY CODE
1. User entry code allows the individual user to lock and unlock the deadbolt.
2. The factory preset user entry code is 1-2-3-4. Please delete it and create your personal, unique user
entry code as soon as the deadbolt is installed.
3. User entry code can be 4-10 digits in length.
4. Maximum of 6 user entry codes can be programmed into one deadbolt.
5. An individual user entry code can be changed/deleted/added to the lockset only by using a valid
programming code.
® REGISTERED TRADEMARK OF TAYMOR INDUSTRIES LTD.
17
PROGRAMMING
AUTOMATIC BOLT DIRECTION ADJUSTMENT
Deadbolt throw direction is automatically adjusted to left or right-handed door.
1. Deadbolt should be in unlocked position.
2. Make sure the interior thumbturn position is identified properly according to door handing.
(see page 12).
FUNCTION STEPS
Detect Left/Right Hand
Door Installation
Enter
Programming
Code
Press
“0”
18
® REGISTERED TRADEMARK OF TAYMOR INDUSTRIES LTD.
PROGRAMMING
CHANGE PROGRAMMING CODE
IMPORTANT: The factory preset programming code is 0-0-0-0 and needs to be changed to a unique
6 digit number before operating the deadbolt.
1. Deadbolt should be in unlocked position.
2. LED indicator flashes “Orange” while in programming mode. LED indicator flashes “Green” twice
with 2 long “Beeps” when programming function is performed correctly. LED indicator light flashes
three times with three “Beeps” when programming function is performed incorrectly.
Note: wait for at least 6 seconds or press
and repeat programming steps if programming error
was committed.
3. Every programming step should be performed in 6 seconds or less.
FUNCTION STEPS
Change
Programming
Code
Enter
Programming
Code
Press
“4”
Enter
Programming
Code
® REGISTERED TRADEMARK OF TAYMOR INDUSTRIES LTD.
19
PROGRAMMING
ADD/DELETE USER ENTRY CODE
1. User entry codes can be deleted individually. You can reuse the same number as a code even if it
was deleted before.
2. The factory preset user entry code is 1-2-3-4. Please delete it and create your personal unique user
entry code once the deadbolt is installed.
FUNCTION STEPS
Add New User
Entry Code
Enter
Programming
Code
Press
“1”
Enter New
User Entry
Code
Delete Existing
User Entry Code
Enter
Programming
Code
Press
“2”
Enter User
Entry Code
you want
to delete
20
® REGISTERED TRADEMARK OF TAYMOR INDUSTRIES LTD.
PROGRAMMING
DELETE ALL USER ENTRY CODES AT ONCE
1. All user entry codes can be deleted at once. You can still reuse the same numbers as new codes
even if they have been deleted before.
2. “Auto-Lock” and “Keypad Lock” functions will be invalid after deleting all user entry user entry
codes, and the deadbolt can only be operated by regular key. The functions will be restored when the
new user entry codes are created.
FUNCTION STEPS
Delete all User Entry
Codes at once
Enter
Programming
Code
Press
“3”
® REGISTERED TRADEMARK OF TAYMOR INDUSTRIES LTD.
21
PROGRAMMING
TEMPORARILY DISABLE ALL USER CODES
1. “Auto-Lock” and “Keypad Lock” functions will be invalid when all user entry codes are temporarily
disabled. The deadbolt can only be operated by regular key at this time.
2. Repeat the programming steps to restore all user entry codes.
FUNCTION STEPS
Disable/Enable all
User Entry Codes
Enter
Programming
Code
Press
“8”
22
® REGISTERED TRADEMARK OF TAYMOR INDUSTRIES LTD.
PROGRAMMING
CREATE A DISPOSABLE USER ENTRY CODE
1. Disposable entry code can only be used once.
2. You can reuse the same number as a disposable user entry code again.
FUNCTION STEPS
Create
Disposable User
Entry Code
Enter
Programming
Code
Press
“9”
Enter New
Disposable
Entrly Code
® REGISTERED TRADEMARK OF TAYMOR INDUSTRIES LTD.
23
PROGRAMMING
“AUTO-LOCK” FUNCTION
1. The door will be automatically locked within 10 to 99 seconds when “Auto-Lock” function is enabled.
2. The deadbolt comes with “Auto-Lock” function disabled from the factory.
3. “Auto-Lock” time delay is preset to 30 seconds. It can be adjusted to 10 to 99 seconds if needed.
4. The system will signal an operating error if the deadbolt fails to latch properly. Re-enter valid user
entry code to unlock the door and retract the latchbolt. “Auto-Lock” function is now restored.
FUNCTION STEPS
Auto-Lock
ON/OFF
Enter
Programming
Code
Press
“5”
Auto-Lock
Time Delay
Enter
Programming
Code
Press
“6”
Enter
Seconds
(10 to 99)
24
® REGISTERED TRADEMARK OF TAYMOR INDUSTRIES LTD.
PROGRAMMING
MUTE ON/OFF
1. Audible “Beep” alerts when pressing keypad buttons, during programming or operating errors, can
be turned off if needed.
2. LED indicator light will still function when muted.
3. Motor operating sound cannot be muted.
FUNCTION STEPS
Mute
ON/OFF
Enter
Programming
Code
Press
“7”
® REGISTERED TRADEMARK OF TAYMOR INDUSTRIES LTD.
25
PROGRAMMING
RESTORE FACTORY SETTING
1. Remove battery cover and locate “R” button.
2. Press “R” button for at least 5 seconds until you hear three long “Beeps”.
3. The deadbolt is now reset back to the factory setting:
- programming code 0-0-0-0
- user entry code 1-2-3-4
4. Repeat automatic bolt direction adjustment (see page 17) before you proceed to programming any
other functin into the deadbolt.
26
® REGISTERED TRADEMARK OF TAYMOR INDUSTRIES LTD.
OPERATION
LOCK OPERATION
TO LOCK
1. Press
or use regular key to lock the deadbolt from outside.
2. Turn thumbturn piece to lock the deadbolt from inside.
TO UNLOCK
1. Enter valid user entry code and press
,
or use regular key to unlock the deadbolt from the
outside.
2. Turn thumbturn piece to unlock the deadbolt from the inside.
® REGISTERED TRADEMARK OF TAYMOR INDUSTRIES LTD.
27
OPERATION
SECURITY MODE
1. The keypad will be automatically deactivated for 45 seconds after 5 unauthorized entry attempts.
2. The deadbolt can be locked and unlocked by the regular key under security mode.
28
® REGISTERED TRADEMARK OF TAYMOR INDUSTRIES LTD.
QUESTIONS ANSWERS
A. I’m not able to change
the programming code.
B. What type of batteries
do you recommend?
C. How long will the lock
operate on one set of
batteries?
TROUBLESHOOTING GUIDE - INSTALLATION
QUESTIONS ANSWERS
A. I just completed the
installation, but am
unable to operate it
manually. What should
I do?
1. Check the alignment between the strike hole and the latch to ensure
there is unobstructed movement of the latchbolt.
2. Make sure the torque blade is properly inserted into the latch hub in
a horizontal position.
3. Repeat the Automatic Bolt Direction routine (see page 17).
B. Sometimes when I
operate the lock
manually I “feel” a
bump while turning the
thumbturn or key.
1. The electromechanical components of the lockset are out of sync.
To re-synchronize the system please “lock” and then “unlock” the
deadbolt using the keypad.
C. In am pressing any
button on the keypad
and it doesn’t seem to
respond at all.
1. Check to see if the batteries are properly installed.
2. Re-install new batteries if the “Low Battery Warning” is on.
3. Check for proper connection between the IC wires.
® REGISTERED TRADEMARK OF TAYMOR INDUSTRIES LTD.
29
TROUBLESHOOTING GUIDE - OPERATION
QUESTIONS ANSWERS
A. I’m not able to change
the programming code.
1. Make sure that every programming step is completed in under 6
seconds.
B. What type of batteries
do you recommend?
1. For best results, please use new non-rechargeable alkaline batteries. (4 - AA 1.5V)
C. How long will the lock
operate on one set of
batteries?
1. Based on 15 operations per day, a single set of alkaline batteries
will operate the lockset for over a year.
30
® REGISTERED TRADEMARK OF TAYMOR INDUSTRIES LTD.
INFORMATION PAGE
NAME USER CODE
IMPORTANT NOTE:
1. Do not share your programming code with anyone else.
2. Keep a written copy of all valid user codes in a safe place. (You may use the table below to record
your information)
3. You are advised to re-program all codes if you lost any security information in the table.
PROGRAMMING CODE
Taymor’s
CONCIERGE 100 PROFESSIONAL SERIES ELECTRONIC DEADBOLT
is manufactured
under the highest standards of quality and workmanship. Taymor Locks are warranted to be
free from finish defects for 5 (five) years and free from mechanical, material and workmanship
defects to the original consumer purchaser for the life of the product as long as the original
owner owns his/her home. Taymor will replace free of charge, during the warranty period,
any part that fails to meet the warranty under normal installation and use as long as the
product has been cared for according to the care instructions listed in the package and on
the website. Electronic components of this lock are limited to 1 (one) year from the date of
purchase.
For more details see www.taymor.com
CONCIERGE 100
PROFESSIONAL SERIES
ELECTRONIC DEADBOLT
WARRANTY
® REGISTERED TRADEMARK OF TAYMOR INDUSTRIES LTD.
31
Loading...
