Taurus T9.9 Touch, T9.5 Assembly And Operating Instructions Manual

Assembly and Operating Instructions

TF-T99-T

TF-T99-3-B

TFT99B.03.06

Treadmill T9.9 Touch

2

T9.9 Touch

Content

1 GENERAL INFORMATION 7

1.1 Technical Data 7

1.2 Personal Safety 8

1.3 Electrical Safety 9

1.4 Set-Up Place 10

2 ASSEMBLY 11

2.1 General Instructions 11

2.2 Scope of Delivery 12

2.3 Assembly 13

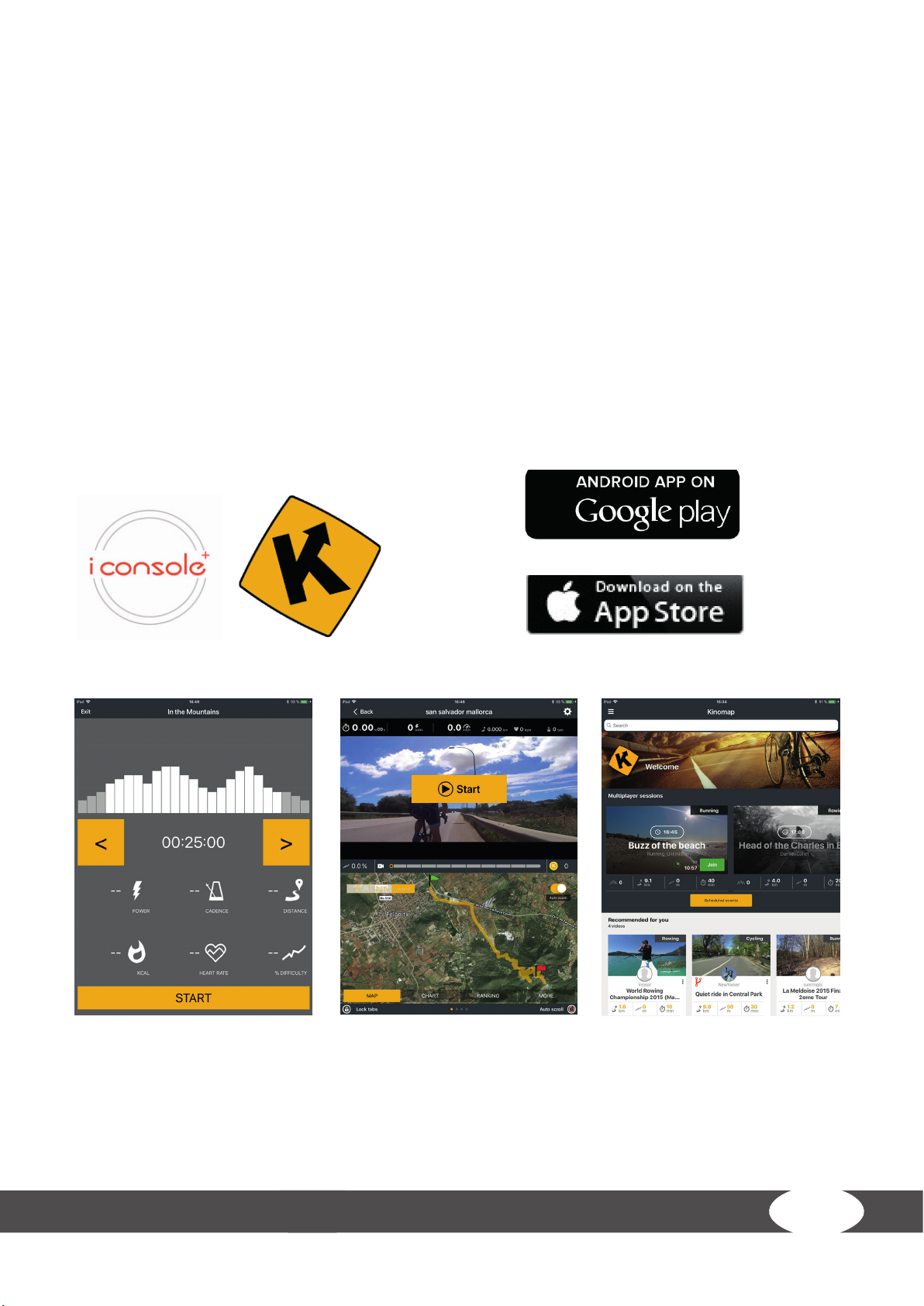

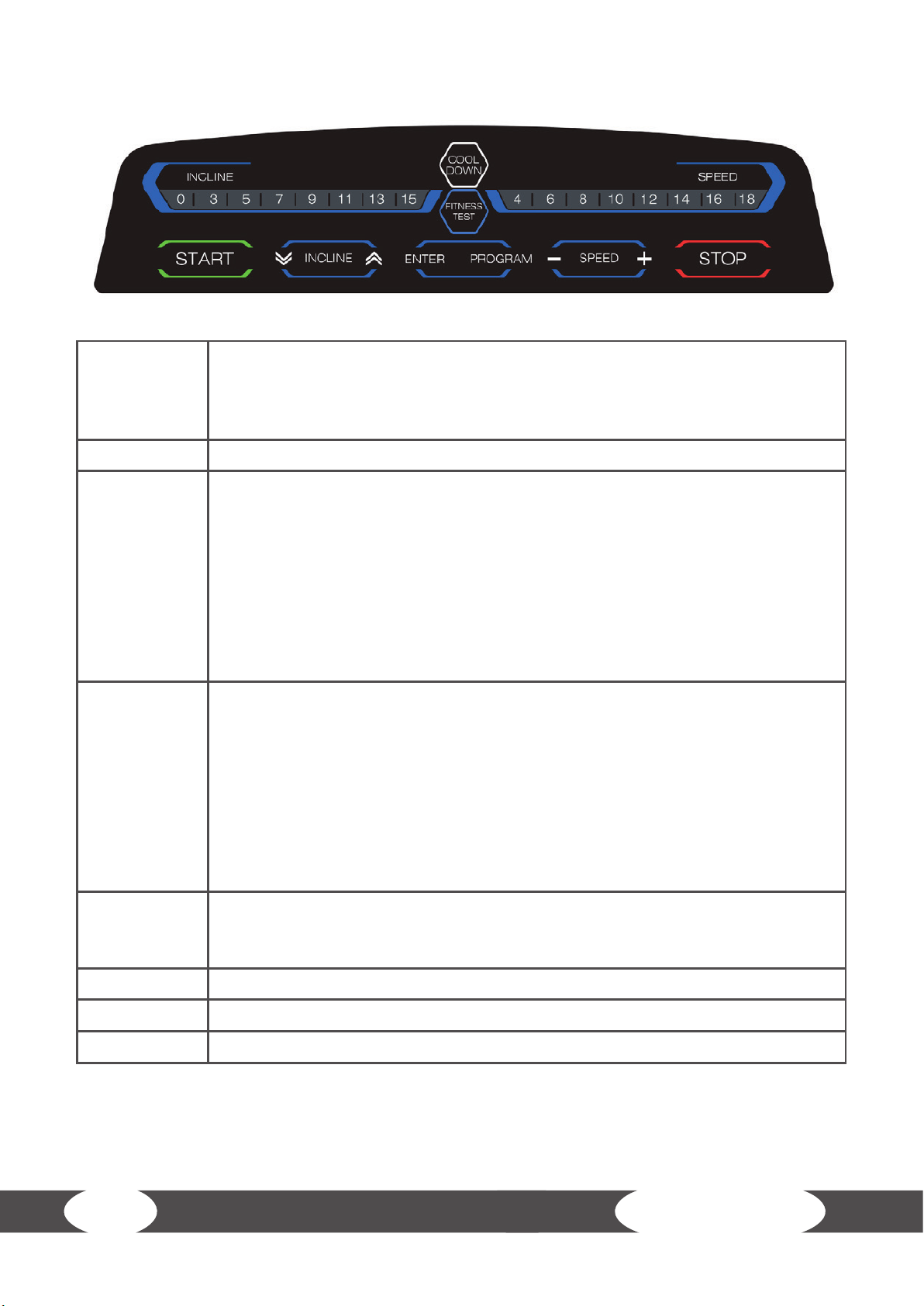

3 OPERATING INSTRUCTIONS 14

3.1 Heart Rate Controlled Programmes 14

4 STORAGE AND TRANSPORT 15

4.1 General Instructions 15

4.2 Transportation Wheels 15

4.3 Folding Mechanism 15

4.3.1 Folding Up the Treadmill 16

4.3.2 Unfolding the Treadmill 16

5 TROUBLESHOOTING, CARE AND MAINTENANCE 17

5.1 General Instructions 17

5.2 Faults and Fault Diagnosis 17

5.3 Error Codes and Troubleshooting 17

5.4 Care and Maintenance 18

5.4.1 Adjusting the Running Mat 18

5.4.2 Re-tensioning the Running Mat 19

5.4.3 Lubrication of the Running Mat 19

5.5 Maintenance and Inspection Calendar 20

6 DISPOSAL 20

7 RECOMMENDED ACCESSORIES 21

3

8 ORDERING SPARE PARTS 22

8.1 Serial Number and Model Name 22

8.2 Parts List 23

8.3 Exploded Drawing 24

9 WARRANTY 25

10 CONTACT 27

4

T9.9 Touch

Dear customer,

Thank you for choosing a high-quality equipment of the brand Taurus®. Taurus® oers sports and
tness equipment for the sophisticated home sport and the equipment of tness studios and
business customers. With Taurus® tness equipment, the focus is on what sport is all about: maximum
performance! Therefore, the equipment is developed in close consultation with athletes and sports
scientists. Because athletes know best what makes perfect tness equipment.

Further information can be found at www.sport-tiedje.com.

Intended Use

The equipment may only be used for its intended purpose.

The equipment is suitable for home use and semi-professional use (e.g. hospitals, clubs, hotels,
schools, etc.). The equipment is not suitable for commercial or professional use (e.g. tness
studio).

Legal Notice

Sport-Tiedje GmbH
Europe’s No. 1 for home tness

International Headquarters
Flensburger Straße 55
24837 Schleswig
Germany

Disclaimer

©2010 Taurus® is a registered brand of the company Sport Tiedje GmbH. All rights
reserved. Any use of this trademark without the explicit written permission of Sport­Tiedje is prohibited.

Product and manual are subject to change. Technical data can be changed without
advance notice.

Management:
Christian Grau

Sebastian Campmann
Dr. Bernhard Schenkel

No. HRB 1000 SL
Local Court Flensburg
European VAT Number: DE813211547

5

ABOUT THIS MANUAL

Please carefully read the entire manual before installation and rst use. The manual will help you to
quickly set up the system and explains how to safely use it. Make sure that all persons exercising with
the equipment (especially children and persons with physical, sensory, mental or motor disabilities)
are informed about this manual and its contents in advance. In case of doubt, responsible persons
must supervise the use of the equipment.

This equipment has been manufactured according to the latest safety knowledge.
As far as possible, potential safety hazards which could cause injury have been
eliminated. Make sure to carefully follow the instructions and that all parts are
securely in place. If required, read through the instructions again to correct any
mistakes.

Please pay close attention to the safety and maintenance instructions given here. The contract
partner cannot be held liable for damage to health, accidents or damage to the equipment when it
is not used in accordance with these instructions.

The following safety instructions may appear in this manual:

࣑ ATTENTION

This notice indicates potentially hazardous situations which, if not avoided, may result in
property damage.

⚠ CAUTION

This notice indicates potentially hazardous situations which, if not avoided, may result in slight
or minor injuries!

⚠ WARNING

This notice indicates potentially hazardous situations which, if not avoided, may result in death
or serious injuries!

⚠ DANGER

This notice indicates potentially hazardous situations which, if not avoided, will result in death
or serious injuries!

L NOTICE

This notice indicates further useful information.

Retain these instructions in a safe place for future reference, maintenance or when ordering
replacement parts.

6

T9.9 Touch

1 GENERAL INFORMATION

1.1 Technical Data

TFT display of

+ speed in km/h
+ training time in min
+ training distance in km
+ calories burnt in kcal
+ heart rate (when using the hand sensors or a chest strap)
+ incline in %

Motor output: 3.5 HP continuous output (DC motor)

Speed range: 0.5 - 22 km/h

Speed hot keys: 8

Incline range: 0 - 15 %

Incline hot keys: 8

Total number of training programmes: 46
Quick start: 1
Pre-set programmes: 32
Target programmes: 3
User-dened programmes: 4
Heart rate-oriented programmes: 3
Low-speed programmes: 1

Running surface size (L x W): 157 cm x 56 cm

Weight and dimensions:

Article weight (gross, including packaging): 162 kg
Article weight (net, without packaging): 144 kg
Packaging dimensions (L x W x H): 226 cm x 90 cm x 415 cm
Set-up dimensions (L x W x H): 218 cm x 85 cm x 139 cm
Maximum user weight: 190 kg

7

1.2 Personal Safety

⚠ DANGER

+ Before you start using the equipment, you should consult your physician that this type of

exercise is suitable for you from a health perspective. Particularly aected are persons who:
have a hereditary disposition to high blood pressure or heart disease, are over the age of 45,
smoke, have high cholesterol values, are overweight and/or have not exercised regularly in
the past year. If you are under medical treatment that aects your heart rate, medical advice
is absolutely essential.

+ Note that excessive training can seriously endanger your health. Please also note that heart

rate monitoring systems can be inaccurate. If you notice any signs of weakness, nausea,
dizziness, pain, shortness of breath, or other abnormal symptoms, stop exercising immediately
and seek advice from your doctor if necessary.

⚠ WARNING

+ This equipment may not be used by children under the age of 14.
+ Children should not be allowed unsupervised access to the equipment.
+ Persons with disabilities must have a medical license and must be under strict observation

when using the equipment.

+ The equipment is strictly for use by one person at a time.
+ If your equipment provides a safety key, the clip of the safety key must be attached to your

clothing before starting your training. In the event of a fall, the EMERGENCY STOP of the

equipment can be initiated.

+ Keep your hands, feet and other body parts, hair, clothing, jewellery and other objects well

clear of moving parts.

+ During use, wear suitable sports clothing rather than loose or baggy clothing. When wearing

sports shoes, make sure they have suitable soles, preferably made of rubber or other non-

slip materials. Shoes with heels, leather soles, studs or spikes are unsuitable. Never exercise

barefoot.

⚠ CAUTION

+ If your equipment needs to be connected to the power supply with a mains cable, make sure

that the cable is not a potential tripping hazard.

+ Make sure that nobody is within the range of motion of the equipment during training so as

not to endanger you or other persons.

࣑ ATTENTION

+ Do not insert any objects of any kind into the openings of the device.

8

T9.9 Touch

1.3 Electrical Safety

⚠ DANGER

+ In order to reduce the risk of an electric shock, always unplug the equipment from the

mains socket immediately after your workout, before assembly or dismantling, and before

maintenance or cleaning. Do not pull on the cable.

⚠ WARNING

+ Do not leave the equipment unattended while the mains cable is plugged into the mains

socket. During your absence, the mains cable must be removed to prevent improper use by

third parties or children.

+ If the mains cable or plug is damaged or defective, contact your contract partner. In the

meantime, the equipment must not be used.

࣑ ATTENTION

+ The equipment requires a mains connection of 220-230V with 50 Hertz mains voltage.
+ The equipment may only be connected directly to an earthed socket using the supplied

mains cable. Extension cables must conform to VDE guidelines. Always completely unwind

the mains cable.

+ The socket must be protected by a fuse with a minimum fuse rating of "16 amps, slow blow".
+ Do not make any changes to the mains cable or the mains plug.
+ Keep the mains cable away from water, heat, oil and sharp edges. Do not route the mains

cable underneath the equipment or under a carpet or rug, and do not place any objects on

top of it.

9

1.4 Set-Up Place

⚠ WARNING

+ Do not place the equipment in main corridors or escape routes.

⚠ CAUTION

+ The training room should be well ventilated during training and not be exposed to any

draughts.

+ Choose the place in which to set up the equipment such that there is enough free space/

clearance to the front, the rear and to the sides of the equipment.

+ The set-up and mounting surface of the equipment should be at, loadable and solid.

࣑ ATTENTION

+ The device may only be used in one building, in suciently tempered and dry rooms (ambient

temperatures between 10°C and 35°C). The equipment should not be used outdoors or in

rooms with high humidity (over 70%) like swimming pools.

+ A oor protective mat/equipment underlay can help to protect high-quality oor coverings

(parquet, laminate, cork, carpets) from dents and sweat and can help to level out slight

unevenness.

10

T9.9 Touch

2 ASSEMBLY

2.1 General Instructions

⚠ DANGER

+ Do not leave any tools, packaging materials such as foils or small parts lying around, as

otherwise there is a danger of suocation for children. Keep children away from the equipment

during assembly.

⚠ WARNING

+ The treadmill is equipped with high-pressure

shock absorbers that can cause the treadmill

to suddenly open if handled incorrectly.

To avoid possible personal injuries, never

pull on the areas of the treadmill shown in

the illustration. Never try to lift or move the

treadmill at the marked areas.

+ Pay attention to the instructions attached to

the equipment in order to reduce the risk of

injuries.

X

X

⚠ CAUTION

+ Do not open the packaging when it is lying on its side.
+ Ensure to have sucient room for movement in each direction during assembly.
+ The assembly of the equipment must be carried out by at least two adults. If in doubt, seek the

help of another technically skilled person.

࣑ ATTENTION

+ To prevent damage to the equipment and the oor, assemble the equipment on a mat or

packaging board.

L NOTICE

+ In order to make the assembly as simple as possible, some screws and nuts to be used can

already be pre-assembled.

+ Ideally, assemble the equipment at its later set-up place.

11

2.2 Scope of Delivery

⚠ WARNING

Around the treadmill there is a strap that prevents the treadmill from opening during transport.
This strap must be removed before assembly.

The scope of delivery consist of the following parts. At the beginning, check whether all parts
and tools belonging to the device are included in the scope of delivery and whether damage has
occurred. In the event of complaints, the contractual partner must be contacted directly.

⚠ CAUTION

If parts of the scope of delivery are missing or damaged, the assembly must not be carried out.

12

T9.9 Touch

1

4

105L 105R

8L 8R

x1

126

STEP1

x1

KH-264D2

10 M10*1.5*65L 6PCS

STEP2

91 M10*1.5*45L 4PCS

143

15.4*8.2*2T 4PCS

11 M5*0.8*15L 4PCS

STEP4

11 M5*0.8*15L 2PCS

STEP3

x1

x1

142
M8*1.25*15L 4PCS

27 16*8.5*1.2T 4PCS

(mm)

x1

2 3

84

x1x1

7

x1

13

2.3 Assembly

Before assembly, take a close look at the individual assembly steps shown and carry out the assembly
in the order given.

L NOTICE

First loosely screw all parts together and check that they t properly. Then tighten the screws
using the tool only when you are instructed to do so.

Step 1: Assemble the handlebar posts

1. Connect the two cables (121 and 122) with one another.

࣑ ATTENTION

Be careful not to pinch the cables in the following step.

2. Fix the two handlebar posts (2 and 3) to the main frame (1) with six allen bolts (10).

L NOTICE

Do not tighten the bolts (10) yet!

10

2

Step1

10

3

10

121

122

M10x1.5x65L

x6

14

T9.9 Touch

Step2

a

105L

105R

121

120

b

91

91

M8

M10x1.5x45L

x4

Step 2: Assemble the console unit

1. Slide the two covers (105L and 105L) downwards.

2. Connect the two cables (120 and 121) with one another.

࣑ ATTENTION

Be careful not to pinch the cables in the following step.

3. Fix the handlebar (4) to the two handlebar posts (2 and 3) with four allen screws (91).

15

Step 3: Assemble the console

1. Fix the supporting tube (7) to the handlebar (4) with two allen bolts (142), two spring washers

(143) and two at washers (27).

2. Connect the cables (93, 98, 118 and 120) with their counterparts of the console (84).

࣑ ATTENTION

Be careful not to pinch the cables in the following step.

3. Fix the console (84) to the supporting tube (7) with two allen bolts (142), two spring washers

(143) and two at washers (27).

4. Slide the covers (105L and 105R) upwards again and x them to the handlebar (4) with four

cross bolts (11).

142

143

27

105L

84

B

118

98

84

120

93

105R

142

143

27

11

C

27

143

142

M8x1.25x15L

D15.4xD8.2x2T

D16xD8.5x1.2T

M5x0.8x15L

142

143

27

x4
x4

x4

x4

A

11

16

Step3

T9.9 Touch
