Tatung TTAB910E Users Manual

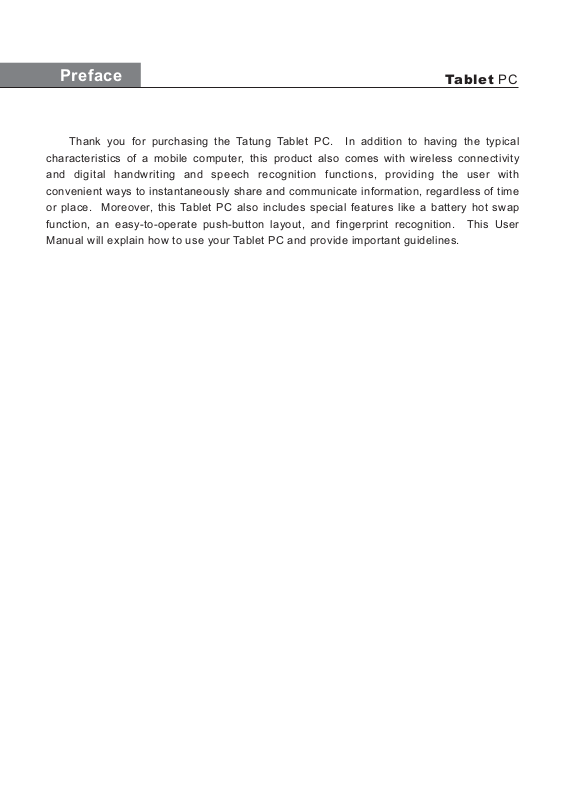

Preface
Thank you for purchasing the Tatung Tablet PC. In addition to having the typical
characteristics of a mobile computer, this product also comes with wireless connectivity
and digital handwriting and speech recognition functions, providing the user with
convenient ways to instantaneously share and communicate information, regardless of time
or place. Moreover, this Tablet PC also includes special features like a battery hot swap
function, an easy-to-operate push-button layout, and fingerprint recognition. This User
Manual will explain how to use your Tablet PC and provide important guidelines.
Tablet PC
Table of Contents
Accessory Checklist.............................................................. 01
Standard Accessories.................................................................... 01
Optional Accessories..................................................................... 01
Safety Guidelines..................................................................... 02
Safety Information.......................................................................... 02
Safety and Regulatory Information................................................ 02
Safety Guidelines for Using the Power Cord and Power Supply..... 03
Battery Safety Guidelines.............................................................. 04
Mercury Battery Warning............................................................... 04
Operating Specifications................................................................ 04
Introduction of the Tablet PC .............................................. 05
Functions........................................................................................ 05
Exterior........................................................................................... 06
Diagrams of Each Surface............................................................. 06
Explanation of Indicators............................................................... 07
How to Use the Tablet PC..................................................... 08

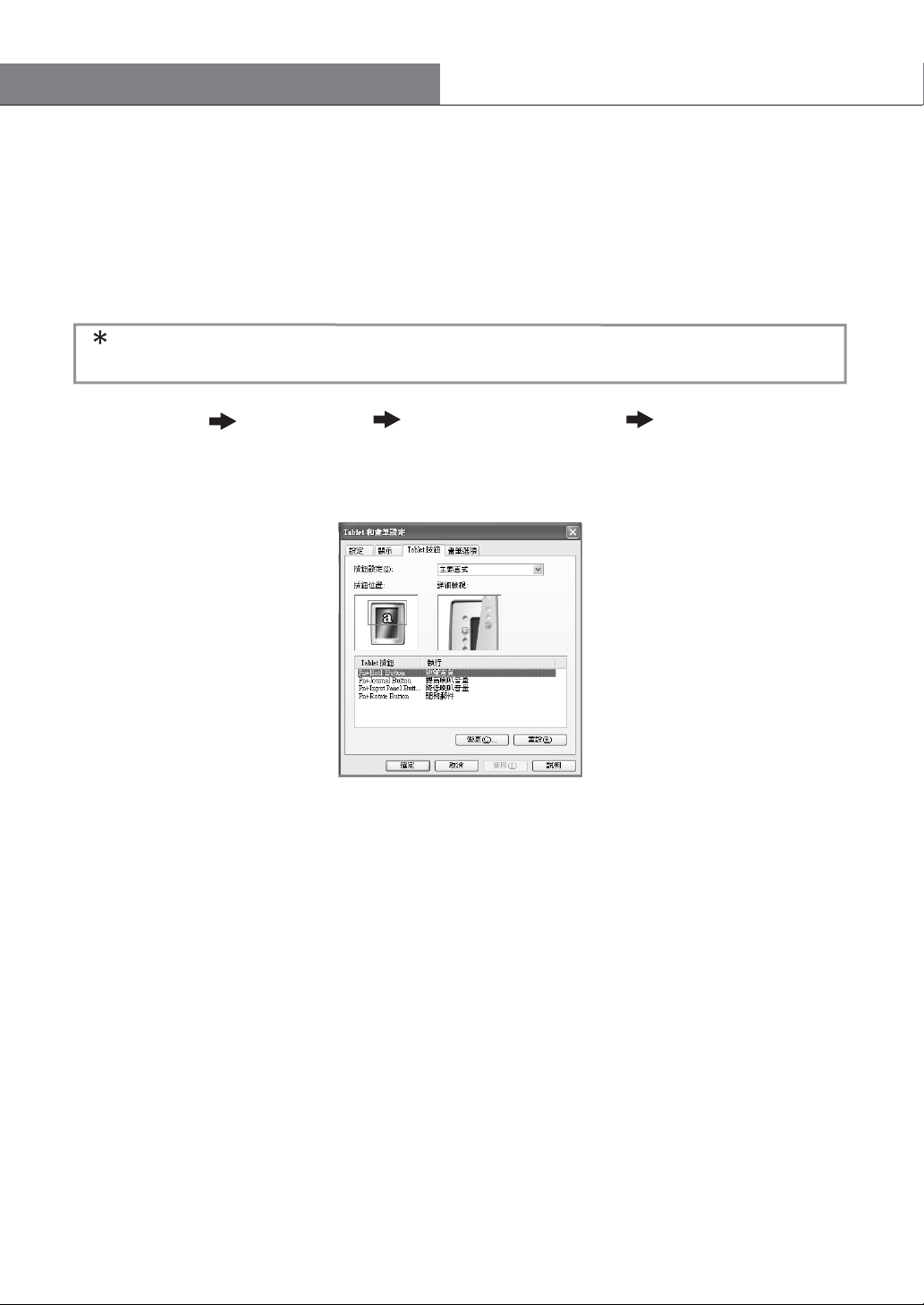

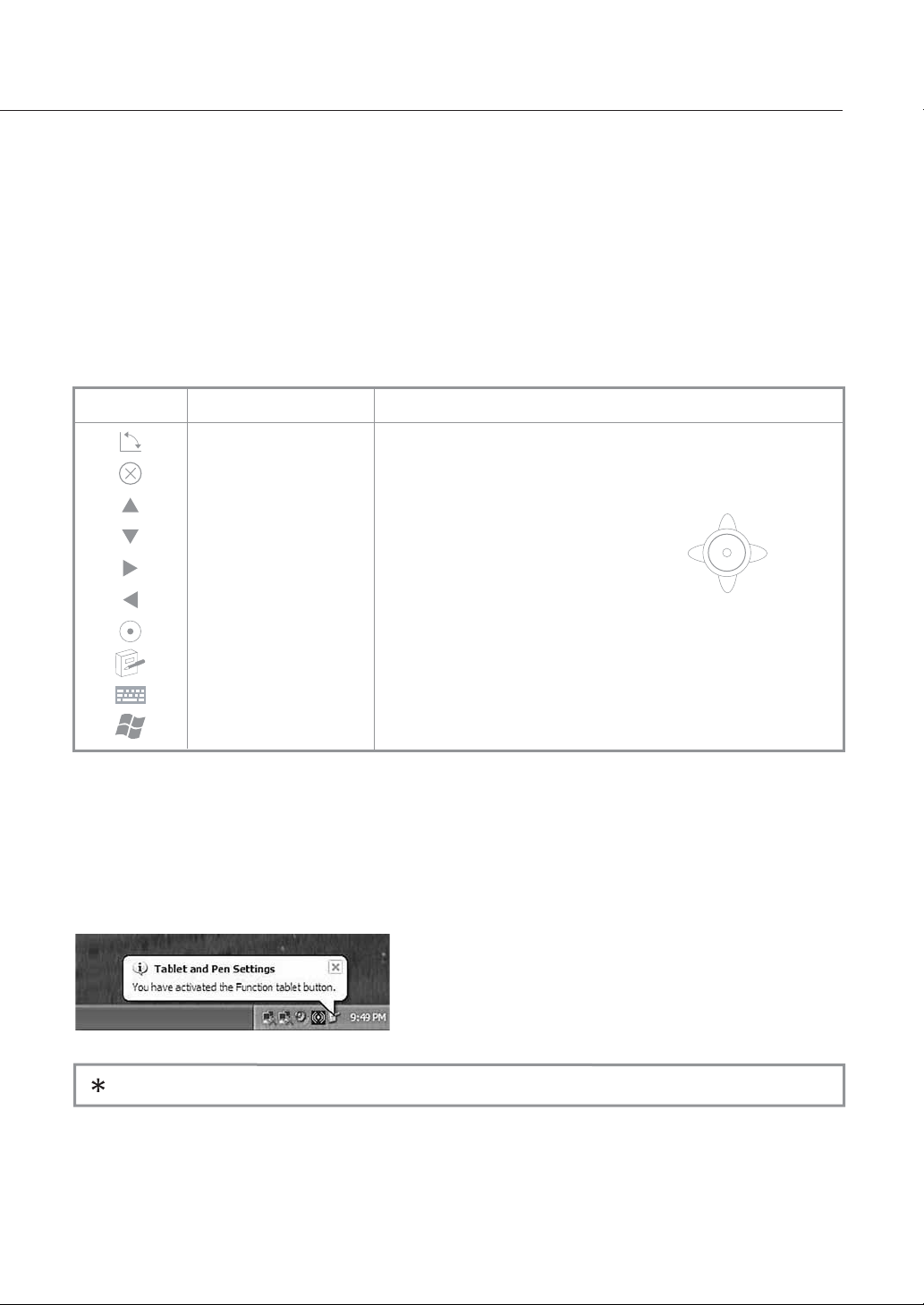

Introduction of Function Buttons That Can be Used After Entering
Windows........................................................................................... 08
Basic Functions............................................................................. 09
Secondary Functions..................................................................... 10
Battery............................................................................................. 12

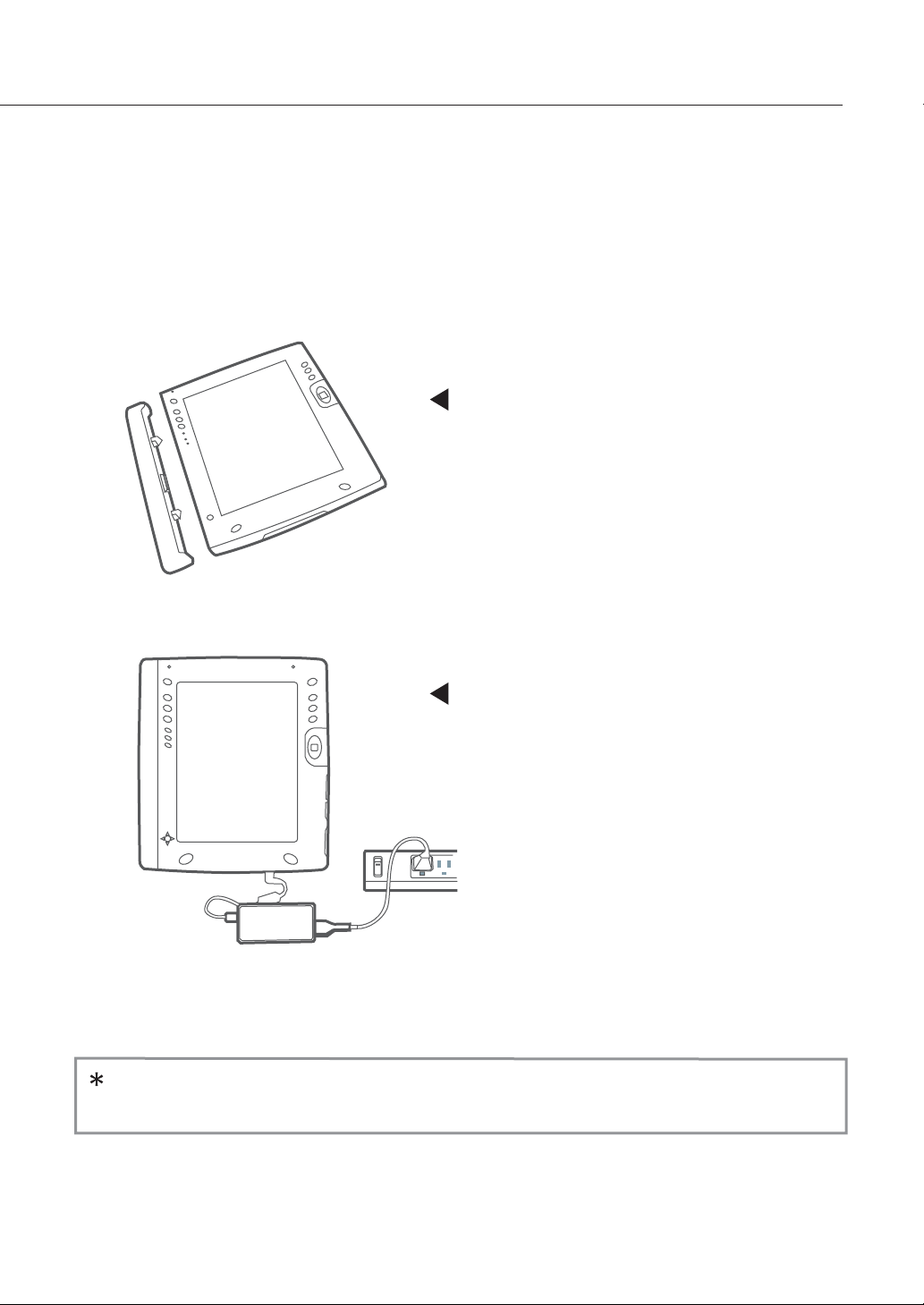

How to Charge the Battery............................................................. 12

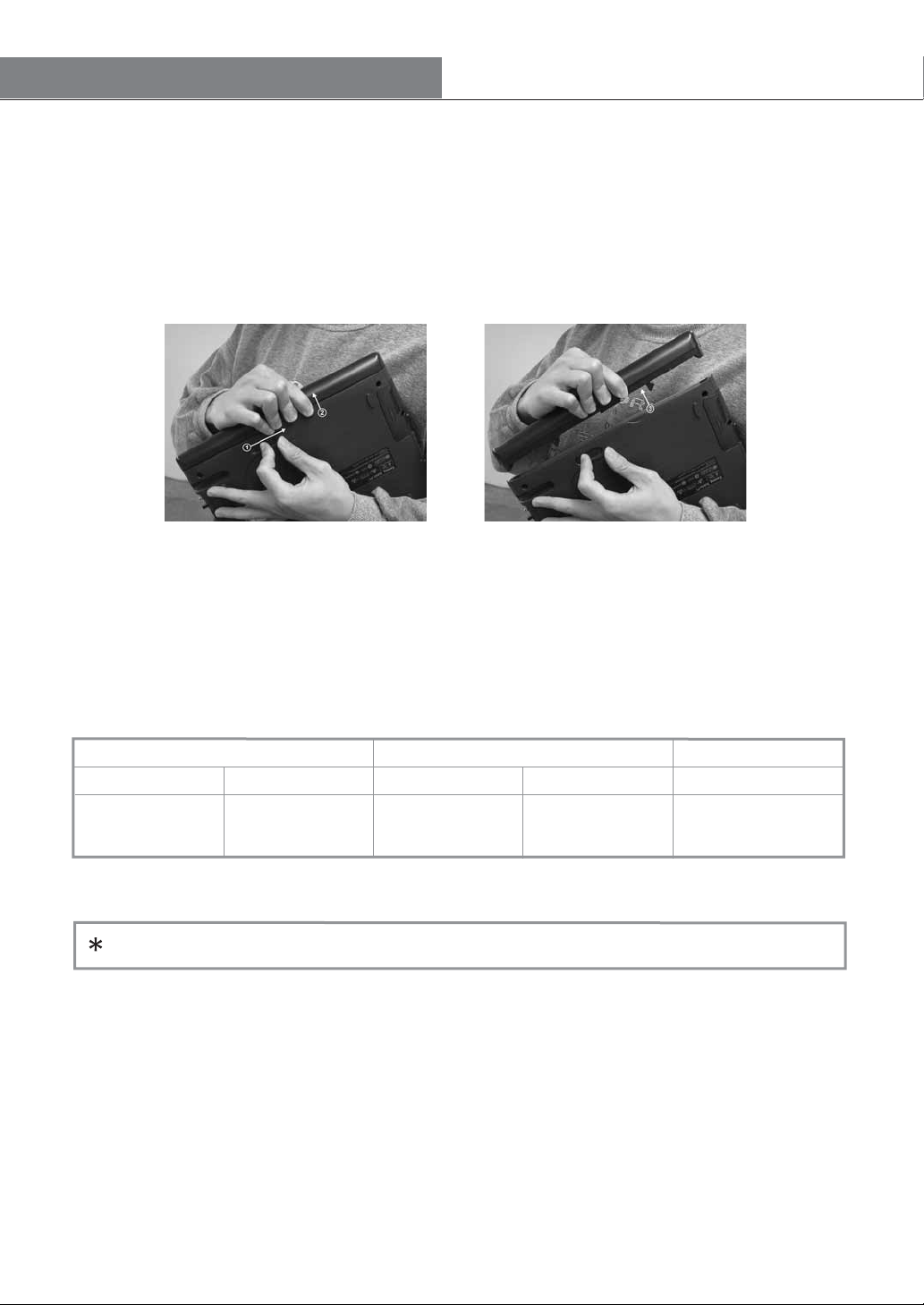

How to Replace the Battery............................................................13
Battery Charging Time................................................................... 13
How to Save Electricity.................................................................. 14
How to Prolong the Battery Life......................................................15
Battery Hot Swap.......................................................................... 15
Use and Setup of the Fingerprint Recognition
Device (depends on model).............................................................16

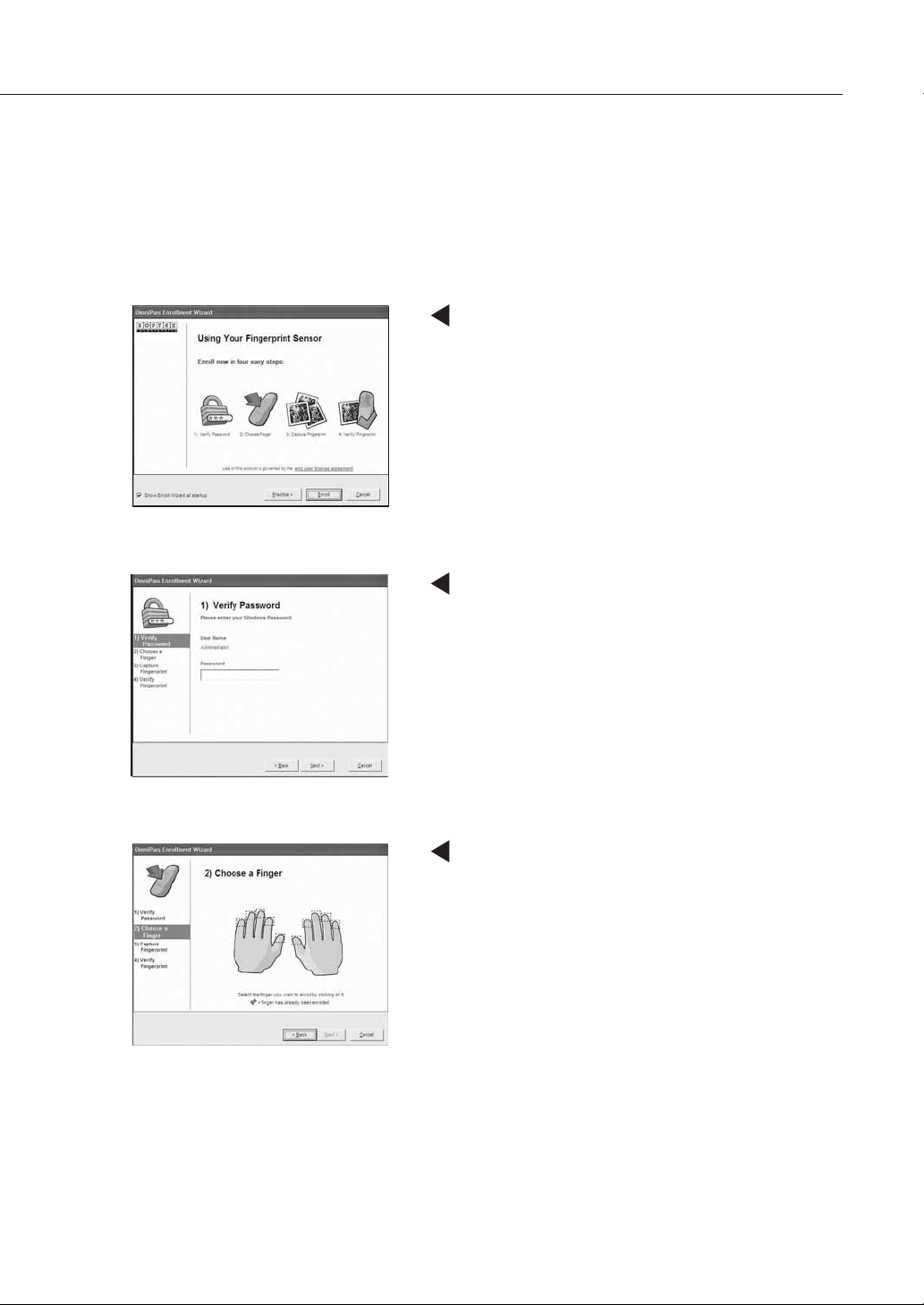

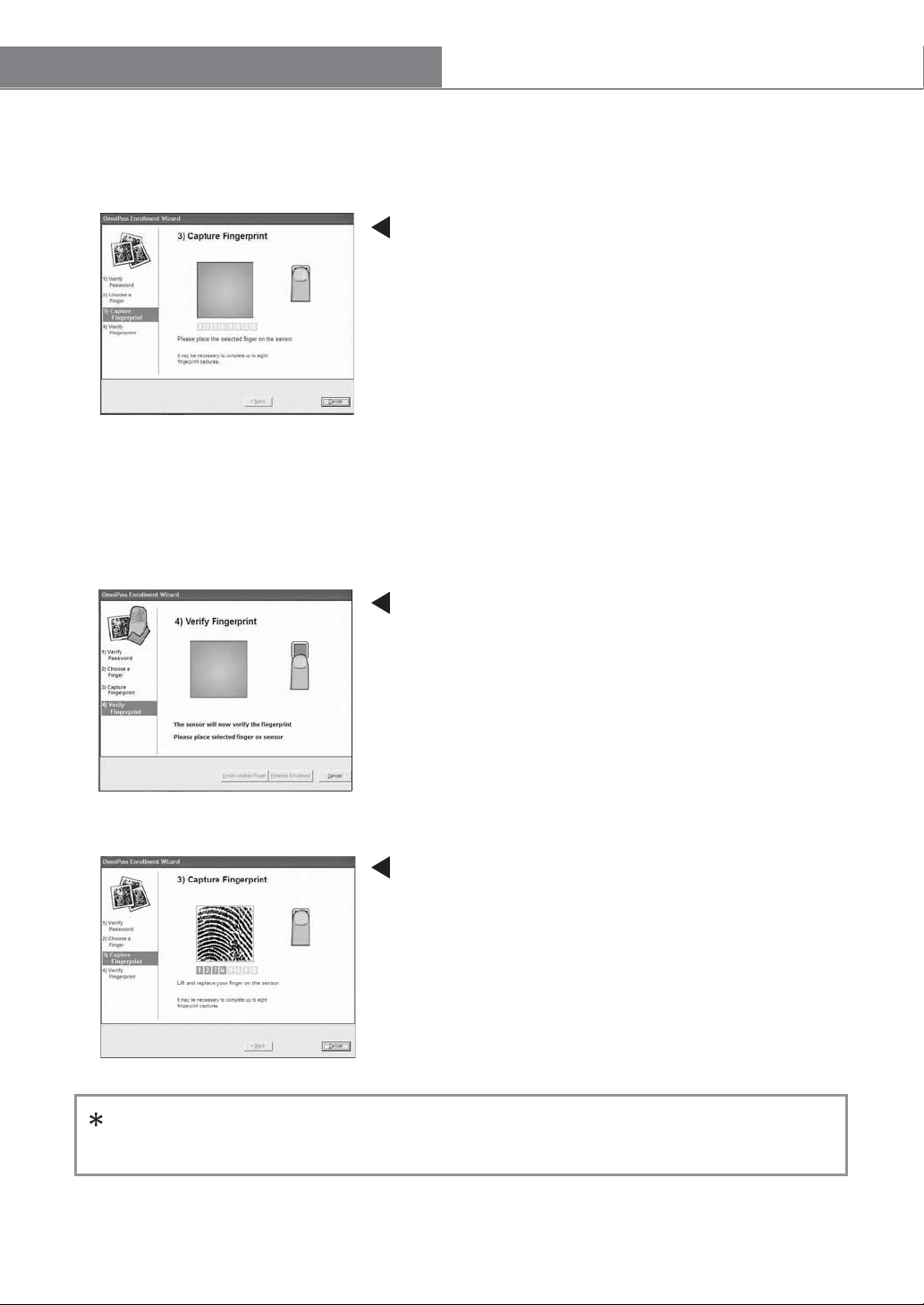

How to Register to Use the Fingerprint Recognition Device............ 18
How to Set Up Fingerprint Recognition for Login............................ 18

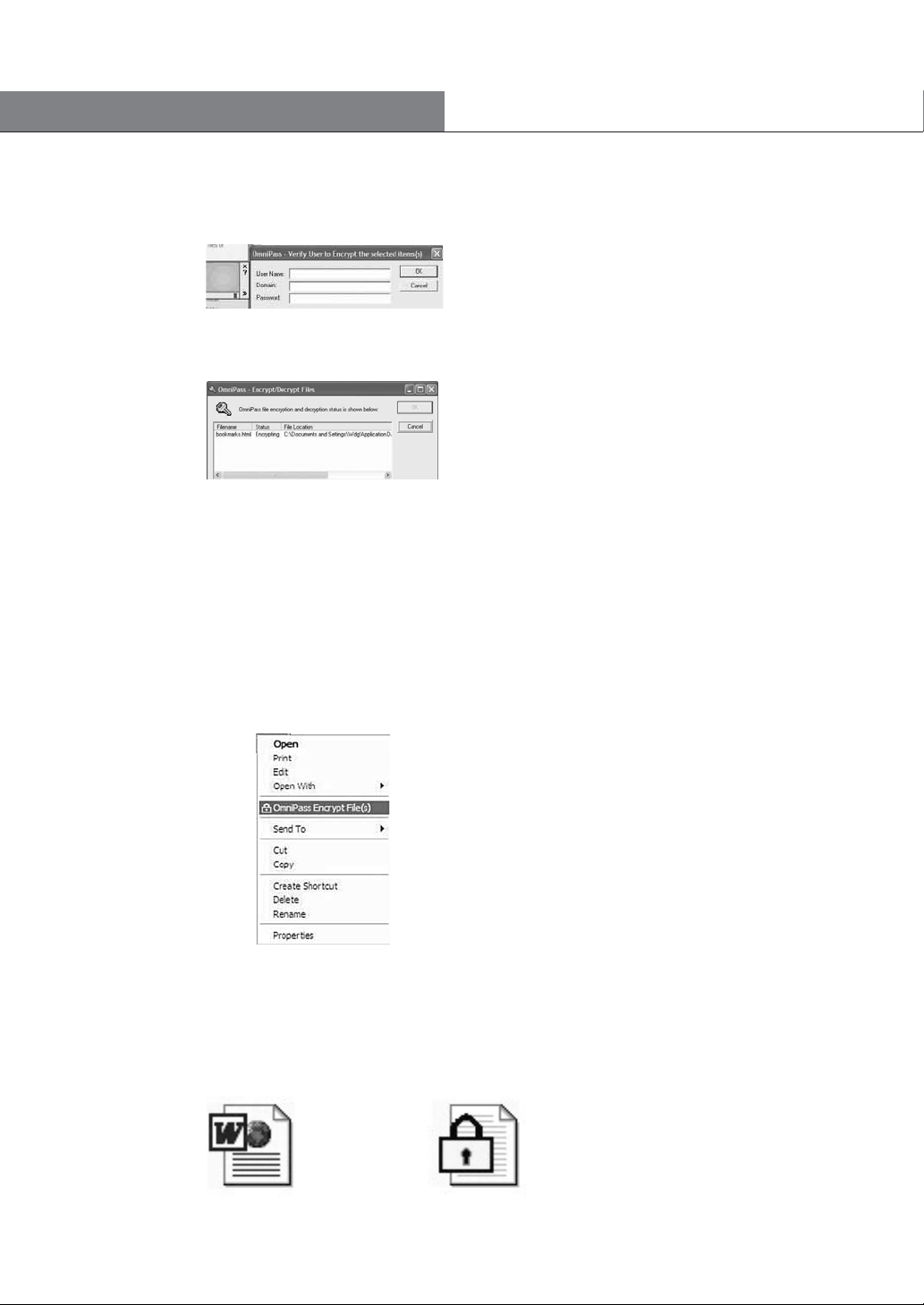

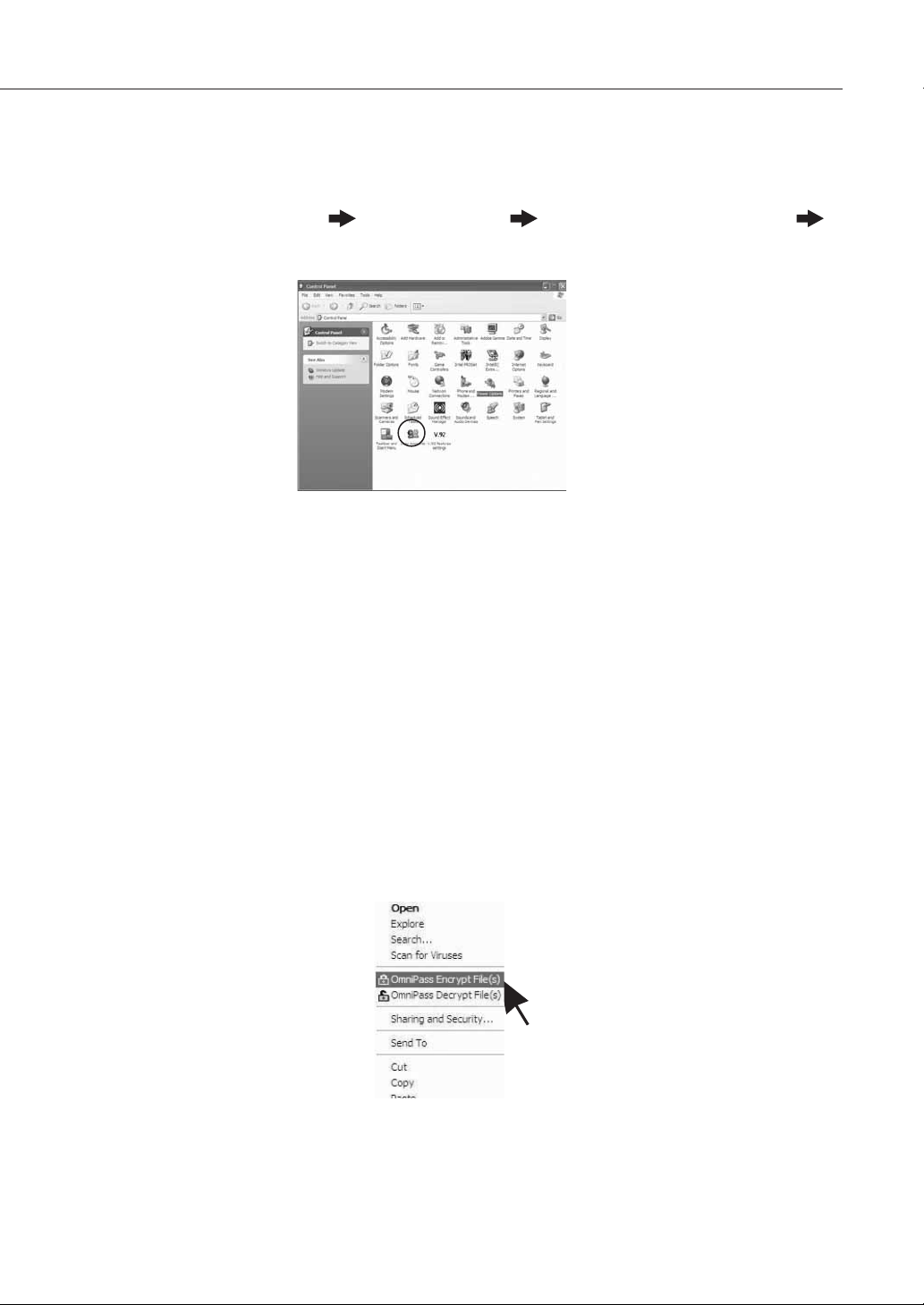

How to Use Fingerprint Recognition to Increase File Access
Confidentiality................................................................................ 18

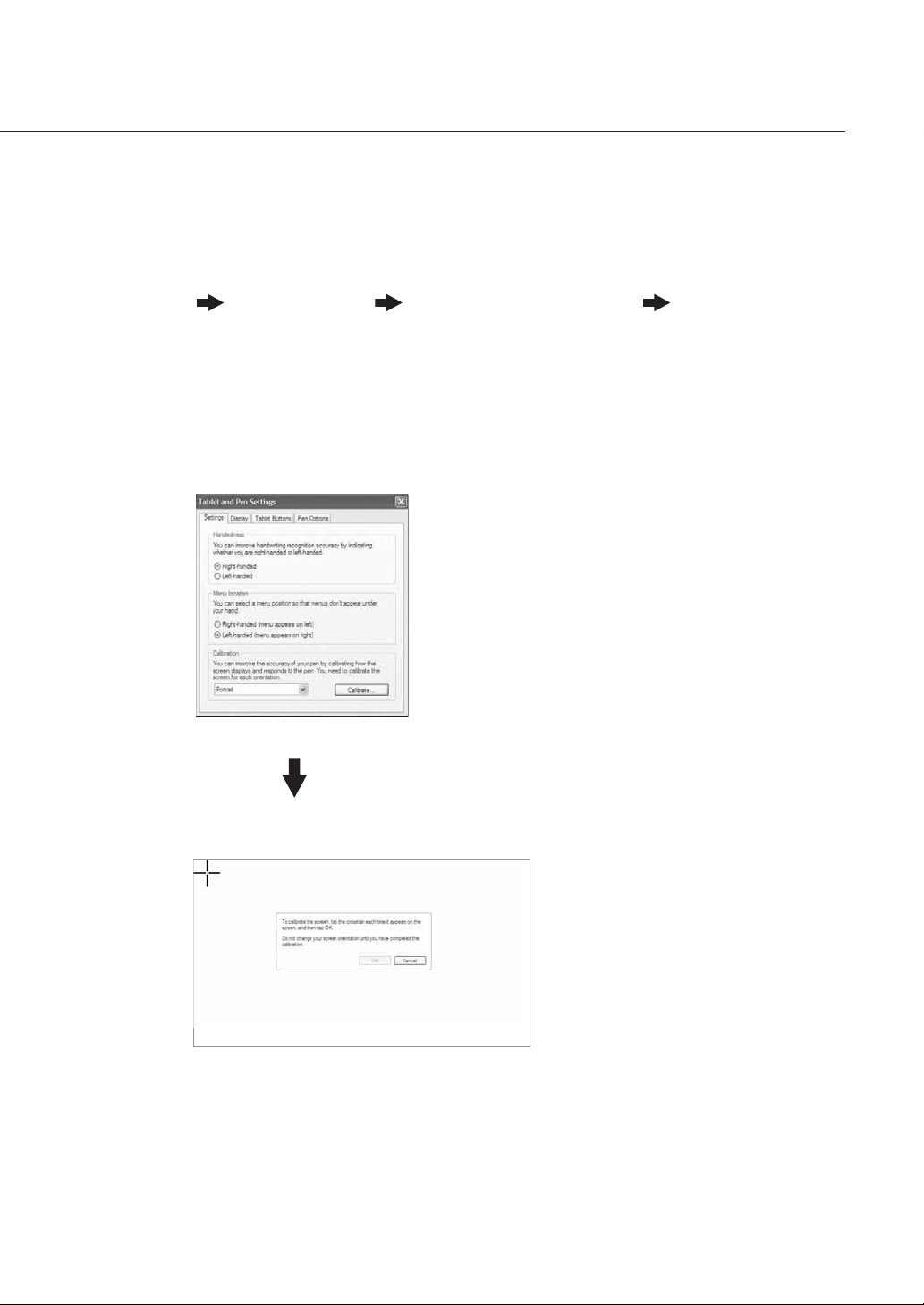

Calibrating the Stylus...................................................................... 20

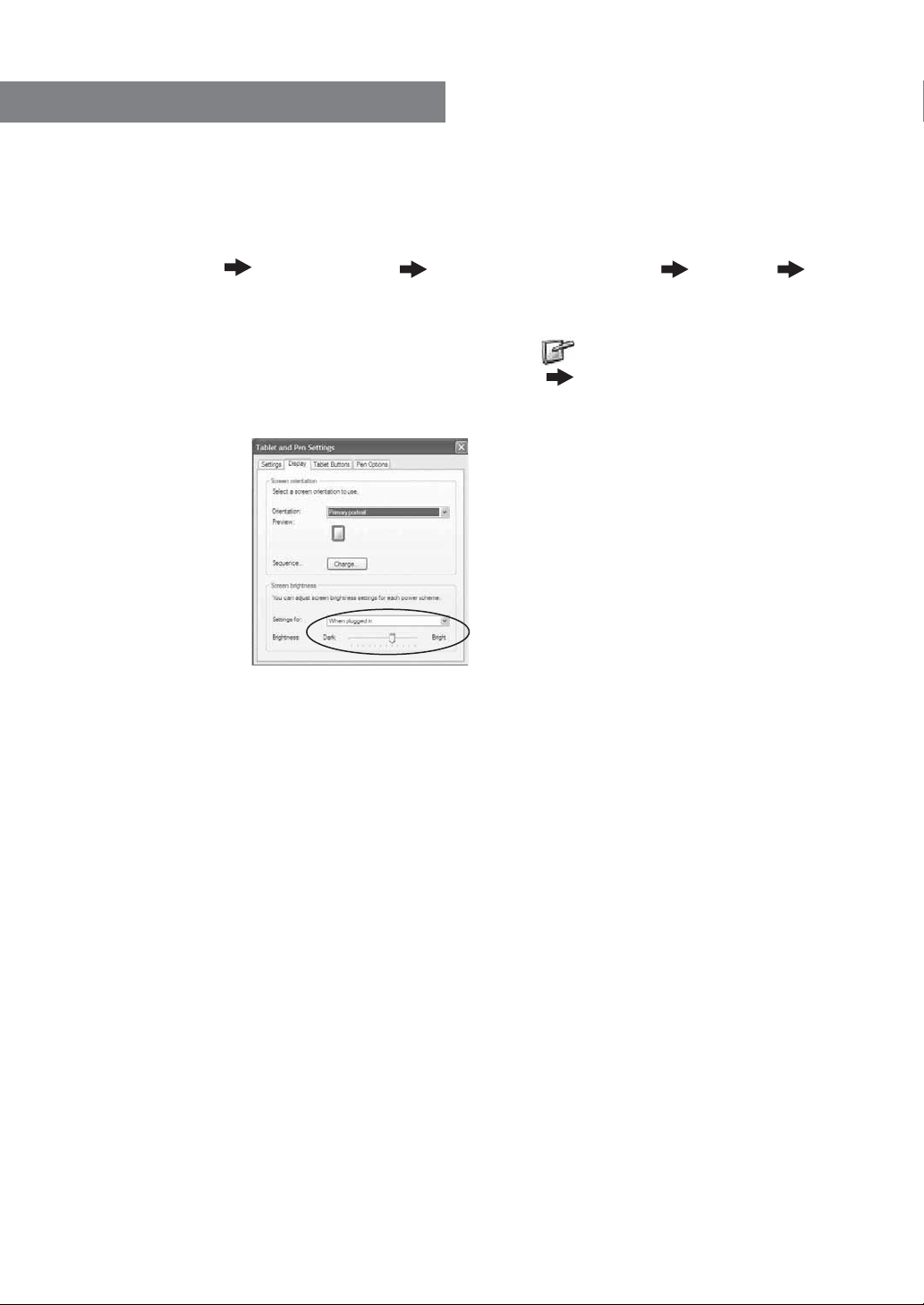

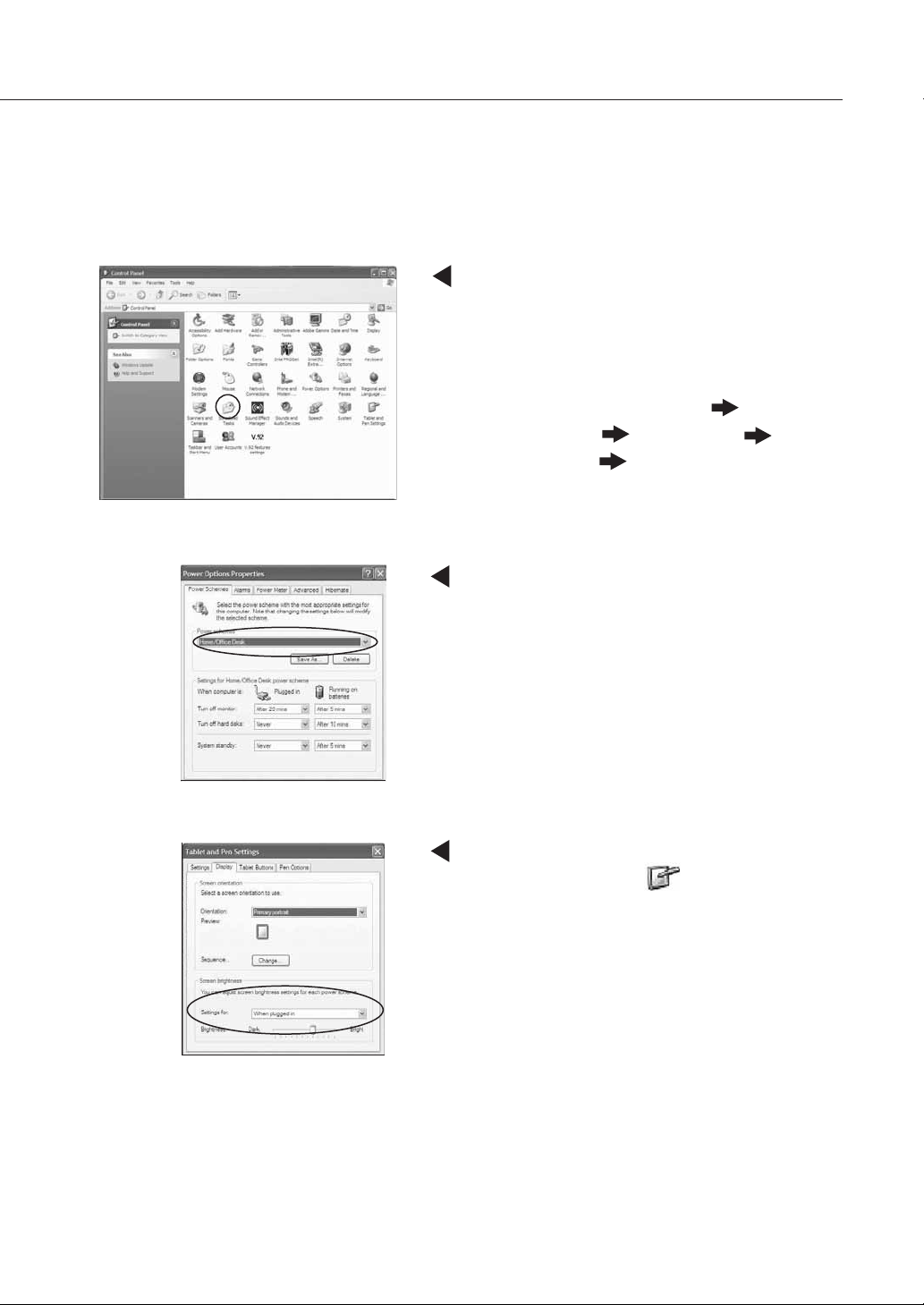

Adjusting the Screen Brightness.................................................... 21

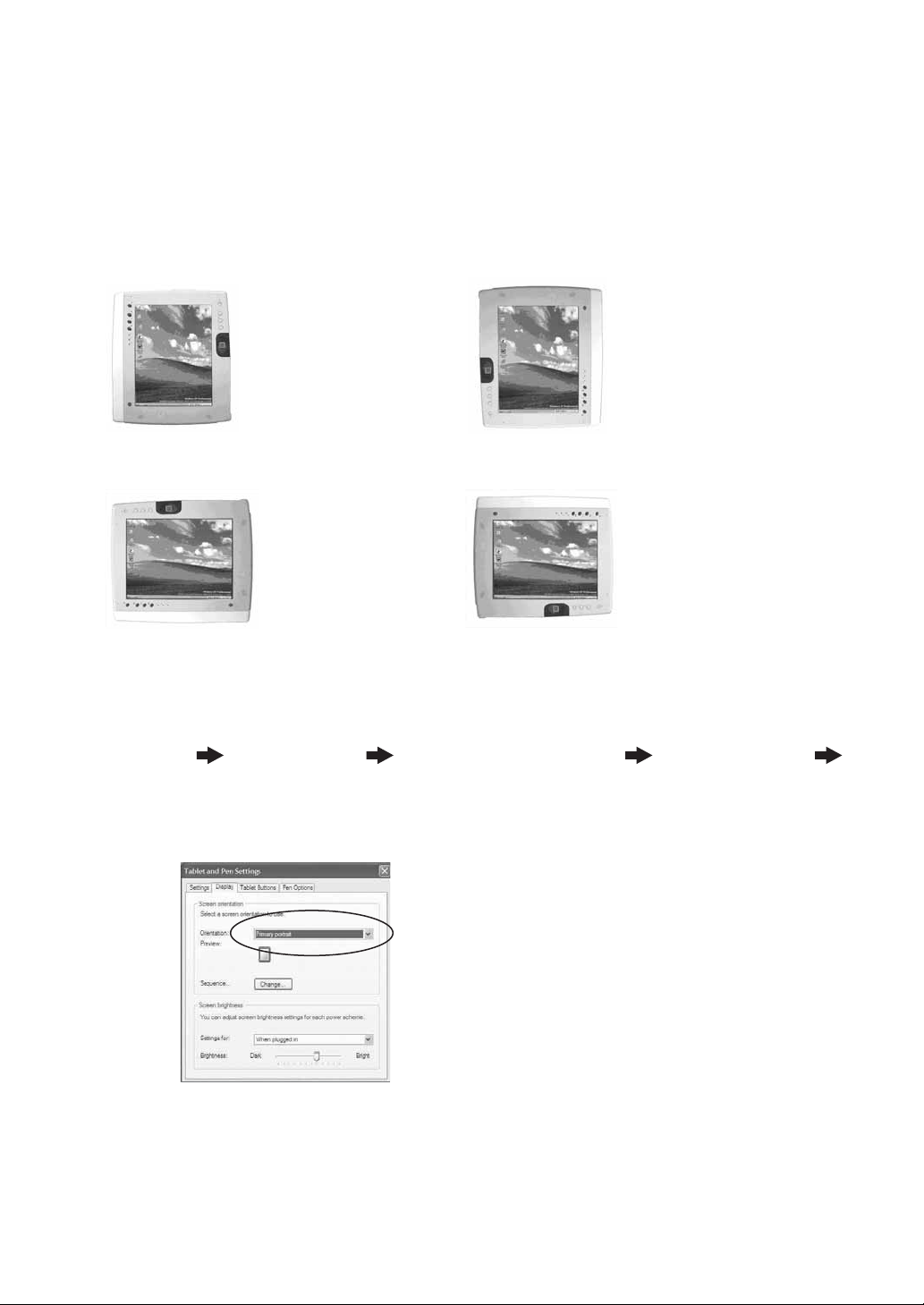

Adjusting the Screen Orientation................................................... 22

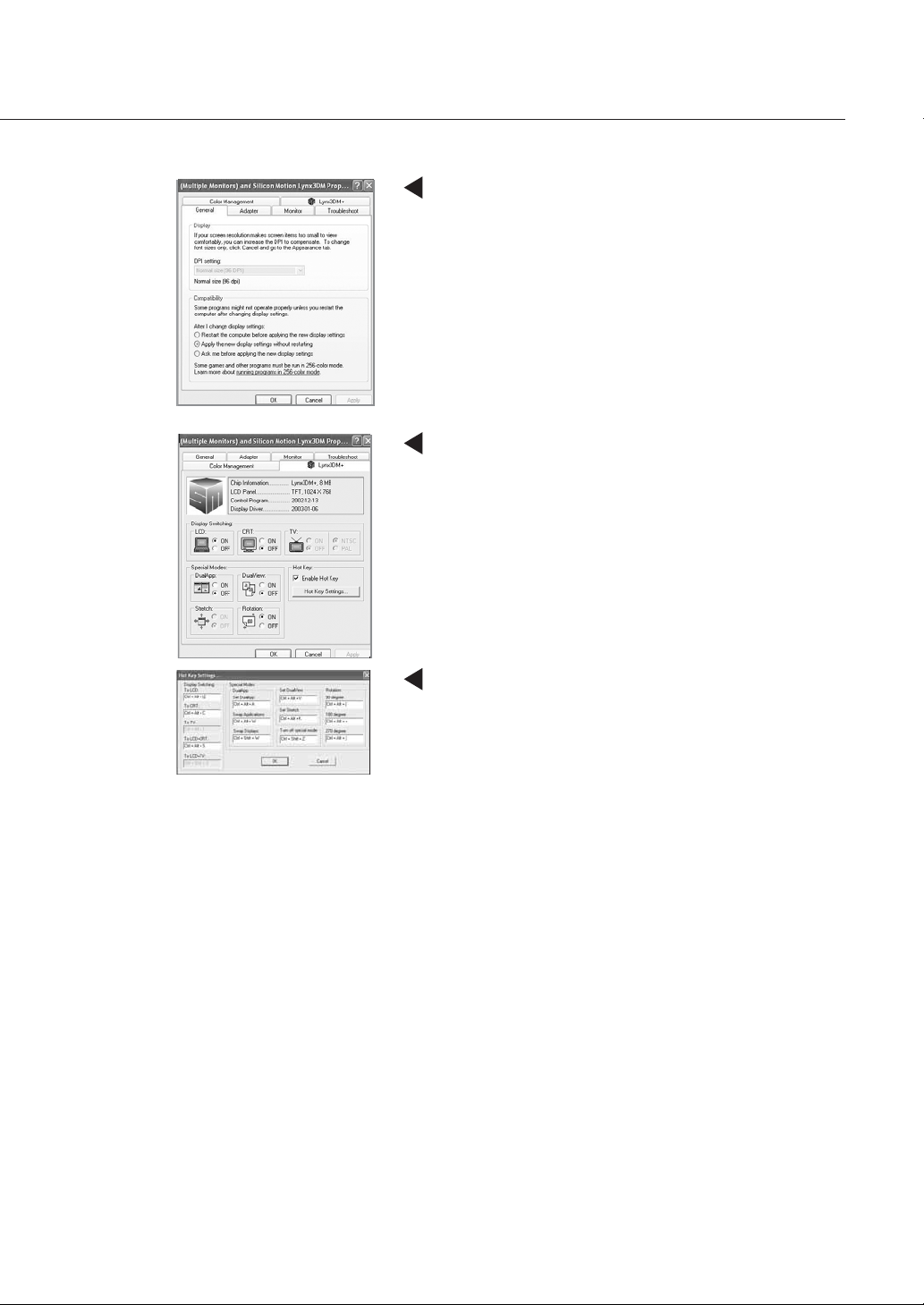

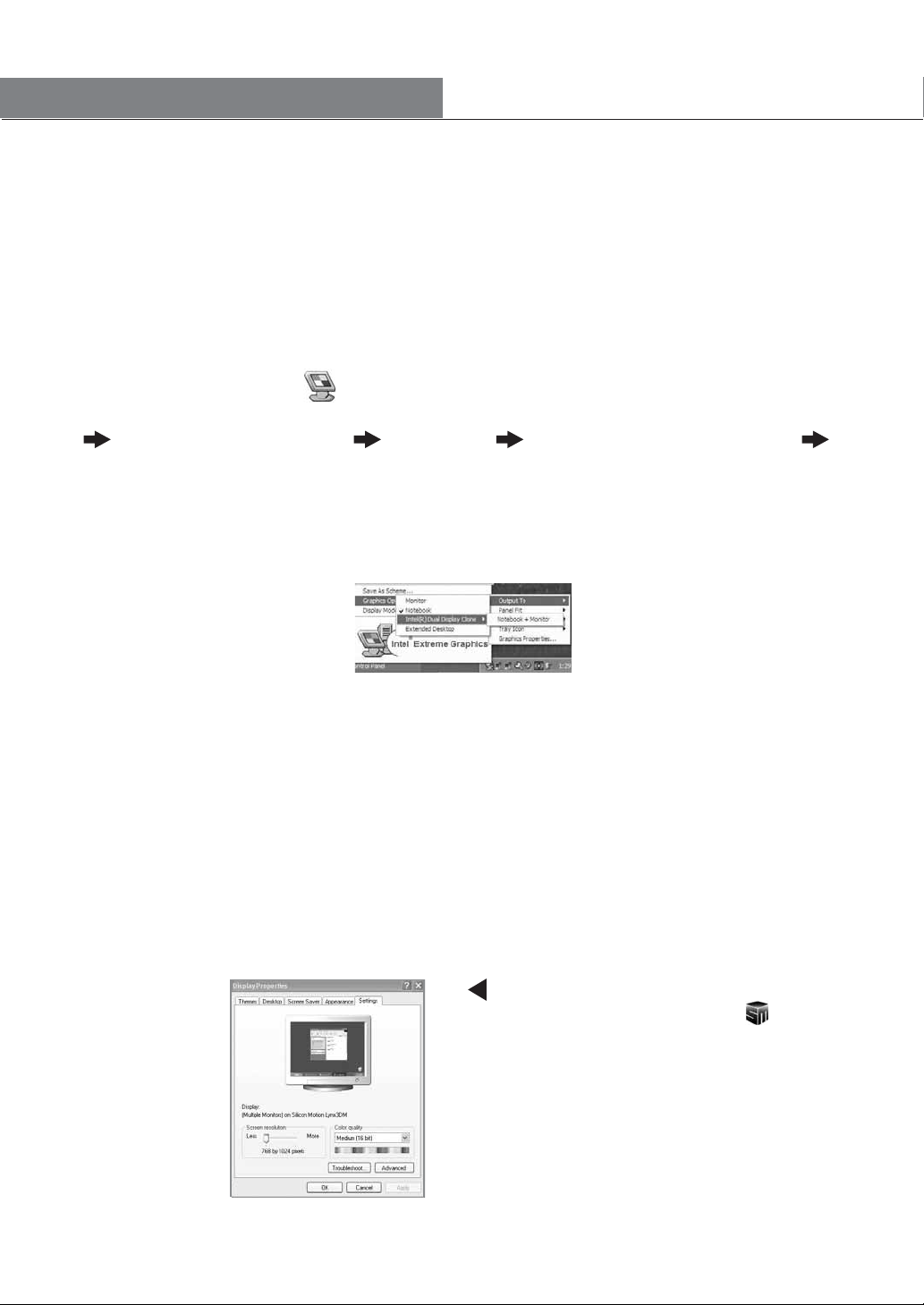

How to Connect to External Projectors and Monitors.................... 23
TTAB-910/TTAB-B10 Setup........................................................... 23
TTAB-510 Setup............................................................................ 23
Upgrading Your Tablet PC............................................................... 25

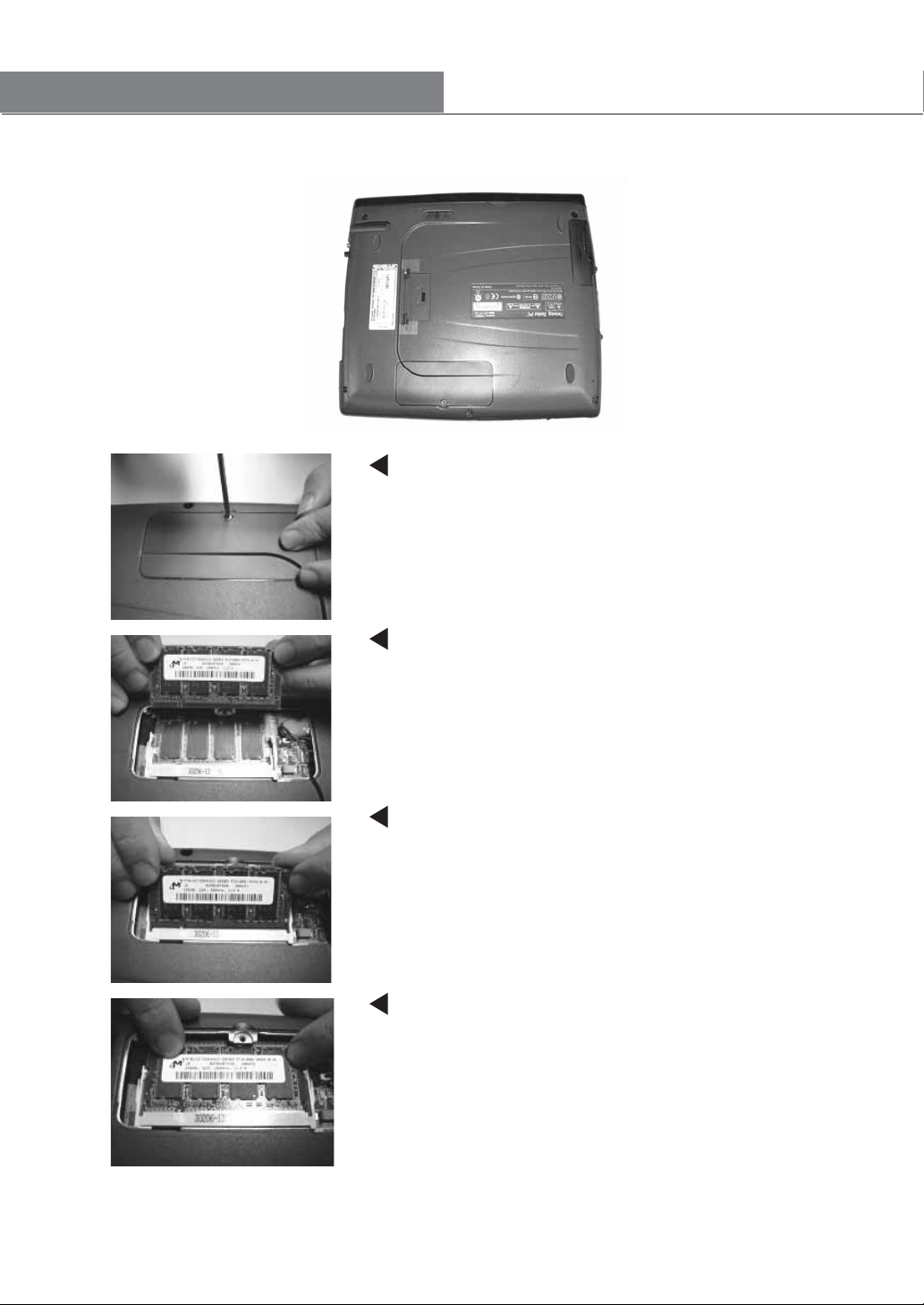

Upgrading the Memory................................................................... 25

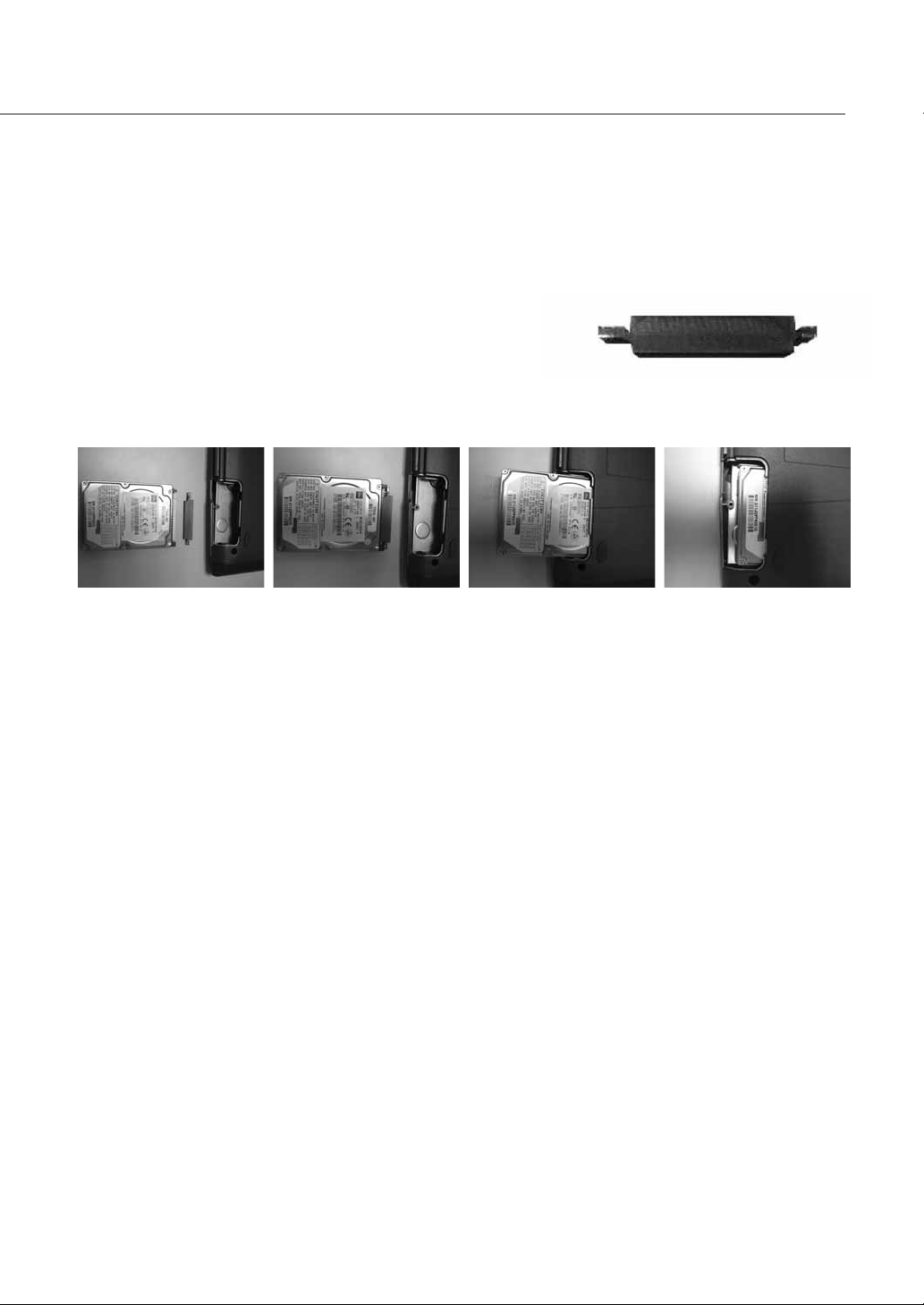

How to Change the Hard Drive....................................................... 26
How to Recover Your Operating System......................................... 26
How to Use the Recovery CD......................................................... 26
Tablet PC
Contacting Technical Support......................................................... 27
Contacting the Manufacturer...........................................................27
Calling For Assistance................................................................... 27

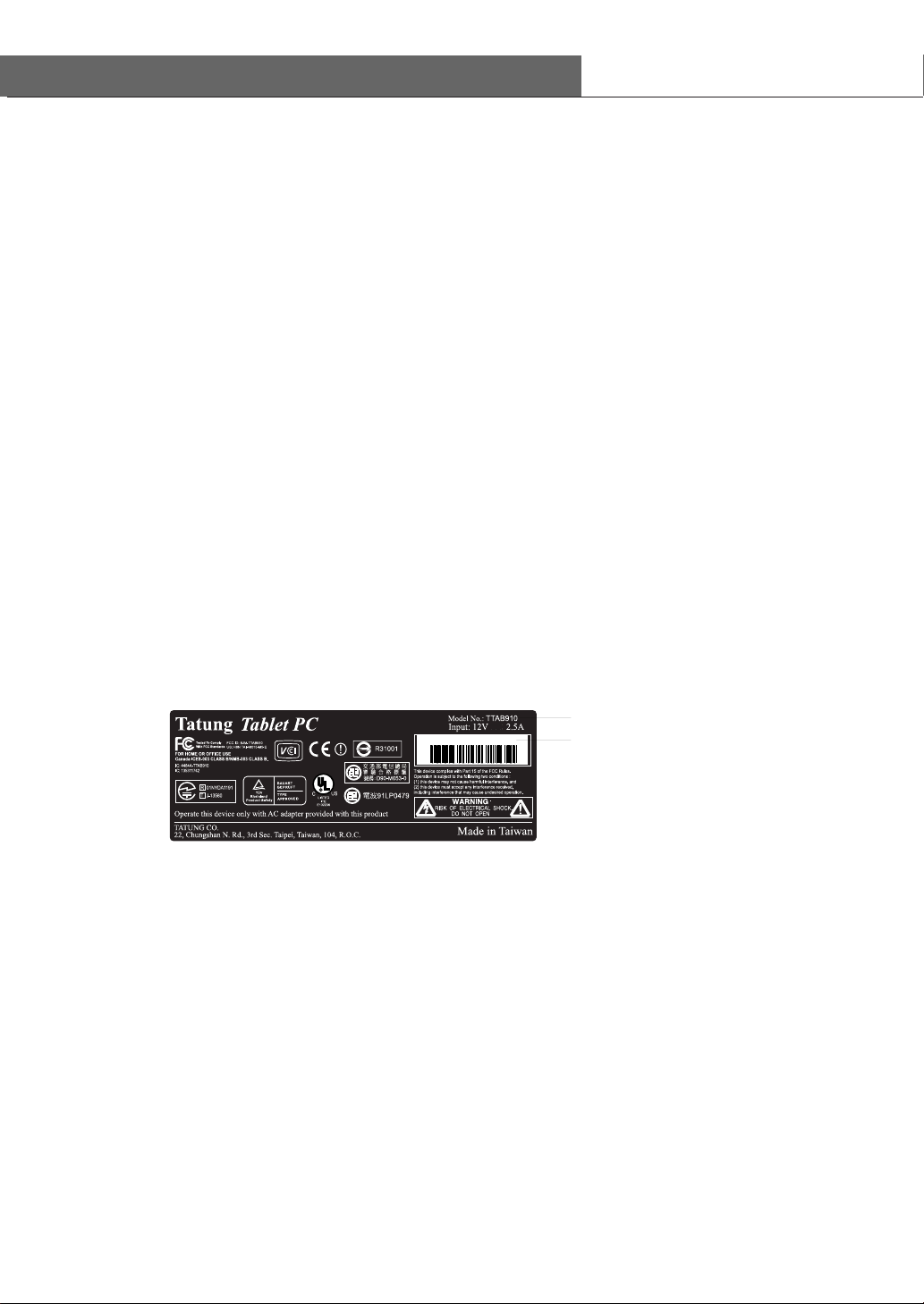

Declaration of Conformity (Safety Standards) ................ 28
Appendices ................................................................................ 29
Pointers for Using the Operating System ...................................... 29

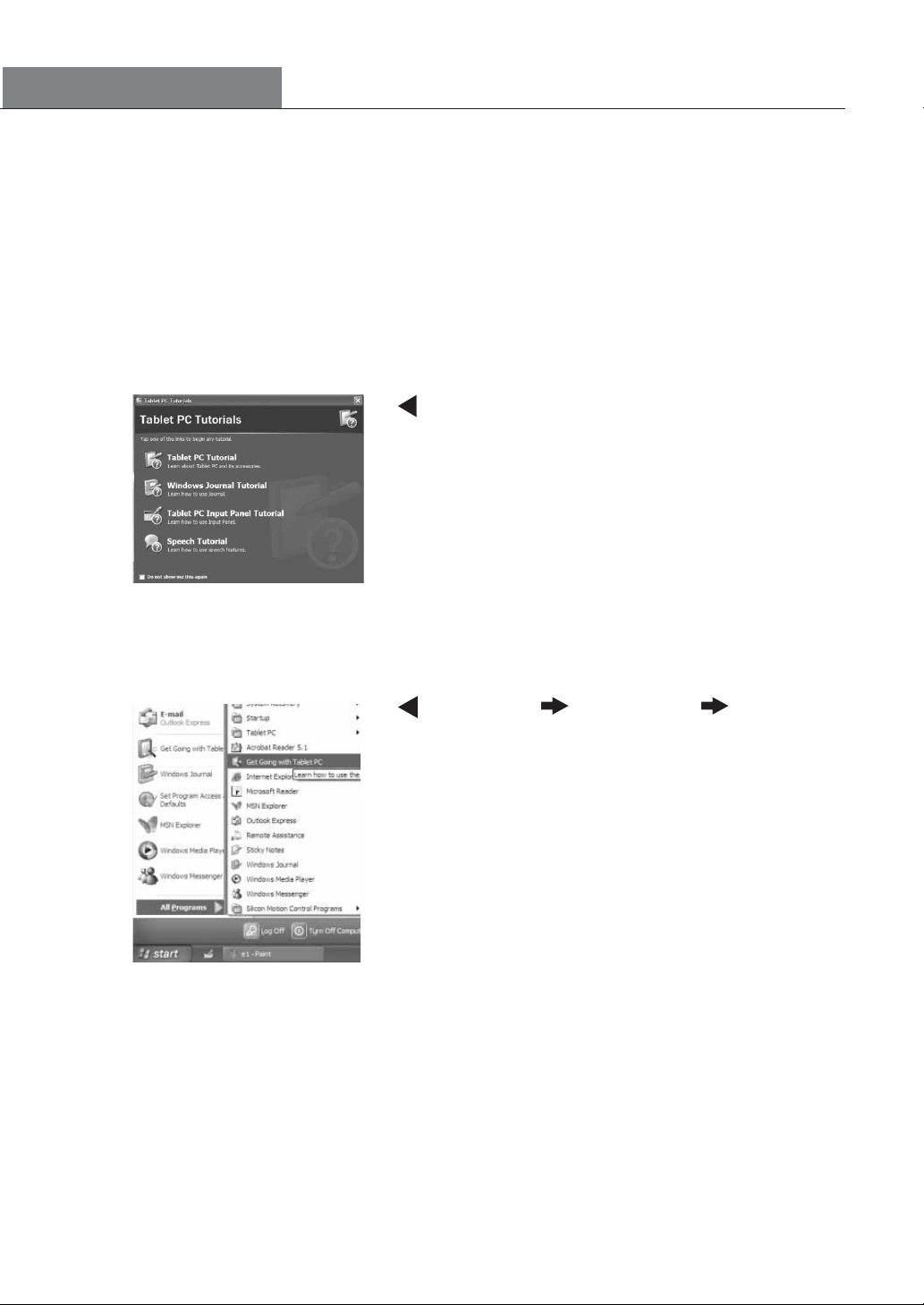

Tutorials............................................................................................ 30

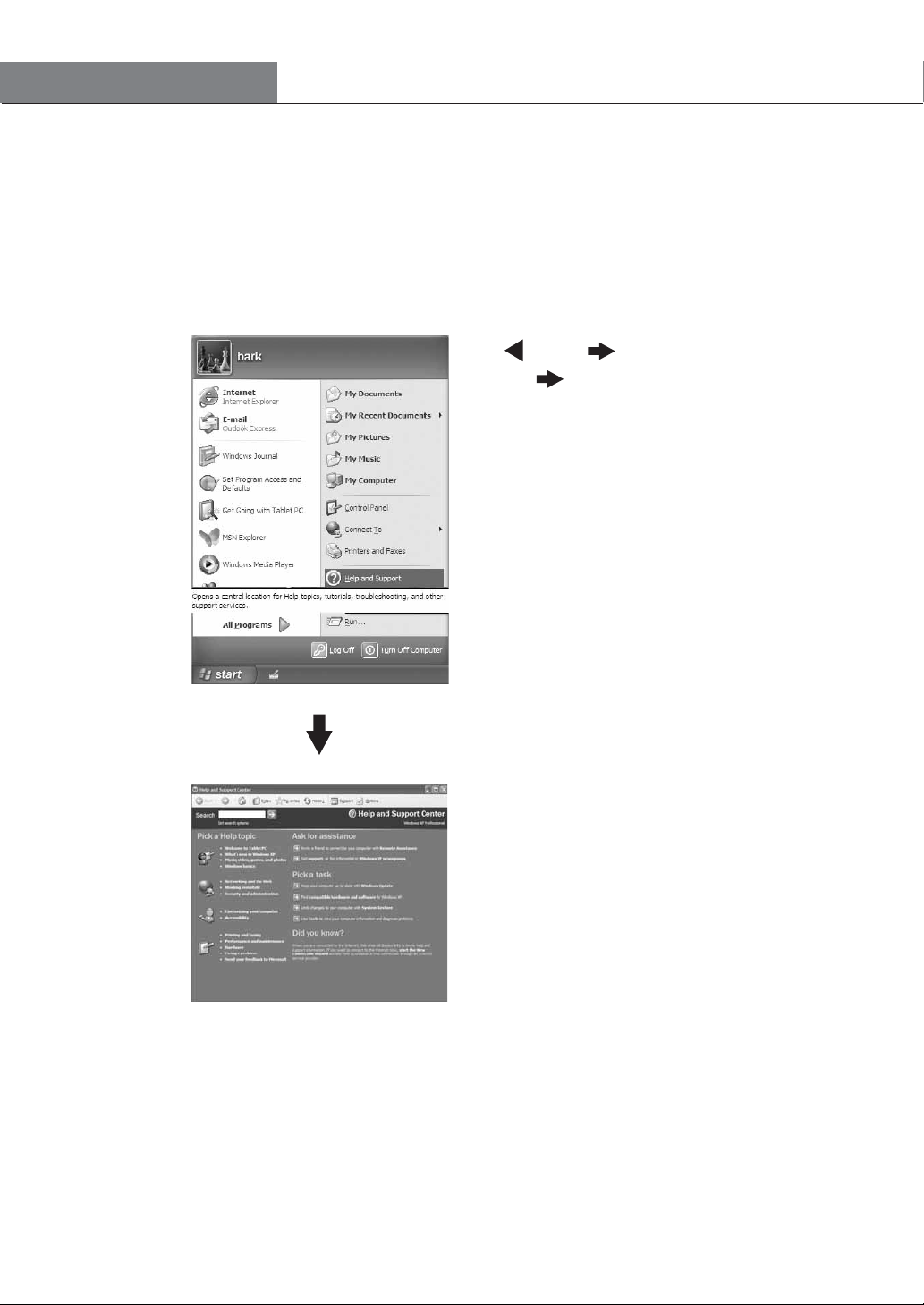

Help and Support............................................................................... 30
Using Your Accessories.................................................................. 31

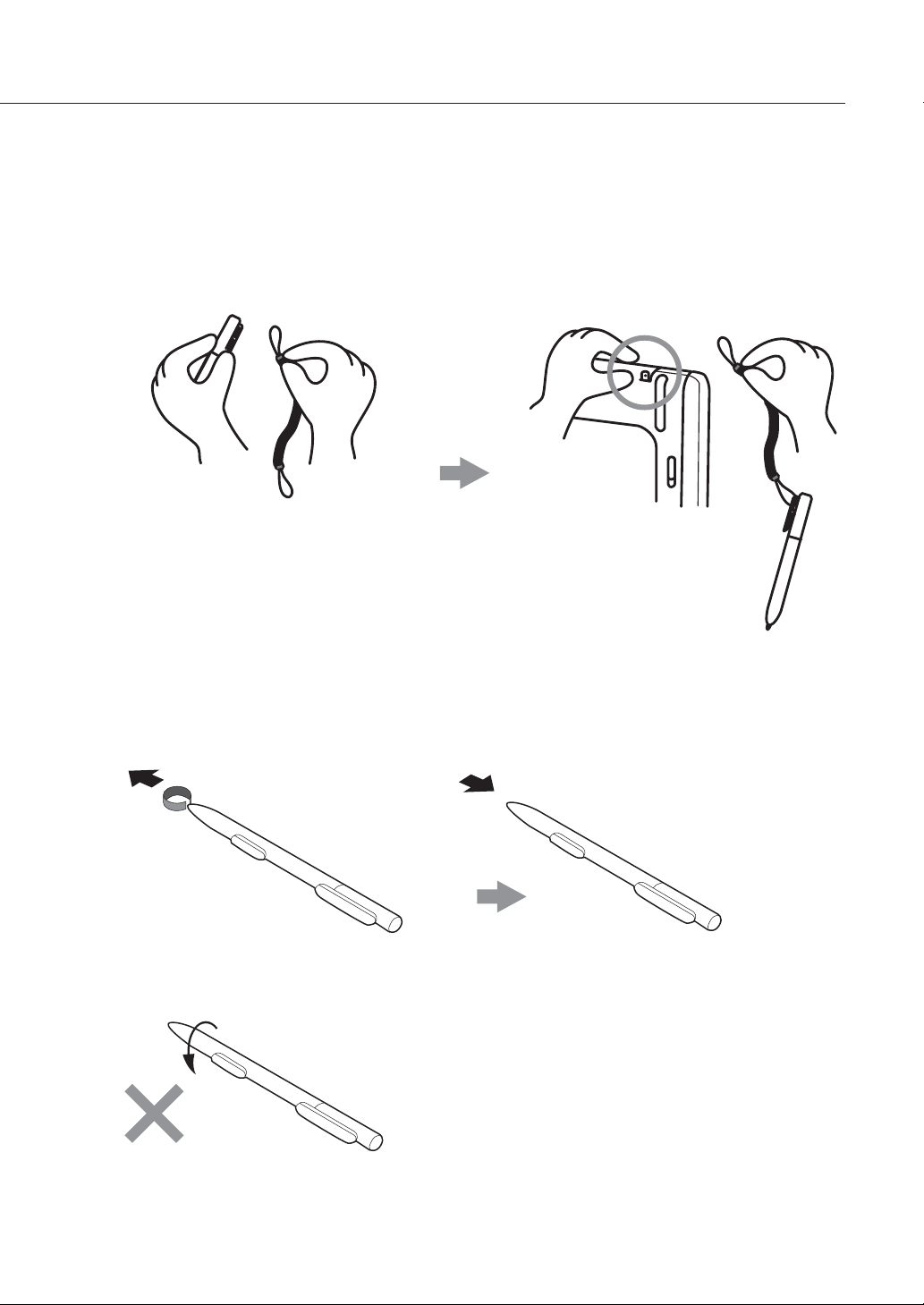

How to Use the Stylus Tether............................................................. 31
How to Change the Stylus Tip........................................................ 31
Maintaining the LCD Display........................................................... 32
LCD Display Maintenance Guidelines........................................... 32
Accessory Checklist
Standard Accessories (depends on model and configuration)
Standard Lithium Battery
Stylus
Stylus Tether
Mini VGA Connecting Cable
Power Cord
AC Adapter
Cleaning Cloth
Microsoft Windows XP Tablet PC Edition Introductory Guide
Optional Accessories
Docking Station
USB Keyboard
USB Mouse
Long-life Lithium Battery
Battery Charger
Memory Module
Recovery CD
Slipcover
Handgrip
Carrying Bag
01
Safety Guidelines
Tablet PC
Safety Information
Please pay attention to the following two symbols that appear in the User Manual. Each
symbol is followed by important, useful information that will help you use your Tablet PC.
Warning
of the instructions for usage that could damage your machine or impair
its performance.
Attention
using your Tablet PC.
Safety and Regulatory Information
When moving the Tablet PC, do not drop it.
Do not dismantle the outer casing, especially during system startup. Any type of
dismantling will damage the system, and the manufacturer will not be
held responsible.
Using an incorrect memory module may damage the system.
If the battery is replaced incorrectly, there is the risk of an explosion. The user
should use the same kind of battery as the original when replacing the battery.
In order to get optimal results from your Tablet PC, please follow the
recommendations below.
The user should remember:
When viewing the computer screen, please maintain a distance of 38cm - 45cm for
the best results.
Avoid exposing the computer screen to direct sunlight, which can cause viewing
discomfort and/or reduce the screen brightness.
This symbol warns of incorrect usage of equipment and/or a violation
This symbol marks advice that will help you get better results when
02
Safety Guidelines
Safety Precautions for Using the Power Cord and Power Supply:
Use together with the designated AC adapter.
Keep away from cold.
Keep away from high temperatures or fire hazards.
Do not short-circuit the power-out.
Do not set in water.
Do not use in humid areas.
Do not pull on the power cord.
Do not weld.
Do not microwave or put inside a high-pressure container.
High voltage inside; do not open.
Do not try to alter in any way.
Do not apply pressure to or drop.
Use together with designated power cord.
Store at a room temperature of -20oC - 85oC (-4oF - 185oF), relative humidity 5% -
95%; work at a room temperature of 5oC - 40oC (41oF - 104oF), relative humidity 5% -
95%.
Do not damage the cord insulation.
Set the computer up near an AC outlet. The AC power cord is the main Tablet
PC AC power breaker, and you must be able to access it easily.
This system can handle a power system of 100-240V. It is suitable for use in the
place or country of purchase.
In order to reduce the possibility of electric shock from the telephone network,
plug the computer into an AC outlet before connecting it to the telephone line. Also,
you should disconnect the telephone line first when unplugging the computer from the
AC power outlet.
Do not repair the power supply yourself. To avoid damage to the power supply,
contact a professional to have it repaired or replaced.
All performance procedures, adjustments, controls, etc. aside from those that are
listed in the User Manual (Upgrading Your Tablet PC) can cause serious
radiation damage. In order to avoid laser exposure, please do not open the LCD
cover.
03
Tablet PC
Battery Safety Guidelines
The battery is restricted to usage with this computer.
Do not dismantle the battery.
Do not expose the battery to fire or water.
Avoid fire, heat, and any sort of damage to the battery.
Do not touch either end of the battery with anything metallic.
Be extremely careful when using a damaged or leaking battery.
If the ambient temperature exceeds 45
If electrolytes come into contact with your eyes, wash your eyes with water for 15
minutes, and then go immediately to a doctor.
To buy a battery, contact a local distributor.
Do not store the battery in a warehouse under high temperatures (over 60
When you want to dispose of the battery, consult your local Waste Treatment
Center regarding disposal and recycling restrictions.
Mercury Battery Warning
This computer contains a mercury battery used to power the clock and the calendar
loop.
If the battery is improperly replaced, there is the risk of an explosion. Please only use
an identical or equivalent battery supplied by the manufacturer when replacing the
battery.
o
C (113oF), do not charge the battery.
o
C, 140oF).
Operating Specifications
Electrical rating: DC 12V, 3.5A
Operating Temperature: 25oC (77oF)
Storage Temperature: -20oC - 70oC (-4oF - 158oF)
Operating Humidity: under 26oC (78.8oF), 15% - 80% humidity
Storage Humidity: under 65oC (149oF), 90% humidity (no condensation)
Storage Altitude: 0m - 4572 m
Note
The above specifications are applicable to models: TTAB-910/TTAB-510/TTAB-B10
04
Introduction of the Tablet PC
Functions
The Tablet PC's size is designed with the user in mind: while writing, you can conveniently
rest your hand on top of the screen.
The Tablet PC's advanced speech recognition system allows it to also be used as a
dictation machine. (See Note 1.)
The wireless connectivity function lets you conduct business no matter where you are,
increasing your efficiency.
Inputting information into the computer is no longer any trouble! Using the stylus, you can
write or draw directly on the screen, and handwritten documents can even be converted to
typed text. (See Note 2.)
Note
1.The next Chinese version of Microsoft Windows XP Tablet PC Edition will have the
speech recognition function.
(The current traditional-character Chinese version does not have this function.)
2.The more correct the stroke-order of the user's handwriting, the greater the
handwriting recognition rate.
05
Exterior
Diagrams of Each Surface
Tablet PC
Microphone
Windows Security
Start Menu
Journal
Tablet PC Input Panel
Power Indicator Hard
Drive Access Indicator
Battery Indicator
Direction Ball + Enter
USB Port
IEEE 1394
Memory Expansion Slot
Mini VGA Port
USB Port
Microphone In
Port
Power
Screen Rotation
ESC
Fn Function Button
Fingerprint Recognition
Device (depends on model)
LCD Display
Stereo Speakers
CF Compact Flash
PCMCIA Slot
Stylus Holder
Battery Latch
Battery
Headphone Out
Modem Connector
LAN Port
Reset Button
Power Jack
Docking Station
Connection Port
Hard Drive Door
06
Introduction of the Tablet PC
Explanation of Indicators
A steady green light indicates the computer is turned
Power Indicator
on; when the computer is in Standby mode, the light
will flash slowly. When the light is off, the computer is
either off or in Hibernate mode.
Hard Drive Access
Indicator
Battery Indicator
A slowly flashing green light indicates the computer is
accessing the hard drive.
A steady red light indicates the battery is charging.
A flashing red light indicates the battery is low.
If the AC adapter is not connected at this time, the red
light will continue to flash until it goes out. This means
that the battery has run too low and is entering a
protected state.
07
How to Use the Tablet PC
Tablet PC
Introduction of Function Buttons That Can be Used After Entering
Windows
This product comes with 13 different function buttons that can be used after entering
Windows. To enable you to access your favorite applications quickly, some of these 13
function buttons even offer additional functions. You, the user, can define functions for
four of them, setting them to suit your individual needs and preferences.
The four directions on the Direction Ball (4 separate functions) together with the Enter
function count as 5 function buttons.
Each button has a built-in primary function. However, some buttons can also have another
function at the same time. These extra functions are called secondary functions. Of the
13 buttons, you may assign your personal secondary functions to four.
When you start to operate your computer, you should understand the following two
types of button functions:
1. primary functions
Pre-set system functions. There is no way for you to reset these. The icon to the side
of the actual button represents the primary function.
2. secondary functions
Additional functions that are accessed by pressing the [Fn] button: some are user-
programmable and some have already been assigned.
When the Windows desktop icon appears on the taskbar in the lower right-hand
corner of your screen, both kinds of functions mentioned above have been assigned
successfully and can be used. The different primary and secondary functions can help you
when you are using the Tablet PC and improve your work performance.
08
How to Use the Tablet PC
Basic Functions
Each button has a basic primary function that has already been defined. These basic
functions are described as follows:
Button Icon Button Function Description
Power On/Off
Rotate
ESC
Fn Function
Up Arrow
Dn Arrow
Right Arrow
Left Arrow
Enter
Tablet PC Input Panel
Journal
Start
Windows Security
computer power switch
rotates the screen among 2 pre-set orientations, user-
programmable.
the same as a normal keyboard [ESC] key, exits the current
application
activates the secondary function keys
the same as a normal keyboard [Up Arrow] key
the same as a normal keyboard [Dn Arrow] key
the same as a normal keyboard [Right Arrow] key
the same as a normal keyboard [Left Arrow] key
the same as a normal keyboard [Enter] key
turns Tablet PC input panel function on/off
starts Windows Journal software functions
opens/closes "Start Menu"
opens "Windows Task Manager," i.e. [Ctrl] + [Alt] + [Del]
1. You may set the power switch to make the computer enter Standby or Hibernate mode. (Go to
"Control Panel" "Power Options" "Advanced" "Power Buttons" and set as Standby or
Hibernate mode. )
2. The Direction Ball will automatically adjust other functions along with the 4 different screen rotations.
For example, if the screen is rotated from the primary setting to a secondary setting, the arrow orientation
will also change with it.
09
Loading...
