Tatung LCD TV

User Manual

Table of contents

1. General Information …………………………………………………………3

2. Safety Precautions ……………………………………………………………4

3. Features ................…………………………………………………………….7

4. Connection ...........……………………………………………………………..8

5. Controls Location ……………………………………………………………11

6. Accessories ..........…………………………………………………………….12

7. Remote Control....……………………………………………………………13

Summary of Control Button……………………………………………………14

8. Controls & Adjustment

A. General Adjustment .................................................…………………………15

Turning the LCD-TV On and Off..............................………………………...15

View Menus and On-Screen Displays ...........…………………………15

Switching PC/Video/S-Video/TV/Component Modes……………………….16 Switching Language Modes……………………………………………….….16

Adjusting the Volume...............................................…………………………17

How to enter the Menu Items...................................……………………….…18

Setting the Sleep Timer ...........................................……………………….…18

B. PC mode Adjustment...............................................……………………….…19

Adjusting Contrast and Brightness Settings....................……………………..19

Adjusting the Picture Settings ……..………..................................………..…20

Adjusting Image Settings ………..............................……………………….…21

Adjusting the Audio Settings ……...……….........…………………………….22

Viewing Picture-in-Picture (PIP)...............................………………………….24

C. TV mode Adjustment ...............................................…………………………27

Adjustment the TV Settings …….………….............................................……27

Special Sound Option…………………………........…………………….……28

Adjusting the Picture Settings …………………………………………………29

Memorizing the Channel..........................................…………………………..30

Changing the Channel.............................................……………………………33

How to use the Parent Control………......................…………………………..34

How to Set up Restrictions Using the 'TV Rating'...………………………..…37 How to Set up Restrictions Using the "MPAA Rating"……………………….39

Viewing Closed Captions.........................................…………………………..41

D. AV/SV/CV mode Adjustment…………………………………………………42 Adjustment the AV/SV/CV settings:……………………………..……………42

E. Other function explanation .................……………………………………..…43

9.OSD Language List………………………………………………………………45

10. Troubleshooting. ………………………………………………………………50

11.Specifications……………………………………………………………………54

General Information

Tatung LCD TV is the latest multi-display active matrix TFT (thin film transistor) liquid crystal high brightness display unit. It is designed to use with VIDEO electronics appliances and PC.

Important Information

Warning: To reduce the risk of fire or electric shock, do not expose this product

to rain or moisture.

Caution: To reduce the risk of electric shock, do not remove the cover (or back). No user-serviceable parts inside. Refer servicing to qualified service personnel.

Note to CATV system installer: This reminder is provided to call CATV system Installer’s attention to Article 820-40 of the National Electrical Code (Section 54 of Canadian Electrical Code, Part 1), that provides guidelines for proper grounding and, In particular, specifies that the cable ground shall be connected to the grounding system of the building as close as to the point of cable entry as practical.

Caution: FCC/ CSA regulations state that any unauthorized changes or modifications

to this equipment may void the user's authority to operate it.

Important: One Federal Court has held that unauthorized recording of copyrighted TV programs is an infringement of U.S. copyright laws. Certain Canadian programs may also be copyrighted and any unauthorized recording in whole or in part may be in violation of these rights.

CAUTION

Risk of electric

shock. Do not open.

WARNING:

According to industry standards, there are certain numbers of defective pixels both bright and dark that are acceptable. Although we produce panels with more than 99.99 percent active cells, there still may be some cells that do not produce light or remain lit. For more information, please contact sales or the technical support at

800.827.2850.

Thank You for Choosing This Product

Your new LCD TV represents the latest product in television technology. We have designed it with easy-to-use on-screen menus and closed caption capabilities making it one of the best products in its class. We are proud to offer you a product that will provide convenient, dependable service and enjoyment for years to come.

Safety Precautions

1. Cleaning: Unplug the power cord from the AC outlet before cleaning the product. Use a damp cloth to clean the product. Do not use liquid or aerosol cleaners.

2. Water and moisture: Do not use the product near water, such as bathtubs, washbasins, kitchen sinks, laundry tub, swimming pools or wet basements.

3. Heat sources: Keep away from heat sources such as radiators, heaters, stoves and other heat-generating products (including amplifiers).

4. For added protection for this television equipment during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage to the equipment due to lightning and power-line surges.

5. If an outside antenna is connected to the television equipment, be sure the antenna system is grounded to provide protection against voltage surges.

Example of antenna grounding

As per national electrical code

Antenna lead in wire

Antenna discharge unit

Grounding conductors

Ground clamps Power service

grounding Electrode system

Ground clamp

Electric service

equipment

6. Stand: Do not place the product on an unstable

cart, stand, tripod or table. Placing the product

on an unstable base can cause the product to fall, resulting in serious personal injuries as well as damage to the product.

Use only a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. Use only mounting hardware recommended by the manufacturer.

7. Use care when moving the product on a rolling cart. Sudden stops, excessive force and an uneven floor surface may cause the product to fall from the cart.

8. Ventilation: The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents and openings because insufficient ventilation can cause overheating and/or shorten the life of the product. Do not place the product on a bed, sofa, rug or other similar surface, because they can block the ventilation opening. This product is not designed for built-in installation, do not place the product in an enclosed environment such as a bookcase or rack, unless proper ventilation is provided or the manufacturer's instructions are followed.

9. The LCD panel is made of glass. Therefore, it can break when the product is dropped or struck.

10. The LCD panel is a technologically advanced product giving you fine picture details. Occasionally, a few non-active pixels may appear on the screen as a fixed point of blue, green or red. These non-active pixels are considered acceptable according to industry standards.

11. An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should

be taken to keep from touching such power lines or circuits as contact with them may lead to severe personal injury.

Features

List of Features

Your TV was designed with the latest technology that includes the following special features:

1. Standard VESA mounting holes for use of a wall mount or robot arm.

2. Rotate and tilt features to optimize viewing.

3. Easy-to-use remote control.

4. Easy-to-use on-screen menu system.

5. PIP (picture in picture)

6. Headphone jack for private listening.

7. 16:9 letterbox format available depending upon source.

8. Built-in dual channel speakers.

9. Fine tuning control for the sharpest picture possible.

10. A built-in multi-channel sound decoder for stereo, mono, and SAP.

11. Automatic channel tuning up to 125 channels.

12. Sleep timer.

13. Adjustable picture and sound settings that are stored in the TV's memory.

Connection

DVD

VIDEO Input device

Head Phone

VIDEO Output device

SUBWOOFER OUT

Antenna terminal

Control Location

These buttons control your TV’s basic features including on-screen menus. To use the advanced features, you must the remote control.

POWER: turn on or turn off the LCD TV. SOURCE: set up the input source (PC,VIDEO,SV,TV,CV). MENU: displays the main menu. CHANEL (down/up): change channels on sequence. VOLUME(+/-): turn up or turn down the volume. ASPECT RATIO: sets up the display (Normal, Periscope, Zoom or Full).

ASPECT RATIO VOLUME(+/-) CHANEL(down/up) MENU SOURCE POWER

Remote sensor window

Aim the remote control at the sensor window.

Speaker Speaker

Accessories

User’s manual

Remote control & Batteries (4A x2)

15 Pin D-Sub Signal Cable

Antenna Cable

Power Cord

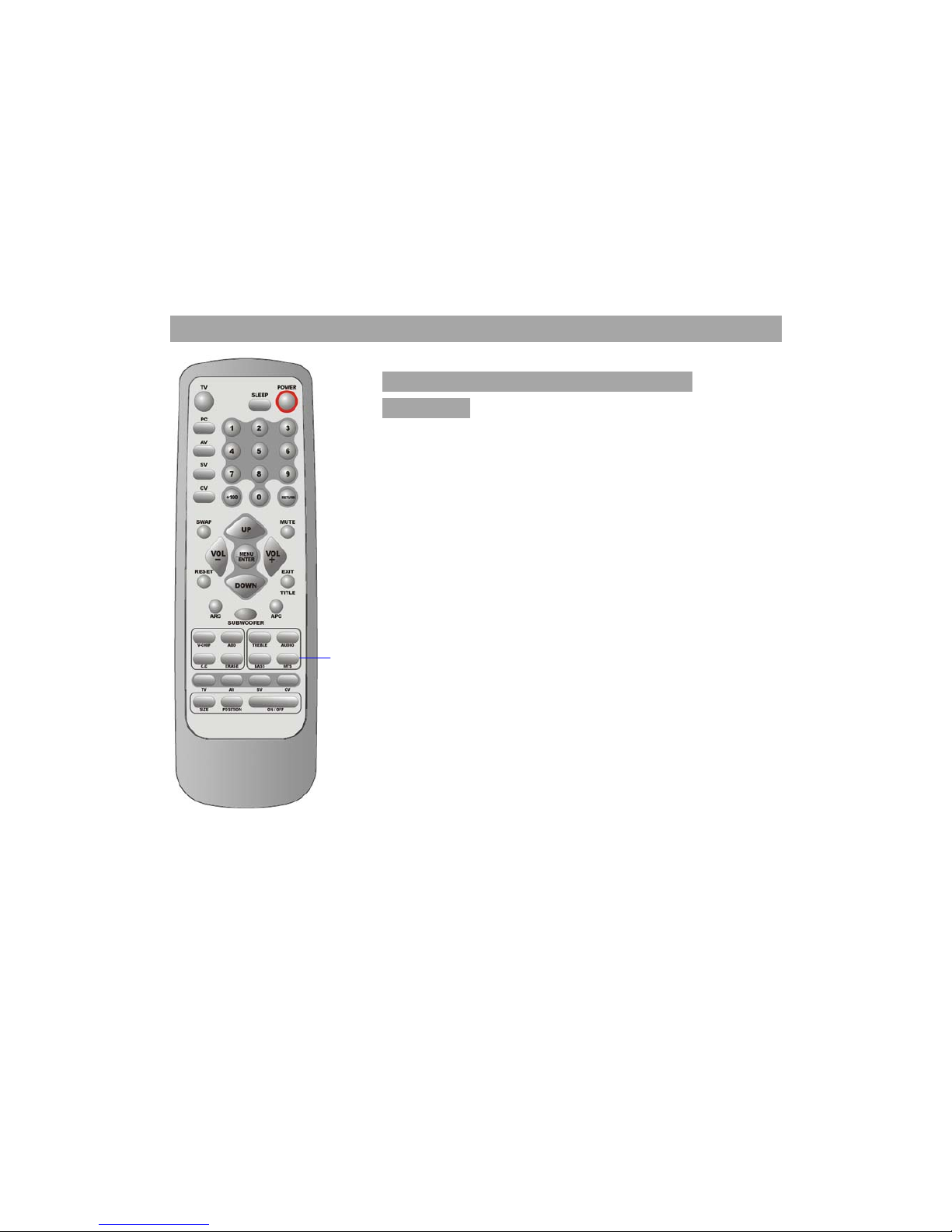

Remote Control

The remote control pad illustrates the basic functions or your remote control.

Sleep Power

Number Buttons

Return

Channel UP

Mute

MENU/Enter

VOL+

TITLE / EXIT

Channel DOWN

APC

Audio Function

SWAP

VOL－

Reset

ARC

Subwoofer

Other Function

PIP Function

Summary of Control Button

PPoowweerr ccoonnttrrooll

Press POWER button Turns the display on/off

Selecting the signal source

Press TV button Switches to TV mode. Press AV button Switches to AV Video mode. Press SV button Switches to S-Video mode. Press CV button Switches to Component mode (Y Pb Pr). Press PC button Switches to PC mode.

Menu Setting

Press MENU/ENTER button Displays the main on-screen menu or enter for the

next menu.

Press TITLE/EXIT button Displays the current channel digits or exits from

the menu.

Changing Channels

Press UP button Forwards the channel on the TV. Press DOWN button Reverses the channel on the TV. Press 0~9，+100 button

Selects channels directly on the TV.

Press RETURN button Return to previous channel on the TV.

Sound Control

Press VOL+ button Increases the sound. Press VOL- button Decreases the sound. Press MUTE button Temporarily disables the audio Press MTS button Press to choose stereo, mono or separate audio

program supply multi-channel sound services. Press AUDIO button Select present audio is main display or sub display. Press TREBLE button Adjusts the treble. Press BASS button Press SUBWOOFER button.

Adjusts the bass.

Opens the subwoofer function.

PIP Control

Press ON/OFF button Press to watch one of the video sources on sub

display. Press again to make the sub display

disappear. Press TV、AV 、SV、CV button

Press to select one of the PIP window input

sources. Press SIZE button Adjusts the size of the PIP box. Press POSITION button

Press to move the PIP window to：Top Left→Top

Right→Bottom Right→Bottom Left→Repeat

Other Function

Press SWAP button Change main display and sub display. Press RESET button Returns to original factory settings. Press ARC button

In PC source：Set the picture window to full or

normal.

In Video source：Set the picture window to normal

→full→periscope→zoom.

Press APC button Select Normal, Clear, Dark, and Theater mode for

picture control. Press SLEEP button Press to select a present time interval for shut off. Press V-CHIP button Sets Parental Control function. Press CC button Sets the caption of TV programs show on or off. Press ADD button Adds the channel of TV programs in TV source. Press ERASE button Erases the channel of TV programs in TV source.

Controls & Adjustment

A. General Adjustment

Turning the LCD-TV On and Off:

To turn on the TV, plug the power cable into a 110V or 220V outlet. Press the Power button on the top of the panel or you can use the remote to turn the

TV on.

An indicator light shows as follows:

In PC mode --- Green light In PC mode (power save) --- Orange light

In TV, AV, SV, CV mode --- Blue light

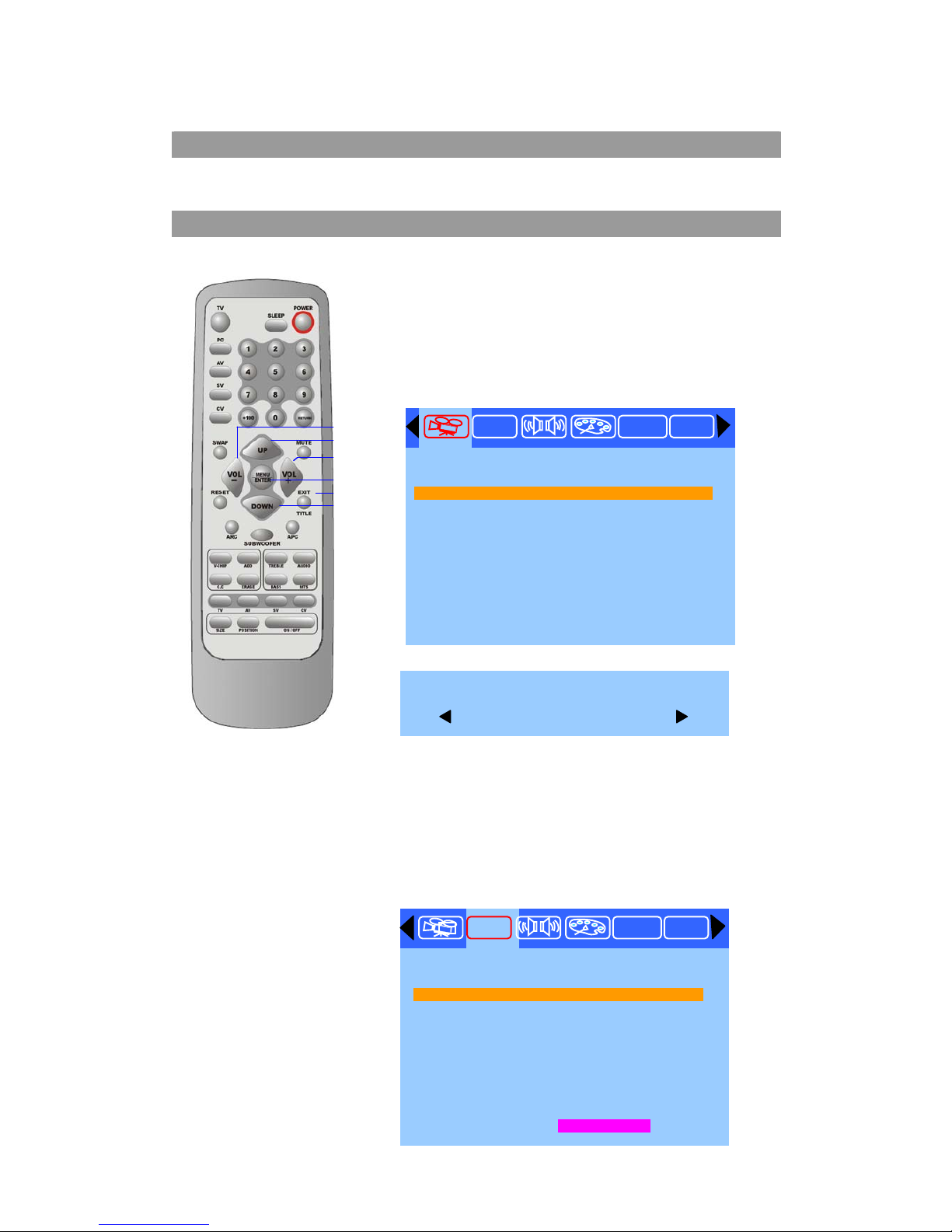

Viewing the Menus and On-Screen Displays:

1.With the power on, press the MENU

Button. The main menu appears on the screen.

2.Use the VOL (+) or VOL (-) button to select one of the menu options. Then press the ENTER button to access the menu’s Sub-menu.

3.Press the EXIT button to exit from the Menu.

Viewing the Menus

PIP

PC TV

Management

Main Display ( AV )

PIP Display ( Off )

Language

Reset ( No )

NTSC

H ： 31.2 kHz V ： 50.2 Hz

Down

Menu/Ente

Title/Exit

Switching PC/Video/S-Video/TV/Component Modes:

1.Turn on the power of the connected video equipment.

2.Press the applicable input source.

Press TV button to switch to TV mode. Press PC button to switch to PC mode (VGA). Press AV button to switch to AV mode. Press SV button to switch to S-Video mode. Press CV button to switch to CV mode (Y, Pb/Cb, Pr/Cr).

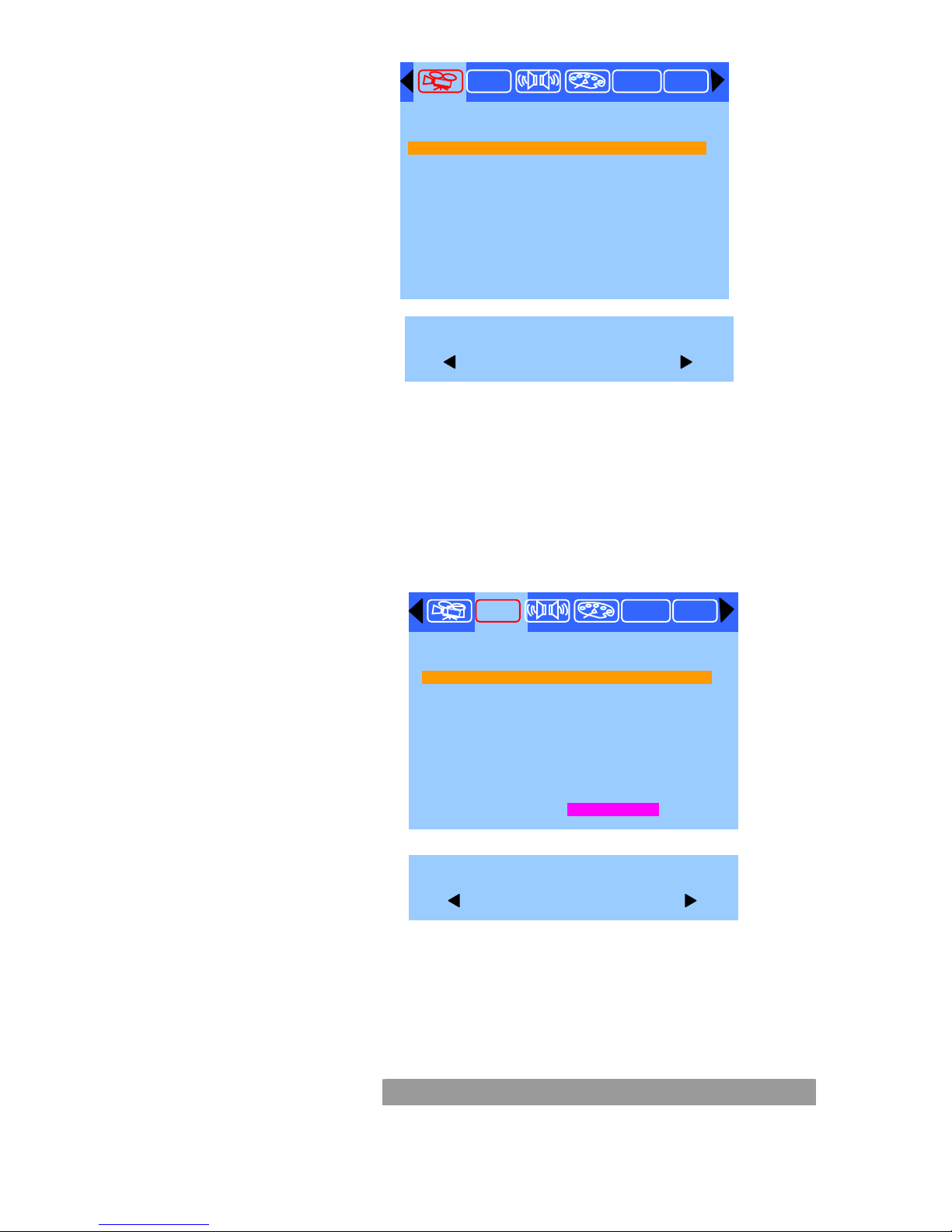

Switching Language Modes:

1.Press the MENU button to display the main menu.

2. Press the

ENTER button to enter Management.

Press the UP or DOWN button to select Language. Then press the ENTER button.

3. Press the

UP or DOWN button to select the

desired language mode then press the ENTER Button.

PIP

PC TV

Management

Main Display ( AV )

PIP Display ( Off )

Language

Reset ( No )

NTSC

H ： 31.2 kHz V ： 50.2 Hz

VOL(-) Up VOL(+)

enu/Enter

Title/Exit

own

Power

PC A
