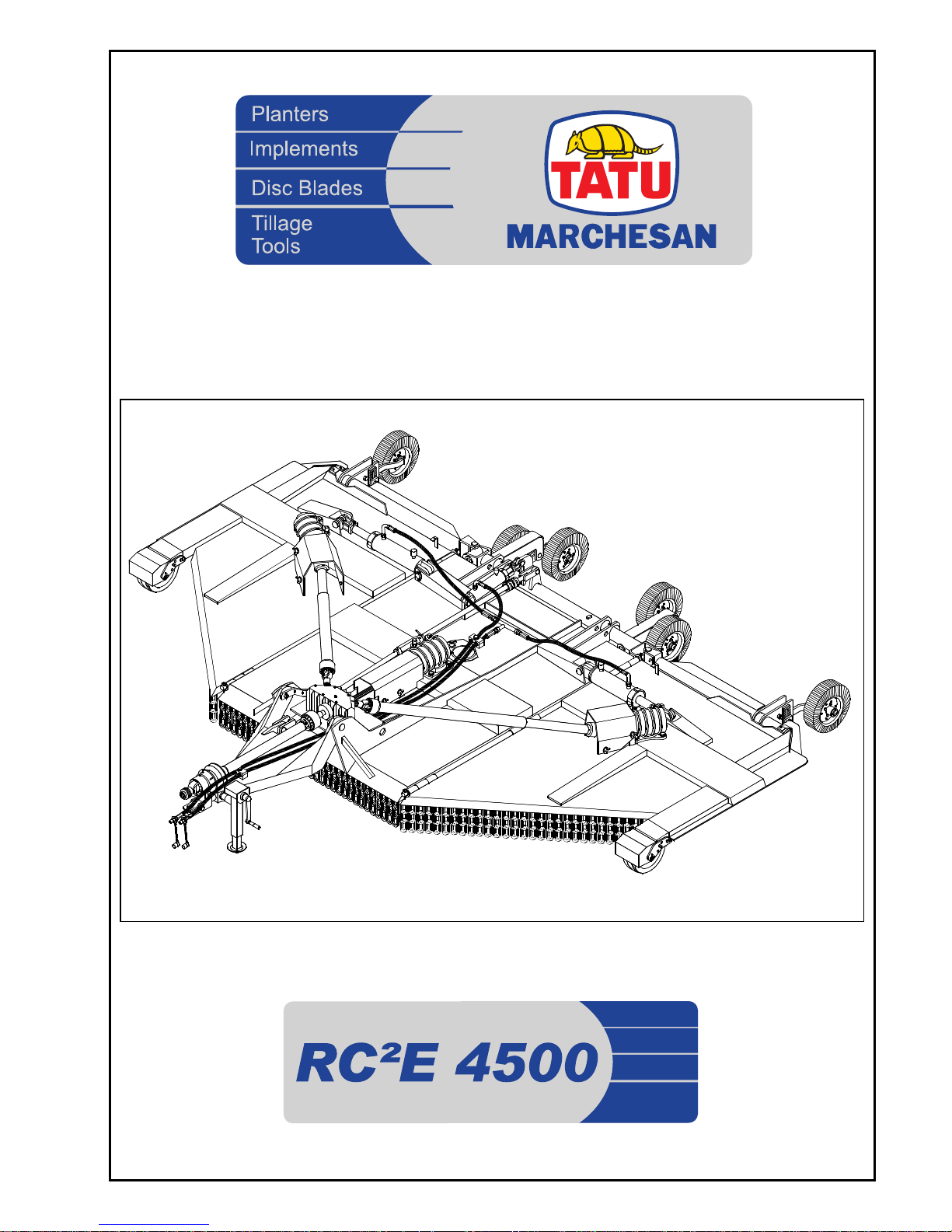

TATU RC²/E 4500 Rotary Cutter makes the mowing operations with better efficiency

and high quality.

The advanced design and the great working width allow reduction around to fifty percent in the operational cost; especially in the cleaning of citric and similar orchards, in the elimination of crop remains and services that demand quickness in its accomplishment.

Especially designed for extensive areas, the RC²/E 4500 model possesses a central frame and two highly resistant lateral frames, in order to act in severe situations. The articulations allow to follow the ground surface contours, maintaining the even cutting height in all its long range.

The cutting blades operates in an overlapped way, avoiding the formation of non mowing strips.

Equipped with direct transmission, the gearboxes (Multipliers and Divider) are protected by slip clutches; offering larger useful life and low maintenance cost.

The heavy-duty structure possesses beams in the upper surface of the rotary cutter, avoiding the earth accumulation in the lower surface.

This Manual contains the necessary information for the best rotary cutter performance. The Operator should read with attention the whole Manual before starting the rotary cutter operation and be sure of understanding all safety recommendations.

To get any elucidation, or in the eventuality of technical problems, consult the Dealer, as well as Marchesan's customer service, that will guarantee the rotary cutter full operation.

INTRODUCTIONINTRODUCTION

INTRODUCTION

Page 3

INDEXINDEX

INDEX

TO THE OWNER ................................................................................................................... 3

General Information ............................................................................................. 3

TO THE OPERATOR ...................................................................................................... 4 to 9

Operation Safety........................................................................................ 4 and 5

Transporting on Truck or Trailer ............................................................................ 6

Safety Stickers ............................................................................................. 7 and 8

Location of the Stickers ......................................................................................... 9

TECHNICAL SPECIFICATIONS .......................................................................................... 10

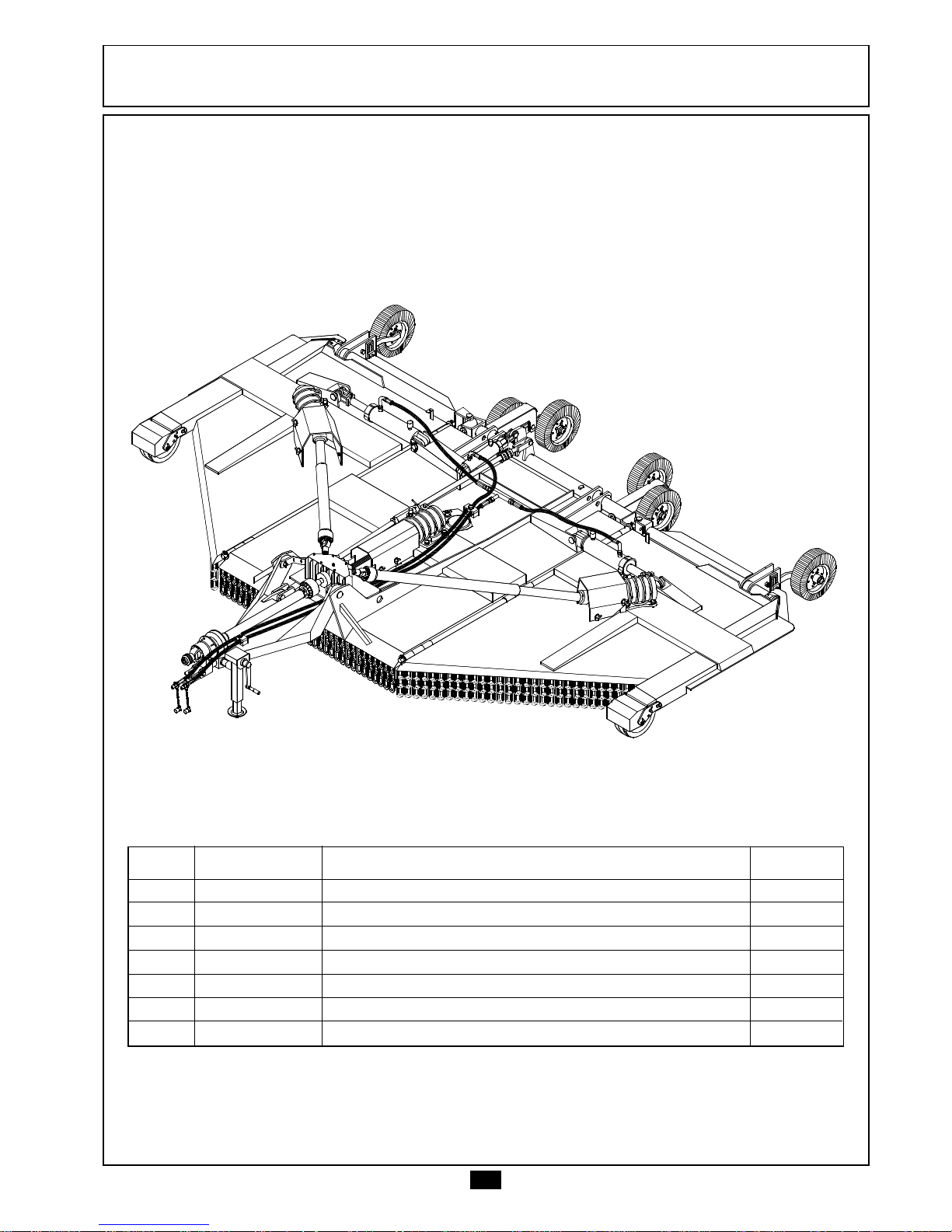

COMPONENTS.................................................................................................................. 11

PREPARATION FOR USE ........................................................................................... 12 to 18

Attaching to Tractor................................................................................... 12 to 14

Putting in the Transport Position ......................................................................... 14

Putting in the Working Position ........................................................................... 15

Mounting the Indicator of Oil Level With Vent .................................................. 16

Transverse Leveling ............................................................................................. 17

Front-to-Rear Leveling......................................................................................... 18

ADJUSTMENTS AND OPERATIONS ......................................................................... 19 to 24

Reversion of the Outboard Tires ........................................................................ 19

Articulation of the Wings .................................................................................... 19

Cutting Height Adjustment ................................................................................ 20

Main Driveshaft ................................................................................................... 21

Direction of Blades Rotation and Part Number................................................ 22

Slip Clutch ............................................................................................................ 23

OPERATIONS - Important Points ......................................................................... 24

MAINTENANCE........................................................................................................ 25 to 28

Lubrication ........................................................................................................... 25

Lubrication Points ................................................................................................ 25

Reversion or Replacement of the Blades ............................................ 26 and 27

Replacement of the Skid Guides....................................................................... 27

Procedures Before Storing the Rotary Cutter for a Long Period ..................... 28

Procedures to Come the Rotary Cutter Back for Operation .......................... 28

IMPORTANT .......................................................................................................................29

Page 4

TO THE OWNERTO THE OWNER

TO THE OWNER

IMPORTANT: - ONLY A PERSON WHO OWNS A FULL KNOWLEDGE OF THE TRACTOR AND

IMPLEMENT, MUST OPERATE THEM.

- MARCHESAN IS NOT RESPONSIBLE FOR ANY DAMAGE CAUSED BY ACCIDENT ON TRANSPORT, INCORRECT UTILIZATION OR NO ADEQUATE STORAGE.

- AFTER THE OPERATING SEASON, THOROUGHLY CLEAN YOUR IMPLEMENT AND INSPECT IT. PREVENTIVE MAINTENANCE PAYS DIVIDENDS.

- YOUR DEALER HAS ORIGINAL EQUIPMENT PARTS WHICH ASSURE PROPER FIT AND BEST PERFORMANCE.

Note: THE WARRANTY SHALL NOT BE APPLIED TO ANY EQUIPMENT, OR ANY PART THEREOF,

WHICH HAS BEEN ALTERED ELSEWHERE THAN AT THE PLACE OF MANUFACTURE OR WHICH THE ORIGINAL PURCHASER THEREOF, AT RETAIL, HAS USED OR ALLOWED TO BE USED PARTS, NOT MADE OR SUPPLIED BY MARCHESAN S/A.

General information

- The right-hand and left- hand sides of the cutters are determinated by facing in

the direction the implement will travel when moving forward.

- When ordering parts please be sure to inform the quantity, part number and name of each part wanted. It is also important to give the machine Serial Number, which is placed on the mainframe.

The acquisition of any TATU product assures to the original purchaser the following rights:

- Warranty certificate.

- Instructions manual.

- Technical assistance by the dealer on the equipment delivery.

- The owner has obligation to inspect the conditions of the product on delivery, as well as knowing the warranty terms.

- Special attention should be given to safety recommendations, operation cares and maintenance of the product.

- The instructions provided in this manual indicate the best use and allows to reach maximum efficiency, increasing the useful life of this product.

- This manual should be directed to the operators and maintenance people.

Page 5

TO THE OWNERTO THE OWNER

TO THE OWNER

Dear User !

Respect the Ecology.

Do not throw the trash away.

This gesture of goodwill helps to

protect our Environment.

Do not spill combustible oil, battery and filter residues in the soil. The trash in contact with the soil reach the sub layer which cause directly damage to the Environment. Look for information to delivery these contaminated elements to whom knows how to recycle or re-use them.

Be careful with the environment.

Operation Safety

- ONLY WITH A COMPLETE CO-OPERATION OF IMPLEMENT OPERATOR THE ACCIDENTS CAN BE PREVENTED.

- THIS SYMBOL IS A WARNING DEVICE WHICH SHOULD BE KEPT IN A CLEAN AND VISIBLE PLACE, WHEN TRANSPORTING THE IMPLEMENT DURING THE DAY OR NIGHT. USE ACCESSORY LIGHTS AND OTHER DEVICES IN ORDER TO GIVE ADEQUATE WARNING TO OPERATORS OF OTHER VEHICLES

The rotary cutters are easy to operate, therefore some basic and indispensable

cares are required on their handling.

Have always on mind that safety requires constant attention, observation and

prudence during the operation, transport, maintenance and storage of the machine.

Read and understand the information before realize adjustments and maintenance.

Page 6

TO THE OPERATO THE OPERA

TO THE OPERA

TORTOR

TOR

Never use your hands to check hydraulic leaks.

Escaping hydraulic oil under pressure may have sufficient force to penetrate the skin causing personal injury.

Never attempt to change the adjustments, clean or lubricate the implement when in movement.

Be careful when moving around steep graders to avoid overturn.

Be careful with the use of fertilizer or chemicals.

These products in contact with skin may cause personal injury.

Keep the entrances and places acessible to work, clean and free of the oil and grease to prevent accidents.

Never allow riders on the tractor or implement unless an additional seat is available.

Use extreme

caution when circulating with the implement under electrical power lines, any contact may result in severe shock, injury or death.

In order to protect yourself always wear adequate clothes and shoes during the operations.

Never transport the implement on rough roads during the night. When operating avoid to make sharp turns that may cause tire to make contact with implement.

When working near the PTO Shaft have a special care.

Never come closer to rotating parts.

Page 7

TO THE OPERATO THE OPERA

TO THE OPERA

TORTOR

TOR

- During the operation or transport do not allow riders on the tractor or implement. Serious personal injury could result from falling in the path of the machine while in operation or transport.

- Never allow children playing near the place that you are operating in.

- Learn about the area before starting the operation. Delimit the dangerous places or the obstacles.

- Use the most appropriate speed according to the land conditions or roads to travel.

- Use individual equipments for your own protection.

- Wear clothes and adequate shoes. Avoid large or loosen clothes that could twine on the movable parts.

- Never operate without the machine protection devices.

- Be careful when hitching the implement to the tractor. Hands or fingers can be injured when caught between the hitch and tractor drawbar.

- Before starting to raise or move the implement check for people or animals near or under the implement.

- Verify with attention the transport width in narrow places.

- When disconnecting the implement move it to level area, preferably a hard surface, on the field or at the warehouse. Certify that the implement is properly stationed.

- See the general safety instructions in the back-cover of this Manual.

When Transporting the Implement on Truck or Trailer

To transport the equipment at long distances use a truck or trailer. However, the safety instructions should be followed carefully:

- Use adequate loading dock to load and unload the equipment. Never use a ditch bank, this practice could result in serious personal injury.

- In the event of lifting up with hoist use the appropriate points to hold.

- Immobilize the implement properly.

- Use chock blocks and safety chains to secure the implement to the truck or trailer during the transport.

- After 8 to 10 km transporting, please inspect the condition of the cargo. Repeat this procedure every 80 to 100 km. Give more attention when transporting the implement on rough roads, steep graders and other adverse conditions.

- Be careful with transport height, specially when passing under electrical power lines, etc... Any contact could result in severe shock, injury or death.

- Observe all laws and regulations as to the height limits and cargo width while transporting the implement on truck or trailer. If necessary use banners, lights and other devices in other to give adequate warning to the drivers of other vehicles.

Page 8

TO THE OPERATO THE OPERA

TO THE OPERA

TORTOR

TOR

SAFETY STICKERS

The safety stickers must be maintained in good shape of preservation. If the safety stickers are damaged, or get illegible, they must be replaced. Marchesan will supply the stickers by means of solicitation and indication of the respective codes.

0503031841 - Revisão 0 - 01/03

CAUTION CUIDADO

Rotary Cutters can throw fragments away at high-speeds, which can cause serious injuries or death for people near around. Don’t operate the Rotary Cutter with people around.

Las Desmalezadoras pueden soltar fragmentos en alta velocidad, lo que puede causar heridas graves para personas próximas. No opere la Desmalezadora con personas alrededor.

- In order to prevent serious personal injury read and understand the manual.

- Keep the belts and transmissions tighten and clean.

- Lower the implement, shut the engine off and remove the key from the tractor before uncoupling or servicing under the implement.

- Keep alert to stop the tractor and the implement immediately in case of emercency.

- Unqualified people and children are not allowed to operate this equipment.

- Be careful with uneven terrain and reduce the speed in sharp turns.

- Never operate the machine in transport position.

- Lea el manual de instrucciones antes de operar y siga todas las recomendaciones.

- Mantenga libre los locales de correas y transmisiones en general.

- Baje el equipo, pare el motor y retire la llave del tractor antes de desenganchar o trabajar en el equipo.

- Sepa como detener inmediatamente el tractor y el equipo en caso de emergencia.

- Personas no calificadas y niños están prohibidas de operar este equipo.

- Cuidado con terrenos irregulares. Disminuya la velocidad en curvas.

- Nunca opere la desmalezadora en la posición de transporte.

KEEP AWAY - ROTATING BLADES

Any contact or stone fragments thrown with action of the Blades could result in serious personal injury or death. Never allow riders on the machine or near it while in operation.

MANTENGASE DISTANTE - CUCHILLAS ROTATIVAS

Lesión personal grave o muerte pueden resultar de fragmentos o contacto con las cuchillas. No permanezca cerca ni suba en la Desmalezadora cuando esté en funcionamiento.

WARNING ADVERTENCIA

DANGER PELIGRO

0503031828

LUBRICATE AND TIGHTEN DAILY.

LUBRICAR Y REAPRETAR DIARIAMENTE.

Page 9

TO THE OPERATO THE OPERA

TO THE OPERA

TORTOR

TOR

CACA

UTIONUTION

UTION

TENCITENCI

TENCI

ÓÓ

Read the manual before attempting to work with the equipment.

Lea el manual antes de iniciar el uso del equipo.

0503031779

IMPORTANT

IMPORTANTE

DO NOT ADJUST THE FRICTION BEFORE

READING THE INSTRUCTIONS MANUAL.

NO AJUSTE LA FRICCION ANTES DE

LEER EL MANUAL DE INSTRUCCIONES.

0503031837

SAE 90 (ISO 220)

GEAR OIL.

LUBRICATE AND TIGHTEN

DAILY.

LUBRICAR Y REAPRETAR

DIARIAMENTE.

ACEITE SAE 90

(ISO 220).

0503031835

When working near the PTO Shaft have a special care. Never come closer to rotating parts.

Al operar con la toma de fuerza tenga el máximo cuidado. No se aproxime al estar en funcionamiento.

0503031784

WARNINGWARNING

WARNING

ADAD

VERVER

VER

TENCIATENCIA

TENCIA

Page 10

TO THE OPERATO THE OPERA

TO THE OPERA

TORTOR

TOR

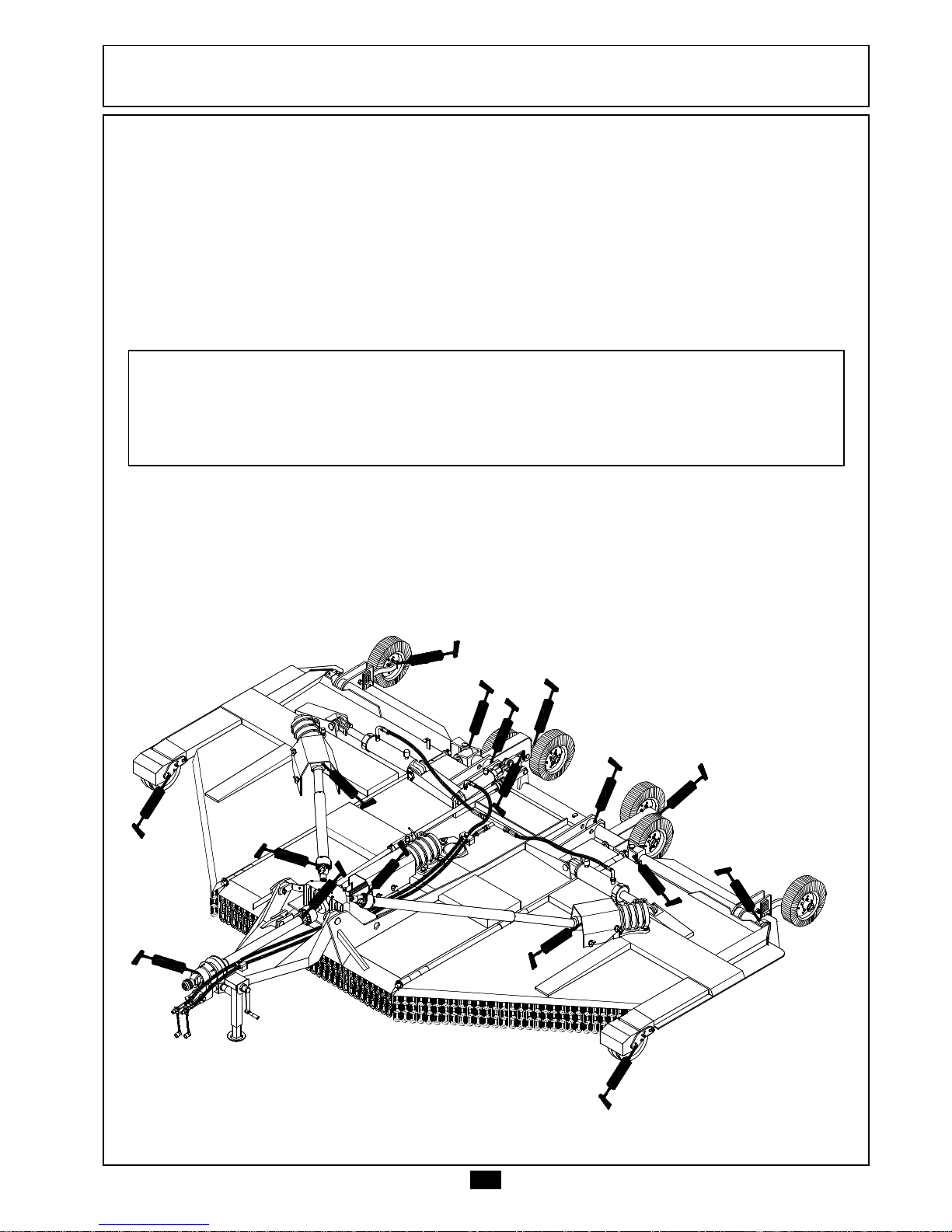

Location of the Stickers

Item Code Description of Stickers Qty.

A 0503061386 Set of Stickers RC²E 4500 04

B 0503031784 Power Take Off 01 C 0503031841 Dangerous Rotary Blades 02 D 0503031837 Important Friction Adjustment 01

E 0503031779 Read the Manual with Attention 01

F 0503031835 Lubricate Daily 01

G 0503031828 Lubricate Daily 01

Page 11

TECHNICAL SPECIFICATECHNICAL SPECIFICA

TECHNICAL SPECIFICA

TIONSTIONS

TIONS

Model ..................................................................................................................... RC2/E 4500

Working Width (mm) ............................................................................................... 4,500 mm

Number of Blades ................................................................................................................06

Cutting Height (Adjustable)............................................................................... 50 - 310 mm

............................................................................................ Drawbar

..................................................................................................... PTO

.................................................................... Hydraulic Connections

Blade Rotation at 540 PTO rpm ............................................................................. 1,038 rpm

Number of Tires.....................................................................................................................06

Type of Tires............................................................................................................ Laminated

.................................................................................................. 15

down

................................................................................ 20

up - (Operation)

................................................................................... 87

up (Transport)

Average Working Speed ..................................................................................... 4 to 6 Km/h

Tractor Engine Requirement ......................................................................................... 70 hp

Net Weight ................................................................................................................. 1,880 Kg

Total Width ............................................................................................................... 4,700 mm

Transport Width ....................................................................................................... 2,750 mm

Height .......................................................................................................................... 600 mm

Transport Height ...................................................................................................... 2,000 mm

Length ...................................................................................................................... 4,150 mm

Transport Speed ........................................................................................................ 25 Km/h

Front Wheels .........................................................................................................................02

Type of the Front Wheels .................................................................................................Steel

Tractor Coupling

{

Wing Angles

{

Attention: - THE ROTARY CUTTERS ARE DESIGNED FOR AGRICULTURAL APPLICATION AND

CAN'T WORK IN URBAN AREA.

Page 12

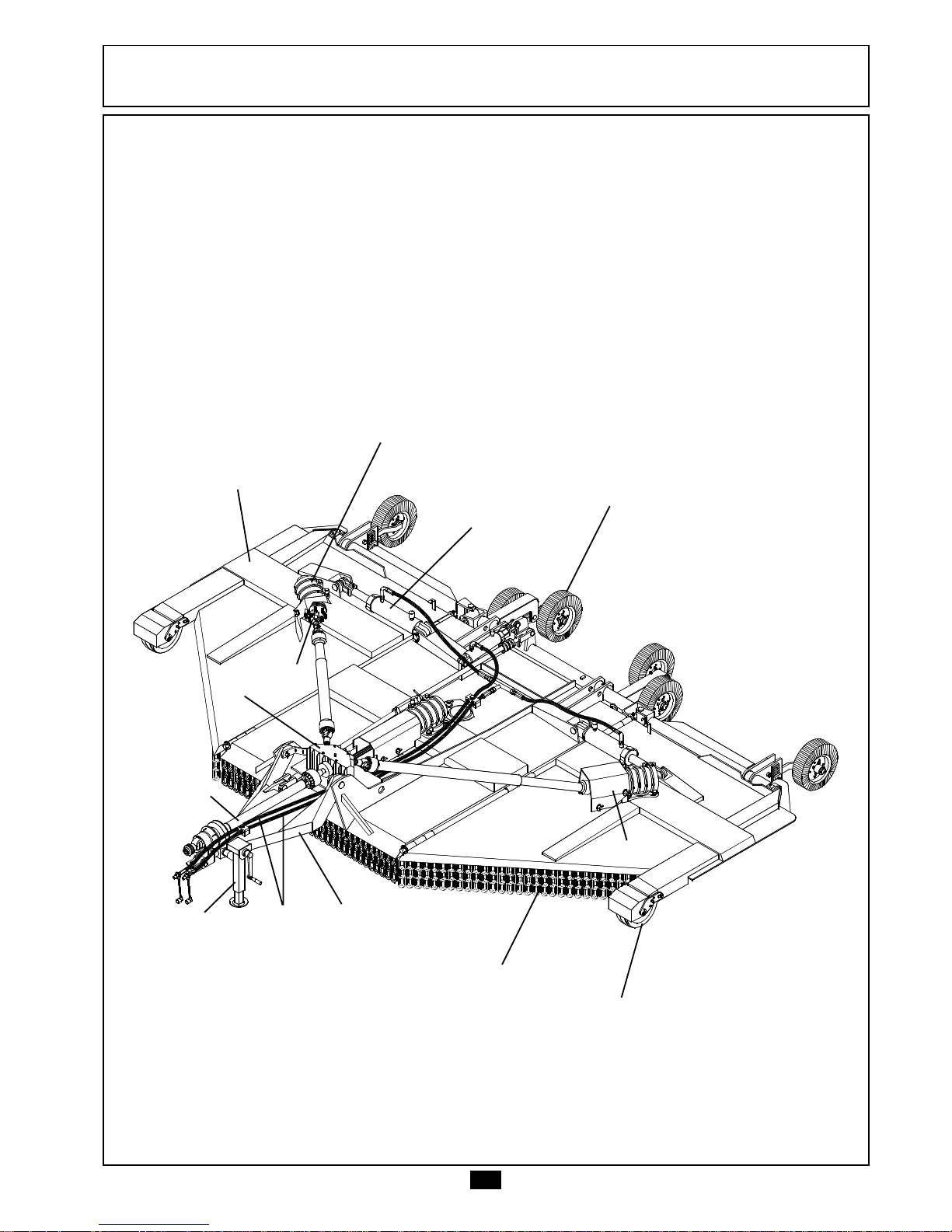

01 - Deck 02 - Tongue 03 - Jack 04 - Driveshaft with Guard 05 - Slip Clutch 06 - Triple Divider Gearbox 07 - Multipliers

COMPONENTSCOMPONENTS

COMPONENTS

08 - Guards 09 - Cylinders 10 - Front Wheels 11 - Laminated Tires 12 - Safety Chains 13 - Hoses

Page 13

PREPPREP

PREP

ARAARA

ARA

TION FOR USETION FOR USE

TION FOR USE

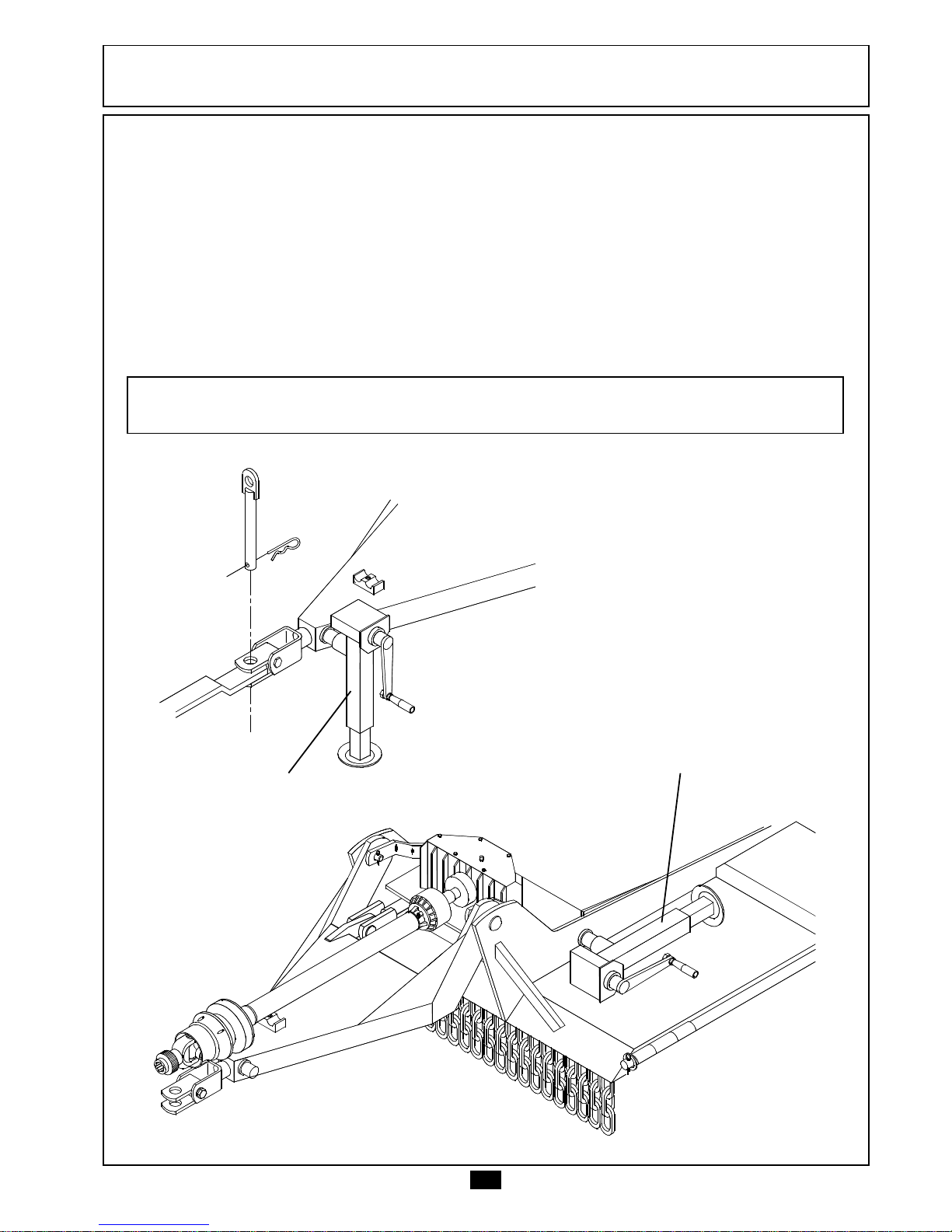

Note: AFTER COUPLING THE CUTTER TO THE TRACTOR DRAWBAR, REMOVE THE JACK (A)

AND STORE IN THE FRAME, AS ILLUSTRATE BELOW.

Hitching to the Tractor

In order to hitch choose an area as flat as possible.

1st) Drawbar:

If possible, work with the tractor drawbar in the shortest position.

- Attach the cutter to the drawbar using the hitch pin and cotter pin. Use the jack (A) which possesses adjustment to raise or to lower the tongue, in order to facilitate the coupling.

Page 14

05 cm

PREPPREP

PREP

ARAARA

ARA

TION FOR USETION FOR USE

TION FOR USE

2º) Power Take-Off

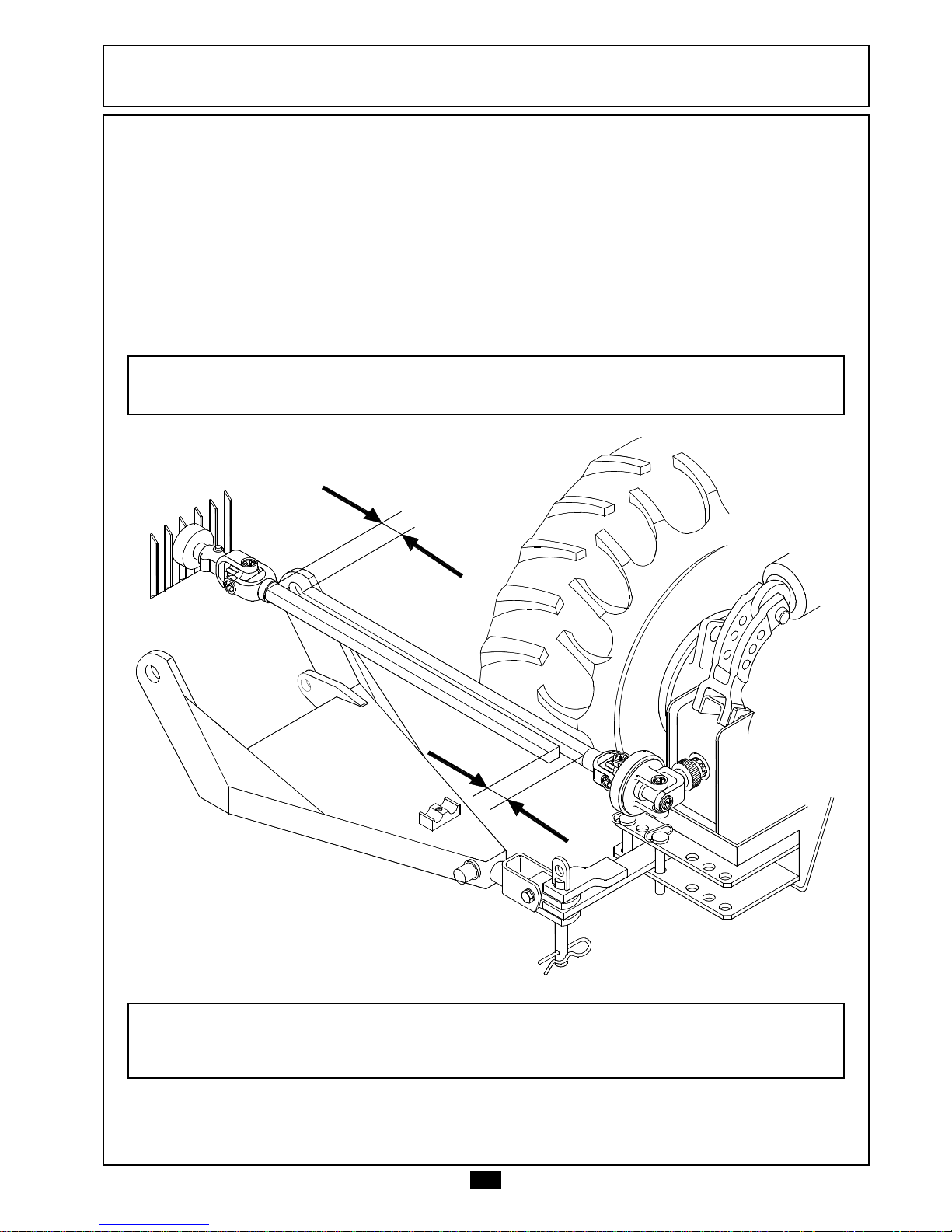

Verify the length of the driveshaft in the following way:

- Separate the male bar from the female tube and couple it to the power take-off.

- Position the tractor in an angle alignment until the tire approaches the drawbar.

- With the drive shaft bars placed side by side verify the existence of a minimum free space of 05 centimeters on each end.

- If it is necessary, cut similar parts of the male and of the female drive shaft as well as the guards.

Note: AT THIS TIME, IT CAN BE USED THE ADJUSTMENT RANGE OF THE TRACTOR DRAWBAR

FOR SHORTENING IT OR LENGTHENING IT.

Note: IT IS IMPORTANT TO GIVE FINISH WORKING IN THE CUT PARTS. FOR THIS PURPOSE

USE A MILL FILE. SOON AFTER, REMOVE THE FILLING AND LUBRICATE THE MALE WITH A FINE LAYER OF GREASE.

Page 15

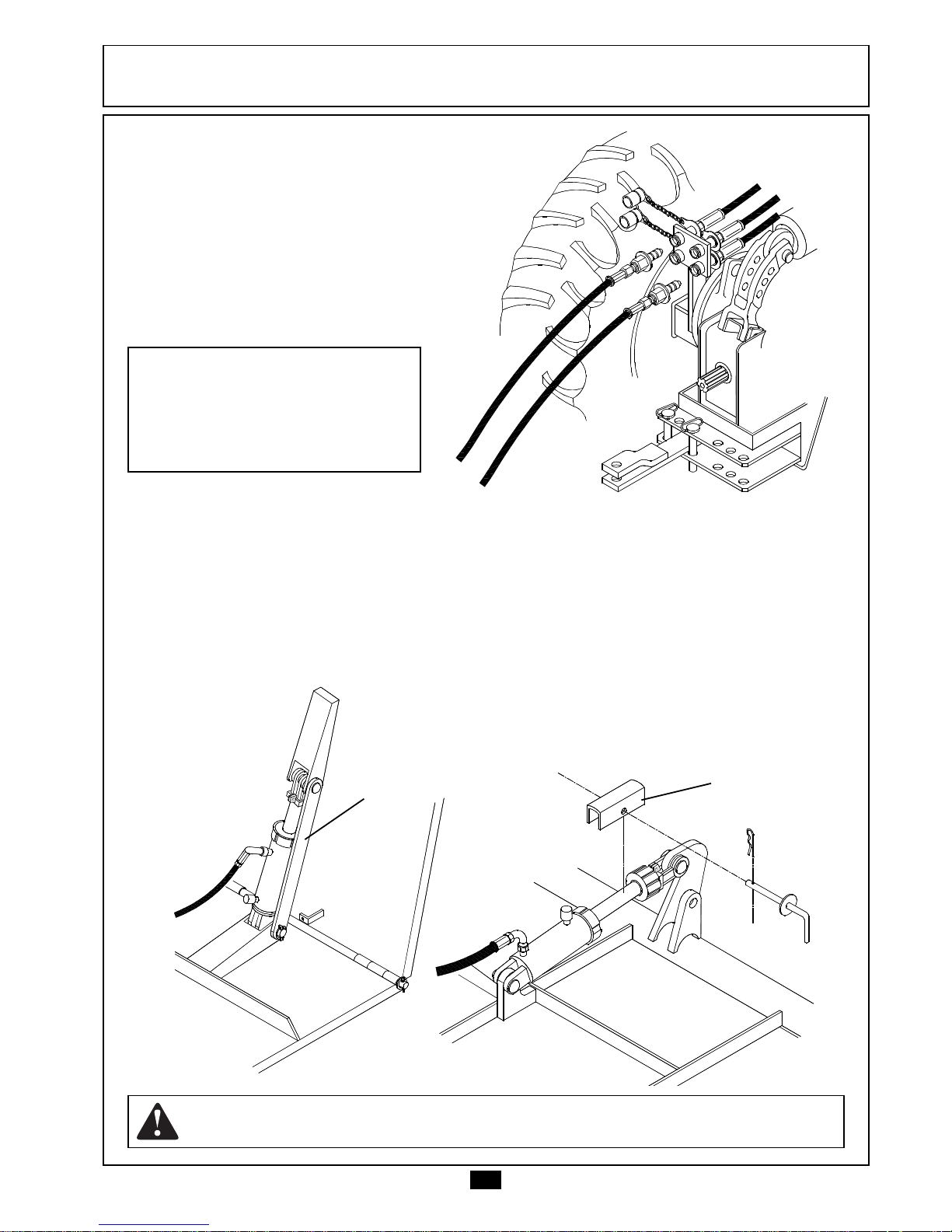

3rd) Hydraulic outlets:

- Finally connect the males of the quick-couplers to tractor hydraulic outlets (Two Control Valves) verifying the adequate cleanliness.

PREPPREP

PREP

ARAARA

ARA

TION FOR USETION FOR USE

TION FOR USE

Note: FOR BETTER ROTARY CUTTER

ACTING, IT IS NECESSARY THE USE OF DOUBLE CONTROL WITH FOUR REAR OUTLETS.

NEVER WORK THE POWER TAKE-OFF WITH THE ROTARY CUTTER IN THE TRANSPORT POSITION.

Putting in the Transport Position

- Work the wing lift cylinders and place the transport safety locks (A).

- Work the hydraulic cylinder of the tires and place the transport safety lock (B).

Page 16

PREPPREP

PREP

ARAARA

ARA

TION FOR USETION FOR USE

TION FOR USE

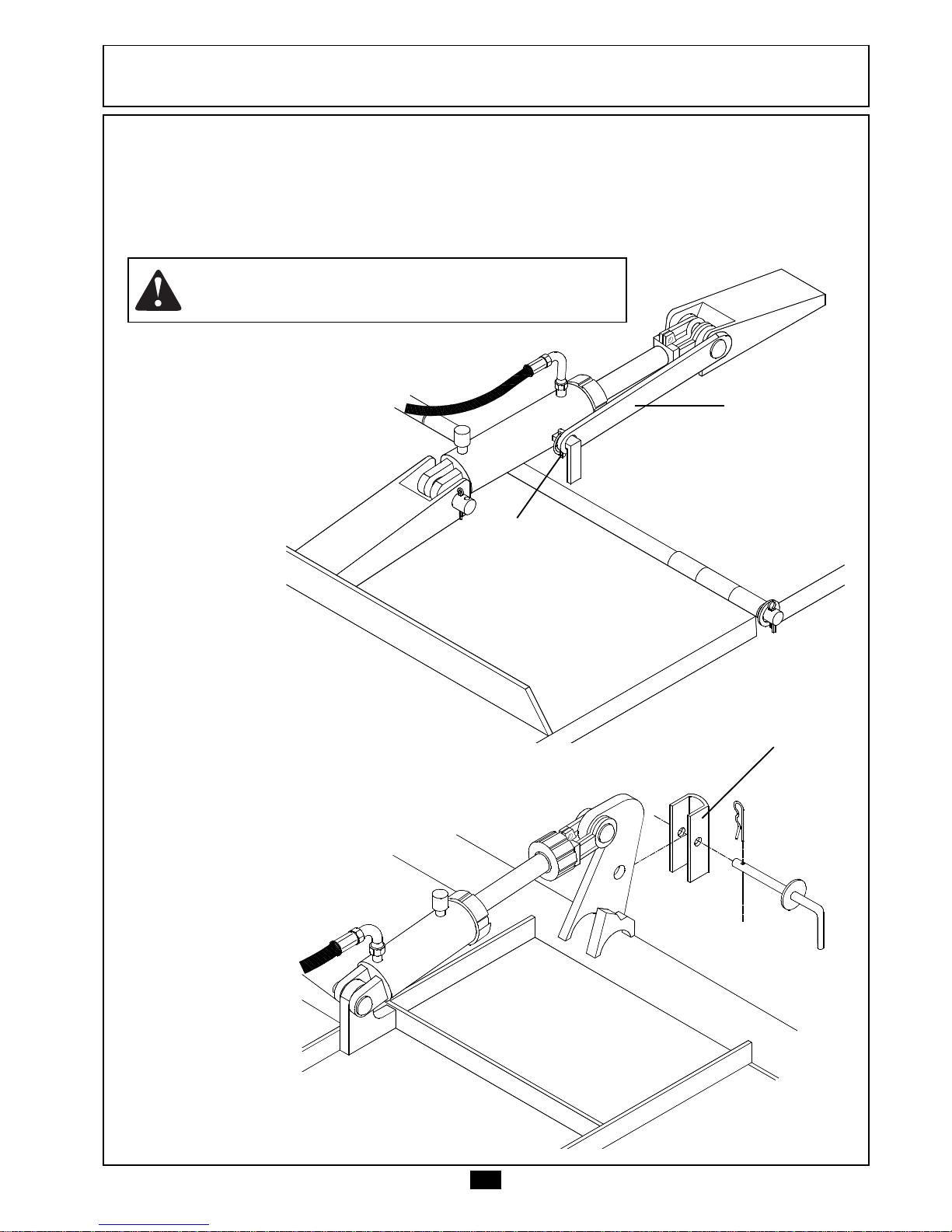

Putting in the Working Position

- Remove the transport safety locks (A) retracting a little the hydraulic cylinders

and removing the cotter pins (B).

- Lower the wings to rest on tires.

- During operation the safety locks (A) must be fastened to the wings.

- Also remove the wheels safety lock (C), of the hydraulic cylinder, attaching to the disuse position.

WHEN LOWERING THE WINGS, AVOID PEOPLE OR ANIMALS TO COME CLOSER.

Page 17

Minimum

Maximum

Vent

PREPPREP

PREP

ARAARA

ARA

TION FOR USETION FOR USE

TION FOR USE

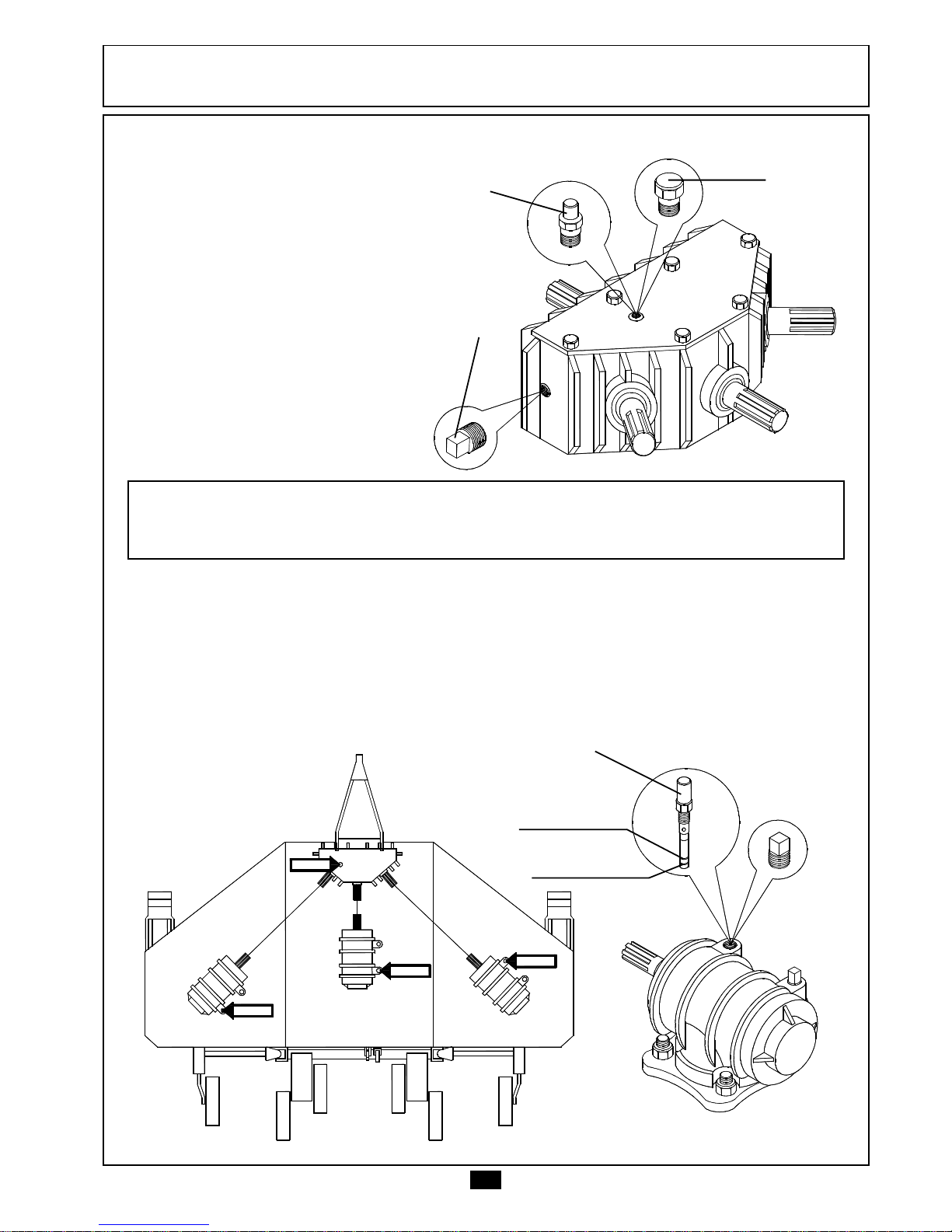

Mounting the Indicator of Oil Level With Vent

- Triple Divider:

Place the valve with vent (A), supplied with the cutter, in the place of screw (B) from the divider's upward side.

Verify the oil level of the divider, being enough for that to maintain the cutter leveled and to remove the lateral plug (C).

Note: THE SUITABLE LEVEL IS WHEN THE OIL REACHES BOTTOM OF THE LATERAL PLUG,

BEING THE CUTTER IN A FLAT PLACE. USE ONLY SAE 90 OIL. (ISO 220).

- Multipliers:

Remove the plugs from the multipliers and place the indicators of the oil level with vent (D), as illustrate below.

At this time, verify the oil level by placing the indicators in the holes, without screwing. Only the inferior mark (Minimum level) should be reached.

The superior mark of level (Maximum) is reached when the indicators are screwed.

Use only SAE 90 oil (ISO 220).

Page 18

PREPPREP

PREP

ARAARA

ARA

TION FOR USETION FOR USE

TION FOR USE

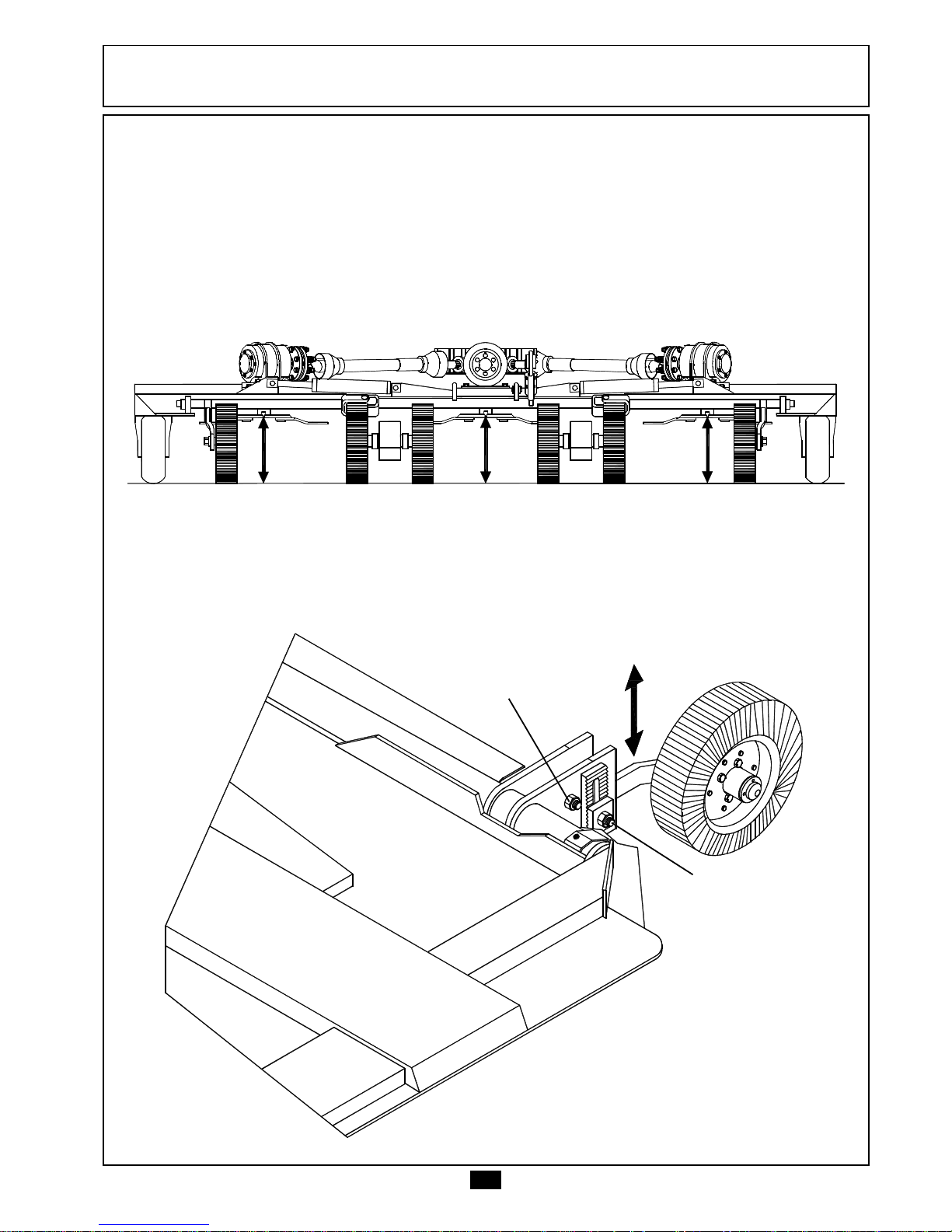

Transverse Leveling

Make the leveling in a flat place, with the cutter properly hitched to the tractor.

- Totally extend the hydraulic cylinder of the tires, raising the cutter.

- Observe the machine from rearward and verify the correct leveling of the

wings with the center deck.

- If necessary, adjust the height of the wings through the setting screws (A),

loosening the bolts (B) of the tires and tighten soon after.

Page 19

Longitudinal Leveling

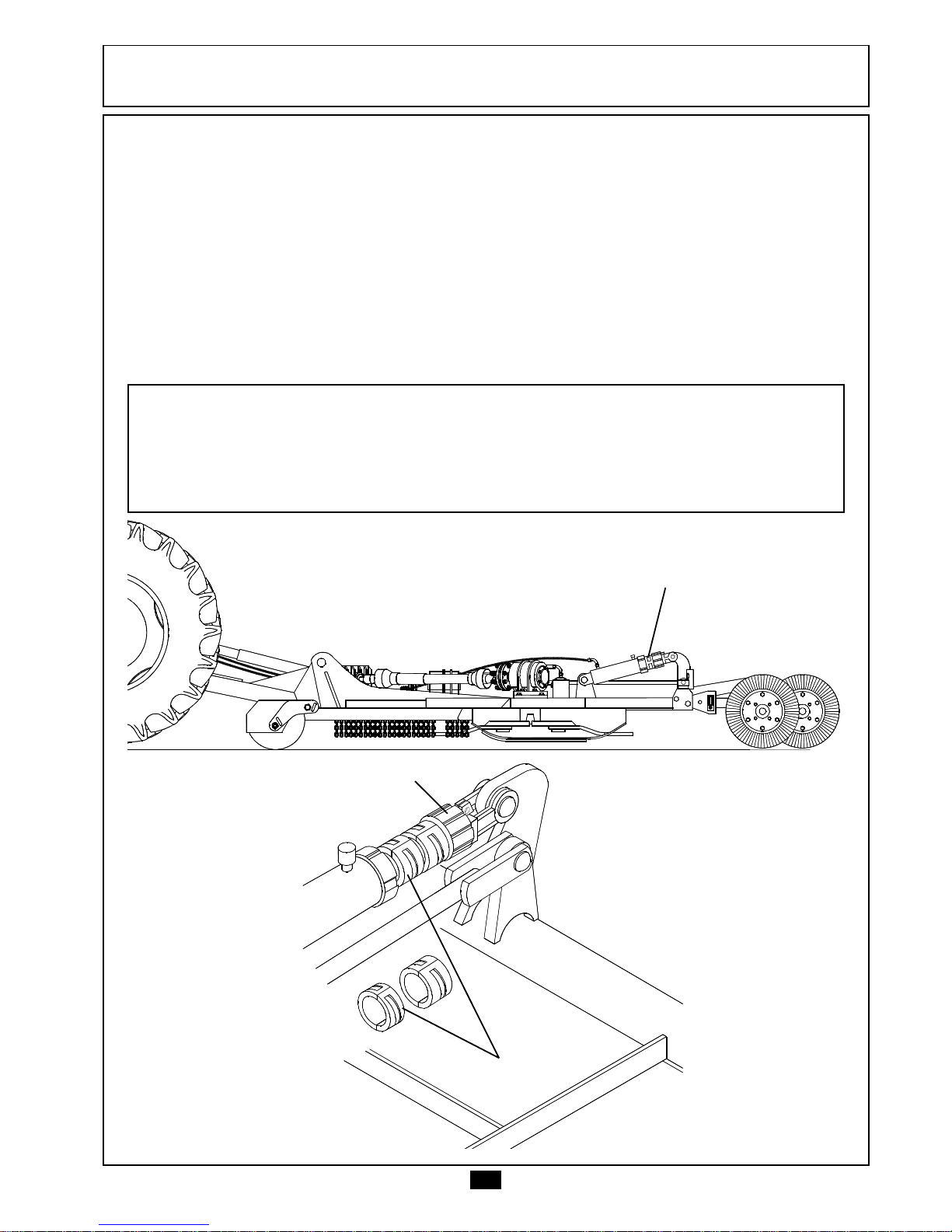

- Work the hydraulic cylinder (A) sometimes. Stop in the cutting height that will

work. Example: 60 mm from the blades to the ground.

- Verify the longitudinal leveling of the cutter. If necessary adjust through the

leveling rod (B).

Note: IN ORDER TO ADJUST THE LEVELING ROD (B) THE CUTTER SHOULD TOTALLY BE

LOWERED TO THE GROUND WITHOUT USING THE CYLINDER ROD STOPS (C).

PREPPREP

PREP

ARAARA

ARA

TION FOR USETION FOR USE

TION FOR USE

Note: - THE CUTTING HEIGHT SHOULD BE DETERMINED WITH REGARDING TO THE

SOIL TYPE , AVOIDING THE BLADES TO TOUCH THE SOIL FREQUENTLY.

- IN ORDER TO BETTER ACTING, WE RECOMMEND A CUTTING HEIGHT OF AT LEAST 50 MM FAR FROM GROUND.

- EVERY TIME CUTTING HEIGHT IS ALTERED OR WHEN USING A TRACTOR WITH DIFFERENT DRAWBAR HEIGHT, IT IS NECESSARY TO CHECK THE FRONT-TOREAR CUTTER LEVELING.

- IT IS IMPORTANT TO REACH THE 540-RPM PTO SPEED BEFORE STARTING THE CUTTING OPERATION.

- In order to maintain the uniform cutting height during the whole service, use the rod stops (C) in the cylinder.

Page 20

Articulation of the Wings

The wings possess articulation of 15 degrees downward. Upward the recommended maximum operating angle is 20 degrees.

ADJUSTMENTS AND OPERAADJUSTMENTS AND OPERA

ADJUSTMENTS AND OPERA

TIONSTIONS

TIONS

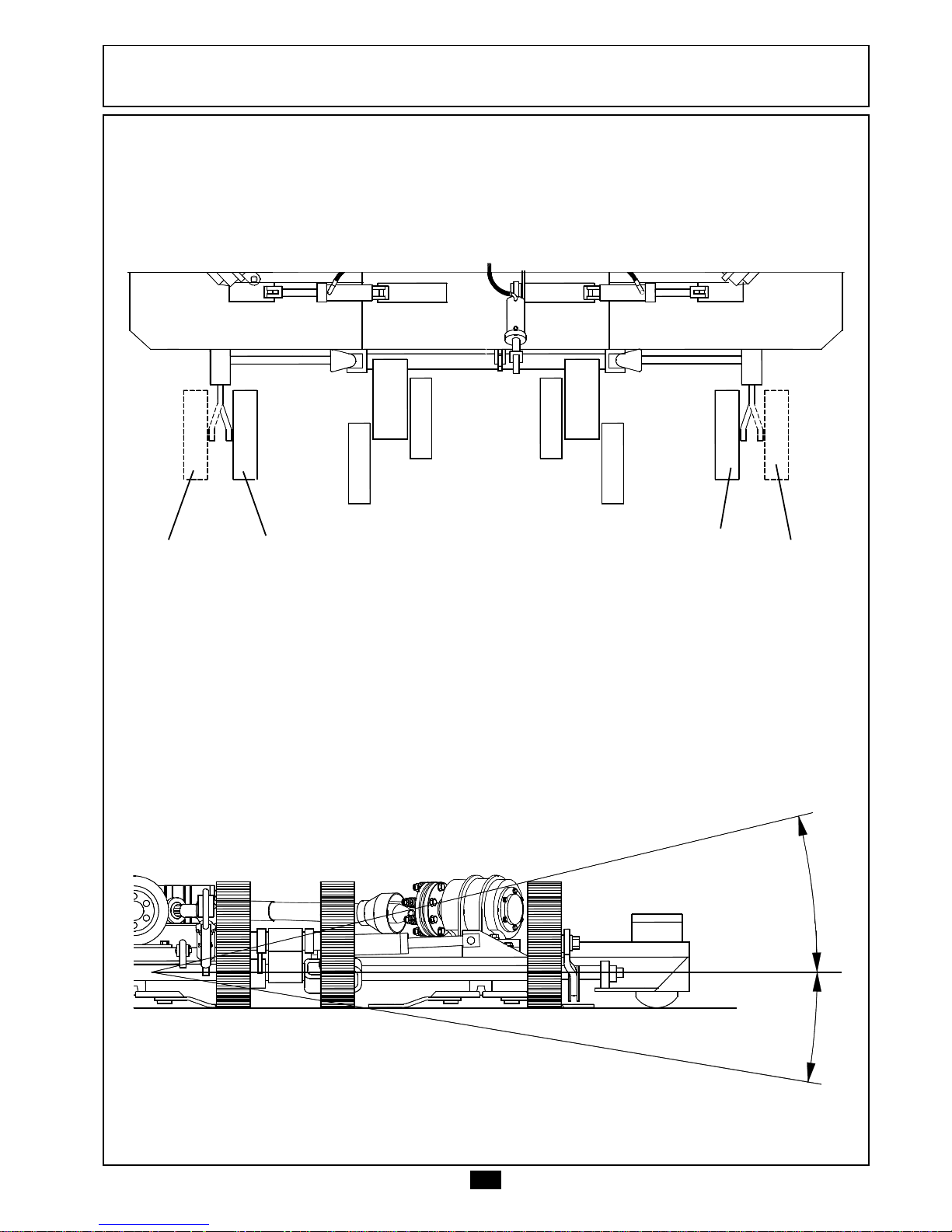

Reversion of the Outboard Tires

The outboard tires can be used in two positions: Position "A" - In order to operate in the middle of citric and similar orchards. Position "B" - In order to operate in open field, crop remains, etc...

Page 21

ADJUSTMENTS AND OPERAADJUSTMENTS AND OPERA

ADJUSTMENTS AND OPERA

TIONSTIONS

TIONS

Cutting Height Adjustment

The adjustment of the cutting height of the blades is defined by the different

stops (A) used in the rod of the hydraulic cylinder of the tires.

These stops limit the stroke of the cylinder rod, maintaining the cutting height

uniform during the whole service.

It is supplied two different stops with the cutter, which in combination determines

several adjustment points.

If a small adjustment in the cutting height is necessary, use the adjusting collar

(B).

Note: THE CUTTING HEIGHT MUST BE DEFINED REGARDING TO TERRAIN CONDITIONS AND

AVOIDING THE BLADES TO STRIKE THE SOIL OFTEN. FOR BETTER PERFORMANCE WE RECOMMEND AT LEAST 50 MM ABOVE THE SOIL.

IT IS IMPORTANT TO REACH THE ROTATION OF 540 RPM IN THE POWER TAKE-OFF, FOR THEN INITIATES THE CUT OF THE VEGETATION.

Page 22

ADJUSTMENTS AND OPERAADJUSTMENTS AND OPERA

ADJUSTMENTS AND OPERA

TIONSTIONS

TIONS

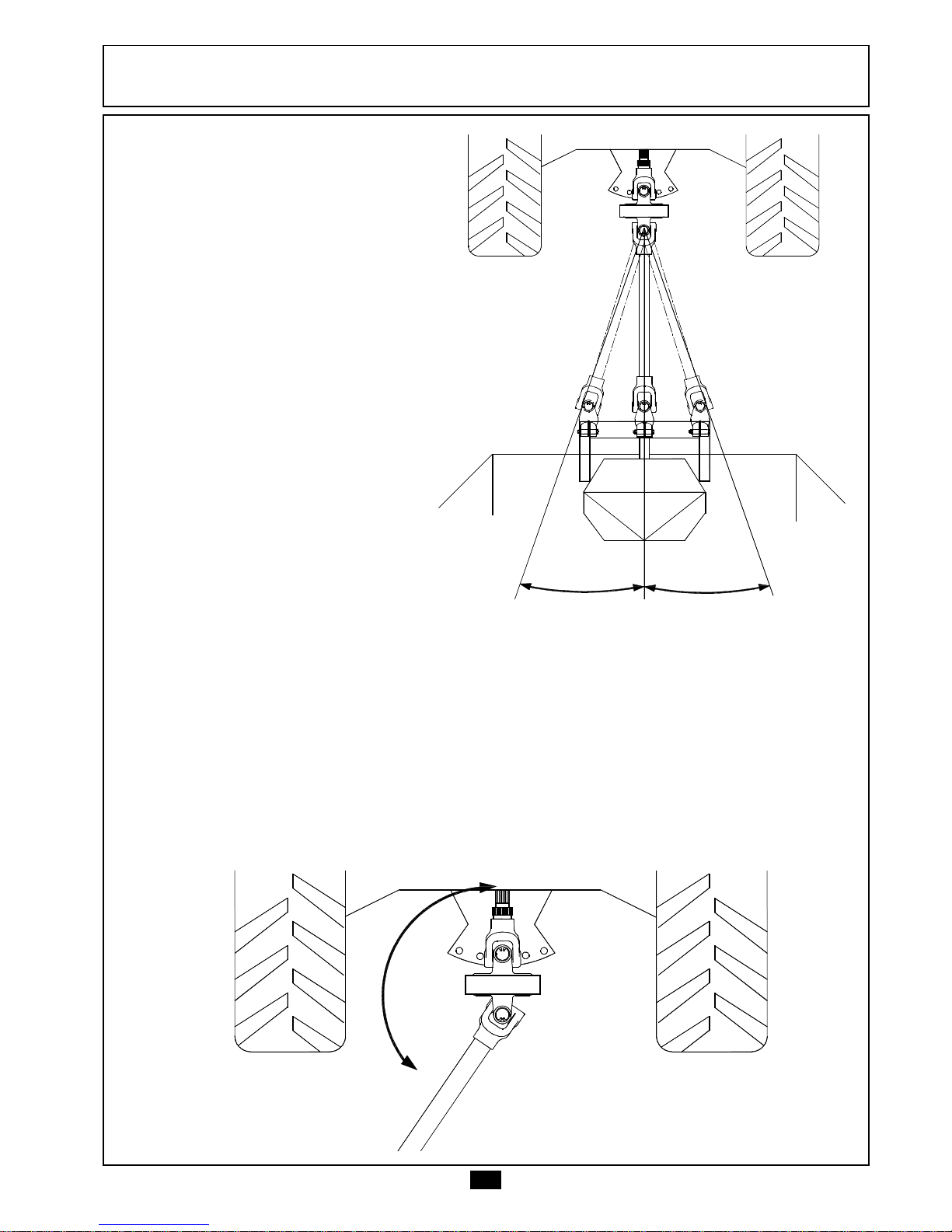

Main Driveshaft

The driveshaft with Constant Velocity (CV) joint is designed to work on conditions where the allowed steering angle reaches up to 70 degrees.

The main driveshaft with Constant Velocity joint must not work on angle over 70 degrees.

In sharp turns the power takeoff must be disconnected.

In order to have a great performance with the Constant Velocity joint, it is necessary to follow the next cares:

- Do not work on long periods when the angle of the CV joint hit 70°. That angle

is allowed for short periods, for example in a turn.

- In jobs for long periods the angle of the CV joint can reach maximum 16°

540 RPM.

- Do not start the PTO when the angle of the CV joint exceed 16°.

- In maneuvers with the turned off PTO, the angle of the CV joint must not surpass 50° (tolerance range). In case the maneuver exceed that, disconnect the PTO driveshaft.

Page 23

RC²/E 4500 - Duromark Blade (Central and Left Side) ................. 0622400056

RC²/E 4500 - Duromark Blade (Right Side) ..................................... 0622400055

Complete Blade Fastener ................................................................. 0511044752

Clockwise

Anti-Clockwise

Note: TO REVERSE OR REPLACE THE BLADES SEE PAGES 26 AND 27.

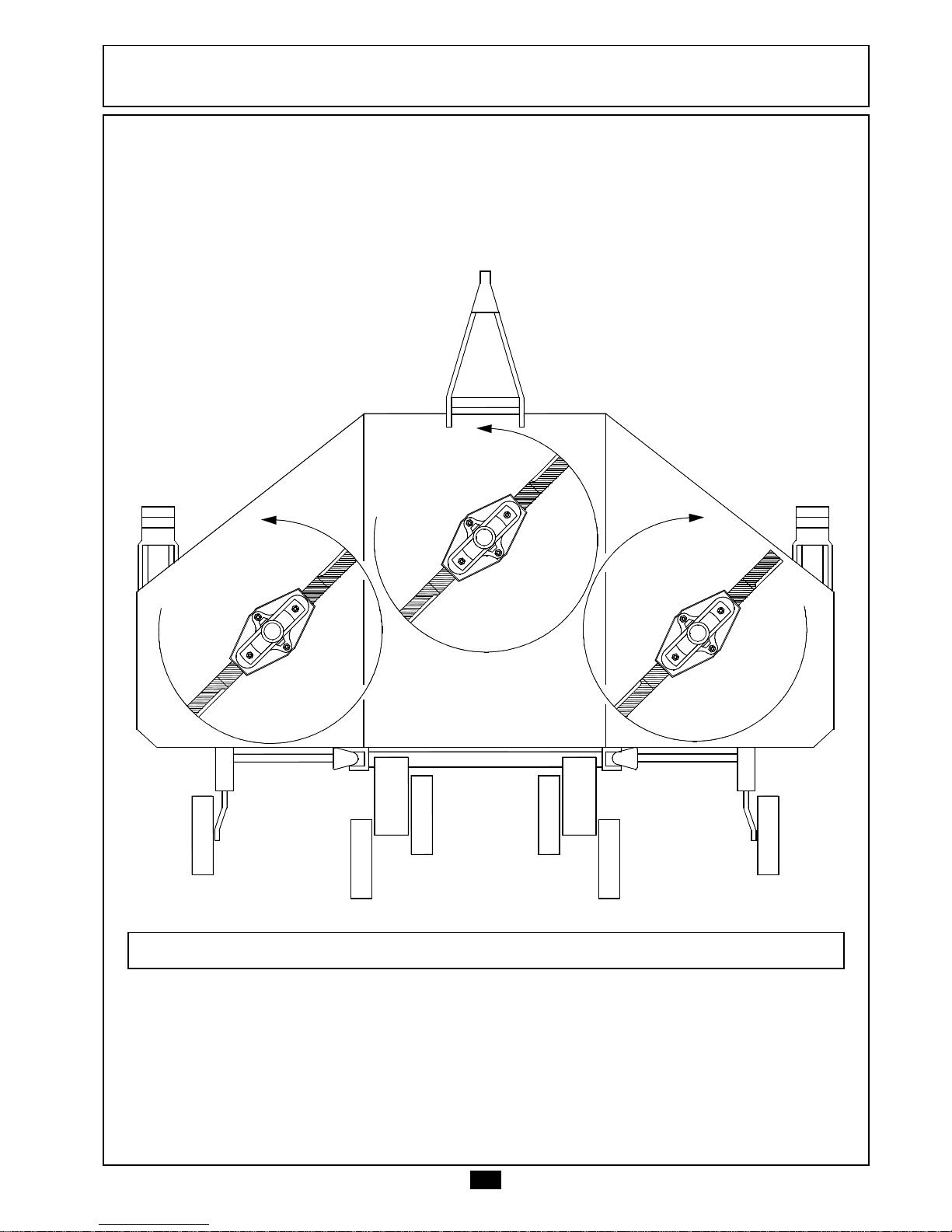

Direction of Blades Rotation and Part Number

This cutter is equipped with gearboxes that turn in different directions (Clockwise and Anti-clockwise); this so that blades act lifting and cutting the vegetation which lied down or inclined on the terrain.

ADJUSTMENTS AND OPERAADJUSTMENTS AND OPERA

ADJUSTMENTS AND OPERA

TIONSTIONS

TIONS

Page 24

28 mm

ADJUSTMENTS AND OPERAADJUSTMENTS AND OPERA

ADJUSTMENTS AND OPERA

TIONSTIONS

TIONS

Note: THE DISKS (B) SHOULD BE REPLACED AS SOON AS THEY REACH A THICKNESS

OF 1,5 MM; OR EARLIER IF THEY PRESENT LARGER DAMAGES. THEN LOOSE THE NUTS (A) AND DISASSEMBLE THE CLUTCH.

The abnormal occurrence of clutch slippage, after some time of use and not operating with overloads, this indicates the need of adjustment of the same due to the waste occurred in the disks (B).

It is important to maintain the adjustment of 28 mm in the springs (see detail below), in order to compensate the waste of the disks (B) and to maintain the good operation of the clutch.

Note: WHEN FACING A GREAT AMOUNT OF VEGETATION OR IF THE CUTTING

RESISTANCE IS EXCESSIVE, TRY TO WORK A NARROW STRIP OR DECREASE THE SPEED OF OPERATION.

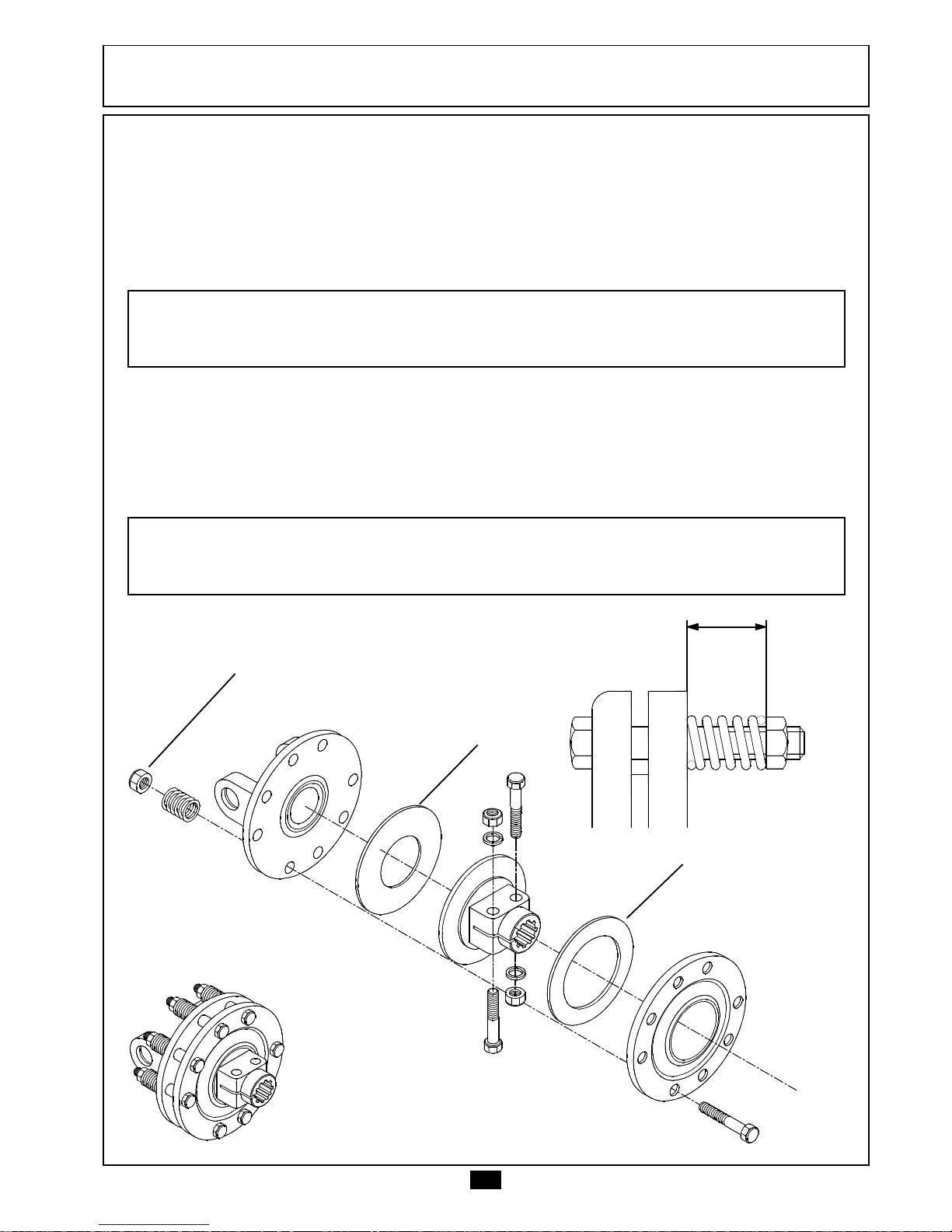

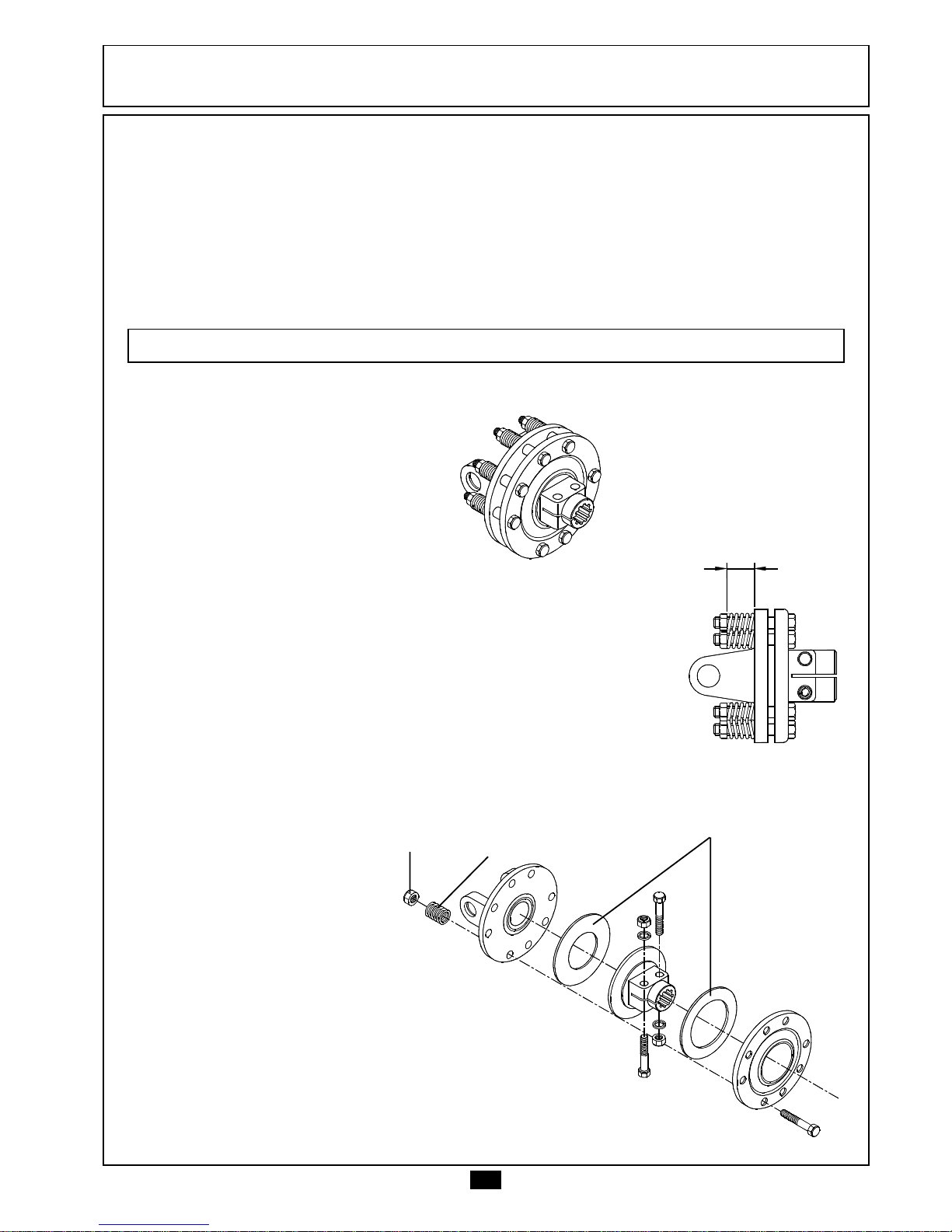

Slip Clutch

The slip clutches are factory preset, requiring no adjustment in order to start the cutter operation.

When facing overload the slip clutch start to work and the job must be interrupted immediately by raising the rotary cutter.

Page 25

ADJUSTMENTS AND OPERAADJUSTMENTS AND OPERA

ADJUSTMENTS AND OPERA

TIONSTIONS

TIONS

OPERATIONS - Important Points

- Before starting the job it is advisable to do a complete check on the cutter. Grease the universal joints, verify the oil level for all the gearboxes and tighten bolts and nuts.

- In order to couple and to uncouple the drive shaft, the PTO should be disengaged.

- In transport or when making any inspection in the cutter, keep the PTO disengaged.

- The ideal working speed of the PTO is 540 rpm. See the corresponding engine revolution rate in the tractor manual.

- In order to better acting we recommend a cutting height of at least 50 mm far from the ground.

- In order to reach good results the working place should be free from stubs and stones.

- Put the blades into ideal operation speed before start cutting the vegetation.

- In vegetation of great density we recommend to use low speed, maintaining the PTO speed in 540 constant rpm.

- When facing overloads the clutches start to work, and the job should be immediately interrupted by raising the cutter.

- It is important to maintain the 28 mm distance in the springs of the clutches in order to compensate the adjustment of the disks and to maintain the good clutch operation.

- In excessively waved soils the adjustment of the cutting height should avoid blades striking the ground excessively.

- Don't work the PTO with the blades arrested to earth hill, sticks and stubs.

- Don't vary the tractor speed. This results in an inefficient mowing with imperfections. Maintain the medium speed and keep it during the whole work.

Recommended Average Speed = 4 to 6 Km/h.

Page 26

MAINTENANCEMAINTENANCE

MAINTENANCE

Lubrication Points - Lubricate Daily

Lubrication

The maintenance of multipliers and divider should be done in the following way:

- Starting to work at first time and everyday of the first working week verify the oil level, through the indicators of level and complete the level if necessary.

- Then, verify the oil level monthly.

Note: - DON'T ADD OIL ABOVE THE INDICATED LEVEL.

- THE OIL CAPACITY OF THE TRIPLE DIVIDER IS 2 LITERS, AND THE MULTIPLIERS ARE 2,5 LITERS EACH.

- USE ONLY SAE 90 OIL (ISO 220).

Page 27

MAINTENANCEMAINTENANCE

MAINTENANCE

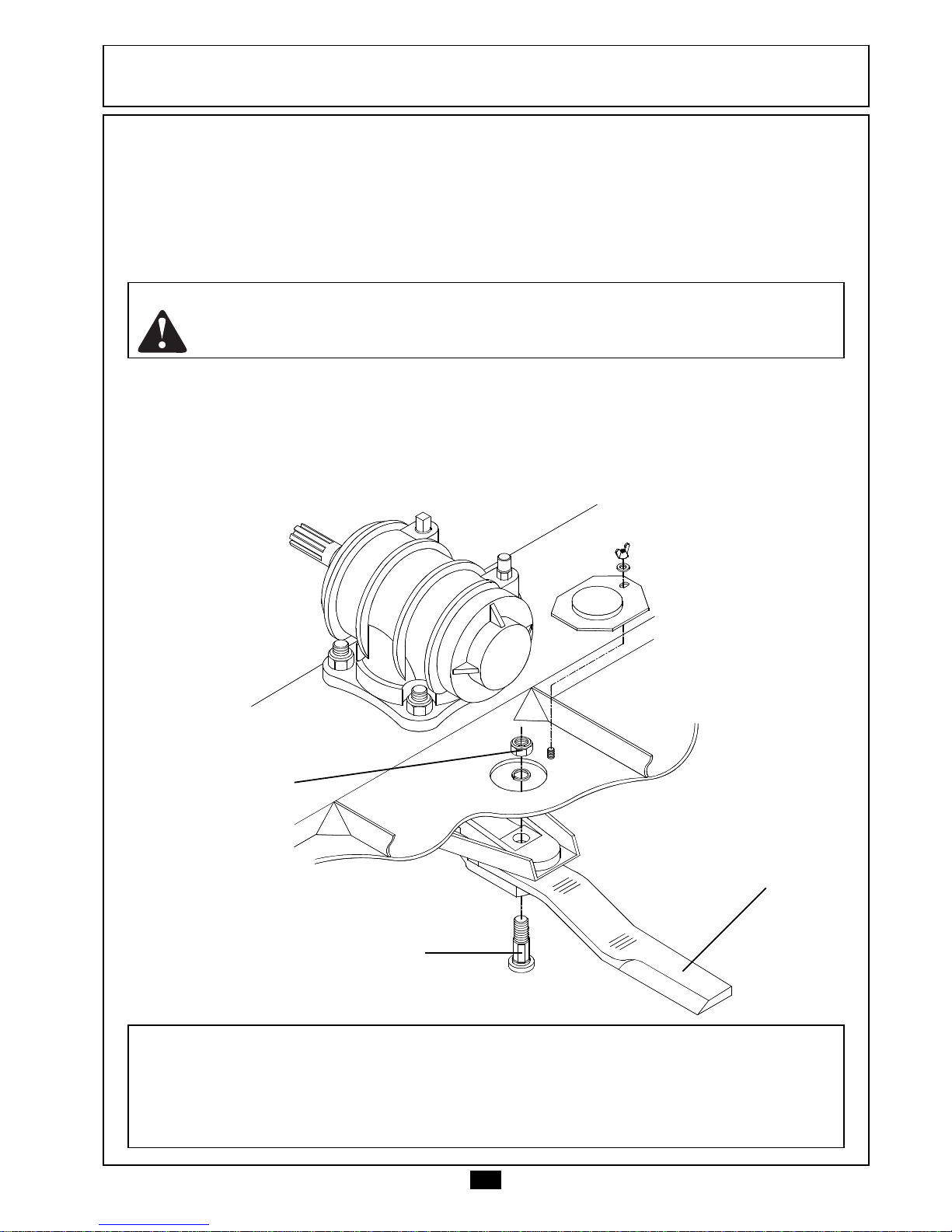

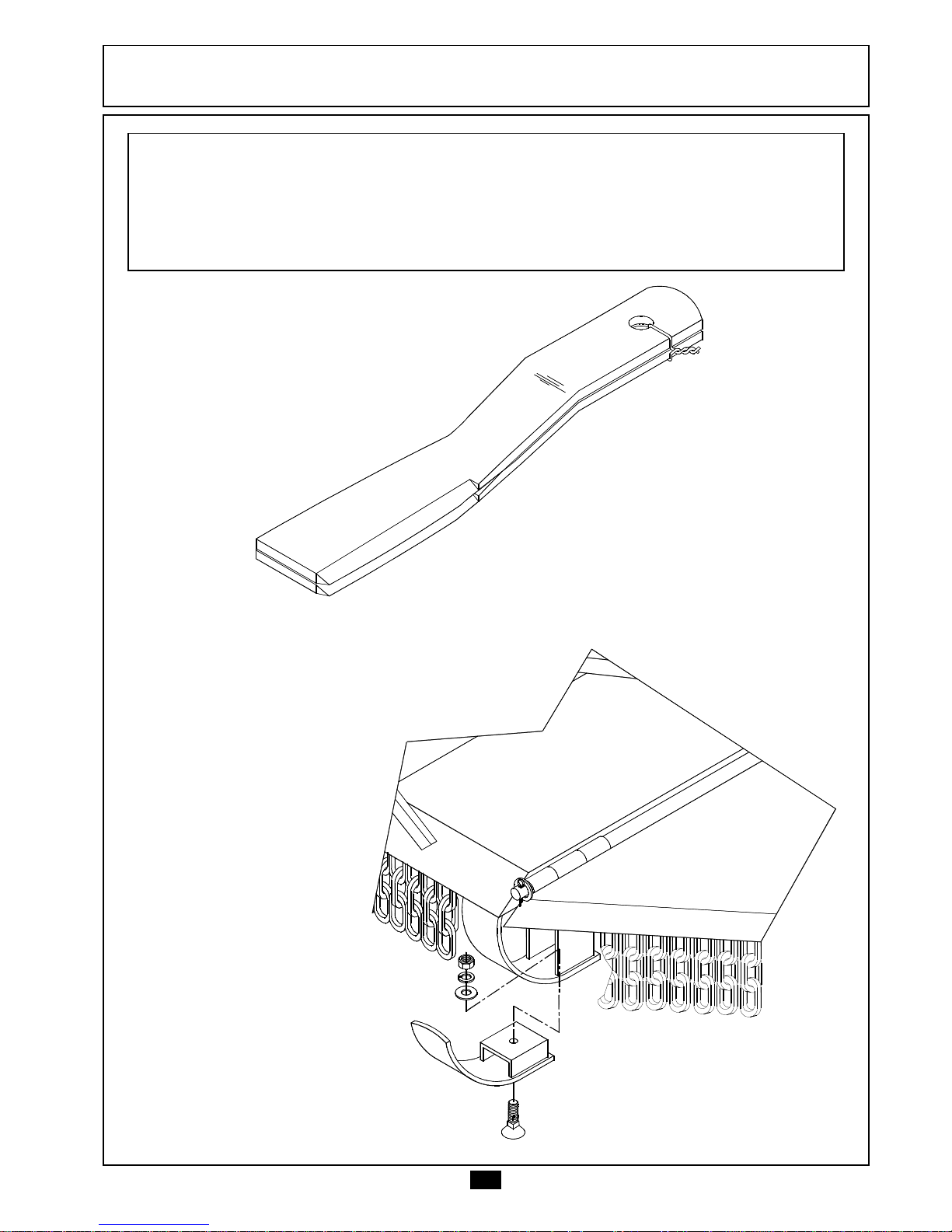

Reversion or Replacement of the Blades

Inspect blades before each use to determine that they are properly installed and in good condition. Replace any blade that is bent, excessively nicked, worn, or has any other damage. Besides that, the blades must be reversed or replaced as soon as some cutting imperfection being noticed.

Note: - WHEN REPLACING BLADES IT IS MANDATORY TO REPLACE ALSO BLADE BOLTS,

LOCKWASHERS AND LOCKNUTS AS WELL.

- USE ONLY ORIGINAL BLADES ON THIS CUTTER. THEY ARE MADE OF SPECIAL HEATTREATED ALLOY STEEL. SUBSTITUTE BLADES MAY NOT MEET SPECIFICATIONS AND MAY FAIL IN A HAZARDOUS MANNER THAT COULD CAUSE INJURY.

When doing the blades replacement observe that they are supplied in pairs

and should be kept together until installing to the rotary cutter.

To reverse or replace the blades (A) release the bolts (B), along with the lockwashers and locknuts (C). After the replacement check to be sure blades swing freely. If blades will not swing freely will cause excessive vibration, damaging implement.

DANGER: ROTATING CUTTER BLADES AND DRIVELINE. STAND CLEAR UNTIL MOTION HAS

STOPPED. FAILURE TO DO SO MAY RESULT IN SERIOUS INJURY OR DEATH.

Page 28

Replacement of the Skid Guides

Periodically check the skid guides and replace them as soon as excessive wear is noticed, likewise with the bolts, nuts and flat washers.

MAINTENANCEMAINTENANCE

MAINTENANCE

Caution: WHEN REPLACING THE BLADES, OBSERVE THEY ARE SUPPLIED IN PAIRS,

WHICH SHOULD BE KEPT TOGETHER UNTIL ASSEMBLED ON THE CUTTER SPINDLE.

THE DISCREPANCY IN WEIGHT OF THESE BLADES IS WITHIN THE TOLERANCE

SPECIFIED IN THE PROJECT.

Page 29

- Make the lubrication of all

grease points.

- Check the oil level.

- Proceed as follows with the clutches:

A) Write down the medium length of the adjustable springs, before dismounting.

B) Dismount and smooth with sandpaper each metallic part that is glued with the amianthus disks.

C) With the clutch removed, the amianthus disks should rotate freely on the metallic parts.

D) The amianthus disks (B), which have thickness smaller than 1.5 mm, should be replaced.

E) After this procedure reassemble the Clutch.

F) The adjustable springs (A) should be adjusted to have the same length as before dismounting.

G) If soon after the preventive maintenance the clutch frequently slip, under normal working conditions, tighten the nuts (C) in proportionality, until this problem is solved.

MAINTENANCEMAINTENANCE

MAINTENANCE

Procedures Before Storing the Rotary Cutter for a Long Period

- In disuse period wash the rotary cutter, retouch the painting and lubricate all

grease fittings.

- Remove the frictions and the driveshafts with guard; clean and lubricate slightly

its bars and keep in covered and dry location.

- Check all the components of the transmission. If necessary, replace the worn

or damaged parts.

Note: USE ONLY TATU ORIGINAL PARTS.

Procedures to Come the Rotary

Cutter Back for Operation

- Store the rotary cutter in covered and dry location, supporting it correctly using

the safety locks.

Page 30

IMPORIMPOR

IMPOR

ANTANT

ANT

MARCHESAN S/A RESERVES THE RIGHT AT ANY TIME TO MAKE IMPROVEMENTS IN THE DESIGN, MATERIAL OR SPECIFICATIONS OF MACHINERY, EQUIPMENT OR PARTS WITHOUT THEREBY BECOMING LIABLE TO MAKE SIMILAR CHANGES IN MACHINERY, EQUIPMENT OR PARTS PREVIOUSLY SOLD.

THE DRAWINGS ARE SIMPLY ILLUSTRATIONS.

SOME PICTURES OH THIS MANUAL APPEAR WITHOUT THE SAFETY DEVICES (COVERS, PROTECTIONS, ETC...) TO FACILITATE DETAILED INSTRUCTIONS. NEVER OPERATE THE ROTARY CUTTER WITHOUT THOSE DEVICES.

TECHNICAL PUBLICATION DIVISION

Elaboration/Diagram: Valson Hernani

Translation Supervision: Aparecido Miranda

Illustration: Gaspari

February, 2007

Code: 0501090693

Revision: 01

MARCHESAN IMPLEMENTOS E MÁQUINAS AGRÍCOLAS "TATU" S.A.

Av. Marchesan, 1979 - P.O. Box 131 - 15994-900 - MATÃO - SP - BRASIL - Tel: (55-16) 3382-8282

Fax: (55-16) 3382-1003 / (55-16) 3382-1009

e.mail:[email protected] http://www.marchesan.com.br

Page 31

NOTESNOTES

NOTES
