1. About This Manual
This Manual describes how to install, configure the Wireless-B/G USB Adapter
SWM9001.
1.1 Software Installation
Install the Device
1. Make sure the Computer is turned off. Remove the expansion slot cover
from the computer.
2. Carefully slide the 802.11 b/g dongle into the slot. Push evenly and slowly
and ensure it is properly seated.
3. After device has been connected to you computer, turn on your computer.
Windows will detect the new hardware and then automatically copy all the
files needed for networking.
2.2 Install the Driver & Utility
1. Insert the SCI CD. If the Welcome page does not open, double click
Autorun.exe on the CD.
2. The welcome screen appears, then click “Next” to continue.
www.sci-inc.com.cn 第 4 页 共 27 页
Wireless-B/G USB Adapter SWM9001 User Manual
3. Select installation folder. If the folder is in the default path, click “Next”.
Otherwise click “Browse” to choose the path of folder that you need.
www.sci-inc.com.cn 第 5 页 共 27 页
Wireless-B/G USB Adapter SWM9001 User Manual
4. When you are prompted the following message, please click the “Next” to
start the installation.
5. The installing SCI Driver & Utility window will open.
www.sci-inc.com.cn 第 6 页 共 27 页
Wireless-B/G USB Adapter SWM9001 User Manual
6. When the following screen appears, click “Close” to complete the software
installation.
www.sci-inc.com.cn 第 7 页 共 27 页
Wireless-B/G USB Adapter SWM9001 User Manual
1.2 Hardware Installation
To verify if the device exists in you computer and is enabled, go to
Start->Control Panel->System (Hardware)->Device Manager. Expand the
network Adapters category. If the SWM9001 USB dongle listed here, it means
that your device is properly installed and enabled.
1.3 Uninstallation
You can remove the wireless adapter software in these two ways:
• Navigate the Windows Start menu to the SWM9001 USB 2.0 Adapter
program group, select the uninstall option, and follow the screen prompts.
• Navigate the Windows Start menu to the Control Panel Add or Remove
Program item, select the SWM9001 USB 2.0 Adapter option, and follow the
screen prompts.
2. Network Connections and Wireless Security
This chapter explains how to use the Smart Wizard to connect to wireless
networks and how to set up wireless security on your adapter if you are joining
a secured wireless network.
2.1 Viewing Wireless Networks in Your Area
You can use the profile manager tab to view all available wireless networks in
your area. Click the Scan tab to display the following screen. The screen
shows the following information for each network scanned: Network Name
（SSID），MAC Address，Mode，Security，Signal and Channel .
www.sci-inc.com.cn 第 8 页 共 27 页
Wireless-B/G USB Adapter SWM9001 User Manual
The access point supports WPS.
The access point supports WaPi.
Identifies whether the wireless network uses security settings such
as WPA2-PSK,WPA-PSK, or WEP.
2.2 Joining a Network
After installation you can use the Scan button on the profile manager tab to
view available networks and select the one that you want and then click Active
tab to join the network.
How you join the network depends on whether it uses wireless security, and
whether it supports WPS.
(1)Open network: This network does not use any wireless security. Select the
network and click Active tab.
(2)Secured network: To join a secured wireless network, select it and click
Active tab. You are prompted to enter the pass phrase or key.
(3)Secured network with WPS: The network uses wireless security and
supports WPS.
www.sci-inc.com.cn 第 9 页 共 27 页
Wireless-B/G USB Adapter SWM9001 User Manual
2.3 Profile Manager
Profile can book keeping your favorite wireless setting among your home,
office, and other public hot-spot. You may save multiple profiles, and activate
the correct one at you preference. The Profile Manager enables you to New,
Modify, Delete, Activate Import and export Profiles.
There are two special profile names: Default Settings and Security settings
(1) Default Settings
The profile named Default automatically scans for any wireless network. You
cannot change this profile name.
www.sci-inc.com.cn 第 10 页 共 27 页
Wireless-B/G USB Adapter SWM9001 User Manual
Normal Tab：
Profile Config
Network Name 802.11 wireless network’s name.
Profile Name This name is unique with the same name as
the network.
Client Name The name of the client computer.
(2) Security settings
Security page displays key information, according to the different
encryption method to choose a different configuration.
www.sci-inc.com.cn 第 11 页 共 27 页
Wireless-B/G USB Adapter SWM9001 User Manual
Security Tab:
Authentication
Encryption
Network Key
Authentication mode used within the network,
including Unknown, WPA-PSK, WPA2-PSK, WPA
and WPA2
Identifies whether the wireless network uses
security settings such as WEP, WPA2-PSK, or
WPA-PSK.
If WEP Authentication is Used, For 64-bit WEP,
enter 10 hex digits (any combination of 0-9 or a-f).
For 128-bit WEP, enter 26 hex digits.
If WPA2-PSK or WPA-PSK Authentication is Used,
Encryption key size must be 128-bit or 256-bit.
Confirm Network
Key
Key Index
User Cert Path
www.sci-inc.com.cn 第 12 页 共 27 页
The same as the network key you enter.
Match with the group key
Select the user certificate path
Wireless-B/G USB Adapter SWM9001 User Manual
As Cert Path
Select the AS certificate path
Security page shows following config mode:
z Wireless Security：Open
Data Encryption：Disabled
This network does not use any wireless security. Select the network and
click Active tab.
z Wireless Security：Open
Data Encryption：WEP

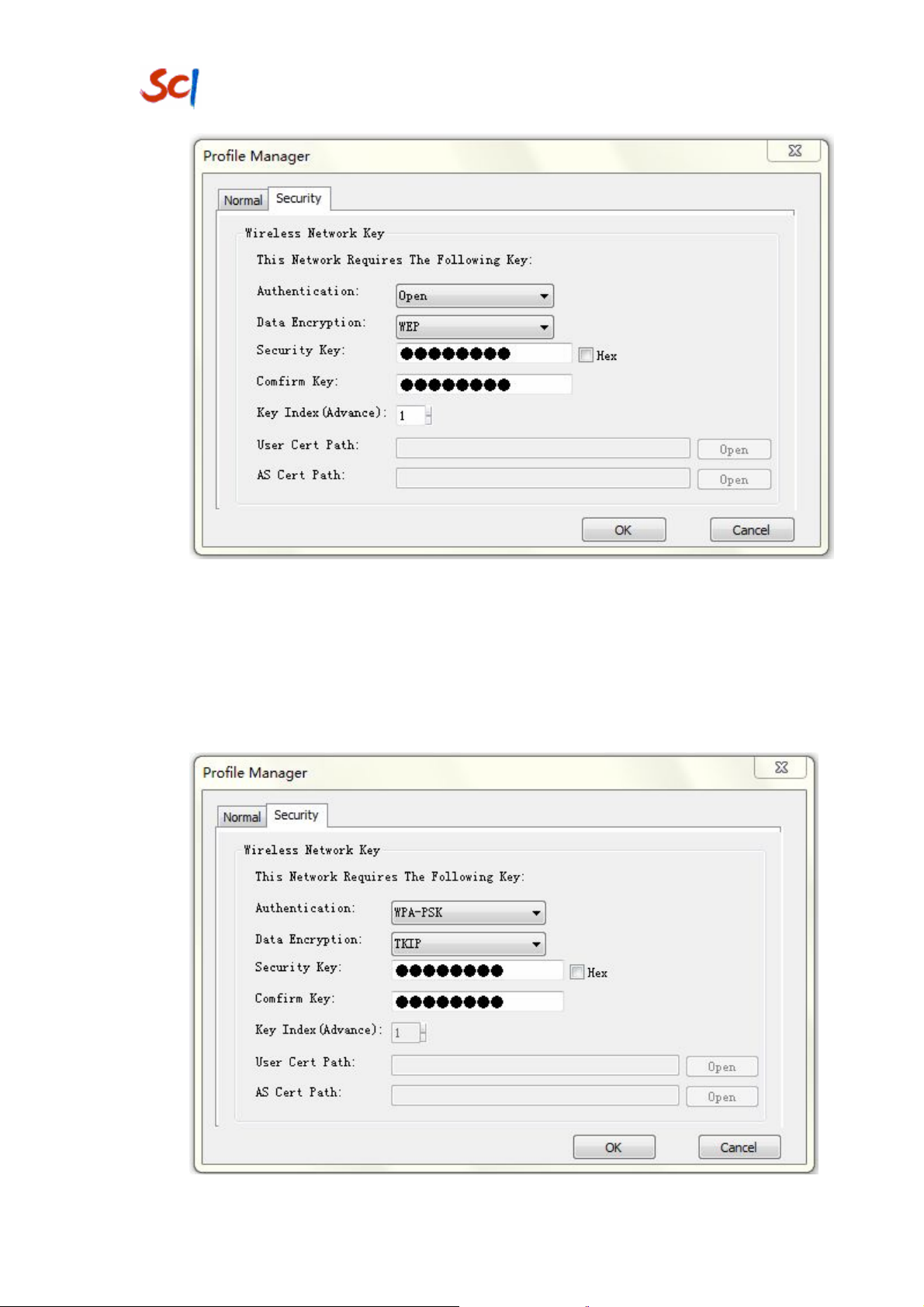

The wireless security features require key index and password to access
the shared resources in the network.
www.sci-inc.com.cn 第 13 页 共 27 页
Wireless-B/G USB Adapter SWM9001 User Manual
z Wireless Security：WPA-PSK
Data Encryption：TKIP
The wireless security features require password to access the shared
resources in the network.
www.sci-inc.com.cn 第 14 页 共 27 页
Wireless-B/G USB Adapter SWM9001 User Manual
z Wireless Security：WPA-PSK
Data Encryption：AES
The wireless security features require password to access the shared
resources in the network.
z Wireless Security：WIPI-PSK
Data Encryption：SMS4
The wireless security features require password to access the shared
resources in the network.
www.sci-inc.com.cn 第 15 页 共 27 页
Wireless-B/G USB Adapter SWM9001 User Manual
z Wireless Security：WIPI-CERT
Data Encryption：SMS4
The wireless security features require the User cert and AS cert to
access the shared resources in the network.
z Config connection with WPS AP
www.sci-inc.com.cn 第 16 页 共 27 页
Wireless-B/G USB Adapter SWM9001 User Manual
z The wireless USB adapter detects a network with WPS ,click the
network .The WPS Config page:
The WPS configuration methods include: Pin Input Config (PIN) method,
Push Button Config (PBC) method,
★ PIN Config method
◆ Enter the PIN of the AP at the PIN Config Box on STA.
◆ Ping from Console to STA must succeed within 2 minutes
★ PBC Config method
◆ Push the PBC button on the AP
◆ Push the PBC button on the Sta.
◆ Ping from Console to STA must succeed within 2 minutes.
If you don’t use WPS config, please click Ignore button to enter the
|
general config.
When the adapter has joined a network, click the Current Status tab to display
the following screen:
www.sci-inc.com.cn 第 17 页 共 27 页
Wireless-B/G USB Adapter SWM9001 User Manual
The Current Status page shows your network connection and Internet
connection:
Profile Name
Link Status
Network Type
Authentication
Encryption
Channel
Wireless Mode
IP Address
Signal Strength
You may enter a distinctive name of profile in this
column.
Shows the link Status.
Network type in use, infrastructure for BSS.
Authentication mode used within the network.
Shows the
Shows the
encryption type currently in use.
channel currently in use.
AP support wireless mode. It may support 802.11b,
802.11g Wireless Mode.
Shows the IP Address information.
Shows the receiving signal strength of specified network.
Click the Advanced tab to view the following page:
www.sci-inc.com.cn 第 18 页 共 27 页
Wireless-B/G USB Adapter SWM9001 User Manual
Advanced Statistics: The screen shows the following information for the
device’s details.
Network Name
Authentication
Encryption
Wireless Mode
Authentication Type
MIC
AP Name
The name assigned to a wireless network.
Authentication mode used within the network..
Shows the encryption type currently in use.
AP support wireless mode.
There are four types of
support .They are open, shared, WPA-PSK and WPA
system..
authentication modes
Whether MIC or not.
Shows the name of the AP that wireless card
connecting.
AP IP Address
AP MAC Address
www.sci-inc.com.cn 第 19 页 共 27 页
Shows the IP address of the AP that wireless card
connecting.
Shows the MAC address of the AP that wireless
card connecting.
Wireless-B/G USB Adapter SWM9001 User Manual
Signal Strength
Noise Strength
Packet Preamble
Receive
Transmit
Channel
Frequency
Channel Set
Runtime
Shows current signal strength.
Shows the noise signal strength.
Shows 802.11 packet preamble
Shows the current receive rate.
Shows the current transmit rate.
Shows the current channel in use.
Shows the current signal frequency.
Shows the current signal frequency channel set.
Shows the wireless card connection time.
3.About Your Smart Wizard
3.1 Diagnosis
The following information is displayed in diagnosis page:
z Transmit and Receive Broadcast/Multicast packets
www.sci-inc.com.cn 第 20 页 共 27 页
Wireless-B/G USB Adapter SWM9001 User Manual
z Transmit and Receive Unicast packets
z total transmitted packets and receive packets
3.2 Adapter Information
The Adapter Information displays the current software version information：
3.3 Advanced Statistics Page
The Statistics page provides real time and historical trend information on the
data traffic and performance of your wireless adapter.
www.sci-inc.com.cn 第 21 页 共 27 页
Wireless-B/G USB Adapter SWM9001 User Manual
3.4 card log
On the diagnosis tab click the card log button to display the dialog box
shown below:
www.sci-inc.com.cn 第 22 页 共 27 页
Wireless-B/G USB Adapter SWM9001 User Manual
3.5 Operation of the task bar
When you minimize SCI wireless device management application, the icon
appears on the desktop and in the lower right of the Windows task bar. You
can either Right-click or double-click this icon on the desktop at any time, to
use the Smart Wizard.
www.sci-inc.com.cn 第 23 页 共 27 页
Wireless-B/G USB Adapter SWM9001 User Manual
4. Standards and Regulatory Compliance
4.1 Standards and certification
The EUT conforms to the following standards and certification requirements:
802.11 b/g
FCC
❒ 47 CFR Part 1 - RF radiation exposure limits
❒ 47 CFR Part 2 - Equipment authorization
❒ 47 CFR Part C - WIFI
4.2 FCC certification requirements.
According to the definition of mobile and fixed device is described in Part 2.1091(b), this
device is a mobile device.
And the following conditions must be met:
1. The EUT is a mobile device; maintain at least a 20 cm separation between the EUT and
the user’s body and must not transmit simultaneously with any other antenna or
transmitter.
2. The device is only for fixed operation mode. (A Class II Change would be required for
near-body Host applications.)
www.sci-inc.com.cn 第 24 页 共 27 页
Wireless-B/G USB Adapter SWM9001 User Manual
3. A label with the following statements must be attached to the host end product: This
device contains Tx FCC ID: A7N-SWM9001.
4. To comply with FCC regulations limiting both maximum RF output power and human
exposure to RF radiation, maximum antenna gain (including cable loss) must not
exceed:
❒ 802.11b band < 1.5 dBi
❒ 802.11g band <1.5 dBi
5. This module must not transmit simultaneously with any other antenna or
transmitter
6. The host end product must include a user manual that clearly defines operating
requirements and conditions that must be observed to ensure compliance with current
FCC RF exposure guidelines.
For portable devices, in addition to the conditions 3 through 6 described above, a
separate approval is required to satisfy the SAR requirements of FCC Part 2.1093
If the device is used for other equipment that separate approval is required for all other
operating configurations, including portable configurations with respect to 2.1093 and
different antenna configurations.
For this device, OEM integrators must be provided with labeling instructions of finished
products. Please refer to KDB784748 D01 v07, section 8. Page 6/7 last two
paragraphs:
A certified modular has the option to use a permanently affixed label, or an electronic
label. For a permanently affixed label, the module must be labelled with an FCC ID Section 2.926 (see 2.2 Certification (labelling requirements) above). The OEM manual
www.sci-inc.com.cn 第 25 页 共 27 页
Wireless-B/G USB Adapter SWM9001 User Manual
must provide clear instructions explaining to the OEM the labelling requirements,
options and OEM user manual instructions that are required (see next paragraph).
For a host using a certified modular with a standard fixed label, if (1) the module’s FCC
ID is not visible when installed in the host, or (2) if the host is marketed so that end
users do not have straightforward commonly used methods for access to remove the
module so that the FCC ID of the module is visible; then an additional permanent label
referring to the enclosed module:“ Contains Transmitter Module FCC ID:
A7N-SWM9001” or “Contains FCC ID: A7N-SWM9001” must be used. The host OEM
user manual must also contain clear instructions on how end users can find and/or
access the module and the FCC ID.
The users manual or instruction manual for an intentional or unintentional radiator shall
caution the user that changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment. In
cases where the manual is provided only in a form other than paper, such as on a
computer disk or over the Internet, the information required by this section may be
included in the manual in that alternative form, provided the user can reasonably be
expected to have the capability to access information in that form.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
www.sci-inc.com.cn 第 26 页 共 27 页
Wireless-B/G USB Adapter SWM9001 User Manual
4.3 FCC RF exposure requirements
1. Radiated transmit power must be equal to or lower than that specified in the FCC Grant
of Equipment Authorization for FCC ID: A7N-SWM9001.
2. To comply with FCC regulations limiting both maximum RF output power and human
exposure to RF radiation, maximum antenna gain (including cable loss) must not
exceed:
❒ 802.11b band < 1.5 dBi
❒ 802.11g band < 1.5 dBi
3. This module must not transmit simultaneously with any other antenna or transmitter.
4. To ensure compliance with all non-transmitter functions the host manufacturer is
responsible for ensuring compliance with the module(s) installed and fully operational.
For example, if a host was previously authorized as an unintentional radiator under the
Declaration of Conformity procedure without a transmitter certified module and a
module is added, the host manufacturer is responsible for ensuring that the after the
module is installed and operational the host continues to be compliant with the Part 15B
unintentional radiator requirements.
www.sci-inc.com.cn 第 27 页 共 27 页
Loading...
