Tata Indigo 2004 User Manual

Tata Indigo & Indigo CS

TC / COMMON RAIL / MPFI

(BS-III & BS-IV)

OWNER’S MANUAL & SERVICE BOOK

Passenger Car Business Unit

nn

Mumbai

n

nn

This owner’s manual is advised to be kept in the vehicle at all times.

nn

n Pune

nn

nn

n

nn

1

nn

n Should any question or query exist regarding any aspect of your car, please contact the nearest

nn

TATA MOTORS dealer, who will be pleased to assist wherever possible.

nn

n The recommended routine maintenance servicing along with any running repairs that may be

nn

required, should be entrusted to TATA MOTORS dealership or to TATA Authorised Service
centres (TASCS) or TATA Authorised Service Points (TASPS) to ensure that only latest methods

and genuine TATA MOTORS replacement parts are used for the continued reliability, safety and
performance of the vehicle.

nn

n Copyright 2004 TATA MOTORS

nn

nn

n All rights reserved. The material in this manual may not be reproduced or copied, in whole or in

nn

part, in any form without written permission from TATA MOTORS.

nn

n In the event of the Vehicle being sold, please ensure that this manual is left in the vehicle for the

nn

reference of the new owner.

This owner's manual & service book includes information on the operation and maintenance of various
equipment installed on the different versions of Tata Indigo. Please note that this manual applies to all
the models and explains all equipment including options not installed on your car.

2

Dear Indigo Customer,Dear Indigo Customer,

Dear Indigo Customer,

Dear Indigo Customer,Dear Indigo Customer,

Thank you for choosing the Tata Indigo Sedan - another quality offering from our
growing range of passenger cars.

We would request you to be acquainted with the details in this owner's manual, which
will enable you to derive optimum performance from your Indigo. We look forward
to having you as a satisfied customer and hope to have you retain us as your first choice
for any of your motoring needs.

We are privileged to have you as our customer.

3

4

INTRODUCTION 3

24 X 7 ON ROAD ASSISTANCE 9

VALUE ADDED SERVICE 13

TAKING CARE OF THE ENVIRONMENT 23

WARRANTY 25

INFORMATION AT A GLANCE 27

Contents

BEFORE DRIVING 31

STARTING & DRIVING 79

MAINTENANCE & CAR CARE 97

EMERGENCY SERVICE TIPS 130

IMPORTANT INFORMATION 141

CUSTOMER SUPPORT NETWORK 161

5

6

IMPORTANT INFORMATION ABOUT THIS MANUAL

Safety and vehicle damage warnings

In this manual, you will see CAUTION and NOTICE
warnings.

CAUTION

This is a warning. May cause injury to people if the
warning is ignored. You are informed what you must or
must not do in order to avoid or reduce the risk to
yourself and other people.

NOTICE

This is a warning. May cause damage to the vehicle or
its equipment if the warning is ignored. You are informed
what you must or must not do in order to avoid or reduce
the risk of damage to your vehicle and its equipment.

WARNING

Indicates a strong possibility of severe personal injury
or death if the instructions are not followed.

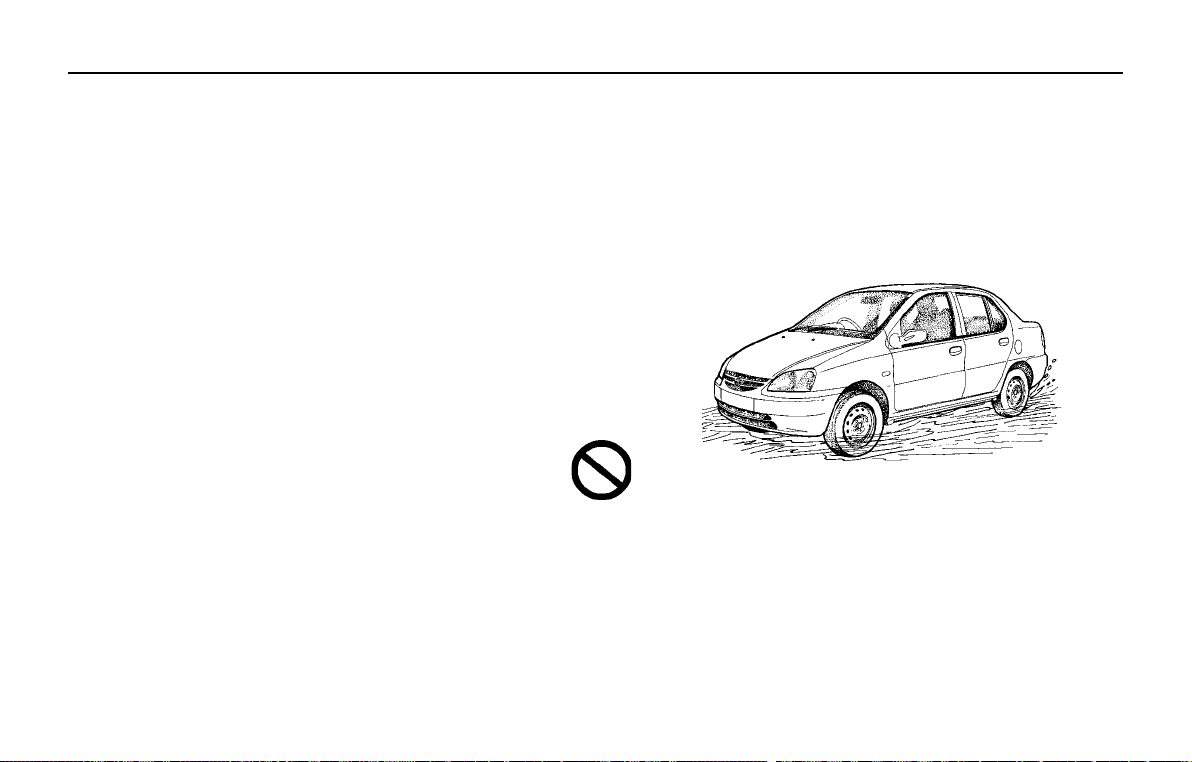

Safety symbol

In this manual, you will also see a circle with a slash. This
means "Do not", "Do not do this", or "Do not let this happen".

7

IMPORTANT INFORMATION FOR OWNERS

The information and specifications given in this book
are valid as on the date of printing. Tata Motors reserves
the right to make changes in design and specifications
and/or to make additions to or improvements in this
product without obligation to install them on products
previously sold.

8

Dear Customer,

It is our responsibility and our endeavour to ensure that you
have our complete service backup if ever, wherever and
whenever you need the same. When you have a road
network that spans 33.80 kms, the probability of a break­down happening within hailing distance of a TAT
Authorized Workshop is very low. It is Precisely for this
reason, we have tied up with MyTVS, who will provide break­down assistance including towing to the nearest TATA
MOTORS Authorized Workshop through their Authorized
Service Providers (ASP)

The 24X7 On Road Assistance Program shall be automati­cally available to your vehicle for the duration of Warranty
period. The program shall also be available for Extended
Warranty period if you avail the same at the time of buying
of your vehicle.

A MOTORS

24 X 7 ON ROAD ASSISTANCE

Response Time ** for the On Road Assistance Program

Within City Limits 60 minutes

On State or National Highways 90 minutes

Ghat Roads and other places 120 minutes +/-

(The response time will depend on the location, terrain, traf­fic density and the time of the day.)

Standard procedure when calling for On Road
Assistance in case of a breakdown :

• Dial the toll free help line number – 1 800 209 7979

• Identify your vehicle with the Vehicle chassis number that

is available in the Owners Service manual or on the
Helpline sticker on the dashboard, near the steering
wheel.

• Explain your exact location with landmarks and tell us
about the problem you face with the vehicle.

• Park your vehicle on the edge of the road, open the bon­net and put on the hazard warning signal.

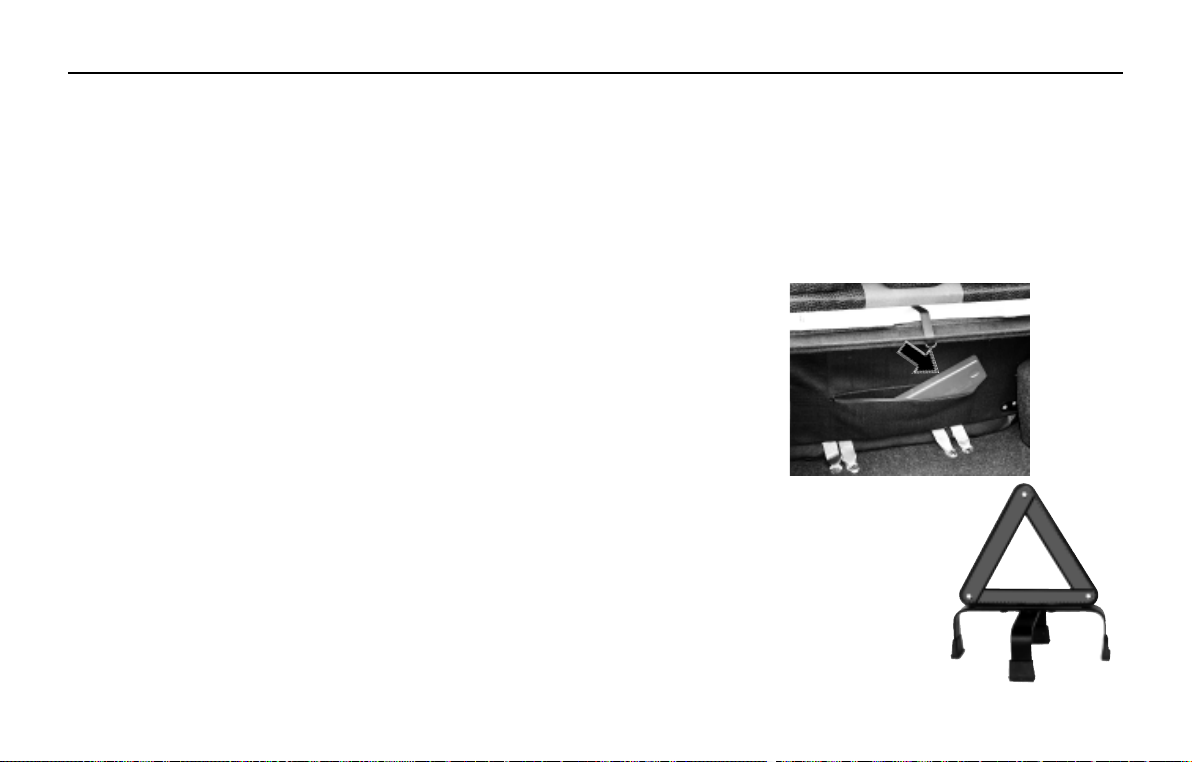

• Place the caution sign supplied with the vehicle approx.
3 m from the vehicle in the direction of on coming traffic.

9

24 X 7 ON ROAD ASSISTANCE

Coverage under the 24 X 7 On road Assistance Program

I. The 24x7 On Road Assistance Program Service

covers the following services on your vehicle during
warranty period.

• Wheel change through spare wheel.

• Arrangement of fuel. (Fuel cost will be chargeable at

actual cost)

• Re-opening the vehicle in cases of key lock out.

• Rectification of electrical problems related to battery,

fuses etc.

• On spot repairs for complaints repairable at site.^

• Car to car towing or winching & towing for non accident

cases up to a maximum of 15 kms to the nearest Tata
Motors authorized workshop. Towing charges at actual
cost beyond the same to be paid to the ASP in cash.
(Any ferry or toll charges levied in relation to the vehicle
being towed to be paid by the customers in actuals in
cash).

II. The 24x7 On Road Assistance Program coverage as

indicated above during the extended warranty period of
your vehicle is up to a maximum of 3 events for 18/12
months extended warranty period & 4 events for 30/24
months extended warranty period.

III. The 24x7 On Road Assistance Program as indicated

above covers Tata Motors Assured vehicles during the
extended warranty period up to a maximum of 3 events.

Exclusions

24x7 On Road Assistance Program does not apply to

• Cost of parts consumables and labour for such repairs
not covered under warranty*. These charges are to be
settled with ASP in cash.

• Toll or ferry charges paid by ASP in reaching to the break­down site to be settled with ASP in actuals in cash.

• Cases involving accident, fire, theft, vandalism, riots, light­ening, earthquake, windstorm, hail, tsunami, unusual
weather conditions, other acts of God, flood, etc.

• Vehicles that are unattended, un-registered, impounded
or abandoned.

• Breakdown/defects caused by misuse, abuse, negli­gence, alterations or modifications made to the vehicle.

• Lack of maintenance as per the maintenance
schedule as detailed in the owner’s manual.

• Cases involving racing, rallies, vehicle testing or
practice for such events.

10

24 X 7 ON ROAD ASSISTANCE

Disclaimer

• The service is not available in the states of Arunachal
Pradesh, Assam (Except Guwahati City), Meghalaya,
Manipur, Mizoram, Nagaland, Sikkim, Tripura, J&K and
in Union Territories of Andaman & Nicobar Islands and
Lakshwadeep.

• **The reach time is indicative & the actual reach time will
be conveyed by the call centre at the time of breakdown
call.

• The reach time can vary depending on the traffic density
& time of the day.

• The reach time indicated does not account for delays
due to but not limited to acts of God, laws, rules & regu­lations for time being in force, orders of statutory or Govt.
authorities, industrial disputes, inclement weather, heavy
down pour, floods, storms, natural calamities, road blocks
due to accidents, general strife and law & order condi­tions viz. fire, arson, riots, strikes, terrorist attacks, war
etc.

• ^ On spot repairs at breakdown site shall depend on
nature of complaints & will be as per the discretion of the
ASP.

• *The decision for free of charge repairs will be as per the
warranty policy & procedures of TAT
and as per the interpretation of the same by ASP. You
will be duly informed by the ASP & call centre for the
change applicable if any.

• All charges wherever applicable need to be settled di­rectly with the ASP.

A MOTORS LTD.

11

24 X 7 ON ROAD ASSISTANCE

EXCLUSION OF LIABILITIES :

• It is understood that TAT

no liability whatsoever in respect of any loss or
damage arising directly or indirectly out of any delay
in or non delivery of, defect/deficiency in service/
parts provided by ASP.

• In case vehicle cannot be repaired on-site, custom­ers are advised to use the towing facility for taking
their vehicle to the nearest TATA authorized work-
shop only. In no condition will the vehicle be towed
to any unauthorized workshop. TATA MOTORS will
not be responsible for any repairs carried out in such
unauthorized workshop.

• Customer are advised to take acknowledgment from
the ASP for the list of accessories/extra fittings and
other belongings in the vehicle as well as the
current condition related to dents/scratches break­ages of parts/fitments of the vehicle at the time of
ASP taking possession of the vehicle & to verify these
items when delivery is taken back by them, Claim
for loss of or damage to items, if any should be taken
up with ASP directly. TATA MOTORS shall not be

A MOTORS shall be under

responsible for any such claims, damages/loss or
any deficiency of service of the ASP.

• Vehicles will be handled, repaired & towed as per

the customer’s risk & TATA MOTORS shall not be
liable for any damages / claims as a result of the
same.

• Services entitled to the customers can be refused
or cancelled on account of abusive behaviour, fraudu­lent representation, malicious intent and refusal to
pay the charges for any charges related services
and spare parts during service or on previous occa­sion on part of the customer.

• On site repairs may be temporary in nature. The
completion of repairs does not certify the road
worthiness of the vehicle. The customer is advised
to ensure temporary repairs carried out onsite is fol­lowed by permanent repairs at TATA MOTORS
Authorized Workshop at the earliest.

• Terms and conditions and service coverage,
exclusions etc. are subject to change without
notice.

12

VALUE ADDED SERVICE

Dear Customer,

It is our never ending responsibility and endeavor to ensure that our customer’s expectations are fulfilled
comprehensively. To fulfill your vehicle service needs, we recommend the following :

1) Extended Warranty

2) Anti Rust / Sound Deadening / Engine waxing treatment

3) Iftex Fuel Additive : System D (For diesel) and System G (For Petrol)

4) Car detailing programming : Exterior Enrichment and Interior Enrichment Program

These products shall help maintain optimum vehicle performance and shall enhance vehicle life.

We have tied up with best in the Class companies, who would bring you the above world class products at
affordable prices. The above products are available with all our Dealers, TASCs and TASPs.

Our Dealer Service marketing executive shall explain to you the benefits of the above mentioned products.

13

VALUE ADDED SERVICE

Tata Motors recommends the purchase of Extended Warranty,a product of M/s Global Administration Services and United India
Insurance.

Coverage : Mechanical + Electrical + Emission

Benifits :

l Insures you against unforeseen break down repair bills.

l Documentation is simple and hassle free.

l Near cashless & speedy claim settlement.

Term :

l 24 + 12 or 150000 kms whichever occurs first

l 24 + 24 or 150000 kms whichever occurs first

l 50000 kms + 100000 kms or 36 months whichever occurs first (For Taxis).

EMISSION WARRANTY : Emission warranty is limited to the period of the Extended Warranty or 80,000 kms whichever is earlier.

Extended Warranty available in the dealership from where you have purchased your vehicle. We strongly recommend purchase of

Extended Warranty at time of purchase of your vehicle. Surcharge applicable on purchase of Extended Warranty after 30 days of
purchase of vehicle. Extended Warranty can be availed till 421 days from date of purchase of vehicle. The Dealer Service
Marketing Executive shall explain to you the Terms and conditions, Coverage and Owner’s responsibility.

Extended Warranty Booklet & Cover Note :

The Extended Warranty booklet and cover note is the basis of the contract between United India Insurance Co. and the Owner of the
vehicle shown on the Extended Warranty Cover note. The Customer to retain this booklet and the same to be produced to the dealer
while claiming benefits under Extended Warranty.

14

VALUE ADDED SERVICE

Note :

l The 12 / 24 month extended warranty does not follow the 24 month Manufacturer's warranty.
l The extended warranty comes into force once the manufacturer’s warranty expires e.g. after 24 Months.
l It is more restrictive as by the time it comes into force the vehicle is already 24 months old.

What is covered ?

l Mechanical / Emission / Electrical break down as defined in this warranty and confirmed by the dealer within the stipulated

terms and conditions.

l Tata Motors dealer shall either repair or replace any part found to be defective with a new part or an equivalent at no cost to the

owner for parts or labour.

l Such defective parts which have been replaced will become property of United India Insurance Company.
l Comprehensive list of parts covered is mentioned in the page 9-12 of the Extended Warranty Booklet.

What is not covered ?

Pages 6 – 7 of the Extended Warranty Booklet provided details of the exclusion list.

Owner’s Responsibility :

l Proper use, maintenance and care of the vehicle in accordance with the instructions contained in the Owner’s Manual and

Service Booklet. The records of the same to be ensured in Owner’s Manual.

l Retention of maintenance service bills.

l Always produce extended warranty booklet while servicing & claim in a waaranty.

I / We have been explained the Terms and conditions, Coverage and Owner’s responsibility by the Dealer Service Marketing

Executive.

I wish to avail / Do not wish to avail extended warranty policy.

Customer’s Sign Dealer’s Sign

15

VALUE ADDED SERVICE

IFTEX / BG / BARDAHL Fuel Additive :

Fuel Additive with multiple benefits

l For diesel cars: Iftex System D l For Petrol cars: Iftex System G

Benefits:

l Cleans injector and fuel system.
l Maintains peak engine performance.
l Saves diesel / petrol and maintenance cost.
l Reduces smoke and harmful emission.
l Helps Smooth running of the engine
l Reduces deposit on intake manifold and combustion chamber.
l Reduces deposit on injector tips.

Approved for use in TAT

TREAT YOUR CAR TO EXPERIENCE, THE ULTIMATE PERFORMANCE

Directions of use :

l a) For Iftex, Use every 7000 kms for System G Extra / System D Extra. b) For System D / System G ­Remove cap, squeeze lightly till dispenser fills to 10 ml mark. Add before filling up the tank. Use at the rate of 1 ml per
litre of fuel. For best results, regular use is recommended.

l For BG, add one bottle to full fuel tank every 10000 kms. For Bardahl, add one bottle to full fuel tank every 3000 kms

I / We have been explained the Benefits of the Iftex Fuel additive by the Dealer Service Marketing Executive

I wish to buy / Do not wish to buy the Iftex Fuel Aditive

A VEHICLES. NOT RECOMMENDED FOR ON QUADRAJET.

16

Customer Signature Dealer Signature

VALUE ADDED SERVICE

Why are Corrosion Protection Waxes necessary?

Corrosion is caused by:

Water / salt water acid rain & atmospheric fallouts.

Critical areas are:

Cavities: joints, crevices, spot welds, underbody

l Corrosion is the most important factor when we talk about the vehicle life. If you treat your car you can prolong

the life.

l It is very dangerous to drive around in a corroded car.

l The corrosion creeps onto the car from the inside and from the outside. The most dangerous kind of corrosion is

often not discovered until it is too late.

Benefits of Anti -Rust treatment :

l A professionally applied range of world class products offering real value to the new and used car customer.
l The treatment has been developed to withstand the harshest environmental and climatic conditions (rst.

Pollutants, stone and gravel impact, etc)

l Insulate cabin space from external noises.
l Expensive tin work and Denting / Painting avoided.
l Higher resale value for the car.
l Higher safety – uncorroded vehicle
l Upto 60 months warranty & 10 free checkups available

17

VALUE ADDED SERVICE

Engine Wax Treatment :

Engine Wax is a beige coloured transparent lacquer coating on the engine compartment.

l Corrosion Prevention for the Engine compartment
l Neat, clean and New Look to Engine compartment
l No effect on MPFI vehicles
l Engine wax can withstand upto 200 degrees temp
l No need of cleaning the engine compartment with diesel once engine wax is sprayed
l Life of over a year

Sound Deadening System :

Door vibration deadeners - These pads when stuck on the insides of the sheet metal increase sheet metal rigidity, reduce
vibrations and increase riding comfort.

l Used for reducing the sheet metal vibration in a vehicle.
l Product to be used once in the life of the vehicle - Life Time Warranty
l Effect is Life long i.e. until & unless pads are physically removed.
l Negligible increase in Weight & hence no effect on fuel consumption.
l Areas covered - four doors, rear quarter panels & dicky. In case of diesel vehicles, can be used in the bonnet.

Tata Motors has tied up with M/s Wuerth , M/s STS Chemicals (Dinitrol), M/s 3M India Ltd & M/s Opulent (Waxoyl Brand)
for these world class treatment at affordable prices. These treatments are available in all authorized workshops. The Dealer
Service Marketing Executive will explain to you the benefits and terms and conditions of this treatment.

I / We have been explained the Benefits, Terms and conditions and the prices of these treatments by the Dealer Service Marketing

Executive

I wish to avail / Do not wish to avail these treatment

18

Customer Signature Dealer Signature

VALUE ADDED SERVICE

Vehicle Exterior Enrichment :

Why vehicles are painted?

l For Corrosion protection of the metal surfaces.
l Ease of application from other corrosion protection treatments.
l Cheaper than other corrosion protection methods eg.galvanizing, anodizing.
l For decoration and identification.

Various Environmental Hazards affecting paints :

l Environmental hazards: destroy your vehicle's finish.
l Even as your new vehicle rolls off the assembly line, the paint is not protected.

The enemy :

Ultraviolet Rays, Pollution, Tree Sap, Bird Droppings, Car Wash Chemicals, Road Salt, Acid Rain.

Benefits: Vehicle Exterior Enrichment

l Removal of medium scratches, orange peel, oxidation , dust nibs etc & swirl marks from painted surface.

l Restoration of original gloss levels UV protection after gloss is restored.

l Cleaning & dressing of tyres, Bumpers & all exterior plastic moldings/trims.

Tata Motors has tied up with M/s Opulent (Waxoyl brand) M/s 3M & M/s Wuerth for this world class treatment at
affordable prices. This treatment is available in all authorized workshops. The Dealer Service Marketing Executive will
explain to you the benefits and terms and conditions of this treatment.

19

VALUE ADDED SERVICE

Vehicle Interior Enrichment

Why protect your new car’s fabric interior ?

l Someone will soil your vehicle's fabric carpet or seats.
l A significant detractor from your vehicle's resale value.
l A permanent stain on your vehicle's interior fabric.

The enemy :

Drink Spills - Food Stains - Mud - Ultraviolet Rays Pets - Traffic

Benefits: Vehicle Interior Enrichment

l Removal of medium stains and dirt from all interior parts of the car i.e carpet, upholstery and roof lining.
l Cleaning of windshield and all windows (inside and outside)
l Dressing of all internal plastics (eg: door pad trims )and rubber parts.
l The treatment involves cleaning and dressing of All parts of the exposed interiors.
l Specialised protection for seat fabric from liquid spills.

Tata Motors has tied up with M/s Opulent (Waxoyl brand and M/s 3M for this world class treatment at affordable prices.
This treatment is available in all authorized workshops. The Dealer Service Marketing Executive will explain to you the
benefits and terms and conditions of this treatment.

I / We have been explained the Terms and conditions, Coverage and Owner’s responsibility by the Dealer Service Marketing

Executive.

I wish to avail / Do not wish to avail extended warranty

20

Customer’s Sign Dealer’s Sign

VALUE ADDED SERVICE

Why de-carbonisation is required?

Carbon deposits accumulate over time in the entire fuel system, including the fuel lines, injector pump, fuel injectors, combus­tion chambers& intake valves This causes rough idle, vibration at idle, loss of power, hesitation, misfire, decreased mileage,
increased smoke, slowed throttle response.

Decarbonisation process is designed to remove these deposits

ll

l Clean fuel injectors

l

l
l Clean throttle body
l Clean plenum and air-intake
l Clean intake valves and ports
l Remove combustion chamber deposits
l In maintaining correct balance of fuel and air in system

Resulting in

l Comprehensive clean-up of combustion chamber, induction system & fuel injector deposits
l Better fuel economy
l Increased engine performance and response
l Smooth Starts, idles and quieter run
l Better combustion & increased power
l Faster starting & warm-up
l Reduced emissions
l Reduced injector & pump wear, thereby resulting in savings in maintenance costs

It is approved for low sulphur diesel fuel and EGR equipped diesel engines

Please note: These are symptomatic treatments to be availed beyond 20000 kms and only when you have problems in your car
as mentioned in first paragraph and are to be done only after you give your consent for carrying out these treatments

21

VALUE ADDED SERVICE

Engine Flush treatment helps in

l Safely and effectively cleaning and removing oxidised particles and fluid contamination left behind from previous oil changes
l Preventing further deposits
l Freeing sticky lifters and rings
l Chemically “tuning” the engine during driving
l Restoring pep and power
l Removing sludge from valve train
l Promoting fuel economy and improving overall engine operation

Special Products used for improving Compression

To fortify new oil and seal rings for optimum performance, special products from BG (RF7) and Bardhal (Special Duty) are added to new engine
oil. This makes it suitable for petrol and diesel engine applications

Resulting in:

l Improved engine compression
l Increased power and increased fuel economy
l Reduced start-up wear
l Increased engine life, especially under severe service conditions
l Reduced emissions and oil consumption
l Improved power & performance of older engines
l Prevention of sludge, gum and varnish formation on engine parts both petrol & diesel engines

Please note: These are symptomatic treatments to be availed beyond 20000 kms and only when you have problems in your car as mentioned
in first paragraph and are to be done only after you give your consent for carrying out these treatments
Tata Motors has tied up with M/s HOEC Bardahl India Ltd and BG for these world class treatment at affordable prices. These treatments are
available in all authorized workshops. The Dealer Service Marketing Executive will explain to you the benefits and terms and conditions of this
treatment.

I / We have been explained the Benefits, Terms and conditions and the prices of these treatments by the Dealer Service Marketing

Executive

I wish to avail / Do not wish to avail these treatment

22

Customer’s Sign Dealer’s Sign

ENVIRONMENT PROTECTION

Taking care of the Environment

Tata Motors is committed to producing cars using
environmental friendly technology. A number of features have
been incorporated in our passenger cars which are
specifically designed to ensure environmental compatibility
throughout the life cycle of the car. We would like to inform
you that your car meets emission norms and is being
regularly validated at the manufacturing stages to keep up
with the stringent emission norms.

As a user you too can protect the environment by operating
your car in a proactive manner. A lot depends on your driving
style and the way you maintain your car. Listed below are
few tips that will help you do so.

WHILE DRIVING :

n Avoid frequent and violent acceleration.

n Do not carry any unnecessary weight on the vehicle as

it overloads the engine.

n Avoid using devices requiring high power consumption

during slow traffic condition.

n Monitor the car’s fuel consumption regularly. If it shows

a rising trend get the car immediately attended to at
the Company’s Authorised Service Centre.

n Switch off the engine during long stops at traffic jams

or signals. If you need to keep the engine running, avoid
unnecessary revving or stopping and starting.

n It is not necessary to rev up the engine before turning it

off as it unnecessarily burns the fuel.

n Shift to higher gears as soon as it is possible. Use each

gear upto 2/3rd of it’s maximum engine speed. A chart
indicating gear shifting speeds is given in this book.

MAINTENANCE OF THE CAR :

n Ensure that recommended maintenance is carried out

on the car regularly at the Tata Motors Authorised
Service Outlets.

n As soon as you notice any leakage of oil or fuel in the

car we recommend that you get it attended immediately.

n Use only recommended brands and grades of lubricants

& coolants and clean/uncontaminated fuels.

23

ENVIRONMENT PROTECTION

n Get your vehicle checked for emission periodically by

our authorised dealer and regularly renew the P.U.C.
Certificate.

n Ensure that fuel filter, oil filter, breathers are periodically

checked and if required, replace the same using only
genuine recommended brands.

n Do not pour used oils or coolants into sewage drains,

garden soil or open streams. Dispose of the used filters
and batteries in compliance with the current legislation.

n Do not allow any unauthorised person to tamper with

the engine settings or to carry out modifications on the
car.

n Never allow the vehicle to run out of fuel. This will result

in misfiring of the engine and could cause harm to the
catalytic cinverter.

n Parts like brake liners and clutch disc should be vacuum

cleaned. Do not use compressed air for cleaning these
parts which may spread the dust in the atmosphere.

While carrying out the servicing or repairs of your car, you
should pay keen attention to some of the important engine
aggregates which greatly affect emission. These
components are :

1. Fuel injection pump , Injectors / Nozzles

2. Air intake & Exhaust system especially for leakage

3. Cylinder head for valve leakage

4. All filters such as air, oil & fuel filters (check
periodically)

5. Catalytic converter

6. E.G.R. system (Diesel)

7. Turbocharger & Intercooler (Diesel)

8. Ignition System - Spark plug gap (Petrol)

This Owner’s Manual & Service Book contains further
information on driving precautions and maintenance care
leading to environment protection. Please familiarise yourself
with these aspects before driving.

24

WARRANTY - Terms & Conditions

We WARRANT each Tata Indigo car
and parts thereof manufactured by us
to be free from defect in material and
workmanship subject to the following
terms and conditions -

1. This warranty shall be for 18
months from the date of sale of the
car irrespective of the distance
covered. However, for the cars with
yellow number plates used for
commercial applications (including
those used for hire or reward viz
those operating with a yellow
number plate), the warranty shall
be limited to 18 months or 50,000
kms, whichever occurs earlier.

2. Our obligation under this warranty
shall be limited to repairing or
replacing, free of charge, such
parts of the car which, in our
opinion, are defective, on the car
being brought to us or to our
dealers within the period. The parts
so repaired or replaced shall also
be warranted for quality and

workmanship but such warranty
shall be co-terminus with this
original warranty.

3. Any part which is found to be
defective and is replaced by us
under the warranty shall be our
property.

4. As for such parts as tyres, batteries,
electrical equipment, fuel injection
equipment,etc.not manufactured
by us but supplied by other parties,
this warranty shall not apply, but
buyers of the car shall be entitled
to, so far as permissible by law, all
such rights as we may have against
such parties under their warranties
in respect of such parts.

5. This warranty shall not apply if the
car or any part thereof is repaired
or altered otherwise than in accor­dance with our standard repair pro­cedure or by any person other than
from our sales or service estab­lishments, our authorised dealers,

service centres or service points in
any way so as, in our judgement
which shall be final and binding, to
affect its reliability, nor shall it apply
if, in our opinion which shall be
final and binding, the car is sub­jected to misuse, negligence, im­proper or inadequate maintenance
or accident or loading in excess of
such carrying capacity as certified
by us, or such services as pre­scribed in our Owner's Manual and
Service Book are not carried out
by the buyer through our sales or
service establishments, our
authorised dealers, service cen­tres or service points.

6. This warranty shall not cover
normal wear and tear or any
inherent normal deterioration of the
car or any of its parts arising from
the actual use of the car or any
damage due to negligent or
improper operation or storage of
the car. This warranty shall not

25

WARRANTY - Terms & Conditions27INFORMATION AT A GLANCE - Filling Station Information

apply to normal maintenance
services like oils & fluid changes,
head lamps focussing, fastener
retightening, wheel balancing, tyre
rotation, adjustment of valve
clearance, fuel timing, ignition
timing and consumables like bulbs,
fuel filters & oil filters, etc. This
warranty shall not apply to any
damage or deterioration caused by
environmental pollution or bird
droppings. This warranty shall not
apply to V-belts, hoses and gas
leaks in case of air conditioned
cars. Slight irregularities not
recognised as affecting the function
or quality of the vehicle or parts,
such as slight noise or vibration,
defects appearing only under
particular or irregular operations
are items considered
characteristics of the vehicle.

7. This warranty shall be null and void
if the car is subjected to abnormal
use such as rallying, racing or

participation in any other
competitive sport. This warranty
shall not apply to any repair or
replacements as a result of
accident or collision.

8. This warranty is expressly in lieu
of all warranties, whether by law or
otherwise, expressed or implied,
and all other obligations or liabilities
on our part and we neither assume,
nor authorise any person to
assume on our behalf, any other
liability arising from the sale of the
car or any agreement in relation
thereto.

9. The buyer shall have no other
rights except those set out above
and have, in particular, no right to
repudiate the sale, or any
agreement or to claim any
reduction in the purchase price of
the car, or to demand any damages
or compensation for losses,
incidental or indirect, or
inconvenience or consequential

damages, loss of car, or loss of
time, or otherwise, incurred or
accrued.

10. Any claim arising from this warranty
shall be recognised only if it is
notified in writing to us or to our
authorised dealer without any delay
soon after such defects as covered
& ascertained under this warranty.

11. This warranty shall stand
terminated if the car is transferred
or otherwise alienated by the buyer
without our prior written consent.

12. We reserve our rights to make any
change or modification in design
of the car or its parts or to introduce
any improvement therein or to
incorporate in the car any additional
part or accessory at any time
without incurring any obligation to
incorporate the same in the cars
previously sold.

26

ENGINE OIL UPTO DIPSTICK MAX.MARK ~ 5.5 Litres (DIESEL)

ENGINE OIL UPTO DIPSTICK MAX.MARK ~ 4.0 Litres (PETROL)

* Premixed ready to
use Engine Coolant
= 6 Litres

Windshield Washer

reservoir = 3.5 Litres for LX /

GLX and 1.5 Litres for L/GL,

LE/GLE and LS/GLS

FUEL TANK CAPACITY 42 Litres

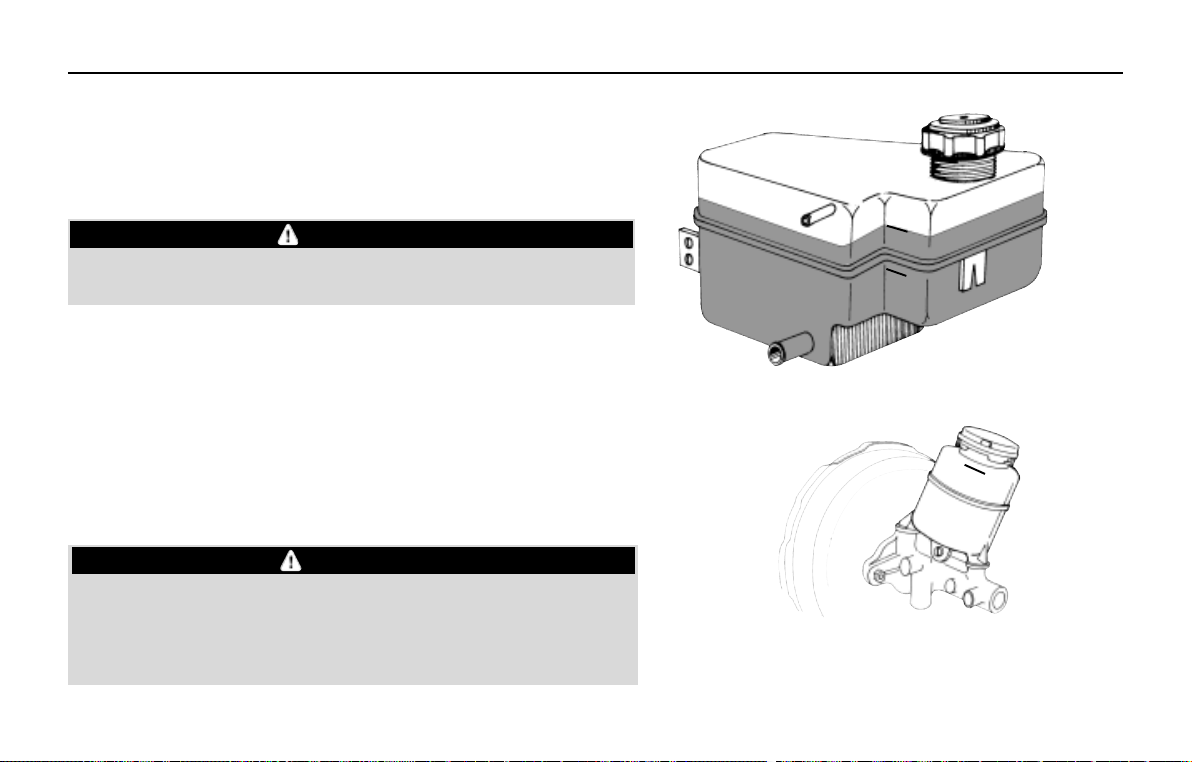

Brake fluid = 0.270 Litres

TRANSAXLE OIL 3.3 Litres

IMPORTANT : For fuel specification, please refer ‘IMPORTANT INFORMATION - Fuel, Lubricants & Coolants’ group (Page no. 138 & 139)

For recommended oil grades and change intervals, refer lubricants chart and Service Schedule.

* If concentrated antifreeze agent is used, mix it with soft water in the ratio of 50:50.

TYRE SIZE MODELS FRONT REAR

INDIGO TCIC ALL 27 psi (1.9 bar) 27 psi (1.9 bar)

175/65 R14

165/65 R14 INDIGO CS TCIC/MPFI LE/GLE 32 psi (2.2 bar) 29 psi (2.0 bar)

INDIGO COM.RAIL ALL 32 psi (2.2 bar) 29 psi (2.0 bar)
INDIGO CS TCIC/MPFI LS/GLS 27 psi (1.9 bar) 27 psi (1.9 bar)
INDIGO CS COM.RAIL LS/GLS 32 psi (2.2 bar) 29 psi (2.0 bar)

TYRE PRESSURE

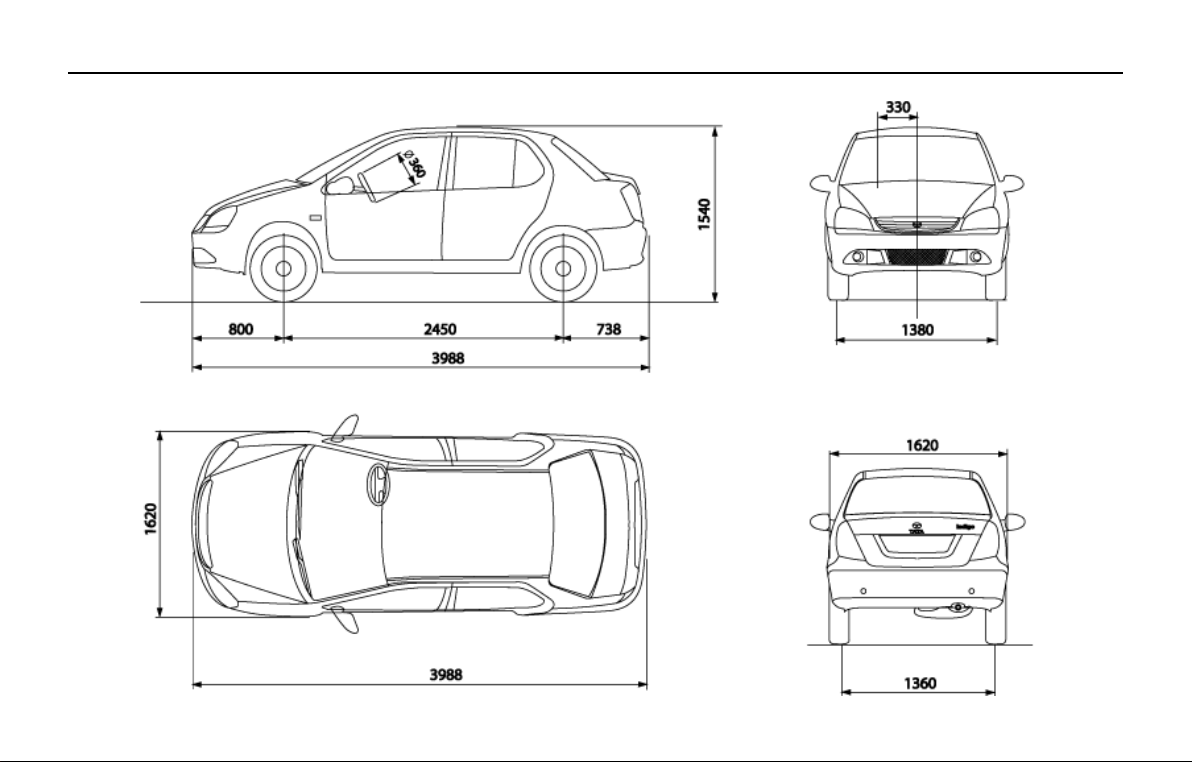

INFORMATION AT A GLANCE - Dimensions

INDIGO

28

INFORMATION AT A GLANCE - Dimensions

INDIGO CS

29

30

DRIVING CONTROLS

nn

n

n

n

Driving Controls

•

Keys

•

Door Locks

•

Child Lock

•

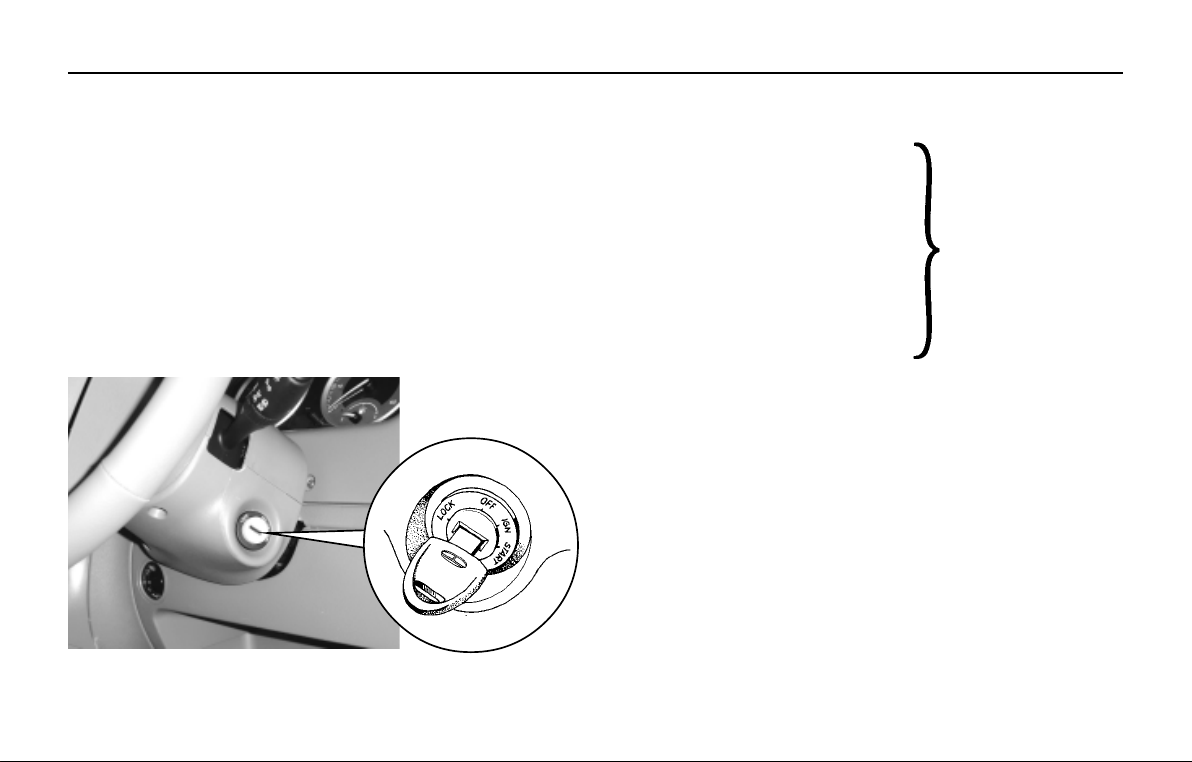

Steering cum Ignition Switch

•

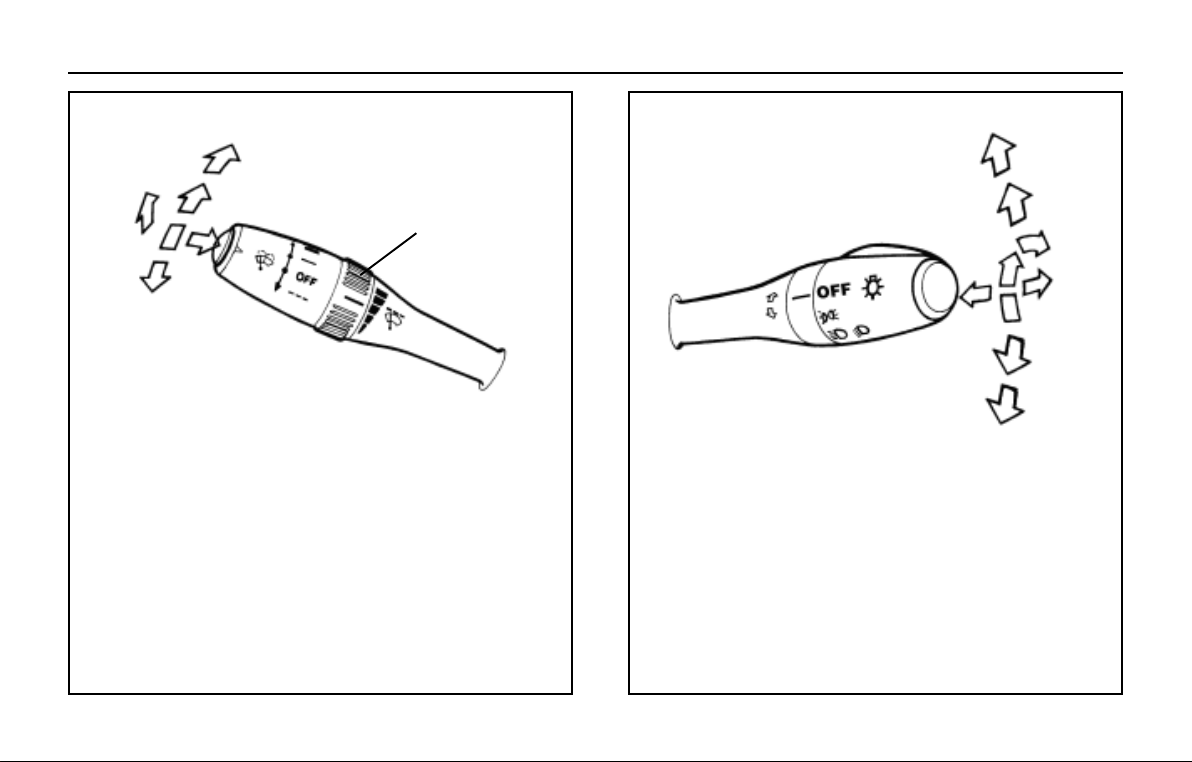

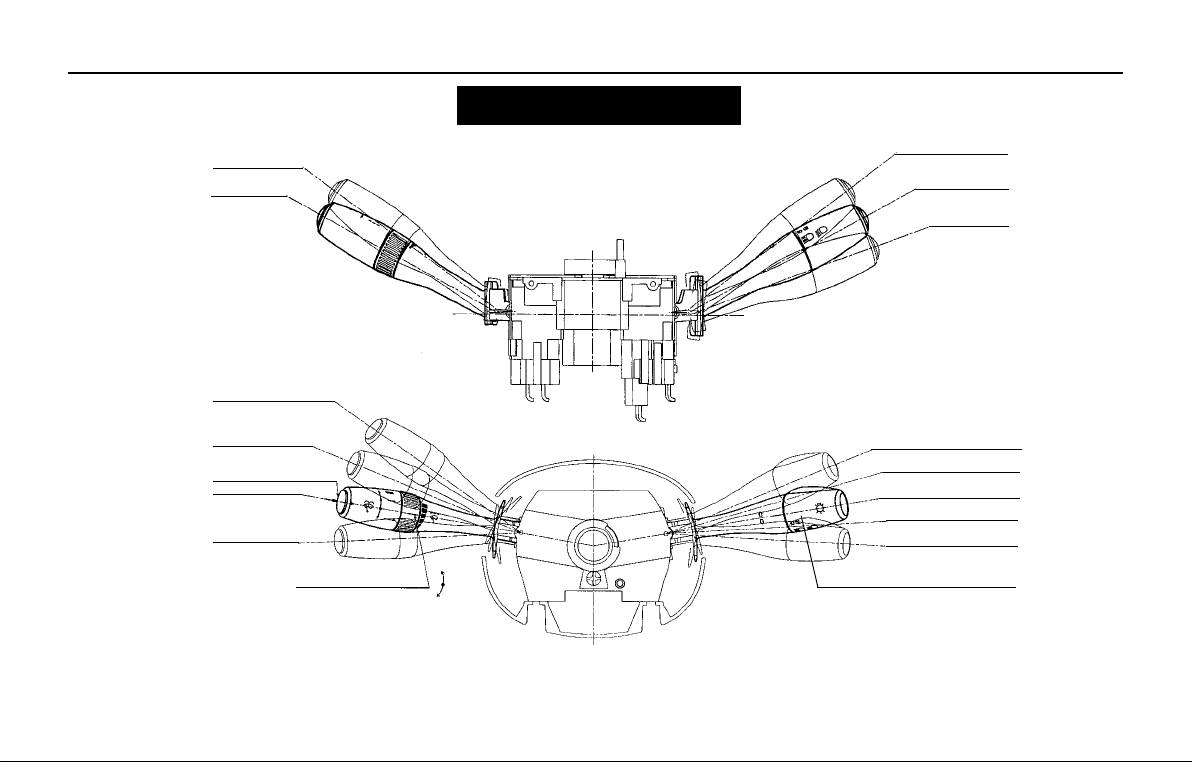

Combi-switch

•

Accessory Switches

•

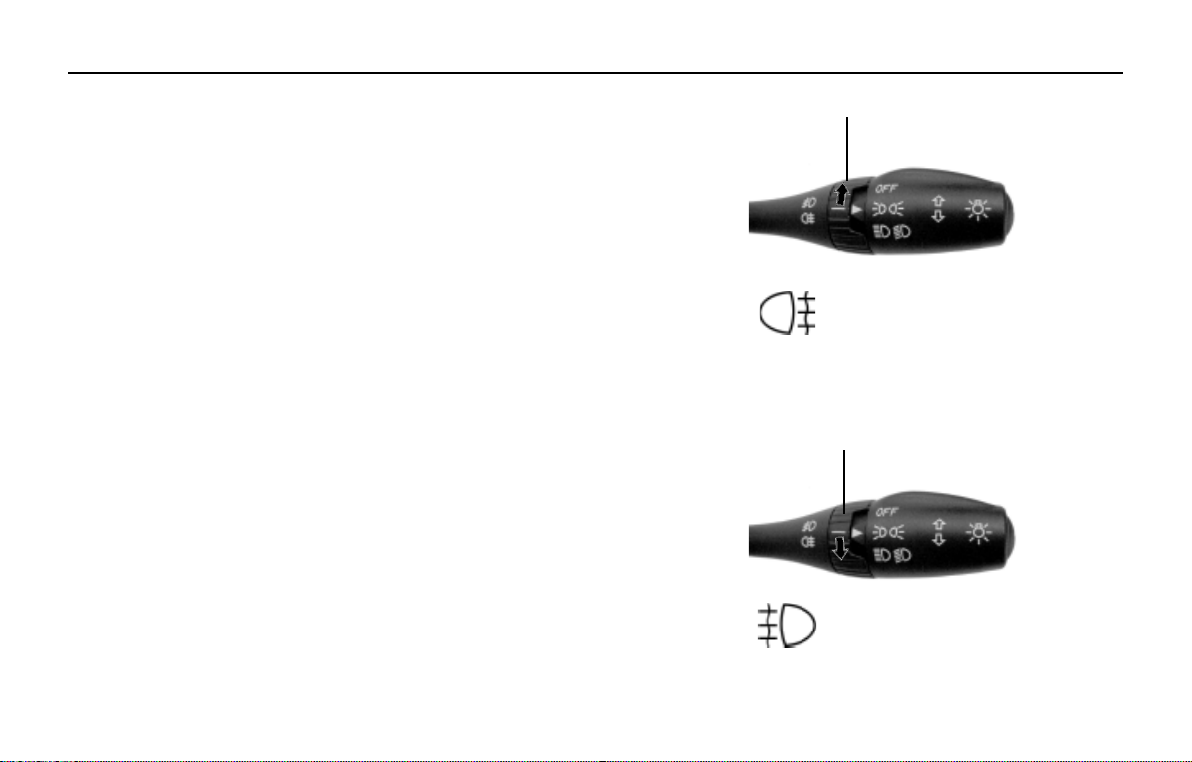

Fog Lamps

•

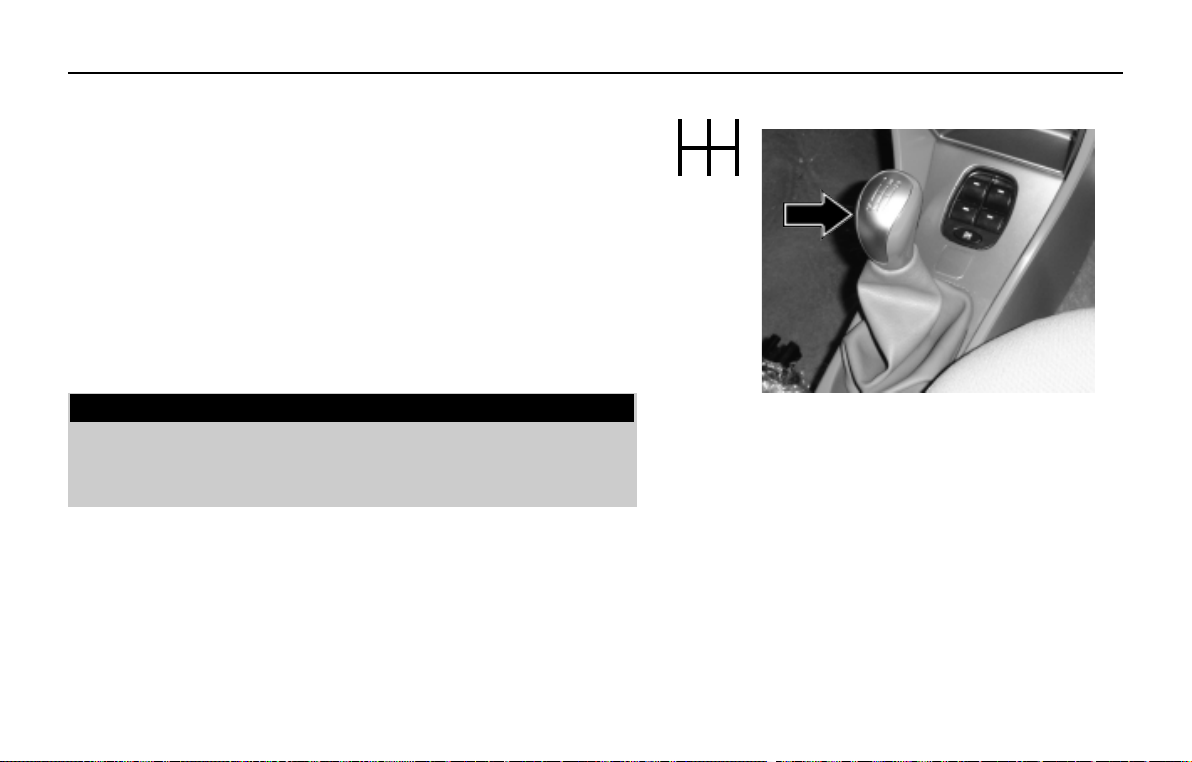

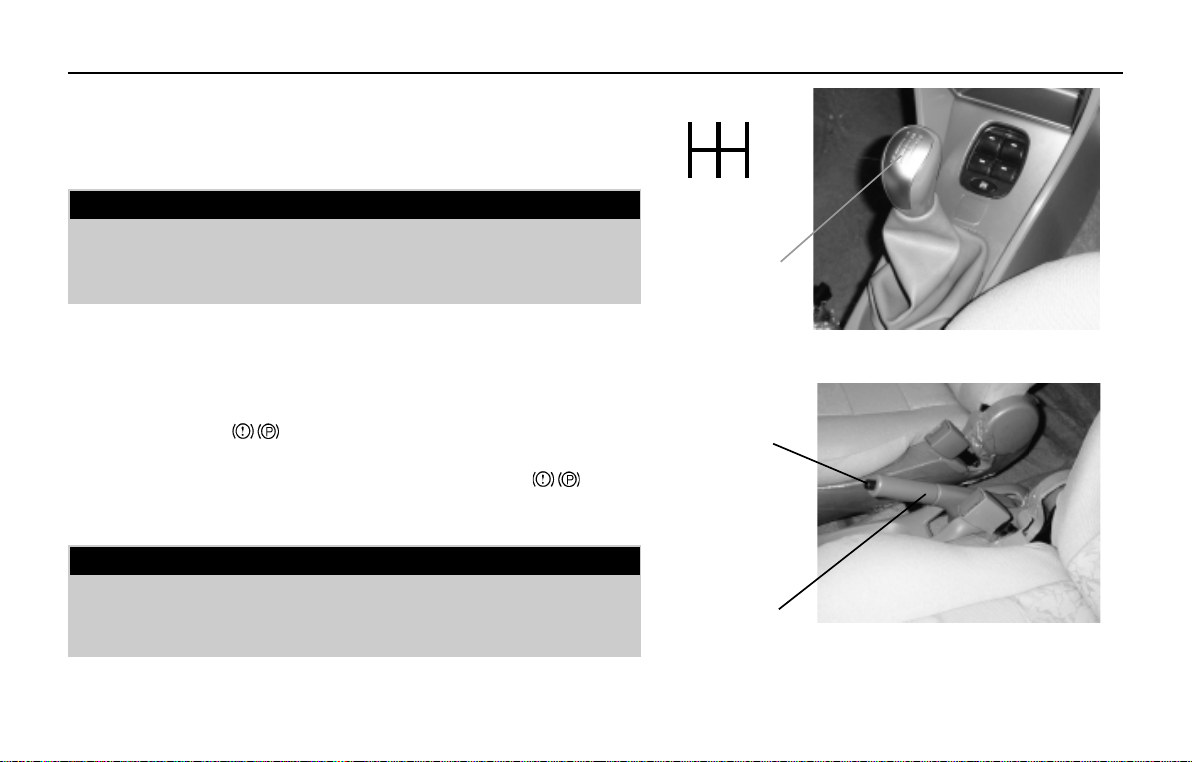

Gearshift Lever & Shifting Pattern

•

Parking Brake

•

INSTRUMENT PANEL

nn

n

nn

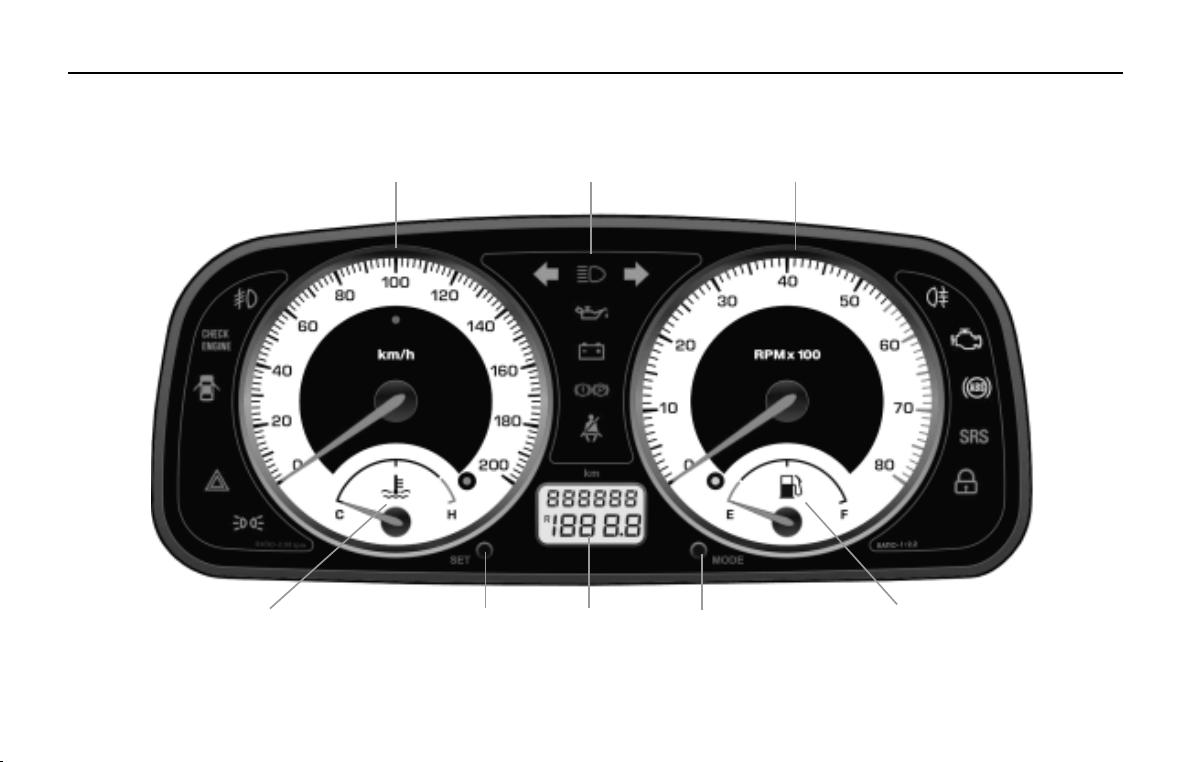

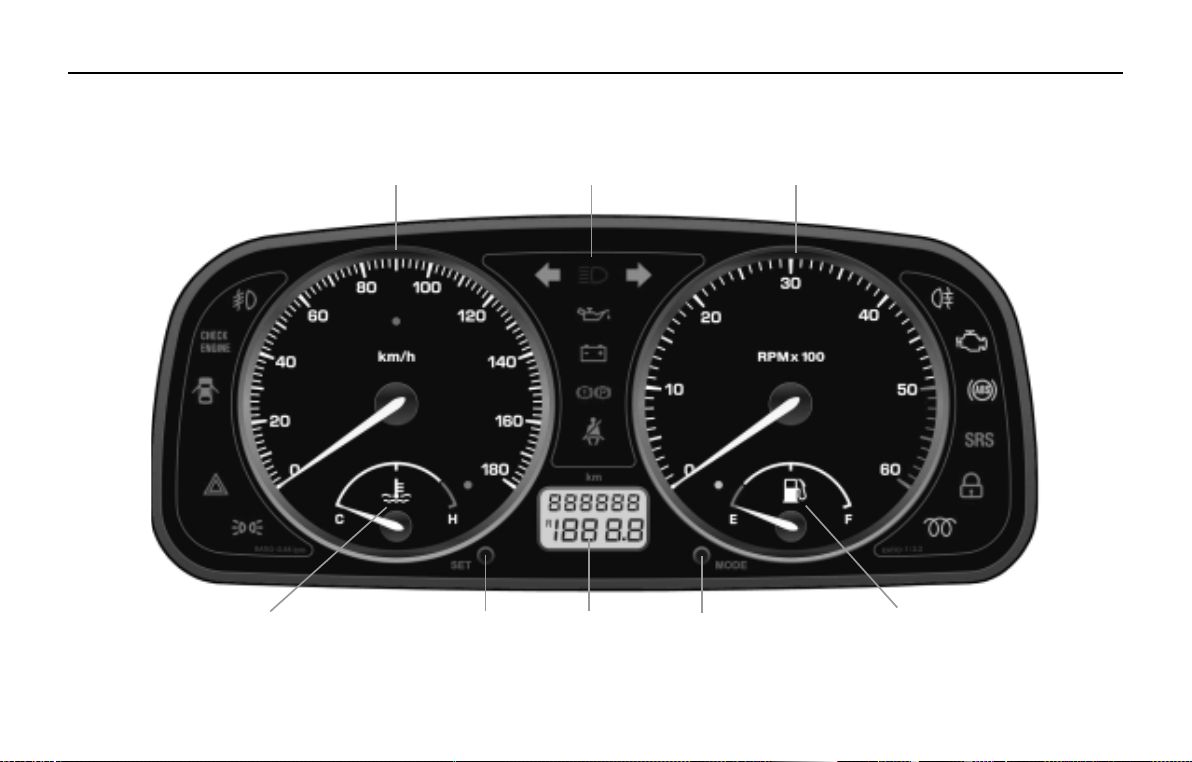

Instrument Panel

•

Turn Signals & Hazard Warning

•

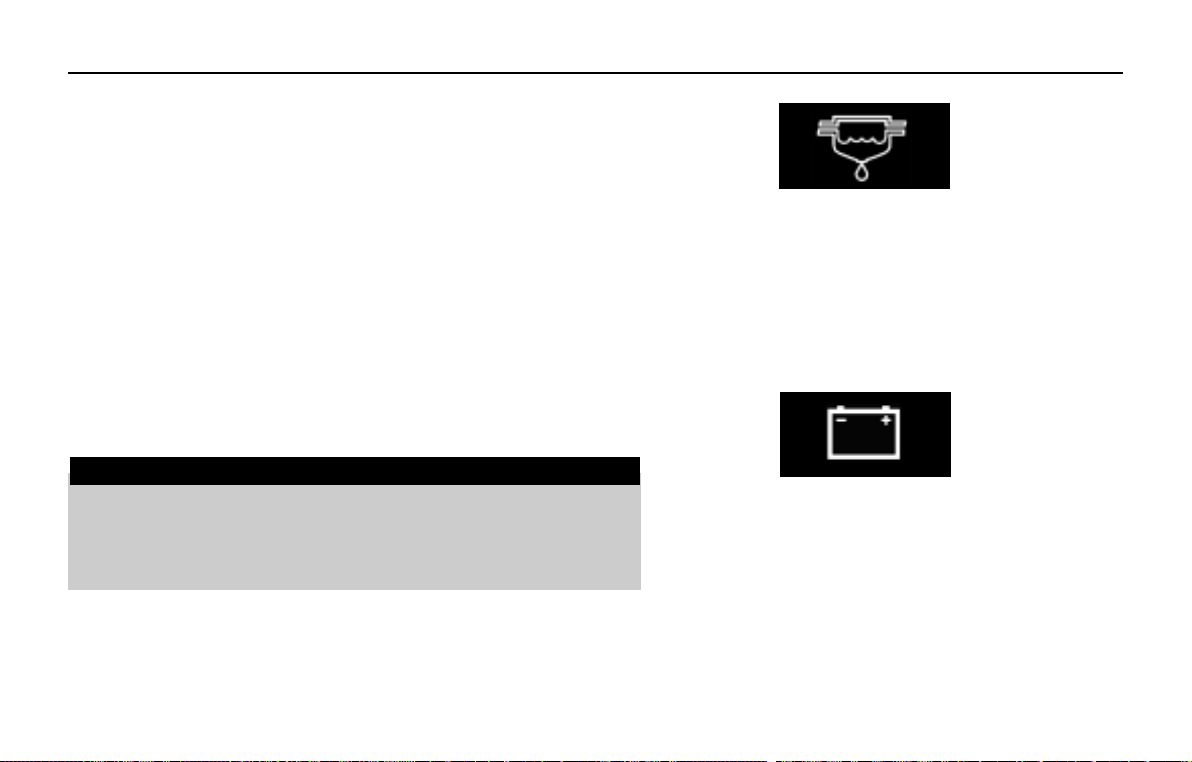

Indicators

•

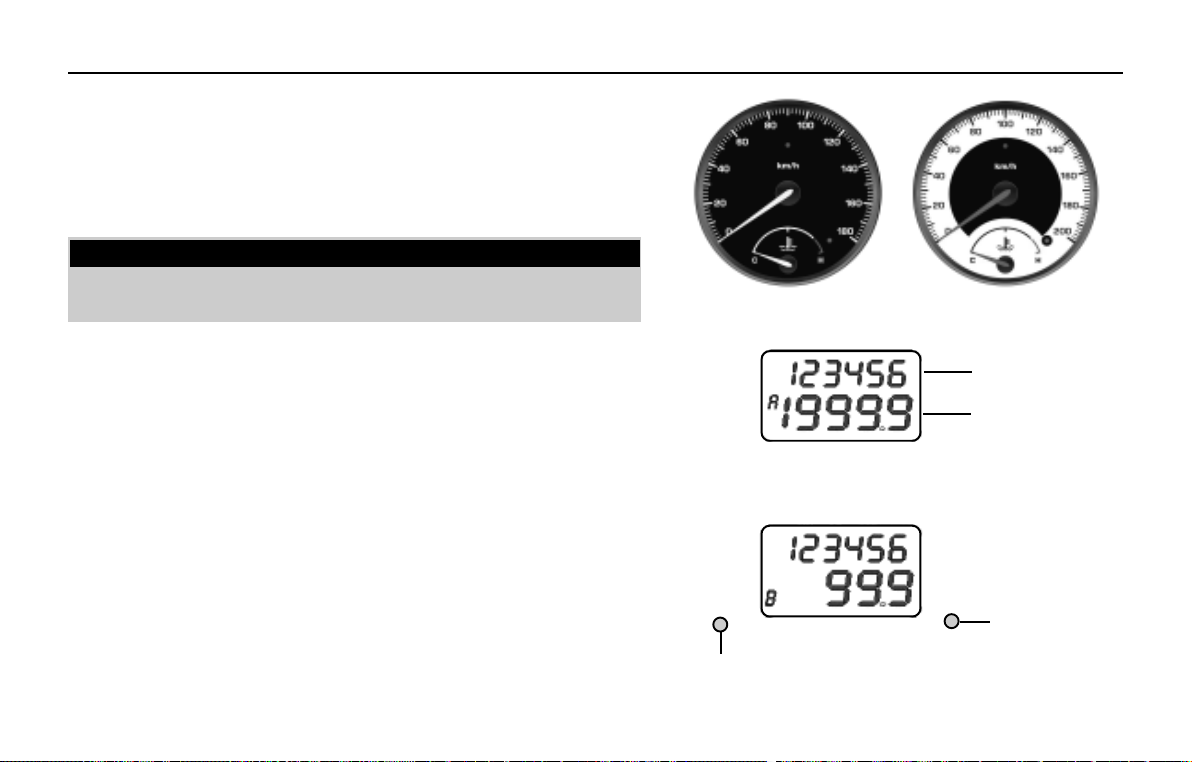

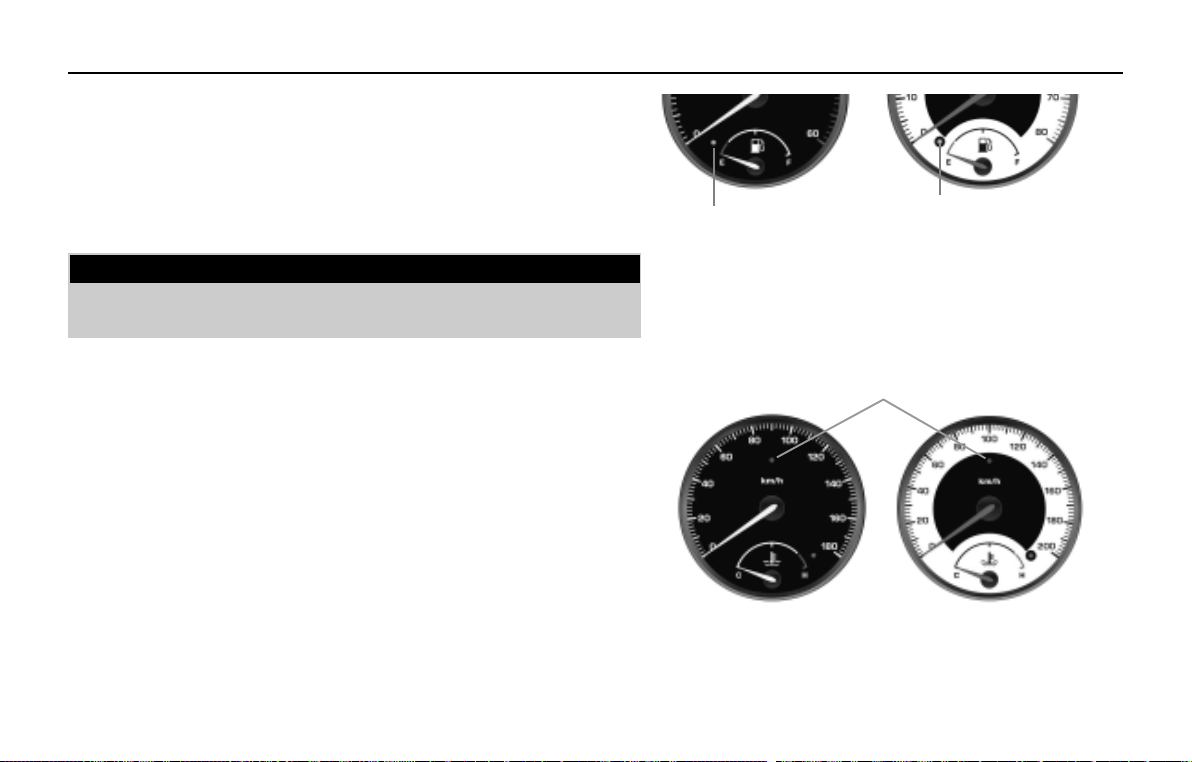

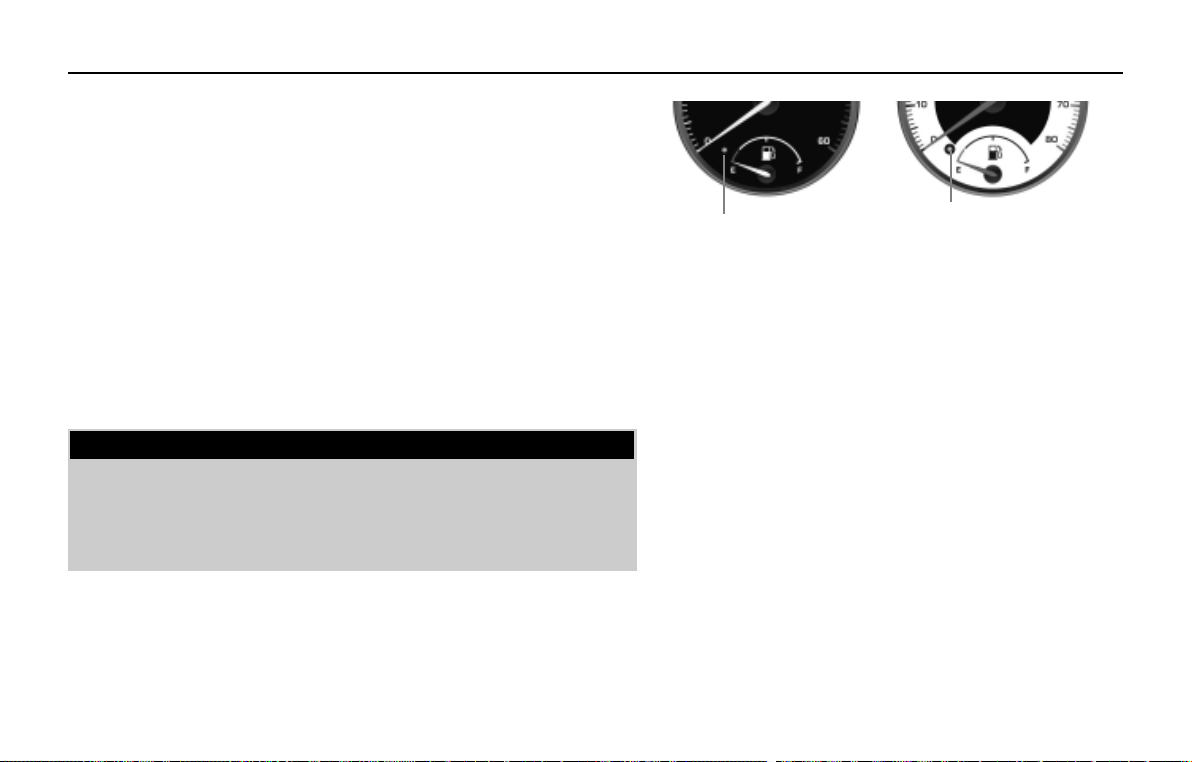

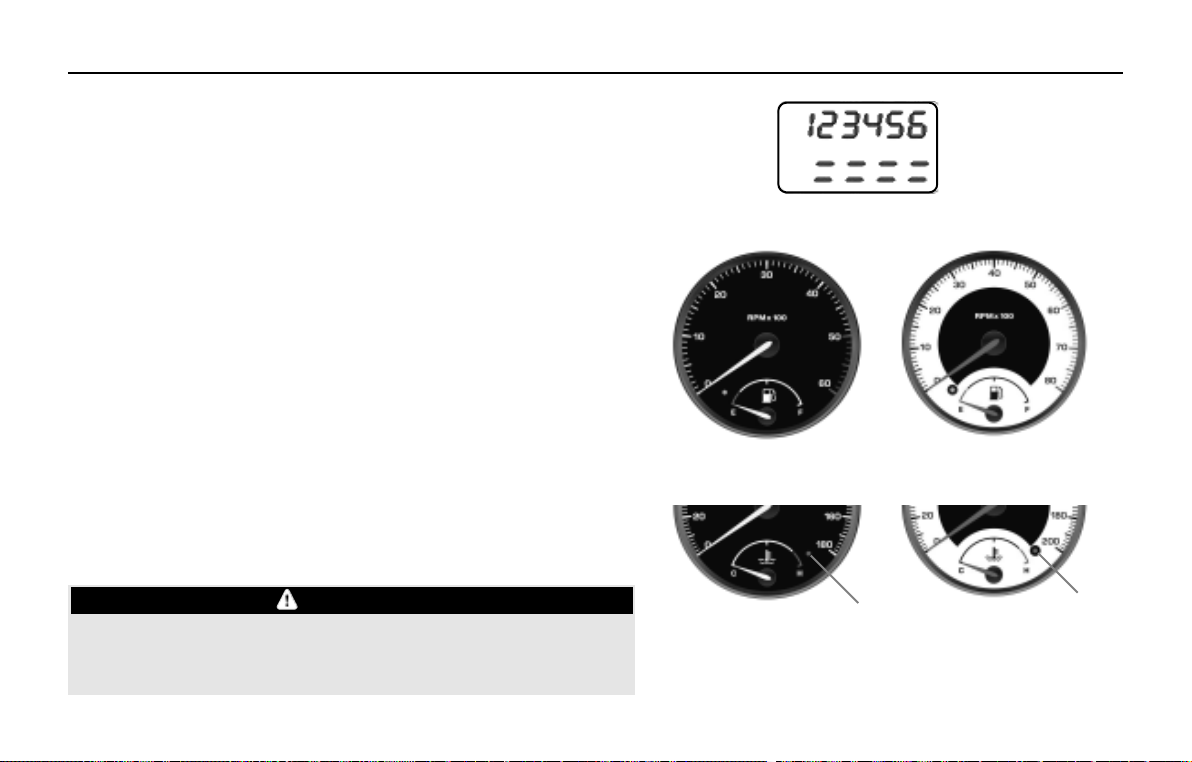

Gauges

•

Audio Warning

•

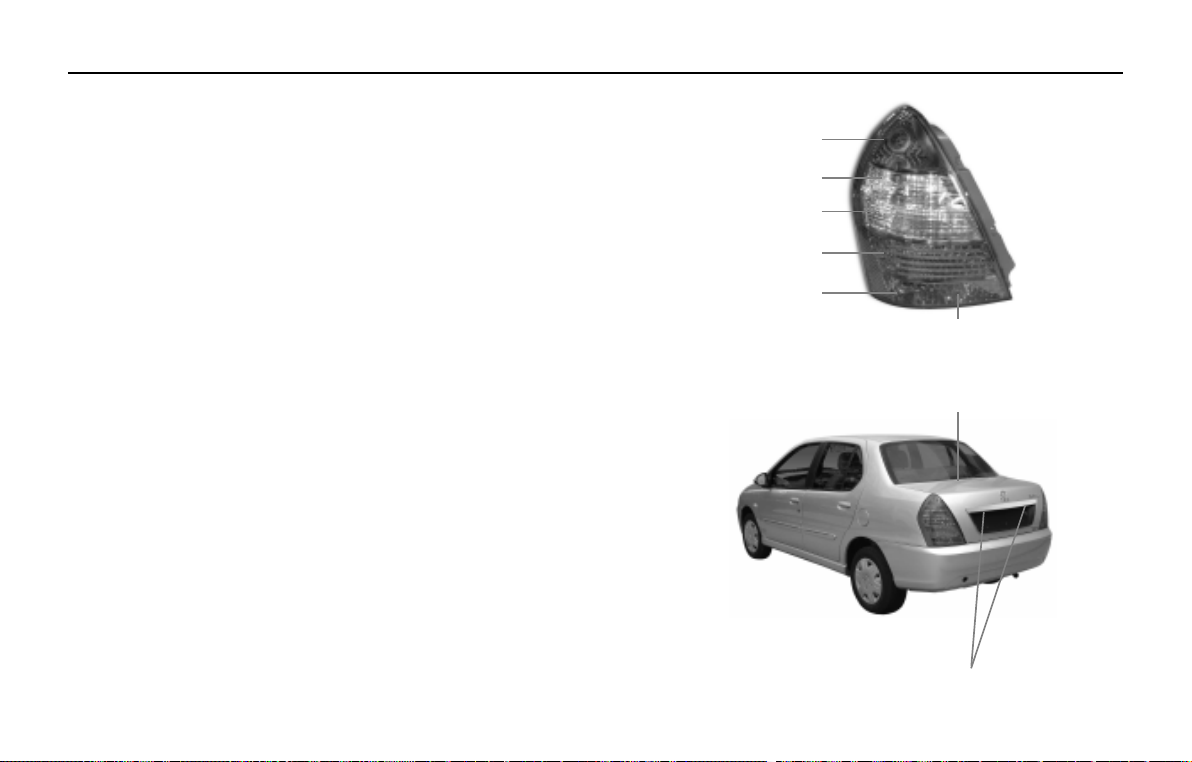

Tail Lamp

•

Registration Plate Lamp

•

High Mounted Stop Lamp

•

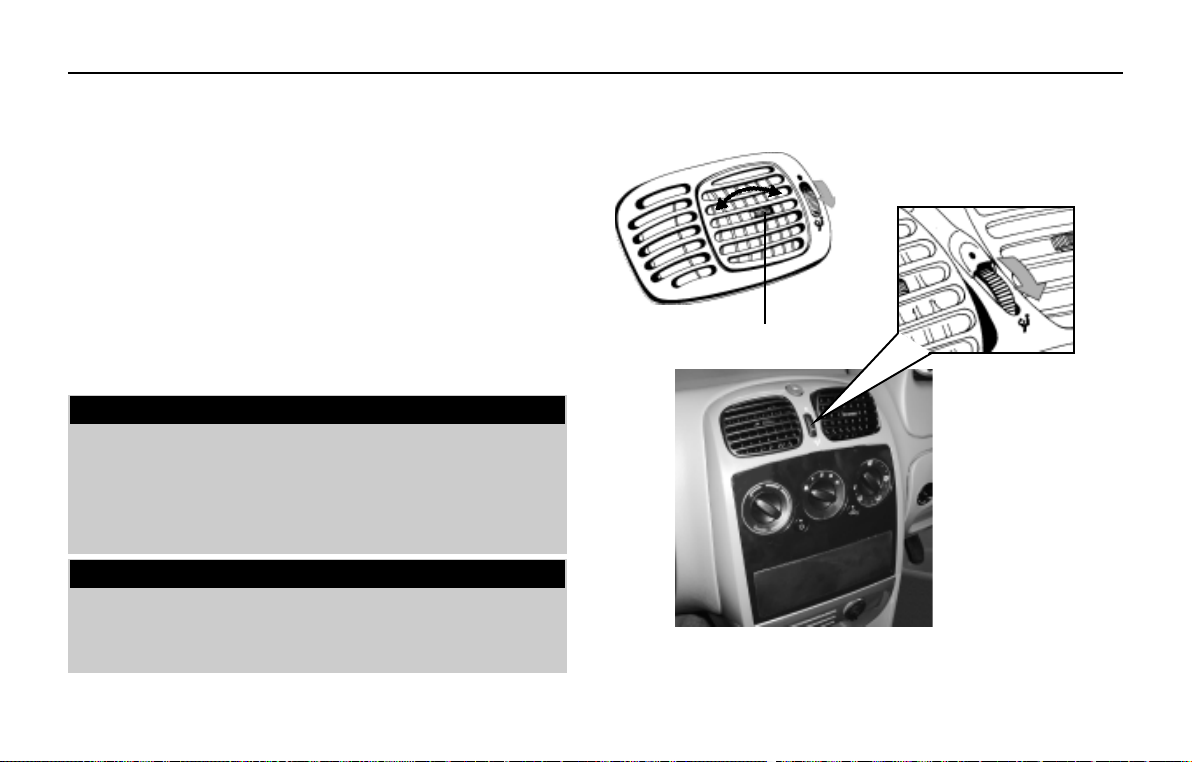

HEATING, VENTILATION & AIR-CONDITIONING

nn

n

nn

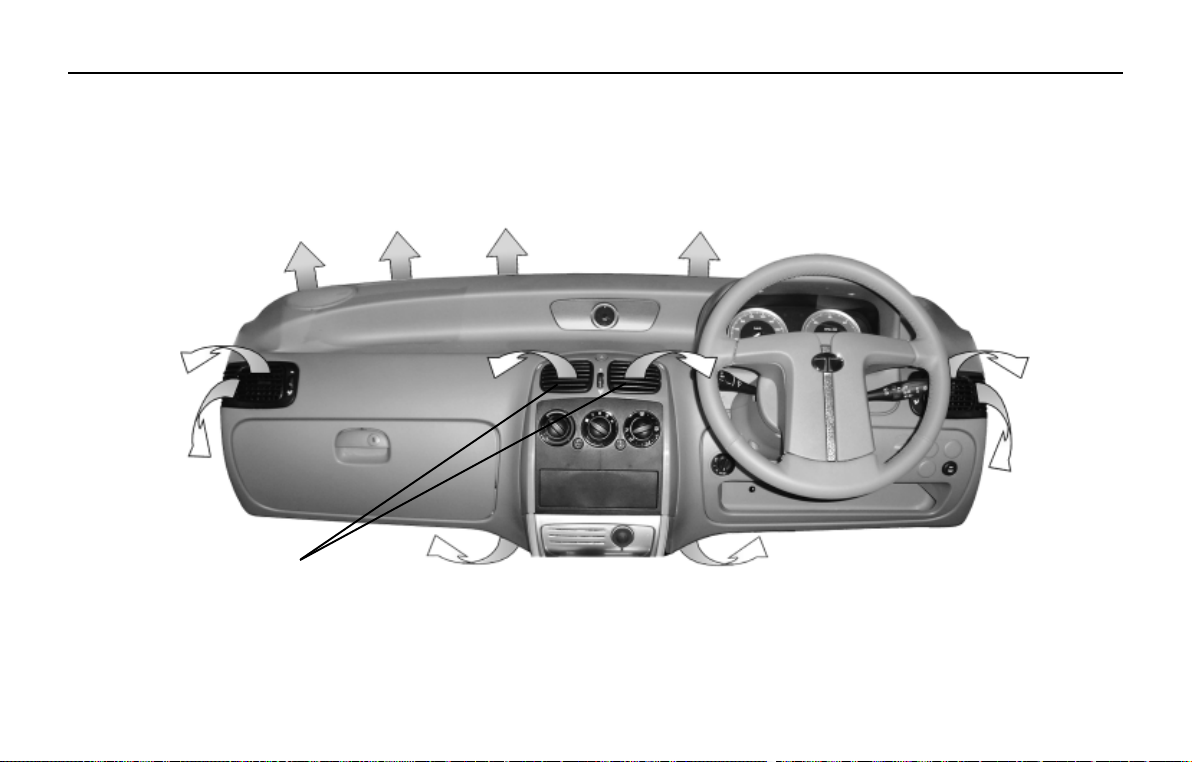

Air Flow Pattern

•

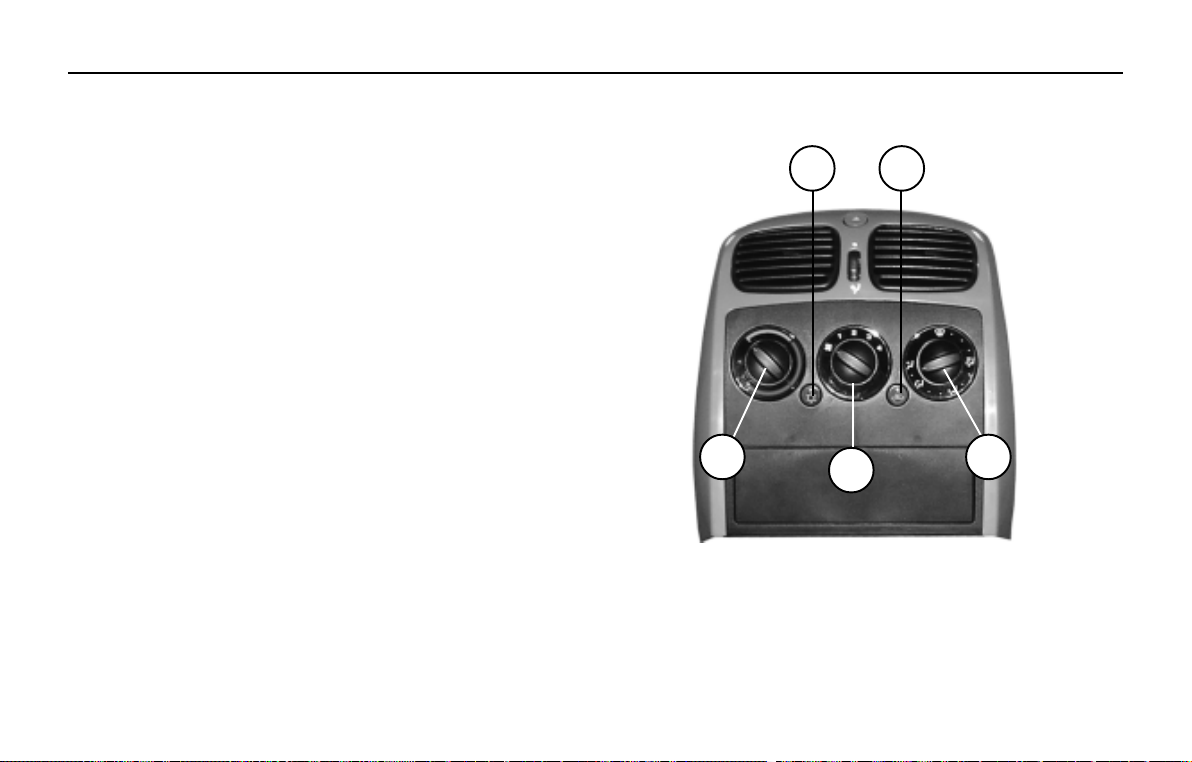

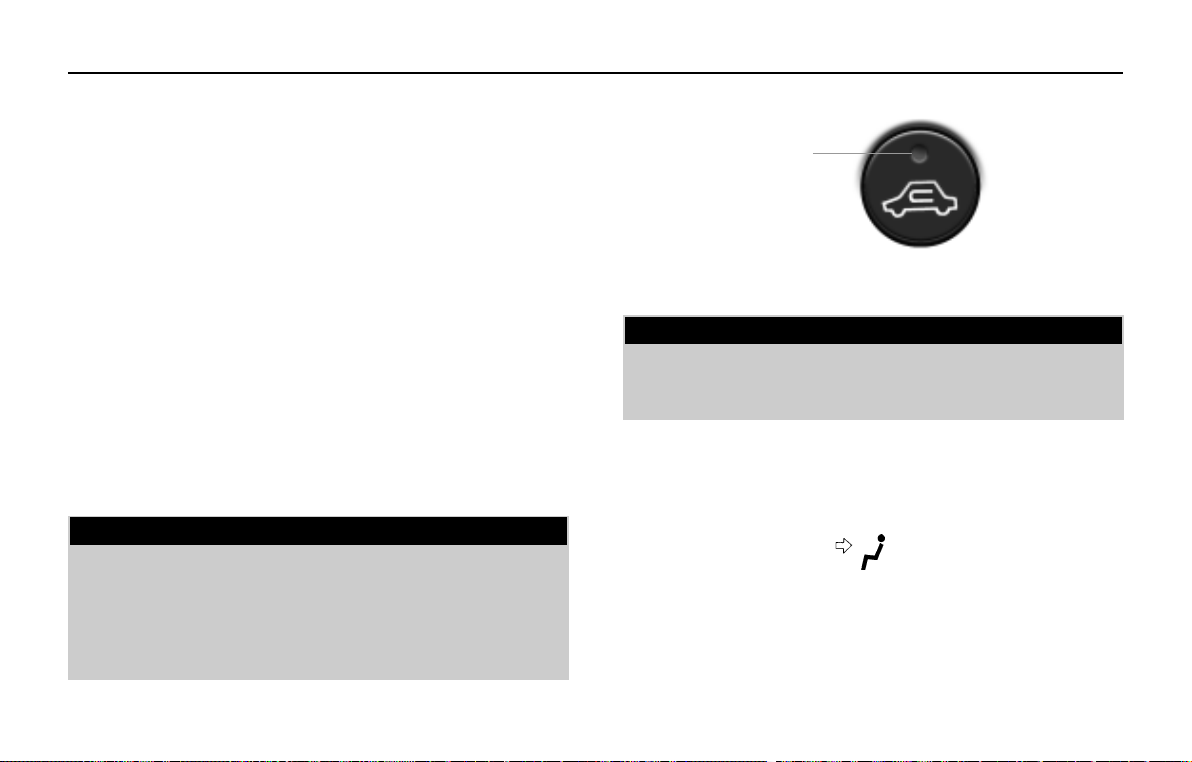

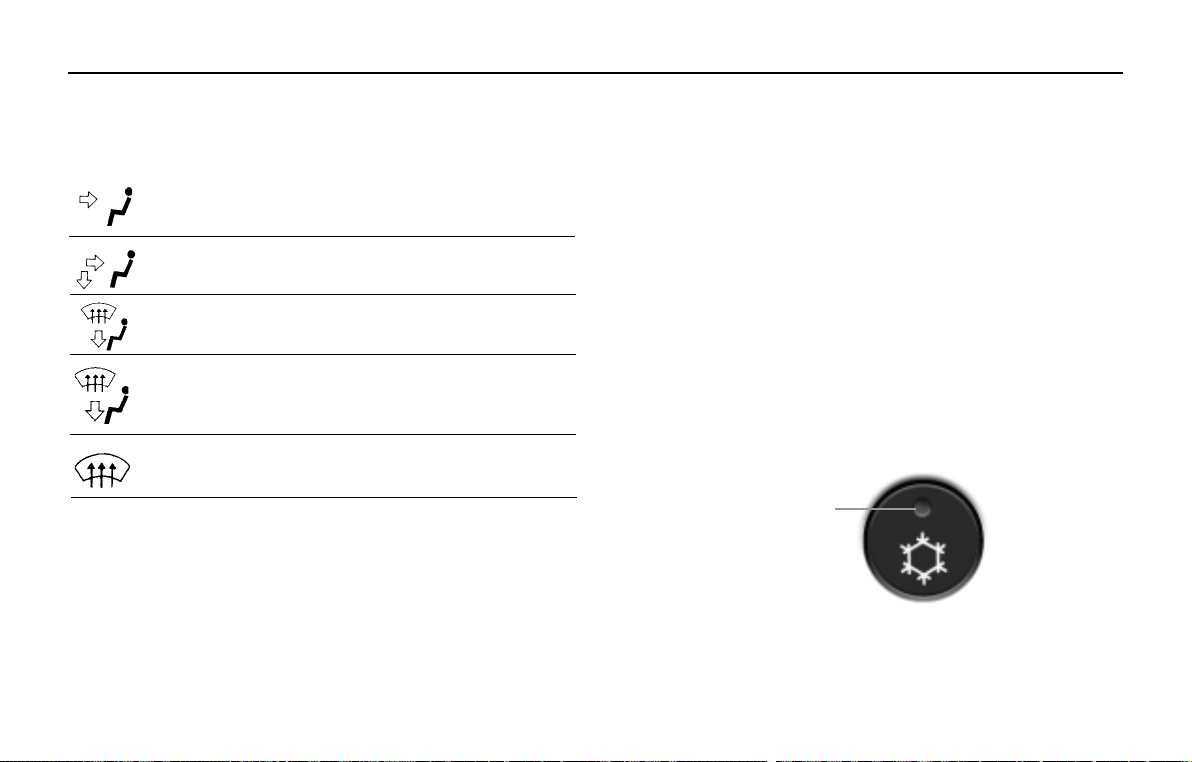

Control Knobs

•

BEFORE DRIVING

INTERIORS & ACCESSORIES

nn

n

nn

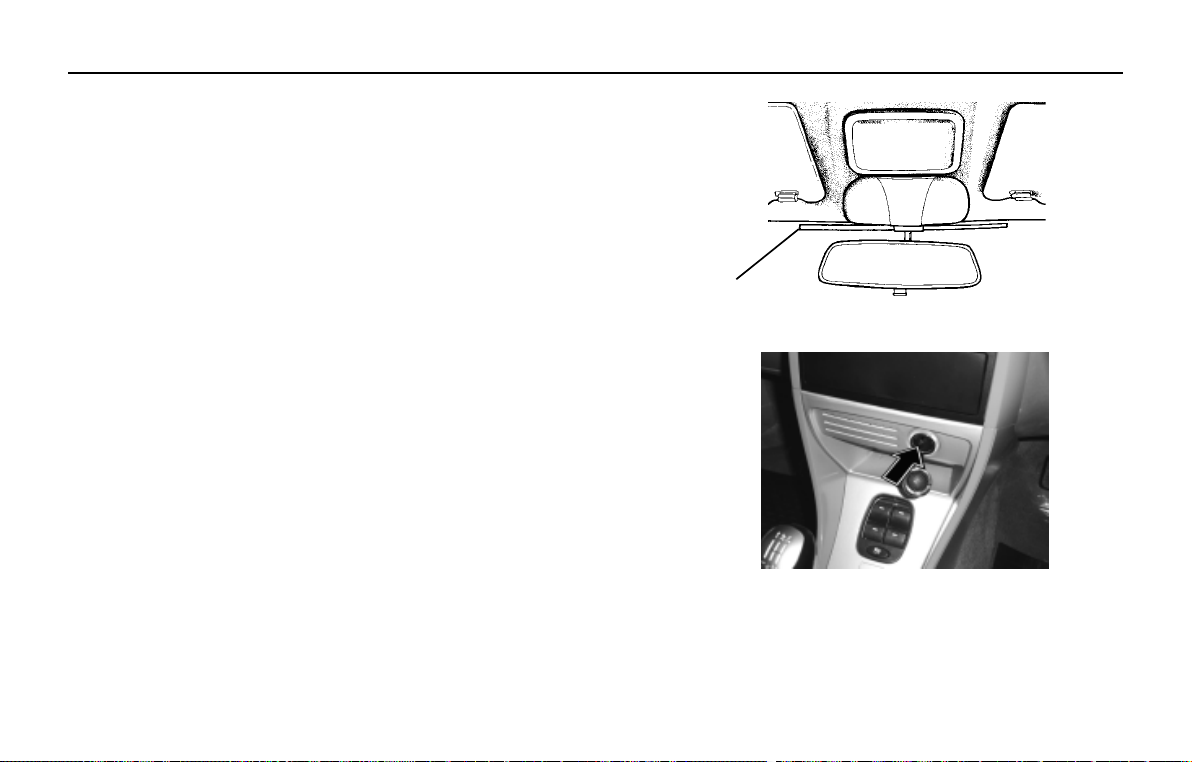

Rear View Mirrors

•

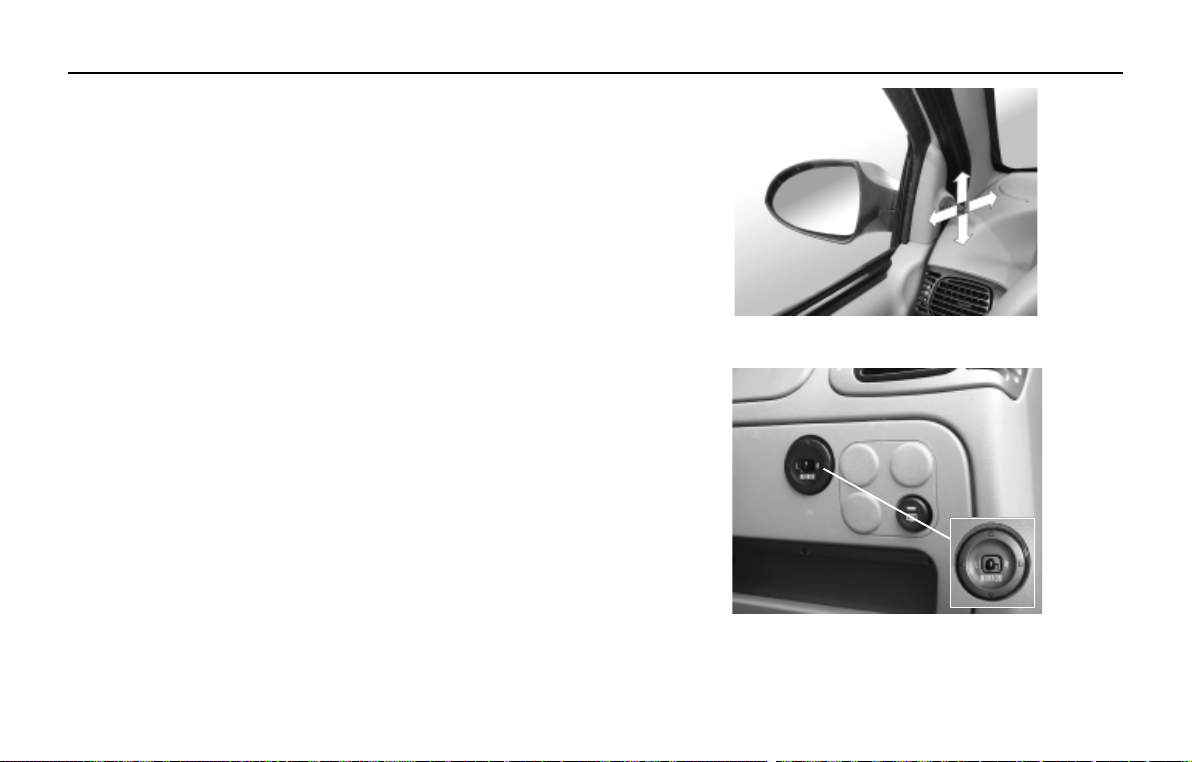

Motorised Rear View Mirror

•

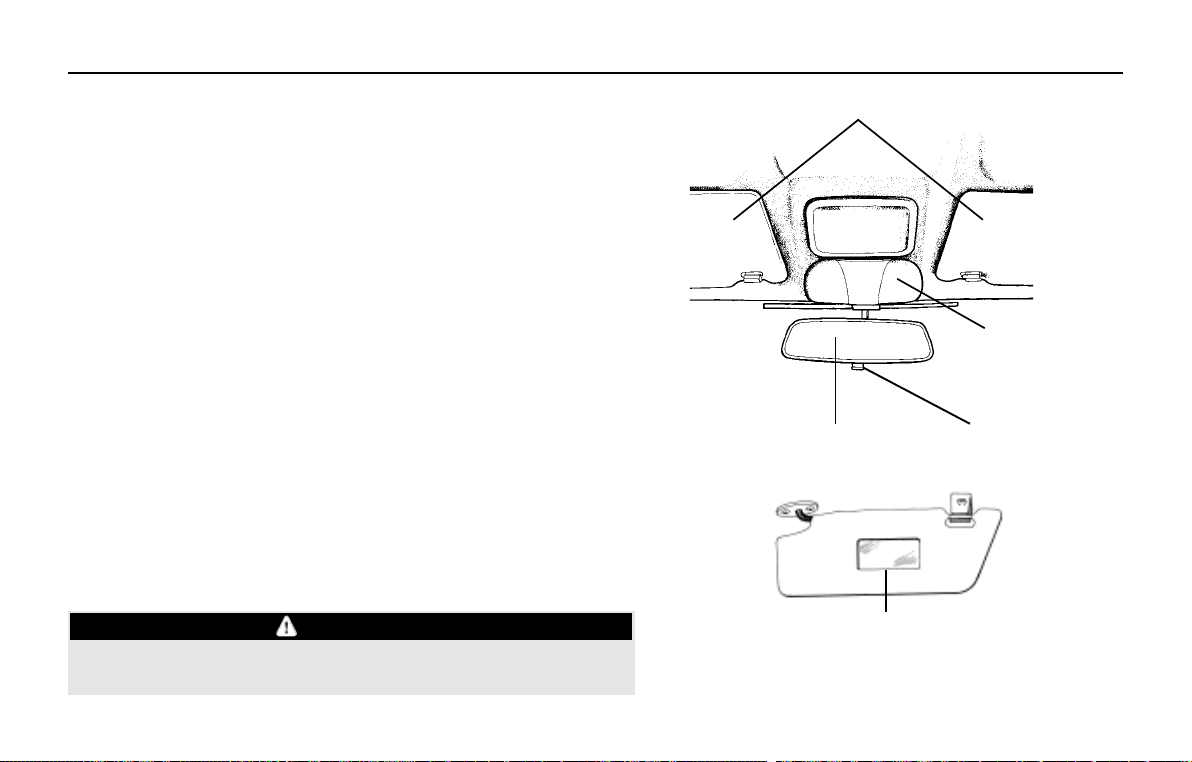

Inner Rear View Mirror

•
Goggle Case

•
Sunvisors

•

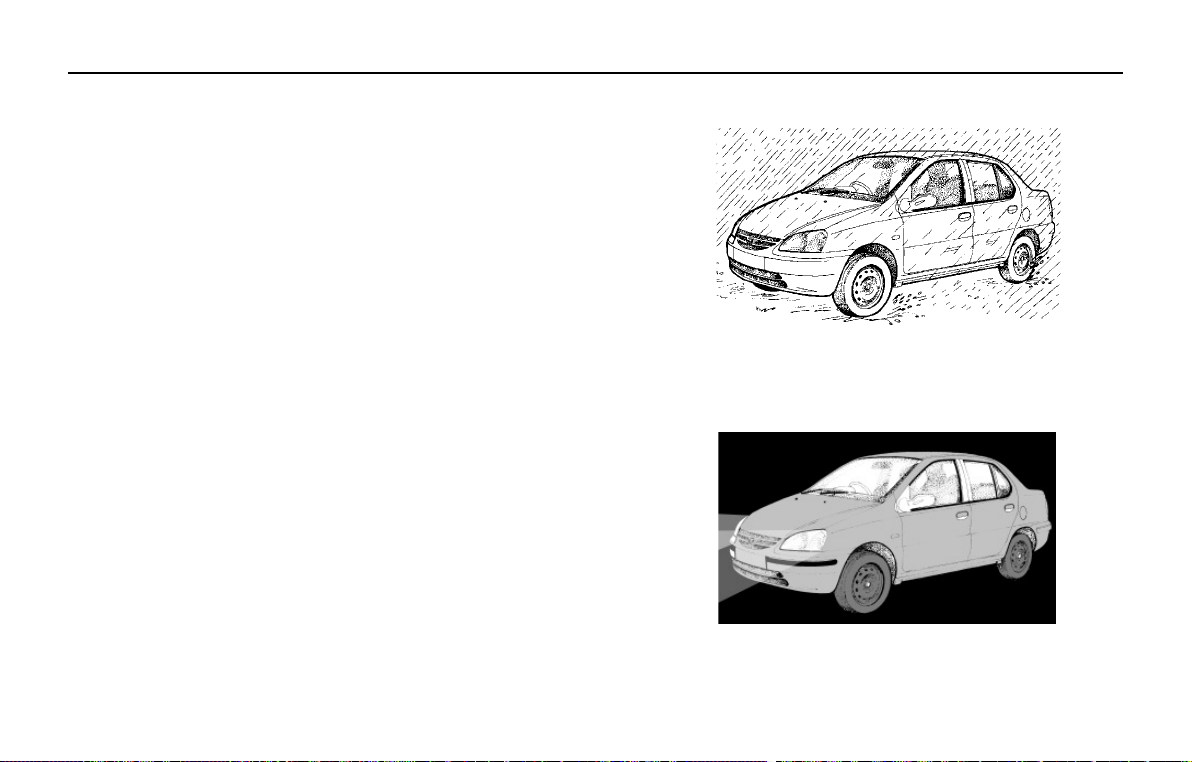

Reflex Reflectors

•

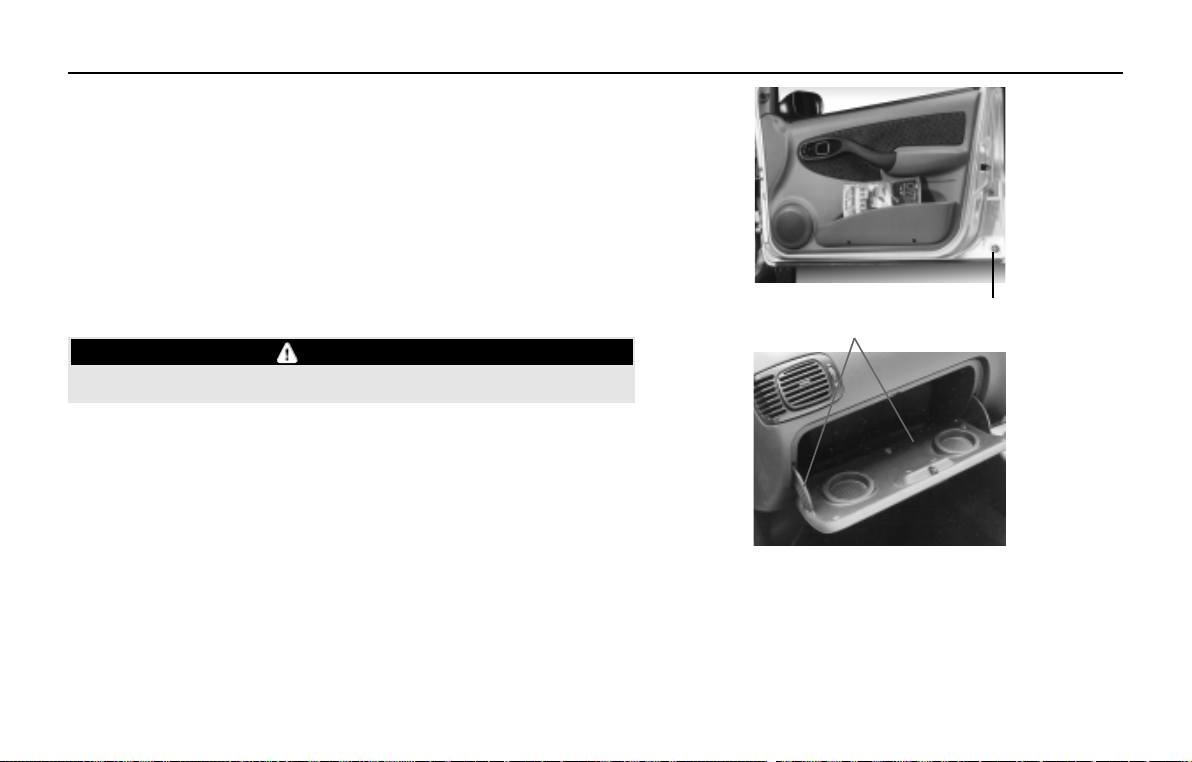

Glove Box

•

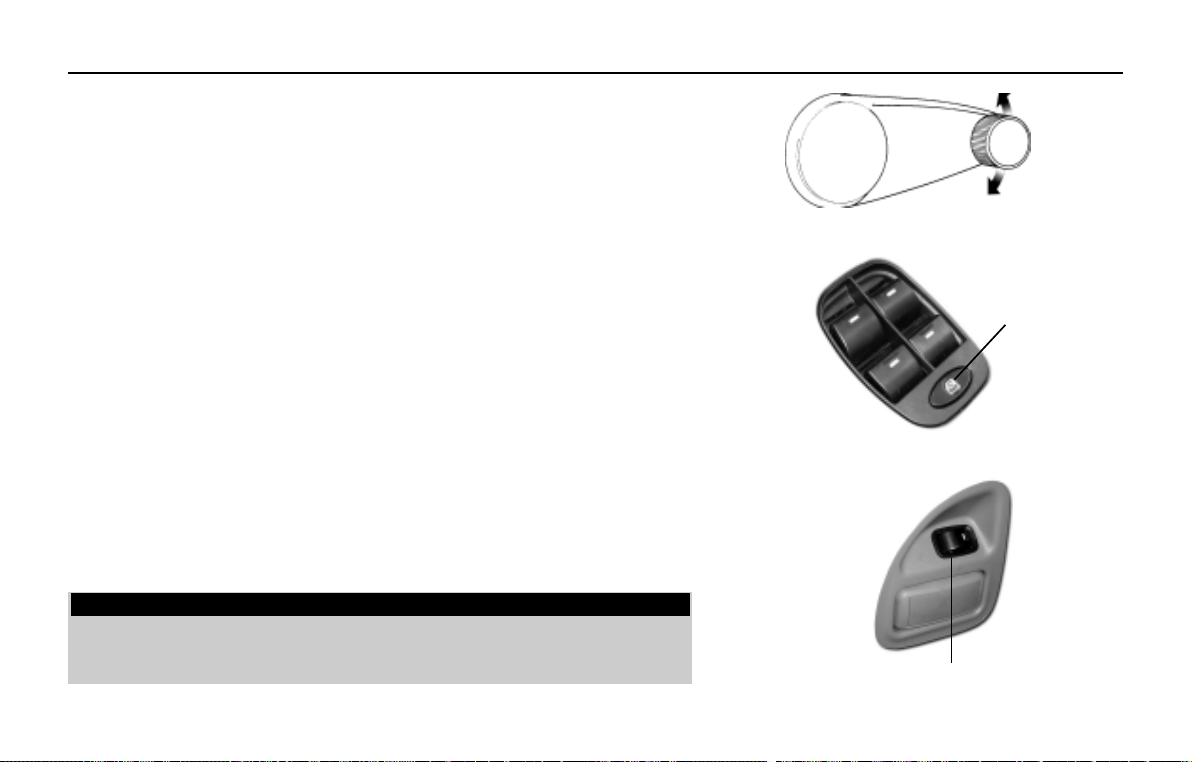

Window Winding

•
Power Windows

•
Ashtray

•

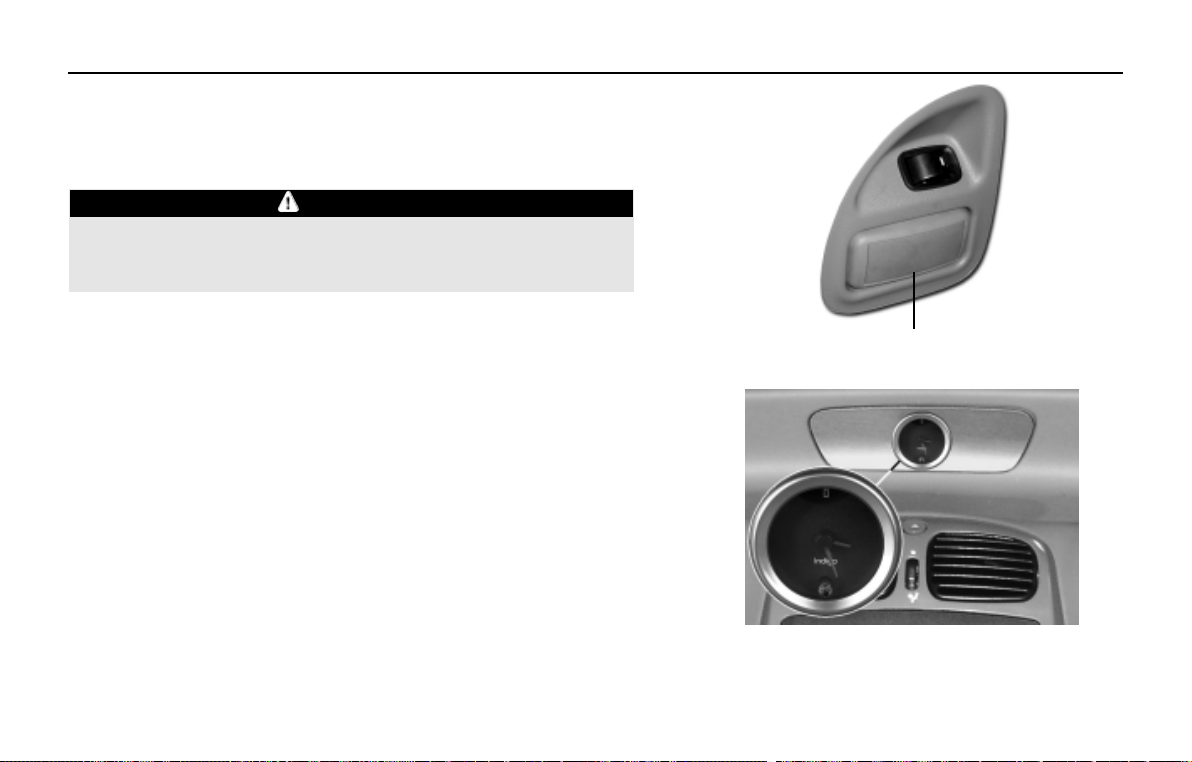

Analog Clock

•

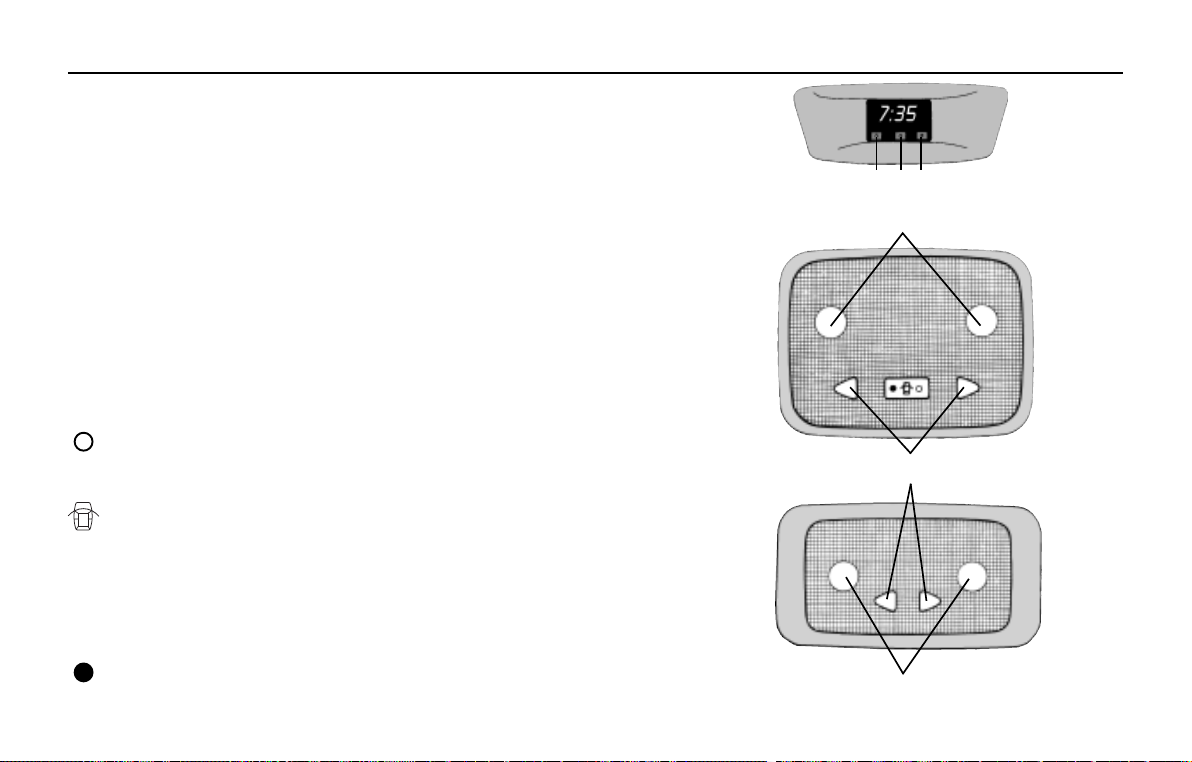

Digital Clock

•

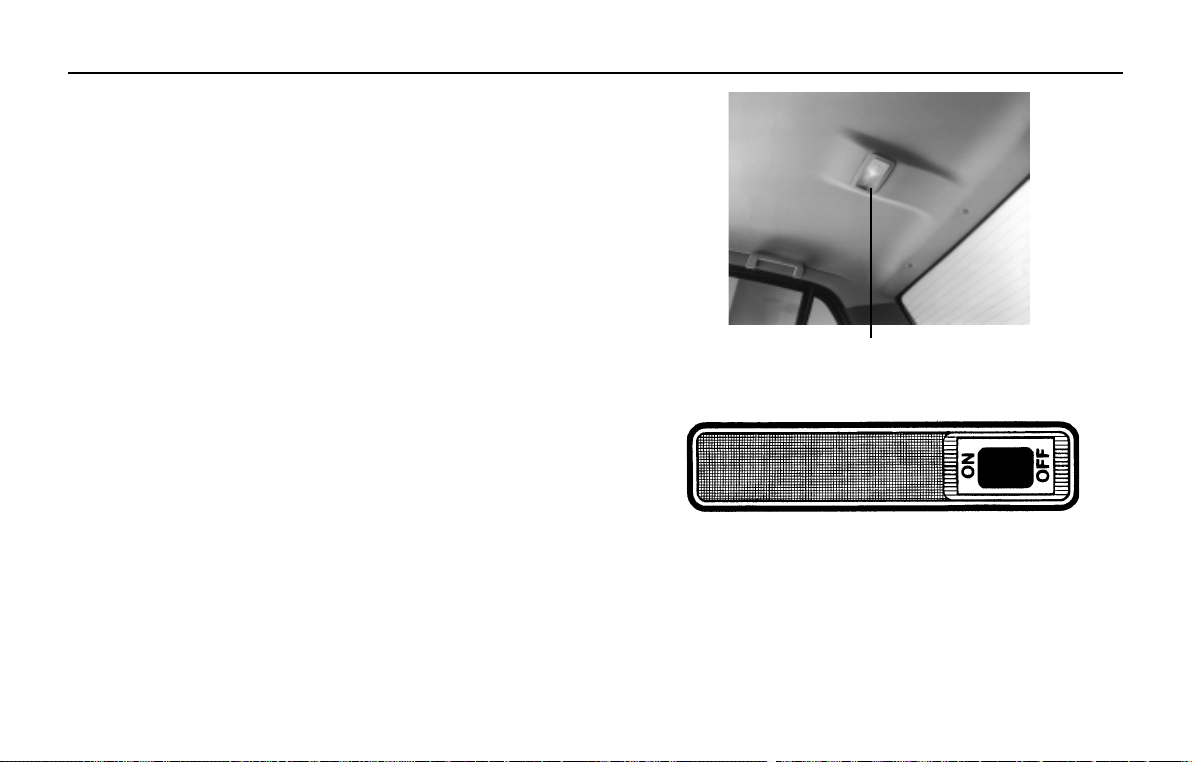

Roof Lamps

•
Luggage Compartment Lamp

•

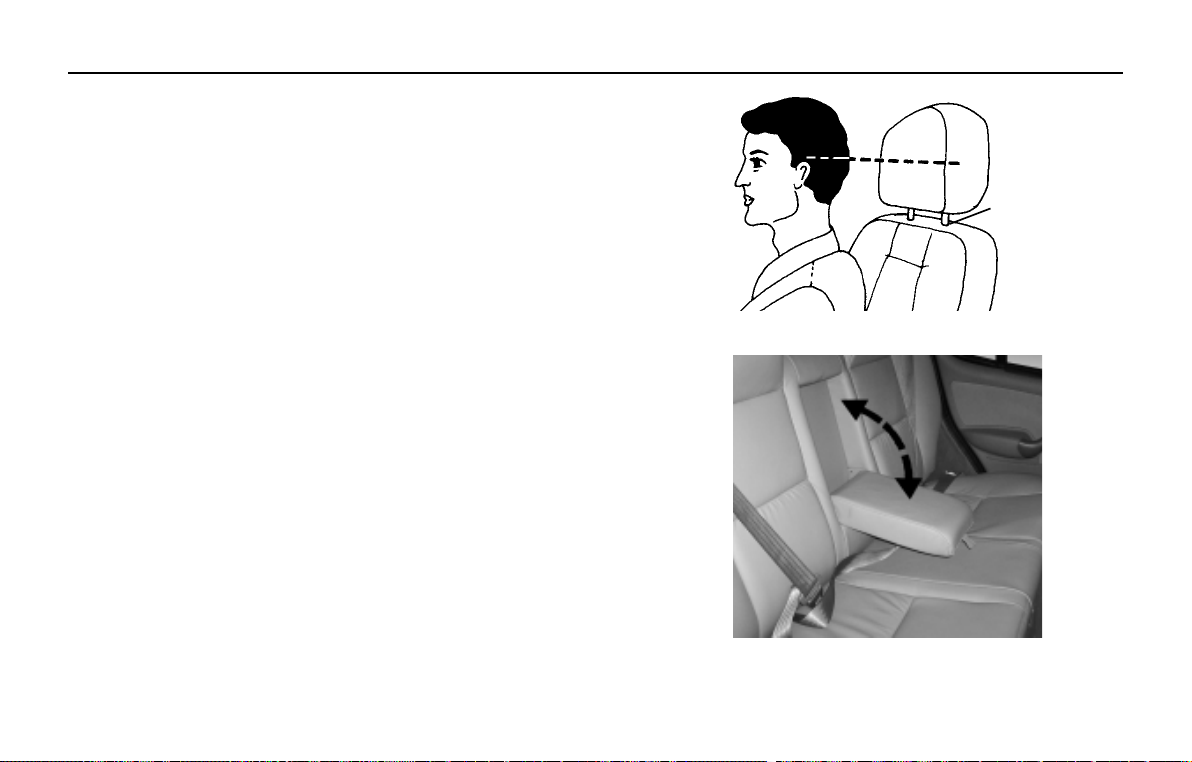

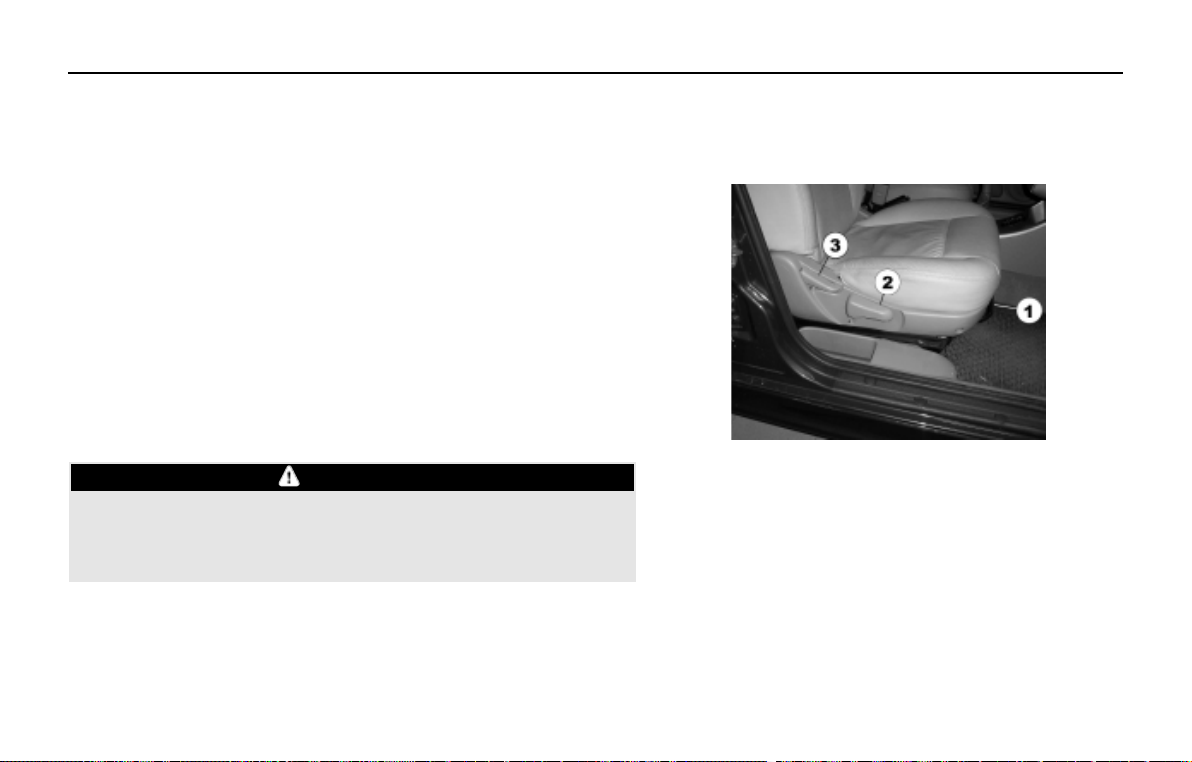

Front Seat & Seat Adjustment

•
Rear Seat & Rear Seat Folding

•

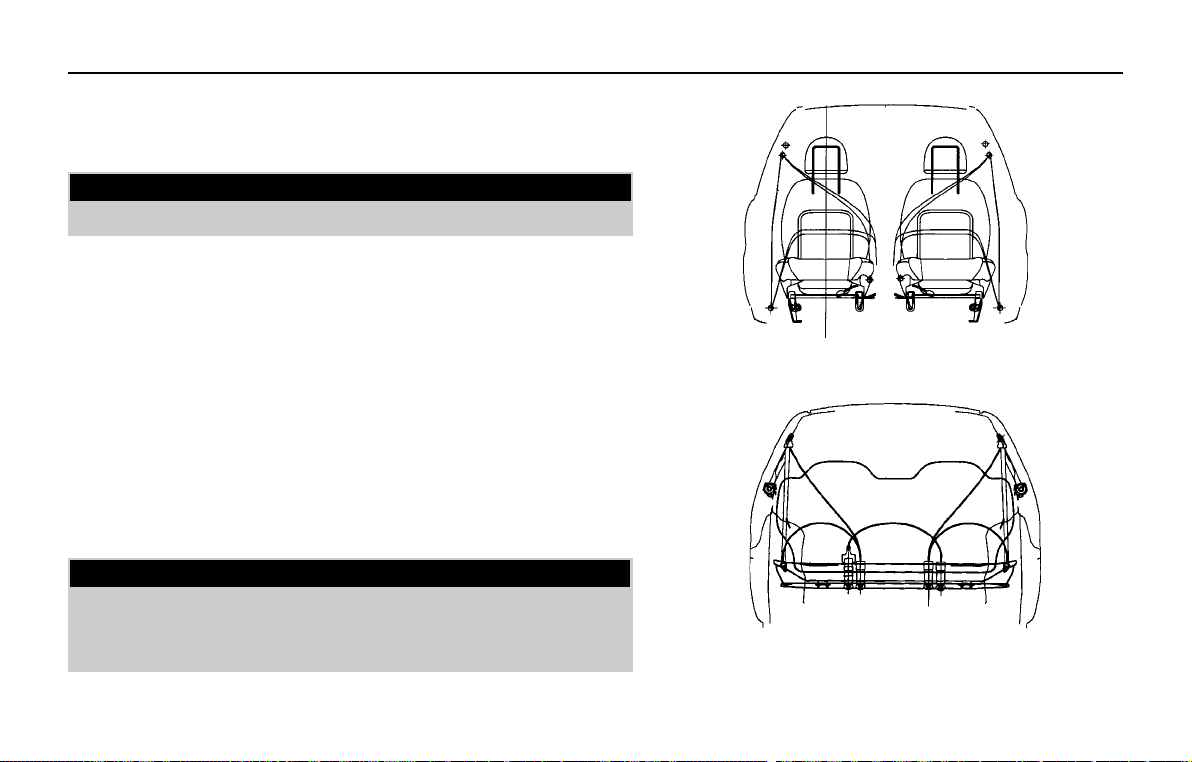

Seat-Belt and Seat-Belt Adjustment

•
Provision for music system

•
Plug Socket

•
Trunk lid Opening

•
Fuel Flap Opening

•

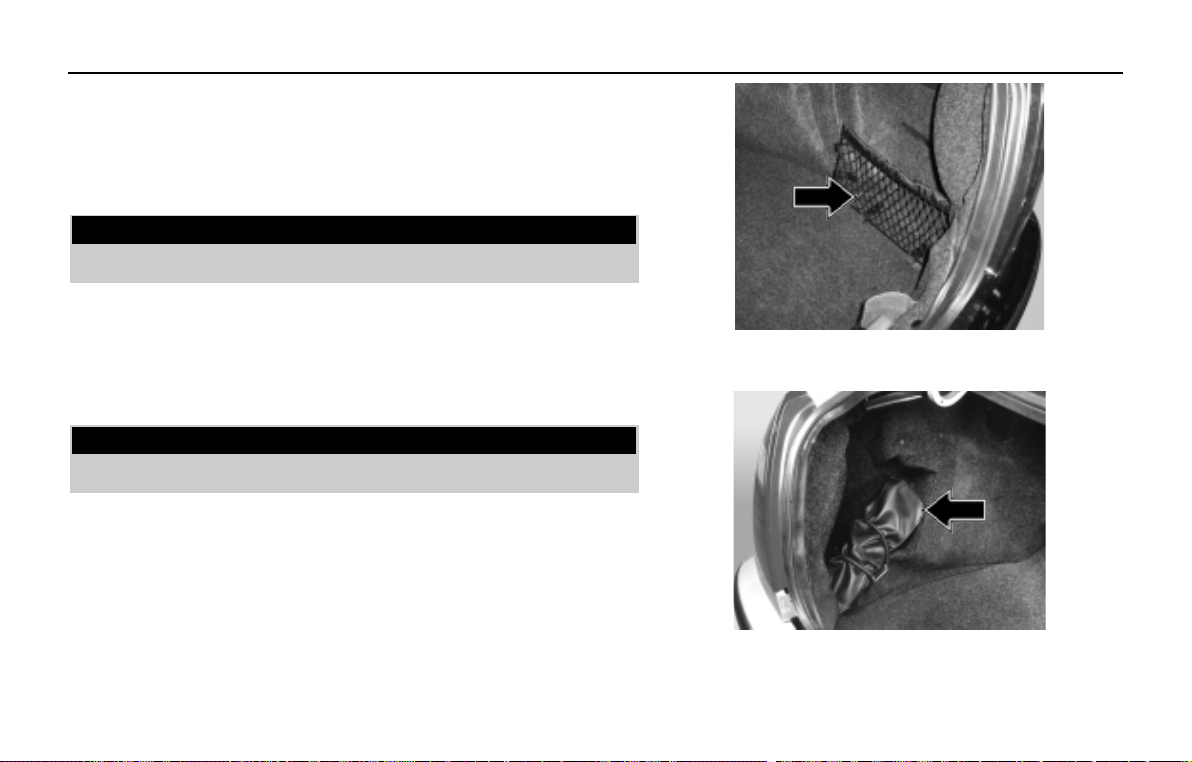

Side Utility Pocket

•
Toolkit

•
Jack

•

31

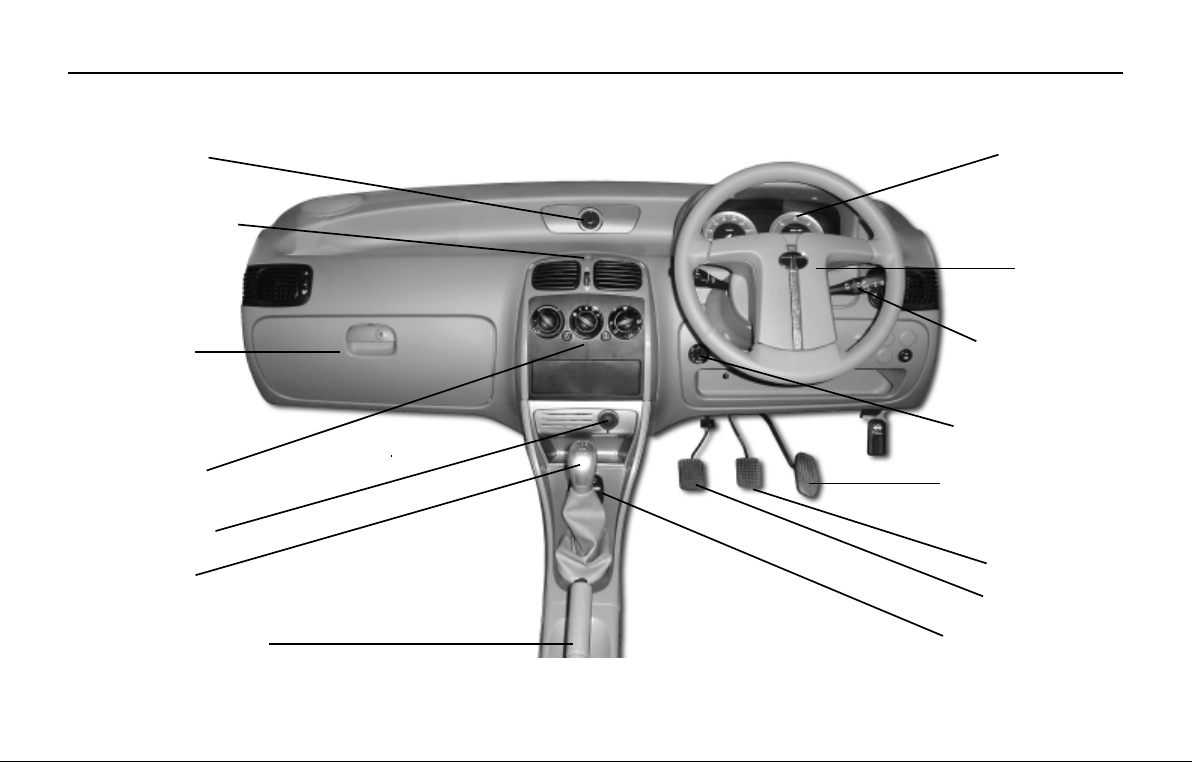

BEFORE DRIVING - Driving Controls

DRIVING CONTROLS

Analog Clock *

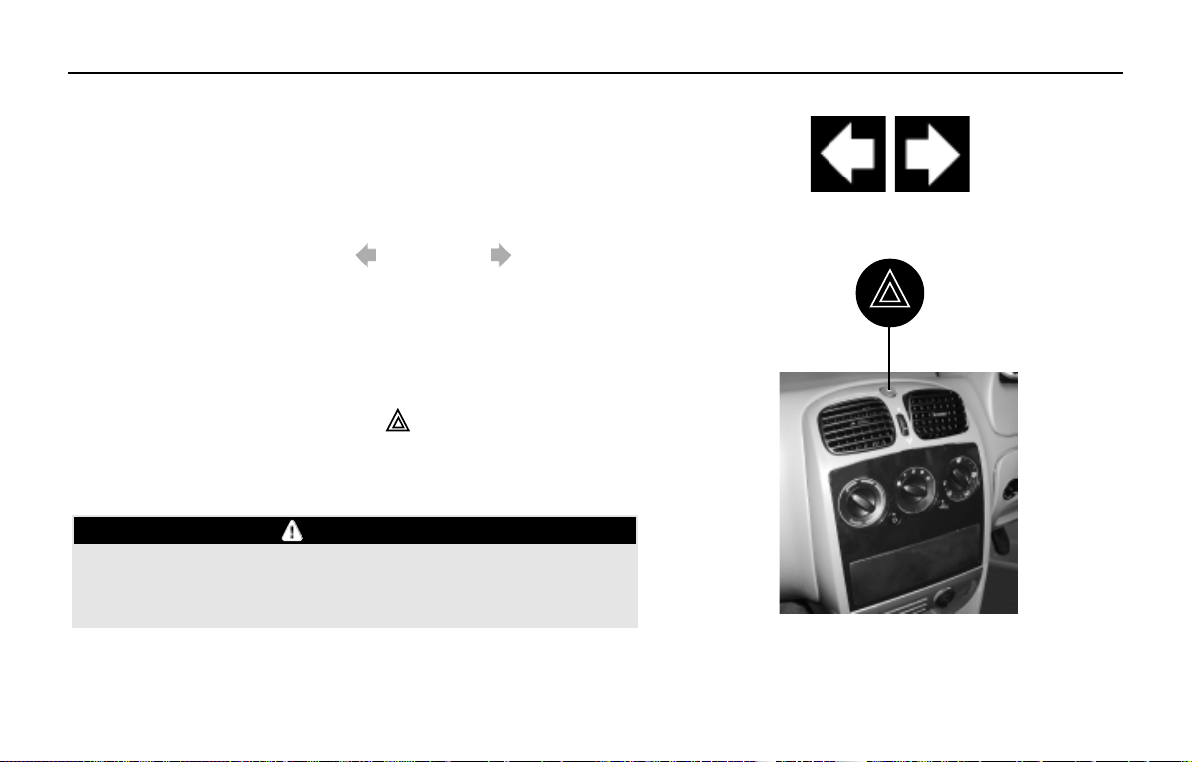

Hazard Warning
Switch

Glove Box

A.C.Controls

Power Socket

Gear Lever

Parking Brake Lever

32

Instrument

Panel

Horn pad

Combi-switch

Head lamp

Leveling Switch

Accelerator Pedal

Brake Pedal

Clutch Pedal

Window Winding

Switches

* In few versions digital clock is provided

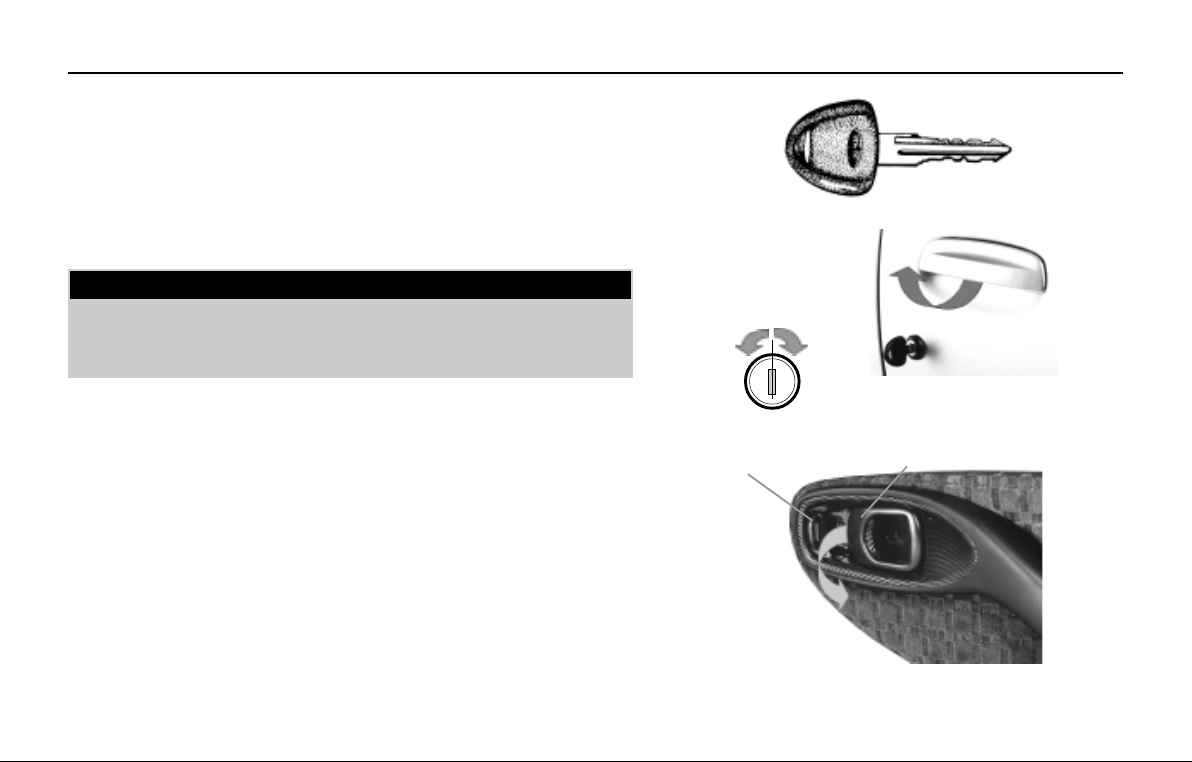

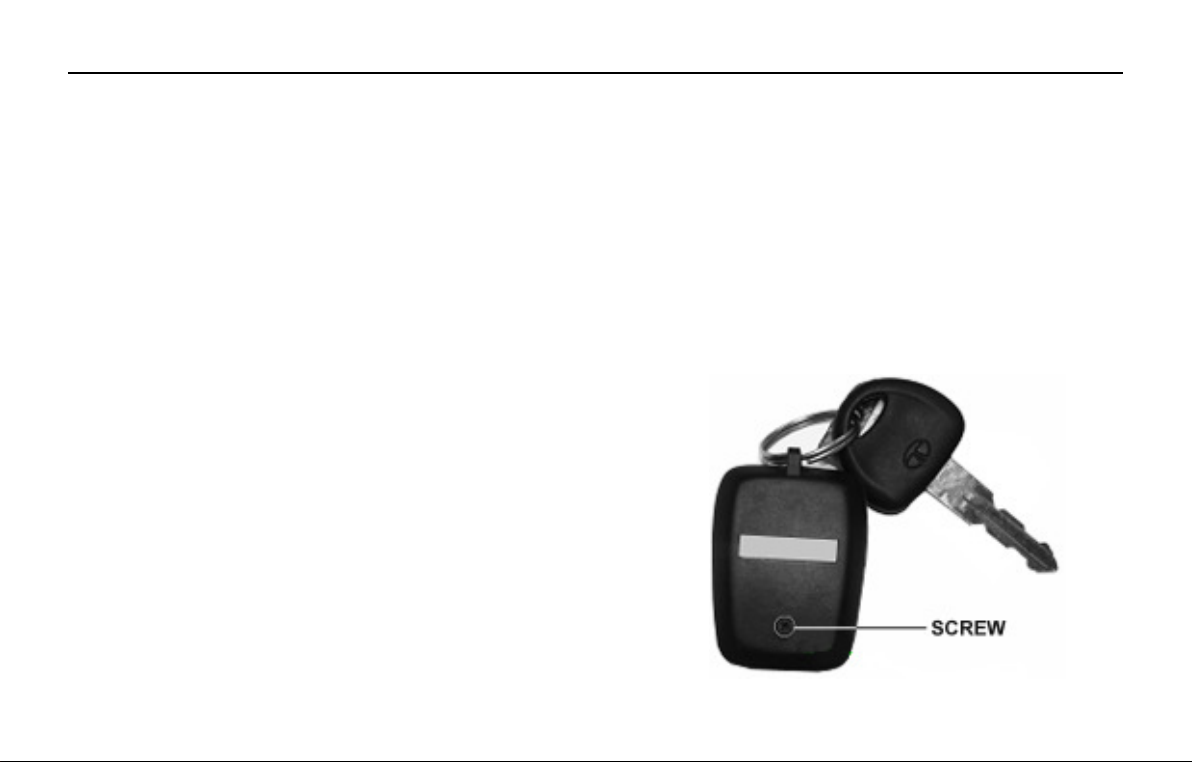

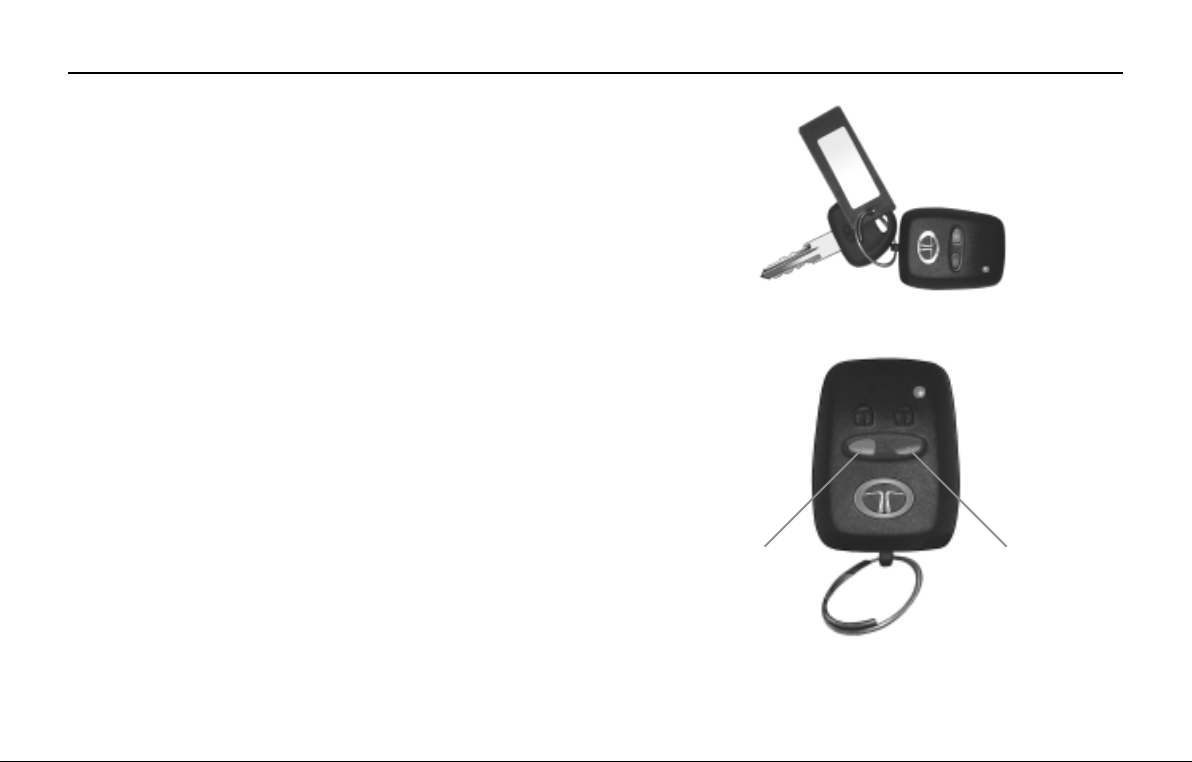

Keys :

Your car comes with three identical keys. With this key, you can
operate - 1. Door Locks

2. Steering Lock cum ignition switch

3. Trunk lid Lock 4. Glove box

It is advisable to keep one of the keys in a safe place for use in
case of an emergency.

NOTICE

Do not use a locally made key, but obtain a duplicate through

•

your Tata Motors dealer.
Do not leave the key inside the car.

•

Door Locks :

The front doors can be locked and unlocked from outside with the
key or from inside using the door lock lever. In your car, the driver's
door & co-driver's door have separate locking facilities. To lock
from inside turn the lever towards the inner hinged handle.

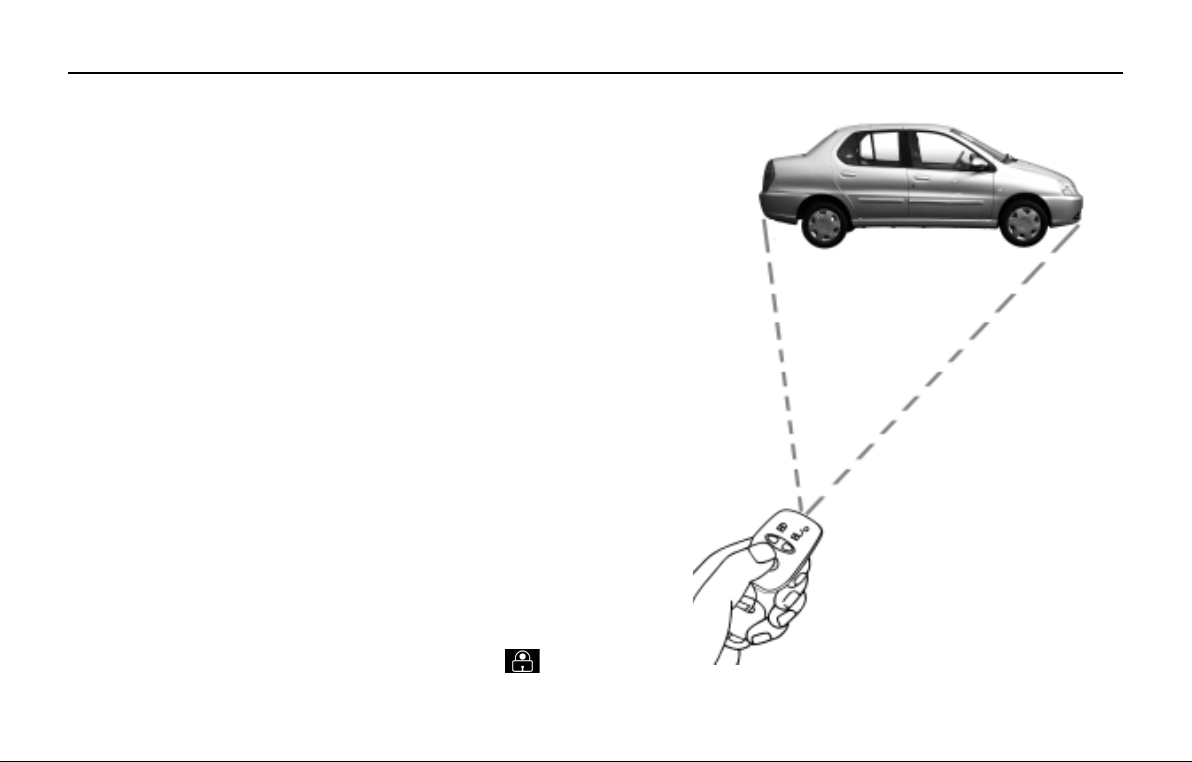

Where the central locking system is provided, if you lock/unlock
the driver door with the key, the remaining three doors get locked/
unlocked at the same time. The trunk lid is not a part of the central
locking provision.
To open the door from outside use the swing handle. After unlocking
the door with the key, pull the swing handle upward. The swing
handles are provided on each door.
To open the door from inside pull the hinged handle outward.

BEFORE DRIVING - Key & Door Locks

Lock Unlock

Locking /
Unlocking lever

Outside swing handle

Hinged handle

To Open

Inside door handle

33

BEFORE DRIVING - Key & Door Locks

IN CASE OF EMERGENCY

1) The electrically operated devices (like central locking, power
windows) may malfunction in the event of flood / fire, because
of temporary or permanent damage to the device. Exercise
appropriate precautions for safety of yourself and other
occupants.

2) If the central locking system malfunctions and is unable to
unlock doors electrically, the door can still be opened by
manually unlocking knob ‘1’ and opening the door using lever
‘2’. The mechanical system overrides the electrically operated
locking system.

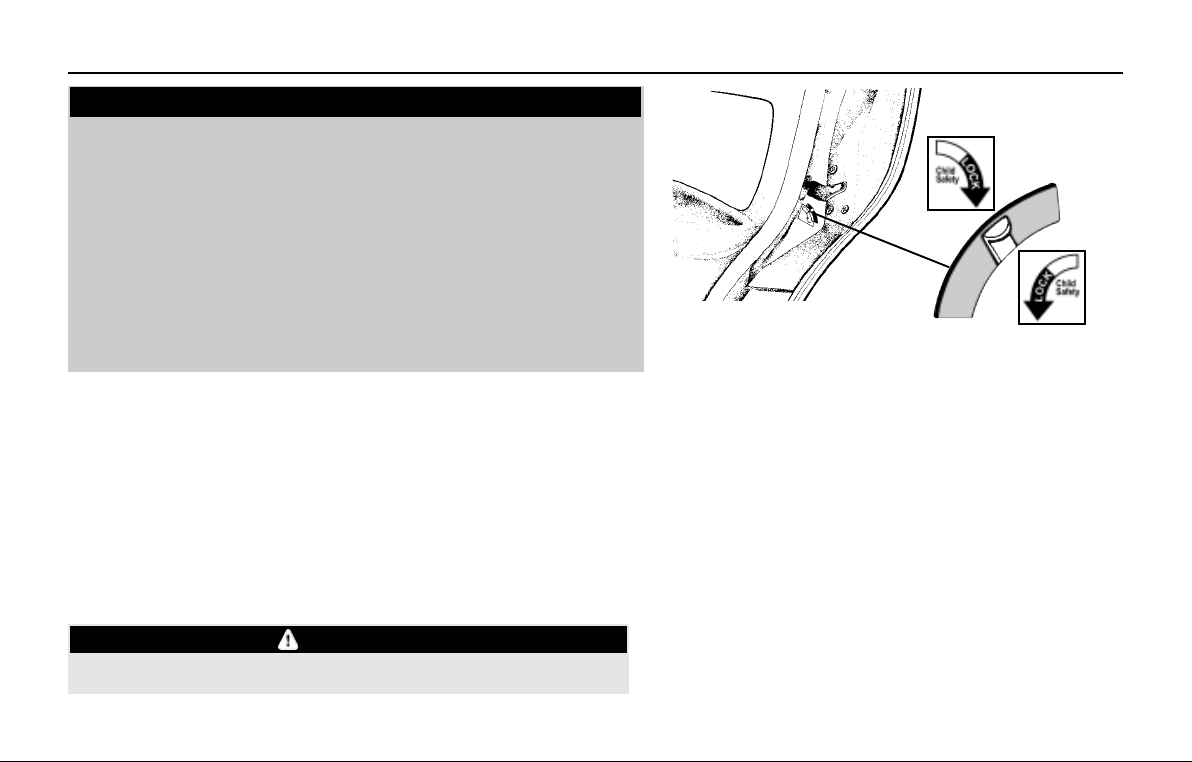

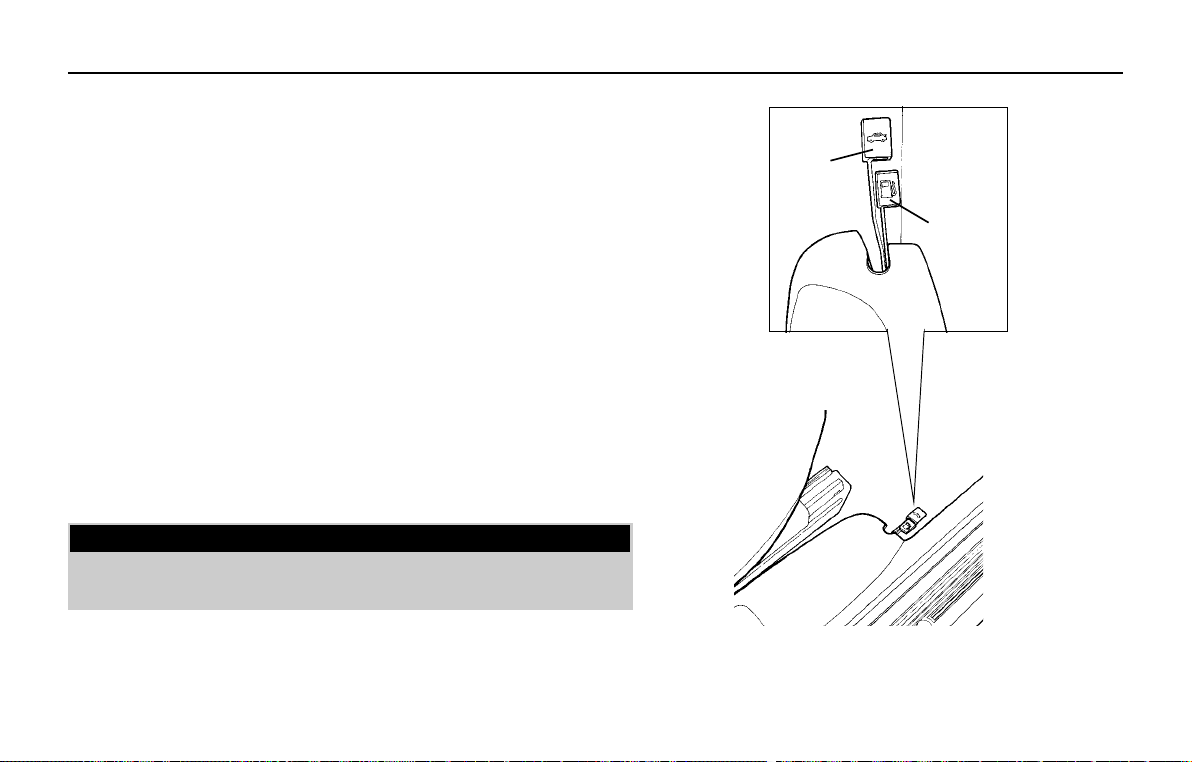

Child Lock :

Both the rear doors of the car are provided with child locks. Push
the lock lever located on the vertical face near the rear lock downward
before closing the door. The door which has been locked can no
longer be opened from inside.

It can be opened only from the outside.

When child lock on rear door is 'LOCKED' the door can only be
opened from outside. Use front doors to exit or take help of front
occupants.

On RHS Door

On LHS Door

CAUTION

Deactivate the childproof lock when not required.

34

BEFORE DRIVING - Remote Keyless Entry System

REMOTE KEYLESS ENTRY SYSTEM: (if fitted)

This Remote Keyless Entry System has a keyless operation to unlock/
lock the door.

1.1 THE SYSTEM CONSISTS OF FOLLOWING:

1. Remote to LOCK/UNLOCK the door from a distance.

2. Hopped Coded Plug with LEARN and UNLOCK button (for

Learning use).

3. Electronic Control Unit (ECU) fitted on the vehicle.

4. Code receiver antenna fitted for the system in the vehicle.

1.2 FEATURES:

• Locking/ unlocking the vehicle from distant place. (Remote
functioning range 7.5 meters max.)

• Finding the vehicle. (Refer car seek).

• Continuous flashing of turn indicators (refer Forced Panic Mode)

• Additional/ new remotes can be added. Lost/ Stolen remotes

can be disabled.

(Refer Learning Additional Remotes/ Unlearning Lost Remotes.)

LOCK

UNLOCK

35

BEFORE DRIVING - Remote Keyless Entry System

2.1. REMOTE KEYLESS ENTRY :

Your vehicle can be locked or unlocked using LOCK / UNLOCK
remote buttons.

UNLOCK:

Press UNLOCK button on remote to unlock the driver door.
Unlocking is indicated by one flash of turn indicator. Subsequent
press of Unlock button will unlock other doors.

LOCK:

Press LOCK button on remote to lock the door.

From the outside of the car, press Lock button on Remote, All doors
will be locked.

Successful locking will be indicated by two (2) flashes of Left and
Right turn Indicator.

If any door is open, flashes are given for approximately 60 seconds
indicating Door open, but lock the vehicle.

NOTE : Do not use remote to lock the doors from inside the vehicle.
Use the door lock knob located on driver’s door to lock the doors.

If the LOCK button of remote was pressed and the door is opened
by the mechanical key OR the key is inserted in the ignition lock
and turned to Ignition, then LH and RH turn indicators will start
flashing for approximately 30 seconds and Lock Symbol on
instrument cluster will start flashing. Press UNLOCK button from

36

BEFORE DRIVING - Remote Keyless Entry System

remote to stop flashing of turn indicators. Subsequent press of
unlock button will stop flashing of Lock Symbol and all doors
will unlock. Use the door lock knob located on driver’s door to lock
the doors.

LOCK button does not work with mechanical key in ignition. Only
UNLOCK button on the remote works with mechanical key in the

ignition switch.

2.2. CAR SEEK:

Car seek function is used to find the vehicle.
Press LOCK button on remote when vehicle is locked. Vehicle turn

indicators flashes thrice. Vehicle remains locked. (Remote functioning
range 7.5 meters max.)

NOTE : The remote range may be affected / reduced in the vicinity
of the Transmitting power stations. (e.g. TV Tower, etc.)

2.3. FORCED PANIC MODE :

When LOCK and UNLOCK buttons of remote are pressed
simultaneously, turn indicators will start flashing continuously. To
stop flashing press any LOCK/UNLOCK button.

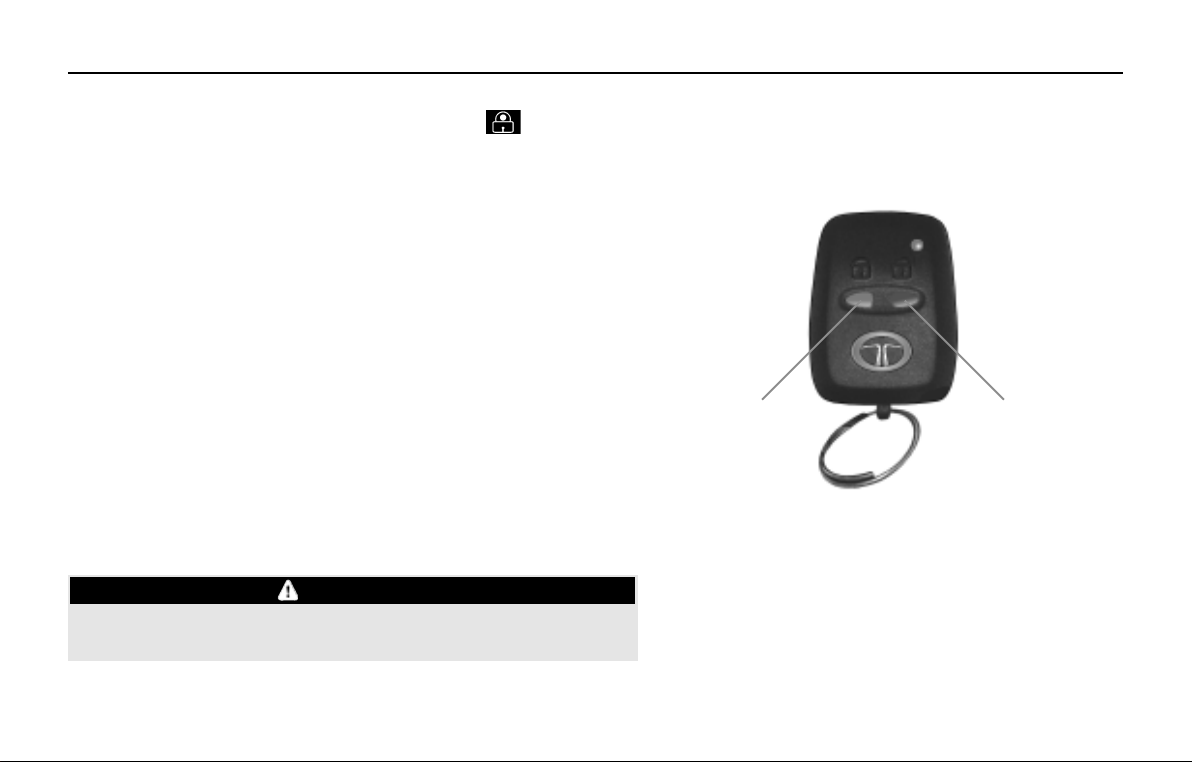

CAUTION

This feature should be used in case of emergency as a hazard
sign.

LOCK

UNLOCK

37

BEFORE DRIVING - Remote Keyless Entry System

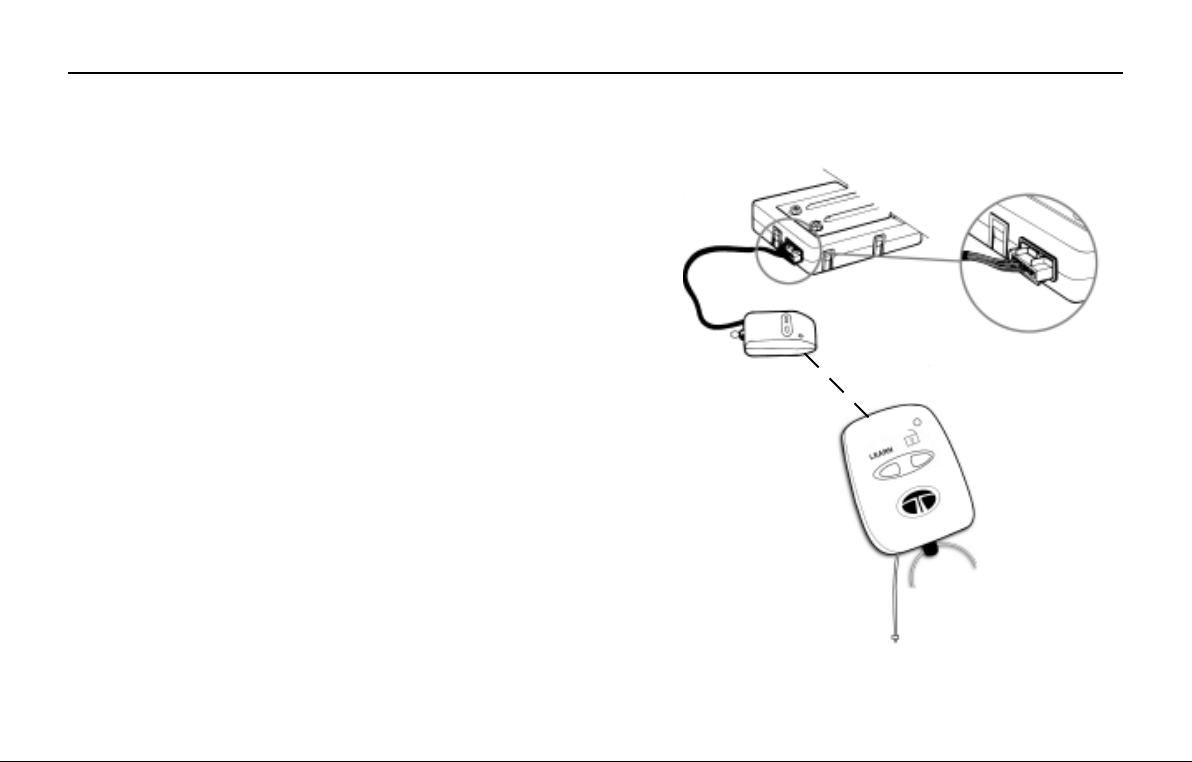

3.1. LEARNING ADDITIONAL REMOTES / UNLEARNING LOST

REMOTES :

Every remote can be learnt or unlearnt using the Hopped Coded
Plug.

Before use, every remote must be learnt.

1. Open the door with mechanical key; plug the Hopped Code

Plug into the 6 pole connecter on the Control Unit, located below
the driver seat.

2. Press UNLOCK button on the Hopped Code Plug to unlock the

vehicle.

3. Press LEARN button on the Hopped Code Plug. The system will

erase all the pre-learnt remotes. The Lock Symbol on the
dashboard starts blinking once per second (if no remotes are
available for learning, press UNLOCK button on the Hopped
Code Plug to terminate this session and whenever remotes are
available start from step 1.

4. Press the LEARN button on the Hopped Code Plug again. The

Lock Symbol on dashboard remains “ON” for Four seconds
and starts blinking at a faster rate. Ensure to perform step 5
within 25 seconds.

5. Press any button thrice on the remote that has to be learnt.

38

BEFORE DRIVING - Remote Keyless Entry System

6. In response, Lock Symbol on the dashboard turns “ON” for

Four seconds and starts blinking at slower rate (Once per
second ) to indicate that the remote has been learnt
successfully.

7. Repeat steps 4, 5, and 6 for learning additional new remote

(Max 5 Numbers) or press UNLOCK button on the Hopped
Code Plug to terminate the Learn session after step 6.

8. If step 5 is not performed within 25 seconds the vehicle will

unlock all the doors and Learn procedure has to be started
from step 2.

Ensure lost remotes are unlearnt immediately.

Ensure all remotes to be used are relearn again if step 3 is
performed even once.

4.1. REPLACEMENT OF REMOTE BATTERY

(Replace the battery every year for normal use)

1. Place the remote button-side facing down and remove the

screw.

2. Remove bottom cover and change the battery with GOLDEN

POWER battery GP 23A or equivalent (e.g.-Duracell MS21 /
MN21)

3. Put back bottom cover and the screw.

:

39

BEFORE DRIVING - Remote Keyless Entry System

4. Press any button and check that the LED on the remote glows,

this ensures changed battery works successfully.

• Battery Low Indication :

Remote functioning range reduced. Replace the battery to get
the correct range.

• Press any of the keys on remote, if LED of the remote is

continuously ‘ON’, means battery is OK. If it is blinking, then
remote battery is to be replaced.

40

BEFORE DRIVING - Steering Lock cum Ignition Switch

Steering lock cum ignition switch :

The steering column lock cum ignition switch has the
following four positions and is operated with the key.

1. LOCK POSITION - The key can be inserted or taken

out only in this position. When the key is removed from
the switch, the steering is locked. To unlock the steering,
insert the key and turn it to the 'OFF' (Steering unlock)
position.

2. 'OFF' POSITION - In this position, the steering lock opens

and the music system is powered.

3. 'IGN' POSITION - This is for switching on the power

supply to the following items :

• Blower & A/C

• Engine cooling fan

• Horn

• Power Socket

• Power window

• Head lamp leveling switch

• Head lamps

• Music system (if fitted)

• Digital clock / Analog clock

• Engine ignition, fuel supply and glow plug.

• Turn signal lamps

• Wash and wiper system

• Reverse light

• Instruments and gauges and tell tale warning lamps

• Audio warning unit

• Fog Lamps

4. 'START' POSITION (Spring return to “IGN”) - In this

position, which is momentary, the switch cranks the
engine. When the switch is in this position the devices
listed under "Accessories supply" above, are switched
'OFF'.

Accessories supply

41

BEFORE DRIVING - Steering Lock cum Ignition Switch

The following items are operated/powered without the
key in the ignition switch :

Hazard warning system, Stop lamps, Position lamps,
Registration lamps, Illumination of A.C. control panel and
Instrument cluster, Switch symbol lamps, Roof lamp,
Reading lamps, Engine lamp, Central door locking, Audio
warning unit, Memory of digital clock and Music system.

NOTICE

When the key is returned from 'OFF' position to LOCK
position, the music system and the digital clock display
continue to be powered until the key is removed from
the switch. This also helps to remind the driver if the
key is inadvertently left in the vehicle when alighting
from the vehicle, where this is provided.

Instrument Panel Light Brightness Control (if installed)

The brightness of instrument panel lights/A.C. Control
panel back lights can be controlled by the thumb operated
rotary knob which is located on the dashboard near the
accessory switches.

CAUTION

I) Do not remove the key, while the car is in motion, as the

steering will get locked and the car cannot be steered.

II) While turning the key from 'LOCK' position to 'OFF'

position slightly rotate steering wheel to relieve pressure
on steering spindle for easy operation of the key. Also
ensure the key is inserted fully before turning the key.

42

FLICK WIPE
SPRING RETURN

OFF

FAST WIPE

SLOW WIPE

PUSH SWITCH
FOR WASH & WIPE
OFF

INT. WIPE

DELAY TIMING FOR
INTERMITTENT WIPE

WIPER STALK

OFF

MAX.

MIN.

BEFORE DRIVING - Combination Switch

Combi-switch

LIGHT STALK

(SIGNAL SELF CANCELLING)

OFF

(SIGNAL SELF CANCELLING)

LIGHTS CONTROL SWITCH

FLASH HIGH BEAM

SPRING RETURN

(NORMAL POSITION)

DIP BEAM

HIGH BEAM

LEFT TURN

LANE CHANGE LEFT

(SPRING RETURN)

LANE CHANGE RIGHT

(SPRING RETURN)

RIGHT TURN

OFF

In some version, light stalk is different than that shown in above sketch

43

BEFORE DRIVING - Combination Switch

WIPER CONTROL SWITCH LEVER - LEFT

C

B

E

A

F

D

Wiper Control Switch Lever - Left

A. Wiper 'OFF' position
B. Slow Wipe
C. Fast Wipe
D. Intermittent wipe *
E. Pull up for windshield wipe

(Flick Wipe Spring Return)

F. Press side knob for wash and wipe

* Rotate selector to set delay timing for intermittent wipe

Selector

LIGHTS CONTROL SWITCH LEVER - RIGHT

G

F

C

B

D

E

A

H

I

Lights Control Switch Lever - Right

A. Head lamp 'OFF' position
B. Position lamp 'ON'
C. Position lamp & head lamp 'ON'
D. Push down the lever for high beam
E. Pull up the lever (spring return) for high beam flash
F. Lane change left (spring return)
G. Side Indicator - LH (self cancelling)
H. Lane change right (spring return)
I. Side Indicator - RH (self cancelling)

44

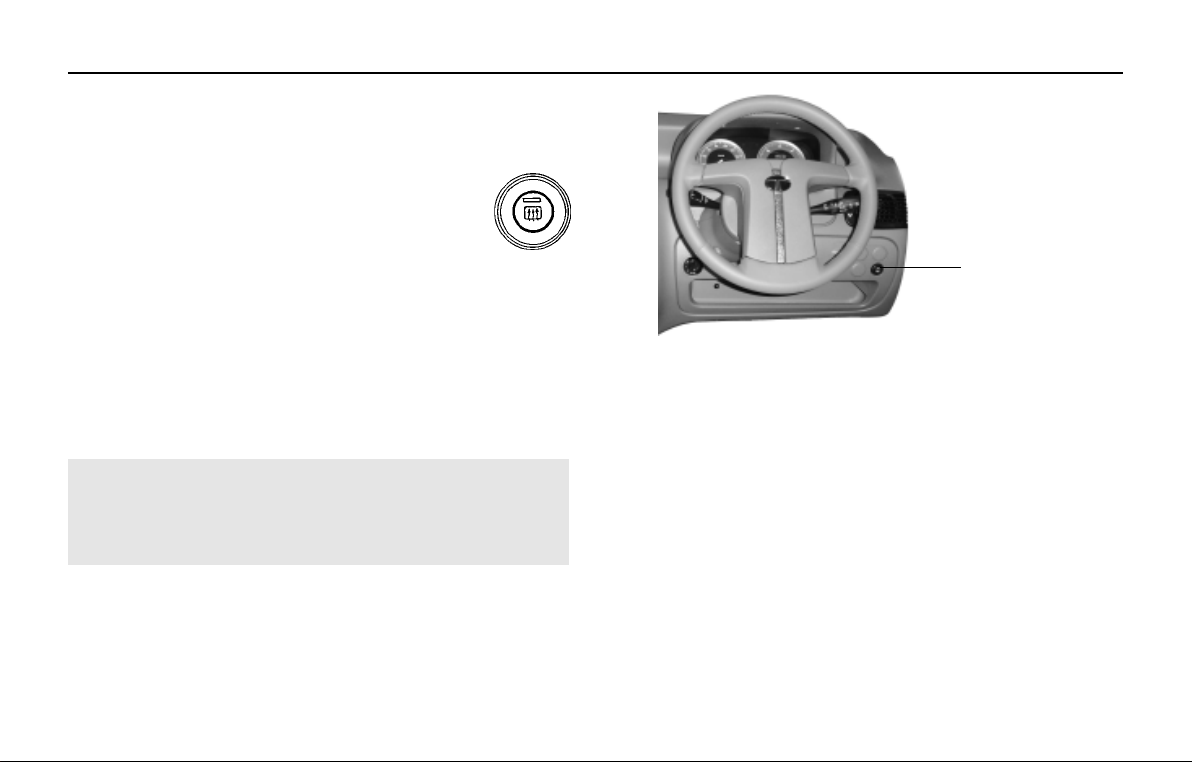

Accessory Switches : (if installed)

Accessory switches have been provided on the dash board
near the steering column on the right hand side.

1. Rear windshield demister (unlatched

switch)

The switch is pushed and released to switch
'ON' and the knob returns to the normal position.The
function indicator lights up in amber indicating that the
demister heater is 'ON'. The function is controlled
through a timer and operates for 15 minutes
(approximately) and goes 'OFF' automatically at the end
of the duration. The heater can be switched 'OFF'
anytime by once again pushing and releasing the switch
knob.

Note : Switching 'ON' and 'OFF' can be done only with
key in 'IGN' position. The demister heater remains 'ON'
even after removal of ignition switch key and goes 'OFF'
at the end of 15 minutes period.

BEFORE DRIVING - Accessory Switches

Accessory

Switches

45

BEFORE DRIVING - Fog Lamps

Fog lamps : (If fitted)

Front and Rear fog lamps can be switched ON/OFF by rotating the
switch on Combi-Switch.

For front fog lamp: Rotate the switch clockwise to switch ‘ON’ the
front fog lamp. Front fog lamps are operative only when the position
lamps are switched ‘ON’. Rotate the switch to same direction to switch
‘OFF’ the front fog lamp.

For rear fog lamp: Rotate the switch anticlockwise to switch ‘ON’
rear fog lamp. Rear fog lamps are operative only when the head
lights are switched ‘ON’ or front fog lamps are switched ‘ON’. Rotate
the switch to same direction to switch ‘OFF’ the rear fog lamp.

Selector

Selector

46

BEFORE DRIVING - Accessory Switches

Gearshift lever & Shifting pattern :

The gearshift lever is mounted on the central console between the
two front seats. The gearshift pattern is shown on the gear lever
knob.

NOTICE

The reverse gear should be engaged only when the car is
stationary. Wait for 5 seconds after declutching to ensure smooth
engagement of the reverse gear.

Parking brake :

A mechanical parking brake acting only on the rear wheels is
provided on your car. The parking brake lever is located behind the
gearshift lever. To apply the parking brake, pull the lever up fully .
The indicator light on the instrument panel will become 'ON'.
To release it, pull the lever up slightly, press the release button
and push the lever down. The parking brake indicator on the
instrument panel will go 'OFF' when the parking brake lever is fully
released.

NOTICE

Apply the parking brake properly before leaving the car & release
it before moving. Use the parking brake for holding the car on a
gradient.

1 3 5

2 4 R

Gear

Shifting

Lever

Release

Button

Parking Brake

Lever

47

BEFORE DRIVING - Instrument Panel

INSTRUMENT PANEL (DIESEL)

48

Speedometer Engine RPM Meter

Set KnobTemprature Gauge

*All indicators and Chrome ring may not be provided on some clusters.

Indicators*

LCD

Mode Selector Knob

Fuel Gauge

BEFORE DRIVING - Instrument Panel

INSTRUMENT PANEL (PETROL)

Speedometer Engine RPM Meter

Set KnobTemprature Gauge

*All indicators and Chrome ring may not be provided on some clusters.

Indicators*

LCD

Mode Selector Knob

Fuel Gauge

49

BEFORE DRIVING - Turn Signal & Hazard Warning

Turn Signal and Hazard Warning :

I) Turn Signal :

Turn signal lamps can be operated only when the ignition supply
is 'ON' and by using the turn indicator switch on the
combiswitch.

The direction indicator arrow (LHS) and (RHS) on the
instrument cluster flashes alongwith external indicator lights
as selected.

II) Hazard Warning :

This can be operated without ignition 'ON'. Press the hazard
warning switch (red knob) on the centre of the dash board, all
side indicator lights and indicator if provided on cluster will
flash simultaneously to warn the other road users about any
hazardous condition of the car. Depress the knob again to
switch 'OFF' the hazard function.

CAUTION

If lights do not blink or blink rapidly, it is an indication of problem
in the blinker electrical system or the indicator bulb at front or
rear has fused. Get it rectified immediately.

Hazard Warning Switch

50

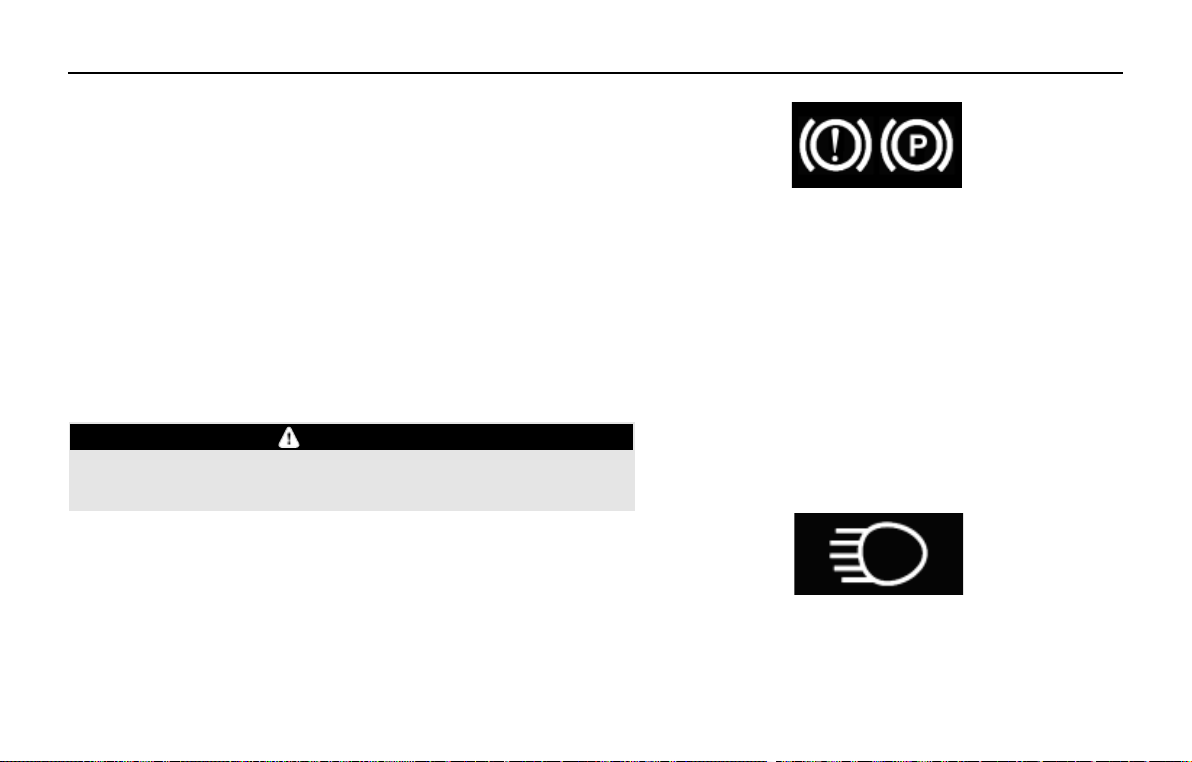

Parking Brake Indicator cum Low Brake Fluid Warning Light

When the ignition key is turned to the 'IGN' position, It comes 'ON'
for 3 seconds and goes 'OFF' ( self check). The symbols light up
bright contineously for the following conditions :

i) when the parking brake is applied, and/or
ii) when the brake fluid level in the container is low with parking

brake released and with brake fluid level in the container is
normal, the symbol lights up with low intensity to indicate the
warning to check for the lamp bulb. The lamp in this condition
goes off automatically along with battery charge indicator when
the engine is started. If the lamp glows bright while engine is
running, then check the parking brake or brake fluid oil level.

CAUTION

Do not drive the car if this indicator remains 'ON'. Get the problem
attended to immediately at an Authorised Service outlet.

High Beam Indicator :

Symbol lights up when the headlamp high beam is 'ON'.

BEFORE DRIVING - Indicators

51

BEFORE DRIVING - Indicators

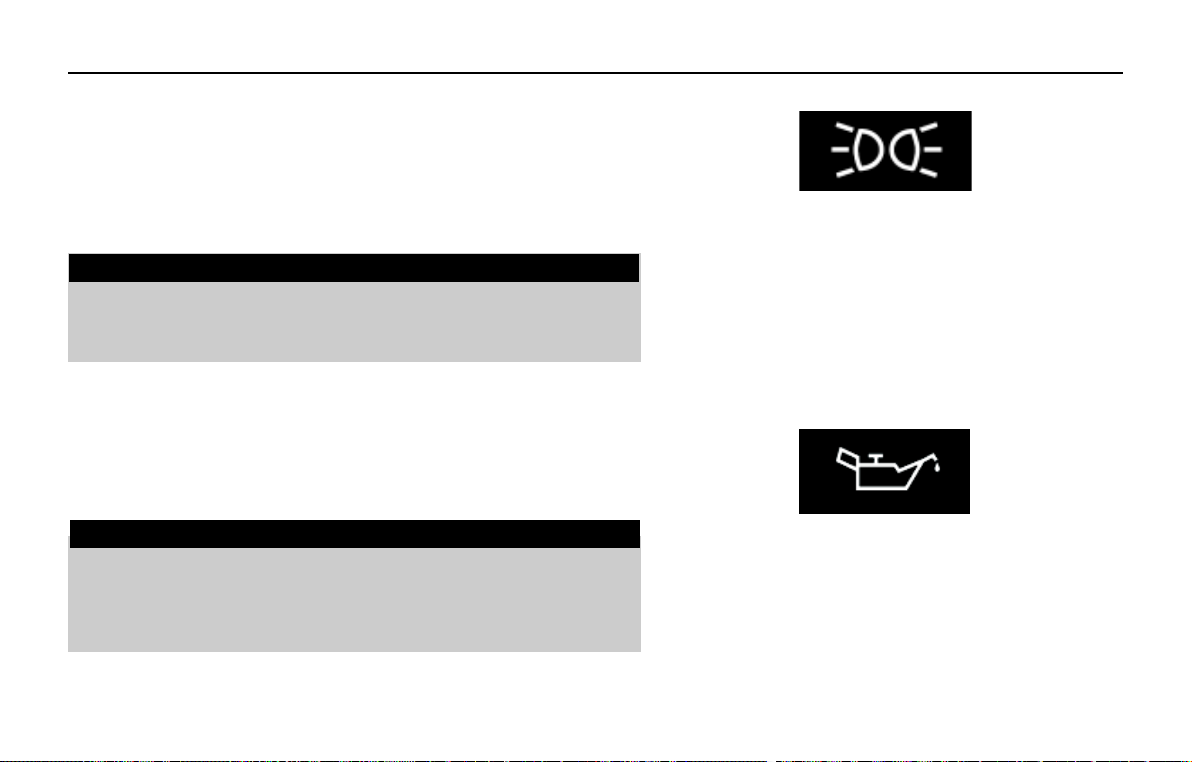

Position Lamp Indicator :

Symbol lights up when the position lamps are switched 'ON'.
(Instrument cluster illumination lamps, illumination lamps for AC,
HVAC or ventilation panel are 'ON', when the position lamps are
'ON'). The intensity of digital clock display reduces. Position lamps
can be used as parking lamps.

NOTICE

Position lamps also remain 'ON' while head lamps are 'ON' and
in this condition, instrument cluster illumination lamps will not be
‘ON’.

Low Oil Pressure Indicator :

When the ignition key is turned to the 'IGN' position, symbol lights
up and goes off as soon as the required engine oil pressure is
developed after starting the engine.

NOTICE

If the low oil pressure indicator does not glow or remains 'ON'
with the 'IGN' on and engine is running, it indicates a fault in the
electrical circuit/lubrication system. Check & get the problem
attended to at an Authorised Service outlet.

52

Water in fuel sedimenter indicator lamp:(If fitted)- Common
Rail

This light comes 'ON' when there is excess water in the Water
sedimenter. In the event of this lamp glowing continuously, it is
recommended to take your vehicle to nearest service outlet or
drain the water from the sedimenter yourself. Please refer to fuel
filter and fuel system in maintenance section for steps to be
followed for draining the Water.

Battery Charging Indicator :

Symbol lights up when the 'IGN' is turned 'ON' and should
go 'OFF' after the engine starts.

NOTICE

If it remains 'ON' while the engine is running, it indicates
that the battery is not being charged. Switch off all
unnecessary electrical equipment and get the problem
attended to at an Authorised Service outlet.

BEFORE DRIVING - Indicators

53

BEFORE DRIVING - Indicators

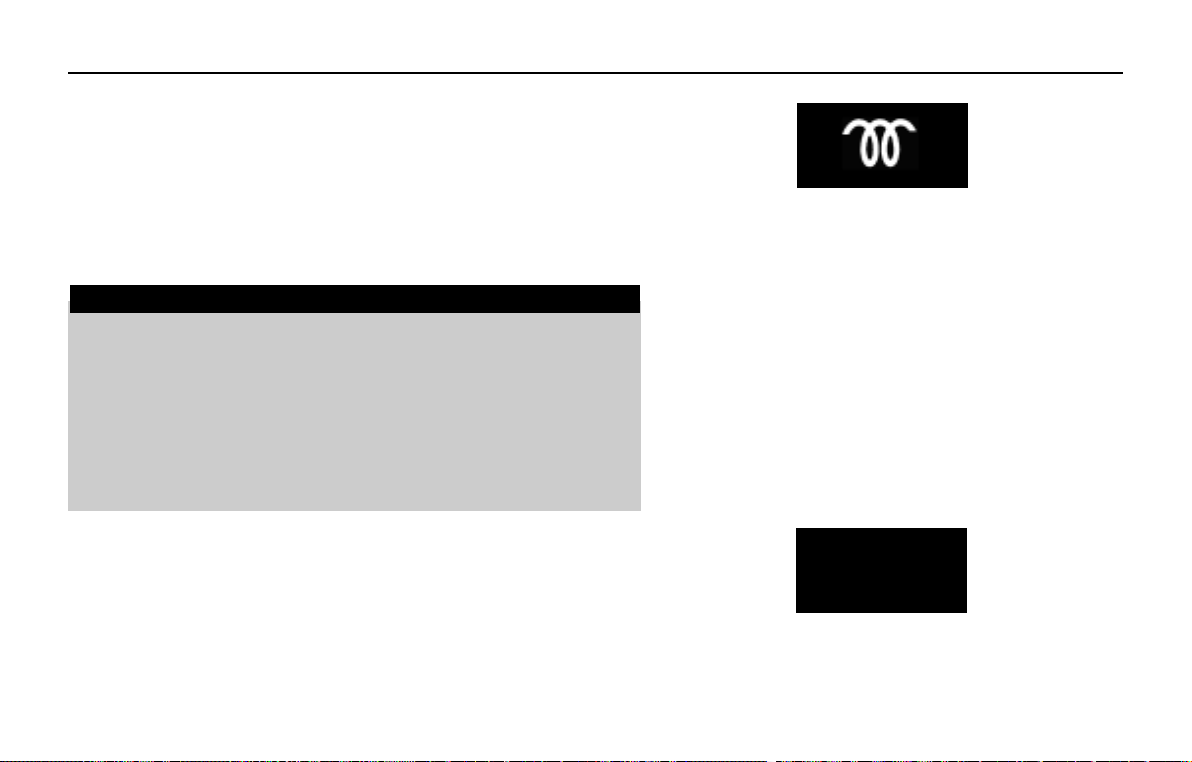

Glow Plug Indicator

Symbol lights up when the 'IGN' is switched 'ON' and goes off
after a few moments automatically depending on the engine
temperature, indicating readiness to start the engine.

Do not start the engine until this light goes off. The duration
of 'ON' time varies with engine block temperature and it glows
for a longer duration with a cold engine.

NOTICE

If this indicator blinks instead of glowing steadily, it indicates
that the temperature sensor connection to the glow plug
regulator is either open or the sensor is faulty. In this
condition, the engine can be started, and the car can be
driven. However, the fault should be attended to at the
earliest, at an Authorised Service outlet, as it affects the
engine starting performance intially before the engine warms
up.

'Check Engine' Indicator (BS-III)

This lamp indicates engine condition, when a malfunctioning occurs in
Engine or EMS, this lamp indicates as below:

1. Remains 'OFF' in 'IGN' position. OR

2. Remains 'ON' in running position.

CHECK

ENGINE

54

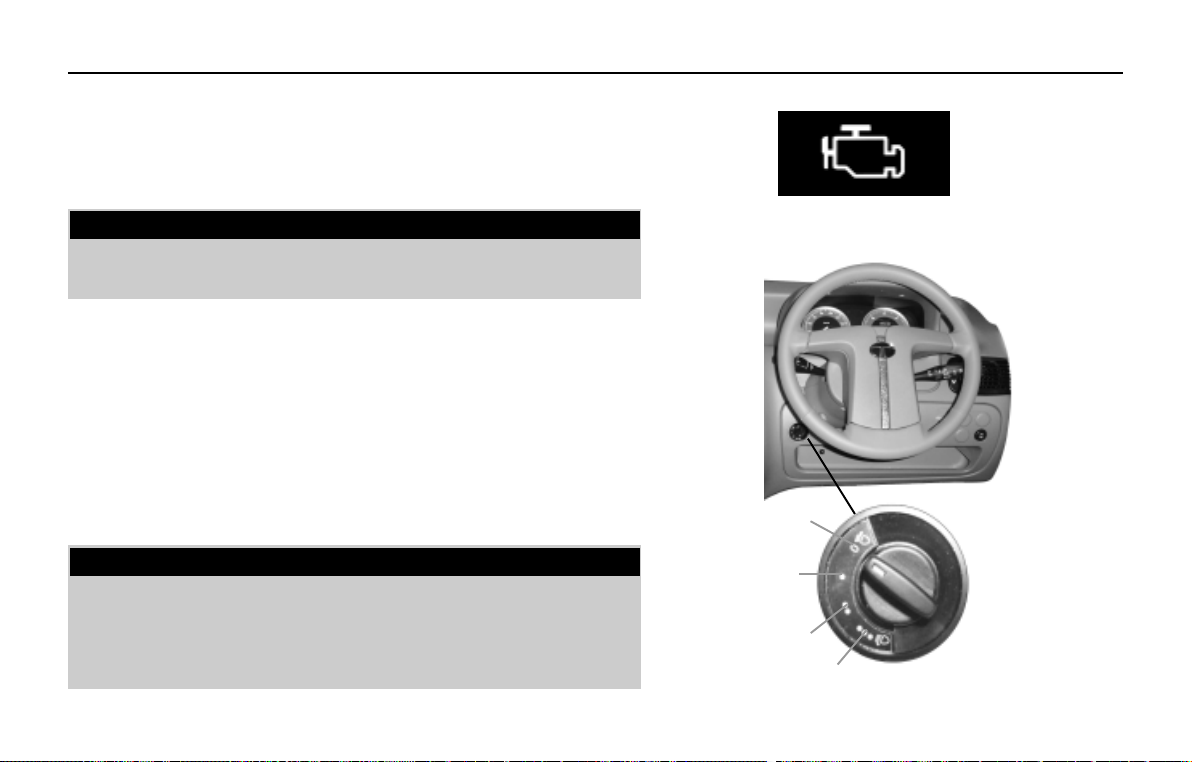

Malfunction Indicator : (BS- IV)

This lamp indicates the engine condition. When a malfunction
occurs in Engine or Engine Management System (EMS), this lamp
will glow when the engine is running to indicate the fault.

NOTICE

When the IGN is turned on this lamp will glow for a few seconds
and go off, this is normal and indicates that the lamp is OK.

Headlamp leveling switch: (If fitted)

A motorised headlamp leveling arrangement with the setting knob at the
dash board is provided on the LH side of steering column.
As and when required, head lamp leveling, setting is done by rotating
the knob to select one of the 3 levels marked in the switch depending
upon the loading of the vehicle.

BEFORE DRIVING - Indicators

Head lamp leveling can be done with the head lamp in Low beam
and in ON position.

NOTICE

• Setting should be done only when the car is stationary.

• Since the leveling switch alters the headlamp focus pattern

under varying load conditions, it is advisable to select the
correct position before starting a trip depending on load.

0

1

2

3

55

BEFORE DRIVING - Gauges

Speedometer, Odometer and Tripmeter (on LCD) :

The speedometer indicates the car speed in km/hr. The odometer
records the total distance the car has been driven. The tripmeter
can be used to measure the distance travelled on each trip or
between fuel fillings. The tripmeter can be reset to zero by pushing
the reset knob.

NOTICE

Keep track of the odometer reading and follow the maintenance
schedule regularly for meeting service requirements.

Odometer, Tripmeter and Illumination insetnesity control on
instrument panel (LCD) :

The Instrument panel has aLCD to display the following
Main Odometer (Non-resettable) - Counts upto 999999 kms
Tripmeter A (Resettable) - Counts upto 1999.9 kms
Tripmeter B (Resettable) - Counts upto 1999.9 kms

Intensity level of instrument panel illumination - selection
among preset levels.

LCD has two line display. The first line displays the Odometer
count. The second line displays either of Tripmeter A, Trip meter
B, Intensity level of panel illumination.

The selection and control of functions are done through ‘MODE’
and ‘SET' pushbuttons (knobs) provided on either side of the
LCD.

56

Speedometer - Diesel

Display for Trip - A

Display for Trip - B

Set
Knob

Speedometer - Petrol

Odometer

Tripmeter
or
Intensity
level of
panel
illumination

Mode
Selector
Knob

The ’MODE’ knob is used to select one of Tripmeter A, Tripmeter
B or Intensity level of panel illumination. Switching among the
above three function scan be done by pressing the knob.

RPM meter : (if installed)

The meter indicates engine speed in revolutions per minute (rpm).
Change gears at appropriate engine rpm and car speed to get

optimum fuel economy.

The red mark provided on the dial is the permitted engine rpm
upper limit. (5000 RPM for Diesel vehicles)

If RPM meter doesnot indicate during cold starting, gently raise
the engine RPM till the battery charge lamp goes off.

Temperature gauge :

The gauge indicates the temperature level of the engine coolant.
The red zone at 'H' indicates temperatures higher than normal.

Avoid driving, when the pointer is in the red zone. It indicates engine
overheating, which may be due to insufficient coolant in the radiator
or due to any other defect. Take the car to the nearest Authorised
Service outlet for necessary attention.

CAUTION

Never remove the cap from the coolant reservoir when the
engine is hot. Do not restart the engine until the problem has
been duly attended.

BEFORE DRIVING - Gauges

Intensity Level Indicator

RPM Meter - Diesel RPM Meter - Petrol

High Temperature

Warning

Temperature Gauge -

Diesel

Temperature Gauge -

High Temperature

Warning

Petrol

57

BEFORE DRIVING -Gauges / Audio Warning

Fuel Gauge :

The fuel gauge indicates the approximate fuel level in the tank.
Refill the fuel tank at the earliest, when the needle touches the red
band at this time amber light comes 'ON' (indicating reserve level
has been reached.) When key is turned to 'IGN' amber light will
come 'ON' and go 'OFF' as a self- check, even if needle not touches
the red band.

NOTICE

As the gauge is a high damped type, observe the reading only
60 seconds after the ignition being 'ON'.

Low Fuel Warning

Fuel Gauge - Diesel Fuel Gauge - Petrol

Low Fuel Warning

Over speed warning indicator: ( if provided)

The over speed warning indicator will come 'ON' if vehicle speed
is reaching more than 120 kmph.

Audio Warning Unit

Seat-belt Reminder (Beeper) : (If installed)

When the key is in the 'IGN' position and the driver's seat-belt has
not been fastened, you get an audio warning. The beeper will go
off automatically after a few seconds.

'Key in 'Warning Beeper : (if installed)

When the ignition is turned to 'OFF' position and the key is not
removed from the switch, an audio beep comes on if driver door is
open. The beeper will go off after a few seconds automatically or if
warning is ignored or if the key is removed/door is closed.

58

Over Speed Warning

Speedometer - Diesel

Indicator

Speedometer - Petrol

BEFORE DRIVING - Audio Warning & Tail Lamp

Lamps 'ON' Reminder (if installed)

When the lamps are 'ON', with the ignition key removed from the
switch and driver's door is opened then an audio warning is heard
to remind you that the lamps are left 'ON'. Please switch off the
lamps before leaving the car. However the lamps can be kept 'ON'
despite the warning, if desired.

Tail Lamp : The tail lamp assembly incorporates the following-

1. Stop / Brake Light

2. Indicator Lamp

3. Reverse Lamp

4. Reflex Reflector

5. Position Lamp

6. Fog Lamp

Registration Plate Lamps :

Two concealed lamps are provided for illumination of the rear
registration number plate.

High Mounted Stop Lamp :

High mounted stop lamp is provided at the rear and it glows
whenever service brake is applied.

1

2

3

4

5

6

High mounted

stop lamp

Registration Plate Lamps

59

BEFORE DRIVING -Heating, Ventilation & Air-Conditioning

Air Flow Pattern

Towards windscreen (Defrost)

60

Side Air
Vents

Central
Air Vents

Towards
Foot Board

Side Air
Vents

Towards
Foot Board

BEFORE DRIVING - Heating, Ventilation & Air-Conditioning

HEATING, VENTILATION & AIR CONDITIONING

(if installed)

A. Temperature Control Knob :

The air temperature in the car can be controlled by operating the
temperature control knob (A) at the left hand side of the control
panel. The temperature can be increased by rotating the knob
towards the red segment and decreased by rotating it towards the
blue segment.

B. Blower Speed Regulation Knob :

The ventilation system has a three/four speed blower. The blower
speeds can be regulated to any one of the following speeds by
operating the knob (B) at the centre of the control panel.

LOW • MEDIUM • HIGH • VERY HIGH

D E

A C

B

H.V.A.C. CONTROLS

61

BEFORE DRIVING -Heating, Ventilation & Air-Conditioning

C. Air Direction Control Knob :

The air flow can be changed by turning the switch (C) to the desired
direction.

Towards face

Towards face and feet

Towards feet

Towards feet and windshield
(Recommended for clearing fogging on windshield)

Air demist / defrost windshield
(Recommended for clearing heavy fog and snow)

D. A.C. ON/OFF Switch :

The A.C. can be switched 'ON' by pressing the switch (D) on the
A.C. control panel provided the blower is `ON' and the engine is
running. The indicator lamp will show that the A.C. is `ON'.

62

D

Indicator

A.C. ON / OFF Switch

BEFORE DRIVING - Heating, Ventilation & Air-Conditioning

E. Air Circulation Switch :

• In HVAC version to put air circulation mode in

recirculation, press switch 'E'. The indicator lamp will
show air circulation is in recirculation.
To put vehicle in Fresh mode release switch 'E'. Indicator
lamp will be 'OFF'.

• In A.C. version, air circulation mode can be selected by

pressing knob 'E'.

• In recirculation mode, air inside the vehicle is circulated

again and again. In Fresh mode, air is taken from
atmosphere and circulated in the vehicle.
Recirculation mode can be used

• While driving in dusty condition

• To avoid traffic pollution

• To get quick cooling/heating as required.

Whenever discomfort is felt switch air circulation mode to
fresh.

NOTICE

The A.C. can be switched `ON' only if the blower is 'ON'
and engine is running. When A.C. is switched 'ON' engine
idling RPM increases marginally, to adjust to the A.C.
compressor load. When desired temperature is achieved
A.C. trips 'OFF' automatically.

E

Indicator

Air Recirculation

Knob

NOTICE

The A.C. compressor gets switched 'OFF' automatically
when engine gets overheated. The A.C. is automatically
switched 'ON' when the engine cools down.

Normal Cooling :

A.C. - ON

Knob 'B' - Desired speed position

Knob 'C' - Towards face

Switch 'E' - Suitably as explained

Quick Cooling :

If your car is left in the sun with window closed, inside
temperature increases.

63

BEFORE DRIVING -Heating, Ventilation & Air-Conditioning

To achieve quick cooling effect, open the windows briefly
while you operate the air conditioner, with air circulation
switch is in Fresh mode, fan at higher speed and air
direction towards 'FACE'. All vents to be opened completely.
Once temperature inside has come down sufficiently, close
the windows and change air circulation suitably to fresh/
recirculation.

Demisting :

In rainy season or in areas of high humidity, mist formation
inside windshield glass is observed. To clear mist
dehumidified air is passed on the windshield glass.

The position of control knobs should be adjusted as
follows :

A.C. - ON
Knob 'B' - desired speed position
Knob 'C' - Towards windshield
Knob 'A' (Vehicles fitted with HVAC)- at suitable temperature
Air circulation - at suitable position

NOTICE

When mist gets cleared switch the knob "C' position to
Face mode. In high humidity areas, if cold air continues
to flow over windshield, it may cause sudden fogging on
outside surface of windshield.

Defrosting :(For vehicles fitted with HVAC unit)

In low temperature areas, to clear frost formation outside
the windshield glass, this setting is used.

First start the engine and accelerate to warm up.
Knob 'A' - Maximum hot position

Knob 'B' - Very High

Knob 'C' - Towards windshield

Switch 'E' - Fresh air mode condition

Once the windscreen has become clear, move the fan
switch to desired speed.

NOTICE

Electric heater coil is provided for demisting of tail gate
glass for deluxe versions.

Normal Heating :( For vehicles fitted with HVAC )

Knob 'A' - Suitable temperature position
Knob 'B' - Suitable blower speed
Knob 'C' - Towards face & feet
A.C. - OFF
Air Circulation- Fresh switch

64

BEFORE DRIVING - Heating, Ventilation & Air-Conditioning

Quick Heating :

All settings as explained before except air circulation switch
to recirculation.

Once vehicle is heated, switch back to fresh mode.

Ventilator :

The air flow can be adjusted continuously with the rotary
control knob at the vents on the dash board. The air vents
can be adjusted upward and downward. This is common
for HVAC, AC and ventilation.

NOTICE

Refrigerant charged in the air conditioning circuit has
been identified on the label over front body member.
Use only refrigerant as given in the label for topping up
or recharge, i.e. do not charge R12 (CFC) in the vehicle
earlier charged with R134a (Non CFC) or vice versa.

NOTICE

Fresh air is taken from the grill opening provided at base
of windshield glass outside the vehicle. Keep these
openings clear and free from fallen leaves etc.

Close

Open

Air Flow Direction Control

Knob

65

BEFORE DRIVING -Interiors & Accessories

REAR VIEW MIRRORS

Door mirrors : Driver side only (In Standard model)

Both sides (In Deluxe model)

The rear view mirror is fitted on the door from the outside and can
be adjusted by the lever provided inside the door.

Motorised rear view mirrors : (if fitted)

Motorised Rear View Mirrors are fitted on both front doors and
can be adjusted to the desired position with the help of a switch
provided on the dashboard. This switch allow the driver to adjust
the mirrors without lowering the glasses and without moving from
his position.

1. Move the main switch to L (for left side) and R (for right

side)

2. Use the 4 positions of the knob (marked by triangle) to

adjust the rear view mirrors to correct angles.

Rear view mirror

adjustment switch

66

BEFORE DRIVING - Interiors & Accessories

Inner Rear View Mirror :

Antiglare mirror has been fitted inside the cab. Provision has been
made for two positions :

1. Normal position 2. Antiglare position

Use antiglare position only when necessary, as it reduces rear
view clarity.

Goggle Case :

A goggle case is provided near inner rear view mirror for keeping
the goggles. Pull the cover to open, place the goggle (keeping
glass facing towards antidust cloth) and press to lock.

Sunvisors :

Two adjustable sunvisors are provided inside the cab above the
windshield to prevent sun glare.

Lower the sunvisors to protect the eyes from bright sunlight. The
sunvisor also moves sideways towards the door.

A vanity mirror has been provided on the back of the co-driver's
sunvisor.

CAUTION

When not in use keep the sunvisors in their original position
otherwise they may block the driver's vision.

Sunvisor

ANTIGLARE MIRROR

Vanity Mirror

Goggle

Case

Operating

Knob

67

BEFORE DRIVING -Interiors & Accessories

Reflex Reflectors :

For LX version reflex reflectors are provided on the inner side of
the front and rear doors to warn the traffic coming from the rear
that the door is open.

Glove Box :

The glove box is located on the dash board in front of the co­driver's seat. The glove box can be locked with the ignition key.

Cup holders are provided on the inner face of glove box flap.

CAUTION

Do not use the cup holders while the car is in motion.

Reflex Reflector

Cup Holders

68

BEFORE DRIVING - Interiors & Accessories

Window Winding :
Manually Operated Window Winding :

Window winding in the standard version is manually operated. Rotate
the handle on the door pad to raise or lower the window glass.

Power Windows : (if installed)

All the window glasses can be operated by means of switches, provided
on the central console near the gear shift lever for all the four windows.
These can be operated only when the key is in the 'IGN' position.

Pull up the switch to raise the glass.
Press down the switch to lower the glass
In the same switch, a safety locking arrangement has also been

provided by means of a push type switch. This switch has two positions:

LOCK - When the key is in depressed position.

UNLOCK – When the switch is in normal position.

In the 'LOCK' position, the rear window switches become inoperative.
However the rear windows can be operated by the switches on the
console. Illumination on rear window switches goes off in locked position.
Press down the lock button to unlock. Individual window winding switches
have been provided only on the rear doors.

WARNING

While raising the glass take care to avoid fingers/hands getting trapped
between the glass and the frame.

Window Winding Lever

Push type

Lock/Unlock

button

Window Winding Switch

Window Winding Switch On Rear Door

69

BEFORE DRIVING -Interiors & Accessories

Ashtray :

Ashtrays are provided on both rear doors for the occupants at the
rear. (Only on Deluxe version)
To open the rear ash tray press the lid, it will rotate outward.

CAUTION

Do not forget to extinguish the cigarette butts, before putting
them in the ashtray.
Do not put paper or other flammable material in the ashtrays.

To remove the ashtray, open it fully and press down to disengage
the top pivot pin.

To refit the ashtray, locate the bottom pivot and push the top pivot
pin to place.

Analog Clock : (if fitted)

This Vehicle is fitted with analog clock and powered by electrical
system. It has knob at the bottom of dial for resetting time.

Ashtray on rear door

70

Analog Clock

BEFORE DRIVING - Interiors & Accessories

Digital Clock : ( if installed )

A digital clock is provided in the middle of the dash board. It displays
the time when the steering lock cum ignition switch is in 'IGN'
position.

Three push knobs 'H', 'M' and 'Z' are provided for setting the time
and for resetting the display to zero - 'H' for hours setting, 'M' for
minute setting and 'Z' for accurate setting of the clock.

Roof Lamps :

Front interior light with reading lamps :

Interior roof lighting and reading lamps with inbuilt switches are
provided on the roof near the rear view mirror.

The central rectangular switch has three positions :

ON - The lamp will come 'ON' as long as switch is in this
position.

DOOR - In this position the lamp comes on when either of the
front doors are opened. When the door is closed, the lamp will
not go 'OFF' immediately, but remain 'ON' for 5-8 sec. This
helps you to settle in your seat and also insert the key into the
Ignition switch.

When the key is turned to the 'IGN' position, the lamp goes
'OFF' immediately, before the delay period.

OFF - In this position the lamp will remain 'OFF' in all conditions.

H M Z

Front Reading Lamps

Push Button

Rear Reading Lamps

71

BEFORE DRIVING -Interiors & Accessories

Two triangular shaped push type 'ON / OFF' switches are provided
separately for the right and left reading lamps.

Rear reading lamps :

A roof mounted lamp with two reading lamps is provided above the
rear seat.

Two triangular shaped push type 'ON / OFF' switches are provided
separately for the right and left reading lamps.

Luggage Compartment Lamp :

A lamp is fitted in the luggage compartment centrally below the
parcel shelf to illuminate the luggage area, ON/OFF switch is
provided on the lamp and it should be in 'ON' position for lamp to
come on automatically with the opening of the trunk lid.

This control is through a switch provided underneath the LH hinge
of the trunk lid.

Rear Reading Lamp

Luggage Compartment Lamp

72

BEFORE DRIVING - Interiors & Accessories

Front Seats and Seat Adjustments :

Front Seats : Both the driver and co-driver seats are of bucket type
to provide maximum riding comfort.

Moving the seats forward and backward :

To adjust the seat position, lift the lever (1)under the seat cushion
front, then move the seat to the desired position and release the
lever.

Make sure the seat is locked in position.

Adjusting the angle of the seat back :

To adjust the angle of the seat back, a lever (3) has been provided
on the sides of the front seats. By lifting the lever, you can adjust
the angle of the backrest.

CAUTION

Do not adjust the seat when the car is in motion.

Always adjust the seat back to an upright position and sit well
back in the seat.

Seat height adjusment lever: (if provided)

Front Seats height can be adjusted for better drivability. The knob
(2) provided on the side of the seats has to be manually opened as
per need.

1. Lever for seat backward/forward
movement

2. Lever for seat height adjustment

3. Lever for seat back angle
adjustment

73

BEFORE DRIVING -Interiors & Accessories

Head-rest : (Adjustable on the front seat & fixed on the rear seat)

Head-rests are designed to help reduce the risk of neck injuries in
case of accidents. For best protection, adjust the top of the
headrest, so that it is in level with one's ears. To adjust the head­rest pull /push it to the desired position until it clicks. The head-rest
can be adjusted up to 64 mm in steps of 16 mm. If headrest is
required to be removed (for cleaning fabric etc.) pull the headrest
fully up, then push notch button with a thin punch while pulling the
headrest up. To install follow the reverse order of removal.

Avoid driving the car with the head-rest removed as it is a
safety item. Do not attempt to adjust the head-rest while driving
the car.

Rear Seat :

A cushion bench seat has been provided for the rear passengers.
The seat back can be folded forward by releasing the latch, on both
the 'C' pillars simultaneously. For making more luggage space, the
folded rear seat can be somersaulted further. Before somersaulting
ensure that the front seats are at 3/4 the full travel towards rear.

For fixing the seat back upright, just push back the seat in position.
It will get locked by itself.

Foldable arm rest for rear assengers : (if provided)

A Foldable arm rest is provided in the centre of the rear seat. Pull
out the armrest when needed and fold back to it's original position,
otherwise.

74

Release
Button

Foldable Arm Rest for Rear

Passengers

BEFORE DRIVING - Interiors & Accessories

Seat-Belt :

Seat-belts have been provided on the front and rear seats (with
micro switch on driver's side for the deluxe model)

WARNING

Always wear seat belts, while driving.

Seat-belt adjustment :

1. Pull the latch plate across your body and insert it into the buckle.

2. Check and ensure that the belt is not twisted.

3. Position the lap portion of the belt as low as possible across
your hip bone.

4. Pull up the shoulder part of the belt to remove the slack.

5. Make sure that the belt goes over your collar bone and across
the chest.

6. Belt gets locked automatically in case of sudden deceleration
or roll.

7. To unlatch the belt, press the red button on the buckle. Guide
the belt to the pillar as it retracts.

WARNING

Do not wear your seat-belt over hard or breakable objects in
pockets or on your clothing. If an accident occurs, objects such

as glasses, pens, etc. under the seat-belt can cause injury.

Front seat seat-belts arrangement

Rear seat seat-belts arrangement

viewed from rear

75

BEFORE DRIVING -Interiors & Accessories

Provision of Music System :

A provision has been made for fitting of music system.

An internal antenna comes fitted on the front windshield glass on
the inner side near the rear view mirror. Provision for the installation
of speakers is made on the dash board on both the sides and on
each of the front doors and on parcel tray.

In few version a multimedia system is provided

( for details please refer page no. 52 B)

Power Socket :

A power socket is provided on the central console below AC control
knobs. This can be used for connecting loads upto 10 A maximum
like mobile charger. To use this socket , remove the cap first.

Always keep this socket covered with the cap when not in use.

Antenna

Power Socket

76

Trunk Lid opening :

BEFORE DRIVING - Interiors & Accessories

A trunk lid opening lever is provided on the floor between the driver's
seat and door.

Pull the lever up to unlock the trunk lid.

Lift the trunk lid by hand using the recess in the centre, near the
bumper. The two telescopic balancers will open the door
automatically.

To close and lock the trunk lid push it down.

The trunk lid can also be opened with the key.

Fuel flap opening :

The fuel flap is located on the left rear side of the car. The fuel flap
can be opened by pulling the opening lever located near the trunk
lid opening lever and can be locked by simply closing the flap.

WARNING

Fuel vapour is extremely hazardous. Always stop the engine
before refueling and never fuel near sparks or open flames.

Trunk

Lid

opening

lever

Fuel flap

opening

lever

77

BEFORE DRIVING -Interiors & Accessories

Side Utility Pocket :

Additional side utility pockets are provided in luggage area to keep
small items. One side utility pocket is provided with net for more
flexibility.

NOTICE

Do not keep heavy/sharp items in the side utility pocket.

Took Kit :

A tool kit is provided with your car and is located on the left side of
the luggage area

NOTICE

The tool kit should be properly secured after usage.

Jack :

The jack is provided with your car and is located in the luggage
area. The handle jack is provided in the tool kit.

Side Utility Pocket

78

Location of Toolkit & Jack

STARTING & DRIVING

n

Opening & Closing the Bonnet

•

Check List

•

Fuel Level

•

Engine Oil Level

•

Engine Coolant Level

•

Brake Fluid Level

•

STARTING & STOPPING

n

tarting the Engine

S

•

Stopping the Engine

•

PREPARING TO DRIVE

n

Preparing to drive

•

Running in Instructions

•

Gear Shifting

•

STARTING AND DRIVING THE CAR

FUEL ECONOMY

n

Instructions to Improve Fuel Economy

•

DRIVING IN ADVERSE CONDITIONS

n

Driving through Water

•

Driving on a Rainy Day

•

Night Driving

•

Towing the Vehicle

•

DRIVING SAFETY

n

CAR SAFETY CHECKS

n

79

STARTING & DRIVING -Opening & Closing the bonnet

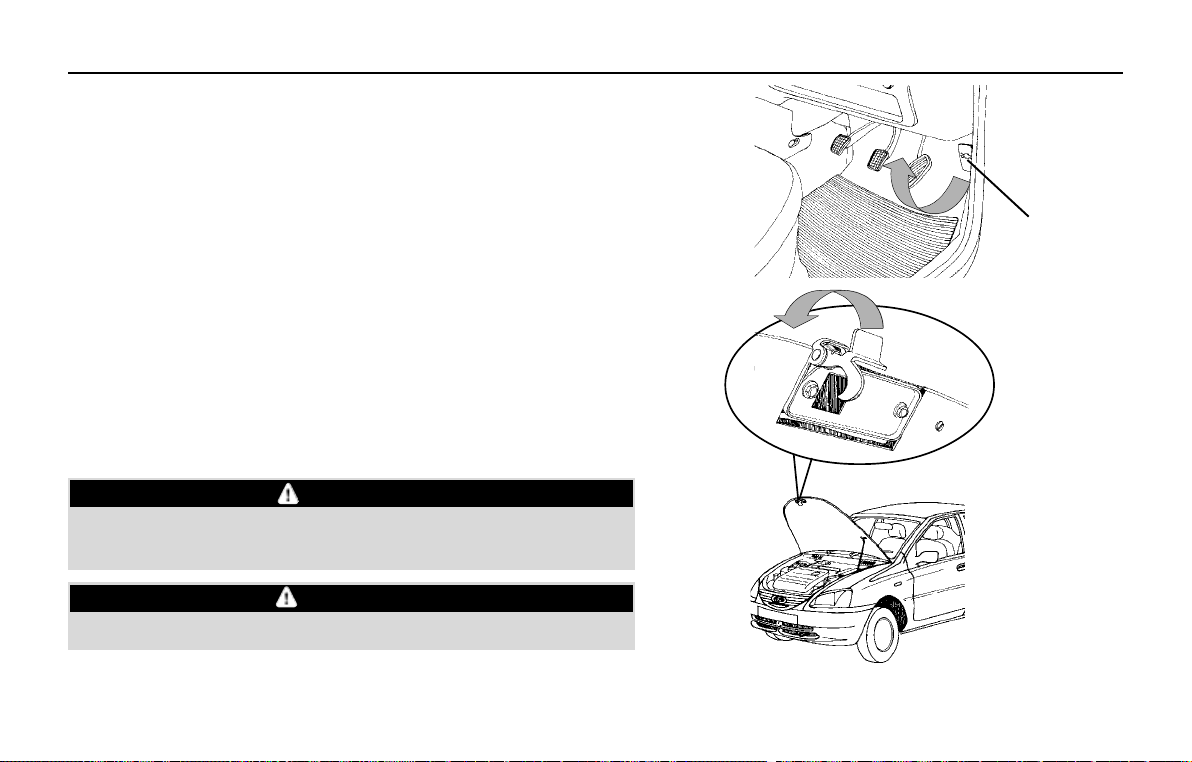

OPENING & CLOSING THE BONNET

Opening :

1. Ensure that the car is in neutral gear with the parking brake
applied.

2. Pull the bonnet release lever located under the right hand corner
of the dash board. The bonnet will pop up slightly.

3. Raise the bonnet slightly and with your finger lift the secondary
lock lever located under the bonnet centre.

4. Lift the bonnet up. Pull the bonnet stay rod from its clip and
insert the free end into the slot in the bonnet, slide stay rod
outward to secure.

Closing :

1. To close the bonnet disengage the stay rod & clamp it properly.

2. Lower the bonnet and drop it from a short height to shut.

CAUTION

Ensure that the bonnet is properly locked before driving.

Do not press the bonnet onto the bonnet lock.

CAUTION

Do not leave the engine running in a closed garage.

Bonnet
release
lever

80

STARTING & DRIVING - Check List

CHECK ADJUST ENSURE

1. Tyre pressure 1. Front seat 1. Bonnet is fully closed

2. Coolant level 2. Rear view mirrors 2. All doors are properly closed

3. Engine oil level 3. Seat belts are fastened

4. Brake fluid level 4. All switches & lamps are

5. Water in windshield washer reservoir working

6. Power steering oil level (if installed) 5. Gear shift lever is

7. Battery electrolyte level in neutral position

8. Fuel level 6. Parking brake is released

81

STARTING & DRIVING - Fuel Level & Engine Oil Level

Fuel Level :

Check fuel level on the gauge in the instrument panel. If the pointer
is in the red zone and/or visual low fuel warning indicator glows,
please ensure fuel filling at the earliest. Avoid driving with fuel at
minimum level.

Engine Oil Level :

1. Open the bonnet. Pull out the dipstick and wipe it with a clean
cloth or a paper napkin.

2. Insert it again to its original position.

3. Pull out the dipstick again and observe the oil level on the dipstick.

4. Top up oil if the oil level is below the mid point of min. and max.
marks.

NOTICE

Oil level should not exceed the max. mark. Always check the oil
level when the car is on level ground and the engine is cold.

Check the engine oil level if low oil pressure warning comes 'ON'
while driving.

Low Fuel Warning

Fuel Gauge - Diesel Fuel Gauge - Petrol

Low Fuel Warning

82

STARTING & DRIVING - Engine Coolant & Brake Fluid Level

Engine Coolant Level :

The coolant level is visible through the translucent reservoir. It should
be between max. & min. marks. If it seems less, add premixed
coolant into the auxiliary tank upto the max. mark. Put the cap
back properly.

CAUTION

Never remove the filler cap when the engine is hot. Use only
branded premixed ready to use coolant.

In case of an emergency, normal water can be used, but the system
should be flushed & filled with proper coolant mixture at the earliest.

Brake Fluid Level :

The level of the brake fluid must be between the min. & max. marks
on the side of the brake fluid container. If the level falls below the
min. mark, add recommended brake fluid. (Refer chapter - Fuels,

coolants & lubricants) In case of spongy or hard pedal or low
brake efficiency, please contact the nearest Authorised Service
outlet.

CAUTION

1.Do not allow brake fluid to make contact with the skin or eyes.

2.Do not allow brake fluid to splash or spill on the paint surface
as it will damage the paint. In case of spillage, wipe it off
immediately.

Max.

Min.

Min.

Max

.

83

STARTING & DRIVING - Starting & Stopping

STARTING THE ENGINE

Before starting the engine :

• Apply the parking brake fully.

• Ensure that the gear lever is in neutral position.

Starting the engine (Diesel)

• Press the clutch pedal fully and turn the ignition key to

‘IGN’ position. Ensure the “CHECH ENGINE” (BS­III)“MIL” (BS-IV) lamp turns “ON”.

NOTICE

The Starter Protection System fitted in this car does not
allow you to crank the engine until you fully press the clutch
pedal.

• The glow plug indicator on the instrument panel will

glow.

• Wait till the glow plug indicator goes off.

• Do not press the accelerator pedal.

• Keep the clutch pedal fully pressed and crank the en-

gine, if the engine cranks but fails to start then repeat the
above procedure. Release the key as soon as the en­gine starts. Ensure that the “MIL” lamp is “OFF”.

• After starting the engine, keep the engine in idling

for at least 30 seconds. Do not accelerate the engine

immediately after starting to avoid damage to tur­bocharger. (Diesel)

NOTICE

The Starter Protection System switches off the starter when
it is cranked for more than 10 secs. In such a case, get the
key back to OFF position and wait for 30 secs before crank­ing again. This safeguards the starter motor as cranking
continuously for more than 10 secs can damage the starter
motor. Also immediately release the key after the engine
has started, otherwise the flywheel ring/ starter motor may
get damaged.

NOTICE

Tata Indigo diesel cars use Electronic Micro Processor

Controller to control critical engine parameters like pre/post
glow and cold advance. The glow plug and cold advance
function will remain on even after starting of the engine
depending on the engine coolant temperature at the start.

It is quite likely that at higher altitude (above 2000 meters)
one may experience exhaust smoke being white in colour
or engine hesitations in cold driving condition. The above
observations are for few seconds only, and in order to
contain the happening, it is suggested that after idle run of
30 seconds on a cold engine start, the car can be driven
off.

84

STARTING & DRIVING - Starting & Stopping

The above white smoke at altitude in cold condition from
diesel engine is a normal happening, and due to temporary
effect of atmospheric pressure. This in no way will affect
the engine performance or the ecology.

Starting the engine with a malfunction (Petrol):

• Press the clutch pedal and turn the ignition key to 'IGN'
position.

• Press the accelerator pedal by 1/4th of full travel. Do not

depress the accelerator pedal fully down.

• Crank the engine. If the engine starts, car may be driven
to nearest authorised service outlet, even though “CHECH
ENGINE” (BS-III)“MIL” (BS-IV) lamp is indicating a
malfunction.

• In the above condition engine may stall if the accelerator
pedal is released back to idle position.

• If engine stalls, repeat the above procedure from beginning
& drive the car without releasing the accelerator pedal to
'Idle' position.

Stopping the Engine :

• Let the car come to a stop and engine to idle.

• Turn the key to “OFF”position

Parking :

• Park the car in a safe place. Switch on the indicator
signal before turning to park.

• Apply the parking brake.

• Ensure that all window glasses are closed & all lamps
are turned 'OFF'.

• At night, put on the parking lights if required.

• Remove the key from the ignition switch.

• Place wheel choke0s at the wheels if parked on a slope.

Read the Parking Brake section in “BEFORE DRIVING”
for precautions on how to park the vehicle on a slope.

WARNING

Do not leave the key inside the car.
Do not leave children unattended in the car.

Avoid parking the car over inflammable materials, such as
dry leaves, grass etc., as the exhaust system is hot enough
to initiate 'FIRE'.

85

STARTING & DRIVING - Preparing to drive

Preparing to Drive :

The following checks and adjustments should be carried out
before you start driving the car.

• Ensure that the windshield, all mirrors, windows and
outside lights are clean. Check & adjust rear view mirrors.

• Ensure that the windshield washer reservoir is full.

• Ensure that the bonnet is properly closed.

NOTICE

Do not put excessive pressure on top of bonnet to avoid
damage.

• Check that any items that you may be carrying inside,
are fully secured.

• Check & adjust seat.

• Ensure that all doors are locked properly.

• Fasten seat belt properly.

• Ensure that all gauges and indicator lights are working.

• Check for blind areas being unobstructed in front and
rear of the car.

• Release the parking brake.

• Before driving off check in the rear view mirror, for oncoming
traffic. Switch on side indicator signal when getting into
main stream of traffic.

Running-in instructions :

During running-in period i.e. first 1000 km. follow the running­in instructions given below :

1. After starting the engine do not rev it up. Warm up gradually
at idling speed.

2. Avoid sudden acceleration and full throttle.

3. It is always preferred not to rev up a cold engine lest engine
bearings get affected.

Recommended car speeds during running-in period for
diesel and petrol versions :

DIESEL PETROL

TCIC COMMON RAIL MPFI

Gear Speed (kmph) Speed (kmph) Speed (kmph)

1st 20 20 20

2nd 40 40 40

3rd 60 60 60
4th 80 80 80

5th 90 90 90

86

STARTING & DRIVING - Preparing to drive

Gear Shifting :

All forward gears being synchronised, provide for easy and
effortless gear shifting. Always remember to press the clutch pedal
fully while shifting the gears and also to release the clutch pedal
gently.

Avoid sudden clutching i.e. abrupt release of depressed clutch
pedal.

Do not shift into reverse gear when the car is moving forward or
when the engine is not at idling r.p.m. A 5 second pause after
declutching will ensure smooth engagement of the reverse gear.
Change gears at appropriate gear change speeds.

NOTICE

There is an interlock provided between fifth and reverse gear to
prevent accidental shift from 5th gear to reverse gear. (Shifting
from reverse gear to 5th gear is possible)

1 3 5

2 4 R

Gear Shifting Lever

87

STARTING & DRIVING - Preparing to drive

Gear Shifting

Appropriate gear change speeds for good pick-up :

TCIC COMMON RAIL MPFI

Speed (kmph) Upshift Speed (Kmph) Upshift Speed (Kmph) Upshift

1st to 2nd-25-30 1st to 2nd-30 1st to 2nd - 25-30

2nd to 3rd-50-60 2nd to 3rd-60 2nd to 3rd - 50-60

3rd to 4th-80-90 3rd to 4th-90 3rd to 4th - 80-90

4th to 5th-100-110 4th to 5th-130 4th to 5th - 100-110

Recommended maximum speed, during normal operation.

Gear TCIC COMMON RAIL MPFI

Speed (kmph) Speed (Kmph) Speed (Kmph)

1 30 30 30

2 60 60 60

3 90 90 90
4 110 130 110

5 150 155 150

88

STARTING & DRIVING -Fuel Economy

INSTRUCTIONS TO IMPROVE FUEL ECONOMY :

Your car's fuel economy is mainly dependent on your style of
driving.

To operate your car as economically as possible, use the
following driving suggestions.

Avoid Excessive Idling :

Switch OFF the engine if you have to stop for more than a
minute.

Avoid fast starts & unnecessary stops :

tart off slowly from traffic lights or stop signs to prevent

S
excessive fuel consumption and reduced engine life. Avoid
unnecessary deceleration (stopping or slowing down) and then
acceleration which uses more fuel.

Always maintain clean air-cleaner :

The amount of air supplied will reduce due to clogged air­cleaner, resulting in waste of fuel due to incomplete
combustion.

Avoid incorrect tyre pressures :

Under-inflated tyres result in increased running resistance of
the tyres, leading to wastage of fuel.

Always have the engine tuned correctly through
recommended maintenance at an Authorised Service
outlet.

Proper Driving Practices :

Keep a safe distance from other vehicles to avoid braking
suddenly.

Do not rest your foot on the clutch pedal. It does not allow full
engine power to be transmitted to the vehicle and reduces
clutch life.

Fuel economy speeds :

Gear DIESEL PETROL

TCIC COMMON RAIL MPFI

Speed (kmph) Speed (kmph) Speed (kmph)

1st 15 15 10

2nd 25 30 20

3rd 45 45 30

4th 65 60 40

5th 70 80 50

89

STARTING & DRIVING - Fuel Economy

MPFI System :

NOTICE

The multi point fuel injection system has been designed
to meet various load and speed conditions of the engine
and doesn't require any regular maintenance. MPFI system
should be serviced by Authorised Service personnel only,
if required.

TIPS RELATED TO FUEL SYSTEM MAINTENANCE (MPFI):

Basically, the fuel system of the vehicle consists of the
following main components :

1. Fuel tank 2. Fuel Filter 3. Fuel Pump 4. Fuel Rail

5. Fuel pressure regulator and 6. Fuel injector.

The following instructions are to be followed for reducing
problems related to the fuel system.

a) Avoid keeping the fuel tank empty and preferably keep it

topped up as frequently as possible. NOTICE

NOTICE

Empty fuel tank may lead to inner corrosion of the tank.
The rust particles thus formed may result in frequent clogging
of fuel filters. If the rust particles enter the system, it may
result in malfunctioning of the MPFI system.

b) Replace clogged fuel filters to prevent inconsistent fuel

delivery from the fuel pump.

90

STARTING & DRIVING - Driving in Adverse Condition

Driving Through Water :

• Never venture to drive through water when it flows above the

stone guard or above the tyre centre line.

• The engine may get seriously damaged if attempts are made to

cross through deep water.

• If at all the situation demands that you have to drive through

water even at great risk then, keep the engine in fast idling and
'crawl' in low gear.

• After driving through water apply the brakes several times to dry

the liners and to regain original braking.

• Check the engine and transaxle for any water entry.

Do not attempt to start the engine if the car gets flooded due
to water.

• Tow the car to a safe place.

• Take the car to the nearest Authorised Service outlet to check

for entry of water in the engine.

• Lubricants in the engine and transaxle need to be changed in

case of water entry.

91

STARTING & DRIVING - Driving in Adverse Condition

Driving on a Rainy Day :

• Check wiper blades for proper functioning.

• Check brakes, steering and windows.

• Check tyres for wear and tyre pressure. Worn out tyres are

unsafe on wet roads.

• Avoid harsh braking and sharp turns. It may cause loss of steering

control and lead to the car skidding.

• For slowing down, shift to lower gears and apply brakes gently.

• Keep lights on if visibility is poor.

• Use heater and demister if required to clear off mist on the

windshield.

Night Driving :

• Dip the head lamp for oncoming traffic during night driving.

• Maintain a speed such that you can stop within illuminated

distance of the head lamps.

• Use head lamp main/dip beam to alert other users on turns/

cross roads, etc.

• Use side indicators to indicate lane change or turning.

• Put on the hazard warning switch in case of hazardous parking

or if your car is disabled to warn passing traffic. Put on the fog
lamps (for Deluxe version) if required.

92

STARTING & DRIVING - Driving in Adverse Condition

Towing the Vehicle :

• For towing a car, the best way is to use a wrecker.

• Alternatively use a rigid tow bar.

• Avoid using a flexible cable or rope as your car may crash into

the car towing your car when it stops suddenly.

• Switch ‘ON’ the hazard warning signals of both the cars to warn

other road users.

• Where possible, keep the engine idling so that power steering

assistance and brake vacuum are available.

• Limit the speed to 20-30 kmph.

• In case of brake failure, use the parking brake to control the car.

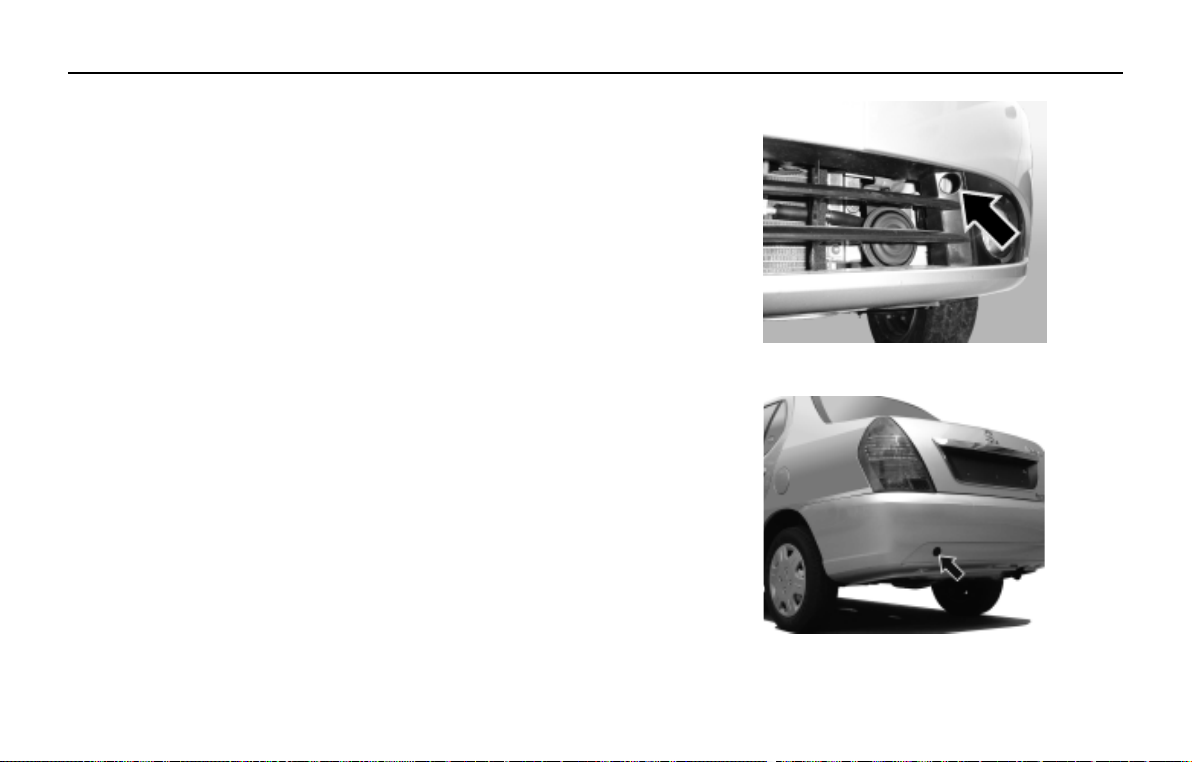

Rear Tow Hook :

• Boltable tow hook is provided in the toolkit.

• Remove cover on rear bumper

• Bolt the tow hook (ensure proper fitment).

• Whenever tow hook is not required unscrew the tow hook and

keep it in toolkit.

• Press the cover to close the hole for tow hook in rear bumper.

Front towing hook

owing Point

Rear T

93

STARTING & DRIVING - Driving in Adverse Condition

DRIVING SAFETY

Seat-Belt

Seat-belts are life saving equipment and
their use reduces the chance of injury
and severity of injury in case of an
accident. It is strongly recommended
that all the car occupants should always
wear seat-belt, while car is in motion.

Influence of Alcohol

Avoid driving under the influence of
alcohol or drugs. Alcohol and drugs will
severely impair your control on the
vehicle and increase the risk of injury
to yourself and others.

Mobile phones

Avoid using mobile phones while driving.
This could divert your attention from the
road and result an accident.

Fatigue 'Rest Revive Survive'

Do not attempt driving when you feel
tired or sleepy. Long distance driving
can tire you very much and fatigue can
dull your reflexes and judgment. Take
a break and get refreshed at intervals.

CAR SAFETY CHECKS

Windshield/wiper/windshield
Washer

Always keep windshield glass clean to
avoid any distraction in visibility. Ensure
proper working of wipers and condition
of wiper blade. Ensure that windshield
washer reservoir is full. Do not operate
wiper when the windshield glass is dry,
This could damage the windshield.

Headlights

Keep headlight lenses clean. Check for
operation of headlamp in both high/low
beam conditions. Check for correct
focusing of headlamps. Use only
recommended type of bulbs. Do not
use the high beam unless it is
inevitable. Its dazzle may glare the driver
of the oncoming car, thus causing an
accident.

94

STARTING & DRIVING - Driving in Adverse Condition

Side indicators / Hazard warning

Ensure that all side indicators/hazard
warning lights are always in working
condition and they are used when
required.

Horn

Ensure the horn is working properly.
Horn provides safety to other road users
by alerting your presence.

Brakes

Ensure brakes are in working condition.
Check brake fluid level in reservoir. Do
not drive the car when brake warning
lamp is 'ON'.

Tyres

Check the condition of tyres for any
abnormalities. Maintain correct tyre
pressure, it is very important particularly

when subjected to extreme conditions,
such as high speed, high load and high
outside temperature. Do not use worn
or bald tyres on the front wheels.

First Aid Kit :

First aid kit is provided in your car. This
is for use in case of minor injuries. It
is to be regularly checked for any
disintegration and should be updated
regularly.

Advance Warning Triangle :

There is an advance warning triangle pro­vided along with your vehicle. In case
there is a breakdown and the vehicle is
parked at the side of road, then the tri­angle is to be kept as per instructions
given below :

Remove advance warning triangle from
case and assemble.
Place the triangle on the road behind

the vehicle when it stranded on the road.
The triangle must be at least 50 meters
behind the vehicle in the same lane of
traffic.

Increase the distance to 150 meters on
a highway or if a bad/hill top obscures
the view.

95

STARTING & DRIVING

96

MAINTENANCE POINTS

n

Engine Compartment

•

Windshield Washer

•

Air Filter

•

Engine Cooling System

•

Fuel System

•

Transaxle Oil

•

Clutch & Clutch Adjustment

•

Brake & Brake Adjustment

•

Power Steering

•

Battery

•

tarting the Engine with Jump Leads

S

•

Catalytic Converter

•

Turbocharger

•

Intercooler

•

EGR System

•

Spark Plug

•

Carbon Canister

•

Wheel Change

•

Wheel Alignment

•

Wheel Balancing

•

Tyres & Tyre Rotation

•

Spare Wheel

•

Repairing a Tyre/Tube

•

Fuses & Relays

•

Head Lamps & Head Lamp Adjustment

•

MAINTENANCE & CAR CARE

CAR CARE

n

Washing

•

Polishing

•

Cleaning of Carpets

•

Cleaning of Glass

•

Wiper Care

•

Paint Care

•

97

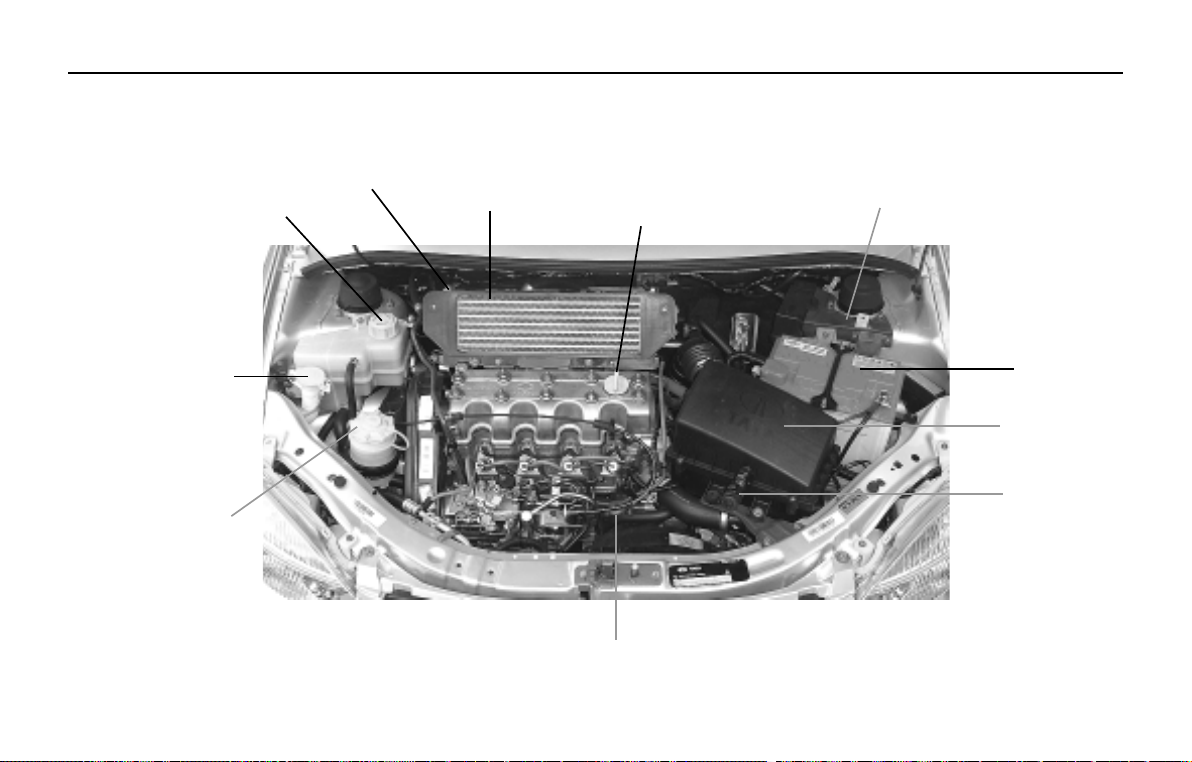

MAINTENANCE POINT - Engine Compartment (TCIC)

ENGINE COMPARTMENT-TCIC

Brake Fluid Container

(Behinf Intercooler)

Auxiliary Tank Intercooler Fuse Box & RelayEngine Oil Filling

Cap

Windshield
Washer Filling
Cap

Power Steering
Fluid Container
(if fitted)

98

Battery

Air Filter

Air Filter

Service

Indicator

Dip Stick
