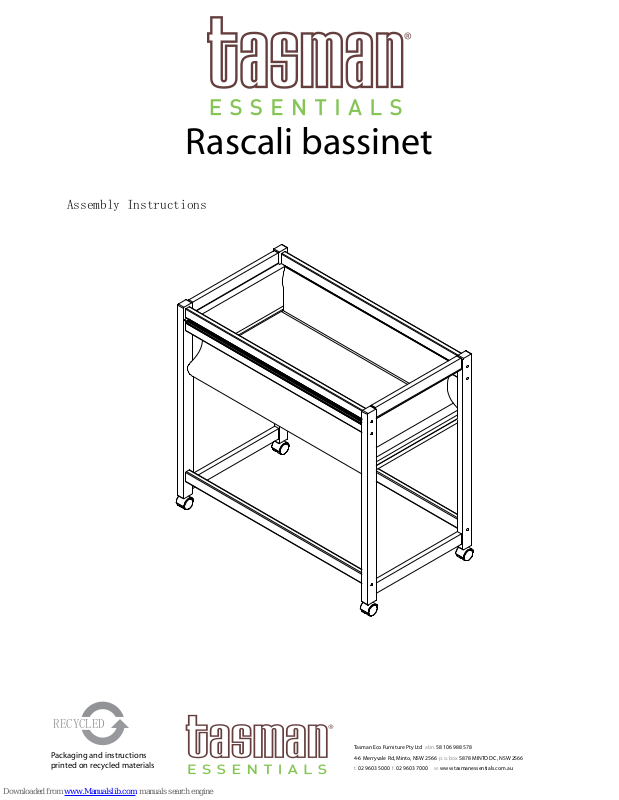

Rascali bassinet
Assembly Instructions
Packaging and instructions
printed on recycled materials
Tasman Eco Furniture Pty Ltd abn. 58 106 988 578
4-6 Merryvale Rd, Minto, NSW 2566 p.o. box 5878 MINTO DC, NSW 2566
t. 02 9603 5000 f. 02 9603 7000 w. www.tasmanessentials.com.au
RECYCLED
Page 2
Parts Checklist
2
End panels x 2
Upper support bars x 2 lower support bars x2 Bassinet support rails x 2
Bassinet holding rods x 2
Base x 1
Mattress x 1
Bassinet x 1
Allen Key x 1
Castors x 4
54mm bolts x 12
Warnings:
Bassinet must be located on a level surface at all times.
Use the castor locks to prevent accidental movement.
Important Note
The maximum weight that the bassinet will carry is 9Kg .
However, once your child has reached 4-6 months, he/she should be moved to a cot.
!
Page 3
Assemble the support bars
Prepare end panel
Screw each support bar to the end panel. To assist in holding them into
position, they have 2 wooden pegs at each end. The 4 bars are identical,
but they must go on as shown. You may need to turn them upside down
to ensure they go on the right way.
Start by placing one end panel on a clean, soft work surface.
Make sure the panel faces the same way up as in the diagram.
This side must face up to start.
1
2
1
2
3
Page 4
Lock
Unlock
4
Fit the remaining end panel
Put the second end panel into position, line up the holes,
and fasten to the support bars and support rails.
Turn bassinet upright and lock castors
Connect castor wheels
Lock the castors by pushing the lever downwards.
Push the castor wheels into the holes in the bottom
of the rails. Ensure they click into place.
3
4
5
5
Page 5
Velcro strip
Velcro strip
Velcro strip
Velcro strip
5
Fit the bassinet into the frame
Prepare the bassinet
Put the bassinet inside the frame. Use the velcro strips at
the end to temporarily hold the bassinet in place.
velcro strips on the bassinet and frame.
Pull bassinet holding sleeves through top of frame
Feed the bassinet sleeves through the gap between the support bars.
Ensure the loop is clear of the bassinet. This will allow you to insert
velcro for this step.
9
6
7
8
Pull the sleeves through until the
loop is clear of the frame.
Page 6
6
Fit holding rods
Feed the holding rods into the bassinet loops.
This will hold the bassinet securely into place.
Fit the base and mattress
bassinet.
Note: as you push down on the mattress you
will hear the velcro on the ends of the bassinet stretching. This is normal. The velcro at
the ends is only to keep the bassinet looking
neat. The weight of the bassinet is held by the
support rails and holding rods which are very
secure.
Your bassinet is now complete and ready to use.
Warnings:
Bassinet must be located on a level surface at all times.
Use the castor locks to prevent accidental movement.
Important Note
The maximum weight that the bassinet will carry is 9Kg .
However, once your child has reached 4-6 months, he/she should be moved to a cot.
9
10
Page 7
7
The Tasman Essentials
Guarantees & Warranty
100% Satisfaction Guarantee
subject only to the conditions below, the purchaser can return the product to the place of purchase for a refund of the full purchase
price of this product.
Conditions.
1. T
2. There is damage to the product and that damage is deemed by SJC Brands Pty Ltd to be caused by incorrect assembly, misuse or by
2 Year Materials and Workmanship Warranty
If within 2 years of the date of purchase of this product, there is found any defect in materials or workmanship of this product, SJC
Brands Pty Ltd, will replace the product free of charge, subject to the conditions below. The replacement product will be identical to the
originally purchased product wherever possible, though in situations where the identical model is discontinued or out of stock, then
SJC Brands Pty Ltd will replace the product with a model that is functionally equivalent.
This Guarantee is made to the purchaser and/or original owner only. For purposes of this Guarantee, the original owner is considered to
to another, the recipient is considered to be the original owner.
Conditions.
1. The item is improperly assembled or adjusted and or not assembled strictly in accordance with the written instructions provided by
the seller in the box containing the item.
2. There is damage to the product and that damage is deemed by SJC Brands Pty Ltd to be caused by incorrect assembly, misuse or by
3. T
4. The item is transferred, gifted or disposed of by the original owner to another.
Registration and Claims
To be eligible for the above Guarantees and Warranty the original owner must register their details online at
www.tasmaneco.com.au immediately upon receipt of the product.
For claims under either the 100% Satisfaction Guarantee or the 2 year Materials and Workmanship Guarantee, please email us via our
claims section on our website at www.tasmaneco.com.au or visit the store where the product was purchased.
The product must be returned to SJC Brands Pty Ltd or to the place of purchase with proof of purchase, including date and purchase
price.
