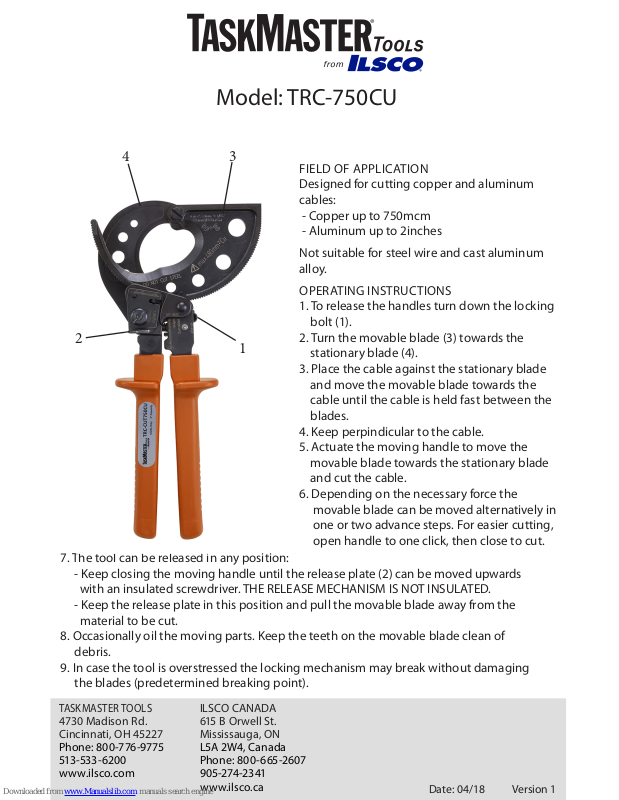

FIELD OF APPLICATION
Designed for cutting copper and aluminum
cables:
- Copper up to 750mcm
- Aluminum up to 2inches
Not suitable for steel wire and cast aluminum
alloy.

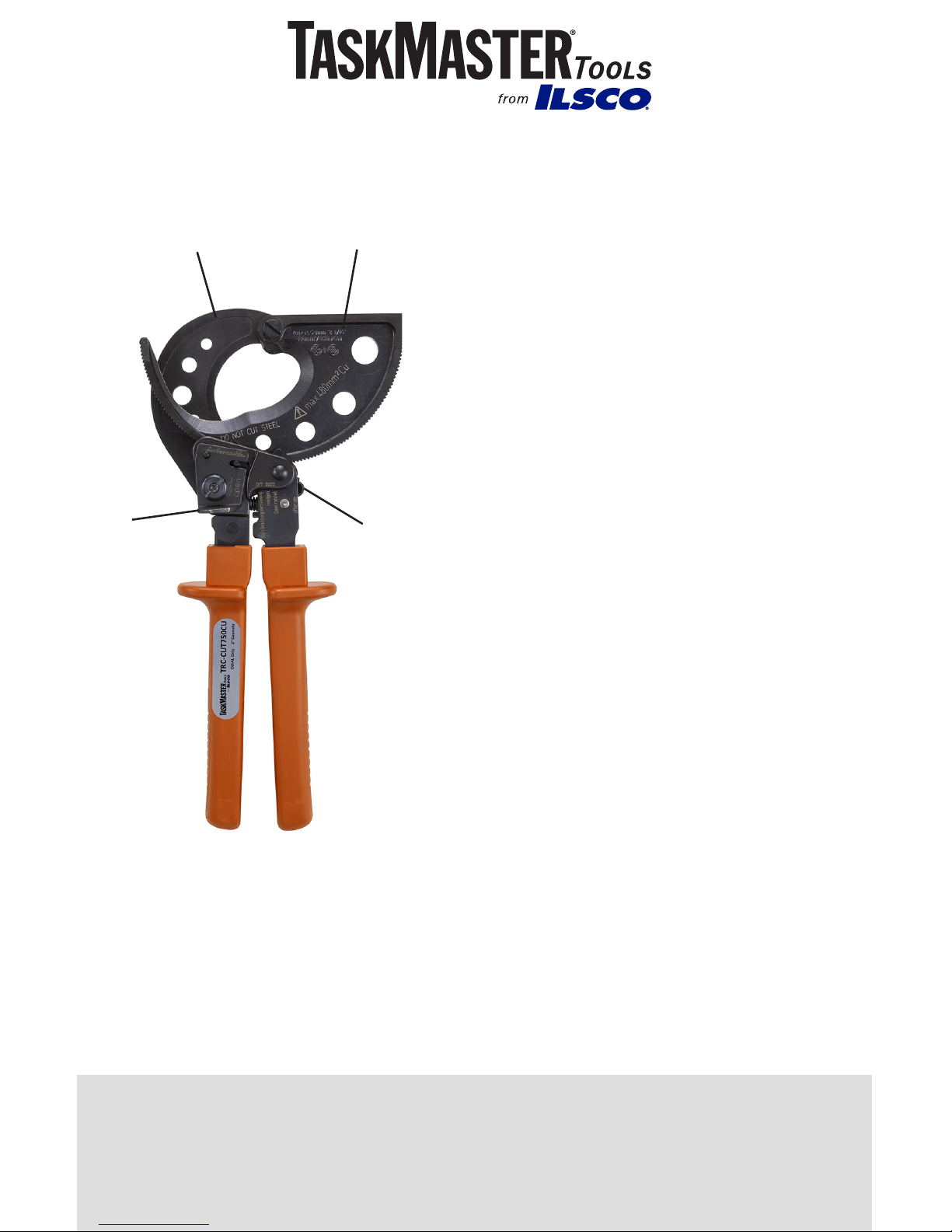

OPERATING INSTRUCTIONS
1. To release the handles turn down the locking
bolt (1).
2. Turn the movable blade (3) towards the
stationary blade (4).
3. Place the cable against the stationary blade
and move the movable blade towards the
cable until the cable is held fast between the
blades.
4. Keep perpindicular to the cable.
5. Actuate the moving handle to move the
movable blade towards the stationary blade
and cut the cable.
6. Depending on the necessary force the
movable blade can be moved alternatively in
one or two advance steps. For easier cutting,
open handle to one click, then close to cut.
Model: TRC-750CU
7. The tool can be released in any position:
- Keep closing the moving handle until the release plate (2) can be moved upwards
with an insulated screwdriver. THE RELEASE MECHANISM IS NOT INSULATED.
- Keep the release plate in this position and pull the movable blade away from the
material to be cut.
8. Occasionally oil the moving parts. Keep the teeth on the movable blade clean of
debris.
9. In case the tool is overstressed the locking mechanism may break without damaging
the blades (predetermined breaking point).
3
4
2
1
Date: 04/18 Version 1
TASKMASTER TOOLS
ILSCO CANADA
4730 Madison Rd. 615 B Orwell St.
Cincinnati, OH 45227 Mississauga, ON
Phone: 800-776-9775 L5A 2W4, Canada
513-533-6200 Phone: 800-665-2607
www.ilsco.com 905-274-2341
www.ilsco.ca
Page 2
Model: TRC-CUT750CU

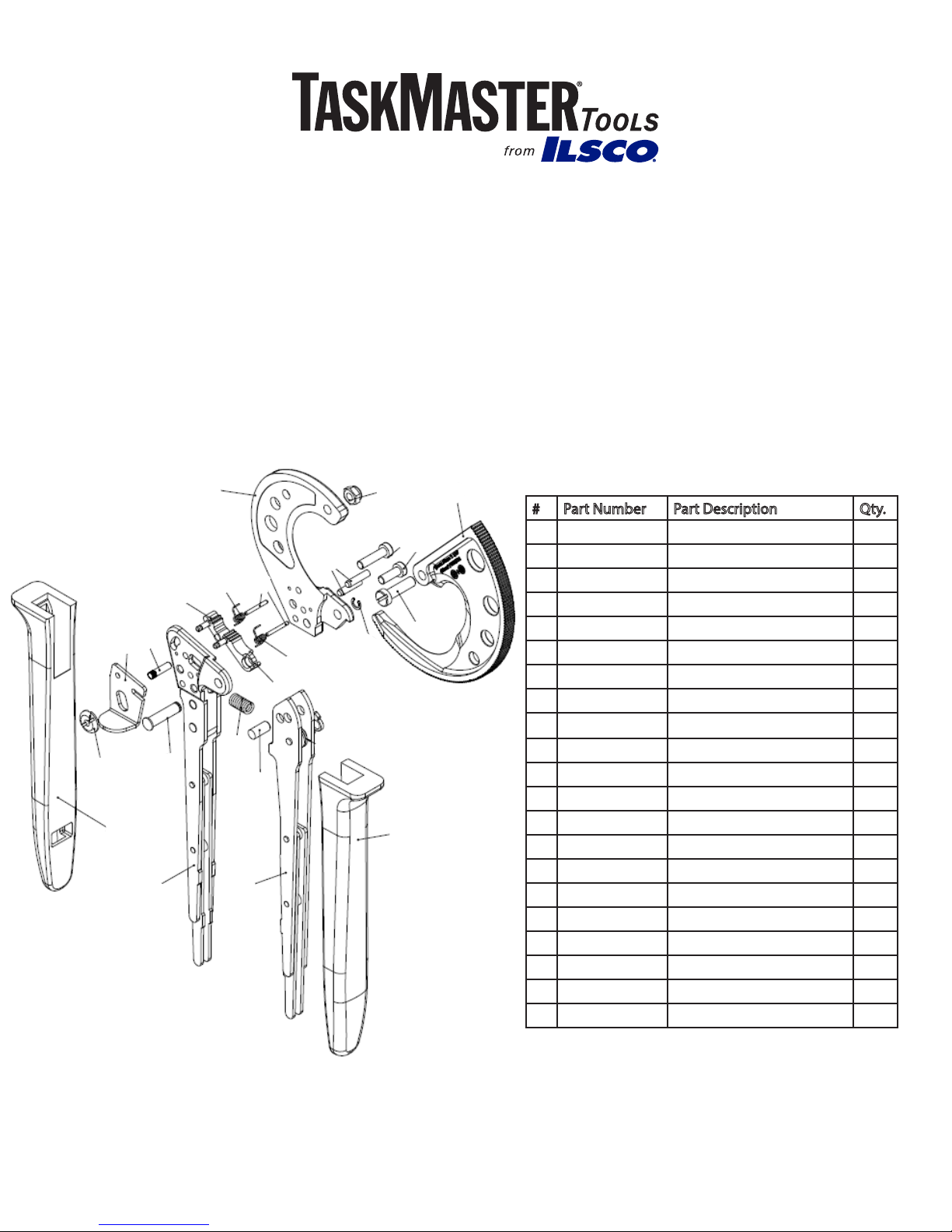

Tool Parts Breakdown
20
21
19
3
8
5
7
4
2
5
6
15
13
12
1
11
18 16
10
9
17
14
21
# Part Number Part Description Qty.
1 1121-30001 FIXED HANDLE 1
2 2121-30007 GROOVED FASTENER 1
3 2121-30001 FIXED BLADE 1
4 8121-20014 GROOVED FASTENER 2
5 2121-20019 RATCHET SPRING 2
6 2121-25008 RATCHET PAWL 1
7 2121-30005 STOOPER PAWL 1
8 8121-20013 GROOVED FASTENER 2
9 8121-20012 HEXAGON SOCKET SCREW 1
10 8121-30001 HEXAGON SOCKET SCREW 1
11 1121-30002 MOVEABLE HANDLE 1
12 2121-20004 GROOVED FASTENER 1
13 2121-20010 GROOVED FASTENER 1
14 8162-25008 GRIP RING 1
15 2121-25025 SPRING 1
16 2121-30011 MOVEABLE BLADE 1
17 2121-20009 FULCRUM CUTTER PIN 1
18 8121-20004 NYLON NUT 1
19 2121-30006 RATCHET RELEASE BLADE 1
20 2121-30009 SLOTTED NUT 1
21 2121-21053 HANDLE 2
