Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
Edition: V2.00/2013
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
Index
1Forward
1.1 Target 1
1.2 Technical Training 1
1.3 Technical Manual 1
1.4 Summary 2
2Elementary
2.1 Health & Safety 1
2.2 ESD 1
3 General
3.1 General information 1
3.1.1 Part reference 1
3.1.2 Consumable supplies 1
3.1.3 Direction description 1
3.1.4 Power source 1
3.2 Required material 2
3.2.1 Tools 2
3.2.2 Material 2
4Technical data
4.1 Machine range 1
4.2 Technical information 2
4.2.1 Machine profile 2
4.2.2 Technical data 2
4.2.3 Machine speed 3
tecnical manual swingo 350B V2.00IVZ.fm
4.2.4 Dimensions and weights 3
4.2.5 Battery 4
4.2.6.1 Battery compartment 4
4.2.7.2 Battery specifications 5
4.2.8 Charger 6
4.2.9 Brush system 6
4.2.10 Suction power 7
4.2.11 Additional 7
4.3 Accessories & Additional parts 8
4.3.1 Accessories 8
4.3.2 Additional parts 8
5 Mechanical
5.1 Handle 1
5.1.1 Removing of handle cover and electronics 1
5.1.2 Mounting of handle cover and electronics 2
5.1.3 Removing of switch lever 4
5.1.4 Mounting of switch lever 5
5.1.5 Removing of wiping blade lever 6
5.1.6 Mounting of wiping blade lever 7
5.1.7 Removing of handle adjustment lever 8
5.1.8 Mounting of handle adjustment lever 9
26. March 2013 Edition: V2.00/2013
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
5.2 Guide bar 10
5.2.1 Adjusting of bowden cable handle 10
5.2.2 Removing of toothrocker 11
5.2.3 Mounting of toothrocker 13
5.2.4 Removing of bowden cable handle adjustment old setup 15
5.2.5 Mounting of bowden cable handle adjustment old setup 16
5.2.6 Removing of bowden cable handle adjustment new setup 17
5.2.7 Mounting of bowden cable handle adjustment new setup 18
5.2.8 Removing of articulation old setup 19
5.2.9 Mounting of articulation old setup 21
5.2.10 Removing of articulation new setup 23
5.2.11 Mounting of articulation new setup 24
5.3 Squeegee 25
5.3.1 Removing of front blade 25
5.3.2 Mounting of front blade 26
5.3.3 Removing of back blade 27
5.3.4 Mounting of back blade 28
5.4 Base 29
5.4.1 Removing of pump 29
5.4.2 Mounting of pump 30
5.4.3 Adjusting of bowden cable wiping blade 31
5.4.4 Removing of bowden cable wiping blade 32
5.4.5 Mounting of bowden cable wiping blade 33
5.5 Tank cover and tank 34
5.5.1 Removing of clear water tank assembly 34
5.5.2 Mounting of clear water tank assembly 36
5.5.3 Removing of clear water tank 37
5.5.4 Mounting of clear water tank 38
5.6 Vacuum unit 39
5.6.1 Removing of vacuum motor 39
5.6.2 Mounting of vacuum motor 40
5.7 Brush & Motor 41
5.7.1 Removing of brush motor belt 41
5.7.2 Mounting of brush motor belt 42
5.7.3 Removing of brush motor 43
tecnical manual swingo 350B V2.00IVZ.fm
5.7.4 Mounting of brush motor 44
5.7.5 Removing of brush pulley 45
5.7.6 Mounting of brush pulley 46
5.7.7 Adjusting of brush height 47
5.7.8 Removing of wiping blade 48
5.7.9 Mounting of wiping blade 49
5.8 Filter 50
5.8.1 Removing of filter 50
5.8.2 Mounting of filter 51
6 Electrical
6.1 System architect 1
6.1.1 General 1
6.1.2 System overview 1
6.1.3 Start up/Self holding 2
6.1.4 Emergency loop 2
6.2 Dashboard 3
6.2.1 Removing of dashboard 3
6.2.2 Mounting of dashboard 4
6.2.3 Dashboard connections 5
6.2.4 Reset service hour counter 8
6.3 Electronics 9
26. March 2013 Edition: V2.00/2013
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
6.3.1 Removing of electronics 9
6.3.2 Mounting of electronics 10
6.3.3 Electronics connections 11
6.4 Charger 14
6.4.1 Removing of charger 14
6.4.2 Mounting of charger 15
6.4.3 Charger connections 16
6.5 Schematics 18
6.5.1 Battery connections 18
6.5.2 Electrical schematics 19
7 Additional information
7.1 Available GTS Newsletter/Instructions 1
8Revision
9Appendix
10 Notes
tecnical manual swingo 350B V2.00IVZ.fm
26. March 2013 Edition: V2.00/2013 1-3
Copyright © 2013, Diversey Inc.
Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
1 Forward
26. March 2013 Edition: V2.00/2013
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
1 Foreword
1.1 Target
To serve our customers faster and more efficient it is important to achieve a general
standard of technical know how with our partners in the market.
Therefore we developed a Technical Training concept which is based on e-spares. The
concept consists of a Technical Manual and a Technical Training.
These two tools will be produced for each newly launched machine with a certain complexity. The Technical Manual will be available as PDF file and can be downloaded from
e-spares. The Technical Training documentation will be distributed after having attended the technical training.
1.2 Technical Training
The Technical Training is addressed as reference book for the technical training sessions
and will be distributed to the floor care responsible and/or to the technical training re-
01.0 swingo - foreword_V1.00.fm
sponsible after attending a training session provided by GTS (max. 2 persons per country).
The intension is, that after this session, a technical trainer is able to perform technical
training for their local technical staff and in this way to transfer the knowledge to all
service technicians.
The Technical Training is not intended as manual for the service technicians and will be
distributed only to the training responsible of each country.
1.3 Technical Manual
The Technical Manual is addressed to the service technicians and should be translated
and distributed after a technical training.
It contains a summary of procedures, hints and suggestions etc. which are helpful and
26. March 2013 Edition: V3.00/2013 1-1
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
essential for the daily business. The Technical Manual can be downloaded from espares/documents.
1.4 Summary
We are convinced that the Technical Manual concept together with the Technical Training
are powerful tools, which will help our service organisations to achieve a higher level of
quality in repairs and customer satisfaction.
If you have any comments or questions do not hesitate to contact your country responsible.
Sincerely yours
GTS Team
01.0 swingo - foreword_V1.00.fm
26. March 2013 Edition: V3.00/2013 1-2
Copyright © 2013, Diversey Inc.
Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
2 Elementary
26. March 2013 Edition: V2.00/2013
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
2Elementary
2.1 Health & Safety
Scrubber dryers may be powered by mains electricity or batteries. There are risks associated with both, which call for proper precautions, such as the provision of good ventilation and the elimination of risk of ignition.
All work, carried out on such machines, should only be performed by trained personnel
in accordance with local regulations.
Before working on such a machine, isolate it from any electrical power source.
Always wear the required personal protective equipment (including gloves and goggles)
that must be worn when potentially exposed to any hazardous material and when carrying out hazardous tasks.
Note that parts may be contaminated with chemical product. If possible flush hoses out
with fresh water prior to carrying out any maintenance. For information on chemical
products that are used in this machine, please carefully read the product label and Ma-
02.1 swingo - elementary_V1.00.fm
terial Safety Data Sheet (MSDS).
Empty water tanks prior to carrying out any maintenance. Ensure contaminated water is
emptied into an approved drain. Avoid pollution.
2.2 ESD
Static electricity is electricity at rest or the accumulation of electric charge, as opposed
to an electric current which is the movement of electricity. The flow or movement of people and/or materials in and through the environment causes separation of electrons and
therefore static electricity. A familiar example of static electricity is when a person walks
across a carpeted floor. Static electricity/electrostatic charge is generated simply by the
contact and separation of the soles of that individual's shoes from the carpeted floor.
Electrostatic Discharge (ESD) occurs when the electrostatic charge is transferred from a
material that carries the charge to an electrostatic sensitive device. In the example above,
this electrostatic discharge is the „shock“ felt after walking across the carpeted floor and
then touching a door knob. It is this electrostatic discharge, which comes in varying de-
26. March 2013 Edition: V3.00/2013 2-1
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
grees, that can be most damaging to electronical devices.
Static electricity, is a natural phenomenon and consequently electrostatic discharge is
the primary cause of countless problems affecting industry, business and personal life.
These problems can be as simple as the shock resulting from walking across a carpet; as
costly as the destruction of sensitive electronic components.
Almost any material can generate static electricity. The ability to store or unload the
charge depends on the type of material.
Static discharge can damage devices, this can result in immediate product failure or in a
latent failure. Latent failures can go undetected for a period of time, the results are product failure in the field.
Electrostatic fields are associated with charged objects.
The degree of severity of ESD events depends on the type of discharge which occurs. The
three most common ESD charge transfers are:
• from an external object to the device.
• from a device to another object.
• resulting from electrostatic fields.
02.1 swingo - elementary_V1.00.fm
Please do not store electronics without ESD bags at any time.
26. March 2013 Edition: V3.00/2013 2-2
Copyright © 2013, Diversey Inc.
Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
3 General
26. March 2013 Edition: V2.00/2013
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
3 General
3.1 General information
3.1.1 Part reference
Explicitly mentioned parts are defined by references corresponding to
the e-spares spare parts list.
E.g. Tank axle (02/118) corresponds to the parts list on e-spares, sub
assembly 2, position 118.
3.1.2 Consumable supplies
If you have to remove cable ties then position the new ones at the
original place.
If you have to remove self locking nuts, you should replace them by
new ones.
03.1 swingo - general_V1.00.fm
3.1.3 Direction description
On the „RH“ always means on the right hand side of the machine in
working direction (when you are standing behind the machine).
On the „LH“ always means on the left hand side of the machine in
working direction (when you are standing behind the machine).
3.1.4 Power source
Depending on the work it might be required to remove the power
source (mains/batteries) from the machine.
The in here mentioned sequences (mechanical and electrical) are
based on the assumption that the power source (mains/batteries)
were removed from the machine before.
26. March 2013 Edition: V3.00/2013 3-1
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
3.2 Required material
3.2.1 Tools
• A standard range of tools is required e.g.
• Fork spanners.
• Allen keys.
•Torx keys.
3.2.2 Material
• No special tools are required.
03.1 swingo - general_V1.00.fm
The above listings are only a recommendation for the technical
training.
26. March 2013 Edition: V3.00/2013 3-2
Copyright © 2013, Diversey Inc.
Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
4 Technical data
26. March 2013 Edition: V2.00/2013
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
4Technical data
4.1 Machine range
SKU Description Version Series
7516859 TASKI swingo 350B 02
7516860 TASKI swingo 350B BMS EURO 02
7516861 TASKI swingo 350B BMS UK 02
7518080 TASKI swingo 350B BMS NA 02
7516862 TASKI swingo 350B BMS with battery * 02
Table 1: Machine range
Remarks
* only for DDM countries (Direct Delivery Machines).
SKU‘s for all TASKI swingo 350 types are the „naked machine“. Brush and batteries have
to be ordered separately.
04.1 swingo 350B - technical data V2.00.fm
26. March 2013 Edition: V2.00/2013 4-1
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
4.2 Technical information
4.2.1 Machine profile
Pos. Value
Theoretical performance (m²/h) 1140
Practical performance (m²/h) 648
Working width (mm) 380
Squeegee width (mm) 530
Solution tank (l) 10
Recovery tank (l) 10
Table 2: Machine profile
4.2.2 Technical data
Pos. Value
Noise level (dB(A)) <70
04.1 swingo 350B - technical data V2.00.fm
Vibration (m/s2) 0.5
Approvals CE; CB
Nominal consumption (W) 1100
Power drive motor (W) -
Power suction motor (W) 490
Voltage (V) 24
Battery capacity maintenance-free (Ah)/C5 25
Battery autonomy max.
(25 Ah maintenance free battery)
Internal charger only in BMS
Protection class Class II
Protection grade Class X3
Table 3: Technical data
26. March 2013 Edition: V2.00/2013 4-2
Copyright © 2013, Diversey Inc.
(min) 45
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
4.2.3 Machine speed
Pos. Value
Transportation speed (km/h) 3.0
Cleaning speed (km/h) 3.0
Ramp max. (%) 2
Table 4: Machine speed
4.2.4 Dimensions and weights
Pos. Value
Dimensions L/W/H (mm) 790/450/430
Door pass through (without) squeegee (mm) 530 (450)
Net weight; empty tank, incl. batteries (kg) 57
Weight, ready to use (kg) 67
Max. floor pressure front (N/mm2) 0.59
Wheel diameter rear (mm) 200
Wheel diameter castor (mm) -
04.1 swingo 350B - technical data V2.00.fm
Cable length (m) 3.0
Table 5: Dimensions and weights
26. March 2013 Edition: V2.00/2013 4-3
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
Picture 1: Dimensions
04.1 swingo 350B - technical data V2.00.fm
4.2.5 Battery
4.2.5.1 Battery compartment
Pos. Value
Battery compartment L/W/H (mm) 195/268/180
Table 6: Battery compartment
26. March 2013 Edition: V2.00/2013 4-4
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
Picture 2: Battery compartment
04.1 swingo 350B - technical data V2.00.fm
4.2.5.2 Battery specifications
Please use batteries from Exide/Sonnenschein, as this is our preferred
partner.
For the correct connection of the batteries, pay attention to the
voltage of each battery and the correct connection. Therefore refer to
e-spares.
This machine is not constructed for wet batteries as the ventilation is
not sufficient.
26. March 2013 Edition: V2.00/2013 4-5
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
Supplier Type
Voltage
Excide Sonnenschein GF12025YG 12 25 197 132 180 11
Table 7: Dry (gel) batteries
Ah/C5
Length [mm]
Width [mm]
Height [mm]

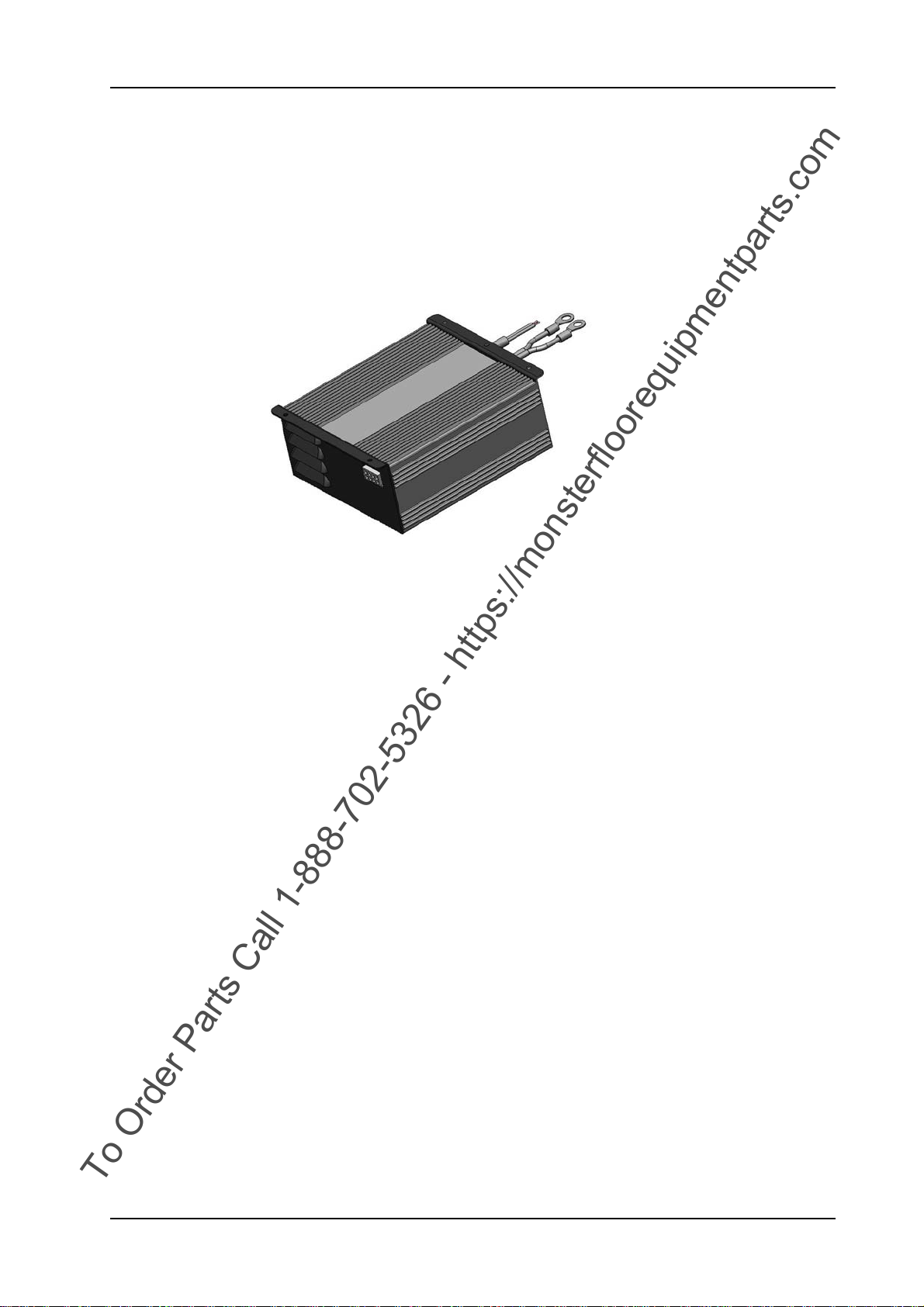

4.2.6 Charger
Pos. Value
Primary (V) 110-127/220-
240
Primary (Hz) 50 - 60
Secondary (V) 24
Secondary (A) 5
Protection type 2
Approval UL, in process
Cable length/BMS cable (m) 3
Weight [kg]
Table 8: Charger
04.1 swingo 350B - technical data V2.00.fm
4.2.7 Brush system
Pos. Value
Brush diameter (roller type) (mm) 90
Brush motor (W) 600
Brush speed (rpm) 1000
Brush pressure max. (kg) 17
Table 9: Brush system
26. March 2013 Edition: V2.00/2013 4-6
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
4.2.8 Suction power
Pos. Value
Vacuum motor (W) 490
Max. air flow (l/s) 32
Max. vacuum (mbar) 118
Max. vacuum (kPa) 11.8
Table 10: Suction power
4.2.9 Additional
Pos. Value
Brush lifting mechanical
Squeegee lifting mechanical
Table 11: Additional
04.1 swingo 350B - technical data V2.00.fm
26. March 2013 Edition: V2.00/2013 4-7
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
4.3 Accessories & Additional parts
4.3.1 Accessories
SKU Article
7516863 Cylindrical brush standard 38cm (bristle red)
7516864 Cylindrical brush hard 38cm (bristle yellow)
7518532 Active fibre pad roll
7516868 Battery 12V 25Ah (1 unit) **
Table 12: Accessories
Remarks
** SKU contains 1 battery but TASKI swingo 350 requires 2 units!
4.3.2 Additional parts
SKU Article
4128587 Blades 41.5/2.5x585 (squeegee: back)
04.1 swingo 350B - technical data V2.00.fm
4128588 Blades 41.5/2.5x565 (squeegee: front)
4128605 Wiping blade (front)
Table 13: Additional parts
26. March 2013 Edition: V2.00/2013 4-8
Copyright © 2013, Diversey Inc.
Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
5 Mechanical
26. March 2013 Edition: V2.00/2013
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
5.1 Handle
5.1.1 Removing of handle cover and electronics
05.10.10 handle - cover and electronic - 350B_V1.00.fm
Picture 1: Handle without cover
• Move handle to the front side so you can access the screws.
• Remove the screw (01/106) for the cover (01/105) for USB
access.
• Remove the cover for USB access.
• Remove the 12 screws (01/107) and the 4 screws (01/117) of the
electronics of the handle cover.
• Remove the handle cover (01/108).
Picture 2: Handle without cover and electronics
• Remove the 3 fixation screws (01/104) for the electronics (01/
109).
• Position the electronics (01/109) down onto the guide bar (02/
102).
Disconnect ribbon cable of dashboard before moving the electronics.
Lift the lever of the ribbon cable connector to release the ribbon cable.
26. March 2013 Edition: V2.00/2013 5-1
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
5.1 Handle
5.1.2 Mounting of handle cover and electronics
05.10.10 handle - cover and electronic - 350B_V1.00.fm
Picture 3: Handle without cover and electronics
• Connect the ribbon cable to dashboard.
• Position the electronics.
Ensure that the loop of the ribbon cable is positioned correctly and
does not touch the switch levers.
• Mount the 3 fixation screws for the electronics.
Picture 4: Handle without cover
• Assemble the cover.
Ensure that the levers, bowden cables and hose (01/121) are in the
correct position.
26. March 2013 Edition: V2.00/2013 5-2
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
• Tighten the handle cover with the 12 screws and 4 screws into
electronics.
• Position the cover for USB access.
• Mount the fixation screw.
05.10.10 handle - cover and electronic - 350B_V1.00.fm
26. March 2013 Edition: V2.00/2013 5-3
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
5.1 Handle
5.1.3 Removing of switch lever
05.10.14 handle - switch lever - 350B_V1.00.fm
Picture 5: Switch lever
• Remove handle cover according to chapter REMOVING OF
HANDLE COVER AND ELECTRONICS.
• Remove screw (01/102) for left switch lever and screw (01/102)
for right switch lever.
Picture 6: Switch lever screws
• Remove the switcher levers (01/114).
You can only remove both switch levers together.
Remarks
Both levers are the same spare part.
26. March 2013 Edition: V2.00/2013 5-4
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
5.1 Handle
5.1.4 Mounting of switch lever
Picture 7: Switch lever screws
05.10.14 handle - switch lever - 350B_V1.00.fm
• Mount switch levers onto the handle.
Adjustment
Ensure that the gear teeth of the switch levers are correctly
positioned. The switch levers have to be horizontally in one line.
• Mount the screws for the left and right switch lever.
Picture 8: Switch lever
Ensure that the RH switch lever (for wiping blade) has the bolt with
magnet (01/118) mounted.
Ensure that the switch levers move easily. Do not tighten the fixation
screws to hard.
• Complete assembling according to the chapter MOUNTING OF
HANDLE COVER AND ELECTRONICS.
26. March 2013 Edition: V2.00/2013 5-5
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
5.1 Handle
5.1.5 Removing of wiping blade lever
05.10.18 handle - wiping blade lever - 350B_V1.00.fm
Picture 9: Wiping blade lever
• Remove handle cover according to chapter REMOVING OF
HANDLE COVER AND ELECTRONICS.
• Remove the wiping blade lever (01/116).
• Remove the end bolt of the bowden cable (01/119) for wiping
blade.
Picture 10: Wiping blade lever
Remarks
Both levers for handle adjustment and wiping blade are the same
spare part.
26. March 2013 Edition: V2.00/2013 5-6
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
5.1 Handle
5.1.6 Mounting of wiping blade lever
05.10.18 handle - wiping blade lever - 350B_V1.00.fm
Picture 11: Wiping blade lever removed
• Mount the end bolt of the bowden cable for the wiping blade.
• Mount wiping blade lever onto handle.
Picture 12: Wiping blade lever
Ensure that the wiping blade lever has the bolt with magnet (01/118)
mounted.
• Complete assembling according to the chapter MOUNTING OF
HANDLE COVER AND ELECTRONICS.
Adjustment
Make sure that the bowden cable is adjusted correctly. Please refer to
chapter ADJUSTING OF BOWDEN CABLE WIPING BLADE.
26. March 2013 Edition: V2.00/2013 5-7
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
5.1 Handle
5.1.7 Removing of handle adjustment lever
05.10.20 handle - handle adjustment lever - 350B_V1.00.fm
Picture 13: Handle adjustment lever
• Remove handle cover according to chapter REMOVING OF
HANDLE COVER AND ELECTRONICS.
• Remove wiping blade handle according to chapter REMOVING OF
WIPING BLADE LEVER.
• Remove the handle adjustment lever (01/116).
• Remove the end bolt of the bowden cable (02/101) for handle
adjustment.
Picture 14: Handle adjustment lever end bolt
Remarks
Both levers for handle adjustment and wiping blade are the same
spare part.
26. March 2013 Edition: V2.00/2013 5-8
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
5.1 Handle
5.1.8 Mounting of handle adjustment lever
05.10.20 handle - handle adjustment lever - 350B_V1.00.fm
Picture 15: Handle adjustment lever
• Mount the end bolt of the bowden cable for the handle
adjustment.
• Mount handle adjustment lever onto handle.
Remarks
When exchanging the lever, ensure that you also mount the lever (01/
103) for floating handle adjustment.
Picture 16: Handle adjustment lever
• Complete assembling according to the chapter MOUNTING OF
WIPING BLADE LEVER.
• Complete assembling according to the chapter MOUNTING OF
HANDLE COVER AND ELECTRONICS.
Adjustment
Make sure that the bowden cable is adjusted correctly. For the bowden
cable adjustment refer to the chapter ADJUSTING OF BOWDEN CABLE
HANDLE.
26. March 2013 Edition: V2.00/2013 5-9
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
5.2 Guide bar
5.2.1 Adjusting of bowden cable handle
Picture 17: Bowden cable handle
• Remove the upper two screws (02/104) and only loosen the
lower two screws.
• Remove cover (02/103).
• Release the counter nut with a 10mm fork spanner.
• Adjust the bowden cable with a 8mm fork spanner.
Adjustment
Make sure that the bowden cable is not tensioned to tight. Let the
handle adjustment lever have enough play (+/- 1mm).
Remarks
05.11.10 guide bar - bowden cable handle adjustment - 350B_350E_V1.00.fm
Before mounting the cover again, check the adjustment at different
positions of the guide bar.
• Tighten the counter nut.
• Mount cover.
• Mount and tighten the screws.
Adjustment
Tighten the screws (02/104) with 5 Nm.
To loosen the bowden cable adjust clockwise.
To tighten the bowden cable adjust anti clockwise.
26. March 2013 Edition: V2.00/2013 5-10
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
5.2 Guide bar
5.2.2 Removing of toothrocker
Picture 18: Toothrocker
• Remove the cover (02/103) and release the tension of the
bowden cable according to chapter ADJUSTING OF BOWDEN
CABLE HANDLE.
• Lift the bowden cable out of the articulation (02/113).
• Remove the 3 screws (02/105) with a 6mm Allen key.
• Pull off the sustaining disc (02/106).
05.11.11 guide bar - toothrocker - 350B_350E_V1.00.fm
Picture 19: Remove guide bar screws
• Remove the articulation from the bracket (02/112).
• Remove the cover (02/110) from the articulation.
• Remove one of the retaining washers (02/119) from the axle
(02/118).
• Remove the axle.
26. March 2013 Edition: V2.00/2013 5-11
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
Picture 20: Remove toothrocker
Remarks
By pulling out the axle, the distance disc (02/120) will fall out by itself.
• Remove the two toothrockers (02/116,117) from the axle of the
bowden cable (02/101).
• Remove the two springs (02/115).
05.11.11 guide bar - toothrocker - 350B_350E_V1.00.fm
26. March 2013 Edition: V2.00/2013 5-12
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
5.2 Guide bar
5.2.3 Mounting of toothrocker
Picture 21: Toothrocker detail
• Mount the two toothrockers onto the axle of the bowden cable.
Remarks
The two toothrockers are different in shape. The mounting position
doesn't matter.
• Position the two springs into the articulation and insert the
toothrockers.
05.11.11 guide bar - toothrocker - 350B_350E_V1.00.fm
Picture 22: Mount spring into articulation
Remarks
Make sure that the toothrockers and springs are correct in place.
•Mount the axle.
26. March 2013 Edition: V2.00/2013 5-13
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
Service
Lubricate the axle with grease (02/140).
• Mount the retaining washer onto the axle.
• Mount the distance disc between the two toothrockers on the
axle.
Service
Lubricate the toothrockers with grease (02/140).
• Mount the cover onto the articulation.
• Mount the articulation onto bracket.
Picture 23: Mount guide bar
• Mount the sustaining disc.
Make sure that the O-rings (02/107) are correct positioned.
• Position the three screws and tighten them.
Adjustment
05.11.11 guide bar - toothrocker - 350B_350E_V1.00.fm
Tighten the 3 screws with 20 Nm.
• Position the bowden cable into the articulation.
• Complete assembling and adjustment according to chapter
ADJUSTING OF BOWDEN CABLE HANDLE.
26. March 2013 Edition: V2.00/2013 5-14
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
5.2 Guide bar
5.2.4 Removing of bowden cable handle adjustment old setup
05.11.12 guide bar - bowden cable handle old setup - 350B_V1.00.fm
Picture 24: Guide bar
• Remove cover (02/103) according to chapter ADJUSTING OF
BOWDEN CABLE HANDLE ADJUSTMENT.
• Release the counter nut with a 10mm fork spanner.
• Loosen the tension of the bowden cable with a 8mm fork
spanner.
• Lift bowden cable out of the articulation (02/113).
• Position spring upwards over the adjustment screw.
• Remove the end bolt of the bowden cable at the lock (02/110) of
the handle position.
• Remove handle cover according to chapter REMOVING OF
HANDLE COVER AND ELECTRONICS.
• Remove the end bolt of the bowden cable (02/101) on the
handle adjustment lever (01/116).
Picture 25: Guide bar
• Thread out the bowden cable.
26. March 2013 Edition: V2.00/2013 5-15
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
5.2 Guide bar
5.2.5 Mounting of bowden cable handle adjustment old setup
05.11.12 guide bar - bowden cable handle old setup - 350B_V1.00.fm
Picture 26: Guide bar
• Thread in the bowden cable.
Remarks
The adjustment side of the bowden cable is at the articulation side.
• Position end bolt of bowden cable on the handle adjustment
lever.
• Complete assembling according to the chapter MOUNTING OF
HANDLE COVER AND ELECTRONICS.
• Position the end bolt of the bowden cable at the lock (02/110) of
the handle position.
• Position spring downwards to the lock of handle position.
• Position bowden cable into articulation.
• Complete assembling according to chapter ADJUSTING OF
BOWDEN CABLE HANDLE ADJUSTMENT.
26. March 2013 Edition: V2.00/2013 5-16
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
5.2 Guide bar
5.2.6 Removing of bowden cable handle adjustment new setup
05.11.13 guide bar - bowden cable handle new setup - 350B_V1.00.fm
Picture 27: Guide bar
• Remove the cover (02/103) and release the tension of the
bowden cable according to chapter ADJUSTING OF BOWDEN
CABLE HANDLE.
• Remove the toothrockers according to chapter REMOVING OF
TOOTHROCKER.
• Remove handle cover according to chapter REMOVING OF
HANDLE COVER AND ELECTRONICS.
• Remove the end bolt of the bowden cable (02/101) for handle
adjustment at handle adjustment lever (01/116).
Picture 28: Handle adjustment lever end bolt
• Thread the bowden cable out of the guide bar (02/102).
26. March 2013 Edition: V2.00/2013 5-17
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
5.2 Guide bar
5.2.7 Mounting of bowden cable handle adjustment new setup
05.11.13 guide bar - bowden cable handle new setup - 350B_V1.00.fm
Picture 29: Guide bar
• Thread the bowden cable into the guide bar.
Remarks
The adjustment side of the bowden cable is at the articulation side.
• Position the end bolt of the bowden cable on the handle
adjustment lever.
• Complete assembling according to the chapter MOUNTING OF
HANDLE COVER AND ELECTRONICS.
• Mount the toothrockers according to chapter MOUNTING OF
TOOTHROCKER.
Picture 30: Toothrocker detail
• Adjust the bowden cable handle and complete assembling
according to ADJUSTING OF BOWDEN CABLE HANDLE.
26. March 2013 Edition: V2.00/2013 5-18
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
5.2 Guide bar
5.2.8 Removing of articulation old setup
05.11.15 guide bar - articulation old setup - 350B_V1.00.fm
Picture 31: Articulation
• Remove cover (02/103) according to chapter ADJUSTING OF
BOWDEN CABLE HANDLE.
• Release the counter nut with a 10mm fork spanner.
• Loosen the tension on the bowden cable with a 8mm fork
spanner.
• Lift bowden cable out of the articulation (02/113).
• Position spring upwards over the adjustment screw.
• Remove the end bolt of the bowden cable at the lock (02/110) of
the handle position.
• Remove the three screws (02/105) with 6mm Allen key.
• Pull off the sustaining disc (02/106).
26. March 2013 Edition: V2.00/2013 5-19
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
Picture 32: Articulation detail
• Remove articulation (02/113) from bracket (02/112).
• Remove lock of handle position (02/110).
• Remove the two remaining screws (02/104) to release the guide
bar.
• According to what you need to exchange, remove the existing
parts from the articulation and place it on the new one.
05.11.15 guide bar - articulation old setup - 350B_V1.00.fm
26. March 2013 Edition: V2.00/2013 5-20
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
5.2 Guide bar
5.2.9 Mounting of articulation old setup
05.11.15 guide bar - articulation old setup - 350B_V1.00.fm
Picture 33: Articulation detail
• Mount lock of handle position into the articulation.
Service
Apply ball bearing grease (02/120) on the lock of handle position (02/
110).
• Mount articulation onto bracket.
Picture 34: Articulation
26. March 2013 Edition: V2.00/2013 5-21
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
Ensure the O-ring (02/107) is placed correctly.
• Mount sustaining disc.
Ensure the O-ring (02/107) is placed correctly.
• Position the three screws and tighten them.
Adjustment
Tighten the screws with 20 Nm.
• Position the end bolt of the bowden cable at the lock (02/110) of
the handle position.
Ensure that the lock of handle position is nicely fitting into toothed
wheel (02/108).
05.11.15 guide bar - articulation old setup - 350B_V1.00.fm
• Position spring downwards to the lock of handle position.
• Position bowden cable into articulation.
• Complete assembling according to chapter ADJUSTING OF
BOWDEN CABLE HANDLE ADJUSTMENT.
26. March 2013 Edition: V2.00/2013 5-22
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
5.2 Guide bar
5.2.10 Removing of articulation new setup
05.11.16 guide bar - articulation new setup - 350B_V1.00.fm
Picture 35: Articulation
• Remove the cover (02/103) and release the tension of the
bowden cable according to chapter ADJUSTING OF BOWDEN
CABLE HANDLE.
• Remove the toothrockers according to chapter REMOVING OF
TOOTHROCKER.
• Remove the two remaining lower screws (02/104) from the
guide bar (02/102).
• Remove the articulation (02/113).
Picture 36: Remove articulation
26. March 2013 Edition: V2.00/2013 5-23
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
5.2 Guide bar
5.2.11 Mounting of articulation new setup
05.11.16 guide bar - articulation new setup - 350B_V1.00.fm

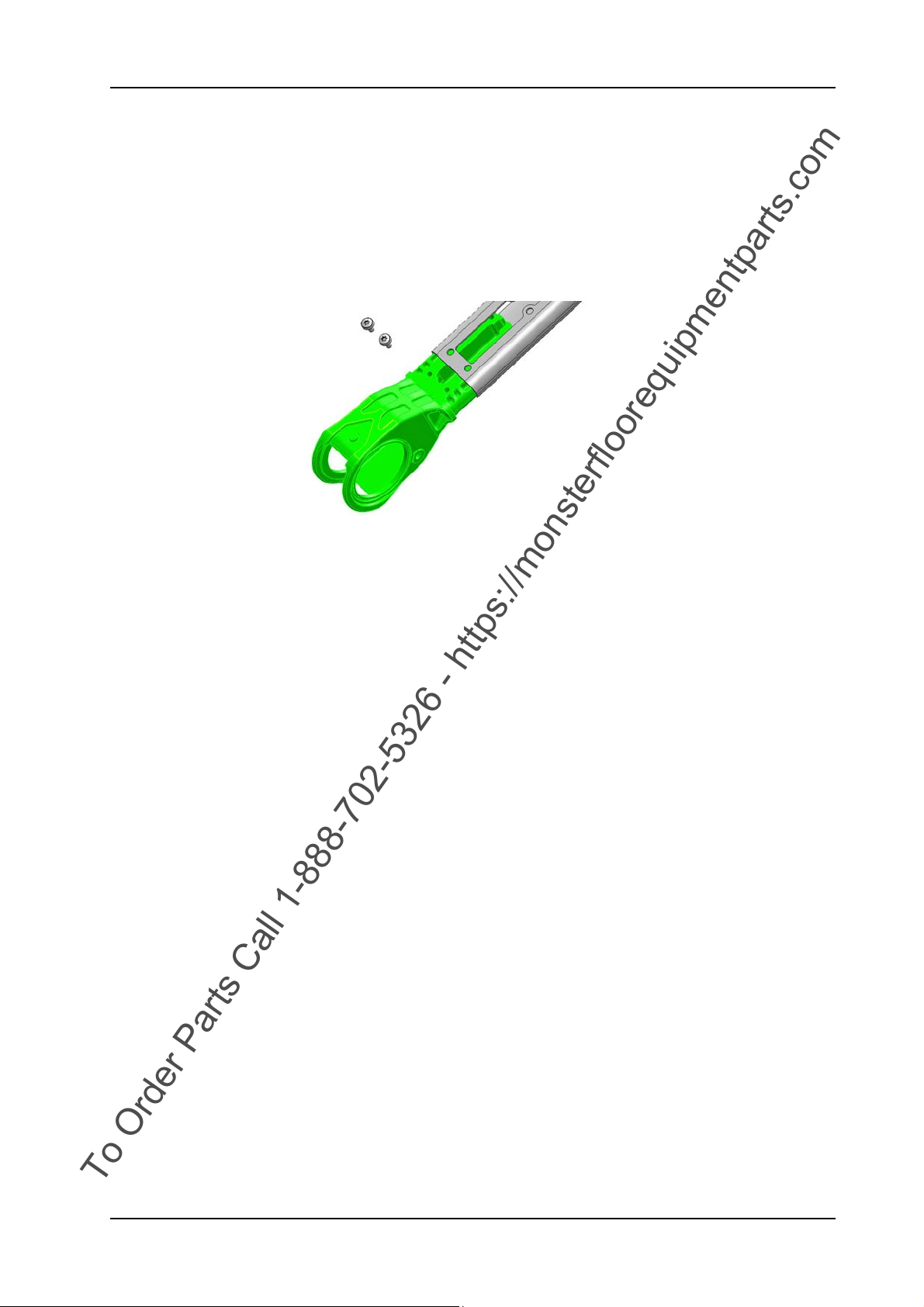

Picture 37: Mount articulation
• Place the articulation into the guide bar.
• Mount the two lower screws.
Adjustment
Do not tighten the screws yet as the cover (02/103) will be placed
later.
• Mount the toothrockers according to chapter MOUNTING OF
TOOTHROCKER.
• Complete assembling and adjustment according to chapter
ADJUSTING OF BOWDEN CABLE HANDLE.
26. March 2013 Edition: V2.00/2013 5-24
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
5.3 Squeegee
5.3.1 Removing of front blade
05.40.14 squeegee - front blade - 350B_350E_V1.00.fm
Picture 38: Squeegee front side
• Remove the two handles, star knobs (03/102).
• Press out the squeegee inlet (03/112).
• Remove the front blade (03/117) by tearing it off of the
squeegee inlet.
Picture 39: Front blade fixation
26. March 2013 Edition: V2.00/2013 5-25
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
5.3 Squeegee
5.3.2 Mounting of front blade
Picture 40: Front blade fixation
• Position new front blade onto the pins of squeegee inlet.
• Mount the squeegee inlet into squeegee body.
• Tighten the two handles.
05.40.14 squeegee - front blade - 350B_350E_V1.00.fm
Ensure that the blade is mounted correctly and the squeegee inlet fits
into the squeegee body.
26. March 2013 Edition: V2.00/2013 5-26
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
5.3 Squeegee
5.3.3 Removing of back blade

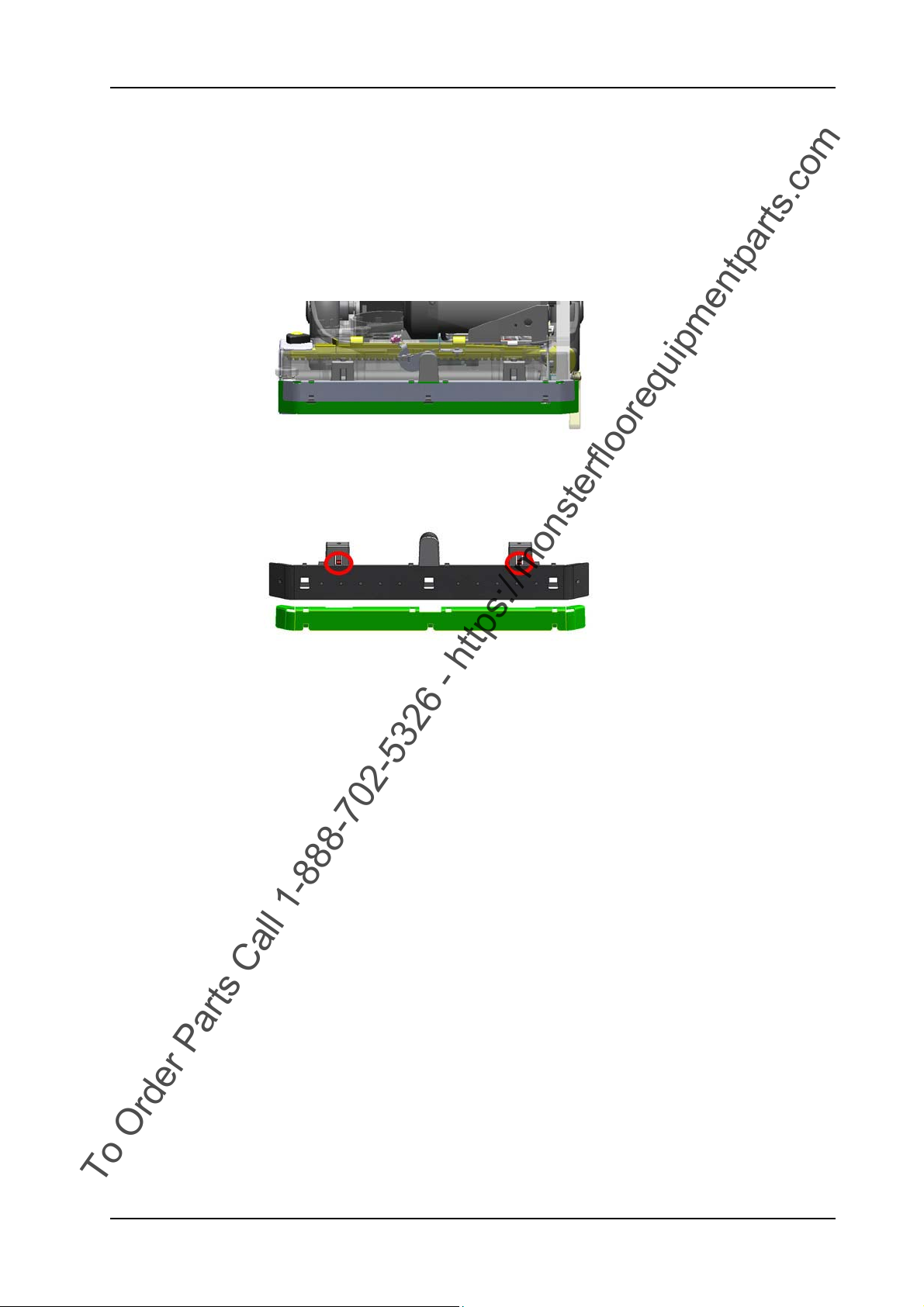

Picture 41: Squeegee back side
• Remove the two handles (03/102).
• Press out the squeegee inlet (03/112).
• Remove the back blade (03/114) by tearing it off of the
squeegee inlet.
05.40.19 squeegee - back blade - 350B_350E_V1.00.fm
Picture 42: Back blade fixation
26. March 2013 Edition: V2.00/2013 5-27
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
5.3 Squeegee
5.3.4 Mounting of back blade

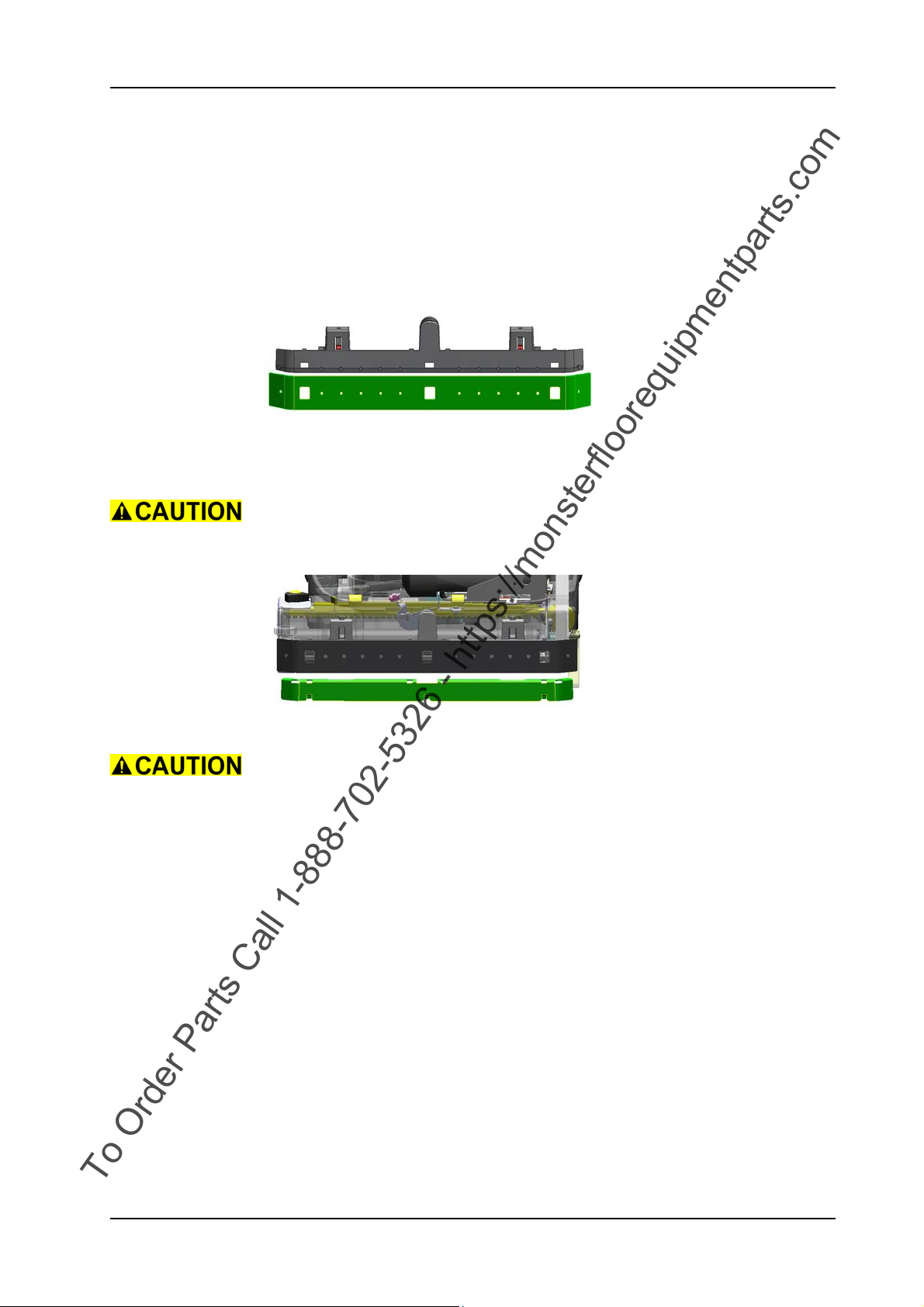

Picture 43: Back blade fixation
• Position new back blade onto the pins of squeegee inlet.
• Mount the squeegee inlet into squeegee body.
• Tighten the two handles.
Ensure that the blade is mounted correctly and the squeegee inlet fits
into the squeegee body.
05.40.19 squeegee - back blade - 350B_350E_V1.00.fm
26. March 2013 Edition: V2.00/2013 5-28
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
5.4 Base
5.4.1 Removing of pump
05.44.10 base - pump - 350B_V1.00.fm

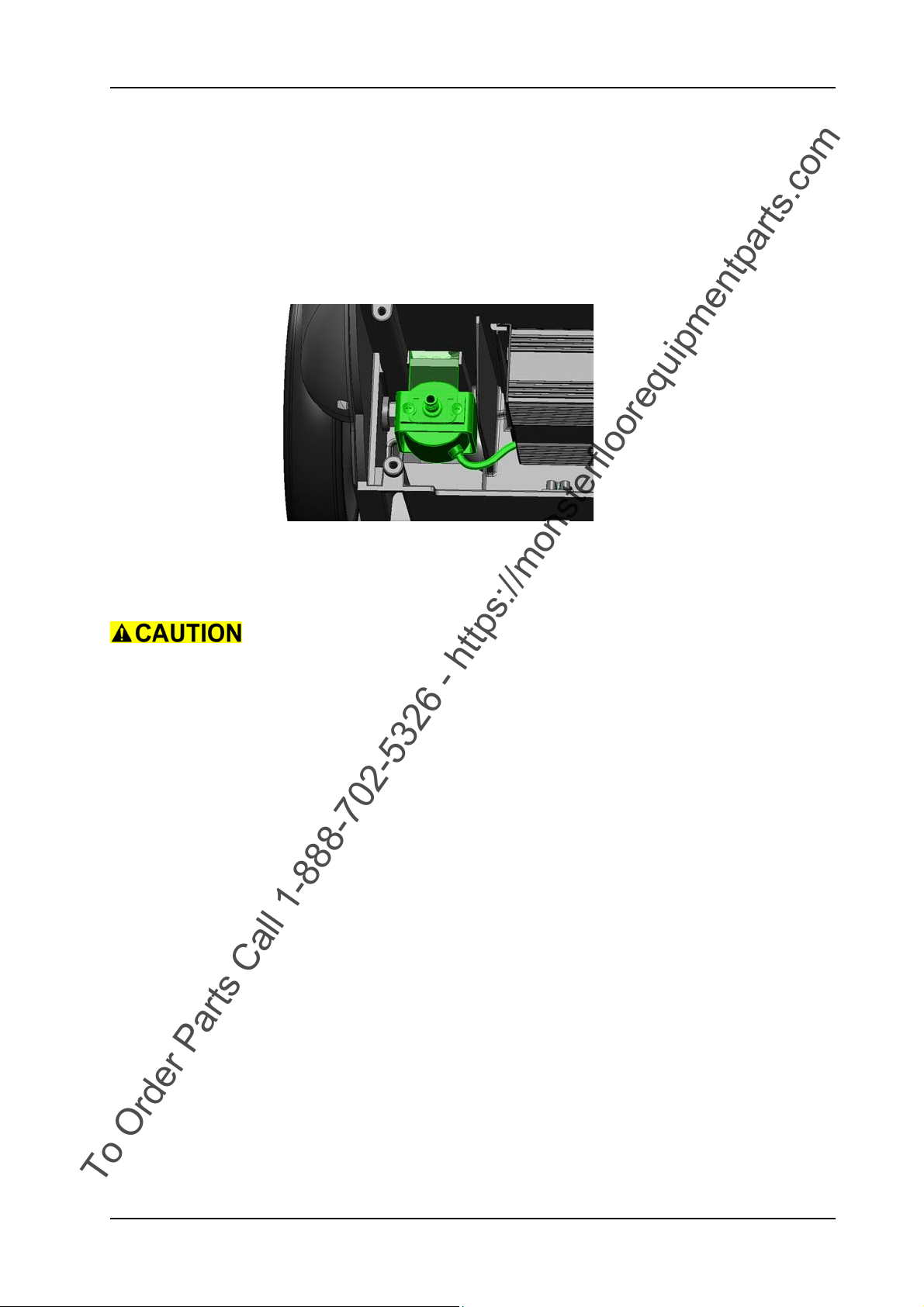

Picture 44: Pump
• Remove clear water tank assembly according to chapter
REMOVING OF CLEAR WATER TANK ASSEMBLY.
Ensure that no water is in the fresh water system before you
disconnect the hoses.
• Disconnect the fresh water hoses.
Remarks
To get better access to the wiring you can remove the charger (05/
101). Just pull the charger towards you as it is only mounted on slides
without any fixation screw.
• Remove the front pump holder (05/103) to get better access.
• Tread out the pump (05/104) of the pump holder (05/103).
• Remove pump.
• Disconnect wires at the plugs near the connection block (05/
132), situated in the wiring harness.
26. March 2013 Edition: V2.00/2013 5-29
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
5.4 Base
5.4.2 Mounting of pump
05.44.10 base - pump - 350B_V1.00.fm
Picture 45: Pump
• Connect wires with the plugs.
Remarks
If you removed the charger, please mount it again.
• Thread in the new pump into the pump holder.
• Mount the front holder.
• Connect fresh water hoses to the pump.
• Complete assembling according to chapter MOUNTING OF
CLEAR WATER TANK.
26. March 2013 Edition: V2.00/2013 5-30
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
5.4 Base
5.4.3 Adjusting of bowden cable wiping blade
Picture 46: Adjusting bowden cable wiping blade
• Remove tank cover complete (06/101).
• Remove recovery tank (06/121).
• Release the counter nut of the bowden cable with a 10mm fork
spanner.
• Adjust the bowden cable with a 10mm fork spanner at the angle
bracket (05/122) situated directly above the wiping blade.
Adjustment
Make sure that the bowden cable is not tensioned to tight. Let the
wiping blade lever have enough play (+/- 1mm).
• Tighten the counter nut.
• Position the recovery tank.
• Position tank cover complete.
05.44.13 base - bowden cable adjustment wiping blade - 350B_350E_V1.00.fm
26. March 2013 Edition: V2.00/2013 5-31
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
5.4 Base
5.4.4 Removing of bowden cable wiping blade
Picture 47: Bowden cable wiping blade
05.44.14 base - bowden cable wiping blade - 350B_350E_V1.00.fm
• Remove tank cover complete (06/101).
• Remove recovery tank (06/121).
• Release the counter nut with a 10mm fork spanner.
• Loosen the tension of the bowden cable (01/119) with a 10mm
fork spanner.
• Remove the end bolt of the bowden cable with the ball socket
(05/121) from the lever (05/123) (snap off).
• Remove handle cover according to chapter REMOVING OF
HANDLE COVER AND ELECTRONICS.
• Remove the end bolt of the bowden cable (01/119) on the wiping
blade lever (01/116).
• Thread out the bowden cable.
26. March 2013 Edition: V2.00/2013 5-32
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
5.4 Base
5.4.5 Mounting of bowden cable wiping blade
Picture 48: Bowden cable wiping blade
05.44.14 base - bowden cable wiping blade - 350B_350E_V1.00.fm
• Thread in the bowden cable.
Remarks
The adjustment side of the bowden cable is at chassis side.
• Position end bolt of bowden cable on the wiping blade lever.
• Complete assembling according to the chapter MOUNTING OF
HANDLE COVER AND ELECTRONICS.
• Position the end bolt of the bowden cable with the ball socket on
the lever (snap on).
• Complete adjustment according to chapter ADJUSTING OF
BOWDEN CABLE HANDLE ADJUSTMENT.
26. March 2013 Edition: V2.00/2013 5-33
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
5.5 Tank cover and tank
5.5.1 Removing of clear water tank assembly
Picture 49: Clear water tank assembly
• Remove tank cover complete (06/101).
• Remove recovery tank (06/121).
• Remove the threaded adaptor (04/101) of the suction hose (04/
102).
• Remove the threaded adaptor (07/101) of the angle hose (07/
102).
• Remove the 4 screws (06/112) for the battery cover (06/113).
Remarks
05.54.10 tank cover and tank - clear water tank assembly - 350B_V1.00.fm
Disconnect the battery plug and unthread the charging mains.
• Remove battery cover (06/113).
• Remove the 4 fixation screws (06/112) for clear water tank (06/
116).
Remarks
Be aware that 2 screws are in the battery compartment.
Ensure that no water is in the fresh water system before you remove
the clear water tank.
26. March 2013 Edition: V2.00/2013 5-34
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
Picture 50: Clear water tank fixation
• Loosen the screw (08/104) with two 13mm fork spanners as it
has a self locking nut.
• Lift clear water tank (06/116) with guide bar off the chassis.
• Lay the clear water tank and guide bar on the LH side.
05.54.10 tank cover and tank - clear water tank assembly - 350B_V1.00.fm
26. March 2013 Edition: V2.00/2013 5-35
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
5.5 Tank cover and tank
5.5.2 Mounting of clear water tank assembly
Picture 51: Clear water tank assembly
• Position clear water tank on the chassis.
Thread in the suction hose (04/102) and angle hose (07/102)
correctly.
Ensure that the clear water tank fits nicely onto the chassis.
• Tighten screw with 13mm for spanners.
05.54.10 tank cover and tank - clear water tank assembly - 350B_V1.00.fm
• Mount the 4 screws for clear water tank.
• Position battery cover.
• Mount the 4 screws for battery cover.
• Assemble threaded adaptor onto the suction hose.
• Assemble threaded adaptor onto the angle hose.
• Position the recovery tank.
• Position tank cover complete.
26. March 2013 Edition: V2.00/2013 5-36
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
5.5 Tank cover and tank
5.5.3 Removing of clear water tank
05.54.12 tank cover and tank - clear water tank - 350B_350E_V1.00.fm
Picture 52: Clear water tank
• Remove clear water tank assembly according to chapter
REMOVING OF CLEAR WATER TANK ASSEMBLY.
• Remove handle cover according to chapter REMOVING OF
HANDLE COVER AND ELECTRONICS.
• Disconnect wires at the electronics (01/109).
• Thread out the wires of the clear water tank.
Service
Thread out the wires first and then the charger cable with the plug.
• Remove the three screws (02/105) of the guide bar fixation.
• Remove guide bar from the bracket (02/112).
• According to what you need to exchange, remove the existing
parts from the clear water tank and place it on the new one.
26. March 2013 Edition: V2.00/2013 5-37
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
5.5 Tank cover and tank
5.5.4 Mounting of clear water tank
05.54.12 tank cover and tank - clear water tank - 350B_350E_V1.00.fm
Picture 53: Clear water tank
• Mount necessary parts onto the new clear water tank.
• Mount guide bar onto the bracket.
• Position the three screws and tighten them.
Adjustment
Tighten the screws with 20 Nm.
• Thread the wires into the clear water tank.
Service
Thread in the charger cable with the plug first and then the wires.
• Connect the wires to the electronics.
• Complete assembling according to the chapter MOUNTING OF
HANDLE COVER AND ELECTRONICS.
• Complete assembling according to chapter MOUNTING OF
CLEAR WATER TANK.
Ensure that the articulation is correctly mounted. For additional
information refer to chapter MOUNTING OF ARTICULATION OLD
SETUP OR NEW SETUP.
26. March 2013 Edition: V2.00/2013 5-38
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
5.6 Vacuum unit
5.6.1 Removing of vacuum motor
05.56.10 vacuum unit - vacuum motor - 350B_V1.00.fm
Picture 54: Vacuum motor
• Remove clear water tank assembly according to chapter
REMOVING OF CLEAR WATER TANK ASSEMBLY.
• Lift the vacuum motor (07/106) with seals out of the chassis.
• Disconnect vacuum motor wires at the connection block (05/
132).
Remarks
To get better access to the wiring you can remove the charger (05/
101). Just pull the charger towards you as it is only mounted on slides
without any fixation screw.
Also you can remove the connection block fixation screw (05/134).
• Remove angle hose (07/102).
• Remove cover, guiding ring and seals.
26. March 2013 Edition: V2.00/2013 5-39
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
5.6 Vacuum unit
5.6.2 Mounting of vacuum motor
• Position seals, guiding ring and cover correctly.
• Position the angle hose.
Remarks
The sequence of the seals, guiding ring and cover is described in the
spare parts list.
05.56.10 vacuum unit - vacuum motor - 350B_V1.00.fm
26. March 2013 Edition: V2.00/2013 5-40
Copyright © 2013, Diversey Inc.
Picture 55: Vacuum motor details
• Connect vacuum motor wires to connection block.
Remarks
If you removed the charger and connection block, please mount them
again.
• Position the assembled vacuum motor into the chassis.
• Complete assembling according to chapter MOUNTING OF
CLEAR WATER TANK ASSEMBLY.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
5.7 Brush & Motor
5.7.1 Removing of brush motor belt
05.58.10 brush & motor - brush motor belt - 350B_V1.00.fm
Picture 56: Brush and motor
• Remove tank cover complete (06/101).
• Remove recovery tank (06/121).
• Remove screw (08/107) for belt cover (08/106).
• Remove belt cover (08/106).
• Untighten the 3 fixation screws (08/108) of the brush motor
(08/112) with a 10mm fork spanner/nut.
• Remove the brush motor belt (08/110) as the tension is now
released.
Picture 57: Brush motor belt
26. March 2013 Edition: V2.00/2013 5-41
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
5.7 Brush & Motor
5.7.2 Mounting of brush motor belt
• Mount the brush motor belt.
• Tension the belt by lifting up the brush motor.
Remarks
You can lift up the brush motor with a screw driver. Place the screw
driver from the front side into the 12mm hole of the bracket (08/105).
• Tighten the brush motor fixation screws.
•Mount the belt cover.
05.58.10 brush & motor - brush motor belt - 350B_V1.00.fm
Ensure that the brush cover is positioned correctly as it has also the
function to prevent water to get inside.
• Mount the brush cover screw.
• Position the recovery tank.
• Position the cover complete.
26. March 2013 Edition: V2.00/2013 5-42
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
5.7 Brush & Motor
5.7.3 Removing of brush motor
05.58.12 brush & motor - brush motor - 350B_V1.00.fm
Picture 58: Brush motor
• Remove clear water tank assembly according to chapter
REMOVING OF CLEAR WATER TANK ASSEMBLY.
• Remove brush motor belt according to chapter REMOVING OF
BRUSH MOTOR BELT.
• Remove the 3 fixation screws (08/108) of the brush motor (08/
112).
• Disconnect brush motor wires at connection block (05/132).
Remarks
To get better access to the wiring you can remove the charger (05/
101). Just pull the charger towards you as it is only mounted on slides
without any fixation screw.
Also you can remove the connection block fixation screw (05/134).
• Remove brush motor (08/112).
26. March 2013 Edition: V2.00/2013 5-43
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
r
5.7 Brush & Motor
5.7.4 Mounting of brush motor
05.58.12 brush & motor - brush motor - 350B_V1.00.fm
Picture 59: Brush motor
• Mount the brush motor.
• Position the brush motor fixation screws.
• Connect brush motor wires at the connection block.
Remarks
If you removed the charger and connection block, please mount them
again.
• Complete assembling according to chapter MOUNTING OF
BRUSH MOTOR BELT.
• Complete assembling according to chapter MOUNTING OF
CLEAR WATER TANK ASSEMBLY.
26. March 2013 Edition: V2.00/2013 5-44
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
5.7 Brush & Motor
5.7.5 Removing of brush pulley
Picture 60: Brush pulley
05.58.14 brush & motor - brush pulley - 350B_V1.00.fm
• Remove brush motor belt according to chapter REMOVING OF
BRUSH MOTOR BELT.
• Remove handle (08/116) for brush holder (08/118).
• Remove brush holder (08/118).
• Remove brush (08/140).
• Remove the 3 self locking nuts (08/134) with a 10mm fork
spanner/nut.
• Remove the whole brush pulley assembly (08/131-135).
• According to what you need to exchange, remove the existing
parts from the brush pulley assembly and place it on the new
one.
26. March 2013 Edition: V2.00/2013 5-45
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
r
5.7 Brush & Motor
5.7.6 Mounting of brush pulley
Picture 61: Brush pulley
05.58.14 brush & motor - brush pulley - 350B_V1.00.fm
• Position the brush pulley assembly.
• Mount the 3 self locking nuts with a 10mm fork spanner/nut.
• Mount the brush.
• Mount the brush holder.
• Mount the handle for the brush holder.
• Complete assembling according to chapter MOUNTING OF
BRUSH MOTOR BELT.
26. March 2013 Edition: V2.00/2013 5-46
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
5.7 Brush & Motor
5.7.7 Adjusting of brush height
Picture 62: Adjusting brush height
• Remove handle (08/116) for brush holder (08/118).
• Remove brush holder.
• Remove the brush take up from the brush holder with a 8mm
fork spanner/nut.
The brush take up has a left hand thread.
Adjustment
You can vary the height by placing the special screw in the positions
1-6. This could be necessary if the brush is not touching the floor or
wearing uneven.
05.58.16 brush & motor - brush height adjustment - 350B_350E_V1.00.fm
Leaving the factory it is set to number 2.
• Mount the brush take up onto the special screw.
Service
Apply adhesive locking on the special screw.
• Mount the brush.
• Mount the brush holder.
• Mount the handle for the brush holder.
Remarks
You can only order the whole brush holder (08/118). The adjustment
is set to number 2.
26. March 2013 Edition: V2.00/2013 5-47
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
5.7 Brush & Motor
5.7.8 Removing of wiping blade
Picture 63: Wiping blade assembly
• Put machine into parking position with lever (05/116).
• Remove cover (08/127) for wiping blade.
Picture 64: Remove wiping blade cover
Remarks
Press the wiping blade with on hand down and release with your other
hand the latches on squeegee holder (08/129) and pull it towards you.
05.58.17 brush & motor - wiping blade - 350B_V1.00.fm
• Remove the wiping blade (08/128) by tearing it off of the
squeegee holder (08/129).
26. March 2013 Edition: V2.00/2013 5-48
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
5.7 Brush & Motor
5.7.9 Mounting of wiping blade
Picture 65: Wiping blade
• Position new wiping blade onto the pins.
Ensure that the blade is mounted correctly.
• Position cover for wiping blade and snap it on.
Picture 66: Mount wiping blade
Ensure that the cover for the wiping blade is mounted correctly.
05.58.17 brush & motor - wiping blade - 350B_V1.00.fm
26. March 2013 Edition: V2.00/2013 5-49
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
5.8 Filter
5.8.1 Removing of filter
Picture 67: Filter
• Remove clear water tank assembly according to chapter
REMOVING OF CLEAR WATER TANK ASSEMBLY.
Ensure that no water is in the fresh water system before you
disconnect the hoses.
• Remove filter cover (09/102) of filter.
• Remove fixation screws from chassis.
05.60.10 filter - filter - 350B_350E_V1.00.fm
Picture 68: Remove filter
• Disconnect the fresh water hoses (09/120&128).
• Thread out filter from the chassis (05/109).
• Remove complete filter.
26. March 2013 Edition: V2.00/2013 5-50
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
5.8 Filter
5.8.2 Mounting of filter
Picture 69: Filter alone
• Take new filter.
• Connect fresh water hoses to the filter.
• Thread the filter into the chassis.
• Position fixation screws an tighten them.
05.60.10 filter - filter - 350B_350E_V1.00.fm
Picture 70: Mount filter
• Position filter cover on the filter housing.
• Complete assembling according to chapter MOUNTING OF
CLEAR WATER TANK ASSEMBLY.
26. March 2013 Edition: V2.00/2013 5-51
Copyright © 2013, Diversey Inc.
Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
6 Electrical
26. March 2013 Edition: V2.00/2013
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
6.1 System architect
6.1.1 General
Remarks
The following instructions are for TASKI swingo 350B/455B as they
have the same electronics.
• The firmware is memorised only on the power electronics.
• The foil keyboard visualises the states of the machine. It also
functions as a connection between the power electronics and the
devices (e.g. vacuum motor and pump).
• Applying the correct torque where required is essential for a safe
operation of the machine.
• ESD can harm the electronic boards and therefore reduce the life
time of the machine. Use always an ESD bag to protect them.
6.1.2 System overview
06.10.10 system architecture - 350B_455B_V1.00.fm
Picture 1: System overview 350B
26. March 2013 Edition: V1.10/2013 6-1
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
Picture 2: System overview 455B
6.1.3 Start up/Self holding
The machine is switched ON by pressing the ON/OFF button for 3 seconds and feeds the
power electronics with power. The power electronics get power and it enables the processor to start and go into the self holding. The power electronics stays on as long as:
• It is not switched OFF by the ON/OFF button.
• The switch-off timer does not reach 5 minutes.
• The charger is not connected to main.
06.10.10 system architecture - 350B_455B_V1.00.fm
• The battery plug is connected to jack housing (350B:05/108,
455B:02/135).
6.1.4 Emergency loop
The machine has a separate emergency loop, which contains following elements:
• Charger (internal switch).
• Start up/Self holding.
26. March 2013 Edition: V1.10/2013 6-2
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
6.2 Dashboard
6.2.1 Removing of dashboard
Picture 3: Dashboard
• Remove handle cover according to chapter REMOVING OF
HANDLE COVER AND ELECTRONICS in the mechanics section.
• Remove the dashboard foil.
06.14.10 dashboard - 350B_V1.00.fm
26. March 2013 Edition: V2.00/2013 6-3
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
6.2 Dashboard
6.2.2 Mounting of dashboard
Picture 4: Dashboard
• Clean the surface where the dashboard will be placed.
• Position the new dashboard foil.
• Complete assembling according to the chapter MOUNTING OF
HANDLE COVER AND ELECTRONICS.
Ensure that the loop of the ribbon cable is positioned correctly and
does not touch the switcher levers.
06.14.10 dashboard - 350B_V1.00.fm
26. March 2013 Edition: V2.00/2013 6-4
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
6.2 Dashboard
6.2.3 Dashboard connections
06.14.30 dashboard - connections - 350B_V1.00.fm
Picture 5: Dashboard connections
26. March 2013 Edition: V2.00/2013 6-5
Copyright © 2013, Diversey Inc.
06.14.30 dashboard - connections - 350B_V1.00.fm
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
GTS Technical Manual
Pos. Plug Description [plug] Pin Description [pin]
1 Main power 1 Main power LED (+3.3VDC)
2 Dosing 2 Adjusting button (+)
3 Dosing ON/OFF 3 ON/OFF button
4 Dosing ON/OFF 4 ON/OFF LED (green)
5 Dosing 5 Level 3 LED (green)
6 Dosing 6 Level 2 LED (green)
7 Dosing 7 Level 1 LED (green)
8 Vacuum ON/OFF 8 ON/OFF button
9 Vacuum ON/OFF 9 ON/OFF LED (green)
10 Status battery 10 Level 2 LED (green)
11 Status battery ** 11 Level 1 LED (green) **
12 Status battery ** 12 Level 1 LED (red) **
13 Service 13 Service LED (red)
14 Machine ON/OFF 14 Machine ON/OFF (+24VDC)
15 Machine ON/OFF 15 Machine ON/OFF button
16 Machine Status 16 Machine ON/OFF LED (green)
17 Charger status 17 Charging LED (Yellow)
18 Charger status 18 Charged LED (green)
19 Charger status 19 Charge failed LED (red)
Table 1: Dashboard connector description
26. March 2013 Edition: V2.00/2013 6-6
Copyright © 2013, Diversey Inc.
06.14.30 dashboard - connections - 350B_V1.00.fm
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
GTS Technical Manual
Pos. Plug Description [plug] Pin Description [pin]
20 Charger 20 GND of charger
** = 1 LED with two colours LED (green and red)
Table 1: Dashboard connector description
26. March 2013 Edition: V2.00/2013 6-7
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
6.2 Dashboard
6.2.4 Reset service hour counter
The swingo 350B has no dashboard service functionality. There is one exception: reset
of the service hour counter.
To reset the service hour counter LED you have to perform the following steps:
Picture 6: Dashboard foil service LED reset
• Press the buttons ON/OFF and water level together.
• The machine will switch ON.
06.14.50 dashboard - reset service hour counter - 350B_V1.00.fm
Ensure that you keep the buttons pressed.
• Wait until the service LED has blinked twice.
• When service LED stays OFF the service hour counter is reset.
Remarks
You also can reset the service hour counter with the Service Tool
online. Please refer to the Service Tool Manual for this and additional
explanations.
26. March 2013 Edition: V2.00/2013 6-8
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
6.3 Electronics
6.3.1 Removing of electronics
06.18.17 electronics - 350B_455B_V1.01.fm
Picture 7: Electronics
• Remove handle cover according to chapter REMOVING OF
HANDLE COVER AND ELECTRONICS in the mechanics section.
• Disconnect the wires to the power electronics.
• Remove electronics (01/109).
26. March 2013 Edition: V2.00/2013 6-9
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
6.3 Electronics
6.3.2 Mounting of electronics
06.18.17 electronics - 350B_455B_V1.01.fm
Picture 8: Electronics
• Mount the electronics.
• Connect the wires to the power electronics.
• Complete assembling according to the chapter MOUNTING OF
HANDLE COVER AND ELECTRONICS.
Tighten the connectors with the correct torque. Refer to adjustment
or the spare parts list.
Adjustment
M5 screw with: 5.0Nm --> +24VDC, brush and vacuum motor.
M4 screw: 3.0Nm --> GND.
26. March 2013 Edition: V2.00/2013 6-10
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
6.3 Electronics
6.3.3 Electronics connections
06.18.27 electronics - connections - 350B_455B_V1.01.fm
Picture 9: Electronics connections
26. March 2013 Edition: V2.00/2013 6-11
Copyright © 2013, Diversey Inc.
06.18.27 electronics - connections - 350B_455B_V1.01.fm
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
GTS Technical Manual
Pos. Plug Description [plug] Pin Description [pin]
1 GND GND 1 GND
2 SM Vacuum motor 1 Vacuum motor
3 BM Brush motor 1 Brush motor
4+24+24VDC 1+24VDC
5 DV Dosing valve 1 350B: Not used / 455B: Filter +24VDC
5 DP Dosing pump 1 350B: Pump / 455B: Not used
6 BMS Charger communication 1 Charge (yellow)
6 BMS Charger communication 2 Charged (green)
6 BMS Charger communication 3 Failure (red)
6 BMS Charger communication 4 Immobiliser
6 BMS Charger communication 5 Immobiliser
6 BMS Charger communication 6 GND
7 Foot SW Foot switch 1 350B: Not used / 455B: Bridge
7 Foot SW Foot switch 1 350B: Not used / 455B: Bridge
7 Foot SW Foot switch 1 350B: Not used / 455B: Foot switch
7 Foot SW Foot switch 1 350B: Not used / 455B: Foot switch
7 Foot SW Foot switch 1 Not used
7 Foot SW Foot switch 1 Not used
8 Dashboard Ribbon cable Refer to chapter DASHBOARD CONNECTIONS
Table 2: Electronic connector description
26. March 2013 Edition: V2.00/2013 6-12
Copyright © 2013, Diversey Inc.
06.18.27 electronics - connections - 350B_455B_V1.01.fm
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
GTS Technical Manual
Pos. Plug Description [plug] Pin Description [pin]
9 USB Type B SMD (for Service Tool)
A Hall sensor Brush start
B Hall sensor 350B: Wiping blade
C Label software:
- Firmware version
- Boot version
D Label of electronics:
- Name of machine
- Hardware version
- Production number
- Production date
Table 2: Electronic connector description
26. March 2013 Edition: V2.00/2013 6-13
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
6.4 Charger
6.4.1 Removing of charger
06.20.10 charger - 350B_V1.00.fm
Picture 10: Charger
• Remove the 4 screws (06/112) for the battery cover (06/113).
Remarks
Disconnect the battery plug and unthread the charging mains.
• Remove battery cover (06/113).
• Remove the charger (05/101).
Remarks
Just pull the charger towards you as it is only mounted on slides
without any fixation screw.
• Remove the connection block fixation screw (05/134) for better
access to connection block.
• Disconnect the wires from connection block and the
communication plug.
26. March 2013 Edition: V2.00/2013 6-14
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
6.4 Charger
6.4.2 Mounting of charger
06.20.10 charger - 350B_V1.00.fm
Picture 11: Charger
• Mount the connection block with screw.
• Connect the wires and the communication plug.
•Mount the charger.
• Position battery cover.
• Mount the 4 screws for battery cover.
26. March 2013 Edition: V2.00/2013 6-15
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
6.4 Charger
6.4.3 Charger connections
06.20.20 charger - connections - 350B_V1.00.fm
Picture 12: Charger connections 1
Picture 13: Charger connections 2
26. March 2013 Edition: V2.00/2013 6-16
Copyright © 2013, Diversey Inc.
06.20.20 charger - connections - 350B_V1.00.fm
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
GTS Technical Manual
Pos. Plug Description [plug] Pin Description [pin]
1 1 Charger communication 1 Not connected/used
2 1 Charger communication 2 Not connected/used
3 1 Charger communication 3 Immobiliser
4 1 Charger communication 4 Immobiliser
5 1 Charger communication 5 GND
6 1 Charger communication 6 Failure (red)
7 1 Charger communication 7 Charge (yellow)
8 1 Charger communication 8 Charged (green)
9 Power supply Mains (connection block)
9 Power supply Mains (connection block)
10 For battery Red (+)
10 For battery Black (-)
11 Entry to dip switch Charging curve adjustment **
Table 3: Charger connector description
26. March 2013 Edition: V2.00/2013 6-17
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
6.5 Schematics
6.5.1 Battery connections
06.28.10 schematics - battery connection - 350B_V1.00.fm
Picture 14: Battery connection 12V
26. March 2013 Edition: V2.00/2013 6-18
Copyright © 2013, Diversey Inc.
GTS Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
6.5 Schematics
6.5.2 Electrical schematics
06.28.20 schematics - electrical schematics 350B_V1.00.fm
Picture 15: Electrical schematics
26. March 2013 Edition: V2.00/2013 6-19
Copyright © 2013, Diversey Inc.
Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
7 Additional information
26. March 2013 Edition: V2.00/2013
Copyright © 2013, Diversey Inc.
08.1 swingo 350B - additional information_V1.00.fm
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
GTS Technical Manual
7 Additional information
7.1 Available GTS Newsletter/Instructions
To find the up to date available GTS Newsletters and instructions refer to e-spares.
Newsletter Date of issue Machine Subassembly Topic/Modification Serial
number
2011/01 25.01.2011 TASKI swingo 350B, 755B,
855B, 1255B, 1650B,
1850B, XP
2011/03 04.02.2011 TASKI swingo 350, 450,
750, 755, 855, 1250,
1255, 1650, 1850
2011/12 15.06.2011 TASKI swingo 350B Electronic Firmware update Version 2.12 for
2011/14 29.06.2011 TASKI swingo 350B Charger Update on charger 4218
2012/16 13.06.2012 TASKI swingo 350B, 455B Electronic Compatibility of electronic TASKI
2012/28 05.12.2012 TASKI swingo 350B Guide bar / Articulation New articulation 6784
2012/29 05.12.2012 TASKI swingo 350B Lever Harmonization of the lever to oper-
Table 1: Newsletters/Instructions
26. March 2013 Edition: V2.00/2013 7-1
Copyright © 2013, Diversey Inc.
Service tool Service Tool Update Version 4.04 -
Upper part Float modification 2112
4000
„One Button Operation“
swingo 350B and 455B
ate the front blade
NA: 3300
-
6784
08.1 swingo 350B - additional information_V1.00.fm
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
GTS Technical Manual
Newsletter Date of issue Machine Subassembly Topic/Modification Serial
number
2012/30 17.12.2012 TASKI swingo 350, 455,
755, 760 855, 1255, 1260,
1650, 1850, XP, 4000,
5000
2013/01 13.02.2013 TASKI swingo 350B, 455B Electronic Firmware update version 2.34 7287
Table 1: Newsletters/Instructions
Service Tool Service Tool Update Version 6.04 -
26. March 2013 Edition: V2.00/2013 7-2
Copyright © 2013, Diversey Inc.
Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
8 Revision
26. March 2013 Edition: V2.00/2013
Copyright © 2013, Diversey Inc.
09.1 swingo 350B - revision_V1.00.fm
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
GTS Technical Manual
8 Revision
Date Chapter Content Description Revision
08.05.2011 All All Adjustment to series machine V1.10
10.01.2013 All The whole book Complete new concept and template V2.00
10.01.2013 Mechanical/
Electrical
10.01.2013 Additional information
Table 1: Revision
Harmonization work on chapters and pictures V2.00
GTS Newsletter/Instruction Added GTS Newsletter/Instruction V2.00
26. March 2013 Edition: V2.00/2013 8-1
Copyright © 2013, Diversey Inc.
Technical Manual
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
9 Appendix
26. March 2013 Edition: V2.00/2013
Copyright © 2013, Diversey Inc.
Loading...
