Spare parts list
swingo
2100µicro
Edition: V1.02/2016

Table of contents
TASKI swingo 2100µicro 3
Base compl 4
Lower part 5
Steering unit (4131239) 10
Drive unit 12
Encoder kpl 14
Pedals 16
Brush lowering unit compl (4131396) 18
Lever offset 20
Pulley (4131701) 22
Brush drive compl (4131391) 24
Lever 28
Deflector 30
Squeegee compl (4131472) 32
Squeegee compl 34
Pump 36
Electrical parts 38
Lowering unit 40
Charger 42
Front Cover kpl. 44
Magnetic valve 24V compl (4126924) 46
Wire 25 mm² 4 AWG black (4084170) 48
Guidance 50
Control board set (4132163) 52
Height adjustment 54
Hub (4131512) 56
Water connection (8502830) 58
Tank 60
Suction hose (4131485) 62
Upper part, Tank 64
Seat 66
Driver seat 68
Electrical diagram 70
Page 2 / 71 07.11.2016
Edition: V1.02/2016

TASKI swingo 2100µicro
Article no. Description Quantity Unit
Base compl
4130800 Key 1 PC
4121560 Key ring 1 PC
Electrical diagram
Page 3 / 71 07.11.2016
Edition: V1.02/2016

Base compl
Article no. Description Quantity Unit
Lower part
4084170 Wire 25 mm² 4 AWG black 3 PC
4131985 Foam insert 1 PC
Guidance

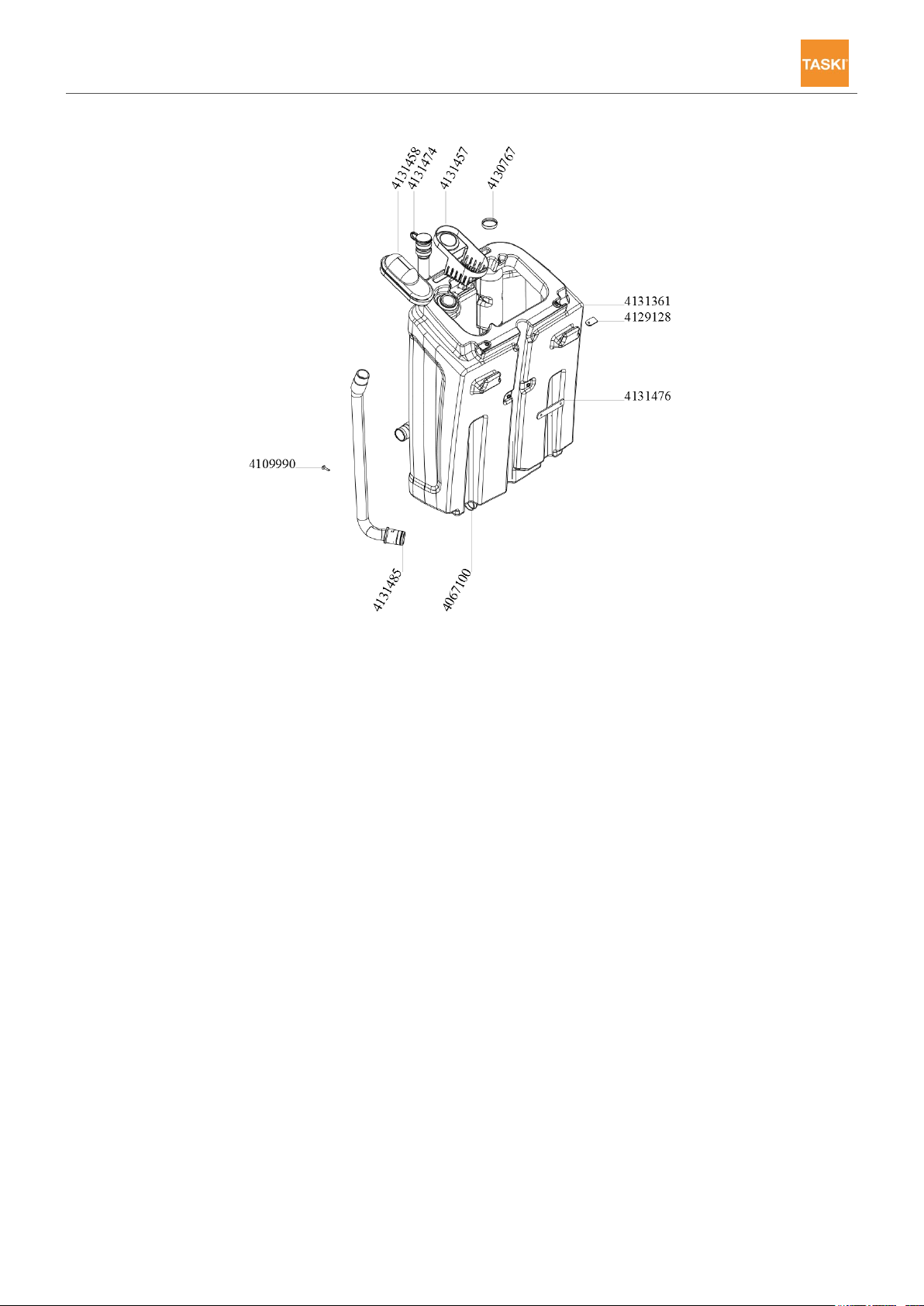

Tank
4109990 Screw delta PT Torx 60x25 6 PC
Upper part, Tank
Seat
Page 4 / 71 07.11.2016
Edition: V1.02/2016

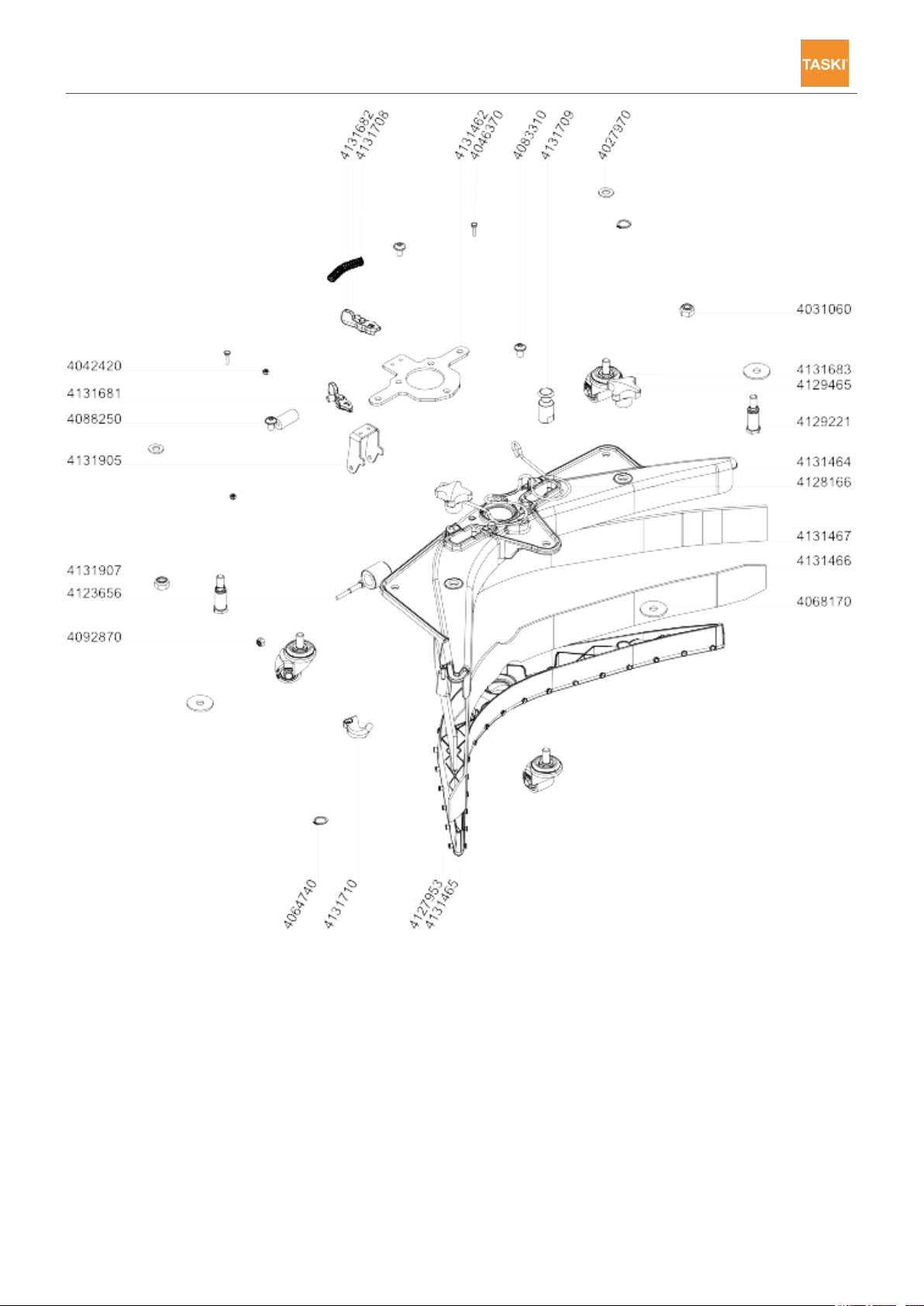

Lower part
Page 5 / 71 07.11.2016
Edition: V1.02/2016

Lower part
Article no. Description Quantity Unit used for
4131386 Chassis 1 PC
4131239 Steering unit 1 PC
4027970 Washer 10,5/20x2 4 PC
4031060 Self-locking nut M10 4 PC
4006520 Socket head cap screw
M6x30
4007470 Washer 6,4/12x1,6 2 PC
Drive unit
4006060 Hexagon screw M8x20 8 PC
4017370 Adhesive locking middle 1 PC
4131238 Drive wheel 250/60 grey 2 PC Standard
4131703 Drive wheel 250/70 brown 2 PC Option
4131704 Drive wheel 250/70 red 2 PC Option
4131540 Disc 2 PC
4007780 Spring lock washer 8,1 6 PC
4064840 Hexagon screw M8x25 6 PC
4131503 Sensor 1 PC
4027220 Raised cheese hd.screw
M3x10
2 PC
2 PC
4122950 Thread form screw torx
M4x10
4007330 Self-locking nut M4 2 PC
4017370 Adhesive locking middle 1 PC
4131455 Holder 1 PC
4122950 Thread form screw torx
M4x10
4122150 Grommet 28 8 PC
4131862 Roller chain
3/8"x7/32"-61
4122221 Chain joint 3/8"x7/32" 1 PC
4122143 Chain wheel T8 1 PC
4122131 Extensible pin 5x24 1 PC
4131371 Support 1 PC
4065230 Hexagon screw M8x16 4 PC
4131484 Rod 1 PC
2 PC
2 PC
1 PC
4129246 Slide bearing 20/23/30x7 2 PC
Page 6 / 71 07.11.2016
Edition: V1.02/2016

Lower part
Article no. Description Quantity Unit used for
4023470 Retaining ring 20 A 1 PC
4064780 Washer 20/32x0,5 2 PC
4122117 Cardan joint 17 1 PC
4069420 Hexagon screw M8x35 2 PC
4007340 Self-locking nut M8 2 PC
Pedals
4006430 Socket head cap screw
M6x12
4131396 Brush lowering unit compl
4006530 Socket head cap screw
M8x20
4023860 Hexagon nut M5 4 PC
4131391 Brush drive compl 1 PC
4122480 Socket head cap screw
M8x20
4039680 Lubricant synsetral 53B
1000gr
4131472 Squeegee compl 1 PC Masch. no: 1998 / 10.
Squeegee compl 1 PC ==> Masch. no: 1997 /
4131479 Flexible hose 34/39 compl 1 PC
4130883 Hose socket 1 PC
3 PC
4 PC
3 PC
1 PC
2016 ==>
10. 2016
4131498 Hose socket 1 PC
4030840 Hexagon screw M6x16 3 PC
4019790 Washer 6,4/20x1,5 3 PC
4017370 Adhesive locking middle 1 PC
Pump
4129073 Raised cheese hd.screw
M6x16
4028450 Hose clamp 11-16 2 PC
4028450 Hose clamp 11-16 1 PC
4122308 Hose clamp 14,5-16 2 PC
4131362 Platform 1 PC
4110070 Washer 8,4/25x2 4 PC
4006100 Hexagon screw M8x40/22 2 PC
4055130 Hexagon screw M8x30 1 PC
1 PC
Page 7 / 71 07.11.2016
Edition: V1.02/2016

Lower part
Article no. Description Quantity Unit used for
4006060 Hexagon screw M8x20 1 PC
4131414 Support 2 PC
4110070 Washer 8,4/25x2 4 PC
4006530 Socket head cap screw
M8x20
4131868 Plug 21 2 PC
Electrical parts
4006530 Socket head cap screw
M8x20
4131555 Anti slip mat 1 PC
4129843 Hose NW 23 PA 0,850 M
4129843 Hose NW 23 PA 0,440 M
Front Cover kpl.
4110070 Washer 8,4/25x2 4 PC
4069420 Hexagon screw M8x35 2 PC
4131868 Plug 21 2 PC
4016140 Hexagon screw M8x70/22 2 PC
4007340 Self-locking nut M8 2 PC
4 PC
4 PC
4131687 Cover 1 PC
4131686 Cover 1 PC
4087930 Screw delta PT Torx
60x16
4131666 Cover 1 PC
4129073 Raised cheese hd.screw
M6x16
4047420 Connection bloc 2-ways
2,5 mm²
4067140 Raised cheese hd.screw
M3x16
4017370 Adhesive locking middle 1 PC
4108420 Connection bloc 2-ways
10 mm²
4079170 Socket head cap screw
M4x20
4017370 Adhesive locking middle 1 PC
2 PC
2 PC
1 PC
1 PC
1 PC
1 PC
4131671 Cover 1 PC
4129073 Raised cheese hd.screw
M6x16
Page 8 / 71 07.11.2016
Edition: V1.02/2016
4 PC

Lower part
Article no. Description Quantity Unit used for
4023260 Cable tie 200 24 PC
Page 9 / 71 07.11.2016
Edition: V1.02/2016

Steering unit (4131239)
Page 10 / 71 07.11.2016
Edition: V1.02/2016

Steering unit (4131239)
Article no. Description Quantity Unit used for
4122500 Wheel 200/50 2 PC Standard
4131705 Wheel 200/50 brown 2 PC Option
4131706 Wheel 200/50 red 2 PC Option
Page 11 / 71 07.11.2016
Edition: V1.02/2016

Drive unit
Page 12 / 71 07.11.2016
Edition: V1.02/2016

Drive unit
Article no. Description Quantity Unit
4131237 Drive unit compl 1 PC
4132164 Brake set 1 PC
4131543 Magnet compl 1 PC
Encoder kpl
4007440 Washer 4,3/ 9x0,8 3 PC
4006410 Socket head cap screw M4x10 3 PC
4017370 Adhesive locking middle 1 PC
Page 13 / 71 07.11.2016
Edition: V1.02/2016

Encoder kpl
Page 14 / 71 07.11.2016
Edition: V1.02/2016

Encoder kpl
Article no. Description Quantity Unit
4131524 Housing 1 PC
4131514 Rotary encoder 1 PC
4131525 Cover 1 PC
4062760 Screw for plastic KA30x8 3 PC
Page 15 / 71 07.11.2016
Edition: V1.02/2016

Pedals
Page 16 / 71 07.11.2016
Edition: V1.02/2016

Pedals
Article no. Description Quantity Unit
4131522 Pedal 1 PC
4131521 Support 1 PC
4131528 Axle 1 PC
4131527 Axle 1 PC
4129246 Slide bearing 20/23/30x7 2 PC
4129039 Torsion spring 2 PC
4131509 Sensor 1 PC
4027220 Raised cheese hd.screw M3x10 2 PC
4131523 Bush 4,2/7,5x14 2 PC
4007440 Washer 4,3/ 9x0,8 2 PC
4079170 Socket head cap screw M4x20 3 PC
4042640 Socket head cap screw M8x30 1 PC
4021120 Microswitch 1 PC
4067140 Raised cheese hd.screw M3x16 2 PC
4131678 Bush 12,5/20x38 2 PC
4017370 Adhesive locking middle 1 PC
Page 17 / 71 07.11.2016
Edition: V1.02/2016

Brush lowering unit compl (4131396)
Page 18 / 71 07.11.2016
Edition: V1.02/2016

Brush lowering unit compl (4131396)
Article no. Description Quantity Unit
4131399 Holder 1 PC
4131403 Holder 1 PC
4127359 Slide bearing 16/18/24x6 8 PC
4131408 Support 1 PC
4129011 Flange bolt 4 PC
4013340 Retaining washer 12 8 PC
4131397 Lever 2 PC
Lever offset
4019410 Socket head cap screw M5x8 5 PC
4017370 Adhesive locking middle 1 PC
4131412 Flange bolt 1 PC
4006050 Hexagon screw M6x20 1 PC
4017370 Adhesive locking middle 1 PC
4127185 Linear drive 24V 50mm 1 PC
4131884 Wire harness 1 PC
4058370 Retaining washer 6 3 PC
4127022 Bolt 1 PC
4028230 Hexagon screw M8x45 1 PC
4131406 Flange bolt 1 PC
4131649 Pressure spring 1 PC
4131425 Metal rope compl 2 PC
4131744 Pulley 2 PC
4130234 Flanged bush spec 2 PC
4065050 Socket head cap screw M8x12 2 PC
4131405 Plate 1 PC
4131567 Wire harness 1 PC
4023260 Cable tie 200 5 PC
4065050 Socket head cap screw M8x12 1 PC
4017370 Adhesive locking middle 1 PC
Page 19 / 71 07.11.2016
Edition: V1.02/2016

Lever offset
Page 20 / 71 07.11.2016
Edition: V1.02/2016

Lever offset
Article no. Description Quantity Unit
4131750 Lever 1 PC
4022420 Ball bearing 6005 2RS 4 PC
4131422 Lever 1 PC
4039680 Lubricant synsetral 53B 1000gr 1 PC
4126534 Bolt 1 PC
4026220 Retaining washer 7 2 PC
4131419 Flange bolt 1 PC
4131727 Disc spring 17,3/27,7x0,4 3 PC
4131701 Pulley 1 PC
4131717 Flange bolt 1 PC
4017370 Adhesive locking middle 1 PC
4131416 Cover 1 PC
4131420 Disc 1 PC
4049610 Socket head cap screw M8x55/28 1 PC
4017370 Adhesive locking middle 1 PC
4131700 Pulley 1 PC
4131411 Clamping part 1 PC
4007340 Self-locking nut M8 1 PC
4131413 Metal rope 3 x 385 2 PC
4131394 Support 1 PC
4006410 Socket head cap screw M4x10 2 PC
4131721 Clamp 1 PC
4006410 Socket head cap screw M4x10 1 PC
4017370 Adhesive locking middle 1 PC
4131719 Double nipple 10 2 PC
4122651 Retaining ring 12 A 2 PC
Page 21 / 71 07.11.2016
Edition: V1.02/2016

Pulley (4131701)
Page 22 / 71 07.11.2016
Edition: V1.02/2016

Pulley (4131701)
Article no. Description Quantity Unit
4031030 Ball bearing SS 6003 2RS 2 PC
Page 23 / 71 07.11.2016
Edition: V1.02/2016

Brush drive compl (4131391)
Page 24 / 71 07.11.2016
Edition: V1.02/2016

Brush drive compl (4131391)
Article no. Description Quantity Unit
4131389 Brush base plate 1 PC
4109900 Support 2 PC
4065050 Socket head cap screw M8x12 6 PC
4123215 Gasket 2 PC
4039680 Lubricant synsetral 53B 1000gr 1 PC
4122763 Flat belt pulley 133 2 PC
4008690 Retaining ring 25 A 2 PC
4122440 Gasket 2 PC
4122648 Brush coupling 2 PC
4122649 Flanged bush spec 2 PC
4129898 Roll 40 compl 1 PC
4129900 Roll 40 compl 1 PC
4131869 Counters. hd.cap screw M8x16 2 PC
Lever
4109880 Flanged bush spec 1 PC
4042650 Socket head cap screw M8x25 1 PC
4017370 Adhesive locking middle 1 PC
4130242 Flange bolt 1 PC
4130258 Pressure spring 1 PC
4106990 Hexagon screw M8x50 1 PC
4039680 Lubricant synsetral 53B 1000gr 1 PC
4007200 Hexagon nut M8 1 PC
4131254 Motor 24V 400W 20A 1 PC
4030840 Hexagon screw M6x16 4 PC
4017370 Adhesive locking middle 1 PC
4131460 Poly-V pulley 1 PC
4083980 Hexagon nut M12 Left 1 PC
4017370 Adhesive locking middle 1 PC
4129296 Poly-V-belt 10 PJ 1549 1 PC
4131400 Support 1 PC
4126535 Slide bearing 8/10/15x5,5 4 PC
4128233 Bolt 1 PC
4058370 Retaining washer 6 2 PC
4006420 Socket head cap screw M6x10 2 PC
Page 25 / 71 07.11.2016
Edition: V1.02/2016

Brush drive compl (4131391)
Article no. Description Quantity Unit
4131728 Pressure spring 1 PC
4131535 Cover 1 PC
4083310 Flange sock.head screw M8x12 6 PC
4131393 Holder 1 PC
4039680 Lubricant synsetral 53B 1000gr 1 PC
4065050 Socket head cap screw M8x12 2 PC
4131392 Plate 1 PC
4131390 Plate 1 PC
4127926 Cover 1 PC
4127376 Bolt 2 PC
4060910 Retaining washer 8 4 PC
4127881 Tension spring 2 PC
4131729 Lever 1 PC
4008630 Disc spring 10,2/20x1,1 1 PC
4131730 Bolt 1 PC
4007490 Washer 6,4/18x1,6 1 PC
4006420 Socket head cap screw M6x10 3 PC
4017370 Adhesive locking middle 1 PC
Deflector
4023420 Socket head cap screw M8x16 3 PC
4123205 Angle flange 2 PC
4128807 Check valve 2 PC
4131721 Clamp 1 PC
4122950 Thread form screw torx M4x10 1 PC
4023260 Cable tie 200 1 PC
4130408 Connection bloc 2-ways 6 mm² 1 PC
4131787 Holder 1 PC
4006420 Socket head cap screw M6x10 1 PC
4079170 Socket head cap screw M4x20 1 PC
4017370 Adhesive locking middle 1 PC
4131536 Brush housing 1 PC
4131699 Brush housing 1 PC
4083310 Flange sock.head screw M8x12 6 PC
4131741 Brush housing 1 PC
Page 26 / 71 07.11.2016
Edition: V1.02/2016

Brush drive compl (4131391)
Article no. Description Quantity Unit
4083310 Flange sock.head screw M8x12 2 PC
4008340 Handle ball 28 1 PC
4065230 Hexagon screw M8x16 1 PC
4017370 Adhesive locking middle 1 PC
4042370 Washer 8,4/21x4 1 PC
4023420 Socket head cap screw M8x16 1 PC
4005380 Hose 10/14 PVC 0,880 M
4005380 Hose 10/14 PVC 0,510 M
Page 27 / 71 07.11.2016
Edition: V1.02/2016

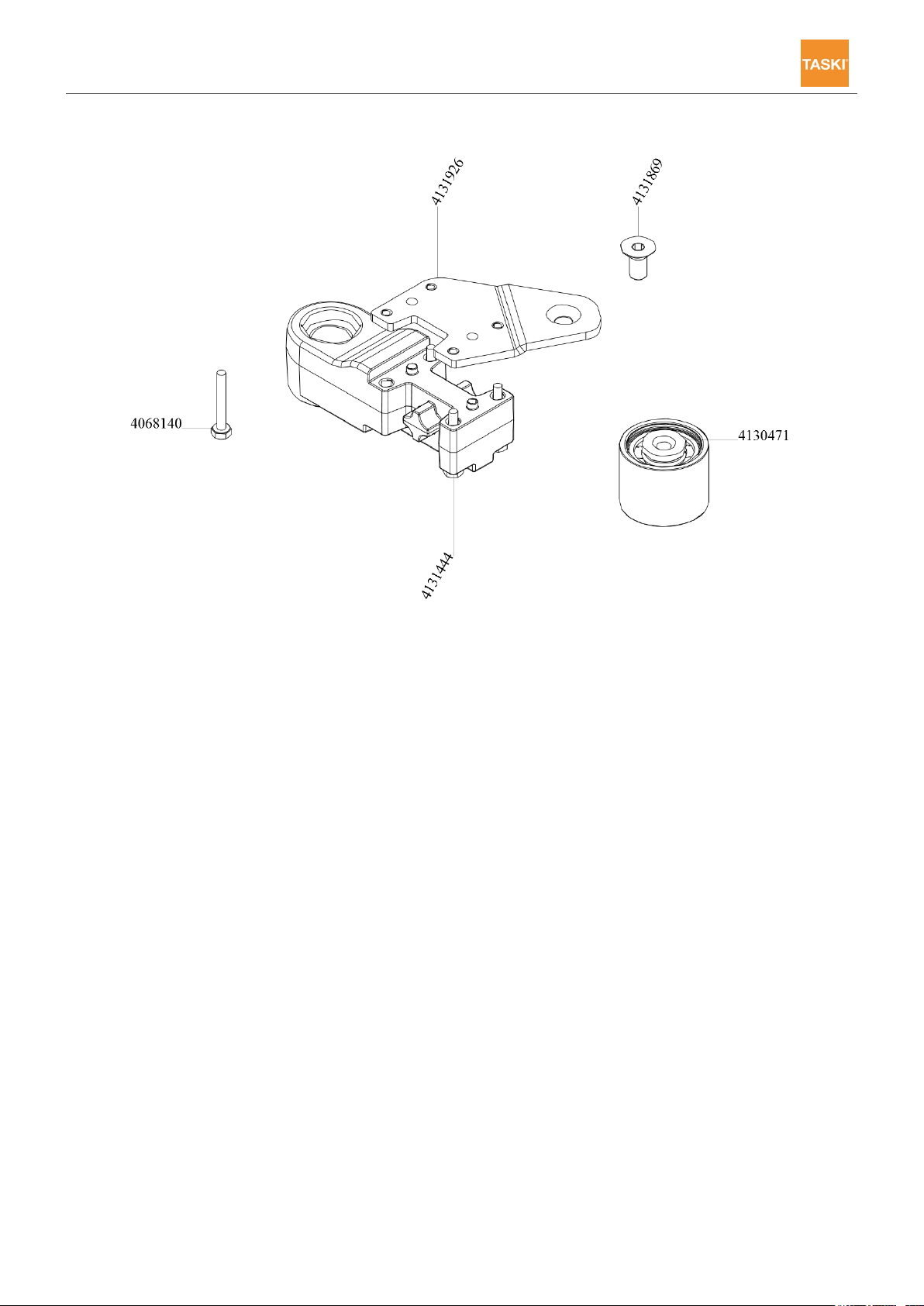

Lever
Page 28 / 71 07.11.2016
Edition: V1.02/2016

Lever
Article no. Description Quantity Unit
4131444 Lever 1 PC
4131926 Plate 1 PC
4130471 Roll 40 compl 1 PC
4131869 Counters. hd.cap screw M8x16 2 PC
4017370 Adhesive locking middle 1 PC
4068140 Hexagon screw M5x30 4 PC
4017370 Adhesive locking middle 1 PC
Page 29 / 71 07.11.2016
Edition: V1.02/2016

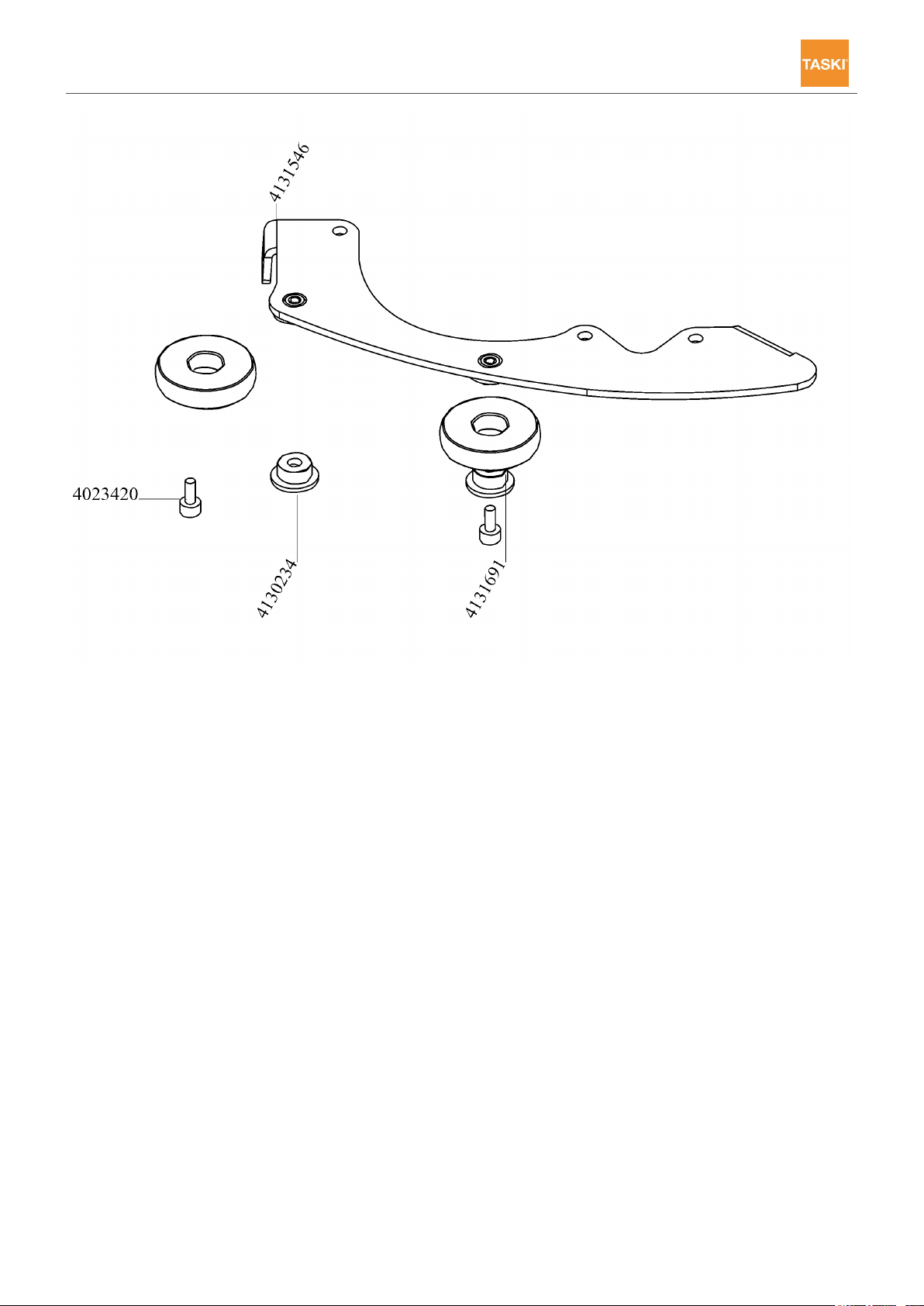

Deflector
Page 30 / 71 07.11.2016
Edition: V1.02/2016

Deflector
Article no. Description Quantity Unit
4131546 Holder 1 PC
4131691 Roll 64 2 PC
4130234 Flanged bush spec 2 PC
4023420 Socket head cap screw M8x16 2 PC
4017370 Adhesive locking middle 1 PC
Page 31 / 71 07.11.2016
Edition: V1.02/2016

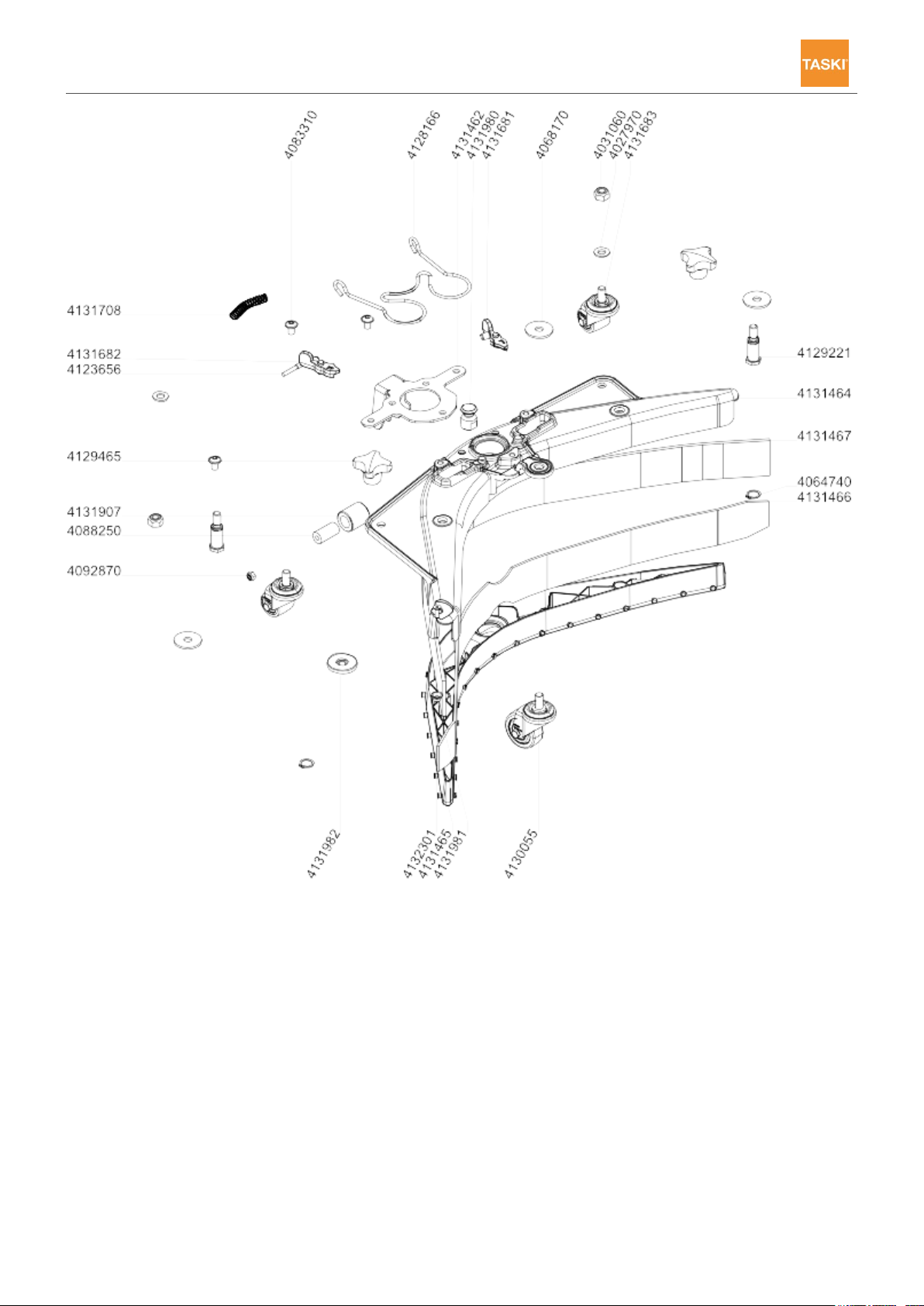

Squeegee compl (4131472)
Page 32 / 71 07.11.2016
Edition: V1.02/2016

Squeegee compl (4131472)
Article no. Description Quantity Unit
4131464 Squeegee body 1 PC
4131465 Clamping part 1 PC
4131466 Blade 54/3x760 1 PC
4131467 Blade 54/4,5x830 1 PC
4131462 Holder 1 PC
4083310 Flange sock.head screw M8x12 3 PC
4128166 Wire spring 1 PC
4129465 Star knob M10 2 PC
4129221 Hexagon screw M10 spec 2 PC
4064740 Retaining ring 15 A 2 PC
4131683 Castor compl 35/70 2 PC
4130055 Castor compl 50/20 1 PC
4027970 Washer 10,5/20x2 2 PC
4031060 Self-locking nut M10 2 PC
4131681 Lever 1 PC
4131682 Lever 1 PC
4131981 Axle 1 PC
4131982 Guiding castor 1 PC
4132301 Counters. hd.cap screw M5x16 1 PC
4068170 Washer 10,5/35x2,5 3 PC
4131708 Pressure spring 1 PC
4131980 Bolt 1 PC
4017370 Adhesive locking middle 1 PC
4088250 Bush 6,4/16x32 1 PC
4131907 Roll 29 1 PC
4123656 Socket head cap screw M6x45/24 1 PC
4092870 Self-locking nut M6 1 PC
Page 33 / 71 07.11.2016
Edition: V1.02/2016

Squeegee compl
Page 34 / 71 07.11.2016
Edition: V1.02/2016

Squeegee compl
Article no. Description Quantity Unit
4131464 Squeegee body 1 PC
4131465 Clamping part 1 PC
4131466 Blade 54/3x760 1 PC
4131467 Blade 54/4,5x830 1 PC
4131462 Holder 1 PC
4083310 Flange sock.head screw M8x12 3 PC
4128166 Wire spring 1 PC
4129465 Star knob M10 2 PC
4129221 Hexagon screw M10 spec 2 PC
4064740 Retaining ring 15 A 2 PC
4131683 Castor compl 35/70 3 PC
4027970 Washer 10,5/20x2 2 PC
4031060 Self-locking nut M10 2 PC
4131681 Lever 1 PC
4131682 Lever 1 PC
4131710 Protection shield 1 PC
4127953 Counters. head screw torx M5x20 1 PC
4068170 Washer 10,5/35x2,5 3 PC
4131708 Pressure spring 1 PC
4131709 Bolt 1 PC
4017370 Adhesive locking middle 1 PC
4131905 Holder 1 PC
4046370 Hexagon screw M4x16 2 PC
4042420 Self-locking nut M4 2 PC
4088250 Bush 6,4/16x32 1 PC
4131907 Roll 29 1 PC
4123656 Socket head cap screw M6x45/24 1 PC
4092870 Self-locking nut M6 1 PC
Page 35 / 71 07.11.2016
Edition: V1.02/2016

Pump
Page 36 / 71 07.11.2016
Edition: V1.02/2016

Pump
Article no. Description Quantity Unit
4123169 Pump 24V 25W 2 PC
4131480 Holder 1 PC
4028460 Hose with wire 10/16 PVC 0,300 M
4028460 Hose with wire 10/16 PVC 0,340 M
4131757 Housing compl 1 PC
4103370 Hose 9/16 tygon 0,085 M
4103370 Hose 9/16 tygon 0,085 M
4053660 Hose with wire 12/18 PVC 0,200 M
4028450 Hose clamp 11-16 1 PC
4122625 Hose 5/9 PVC 1,4 M
4066380 Check valve 1 PC
4122625 Hose 5/9 PVC 0,040 M
4066380 Check valve 1 PC
4122625 Hose 5/9 PVC 0,040 M
4127917 Quick connector 4-6 1 PC
67216 yethylene 4mm 0,800 M
4130851 Bolt 1 PC
Page 37 / 71 07.11.2016
Edition: V1.02/2016

Electrical parts
Page 38 / 71 07.11.2016
Edition: V1.02/2016

Electrical parts
Article no. Description Quantity Unit used for
4131385 Support 1 PC
4131532 Electronics 1 PC
4122523 Socket head cap screw
M5x16
4127063 Relay 24V 1 PC
4006430 Socket head cap screw
M6x12
4019790 Washer 6,4/20x1,5 2 PC
4092870 Self-locking nut M6 2 PC
4130884 Relay 24V 1 PC
4007400 Washer 8,4/16x1,6 4 PC
4019790 Washer 6,4/20x1,5 2 PC
4006430 Socket head cap screw
M6x12
4122973 Horn 1 PC
Lowering unit
4006430 Socket head cap screw
M6x12
4 PC
2 PC
6 PC
4 PC
4122150 Grommet 28 1 PC
4131908 Cable protection 1 PC
4130009 Bumper profile 2,8-3,2 0,205 M
4130009 Bumper profile 2,8-3,2 0,17 M
4131542 Support 1 PC 7523409, 7523418
4131559 Cable 1 PC 7523409, 7523418
4128119 Lever 1 PC 7523409, 7523418
4131299 Raised cheese hd.screw
M3x25
4017370 Adhesive locking middle 1 PC 7523409, 7523418
Charger 7523419, 7523420,
4043320 Charger jack 50A 1 PC
4023260 Cable tie 200 10 PC
2 PC 7523409, 7523418
7523421, 7523422,
7523423, 7523424,
7523492
Page 39 / 71 07.11.2016
Edition: V1.02/2016

Lowering unit
Page 40 / 71 07.11.2016
Edition: V1.02/2016

Lowering unit
Article no. Description Quantity Unit
4131427 Holder 1 PC
4129349 Slide bearing 10/12/18x7 2 PC
4131714 Cradle 1 PC
4131715 Cradle 1 PC
4126535 Slide bearing 8/10/15x5,5 2 PC
4131909 Disc 2 PC
4058370 Retaining washer 6 4 PC
4132030 Linear drive 24V 100mm 1 PC
4131430 Bolt 1 PC
4131407 Bush 8,2/12x15 2 PC
4127022 Bolt 1 PC
4058370 Retaining washer 6 2 PC
Page 41 / 71 07.11.2016
Edition: V1.02/2016

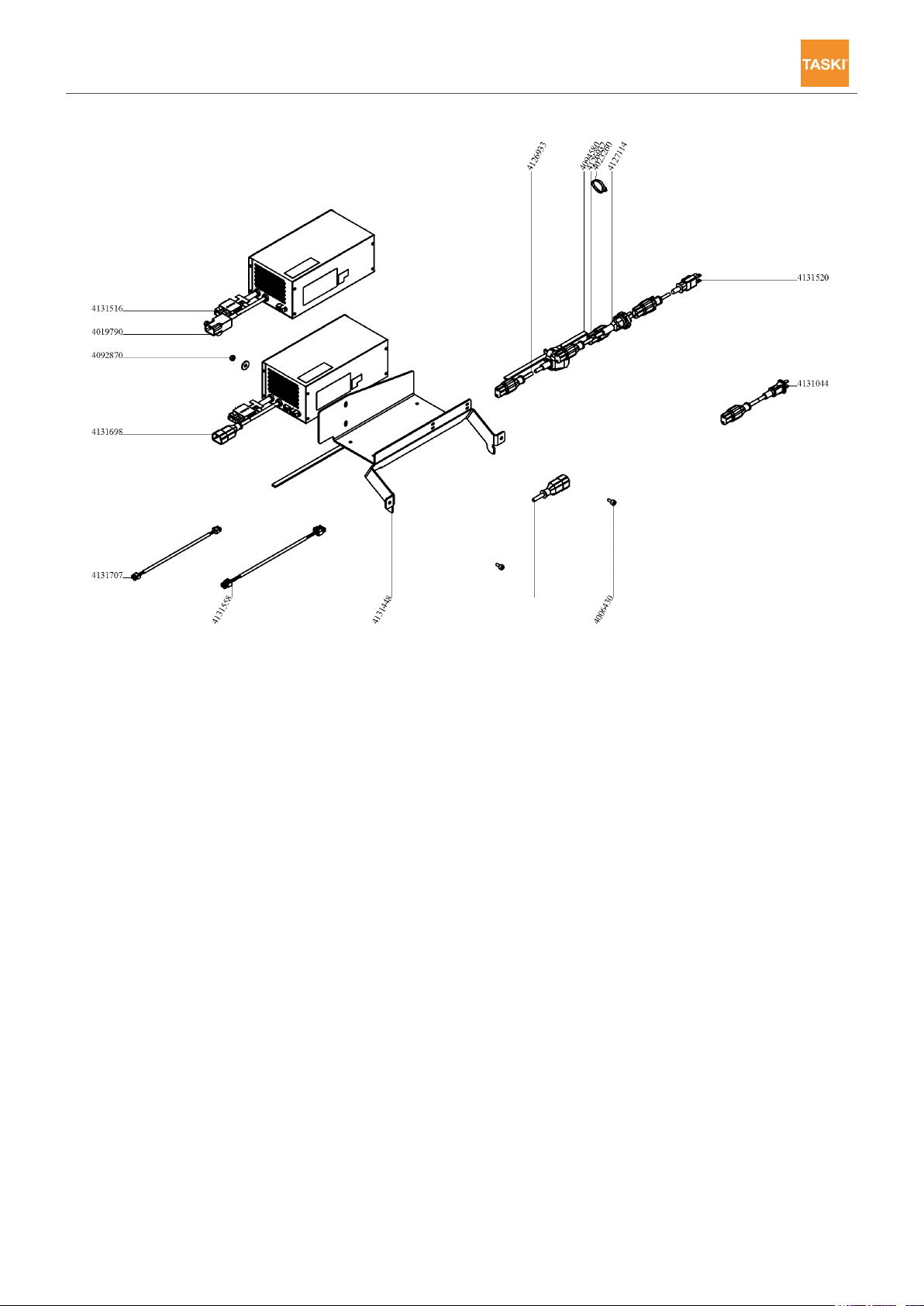

Charger
Page 42 / 71 07.11.2016
Edition: V1.02/2016

Charger
Article no. Description Quantity Unit used for
4131698 Charger 24V 25A CL2
220-240V
4131448 Holder 1 PC
4019790 Washer 6,4/20x1,5 2 PC
4092870 Self-locking nut M6 2 PC
4006430 Socket head cap screw
M6x12
4094580 Sealing strip 10x5 0,240 M
4094580 Sealing strip 10x5 0,240 M
4023260 Cable tie 200 2 PC
4131707 Cable 1 PC
4127114 Main cord 2L SEA 1 PC 7523419 - TASKI swingo
4126932 Main cord 2L EURO 1 PC 7523420, 7523421
4126933 Main cord 2L UK 1 PC 7523422, 7523423
1 PC 7523419, 7523420,
7523421, 7523422,
7523423, 7523424
2 PC
2100µicro BMS SEV
4131044 Main cord 2L CN 1 PC 7523424 - TASKI swingo
2100µicro BMS CN
seafreight
4131520 Main cord 2L+P NA 1 PC 7523492 - TASKI swingo
2100µicro BMS NA
seafreight
4023260 Cable tie 200 4 PC
Page 43 / 71 07.11.2016
Edition: V1.02/2016

Front Cover kpl.
Page 44 / 71 07.11.2016
Edition: V1.02/2016

Front Cover kpl.
Article no. Description Quantity Unit
4131665 Cover 2 PC
4131265 LED strap 1 PC
4131881 Cover 1 PC
4127073 Screw delta PT Torx 50x20 2 PC
4126924 Magnetic valve 24V compl 1 PC
4062780 Screw delta PT Torx 40x25 2 PC
4053660 Hose with wire 12/18 PVC 0,180 M
4131482 Protection shield 2 PC
4109990 Screw delta PT Torx 60x25 4 PC
Page 45 / 71 07.11.2016
Edition: V1.02/2016

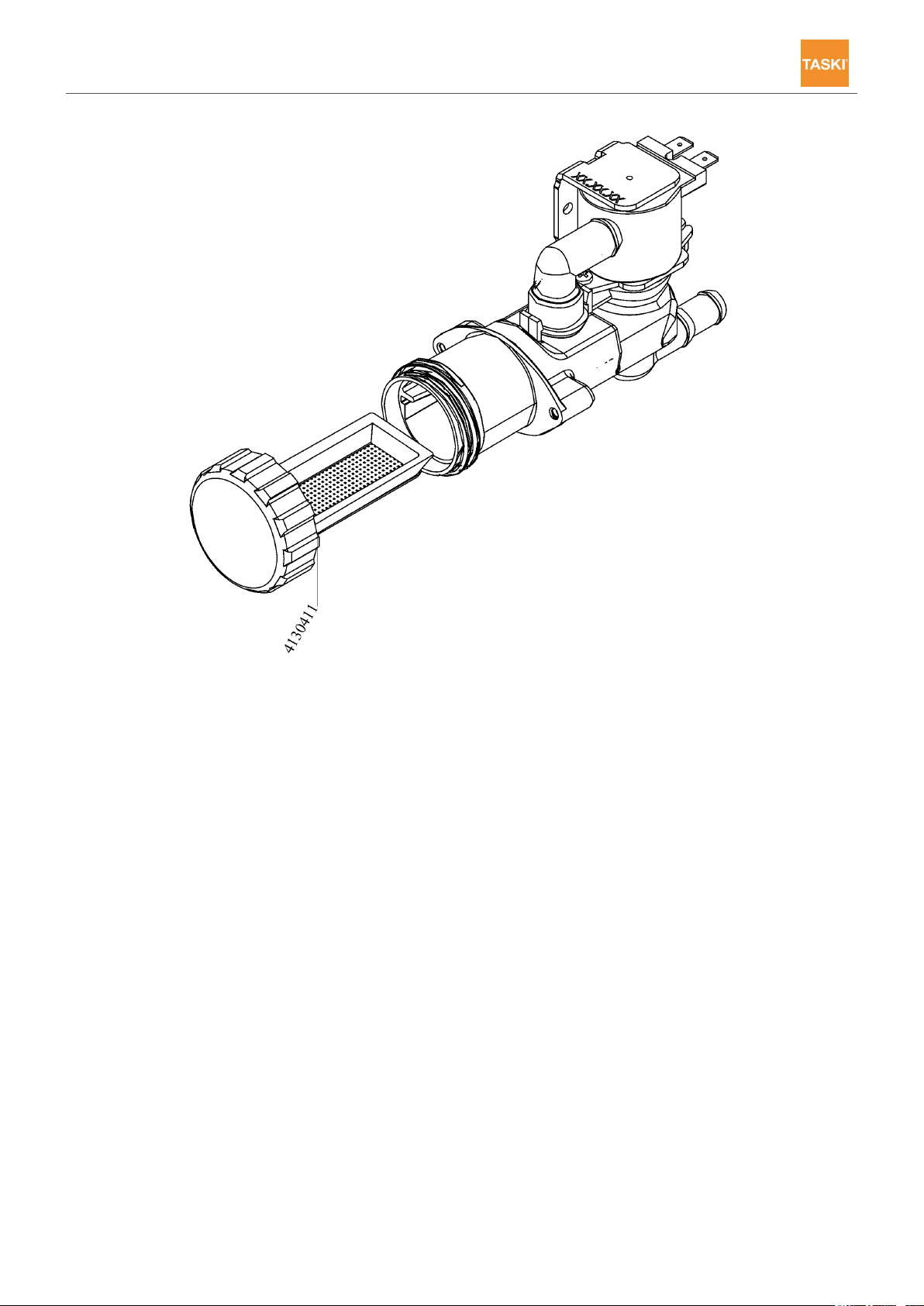

Magnetic valve 24V compl (4126924)
Page 46 / 71 07.11.2016
Edition: V1.02/2016

Magnetic valve 24V compl (4126924)
Article no. Description Quantity Unit
4130411 Filter compl 1 PC
Page 47 / 71 07.11.2016
Edition: V1.02/2016

Wire 25 mm² 4 AWG black (4084170)
Page 48 / 71 07.11.2016
Edition: V1.02/2016

Wire 25 mm² 4 AWG black (4084170)
Article no. Description Quantity Unit
4078800 Battery clamp - 1 PC
4078790 Battery clamp + 1 PC
4065840 Battery clamp cover 2 PC
4127957 Hexagon screw M6x40 2 PC
4007190 Hexagon nut M6 2 PC
Page 49 / 71 07.11.2016
Edition: V1.02/2016

Guidance
Page 50 / 71 07.11.2016
Edition: V1.02/2016

Guidance
Article no. Description Quantity Unit
4131360 Fresh water tank 1 PC
4129140 Flanged bearing 20 1 PC
4109990 Screw delta PT Torx 60x25 2 PC
4132163 Control board set 1 PC
4131764 Data Save 1 PC
4127073 Screw delta PT Torx 50x20 6 PC
Height adjustment
4131690 Holder plate 1 PC
4109990 Screw delta PT Torx 60x25 4 PC
4052060 Thread form screw torx M5x10 2 PC
4131489 Cover 1 PC
4109990 Screw delta PT Torx 60x25 6 PC
4131492 Drain hose 1 PC
4042270 Hose clamp 16-27 1 PC
8502830 Water connection 1 PC
4131530 Dosing cup 1 PC
4129754 Cord spec 1 PC
4131367 Tank cover 1 PC
4051890 Cord 2 0,37 M
4122641 Screw delta PT Torx 40x16 1 PC
4131659 Label ready for 1 PC
4131672 Decorative label swingo 2100µic 1 PC
4126332 Label information 1 PC
4032070 Label max 60°C 140°F 1 PC
4126397 Label instructions of use 1 PC
4124027 Label 2% 1 PC
Page 51 / 71 07.11.2016
Edition: V1.02/2016

Control board set (4132163)
Page 52 / 71 07.11.2016
Edition: V1.02/2016

Control board set (4132163)
Article no. Description Quantity Unit
4127060 Stop actuator compl 1 PC
Key switch set 1 PC
4124476 Microswitch 2 PC
4130008 Waved washer 3,2/8x0,5 2 PC
4027220 Raised cheese hd.screw M3x10 2 PC
4131895 Threaded bolt M3x22.2 spec 4 PC
4131495 Cover 1 PC
Page 53 / 71 07.11.2016
Edition: V1.02/2016

Height adjustment
Page 54 / 71 07.11.2016
Edition: V1.02/2016

Height adjustment
Article no. Description Quantity Unit
4131504 Pipe 16/20x153 1 PC
4131491 Rod 1 PC
4131880 Heavy type dowel Pin 6x20 1 PC
4131507 Bush 20/28,6x19 1 PC
4131506 Clamping part 1 PC
4131511 Steering wheel 1 PC
4131512 Hub 1 PC
4040060 Washer 13/37x3 1 PC
4122132 Self-locking nut M12 1 PC
4131513 Cover 1 PC
Page 55 / 71 07.11.2016
Edition: V1.02/2016

Hub (4131512)
Page 56 / 71 07.11.2016
Edition: V1.02/2016

Hub (4131512)
Article no. Description Quantity Unit
4019690 Counters. head screw M5x10 5 PC
Page 57 / 71 07.11.2016
Edition: V1.02/2016

Water connection (8502830)
Page 58 / 71 07.11.2016
Edition: V1.02/2016

Water connection (8502830)
Article no. Description Quantity Unit
4085160 Filling cone 1 PC
4026620 Hose 19/25 PVC 2 M
4026740 Hose clamp 25-28 1 PC
Page 59 / 71 07.11.2016
Edition: V1.02/2016

Tank
Page 60 / 71 07.11.2016
Edition: V1.02/2016

Tank
Article no. Description Quantity Unit
4131361 Recovery tank 1 PC
4131474 Drain hose 1 PC
4130767 Rubber ring red 1 PC
4109990 Screw delta PT Torx 60x25 5 PC
4131478 Holder 5 PC
4131485 Suction hose 1 PC
4131476 Shackle 1 PC
4109990 Screw delta PT Torx 60x25 2 PC
4131457 Solids filter 1 PC
4131458 Cover 1 PC
4129128 Plate 2 PC
4109990 Screw delta PT Torx 60x25 2 PC
4067100 Hose clamp 38-43 1 PC
Page 61 / 71 07.11.2016
Edition: V1.02/2016

Suction hose (4131485)
Page 62 / 71 07.11.2016
Edition: V1.02/2016

Suction hose (4131485)
Article no. Description Quantity Unit
4130883 Hose socket 1 PC
4051380 Flexible hose 31,7/40,5 per M 0,700 M
4053090 Hose socket 1 PC
Page 63 / 71 07.11.2016
Edition: V1.02/2016

Upper part, Tank
Page 64 / 71 07.11.2016
Edition: V1.02/2016

Upper part, Tank
Article no. Description Quantity Unit
4131364 Tank cover 1 PC
4131439 Suction plate 1 PC
4107380 Sealing strip 10x10 1,050 M
4122571 Sealing profile per m 1,160 M
4123132 Vacuum motor 24V 491W 17,4A 1 PC
4122676 Protecting ring 1 PC
4122682 Sealing ring 100/163x6 2 PC
4131450 Holder 1 PC
4127073 Screw delta PT Torx 50x20 3 PC
4130049 Thread form screw torx M3x16 2 PC
4122096 Connection bloc 6-ways 4 mm² 1 PC
4122621 Gasket 1 PC
4122750 Buffer 2 PC
4122829 Screw delta PT Torx 60x35 2 PC
4126719 Flange bolt 2 PC
4122552 Filter 1 PC
4122553 Float compl 1 PC
4127073 Screw delta PT Torx 50x20 2 PC
4131475 LED strap 1 PC
4131881 Cover 1 PC
4132038 Cover 1 PC
4129843 Hose NW 23 PA 0,870 M
4023260 Cable tie 200 5 PC
4131733 Gasket 1 PC
Page 65 / 71 07.11.2016
Edition: V1.02/2016

Seat
Page 66 / 71 07.11.2016
Edition: V1.02/2016

Seat
Article no. Description Quantity Unit
4131363 Cover 1 PC
Driver seat
4131670 Decorative label swingo 2100µic 1 PC
4129284 Lock 1 PC
4131711 Plate 1 PC
4109990 Screw delta PT Torx 60x25 2 PC
4122130 Counters. head screw KA35x10 1 PC
4131720 Magnet 1 PC
4007470 Washer 6,4/12x1,6 1 PC
4091230 Washer 3,2/9x0,8 1 PC
4088700 Raised cheese hd.screw M3x8 1 PC
Page 67 / 71 07.11.2016
Edition: V1.02/2016

Driver seat
Page 68 / 71 07.11.2016
Edition: V1.02/2016

Driver seat
Article no. Description Quantity Unit
4131355 Driver seat 1 PC
4131684 Holder 1 PC
4121900 Seat switch set 1 PC
4131579 Spiral cable 1 PC
4001020 Clamp 2 PC
4122950 Thread form screw torx M4x10 4 PC
4131356 Plate 1 PC
4130853 Membrane 1 PC
Page 69 / 71 07.11.2016
Edition: V1.02/2016

Electrical diagram
Page 70 / 71 07.11.2016
Edition: V1.02/2016

Electrical diagram
Article no. Description Quantity Unit used for
4129348 Connection cable 2L 1 PC
4131556 Wire 1 PC
4093130 Fuse clip 2A 1 PC
4131557 Wire 1 PC
4131558 Connecting cable 6L 1 PC
4131559 Cable 1 PC 7523409, 7523418
4131560 Cable 1 PC
4131561 Wire harness 1 PC
4131562 Wire 1 PC
4131563 Wire harness 1 PC
4131564 Wire harness 1 PC
4131565 Wire 1 PC
4131566 Wire harness 1 PC
4131567 Wire harness 1 PC
4131568 Wire harness 1 PC
4131570 Wire harness 1 PC
4131571 Cable 1 PC
4131572 Wire harness 1 PC
4131573 Wire harness 1 PC
4131574 Cable 1 PC
4131575 Wire harness 1 PC
4131576 Wire harness 1 PC
4131577 Wire harness 1 PC
4131579 Spiral cable 1 PC
4131707 Cable 1 PC
4131884 Wire harness 1 PC
4128710 Connecting cable 4L 1 PC
Powered by TCPDF (www.tcpdf.org)
Page 71 / 71 07.11.2016
Edition: V1.02/2016
