Task Force LFD2H User Manual

TASK FORCE

Air Compressor

Electric Handheld

2 gallons
100 max psi

120 VAC -- 15 amp minimum circuit
Includes: 25 ft nylon coil hose and 17 pc accessory kit

OWNER'S MANUAL

and Parts List

Item #83691

For customer service, contactq

,, 1-800-628-8815 ext. 5000 J

1/12/03

WARNING!

_, ead and understand all safety precautions and operating instructions before using

this portable air compressor.

Midwest Air Technologies, Inc., 625 Barclay Boulevard, Lincolnshire, IL 60069

Task Force® is a registered trademark of LF, LLC. All Rights Reserved Part No. E100186

Rev.01

TABLE OF CONTENTS

Safety Definitions ..................................................................................................

Page

3

Glossary ................................................................................................................

Duty Cycle ............................................................................................................ 3

Description of Operation ....................................................................................... 3

Important Safety Instructions & Guidelines .......................................................... 4

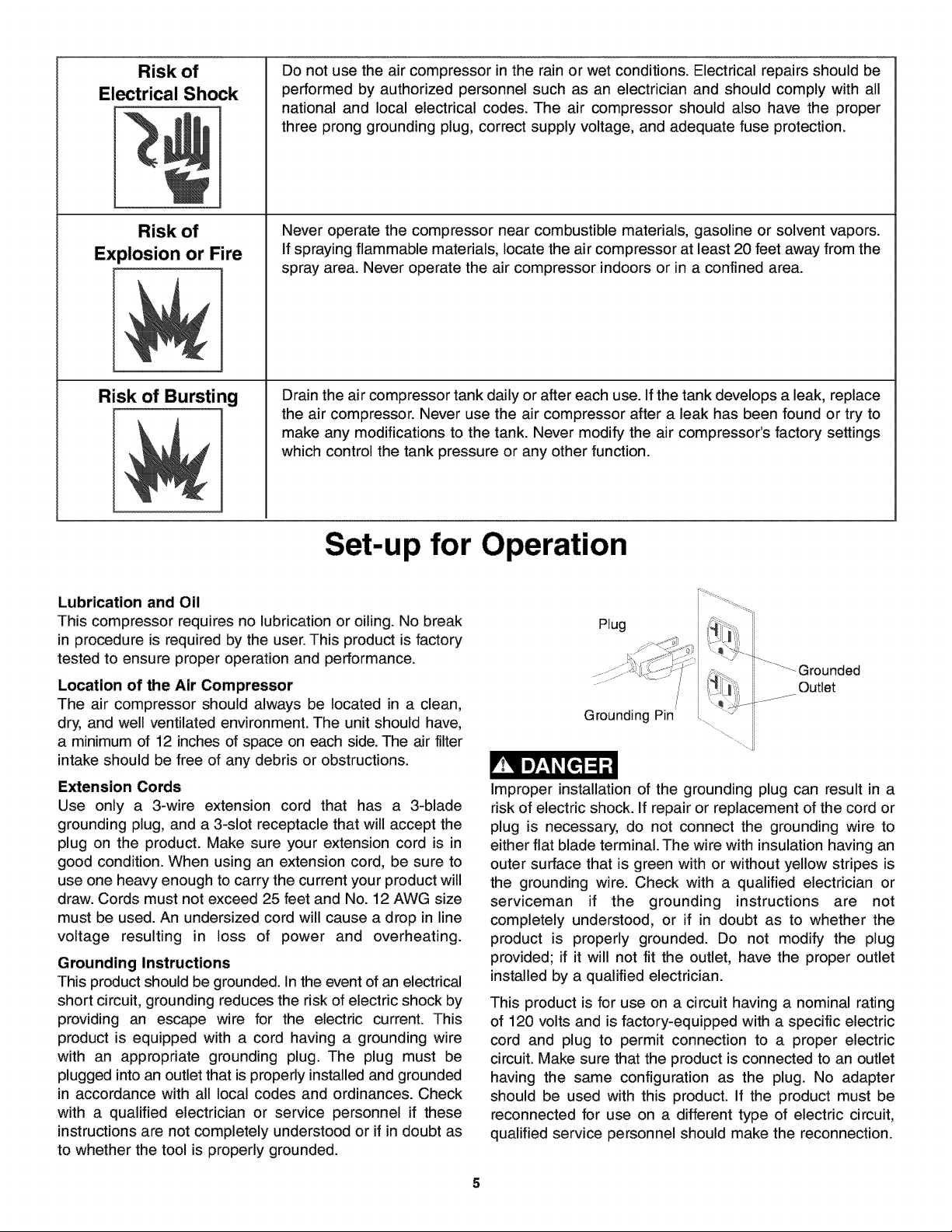

Set-up for Operation ............................................................................................ 5

Operating Procedures ........................................................................................... 6

Maintenance ......................................................................................................... 6

Routine Maintenance Schedule ............................................................................ 6

Storage .................................................................................................................. 6

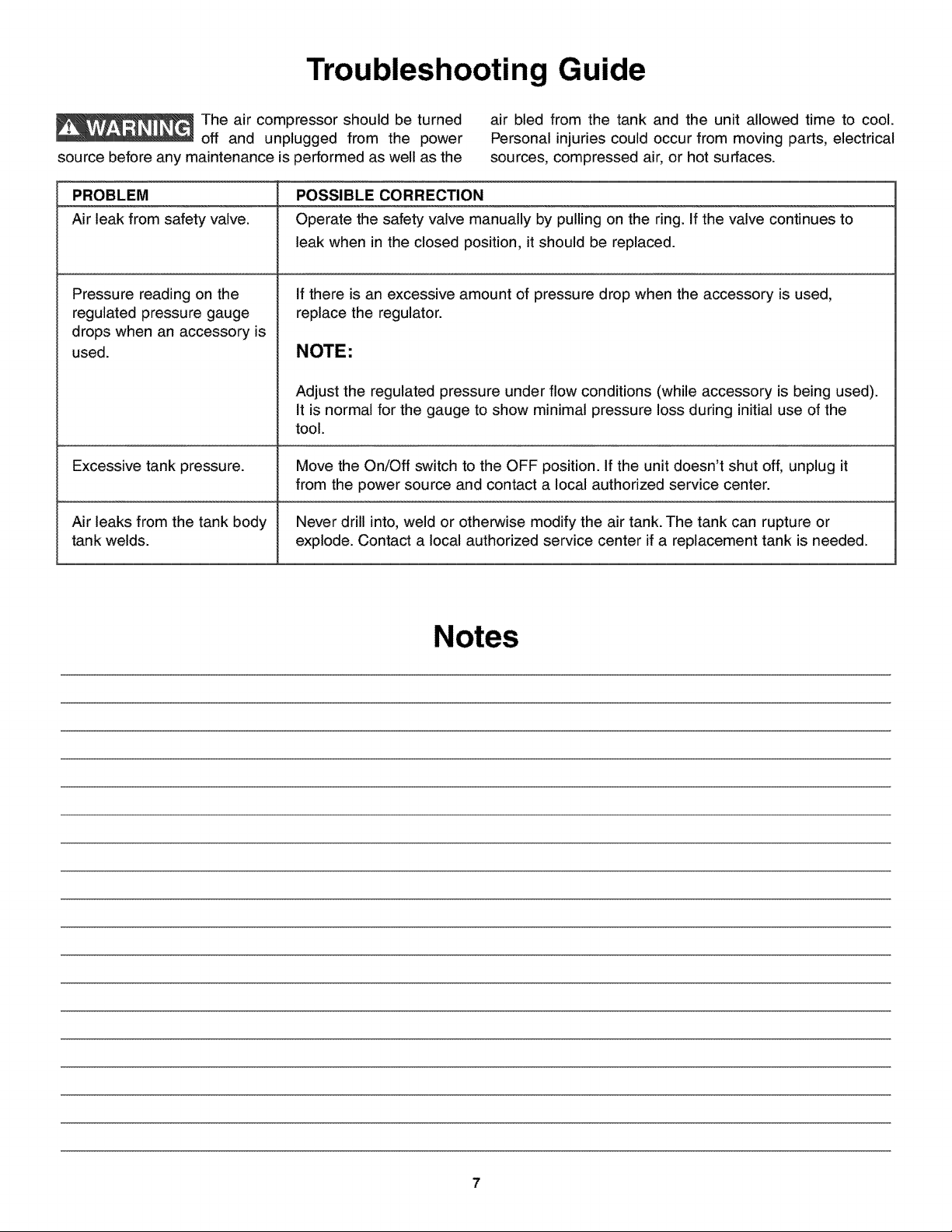

Troubleshooting Guide .......................................................................................... 7

3

Exploded Parts Diagram ...................................................................................... 8

Parts List .............................................................................................................. 9

Limited Warranty .................................................................................................. 10

Safety Definitions

The information listed below should be read and

understood by the operator. This information is
given to protect the user while operating and

Indicates an imminently hazardous situation which, if
not avoided, will result in death or serious injury.

Indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury

Glossary

CFM: Cubic feet per minute.
SCFM: Standard cubic feet per minute; a unit of measure

for air delivery.

PSlG: Pounds per square inch gauge; a unit of measure

for pressure.
ASME: American Society of Mechanical Engineers.
California Code: Unit may comply with California Code

462 (I) (2)/(M) (2).

storing the air compressor. We utilize the symbols
below to allow the reader to recognize important

information about their safety.

Indicates a potentially hazardous situation which, if not
avoided, may result in minor or moderate injury.

When used without the safety alert symbol indicates a
potentially hazardous situation which, if not avoided,
may result in property damage.

Cut-In Pressure: The air compressor will automatically

start to refill the tank when the pressure drops
below the prescribed minimum.

Cut-Out Pressure: The point at which the motor stops

when the tank has reached maximum air pressure.

Code Certification: Products that bear one or more of

the following marks: UL, ETL or CSA have
been evaluated by OSHA certified independent
safety laboratories and meet the applicable
Underwriters Laboratories Standards for Safety.

Duty Cycle

This air compressor pump should not run more than

20 minutes per hour. If the pump runs more than
30% of the duty cycle, the air requirement is greater than

that which is supplied by the unit. You may need to check

Description of Operation

Drain Valve: Used to drain condensation from the air tank.
Located at bottom of tank.

Fan Cooled: This unit is equipped with a cooling fan
which may continue to run after the pump has stopped.

On/Off Switch: This controls the power to the motor and
also the switch serves as the on/off positions for the air
compressor.

Air Intake Vents: Provide clean air to the pump and must
always be kept free of debris. Check on a daily basis or

before each use.
Air Compressor Pump: Pressurizes air from the

atmosphere and stores it in a reserve tank.

for restrictions in the air line, use a larger diameter hose, or
purchase an air compressor that better matches your air
requirements.

Tank Safety Valve: Used to allow excess tank pressure to
escape into the atmosphere. This valve should only open
when the tank pressure is above the maximum rated
pressure of the model.

Regulator Pressure Gauge: Indicates the outgoing air
pressure to the tool and is controlled by the regulator.

Tank Pressure Gauge: Indicates the reserve air pressure

in the tank.
Regulator: Controls the pressure leaving the air tank.

Tools require different operating pressures. Refer to the tool

manufacturers manual before connecting to the compres-
sor. To increase the pressure turn the knob clockwise and

to decrease the pressure turn the knob counterclockwise.
