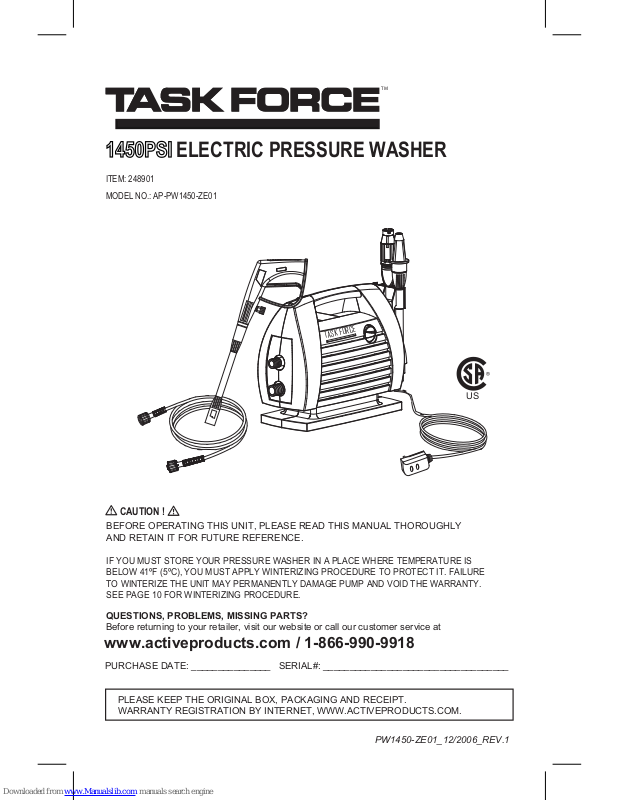

TASK FORCE
PW1450-ZE01_12/2006_REV.1
PLEASE KEEP THE ORIGINAL BOX, PACKAGING AND RECEIPT.
WARRANTY REGISTRATION BY INTERNET, WWW.ACTIVEPRODUCTS.COM.
www.activeproducts.com / 1-866-990-9918
QUESTIONS, PROBLEMS, MISSING PARTS?
Before returning to your retailer, visit our website or
call our customer service at
PURCHASE DATE: _______________ SERIAL#: ___________________________________
CAUTION !
BEFORE OPERATING THIS UNIT, PLEASE READ THIS MANUAL THOROUGHLY
AND RETAIN IT FOR FUTURE REFERENCE.
IF YOU MUST STORE YOUR PRESSURE WASHER IN A PLACE WHERE TEMPERATURE IS
BELOW 41ºF (5ºC), YOU MUST APPLY WINTERIZING PROCEDURE TO PROTECT IT. FAILURE
TO WINTERIZE THE UNIT MAY PERMANENTLY DAMAGE PUMP AND VOID THE WARRANTY.
SEE PAGE 10 FOR WINTERIZING PROCEDURE.
US
1450PSI ELECTRIC PRESSURE WASHER
ITEM: 248901
MODEL NO.: AP-PW1450-ZE01
TM
TM
Max. pressure: 1450PSI
Water flow rate: 1.3GPM
Power
source requirement: 120V, 60HZ
Electrical
cord: 35’ WITH GFCI
High-p
ressure hose: 20’
Rated current: 11A
Water supply: COLD TAP WATER
Specifications
TECHNICAL SPECIFICATIONS
Technical specifications
Precautions
Safety Features and Electrical Power Information
Replacement Parts and Diagram
Assembly and Operating Instructions
Using the Accessories
Working with Detergent
Shut Down and Clean-up
Taking a Break
Winterizing and Long-term Storage
Maintaining Your Pressure Washer
Troubleshooting
Warranty
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . .
. . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
i
1
2
3
4
7
8
9
9
10
11
12
14
TABLE OF CONTENTS
i
When using this product, basic precautions
should always be followed:
Read all the instructions before using the
product.
High-pressure jets can be dangerous if
subject to misuse. The jet must not be
directed at persons or animals.
Water spray must never be directed towards
any electric wiring, devices or directly
towards the pressure washer machine itself
or fatal electric shock may occur.
To reduce the risk of injury, do not operate
the machine near children.
Learn how to stop the machine and release
pressure quickly. Be thoroughly familiar with
the controls.
Stay alert—watch what you are doing.
Wear safety goggles.
For use with cold water supply only. Do not
draw other liquids.
Do not use acids, solvents, or any other
flammable material in this product. These
products can cause physical injuries to the
operator and irreversible damage to the
machine.
To reduce the risk of electrocution, keep all
connections dry and off the ground. Do not
touch plug with wet hands.
The pressure washer should not be used in
areas where gas vapours may be present.
An electric spark could cause an explosion or
fire.
To minimize the amount of water getting into
the pressure washer, the unit should be
placed as far as possible from the cleaning
site during operation.
Avoid accidental starts. Shut power “OFF”
before connecting or disconnecting cord to
electrical outlets.
Do not operate the product when fatigued or
under the influence of alcohol or drugs.
Do not stand on unstable surfaces. Stand
with both feet balanced at all times.
Prior to starting the pressure washer in cold
weather, be sure ice has not formed in any
part of the equipment.
Never carry your pressure washer by the
cord. Do not pull on the cord to disconnect
from the outlet.
To allow free air circulation, the pressure
washer should not be covered during
operation.
The Trigger Gun Safety Lock prevents the
trigger from accidentally being engaged. This
safety feature does not lock trigger in the
“ON” position.
California Proposition 65: This product or its
power cord contains lead, a chemical known
to the State of California to cause cancer,
birth defects or other reproductive harm.
Wash hands after use.
Safety Warnings
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Do not use with flammable liquids and toxic
chemicals.
Injection Hazard: Equipment can cause
serious injury if the spray penetrates the skin.
Do not point the gun at anyone or any part of
the body. In case of penetration seek medical
aid immediately.
This system is capable of producing
1450PSI. To avoid rupture and injury, do not
operate this pump with components rated
less than 1450PSI working pressure
(including but not limited to spray guns, hose
and hose connections).
Before servicing, cleaning or removal of any
parts, shut “OFF” power and relieve
pressure.
Do not spray electrical apparatus and wiring.
If connection is made to a portable water
system, the system shall be protected
against backflow.
Warnings
•
•
•
•
•
•
IMPORTANT PRECAUTIONS - READ FIRST!
1
Extension cords are not recommended unless
they
are plugged into a ground fault
ci
rcuit-interrupter found in circuit boxes or
protected receptacles.
Warning
The pressure washer is also equipped with a
main power “ON/OFF” switch located on the
unit. It should always be moved to the “OFF”
position when the pressure washer is not
being used to prevent possible injury or
damage.
Warning
Ground Fault Circuit Interrupter:
This pressure washer has a ground-fault
circuit-interrupter (GFCI) built into the plug of the
power supply cord. This device provides additional
protection from the risk of shock. Should replacement
of the plug or cord become necessary, use only
identical replacement parts that include GFCI
protection.
The pressure washer is equipped with a stop
device
that will sense when the trigger on the gun
is
released. It will open the power circuit to the motor
and
cause the pressure washer motor to stop. Motor
will
resume again when trigger is pulled.
Extension Cords
If possible, do not use extension cords with this
product. However, if you must use one, observe all
the
warnings and instructions listed below:
Use a sufficient gauge:
Maximum cable length: 50’ = 14AWG
Use only extension cords that are intended for
outdoor
use. These extension cords are identified
by
a marking “Acceptable for use with outdoor
appliances;
store indoors while not in use.”
Use
only extension cords having an electrical rating
not
less than the rating of the product.
Do not use
damaged extension cords. Examine
extension
cord before using and replace if
damaged. Do not abuse extension cord and do not
yank on any cord to disconnect.
Keep
cord away from heat and sharp edges.
Always
disconnect the extension cord from the
receptacle before disconnecting the product from
the extension cord.
To reduce the
risk of electrocution, keep all connec-
tions
dry and off the ground. Do not touch plug with
wet
hands.
•
•
•
•
•
•
SAFETY FEATURES AND ELECTRICAL POWER INFORMATION
2
ZE01-000-0003
ZE01-090-0002
ZE01-090-0001
ZE01-050-0000
ZE01-090-0003
ZE01-090-0004
ZE01-900-0001
ZE01-900-0002
ZE01-000-0001
High-pressure hose
Gun assembly
Quick-connect coupling & inlet adaptor
Water filter
Adjustable wand
Needle
User manual
Gun/wand holder
Turbo wand
1
1
1
1
1
1
1
1
1
5
4
3
2
6
9
8
7
1
Parts No.
Part NameItem no. Quantity
Parts
List
CORNER ITEMS:
8 USER MANUAL
9 NEEDLE
4
1
2
3
5
6
7
REPLACEMENT PARTS AND DIAGRAM
3
Fig. 3
Fig. 2
Fig. 1
Make sure that the ON/OFF switch is in the
“OFF” position.
Separate the adaptor and quick-connect
coupling. Attach inlet adaptor to the machine’s
inlet and attach the quick-connect coupling
onto the garden hose.
Insert the wand into spray gun, and twist 1/4 turn until rectangular tab appears.
Step
1 Step 2
Step 3
Do not draw non-water liquids through the unit. For
use
with cold water supply only.
Water hose
must be at least a 1/2” in diameter.
Flow
rate of water supply must not fall below 2 GPM
(gallons
per minute).
Flow
rate can be determined by running the water
for
one minute into an empty 5-gallon container.
The
water supply temperature must not exceed
104°F (40°C
).
Water Supply (Cold Water Only)
•
•
•
•
•
Caution
To prolong the life of the unit, it is
recommended to rest the unit 5 minutes
after every 30 minutes of use.
Caution
•
•
•
Never
use the pressure washer to draw in
water
contaminated with solvents (e.g.
paint
thinners, gasoline, oil, etc.).
Dirt
in the feed water will damage the unit.
To avoid this risk, we recommend
checking
the water filter (located inside
the
water inlet; to clean it out see
Maintenance
section on page 11).
Always
prevent debris from being drawn
into
the unit by using a clean water
sou
rce and an accessory water filter if
required.
Surface Preparation
Before starting any cleaning task, it is important to inspect the area for objects which could create a
hazard. Remove from the workarea which could be tripped over, such as toys or outdoor furniture.
Ensure that all doors and windows are closed tight.
Assembly Time: 2 minutes / Tools Required: None
ASSEMBLY AND OPERATING INSTRUCTIONS
4
Fig. 6Fig. 5
Fig. 4
Attach the high-pressure hose to the water outlet. Twist tightly to avoid leakage.
Attach garden hose to water supply and turn
water on.
Plug the unit into an outlet. Press “TEST”.
then press “RESET” to assure proper
connection to power.
Step
4
Step 5 Step 6
ASSEMBLY AND OPERATING INSTRUCTIONS
– continued
5
Fig.7
Fig.8
Start the pressure washer by turning ON/OFF switch to ON.
Before turning the unit ON, depress the trigger to bleed any trapped air out of the pump and
hose.
Step
7
Step
8
ASSEMBLY AND OPERATING INSTRUCTIONS
– continued
6
Fig. 9
Adjusting The Spray
The adjustable spray nozzle can be adjusted
from fan to jet. The spray is adjusted from jet
to fan spray by turning the nozzle as shown
in Fig. 9.
Caution
To prolong the life of the unit, it is
recommended to rest the unit 5 minutes
after every 30 minutes of use.
Caution
Jet spray adjustment is very aggressive. Do
not adjust while spraying. We recommend
that for most cleaning applications a 20º
spray angle should be used to avoid
damage to the surface being sprayed.
USING THE ACCESSORIES
7
Cleanup Instructions
Step 1
Insert the detergent suction tube into a container
of fresh water.
Step 2
Set the nozzle to the low-pressure setting.
Step 3
Pull and hold the gun trigger for 20~30 seconds.
Allow fresh water to rinse through the detergent
injection system.
Warning
• Never use bleach, chlorine products
and
other corrosive chemicals.
• Never use liquids containing solvents
(i.e.,
paint thinners, gasoline, oils).
• Never use ammonia products.
• Never use acid-based products.
These products can cause physical
injuries
to the operator and irreversible
damage
to the machine and/or
damage
the surface being cleaned.
Important notice
When
you have finished using detergent, always
follow
the “Cleanup Instructions”. Failure to
clean
properly will cause the injection system to
become
clogged and inoperable.
Caution
This machine has been designed for use with
pressure washer detergents only. The use of
other
detergents or chemicals may affect the
operation
of the machine and will void the
warrant
y.
Fig.10
Detergent Application
Step
1
Pull the
detergent suction tube out and
insert it into a detergent container.
Step
2
Step 3
Adjust the nozzle to low-pressure setting to
apply the detergent.
Step
4
Dep
ress the gun trigger and the detergent will
be
automatically injected and mixed with water.
Step
5
Apply
detergent to work area. Do not allow
detergent to dry on surface.
Release the gun trigger and adjust nozzle
to high pressure setting. Depress the gun
trigger and rinse the surface in a sweeping
motion.
Note: To apply detergent, the adjustable
nozzle must
be in the low-pressure position.
To enhance the efficiency of the pressure washer,
sometimes it is necessary to use detergents to
help loosen tough dirt and grime.
Using the detergent
WORKING WITH DETERGENTS
8
If taking a break of five minutes or more:
Step 1
Engage gun safety lock.
Step 2
Turn pressure washer to “OFF” (O) position.
Step 3
Unplug the power cord from the outlet.
TAKING A BREAK
Warning
Turn off water supply and squeeze trigger
to depressurize the unit. Failure to do so
could result in personal injury due to
descharge of high-pressure water.
Step 4
Disconnect the garden hose from the water
inlet on the unit.
Step 5
Disconnect the the high-pressure hose from
the high-pressure outlet and engage the gun
safety lock.
Step 1
Turn the switch to “OFF” (0) position and
unplug cord from outlet.
Step 2
Turn off the water supply.
Step 3
Press trigger to release water pressure for
20~30 seconds.
SHUTTING DOWN AND CLEANING UP
9
Fig.11
Alternative Procedure
If you cannot perform the Optimum Winterizing
procedure, you can still protect your pressure
washer from winter-damage:
Disconnect all water connections.
Turn on the machine for a few seconds.
Press trigger to bleed any remaining water
in the pump. Turn off immediately.
Remove the gun and hose from the
pressure washer. Drain any excess water.
Roll hose carefully and do not allow hose to
be kinked.
Store the machine and accessories in a
room that does not reach freezing tempera
-
tures. Do not store near furnace or other
1.
2.
3.
4.
Pump saver is available at your local hardware
stores.
Connect the pump saver hose onto the
adaptor and quick-connect coupling.
Depress button on top of antifreeze
container.
Continue until fluid exits the pump outlet.
Remove the hose from pump inlet.
1.
2.
3.
4.
Optimum Winterizing Procedure
Material required: Pump saver
Winterizing your pressure washer will help
protect and prolong its life. It is strongly recom
mend you follow the below steps using a pump
saver. This will keep the internal parts
lubricated, protected from rust, and prevents the
pump from freezing.
WINTERIZING AND LONG-TERM STORAGE
10
USER MAINTENANCE
Fig.12 Fig.13
Air Vents
The air vents located on the front and back of
the pressure washer must be kept clean and
free of any obstructions to ensure proper
air-cooling of the motor during operation.
1.
2.
3.
To clean inner water screen, remove quick
connector and remove the filter screen from
the pump inlet.
Rinse screen until it is free of debris and
blockage.
Replace screen and quick-connector
immediately.
Water Filter Screen
The pressure washer is equipped with a water
inlet filter that prevents debris going into the
pump. If the filter is not kept clean, the flow of
water to the pressure washer will be restricted
and the pump may be damaged.
Adjustable Nozzle
When the nozzle is clogged, it will cause the
pump to build pressure and may cause the unit
to surge. You can clean the nozzle by carefully
inserting a thin, sharp instrument (i.e. paperclip)
into the tip to rid it of deposits.
For the adjustable nozzle, you can also
lubricate the nozzle collar (high-pressure/low
pressure) by using non-water soluble grease
regularly.
Connections
Connections on pressure washer hoses, gun and spray wand should be cleaned regularly and
lubricated with non-water soluable grease.
11
On/Off switch is in the
“OFF”
(O) position.
Power
cord is not plugged in.
Extension
cord is too long.
Extension
cord is not proper gauge.
Extension
cord is damaged.
Electrical
outlet does
not
supply adequate power.
Turn switch to the “ON” ( | ) position.
Plug
in power cord.
Replace
extension cord with a
50’
14 gauge cord.
Try a different outlet.
GFCI needs to be reset.
Press RESET button on the GFCI.
Motor
will
not
start.
Diameter of garden hose is too small.
Water
supply is restricted.
Not
enough inlet water supply.
Water
inlet filter is clogged.
Pump
is sucking air.
Replace
with a inch or
5/8”
garden hose.
Check
garden hose for kinks,
leaks
and blockage.
Open
water source full force.
Remove
filter and rinse
out
in warm water.
Check
that hoses and fittings are air
tight.
Turn “OFF” machine and purge
pump
by squeezing trigger gun until a
steady flow of water emerges through
the
nozzle.
Unit
does
not
reach
high p
ressure.
Not enough inlet water supply.
Pump
is sucking air.
Water
inlet filter is clogged.
Discha
rge nozzle is obstructed.
Turn water on full force. Check garden
hose
for kinks, leaks or blockage.
Check
that hoses and fittings are air
tight.
Turn “OFF” machine and purge
pump
by squeezing trigger gun until a
steady flow of water emerges through
the
nozzle.
Remove
filter and rinse
out
in warm water.
Blow
out or remove debris
with
a fine needle.
Output
pressure
varies
high
and
low.
Detergent container is empty.
Detergent bottle or suction tube
not properly connected.
Detergent is too thick.
Filter on detergent suction tube
is clogged.
Damaged or clogged detergent
suction tube.
Nozzle is in high-pressure position.
Discharge nozzle is obstructed.
Add more detergent.
Check connections.
Dilute detergent.
Run warm water through filter
to remove debris.
Remove obstruction or replace
detergent suction tube.
Turn nozzle tip to low-pressure
position.
Blow out or remove debris with
a fine needle.
No detergent.
Symptom Cause Solution
TROUBLESHOOTING
12
IF YOU ENCOUNTER ANY ADDITIONAL DIFFICULTIES NOT LISTED, VISIT OUR WEBSITE AT
WWW.ACTIVEPRODUCTS.COM
OR CALL CUSTOMER SERVICE AT 1-866-990-9918 FOR
ASSISTANCE.
Garden hose
connection
leaks.
Spray
wand, or
extension,
or
nozzle
leaks.
Pump
is noisy.
Water
leaks from
pump
(up to 10
drops per minute
is permissible).
Oil Drip.
Motor
buzzes
but
fails to run.
Loose
fittings.
Missing/wo
rn rubber washer.
Spray
nozzle not properly attached.
Broken o-ring or plastic insert.
Pump
is sucking air.
Loose
fittings.
Water
seals are damaged or worn.
Oil
seals are damaged or worn.
Supply
voltage below minimum.
System
has residual pressure.
Voltage
loss due to extension cord.
Pressure washer not
used
for long periods.
Tighten fittings.
Insert
new washer.
Insert
the spray nozzle into the trigger
gun.
Carefully press in against the
spring
tension and twist into the
locked
position.
Call
Customer Service.
Check
that hoses and fittings are air
tight.
Turn off machine and purge
pump
by squeezing trigger gun until a
steady flow of water emerges through
the
nozzle.
Check
that all fittings are tight.
Call Customer Service.
Call
Customer Service.
Verify
that only the pressure washer is
running
on this circuit.
Turn unit “OFF”, squeeze trigger on
spray
want to release pressure, then
tu
rn unit “ON”.
Do not use extension cord with this
unit—plug
directly into power outlet.
Call
Customer Service.
Symptom Cause Solution
TROUBLESHOOTING
– continued
13
14
LIMITED 1 YEAR WARRANTY
This pressure washer is warranted to be free of defects in materials and workmanship under normal
residential use for one (1) year.
Specific warranty applies to:
• Electric motor and pump are warranted for one (1) year.
• Standard accessories and attachments including the gun, wand/hose and coupler are warranted
for a ninety (90) day period.
The warranty period is calculated from the date of purchase by the end user and covers the cost for
replacement parts/equipment. In order to verify a warranty situation a copy of the original receipt or
gift receipt must accompany the warranty claim, along with the manufacturer’s serial number from
the product. Any warranty claim, work, or replacements given are to fulfill the terms of the original
warranty period only.
The manufacturer‘s obligation under this warranty shall strictly be limited, at manufacturer’s option,
to replace any pressure washer or parts thereof, which in the opinion of the manufacturer, shows
defect in workmanship or material. All decisions of Active Products with regard to this limited
warranty shall be final. NO RETURNS or REFUNDS will be allowed by the retailer or manufacturer.
To make a warranty claim or inquiry, you must call 1-866-990-9918. You must have the product
serial number and receipt information ready.
If defects should appear within one year of purchase, you may return the unit with your receipt as
proof of purchase to the place of purchase for an exchange of either a new or refurbished unit, at
manufacturer’s discretion. There will be no REFUNDS provided.
The warranty does NOT cover:
• Merchandise sold as reconditioned, used, demonstration or floor models.
• Any commercial, industrial or rental usage of this product. Any such usage will void the implied
warranty.
• Any product that has been damaged by freezing, dropping, misuse, neglect, accident, abuse,
improper handling, normal wear and tear, or non-compliance with the owner’s manual
• Any product that has been damaged by a contaminated water supply, water sediment or
chemicals/detergents that are not approved by or recommended by Active Products.
• Any product that has been damaged by acts of nature such as fires, floods, earthquakes, lighten
-
ing strikes, etc.
• Damage caused by repairs made by the end user or any service center not authorized by Active
Products. Any such tampering will void the implied warranty.
• Any cost for shipping by the customer or authorized service center of the allegedly defective
product.
• Any cost for shipping of replacement parts or accessories. Such shipping costs will be borne in
full by the end user.
• Any non-standard or bonus accessory/attachement included with the original product.
The manufacturer shall in no event be liable for injuries to persons or property, or for incidental,
contingent, special or consequential damages arising from the use of this product. This warranty
does not apply to damage due directly or indirectly to misuse, abuse, negligence or accidents;
repairs or alterations; or lack of maintenance. The manufacturer shall not be liable for any misrep
-
resentations by stores, store employees, or any parties, that make claims on this product.
This warranty is non-transferable and only applies to products that were sold in and reside in the
United States. This warranty gives you specific legal rights. You may have other rights, which vary
by state.
If you have any questions or comments, visit our web site at www.activeproducts.com or call our toll
free customer service line at 1-866-990-9918.
WARRANTY
Loading...
