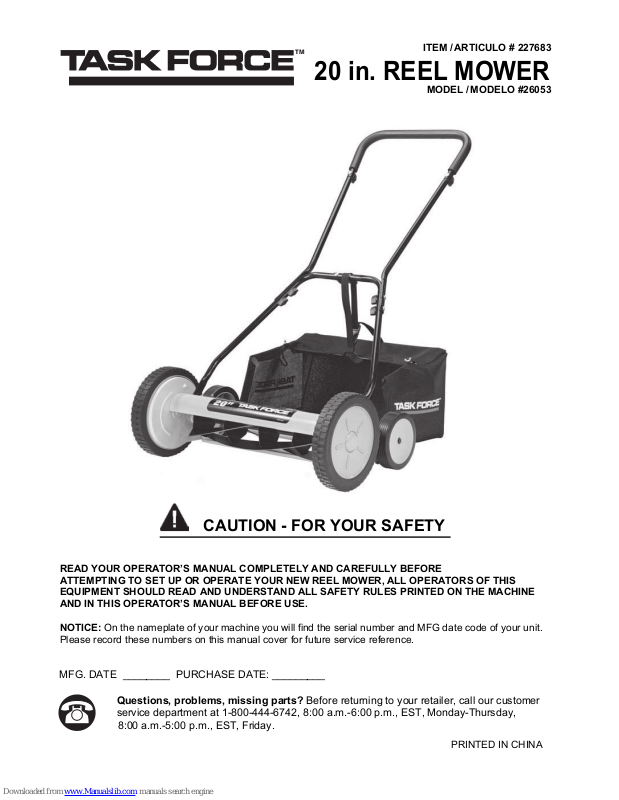

TM
ITEM / ARTICULO # 227683
20 in. REEL MOWER
MODEL / MODELO #26053
CAUTION - FOR YOUR SAFETY
RE
AD YOUR OPERATOR’S MANUAL COMPLETELY AND CAREFULLY BEFORE
ATTEMPTING
EQUIPMEN
AND IN THIS OPERATOR’S MANUAL BEFORE USE.
NOTICE: On the nameplate of your machine you will find the serial number and MFG date code of your unit.
Please record these numbers on this manual cover for future service reference.
MFG. DATE ________ PURCHASE DATE: _________
TO SET UP OR OPERATE YOUR NEW REEL MOWER, ALL OPERATORS OF THIS
T SHOULD READ AND UNDERSTAND ALL SAFETY RULES PRINTED ON THE MACHINE
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-444-6742, 8:00 a.m.-6:00 p.m., EST, Monday-Thursday,
8:00 a.m.-5:00 p.m.,
EST, Friday.
PRINTED IN CHINA
TABLE OF CONTENTS
2
PRODUCT SPECIFICATIONS
SAFETY INFORMATION
………………………………………………………………………………….…………..………….………3
CARE AND MAINTENANCE
ASSEMBLY INSTRUCTIONS
OPERATION
……………………………………………………………….…………..…………………...............................................7
………
………………………………………………………………………….…………..………….………3
…………………………………………………………………………….………..…………..………4
CHECKING THE ADJUSTMENTS
LIMITED TWO YEAR WARRANTY
PARTS DIAGRAM
……………………………………………………………………………………………….…………..…………10
………………………………………………………………….…………..…………….……2
…………………………………………………………………………….…………..……..….…8
…………………………………………………………………….…………..…………….……9
PRODUCT SPECIFICATIONS
20 IN. REEL MOWER
Item No. 227683
Cutting
Hei
Wh
Wei
…………………………………………………………………………….…………..……………………
Path
…………………………………………………………………………….…………..………………
ght Adjustments
eel Qty.
ght
…………………………………………………………………………….…………..…………………
…………………………………………………………………………….…………..………………………
…………………………………………………………………………….…………..………
in.
20
1- 3/4 - 2- 3/4 in.
4
lbs.
30
SAFETY INFORMATION
Never place hands, fingers or feet inside the reel. Although a motor does not power this mower, when the wheels turn
reel spins and can cut.
the
Never mow when grass is wet as it can be slippery.
Do
not use the reel mower while barefoot or while wearing sandals.
lk behind, never run, while using reel mower. Always make sure of your footing when using this reel mower.
Wa
intentionally strike or hit trees, fences, etc. This can cause injuries or severely damage the reel mower
Never
mec
hanisms.
Make
sure your reel mower is in a safe operating condition. Do not attempt to operate this reel mower if damaged.
act customer service or have the reel mower repaired by a qualified repair service provider before using.
Cont
CARE AND MAINTENANCE
General Care:
Minimum care is required to ensure smooth operation of your mower.
To avoid damage to the mower or cutting blades, keep the area to be mowed free from any debris.
For best results, regularly apply oil or lubricant to the mower’s cutting surfaces, cutting reel axle shaft and wheels.
Sharpening the cutting blades:
1. Spread a thin layer of lapping compound on the front edge of the reel blades.
2.
Adjust the cutter bar so that the blade has light but firm contact across the full width of the cutter bar.
Caution: Do not overtighten the adjusting screws, as this could damage the cutter bar. Tighten both screws
duri
ng final adjustment.
3. Turn the reel blades backwards until the front edge of the cutter bar blade is polished.
NOTE: Clean any grinding compound or debris from the cutter bar blade, reel blade, pinions, and pawls.
E: Use industrial or valve lapping compound between 100 and 240 grit. Lubricate the axle and pinion with a light film
NOT
wheel bearing grease.
of
Cleaning and Storage:
1. Clean the exterior of the machine thoroughly using a soft brush and cloth before storing. Do not use water, solvents
polishes.
or
2.
Turn the mower on its side to clean the blade area.
WARNING: Do not place hands in the mower near blades. If grass cuttings are compacted in the blade area,
remove
3.
Store the mower in a dry place. Do not place other objects on top of the mower during storage.
using a wood or plastic cleaning tool appropriate for the cleaning of the blades.
3
ASSEMBLY INSTRUCTIONS
Before attempting to assemble, empty carton and compare parts with parts list below.
Note:
• Carefully remove the parts from the box.
• Inspect the parts to make sure no breakage or damage occurred during shipping.
• Do not discard the packing material until all parts are examined.
• If any parts are damaged or missing, please call 1-800-444-6742 for assistance.
PACKING LIST
1-Top handle,
2-Center handle pieces,
2-Lower handle pieces,
8-Knobs,
8-Bolts,
8-Washers,
1-Reel mower body
1
7
14
8
2
6
7
1. Top handle
2. Center ha
Left lower handle
3.
Right lower handle
4.
Foam grip
5.
3/8 in. bolts
6.
1-
Flat washer
7.
8.
Wing nut
Tools Required
Pliers (Not in
ndle pieces
clud
e
d)
7
6
3
7
8
4
7
ASSEMBLING THE HANDLE: (Fig.1)
NOTE: Do not completely tighten bolts until assembly is complete.
1. Insert the two center handle pieces (2) into the left and right side of the top handle (1) and secure with two
1-3/8in. bolt
2. Connect the right lower handle (4) with the left lower handle (3) and secure with two 1-3/8in. bolts (6), flat
washer (7) and wing nuts
3. Attach the top handle subassembly previously assembled, to the lower handle subassembly using four
1-3/8in. bolts (6),flat washer (7) and wing nuts (8) provided.
4. Tighten all the wing nuts on the joints of the handle assembly.
s (6) , flat washer (7) and wing nuts (8) provided.
(8) provided.
6
Fig. 1
4
ATTACHING THE HANDLE TO THE MOWER BASE:(Fig:2)
5
Fig. 2
1
2
5
1. Align holes (1) at the lower end of each handle arm with short posts (2) extending from
the
mower base side plates. Slide lower ends of handle arms onto posts.
2. After handle arm holes are on posts, use pliers to snap C-clips (1) onto the slotted (2)
posts on both sides to secure handle.
ASSEMBLY INSTRUCTIONS
Assembling and attaching the rear bag: (Fig. 3, 4, 5 and 6)
1. Layout all components in the packaging.
2. Open all hook and loop seams on the grass bag and place the frame into position and fold hook and loop
seams back together. (Fig
3. Remove pre-installed wing nuts (1). Install center bar (2) over top of threading (3) and reinstall the wing nuts (1) securing
the center bar in place. (Fig. 4)
4 . Place hook of rear attachment hook (4) to the frame of the bag corners (Fig. 5).
5. Place locking strap (5) from the rear bar of the bag to the center bar of the middle handle. Adjust strap for
proper height so the bag does not rub the ground while mowing or transporting (Fig.6).
. 3)
1
3
2
3
Fig. 3 Fig. 4
4
4
Fig. 5
5
Fig. 6
6
OPERATION
7
Cutting height adjustments: (Fig. 7)
The cutting height of the mower adjusts from 1-3/4 - 2-3/4 in. by moving the height adj
To achieve the lowest cutting position, one at a time, move the the adjustment levers on both
smal
ler wheels, up to the highest position.
ustment levers to the required position.
sides, located next to the
To achieve the highest cutting position, move the adjustment levers on both sides to their lowe
Other
cutting heights are achieved by moving the adjustment levers to any stop between the highest and lowest positions.
E: The two adjustment levers MUST
NO
T
be set to the same position (height).
st position.
Height adjustment
Fig. 7
OPERATION
8
Mower blade adjustments: (Fig. 8 and 9)
WARNING: BLADES ARE EXTREMELY SHARP. TO AVOID INJURY, DO NOT TOUCH BLADES WHEN MAKING
ADJUSTMENTS.
Note:
Blades are factory adjusted.
Fig. 8
Loosen upper
lock nut
Misalignment can occur, often caused by blades being too loose or too tight. This can cause an uneven cut
or difficulty pushing the mower.
Each end of the cutting bar is adjusted separately.
To move the blades closer to the cutting bar turn the adjustment nuts clockwise. To move the blades away from the
cutting bar turn the adjustment nuts counterclockwise.
In order to perform this adjustment you must first loosen the upper lock nut located between the front and
re
ar radial wheels.
Cutting bar nuts
Fig. 9
CHECKING THE ADJUSTMENT
1.
Turn mower upside down.
2.
Insert a piece of paper between the cutter bar and the reel blades, and carefully turn the wheel by hand to slowly spin
reel.
the
3. All blades should slice the paper evenly, along the entire length of the cutter bar while the reel turns smoothly.
If the mower has an intermittent cut, make adjustments to the appropriate side to attain proper cutting action.
4.
TWO-YEAR LIMITED WARRANTY
The manufacturer warranties that this product is free from defects in material and workmanship for
two (2) years from the date of the original purchase by the original purchaser only.
THIS WARRANTY IS NOT TRANSFERABLE AND DOES NOT COVER:
Products sold damaged or incomplete, sold “as is”, sold reconditioned or used as rental
equipment.
Delivery, installation or normal adjustments explained in the owner’s manual.
Damage or liability caused by shipping, improper handling, improper installation, incorrect
voltage or improper wiring, improper maintenance, improper modification, or the use of
accessories and/or attachments not specifically recommended.
Repairs necessary because of operator abuse or negligence, or the failure to install, operate,
maintain and store the product according to the instructions in the owner’s manual.
Damage caused by cold, heat, rain, excessive humidity, corrosive environments and materials,
or other contaminants.
Expendable items that become worn during normal use.
Cosmetic defects that do not interfere with tool functionality.
Freight costs from customer to vendor.
Repair and transportation costs of products or parts determined not to be defective.
ANY INCIDENTAL, INDIRECT OR CONSEQUENTIAL LOSS, DAMAGE, OR EXPENSE THAT
MAY RESULT FROM ANY DEFECT, FAILURE OR MALFUNCTION OF THE PRODUCT.
Some states do not allow the exclusion or limitations on how long an implied warranty lasts, so
the above limitations may not apply to you. This warranty gives you specific legal rights, and
you may have other rights that vary from state to state.
WARRANTY REPLACEMENT PARTS are available by calling the toll free number, 1-800-444-6742
8:00 a.m.-6:00 p.m., EST, Monday-Thursday, 8:00 a.m.-5:00 p.m., EST, Friday.
