Conductor Resistance
140 Ω/Km
Capacity Core/Core 56 pF/m
Capacity Core/Shield 340 pF/m
Max Rated Voltage 49V
Operative Temperature -15/+70°C
Cable Properties
USE X Indoor Interno Edificio INSTALLATION X Fixed Fissa INFORMATION X RoHS2 Compliant
Impiego Outdoor Limited Esterno Limitato Posa X Restricted Mobile Mobile Limitata Informazioni X Ver. B / 26.09.24
Outdoor Esterno Mobile Mobile
Outdoor Direct Burial Esterno Interrato Mobile in Drag Chain Mobile in Catena

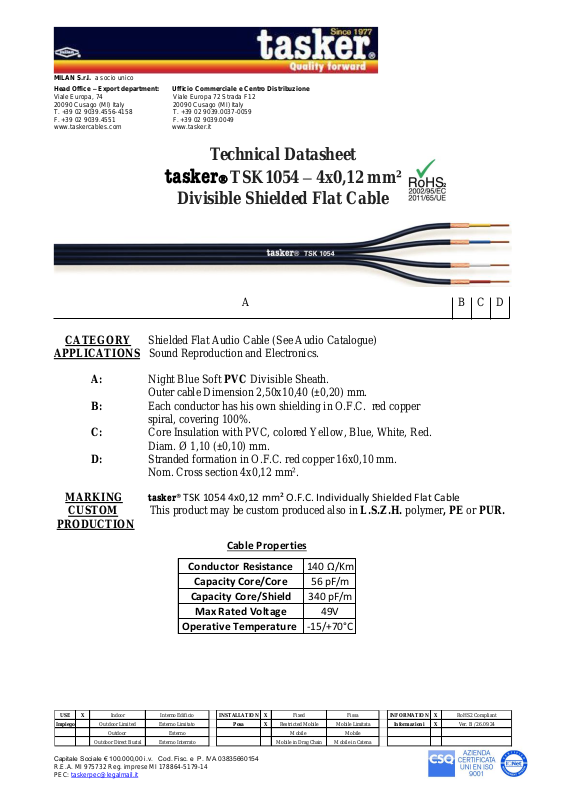

Technical Datasheet
tasker TSK1054 – 4x0,12 mm²
Divisible Shielded Flat Cable
A B C D
CATEGORY Shielded Flat Audio Cable (See Audio Catalogue)
APPLICATIONS Sound Reproduction and Electronics.
A: Night Blue Soft PVC Divisible Sheath.
Outer cable Dimension 2,50x10,40 (±0,20) mm.
B: Each conductor has his own shielding in O.F.C. red copper
spiral, covering 100%.
C: Core Insulation with PVC, colored Yellow, Blue, White, Red.
Diam. Ø 1,10 (±0,10) mm.
D: Stranded formation in O.F.C. red copper 16x0,10 mm.
Nom. Cross section 4x0,12 mm².
MARKING tasker® TSK 1054 4x0,12 mm² O.F.C. Individually Shielded Flat Cable
CUSTOM This product may be custom produced also in L.S.Z.H. polymer, PE or PUR.
PRODUCTION
