MILAN S.r.l. a socio unico
79,15
Ω/Km
Cable Properties
Head Office – Export department: Ufficio Commerciale e Centro Distribuzione
Viale Europa, 74 Viale Europa 72 Strada F12
20090 Cusago (MI) Italy 20090 Cusago (MI) Italy
T. +39 02 9039.4556-4158 T. +39 02 9039.0037-0059
F. +39 02 9039.4551 F. +39 02 9039.0049
www.taskercables.com www.tasker.it

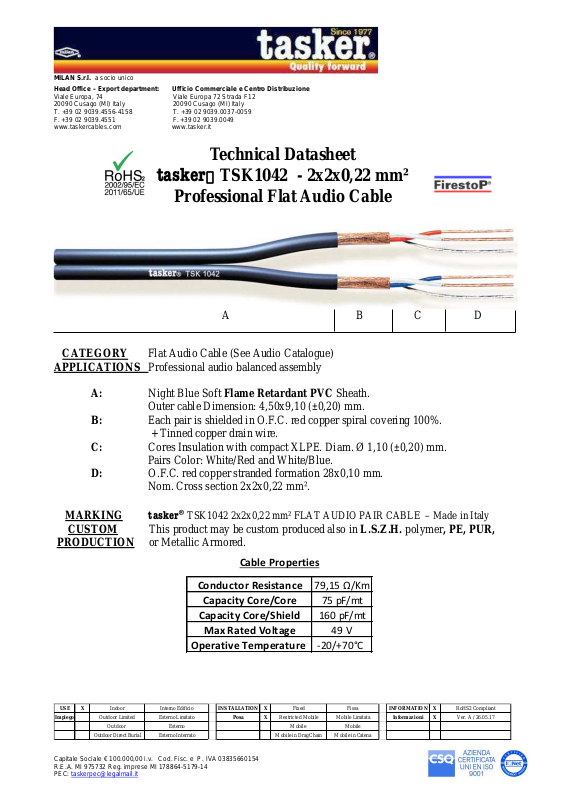

Technical Datasheet
tasker
Professional Flat Audio Cable
TSK1042 - 2x2x0,22 mm²
A B C D
CATEGORY Flat Audio Cable (See Audio Catalogue)
APPLICATIONS Professional audio balanced assembly
A: Night Blue Soft Flame Retardant PVC Sheath.
Outer cable Dimension: 4,50x9,10 (±0,20) mm.
B: Each pair is shielded in O.F.C. red copper spiral covering 100%.
+ Tinned copper drain wire.
C: Cores Insulation with compact XLPE. Diam. Ø 1,10 (±0,20) mm.
Pairs Color: White/Red and White/Blue.
D: O.F.C. red copper stranded formation 28x0,10 mm.
Nom. Cross section 2x2x0,22 mm².
MARKING tasker
CUSTOM This product may be custom produced also in L.S.Z.H. polymer, PE, PUR,
PRODUCTION or Metallic Armored.
®
TSK1042 2x2x0,22 mm² FLAT AUDIO PAIR CABLE – Made in Italy
Conductor Resistance
Capacity Core/Core 75 pF/mt
Capacity Core/Shield 160 pF/mt
Max Rated Voltage 49 V
Operative Temperature -20/+70°C
USE X
Impiego
Capitale Sociale € 100.000,00 i.v. Cod. Fisc. e P. IVA 03835660154
R.E.A. MI 975732 Reg. imprese MI 178864-5179-14
PEC:
Indoor Interno Edificio
Outdoor Limited Esterno Limitato
Outdoor Esterno Mobile Mobile
Outdoor Direct Burial Esterno Interrato Mobile in Drag Chain Mobile in Catena
INSTALLATION X
Posa X
Fixed Fissa
Restricted Mobile Mobile Limitata
INFORMATION X
Informazioni X
RoHS2 Compliant
Ver. A / 26.05.17
