MILAN S.r.l. a socio unico
58,00
Ω/Km
110
Ω
Cable Properties
Head Office – Export department: Ufficio Commerciale e Centro Distribuzione
Viale Europa, 74 Viale Europa 72 Strada F12
20090 Cusago (MI) Italy 20090 Cusago (MI) Italy
T. +39 02 9039.4556-4158 T. +39 02 9039.0037-0059
F. +39 02 9039.4551 F. +39 02 9039.0049
www.taskercables.com www.tasker.it

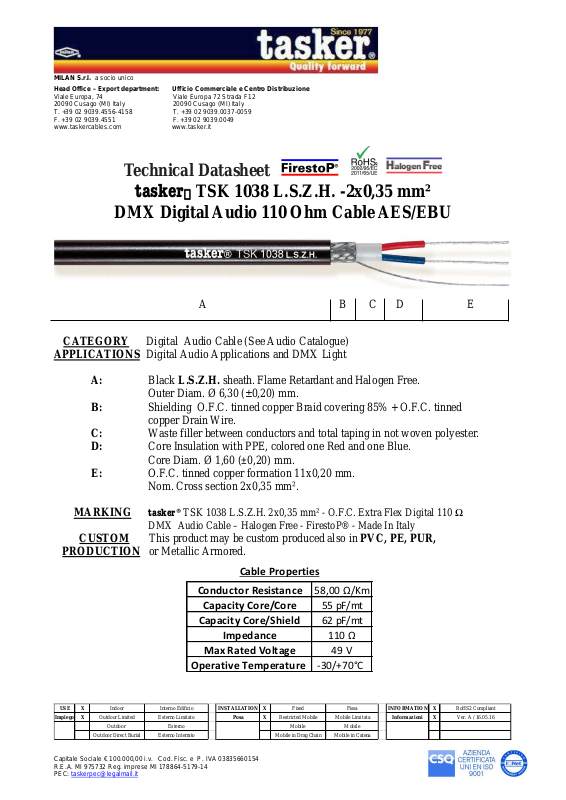

Technical Datasheet
tasker
TSK 1038 L.S.Z.H. -2x0,35 mm²
DMX Digital Audio 110 Ohm Cable AES/EBU
A B C D E
CATEGORY Digital Audio Cable (See Audio Catalogue)
APPLICATIONS Digital Audio Applications and DMX Light
A: Black L.S.Z.H. sheath. Flame Retardant and Halogen Free.
Outer Diam. Ø 6,30 (±0,20) mm.
B: Shielding O.F.C. tinned copper Braid covering 85% + O.F.C. tinned
copper Drain Wire.
C: Waste filler between conductors and total taping in not woven polyester.
D: Core Insulation with PPE, colored one Red and one Blue.
Core Diam. Ø 1,60 (±0,20) mm.
E: O.F.C. tinned copper formation 11x0,20 mm.
Nom. Cross section 2x0,35 mm².
MARKING
DMX Audio Cable – Halogen Free - FirestoP® - Made In Italy
CUSTOM This product may be custom produced also in PVC, PE, PUR,
PRODUCTION or Metallic Armored.
tasker® TSK 1038 L.S.Z.H. 2x0,35 mm² - O.F.C. Extra Flex Digital 110 Ω
Conductor Resistance
Capacity Core/Core 55 pF/mt
Capacity Core/Shield 62 pF/mt
Impedance
Max Rated Voltage 49 V
Operative Temperature -30/+70°C
USE X
Impiego X
Capitale Sociale € 100.000,00 i.v. Cod. Fisc. e P. IVA 03835660154
R.E.A. MI 975732 Reg. imprese MI 178864-5179-14
PEC:
Indoor Interno Edificio
Outdoor Limited Esterno Limitato
Outdoor Esterno Mobile Mobile
Outdoor Direct Burial Esterno Interrato Mobile in Drag Chain Mobile in Catena
INSTALLATION X
Posa X
Fixed Fissa
Restricted Mobile Mobile Limitata
INFORMATION X
Informazioni X
RoHS2 Compliant
Ver. A / 16.05.16
