Conductor Resistance
75,15 Ω/Km
Impedance 100 Ω
Max Rated Voltage 49 V
Operative Temperature -30/+70°C
Cable Properties
USE X Indoor Interno Edificio INSTALLATION X Fixed Fissa INFORMATION X RoHS3 Compliant
Impiego X Outdoor Limited Esterno Limitato Posa X Restricted Mobile Mobile Limitata Informazioni X Ver. B / 16.05.19
Outdoor Esterno Mobile Mobile
Outdoor Direct Burial Esterno Interrato Mobile in Drag Chain Mobile in Catena

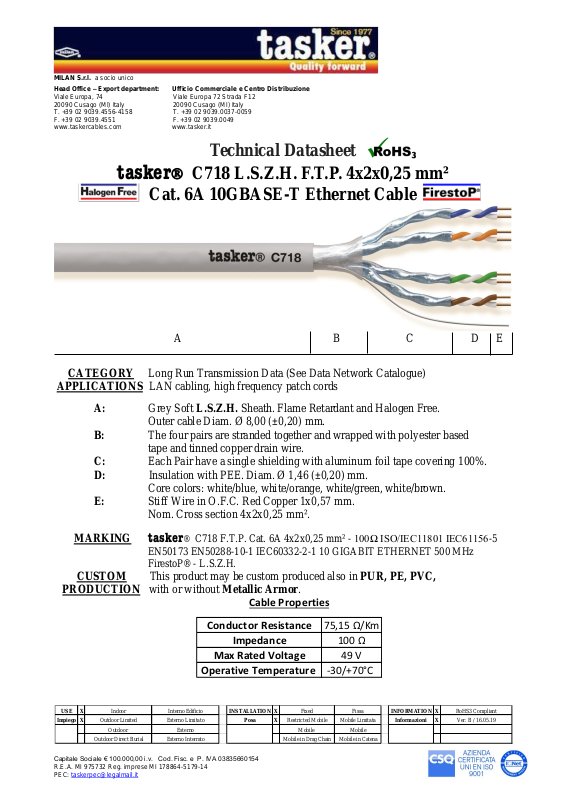

Technical Datasheet
tasker C718 L.S.Z.H. F.T.P. 4x2x0,25 mm²
Cat. 6A 10GBASE-T Ethernet Cable
A B C D E
CATEGORY Long Run Transmission Data (See Data Network Catalogue)
APPLICATIONS LAN cabling, high frequency patch cords
A: Grey Soft L.S.Z.H. Sheath. Flame Retardant and Halogen Free.
Outer cable Diam. Ø 8,00 (±0,20) mm.
B: The four pairs are stranded together and wrapped with polyester based
tape and tinned copper drain wire.
C: Each Pair have a single shielding with aluminum foil tape covering 100%.
D: Insulation with PEE. Diam. Ø 1,46 (±0,20) mm.
Core colors: white/blue, white/orange, white/green, white/brown.
E: Stiff Wire in O.F.C. Red Copper 1x0,57 mm.
Nom. Cross section 4x2x0,25 mm².
MARKING tasker® C718 F.T.P. Cat. 6A 4x2x0,25 mm² - 100Ω ISO/IEC11801 IEC61156-5
EN50173 EN50288-10-1 IEC60332-2-1 10 GIGABIT ETHERNET 500 MHz
FirestoP® - L.S.Z.H.
CUSTOM This product may be custom produced also in PUR, PE, PVC,
PRODUCTION with or without Metallic Armor.
