Conductor Resistance
75,85 Ω/Km
Impedance 100 Ω
Max Rated Voltage 49 V
Min. bending Radius
5x Outer Ø
Operative Temperature -30/+70°C
Cable Properties
USE X Indoor Interno Edificio INSTALLATION X Fixed Fissa INFORMATION X RoHS3 Compliant
Impiego X Outdoor Limited Esterno Limitato Posa X Restricted Mobile Mobile Limitata Informazioni X Ver. B / 16.04.19
Outdoor Esterno Mobile Mobile
Outdoor Direct Burial Esterno Interrato Mobile in Drag Chain Mobile in Catena

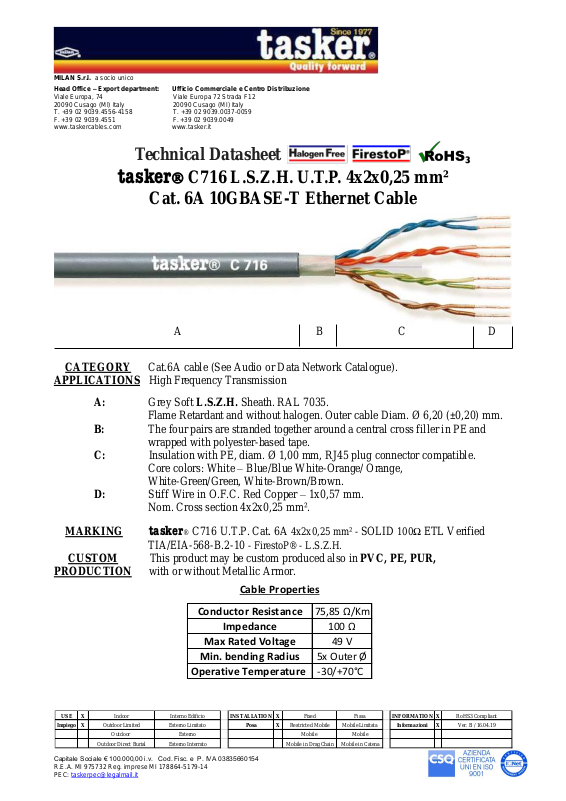

Technical Datasheet
tasker C716 L.S.Z.H. U.T.P. 4x2x0,25 mm²
Cat. 6A 10GBASE-T Ethernet Cable
A B C D
CATEGORY Cat.6A cable (See Audio or Data Network Catalogue).
APPLICATIONS High Frequency Transmission
A: Grey Soft L.S.Z.H. Sheath. RAL 7035.
Flame Retardant and without halogen. Outer cable Diam. Ø 6,20 (±0,20) mm.
B: The four pairs are stranded together around a central cross filler in PE and
wrapped with polyester-based tape.
C: Insulation with PE, diam. Ø 1,00 mm, RJ45 plug connector compatible.
Core colors: White – Blue/Blue White-Orange/ Orange,
White-Green/Green, White-Brown/Brown.
D: Stiff Wire in O.F.C. Red Copper – 1x0,57 mm.
Nom. Cross section 4x2x0,25 mm².
MARKING tasker® C716 U.T.P. Cat. 6A 4x2x0,25 mm² - SOLID 100Ω ETL Verified
TIA/EIA-568-B.2-10 - FirestoP® - L.S.Z.H.
CUSTOM This product may be custom produced also in PVC, PE, PUR,
PRODUCTION with or without Metallic Armor.
