Conductor Resistance
138 Ω/Km
Impedance 100 Ω
Max Rated Voltage 49 V
Operative Temperature -30/+70°C
Cable Properties
USE X Indoor Interno Edificio INSTALLATION X Fixed Fissa INFORMATION X RoHS2 Compliant
Impiego X Outdoor Limited Esterno Limitato Posa X Restricted Mobile Mobile Limitata Informazioni X Ver. A / 26.05.17
Outdoor Esterno Mobile Mobile
Outdoor Direct Burial Esterno Interrato Mobile in Drag Chain Mobile in Catena

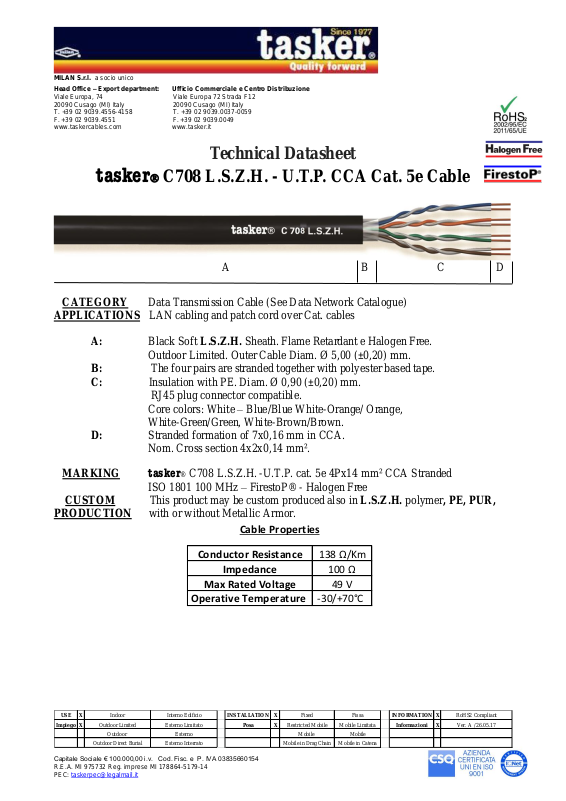

Technical Datasheet
tasker C708 L.S.Z.H. - U.T.P. CCA Cat. 5e Cable
A B C D
CATEGORY Data Transmission Cable (See Data Network Catalogue)
APPLICATIONS LAN cabling and patch cord over Cat. cables
A: Black Soft L.S.Z.H. Sheath. Flame Retardant e Halogen Free.
Outdoor Limited. Outer Cable Diam. Ø 5,00 (±0,20) mm.
B: The four pairs are stranded together with polyester based tape.
C: Insulation with PE. Diam. Ø 0,90 (±0,20) mm.
RJ45 plug connector compatible.
Core colors: White – Blue/Blue White-Orange/ Orange,
White-Green/Green, White-Brown/Brown.
D: Stranded formation of 7x0,16 mm in CCA.
Nom. Cross section 4x2x0,14 mm².
MARKING tasker® C708 L.S.Z.H. -U.T.P. cat. 5e 4Px14 mm² CCA Stranded
ISO 1801 100 MHz – FirestoP® - Halogen Free
CUSTOM This product may be custom produced also in L.S.Z.H. polymer, PE, PUR,
PRODUCTION with or without Metallic Armor.
