Page 1
MILAN S.r.l. a socio unico
79,15
Ω/Km
Cable Properties
Head Office – Export department: Ufficio Commerciale e Centro Distribuzione
Viale Europa, 74 Viale Europa 72 Strada F12
20090 Cusago (MI) Italy 20090 Cusago (MI) Italy
T. +39 02 9039.4556-4158 T. +39 02 9039.0037-0059
F. +39 02 9039.4551 F. +39 02 9039.0049
www.taskercables.com www.tasker.it
tasker
Technical Datasheet

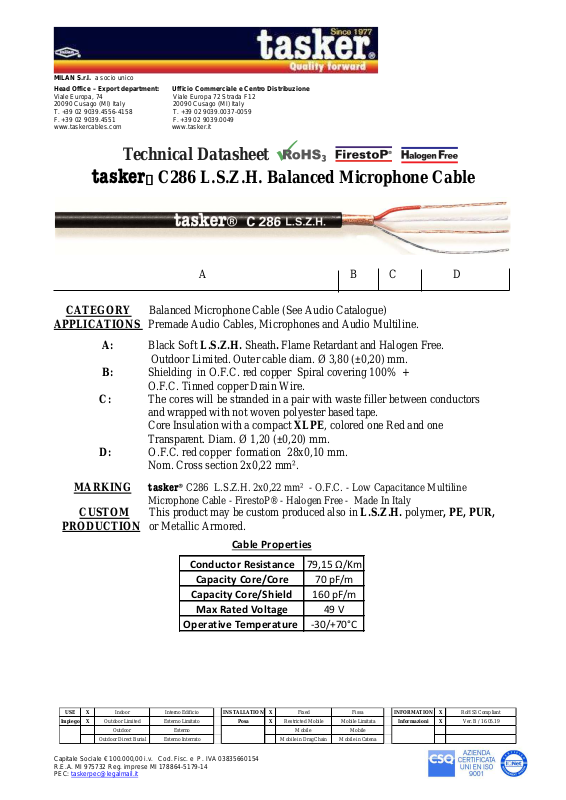

C286 L.S.Z.H. Balanced Microphone Cable
A B C D
CATEGORY Balanced Microphone Cable (See Audio Catalogue)
APPLICATIONS Premade Audio Cables, Microphones and Audio Multiline.
A: Black Soft L.S.Z.H. Sheath. Flame Retardant and Halogen Free.
Outdoor Limited. Outer cable diam. Ø 3,80 (±0,20) mm.
B: Shielding in O.F.C. red copper Spiral covering 100% +
O.F.C. Tinned copper Drain Wire.
C: The cores will be stranded in a pair with waste filler between conductors
and wrapped with not woven polyester based tape.
Core Insulation with a compact XLPE, colored one Red and one
Transparent. Diam. Ø 1,20 (±0,20) mm.
D: O.F.C. red copper formation 28x0,10 mm.
Nom. Cross section 2x0,22 mm².
MARKING tasker
Microphone Cable - FirestoP® - Halogen Free - Made In Italy
® C286 L.S.Z.H. 2x0,22 mm² - O.F.C. - Low Capacitance Multiline
CUSTOM This product may be custom produced also in L.S.Z.H. polymer, PE, PUR,
PRODUCTION or Metallic Armored.
Conductor Resistance
Capacity Core/Core 70 pF/m
Capacity Core/Shield 160 pF/m
Max Rated Voltage 49 V
Operative Temperature -30/+70°C
USE X
Impiego X
Capitale Sociale € 100.000,00 i.v. Cod. Fisc. e P. IVA 03835660154
R.E.A. MI 975732 Reg. imprese MI 178864-5179-14
PEC:
Indoor Interno Edificio
Outdoor Limited Esterno Limitato
Outdoor Esterno Mobile Mobile
Outdoor Direct Burial Esterno Interrato Mobile in Drag Chain Mobile in Catena
INSTALLATION X
Posa X
Fixed Fissa
Restricted Mobile Mobile Limitata
INFORMATION X
Informazioni X
RoHS3 Compliant
Ver. B / 16.05.19
