Technical Datasheet
tasker

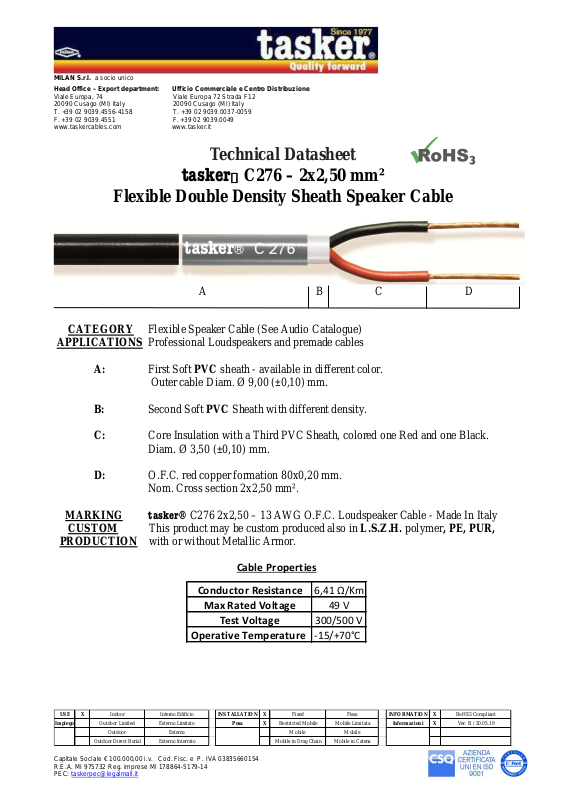

C276 – 2x2,50 mm²
Flexible Double Density Sheath Speaker Cable
A B C D
CATEGORY Flexible Speaker Cable (See Audio Catalogue)
APPLICATIONS Professional Loudspeakers and premade cables
A: First Soft PVC sheath - available in different color.
Outer cable Diam. Ø 9,00 (±0,10) mm.
B: Second Soft PVC Sheath with different density.
C: Core Insulation with a Third PVC Sheath, colored one Red and one Black.
Diam. Ø 3,50 (±0,10) mm.
D: O.F.C. red copper formation 80x0,20 mm.
Nom. Cross section 2x2,50 mm².
MARKING tasker® C276 2x2,50 – 13 AWG O.F.C. Loudspeaker Cable - Made In Italy
CUSTOM This product may be custom produced also in L.S.Z.H. polymer, PE, PUR,
PRODUCTION with or without Metallic Armor.
Conductor Resistance
Max Rated Voltage 49 V
Test Voltage 300/500 V
Operative Temperature -15/+70°C
USE X
Impiego
Capitale Sociale € 100.000,00 i.v. Cod. Fisc. e P. IVA 03835660154
R.E.A. MI 975732 Reg. imprese MI 178864-5179-14
PEC:
Indoor Interno Edificio
Outdoor Limited Esterno Limitato
Outdoor Esterno Mobile Mobile
Outdoor Direct Burial Esterno Interrato Mobile in Drag Chain Mobile in Catena
INSTALLATION X
Posa X
Fixed Fissa
Restricted Mobile Mobile Limitata
INFORMATION X
Informazioni X
RoHS3 Compliant
