MILAN S.r.l. a socio unico
58
Ω/Km
Cable Properties
Head Office – Export department: Ufficio Commerciale e Centro Distribuzione
Viale Europa, 74 Viale Europa 72 Strada F12
20090 Cusago (MI) Italy 20090 Cusago (MI) Italy
T. +39 02 9039.4556-4158 T. +39 02 9039.0037-0059
F. +39 02 9039.4551 F. +39 02 9039.0049
www.taskercables.com www.tasker.it
tasker

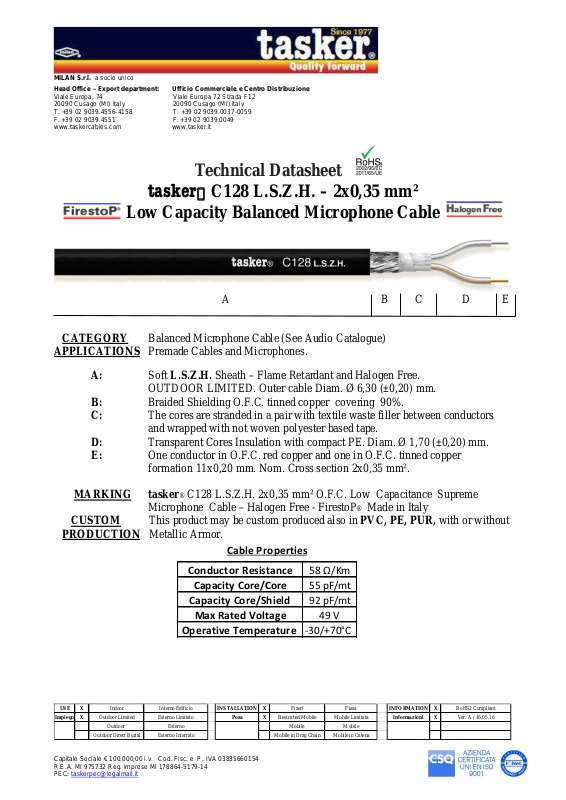

Technical Datasheet
C128 L.S.Z.H. – 2x0,35 mm²
Low Capacity Balanced Microphone Cable
A B C D E
CATEGORY Balanced Microphone Cable (See Audio Catalogue)
APPLICATIONS Premade Cables and Microphones.
A: Soft L.S.Z.H. Sheath – Flame Retardant and Halogen Free.
OUTDOOR LIMITED. Outer cable Diam. Ø 6,30 (±0,20) mm.
B: Braided Shielding O.F.C. tinned copper covering 90%.
C: The cores are stranded in a pair with textile waste filler between conductors
and wrapped with not woven polyester based tape.
D: Transparent Cores Insulation with compact PE. Diam. Ø 1,70 (±0,20) mm.
E: One conductor in O.F.C. red copper and one in O.F.C. tinned copper
formation 11x0,20 mm. Nom. Cross section 2x0,35 mm².
MARKING tasker® C128 L.S.Z.H. 2x0,35 mm² O.F.C. Low Capacitance Supreme
Microphone Cable – Halogen Free - FirestoP® Made in Italy
CUSTOM This product may be custom produced also in PVC, PE, PUR, with or without
PRODUCTION Metallic Armor.
Conductor Resistance
Capacity Core/Core 55 pF/mt
Capacity Core/Shield 92 pF/mt
Max Rated Voltage 49 V
Operative Temperature -30/+70°C
USE X
Impiego X
Indoor Interno Edificio
Outdoor Limited Esterno Limitato
Outdoor Esterno Mobile Mobile
Outdoor Direct Burial Esterno Interrato Mobile in Drag Chain Mobile in Catena
INSTALLATION X
Posa X
Restricted Mobile Mobile Limitata
Fixed Fissa
INFORMATION X
Informazioni X
RoHS2 Compliant
Ver. A / 16.05.16
