Page 1
MILAN S.r.l. a socio unico
75
Ω/Km
Cable Properties
Head Office – Export department: Ufficio Commerciale e Centro Distribuzione
Viale Europa, 74 Viale Europa 72 Strada F12
20090 Cusago (MI) Italy 20090 Cusago (MI) Italy
T. +39 02 9039.4556-4158 T. +39 02 9039.0037-0059
F. +39 02 9039.4551 F. +39 02 9039.0049
www.taskercables.com www.tasker.it
tasker

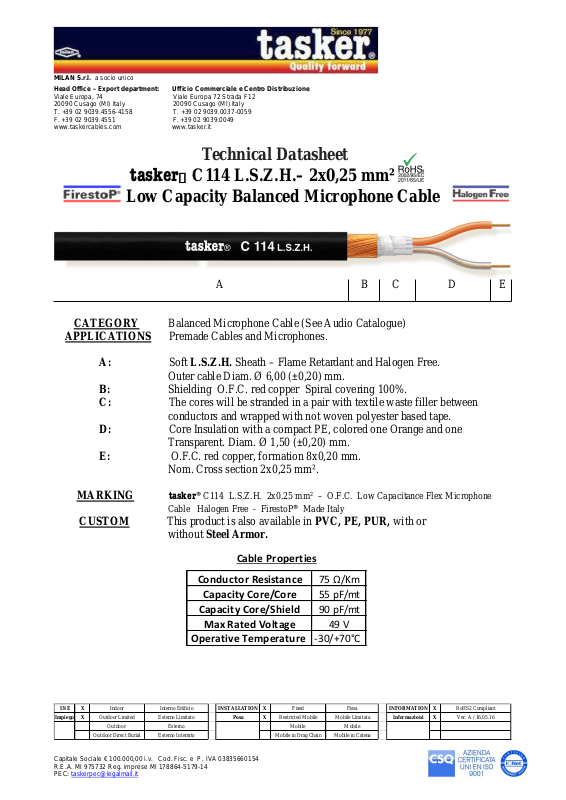

Technical Datasheet
C114 L.S.Z.H.– 2x0,25 mm²
Low Capacity Balanced Microphone Cable
A B C D E
CATEGORY Balanced Microphone Cable (See Audio Catalogue)
APPLICATIONS Premade Cables and Microphones.
A: Soft L.S.Z.H. Sheath – Flame Retardant and Halogen Free.
Outer cable Diam. Ø 6,00 (±0,20) mm.
B: Shielding O.F.C. red copper Spiral covering 100%.
C: The cores will be stranded in a pair with textile waste filler between
conductors and wrapped with not woven polyester based tape.
D: Core Insulation with a compact PE, colored one Orange and one
Transparent. Diam. Ø 1,50 (±0,20) mm.
E: O.F.C. red copper, formation 8x0,20 mm.
Nom. Cross section 2x0,25 mm².
MARKING
Cable Halogen Free - FirestoP® Made Italy
CUSTOM This product is also available in PVC, PE, PUR, with or
without Steel Armor.
USE X
Impiego X
Indoor Interno Edificio
Outdoor Limited Esterno Limitato
Outdoor Esterno Mobile Mobile
Outdoor Direct Burial Esterno Interrato Mobile in Drag Chain Mobile in Catena
tasker®
C114 L.S.Z.H. 2x0.25 mm² – O.F.C. Low Capacitance Flex Microphone
Conductor Resistance
Capacity Core/Core 55 pF/mt
Capacity Core/Shield 90 pF/mt
Max Rated Voltage 49 V
Operative Temperature -30/+70°C
INSTALLATION X
Posa X
Fixed Fissa
Restricted Mobile Mobile Limitata
INFORMATION X
Informazioni X
RoHS2 Compliant
Ver. A / 16.05.16
Capitale Sociale € 100.000,00 i.v. Cod. Fisc. e P. IVA 03835660154
R.E.A. MI 975732 Reg. imprese MI 178864-5179-14
PEC:
