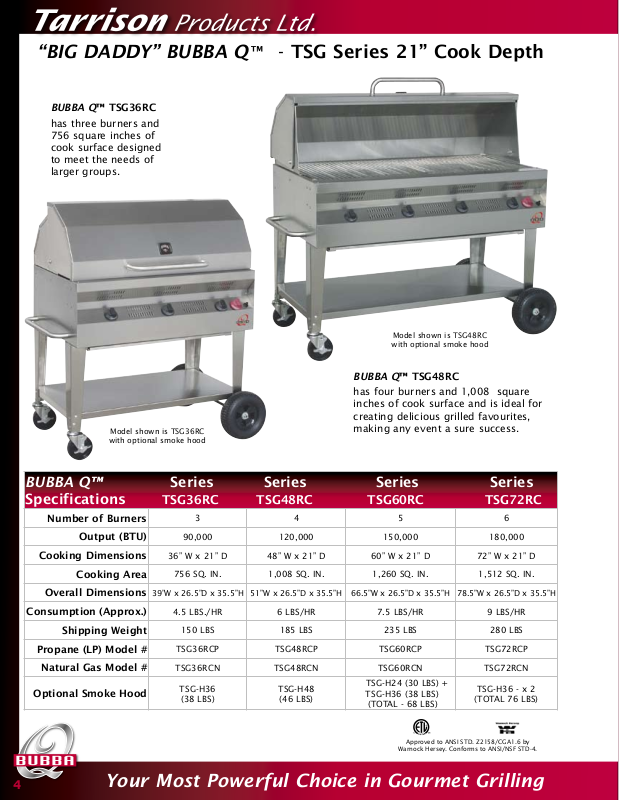

Tarrison TSG-H24 User Manual
Commercial Outdoor Cooking Equipment
“BIG DADDY” BUBBA Q™ - TSG Series 21” Cook Depth
BUBBA Q™ TSG36RC
has three burners and
756 square inches of
cook surface designed
to meet the needs of
larger groups.
Model shown is TSG48RC
with optional smoke hood
BUBBA Q™ TSG48RC
has four burners and 1,008 square
inches of cook surface and is ideal for
creating delicious grilled favourites,
Model shown is TSG36RC
with optional smoke hood
making any event a sure success.
BUBBA Q™ Series Series Series Series
Specifications
Number of Burners
Output (BTU)
Cooking Dimensions
Cooking Area
Overall Dimensions
Consumption (Approx.)
TSG36RC TSG48RC TSG60RC TSG72RC
3 4 5 6
90,000 120,000 150,000 180,000
36” W x 21” D 48” W x 21” D 60” W x 21” D 72” W x 21” D
756 SQ. IN. 1,008 SQ. IN. 1,260 SQ. IN. 1,512 SQ. IN.
39”W x 26.5”D x 35.5”H 51”W x 26.5”D x 35.5”H 66.5”W x 26.5”D x 35.5”H 78.5”W x 26.5”D x 35.5”H
4.5 LBS./HR 6 LBS/HR 7.5 LBS/HR 9 LBS/HR
Shipping Weight
Propane (LP) Model #
Natural Gas Model #
Optional Smoke Hood
4
150 LBS 185 LBS 235 LBS 280 LBS
TSG36RCP TSG48RCP TSG60RCP TSG72RCP
TSG36RCN TSG48RCN TSG60RCN TSG72RCN
TSG-H36
(38 LBS)
TSG-H48
(46 LBS)
TSG-H24 (30 LBS) +
TSG-H36 (38 LBS)
(TOTAL - 68 LBS)
Approved to ANSI STD. Z2158/CGA1.6 by
Warnock Hersey. Conforms to ANSI/NSF STD-4.
TSG-H36 - x 2
(TOTAL 76 LBS)
Your Most Powerful Choice in Gourmet Grilling
